Long-term ecology resolves the timing, region of origin and process of establishment for a disputed alien tree

Alien plants are a pervasive environmental problem, particularly on islands where they can rapidly transform unique indigenous ecosystems. However, often it is difficult to confidently determine if a species is native or alien, especially if establishment occurred before historical records. This can present a management challenge: for example, should such taxa be eradicated or left alone until their region of origin and status is clarified? In this paper we show how combining palaeoecological and historical records can help resolve such dilemmas, using the tree daisy Olearia lyallii on the remote New Zealand subantarctic Auckland Islands as a case study.

Abstract

Alien plants are a pervasive environmental problem, particularly on islands where they can rapidly transform unique indigenous ecosystems. However, often it is difficult to confidently determine whether a species is native or alien, especially if establishment occurred before historical records. This can present a management challenge: for example, should such taxa be eradicated or left alone until their region of origin and status are clarified? Here we show how combining palaeoecological and historical records can help resolve such dilemmas, using the tree daisy Olearia lyallii on the remote New Zealand subantarctic Auckland Islands as a case study. The status of this tree as native or introduced has remained uncertain for the 175 years since it was first discovered on the Auckland Islands, and its appropriate management is debated. Elsewhere, O. lyallii has a highly restricted distribution on small sea bird-rich islands within a 2° latitudinal band south of mainland New Zealand. Analysis of palaeoecological and historical records from the Auckland Islands suggest that O. lyallii established there c. 1807 when these islands were first exploited by European sealers. Establishment was facilitated by anthropogenic burning and clearing and its subsequent spread has been slow, limited in distribution and probably human-assisted. Olearia lyallii has succeeded mostly in highly disturbed sites which are also nutrient enriched from nesting sea birds, seals and sea spray. This marine subsidy has fuelled the rapid growth of O. lyallii and allowed this tree to be competitive against the maritime communities it has replaced. Although endemic to the New Zealand region, our evidence suggests that O. lyallii is alien to the Auckland Islands. Although such ‘native’ aliens can pose unique management challenges on islands, in this instance we suggest that ongoing monitoring with no control is an appropriate management action, as O. lyallii appears to pose minimal risk to ecological integrity.

Introduction

Alien plant species can pose a major threat to indigenous species, habitats and ecosystem function on islands, particularly if they become invasive (Vitousek 1988; Whittaker and Fernández-Palacios 2007). Although eradication or control is the common conservation response to invasive taxa (Simberloff et al. 2013), this requires a confident assessment that the targeted species is in fact alien. However, exactly what circumstances make a plant ‘alien’, let alone ‘invasive’ is unclear. Webb (1985) defines ‘native’ as a plant that has either evolved in a given place, or arrived at that place ‘entirely independently of human activity’. This definition is somewhat problematical, because a plant that can disperse long distances and arrive on an island without human assistance will be classified as a ‘native’, whereas another plant introduced by humans to the same place will be classified as ‘alien’. Both may be equivalent in terms of their ecological impact on that island. This can make it difficult to know how to manage the human-assisted movement and naturalization of plant species away from their natural biogeographic range, either between islands, or within larger islands, in an archipelago. For example, in New Zealand, there has been a tendency to regard any plant that is native within the archipelago to be native throughout, which defines the flora on the basis of political boundaries rather than biogeography. More recently, plants native to the New Zealand archipelago but growing out of their natural range are increasingly recognized as undesirable aliens that require control in conservation planning (e.g. Sawyer et al. 2003; DOC 2008).

Problems arise with regard to the practical application of the twin criteria (unaided movement and natural range) for native status in the face of climate change, and the biogeographic reality that many plants could have had a much larger ‘natural’ range before long-past events, such as the Last Glacial Maximum. Definitions that link alien status to anthropogenic dispersal can create conflicts for active management and global change mitigation strategies. The ‘Projected Dispersal Envelope’ concept of Webber and Scott (2012) argues for a definition that is based instead on the potential limit of a species, the distribution margin being determined by (i) the natural mechanisms that could move the dispersal unit the furthest distance within its native range and (ii) the time period regarded as relevant (e.g. post-glacial). Thus, if movement by natural mechanisms within the given time period is deemed impossible, then the organism is regarded as an alien within its new location. Another issue to consider is the ecological impact of the alien on its new range (Davis et al. 2011). In natural ecosystems, the problem with alien plant invasions is usually replacement, exclusion or suppression of native plants and detrimental changes to ecosystem function. However, where the alien is closely related to the species or even genotypes in the host area (as is often the case in interachipelago invasions), hybridization or genetic pollution is seen as the major threat (Godley 1972; Petit 2004).

In many cases, the region of origin for an alien species is clear, but often there is scope for confusion (Willis and Birks 2006). Palaeoecological records are increasingly recognized as a way to help determine a species’ region of origin and native/alien status with more confidence, by reconstructing the history of taxa over longer timescales than is possible through direct observations alone (Gillson et al. 2008). This approach works particularly well when fossil evidence for a species is morphologically unique, and species-specific baselines can be reconstructed with confidence (van Leeuwen et al. 2005). For example, pollen and macrofossil records have helped to resolve uncertainty around the native/alien status of numerous taxa on islands (e.g. van Leeuwen et al. 2005, 2008; Connor et al. 2012; Schofield et al. 2013).

Well-dated, long-term and high-temporal resolution reconstructions of former vegetation composition can also show how, and under what ecological and environmental conditions, a species manages to invade and establish, and can determine the subsequent speed and spatial extent of spread (Gillson et al. 2008). The entire process of establishment and expansion can be documented through to the present, and then integrated with botanical or historical observations to develop a rich temporal and spatial perspective on an invasion, providing valuable insights for management practice and policy. We use this approach here to address the controversial status of a tree daisy Olearia lyallii (Asteraceae) on the Auckland Islands, a subantarctic island group in the New Zealand archipelago (Fig. 1). This tree is endemic to the New Zealand flora, but its origin and appropriate management on the Auckland Islands remains uncertain (Campbell and Rudge 1976; Lee et al. 1991; DOC 1998). By integrating palaeoecological records with historical evidence (written and photographic) and previous ecological investigations, we establish the history of O. lyallii arrival, establishment and subsequent spread on these islands. We also address the unresolved status of O. lyallii on the Auckland Islands according to the Projected Dispersal Envelope concept of Webber and Scott (2012) and determine whether its history and ecological role suggests that it poses a threat to the ecological integrity of the Auckland Island ecosystems.

Figure 1.

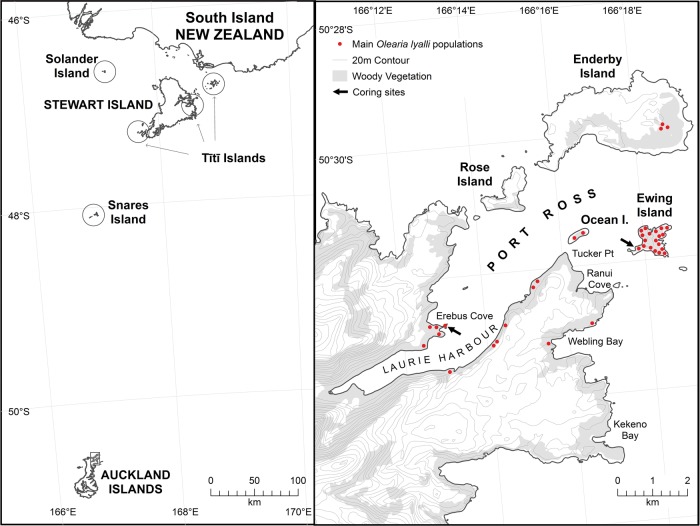

Map (left) showing the location of subantarctic Auckland Islands in relation to the South Island of New Zealand, and islands (circled) where O. lyallii currently occurs in New Zealand, and (right) the main O. lyallii populations on the north-eastern Auckland Islands (boxed area enlarged from map on left).

Background of O. lyallii on the Auckland Islands

The remote, uninhabited Auckland Islands (50.5°S) are afforded the highest level of protection status by the New Zealand Department of Conservation (DOC 1998). Olearia lyallii has a highly restricted distribution on small islands and adjacent coastal habitat in the northernmost Port Ross region of the Auckland Islands (Fig. 1). This includes all but the central parts of Ewing Island, where O. lyallii is thought to have initially established (Godley 1965), and at the short-lived Enderby Settlement site in Erebus Cove (Fig. 1) on the main Auckland Island, where canopy heights can reach 10 m. Elsewhere, there are isolated stands of a few trees or saplings scattered down the eastern side of Port Ross, Webling Bay and on Enderby and Ocean Island (Lee et al. 1991). A single tree has been recorded from Adams Island, the southernmost island of the Auckland Island archipelago, but has since been removed (Walls 2009). Lee et al. (1991), in their survey along the Laurie Harbour coastline, recorded ∼50 O. lyallii trees at nine sites. These scattered stands can be distinguished by their distinctive pale silvery foliage in Google Earth satellite imagery [see Supporting Information—Figs S1 and S2].

Elsewhere in the New Zealand region O. lyallii is confined to islands in a narrow 2° latitudinal belt, including the Snares Islands ∼270 km north of the Auckland Islands; coastal patches on Stewart Island; and on the Tītī and Solander Islands which are scattered around the coast of Stewart Island, ∼440 km to the north of the Auckland Islands (Fig. 1). Generally, O. lyallii dominated forests form dense, tangled and darkly shaded stands that suppress many lower-statured and light-demanding species leaving the sub-canopy almost devoid of any other plant species (Fig. 2). The tree has thick coriaceous leaves, is fast growing, nutrient demanding, flowers in profusion, is insect-pollinated and the seeds are wind-dispersed (Lee et al. 1991).

Figure 2.

Photo (taken in 2013) of O. lyallii forest on the south west coast of Ewing Island, showing typically dense, tangled and shaded understory, with a ground cover of bare peat and ferns Asplenium obtusatum and Blechnum durum.

The status of O. lyallii on the Auckland Islands has been controversial since its discovery on Ewing Island off the main Auckland Islands in 1840 (Hooker 1844). It was first thought to be a remnant of a once more widely distributed forest (Hooker 1844; Cockayne 1909), but a more recent view is that it is an alien translocated in historic times from islands to the north (Godley 1965; Campbell and Rudge 1976). Campbell and Rudge (1976) saw O. lyallii as a threat to the native Auckland Island vegetation and argued for its control. In contrast, Lee et al. (1991) suggested that O. lyallii was causing minimal ecological impact and that regardless of how it arrived on the Auckland Islands, the tree was well within its natural dispersal limits and would have established on the islands eventually. On these grounds Lee et al. (1991) considered O. lyallii an acceptable biogeographic addition to the Auckland Island flora. The Department of Conservation's (DOC) management strategy (DOC 1998) for O. lyallii is cautious because of its unresolved native status. However, it is recognized that without any control, the current distribution of O. lyallii is likely to continue spreading slowly into, and reducing the area of, the maritime tussock–scrub–herbfield community that lies between the shore and the Metrosideros forest, particularly on the leeward side of the island (Lee et al. 1991). Department of Conservation's management strategy (DOC 1998) is for minimal control, but accompanied by monitoring of its distribution.

The Auckland Islands are well-suited to palaeoecological research. The islands are completely covered with thick (up to 12 m) organic peat deposits which have developed under a regime of high rainfall (2000 mm year⁻¹) and a cool, cloudy and humid climate (McGlone 2002). Pollen and spores are well-preserved in the peats and allow detailed high-resolution vegetation reconstructions (McGlone et al. 2000; McGlone 2002), and current vegetation communities and species well-characterized by the modern pollen spectra (McGlone and Moar 1997).

The Auckland Islands are also well-documented from an historical point of view, with published observations of O. lyallii from 1840 onwards providing a chronological description of its habitat, stature and distribution (Hooker 1844; Cockayne 1909; Godley 1965; Campbell and Rudge 1976; Lee et al. 1991). The Auckland Islands were initially discovered by Polynesian voyagers in the 13th century, which is evidenced by earth ovens, shell and bone middens, stone flakes and scrapers and charcoal preserved in the sand dunes on Enderby Island (Fig. 1) (Anderson 2005). However, these early visitors did not settle on the islands permanently or leave any trace of their presence in the palaeo-vegetation or charcoal records (McGlone et al. 2000; Anderson 2005). Rediscovery of the islands by Europeans in 1806 marked the beginning of a short but intense period of disturbance and exploitation including: sealing and whaling from 1807; burning and small clearances, especially at Erebus Cove (Fig. 1) for the Enderby Settlement of 300 people between 1850 and 1852 and subsequent sheep grazing between 1874 and 1877 (Dingwall 2009); six major shipwrecks between 1833 and 1907 (Egerton et al. 2009); the introduction of alien mammals (pigs, cattle, rabbits, cats, mice, sheep, dogs and goats—of which only cats, pigs and mice now remain on the main Auckland Island); and the introduction of 37 plant species most of which are short-statured herbs and grasses of little threat to ecosystems or ecological processes (DOC 1998). The last ecological investigation of O. lyallii distribution and rate of spread was carried out in 1982, and predictions made of its likely trajectory (Lee et al. 1991).

The flora of the Auckland Islands is well-described (Cockayne 1909; Johnson and Campbell 1975). In the Port Ross region (Fig. 1), Metrosideros umbellata (Myrtaceae) forms a low forest with canopy heights ranging from 6 to 14 m where it is not exposed to strong winds or poor drainage [see Supporting Information—Fig. S2]. The small trees Raukaua simplex, Myrsine divaricata, Dracophyllum longifolium and Coprosma foetidissima are subdominant throughout the Metrosideros forest, reaching the canopy in tree-fall gaps, clearances or slips. They also occur on exposed coastal areas or in the upper forest-grassland ecotone. On coasts exposed to strong wind and salt spray, a maritime community of shrubland-grassland forms, including woody species: Veronica elliptica, D. longifolium and Coprosma spp.; graminoids: Poa litorosa, P. foliosa and Carex appressa; and ferns: Polystichum vestitum and Asplenium obtusatum. Where introduced pigs cannot get access, large-leaved forbs such as Stilbocarpa polaris and Anistome latifolia are prominent. Metrosideros forest is stunted or absent from the windward areas of Enderby Island and confined to the centre of Rose Island, Ocean Island and Ewing Island (Fig. 1).

Methods

Coring

We collected three peat cores from the Port Ross area, one from Ewing Island and two from Erebus Cove [see Supporting Information—Figs S1 and S2]. We used a hand-operated D-section corer to collect the Ewing Island core in 2013, which was taken from the southern end of the island to a maximum depth of sediment at 1.65 m (50°31′50.17″S; 166°17′50.43″E). The core site (Fig. 1) was under a mature monotypic coastal forest of O. lyallii, ∼2 m above sea level and ∼10 m from one of the few protected boat landings on the island.

At Erebus Cove, two short peat cores were collected in 2008 by digging pits and pushing a half-drainpipe into the wall of the peat sections. One of these Erebus Cove cores, labelled ‘coastal Erebus Cove’ (51 cm deep), was collected ∼5 m from the shoreline under a forest co-dominated by mature O. lyallii and M. umbellata trees ∼2 m above sea level (50°32′45.76″S; 166°12′55.22″E). This coring site is adjacent to the Enderby Settlement flagstaff (later replaced with a signal mast), which can be seen in many early historic photos and paintings of Erebus Cove (e.g. Figs 3 and 4).

Figure 3.

Painting by Charles Enderby, 1850–52, showing the clearing at Erebus Cove, the extent of the Enderby Settlement building, and the approximate locations of our coastal (c) and inland (i) core sites at Erebus Cove. The settlement flagstaff (later replaced with a signal mast) can be seen to the right of the red flowering Metrosideros tree and also marks the location of the coastal core site. The distinctive outcrop of Mt Eden can be seen on the hills to the south in the background. McNulty, Dorothy (Mrs), fl 1961. [Enderby, Charles] 1797–1876. Attributed works. :[Port Ross, Auckland Islands, Between 1850 and 1852?]. Ref: A-093-008. Alexander Turnbull Library, Wellington, New Zealand. http://natlib.govt.nz/records/23243247.

Figure 4.

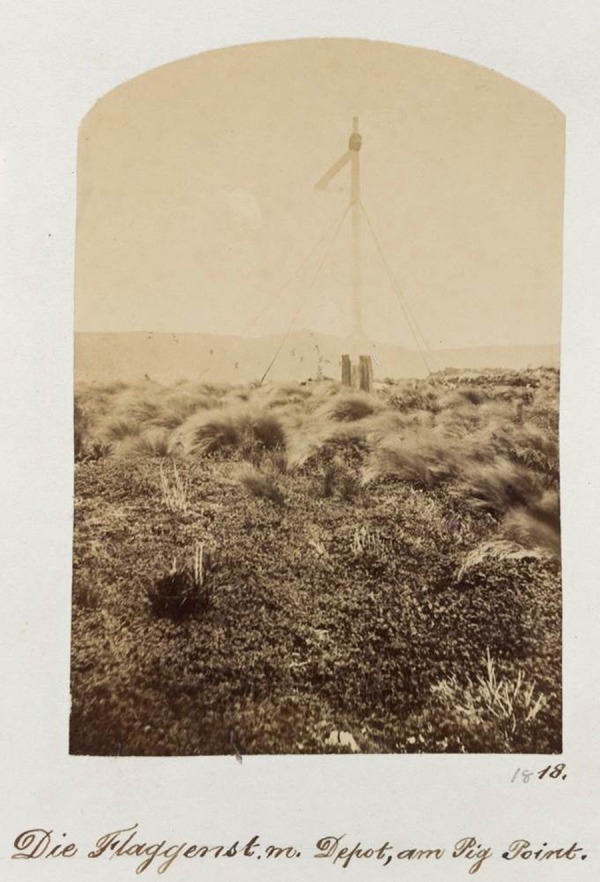

Historic photograph of Erebus Cove taken by G. Wolfram in 1874, showing the former site (abandoned and dismantled) of the Enderby Settlement; the signal mast (the same one shown in Fig. 3) that replaced the Enderby Settlement flagstaff; and the tussock grasses which were grazed by Monckton's sheep between 1874 and 1877. An abundant patch of herbaceous Acaena can be seen in the foreground, and the Mt Eden outcrop on the hills in the background (between the supporting wires on the left). Photo one of many taken by G. Wolfram in 1874, courtesy of State Library of Victoria, Melbourne (H86.2/9).

The second Erebus Cove core, labelled ‘inland Erebus Cove’ (53 cm deep), was taken from under M. umbellata forest canopy with a Dracophyllum, R. simplex and Coprosma understory. The site was ∼500 m inland from the coastal O. lyallii site (50°32′48.94″S; 166°12′46.09″E). The approximate locations of both Erebus Cove cores are marked on a historic painting from 1850 of the Enderby Settlement (Fig. 3).

All cores comprised coarse, fibrous, poorly humified, highly organic, red-brown peat. The cores were wrapped in the field, and sub-sampled in a clean laboratory environment. We sampled for pollen and charcoal to a depth of 100 cm in the Ewing Island core, and to the base of the Erebus Cove cores.

Microscopic pollen and charcoal analyses

We used standard treatments of highly organic peats (KOH, acetolysis, and filtering through a 100 µm mesh sieve) to prepare microscopic pollen slides (Moore et al. 1991). We counted pollen and spores on each slide until we had recorded at least 250 grains from terrestrial plants (the pollen sum) from which percentages were calculated. We have used the recommended nomenclature for New Zealand pollen taxonomic groups (Moar et al. 2011). Statistical differences in composition between pollen zones were estimated with a non-parametric permutational multivariate analysis of variance (PERMANOVA) (Anderson 2001) using adonis in the vegan library with default settings, Bray's distance measure, and 9999 permutations. We log-transformed the pollen data while preserving zero values following (McCune et al. 2002). Results were compared with those using analyses of multivariate abundance using the function many.lm in the R library mvabund (Wang et al. 2012).

For the Ewing Island core we reconstructed local fire history following standard charcoal-analysis procedures (Whitlock and Larsen 2001), counting all charcoal particles present in a 1 mL sample that were retained on nested sieves of 125 and 250-µm mesh size. For the Erebus Cove cores, we counted microscopic charcoal particles on the pollen slides (Clark 1982), which we expressed as a percentage of the total number of pollen grains counted. Although we have used two different techniques to record charcoal presence in the Ewing Island and Erebus Cove cores, our work from subantarctic Campbell Island has shown that microscopic and macroscopic charcoal records are highly correlated (McGlone et al. 2007).

Pollen identification

Pollen analysis of surface samples taken under different vegetation types on the Auckland Island show that broad communities can be distinguished by characteristic pollen taxa (McGlone and Moar 1997). Olearia lyallii is closely related to three Asteraceae herb species in the Pleurophyllum genera found on the Auckland Islands. While O. lyallii pollen can easily be distinguished from P. speciosum, it cannot always be reliably distinguished from P. hookeri type (including P. hookeri and P. criniferum) (Moar et al. 2011) [see Supporting Information—Fig. S3]. However, on the Auckland Islands P. hookeri is rarely found at sea level, is only common above 450 m in mountain tundra communities where is rarely exceeds 5 % of the pollen sum; and P. criniferum, although found in maritime communities, rarely makes up >0.5 % of the pollen sum. We use these modern abundances as a guide to provide a level of confidence on the O. lyallii pollen curves, placing a 5 % reference baseline on our pollen diagrams. None of the Pleurophyllum species occurs under a forest canopy, and the palatable P. criniferum is scarce in the presence of pigs, which are common at Erebus Cove. In contrast to Pleurophyllum pollen representation, surface samples taken from under an O. lyallii-dominant forest on the Snares Island and Ewing Island show that O. lyallii pollen makes up 50 and 80 % of the pollen sum, respectively [see Supporting Information—Table S1]. The greater number of flowers and therefore pollen produced by O. lyallii compared with herbaceous Pleurophylum spp. per unit area sampled results in significantly higher pollen percentages under an O. lyallii canopy.

Radiocarbon dating

Peat samples were taken from the cores (1 cm vertical thickness) and submitted for Accelerator Mass Spectrometry (AMS) radiocarbon dating at the Waikato Radiocarbon and Beta Analytic Dating Laboratories (Table 1), with eight dates from the Ewing Island core, and two from each of the Erebus Cove cores. Radiocarbon ages were calibrated using OxCal (Ramsey 2008) using the SHCal13 calibration dataset (Hogg et al. 2013). Modern radiocarbon ages (i.e. post 1950 AD) were calibrated using Calibomb (http://calib.qub.ac.uk/CALIBomb (accessed 2015); using SHCAL 13 and SHZ1-2 bomb extension zone options). We calculated an age-depth model for the Ewing Island core using the P_sequence option in OxCal [see Supporting Information—Table S2 and Fig. S4]. Using Bayes theorem, the algorithms employed possible solutions with a probability that is the product of the prior and likelihood probabilities. The posterior probability densities quantify the most likely age distributions. The OxCal outlier model (A_model= 98.9; A_overall= 99.5) identified one date (BETA-395476) as an outlier that was removed from the model. All calibrated ages are reported here as calendar (cal) years AD (Table 1). We estimated the time for the first appearance of O. lyallii pollen in the coastal Erebus Cove core using linear interpolations between the two calibrated dates from this core [see Supporting Information—Table S3].

Table 1.

Radiocarbon dates from Ewing Island and Erebus Cove peat cores, Auckland Islands. Calibrations based on Southern Hemisphere Calibration Curve (SHCAL13) from Hogg et al. (2013). **Identified as an outlier in age-depth model [see Supporting Information—Fig. S4] and *modern dates on Calibomb (http://calib.qub.ac.uk/CALIBomb).

Core site (and laboratory code)	14C Lab code	Depth (cm)	Conventional C14 age	Dated material	AD calibrated years 1 sigma calibration (with relative area) and most likeliest age with probability highlighted
Ewing Island south, Coastal Olearia (site X13/84)	BETA-395475	10	116.5 ± 0.3	Peat	1959 (0.06)
					1960 (0.02)
					1963 (0.002)
					1988 (0.08)
					1989–91 (0.7)
					1991 (0.09)
					1992 (0.04)
	BETA-400420	25	130 ± 30	Plant remains	1705–21 (0.13)
					1810–37 (0.24)
					1845–66 (0.16)
					1879–1931 (0.46)
					1939–42 (0.01)
	**BETA-395476	33	670 ± 30	Peat	Not calibrated (age inversion)
	BETA-400421	45	290 ± 30	Plant remains	1518–38 (0.16)
					1626–68 (0.81)
					1788–92 (0.03)
	BETA-395477	75	750 ± 30	Peat	1274–1302 (0.82)
					1365–75 (0.18)
	BETA-400422	80	720 ± 30	Plant remains	1286–1312 (0.56)
					1359–80 (0.45)
	BETA-400423	148	3790 ± 30	Peat	BC 2205–2129 (0.73)
					2087–48 (0.27)
	Wk-38432	165	8768 ± 27	Peat	BC 7789–7648 (1)
Auckland Is, Inland Erebus Cove Metrosideros (site X08/22)	*Wk-31424	5	100.3 ± 0.4	Peat	1955 (0.29)
					1955–56 (0.70)
					1956 (0.009)
	Wk-31425	50	275 ± 27	Peat	1635–70 (0.84)
					1749–52 (0.03)
					1784–94 (0.13)
Auckland Is, Coastal Erebus Cove, Olearia (site X08/23)	*Wk-31426	5	116.50 ± 0.4	Peat	1958–59 (0.1)
					1995–95 (0.2)
					1996–98 (0.7)
	Wk-31427	50	31 ± 27	Peat	1890–1910 (0.36)
					1815–30 (0.33)

For the historical ecology, we examined published accounts of various botanical excursions to the islands (including: Hooker 1844; Chapman 1891; Cockayne 1903, 1905, 1909; Godley 1965; Campbell and Rudge 1976; Smith 2002) and examined photos and paintings of the Port Ross area of Auckland Island from electronic archives, including the Museum of New Zealand Te Papa Tongarewa, Alexander Turnbull Library (New Zealand) and State Library of Victoria (Australia).

Results

For ease of interpretation, we have divided the Ewing Island and coastal Erebus Cove profiles into two zones: the uninvaded zone and Olearia zone, the latter defined by the first presence of O. lyallii pollen. The inland Erebus cove pollen profile is divided into the pre- and post-Enderby Settlement zones, the latter defined by the decline and subsequent regeneration of Metrosideros forest.

Ewing Island core

The radiocarbon dates (Table 1) and age-depth model for this core [see Supporting Information—Table S2 and Fig. S4] indicate peat accumulation began on Ewing Island c. 10 000 cal year before the present. The base of our pollen record (Fig. 5) starts at c. 1600 cal year before the present (c. 400 cal year AD), at which time the site was covered with a coastal maritime community dominated by the shrub V. elliptica, with grasses, macrophyllous forbs S. polaris and A. latifolia, sedges, and abundant ground ferns. The low levels of Metrosideros pollen throughout the core suggests that this forest was limited to the more protected interior of the island behind the coastal belt of maritime vegetation. Low counts of charcoal (<5 fragments per 1 mL of peat) are first recorded in the peat profile at the top of the uninvaded zone, just prior to c. 1800 cal year AD but probably reflect reworking as a consequence of site disturbance during the European era (also supported by age inversion at 33 cm—Table 1).

Figure 5.

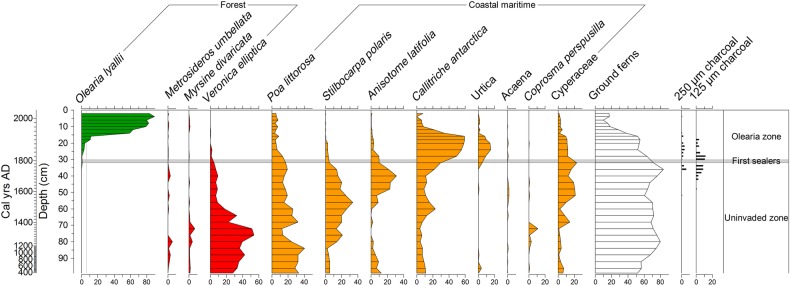

Summary percentage pollen record from Ewing Island, with pollen taxa plotted against depth, with the calibrated age scale in years AD shown on the secondary axis. Grey zone shows time of earliest sealing activity in the region (1807–10).

At the base of the Olearia zone at 32 cm, further charcoal particles, and the first trace of O. lyallii occur at an estimated age of c. 1800 cal year AD [see Supporting Information—Table S2]. At the same time, there is an increase of the herbs Callitriche antarctica and Urtica australis, and a decline of grasses, S. polaris and A. latifolia. Pollen of O. lyallii remains below 5 % of the pollen sum until 1870 cal year AD after which time it increases towards the top of the core, while ground ferns, herbs and grasses decline. As the O. lyallii canopy matured and closed creating a dense shade, it suppressed many lower-statured and light-demanding plants, leaving the sub-canopy and canopy floor almost bare. The pollen composition in the uninvaded and Olearia zone was significantly different (F_1,28 = 27.4, P < 0.001). Similar, statistically strong differences in composition were detected using an analysis of multivariate abundance using the function many.lm in the R library mvabund (Wald statistic = 26.15, P = 0.001).

Erebus Cove cores

The uninvaded and pre-Enderby Settlement zones of both the coastal and inland Erebus Cove cores, respectively, record a Metrosideros-dominated forest (constituting ∼40–50 % of the pollen sum). The coastal site (Fig. 6) has a greater representation of ground ferns, S. polaris, Acaena and grass, reflecting its more open canopy. In contrast, the inland site (Fig. 7) has a substantial representation of the small trees R. simplex, D. longifolium and M. divaricata.

Figure 6.

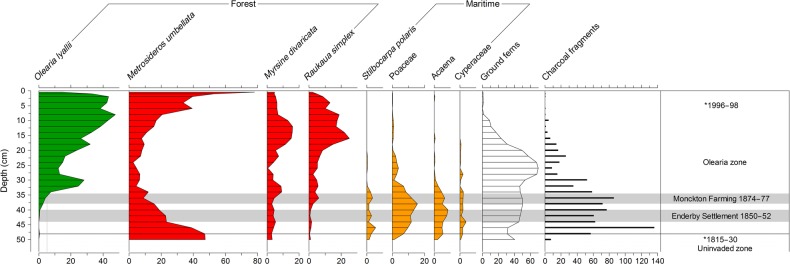

Summary percentage pollen record from the coastal Erebus Cove site (taken under an O. lyallii canopy), main Auckland Island. Grey bars show the time of the Enderby Settlement (1850–52) and Monckton Farming (1874–77) periods according to age-depth model. *Position and age of calibrated radiocarbon (cal year AD) dates from Table 1.

Figure 7.

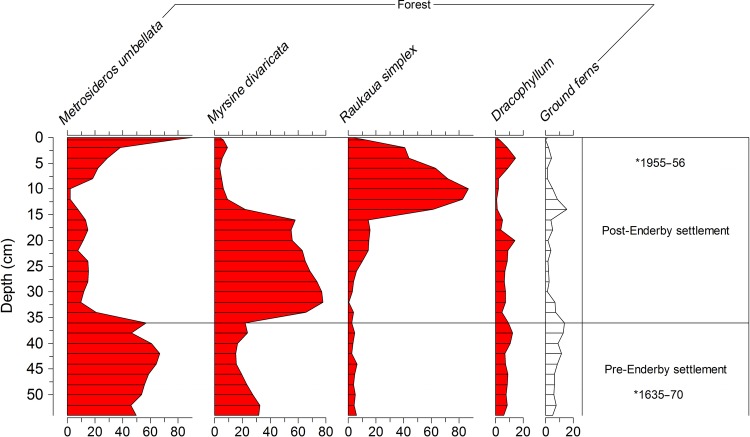

Summary percentage pollen record from the inland Erebus Cove site (taken under a M. umbellata canopy 500 m inland from the coastal Erebus Cove site) main Auckland Island. *Position and age of calibrated radiocarbon dates (cal year AD) from Table 1.

Both the coastal and inland Erebus Cove pollen profiles show a rapid and marked reduction of Metrosideros at 45 and 36 cm, respectively, accompanied by an abundance of charcoal fragments at the coastal site. This forest decline reflects the burning and cutting of trees at the coastal site, and felling of trees at the inland site to make way for the Enderby Settlement in 1850, as shown in paintings and photos from this period (e.g. Figs 3 and 4).

The calibrated date from the base of the coastal Erebus Cove core provides two age ranges (1910–1890 and 1830–15 cal year AD) with equal probability distributions (Table 1). As botanists did not record O. lyallii trees at Erebus Cove during a visit in 1890 (Chapman 1891), we take the older of the two solutions to create an age-depth model (using linear interpolation between this date and the 1955–56 cal year AD date at 5 cm [see Supporting Information—Table S3]). This model provides an estimate for the first trace of O. lyallii pollen (0.5 % at 48 cm) of 1823–37 cal year AD. Olearia lyallii pollen is not recorded again until 42 cm (c. 1847–60 cal year AD) after the Metrosideros has been burnt and cleared. After this, O. lyallii is consistently recorded, increasing to a peak of 47 % (Fig. 6) and later declining as Metrosideros begins to recover at the site.

At the inland Erebus Cove site (Fig. 7) charcoal and O. lyallii pollen are not recorded following the decline of Metrosideros. Instead, after forest clearance, a woody succession takes place from M. divaricata through R. simplex to Metrosideros, the latter recovering mainly through sprouting from cut stumps which are still visible in the forest today.

Pollen composition was significantly different in the pre- and post-settlement zones of the inland Erebus Cove core (F_1,27 = 7.33, P < 0.0001). Similar, statistically strong differences in composition were detected using an analysis of multivariate abundance using the function many.lm in the R library mvabund (Wald statistic = 116.9, P < 0.0001). However, as there was only one sample from the uninvaded period from the coastal Erebus Cove core, statistical comparisons of compositional variance in the uninvaded and Olearia zones are very weak and non-significant (PERMANOVA: F_1,25 = 1.47, P = 0.18 and multivariate generalized linear models Wald statistic = 7.38, P = 0.22).

Earliest historical documentation of O. lyallii on the Auckland Islands

Written and photographic records from the 19th century to the mid-20th century provide a surprisingly detailed account of O. lyallii on the Auckland Islands (e.g. Hooker 1844; Chapman 1891; Cockayne 1903, 1905, 1909; Godley 1965; Campbell and Rudge 1976). The first record of the tree was the type specimen collected from Ewing Island by David Lyall in 1840, a botanist on the Ross Expedition. Hooker (1844:38) described the specimen as follows: ‘…a short stout trunk rises a few inches above the ground, and then sends off horizontally patent branches, which radiate as from a common centre for 10 to 12 feet on all sides, a little above the surface of the earth.’ Hooker (1844) further describes O. lyallii as rare on the Auckland Islands, and McCormick (1884), who also landed on the island at the same time as Lyall, did not mention seeing this species. Godley (1965) remarked that these descriptions typically matched stunted plants in exposed locations, but a canopy of at least 6 m in diameter would suggest the specimen described by Hooker (1844) had been growing for some years. However, as the O. lyallii specimen was not flowering (despite being collected in early summer) and low-growing, Campbell and Rudge (1976) suggested on the basis of observations of O. lyallii growing on the Snares that this tree may have been <20 years old when first seen by Lyall in 1840.

Discussion

Timing, dispersal and origin of O. lyallii on Auckland Islands

The estimated ages for the first appearance of O. lyallii pollen in our dated pollen profiles indicate that this tree daisy established on Ewing Island ∼1800, and then later at Erebus Cove c. 1823–37, exceeding >5 % of the pollen sum at both sites <60 years later. Despite the limited precision expected of radiocarbon dates from fibrous peat, this timing is consistent with historical observations (Godley 1965; Smith 2002; Prickett 2009) that strongly suggest initial establishment on Ewing Island c. 1807–10. Sealers were active at this time within the natural range of O. lyallii on the Snares Island and the 36 smaller Tītī islands around Stewart Island, as well as on the northern Auckland Islands (Smith 2002). Sealing activities caused localized disturbance to the mainly coastal flora and fauna (Smith 2002), and undoubtedly increased the possibilities for seed translocation between islands. Our age estimates are also consistent with age–diameter relationships made in 1982 of one of the largest erect O. lyallii trees on Ewing Island located close to an old whaling boat shed. This sampled tree had a trunk diameter of 110 cm indicating establishment ∼1820 (Lee et al. 1991).

It has been proposed that O. lyallii had the capacity to eventually disperse to the Auckland Islands through natural agencies and fill a previously vacant niche (Lee et al. 1991). Olearia lyallii seeds are adapted for transport by wind and can also potentially attach to feathers of ground nesting sea birds; the 4-mm long achenes have 6-mm long fluffy pappus hairs (Allan 1982) and are produced in abundance. The Auckland Islands are also only 270 km from the source islands of O. lyallii which also harbour large populations of nesting sea birds. Thus, this tree daisy has had numerous opportunities during the Holocene to disperse naturally to the Auckland Islands. However, our pollen records, and other pollen records from the islands (McGlone et al. 2000; McGlone 2002), show that Metrosideros forest, and coastal maritime communities have dominated sheltered and exposed coastal habitats, respectively, on the Auckland Islands for at least 12 000 years. Olearia lyallii has only managed to establish in a few scattered places in the northern Auckland Islands in the last 200 years, coincident with the earliest European exploitation of the region. We conclude from this evidence that there is a high probability that the Auckland Islands lie outside of the natural distribution range of O. lyallii, and require human-assisted seed dispersal and/or new niches in order to establish.

Process of initial O. lyallii establishment on Ewing Island

The pollen and charcoal record from Ewing Island (Fig. 5) shows that the initial establishment of O. lyallii on this island was into an anthropogenically disturbed habitat, not into a pristine coastal maritime community. Fire-induced changes to the coastal vegetation preceded the establishment of O. lyallii, suggesting facilitation by anthropogenic disturbance. Charcoal is almost absent from all subantarctic island Holocene peat records until the arrival of Europeans (McGlone et al. 2000; McGlone 2002; Wilmshurst et al. 2004; Bestic et al. 2005).

Sealers often used overland routes to access sealing spots as the seas were rough and dangerous, and New Zealand fur seals (Arctocephalus forsteri) and Hooker's sea lions (Phocarctos hookeri) dispersed along the coast (Smith 2002). Walking through the dense and tangled vegetation of the Auckland Islands is notoriously slow and arduous, and fire was used liberally by 19th century travellers to clear the way for easier travel. For instance, officers from the 1840 Terror and Erebus expedition to the islands set fire to forest and scrub in the hills immediately above Erebus Cove. Robert McCormick from the same expedition, in his excursion from Terror Cove to Matheson Bay and around the peninsula to Deas Head, noted that there was extensive burnt grassland on the cliffs (McCormick 1884). The earliest charcoal presence in the Ewing Island core precedes the earliest shipwrecks in the Auckland Islands (from 1888 to 1907) (Egerton et al. 2009) and suggests that the Ewing Island coring area had been burnt by sealing gangs to ease their passage through dense coastal vegetation to reach seal haul-out sites. The pollen and charcoal record from Ewing Island also shows that during the first few decades of O. lyallii establishment, the herbs U. australis and C. antarctica became abundant, indicating a succession similar to that recorded on the Snares Island following dieback of Veronica and subsequent abandonment of penguin colonies (Hay et al. 2004). Callitriche antarctica commonly colonizes abandoned penguin colonies on the Snares Islands (Hay et al. 2004), and U. australis responds favourably to disturbance and high-light (Allan 1982). These nutrient-demanding herbs likely established on the disturbed and marine-enriched patches of bare peat on Ewing Island that were previously maintained by seals in haul-out areas along the coast. As vast numbers of seal carcasses were usually left to rot in situ where the animals were slaughtered on these coastal habitats (Smith 2002) their decomposing bodies may have provided a pulse of nutrient enrichment during the time of O. lyallii establishment. Outside of current O. lyallii forest patches on the Auckland Islands, O. lyallii seedlings are most commonly recorded on recently abandoned sea lion haul-outs with bare patches of peat (Lee et al. 1991).

The presence of ground nesting and burrowing sea birds on Ewing Island may also explain why O. lyallii has been so successful on Ewing Island compared with elsewhere on the Auckland Islands, as they also provide substantial and continuing sources of disturbance and nutrients to the Ewing Island peats. On the main Auckland Islands and other smaller islands in the Port Ross area, introduced pigs, cattle, cats (Challies 1975; Lee et al. 1991) and potentially mice (c.f. Cuthbert and Hilton 2004), have almost completely eliminated nesting sea bird populations (through trampling and predation), and therefore associated marine nutrient transfer. In contrast, Ewing Island has remained free of introduced mammals. The continued input of marine-derived nutrients from sea birds during the early human disturbance phase, and later recovery of seal populations, has likely promoted O. lyallii establishment on Ewing Island, and fuelled its rapid growth rates.

On Ewing Island, as the O. lyallii canopy became taller and more open as it matured, and bulky leaf litter built up thick peat deposits, these conditions would have become increasingly attractive for nesting sea birds where they could burrow and land/take-off easily (see Whitehead et al. 2014). The input of marine nutrients by seals and sea birds, and the dark shade and rapid growth of O. lyallii forests on enriched soils may allow this tree to exclude the former coastal maritime communities indefinitely. Olearia lyallii benefits from marine-enriched soils in its natural range on the Snares, Solander and Tītī islands (Fig. 1). These islands are wind-swept, drenched with salt spray during storms and largely covered with organic peat deposits which are extensively burrowed and disturbed by nesting sea birds and seal activity. The strong fertilizing effect of marine animals on the soils is reflected in the O. lyallii leaves from the Snares Islands which have yielded some of the highest leaf ¹⁵N enrichment levels ever recorded for plants (Martinelli et al. 1999; Hawke and Newman 2007). However, away from the smaller islands, on nearby Stewart Island nesting sea bird densities are much lower and O. lyallii has a very limited distribution (Wilson 1987). Olearia lyallii distribution is almost certainly dependent on marine subsidies introduced by sea birds and seals.

Rates of O. lyallii spread on Ewing Island

Historical observations and the pollen record from Ewing Island suggests that it took O. lyallii ∼80 years to shade out the tall tussock-and herbaceous maritime communities (Fig. 5). In 1840, 20 years after its establishment, O. lyallii was described as quite rare and stunted among the maritime tussock and scrub on Ewing Island (Hooker 1844). By 1890, substantial trees of O. lyallii were present along the sea shore, but large tussocks remained common (Chapman 1891). In 1907, a low O. lyallii forest appears to have extended over most of the island aside from the central Metrosideros core, but patches of tall tussocks apparently were still present (Godley 1965). By the 1960s the tree daisy had formed a coastal fringe around the island (Godley 1965). The slow spread of O. lyallii into the Metrosideros forest over the last 50 years suggests a superior competitiveness of O. lyallii on nutrient-enriched soils in exposed locations. Although Metrosideros is a long-lived tree, and can resprout or layer after damage, it is shade-intolerant and slow growing (Wardle 1971) and vulnerable to over-topping by O. lyallii where wind and salt exposure causes shorter-statured canopies.

Timing of O. lyallii establishment at Erebus Cove

Historical observations also suggest O. lyallii has made a slow and limited spread away from Ewing Island to other sites on the main Auckland Island and smaller islands in the Port Ross area (Campbell and Rudge 1976; Lee et al. 1991). The age estimate for the first trace of O. lyallii pollen in the dated coastal Erebus Cove pollen profile is 1823–37 cal year AD (Fig. 6), some 15–40 years after it is recorded at our site on Ewing Island. These first traces of O. lyallii may reflect pollen contributed from scattered individuals in the coastal communities at Erebus Cove that did not initially succeed, or possibly P. criniferum, which can occur in coastal communities at trace levels (McGlone and Moar 1997). The pollen type is not recorded again until 42 cm in the profile (c. 1847–60) after which it steadily increases to a peak of 47 %. However, the precision of these age estimates is limited, as they are only based on linear interpolation between two dates, the lowest of which has a spread of calibrated age ranges spanning 75 years, therefore we use the historical evidence to refine the timing of O. lyallii establishment at Erebus Cove.

The conjecture has been that colonists at the Enderby Settlement transplanted O. lyallii from Ewing Island to this site, either accidentally or as an ornamental, at some time between 1850 and 1852 (Godley 1965; Campbell and Rudge 1976). The extent of clearance for the Enderby Settlement (1850–52) can be seen in the painting of Erebus Cove in c. 1850 by Charles Enderby (Fig. 3). In 1865, Captain Musgrave visited the Enderby Settlement site at Erebus Cove and made reference to ‘two trees’ (Musgrave 1866) which have been interpreted by Campbell and Rudge (1976) as being O. lyallii specimens. However, shortly after the Enderby Settlement dismantled, there was a brief farming episode (September 1874–May 1877) by Monckton, a lease-holder at Erebus Cove (Dingwall 2009), when 56 sheep were grazed on the cleared site, scrub and grass was burnt, and grass and oats were planted (Dingwall 2009). A photograph in 1874 of the signal mast that replaced the original settlement flagstaff on Davis Point (the coastal Erebus core site) shows a landscape dominated by tall grass, with a mat of the herb Acaena in the foreground, but with no sign of any trees (Fig. 4). This corresponds well with the Acaena pollen recorded from this site, after the forest clearance but before the O. lyallii invasion (Fig. 6). Chapman and Kirk visited Erebus Cove in 1890, and they did not record O. lyallii (Chapman 1891). Only in 1907, some 55 years after the Enderby Settlement, and 30 years after the Monckton lease, there is evidence for O. lyallii at Davis Point near the flagstaff (Godley 1965). Cockayne (1909) mentions ‘a few trees in the neighbourhood of the Port Ross depot’. If O. lyallii had been introduced by the Enderby Settlement colonists to Erebus Cove, these trees had made little growth. From these observations it seems more likely that O. lyallii established during or after the Monckton farming interval (1874–77).

Process of establishment at Erebus Cove

The pollen record from the coastal Erebus Cove site (Fig. 6) is similar in one key respect to the Ewing Island record, in that O. lyallii did not establish into a pristine Metrosideros forest but into a burned and disturbed coastal maritime community dominated by grasses and the herbs Acaena and S. polaris, and with low levels of the successional small trees M. divaricata and R. simplex. However, it differs significantly from Ewing Island, in that as the O. lyallii canopy matured towards the present, it became co-dominant with the recovering Metrosideros. As there are almost no nesting sea birds at Erebus Cove and limited seal presence, O. lyallii lacks its preferred enriched peat. This sheltered site favours Metrosideros which is now co-dominant with O. lyallii and, being longer-lived, will eventually over-top and replace it.

There is no evidence from the pollen record for O. lyallii presence at the inland Erebus Cove site following abandonment of the Enderby Settlement (Fig. 7), despite being only <500 m away from the well-established population at the coastal site. Instead, the pollen record shows a succession from Myrsine to Raukaua and back to the pre-settlement Metrosideros forest. Seed dispersal by wind, people or animals over such a short distance cannot have limited O. lyallii establishment at the inland site or indeed elsewhere in the Port Ross area. However, nutrients derived from marine aerosols drop off rapidly with distance from the shore (Meurk et al. 1994), and without marine nutrient subsidies and disturbance, O. lyallii loses its competitive advantage.

Conclusions

Despite having ample opportunity to disperse to the Auckland Islands from the small island groups to the north (Snares, Solander, Tītī and Stewart Islands), a combination of palaeoecological and historical observations suggests that O. lyallii is only a recent addition to the flora of the Auckland Islands. It was most likely introduced by sealers between 1807 and 1810. Under the Projected Dispersal Envelope concept of Webber and Scott (2012) regarding natural dispersal and time, it is unambiguously an alien plant on the Auckland Islands. Despite its alien status, our observations indicate that O. lyallii is not highly invasive, and poses little threat to the ecological integrity of the island, in agreement with Lee et al. (1991). Detailed palaeoecological records have shown that the establishment of O. lyallii on the Auckland Islands was facilitated by human disturbance; that its spread has been slow; and its distribution limited to exposed coastal habitats where peats have been enriched by sea birds, seals and salt spray. Given the limited distribution of anthropogenically disturbed and enriched habitats on the islands, O. lyallii is unlikely to pose a significant threat to the existing maritime habitat on the uninhabited islands, and no threat to the Metrosideros forest.

Climate change and the inevitable human-assisted movement of propagules across landscapes will ensure that the issue of ‘native’ aliens will arise repeatedly. However, palaeoecological and historical research such as presented here and elsewhere (e.g. van Leeuwen et al. 2008) can help conservation agencies make considered decisions regarding the management and status of such plants (Gillson et al. 2008). We support the dynamic and pragmatic ‘monitor and see’ approach for O. lyallii (Davis et al. 2011) that balances what appears to be a limited loss of ecological integrity with the high cost and low probability of successful control.

Sources of Funding

Our study was supported by Core Funding for Crown Research Institutes, from the New Zealand Ministry of Business, Innovation and Employment's Science and Innovation Group.

Contributions by the Authors

J.M.W. and M.S.M. conceived the study, collected cores, analysed the cores and wrote the paper. C.S.M.T. contributed to the writing of the paper and calculated the age-depth models.

Conflict of Interest Statement

None declared.

Supporting Information

The following additional information is available in the online version of this article –

Figures S1 and S2. Location and vegetation cover of Ewing Island and Erebus Cove coring sites.

Figure S3. Microphotographs of Olearia lyallii and Pleurophyllum spp. pollen grains.

Figure S4. Output graph for Ewing Island age-depth model.

Table S1. Modern pollen percentages from surface samples under Olearia lyalli-dominated canopies.

Table S2. Age-depth model for Ewing Island core.

Table S3. Linear interpolation between calibrated radiocarbon ages in coastal Erebus Cove core.
