Novel Regenerative Peptide TP508 Mitigates Radiation-Induced Gastrointestinal Damage By Activating Stem Cells and Preserving Crypt Integrity

Abstract

In recent years, increasing threats of radiation exposure and nuclear disasters have become a significant concern for the United States and countries worldwide. Exposure to high doses of radiation triggers a number of potentially lethal effects. Among the most severe is the gastrointestinal (GI) toxicity syndrome caused by the destruction of the intestinal barrier, resulting in bacterial translocation, systemic bacteremia, sepsis and death. The lack of effective radioprotective agents capable of mitigating radiation-induced damage has prompted a search for novel countermeasures that can mitigate the effects of radiation post-exposure, accelerate tissue repair in radiation-exposed individuals, and prevent mortality. We report that a single injection of regenerative peptide TP508 (rusalatide acetate, Chrysalin®) 24h after lethal radiation exposure (9Gy, LD_100/15) appears to significantly increase survival and delay mortality by mitigating radiation-induced intestinal and colonic toxicity. TP508 treatment post-exposure prevents the disintegration of gastrointestinal crypts, stimulates the expression of adherens junction protein E-cadherin, activates crypt cell proliferation, and decreases apoptosis. TP508 post-exposure treatment also up-regulates the expression of DCLK1 and LGR5 markers of stem cells that have been shown to be responsible for maintaining and regenerating intestinal crypts. Thus, TP508 appears to mitigate the effects of GI toxicity by activating radioresistant stem cells and increasing the stemness potential of crypts to maintain and restore intestinal integrity. These results suggest that TP508 may be an effective emergency nuclear countermeasure that could be delivered within 24h post-exposure to increase survival and delay mortality, giving victims time to reach clinical sites for advanced medical treatment.

Introduction

The threat of a nuclear incident, with the potential to kill or injure thousands of people, has increased national and international recognition of the need for medicinal countermeasures that can prevent radiation-induced tissue damage and keep people alive, even if administered a day or more after nuclear exposure ^{1, 2}. Exposure to high doses of total body radiation (≥9Gy) triggers an acute gastrointestinal radiation toxicity syndrome (GI toxicity) that often results in death, regardless of intervention with advanced therapeutics or bone marrow transplants^{3, 4}. The high mortality associated with GI toxicity is believed to be caused by the radiation-induced damage to the intestinal and colonic mucosa leading to reduced fluid absorption, electrolyte imbalance, barrier function loss, bacterial translocation, systemic bacterial infection, sepsis, and organ failure ^5-8. This sequence in the GI system is initiated by radiation-induced damage to stem cells that must continually proliferate to maintain crypt integrity and regeneration ^{9, 10}. Crypt cells in both the small intestine and colon are susceptible to radiation damage and serve as an indicator of potential survival following total body radiation ¹¹. Hence, it is crucial to develop novel therapeutic drugs capable of preventing damage to GI crypt stem cells in order to increase survival.

To date, only a few mitigating or radioprotective agents have been approved by the FDA ^{12, 13}. Most of these are only effective in treating the hematopoietic syndrome triggered by low dose radiation, are unsuccessful in treating GI toxicity induced by high-dose radiation exposures, or are ineffective as a post-exposure treatment for the thousands of potential exposed individuals ^{12, 13}.

TP508 (Chrysalin^®) is an investigational peptide drug that was developed for use in stimulating repair of dermal and musculoskeletal tissues ¹⁴. TP508 is a 23 amino acid peptide representing amino acids 508-530 of human prothrombin that was identified as the high-affinity binding domain of thrombin responsible for interaction with a subset of thrombin receptors on the surface of fibroblasts thought to initiate tissue repair ^{15, 16}. Specificity of TP508 has been demonstrated in both in vitro and in vivo experiments by altering the sequence and/or using scrambled peptides^17-20 . TP508 was shown to initiate tissue repair and regeneration by reversing endothelial dysfunction ²¹, stimulating revascularization ^22-24, attenuating inflammation ²⁵ and reducing apoptosis ²⁶. In human clinical trials, TP508 was shown to significantly increase healing of diabetic foot ulcers ^{14, 24, 27} and distal radius fractures with no drug-related adverse events ^{14, 24}. Animal studies also showed that TP508 treatment regenerated bone in critical-size defects where new bone formation would not occur without intervention ²⁸. Recently, this 23-amino acid regenerative peptide has been shown to target stem/progenitor cells isolated from tissues and stimulate their proliferation ²⁹. Thus, many of the tissue repair and regeneration effects of TP508 may be mediated by activation of progenitor/stem cells within tissues.

It is well established that high-dose radiation exposure disrupts the normal homeostasis of crypts in the small intestine and colon ³⁰. Certain growth factors and cytokines have been reported to have protective effects against radiation-induced damage to the intestinal epithelium³¹. These factors are known to stimulate proliferation of stem cells within the intestinal crypts ^{32, 33}. Given that TP508 stimulates stem cell proliferation ²⁹ and regeneration of tissues, we hypothesized that TP508 may protect intestinal crypts or accelerate their regeneration by up-regulation of stem/progenitor cells to mitigate lethal effects of radiation exposure.

In this study, we show that TP508 effectively protects the intestinal mucosa from radiation-induced damage by increasing crypt stem cell proliferation, rescuing the stemness potential of the crypt cells, and preventing crypt disintegration post-radiation exposure by maintaining E-cadherin adherens junctions. These protective effects of TP508 are seen in intestinal crypts (Supplementary Figures 1-2) and in colonic crypts (Figures 1-4) following 9Gy (LD_100/15) exposures. Importantly, mice treated with TP508 24h post 9Gy exposure show a significant delay in the onset of mortality and a significant increase in survival. Therefore, TP508 may be an effective post-exposure medicinal countermeasure for mitigating radiation-induced gastrointestinal damage and mortality following a nuclear incident.

Figure 1. Effects of TP508 on gastrointestinal colonic crypts integrity post-radiation exposure.

(A) Representative images taken at 10x and 40x magnifications of intact colonic crypts harvested at 48h, 5 days and 9 days post-RT from mice treated with either Saline or TP508, 24h post-radiation (0Gy or 9Gy). (Bi-ii) Representative H&E staining of colonic crypts sections harvested at 48h, day 5 and 9 days post-RT, from mice treated with the indicated treatments. Inset illustrating H&E images from colonic crypts isolated 5 days post-RT is shown in the right hand panel. White arrows depict change in crypt lengths. (C) Bar graphs showing the percent change in crypt lengths normalized to the control (0Gy+Saline) group, isolated 48h, 5 days and 9 days post-RT, respectively. Data=Mean±SEM from 6 mice/group/3 experiments. *=P<0.05 vs 9Gy+Saline values.

Figure 4. TP508 increases the stemness and proliferative potential of intact colonic crypts post-radiation exposure while decreasing apoptosis.

(A) Western blot analysis demonstrating the expression of the indicated markers in Saline vs TP508 treated groups at 48h and 9 days post-RT. (Bi-ii) Mean±SEM of WB data from 4 mice/group/3 experiments, presented as % change in ratio of target protein/β-actin from samples collected 48h (i) and 9 days (ii) post-RT. Ratio of control samples (0Gy+Saline) were arbitrarily assigned 100% values; ratios of treated samples were expressed as a % of control. *=P<0.05 vs control (9Gy+Saline) values.

Materials and Methods

Reagents used

Antibodies used in this study include: anti-DCLK1, anti-PCNA and anti-GPCR GPR49 (Lgr5) (Abcam, Cambridge, MA); anti-E-cadherin (Cell Signaling, Boston, MA); anti-active caspase-3 (Millipore, Temecula, CA) and anti-β-actin (total) (Sigma, St Louis, MO). Alexa Fluor-594 and Alexa Fluor-488 coupled secondary IgG were purchased from Invitrogen (Carlsbad, CA). DAPI (4',6-Diamidino-2-Phenylindole, Dihydrochloride) was purchased from Life Technologies (Grand Island, NY). Saline (0.9% Sodium Chloride Injection, USP) was purchased from Hospira (Lake Forest, IL). Thrombin peptide TP508, a 23 amino acid peptide AGYKPDEGKRGDACEGDSGGPFV, also known as rusalatide acetate or Chrysalin®, was synthesized and purified (GMP manufactured >96% purity) by American Peptide Company (Sunnyvale, CA) and provided by Chrysalis BioTherapeutics, Inc. (Galveston, TX).

Irradiation and treatment of mice

ICR (CD-1®) Outbred male mice were purchased from Harlan Laboratories (Houston, TX). CD-1 outbred mice, which reflect natural heterogeneity in their radiosensitivity, were selected for these studies over inbred strains, which are known to be radiosensitive or radioresistant (LD_50/30 from 6.5Gy to 9.5Gy), based on specific genetic differences that affect their response to radiation-induced GI damage^34-36. LD_50/30 for ICR mice in our experiments is ~8.5Gy, which falls midway within the reported range for various inbred species. Mice tested negative for viruses, bacteria, mycoplasma or fungi and were considered Murine Pathogen Free. Mice were allowed to acclimate for at least 7 days in the Animal Research Center at UTMB and were 12-13 weeks old upon the start of experiments. Mice were irradiated at approximately the same time (10:00AM ± 1h) each day to minimize changes in circadian rhythms. Prior to irradiation, mice were anesthetized using isofluorane as per IACUC protocol and individually placed into a pie cage (10 mice/cage). The pie cage was then set inside a ¹³⁷Cs irradiator chamber (JL Shepherd and Associates, San Fernando, CA) on a turntable to allow for uniform exposure. The mice were exposed to 9Gy whole body radiation at a rate of 458cGy/minute. To ensure accurate radiation dose exposure, a nanoDot™ OSLD dosimeter (LANDAUER®, Glenwood, IL) was simultaneously placed at the center of each pie and dosimetry analysis for each experiment was performed and recorded. 24h post-radiation exposure, mice were injected intraperitoneally with a single dose of either saline alone or saline containing TP508 (500μg or 12.5mg/kg).

Isolation and processing of colonic crypts from mice

Intact colonic crypts were isolated from mice 48h, 5 days and 9 days post-radiation exposure as per a previously published method ^{37, 38}. Individual crypts were imaged with an inverted microscope at 10x and 40x magnifications using a white light microscope (Nikon Eclipse TS100, Melville, NY). Some crypts were also collected to be processed for western blot analysis.

Western blot analysis of intact colonic crypts

Cellular extracts were prepared from intact colonic crypts harvested 48h and 9 days post-radiation exposure, as previously described ^{39, 40}. Samples were processed by electrophoresis and transferred to PVDF-membranes ^{39, 40}. Blots were cut into horizontal strips containing either the target or loading control protein (β-actin) and processed for detection of antigen-antibody complexes using a chemiluminescent reagent kit (GE Health Care, Piscataway, NJ) ^{39, 40}. Membrane-strips containing target/loading control proteins were simultaneously exposed to autoradiographic films. β-actin was measured in corresponding samples containing equivalent-protein.

Immunofluorescence and Immunohistochemical analysis of small intestinal and colon sections

Small intestinal and colon tissues were fixed in formalin and processed using the UTMB's histology core for paraffin embedding and sectioning, followed by H&E (hemotoxylin and eosin), and immunofluorescent (IF) staining, as previously described ⁴¹. Based on the H&E staining of small intestine and colons tissue sections, crypt lengths were measured using a preset scale available on the Nikon NIS element software. Small intestinal and colon tissue paraffin sections were also stained by immunofluorescence using anti-DCLK1 (1:200), anti-PCNA (1:300), anti-activated caspase-3 (1:100) and anti-E-cadherin (1:200). Images were acquired using Zeiss Axioplan epifluorescent microscope and analyzed using METAMORPH, v6.0 software (Molecular Devices).

Survival analysis of mice

Irradiated mice were monitored twice a day for the duration of 30 total days. Mice were euthanized based on a pain assessment scoring system consistent with our IACUC approved protocol and/or at the veterinarian's discretion. For the purpose of our study, euthanasia/sacrifice of a mouse equated to the occurrence of an event and therefore assigned a number of 1 whereas all surviving mice by the end of the study were assigned the number 0, indicative of no occurrence of an event. The data was analyzed using Kaplan-Meyer Survival curves (GraphPad Prism Software). P-values were calculated using both the Gehan-Breslow-Wilcoxon test and the Log-rank (Mantel-Cox) test as a secondary test to confirm our results. P-values on the graphs presented are that of the Gehan-Breslow-Wilcoxon test. Statistical significance was determined based on P-values of less than 0.05.

Statistical analysis of quantitative data

Quantitative analysis of data is presented as mean±SEM of values obtained from 6 mice/group/3 experiments. All quantitative data was normalized to the non-irradiated control group (0Gy+Saline). It is important to note that in this study the student T-test was employed using GraphPad Prism software, Inc. (La Jolla, CA) to test for significant statistical differences only between the two irradiated groups (9Gy+Saline vs 9Gy+TP508). P-values were considered statistically significant if less than 0.05.

Results

A single injection of TP508 delays crypt dissociation and accelerates regeneration of new crypts post-radiation treatment (RT)

ICR (CD-1®) mice (6 mice/group) were exposed to 9Gy radiation, and treated with either saline or TP508 24h post-exposure. Intact colonic crypts were harvested from the mice at 48h, 5 and 9 days post-RT and imaged (Fig 1A). TP508 had no effect on crypts harvested from non-irradiated mice (left two panels in Fig 1A). In irradiated mice, colonic crypts were completely dissociated as a result of 9Gy exposure in the saline treated group, as early as 48h post-RT. In contrast, TP508 treatment significantly prevented the dissociation of colonic crypts as depicted by the presence of both intact and partially intact crypts (top row). By day 5 post-RT (middle row), crypts began to regenerate in the TP508-treated group compared to the saline-treated group and appeared fully regenerated by day 9 post-RT (bottom row). Results suggest that TP508 may be either protecting crypts from breaking down or accelerating their regeneration. It is also important to note that these effects were initiated as early as 24h post-injection of TP508 and persisted up to 9 days post-RT. Colon tissue sections were also harvested and stained by H&E staining. Representative H&E images of colonic crypt sections, from mice in the indicated treatment groups, are shown in Fig 1Bi. As shown, TP508 treated animals had increased colonic crypt length compared to the saline treated animals at 48h, 5 days and 9 days post-RT. The percent change in crypt lengths was analyzed based on the H&E images and the data was normalized to the control (0Gy+saline) group and presented as bar graphs in Fig 1Bii. At 48h post-RT, a 25% increase in crypt lengths was observed in the TP508 vs saline treated groups. At days 5 and 9 post-RT, on an average, a difference of ~31% and ~52% was observed, respectively. It is important to note that by day 9 post-RT, TP508 not only significantly increased crypt length compared to the saline treated group, but actually restored the crypt length to that of healthy crypts in control mice, which received no radiation. Thus, while crypt integrity and length continued to decline with time in saline treated animals, in TP508-treated animals, crypts were restored with time, suggesting that TP508 not only prevents early disintegration of crypts, but also stimulates their regeneration.

Shrinkage of small intestinal and colonic crypts, post-RT, has been reported to be associated with cellular death and loss of proliferation in the stem cell niche ^{42, 43}. Small intestinal crypts are reportedly more sensitive to radiation than colonic crypts⁴⁴. Therefore, we examined intestinal crypts to determine if they were also protected/restored with post-radiation TP508 treatment. As shown in Sup Fig 1Ai-ii, TP508 treatment had similar effects in the small intestine as in the colon.

Breakdown of intestinal and colonic crypts is also thought to be due to weakened cell-cell adhesions. Since cadherins have been shown to regulate cellular proliferation, apoptosis and maintenance of crypt integrity ^{43, 45}, and TP508 appears to rescue crypt architecture, we next examined the effects of TP508 on the expression of E-cadherin, which is required for maintaining adherens junctions in gastrointestinal crypts, and the amount of apoptosis in gastrointestinal crypts.

TP508 increases the expression of adherens junction protein E-cadherin and decreases apoptosis in gastrointestinal crypts post-radiation exposure

Colon tissue sections harvested 48h, 5 and 9 days post-RT from mice, were analyzed by IF for the expression of E-cadherin (Fig 2Ai-ii). Results show that TP508 significantly increased the relative expression levels of E-cadherin as early as 48h post-RT compared to that in the saline-treated group (Fig 2Ai). The percent change in the number of E-cadherin positive cells per colonic crypt is presented as a bar graph in Fig 2Aii. As shown, RT in saline-treated animals resulted in ~90% reduction in E-cadherin staining intensity; however TP508 treatment attenuated the effects of radiation on relative levels of E-cadherin. At 48h, 5 and 9 days post-RT, TP508 significantly increased the relative expression levels of E-cadherin by >60%, compared to the saline treated group (Fig 2Aii). IF analysis showed that TP508 also increased expression levels of E-cadherin in small intestine crypts similar to the increased expression observed in the colon (data not shown). These findings suggest that TP508 effects on adherens junction proteins may prevent early disintegration of intestinal crypts as observed in Fig 1Bi.

Figure 2. TP508 increases the expression of adherens junction E-cadherin and decreases apoptosis in gastrointestinal crypts post-radiation exposure.

(Ai) Representative immunofluorescent images of colonic crypt sections harvested 48h, 5 and 9 days post-RT and stained for E-cadherin. (Aii) Bar graphs illustrating the % change in the number of E-cadherin positive cells per crypt normalized to the control group (0Gy+Saline). (Bi) Immunofluorescent staining of colonic crypts sections harvested at 48h, 5and 9 days post-RT from mice treated with the indicated treatments for apoptotic marker activated-caspase-3. (Bii) Bar graphs showing the percent change in the number of activated caspase-3 positive cells per crypt normalized to the control (0Gy+Saline) group, isolated 48h, 5 days and 9 days post-RT, respectively. Data=Mean±SEM from 6 mice/group/3 experiments. *=P<0.05 vs 9Gy+Saline values.

Intestinal crypt tissue sections were also analyzed by immunofluorescent staining for the expression of the apoptotic marker, activated caspase-3 in both the small intestine (Sup. Fig 1B) and colon (Fig 2Bi-ii). In crypts of non-irradiated mice, the expression of activated caspase-3 was largely absent (left two panels), as would be expected in healthy crypts. However, at 48h post-RT, the expression of activated caspase-3 was significantly increased in crypts harvested from saline treated mice, but not in crypts from TP508 treated mice (Fig 2Bi-ii). Caspase-3 was still activated at day 9 post-RT in the saline treated group, but not in the TP508 treated group (Fig 2Bi-ii). The percent change in the number of activated caspase-3 positive cells per colonic crypt is presented as a bar graph in Fig 2Bii. As shown, RT in saline-treated animals resulted in a 5 to 6-fold increase in apoptosis compared to the non-irradiated control mice. However, TP508 treatment decreased cellular death by ~35% at 48h post-RT and by ~95% at days 5 and 9 post-RT (Fig 2Bii). These results indicate that, TP508 protection of intestinal crypts involves both increased expression of the adhesion molecule E-cadherin and a decrease in crypt cell apoptosis. Based on these results, it seemed likely that TP508 may also stimulate cell proliferation and activate progenitor/stem cells within the crypts to further enhance crypt regeneration.

TP508 increases proliferation of gastrointestinal crypt cells post-radiation exposure

Small intestinal and colon tissue sections harvested 48h, 5 and 9 days post-RT from mice treated with the indicated treatments were analyzed by IF for the cell proliferation marker PCNA. Results show that TP508 increased crypt cell proliferation as early as 48h post-RT compared to the saline treated group in both small (Sup. Fig 1C) and large intestine (Fig 3Ai-ii) and continued to do so up to 9 days post-RT. The percent change in the number of PCNA positive cells per colonic crypt is presented as a bar graph in Fig 3Aii. By day 9, proliferation of colonic crypt cells in the TP508 treated group was almost restored to that of non-irradiated crypt cells. These results demonstrate that TP508 is activating crypt cell proliferation by 48h post-RT to prevent crypt dissociation, while also accelerating crypt regeneration by day 5 post-RT to promote formation of new crypts, as seen in Fig 1A.

Figure 3. TP508 stimulates proliferation of gastrointestinal crypt cells post-radiation exposure.

(Ai) Representative images of colonic crypts sections harvested 48h, 5 and 9 days post-RT from mice treated with the indicated treatments were stained for PCNA. (Aii) Bar graphs showing the percent change in the number of PCNA positive cells per crypt normalized to the control (0Gy+Saline) group, isolated 48h, 5 days and 9 days post-RT, respectively. Data=Mean±SEM from 6 mice/group/3 experiments. *=P<0.05 vs 9Gy+Saline values. Ratio of control samples (0Gy+Saline) were arbitrarily assigned 100% values; ratios of treated samples were expressed as a % of the control group. *=P<0.05 vs control (9Gy+Saline) values.

TP508 increases the stemness potential of intact colonic crypt cells post-radiation exposure

Given that stem cells are known to be responsible for maintaining and regulating the normal homeostasis of intestinal and colonic crypts ⁴⁶, we next examined the effects of TP508 on the stemness potential of crypt cells post-RT. Using a method developed to specifically isolate crypts from colon, (as described in the methods section), intact colonic crypts were isolated from mice treated with RT±TP508 and processed for western blot analysis for the indicated markers. Representative data from 3 experiments are presented in Figure 4A. Data from blots are presented as a percent change in the ratio of relative levels of target proteins/β-actin from samples collected at 48h (Fig 4Bi) and 9 days (Fig 4Bii) post-RT. At 48h post-RT the expression of LGR5 was decreased, irrespective of TP508 treatment. However, at 9 days post-RT, the expression of LGR5 significantly increased by >95% in the TP508 treated group compared to the control saline treated group. Additionally, relative expression levels of DCLK1was increased by >50% at 48h post-RT and by >60% by day 9 post-RT in response to TP508. Western blot analysis also confirmed that the expression of PCNA was increased by >50% in response to TP508 treatment post-RT while apoptosis (activated capase-3) was decreased by >50-80%, as presented in Figs 2Bi-ii and 3Ai-ii. Small intestinal and colon sections were also harvested at 48h, 5 and 9 days post-RT and processed for IF staining for stem cell marker DCLK1 (Fig 5Ai-ii; Sup. Fig 2A). No significant changes were observed in the non-irradiated treatment groups in both the small and large intestine. However, the number of DCLK1+ve cells in the intestinal crypts was significantly increased in the TP508 vs saline groups, post-RT (Fig 5Ai-ii; Sup. Fig 2A). The percent change in the number of DCLK1 positive cells per colonic crypt at 48h, 5 and 9 days post-RT was normalized to the control group (0Gy+Saline) and is presented as a bar graph in Fig 5Aii. Data illustrates a significant increase in the number of DCLK1+ve cells (> 60%) at 48h, 5 and 9 days post-RT in the TP508 treated vs saline groups.

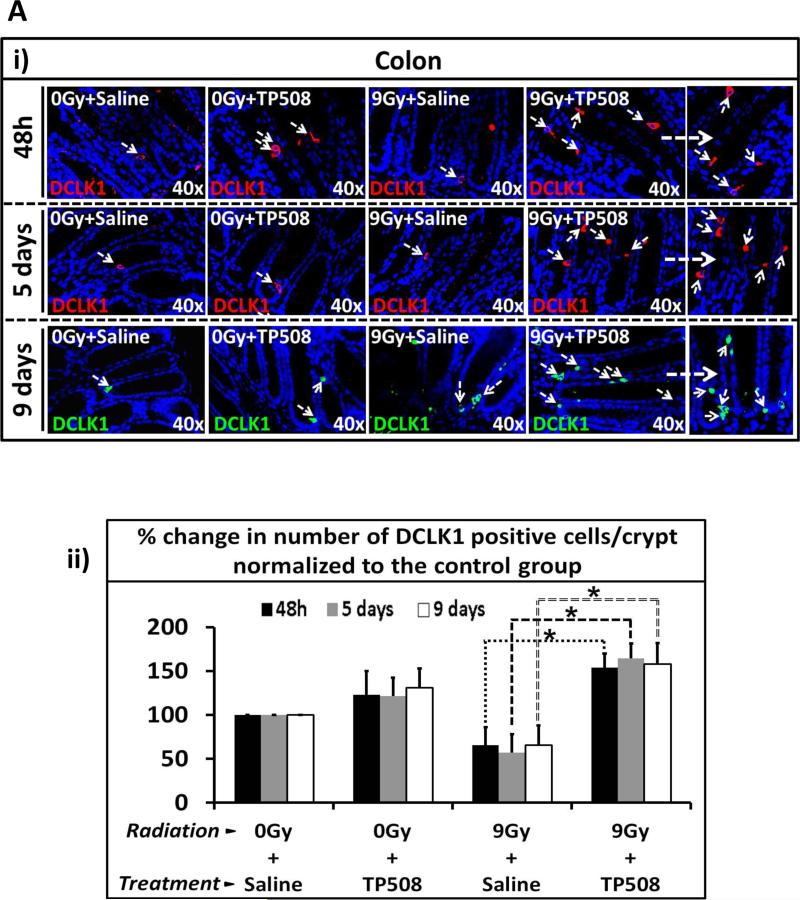

Figure 5. TP508 increases the number of DCLK1+ve cells in gastrointestinal crypts as early as 48h post-radiation exposure.

(Ai) Representative images of colonic crypt sections harvested 48h, 5 and 9 days post-RT were stained by IF for DCLK1. White arrows depict positive staining for DCLK1. (Aii) Bar graph illustrating the % change in the number of DCLK1+ve cells per colonic crypt normalized to the control group (0Gy+Saline), 48h, 5 and 9 days post-RT. *=P<0.05 vs corresponding control (9Gy+Saline) values.

TP508 significantly delays mortality and increases survival of mice post-radiation exposure

Exposure to high doses of total body irradiation (9-12Gy) often results in death, regardless of intervention with advanced therapeutics or bone marrow transplants^{3, 4}. This high mortality appears to be caused by radiation-induced damage to the intestinal and colonic mucosa leading to reduced fluid absorption, electrolyte imbalance, barrier function loss, bacterial translocation, systemic bacterial infection, sepsis, and organ failure ^5-8. With the significant protective/restorative effects of TP508 on intestinal and colonic crypts following whole body irradiation, it seemed likely that TP508 may also increase animal survival with post-irradiation treatment.

Mice were exposed to 9Gy radiation and treated 24h later with a single injection of either saline or TP508. TP508 treatment increased survival and delayed the onset of mortality in mice. On average, saline treated mice died ~12 days post-RT while TP508 treated mice died ~17 days post-RT (Fig 6A). Thus, TP508 delayed death by ~4-5 days in these mice. TP508 also significantly increased the survival of mice by ~ 30.8%, compared to the saline-treated group (Fig 6B). These findings demonstrate that the same TP508 treatment that mitigates effects of radiation on intestinal and colonic crypts, also significantly increases survival and delays mortality.

Figure 6. TP508 significantly delays mortality and increases survival post-radiation exposure.

(A) Scatter plot graph depicting the day of death of mice treated with the indicated treatments (n=34). (B) Graph illustrating the percent survival of mice treated with the indicated treatments, monitored for a total of 30 days.

Discussion

The increased probability of a nuclear incident in the world has led to a search for novel countermeasures capable of mitigating the potentially lethal effects of radiation on bone marrow, vital organs and the GI tract. Recently, several agents, such as HB-EGF (Heparin-binding EGF-like growth factor) ⁴⁷, flavonolignan-silymarin ⁴⁸, MG (alpha2-macroglobulin) ⁴⁹, miso ⁵⁰ and 17-DMAG (17-Dimethylaminoethylamino-17-demethoxygeldanamycin) ⁵¹ have been reported as novel putative radioprotective agents. However, these agents are only able to exert their protective effects when administered prior to radiation exposure and are ineffective post-radiation. Similarly, mitigators such as Kruppel-like factor 4 ⁵² and DIM (3,3'-diindolylmethane) ⁵³ have also been reported to protect the GI tract from radiation-induced damage post-exposure, but were either unable to initiate stem cell regeneration ⁵² or required multiple injections for efficacy ⁵³. In this study, we show that a single injection of TP508, administered 24h post-RT, significantly increased survival and effectively protected the intestinal mucosa by delaying crypt dissociation, directly stimulating stem cell regeneration.

It is well known that breakdown of intestinal crypts post-RT is associated with increased mortality and poor survival prognosis ⁵⁴. This is due in part to the weakening of adherens junctions between crypt cells which increases permeability and results in intestinal leakage, bacterial translocation, sepsis, and ultimately death ⁵⁵. In addition, radiation-induced damage to crypts has been associated with loss of E-cadherin expression in crypt cells ¹¹. Interestingly, our results showed that TP508 delayed crypt dissociation in the colon (Fig 1A-B) and in the small intestine (Sup. Fig 1A) and increased expression of E-cadherin post-RT (Fig 2Ai-ii). This data suggests that TP508 may be preserving the integrity of gastrointestinal crypts by strengthening the mucosal barrier, thus delaying the onset of acute GI toxicity. The severity of radiation exposure serves as an indicator of cellular death within the stem cell niche and is known to regulate the ability for crypts to regenerate ⁵⁶. Furthermore, a decrease in crypt length post-RT has been reported to be associated with cellular death and loss of proliferation in the stem cell niche ^{42, 43}. Results showed that TP508 reversed radiation induced-damage by increasing crypt length (Fig 1A-B), increasing E-cadherin expression to reinforce adherens junctions, suppressing apoptosis (Fig 2Bi-ii), and increasing cell proliferation within the crypts (Figs 3-4). Prevention of early breakdown of intestinal crypt appears to correlate with a significant delay in the onset of mortality (Fig 6A) and increase overall animal survival (Fig 6B).

In addition to gastrointestinal damage, exposure to high doses of total body irradiation has been shown to destroy bone marrow hematopoietic stem cells (HSCs) ⁵⁷. Loss of hematopoietic stem cells leads to decreased white blood cells and promotes systemic infection and inflammatory responses that also cause gastrointestinal damage, barrier dysfunction, and septic mortality^{7, 58, 59}. Our current experiments demonstrate that TP508 treatment increases survival of mice exposed to doses of radiation that are known to cause loss of hematopoietic cells and gastrointestinal damage. Thus, TP508 effects on survival could be mediated by more than one mechanism. Preliminary data from our laboratory indicates that TP508 may activate hematopoietic stem cells in bone marrow of mice post-RT (not shown). Interestingly, hematopoietic syndrome-induced GI damage usually occurs 8 to 10 days post-exposure⁵⁹. In our experiments, however, damage to colonic and intestinal crypts was observed within 48h and 5 days of radiation exposure suggesting that in these mice, GI-damage may be radiation-induced rather than a consequence of damage to hematopoietic cells. Thus, the increased survival of TP508-treated mice (Fig 6B) is likely due to TP508 protection and rescue of crypt epithelial stem/progenitor cells required for the regeneration and restoration of intestinal crypts.

While at low doses of radiation, activation of cell proliferation post-RT helps delay damage sustained by the intestinal epithelium, at higher doses, the protection of progenitor/stem cells becomes imperative for crypt regeneration and survival ⁶⁰. Crypts are composed of various heterogeneous subpopulation of cells with distinct proliferative and sensitivities to radiation damage ^{61, 62}. Both actively cycling and quiescent stem cells play an important role in the repair and regenerative process of the intestinal crypts post-radiation damage. However, quiescent stem cells are more resistant to radiation damage compared to the susceptible proliferative stem cells ⁶³. This is due in part to the lack of replication in quiescent stem cells, activation of rapid DNA repair mechanisms, and robust anti-apoptotic machinery, which are less prominent in proliferating cells ^{63, 64}. Therefore, quiescence seems to have a protective effect on the survival of crypt cells ⁶².

It has been reported that the non-cycling quiescent cells such as Lrig+ve ⁶⁵, DCLK1+ve ⁶⁶ and the slow cycling cells such as Bmi1+ve ⁶⁷, mTert+ve ⁶⁸ and Hopx+ve ⁶⁹ cells, which are located at the +4 position, are more resistant to radiation damage compared to the actively cycling LGR5+ve cells ⁶¹. Although the proliferative LGR5+ve cells have been reported to be responsible for maintaining normal crypt homeostasis upon injury, it is the quiescent stem cell populations which are believed to become activated to give rise to new LGR5+ve cells and various types of intestinal cells ⁶¹. The dispensability of LGR5+ve cells remains controversial. In more recent studies, LGR5+ve cells were reported to protect the GI tract from radiation-induced damage and deemed indispensable for the survival and regeneration of crypts post-RT ¹⁰. Equally, DCLK1 quiescent stem cells, also known to co-express LGR5, were shown to play a critical role in the restorative and restitution process of the intestinal epithelium ^{70, 71}. Both LGR5 and DCLK1 expression in intestinal crypts were shown to be down-regulated post-RT ⁷². Specifically, the expression of DCLK1+ve cells decreased 24-48h post-RT and was undetectable by 3-4 days post-RT ⁷¹.

In our studies, TP508 significantly increased the expression of both LGR5 and DCLK1 stem cell markers in intestinal crypts (Fig 4) as well as the number of DCLK1+ve cells per crypt as early as 48h post-RT (Fig 5, Sup. Fig 2A). Based on our results, it appears that TP508 may promote the actively cycling stem cells to adopt a quiescent state to allow them to endure the stress of radiation damage and preserve their integrity (Fig 4A-B; 48h post-RT). However, by 5-9 days post-RT, TP508 seems to be activating quiescent stem cells to give rise to new LGR5+ve cells (Fig 4A-B; 9 days post-RT). Regardless, our findings suggest that TP508 protects/rescues the crucial epithelial stem cells required for the renewal and survival of intestinal crypts post-RT.

Radiation exposure to the GI tract targets both intestinal stem cells and endothelial cells, which in turn results in the breakage of the mucosal barrier and lack of blood supply ⁷³. Intestinal microvascular endothelial cells have been shown to help regulate crypt stem cells post-injury ⁷⁴. An increase in intestinal microvascular endothelial apoptosis resulted in extensive crypt damage and faster onset of GI syndrome ⁷⁴. However, when endothelial apoptosis was inhibited, onset of GI syndrome was prevented. These studies suggest a strong correlation between the degree of endothelial apoptosis and the severity of crypt damage ⁷⁴. In addition, rescuing endothelial cells from RT damage using bFGF resulted in increased crypt survival. Interestingly, the increase in crypt survival was not due to the stimulation of stem cells or crypt regeneration, but instead due to the halting of crypt shrinkage ⁷⁴. In previous studies, TP508 was shown to stimulate endothelial cells to promote tissue revascularization, tissue repair and protection ^{18, 75}. In our study TP508 was shown to prevent crypt shrinkage (Fig 1A-B) and accelerate crypt regeneration (Figs 4-5) post-RT. Hence, it may be possible that TP508 prevents crypt shrinkage via its effects on endothelial cells while stimulating crypt regeneration via its direct effects on stem cells. However, further studies are required to better understand the molecular mechanisms by which TP508 exerts its protective effects on the GI tract.

In addition to endothelial activation response, radiation exposure also triggers and activates DNA repair mechanisms in injured crypt cells ⁷⁶. Quiescent stem cells are able to more efficiently resist radiation damage and evade apoptosis due to the activation of a rapid non-homologous end joining DNA double strand break repair mechanism ⁷⁷. In contrast, actively cycling cells use a more error-free homologous recombination repair pathway in response to damage ^{77, 78}. Our preliminary studies demonstrate that TP508 significantly decreases the expression of DNA double strand break marker, γH2AX, in normal stem cells post-RT and increases the expression of DNA repair sensor ATM and effector Rad50 (data not shown). These results indicate that TP508 may protect stem cells from radiation-induced apoptosis by accelerating DNA repair mechanisms post-radiation injury. Studies are currently underway to determine the mechanisms by which TP508 stimulates DNA repair and how this effect relates to TP508 mitigation of radiation-induced crypt damage.

Our overall goal is to develop effective medicinal countermeasures that can be delivered post-exposure to help mitigate radiation-induced tissue damage and increase survival. Our results demonstrate that a single post-exposure injection of TP508 significantly increases animal survival, delays onset of mortality, and mitigates radiation-induced disintegration of colonic crypts by stimulating cell proliferation, increasing expression of adhesion molecules such as E-Cadherin, and activating crypt stem cells. Thus, TP508 may be an effective nuclear countermeasure to be used following an intentional or accidental nuclear incident to increase survival and provide high-exposure individuals additional time to be evacuated where they can receive additional life-saving medical treatment. TP508 can be easily distributed for on-site self-administration.

Abbreviations

DCLK1

doublecortin-Calcium Calmodulin kinase-like1

Fig

Figure

GI

Gastrointestinal

Gy

Radiation unit Gray

ICR

Institute of Cancer Research

IF

Immunofluorescence

LGR5

Leucine-rich repeat-containing G protein coupled receptor 5

PCNA

Proliferating cell nuclear antigen

RT

Radiation Treatment

Sup

Supplementary

TP508

Thrombin peptide 508

vs

versus

+ve

positive
