. 1992 May;47(5):363–368. doi: 10.1136/thx.47.5.363

Dyspnoea assessed by visual analogue scale in patients with chronic obstructive lung disease during progressive and high intensity exercise.

A Noseda 1, J P Carpiaux 1, J Schmerber 1, J C Yernault 1
PMCID: PMC463752  PMID: 1609380

Abstract

BACKGROUND: A study was carried out to determine whether rating of dyspnoea by means of a visual analogue scale during a progressive exercise test is affected by the subject's awareness of the progressive nature of the protocol. METHODS: Nineteen patients with chronic obstructive lung disease (FEV1 mean (SE) 1.06 (0.07) 1) were studied. A preliminary incremental test was carried out with a work rate increasing by 10 watts every minute until the subject could no longer exercise, to determine the maximum work load (Wmax) and to anchor the upper end of the visual analogue scale. This was followed by two exercise tests performed one day apart in randomised sequence, with two different protocols. One was a 12 minute protocol that included two sudden bursts of three minute high intensity exercise, up to the subject's Wmax, each preceded by three minutes of low level exercise. The other test was a conventional three minute incremental test lasting 12 minutes. On both study days the only information given to the subject about the temporal profile of load was that a change would be made every three minutes. The relation between dyspnoea, as assessed by the visual analogue scale, and ventilation, measured during high intensity or progressive exercise, was studied. RESULTS: The mean (SE) rates of increase of dyspnoea with increasing ventilation (% of line length 1(-1) min) obtained by linear regression analysis were similar for the two tests (2.86 (0.20) for progressive exercise and 2.87 (0.25) for high intensity exercise); it was 2.59 (0.25) for the initial burst of high intensity exercise when the data on this were analysed separately. In six subjects with stable disease studied again two months later the reproducibility of the rating of dyspnoea was reasonably good for both protocols. CONCLUSION: The results suggest that in most patients with chronic obstructive lung disease the assessment of exercise induced dyspnoea by means of a visual analogue scale during a progressive exercise test is not affected by the subject's awareness of the progressive increase in work intensity.

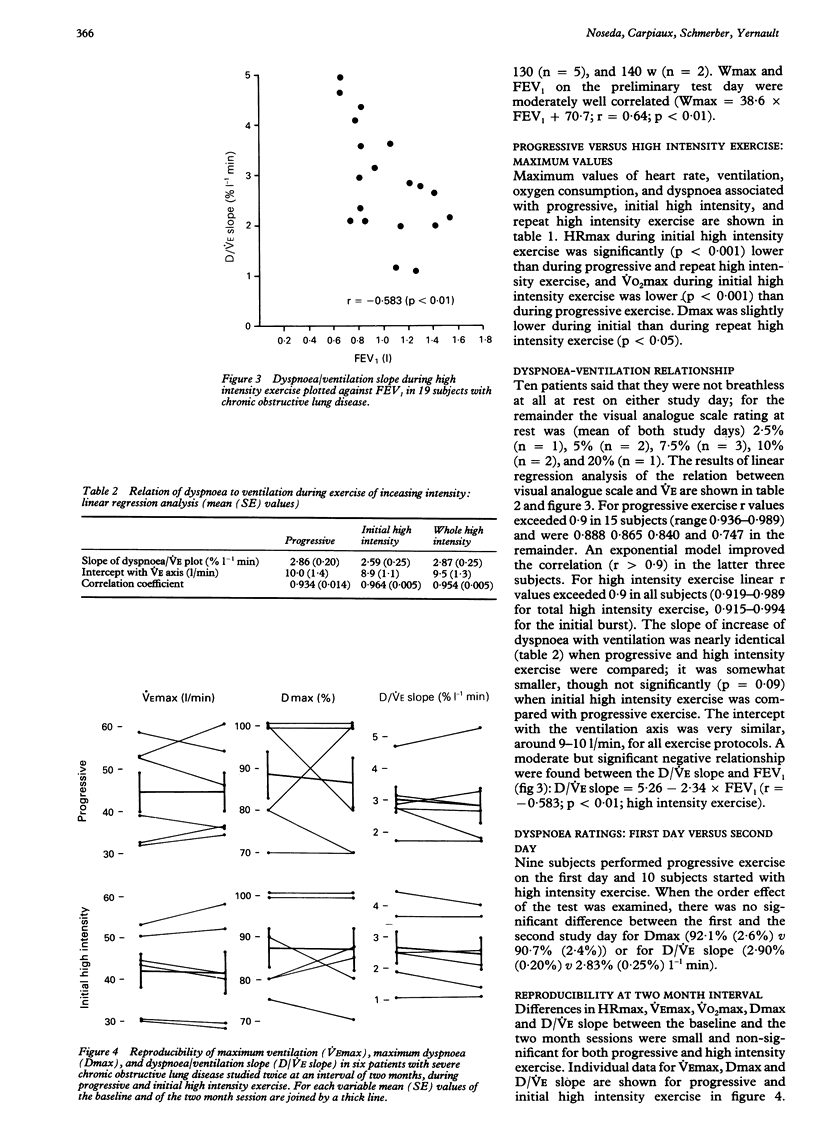

Full text

PDF
363

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Adams L., Chronos N., Lane R., Guz A. The measurement of breathlessness induced in normal subjects: validity of two scaling techniques. Clin Sci (Lond) 1985 Jul;69(1):7–16. doi: 10.1042/cs0690007. [DOI] [PubMed] [Google Scholar]
  2. Adams L., Lane R., Shea S. A., Cockcroft A., Guz A. Breathlessness during different forms of ventilatory stimulation: a study of mechanisms in normal subjects and respiratory patients. Clin Sci (Lond) 1985 Dec;69(6):663–672. doi: 10.1042/cs0690663. [DOI] [PubMed] [Google Scholar]
  3. Barnard R. J., Gardner G. W., Diaco N. V., MacAlpin R. N., Kattus A. A. Cardiovascular responses to sudden strenuous exercise--heart rate, blood pressure, and ECG. J Appl Physiol. 1973 Jun;34(6):833–837. doi: 10.1152/jappl.1973.34.6.833. [DOI] [PubMed] [Google Scholar]
  4. Killian K. J. The objective measurement of breathlessness. Chest. 1985 Aug;88(2 Suppl):84S–90S. doi: 10.1378/chest.88.2_supplement.84s. [DOI] [PubMed] [Google Scholar]
  5. Lane R., Cockcroft A., Guz A. Voluntary isocapnic hyperventilation and breathlessness during exercise in normal subjects. Clin Sci (Lond) 1987 Nov;73(5):519–523. doi: 10.1042/cs0730519. [DOI] [PubMed] [Google Scholar]
  6. McKeon J. L., Murree-Allen K., Saunders N. A. Effects of breathing supplemental oxygen before progressive exercise in patients with chronic obstructive lung disease. Thorax. 1988 Jan;43(1):53–56. doi: 10.1136/thx.43.1.53. [DOI] [PMC free article] [PubMed] [Google Scholar]
  7. Muza S. R., Silverman M. T., Gilmore G. C., Hellerstein H. K., Kelsen S. G. Comparison of scales used to quantitate the sense of effort to breathe in patients with chronic obstructive pulmonary disease. Am Rev Respir Dis. 1990 Apr;141(4 Pt 1):909–913. doi: 10.1164/ajrccm/141.4_Pt_1.909. [DOI] [PubMed] [Google Scholar]
  8. Nicklaus T. M., Burgin W. W., Jr, Taylor J. R. Spirometric tests to diagnose suspected asthma. Am Rev Respir Dis. 1969 Aug;100(2):153–159. doi: 10.1164/arrd.1969.100.2.153. [DOI] [PubMed] [Google Scholar]
  9. Noseda A., Carpiaux J. P., Prigogine T., Schmerber J. Lung function, maximum and submaximum exercise testing in COPD patients: reproducibility over a long interval. Lung. 1989;167(4):247–257. doi: 10.1007/BF02714953. [DOI] [PubMed] [Google Scholar]
  10. O'Neill P. A., Stark R. D., Allen S. C., Stretton T. B. The relationship between breathlessness and ventilation during steady-state exercise. Bull Eur Physiopathol Respir. 1986 May-Jun;22(3):247–250. [PubMed] [Google Scholar]
  11. Owens M. W., Kinasewitz G. T., Strain D. S. Evaluating the effects of chronic therapy in patients with irreversible air-flow obstruction. Am Rev Respir Dis. 1986 Nov;134(5):935–937. doi: 10.1164/arrd.1986.134.5.935. [DOI] [PubMed] [Google Scholar]
  12. Silverman M., Barry J., Hellerstein H., Janos J., Kelsen S. Variability of the perceived sense of effort in breathing during exercise in patients with chronic obstructive pulmonary disease. Am Rev Respir Dis. 1988 Jan;137(1):206–209. doi: 10.1164/ajrccm/137.1.206. [DOI] [PubMed] [Google Scholar]
  13. Simon P. M., Basner R. C., Weinberger S. E., Fencl V., Weiss J. W., Schwartzstein R. M. Oral mucosal stimulation modulates intensity of breathlessness induced in normal subjects. Am Rev Respir Dis. 1991 Aug;144(2):419–422. doi: 10.1164/ajrccm/144.2.419. [DOI] [PubMed] [Google Scholar]
  14. Stark R. D. Dyspnoea: assessment and pharmacological manipulation. Eur Respir J. 1988 Mar;1(3):280–287. [PubMed] [Google Scholar]
  15. Stark R. D., Gambles S. A., Chatterjee S. S. An exercise test to assess clinical dyspnoea: estimation of reproducibility and sensitivity. Br J Dis Chest. 1982 Jul;76(3):269–278. [PubMed] [Google Scholar]
  16. Stark R. D., Gambles S. A., Lewis J. A. Methods to assess breathlessness in healthy subjects: a critical evaluation and application to analyse the acute effects of diazepam and promethazine on breathlessness induced by exercise or by exposure to raised levels of carbon dioxide. Clin Sci (Lond) 1981 Oct;61(4):429–439. doi: 10.1042/cs0610429. [DOI] [PubMed] [Google Scholar]
  17. Swinburn C. R., Wakefield J. M., Jones P. W. Relationship between ventilation and breathlessness during exercise in chronic obstructive airways disease is not altered by prevention of hypoxaemia. Clin Sci (Lond) 1984 Nov;67(5):515–519. doi: 10.1042/cs0670515. [DOI] [PubMed] [Google Scholar]
  18. Wilson R. C., Jones P. W. A comparison of the visual analogue scale and modified Borg scale for the measurement of dyspnoea during exercise. Clin Sci (Lond) 1989 Mar;76(3):277–282. doi: 10.1042/cs0760277. [DOI] [PubMed] [Google Scholar]
  19. Wilson R. C., Jones P. W. Influence of prior ventilatory experience on the estimation of breathlessness during exercise. Clin Sci (Lond) 1990 Feb;78(2):149–153. doi: 10.1042/cs0780149. [DOI] [PubMed] [Google Scholar]
  20. Woodcock A. A., Gross E. R., Geddes D. M. Drug treatment of breathlessness: contrasting effects of diazepam and promethazine in pink puffers. Br Med J (Clin Res Ed) 1981 Aug 1;283(6287):343–346. doi: 10.1136/bmj.283.6287.343. [DOI] [PMC free article] [PubMed] [Google Scholar]
  21. Woodcock A. A., Gross E. R., Gellert A., Shah S., Johnson M., Geddes D. M. Effects of dihydrocodeine, alcohol, and caffeine on breathlessness and exercise tolerance in patients with chronic obstructive lung disease and normal blood gases. N Engl J Med. 1981 Dec 31;305(27):1611–1616. doi: 10.1056/NEJM198112313052703. [DOI] [PubMed] [Google Scholar]
  22. el-Manshawi A., Killian K. J., Summers E., Jones N. L. Breathlessness during exercise with and without resistive loading. J Appl Physiol (1985) 1986 Sep;61(3):896–905. doi: 10.1152/jappl.1986.61.3.896. [DOI] [PubMed] [Google Scholar]
