The Psp system of Mycobacterium tuberculosis integrates envelope stress sensing and envelope preserving functions

Abstract

The bacterial envelope integrates essential stress-sensing and adaptive functions; thus, envelope-preserving functions are important for survival. In Gram-negative bacteria, envelope integrity during stress is maintained by the multi-gene Psp response. Mycobacterium tuberculosis was thought to lack the Psp system, since it encodes only pspA and no other psp ortholog. Intriguingly, pspA maps downstream from clgR, which encodes a transcription factor regulated by the MprAB-σ^E envelope-stress-signaling system. clgR inactivation lowered ATP concentration during stress and protonophore treatment-induced clgR-pspA expression, suggesting that these genes express Psp-like functions. We identified a four-gene set -- clgR, pspA (rv2744c), rv2743c, rv2742c – that is regulated by clgR and in turn regulates ClgR activity. Regulatory and protein-protein interactions within the set and a requirement of the four genes for functions associated with envelope integrity and surface-stress tolerance indicate that a Psp-like system has evolved in mycobacteria. Among Actinobacteria, the four-gene module occurred only in tuberculous mycobacteria and was required for intra-macrophage growth, suggesting links between its function and mycobacterial virulence. Additionally, the four-gene module was required for MprAB-σ^E stress-signaling activity. The positive feedback between envelope-stress-sensing and envelope-preserving functions allows sustained responses to multiple, envelope-perturbing signals during chronic infection, making the system uniquely suited to tuberculosis pathogenesis.

The intracellular pathogen Mycobacterium tuberculosis responds to host-generated stress by extensive metabolic remodeling that leads to growth arrest and reduced susceptibility to host defenses and most antimicrobial agents. The inability of the host immune response to eliminate the pathogen results in latent infection and billions of asymptomatically infected individuals (WHO, 2013). This huge reservoir of infected humans poses a serious public health threat, since weakening of host defenses leads to development of pulmonary disease and transmission of infection. Understanding mechanisms used by M. tuberculosis to sense and adapt to host-mediated stress is crucial for developing highly effective anti-tuberculosis strategies.

Stress-signal sensing typically occurs at the surface of pathogenic bacteria (Rowley et al., 2006). With M. tuberculosis, the cell surface serves both sensing and adaptive functions. For example, stress-sensing functions include two-component systems, anti-sigma factors, and membrane-bound serine/threonine protein kinases (Bretl et al., 2011, Rodrigue et al., 2006, Alber, 2009). Adaptive functions include structural remodeling of the bacterial envelope that alters signaling to macrophages and presumably leads to intracellular conditions favoring mycobacterial dormancy (Davidson et al., 1982, Cunningham & Spreadbury, 1998, Shui et al., 2007, Jain et al., 2007, Lavollay et al., 2008). Maintenance of envelope integrity may be essential for proper expression and integration of bacillary stress responses.

A cornerstone of the surface stress response of M. tuberculosis is the genetic network centered on the MprAB two-component system and the accessory sigma factor E (σ^E), two transcriptional regulators that activate each other (Manganelli & Provvedi, 2010, Tiwari et al., 2010). Sensing of stress occurs through MprAB, which may be activated by protein misfolding in the extracytoplasmic space (Bretl et al., 2014), and through σ^E, which is activated by stress-induced degradation of the phosphorylated form of its cognate anti-sigma factor (Barik et al., 2010). How sensing of envelope stress by the mprAB-sigE network translates into preservation of cell envelope integrity is unknown.

The mprAB-sigE regulon includes the transcription regulator clgR (rv2745c) and the adjacent rv2744c (Manganelli et al., 2001, Estorninho et al., 2010), a pspA homolog (Provvedi et al., 2009). The function of M. tuberculosis pspA is unknown, but in Gram-negative organisms, pspA is a member of the envelope-stress-responsive, multi-gene Phage shock protein (Psp) response system that mitigates envelope damage by preventing proton leakage across a damaged membrane, thereby maintaining proton motive force (Darwin, 2005, Darwin, 2013, Joly et al., 2010). In that system, PspA has a dual role: it is a stoichiometric inhibitor of the cognate PspF regulator, and it is an envelope-stabilizing effector as a component of an envelope-bound, multiprotein complex comprising PspA and the integral membrane proteins PspB and PspC (Darwin, 2005, Darwin, 2013, Joly et al., 2010). While the presence of a pspA homolog does not imply the presence of a complete Psp system, particularly in Gram-positive organisms (Joly et al., 2010), we were intrigued by the possibility that M. tuberculosis possesses a functional Psp system connected to the mprAB-sigE-clgR stress-signaling network. Such a connection would complete the logical need for stress signaling to help bacteria recover from envelope damage.

In the present work, we used gene expression profiling, mutant analyses, and protein-protein interaction studies to characterize operon structure and regulatory interactions among clgR, pspA and two downstream genes (rv2743c and rv2742c), and to assess the requirement for these genes in physiological processes typically associated with envelope integrity. We report that the four-gene module of M. tuberculosis is found only in tuberculous mycobacteria among Actinobacteria, and that it exhibits regulatory and functional characteristics similar to those seen with the Psp system of Gram-negative bacteria. Since three of four proteins in the M. tuberculosis module share no amino acid sequence homology with their Gram-negative counterparts, our work reveals a novel example of parallel or convergent evolution in bacteria of different phyla. Moreover, the four-gene module and the mprAB-sigE network are connected by a positive feedback circuit. Reciprocal positive regulation of surface-stress signaling and envelope maintenance functions could enable tubercle bacilli to respond to multiple surface-perturbing challenges from the macrophage during the course of infection, and therefore have an important role in mycobacterial virulence.

RESULTS

Relationship of clgR-pspA with energy generation and proton motive force

During envelope stress, the Psp regulon of Gram-negative bacteria affects cellular activities that depend on proton motive force and ATP level (Darwin, 2005, Darwin, 2013, Joly et al., 2010). To determine whether a putative clgR-pspA system has a similar role in M. tuberculosis, we measured levels of intracellular ATP in M. tuberculosis cultures stressed with bacteriostatic concentrations (0.03%) of sodium dodecyl sulfate (SDS) (see Methods). Two strains were used: a wild-type strain and a clgR deletion mutant, obtained by replacement of the clgR coding sequence with an antibiotic resistance cassette (Estorninho et al., 2010). While no difference was observed between the two strains in the absence of stress, the ATP levels in SDS-treated clgR mutant cultures were one-third those obtained with similarly stressed wild-type cells (Fig. 1A).

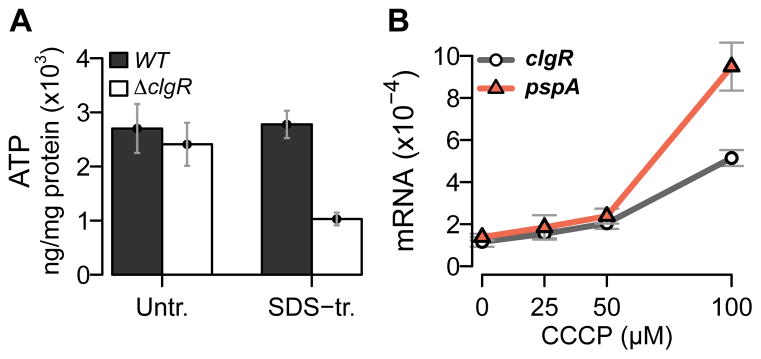

Figure 1.

(A) Effect of clgR deletion on intracellular ATP levels. Mid-log cultures of wild-type and clgR mutant strains were treated with 0.03% SDS for 24 hrs. Extracts from pre- and post-treatment cultures were then assayed for ATP levels and expressed as ng of ATP per mg of total protein. (B) Effect of treatment with carbonyl cyanide m-chlorophenyl hydrazone (CCCP) on expression of clgR and pspA. Mid-log cultures of the wild-type strain were treated for 6 hrs with various concentrations of CCCP, as indicated, and harvested pre- and post-treatment. Total RNA was extracted, and amplicons were measured by quantitative RT-PCR using primers and gene-specific molecular beacons. Amplicon copy numbers were normalized to 16S rRNA. 0 μM = solvent-only control (corresponding to the highest solvent concentration used with the CCCP treatment). In this and subsequent figures, quantitative RT-PCR data are presented as mean values (+/− standard error of the mean) from triplicate experiments.

Energy generation correlates with maintaining proton motive force (PMF), and dissipation of PMF caused by treatment with proton ionophores, such as carbonyl cyanide m-chlorophenyl hydrazone (CCCP), induces expression of pspA and its product in E. coli and Salmonella typhimurium (Weiner & Model, 1994, Becker et al., 2005). When we examined the effect of CCCP treatment on the expression of clgR-pspA of M. tuberculosis, we observed CCCP-concentration-dependent induction of both genes (Fig. 1B). The lowered ATP concentration seen with the clgR mutant and the CCCP-mediated upregulation of clgR-pspA suggest that M. tuberculosis possesses an active Psp response.

Regulation of the clgR-pspA-rv2743c-rv2742c region by ClgR

We next examined the regulatory structure of the genomic region encoding clgR-pspA. Downstream of pspA are two additional genes (rv2743c and rv2742c) that are transcribed in the same direction and that are separated from pspA and from each other by short (~20 to ~70 bp) intergenic regions (Fig. 2A). Since clgR, pspA, and rv2743c were previously reported to respond to surface stress in a sigE-dependent manner in microarray experiments (Manganelli et al., 2001), and the DNA upstream from clgR contains ClgR-binding sites (Estorninho et al., 2010), we first asked whether the stress response of this gene set was clgR-dependent. By using quantitative RT-PCR for transcript enumeration, we found that the surface-stress (0.03% SDS) response of pspA, rv2743c, and rv2742c was abrogated in the clgR deletion strain (Fig. 2B). Mutant complementation with clgR restored 35% to 40% of the downstream gene expression (Fig. 2B), indicating that expression of each of the three downstream genes required a functional clgR. Additionally, since all four genes exhibited similar stress response profiles (Fig. S1), and pair-wise co-transcription of clgR-pspA and pspA-rv2743c was previously reported with unstressed M. tuberculosis cultures (Roback et al., 2007), we tested the possibility of co-transcription within the four-gene set under surface stress. To do so, we used RT-PCR to determine whether RNA was generated from the intergenic regions (Fig. 2A) under the surface stress conditions applied in Fig. 2B. We found that not only were amplicons generated from the intergenic regions but also that these amplicons exhibited stress-response expression profiles similar to that of clgR (Fig. 2C) and of the downstream genes (Fig. S1). This result strongly suggests the presence of one or more multicistronic mRNA(s) encoded by the four-gene region. To further explore the regulatory structure of the region, we used promoter-probe technology and constructed lacZ reporter fusions with DNA sequences upstream from clgR and within the clgR-pspA intergenic region (IG1 in Fig. 2A). When reporter gene expression was measured in response to surface stress, lacZ expression was induced with both constructs (2- to 3-fold over the corresponding basal level) in wild-type but not in clgR deletion mutant cultures (Fig. 2D). The presence of two promoters explains why complementing the clgR deletion mutant restores only ~40% of wild-type levels of the downstream genes (Fig. 2B): in the complemented mutant, ClgR produced from an ectopic locus can induce the stress response of pspA-rv2743c-rv2742c only from the downstream promoter but not from the upstream promoter. To map the two promoters, we analyzed data obtained by genome-wide transcription start site mapping using RNA adapter ligation and next generation RNA sequencing (Shell et al., 2015) (see Methods). A transcription start site was identified 30 nucleotides upstream from the start of the clgR coding sequence (Fig. 2E). The corresponding −10 and −35 sequences are characteristic of a SigE promoter, which had been previously identified (Manganelli et al., 2001). An additional 5′ end associated with a strong SigA −10 motif was identified 51 nucleotides upstream of the pspA coding sequence (Fig. 2E) (no −35 site was identified, consistent with the reported absence of a consensus −35 site for M. tuberculosis SigA promoters (Cortes et al., 2013, Feklistov & Darst, 2011). The two transcriptional start sites identified here were also reported in a previous genome-wide mapping study employing a different methodology (Cortes et al., 2013). Overall, the results reported in this section strongly suggest that one or more multicistronic transcripts are expressed from two stress-responsive, clgR-dependent promoter sequences, one located upstream of clgR and another found in the clgR-pspA intergenic region. In agreement with the clgR dependence of both promoters assessed genetically, ClgR-binding sites were found by bioinformatics upstream of clgR (as also reported in (Estorninho et al., 2010)) and of pspA (Fig. S2).

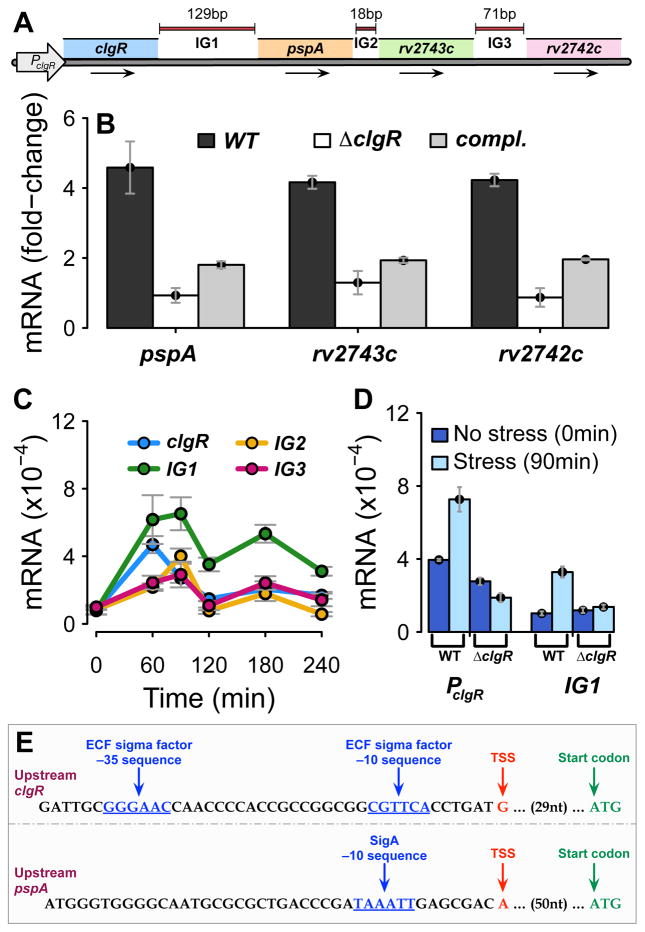

Figure 2. Structure and regulation of genes in the clgR-pspA-rv2743c-rv2742c region.

(A) Schematic representation of the region. Arrows represent direction of transcription. The arrow P_clgR indicates sequences upstream of clgR expressing promoter activity. IG = intergenic regions of indicated length, in bp. (B) Effect of clgR deletion on gene stress response. Mid-log cultures of wild-type, clgR deletion mutant, and complemented strains were treated with 0.03% SDS and harvested pre-treatment (time 0) and post-treatment (90 min). Amplicons were generated from total RNA by quantitative RT-PCR using primers and gene-specific molecular beacons from intragenic sequences for each gene, as indicated. Amplicon copy numbers, normalized to 16S rRNA, are presented as fold-change relative to time 0. Mean values (+/− standard error of the mean) were obtained from triplicate experiments. (C) Enumeration of intergenic-sequence-containing amplicons. Mid-log cultures of the wild-type strain were treated with SDS, and samples were harvested pre-treatment and at multiple times post treatment. Amplicons were generated from sequences internal to clgR (reference gene) and from intergenic sequences along the region, as indicated (see panel A). Data obtained from triplicate experiments were normalized to 16S rRNA. (Note that copy numbers of RT-PCR amplicons obtained with different primer sets and molecular beacons cannot be compared with each other due to variations in primer-associated efficiency of PCR amplification and molecular-beacon-dependent detection sensitivity). (D) Analysis of promoter probe constructs. Two promoter::lacZ fusions were generated with nucleotide sequences comprising either 382 bp upstream of clgR (P_clgR, see panel A) or 250 bp upstream of pspA (IG1, see panel A) in wild-type and clgR mutant strains. lacZ transcripts were enumerated by quantitative RT-PCR prior to and 90 min following SDS treatment of mid-log cultures. Data obtained from triplicate experiments were normalized to 16S rRNA. (E) Promoter mapping upstream of clgR and pspA. The panel shows nucleotide sequences upstream of clgR and upstream of pspA (intergenic region IG1). Indicated in brown are the two transcription start sites (TSS) mapped in this work using the genome-wide mapping method described in Methods. The TSS in the top row had a ratio of converted to unconverted 5′ ends >1.74 (adjusted p ≤0.01 for probability of being a processed 5′ end). This TSS is preceded by −10 and −35 sequences (shown in blue) characteristic of the extracytoplasmic function (ECF) sigma factor SigE (Manganelli et al., 2001). The 5′ end in the bottom row had a converted/non-converted ratio of 1.58, and was confirmed to be a TSS based on the presence of a very strong SigA −10 motif (in blue) (Cortes et al., 2013, Feklistov & Darst, 2011). In both rows, the annotated first codon (ATG) is as reported in the M. tuberculosis genome sequence (http://tuberculist.epfl.ch/). nt = nucleotides.

Regulation of ClgR by downstream genes

Since ClgR is the regulator of the clgR-pspA-rv2743c-rv2742c region, we characterized its own regulation. Induction of clgR by surface stress requires functional sigE ((Fig. S3) and (Manganelli et al., 2001)). To take into account potential post-transcriptional regulatory events, we assessed ClgR activity by using as read-out the expression of the target gene clpP1 (rv2461c), which is directly induced by ClgR (Sherrid et al., 2010). Stress (SDS)-mediated induction of clpP1 exhibited a biphasic temporal expression profile, with one peak at ~60–90 min post-stress and a second at ~180–240 min. The two peaks were separated by a trough at ~120 min post-stress (Fig. 3). Induction of clpP1 was absent in a clgR deletion mutant (Fig. 3). When we complemented the clgR mutant with clgR alone (by using an ectopic, integrated copy of the complementing DNA expressed from the native promoter), clpP1 induction was restored to wild-type levels at most time points (Fig. 2D). However, we were surprised to find that mutant complementation with clgR and pspA together abrogated clpP1 expression (Fig. 3): addition of pspA to the complementing DNA inhibited ClgR activity. The expression profile of clpP1 was fully restored only when both downstream genes, rv2743c and rv2742c, were added to the clgR-pspA complementing DNA (Fig. 3). Similar results were obtained when we measured expression of another ClgR target gene, hsp (rv0251c) (Estorninho et al., 2010) (Fig. S4A). Together, these genetic data show that pspA has an inhibitory effect on ClgR activity and that rv2743c and rv2742c reverse that effect. Functional data were consistent with the genetic results, as complementation of the clgR defect by the clgR-pspA-rv2743c-rv2742c DNA also restored wild-type levels of ATP in stressed cultures (Fig. S4B).

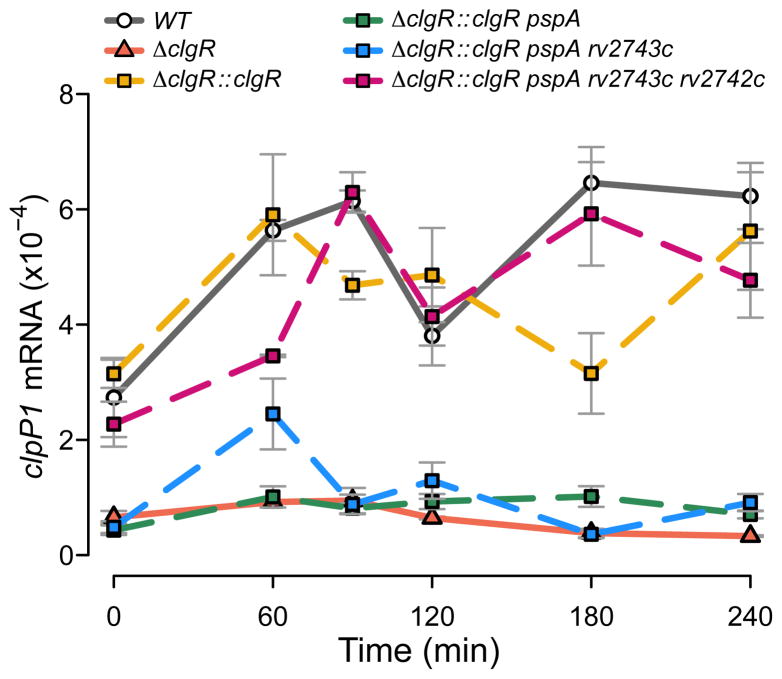

Figure 3. Effect on clpP1 stress response of clgR deletion and sequential complementation with clgR and downstream operon genes.

Expression of the sentinel target gene clpP1 was used as readout of ClgR activity (Sherrid et al., 2010). Complementation of the clgR deletion was performed sequentially by introducing clgR alone, clgR plus pspA, plus pspA-rv2743c, and plus pspA-rv2743c-rv2742c. Transcript copy numbers were generated and expressed as described in the legend to Fig. 2C. The reason why clgR alone complements the clpP1 expression defect of the clgR deletion mutant to similar levels as the clgR-pspA-rv2743c-rv2742c complementation can be explained by ectopically produced ClgR inducing pspA-rv2743c-rv2742c expression from the promoter located in the clgR-pspA intergenic region (Fig. 2D). Measurements of clpP1 transcripts performed using M. tuberculosis H₃₇Rv and M. tuberculosis CDC1551 gave indistinguishable results (Fig. S8D), indicating that the clpP1 surface-stress response is conserved in different M. tuberculosis strains.

The effect of rv2743c-rv2742c on ClgR activity was further examined with a mutant of rv2743c carrying a transposon insertion that has a polar effect on the downstream gene rv2742c (data not shown). In this mutant, the second peak of the clpP1 profile disappeared (Fig. 4A) (the biphasic profile of the clpP1 response and the temporal effects of the rv2743c-rv2742c mutation are interpreted in the Discussion). In addition, the rv2743c-rv2742c mutation reduced intracellular ATP levels under surface-stress conditions to <60% of wild-type levels (Fig. 4B), thereby recapitulating functional effects observed with the clgR mutant (Fig. 1).

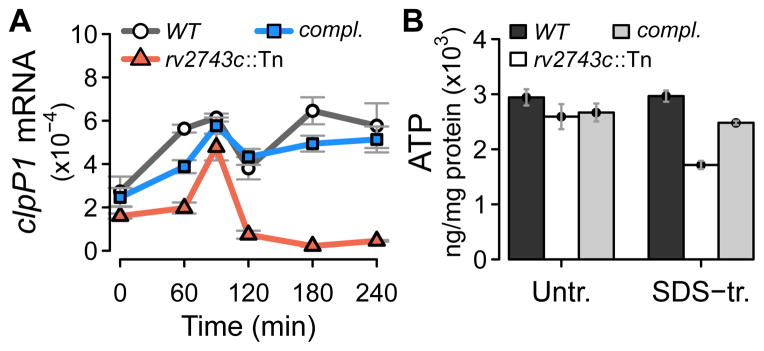

Figure 4. Effects of rv2743c inactivation on target gene expression and ATP levels.

(A) Effect on clpP1 stress response. ClgR activity was assessed as expression of the sentinel target gene clpP1 in an rv2743c transposon (Tn) insertion mutant. Complementation was performed with rv2743c-rv2742c to overcome the polar effect of the mutation on the downstream rv2742c (data not shown). Wild-type, mutant, and rv2743c-rv2742c complemented (compl.) strains were subjected to surface stress with SDS, and clpP1 transcripts were enumerated and presented as described in the legend to Fig. 2C. The reason why the rv2743c mutation did not phenocopy the clgR-pspA complementation of the clgR deletion mutant (Fig. 3) can be gene dosage effect due to the extra copy of pspA in the complementing DNA. (B) Effect on intracellular ATP levels. ATP levels were assayed in extracts from mid-log cultures of wild-type, mutant, and complemented strains pre- and post-treatment with 0.03% SDS for 24 hrs, and expressed as in the legend to Fig. 1A.

Effect of the pepD protease gene on ClgR activity

In light of the inhibitory effect of pspA on ClgR activity, described above with the clgR complementation studies (Fig. 3 and Fig. S4A), we reasoned that ClgR target gene expression profiles might be affected by mutations in accessory genes that alter PspA levels. One such gene is pepD (rv0983), which encodes a serine protease that targets PspA for proteolytic degradation (White et al., 2011). Indeed, in a pepD-deficient mutant the SDS-mediated stress response of the ClgR target gene clpP1 showed a striking decrease in the second peak of the clpP1 profile (Fig. S5). Thus, pepD has a temporal effect on ClgR activity similar to that described above for the rv2743c insertion mutant (Fig. 4A).

Protein-protein interactions

We next determined whether protein complexes form between ClgR, PspA and the Rv2743c and Rv2742c proteins. We constructed E. coli strains expressing IPTG-inducible, differentially tagged copies of each protein in all pairwise combinations, and then we assessed protein complex formation by immunoprecipitation, pull-down assays, and western blot analyses. We detected complex formation between ClgR and PspA (Fig. 5A, lane 3) but not between ClgR and either Rv2743c (Fig. 5B, lane 3) or Rv2742c (Fig. 5C, lane 3). Moreover, protein complexes formed between PspA and Rv2743c (Fig. 5D, lane 3) and between Rv2743c and Rv2742c (Fig. 5E, lane 3), but not between PspA and Rv2742c (Fig. 5F, lane 3). In summary, protein complexes formed only between ClgR and PspA, PspA and Rv2743c, and Rv2743c and Rv2742c.

Figure 5. Protein-protein interactions.

Pairwise protein-protein interactions were assessed between differentially tagged recombinant proteins expressed from IPTG-inducible promoters in E. coli. Whole cell lysates from IPTG-induced recombinant cultures expressing tagged proteins, alone or in pairs as indicated, were used for co-immunoprecipitation (IP; left column) or for pull-down of 6xHis tagged protein (PD; right column), followed by immunoblotting (IB) with the appropriate monoclonal antibody. Left column: IP was performed with anti-His (A and C) or with anti-S-tag antibody (B), followed by IB with anti-Myc antibody to detect ClgR. Lanes: 1) whole-cell lysate + IB (positive control); 2) IP (with cell extracts carrying ClgR-Myc alone) + IB; 3) IP (with cell extracts carrying ClgR-Myc plus a His-tagged or S-tagged protein) + IB. Right column: PD was performed with Ni-NTA agarose, followed by IB with anti S-tag antibody for detection of Rv2743c (D and E) or Rv2742c (F). Lanes: 1) whole-cell lysate + IB (positive control); 2) PD (with cell extracts carrying S-tag protein alone) + IB; 3) PD (with cell extracts carrying S-tag protein plus His-tag protein) + IB. The bottom row of each panel shows unidentified E. coli bands cross-reacting with anti-Myc monoclonal antibody (panels in the left column) or with the anti-S-tag monoclonal antibody (panels in the right column) that served as loading controls. Experiments in panels B, C, and F were repeated by switching tags in each corresponding protein pair to control for potential tag effects on the protein-protein interaction, with no change of result. S = S tag; M = Myc tag; H = His tag.

Preservation of envelope integrity

Since clgR and rv2743c mutants show reduction of cellular processes that are typically associated with envelope integrity, such as energy generation under stress (Figs. 4B and S4B), we asked whether the clgR-pspA-rv2743c-rv2742c region has an envelope-preserving activity. Since envelope integrity is expected to be linked to surface-stress tolerance, we measured survival of M. tuberculosis wild-type and rv2743c mutant cultures during treatment with bactericidal concentrations (0.2%) of SDS. Mutant survival was drastically lower (>90% reduction) than wild-type survival (Fig. 6A). A similar effect was observed with a clgR mutant (data not shown).

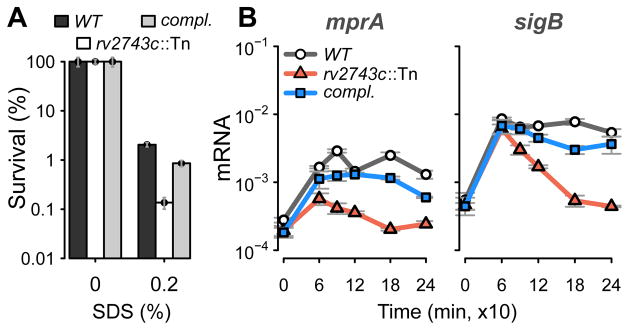

Figure 6. Effects of rv2743c inactivation.

(A) Tolerance to surface stress. Lethal activity of the detergent SDS was determined in wild-type, rv2743c mutant and rv2743c-rv2742c complemented (compl.) strains. Data are expressed as % survival relative to untreated cultures. Mean values (+/− standard error of the mean) from triplicate experiments are shown. (B) Surface-stress response of sentinel target genes of MprAB and σ^E. Transcripts for mprA and sigB were enumerated in wild-type, mutant, and complemented strains and presented as described in the legend to Fig. 2C. Tn = transposon.

Another measure of envelope integrity is proper functioning of the envelope-stress sensing system, which, as pointed above, centers on the MprAB-σ^E network. We examined the effects of genetic inactivation of rv2743c on the MprAB-σ^E network. As read-out for MprAB and σ^E activity, we measured expression of mprA (which contains regulatory MprA-binding sites (He et al., 2006)) and sigB (which is transcribed from a σ^E-dependent promoter (Song et al., 2008)). Inactivation of rv2743c reduced mprA and sigB expression to ~20% and ~10% of wild-type levels, respectively, after 90–120 min of treatment with SDS (Fig. 6B). This temporal effect was similar to that observed on ClgR activity with the same mutant (Fig. 4A). In addition, the rv2743c mutation reduced the mprA but not the sigB stress response profile in the first 90 min following SDS addition, suggesting that the effect is directly on MprA activity and indirectly (through the dampening of MprA) on σ^E activity. Together, the observed effects of the rv2743c mutation on surface stress tolerance and on the activity of the MprA-σ^E network establish a link between the clgR-pspA-rv2743c-rv2742c region and expression of envelope-stress sensing functions.

M. tuberculosis survival in macrophages

Given that the ClgR-PspA-Rv2743c-Rv2742c module maintains tolerance to surface stress in vitro, we tested whether the intact system is required for M. tuberculosis survival during macrophage infection. When rv2743c was inactivated, M. tuberculosis growth in primary human monocyte-derived macrophages was reduced 40% at seven days post-infection (Fig. 7A). Since mutant and wild-type cultures are indistinguishable when grown in rich medium, the rv2743c inactivation increases M. tuberculosis susceptibility to the intra-macrophage environment. Similar effects were observed with a clgR mutant (Fig. 7B). Thus, the clgR-pspA-rv2743c-rv2742c region facilitates intracellular growth of M. tuberculosis.

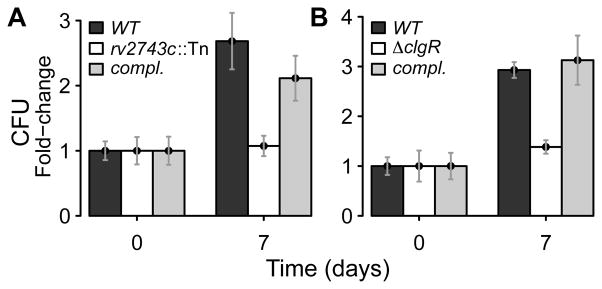

Figure 7. Effect of rv2743c and clgR inactivation for growth in macrophages.

Human monocyte-derived macrophages were infected with different M. tuberculosis strains. Bacterial counts (CFU) were normalized to 10⁵ adherent cells per well. Data are expressed as fold-increase in CFU at day 7 relative to CFU enumerated at 4 hrs post-infection. Mean values (+/− standard error of the mean) from triplicate experiments are shown. (A) Wild-type, rv2743c mutant and rv2743c-rv2742c complemented (compl.) strains. Tn = transposon. (B) Wild-type, clgR mutant and complemented (compl.) strains. Complementation was with clgR-pspA-rv2743c-rv2742c DNA. Reduced growth of the clgR mutant in murine bone-marrow-derived macrophages was previously reported (Estorninho et al., 2010).

Comparison with the Psp proteins of Gram-negative bacteria

We next asked whether the proteins encoded by the clgR-pspA-rv2743c-rv2742c operon of M. tuberculosis share similarities with the proteins mediating the Psp response to envelope stress in Gram-negative Proteobacteria (reviewed in (Darwin, 2005, Darwin, 2013, Joly et al., 2010)). In that system, the “minimal” Psp module (Darwin, 2005) includes four adjacent genes, namely, the regulator pspF and the PspF-regulated pspABC. Thus, the gene organization in the Gram-negative module parallels that seen in M. tuberculosis. Except for PspA, which contains the PspA/IM30 domain characteristic of this protein family (Fig. 8), the other proteins encoded by the clgR-pspA-rv2743c-rv2742c region share no sequence homology with the Psp proteins of Gram-negative bacteria (Fig. 8). The transcriptional regulators ClgR and PspF are very different in length. Moreover, ClgR lacks the AAA+ ATPase domain characteristic of bacterial enhancer binding proteins such as PspF, and the respective helix-turn-helix DNA binding domains are located at opposite ends of the two proteins (Fig. 8). In addition, while PspB and PspC are both integral membrane proteins, only Rv2743c (but not Rv2742c) contains transmembrane domains (Fig. 8). Thus, the proteins encoded by clgR, rv2743c and rv2742c of M. tuberculosis are unrelated to the Psp system of Gram-negative organisms with respect to amino acid sequence.

Figure 8. M. tuberculosis (Mtb) and E. coli (Eco) Psp protein comparison.

(A) Mtb ClgR and Eco PspF. ClgR and PspF contain helix-turn-helix (HTH)-type DNA-binding domains (DBD). ClgR has an N-terminal HTH_XRE (SM00530, PF01381) DBD, while PspF has a C-terminal Fis-type HTH_8 DBD (PF02954, IPR002197). PspF contains AAA+ and sigma-54 interaction domains (IPR003593 and IPR002078, respectively). (B) Mtb PspA and Eco PspA. Both proteins were used to define PspA/IM30 (PF04012, IPR007157), a domain characterized by ~25% of conserved amino acid residues spanning the entire protein length. This domain is also predicted to contain coiled-coils. (C) Mtb Rv2743c and Eco PspB. Mtb Rv2743c and Eco PspB do not share significant sequence similarity; however, they are both predicted to be transmembrane (TM) proteins. Mtb Rv2743c is predicted to have two ~22-amino-acid TM helices connected by a short (4–6 amino acid) non-cytoplasmic loop. Mtb Rv2743c is also predicted to contain a C-terminal coiled-coil. Eco PspB is a single PspB domain (PF06667, IPR009554), which contains a predicted N-terminal TM helix (residues: 6–24) and C-terminal coiled-coil (residues: 36–64). (D) Mtb Rv2742c and Eco PspC. Mtb Rv2742c and Eco PspC share no significant sequence similarity. Sequence analysis of Rv2742c revealed only a single domain of unknown function (DUF3046, PF11248), which is conserved in actinobacteria. In contrast, Eco PspC has an N-terminal PspC domain (residues: 7–68, PF04024), a transmembrane helix (residues: 39–64), and a C-terminal coiled-coil (residues: 84–105).

Phylogenetic analysis

The distribution of the Psp system and its components in species encoding ClgR homologs was not investigated in previous phylogenetic analyses of the Psp system (for example (Joly et al., 2010)), presumably due to the absence of sequence homology between the regulators PspF and ClgR (Fig. 8). We performed protein sequence similarity searches in ~3,400 species of Actinobacteria and found that ~2,200 species carried a protein having at least 25% homology with M. tuberculosis ClgR (E-value < 1e-5). When we examined the ClgR-positive species for conservation of PspA-Rv2743c-Rv2742c, we found that the number of genes present correlated inversely with phylogenetic distance from Mycobacterium spp. (Fig. S6). Within Mycobacterium spp., only the M. tuberculosis complex contains the entire ClgR-PspA-Rv2743c-Rv2742c region: mycobacteria outside the M. tuberculosis complex showed <85% homology with Rv2743c and lacked Rv2742c (Fig. 9). Despite the lack of a fourth, contiguous gene in the module, the non-tuberculous species Mycobacterium smegmatis showed induction of clgR and the ClgR target clpP1 in response to surface stress (Fig. S7), and expression profiles resembled those seen in M. tuberculosis (Figs. 2C and 3). Thus, non-tuberculous mycobacteria encode three contiguous genes that appear to be sufficient for regulation of the module’s genes (we cannot exclude other, non-contiguous gene(s) participating to the Psp function). Overall, our analysis shows that the four-gene module is characteristic only of tuberculous mycobacteria.

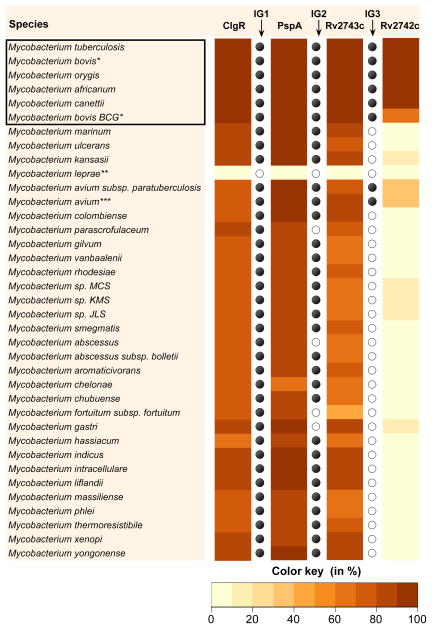

Figure 9. Distribution of ClgR-PspA-Rv2743c-Rv2742c proteins in Mycobacterium spp.

Significant matches and similarity scores were obtained as described in Methods. The heat map represents the similarity score per target species or sub-species (or the highest score in the case of multiple matches), expressed as percent of protein sequence similarity for the longest contiguous match. Mycobacterial species were ordered on the basis of phylogenetic similarity ((Wattam et al., 2014) and http://www.patricbrc.org). The box contains the species in the M. tuberculosis complex. Intergenic distances (IG) between matches were calculated (in bp) in the target genomes. IG1, IG2 and IG3 denote distances between clgR-pspA, pspA-rv2743c and rv2743c-rv2742c, respectively. Filled black circles indicate intergenic distances that are similar to that of M. tuberculosis clgR-pspA-rv2743c-rv2742c operon, as shown in Fig. 2A. Open circles denote either absence of one gene in the pair, intergenic distances of >250 bp, or absence of genomic location information.

*Of 13 virulent M. bovis isolates analyzed, one (AF2122/97) contained a 23-bp insertion in pspC approximately two-thirds into the gene sequence, presumably giving rise to a truncated product. The same insertion was found in the genomes of 9 out of 14 substrains of the attenuated vaccine strain M. bovis Bacillus Calmette Guerin. The evolutionary significance of this polymorphism remains to be ascertained.

**Only Mycobacterium leprae was devoid of the entire ClgR-Psp module, as previously reported (Bretl et al., 2014), suggesting that loss of the Psp system is part of the genomic downsizing observed with this obligate intracellular pathogen (Cole et al., 2001).

***Only Mycobacterium avium among non-tuberculous mycobacteria showed a truncated form of Rv2742c (~1/3 the length of M. tuberculosis Rv2742c) at the appropriate distance from the preceding gene.

DISCUSSION

The present work connects envelope stress signaling with envelope maintenance in M. tuberculosis, thus completing the circle between sensing stress and recovering from damage. Our finding that the four-gene, clgR-pspA-rv2743c-rv2742c module is conserved only within the M. tuberculosis complex strongly suggests a link between this module and the ability of tuberculous mycobacteria to cause disease. Such linkage is consistent with the reduced intra-macrophage growth of M. tuberculosis we find associated with disruption of the clgR-pspA-rv2743c-rv2742c operon.

We found strong similarities between the clgR-pspA-rv2743c-rv2742c operon of M. tuberculosis and the Psp system of Gram-negative bacteria. For example, the minimal Psp module includes four adjacent genes, the regulator pspF and its three regulated genes, pspABC. In M. tuberculosis, the regulator is clgR, followed by pspA-rv2743c-rv2742c. With the Gram-negative system, the regulator’s transcriptional activity is normally blocked by formation of the PspF-PspA complex; envelope stress presumably alters PspA conformation and leads to formation of higher-order PspA multimers (Joly et al., 2010). The resulting multimeric structure results in (i) release of PspF, (ii) consequent PspF-dependent induction of the pspABC operon by σ⁵⁴-containing RNA polymerase, and (iii) formation of a complex between PspA and the two integral membrane proteins PspB and PspC (Darwin, 2005, Joly et al., 2010). With M. tuberculosis, our data fit with a model (Fig. 10A) that parallels the Gram-negative scenario. We propose that surface-stress-dependent induction of the clgR-pspA-rv2743c-rv2742c operon by MprAB-σ^E results in formation of a complex between ClgR and PspA. This complex would block ClgR activity at ~90 min post-stress (Fig. 3). A second peak of ClgR activity (~120 min onwards) requires functional rv2743c-rv2742c (Fig. 4A), which we interpret as PspA forming a multiprotein complex with Rv2743c-Rv2742c and releasing ClgR from the inhibitory complex (this proposition implies that the pair-wise interactions observed with recombinant proteins (Fig. 5) reflect the ability to form a multiprotein complex in living cells). Thus, the ubiquitous protein PspA would exert parallel inhibitory function over the cognate regulator in M. tuberculosis (ClgR) and in Gram-negative organisms (PspF). Moreover, since PspA repurposing from inhibitor to effector activity in Gram-negative bacteria requires PspBC, these two proteins positively regulate PspF activity (Joly et al., 2010). Likewise, the M. tuberculosis rv2743c-rv2742c genes positively affect ClgR activity (Fig. 4A). Thus, despite the absence of amino acid sequence homology, Rv2743c and Rv2742c might serve as functional homologs of PspB and PspC of Gram-negative organisms. Indeed, the disappearance of the second peak of ClgR activity in a mutant deficient in pepD (Fig. S5), which normally targets PspA for degradation (White et al., 2011), supports our model: wild-type abundance of Rv2743c-Rv2742c may be insufficient to repurpose excess PspA found in the pepD mutant, leading to continuing inhibition of ClgR activity by PspA. These regulatory similarities between phylogenetically distant microorganisms emphasize the widespread importance of the four-gene Psp module.

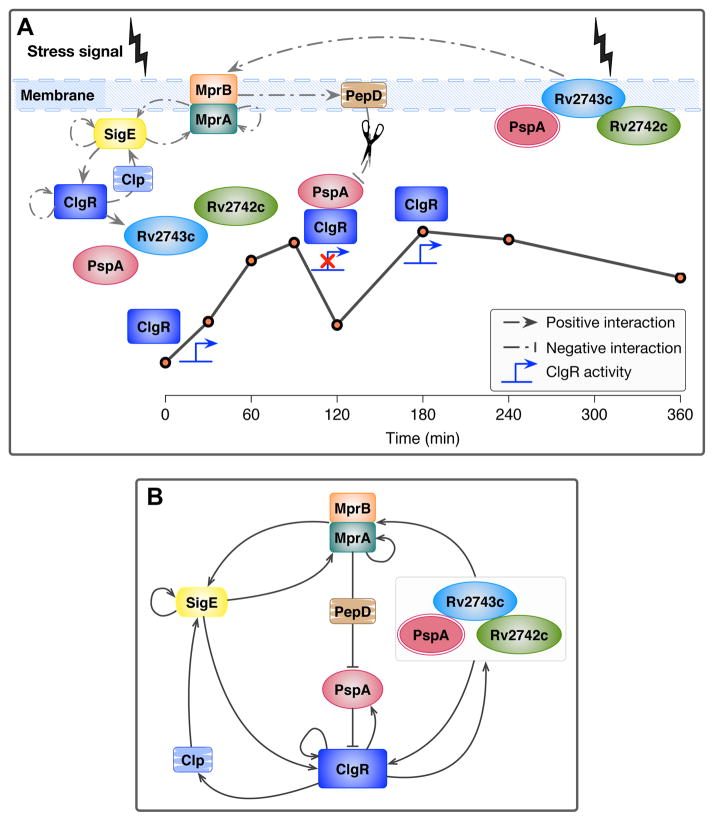

Figure 10.

(A) Model of MprAB-σ^E-dependent maintenance of envelope integrity in response to surface stress. The figure shows interactions between the envelope-stress signaling MprAB-σ^E network and the envelope-preserving ClgR-PspA-Rv2743c-Rv2742c system. Interactions include the mprAB-sigE transcriptional network and the mprAB-dependent pepD, the downstream target clgR-pspA-rv2743c-rv2742c operon, and additional clgR-regulated genes (clpP1). The line plot represents the temporal, post-stress expression profile of clpP1, as a proxy of ClgR activity. The location of individual proteins, protein complexes, and interactions relative to the line plot depicts the proposed temporal course of events associated with propagation of signal (ClgR activity) through the Psp system, resulting membrane integrity, and MprAB stabilization. The scissors icon indicates proteolytic degradation. The red cross over the ClgR activity icon represents ClgR inactivation. (B) Feedback loops in the stress-response system of M. tuberculosis. The wiring diagram shows multiple regulatory feedback loops, transcriptional and post-transcriptional, operating between mprAB, sigE, clgR, the Psp system, and neighboring network genes and/or corresponding gene products under surface stress conditions. The abundance of feedback loops in the system does not allow distinguishing whether the observed functional effects of the pspA-rv2743c-rv2742c products are direct, or occur indirectly via the regulation of ClgR and its target gene products. Since clgR is connected to the mprAB/sigE sensing network through two positive feedbacks, links between envelope-stress-sensing and envelope-preserving functions exist regardless of whether pspA-rv2743c-rv2742c act directly or indirectly. Except for sigE autoregulation (Chauhan and Gennaro, unpublished), the regulatory interactions showed in this figure are all cited or discovered in the present manuscript. Arrowhead = positive regulation; Barhead = negative regulation.

Parallels also exist between the Gram-negative and the M. tuberculosis systems in terms of both function and sub-cellular localization. The membrane-bound PspABC complex of Gram-negative bacteria has envelope-stabilizing activities, with PspA exhibiting key effector functions (Darwin, 2005, Darwin, 2013, Joly et al., 2010). Similar effector functions are presumably exerted by the M. tuberculosis module, since clgR-pspA-rv2743c-rv2742c is induced when PMF is dissipated and is required to express phenotypes diagnostic of envelope integrity, such as ATP homeostasis and tolerance to surface stress. We note that the extensive network of positive feedback loops regulating this system (Fig. 10B) precludes using genetic analyses to assign these functional phenotypes to direct (envelope-preserving) effects or to indirect (ClgR activity modulating) effects of the pspA-rv2743c-rv2742c genes. However, the ability of pspA of M. tuberculosis to complement the alkaline pH-tolerance defect of a pspA mutant of E. coli (data not shown) implies that genes in the pspA-rv2743c-rv2742c module of M. tuberculosis can serve the same functions reported for Gram-negative bacteria. As with Gram-negative bacteria, the multiprotein complex between PspA, Rv2743c and Rv2742c may be targeted to the M. tuberculosis cell envelope, since Rv2743c is a membrane protein (Fig. 8). Intriguingly, subcellular fractionation analyses of M. tuberculosis have revealed both PspA- and Rv2742c-derived peptides in the cell membrane fraction, despite the absence of transmembrane domains or lipid anchoring motifs in these proteins (Mawuenyega et al., 2005, Rumschlag et al., 1990). These observations support the presence in envelope-stressed mycobacterial cells of an envelope-bound, multiprotein complex containing PspA, Rv2743c and Rv2742c proteins, parallel to the Gram-negative situation. The observation that clgR and its target genes are induced in response to surface stress in M. smegmatis (Fig. S7), which encodes only three of the four genes found in the Psp module of the M. tuberculosis complex (Fig. 9), provides an opportunity for parallel functional and structural analyses of the Psp module between tuberculous and non-tuberculous mycobacteria, and between mycobacteria and Gram-negative bacteria.

In conclusion, our work reveals parallel or convergent evolution of the Psp response in bacteria of different phyla in which conserved functions are expressed by unrelated proteins. The Gram-negative and M. tuberculosis systems have, however, evolved dynamic differences. In Gram-negative bacteria, pspF is constitutively expressed (Weiner et al., 1991), and the PspF-PspA complex is found in unstressed cells (Darwin, 2005, Joly et al., 2010). In M. tuberculosis, clgR is stress-induced, and our data point to formation of the ClgR-PspA complex in response to stress. The simpler, pre-stress/post-stress dichotomy seen in Gram-negative bacteria may allow a faster response. In contrast, post-stress formation of the inhibitory ClgR-PspA complex in M. tuberculosis, together with the positive feedback loops connecting the ClgR-PspA-Rv2743c-Rv2742c system with the MprAB-σ^E network (Fig. 6B), may be better suited for sustained responses to multiple, envelope-perturbing signals that are likely to occur over the long course of chronic infection. Such dissimilar dynamics point to how conserved functions can adapt to different bacterial life styles by varying regulatory modes.
