. 2015 Nov 26;6:1057. doi: 10.3389/fpls.2015.01057

Phylogeny of Algal Sequences Encoding Carbohydrate Sulfotransferases, Formylglycine-Dependent Sulfatases, and Putative Sulfatase Modifying Factors

Chai-Ling Ho 1,*
PMCID: PMC4659905  PMID: 26635861

Abstract

Many algae are rich sources of sulfated polysaccharides with biological activities. The physicochemical/rheological properties and biological activities of sulfated polysaccharides are affected by the pattern and number of sulfate moieties. Sulfation of carbohydrates is catalyzed by carbohydrate sulfotransferases (CHSTs) while modification of sulfate moieties on sulfated polysaccharides was presumably catalyzed by sulfatases including formylglycine-dependent sulfatases (FGly-SULFs). Post-translationally modification of Cys to FGly in FGly-SULFs by sulfatase modifiying factors (SUMFs) is necessary for the activity of this enzyme. The aims of this study are to mine for sequences encoding algal CHSTs, FGly-SULFs and putative SUMFs from the fully sequenced algal genomes and to infer their phylogenetic relationships to their well characterized counterparts from other organisms. Algal sequences encoding CHSTs, FGly-SULFs, SUMFs, and SUMF-like proteins were successfully identified from green and brown algae. However, red algal FGly-SULFs and SUMFs were not identified. In addition, a group of SUMF-like sequences with different gene structure and possibly different functions were identified for green, brown and red algae. The phylogeny of these putative genes contributes to the corpus of knowledge of an unexplored area. The analyses of these putative genes contribute toward future production of existing and new sulfated carbohydrate polymers through enzymatic synthesis and metabolic engineering.

Keywords: algae, carbohydrate sulfotransferases, sulfatases, phylogeny, sulfatase modifying factors

Introduction

Sulfates are found in algal proteins, carbohydrate, sulfolipids, and low molecular weight sulfated compounds (DeBoer, 1981). Many algae were reported to be rich sources of sulfated polysaccharides with biological activities (Hernandez-Sebastia et al., 2008). Sulfated fucans from brown algae and sulfated galactans from green and red algae have been reported to be potent anticoagulant agents (Pomin and Mourão, 2008). Some of these algal sulfated polysaccharides such as agar, agarose, and carrageenan, constitute the major component of algal extracellular matrix or cell wall, and have wide applications in food, cosmetics and pharmaceutical industries (McHugh, 2003).

Sulfur (normally in sulfate form) constitutes one of the nine essential macronutrients required by plants including algae (Yildiz et al., 1994). Sulfur assimilation in plants and algae begins with the activation of sulfate by ATP sulfurylase, which catalyzes the adenylation of sulfate to 5′-adenylylsulfate (APS). APS can either be phosphorylated by APS kinase or reduced by glutathione-dependent APS reductase. Both enzymes and pathways are important for cellular synthesis of sulfated and reduced sulfur compounds in algae, respectively (Gao et al., 2000). Sulfation is catalyzed by sulfotransferases (STs) which transfer a sulfuryl group (SO3) from 3′-phosphoadenosine 5′-phosphosulfate (PAPS) to a hydroxyl group of a substrate (Hernandez-Sebastia et al., 2008). In addition, activities of sulfatases which were assumed to be involved in the modification of sulfate moieties on sulfated polysaccharides have also been reported in various algae. The pattern and number of these substitutions not only affect the physicochemical/rheological properties of sulfated polysaccharides but also their biological activities (Opoku et al., 2006; Tuvikene et al., 2008).

Carbohydrate sulfotransferases (CHSTs) are of particular interest in algae because several genera of marine macroalgae synthesize sulfated polysaccharides that constitute the major component of their cell walls which chelate metallic ions and provide hydration to the cells. Mammals CHSTs are among the best characterized CHSTs. Most of them are Golgi-localized and membrane-bound, and are involved in the biosynthesis of sulfated oligosaccharides and glycosaminoglycans (Fukuda et al., 2001). In addition, CHSTs such as NodH and NoeE that are involved in the biosynthesis of nodulation factors have also been characterized from symbiotic rhizobacteria, Sinorhizobium melioti and Rhizobium sp. NGR234, respectively (Ehrhardt et al., 1995; Hanin et al., 1997). Characterization of algal candidate genes for CHSTs has not been reported.

Formylglycine-dependent sulfatase (FGly-SULF) (EC 3.1.5.6) belongs to a large protein family that catalyze the hydrolytic desulfation of sulfate ester and sulfamates from different sulfated substrates. These sulfated substrates include hydrophobic glucosinolates, steroids, tyrosine sulfates, amphiphilic sulfated carbohydrates found in glycosaminoglycans (GAGs), proteoglycans, glycolipids, and water-soluble mono- and disaccharide sulfates (Hanson et al., 2004). FGly-SULFs consist of a class of enzymes that share highly similar amino acid sequence (20–60% over the entire protein length), three-dimensional structure and catalytic site (Boltes et al., 2001; Hopwood and Ballabio, 2001).

The conserved catalytic site of FGly-SULFs consists a divalent metal ion located within a pocket in which substrates are bound, a highly conserved motif at the N-terminus (or “sulfatase signature”) which spans over a 12-mer linear sequence with a core motif C/S-X-P-X-R, and a unique active aldehyde residue, α-formylglycine (FGly) (Hanson et al., 2004). FGly is formed post-translationally by the oxidation of a cysteine (Cys) residue that is conserved in all eukaryotic and most prokaryotic sulfatases (Schmidt et al., 1995; Dierks et al., 1998b). Some bacterial species possess serine (Ser) residue instead of cysteine (Cys) residue at the same position of the catalytic site leading to the “Cys-type” or “Ser-type” prokaryotic sulfatases. The structural similarity amongst FGly-SULFs suggested that they shared a common ancestral gene (Meroni et al., 1996; Parenti et al., 1997).

Post-translational modification of Cys to FGly occurs at the endoplasmic reticulum at a stage the polypeptide is not yet folded into its native structure (Schirmer and Kolter, 1998). The enzyme that is involved in the post-translational modification of Cys to FGly in FGly-SULFs is known as sulfatase modifiying factor (SUMF) while the enzyme AtsB is responsible for the post-translational modification of bacterial Ser-type sulfatases (Dierks et al., 1998b; Schirmer and Kolter, 1998). SUMF1 was found to be responsible for the multiple sulfatase deficiency in human. SUMFs belong to a gene family that is highly conserved during evolution from bacteria to human (Dierks et al., 1997, 1998a; Landgrebe et al., 2003).

Despite the importance of these sulfated polysaccharides, the roles of CHSTs in their formation, and sulfatases in their modifications; little is known about the sequences and structures of algal CHSTs, FGly-SULFs and their SUMFs. In recent years, a few algal genomes have been fully sequenced (Armbrust et al., 2004; Merchant et al., 2007; Bowler et al., 2008; Cock et al., 2010; Bhattacharya et al., 2013; Collén et al., 2013) and can be used for the survey for algal candidate genes encoding algal FGly-SULFs and SUMFs. The aims of this study are to mine for sequences from the fully sequenced algal genomes and to infer their phylogenetic relationships to known CHSTs, FGly-SULFs, and SUMFs from other organisms.

Materials and methods

Mining of algal sequences encoding CHSTs, FGly-SULFs, and SUMFs

Search analyses for sequences encoding algal CHSTs, FGly-SULFs, and SUMFs across nine completed algal genomes, i.e., Chondrus crispus, Porphyridium cruetum (http://cyanophora.rutgers.edu/porphyridium/), Cyanidioschyzon merolae (http://merolae.biol.s.u-tokyo.ac.jp/blast/blast.html), Ectocarpus siliculosus (http://bioinformatics.psb.ugent.be/orcae/overview/Ectsi), Thalassiosira pseudonana, Phaeodactylum tricornutum, Ostreococcus tauri, Chlamydomonas reinhardtii, and Volvox carteri (JGI: http://genome.jgi-psf.org/); and algal ESTs/cDNAs from Porphyra umbilicalis, P. purpurea (http://dbdata.rutgers.edu/nori/blast.php), P. yezoensis, Laurentia dendroidea, Galderia sulphuraria, Gracilaria changii and G. salicornia; were performed using the BLASTX, BLASTP, or TBLASTX algorithms (Altschul et al., 1990). The search was performed using the known sequences encoding CHSTs, FGly-SULFs, and SUMFs from human and/or other eukaryotes, i.e., mouse, rat, yeasts (Neurospora crassa, Kluyveromyces lactis, Schizosaccharomyces pombe, Debaryomyces hansenii, Yarrowia lipolytica), Drosophila melanogaster and worm Caenorhabditis elegans (Sardiello et al., 2005). Homologous sequences from plants were also retrieved from Phytozome ver.3 (http://phytozome.jgi.doe.gov/). BLASTX and BLASTP analyses were performed on the retrieved sequences against the SwissProt database. Sequences that do not match with any sequences encoding CHSTs, FGly-SULFs, and SUMFs were removed upon the reciprocal search. Amino acid sequences that were incomplete without the translation start methionine and the sulfatase signature for FGly-SULFs were also discarded.

Phylogenetic analyses

Multiple sequence alignment of CHSTs, FGly-SULFs, and SUMF amino acid sequences were performed with Clustal W (Chenna et al., 2003), respectively. Phylogenetic analyses were conducted in MEGA4 (Tamura et al., 2007) using the Neighbor-Joining method (Saitou and Nei, 1987) with a bootstrap test performed on 1000 random combinations of the sequence alignment (Felsenstein, 1985).

Generation of sulfatase signature logos

Logo analyses for FGly-SULF sequences were performed at the Berkeley Structural Genomics Center (http://weblogo.Berkeley.edu/) to visualize the information content associated with each position of a given motif shared by related sequences. In the graphical representation, the conservation at each position (expressed in bits) is represented by the overall height of each position whereas the relative frequencies of the symbols within a position are indicated by the relative sizes of the symbols. The reported values were computed as the rate between the information content of the given position and the information content of varying positions within the motif.

Results and discussion

In total, 83, 41, and 14 algal sequences encoding CHSTs, FGly-SULFs, and SUMFs were retrieved, respectively (Tables 1–3). Human CHSTs, FGly-SULFs, and SUMFs were used for the mining and also phylogenetic analyses in this study mainly because sequences from human were the best characterized in terms of sequence and functions compared to those from other organisms.

Table 1.

The algal sequences encoding CHSTs.

Species UniprotKB Accession numbers
Enesmbl genomes Identifier
SULFOTRANSFER_1 SUPERFAMILYa
Chlamydomonas reinhardtii – Cre16.g660390; CHLREDRAFT_105941 CHLRE_660390
A8JIC1 Cre04.g230732; CHLREDRAFT_180605 CHLRE_A8JIC1
A8IZD0 Cre08.g376650; CHLREDRAFT_173868 CHLRE_A8IZD0
A8IZI4 Cre09.g387250; CHLREDRAFT_157945 CHLRE_A8IZI4
– Cre09g393321 CHLRE_393321
A8J7Y1 Cre09.g401960; CHLREDRAFT_151050 CHLRE_A8J7Y1
– Cre10.g455231 CHLRE_455231
A8J6P1 Cre17.g725950; CHLREDRAFT_176016 CHLRE_A8J6P1
Micromonas pusilla CCMP1545 C1N5Y2 MicpuC2.EuGene.0000140184|53089;MICPUCDRAFT_53089 MICPU_C1N5Y2
C1N7H0 MicpuC2.EuGene.0000150366|53691; MICPUCDRAFT_53691 MICPU_C1N7H0
Micromonas sp. RCC299 C1EI91 MicromonasRCC299fgenesh2_pg.C_Chr_15000139|104367; MICPUN_104367 MICSR_C1EI91
C1E122 MicromonasRCC299est_cluster_kg.Chr_03_33_3199036:1|107876; MICPUN_107876 MICSR_C1E122
C1EIX6 MicromonasRCC299est_cluster_kg.Chr_16_22_3203032:1|109625; MICPUN_109625 MICSR_C1EIX6
C1FIP1 MicromonasRCC299EuGene.1200010448|63276 MICSR_C1FIP1
Volvox carteri – Vocar20000292m VOLCA_20000292
– Vocar20005856m VOLCA_20005856
D8TZS8 Vocar220009015m; VOLCADRAFT_92489 VOLCA_D8TZS8
– Vocar20010382m VOLCA_20010382
D8UM37 Vocar20010341m VOLCADRAFT_101239 VOLCA_D8UM37
D8U792 Vocar220010585m; VOLCADRAFT_118754 VOLCA_D8U792
D8U789 Vocar20010758m; VOLCADRAFT_64836 VOLCA_D8U789
D8U1T1 Vocar20012944m; VOLCADRAFT_93309 VOLCA_D8U1T1
D8UC65 Vocar220015136m; VOLCADRAFT_107145 VOLCA_D8UC65
D8THD3 Vocar20001230m; VOLCADRAFT _85926 VOLCA_D8THD3
Ostreococcus tauri (strain OTH95) Q019P5 OSTTA_4|17079; OT_ostta05g01260 OSTTA_ Q019P5
Ostreococcus lucimarinus CCE9901 A4S6Z1 OSTLU_eugene.1400010008; OSTLU_27293 OSTLU_ A4S6Z1
A4RZY0 OSTLU_eugene.0700010148; OSTLU_32551 OSTLU_ A4RZY0
Thalassiosira pseudonana B8C3E4 Thaps3|5614|fgenesh1_pg.C_chr_5000656; THAPSDRAFT_5614 THAPS_B8C3E4
B8BX55 Thaps3|268435|estExt_thaps1_ua_kg.C_chr_30076; THAPSDRAFT_268435 THAPS_B8BX55
B5YNL3 Thaps3|7193|fgenesh1_pg.C_chr_7000576; THAPS_7193 THAPS_B5YNL3
B8CAP5 Thaps3|24552|estExt_fgenesh1_pg.C_chr_120299; THAPSDRAFT_24552 THAPS_B8CAP5
B5YMN2 Thaps3|6848|fgenesh1_pg.C_chr_7000231; THAPS_6848 THAPS_B5YMN2
B8C826 Thaps3|7980|fgenesh1_pg.C_chr_9000148; THAPSDRAFT_7980 THAPS_B8C826
B8C3T6 Thaps3|5757|fgenesh1_pg.C_chr_5000799; THAPSDRAFT_5757 THAPS_B8C3T6
B8BTN5 Thaps3|261251|thaps1_ua_kg.chr_2000075; THAPSDRAFT_261251 THAPS_B8BTN5
B8CF62 THAPSDRAFT_11656 THAPS_B8CF62
Phaeodactylum tricornutum B7FVB9 Phatr2|45024|estExt_fgenesh1_pg.C_chr_50413; PHATRDRAFT_45024 PHATR_B7FVB9
B7FU87 Phatr2|44473|estExt_fgenesh1_pg.C_chr_40276; PHATRDRAFT_44473 PHATR_B7FU87
B7FQD0 Phatr2|43022|estExt_fgenesh1_pg.C_chr_10750; PHATRDRAFT_43022 PHATR_B7FQD0
B7FXZ9 Phatr2|35253|fgenesh1_pg.C_chr_7000174; PHATRDRAFT_35253 PHATR_B7FXZ9
Ectocarpus siliculosus – Esi_0203_0066 ECTSI_20366
D8LIC4 Esi_0210_0041 ECTSI_D8LIC4
D7FST9 Esi_0239_0035 ECTSI_D7FST9
D7FV63 Esi_0289_0025 ECTSI_D7FV63
D7FWT3 Esi_0312_0029 ECTSI_D7FWT3
D7G0M1 Esi_0411_0021 ECTSI_D7G0M1
D7G187 Esi_0442_0008 ECTSI_D7G187
D7G3W5 Esi_0535_0006 ECTSI_D7G3W5
D7G3W4 Esi_0535_0003 ECTSI_D7G3W4
D7G676 Esi_0729_0004 ECTSI_D7G676
D8LJX4 Esi_0028_0006 ECTSI_D8LJX4
D7G1W1 Esi_0046_0070 ECTSI_D7G1W1
Chondrus crispus R7QLM0 CHC_T00008796001 CHOCR_ R7QLM0
R7Q533 CHC_T00008762001 CHOCR_ R7Q533
SULFOTRANSFER_2 SUPERFAMILYb
Cyanidioschyzon merolae – CMT454C CYAME_CMT454C
– CMT456C CYAME_CMT456C
Chondrus crispus R7QLI6 CHC_T00008402001 CHOCR_R7QLI6
R7QVP9 CHC_T00008846001 CHOCR_R7QVP9
R7QL39 CHC_T00009100001 CHOCR_R7QL39
S0F3I6 CHC_T00009000001 CHOCR_S0F3I6
R7QUP3 CHC_T00008342001 CHOCR_R7QUP3
R7QIL9 CHC_T00008834001 CHOCR_R7QIL9
R7Q8D2 CHC_T00009431001 CHOCR_R7Q8D2*
Porphyridium cruetum – evm.model.contig_2146.5 PORCR_2146.5
– evm.model.contig_2275.7 PORCR_2275.7
– evm.model.contig_2279.13 PORCR_2279.13
– evm.model.contig_2493.4 PORCR_2493.4
– evm.model.contig_3392.4 PORCR_3392.4
– evm.model.contig_435.12 PORCR_435.12
– evm.model.contig_4476.16 PORCR_4476.16
– evm.model.contig_4476.7 PORCR_4476.7
– evm.model.contig_493.17 PORCR_493.17
– evm.model.contig_522.5 PORCR_522.5
– evm.model.contig_528.3 PORCR_528.3
– evm.model.contig_528.4 PORCR_528.4
– evm.model.contig_604.4 PORCR_604.4
Ectocarpus siliculosus D7G2B9 Esi_0047_0111 ECTSI_D7G2B9
D8LIV5 Esi_0023_0057 ECTSI_D8LIV5
Thalassiosira pseudonana B8C7Y2 THAPSDRAFT_7935 THAPS_B8C7Y2
B5YNS1 THAPS_7251 THAPS_B5YNS1
Phaeodactylum tricornutum B7G559 Phatr2|47859|estExt_fgenesh1_pg.C_chr_150105; PHATRDRAFT_47859 PHATR_B7G559
B7G557 Phatr2|47857|estExt_fgenesh1_pg.C_chr_150103; PHATRDRAFT_47857 PHATR_B7G557
B7FTQ4 Phatr2|44325|estExt_fgenesh1_pg.C_chr_40090; PHATRDRAFT_44325 PHATR_B7FTQ4
Open in a new tab
a

Algal CHSTs with pfam 00685;

b

algal CHSTs with pfam 03567 except for one algal CHST with pfam 06990*.

Algal CHST sequences

Human CHSTs can be divided into two groups based on the presence of two conserved domains for Superfamily Sulfotransferase 1 and 2, respectively (Figures 1, 2). All human CHSTs classified in the Superfamily Sulfotranferase 1 (CHSTs 1-7, mainly for Gal/N-acetylglucosamine/N-acetylglucosamine 6-O-STs; glucosamine N-deacetylase/N-ST or heparin sulfate STs, NDSTs; (heparan sulfate)- glucosamine 3-O STs, HS3S1, 2, 5, 6, A and B) were found to contain pfam 00685 for Sulfotransfer_1 domain, while most of those in the Superfamily Sulfotransferase 2 have pfam 03567 for Sulfotransfer_2 domain (CHSTs 8-15, for N-acetylgalactosamine 4-O STs and N-acetylgalactosamine 4-sulfate 6-O STs; heparan sulfate 6-O-STs, HS6ST 1-2; heparan sulfate 2-O ST, HS2ST and uronyl-2-O ST, UST) except for a few CHSTs such as galactose-3-O STs (G3ST1-4) that have pfam 06990 for Gal-3-O-Sulfotr domain. The findings on human CHSTs concur with the information published in the Interpro abstract for IPR005331 (www.ebi.ac.uk/interpro/) that Sulfotransfer_2 domain (pfam 03567) is present in a number of CHSTs that transfer sulfate to positions 3 (CHSTs 10), 4 (CHSTs 8, 9, 11 and 13; dermatan-4 ST, D4ST) and 6 (HS2ST, HS6ST, chondroitin-6 ST) of carbohydrate groups in glycoproteins and glycolipids. According to the Interpro abstract for IPR000863, Sulfotransfer_1 domain is found in flavonyl-3-STs, aryl STs, alcohol STs, and phenol STs. However, we found that many human CHSTs also contain this domain. The algal CHSTS (Table 1) were found to have either one of the pfams mentioned above or with no putative domain. All the green algal CHSTs were found to have pfam 00685 only while either pfam 00685 or pfam 03567 was found in the brown and red algal CHSTs. Only one red algal CHST from C. crispus (CHOCR_R7Q8D2) was found to have pfam 06990 (Figure 2, Table 1). The algal CHST sequences are generally very diverse. The use of phylogeney in assigning functions based on substrate specificity or pattern of sulfation requires further verification. Most of these algal CHSTs were clustered according to green, brown or red algae or even genera, except for a few clusters with green, red, and brown algal CHSTS (Figure 1). For examples, CHLRE 455231 was clustered among a group of brown algal CHSTs; THAPS B8C3T6 was in a group of green algal CHSTs; CHLRE A8IZD0 and CHOCR R7QLM0 were clustered with brown algal CHSTs; and CHOCR R7Q533 and PHATR B7FXZ9 were clustered with green algal CHSTs. These CHSTs could share similar functions in algae of different genera/species.

Figure 1.

Figure 1

Open in a new tab

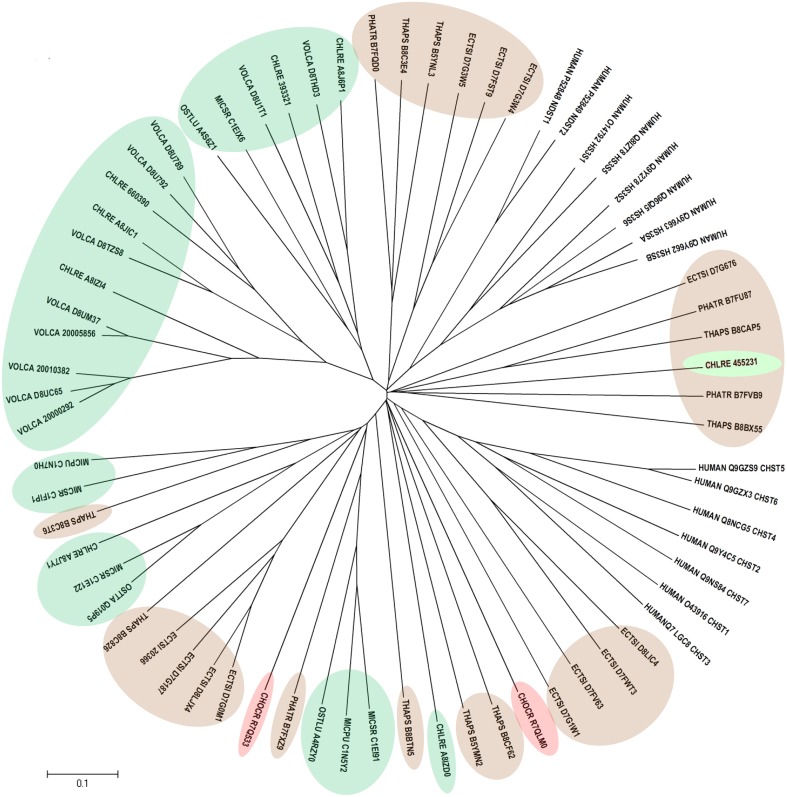

Phylogenetic relationship of algal CHSTs in Superfamily Sulfotransfer_1 (with pfam domain 00685). The evolutionary history was inferred using the Neighbor-Joining method. The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. Sequences from green, brown, and red algae are shown by respective colors. The identifier of the sequence starts with the species abbreviation followed by the UNIPROT/Genbank accession number and annotation wherever possible (Table 1). HUMAN, Homo sapiens; CHSTs 1-7, for Gal/N-acetylglucosamine/N-acetylglucosamine 6-O-STs; NDST, glucosamine N-deacetylase/N-ST or heparin sulfate STs; and HS3S1, 2, 5, 6, A and B, (heparan sulfate)-glucosamine 3-O STs.

Figure 2.

Figure 2

Open in a new tab

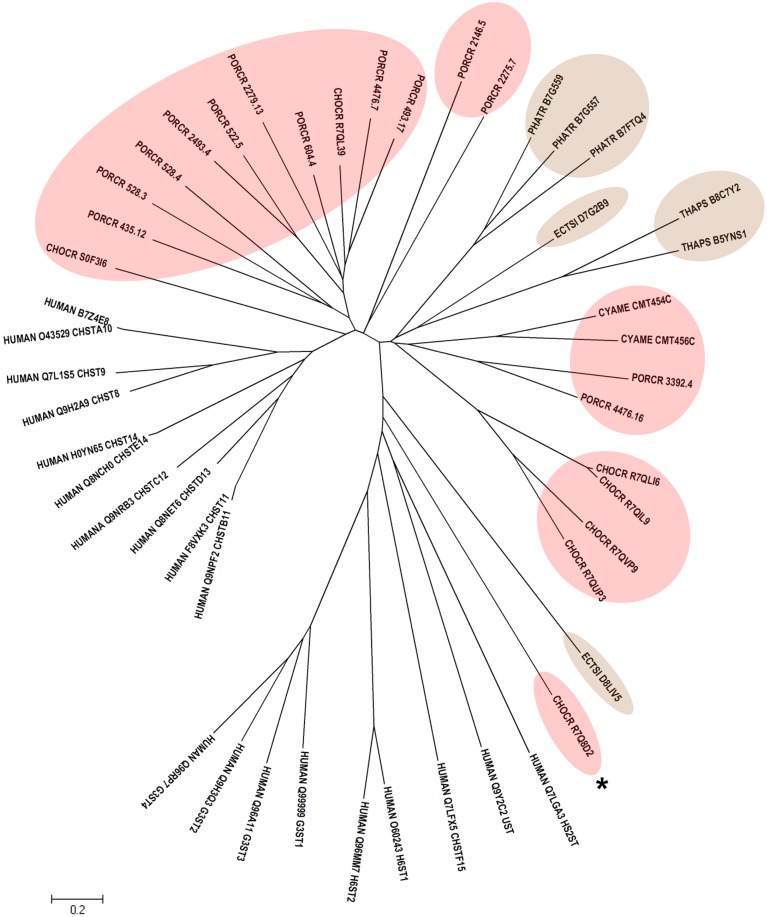

Phylogenetic relationship of algal CHSTs in Superfamily Sulfotransfer_2 (with pfam domains 03567 and 06990). The evolutionary history was inferred using the Neighbor-Joining method. The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. Sequences from brown and red algae are shown by respective colors. The identifier of the sequence starts with the species abbreviation followed by the UNIPROT/Genbank accession number and annotation wherever possible (Table 1). HUMAN, Homo sapiens; CHSTs 8-15, for N-acetylgalactosamine 4-O STs, and N-acetylgalactosamine 4-sulfate 6-O STs; H6ST 1-2, heparan sulfate 6-O-STs; HS2ST, heparan sulfate 2-O ST; UST, uronyl-2-O ST; G3ST1-4, galactose-3-O STs. * represents algal CHST with pfam 06990.

Algal FGLy-SULF sequences

Sequences encoding putative algal FGly-SULFs were identified from complete green and brown algal genomes (Table 2). Although, sulfatase activities have been reported in a few red algae (Rees, 1961a,b; Wong and Craigie, 1978; Genicot-Joncour et al., 2009; Shukla et al., 2011; Qin et al., 2013; Wang et al., 2014), algal FGly-SULF was not retrieved from the red algal genomes i.e., C. crispus as reported by Collén et al. (2013), and red microalgal genomes from Por. purpureum (Bhattacharya et al., 2013) and Cy. merolae (Matsuzaki et al., 2004). Neither were these sequences detected among the available ESTs of red seaweeds from P. yezoensis (Nikaido et al., 2000; Kakinuma et al., 2006), Griffithsia okiensis (Lee et al., 2007) and G. changii (Teo et al., 2007). However, a few ESTs or incomplete cDNAs that are highly similar to sequences encoding FGly-SULFs were identified from P. purpurea. These sequences consist of partial coding sequences and share highly similar sequences to bacterial FGly-SULFs thus were not included in this analysis.

Table 2.

The algal sequences encoding FGly-SULFs.

Species Accession numbers
UniprotKB Enesmbl Genomes Identifier
Thalassiosira pseudonana (strain CCMP1335) – Thaps3|11324_fgenesh1_pg_C_chr_19c_29000010 THAPS_11324
– Thaps3|260259_thaps1_ua_pm_chr_19c_29000005 THAPS_260259
B8LDP8 Thaps3|38351_e_gw1_19c_4_1; THAPSDRAFT_38351 THAPS_B8LDP8
– Thaps3|21474_estExt_fgenesh1_pg_C_chr_20778; (THAPSDRAFT_2824) THAPS_21474
B8BVG0 Thaps3|2824_fgenesh1_pg_C_chr_2000779; THAPSDRAFT_2824 THAPS_B8BVG0
B5YNB4 Thaps3|7088_fgenesh1_pg_C_chr_7000471; THAPS_23517 THAPS_B5YNB4
Phaeodactylum tricornutum (strain CCAP 1055/1) B7FQ28 Phatr2|32051_fgenesh1_pgC_chr_1000652; PHATRDRAFT_42934; Phatr3_J42934 PHATR_B7FQ28
B7G541 Phatr2|24789_estExt_Genewise1C_chr_10620; PHATRDRAFT_47845 PHATR_ B7G541
B7FQ28 Phatr2|52839_phatr1_ua_pmchr_1000076; PHATRDRAFT_42934 PHATR_ B7FQ28
B7G541 Phatr2|38161_fgenesh1_pgC_chr_15000087; PHATRDRAFT_47845 PHATR_B7G541
Ectocarpus siliculosus D7FLR5 Esi_0160_0032 ECTSI_D7FLR5
D7G1A6 Esi_0444_0009 ECTSI_D7G1A6
D7FLS5 Esi_0160_0052 ECTSI_D7FLS5
D7G7Y4 Esi_0086_0031 ECTSI_D7G7Y4
D7FKH5 Esi_0144_0037 ECTSI_D7FKH5
D8LRL9 Esi_0069_0045 ECTSI_D8LRL9
D7FUW5 Esi_0280_0019 ECTSI_D7FUW5
D7FLR4 Esi_0160_0027 ECTSI_D7FLR4
D7FLS1 Esi_0160_0043 ECTSI_D7FLS1
Chlamydomonas reinhardtii A8ISJ6 ARS1, CHLREDRAFT_205496 CHLRE_A8ISJ6_ARS1
Q9ATG5 ARS2, CHLREDRAFT_55757 CHLRE_Q9ATG5_ARS2
A8IBH3 ARS3, CHLREDRAFT_140923 CHLRE_A8IBH3_ARS3
P14217 ARS CHLRE_P14217_ARS
A8IB37 CHLREDRAFT_186203 CHLRE_A8IB37
A8I963 CHLREDRAFT_111806 CHLRE_A8I963
A8IB85 CHLREDRAFT_205499 CHLRE_A8IB85
A8I8K3 CHLREDRAFT_166346 CHLRE_A8I8K3
A8JFK7 CHLREDRAFT_153903 CHLRE_A8JFK7
A8J863 CHLREDRAFT_192731 CHLRE_A8J863
A8IT92 CHLREDRAFT_145838 CHLRE_A8IT92
A8IT77 CHLREDRAFT_145830 CHLRE_A8IT77
A8IT91 CHLREDRAFT_189474 CHLRE_A8IT91
A8HPB7 CHLREDRAFT_189674 CHLRE_A8HPB7
Volvox carteri D8TXL4 VOLCADRAFT_104983; ars1; EFJ47661 VOLCA_D8TXL4
D8TUN6 VOLCADRAFT_120839; EFJ48739 VOLCA_D8TUN6
– Vocar20000600m; (VOLCADRAFT_120839) VOLCA_20000600
D8TUN4 VOLCADRAFT_90537; Vocar20000622m; EFJ48854 VOLCA_D8TUN4
D8TSH9 VOLCADRAFT_59221; EFJ49375 VOLCA_D8TSH9
– Vocar20008567m; (VOLCADRAFT_ 86751) VOLCA_20008567
D8UFA8 Vocar20010817m; VOLCADRAFT_119669 VOLCA_D8UFA8
D8TJI2 VOLCADRAFT_86751; EFJ52546- VOLCA_D8TJI2
Open in a new tab

It is likely that the genes encoding FGly-SULF are absent from the genomes of red algae or at least in the red algal species examined. Since sulfate is not a limiting factor for marine algae that grow in seawater which has a high sulfate concentration (25–28 mM) compared to freshwater or land (10–50 μM) (Friedlander, 2001; Bochenek et al., 2013), it is possible that recycling of sulfate through FGly-SULFs may not be required. Furthermore, the biosynthesis of sulfated polysaccharides was proposed to be a possible result of physiological adaptation of macroalgae, marine angiosperms, and seagrasses (but not terrestrial plants) to marine environments (Aquino et al., 2005).

It is also possible that the red algal sulfatases belong to sulfatases other than the FGly-SULF type. Currently, three groups of sulfatases have been described: Group 1 which consists of the FGly-SULFs (Boltes et al., 2001); Group 2 with the Fe(II) α-ketoglutarate-dependent sulfatases (Müller et al., 2004); and Group 3 which consists of the zinc-dependent metallo β-lactamase superfamily or alkylsulfatases (Hagelueken et al., 2006). In addition, sulfatases (arylsulfatases) together with alkaline phosphatases and phosphoglycerate mutases were shown to belong to a superfamily of phospho-/sulfo-coordinating metalloenzymes that share the catalytic core of nucleotide pyrophosphatases/phosphodiesterases by homology searches and alignment-assisted mutagenesis (Gijsbers et al., 2001). The sulfatase genes may have also diverged to an extent that they cannot be readily identified using bioinformatic search tools. The red algal sulfatase could have novel sequences as reported for 12 sequences encoding putative D-galactose-2,6-sulfurylases I and II as revealed by the genome analyses of C. crispus (Collén et al., 2013). The galactose-2,6-sulfurylases I from C. crispus which share some identities to L-amino acid oxidase from C. reinhardtii (U78797) have no similarities to any reported sulfatases. Evidence on the enzyme activity of their recombinant proteins is crucial to show that they are indeed novel red algal sulfatases.

Sulfatase-like activities have also been reported previously in higher plants (Baum and Dodgson, 1957; Poux, 1966) although sequences encoding these enzymes have not been reported. Searching the complete plant genomes at the Phytozome revealed only one incomplete FGly-SULF-like sequence from Ricinus cucumis which contains a CSATR motif which resembles the sulfatase signature. However, this sequence was incomplete, short, and without introns. Further analyses revealed that similar sequences (orthologs) were absent in other plant species, thus was believed to be contaminated sequence from associated bacterial species.

Figure 3 shows the phylogeny of FGly-SULFs from human, yeasts, worm, fruitfly, and algae which has two main branches. The well characterized human FGly-SULFs were divided into two main branches with sulfatases SULF 1 and SULF 2, and glucosamine N-acetyl-6-sulfatase (GNS) in one branch while the remaining human FGly-SULFs (arylsulfatases, ARS A, B, C, D, E, F, G, H, I, J, K; N-galactosamine-6-sulfatase, GALNS; iduronate 2-sulfatase, IDS; and N-sulfoglucosamine sulfohydrolase, SGSH) are distributed in the other branch. The clustering of human FGly-SULFs may reflect their functions or substrate preference in general. The only two FGly-SULFs from worm were distributed one in each branch with SUL 1 in the same cluster as the human SULF 1 and SULF 2. The D. melanogaster SULF1, GNS, IDS, SGSH were grouped with their orthologs from human while another four uncharacterized FGly-SULFs formed a separate cluster which is unique for D. melanogaster. The FGly-SULF sequences from yeasts were clustered in the same branch except for that of ascomycetes Neurospora crassa which was found to be in a separate branch. It is likely that the FGly-SULFs from Saccharomycetes and Schizosaccharomycetes may have evolved after the divergence from Ascomycetes.

Figure 3.

Figure 3

Open in a new tab

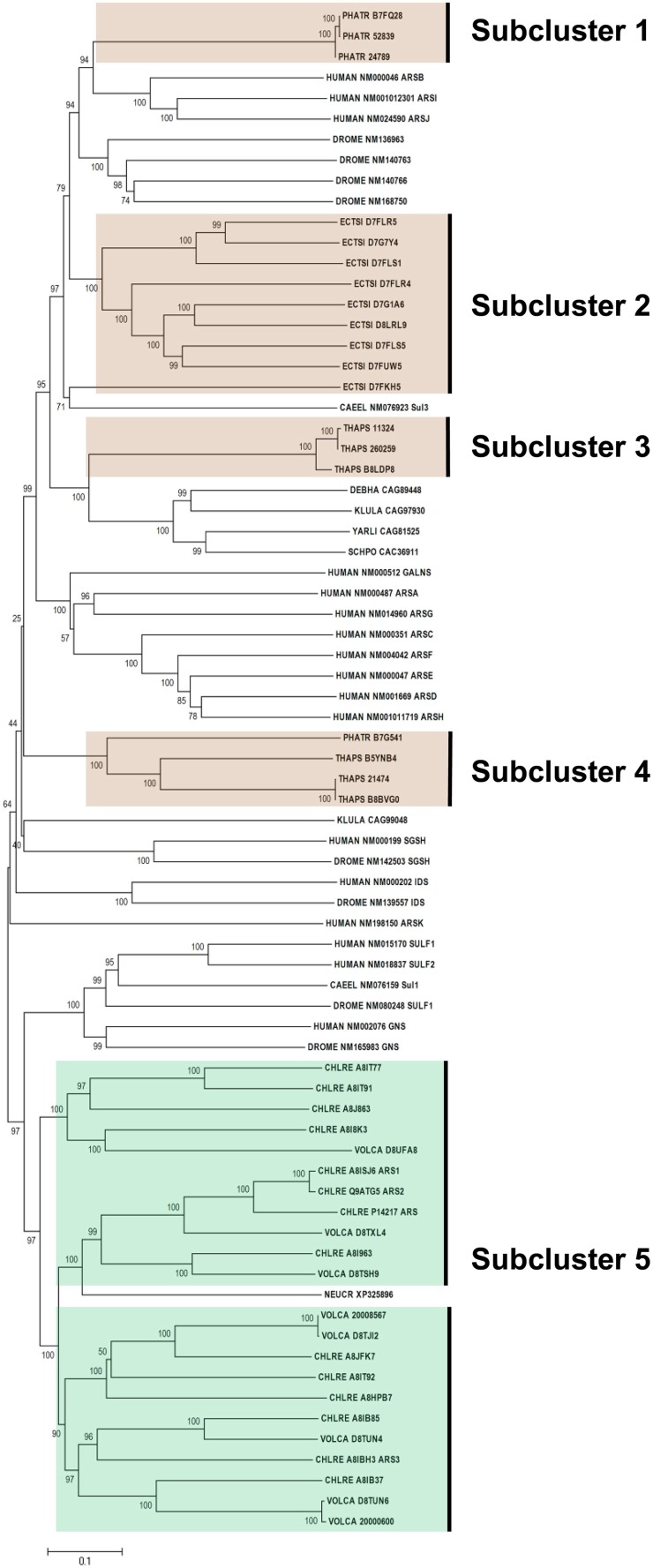

Phylogenetic relationship of algal FGly-SULFs. The evolutionary history was inferred using the Neighbor-Joining method. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (1000 replicates) are shown next to the branches. The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. Sequences from green and brown algae are shown by respective colors. The identifier of the sequence starts with the species abbreviation followed by the UNIPROT/Genbank accession number and annotation wherever possible (Table 2). HUMAN, Homo sapiens; CAEEL, Caenorhabditis elegans; DROME, Drosophila melanogaster; DEBHA, Debaryomyces hansenii; KLULA, Kluyveromyces lactis; YARLI, Yarrowia lipolytica; SCHPO, Schizosaccharomyces pombe; NEUCR, Neurospora crassa; ARS, arylsulfatase; GALNS, N-galactosamine-6-sulfatase; IDS, iduronate 2-sulfatase; and SGSH, N-sulfoglucosamine sulfohydrolase; Sulf, sulfatase; Sul, sulfatase.

All the green algal FGly-SULFs (Ch. reinhardtii and V. carteri) were distributed in the same branch as human SULF 1, SULT2, and GNS, while all the brown algal FGly-SULFs were divided into subclusters in the other branch (Figure 3), implying that FGly-SULFs from these two groups of algae could have evolved from different origins or from the same origin which has diversified before speciation of brown and green algae. The green algal subcluster (Subcluster 5) consists of sequences from both Ch. reinhardtii and V. carteri thus implying that these sequences may have originated from the same ancestral FGly-SULF which could have existed before speciation. The brown algal sequences were divided into four subclusters: Subcluster 1 which consists of three sequences from Ph. tricornutum whereby each contains an extra C-terminus; Subcluster 2 with nine sequences from E. siliculosus; Subcluster 3 which consists of three sequences from T. pseudonana with a gap in pfam 00884 and closely related to yeast FGly-SULFs (except for the sequence from N. crassa); Subcluster 4 which consists of three sequences from T. pseudonana, and a sequence from Ph. tricornutum; and Subcluster 5 which contains mainly green algal FGly-SULFs. The existence of highly identical sequences from each species suggests duplication of FGly-SULFs upon speciation (Figure 3).

All algal sequences analyzed contain the sulfatase domain (pfam 00884), with a few of them bearing a gap within this domain, mainly those from diatoms (three from T. pseudonana in Subcluster 2 and one from Ph. tricornutum in Subcluster 4). However, the presence of gap within these sequences has little consequence in affecting their phylogeny compared to their similarity within the same species. In addition, sequences from Ph. tricornutum in Subcluster 1 contain an extra C-terminus.

The comparison of amino acid at the active sites of algal sulfatases showed that the green and brown algae share only two conserved residues (C-X-X-X-R) at the same positions (Figure 4A), which is less conserved compared to the core motif for human FGly-SULFs (C-X-P-S-R). Both Ch. reinhardtii and V. carteri share the same core motif: C-C-P-(S/A)-R (Figures 4B,C), while the brown algae have more diverse core motif (C-X-X-X-R; Figures 4D–F) whereby only the first C residue and the last R residue are conserved. Within the FGly-SULFs from each brown algal species, the core motif C-T-P-(A/S)-R is conserved among those from E. siliculosus (Figure 4F), while C-(S/W)-(P/I)-(T/S)-R and C-(C/W)-(P/V/I)-S-R were shared by those in Ph. tricornutum and T. pseudonana, respectively (Figures 4D,E). The A residue immediately after the core motif is highly conserved in brown algae (Figures 4D–F).

Figure 4.

Figure 4

Open in a new tab

Logo representation of the catalytic cores of algal FGly-SULFs. The overall height of each column is proportional to the information content at that position, and within columns the conservation of each residue is visualized as the relative height of symbols representing amino acids. Position 1 indicates the residues directly involved in the enzymatic reaction. Position 1 of sulfatase cores indicates the amino acid (cysteine) to be modified into FGly. (A) Algae; (B) Chlamydomonas reinhardtii; (C) Volvox carteri; (D) Phaeodactylum tricornutum; (E) Thalassiosira pseudonana; (F) E. siliculosus.

Algal SUMF and SUMF-like sequences

Since the sulfatase signature was identified in all algal FGly-SULF sequences (Figure 4), sequences that encode SUMFs which modify the C residue to FGly in the active site of FGly-SULFs were searched among the algal genomes. Table 3 shows that SUMF sequences that were highly similar to those of eukaryotic SUMFs were only retrieved from brown algae (Ph. tricornutum, T. pseudonana, and E. siliculosus) and a green microalga (plankton), Ostreococcus tauri. In addition to the SUMF sequences, SUMF-like sequences that are highly similar to the coding sequence of Meiotically Up-regulated Gene (MUG) 158 (also known as Egt1) from a yeast, Sch. pombe, were retrieved from green (Auxenochlorella protothecoides), brown (T. pseudonana and E. siliculosus) and red algae (C. crispus, Po. cruetum, Cy. merolae, and Ga. sulphuraria), as well as a moss (Bryophyte), Physcomitrella patens (Pp1s94_113V6 abbreviated as PHYPA_113V6) which represents the missing link between green algae and higher land plants (Figure 5).

Table 3.

The algal sequences encoding SUMFs and SUMF-like proteins.

Species Accession Numbers
UniprotKB Enesmbl Genomes Identifier
SUMF
Thalassiosira pseudonana B8BTF8 Thaps3|2123_fgenesh1_pg_C_chr_2000078; THAPSDRAFT_261211 THAPS_ B8BTF8
Phaeodactylum tricornutum – PHATRDRAFT_bd1393 PHATR_B7S479
Ectocarpus siliculosus D8LGF4 Esi_0167_0035 ECTSI_D8LGF4
D8LGF5 Esi_0167_0037 ECTSI_D8LGF5
D7FPR0 Esi_0195_0042 ECTSI_D7FPR0
Ostreococcus tauri – Ostta4|12317|fgenesh1_pg.C_Chr_09.0001000147 OSTTA_12317
SUMF-LIKE
Thalassiosira pseudonana B8C863 Thaps3|8019_fgenesh1_pg_C_chr_9000187; THAPSDRAFT_8019 THAPS_ B8C863
Ectocarpus siliculosus D7FTN7 Esi_0253_0004 ECTSI_D7FTN7
Auxenochlorella protothecoides A0A087SAC0 – AUXPR_ A0A087SAC0
Cyanidioschyzon merolae M1UW85 CYME_CMR147C CYAME_M1UW85
Galderia sulphuraria M2X023 – GALSU_M2X023
Chondrus crispus R7QHQ9 – CHOCR_R7QHQ9
Porphyridium cruetum – evm.model.contig_3699 PORCR_contig3699
Open in a new tab

Figure 5.

Figure 5

Open in a new tab

Phylogenetic relationship of algal SUMFs and SUMF-like sequences. The evolutionary history was inferred using the Neighbor-Joining method. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (1000 replicates) are shown next to the branches. The tree is drawn to scale, with branch lengths in the same units as those of the evolutionary distances used to infer the phylogenetic tree. The identifier of the sequence starts with the species abbreviation followed by the UNIPROT/Genbank accession number and annotation wherever possible (Table 3). HUMAN, Homo sapiens; BOVINE, Bos taurus; MOUSE, Mus musculus; PHYPA, Physcomitrella patens; SCHPO, Schizosaccharomyces pombe. Sequences from green, brown, and red algae are shown by respective colors. The structure and pfam domains of each group are shown on the right panel.

The SUMF-like sequences were longer than the SUMF sequences. These two groups of sequences are only identical at the formyl-glycine generating enzyme (FGE)-sulfatase domain (pfam 03781). MUG 158 from Sch. pombe has an S-adenosyl-L-methionine (SAM)-dependent methyltransferase domain (pfam 10017; including DUF 2260, a domain with unknown function), an uncharacterized DinB_2 domain (pfam 12867; including an iron-binding motif, H-X(3)-H-X-E), in addition to the FGE-sulfatase domain (Pluskal et al., 2014). This protein was reported to be involved in cell division and its expression was up-regulated upon the entry of cell into meiosis (Mata et al., 2002). Highly identical to the sequences of NcEgt1 from N. crassa and MsEgtD from Mycobacterium smegmatis, MUG 158 was also reported to be involved in the first step of ergothioneine biosynthesis (Pluskal et al., 2014). Ergothioneine, an amino acid derived from thiourea that contains components associated with histidine, was reported to accumulate in oxidative-stress susceptible area in human body (Cheah and Halliwell, 2012) thus was believed to be able to scavenge oxidizing species that are not free radicals (Chaudière and Ferrari-Iliou, 1999). However, ergothioneine is only synthesized by a few filamentous fungi, actinobacteria, and cyanobacteria but not by higher plants and animals. The red alga, Po. purpureum SAG1380-1C, was reported to produce a small amount of ergothioneine (Saha et al., 2015). It is unknown whether the algal SUMF-like sequences share the same function as SUMF sequences, or have other functions in ergothionein biosynthesis or meiosis as in MUG 158. Alternatively, these sequences may possess both functions. At least three brown algae were found to have both SUMF and SUMF-like sequences, indicating that both types of sequences could have different functions.

The phylogeny of SUMF and SUMF-like sequences (Figure 5) shows two main clusters consisting of SUMF sequences and SUMF-like sequences, respectively; which may share the same ancestor. The SUMF cluster consists of human SUMF1-3, bovin SUMF 1-2, mouse SUMF 1-2 together with four SUMFs from three brown algae (one from Ph. tricornutum and T. pseudonana, respectively; two from E. siliculosus) and one from the green microalga O. tauri. Each of the SUMF sequences in this cluster contains a FGE-sulfatase domain except for one of the SUMF sequences from E. siliculosus (ECTSI_D8LGF4) which has an incomplete domain while the SUMF sequence from O. tauri has an additional but incomplete glycosyltransferase domain (pfam 00534). The SUMF-like cluster consists of MUG 158 from Sch. pombe, SUMF-like sequences from A. protothecoides, T. pseudonana, E. siliculosus, C. crispus, Po. cruetum, Cy. merolae, Ga. sulphuraria, and Phy. patens. The domains found in the SUMF-like sequences are more variable. The red algal SUMF-like sequences were found to contain DinB_2 domain (pfam 12867) at their N-termini, in addition to the FGE-sulfatase domain (Figures 5, 6). The SUMF-like sequences from the green lineage (moss and green alga), similar to MUG158, were found to have two additional domains, i.e., pfam 10017 (S-adenosyl-L-methionine (SAM)-dependent methyltransferase domain) and pfam 12867 at the N-terminus of the FGE-sulfatase domain; while the brown algal SUMF-like sequences have pfam 12867 and pfam 10017 at the N- and C-termini of FGE-sulfatase domain, respectively (Figure 6). One of the sequences from E. siliculosus (ECTSI_D8LGF5) which has an incomplete FGE-sulfatase domain could not be assigned to either group of sequences.

Figure 6.

Figure 6

Open in a new tab

Multiple sequence alignment of algal SUMF-like sequences. The amino acid sequences were aligned by ClustalW. Identical and similar sequences were highlighted in black and gray, respectively. The pfam domains 10017 (Histidine-specific SAM-dependent methyltransferase), 12867 (DinB domain), and 037181 (FGE-sulfatase) are underlined with green (dotted line), blue (broken line) and red, respectively. The DinB_2 iron-binding motif is indicated by blue box while the red box shows the EgtB subfamily C-terminal sequences. The identifier of the sequence starts with the species abbreviation followed by the UNIPROT/Genbank accession number and annotation wherever possible (Table 2). PHYPA, Physcomitrella patens; SCHPO, Schizosaccharomyces pombe.

It is intriguing that SUMF sequences were not found in the genomes of both green algae Ch. reinhardtii and V. carteri which have FGly-SULF sequences; and equally intriguing that SUMF sequence was found in O. tauri wherein FGly-SULF sequence was not detected. Similarly, SUMF or SUMF-like sequences were not reported in Saccharomyces cerevisiae and a few other yeasts which were shown to have FGly-SULFs. Could there be other sequences that are able to modify FGly-SULFs in Ch. reinhardtii and V. carteri? Alternatively, modification of Cys to FGly may not be necessary for these green algal FGly-SULFs. It is obvious that a group of SUMF-like sequences are present in green, brown, and red algae as well as moss, yeasts (at least Saccharomycetes and Ascomycetes), bacterium Mycobacterium, however, their functions are uncharacterized.

In general, the phylogeny of algal CHSTs, FGly-SULFs, and SUMFs or SUMF-like sequences revealed that many protein sequences were clustered according to their groups i.e., green (for CHSTs with pfam Sulfotransfer_1 domain), brown (for CHSTs, FGly-SULFs, and SUMFs or SUMF-like sequences), and red (for CHSTs with pfam Sulfotransfer_2 domain, FGly-SULFs and SUMFs or SUMF-like sequences) algae. Duplication/multiplication and functional divergence of these sequences could have happened after the divergence of these three groups of algae during evolution. Since only two green algal SUMFs or SUMF-like sequences were retrieved, the same trend was not observed. The clustering of a few CHSTs with pfam Sulfotransfer_1 domain from different groups of algae implied the existence of an ancestral sequence before the separation of these algal groups. The phylogenetic analyses of these putative genes contribute to the corpus of knowledge of an unexplored area. Algal CHSTs, FGly-SULFs, and SUMFs constitute a highly attractive target for future research to produce existing and new sulfated carbohydrate polymers through enzymatic synthesis and metabolic engineering.

Conflict of interest statement

The author declares that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

This project was funded by Fundamental Research Grant Scheme (01-04-10-769FR) from the Ministry of Higher Education (MOHE) of Malaysia.

References

  1. Altschul S. F., Gish W., Miller W., Myres E. W., Lipman D. J. (1990). Basic local alignment search tool. J. Mol. Biol. 215, 403–410. 10.1016/S0022-2836(05)80360-2 [DOI] [PubMed] [Google Scholar]
  2. Aquino R. S., Landeira-Fernandez A. M., Valente A. P., Andrade L. R., Mourão P. A. S. (2005). Occurrence of sulfated galactans in marine angiosperms: evolutionary implications. Glycobiology 15, 11–20. 10.1093/glycob/cwh138 [DOI] [PubMed] [Google Scholar]
  3. Armbrust E. V., Berges J. A., Bowler C., Green B. R., Martinez D., Putnam N. H., et al. (2004). The genome of the diatom Thalassiosira pseudonana: ecology, evolution, and metabolism. Science 306, 79–86. 10.1126/science.1101156 [DOI] [PubMed] [Google Scholar]
  4. Baum H., Dodgson K. S. (1957). Differentiation between myrosulphatase and the arylsulphatases. Nature 179, 312–313. 10.1038/179312a0 [DOI] [PubMed] [Google Scholar]
  5. Bhattacharya D., Price D. C., Chan C. X., Qiu H., Rose N., Ball S., et al. (2013). Genome of the red alga Porphyridium purpureum. Nat. Commun. 4, 1941. 10.1038/ncomms2931 [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Bochenek M., Etherington G. J., Koprivova A., Mugford S. T., Bell T. G., Malin G., et al. (2013). Transcriptomic analysis of the sulfate deficiency response in the marine microalga Emiliania huxleyi. New Phytol. 199, 650–662. 10.1111/nph.12303 [DOI] [PubMed] [Google Scholar]
  7. Boltes I., Czapinska H., Kahnert A., von Bülow R., Dierks T., Schmidt B., et al. (2001). 1.3 A structure of arylsulfatase from Pseudomonas aeruginosa establishes the catalytic mechanism of sulfate ester cleavage in the sulfatase family. Structure 9, 483–491. 10.1016/S0969-2126(01)00609-8 [DOI] [PubMed] [Google Scholar]
  8. Bowler C., Allen A. E., Badger J. H., Grimwood J., Jabbari K., Kuo A., et al. (2008). The Phaeodactylum genome reveals the dynamic nature and multi-lineage evolutionary history of diatom genomes. Nature 456, 239–244. 10.1038/nature07410 [DOI] [PubMed] [Google Scholar]
  9. Chaudière J., Ferrari-Iliou R. (1999). Intracellular antioxidants: from chemical to biochemical mechanisms. Food Chem. Toxicol. 37, 949–962. 10.1016/S0278-6915(99)00090-3 [DOI] [PubMed] [Google Scholar]
  10. Cheah I. K., Halliwell B. (2012). Ergothioneine; antioxidant potential, physiological function and role in disease. Biochim. Biophys. Acta 1822, 784–793. 10.1016/j.bbadis.2011.09.017 [DOI] [PubMed] [Google Scholar]
  11. Chenna R., Sugawara H., Koike T., Lopez R., Gibson T. J., Higgins D. G., et al. (2003). Multiple sequence alignment with the Clustal series of programs. Nucleic Acids Res. 31, 3497–3500. 10.1093/nar/gkg500 [DOI] [PMC free article] [PubMed] [Google Scholar]
  12. Cock J. M., Sterck L., Rouzé P., Scornet D., Allen A. E., Amoutzias G., et al. (2010). The Ectocarpus genome and the independent evolution of multicellularity in brown algae. Nature 465, 617–621. 10.1038/nature09016 [DOI] [PubMed] [Google Scholar]
  13. Collén J., Porcel B., Carré W., Ball S. G., Chaparro C., Tonon T., et al. (2013). Genome structure and metabolic features in the red seaweed Chondrus crispus shed light on the evolution of the Archaeplastida. Proc. Natl. Acad. Sci. U.S.A. 110, 5247–5252. 10.1073/pnas.1221259110 [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. DeBoer J. A. (1981). Nutrients, in The Biology of Seaweeds, eds Lobban C. S., Wynne M. J. (Oxford: Blackwell Scientific; ), 359–391. [Google Scholar]
  15. Dierks T., Lecca M. R., Schmidt B., von Figura K. (1998a). Conversion of cysteine to formylglycine in eukaryotic sulfatases occurs by a common mechanism in the endoplasmic reticulum. FEBS Lett. 423, 61–65. 10.1016/S0014-5793(98)00065-9 [DOI] [PubMed] [Google Scholar]
  16. Dierks T., Miech C., Hummerjohann J., Schmidt B., Kertesz M. A., von Figura K. (1998b). Posttranslational formation of formylglycine in prokaryotic sulfatases by modification of either cysteine or serine. J. Biol. Chem. 273, 25560–25564. 10.1074/jbc.273.40.25560 [DOI] [PubMed] [Google Scholar]
  17. Dierks T., Schmidt B., von Figura K. (1997). Conversion of cysteine to formylglycine: a protein modification in the endoplasmic reticulum. Proc. Natl Acad. Sci. U.S.A. 94, 11963–11968. 10.1073/pnas.94.22.11963 [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Ehrhardt D. W., Atkinson E. M., Faull K. F., Freedberg D. I., Sutherlin D. P., Armstrong R., et al. (1995). In vitro sulfotransferase activity of NodH, a nodulation protein of Rhizobium meliloti required for host-specific nodulation. J. Bacteriol. 177, 6237–6245. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Felsenstein J. (1985). Phylogenies and the comparative method. Am. Nat. 125, 1–15. 10.1086/284325 [DOI] [Google Scholar]
  20. Friedlander M. (2001). Inorganic nutrition in pond cultivated Gracilaria conferta (Rhodophyta): nitrogen, phosphate and sulfate. J. Appl. Phycol. 13, 278–296. 10.1023/A:1011139329415 [DOI] [Google Scholar]
  21. Fukuda M., Hiraoka N., Akama T. O., Fukuda M. N. (2001). Carbohydrate-modifying sulfotransferases: structure, function, and pathophysiology. J. Biol. Chem. 276, 47747–47750. 10.1074/jbc.R100049200 [DOI] [PubMed] [Google Scholar]
  22. Gao Y., Schofield O. M. E., Leustek T. (2000). Characterization of sulfate assimilation in marine algae focusing on the enzyme 5′-adenylylsulfate reductase. Plant Physiol. 123, 1087–1096. 10.1104/pp.123.3.1087 [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Genicot-Joncour S., Poinas A., Richard O., Potin P., Rudolph B., Kloareg B., Helbert W. (2009). The cyclization of the 3,6-anhydro-galactose ring of ?-carrageenan is catalyzed by two ?-galactose-2,6-sulfurylases in the red alga Chondrus crispus. Plant Physiol. 151, 1609–1616. 10.1104/pp.109.144329 [DOI] [PMC free article] [PubMed] [Google Scholar]
  24. Gijsbers R., Ceulemans H., Stalmans W., Bollen M. (2001). Structural and catalytic similarities between nucleotide pyrophosphatases/phosphodiesterases and alkaline phosphatases. J. Biol. Chem. 276, 1361–1368. 10.1074/jbc.M007552200 [DOI] [PubMed] [Google Scholar]
  25. Hagelueken G., Adams T. M., Wiehlmann L., Widow U., Kolmar H., Tümmler B., et al. (2006). The crystal structure of SdsA1, an alkylsulfatase from Pseudomonas aeruginosa, defines a third class of sulfatases. Proc. Natl. Acad. Sci. U.S.A. 103, 7631–7636. 10.1073/pnas.0510501103 [DOI] [PMC free article] [PubMed] [Google Scholar]
  26. Hanin M., Jabbouri S., Quesada-Vincens D., Freiberg C., Perret X., Promé J. C., et al. (1997). Sulphation of Rhizobium sp. NGR234 Nod factors is dependent on noeE, a new host-specificity gene. Mol. Microbiol. 24, 1119–1129. 10.1046/j.1365-2958.1997.3981777.x [DOI] [PubMed] [Google Scholar]
  27. Hanson S. R., Best M. D., Wong C. H. (2004). Sulfatases: structure, mechanism, biological activity, inhibition, and synthetic utility. Angew. Chem. Int. Ed Engl. 43, 5736–5763. 10.1002/anie.200300632 [DOI] [PubMed] [Google Scholar]
  28. Hernandez-Sebastia C., Varin L., Marsolais F. (2008). Sulfotransferases from plants, algae and phototrophic bacteria, in Sulfur Metabolism in Phototrophic Organisms, eds Hell R., Dahl C., Leustek T. (Dordrecht: Springer; ), 111–130. [Google Scholar]
  29. Hopwood J. J., Ballabio A. (2001). Multiple sulfatase deficiency and the nature of the sulfatase family, in The Metabolic and Molecular Bases of Inherited Disease, eds Scriver C. R., Beaudet A. L., Sly W. S., Valle D., Childs B., Kinzler K. W., et al. (New York, NY: McGraw-Hill; ), 3725–3732. [Google Scholar]
  30. Kakinuma M., Kaneko I., Coury D. A., Suzuki T., Amano H. (2006). Isolation and identification of gametogenesis-related genes in Porphyra yezoensis (Rhodophyta) using subtracted cDNA libraries. J. Appl. Phycol. 18, 489–496. 10.1007/s10811-006-9052-8 [DOI] [Google Scholar]
  31. Landgrebe J., Dierks T., Schmidt B., von Figura K. (2003). The human SUMF1 gene, required for posttranslational sulfatase modification, defines a new gene family which is conserved from pro- to eukaryotes. Gene 316, 47–56. 10.1016/S0378-1119(03)00746-7 [DOI] [PubMed] [Google Scholar]
  32. Lee H., Lee H. K., An G., Lee Y. K. (2007). Analysis of expressed sequence tags from the red alga Griffithsia okiensis. J. Microbiol. 45, 541–546. [PubMed] [Google Scholar]
  33. Mata J., Lyne R., Burns G., Bähler J. (2002). The transcriptional program of meiosis and sporulation in fission yeast. Nat. Genet. 32, 143–147. 10.1038/ng951 [DOI] [PubMed] [Google Scholar]
  34. Matsuzaki M., Misumi O., Shin-I T., Maruyama S., Takahara M., Miyagishima S. Y., et al. (2004). Genome sequence of the ultrasmall unicellular red alga Cyanidioschyzon merolae 10D. Nature 428, 653–657. 10.1038/nature02398 [DOI] [PubMed] [Google Scholar]
  35. McHugh D. J. (2003). A guide to the seaweed industry, in FAO Fisheries Technical Paper (Rome: ), 441. [Google Scholar]
  36. Merchant S. S., Prochnik S. E., Vallon O., Harris E. H., Karpowicz S. J., Witman G. B., et al. (2007). The Chlamydomonas genome reveals the evolution of key animal and plant functions. Science 318, 245–250. 10.1126/science.1143609 [DOI] [PMC free article] [PubMed] [Google Scholar]
  37. Meroni G., Franco B., Archidiacono N., Messali S., Andolfi G., Rocchi M., et al. (1996). Characterization of a cluster of sulfatase genes on Xp22.3 suggests gene duplications in an ancestral pseudoautosomal region. Hum. Mol. Genet. 5, 423–431. 10.1093/hmg/5.4.423 [DOI] [PubMed] [Google Scholar]
  38. Müller I., Kahnert A., Pape T., Sheldrick G. M., Meyer-Klaucke W., Dierks T., et al. (2004). Crystal structure of the alkylsulfatase AtsK: insights into the catalytic mechanism of the Fe(II) alpha-ketoglutarate-dependent dioxygenase superfamily. Biochemistry 43, 3075–3088. 10.1021/bi035752v [DOI] [PubMed] [Google Scholar]
  39. Nikaido I., Asamizu E., Nakajima M., Nakamura Y., Saga N., Tabata S. (2000). Generation of 10,154 expressed sequence tags from a leafy gametophyte of a marine red alga, Porphyra yezoensis. DNA Res. 7, 223–227. 10.1093/dnares/7.3.223 [DOI] [PubMed] [Google Scholar]
  40. Opoku G., Qiu X., Doctor V. (2006). Effect of oversulfation on the chemical and biological properties of kappa carrageenan. Carbohyd. Polym. 65, 134–138. 10.1016/j.carbpol.2005.12.033 [DOI] [Google Scholar]
  41. Parenti G., Meroni G., Ballabio A. (1997). The sulfatase gene family. Curr. Opin. Genet. Dev. 7, 386–391. 10.1016/S0959-437X(97)80153-0 [DOI] [PubMed] [Google Scholar]
  42. Pluskal T., Ueno M., Yanagida M. (2014). Genetic and metabolomic dissection of the ergothioneine and selenoneine biosynthetic pathway in the fission yeast, S. pombe, and construction of an overproduction system. PLoS ONE 9:e97774. 10.1371/journal.pone.0097774 [DOI] [PMC free article] [PubMed] [Google Scholar]
  43. Pomin V. H., Mourão P. A. (2008). Structure, biology, evolution and medical importance of sulfated fucans and galactans. Glycobiology 18, 1016–1027. 10.1093/glycob/cwn085 [DOI] [PubMed] [Google Scholar]
  44. Poux N. (1966). Ultrastructural localization of aryl sulfatase activity in plant meristemic cells. J. Histochem. Cytochem. 14, 932–933. 10.1177/14.12.932 [DOI] [PubMed] [Google Scholar]
  45. Qin X., Ma C., Lou Z., Wang A., Wang H. (2013). Purification and characterization of ?-Gal-6-sulfurylasesfrom Eucheuma stratrium. Carbohyd. Polym. 96, 9–14. 10.1016/j.carbpol.2013.03.061 [DOI] [PubMed] [Google Scholar]
  46. Rees D. A. (1961a). Enzymic desulphation of porphyran. Biochem. J. 80:449. 10.1042/bj0800449 [DOI] [PMC free article] [PubMed] [Google Scholar]
  47. Rees D. A. (1961b). Enzymic synthesis of 3:6-andydro-L-galactose within porphyran from L-galactose 6-suphate units. Biochem. J. 81:347. 10.1042/bj0810347 [DOI] [PMC free article] [PubMed] [Google Scholar]
  48. Saha S. K., McHugh E., Murray P., Walsh D. J. (2015). Chapter 12 Microalagae as a source of nutraceuticals, in Phycotoxins: Chemistry and Biochemistry, 2nd Edn., eds Botana L. M., Alfonso A. (Chichester: John Wiley & Sons, Ltd; ), 271. [Google Scholar]
  49. Saitou N., Nei M. (1987). The neighbor-joining method: a new method for reconstructing phylogenetic trees. Mol. Biol. Evol. 4, 406–425. [DOI] [PubMed] [Google Scholar]
  50. Sardiello M., Annunziata I., Roma G., Ballabio A. (2005). Sulfatases and sulfatase modifying factors: an exclusive and promiscuous relationship. Hum. Mol. Genet. 14, 3203–3217 10.1093/hmg/ddi351 [DOI] [PubMed] [Google Scholar]
  51. Schirmer A., Kolter R. (1998). Computational analysis of bacterial sulfatases and their modifying enzymes. Chem. Biol. 5, R181–R186. 10.1016/s1074-5521(98)90154-5 [DOI] [PubMed] [Google Scholar]
  52. Schmidt B., Selmer T., Ingendoh A., von Figura K. (1995). A novel amino acid modification in sulfatases that is defective in multiple sulfatase deficiency. Cell 82, 271–278. 10.1016/0092-8674(95)90314-3 [DOI] [PubMed] [Google Scholar]
  53. Shukla M. K., Kumar M., Prasad K., Reddy C. R. K., Jha B. (2011). Partial characterization of sulfohydrolase from Gracilaria dura and evaluation of its potential application in improvement of the agar quality. Carbohyd. Polym. 85, 157–163. 10.1016/j.carbpol.2011.02.009 [DOI] [Google Scholar]
  54. Tamura K., Dudley J., Nei M., Kumar S. (2007). MEGA4: MOLECULAR Evolutionary Genetics Analysis (MEGA) software version 4.0. Mol. Biol. Evol. 24, 1596–1599. 10.1093/molbev/msm092 [DOI] [PubMed] [Google Scholar]
  55. Teo S.-S., Ho C.-L., Teoh S., Lee W.-W., Tee J.-M., Raha A. R., et al. (2007). Analyses of expressed sequence tags from an agarophyte, Gracilaria changii (Gracilariales, Rhodophyta). Eur. J. Phycol. 42, 41–46. 10.1080/09670260601012461 [DOI] [Google Scholar]
  56. Tuvikene R., Truus K., Kollist A., Volobujeva O., Mellikov E., Pehk T. (2008). Gel-forming structures and stages of red algal galactans of different sulfation levels. J. Appl. Phycol. 20, 527–535. 10.1007/s10811-007-9229-9 [DOI] [Google Scholar]
  57. Wang A., Islam M. N., Qin X., Wang H., Peng Y., Ma C. (2014). Purification, identification and characterization of D-galactose-6-sulfurylase from marine algae (Betaphycus gelatinus). Carbohydr. Res. 388, 94–99. 10.1016/j.carres.2013.12.010 [DOI] [PubMed] [Google Scholar]
  58. Wong K. F., Craigie J. S. (1978). Sulfohydrolase activity and carrageenan biosynthesis in Chondrus crispus (Rhodophyceae). Plant Physiol. 61, 663–666. 10.1104/pp.61.4.663 [DOI] [PMC free article] [PubMed] [Google Scholar]
  59. Yildiz F. H., Davies J. P., Grossman A. R. (1994). Characterization of sulfate transport in Chlamydomonas reinhardtii during sulfur-limited and sulfur-sufficient growth. Plant Physiol. 104, 981–987. [DOI] [PMC free article] [PubMed] [Google Scholar]

Articles from Frontiers in Plant Science are provided here courtesy of Frontiers Media SA

RESOURCES
