Exploring the Role of Residue 228 in Substrate and Inhibitor Recognition by VIM Metallo-β-lactamases

Abstract

β-Lactamase inhibitors (BLIs) restore the efficacy of otherwise obsolete β-lactams. However, commercially available BLIs are not effective against metallo-β-lactamases (MBLs), which continue to be disseminated globally. One group of the most clinically important MBLs is the VIM family. The discovery of VIM-24, a natural variant of VIM-2, possessing an R228L substitution and a novel phenotype, compelled us to explore the role of this position and its effects on substrate specificity. We employed mutagenesis, biochemical and biophysical assays, and crystallography. VIM-24 (R228L) confers enhanced resistance to cephems and increases the rate of turnover compared to that of VIM-2 (k_cat/K_M increased by 6- and 10-fold for ceftazidime and cefepime, respectively). Likely the R → L substitution relieves steric clashes and accommodates the C3N-methyl pyrrolidine group of cephems. Four novel bisthiazolidine (BTZ) inhibitors were next synthesized and tested against these MBLs. These inhibitors inactivated VIM-2 and VIM-24 equally well (K_i* values of 40–640 nM) through a two-step process in which an initial enzyme (E)–inhibitor (I) complex (EI) undergoes a conformational transition to a more stable species, E*I. As both VIM-2 and VIM-24 were inhibited in a similar manner, the crystal structure of a VIM-2–BTZ complex was determined at 1.25 Å and revealed interactions of the inhibitor thiol with the VIM Zn center. Most importantly, BTZs also restored the activity of imipenem against Klebsiella pneumoniae and Pseudomonas aeruginosa in whole cell assays producing VIM-24 and VIM-2, respectively. Our results suggest a role for position 228 in defining the substrate specificity of VIM MBLs and show that BTZ inhibitors are not affected by the R228L substitution.

Graphical abstract

Production of β-lactamases (EC 3.5.2.6) is the most common mechanism of resistance to β-lactam agents in clinically important Gram-negative bacteria.^1,2 On the basis of conserved and distinguishing amino acid motifs, this group of enzymes is categorized into four molecular classes. Classes A, C, and D hydrolyze the β-lactam ring by forming an acyl-enzyme via an active site serine, whereas class B [the metallo-β-lactamases (MBLs)] achieve hydrolysis by using one or two divalent cations (Zn²⁺) to activate a coordinated water molecule to serve as the reactive nucleophile.³ MBLs can be further divided into three subclasses depending on the presence of specific binding motifs around the active site cavity associated with Zn²⁺ coordination: B1 (zinc binding to H116-H118-H196 and to D120-C221-H263), B2 (N116-H118-H196 and D120-C221-H263), and B3 (H/Q116-H118-H196 and D120-H121-H263).⁴ The first subclass (B1) is the most frequently reported and includes the clinically important SPM, NDM, SIM, GIM, IMP, and VIM MBLs, among others. Unlike most class A, C, and D enzymes, B1MBLs hydrolyze most β-lactams, including clavulanic acid, penicillanic acid sulfones, and carbapenems.⁵ Because of this feature, and the fact that the bla genes encoding B1MBLs are rapidly spreading worldwide,⁶ understanding substrate specificity and developing broad range MBL inhibitors are priorities.

VIM-type MBLs represent some of the most clinically important members of the B1 family. Since these enzymes were first discovered in Italy in 1999 in a carbapenem-resistant Pseudomonas aeruginosa clinical isolate,⁷ they have spread worldwide to other Gram-negative pathogens. At present, 41 different allotypes belonging to three sublineages have been identified: VIM-1 like, VIM-2 like, and VIM-7.^8,9 Among these, the VIM-24 variant was first detected in a Klebsiella pneumoniae clinical isolate that displayed higher resistance toward ceftazidime and cefepime than to imipenem.¹⁰ VIM-24 differs from VIM-2 (and all previously reported VIM enzymes) by a G to T substitution at nucleotide 614, changing the amino acid from Arg to Leu [R228L (Figure 1)] at position 228 of the MBL standard numbering scheme.⁴ In the VIM MBLs, residue 228 is located at the entry channel of the active site and is either R, S, or L in currently known sequences.^8,9 In B1MBLs, such as IMP-1 and NDM-1, the adjacent position 224 in so-called active site loop 10 (ASL-10) is a conserved lysine that plays a key role in substrate binding because of its proximity to the active site.^11,12 In the VIM enzymes, position 224 has more allelic variants: histidine in VIM-1, -4, -7, -11, and -12; tyrosine in VIM-2; and leucine in VIM-5 and -13.¹³ Because the side chains of these residues are shorter and less basic than that of the lysine, R228, with its extended side chain, is hypothesized to replace K224 in interacting with the carboxylate moiety (C4 or C3) of β-lactam substrates.^13,14 Accordingly, we advance that the change in VIM-24 from a large and positively charged amino acid (R) at position 228 to a shorter hydrophobic residue (L) may impact the catalytic activity, and possibly stability, of the enzyme. Therefore, our first goal was to investigate the structural and functional role of position 228 in binding of substrates by characterizing VIM-24 and a library of engineered variants at VIM-2 position 228.

Figure 1.

Active site superimposition of VIM-2 (PDB entry 2YZ3) and VIM-24 (modeled structure). Key residues in the active site are shown as sticks; position 228 is colored carnation and mustard (Arg in VIM-2 and Leu in VIM-24, respectively). ASL-3 and -10 are colored green. Zn²⁺ ions are represented as pink spheres.

We also recognized that diversity within and around the active site of MBLs, which is apparent both in the multiple variants of the IMP, NDM, and VIM enzymes and in differences among other members of the B1 subclass, also influences the interactions of MBLs with inhibitors. Several compound classes (e.g., thiols, cysteinyl peptides, biphenyl tetrazoles, 1β-methylcarbapenem derivatives, 2,3-disubstituted succinic acid derivatives, sulfonyl hydrazones, among others¹⁵) have shown activity as inhibitors of MBLs. However, with a few recent exceptions,^16–18 the inhibitory activity of most of these compounds is limited to specific types of MBLs.^19–22 As a consequence, the development of commercially available inhibitors for this class of enzymes is stalled.

The evaluation of novel bisthiazolidine (BTZ) compounds as inhibitors of a thioredoxin glutathione reductase, a flavoprotein, was recently reported.²³ The BTZ scaffold was synthesized for use in dynamic combinatorial libraries of disulfides and belongs to a new compound class with a 5,5-fused bicyclic ring bearing carboxylic acid and mercaptomethyl substituents (Figure 2). Given the similarity of the bicyclic BTZ structure to the β-lactam scaffold, and the prediction that the BTZ carboxylate is able to replicate the interactions of the equivalent group at C3/C4 of β-lactams, our second goal in this work was to investigate the ability of a set of four BTZs to inhibit VIM-2 and VIM-24. Here we assessed the ability of BTZ compounds to act against VIM-2 and studied the effect of the R228L substitution upon inhibitor potency against the clinically significant VIM-24 variant.

Figure 2.

Chemical structures of bisthiazolidine (BTZ) inhibitors.

EXPERIMENTAL PROCEDURES

Bacterial Strains, Cloning, and Mutagenesis

P. aeruginosa PA3²⁴ was used to amplify bla_VIM-2 with and without the leader sequence (starting at codon 60; position S21). Both products were cloned into the pET-24a(+) vector (Novagen, Darmstadt, Germany) using NdeI and BamHI sites, yielding plasmids pET-24a(+)-bla_VIM-2 and pET-24a(+)-bla_VIM-2-S21. Plasmid pET-24a(+)-bla_VIM-2-S21 was then used as a template to obtain plasmid pET-24a(+)-bla_VIM-24-S21 using the Quick-Change XL Site-directed Mutagenesis Kit (Stratagene). VIM-2 and VIM-24 were expressed in Escherichia coli BL21(DE3) pLys cells (LifeTechnologies).

A forward primer containing the SacI restriction site (5′-AAA GAGCTC AAG AAG GAG ATA TAC ATA TG-3′) and a reverse primer with the BamHI restriction site (5′-CTC AGT CGT TGA GTA G GGATCC-3′) were used to amplify bla_VIM-2, including the pET24a(+) ribosomal binding site, using plasmid pET-24a(+)-bla_VIM-2 as a template. The product was then subcloned into phagemid pBCSK (−) (Agilent, Santa Clara, CA) using the restriction sites mentioned above, thus placing the bla_VIM-2 open reading frame under control of the lac promoter, to yield phagemid pBCSK (−) bla_VIM-2.

E. coli DH10B (Invitrogen, Carlsbad, CA) was used as a host strain for pBCSK (−) bla_VIM-2 and to obtain a mutant library at position 228 by site saturation mutagenesis, using the QuickChange XL Site-directed Mutagenesis Kit (Stratagene). Briefly, primers that capture all 19 variants at MBL position 228 were designed, and mutagenic polymerase chain reactions were conducted using pBCSK (−) bla_VIM-2 as a template; they were transformed into E. coli DH10B. Single colonies were selected for plasmid purification, and successful mutagenesis was verified by complete DNA sequencing.

Cell-Based Assays

To test the phenotypic effect of amino acid substitution, the minimal inhibitory concentrations (MICs) of ampicillin, cephalothin, ceftriaxone, ceftazidime, cefotaxime, cefepime, imipenem, and aztreonam were determined for each clone in the variant library by the agar dilution method using cation-adjusted Mueller-Hinton agar (MHA), following the recommendations of the Clinical and Laboratory Standards Institute.²⁵ Ampicillin, cefotaxime, and cephalothin were purchased from Sigma (St. Louis, MO), and imipenem was purchased from U.S. Pharmacopeia (Rockville, MD). The effect of Zn²⁺ availability was also tested by agar dilution using MH supplemented with 250 μM ZnSO₄ or 5 μM EDTA.²⁶ Reported values are the modes of at least three biological replicates.

In Vitro Time-Kill Study

VIM-2-producing P. aeruginosa (imipenem MIC = 32 mg/L) and VIM-24-producing K. pneumoniae (imipenem MIC = 2 mg/L) were cultured overnight at 37 °C in Muller Hinton Broth (MHB) supplemented with 50 mg/L ampicillin. The following day, 1.5 μL of the overnight cultures was inoculated in 1 mL of MHB to obtain a bacterial suspension of approximately 10⁶ colony-forming units/mL.

To examine the effects of the novel BTZ compounds on bacterial growth, the bacterial suspensions were grown at 37 °C under different conditions: MHB alone (growth control) or MHB supplemented with 0.4% DMSO (growth control), sublethal concentrations of imipenem (8 mg/L for P. aeruginosa and 0.5 mg/L for K. pneumoniae), each inhibitor at 100 mg/L, or a combination of imipenem and each inhibitor. Samples (10 μL) were removed after being exposed for 100, 300, and 500 min, and serial dilutions were performed on MHB. The number of viable cells was determined by spotting 20 μL of each dilution on MHA. The plates were incubated at 37 °C overnight, and the numbers of colonies were counted. Results shown are the means of three biological replicates.

Statistical analysis was performed using R version 3.1.1. Additional R packages lme4 and multcomp were utilized.^27,28 A linear mixed-effects model was estimated to address the repeated measures performed within the sample. At each time point, post hoc pairwise tests were performed comparing imipenem to other conditions. This yielded a total of 12 pairwise tests per experiment. These p values were Bonferroni-adjusted.

Immunoblotting

E. coli DH10B cells carrying pBC SK (−) bla_VIM-R228X plasmids were grown in LB broth with 20 mg/L chloramphenicol to midlog phase (OD₆₀₀ = 0.7–0.8). Immunoblotting was performed as described previously,²⁹ with two changes explained as follows. First, 1 mL of cells was pelleted, the supernatant removed, and the pellet frozen at −20 °C overnight. Next, pellets were resuspended in 50 μL of lysis buffer containing 50 mM Tris-HCl (pH 7.4), 0.04 mg/mL lysozyme, 1 mM MgSO₄, and 5 units/mL benzonuclease (Novagen, Darmstadt, Germany). After incubation for 30 min at 25 °C, the solution was spun at 10000g, and 10 μL of the supernatant was loaded into each lane of a sodium dodecyl sulfate–polyacrylamide gel electrophoresis (SDS–PAGE) gel. Second, a 1:20000 dilution of anti-DNAK rabbit monoclonal antibody was added as a loading control (Enzo Life Sciences, Farmingdale, NY).

Protein Purification

E. coli BL21(DE3) pLys cells carrying pET-24a(+)-bla_VIM-2-S21 or bla_VIM-24-S21 phagemids were grown in LB containing 50 mg/L kanamycin for 18 h. Subsequently cells expressing the plasmid were grown in super optimal broth (SOB) while being constantly shaken at 200 rpm, until the OD₆₀₀ reached 0.6, and then 2 mM ZnSO₄ and 0.1 mM isopropyl β-D-thiogalactopyranoside (IPTG) were added for induction and the cells incubated for an additional 20 h at 20 °C while being constantly shaken at 200 rpm. Cells were harvested and frozen for 18 h at −20 °C. Pellets were resuspended in 50 mM Tris-HCl (pH 7.4) containing 200 mM NaCl and 2 mM ZnSO₄ and lysed with 40 mg/L lysozyme and 1.0 unit/mL benzonase nuclease (Novagen). Cells were further lysed using a model 500 sonic dismembrator [three pulses of 30 s at 50% amplitude (Fisher Scientific, Waltham, MA)] and then centrifuged at 12000 rpm for 10 min to remove the cellular debris.

After an overnight dialysis against 50 mM Tris-HCl (pH 7.4) containing 2 mM ZnSO₄, VIM-2 and VIM-24 were purified by anion-exchange chromatography (Q HiTrap Sepharose Fast Flow or Source 15Q, GE Healthcare) followed by gel filtration (Superdex 75 10/300 GL, GE Healthcare). Enzymes were stored at 4 °C in 50 mM Tris-HCl with 2 mM ZnSO₄ (pH 7.4). Purity was assessed by SDS–PAGE with final acrylamide concentrations of 12 and 5% (w/v) for the resolving and stacking gels, respectively; Coomasie Blue staining was used for protein band visualization. Once 95% purity was achieved, the Zn²⁺ content was measured using the colorimetric reagent 4-(2-pyridylazo) resorcinol (PAR) under denaturing conditions.³⁰

For X-ray crystallography, VIM-2 was expressed and purified as previously described³¹ and concentrated by centrifugal ultrafiltration to a final concentration of 15 mg/mL.

Electrospray Ionization (ESI) Mass Spectrometry (MS)

To confirm the molecular weight of the purified VIM-2 and VIM-24 MBLs, ESI-MS was performed on a Waters SynaptG2-Si quadrupole time-of-flight (Q-TOF) mass spectrometer equipped with a LockSpray dual electrospray ion source, using glu-1-fibrinopeptide B as the lock mass. The Synapt G2-Si instrument was calibrated with sodium iodide using a m/z 50–2000 mass range. For the experiments described herein, samples were desalted and concentrated using a C18 ZipTip (Millipore, Billerica, MA) according to the manufacturer’s protocol. Eluted protein samples were diluted with 50% acetonitrile and 0.2% formic acid and directly infused at a rate of 50 μL/min, and data were collected for 1 min. Lock mass spectra were collected prior to each sample in a similar manner. The tune settings for each data run were as follows: capillary voltage of 3.2 kV, sampling cone of 30, source offset of 30, source temperature of 100 °C, desolvation temperature of 450 °C, cone gas of 50 L/h, desolvation gas of 600 L/h, and nebulizer bar of 6.0. Spectra were analyzed using MassLynx version 4.1. Spectra were modified for lock mass deviations by applying a gain factor and deconvoluted using MaxEnt1.

Circular Dichroism (CD) Spectroscopy and Thermal Denaturation Analyses

CD experiments were performed in a Jasco (Easton, MD) J-815 spectrometer with a Peltier effect temperature controller. Quartz cells with a 0.1 cm path length were used for all experiments. For CD spectra, 10 μM VIM-2 or VIM-24 was incubated alone in 10 mM HEPES (pH 7.5) containing 0.2 M NaCl. CD spectra were obtained at 20 °C, and data points were recorded every 0.1 nm between λ₂₀₀ and λ₂₆₀ with a scan rate of 20 nm/min. For thermal denaturation, 10 μM VIM-2 or VIM-24 was monitored for helical content by CD at λ₂₂₂ between 20 and 85 °C with a heating rate of 2 °C/min. Data were fit to a two-state model as previously described.³²

Molecular Modeling

The crystal structure coordinates of VIM-2 (PDB entry 2YZ3³³) were used to construct a model of the VIM-24 enzyme using Discovery Studio 3.1 (DS 3.1, Accelrys, Inc., San Diego, CA). The crystallographic waters were taken out, and the enzyme structure was immersed in a water box (7 Å from any face of the box) using explicit periodic boundary conditions (PBC). The VIM-24 model was created using the Build module of DS by mutating the arginine at position 228 to leucine.

The molecule was prepared for energy minimization by adding hydrogen and setting the pH to 7.4. The system was minimized in several steps, with steepest descendent and conjugate gradient algorithms to reach the minimum convergence (i.e., 0.01 after 10000 iterations). All energy minimizations were conducted using CHARMm force field parameters. The particle mesh Ewald (PME) method was used to treat long range electrostatic interactions. Bonds that involved hydrogen atoms were constrained with the SHAKE algorithm.

To model the complex with VIM-24, coordinates and restraints for unhydrolyzed cefepime were generated using JLigand³⁴ and docked manually into the VIM-24 structure (generated as described above) using Coot.³⁵ Docking was based upon the assumptions of interactions between the oxygen of the C8 carbonyl with Zn1 and the C3 carboxylate with Zn2, as previously proposed for binding of intact β-lactams to binuclear MBLs.¹⁹ Comparisons with the structure of NDM-1 bound to hydrolyzed meropenem (PDB entry 4EYL³⁶) were useful in positioning the molecule relative to the metal ions. The resulting complex structure was minimized using the Yasara server (http://www.yasara.org/minimizationserver.htm³⁷). For comparison with VIM-2, the complex was superimposed onto the crystal structure of the native enzyme (PDB entry 1KO3¹³) using SSMSuperpose.³⁸

Determination of Steady-State Kinetic Parameters

Steady-state reactions were followed using an Agilent model 8453 diode array spectrophotometer as previously described.³⁹ Briefly, each assay was performed in 10 mM HEPES (pH 7.5) supplemented with 200 mM NaCl, 50 μM Zn₂SO₄, and 50 μg/mL bovine serum albumin (BSA) at 25 °C using nitrocefin (NCF), ampicillin, cephalothin, ceftazidime, cefepime, and imipenem as substrates at an excess molar concentration to establish pseudo-first-order kinetics. Excess metal is required in the buffer to maintain a constant active enzyme concentration and hence to ensure steady-state conditions, as there is metal dissociation during turnover.²⁶ The following extinction coefficients were used: NCF, Δ_ɛ482 = 17400 M⁻¹ cm⁻¹; ampicillin, Δ_ɛ235 = −900 M⁻¹ cm⁻¹; cephalothin, Δ_ɛ262 = −7660 M⁻¹ cm⁻¹; ceftazidime, Δ_ɛ256 = −7600 M⁻¹ cm⁻¹; cefepime, Δ_ɛ260 = −750 M⁻¹ cm⁻¹; and imipenem, Δ_ɛ299 = −9000 M⁻¹ cm^−1.39 For velocity determinations for ampicillin, cephalothin, NCF, and imipenem, a 1 cm path length quartz cuvette was employed. For ceftazidime and cefepime, a 0.2 cm path length quartz cuvette was used. A nonlinear least-squares fit of the data (Henri Michaelis–Menten equation) using Enzfitter (Biosoft Corp., Ferguson, MO) was employed to obtain the steady-state kinetic parameters V_max and K_M according to eq 1.

$$v=\frac{k_{\text{cat}}[\mathrm{S}][\mathrm{E}]}{K_{\mathrm{m}}+[\mathrm{S}]}$$ (1)

To estimate the k_cat values from the V_max values obtained from the fits, the Zn²⁺ content of each protein preparation was taken into account to calculate the concentration of the active enzyme, as a small fraction of the MBL is found in an irreversibly inactive apo form, which remains inactive even in the presence of excess metal.⁴⁰

In the case of cefepime and ceftazidime, where velocities of hydrolysis did not reach saturation under the conditions tested, the k_cat/K_M ratio was calculated by fitting hydrolysis curves to eq 2⁴¹

$$A_t=A_{\mathrm{f}}+(A_0-A_{\mathrm{f}}){\mathrm{e}}^{-kt}$$ (2)

where A_t is the absorbance at time t and A_f and A₀ represent the final and initial absorbance, respectively. In this equation, the observed first-order rate constant k = k_cat/K_M × [E].

Additionally, hydrolysis of cefepime and ceftazidime was assessed using periplasm preparations, as previously described.²⁶ Briefly, periplasmic preparations of E. coli DH10B pBC SK (−) harboring bla_VIM-2 or bla_VIM-24 were obtained by osmotic shock with chloroform, and MBL production was assessed by immunoblotting. Initial velocities of hydrolysis at high substrate concentrations (800 μM for cefepime and 400 μM for ceftazidime) were measured using equal amounts of both β-lactamases in 15 mM HEPES (pH 7.5) and 200 mM NaCl, supplemented with 50 μM ZnSO₄, at 25 °C.

Analysis of BTZ Inhibition Kinetics

Models involving one- or two-step slow binding were considered to analyze BTZ inhibition of NFC hydrolysis by VIM-2 and VIM-24⁵ (Scheme 1).

$$\mathrm{E}+\mathrm{I}\underset{k_{-1}}{\overset{k_1}{\leftrightarrow }}\text{EI}\underset{k_{-2}}{\overset{k_2}{\leftrightarrow }}\mathrm{E}\ast \mathrm{I}$$ Scheme 1

where E represents the free enzyme, I is the free inhibitor, EI is the final enzyme–inhibitor complex for a single-step slow binding mechanism, and E*I is the enzyme–inhibitor complex formed after conformational changes in a two-step slow binding mechanism. Therefore, the dissociation constant for the EI complex (K_i), also called the inhibitor constant, is defined as K_i = k₋₁/k₁; the dissociation constant for the E*I complex (K_i′) is defined as K_i′ = k₋₂/k₂, and the overall dissociation constant for the two-step mechanism (K_i*) is defined as K_i* = K_i/(1 + k₂/k₋₂).

The K_i for each inhibitor was determined by direct competition assays under steady-state conditions. The initial velocity was measured in the presence of a constant concentration of enzyme (3 nM for VIM-2 and 4 nM for VIM-24) with increasing concentrations of inhibitor (5–60 μM) against a fixed concentration (5K_M) of the indicator substrate, NCF, as previously described.^42–44 The reactions were started by addition of VIM-2 or VIM-24 to substrate or to mixtures of substrate and inhibitor. Data were linearized by plotting inverse initial steady-state velocities (1/v₀) versus inhibitor concentration (I). K_i (observed) was determined by dividing the value for the y intercept by the slope of the line. K_i determinations were corrected to account for the affinity of NCF for the β-lactamase according to eq 3.⁴⁵

$$K_{\mathrm{i}}=\frac{K_{\mathrm{i}(\text{obs})}}{1+\frac{[\mathrm{S}]}{K_{\text{MNCF}}}}$$ (3)

Measurements of association rate constants for inhibitor binding were taken at 25 °C in 10 mM HEPES (pH 7.5) supplemented with 200 mM NaCl, 50 μM Zn₂SO₄, and 50 μg/mL BSA, in the presence of several concentrations of each compound. Reactions were then initiated by the addition of β-lactamase (3 nM VIM-2 or 4 nM VIM-24) to a mixture of 50 μM NCF and each BTZ without preincubation. Inhibitor association rate constants were estimated from linear extrapolation of the observed rate constant for inhibition (k_obs), which was obtained by fitting progress curves of NFC hydrolysis to eq 4:

$$A=A_0+v_{s}t+\frac{(v_0-v_s)(1-{\mathrm{e}}^{-k_{\text{obs}}t})}{k_{\text{obs}}}$$ (4)

where A is the absorbance, v₀ and v_s are the initial and steady-state velocities of the reaction, respectively, and k_obs is the apparent rate constant for formation of the enzyme–inhibitor complex.

As previously described, the linear dependence of k_obs versus [I] at limiting I concentrations approximates second-order rate constant k₂/K_i.⁴⁶ The observed second-order rate constant also includes an adjustment for competition between inhibitor and substrate binding (eq 5).

$$k_{\text{obs}}=k_{-2}+\frac{k_2}{K_{\mathrm{i}}}\frac{[\mathrm{I}]}{1+\frac{[\mathrm{S}]}{K_{\mathrm{m}}}}$$ (5)

Also, v_s values calculated from the progress curves of NCF hydrolysis for each concentration of inhibitor were used to determine K_i*, according to the relationship shown in eq 6.⁵ The value reported is the mean of three velocities ± the standard deviation (SD).

$$v_{\mathrm{s}}=\frac{V_{\max }[\mathrm{S}]}{S+K_{\mathrm{m}}\left(1+\frac{[\mathrm{I}]}{K_{\mathrm{i}}\ast }\right)}$$ (6)

To further test the time-dependent inhibition mechanism of inhibitor binding, assays using dilutions of preformed complexes were performed. For these experiments, 1 μM enzyme was incubated with varying concentrations of the inhibitor that allowed for complete inactivation of the enzyme during the 5 min incubation at 25 °C. The reaction mixtures were then diluted 2000-fold in 10 mM HEPES (pH 7.5) supplemented with 200 mM NaCl, 50 μM Zn₂SO₄, and 50 μg/mL BSA, which contained 50 μM NCF. Reactivation of the enzyme based on NCF hydrolysis was monitored over time. A control reaction with the free enzyme was performed in the same fashion.

Crystallization, Data Collection, and Structure Determination

Conditions for cocrystallization were identified by using a mixture of VIM-2, purified as described previously,³¹ and the BTZ compound L-CS319 (dissolved in dimethyl sulfoxide and added to the protein sample to a final concentration of 10 mM) in sparse-matrix crystallization screening experiments. The final DMSO concentration was maintained at ≤10% (v/v). Diffraction quality crystals were obtained from 0.1 M Bicine (pH 9.0) and 65% 2-methyl-2,4-pentanediol. Crystals were mounted in rayon loops and snap-frozen in liquid nitrogen prior to data collection. Diffraction data were collected on beamline I04-1 of the Diamond Light Source synchrotron (Didcot, U.K.) using a Pilatus detector. Images were integrated, scaled, and merged using XDS,⁴⁷ POINTLESS, and SCALA⁴⁸ as implemented in the XIA2 crystallography pipeline.⁴⁹ The structure was determined by molecular replacement with PHASER⁵⁰ using the native (unliganded) VIM-2 structure as a search model (PDB entry 1KO3¹³) and subjected to alternate rounds of model building and refinement using Coot³⁵ and Refmac5⁵¹ as implemented in the CCP4 crystallography suite.⁵² The quality of the final model was assessed using the MolProbity server.⁵³ Coordinates and structure factors have been deposited in the PDB as entry 4UA4.

RESULTS AND DISCUSSION

Effects of the R228 Substitution on the Phenotype and Expression of VIM-2 Variants Expressed in E. coli

To determine the effect of the R228L substitution and to investigate the role of position 228 in VIM MBLs, we generated all possible variants at this position by site saturation mutagenesis and assessed the impact of these substitutions on phenotype by antibiotic susceptibility testing against a variety of β-lactams (Table 1). Compared to that in VIM-2, the natural R228L substitution in VIM-24 increased resistance to cefepime (≤0.5 mg/L vs 4 mg/L) and ceftazidime (16 mg/L vs 64 mg/L), while the minimal inhibitory concentration (MIC) values for all the remaining antibiotics tested remained relatively unchanged. Results from the R228X library also showed this position to be tolerant of substitution as only two variants, R228K and R228P, displayed significant reductions in MIC, compared to those of VIM-2, for all the antibiotics tested. Remarkably, R228M and R228Q showed increased resistance toward all β-lactams, including imipenem, and thus represented “gain of function” mutations.

Table 1.

Cell-Based Assays Using E. coli DH10B pBCSK(−), Producing VIM-2, VIM-24 (R228L), and Other Variants

	MIC (mg/L)
	E. coli pBC SK(−)	VIM-2 (228R)	VIM-24 (R228L)	R228K	R228P	R228M	R228Q	R228Y	R228Xc
ampicillin	4	512	512	32	32	1024	1024	1024	64–512
cephalothin	8	256	256	16	16	256	1024	256	64–256
ceftriaxone	0.5	8	8	1	0.5	16	32	16	1–16
cefotaxime	0.06	8	16	1	1	16	32	16	2–32
aztreonam	≤0.125	≤0.125	≤0.125	≤0.125	≤0.125	≤0.125	≤0.125	≤0.125	≤0.125
ceftazidime	0.06	16	64	1	1	128	128	64	16–128
ceftazidime + Zna	≤1	32	128	≤1	4	256	512	128	32–256
ceftazidime + EDTAb	≤1	16	32	≤1	≤1	64	128	64	8–64
cefepime	0.03	0.5	4	0.5	0.25	2	16	8	1–4
cefepime + Zna	≤0.25	0.5	4	≤0.25	0.5	2	32	8	1–4
cefepime + EDTAb	≤0.25	0.5	4	≤0.25	≤0.25	4	16	8	1–2
imipenem	0.25	0.5	0.5	0.25	0.5	2	4	1	0.25–1
imipenem + Zna	0.25	1	1	0.25	0.25	4	>4	1	0.5–2
imipenem + EDTAb	≤0.125	0.5	0.5	0.25	≤0.125	1	4	1	0.25–1

^aMHA supplemented with a final concentration of 250 μM Zn²⁺.

^bMHA supplemented with 5 μM EDTA.

^cValues shown in this column are the ranges of the MIC values obtained for the other variants. A complete list of the MICs is provided as Supporting Information.

MBLs are exported to the bacterial periplasm as unfolded polypeptides, and metal incorporation takes place in the periplasmic space where Zn²⁺ availability is limited.⁵⁴ Thus, MBLs with reduced capability to bind Zn²⁺ are deficient in conferring resistance.²⁶ Accordingly, we determined the MIC values of our R228X library in E. coli cells in media containing excess or limiting concentrations of Zn²⁺ using cefepime, ceftazidime, and imipenem as representative antibiotics. As shown in Table 1, the effect of Zn²⁺ availability on resistance was especially noticeable for ceftazidime, for which VIM-24, but also 90% of the in vitro generated variants, displayed higher MICs. Increments of up to two doubling dilutions (MIC increases from 128 to 512 mg/L) were detected under conditions that included high Zn²⁺ availability. Of note, consistent decreases in resistance, especially in restricted Zn²⁺ media, were observed for only two variants, R228P and R228K. Furthermore, the activity of the R228K variant was not improved in Zn²⁺-supplemented agar.

An additional factor that can affect antibiotic resistance is the expression level of the individual VIM variants. Therefore, we next evaluated the steady-state expression of each of the variants expressed from pBCSK (−) in E. coli DH10B cells, by immunoblotting. The results on whole cell extracts showed all variants to be produced at either the same level of wild-type VIM-2 or a lower level (Figure 3A). For instance, the R228K and R228Q variants are expressed at a level comparable to that of the wild type, whereas the level of expression of the R228M variant is lower. We assert that phenotypic differences arise from a combination of inherent properties (sequence and/or structure stability) that affects catalytic activity. The deficient resistance conferred by the R228K enzyme may then be explained by structural changes that disrupt the conformation of active site loop 10 (ASL-10) and may also indirectly reduce the affinity for Zn²⁺. In the case of the “gain of function” variants, R228M and R228Q, despite the absence of a strongly charged side chain at position 228, both the Met and Gln substitutions clearly retain the ability to bind substrate in a productive orientation for hydrolysis. These data imply that, in the absence of a significant stabilizing interaction with the R228 side chain, the C3 or C4 carboxylate of the substrate can make alternative contacts with the enzyme active site that are still compatible with efficient hydrolysis. More detailed studies of the R228Q, R228M, and R228K variants will thus provide insights into the basis of substrate specificity, and the catalytic mechanism, of VIM enzymes.

Figure 3.

Characterization of proteins expressed in E. coli DH10B and E. coli BL21(DE3) pLys cells. Steady-state expression of the R228X library in E. coli DH10B was analyzed by immunoblotting, as described in Experimental Procedures. (A) Proteins were detected from whole cell lysates. VIM-2 and VIM-24 were overexpressed in E. coli BL21(DE3) pLys cells and analyzed by electrospray ionization mass spectrometry (ESI-MS) and circular dichroism (CD). (B) Mass spectra of purified VIM-2 show one major peak at 25602 ± 2 amu, which is consistent with cleavage of the leader sequence after residue 25. (C) Mass spectra of purified VIM-24 show two major peaks of 26206 and 25987 ± 2 amu, which correspond to cleavage after residues 20 and 21, respectively. (D) Far-UV CD spectra of VIM-2 (black line) and VIM-24 (gray line). (E) Thermal denaturation of VIM-2 and VIM-24 followed by ellipticity at 222 nm. Solid lines are best fits to a two-state denaturation model.

Consequences of the R228L Substitution for VIM-2 Structure and Catalytic Activity

Because the R228L mutant (VIM-24) was detected in a clinical isolate and thus represents a natural mutation in response to selective pressure, we characterized the consequences of this substitution for VIM structure and function. Purified VIM-2 and VIM-24 both bound approximately two Zn²⁺ atoms as measured by the PAR method. Mass spectrometry further confirmed protein identity and revealed one major peak at 25602 ± 2 amu for VIM-2. This value is consistent with cleavage of the protein’s leader sequence after residue 25. On the other hand, pure VIM-24 showed two main peaks at 26206 and 25987 ± 2 amu, which correspond to cleavage after residue 20 (plus an additional Met residue on the N-terminus, as the codon for this residue is introduced with the NdeI restriction site used to clone the gene into the vector) and residue 21, respectively (Figure 3B,C). Comparison of the CD scans revealed that VIM-2 and VIM-24 exhibit very similar CD spectra (Figure 3D). On thermal denaturation, both proteins displayed a single cooperative transition to an unfolded state with calculated T_m values of 62 °C for VIM-2 and 63 °C for VIM-24 (Figure 3E). However, the unfolding transition for VIM-24 is less steep than that for VIM-2, suggesting a more gradual unfolding process. Crystal structures of VIM-2 have revealed that Arg228 hydrogen bonds with a terminally Zn-coordinated water molecule. The presence of this water molecule has been linked to a cooperative metal binding, meaning that the binding of one atom of Zn²⁺ facilitates the binding of the second.⁵⁵ Likewise, the unbinding of one Zn²⁺ leads to the unbinding of the second, which, we hypothesize, results in a faster unfolding process. Because the presence of the Leu residue at position 228 in VIM-24 does not allow the coordination of this terminally Zn-coordinated water molecule, the Zn binding–unbinding process is not cooperative. This may lead to the presence of apo, monozinc, and dizinc forms of the enzyme, resulting in a slower unfolding process. Taken together, our results suggest that the R to L substitution does not introduce significant changes into the overall metal or secondary structure content or global stability of the protein.

To improve our understanding of the impact of the R228L change on kinetic behavior, the steady-state kinetic parameters of VIM-2 and VIM-24 were determined with a series of substrates. VIM-24 displays a lower catalytic efficiency against the majority of the substrates tested (Table 2). For ampicillin and cephalothin, the decreased k_cat/K_M is due to the higher K_M values, with no concomitant change in k_cat. For imipenem, a lower k_cat is observed with little change in K_M, consistent with slower turnover. For ceftazidime and cefepime, we could not reach saturating concentrations of substrate under the experimental conditions used. However, clear differences were evident in the steady-state hydrolysis of these two substrates by VIM-2 and VIM-24 (Figure 4A,B) and were manifest in the k_cat/K_M ratio calculated by fitting progress curves to eq 2. For ceftazidime, k_cat/K_M was 1 × 10⁴ M⁻¹ s⁻¹ for VIM-2 and 6 × 10⁴ M⁻¹ s⁻¹ for VIM-24. For cefepime, the values were 3 × 10⁴ M⁻¹ s⁻¹ for VIM-2 and 1 × 10⁵ M⁻¹ s⁻¹ for VIM-24.

Table 2.

Steady-State Kinetic Data of VIM-2 and VIM-24^a

substrate	VIM-2			VIM-24
	KM (μM)	kcat (s−1)	kcat/KM (M−1 s−1)	KM (μM)	kcat (s−1)	kcat/KM (M−1 s−1)
nitrocefin	13 ± 1	430 ± 20	3.3 × 107	11 ± 1	171 ± 4	1.6 × 107
ampicillin	23 ± 4	217 ± 9	9.9 × 106	97 ± 6	217 ± 5	2.2 × 106
cephalothin	17 ± 2	168 ± 8	9.8 × 106	33 ± 5	150 ± 9	4.5 × 106
ceftazidime	NMc	NMc	1 × 104b	NMc	NMc	6 × 104b
cefepime	NMc	NMc	3 × 104b	NMc	NMc	1 × 105b
imipenem	12 ± 1	45 ± 1	3.6 × 106	5.0 ± 0.7	8.8 ± 0.3	1.7 × 106

^aValues reported are averages ± standard deviations from triplicate experiments.

^bCalculated from the progress curves of reaction, as described in Experimental Procedures.

^cNot measured.

Figure 4.

Leu at position 228 enhaces ceftazidime and cefepime hydrolysis by VIM-24. Hydrolysis of 500 μM of (A) ceftazidime and (B) cefepime was monitored at λ₂₅₆ and λ₂₆₀, respectively, using 70 nM purified VIM-2 and VIM-24. Chemical structures of the substrates are shown at the top right side of each plot. (C) Production of VIM-2 and VIM-24 expressed in E. coli DH10B assessed from periplasmic preparations by immunoblotting. Two independent periplasmic extractions are presented. A standard curve of purified VIM-2 was used to quantify the proteins from each preparation.

To correlate the MIC results with the kinetic activity of VIM-2 and VIM-24, we measured the hydrolysis of cefepime and ceftazidime in periplasma. Determination of enzymatic activity in periplasma has been shown to parallel the resistance profile, as it more closely resembles conditions in vivo.^26,56 Periplasmic MBL levels were quantified by immunoblotting (Figure 4C), and initial velocities were determined at 800 μM cefepime or 400 μM ceftazidime (maximal concentrations at which velocities could be measured). For VIM-24, the rate of cefepime hydrolysis (5.3 × 10⁻⁷ M s⁻¹) increased compared to that of VIM-2 (2.9 × 10⁻⁷ M s⁻¹). VIM-24 hydrolyzed ceftazidime at a rate of 4 × 10⁻⁷ M s⁻¹, whereas measurable rates of hydrolysis were not obtained using VIM-2. These results clearly demonstrate that substitution of Arg for Leu at position 228 changes the substrate specificity of VIM enzymes to favor hydrolysis of third- and/or fourth-generation cephalosporins.

The VIM-2 R228L Substitution Relieves Steric Clashes with Bound Cephems

In MBLs such as VIM-2, the extended guanidine side chain of Arg228 may replicate the role of Lys224 in interacting with the C3/C4 carboxylate of β-lactam substrates,^13,14 while docking experiments implicate Arg228 (in addition to residues at the ASL-3) in positioning the substrate through interactions with the large, charged C3 substituents (R2 groups) of hydrolyzed cephalosporins such as ceftazidime.⁵⁷ For VIM-1, VIM-19, and related enzymes, activity against such substrates may be enhanced by the presence of Ser at position 228, resulting in a more “open” active site.^14,57,58 In line with these observations, screening of VIM-2 variants at position 228 determined that small residues (Val, Ala, Ser, Thr, and Gly), and those with nonpolar side chains [Ile and Leu (VIM-24)] all increased the MICs for cefepime and ceftazidime (complete MIC data provided as Supporting Information). We consider the most likely explanation for these findings to be that both steric and charge–charge interactions involving position 228 of the VIM MBLs and the β-lactam R2 substituent group can orient and position substrates within the active site. To test this notion, we used the crystal structure of VIM-2 (PDB entry 2YZ3) to derive a molecular model of VIM-24.

A docking of unhydrolyzed cefepime was modeled into the active site of VIM-24 and minimized the resulting complex using YASARA.³⁷ As shown in Figure 5, the presence of Leu228 creates an active site groove in VIM-24 large enough to accommodate the bulky C3 N-methylpyrrolidine group of cefepime without requiring significant conformational rearrangement (Figure 5A). By way of contrast, the guanidinium side chain of VIM-2 Arg228 protrudes sufficiently into the substrate binding cleft to create a clear steric clash (Figure 5B). In this conformation, the Arg is ≈8 Å from the carboxylate group of the substrate and completely unable to form any hydrogen bond with it. We anticipate the interaction between Arg228 and the R2 substitution of ceftazidime to be equally unfavorable, not only because of the structural similarity but because of the fact that in this case the R2 substitution is positively charged. Therefore, we conclude that the shorter Leu side chain facilitates access of both cephems to the active site of VIM-24, increasing turnover of what are still poor substrates.

Figure 5.

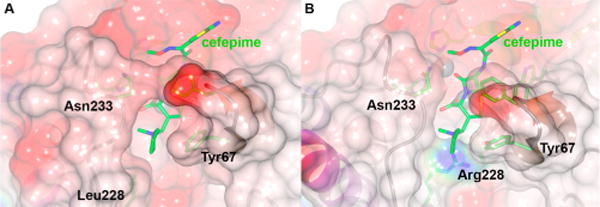

Interactions of cefepime with VIM-24 and VIM-2. (A) Intact cefepime was manually docked into the model of VIM-24 and the complex minimized using the YASARA server.³⁷ (B) The resulting orientation was superimposed onto the crystal structure of native VIM-2 (PDB entry 1KO3¹³) using SSMSuperpose.³⁸ Note the steric clash between the N-methylpyrrolidine group at cefepime C3 and the guanidino side chain of VIM-2 Arg228. This figure was generated using CCP4mg;⁶⁴ the molecular surface is colored by electrostatic charge from −0.5 V (red, negative) to 0.5 V (blue, positive).

BTZs Are Slow Binding Inhibitors of VIM-2 and VIM-24 with Micromolar Affinity

In addition to interacting with substrates (especially cephems), VIM-2 Arg228 is also positioned to form part of a binding site for potential MBL inhibitors. Thus, we investigated the interaction of VIM-2 and VIM-24 with four candidate BTZ inhibitors comprising two pairs of stereoisomers. Interestingly, under steady-state conditions, BTZs were effective inhibitors of both VIM-2 and VIM-24, with observed K_i values (determined using NCF as a reporter substrate) between 3.7 and 14 μM (Table 3). All four compounds increased the apparent K_M but exert essentially no effect on k_cat, consistent with a competitive mode of inhibition. Although the K_i values were in general slightly higher for VIM-24, the maximal effect was <2-fold. On this basis, we conclude that unlike the effects seen with β-lactams, interaction with Arg228 does not make a major contribution to the affinity of BTZ for the VIM MBLs. This has significant implications for further development of this class of BTZ inhibitors.

Table 3.

Inhibition of VIM-2 and VIM-24 by BTZs^a

compound	VIM-2				VIM-24
	Ki (μM)	Ki* (μM)	k2 (s−1)	k−2 (s−1)	Ki (μM)	Ki* (μM)	k2 (s−1)	k−2 (s−1)
L-CS319	3.7 ± 0.3	0.04 ± 0.01	(0.03 ± 1) × 10−3	(0.0003 ± 1) × 10−4	6.0 ± 0.7	0.12 ± 0.02	(0.06 ± 2) × 10−3	(0.001 ± 1) × 10−3
D-CS319	5.4 ± 0.4	0.18 ± 0.02	(0.01 ± 1) × 10−3	(0.0003 ± 1) × 10−4	11 ± 0.8	0.64 ± 0.01	(0.07 ± 4) × 10−3	(0.004 ± 1) × 10−3
L-VC26	3.8 ± 0.2	0.25 ± 0.01	(0.02 ± 1) × 10−3	(0.001 ± 1) × 10−3	4.9 ± 0.3	0.13 ± 0.02	(0.04 ± 2) × 10−3	(0.001 ± 1) × 10−3
D-VC26	14 ± 1	0.10 ± 0.03	(0.09 ± 4) × 10−3	(0.0006 ± 4) × 10−4	12 ± 3	0.08 ± 0.01	(0.01 ± 3) × 10−3	(0.00007 ± 1) × 10−5

^aK_i determined from the initial rate of hydrolysis (v₀). K_i* and k₂ were calculated from the analysis of the change in v_s with inhibitor concentration, in the slow binding model.

More detailed investigations identified that BTZ inhibition of both VIM-2 and VIM-24 arises from a slow binding two-step process, as previously described for neutral thiol inhibitors of IMP-1,⁵ captopril inhibition of angiotensin converting enzyme, and some thiol inactivators of leucine amino peptidase.^59–61 At increasing inhibitor concentrations, NCF hydrolysis proceeds in two phases transitioning from a rapid initial (v₀) to a slower steady-state (v_s) velocity (Figure 6A). This behavior is consistent with initial formation of a relatively weak inhibitor complex (EI) that resolves to a more stable species (E*I) during the course of the reaction. According to this model of inhibition, K_i is the measure of the affinity of the initial complex, EI, whereas the true overall dissociation constant of an inhibitor that conforms to this mechanism is defined by the dissociation constant for the final high-affinity conformation of the enzyme–inhibitor complex K_i* [K_i* = K_i/(1 + k₂/k₋₂)].⁶²

Figure 6.

BTZ-induced inhibition of hydrolysis. (A) Reaction was initiated by addition of 3 nM VIM-2 to a mixture of buffer, L-CS319, and 50 μM nitrocefin. (B) k_obs vs [I] plot for L-CS319 onset of VIM-2 inhibition. Data were fit as described in Experimental Procedures. (C) Reaction was initiated by addition of 0.5 nM VIM-2 preincubated for 5 min with L-CS319 to a mixture of buffer and 50 μM nitrocefin.

To verify that this model correctly describes the observed behavior, the kinetic data were fit to alternative models as described above (Scheme 1). The best fit was obtained with a two-step model in which both v₀ and v_s decrease with an increasing inhibitor concentration (Figure 6A), as evidenced by a fit to the data more consistent than, and 95% confidence intervals narrower than, those that could be obtained with a simpler, one-step scheme in which v₀ did not vary with inhibitor concentration (statistical analysis for the fitting of L-CS319-induced inhibition of NCF hydrolysis by VIM-2 is provided as Supporting Information). From these data, the overall equilibrium dissociation constant for inhibitor binding, K_i*, could be calculated by fitting the final v_s determined at different inhibitor concentrations to eq 6. These values are summarized in Table 3. In agreement with the conclusion that inhibition occurs by a slow binding two-step process, we found that K_i ≫ K_i*, as the values of K_i* were observed to be significantly lower (0.04–0.6 μM) than the K_i values obtained by analysis of the inhibitor dependence of v₀ (4–14 μM).

For a two-step time-dependent onset of inhibition model, the dependence of k_obs on the concentration of inhibitor at limiting [I] reflects the second-order rate constant k₂/K_i*[I]/(1 + [S]/K_m), where k₂ is the rate constant for formation of E*I and K_i is the equilibrium binding constant for the first binding step (eq 5).⁴⁶ The observed values for k₂, estimated from the slope obtained from the plot of the calculated k_obs versus inhibitor concentration, range from 0.01 to 0.09 s⁻¹ (Figure 6B). Given the observed values of K_i (4–14 μM) and K_i* (0.04–0.6 μM), the equilibrium constant for the conformational change step (defined as K_i′ = k₋₂/k₂) must lie in the range of 0.1–0.01 for both VIM-2 and VIM-24 [because K_i* = K_i/(1 + k₂/k₋₂)].⁶² As a consequence of the slow rate constants observed for formation of E*I, the rate constant for breakdown of the E*I complex (k₋₂) is also very slow (Table 3).

To further test this model, the kinetics of reactions in which the enzyme was preincubated with inhibitor prior to the addition of substrate were analyzed. For a time-dependent onset of inhibition mechanism, a preincubation step should eliminate the biphasic kinetics observed in reactions where inhibitor and substrate are added at the same time. Consistent with this conclusion, reactions after preincubation of enzyme and inhibitor show simple, linear, steady-state kinetics. Moreover, the observed initial rates obtained from enzyme preincubated with inhibitor are consistent with the tighter inhibitor binding constant K_i* (Figure 6C and Table 3). Taken together, the kinetic data are consistent with a model in which rapid but relatively weak binding of the inhibitor in the substrate-binding pocket is followed by conformational changes to a more stable enzyme–inhibitor complex.

Crystallography Reveals Key Interactions between VIM-2 and L-CS319

To further investigate the interaction of VIM enzymes and BTZ inhibitors, we sought to obtain a crystal structure for a BTZ–VIM-2 complex. Initial experiments in which the most potent inhibitor, L-CS319, was soaked into a previously described VIM-2 crystal form¹³ failed to yield interpretable electron density. Hence, we used cocrystallization to generate a new crystal form [space group P2₁, two molecules in the asymmetric unit (Table 4)], diffracting to near-atomic resolution (1.25 Å). The structure was determined by molecular replacement and refined as described above, with the final model containing 230 and 234 amino acids in chains A and B, respectively.

Table 4.

Crystallographic Data Collection and Refinement Statistics

data set	VIM-2:CS319
processing	XDS/SCALA
beamline	DLS I04-1
space group	P21
cell dimensions	a = 52.89 Å, b = 61.40 Å, c = 68.92 Å, β = 100.9°
wavelength (Å)	0.9200
resolution (Å)a	29.64–1.25 (1.32–1.25)
total no. of reflectionsa	302755 (38004)
no. of unique reflectionsa	115461 (15946)
completeness (%)a	96.7 (91.8)
redundancya	2.6 (2.4)
I/(σI)a	11.1 (2.3)
Rmerge (%)a	0.040 (0.395)
refinement	REFMAC5
total no. of reflections	109653
resolution (Å)	29.64–1.25
Rcryst (%)	14.5
Rfree (%)b	16.4
root-mean-square deviation for bond lengths (Å)	0.0064
root-mean-square deviation for bond angles (deg)	1.4591
no. of protein atoms	3578
no. of water molecules	355
% residues in Ramachandran regions (favored/allowed/disallowed)	98.5/1.5/0
Wilson B factor	11.3
B factors (protein)	15.6 (15.4, 16.0)c
B factors (ligand)	26.7,d 22.7,e 14.7f
B factors (water molecules)	27.6
PDB entry	4UA4

^aData for the highest-resolution shell are in parentheses.

^bR_free was calculated with 5% of the reflections omitted.

^cValues for chains A and B, respectively.

^dMajor conformation, chain B (occupancy of 0.6).

^eMinor conformation, chain B (occupancy of 0.3).

^fDimer, chain A.

Difference electron density maps gave clear evidence of bound ligand in both molecules of the asymmetric unit but showed the nature of the ligand to differ between the two subunits. In molecule A, high-quality electron density extending along the active site groove indicated a ligand significantly larger than a single L-CS319 molecule, which was modeled as a dimeric species with two L-CS319 monomers connected by a disulfide bond (data not shown). However, as assays in solution demonstrated that prolonged exposure to oxidative conditions abolishes the inhibitory activity of L-CS319 and other BTZs toward MBLs (data not shown), we conclude that this is most likely an artifact structure generated by oxidation of the L-CS319 ligand during crystallization and does not represent the inhibitory VIM-2–L-CS319 complex.

In contrast, the active site of molecule B contained positive electron density of a size and shape expected for a monomer of L-CS319 (Figure 7A). Although this positive density was more diffuse than would be expected at this resolution, a strong peak between the two zinc ions was considered to indicate the inhibitor thiol group in the “bridging” position and a second strong peak close to the Asn233 backbone amide the inhibitor carboxylate. On this basis, L-CS319 could be fit into the difference map and refined with an occupancy of 0.6 (Table 4). However, the best results were obtained when a second inhibitor molecule, with an occupancy of 0.3, was fit into the additional diffuse electron density. This low-occupancy conformation shares a common location for the carboxylate group but differs in the precise orientation of the BTZ core and in the positioning of the thiol, which notably is not intercalated between the two Zn²⁺ ions. The description below focuses on the high-occupancy conformation. We note, however, that observation of two conformations for bound L-CS319 in the crystal structure is consistent with the presence of multiple enzyme–inhibitor complexes in solution as observed in the inhibition assays described above.

Figure 7.

Crystal structure of the VIM-2–L-CS319 complex. (A) Stereoview of the active site of chain B showing L-CS319 overlaid with |F_o| − |F_c|Φ_calc density (green, contoured at 2.5σ) calculated from refinement of the final model, from which the ligand was removed, against experimental diffraction data. The major conformation of bound inhibitor (occupancy of 0.6) is rendered as solid sticks (cyan); the minor conformation (occupancy of 0.3) is rendered semitransparent. (B) Orientation of the major conformation of L-CS319 bound in the VIM-2 active site. Hydrogen bonds and zinc coordination bonds are shown as black dashes. Inhibitor L-CS319 interacts with both zinc ions via its sulfhydryl group; the inhibitor carboxylate group interacts with Asn233 amide and a bound water molecule (Wat). (C) Overlay of the VIM-2–L-CS319 complex (green) with structures of unliganded VIM-2 (slate blue, PDB entry 1KO3¹³), the mercaptocarboxylate inhibitor (M5P) complex (magenta, PDB entry 2YZ3³³), and the rhodanine fragment (ML302F) complex (gray, PDB entry 4PVO¹⁶). For all panels, carbon atoms are colored green (protein, other than where specified for panel C), zinc ions gray, water molecules red, and other atoms as standard. This figure was generated using PyMol (www.pymol. org).

L-CS319 is positioned with the BTZ ring system lying at approximately 45° with respect to the floor of the active site groove (Figure 7B). Key interactions with VIM-2 involve the thiol, which adopts the bridging position between the two zinc ions seen in other MBL–thiol complexes (for example, phenylC3SH,³³ rhodanine,¹⁶ and Tiopronin¹⁸), and the carboxylate, which forms hydrogen bonds to the Asn233 backbone amide nitrogen and to a bound water molecule (Figure 7B, Wat) that is positioned by the Cys221 backbone carbonyl. Notably, the inhibitor carboxylate is too far from the Zn2 (Cys-His-Asp site) metal ion to make a direct interaction, unlike the situation for complexes of other B1MBLs with hydrolyzed β-lactams.^36,63 Interestingly, although the Arg228 guanidino moiety is within hydrogen bonding distance of the inhibitor carboxylate, the two groups are not well-oriented for interaction. Weak electron density for the Arg228 guanidino group, which was refined in two conformations, also argues against a strong interaction between this residue and bound inhibitor. This apparent lack of involvement of Arg228 in BTZ binding is consistent with the similar levels of BTZ inhibition of VIM-2 and VIM-24, supporting the conclusion that Arg228 does not substantially contribute to inhibitor affinity. L-CS319 binding does involve hydrophobic contacts, namely, edge–face interactions between the two rings of the fused BTZ system and the side chains of Phe61 and Tyr67 at the base of ASL-3 (residues 60–67), and with the more distant side chain of the conserved Trp87. In addition, the side chain of the zinc ligand His263 sits beneath and approximately parallel to the inhibitor scaffold.

The overall conformation of VIM-2 in the L-CS319 complex differs little from that of the free enzyme¹³ and complexes with mercaptocarboxylate³³ and rhodanine¹⁶ inhibitors (Figure 7C). The main differences are in ASL-3, which adapts its position, in particular the orientation of the Phe61 side chain, to accommodate the different inhibitors. However, these differences are far less marked than in ligand complexes of other B1 enzymes, such as IMP-1 or NDM-1, where much more profound changes in the ASL-3 conformation have been observed. This may arise from the location of aromatic residues likely to be important to ligand binding at the base of VIM ASL-3 (Phe61 and Tyr67) rather than at its apex, as is the case for Trp64 or Phe64 in the IMP and NDM MBLs, respectively. Repositioning of the side chain at position 64 on ligand binding is likely to require much greater movement of ASL-3 in both of these enzymes. Comparison of the mode of binding of L-CS319 and the rhodanine fragment ML302F shows that the bridging thiol, multiple conformations for the Arg228 side chain, and interactions with the Asn233 backbone amide and the Cys221-bound water molecule are common to binding of both inhibitors. As this water molecule is present in an identical position in all but one available VIM-2 structure, while the conformation of the Arg228 side chain varies, it is possible that in VIM-2 it is this water molecule, rather than Arg228, that makes the major contribution to binding the C3/C4 carboxylate of β-lactam substrates and thus replicates the role of Lys224 in other B1MBLs.

BTZs Restore Imipenem Activity against VIM-2 and VIM-24, Producing Gram-Negative Pathogens

To assess the capacity of the BTZ inhibitors to restore the efficacy of imipenem, we performed microbiological assays using two clinical isolates: VIM-2 harboring P. aeruginosa (imipenem MIC = 32 μg/mL) and VIM-24 producing K. pneumoniae (imipenem MIC = 1 μg/mL). Viable cell counts following exposure to sublethal concentrations of imipenem in the presence of inhibitors (Figure 8) showed that the BTZs are able to inhibit both MBLs within bacteria, as evidenced by the significant reductions in bacterial count (p < 0.05). The inhibitors do not have any antimicrobial effect on their own, as differences could not be detected in viable cell number between BTZ-exposed cells and broth-only controls (data not shown).

Figure 8.

BTZs restore the in vitro activity of imipenem against (A and B) VIM-24-producing K. pneumoniae and (C) VIM-2-producing P. aeruginosa. (A) Bacteria were grown at sublethal concentrations of imipenem alone (8 mg/L for P. aeruginosa and 0.5 mg/L for K. pneumoniae) or in combination with each BTZ at 100 mg/L. Viable cells were recovered at 100, 300, and 500 min. (B and C) Results shown are the means of three biological replicates ± SD. Adjusted p values are illustrated on the figures: 0.05 (one asterisk), 0.01 (two asterisks), and 0.001 (three asterisks).

CONCLUDING REMARKS

In this study, we present a detailed characterization of the effect of substitutions at VIM-2 position 228, including the R228L substitution found in the naturally occurring variant VIM-24, upon antibiotic susceptibility of recombinant E. coli, substrate, and inhibitor binding. Our results emphasize the impact of this position on hydrolysis of third- and/or fourth-generation cephalosporin substrates and thus provide further evidence of the functional importance of residue 228 in defining the profile of the VIM enzymes. In some ways, this natural variant (R228L) recapitulates the clinical observation made in class A β-lactamases such as TEM or SHV, in which a single amino acid substitution results in an “extended spectrum” phenotype. However, our data show that binding of other β-lactam classes and BTZ inhibitors is little affected by the substitution, arguing against an essential role for Arg228 in ligand binding by VIM-2. This conclusion is supported by the absence of interactions between Arg228 and the inhibitor carboxylate in our crystal structure of a VIM-2–BTZ complex. Thus, VIM enzymes, in which differences at residue 228 can affect interaction of VIM variants with some substrates but high-affinity binding can be tolerant of substitutions, differ from other clinically important B1MBLs in which the importance of the conserved Lys224 is well-established. These differences highlight the challenge of designing inhibitors effective across the whole range of MBL targets. The structural, biochemical, and mechanistic information presented here will provide a starting point for such optimizations. Lastly, our results emphasize the importance of identifying a mechanism of inhibition to allow both assessment of the true affinity of a compound for its target and the interpretation of structure–activity relationships.

ABBREVIATIONS

BLI

β-lactamase inhibitor

MBL

metallo-β-lactamase

SPM

Sao Paulo metallo-β-lactamase

SIM

Seoul imipenemase

GIM

German imipenemase

IMP

imipenemase

NDM

New Delhi metallo-β-lactamase

VIM

Verona integron-encoded metallo-β-lactamase

MIC

minimal inhibitory concentration

BTZ

bisthiazolidine

ASL-3

active site loop 3 (residues 60–67)

ASL-10

active site loop 10 (residues 223–242)

PDB

Protein Data Bank
