. 1993 Aug 15;90(16):7874–7878. doi: 10.1073/pnas.90.16.7874

pDUAL: a transposon-based cosmid cloning vector for generating nested deletions and DNA sequencing templates in vivo.

G Wang 1, R W Blakesley 1, D E Berg 1, C M Berg 1
PMCID: PMC47245  PMID: 8395057

Abstract

We describe a transposon gamma delta-containing cosmid cloning vector, pDUAL (previously called pJANUS), and demonstrate an efficient strategy for isolating nested deletions in both large-scale and small-scale DNA sequencing efforts. This "deletion factory" strategy takes advantage of the ability of gamma delta (Tn1000) to generate deletions that extend from an end of the transposon into adjacent DNA when gamma delta transposes to new sites in the same DNA molecule. pDUAL contains the contraselectable (conditional lethal) sacB+ (sucrose sensitivity) and strA+ (streptomycin sensitivity) genes just outside each end of an engineered gamma delta and selectable kan+ (Kanr) and tet+ (Tetr) genes between the cloning site and sacB and strA, respectively. Selection on sucrose tetracycline medium yields deletions that extend from one gamma delta end for various distances into the cloned DNA, while selection on streptomycin kanamycin medium yields comparable deletions in the other direction. Both types of deletions are recoverable because the essential plasmid replication origin is embedded in the gamma delta component and is thereby retained in each deletion product. Pilot experiments with pDUAL clones showed that deletion end points can be mapped or selected by plasmid size and that both DNA strands of any single clone can be accessed for sequencing by using a pair of universal primers specific for sequences that are just interior to the gamma delta ends.

Full text

PDF
7874

Images in this article

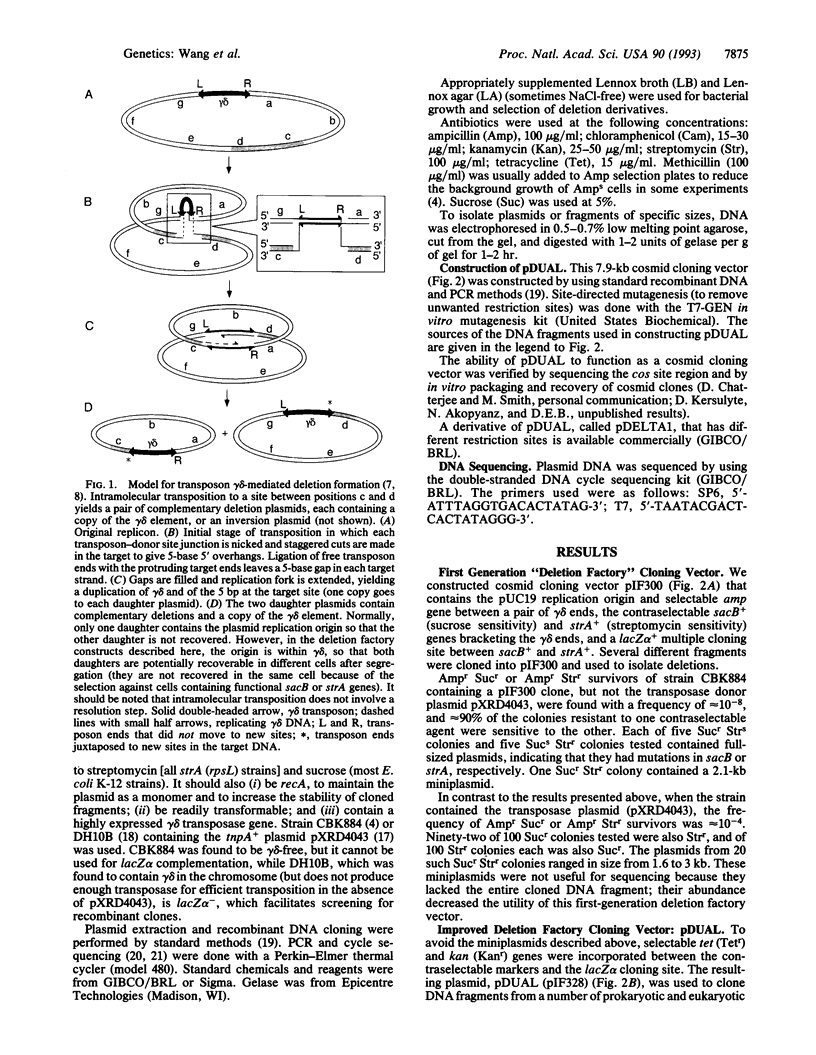

7875Fig. 1
on p.7875

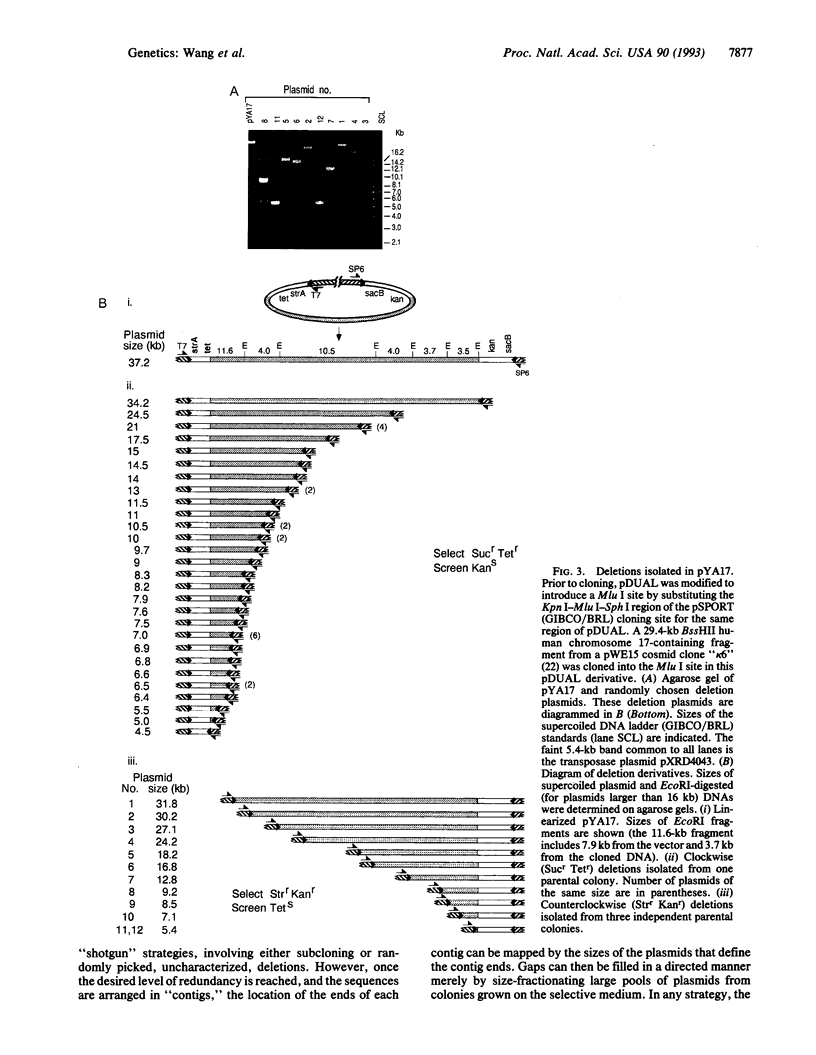

7877Fig. 3
on p.7877

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Ahmed A. A simple and rapid procedure for sequencing long (40-kb) DNA fragments. Gene. 1987;61(3):363–372. doi: 10.1016/0378-1119(87)90199-5. [DOI] [PubMed] [Google Scholar]
  2. Ahmed A. Use of transposon-promoted deletions in DNA sequence analysis. Methods Enzymol. 1987;155:177–204. doi: 10.1016/0076-6879(87)55016-9. [DOI] [PubMed] [Google Scholar]
  3. Ahmed A. Use of transposon-promoted deletions in DNA sequence analysis. J Mol Biol. 1984 Oct 5;178(4):941–948. doi: 10.1016/0022-2836(84)90321-8. [DOI] [PubMed] [Google Scholar]
  4. Andreadis A., Brown W. M., Kosik K. S. Structure and novel exons of the human tau gene. Biochemistry. 1992 Nov 3;31(43):10626–10633. doi: 10.1021/bi00158a027. [DOI] [PubMed] [Google Scholar]
  5. Berg C. M., Vartak N. B., Wang G., Xu X., Liu L., MacNeil D. J., Gewain K. M., Wiater L. A., Berg D. E. The m gamma delta-1 element, a small gamma delta (Tn1000) derivative useful for plasmid mutagenesis, allele replacement and DNA sequencing. Gene. 1992 Apr 1;113(1):9–16. doi: 10.1016/0378-1119(92)90664-b. [DOI] [PubMed] [Google Scholar]
  6. Berg C. M., Wang G., Strausbaugh L. D., Berg D. E. Transposon-facilitated sequencing of DNAs cloned in plasmids. Methods Enzymol. 1993;218:279–306. doi: 10.1016/0076-6879(93)18022-5. [DOI] [PubMed] [Google Scholar]
  7. Collins J., Hohn B. Cosmids: a type of plasmid gene-cloning vector that is packageable in vitro in bacteriophage lambda heads. Proc Natl Acad Sci U S A. 1978 Sep;75(9):4242–4246. doi: 10.1073/pnas.75.9.4242. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. Dean D. A plasmid cloning vector for the direct selection of strains carrying recombinant plasmids. Gene. 1981 Oct;15(1):99–102. doi: 10.1016/0378-1119(81)90108-6. [DOI] [PubMed] [Google Scholar]
  9. Ferrin L. J., Camerini-Otero R. D. Selective cleavage of human DNA: RecA-assisted restriction endonuclease (RARE) cleavage. Science. 1991 Dec 6;254(5037):1494–1497. doi: 10.1126/science.1962209. [DOI] [PubMed] [Google Scholar]
  10. Grant S. G., Jessee J., Bloom F. R., Hanahan D. Differential plasmid rescue from transgenic mouse DNAs into Escherichia coli methylation-restriction mutants. Proc Natl Acad Sci U S A. 1990 Jun;87(12):4645–4649. doi: 10.1073/pnas.87.12.4645. [DOI] [PMC free article] [PubMed] [Google Scholar]
  11. Henikoff S. Unidirectional digestion with exonuclease III creates targeted breakpoints for DNA sequencing. Gene. 1984 Jun;28(3):351–359. doi: 10.1016/0378-1119(84)90153-7. [DOI] [PubMed] [Google Scholar]
  12. Koob M., Burkiewicz A., Kur J., Szybalski W. RecA-AC: single-site cleavage of plasmids and chromosomes at any predetermined restriction site. Nucleic Acids Res. 1992 Nov 11;20(21):5831–5836. doi: 10.1093/nar/20.21.5831. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Krishnan B. R., Blakesley R. W., Berg D. E. Linear amplification DNA sequencing directly from single phage plaques and bacterial colonies. Nucleic Acids Res. 1991 Mar 11;19(5):1153–1153. doi: 10.1093/nar/19.5.1153. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Krishnan B. R., Kersulyte D., Brikun I., Huang H. V., Berg C. M., Berg D. E. Transposon-based and polymerase chain reaction-based sequencing of DNAs cloned in lambda phage. Methods Enzymol. 1993;218:258–279. doi: 10.1016/0076-6879(93)18021-4. [DOI] [PubMed] [Google Scholar]
  15. Liu L., Whalen W., Das A., Berg C. M. Rapid sequencing of cloned DNA using a transposon for bidirectional priming: sequence of the Escherichia coli K-12 avtA gene. Nucleic Acids Res. 1987 Nov 25;15(22):9461–9469. doi: 10.1093/nar/15.22.9461. [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Prentki P., Binda A., Epstein A. Plasmid vectors for selecting IS1-promoted deletions in cloned DNA: sequence analysis of the omega interposon. Gene. 1991 Jul 15;103(1):17–23. doi: 10.1016/0378-1119(91)90385-o. [DOI] [PubMed] [Google Scholar]
  17. Shapiro J. A. Molecular model for the transposition and replication of bacteriophage Mu and other transposable elements. Proc Natl Acad Sci U S A. 1979 Apr;76(4):1933–1937. doi: 10.1073/pnas.76.4.1933. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Strausbaugh L. D., Bourke M. T., Sommer M. T., Coon M. E., Berg C. M. Probe mapping to facilitate transposon-based DNA sequencing. Proc Natl Acad Sci U S A. 1990 Aug;87(16):6213–6217. doi: 10.1073/pnas.87.16.6213. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Tomcsanyi T., Berg C. M., Phadnis S. H., Berg D. E. Intramolecular transposition by a synthetic IS50 (Tn5) derivative. J Bacteriol. 1990 Nov;172(11):6348–6354. doi: 10.1128/jb.172.11.6348-6354.1990. [DOI] [PMC free article] [PubMed] [Google Scholar]
  20. Tsai M. M., Wong R. Y., Hoang A. T., Deonier R. C. Transposition of Tn1000: in vivo properties. J Bacteriol. 1987 Dec;169(12):5556–5562. doi: 10.1128/jb.169.12.5556-5562.1987. [DOI] [PMC free article] [PubMed] [Google Scholar]
  21. Wiater L. A., Grindley N. D. Integration host factor increases the transpositional immunity conferred by gamma delta ends. J Bacteriol. 1990 Sep;172(9):4951–4958. doi: 10.1128/jb.172.9.4951-4958.1990. [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. Yanisch-Perron C., Vieira J., Messing J. Improved M13 phage cloning vectors and host strains: nucleotide sequences of the M13mp18 and pUC19 vectors. Gene. 1985;33(1):103–119. doi: 10.1016/0378-1119(85)90120-9. [DOI] [PubMed] [Google Scholar]

Articles from Proceedings of the National Academy of Sciences of the United States of America are provided here courtesy of National Academy of Sciences
