Structural Properties of High-Energy N₁₂C₆ Molecules: Cyclic Hexamers of NCN

Abstract

Molecules with high nitrogen content are of interest for their potential as high-energy materials. However, many molecules with 100% nitrogen content are unstable and dissociate with low barriers, which limits practical applications. In the present study, cyclic hexamers of the basic unit NCN (70% nitrogen by mass) are studied to determine the structural features and bonding characteristics that lead to more stable molecules. Double- and triple-bonded NCN units are compared to determine which form of NCN contributes the greater stability. Theoretical calculations using density functional theory and couple-cluster theory are carried out on a series of N₁₂C₆ molecules to determine trends in stability. Energetic and structural trends, as well as differences between DFT and coupled-cluster theory, are calculated and discussed.

Graphical abstract

Introduction

Molecules consisting predominantly of nitrogen have been the subject of much research because of their potential as high-energy materials. Decomposition reactions of the type N_x → (x/2) N₂ can be exothermic by up to 200 kJ/mole per nitrogen atom (approximately 14 kilojoules per gram of material). Experimental synthetic successes in high-energy nitrogen materials include the N₅⁺ and N₅⁻ ions^1-3 as well as various azido compounds^4-7 and even a network polymer of nitrogen⁸. Additionally, nitrogen-rich salts⁹ and the N₇O⁺ ion¹⁰ have been successfully produced in the laboratory, as well as the CN₇⁻ anion¹¹ and a hexamer of diazomethane¹². The production of such a diverse group of nitrogen systems demonstrates the potential for such materials as novel high-energy molecules. High-energy nitrogen-based molecules have also been extensively studied by theoretical calculations. Theoretical studies of high-energy nitrogen include cyclic and acyclic compounds^13-19, as well as nitrogen cages^20-26. Structures and thermodynamics of energetic nitrogen systems have been calculated for both small molecules and larger structures with up to seventy-two atoms.

A study²⁷ of various isomers of N₄C₂ (70% nitrogen by mass) revealed that the most stable molecule is a dimer of the structural unit NCN. This dimer was the most stable both thermodynamically and with respect to dissociation. A subsequent theoretical study²⁸ on tetramers of NCN included two different forms of the NCN unit, one involving carbon-nitrogen double bonds and one involving carbon-nitrogen triple bonds. A survey of various bonding combinations of the NCN units revealed a stark contrast between the PBE1PBE density functional (DFT) method and coupled-cluster theory. Compared to DFT, coupled-cluster theory greatly favored structures with C-N triple bond, a trend that was shown for both the tetramers and smaller model systems. In the current study, involving hexamers of the basic NCN bonding units, coupled-cluster theory is compared to DFT, but with multiple functionals to determine if the variations are particular to the PBE1PBE functional or more general to DFT.

Computational Methods

Geometries for all molecules in this study were optimized using the PBE1PBE, B3LYP, and B97D density functional methods^29-31. Single energy points at the PBE1PBE geometries were carried out using coupled-cluster theory³² (CCSD(T)). Geometries were verified as local minima by PBE1PBE vibrational frequencies. Calculations were carried out using the Dunning cc-pVDZ and cc-pVTZ correlation-consistent basis sets³³. Calculations were carried out using the Gaussian09 computational chemistry software³⁴ and its Windows counterpart Gaussian09W.

Results and Discussion

Two different NCN structural units are considered in this study: one with two C=N double bonds and an open valence on each nitrogen atom, and one with a single and triple bond and two open valences on the singly bonded nitrogen. Both are pictured in Figure 1. Fifteen NCN hexamers are considered in this study, with varying composition with respect to the two types of NCN units. The isomer designated A has six double-bonded units bonded into a single eighteen-atom ring. Isomer B has five double-bonded and one triple-bonded unit. Isomers C1, C2, and C3 have four double-bonded and two triple-bonded units. Isomers D1, D2, D3, and D4 have three of each type of NCN units. The isomers E1, E2, and E3 have two double-bonded and four triple-bonded units. Isomer F has one double-bonded and five triple-bonded units, and the isomers G1 and G2 have six triple-bonded units. All fifteen hexamers are shown in Figure 2.

Figure 1.

NCN bonding groups: (a) double-bonded unit, (b) triple-bonded unit. Nitrogen atoms are shown in yellow, carbon atoms in black.

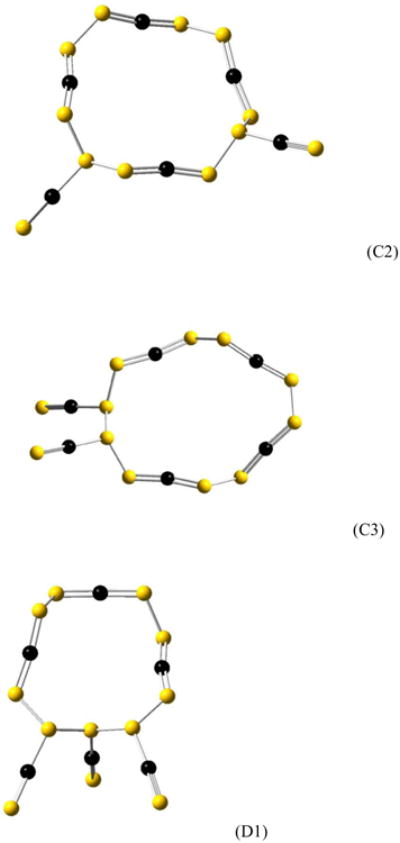

Figure 2.

N₁₂C₆ molecules (hexamers of NCN): (A) Isomer A, (B) Isomer B, (C1) Isomer C1, (C2) Isomer C2, (C3) Isomer C3, (D1) Isomer D1, (D2) Isomer D2, (D3) Isomer D3, (D4) Isomer D4, (E1) Isomer E1, (E2) Isomer E2, (E3) Isomer E3, (F) Isomer, (G1) Isomer G1, (G2) Isomer G2. Nitrogen atoms are shown in yellow, carbon atoms in black.

B3LYP, PBE1PBE, B97D, CCSD and CCSD(T) relative energies for all fifteen hexamers are shown in Table 1. The clearest trend in the data is that, while B3LYP, PBE1PBE, and B97D disagree by up to 40 kJ/mole for some isomers, the density functional methods agree with each other far more closely than any of them agrees with coupled-cluster theory. All three DFT methods predict isomer C1 as the most stable, and none of the DFT method shows a clear energetic trend in favor of double-bonded or triple-bonded NCN units. This stands in stark contrast to coupled-cluster theory, which shows a strong trend in favor of the triple-bonded NCN units; increasing the number of triple-bonded NCN units is heavily rewarded by CCSD(T). This behavior of CCSD(T) relative to density functional theory is in agreement with similar behavior previously shown²⁸ for tetramers of NCN. Benchmark calculations in the NCN tetramer study²⁸ demonstrated that coupled-cluster theory favors the C-N triple bond more than DFT does. The energetic trends hold for both CCSD and CCSD(T), with the triples correction narrowing the isomer energy differences. Clearly, either DFT or coupled-cluster is failing to calculate accurate isomer energies. For the G isomers, which have the maximum number of triple bonds, the disagreement approaches 200 kJ/mole. T1 diagnostic values for the coupled-cluster calculations on all molecules in this study are approximately 0.02, so it is not likely that multireference character is adversely affecting the coupled-cluster results.

Table 1.

Relative energies of the N₁₂C₆ molecules. All calculations carried out using cc-pVDZ atomic orbital basis set. Energies in kJ/mole. Coupled-cluster calculations carried out as single points at PBE1PBE geometries.

	PBE1PBE	B3LYP	B97D	CCSD	CCSD(T)
Isomer
A	0.0	0.0	0.0	0.0	0.0
B	−5.9	−4.7	+0.3	−44.6	−38.5
C1	−46.9	−41.8	−27.4	−110.2	−99.2
C2	+38.9	+32.8	+54.0	−64.2	−49.8
C3	+15.1	+13.5	+31.7	−74.5	−60.2
D1	+11.7	+13.6	+34.2	−116.5	−96.2
D2	+10.5	+12.9	+27.5	−97.2	−83.7
D3	−26.8	−19.7	-11.6	−128.3	−115.5
D4	−11.7	−6.7	+10.9	−108.7	−94.6
E1	−12.6	−4.5	+17.3	−150.2	−126.4
E2	−4.6	−2.4	+23.8	−153.9	−129.7
E3	+20.1	+19.2	+44.6	−149.9	−125.9
F	+16.3	+19.0	a	−176.6	−147.3
G1	−24.3	−19.0	+17.1	−252.5	−212.5
G2	+122.6	+113.3	+152.0	−111.9	−86.6

^aThe B97D optimization of isomer F was dissociative

DFT and coupled-cluster do, however, agree on a number of points. First, all methods agree that isomer G1 is much more stable than isomer G2. Both isomers have a chair-conformed cyclohexane-like ring of six nitrogen atoms, but isomer G1 has its six C-N triple bonds in axial positions, which minimizes steric repulsion between the electrons in the triple bonds. Conversely, G2 has all the triple bonds in equatorial positions, which causes destabilizing repulsions between the C-N triple bonds. All methods in this study also agree that the energy ordering of the C isomers is C1 < C3 < C2. Isomer C1 has the C-N triple bonds farthest apart and has the most open, torsionally-relaxed structure, which minimizes the interactions between the triple bonds and the neighboring nitrogen lone pairs. All methods also agree that isomer D3 is the most stable of the D isomers.

Basis set effects are shown in Table 2. All three DFT methods were used for isomers A and G1 using both the cc-pVDZ and the larger cc-pVTZ basis set. The effect of the cc-pVTZ is to favor isomer A by approximately 20-25 kJ/mole. While basis set effects are clearly nontrivial for these systems, the effect is not large enough to explain such a large disagreement between DFT and CC theory. Geometry effects are also shown in Table 2. Calculations with the CCSD(T)/cc-pVDZ method have been carried out for isomers A and G1 using optimized geometries from all three DFT methods. The three CCSD(T) calculations all agree with each other within 10 kJ/mole. This close agreement is similar to results³⁵ for MP4 calculations on large nitrogen cages, which also showed that the results of high-level calculations are relatively insensitive to the choice of geometry optimization method.

Table 2.

Basis set effects and geometry effects on the relative energies of isomers A and G1. Energies shown are energies of G1 relative to A. Energies are shown in kJ/mole. Results are shown for the three DFT methods in this study.

	DFT//DFT	DFT//DFT	CCSD(T)//DFT
	cc-pVDZ	cc-pVTZ	cc-pVDZ
PBE1PBE	−24.3	−0.7	−212.5
B3LYP	−19.0	+2.6	−206.1
B97D	+17.1	+35.7	−214.2

Table 3 shows significant physical parameters for isomers A and G1. PBE1PBE/cc-pVDZ bond lengths and angles are shown for A and G1, along with the corresponding parameters for small carbon- and nitrogen-bearing small molecules. Both A and G1 show a significant shortening of the N-N single bond relative to hydrazine, but the most significant property unique to isomer G1 is the shortening of the C-N single bond by nearly a tenth of an angstrom relative to methylamine. This implies a high-degree of double-bond character in the C-N bonds of isomer G1, which would indicate electron delocalization that could explain the high degree of stability shown for isomer G1 by all methods in this study. Additionally, the bond angles at the sp³ nitrogen atoms in isomer G1 are 113-115 degrees, which is actually closer to the sp² ideal of 120 degrees than to the 104.3-degree angles of ammonia with the PBE1PBE/cc-pVDZ method. This high degree of flattening of formally sp³ nitrogen implies significant sp² character and supports the idea of a stabilizing electron delocalization in isomer G1.

Table 3.

Bond length and angle data for isomers A and G1. All bond lengths are shown in angstroms and compared to similar bonds in reference compounds as indicated. All values are calculated using the cc-pVDZ basis set, and reference values are calculated with PBE1PBE/cc-pVDZ.

		PBE1PBE	B3LYP	B97D	Reference
Isomer	Bond/angle
A	N–N	1.39	1.41	1.41	1.47 (N2H4)
	C=N	1.23	1.24	1.24	1.27 (CH2NH)
G1	N–N	1.40	1.42	1.44	1.47 (N2H4)
	C–N	1.36	1.37	1.37	1.45 (CH3NH2)
	C≡N	1.16	1.16	1.17	1.16 (HCN)
	sp3 N angles	114.2 114.9 114.9	114.4 114.7 114.7	114.3 113.4 113.4	104.3 (NH3)

Conclusion

Density functional theory appears to treat carbon-nitrogen molecules and carbon-nitrogen bonding very differently from coupled-cluster theory. The DFT functionals have good agreement with each other but not with CCSD(T). Coupled-cluster theory greatly favors the C-N triple bond, and in the absence of strong multireference effects, it is likely that the CCSD(T) treatment is more accurate. While it is possible that the use of additional functionals would change the results, it is unlikely given the sheer magnitude of the disagreement between DFT and CCSD(T).

Highlights.

• N12C6 molecules are highly energetic

• DFT and CCSD(T) disagree on their treatment

• 3LYP and PBE1PBE agree with each other

• CCSD(T) likely gives more accurate results
