Increased expression of Beige/Brown adipose markers from host and breast cancer cells influence xenograft formation in mice

Abstract

The initiation and progression of breast cancer is a complex process that is influenced by heterogeneous cell populations within the tumor microenvironment (TME). Although adipocytes have been shown to promote breast cancer development, adipocyte characteristics involved in this process remain poorly understood. In this study, we demonstrate enrichment of beige/brown adipose markers, contributed from the host as well as tumor cells, in the xenografts from breast cancer cell lines. In addition to uncoupling protein-1 (UCP1) that is exclusively expressed in beige/brown adipocytes, gene expression for classical brown (MYF5, EVA1 and OPLAH), as well as beige (CD137/TNFRSF9 and TBX1) adipocyte markers, were also elevated in the xenografts. Enrichment of beige/brown characteristics in the xenografts was independent of the site of implantation of the breast tumor cells. Early stages of xenografts showed an expansion of a subset of mammary cancer stem cells (MCSCs) that expressed PRDM16, a master regulator of brown adipocyte differentiation. Depletion of UCP1⁺ or Myf5⁺ cells significantly reduced tumor development. There was increased COX-2 (MT-CO2) expression, which is known to stimulate formation of beige adipocytes in early xenografts and treatment with a COX-2 inhibitor (SC236) reduced tumor growth. By contrast, treatment with factors that induce brown adipocyte differentiation in vitro led to larger tumors in vivo. A panel of xenografts derived from established breast tumor cells as well as patient-tumor tissues were generated that expressed key brown adipose tissue (BAT)-related markers and contained cells that morphologically resembled brown adipocytes.

Implications

This is the first report demonstrating that beige /brown adipocyte characteristics could play an important role in breast tumor development and suggest a potential target for therapeutic drug design.

Introduction

Breast cancer remains the second leading cause of death in women (1). Persisting high mortality rate warrants deeper understanding of this complex disease. Breast tumors are composed of heterogeneous cell populations, some of which have stem cell-like properties that enable them to resist most therapeutic treatments (2). It is known that adipose rich microenvironment of mammary glands, which is composed of mature adipocytes and adipose-derived stem cells (ADSCs), dynamically influence breast tumor development (3, 4). Cancer cells are also reported to induce lipolysis of adipocytes where free fatty acids have been known to accumulate in cancer cells and promote its growth (5). In addition, adipocytes in the vicinity of breast tumor cells exhibit altered biological characteristics such as over-expression of inflammatory cytokines, proteases, and collagens that are involved in remodeling of extracellular matrix (6). Some of these properties are acquired due to breast tumor cells secreting pro-inflammatory interleukin-6 (IL-6) and Wnt3a that reactivates Wnt/β-catenin pathways in adipocytes to form adipocyte-derived fibroblasts (ADF) (7). In return, these ADF and cancer-associated adipocytes (CAA) increase aggressive tumor behavior like invasiveness and angiogenesis (7, 8).

Mammary adipose tissue also provides a reservoir of mesenchymal stem/progenitor cells or ADSCs that are recruited to the tumor mass in response to inflammation and hypoxic conditions (9). These resident ADSCs, as well as recruited bone-marrow derived mesenchymal stem cells (BM-MSCs), constitute the mammary cancer stem cell (MCSC) populations that play a key role in promoting the initiation/progression of breast cancer (10). Interestingly, breast-derived adipose stromal cells express significantly increased levels of genes implicated in cell growth, matrix deposition, remodeling and angiogenesis when compared to BM-MSCs, which have previously been implicated in breast tumor development (9). In particular, ADSCs induce epithelial to mesenchymal transition (EMT) in a PDGF-dependent manner (11).

Although several lines of evidence have implicated white adipocytes in promoting aggressive breast tumor behavior, a few recent studies have also associated brown adipocytes with this complex disease (12, 13). Brown adipose tissue (BAT) has also been detected in postnatal mammary gland along with white adipocytes (14). In spite of significant involvement of adipose tissue in progression of breast tumors, specific adipocyte characteristics that promote breast tumor development remain poorly understood. Identification and characterization of key players involved in early stages of tumor development could lead to effective therapeutic intervention to control breast cancer. This report provides significant evidence that expression of beige and brown adipose markers from host and tumor cells could influence breast tumor growth in nude mice. Therefore, therapeutic targeting of BAT has the potential of yielding beneficial effects for the treatment of breast cancer.

Materials and Methods

Human Cell Lines

The HMLE^HRASV12 cell line, obtained after transforming HMLE (human mammary epithelial) cells with HRAS T24 oncogene was obtained in 2011 from Robert Weinberg (Whitehead Institute, Cambridge, MA) (15) and cultured in DMEM-F12 containing 10% FBS. Human breast cancer cell lines MDA-MB-231 and MDA-MB-468 were obtained from American Type Culture Collection (ATCC) (Manassas, VA) in 2013. ATCC uses Promega PowerPlex 1.2 system and the Applied Biosystems Genotyper 2.0 software for analysis of amplicon. We have not done any further testing in our lab. MDA-MB-231 was propagated in Leibovitz’s L-15 medium containing 10% FBS. MDA-MB-468 was propagated in RPMI 1640 containing 10% FBS as before (16).

Xenograft formation

Six to eight week old nude mice (Harlan Laboratories Inc. Indianapolis, IN) were implanted subcutaneously (posterior dorsolateral) with HMLE^HRASV12, MDA-MB-468 and MDA-MB-231 cells (2×10⁶ cells/100μl) mixed with matrigel (1:1). To generate transplantable xenografts, primary xenografts were dissociated with 0.2% collagenase (type IV, Sigma Aldrich, St. Louis, MO) for 1hr at 37°C, propagated for 48h in vitro and implanted (1×10⁶ cells/injection) in nude mice. For some experiments, the cells were implanted at various subcutaneous sites like posterior ventral, anterior ventral and anterior dorsolateral. Tumors were excised at various time points and tumor weight was measured. In some cases, tumor volume was calculated as described previously (17, 18). This study was carried out in strict accordance with the recommendations in the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health. The protocol was approved by the Institutional Animal Care and Use Committee on the Ethics of Animal Experiments of the Charles R. Drew University of Medicine and Science (permit number: I-1103-261).

Histology

Immediately after excision from mice, tumors were placed in 2.5% glutaraldehyde in Millonig buffer. After 24 hours fixation tumors were washed three times with Millonig buffer for two hours and post-fixed in 1% osmium tetroxide for one hour. Osmium tetroxide crosslinks lipids and prevents loss of cytoplasmic lipid during subsequent tissue dehydration. Osmium tetroxide also stains lipid droplets brown (19). Following three additional two-hour washes with buffer, the tumors were dehydrated with 70%, 90%, 95%, and 100% ethanol, and embedded in glycol methacrylate (Kulzer Technovit 7100, Electron Microscopy Sciences, Hatfield, PA) according to the manufacturer’s protocol. From the methacrylate blocks, five-micrometer thick sections were cut using a RM2255 microtome (Leica Microsystems, Buffalo Grove, IL), placed on glass slides, dried on a hotplate, and stained with 0.5% toluidine blue. Images were obtained using a standard Olympus BX51 bright field microscope with a DP-71 digital camera and DP Controller software (Olympus America, Cypress, CA).

Quantitation of lipids in cross-section of xenografts

To quantify the amount of lipids (including triglycerides) present in tumor cross section, the blob algorithm was used (20). Using MATLAB, the images of the osmium tetroxide and toluidine-stained tissue sections were converted from RGBA to grayscale and processed; histogram equalization was used to enhance the contrast in the images for better differentiation between tumor structures and low pass filtering was utilized to reduce pixilation. Then, blob analysis was performed, a process in which pixels whose intensity values (0 as black and 256 as white in image class uint8 or 8-bit image) fall within a specified range are retained as 1’s in a binary image and those outside of the range are converted to 0’s, and connected pixels whose values are 1’s are grouped and labeled. Osmium tetroxide fixation makes lipid regions distinguishable from other tumor tissues because the osmium tetroxide stains lipid droplets brown, so pixels that depict these regions are of generally lower intensities than those of other tissues. The areas of the labeled groups are then calculated and the original image and blob-analyzed image are compared to determine which areas are truly areas containing high amounts of lipids. For each tumor section image, two pixel intensity ranges are used separately to obtain the total tumor section area and the total area of regions containing high amounts of lipids.

Immunolabeling

Immediately after excision from mice, some of the tumors were fixed in 5% formalin overnight after which they were dehydrated in ethanol and embedded in paraffin. Tumor sections (5–6μm) were deparafinized, and immunolabeling was performed as described previously (21). Cells from dissociated HMLE^HRASV12 xenografts (both transplantable and non-transplantable) were plated in six well plates and allowed to propagate for 48 hrs. Cells were fixed with 4% paraformaldehyde in 1× PBS for 30 min, washed, and incubated with blocking buffer (TBS pH 7.8, 5% normal goat serum, 1% BSA and 1% triton X-100) for 1hr. The following antibodies were used in our experiments: UCP1 (ab10983, Abcam), UCP2 (AB3226, Millipore, Billerica, MA); and UCP3 (ab3477, Abcam).

Quantitative Real-Time PCR

Total RNA isolated from flash-frozen xenografts or cells were subjected to reverse transcription, and the resulting cDNA was analyzed for various gene expression by real-time quantitative PCR using a 7500 Fast Real-time PCR System (Applied Bio Systems, Foster City, CA) and associated software as described before (21, 22). Human or mouse primer sets (Supplementary Table 1) were designed using Primer Bank DNA Core Facility (http://pga.mgh.harvard.edu/primerbank) (MGH Harvard, Cambridge, MA) (22, 23).

Western blots Analysis

Xenografts at various time points were lysed and 75 μg of total protein was resolved on 4–15% SDS-PAGE gels and electro-transferred to polyvinylidene difluoride (PVDF) membranes as described previously (18, 19). The membranes were incubated with the following primary antibodies at 1:1000 dilutions: UCP1 (ab10983, Abcam), UCP2 (AB3226, Millipore, Billerica, MA), UCP3 (ab3477, Abcam, Cambridge, MA), PRDM16 (sc130243, Santa Cruz Biotech, Dallas, TX), PGC-1α (sc-13067, Santa Cruz Biotech, CA), C/EBP-α (sc-16, Santa Cruz Biotech, Dallas, TX), PPARγ (sc-7273, Santa Cruz Biotech, Dallas, TX), COX IV (ab14744, Abcam, Cambridge, MA), COX-2 (160112, Cayman Chemicals, Ann Arbor, MI), ALDH1 (611195, BD Transduction, San Jose, CA), CD44 (3570S, Cell Signaling, Beverly, MA), Myf5 (sc-302, Santa Cruz Biotech, Dallas, TX); CD137 (ab3169, Abcam, Cambridge, MA), p38 MAPK (9212S, Cell Signaling, Beverly, MA), VEGF (ab46154, Abcam, Cambridge, MA), Cyclin D1 (sc 717, Santa Cruz Biotech, Dallas, TX), ColA1 (sc 25974, Santa Cruz Biotech, Dallas, TX), α-SMA (sc 53142, Santa Cruz Biotech, Dallas, TX), FN (HFN 7.1, Hybridoma Bank, Iowa City, IA), pp38 MAPK (9211S, Cell Signaling, Beverly, MA), and β-actin (sc-81178, Santa Cruz Biotech, Dallas, TX).

Flow Cytometry

Cells from dissociated xenografts were incubated with anti-UCP1, UCP3 (1:100 dilution), Myf5 (1:50 dilution), or PRDM16 (1:50 dilution) antibodies for 1 hr at room temperature. Cells were further incubated with FITC or Texas-Red conjugated secondary antibodies (Vector Laboratories) at 1:200 dilutions for 40 minutes. The ALDEFLUOR kit (StemCell Technologies, Durham, NC) was used to isolate the population with high ALDH1 enzymatic activity as described before (18). To distinguish between ALDH1+ and ALDH1− cells, a fraction of cells were incubated under identical conditions in the presence of a 10-fold molar excess of the ALDH1 inhibitor, diethylaminobenzaldehyde (DEAB). UCP1+, ALDH1+, and Myf5+ cell populations were sorted in a BD FACS Aria II high speed cell sorter (Becton Dickinson, Palo Alto, CA, USA) (18).

Double Immunofluorescence

Dissociated cells obtained from the xenografts were analyzed for co-localization of extracellular matrix proteins and adiponectin (Adipoq) with UCP1 using previously described methods (21). Briefly, dissociated cells were seeded overnight on eight well chamber slides, fixed with 2% paraformaldehyde, blocked with normal goat serum containing 0.25% Triton X100. Cells were initially incubated with anti-UCP1 antibody followed by FITC (for co-localization with extra-cellular matrix proteins) or Texas-Red (for co-localization with adiponectin) conjugated secondary antibodies. Subsequently, the cells were further incubated with anti-ColA1, -Col3, -α-SMA, and FN or adiponectin followed by appropriate Texas-Red or FITC conjugated secondary antibodies for 1hr. Slides were further counterstained with DAPI and mounted in prolong anti-fade solution (Molecular Probes, Eugene, OR) (21).

Cellular Oxygen Consumption

Oxygen consumption rates (OCR) of single cell suspensions obtained from 7- and 12- week xenografts were measured in an XF24 Extracellular Flux Analyzer (Seahorse Bioscience, North Billerica, MA, USA). Cells (4×10⁴/well) were plated in DMEM containing 10% FBS and incubated overnight at 37°C with 5% CO₂. The day of the assay, medium was replaced by un-buffered DMEM supplemented with 25 mM glucose, and cells were incubated at 37°C in a CO₂-free incubator for 2 hr before oxygen consumption rate (OCR) was recorded. During the assay, 0.5 μM carbonyl cyanide-p-trifluoromethoxyphenylhydrazone (FCCP) was injected to deduce the maximal respiration capacity (23, 24).

Human Tumors

Human tumor samples were obtained from the Cooperative Human Tissue Network (CHTN) (http://chtn.nci.nih.gov) and National Disease Research Institute (NDRI) (http://ndriresourse.org). Studies were performed under research protocol approved by the Charles R. Drew University of Medicine and Science Institutional Review Board (permit number: 09-08-2229-06).

Statistical Analysis

Data are presented as mean ± SD, and differences between groups were analyzed using ANOVA. If the overall ANOVA revealed significant differences, then pair-wise comparisons between groups were performed by Newman-Keuls multiple group test. All comparisons were two-tailed and p<.05 were considered statistically significant. The experiments were repeated at least three times, and data from representative experiments are shown.

Results

Increased beige/brown adipocyte characteristics in xenografts from HMLE^HRASV12 cells

To identify specific cell types that promote breast tumor initiation, we enriched for actively tumorigenic cells by generating transplantable xenografts derived from HMLE^HRASV12 cells. Transplantable xenografts were generated by a round of in vitro culturing of cells from primary xenografts for 48h and further implanting them subcutaneously in vivo at a posterior dorsolateral site in the host. We obtained two classes of xenografts: those that could be transplanted with approximately 95% efficiency (transplantable, T), and others that did not grow or gave rise to cystic tumors (non-transplantable, NT) (Supplementary Fig. S1A). Even though most of the T tumors grew as a solid mass, there was variability in their morphology and growth kinetics. However, most of these T tumors when dissociated appeared to contain adipocyte-like cell. Paraffin-embedded cross sections of HMLE^HRASV12 xenografts were stained with eosin/hematoxyin to examine the general morphology of these tumors. We found significant lipid filled cells surrounding and invading the tumor mass in these xenografts (Figure 1A–C). In order to preserve the lipid content within the xenografts (5–7 weeks), tissues were fixed with glutaraldehyde and post-fixed with osmium tetroxide that stains and cross-links lipid droplets. A systematic analysis revealed that only T tumors contained cells with multi-locular lipid droplets, a morphology that is characteristic of beige/brown adipocytes (Fig. 1D–E, Supplementary Fig. S1.B). A quantitative analysis of lipids including triglycerides was performed in cross section of osmium tetroxide infiltrated xenografts (5 week) using blob algorithm with MATLAB software as explained in the Method Section. We have analyzed 3 xenografts (4 sections from each xenograft) and found variations (2–6%) in the total area occupied by lipids in the cross-section of respective xenografts. Quantitation from one of the xenografts analyzed is shown (Supplementary Fig. S1C). Cells cultured from dissociated T xenografts stained positive for uncoupling protein 1 (UCP1), which is predominantly expressed only in beige and brown adipocytes (25) (Supplementary Fig. S1D). In addition, cells from these xenografts also stained for UCP2, and UCP3, whereas cells from NT tumors were negative for these uncoupling proteins (Supplementary Fig. S1D). We further immunolabeled paraffin embedded sections of xenografts from HMLE^HRASV12 for UCP1 and these immunolabeling experiments showed that lipid-filled cells expressed UCP1 protein (Fig. 1F). In addition to the uncoupling proteins, we analyzed the expression levels of Prdm16, a master regulator of brown fat lineage and Pgc1, a transcriptional coactivator of Prdm16 expressed in brown adipocytes (26, 27). We also examined in the xenografts, the expression of Cebpa, and Pparg, which are key transcription factors promoting adipogenesis (24). Quantitative PCR analysis of T tumors (5 weeks) using human specific primers showed significantly increased expression of key brown adipose specific markers including Ucp1 (12.5±2.7 fold), Ucp3 (7.4±1.8 fold); Prdm16, (4.7±1.2 fold), Pgc1 (3.4±0.9 fold), Cebpa (5.8±1.4 fold), and Pparg (2.7±0.8 fold) (Fig 1G) (25, 26). It has been reported Ucp1 and Prdm16 are expressed in both inducible beige (which originates from non-Myf5 WAT), as well as in classical brown adipocytes (which originate from Myf5-expressing progenitor populations) (28). Gene expression levels for additional markers characteristic of both beige adipocytes such as Cd137 (3.7±0.5 fold); and Tbx1 (4.4±1.2 fold) as well as classical brown adipocytes including Myf5 (3.4±0.7 fold); Eva1 (2.4±0.6 fold); Oplah (6.3±1.3 fold) and Lhx8 (14.4±3.2 fold) were also significantly elevated in T but not in NT tumors (Fig. 1H). Zeb2, which is associated with aggressive tumor behavior (29) including epithelial to mesenchymal transition (EMT) was significantly increased (4.6±0.7 fold) only in T xenografts (Fig. 1G). Increased protein levels of UCP1, UCP3, PRDM16, Myf5, adipocyte-specific transcription factors PGC-1α and PPARγ were also found in T tumors when compared to NT (Fig. 1I). These data shows the expression of beige and brown adipose markers in transplantable xenografts from HMLE^HRASV12.

Figure 1.

Transplantable HMLE^HRASV12 xenografts show multi-locular lipid droplets and express beige/brown adipocyte-specific proteins. Cells (2×10⁶) from primary HMLE^HRASV12 xenografts were mixed with matrigel (1:1) and implanted at a subcutaneous site (posterior dorsolateral) to develop xenografts. A–C, Low and high magnification images of hematoxylin/eosin-stained sections of transplantable (T) xenografts (7–10 week). Representative data is shown from multiple experiments (n=6). D–E, Bright field low and high magnification images of T xenografts (5–7 week) that were fixed in glutaraldehyde, post-fixed with osmium tetroxide, and stained with toluidine blue, showing brown stained lipid droplets. A representative image is shown from multiple experiments (n=6). F, Immuno-labelling of paraffin embedded sections of T xenograft for UCP1 protein. G–H, Relative gene expression of beige/brown adipocyte markers from T and NT xenografts (5 week) using human-specific primers (*p<.05, **p<.01). Data are presented as mean ± SD from 4 independent experiments. I, Lysates from T and NT are analyzed for brown adipocyte specific proteins by Western blot analysis. J–K Relative gene expression of beige and brown adipocyte markers in xenografts, using human- (J) and mouse- (K) specific primers. (*p<.05, **p<.01). Basal expression in cells before implantation or mouse tissue at the site of implantation was used to calculate relative gene expression of markers in xenografts (3 week) using human- or mouse-specific primers respectively. Data are presented as mean ± SD from 4 independent experiments.

Both tumor cells and host contribute to the increase in beige/brown adipose markers HMLE^HRASV12 xenografts

Since host microenvironment is known to significantly contribute to tumor progression (30), we further set out to distinguish the contribution of the host as well as the implanted tumor cells themselves for the expression of beige/brown adipose markers in xenografts. For this purpose, primers designed from human (h) and mouse (m) Ucp1 and Prdm16 (beige/brown adipocytes), Cd137 and Tbx1 (beige adipocytes) as well as Myf5, Eva1 and Oplah1 (classical brown adipocytes) genes were tested for species specificity. Species specificity of each of the primer pairs was pre-determined by its ability to amplify respective genes from known specific tissues that overexpress them (Supplementary Fig. S2). Mouse brown adipose tissue (BAT) that is known to have increased expression of Ucp1, and Prdm16 was used as a positive control for mouse primers (Supplementary Fig. S2). Human peri-adrenal adipose tissues from pheochromocytoma patients, which are known to be enriched in beige/brown adipocytes (31), were used as a positive control to determine the specificity of human primers. Only those mouse or human primer sequences (Table 1) that amplified specific genes from either BAT (Ct= 15–25) or human tumors (Ct =22–30) respectively were subsequently used in this study (Supplementary Fig. S2). A difference of five Ct (which represent more than 32-fold difference) between mouse and human primers was considered specific (Fig S2). While using human and mouse primers to amplify peri-adrenal adipose tissues cDNA template, we obtained following differences (human vs. mouse) in their Ct values- Ucp1:~24 vs. ~40; Cd137:~30 vs. ~38; Myf5:~34 vs. ~42; Prdm16:~34 vs. ~42; Oplah: ~30 vs. ~36; Eva1:~26 vs. ~34, and Tbx1:~31 vs. ~40. Similarly, while using mouse and human primers to amplify mouse BAT cDNA template, we obtained following differences (mouse vs. human) in their Ct values- Ucp1:~17 vs. ~37; Cd137:~32 vs. ~36; Myf5:~26 vs. ~36; Prdm16:~26 vs. ~37; Oplah: ~26 vs. ~34; Eva1:~24 vs. ~34, and Tbx1:~28 vs. ~32. Our data, therefore, suggest specificity of species-specific primer sets used for this study.

HMLE^HRASV12 xenografts (3–5 weeks) were excised after growth at a subcutaneous site (posterior dorsolateral) and examined for expression of beige and brown adipocyte markers using respective human and mouse specific primers. When compared to HMLE^HRASV12cells (before implantation), there was increased expression of hUCP1 (10.8±1.9 fold), hPRDM16 (2.8±0.7 fold), hCD137 (2.5±0.8 fold), hTBX1 (3.5±0.6 fold), hMYF5 (7.2±2.1 fold), hEVA1 (2.2±0.13 fold), and hOPLAH (5.4±1.3 fold) in the xenografts (Fig. 1J). In addition, when compared to the basal expression in the host tissues at the site of implantation (posterior dorsolateral) there was significantly increased expression of mUcp1 (11.4±1.2 fold), mPrdm16 (3.1±0.7 fold), mCd137 (11.8±1.6 fold), and mTbx1 (12.4±1.7 fold) in the xenografts (Fig. 1K). No significant expression of mouse Myf5, Eva1 or Oplah was observed in the xenografts analyzed. Our data, therefore, suggests beige adipose markers of host origin in the HMLE^HRASV12 xenografts as analyzed by the expression of CD137 and Tbx1. Also our data indicates that human breast tumor cells expressed key adipose markers in xenografts.

Increase in beige/brown adipose markers in xenografts was independent of the site of implantation of HMLE^HRASV12 cells

Human breast tumors have been found to recruit mesenchymal stem cells as well as adipocytes from its immediate microenvironment and distant sites of the host (10, 30). We therefore, next examined the possibility whether recruitment from the host microenvironment, in part contributed to increased expression of beige/brown adipose markers detected in the HMLE^HRASV12 xenografts. For this purpose, we initially examined the basal expression of mUcp1, mPrdm16, mCd137 and mMyf5 at various sites in a control host where no tumor cells were implanted. Significant mUcp1 (Ct=17–18), mMyf 5 (Ct=29) and mPrdm16 (Ct =33) expression was detected specifically in the interscapular tissues of the host, which is a known depot of brown adipocytes. Some mUcp1 (Ct=27) and mMyf 5 (Ct=30) expression was detected in the abdominal (ventral posterior) subcutaneous adipose tissue scrapped from the host. No significant expression of mUcp1, mPrdm16 and mMyf5 was detected in the inguinal or thoracic mammary glands, or subcutaneous adipose tissue from the posterior dorsal or dorsolateral region of the host. A basal expression of mCD137 (Ct=30–31) was detected in most of the host tissues examined. No significant expression with hUcp1, hPrdm16, hCD137 and hMyf5 was detected in any of the host tissues examined.

We further examined whether site of implantation of the HMLE^HRASV12 tumor cells contributed to the increase of beige/brown adipocytes in the xenografts. Since xenografts from a subcutaneous site (posterior dorso-lateral) had significantly increased beige/brown adipocytes, we further implanted the tumor cells at three different subcutaneous sites including posterior ventral, posterior ventrolateral and anterior dorsal of the host. When tumor cells were implanted at posterior ventrolateral site of the host, xenografts (3–5 week) had significantly increased expression of various beige and brown adipose specific markers. When compared to HMLE^HRASV12cells (before implantation), there was increased contribution of beige/brown adipose markers from tumor cells (hUcp1: 11.4±2.2; hCd137: 3.7±0.6; hTbx1: 4.2±0.5; hMyf5: 5.5±0.14; hEva1: 2.1±0.11) in the xenografts. In addition, when compared to control host tissues at posterior ventrolateral site, there was increase host contribution of these markers (mUcp1: 14.2±1.2; mCd137: 14.4±2.7; and mTbx1: 12.8±1.8) in the xenografts (Supplementary Fig. S3). Similar changes were found when these cells were implanted at other subcutaneous sites (Supplementary Fig. S3). We also injected tumor cells in the inguinal mammary glands of the host and found similar increase in beige/brown adipose markers in the xenografts (data not shown). These experiments suggest that increased expression of beige and brown adipose markers in the HMLE^HRASV12 xenografts was independent of the site of implantation of the tumor cells.

Temporal regulation of UCP1 expression during xenograft development

We further examined morphological characteristics as well as the expression of various proteins associated with beige/brown adipose during the course (1–15 week) of xenograft development. Morphological characteristics were examined in formalin-fixed HMLE^HRASV12 xenografts that were infiltrated with osmium and embedded in paraffin. Representative pictures (low and high magnification) of eosin/hematoxylin stained xenograft (5 week) is shown (Fig. 2 A–B). We further performed western blot analysis of pooled tumor samples at intervals from 1–15 weeks, which revealed a dynamic pattern of UCP1 expression during tumorigenesis (Fig. 2C–D). The levels of UCP1 and UCP3 proteins were temporally regulated during tumorigenesis, with peak levels at weeks 5–7 for UCP1 and UCP3 (Fig. 2D). PRDM16 levels were increased as early as 1 week after implantation of the cells while Myf5 peaked between 3–5 weeks of tumorigenesis. On the other hand, increased levels of CD137 were detected as early as 1 week of implantation of HMLE^HRASV12 cells. Also, COX IV, a mitochondrial protein, as well as PGC-1α, PPARγ and C/EBP-α followed dynamics similar to UCP1, peaking at the middle stages of tumor growth (Fig. 2D). UCP2 expression was detected only in late stage tumors (Fig. 2D). Quantification by fluorescence activated cell sorting (FACS) confirmed increased PRDM16 (7.8% and 3.6%) expression in weeks 1 and 3 respectively in addition to increase in UCP1 (0.2% and 6.8%) and UCP3 (0.1% and 1.6%) from week 1 to 5 respectively (Fig. 2E). Since xenografts that contained beige/brown adipose exhibited a growth advantage over NT xenografts, we examined expression of aggressive tumor markers in these tumors. The levels of vascular endothelial growth factor (VEGF), proliferation marker, cyclin D1 as well as extracellular matrix proteins, collagen A1 (ColA1), smooth muscle actin (SMA) and fibronectin (FN) were assessed by Western blot, We found increased levels of VEGF, cyclin D1, ColA1, SMA and FN in T tumors when compared to NT (Fig. 2F). We further examined the presence of extracellular matrix proteins with UCP1 expression in sections of T xenografts by double immunofluorescence. We found extracellular matrix proteins in close proximity to UCP1-expressing cells in the xenografts (Supplementary Fig. S4A). We further examined whether UCP1-expressing cells also expressed adiponectin, which is highly expressed in adipocytes. Cells from dissociated xenografts were fixed and stained for UCP1 (Texas Red) and adiponectin (FITC). We found UCP1-expressing cells also co-expressed adiponectin and a representative picture is shown (Supplementary Fig. S4B). Since brown adipocytes are significantly enriched in mitochondria, we analyzed the cellular bioenergetics of cells from 7 (early-mid stage) and 15 week (late stage) xenografts. Cellular respiration was measured in basal and after sequential injection of the ATP synthase inhibitor oligomycin, the uncoupling agent FCCP and the mitochondrial inhibitors rotenone and myxothiazol, allowing the calculation of different mitochondrial respiration parameters. Seven week xenograft-derived cells exhibited higher oxygen consumption rates (OCR) of mitochondrial (20.1±1.3 vs. 5.5±0.7); ATP-linked (14.8±0.7 vs. 3.4±0.5); and maximal (34.9±3.0 vs. 10.6±1.5) respiration as well as proton leak (5.4±1.3 vs. 2.1±0.2) compared to 15 weeks (Fig. 2G). The increase in cellular bioenergetics was in agreement with the enhancement of mitochondrial protein expression observed at 5–7 weeks (i.e. UCP1 and COX IV in Fig. 2D). Our data, therefore, shows temporal regulation of beige and brown adipose specific proteins during HMLE^HRASV12 xenograft development.

Figure 2.

Presence of cells with brown adipocyte phenotype and characteristics in HMLE^HRASV12xenografts over time. A–B, Xenografts at various stages of growth were fixed with glutaraldehyde, post-fixed with osmium tetroxide and embedded in Technovit. Low (A) and high (B) magnification pictures of hematoxylin/eosin-stained sections are shown. Cells (2×10⁶) from a transplantable HMLE^HRASV12 xenograft were mixed with matrigel (1:1) and implanted at a subcutaneous site (posterior dorsolateral) in nude mice to develop xenografts, which were excised at various time points. C, Representative bright field images of xenografts at 1, 5, and 15 week. D, Western blot analysis of pooled lysates (n=3 mice/time point) from xenografts excised at various time points after growth subcutaneously in nude mice. A representative western blot analysis is shown (n=3). E, FACS analysis of PRDM16 (1- and 3 week xenograft), and UCP1, and UCP3 (1- and 5 week xenograft) labeled cells. Data shown is a representation of multiple experiments (n=3). F, Western blot analysis of key markers of angiogenesis (VEGF), proliferation (cyclin D1), and extracellular matrix proteins (ColA1, SMA and FN) in NT and T xenografts. G, Analysis of cellular bioenergetics of cells (4×10⁴) obtained from 7-and 15-week xenografts (n=3,*p<.05, and **p<.001). Bar graphs show mean ± SD.

Depletion of UCP1 and Myf5 positive population reduced xenograft development

Since increased brown and beige adipocyte characteristics were found only in transplantable xenografts, we further examined its role in breast tumor development. To assess functional differences between the UCP1+ cells present in early-stage tumors and UCP1-depleted (UCP1⁻) cells that predominate in later stages, we tested the ability of each cell population to establish tumors in vivo. First, we compared tumor formation in nude mice after injection of the total cell population (2×10⁶ cells) from 5-week xenografts to the UCP1⁻ cell population (2×10⁶ cells). At 10 weeks after injection, tumors from UCP1⁻ cells had significantly attenuated growth (194.0±84.3 mg vs. 687.6±182.4 mg), (Fig. 3A). A second assay was based on the observed decline in UCP1 levels in late-stage xenografts (Fig. 2D). We assessed the potency of cells (2×10⁶) from 7-week (high UCP1 levels) and 15-week (low UCP1 levels) xenografts to form tumors in mice, and observed that cells from 15-week xenografts produced delayed growth of tumors after 10 week (443.7±163.3 mg vs. 237.1±84.3 mg) and 15 week (875.5±213.2 mg vs. 355.8±103.4 mg) (Fig. 3B).

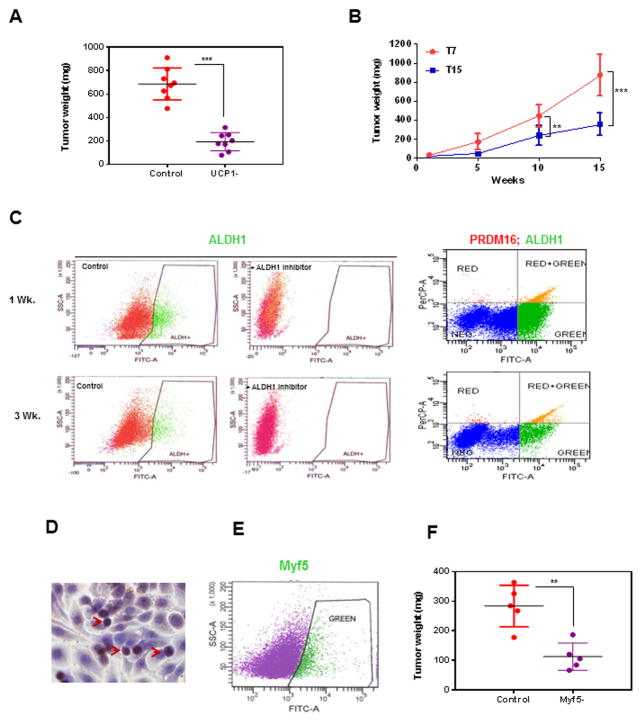

Figure 3.

Depletion of UCP1 and Myf5 population reduced xenograft growth. A, Cells (2×10⁶) from primary HMLE^HRASV12 xenografts was mixed with matrigel (1:1) and implanted at a subcutaneous site (posterior dorso-lateral) in nude mice (n=8). 5 weeks after implantation of cells, the mice were killed, tumors were excised and dissociated. Dissociated cells (2×10⁷) from each of the eight xenografts were individually sorted by FACS into UCP1+ and UCP1− populations. From each of the xenografts, control unsorted (2×10⁶) or UCP1⁻ (2×10⁶) fraction of the sorted cells were injected subcutaneously (posterior dorsolateral) into nude mice (n=8). After 10 weeks, the mice were killed, tumors were excised and tumor weight was measured. B, Cells (2×10⁶) from 7- and 15-week xenografts were injected into nude mice (subcutaneously, posterior dorsolateral) (n=3, per group per time point). Mice were killed, xenografts were excised and weighed at each of the time points. Data are presented as mean ± SD. (*p<.05, and **p<.01). C, Cells from dissociated xenografts (1- and 3-week) were subjected to flow cytometry to determine the percentage of ALDH1 (ALDH1 Ab /FITC) as well as ALDH1/PRDM16 (ALDH1 Ab /FITC, PRDM16 Ab/Texas Red) co-expressing cells. D. Paraffin -embedded sections of xenografts were immuno-labeled for Myf5 and a representative picture is shown. Arrows show Myf5 stained cells. E, Myf5-expressing cells in the dissociated xenografts can be sorted by labeling with Myf5-FITC Abs. A representative picture is shown. F, Dissociated cells (2×10⁷) from xenografts (1–3 week) was sorted by FACS into Myf5+ and Myf5− populations. Control unsorted (2×10⁶) or Myf5⁻ (2×10⁶) fraction of the sorted cells were injected subcutaneously (posterior dorsolateral) into nude mice (n=5). After 4 weeks the mice were killed, tumors were excised and tumor weight was measured. Data are presented as mean ± SD. (*p<.05, **p<.01).

We next investigated whether PRDM16 expressing progenitor populations have a relationship to mammary cancer stem cells (MCSC), which have a key role in mammary tumor initiation and progression (32). The levels of aldehyde dehydrogenase 1 (ALDH1), a marker of MCSC, were highest in very early stage xenografts (7.4% of cells at 1 week) and subsequently declined (to 2.8% at 3 weeks) (Fig. 3C). We also detected the highest levels of PRDM16 in very early stage xenografts (Fig. 2D), raising the possibility that a sub-population of MCSCs may also be expressing PRDM16. Consistent with this hypothesis, FACS analysis identified that 4.2% and 1.9% cells were positive for both ALDH1 and PRDM16 from 1-week and 3 week xenografts (Fig. 3C). We further examined Myf5 expressing cells in paraffin-embedded sections of xenografts by immunohistochemistry. A representative picture of Myf5 expression in undifferentiated cells in xenograft (3 week) is shown (Fig. 3D). For quantitation of Myf5 expressing cells in the xenografts, cells from dissociated xenografts were incubated with Myf5 antibody /FITC conjugated secondary antibody and subjected to FACS. While the % of Myf5 in the xenografts varied (0.2%–5.6%), a representative picture of cell sorting for Myf5 (2.7%) is shown (Fig. 3E). We further compared the potency of Myf5 depleted populations when compared to control cells in establishing xenografts. Analysis at 4 week showed that when compared to control cells (2×10⁶), there was a lag in the Myf5-depleted (2×10⁶) population to form xenografts (Fig. 3F). The above data suggests that UCP1 expressing beige/brown adipose along with Myf5 expressing cells contribute towards HMLE^HRASV12xenograft development.

Pre-treatment of HMLE^HRASV12 cells with brown adipocyte differentiation medium (BADM) increased beige adipocytes and xenograft growth

Since beige adipocytes, which could be induced, were present in the xenografts, we further examined the expression of inflammatory markers COX-2 and p38 MAP Kinase, both of which have been demonstrated to play key roles in promoting induction of beige adipocytes (33). COX-2 was expressed at highest levels at early stages of xenograft development (Fig. 4A), while the expression of phosphorylated p38 MAP Kinase followed dynamics (Fig. 4A) similar to that observed for UCP1 (Fig. 2D). Since cells from UCP1-enriched xenografts had growth advantage (Fig. 3B), we further examined whether deliberate inducement of beige adipocyte characteristics increased tumorigenic capacity. To test this, we stimulated primary cultures obtained from T xenografts with BADM containing 20nM insulin, 0.5 mM 3-isobutyl-1-methylxanthine (IBMX), 0.5μM dexamethasone, 0.125 mM indomethacin, and 1nM T3 (27) for 48 hrs and implanted induced and un-induced cells (2× 10⁶) subcutaneously (posterior ventrolateral site). Analysis of the xenografts (2 week) showed that beige adipocyte-specific markers contributed from both tumor cells and the host was significantly increased in the induced when compared to un-induced xenografts (Fig. 4B). We found increased expression of hUCP1 (1.8±0.4), hPRDM16 (2.4±0.2), hCD137 (2.7 ±0.02) and hTBX1 (1.8 ±0.38) as well as mUCP1 (4.7±0.7), mPrdm16 (2.8±0.2), mCd137 (6.5 ±0.4) and mTbx1 (7.2 ±0.1.8) in the induced when compared to un-induced xenografts (Fig. 4B). When the volumes of xenografts were examined, those from BADM-treatment generated larger tumors (949.8±154.6 mm³) than those obtained from control cells (436.6±173.4 mg) after 4 weeks (Fig. 4C). Pretreatment of cells before implantation with 10nM SC236 (COX-2 inhibitor), prevented enhanced tumor growth (949.8±154.6 mm³ vs. 519.8±183.4 mm³), which was not observed when cells were pretreated with 10nM SC560 (COX-1 inhibitor) (Fig. 4C). Analysis of resulting tumors (2 weeks) obtained from BADM-induced (BADM+) showed increased protein levels of UCP1, UCP3, PRDM16, CD137, and COX-2 compared to the un-induced group (Fig. 4D). Furthermore, level of these proteins were significantly down-regulated in tumors obtained from cells injected after treatment with a combination of BADM+ and COX-2 inhibitor (SC236) compared to BADM+ group alone (Fig. 4D). Our data shows stimulation of HMLE^HRASV12 cells with BADM resulted in larger xenografts with increased beige adipocyte-specific markers when compared to un-induced xenografts.

Figure 4.

Treatment of HMLE^HRASV12 cells with brown adipocyte differentiation media promotes xenograft formation. A, Cells (2×10⁶) from transplantable HMLE^HRASV12 xenografts was mixed with matrigel (1:1) and implanted at a subcutaneous site (posterior dorso-lateral) in nude mice to develop xenografts, which were excised at various time points. Lysates (pooled from 3 separate experiments/time points) of xenografts grown for different time points were examined for COX-2 and pp38 MAP Kinase protein expression. A representative western blot analysis is shown. B, HMLE^HRASV12 cells treated with (+BADM) or without (−BADM) differentiation media for 48h were injected (2×10⁶ cells) subcutaneously (posterior dorsolateral). Mice (n=3 mice/group) were killed after two weeks, RNA was extracted from the xenografts, quantitative PCR of beige and brown markers was performed using human (B, left panel) as well as mouse (B, right panel) specific primers. Relative gene expression levels in BADM-induced xenografts were calculated relative to the control (−BADM) group. Data are presented as mean ± SD. (*p<.05, **p<.01). C, Control (−BADM) or BADM-induced cells (induced for 48hr) were further treated with or without COX inhibitors (SC560: 10nM; SC236: 10nM) for 24h before they were injected (2×10⁶ cells) in mice (n=5 mice per group) and tumor volumes were measured between 1–4 week (**p<.01), ns, none significant. D, Lysates of xenografts (2 week) from control (−BADM), BADM and BADM + SC236 treated groups were examined for various proteins by western blot.

Beige/brown adipocyte characteristics were found in xenografts from additional breast cancer cell lines

To determine whether increase of beige and brown adipocyte-like features is a common event in breast tumor development, we analyzed tumors from two additional breast cancer cell lines MDA-MB-468, and MDA-MB-231. Each of these cell lines (2×10⁶ cells) were injected subcutaneously in the posterior dorsolateral side of nude mice for establishment of xenografts. In order to examine the adipose tissue surrounding or invading tumor mass, cross sections of 5 week MDA-MB-468 xenografts were stained with eosin/hematoxylin. A representative picture of these xenografts in low and high magnification is shown (Figure 5 A–C). In addition, 5 weeks xenografts from MDA-MB-468 and MDA-MB-231 were excised, fixed with glutaraldehyde, and post-fixed with osmium tetroxide. Histological analysis of the xenografts from each of these cell lines revealed multi-locular cells, characteristic of beige and brown adipocytes (Fig. 5G–H, Supplementary Fig. S4C). MDA-MB-468 (468) and MDA-MB-231 (231) xenografts were analyzed for expression levels of beige/brown adipocyte specific markers by quantitative PCR. Expression levels of hUCP1 (468: 7.5±1.1, 231: 9.7±2.1), hPRDM16 (468: 3.2±0.8, 231: 5.2±0.87), hCD137 (468: 4.1±1.5, 231: 2.4±0.4), hTBX1(468: 3.5±0.8, 231: 2.4±0.7), hMYF5 (468: 6.3±1.1, 231: 3.8±0.8), hEVA1(468: 1.7±0.5, 231: 1.2±0.3), hOPLAH (468: 4.2±0.4, 231: 2.4±0.2), were elevated in 5 week old xenografts from MDA-MB-468 (468), and MDA-MB-231 (231) breast cancer cell lines (Fig. 5D and 5I). Expression levels of mUcp1 (468: 14.5±3.2, 231: 11.7±1.8), mPrdm16 (468: 3.8±0.8, 231: 4.1±0.87), mCd137 (468: 12.2±1.8, 231: 9.2±1.2), mTbx1(468: 9.8±2.2, 231: 6.4±1.4), mMyf5 (468: 1.7±0.02, 231: 1.2±0.02), mEva1(468: 1.3±0.2, 231: 1.1±0.3), mOplah (468: 1.6±0.3, 231: 1.4±0.1), were elevated in xenografts (5 week) from MDA-MB-468, and MDA-MB-231 breast cancer cell lines (Fig. 5E and 5J). A time course experiment with the xenografts that were allowed to grow for 3, 5 or 15 weeks was performed to examine the dynamics of beige and brown adipocyte-specific proteins during xenograft development. We found UCP1, PRDM16, Myf5 and CD137 protein levels exhibited a similar temporal regulation (Fig. 5F, 5K) as observed in the original HMLE^HRASV12 xenografts (Fig. 2D). These experiments show an increased expression of genes characteristic of beige and brown adipose in xenografts from breast cancer cell lines.

Figure 5.

Increase in beige/brown adipocyte characteristics in the xenografts from additional breast cancer cell lines. Breast cancer cells (2×10⁶ cells), purchased from ATCC, were propagated in their respective media, mixed with matrigel and implanted subcutaneously (posterior, dorsolateral) in nude mice (n=5 mice per cell line). A–C, Hematoxylin/Eosin-stained picture of xenograft sections obtained from MDA-MB-468 cells. A representative picture at low (5A) and high magnifications (B,C) is shown. D–E, Quantitative real-time PCR analysis using human and mouse-specific primers in xenografts (5 week) from MDA-MB-468 cells. Relative expression levels in the xenografts were compared either to the cells before implantation (human-specific primers) or with mouse tissue at the site of implantation (mouse-specific primers). Data are shown as mean ± SD, (n=4). F, MDA-MB-468 cells (2×10⁶) were mixed with matrigel and subcutaneously implanted in mice. Mice were killed at different time points and tissue lysates from excised tumors were analyzed by western blot for different beige/brown-specific proteins. (n=3 mice per time point). Pooled samples from each time point were analyzed by western blot analysis. G–H Representative bright field picture of xenograft sections obtained from MDA-MB-231 cells, toluidine blue stain. I–J, Quantitative real-time PCR analysis of xenografts obtained after 5 week of implantation of MDA-MB-231 cells compared either to the cells before implantation (human-specific primers) or with mouse tissue at the site of implantation (mouse-specific primers). Data are shown as mean ± SD, (n=4). K, MDA-MB-231 cells (2×10⁶⁾ were mixed with matrigel and subcutaneously implanted in mice. Mice were killed at different time points and tissue lysates from excised tumors were analyzed by western blot for different beige/brown specific proteins. (n=3 mice per time point). Pooled samples from each time point were analyzed by western blot analysis.

Patient-derived xenografts (PDX) exhibit beige/brown adipocyte characteristics

PDX models recapitulate tumor histology and genomic features more faithfully compared to the traditional breast cancer cell line-initiated xenografts. To evaluate whether beige/brown adipocytes are involved in primary human breast tumor development, we generated PDX by implanting subcutaneously (posterior dorsoventral side) pieces (2–3mm) of fresh tumors in nude mice. From a total of 17 primary patient-derived tumor implantations, three xenografts were established (Supplementary Table 2). All 3 PDX (PDX1, PDX2 PDX3) after 3–7months of growth (~0.5 cm in diameter) were excised, fixed with glutaraldehyde, and post-fixed with osmium. Systematic analysis of these xenografts revealed presence of typical multi-locular lipid-droplet-filled cells, characteristics of beige/brown adipocytes (Fig. 6A). We further analyzed PDX2 for contributions from tumor cells and host in increasing the beige/brown adipocytes. We found that when compared to the original tumor pieces before implantation, there was increase in hUCP1 (4.3±1.2 fold), hCD137 (3.7±1.2 fold), hTBX1 (4.5±0.6 fold) and hMYF5 (1.6±0.1 fold). In addition, compared to the control host tissue at the site of implantation, there was increase in mUcp1 (7.4±2.3 fold), mCd137 (10.2±3.2 fold), mTbx1 (12.0±1.2 fold) and mMyf5 (2.1±0.1 fold) (Fig. 6B). Furthermore, western blot analysis showed increased expression of UCP1 in all the PDX, while CD137 was detectable only in PDX1 and PDX2 (Fig. 6C).

Figure 6.

A, Presence of multi-locular lipid droplets in patient-derived xenografts (PDX), toluidine blue stain. Fresh human tumors were chopped to 1–2 mm in diameter, mixed with matrigel, implanted subcutaneously (posterior dorsolateral) and allowed to grow till it reaches a diameter of 0.5 cm after which the mice were killed and the PDX was excised. Only 3 PDX (PDX1, PDX2, and PDX3) were generated within a course of 3–7 months (Supplementary Table 2). Each of the 3 PDX was fixed in glutaraldehyde and post-fixed with osmium tetroxide sectioned, and stained with toluidine blue and analyzed. A, A representative image is shown. B, RNA was extracted from each of the three PDX as well as the original human tumor before implantation. Quantitative PCR analysis of beige/brown related markers using human-specific (B, left panel), as well as mouse-specific (B, right panel) primers was performed. Fold changes in the expression of respective genes relative to the tumors before implantation was calculated and mean ± SD for all PDX was shown (*p<.05, **p<.01). C, Western blot analysis of PDX-lysates was analyzed for various beige/brown related proteins. D, Pictogram showing a summary of UCP1 protein expression examined by Western blot analysis from 59 human breast tumor specimens as listed in Supplementary Table 3. E. Paraffin embedded sections of human breast tumors was immunolabeled for UCP1 and representative images of estrogen receptor positive (ER⁺) and negative (ER⁻) tumor sections are shown. F, A representative model suggesting the role of UCP1⁺/PRDM16⁺ population during tumor development.

Moreover, immunoblot analysis of 59 human breast tumor samples showed that the majority (74.5%) had detectable UCP1 protein levels (Supplementary Table 3) (Fig. 6D). Representative pictures of different subtypes of human breast tumors immunolabelled with UCP1 antibody are shown (Fig. 6E). Collectively our data suggests expression of beige/brown adipose markers in xenografts could influence breast tumor development and could provide a rationale target for therapeutic interventions (Fig. 6F).

Discussion

Mammary gland is a dynamic heterogeneous adipose rich organ that could serve as a fertile ground for the development of breast cancer (34). Plastic properties of adipose tissue are evident in the recent identification of a third type of adipocyte, the pink adipocytes, in the subcutaneous fat depots of mice during pregnancy and lactation (35). BAT secrete a variety of adipokines, express high levels of glucose transporter-4 (GLUT4), and consume significantly higher levels of glucose (36). Using ¹⁸F-fluorodeoxyglucose (FDG) tracer and PET/CT imaging, a high prevalence of BAT activity was recently found in breast cancer patients when compared to weight-matched patients with other solid tumor malignancies (12). In addition, persistent deposition of brown adipocytes has been detected in the mammary glands of BRCA1 mutant mice (13). Increased BAT in the mammary glands of these mutant mice has been correlated with up-regulation of the angiogenic marker CD31 (13). Also, a recent study shows a higher browning of mammary fat close to malignant breast tumors when compared to those in the vicinity of benign lesions (37). There is also report that white-to-brown transdifferentiation of omental adipocytes has been found in patients affected by pheochromocytoma (38).

In order to identify key adipocyte characteristics that may promote breast tumor development, we systematically analyzed xenografts obtained from various stages of tumor growth. Our study shows, for the first time to our knowledge, increase of beige and brown adipose markers in xenografts from three established breast cancer cell lines and in patient-derived xenografts. In this study, we present that multiple line of evidences obtained from our experimental findings demonstrate the increased expression of key markers for beige/brown adipose during breast tumor development. We further show the involvement of both the host as well as tumor cells in the increased expression of beige and brown adipose in the xenografts. Notably, this increase of beige and brown adipose markers from the tumor cells as well as the host was independent of the site of implantation of the tumor cells. Although expression of UCP1 has been mainly reported in beige/brown adipose tissues, its expression has also been detected in macrophages (39), pancreas (40) and nervous tissues of torpid animals (41).

Fate of mammary epithelium, which sits in a complex niche, depends on signals from extracellular matrix as well as systemic hormonal milieu (42). Extracellular matrix, a highly variable component of the mammary gland, is composed of proteins such as collagens, laminins, and adiponectin as well adifferentiated and undifferentiated cells of hematopoietic origins, adipocytes and fibroblasts (43). Extracellular matrix of breast tumors is also complex and key determinant of cancer progression (44). Significant amount of developmentally regulated brown adipose tissue has been found in the stromal compartment of the mammary gland (45). Using BAT-depleted mouse model, it has been reported that depletion of mammary BAT in early postnatal development induces epithelial differentiation (14). Data from our study suggests that depletion of UCP1 and Myf5 positive cells significantly reduces tumor growth. The precise mechanisms by which beige/brown adipocytes contribute to xenograft growth are unknown and are a subject of future investigation. There is a possibility that increase in UCP1 expressing beige/brown adipocytes promotes expansion of subsets of mammary cancer stem cells, which facilitates xenograft growth. There is a possibility that disruption of proton-motive forces by increased UCP1 expression may lead to acidic microenvironment, which has been implicated in promoting tumor growth (46, 47). In addition, accumulation of lipids in brown adipocyte-like cells may promote fatty acid metabolism and metabolic reprogramming that could influence tumor growth. It will be interesting to explore whether up regulation of beige/brown adipocytes facilitates the formation of extracellular matrix that may contribute to expansion of subsets of cancer stem cells.

MCSCs constitute a heterogeneous pool of progenitor populations that influence different stages of breast tumor development (48). Aggressive breast tumors have high MCSC content that promotes not only progression of the disease but also its recurrence and metastasis (49). As few as 500 stem cell/cancer stem cells, that express aldehyde dehydrogenase-1 (ALDH1) in aggressive human breast tumors, have been found to initiate xenograft formation in nude mice (50). However, different sub-sets of MCSCs have not been identified and characterized due to lack of specific markers. We report for the first time that in addition to an increase in ALDH1 expression, there was an expansion of a sub-set of MCSCs that expressed PRDM16 during xenograft growth from established human breast cancer cells. PRDM16 has been established as a master regulator of the brown adipocyte differentiation program (26, 51). In presence of PRDM16, Myf5⁺ precursor populations acquire brown fat characteristics specific for “classical” brown adipocytes (52). On the other hand, PRDM16 can also influence the fate of Myf5⁻ precursors present mostly in the white adipocytes to acquire brown-like phenotype expressing “beige-specific” markers (53). We observed significant enrichment of both classical BAT progenitors including Myf5 and Oplah, as well as the beige adipocyte-specific markers Cd137 and Tbx1 during xenograft development, suggesting that both populations increase UCP1 expression as well as contribute to breast tumor development.

It has been well demonstrated that breast tumor cells recruit BM-MSCs, hematopoietic cells including macrophages, as well as many other cell types from the host to promote its growth (53–54). Since substantial amount of beige adipose markers of host origin was found in the xenografts, we have been examining whether they were recruited from the microenvironment or from distant sites of the host. After extensive analysis of many adipose depots from the host, both at the site of implantation of the tumor cells as well as from distant sites, we found higher beige adipocytes of host origin within the tumor mass. There is a possibility that beige adipocytes in the xenografts might have been recruited from a yet unidentified source in the host. Since beige adipocytes are inducible, we are also considering a possibility that their increase within the tumor mass could be due to recruitment of WAT in the xenografts where they get transdifferentiated to beige adipocytes. Another possibility under consideration is that the xenografts recruit progenitors of beige adipocytes, which are usually Myf5⁻ precursors, known to reside in the vicinity of WAT and induce their differentiation. A large number of inducers of beige adipocytes including cytokines, adipokines, M2 macrophages, BMP4 and BMP7 have been reported (55). Examining specific inducers that contribute to the increase of beige adipocytes could enhance our understanding of the disease for effective therapeutic interventions. In addition to the host, the tumor cells themselves contributed to the increase in beige adipose markers found in the xenografts. The fold increase of the beige adipose markers from the tumor cells appeared modest because of high basal levels from which the fold changes in the xenograft were calculated.

Our study also provides evidence that beige adipocytes could play a role in breast tumor development. Cyclooxygenase-2 (COX-2) is a rate-limiting enzyme in prostaglandin synthesis, and promotes breast cancer progression spanning pre-malignant phenotype to clinical metastasis (56). Epidemiological evidence suggests that incidence of many cancers including those in the breast is inversely related to the use of aspirin and nonsteroidal anti-inflammatory drugs, which non-specifically inhibit cyclooxygenases (57). More recently COX-2, which is a downstream effector of β-adrenergic receptor (AR) signaling in WAT, has been found to stimulate the induction of BAT in WAT depots (33). In our study, treatment of cells with BADM in vitro induced beige adipocyte characteristics, and larger xenografts in vivo. Also, inhibition of COX-2 but not COX-1 reduced the levels of UCP1 and PRDM16, as well as tumor size. We found brown adipocyte characteristics in our PDX model of human breast tumors, suggesting that they may contribute to human breast tumor development. Our work may explain why inhibition of β-AR/COX-2 signaling has previously been shown to suppress tumor growth in preclinical models (58). Understanding key signaling pathways in beige/brown adipocytes that contribute to breast tumor progression will enable us to develop a novel therapeutic strategy to control breast tumor development. Manipulation of browning, therefore, represents a novel strategy to inhibit tumor development.

Supplementary Material

1. Supplementary Fig. S1. A, representative images of T and NT xenografts at 5 week.

B, Bright field low and high magnification images of T xenografts (5–7 week) that were fixed in glutaraldehyde, post-fixed with osmium tetroxide, sectioned and stained with toluidine blue showing stained lipid droplet of beige adipocytes. C. Quantitative analysis of beige/brown adipocytes in xenograft sections obtained from 5 week tumors using blob algorithm (MATLAB software) as described in Method section. D, immulolabeling of dissociated cells from xenografts (T and NT) with anti-UCP1, -2 and -3 antibodies.

2. Supplementary Fig. S2.

Validation of the specificity of human-specific as well as mouse-specific primers using human pheochromocytoma-derived peri-adrenal fat and mouse brown adipose tissue as positive controls, respectively.

3. Supplementary Fig. S3.

Increase in beige/brown adipocytes in xenografts is independent of the site of implantation of the tumor cells. Control (no tumor cells were implanted) host tissue from different sites (posterior ventro-lateral, posterior ventral and anterior ventro-lateral) were harvested, RNA extracted and quantitative PCR performed for beige/brown adipocyte markers using human-specific and mouse-specific primers.

4. Supplementary Fig. S4. A, Sections of xenografts were analyzed for expression of UCP1 and extracellular matrix proteins (ColA1, Col 3, SMA and FN) by double immunofluorescence.

B, Cells from dissociated xenograft (5 week) were analyzed for co-expression of UCP1 (Texas Red) and adiponectin (FITC) by double immunofluorescence and a representative picture is presented. C. Bright field low and high magnification images of MDA-MB-468 xenografts (5–7 week) that were fixed in glutaraldehyde and infiltrated with osmium and stained with toluidine, showing stained lipid droplet of beige/brown adipocytes.

5. Supplementary Table 1.

Human and mouse specific primer sequences used for gene expression analysis by quantitative real-time PCR.

6. Supplementary Table 2.

Characteristics of human breast tumor tissues used for xenograft formation. Abbreviations: CHTN: Co-operative Human Tissue Network; NDRI: National Disease Research Interchange; AA: African American; CA: Caucasian ER: Estrogen Receptor; PR: Progesterone Receptor; Her2: human epidermal growth factor receptor 2; int: intermediate.

7. Supplementary Table 3.

Pathological characteristics of human breast tumor tissues. Abbreviations: CHTN: Cooperative Human Tissue Network; NDRI: National Disease Research Interchange; AA: African American; CA: Caucasian; LN: Lymph Node Status; PS: Pathological Status; ER: Estrogen Receptor; PR: Progesterone Receptor; Her2: human epidermal growth factor receptor 2; IMC: Invasive Mammary Carcinoma; int: intermediate; IDC: Invasive Ductal Carcinoma; Met: metastatic; DC: Ductal Carcinoma; IDMC: Invasive Ductal Mammary Carcinoma; mtpls: metaplastic; DAC: Ductal Adenocarcinoma; IDLC: Invasive Ductal & Lobular Carcinoma; diff: differentiated.
