Discovery of pyridyl-based inhibitors of Plasmodium falciparum N-myristoyltransferase

Scaffold hopping and structure-guided optimisation led to a new class of potent Plasmodium N-myristoyltransferase inhibitors with cellular activity.

Abstract

N-Myristoyltransferase (NMT) represents an attractive drug target in parasitic infections such as malaria due to its genetic essentiality and amenability to inhibition by drug-like small molecules. Scaffold simplification from previously reported inhibitors containing bicyclic cores identified phenyl derivative 3, providing a versatile platform to study the effects of substitution on the scaffold, which yielded pyridyl 19. This molecule exhibited improved enzyme and cellular potency, and reduced lipophilicity compared to inhibitor 3. Further structure-based inhibitor design led to the discovery of 30, the most potent inhibitor in this series, which showed single-digit nM enzyme affinity and sub-μM anti-plasmodial activity.

Introduction

Malaria, a parasitic disease in humans primarily caused by Plasmodium falciparum (Pf) and Plasmodium vivax (Pv), was responsible for about 584 000 deaths in 2013, mainly of pregnant women and children living in Africa.¹ Recent vaccine trials have met with moderate success.^2,3 However, the first signs of resistance to artemisinin, currently the first-line antimalarial treatment, have emerged in Southeast Asia.^4–6 It is therefore important to develop new antimalarial medications with novel modes of action.⁷

N-Myristoyltransferase (NMT) is an enzyme ubiquitous in eukaryotes, catalysing co- or post-translational transfer of myristate (C14:0 fatty acid) from myristoyl-coenzyme A (myr-CoA) to the N-terminal glycine of a subset of eukaryotic proteins.^8–12 In Plasmodium, numerous essential proteins have been shown to require myristoylation to fulfil their biological functions.^13–18 The essentiality and druggability of NMT has been demonstrated in blood stage P. falciparum,¹⁹ and in the closely related rodent pathogen P. berghei.²⁰ We recently reported the discovery of several novel series of small molecule parasitic NMT inhibitors,^19,21–24 in addition to peptidomimetic inhibitors.²⁵ To date, development of these series has focused on inhibitors containing bicyclic aromatic cores.^26–28 In two complementary studies, we report the design and development of a simplified single ring scaffold, which provides a more flexible platform to study substitution patterns on the aromatic core and has enabled targeting of both plasmodial and leishmanial NMTs.²⁹ Crystal structures of these inhibitors in complex with NMT enabled Structure-Activity Relationships (SARs) to be derived; this report describes the discovery of a new highly potent P. falciparum NMT (PfNMT) inhibitor that is active against parasites, and with promising selectivity relative to human NMTs and human cell lines.²⁴

Results and discussion

Following the discovery that single-ring scaffolds displayed good affinity against Leishmania donovani NMT,²⁹ disubstituted (ortho- and meta-) phenyl rings were selected as analogues of the structures of previously reported inhibitors 1 and 2,^27,28 and linked through an ester or its bioisosteric oxadiazole to a terminal benzyl substituent (Fig. 1). Among the four different combinations (Table S1, ESI†), compound 3 was found to display comparable enzyme potency and human selectivity to the bicyclic equivalents (Fig. 1).

Fig. 1. Scaffold hopping from previously described inhibitors 1 and 2 containing a bicyclic aromatic core^27,28 to identify phenyl 3 as a starting compound.

Variation of the single ring core

A library of compounds (4–17) with varied substitutions on the single ring scaffold was synthesised (Scheme 1). Initial ester protection of salicylic acid analogues enabled the incorporation of an N-Boc piperidinol side chain into the scaffold via a Mitsunobu reaction, followed by hydrolysis of the ester to form the corresponding carboxylic acid intermediate (4b–17b). The final 1,2,4-oxadiazole compounds were then synthesized using a modification of previously-reported conditions.²⁸

Scheme 1. Reagents: (a) BnBr, K₂CO₃, DMF, rt, 2 h, 86%; as for 7a, i). SOCl₂, 90 °C, 1 h; ii) EtOH, rt, 1 h, 95%; as for 17a, H₂SO₄, EtOH/benzene, 80 °C, 2 h, 70%; (b) DIAD, PPh₃, t-butyl 4-hydroxypiperidine-1-carboxylate, THF, rt, 4 h; (c)NaOH, MeOH/H₂O, 50 °C, 2 h, quantitative over two steps; (d) i). benzylamidoxime, EDCI, HOBt, DIPEA, CH₃CN, rt, 4 h; ii). 0.5 N NaOH, rt, 0.5 h, 90%; (e) 10% TFA in DCM (v/v), rt, 2 h, quantitative.

The biological activities of these compounds are detailed in Table 1. Substitution at C-3 was disfavored for inhibition of PfNMT (4 and 5 vs. 3, Table 1), with only fluorine (6) tolerated at this position by the enzyme. However, the 3-pyridyl analogue of 3 exhibited both reduced lipophilicity and a 10-fold improvement in enzyme affinity (7 vs. 3). Within the phenyl series, substitution at the C-4 position generally enhanced enzyme inhibition, with methyl (8 vs. 3) somewhat less effective than halogen (10, 11 vs. 3) or methoxy (9), with minor variations in selectivity over the human enzyme. Electron-donating substituents at C-5 (12, 13) were disfavored and electron-withdrawing substituents favored (14, 15) with respect to inhibition of PfNMT, but were accompanied by a drop in selectivity over human NMT. Changes at the C-6 position (16, 17) were poorly tolerated.

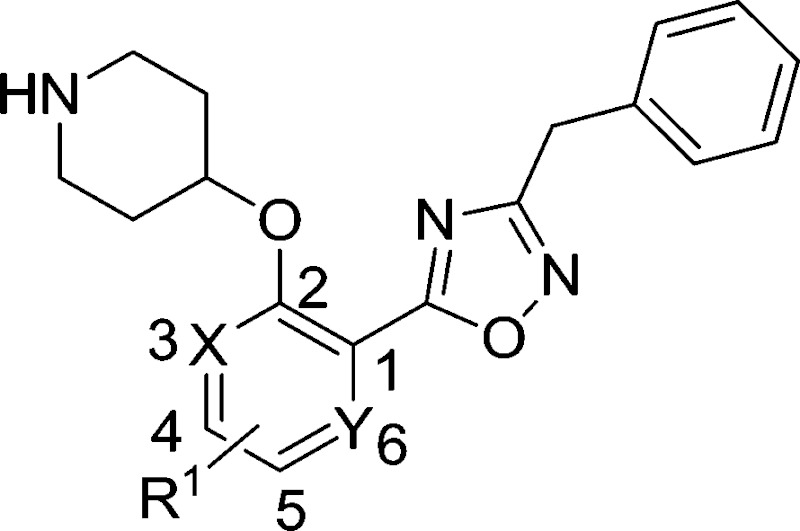

Table 1. Enzyme activities of compounds with scaffold substitutions.

Compd no.	R1	X	Y	PfNMT K i a (μM)	HsNMT K i a (μM)	S.I. b
3	H	CH	CH	1.4	34	24
4	3-OMe	C	CH	17	n.d.	—
5	3-Me	C	CH	39	n.d.	—
6	3-F	C	CH	1.5	15	10
7	H	N	CH	0.14	1.7	12
8	4-Me	CH	CH	0.62	44	70
9	4-OMe	CH	CH	0.18	1.2	6.8
10	4-F	CH	CH	0.22	4.9	22
11	4-Cl	CH	CH	0.29	17	58
12	5-Me	CH	CH	29	n.d.	—
13	5-OMe	CH	CH	4.6	2.3	0.5
14	5-F	CH	CH	0.24	1.0	4.0
15	5-Cl	CH	CH	0.52	0.73	1.4
16	6-F	CH	C	4.8	n.d.	—
17	H	CH	N	29	n.d.	—

^aApparent inhibitor dissociation constant K _i; half maximal inhibitory concentration (IC₅₀) values were determined by a fluorogenic assay³⁰ and differences in substrate K _m accounted for using the Cheng–Prusoff equation to give a value for apparent K _i.

^bS.I. = selectivity index, calculated as apparent K _i(HsNMT1)/apparent K _i(PfNMT).

3-OMe phenyl as the terminal aromatic moiety

Based on enzyme potency and S.I. values, cores from compounds 7, 9, 10 and 11 were selected for further development, and a terminal 3-OMe phenyl moiety was selected for incorporation via the oxadiazole linker, based on our previous work.²⁸ The corresponding compounds 19–22 along with the unsubstituted phenyl analogue 18 were prepared and it was found that addition of a 3-methoxy group generally enhances PfNMT inhibition activity, although at the expense of some human selectivity (19–22 in Table 2 vs. 7, 9, 10 and 11 in Table 1). Compound 19 was selected as the frontrunner inhibitor at this stage given its balance of good potency and selectivity; furthermore, its higher LipE value is attractive for further development.^31,32

Table 2. Biological activities of 3-OMe phenyl analogues 18–22 .

Compound	X	R1	clog P a	PfNMT K i (μM)	HsNMT K i (μM)	S.I.	LipE b
18	CH	H	3.40	0.19	1.4	7	3.32
19	N	H	2.79	0.027	0.27	10	4.78
20	CH	OMe	3.20	0.071	0.43	6.1	3.95
21	CH	F	3.54	0.071	0.54	7.6	3.61
22	CH	Cl	3.96	0.03	0.36	12	3.56

^aclog P calculated using ChemAxon software.

^bLipE = pK _i (PfNMT) – clog P.

Structural studies

P. vivax (Pv) NMT shares 81% sequence identity with PfNMT, and has been successfully used to guide the discovery of potent PfNMT inhibitors.^26–28 In order to interpret the effect of substitution on the scaffold, inhibitors derived from phenyl (18), 4-chloro phenyl (22) and 3-pyridyl (19) were selected for crystallographic studies and co-crystal structures with a non-hydrolysable myr-CoA analogue (NHM)³⁰ and PvNMT were obtained. As expected, inhibitor 18 shows a very similar binding mode to a previously reported inhibitor 23 (Fig. 2a).²⁸ Surprisingly, electron density maps suggest the formation of a ring-open analogue of the oxadiazole for these three test compounds within the crystal (the corresponding analogue for 18 is shown in Fig. 2b), although the desired closed ring was confirmed for the pure isolated inhibitors by both NMR and high resolution mass spectrometry ([M + H]⁺ = 366.1801, which matches well with its closed ring form), and they were found to be stable under conditions covering a pH range between 1 and 10 (data not shown). This interesting phenomenon was also observed in the related series crystallised in LmNMT,²⁹ and further work will be required to understand its origin; however, it did not impact on our subsequent development of the oxadiazole series. The basic piperidine moiety establishes an ion-pairing interaction with the C-terminal carboxylate (L410) and a cation-dipole interaction with the Y107 hydroxyl, whilst the 3-OMe phenyl forms hydrogen bonding (HB) and π–π interactions with the S319 hydroxyl and F105, respectively (Fig. 2a). The 1,2,4-oxadiazole moiety is sandwiched between Y334 and Y211, forming hydrophobic interactions with these two residues. The observed substitution effects of the core can be clarified by examination of the bound structures (Fig. 2c). Pyridyl 19 is superimposed with phenyl 18, where the pyridyl nitrogen participates in an additional water-mediated HB with the Y315 hydroxyl, providing an explanation for the observed 8-fold enhancement in inhibition (19 vs. 18, Table 2). 4-Cl in 22 inserts into a hydrophobic pocket formed by N365, A366 and L367; we hypothesise that such hydrophobic interaction provides the observed activity improvement (22 vs. 18, Table 2).

Fig. 2. Structural overlays help to rationalize the SAR for 18, 19 and 23: (a) 18 (PDB code: ; 4UFV, 1.80 Å, green) binds to the enzyme (grey) in a similar way to 23 (PDB code: ; 4B14, magenta); (b) unexpected ring-open oxadiazole observed in the electron density map of 18 (C green); (c) 19 (PDB code: ; 4UFX, 1.51 Å, yellow) picks up an additional water-mediated hydrogen bond and shares identical binding positions to 18 (green); while insertion of chlorine at C-4 allows the hydrophobic interaction with the pocket comprising of N365, A366 and L367 (22, PDB code: ; 4UFW, 1.54 Å, cyan). Atoms are colored: N blue, O (non-water) red, O (water) red sphere.

Structure-guided development

We next considered replacements for the 3-OMe phenyl moiety. A structural overlay with 24, a previously reported Pv/Pf NMT inhibitor,²⁶ suggests that the 1,3,5-trimethylpyrazole shares a similar binding mode to methoxyphenyl (Fig. 3a). Pyrazole 25 was thus prepared (Scheme 2). Although it showed higher LipE than 19, there was no potency boost in either enzyme or cellular level while its N-alkyl piperidine derivatives (26–28) suffered from modest to significant activity drop (Table 3). Another PvNMT inhibitor (29) identified from an earlier screening campaign,²³ was found to overlay well with the 3-OMe phenyl moiety in 19 (Fig. 3b). Encouragingly, the combination of quinoline and pyridyl scaffold yielded inhibitor 30 (Scheme 3), which posted a 14-fold increase in both enzyme and cellular potency over 19, with only two heavy atoms added and no compromise in enzyme selectivity over human NMT or acute toxicity against mammalian cells over 48 hours (30 vs. 19, Table 3). We hypothesise that the improved HB acceptor strength of the quinoline³³ contributes to the observed increase in activity.

Fig. 3. Structure-guided design: (a) overlay of 3-OMe phenyl in 19 (PDB code: ; 4UFX, yellow) with the pyrazole in 24 (PDB code: ; 4CAF, magenta). Both motifs bind at the S319 pocket; (b) 3-OMe phenyl in 19 superimposes well with the quinoline in 29 (PDB code: ; 4A95, cyan). Atoms are colored: C (enzyme) grey, N blue, O red, S orange.

Scheme 2. Reagents: (a) bromoacetonitrile, NaH, THF, rt, 4 h, 40%; (b) i) mono-methylhydrazine, MeOH, reflux, 4 h; ii) hydroxylamine, MeOH, reflux, 6 h, 95%; (c) i). 7b, EDCI, HOBt, DIPEA, CH₃CN, rt, 4 h; ii). 0.5 N NaOH, rt, 0.5 h, 90%; (d) 10% TFA in DCM (v/v), rt, 2 h, quantitative; (e) aldehyde or ketone, NaBH(OAc)₃, MeOH, rt, 12 h, 80%.

Table 3. Biological activities of inhibitors guided by overlaying crystal structures.

Compd no.	R2	R3	clog P a	PfNMT K i (μM)	LipE b	HsNMT K i (μM)	S.I. c	EC50 d (μM)	LD50 e (μM)
19		H	2.79	0.027	4.78	0.27	10	3.5	70
25		H	1.69	0.028	5.86	0.20	7	3.7	>100
26		Me	2.09	0.57	4.15	0.51	0.9	>30	n.d. f
27		Et	2.44	0.34	4.03	0.27	0.8	>10	n.d.
28		i-Pr	2.85	0.090	4.20	0.18	2	3.2	>100
30		H	3.14	0.0017	5.63	0.024	14	0.21	65

^aclog P values calculated using ChemAxon software.

^bLipE = pK _i (PfNMT) – clog P.

^cS.I., calculated as K _i(HsNMT1)/K _i(PfNMT).

^d P. falciparum, 3D7 line was used.

^eHepG2 cell line was used.

^fn.d. = not determined.

Scheme 3. Reagents: (a) NaBH₄, MeOH, rt, 8 h; (b) MsCl, DCM, 0 °C, 3 h; (c) NaCN, DMSO, 60 °C, 1 h, 22% over three steps; (d) hydroxylamine, MeOH, reflux, 6 h, 97%; (e) i). 7b, EDCI, HOBt, DIPEA, CH₃CN, rt, 4 h; ii). 0.5 N NaOH, rt, 0.5 h, 90%; (f) 10% TFA in DCM (v/v), rt, 2 h, quantitative.

Conclusion

Scaffold reduction from our earlier PfNMT inhibitors containing bicyclic cores to phenyl-based inhibitors provided a flexible platform to study the effect of scaffold and substituent variations, allowing the discovery of pyridyl as an attractive core, the superiority of which was later explained by structural studies. Further development was achieved through crystallography-guided hybridization of this scaffold with two existing NMT inhibitors, leading to the discovery of 30, a promising PfNMT inhibitor with excellent enzyme affinity and good cellular efficacy. Further lead optimization is underway in an attempt to further improve the cellular potency of this series, with the aim of progressing towards in vivo studies.
