. 1993 Nov 15;90(22):10720–10724. doi: 10.1073/pnas.90.22.10720

Resolution of the HLA-DRB6 puzzle: a case of grafting a de novo-generated exon on an existing gene.

W E Mayer 1, C O'hUigin 1, J Klein 1
PMCID: PMC47849  PMID: 8248165

Abstract

HLA-DRB6, one of the human major histocompatibility complex genes, lacks exon 1, which normally codes for the leader and the first four amino acid residues of the mature protein. Because it also lacks the HLA promoter, it was surprising to find that the gene is transcribed at a low level in a chimpanzee B-lymphoblastoma cell line, in which the DRB6 homolog is truncated as in humans. The study designed to resolve the paradox has revealed that a retrovirus related to the mouse mammary tumor viruses was inserted into intron 1 of DRB6 > 23 million years ago. The insertion was either accompanied or followed by the deletion of exon 1 and the promoter region of DRB6. In the 3' long terminal repeat of the retrovirus, however, an open reading frame for a new exon arose, which codes for a sequence of mostly hydrophobic amino acid residues; the sequence could function as a leader for the truncated DRB6 gene. This new exon has a functional donor splice site at its 3' end, which enables it to be spliced in register with DRB6 exon 2. Upstream from the new exon is a promoter enabling transcription of the DRB6 gene. Besides providing an example of a de novo generation of an exon, the study suggests a potential mechanism for generating new genes through the replacement of old exons with newly generated ones.

Full text

PDF
10720

Images in this article

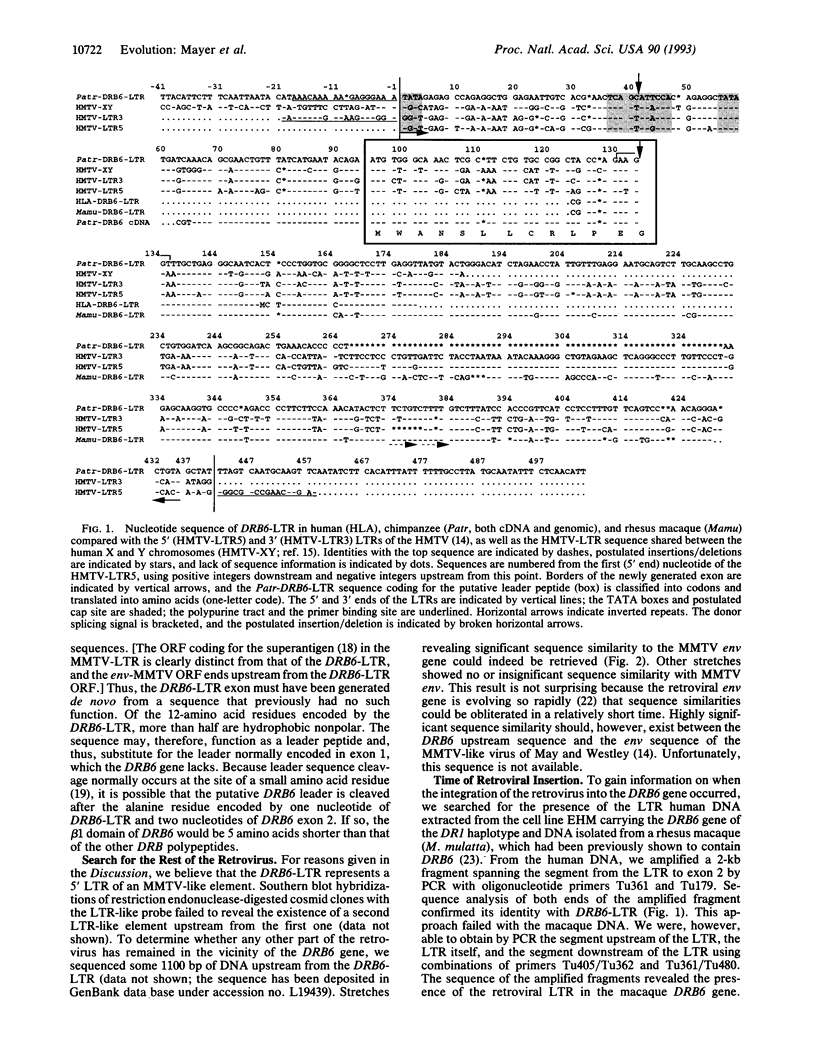

10722Fig. 1
on p.10722

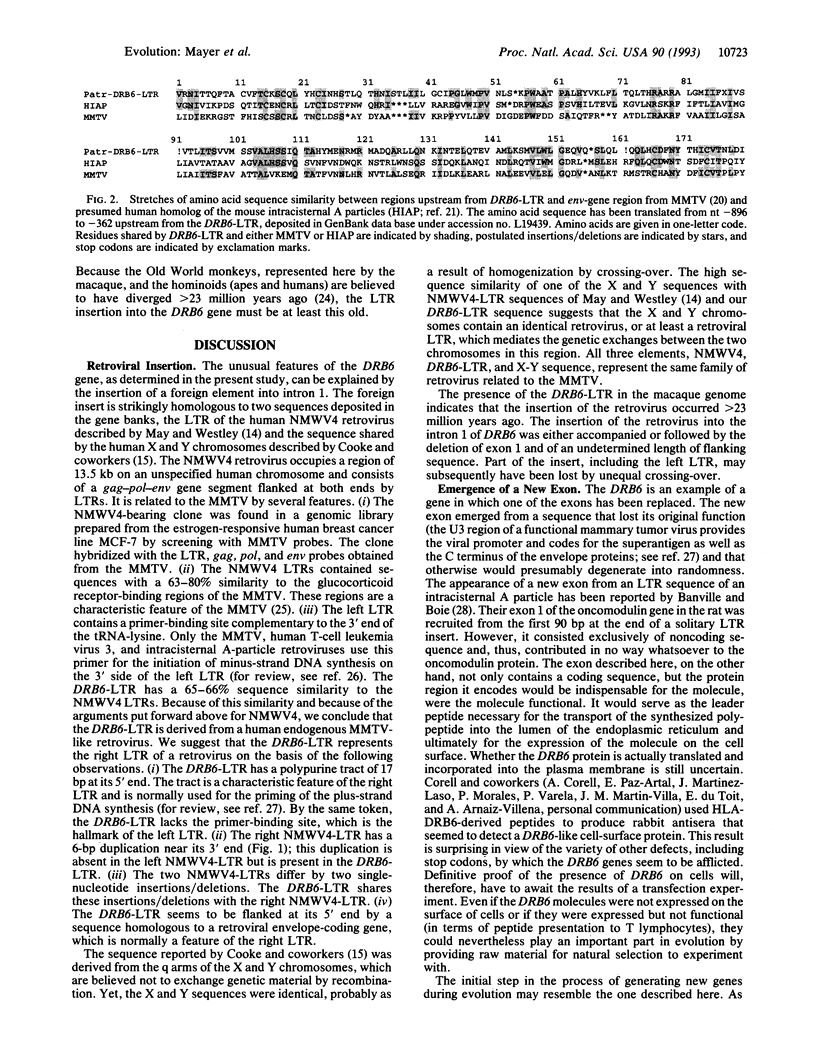

10723Fig. 2
on p.10723

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Banville D., Boie Y. Retroviral long terminal repeat is the promoter of the gene encoding the tumor-associated calcium-binding protein oncomodulin in the rat. J Mol Biol. 1989 Jun 5;207(3):481–490. doi: 10.1016/0022-2836(89)90458-0. [DOI] [PubMed] [Google Scholar]
  2. Benoist C., Mathis D. Regulation of major histocompatibility complex class-II genes: X, Y and other letters of the alphabet. Annu Rev Immunol. 1990;8:681–715. doi: 10.1146/annurev.iy.08.040190.003341. [DOI] [PubMed] [Google Scholar]
  3. Blin N., Stafford D. W. A general method for isolation of high molecular weight DNA from eukaryotes. Nucleic Acids Res. 1976 Sep;3(9):2303–2308. doi: 10.1093/nar/3.9.2303. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Breathnach R., Chambon P. Organization and expression of eucaryotic split genes coding for proteins. Annu Rev Biochem. 1981;50:349–383. doi: 10.1146/annurev.bi.50.070181.002025. [DOI] [PubMed] [Google Scholar]
  5. Brändle U., Ono H., Vincek V., Klein D., Golubic M., Grahovac B., Klein J. Trans-species evolution of Mhc-DRB haplotype polymorphism in primates: organization of DRB genes in the chimpanzee. Immunogenetics. 1992;36(1):39–48. doi: 10.1007/BF00209291. [DOI] [PubMed] [Google Scholar]
  6. Choi Y., Kappler J. W., Marrack P. A superantigen encoded in the open reading frame of the 3' long terminal repeat of mouse mammary tumour virus. Nature. 1991 Mar 21;350(6315):203–207. doi: 10.1038/350203a0. [DOI] [PubMed] [Google Scholar]
  7. Cohen M., Larsson E. Human endogenous retroviruses. Bioessays. 1988 Dec;9(6):191–196. doi: 10.1002/bies.950090603. [DOI] [PubMed] [Google Scholar]
  8. Cooke H. J., Brown W. A., Rappold G. A. Closely related sequences on human X and Y chromosomes outside the pairing region. Nature. 1984 Sep 20;311(5983):259–261. doi: 10.1038/311259a0. [DOI] [PubMed] [Google Scholar]
  9. Corell A., Martin-Villa J. M., Morales P., de Juan M. D., Varela P., Vicario J. L., Martinez-Laso J., Arnaiz Villena A. Exon-2 nucleotide sequences, polymorphism and haplotype distribution of a new HLA-DRB gene: HLA-DRB sigma. Mol Immunol. 1991 Apr-May;28(4-5):533–543. doi: 10.1016/0161-5890(91)90168-j. [DOI] [PubMed] [Google Scholar]
  10. Doolittle R. F., Feng D. F., Johnson M. S., McClure M. A. Origins and evolutionary relationships of retroviruses. Q Rev Biol. 1989 Mar;64(1):1–30. doi: 10.1086/416128. [DOI] [PubMed] [Google Scholar]
  11. Figueroa F., O'hUigin C., Inoki H., Klein J. Primate DRB6 pseudogenes: clue to the evolutionary origin of the HLA-DR2 haplotype. Immunogenetics. 1991;34(5):324–337. doi: 10.1007/BF00211996. [DOI] [PubMed] [Google Scholar]
  12. Frohman M. A., Dush M. K., Martin G. R. Rapid production of full-length cDNAs from rare transcripts: amplification using a single gene-specific oligonucleotide primer. Proc Natl Acad Sci U S A. 1988 Dec;85(23):8998–9002. doi: 10.1073/pnas.85.23.8998. [DOI] [PMC free article] [PubMed] [Google Scholar]
  13. Gilbert W. Why genes in pieces? Nature. 1978 Feb 9;271(5645):501–501. doi: 10.1038/271501a0. [DOI] [PubMed] [Google Scholar]
  14. Kawai J., Ando A., Sato T., Nakatsuji T., Tsuji K., Inoko H. Analysis of gene structure and antigen determinants of DR2 antigens using DR gene transfer into mouse L cells. J Immunol. 1989 Jan 1;142(1):312–317. [PubMed] [Google Scholar]
  15. May F. E., Westley B. R. Structure of a human retroviral sequence related to mouse mammary tumor virus. J Virol. 1986 Nov;60(2):743–749. doi: 10.1128/jvi.60.2.743-749.1986. [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Mayer W. E., Jonker M., Klein D., Ivanyi P., van Seventer G., Klein J. Nucleotide sequences of chimpanzee MHC class I alleles: evidence for trans-species mode of evolution. EMBO J. 1988 Sep;7(9):2765–2774. doi: 10.1002/j.1460-2075.1988.tb03131.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. Mayer W. E., O'hUigin C., Zaleska-Rutczynska Z., Klein J. Trans-species origin of Mhc-DRB polymorphism in the chimpanzee. Immunogenetics. 1992;37(1):12–23. doi: 10.1007/BF00223540. [DOI] [PubMed] [Google Scholar]
  18. Moore R., Dixon M., Smith R., Peters G., Dickson C. Complete nucleotide sequence of a milk-transmitted mouse mammary tumor virus: two frameshift suppression events are required for translation of gag and pol. J Virol. 1987 Feb;61(2):480–490. doi: 10.1128/jvi.61.2.480-490.1987. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Ono M. Molecular cloning and long terminal repeat sequences of human endogenous retrovirus genes related to types A and B retrovirus genes. J Virol. 1986 Jun;58(3):937–944. doi: 10.1128/jvi.58.3.937-944.1986. [DOI] [PMC free article] [PubMed] [Google Scholar]
  20. Ringold G. M., Yamamoto K. R., Bishop J. M., Varmus H. E. Glucocorticoid-stimulated accumulation of mouse mammary tumor virus RNA: increased rate of synthesis of viral RNA. Proc Natl Acad Sci U S A. 1977 Jul;74(7):2879–2883. doi: 10.1073/pnas.74.7.2879. [DOI] [PMC free article] [PubMed] [Google Scholar]
  21. Sanger F., Nicklen S., Coulson A. R. DNA sequencing with chain-terminating inhibitors. Proc Natl Acad Sci U S A. 1977 Dec;74(12):5463–5467. doi: 10.1073/pnas.74.12.5463. [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. Slierendregt B. L., van Noort J. T., Bakas R. M., Otting N., Jonker M., Bontrop R. E. Evolutionary stability of transspecies major histocompatibility complex class II DRB lineages in humans and rhesus monkeys. Hum Immunol. 1992 Sep;35(1):29–39. doi: 10.1016/0198-8859(92)90092-2. [DOI] [PubMed] [Google Scholar]
  23. von Heijne G. Patterns of amino acids near signal-sequence cleavage sites. Eur J Biochem. 1983 Jun 1;133(1):17–21. doi: 10.1111/j.1432-1033.1983.tb07424.x. [DOI] [PubMed] [Google Scholar]
