Prognostic significance of foveal capillary drop-out and previous panretinal photocoagulation for diabetic macular oedema treated with ranibizumab

Abstract

Aims

To investigate the prognostic significance of macular capillary drop-out and previous panretinal laser photocoagulation in diabetic macular oedema treated with intravitreal ranibizumab.

Methods

Retrospective observational case series. Treatment-naive patients with diabetic macular oedema that had been treated with intravitreal ranibizumab as per the RESTORE study protocol for at least 12 months were included. Some patients (n=15) had previous panretinal laser photocoagulation. Best-corrected visual acuity and central retina thickness were recorded monthly. The foveal avascular zone and the perifoveal capillaries were quantitatively and qualitatively assessed on fluorescein angiography on two occasions during the observational period.

Results

From the 46 eyes (46 patients) in this study, 13 (28%) had evidence of perifoveal capillary drop-out. Central retinal thickness was significantly thinner at baseline (p=0.02) and throughout the study period in these eyes compared with those with normal perifoveal capillaries. Both groups responded with a significant gain of best-corrected visual acuity to ranibizumab treatment (7.6±3.3 and 6.3±1.3 ETDRS letters, respectively). Eyes with previous panretinal laser photocoagulation displayed a comparable final outcome regarding function and morphology, requiring a similar intensity of intravitreal injections.

Conclusions

Perifoveal capillary drop-out did not limit the gain of visual acuity from intravitreal ranibizumab treatment. The reduction of central retina thickness was similar to that seen in eyes with normal perifoveal capillaries. Central retinal thickness in eyes with perifoveal capillary drop-out was generally reduced. However, this did not affect their benefit from treatment. Ranibizumab did not increase the amount of perifoveal capillary loss.

Introduction

Diabetic retinopathy is the most common microvascular pathology in patients with diabetes mellitus, and is the leading cause of blindness in working aged adults in the industrialised world.¹ Among patients with diabetic retinopathy, diabetic macular oedema (DMO) is the most frequent cause of visual impairment. It is an advanced vision-limiting complication that affects nearly 30% of patients who have suffered from diabetes mellitus for at least 20 years.²

Prolonged hyperglycaemia, leading to chronic retinal hypoxia, is the major driving force in the development of DMO, a microvascular complication. The pathogenic mechanisms include thickening of the basal membrane of retinal capillaries and loss of perivascular pericytes. Chronic retinal microvascular damage and hypoxia result in elevation of intraocular levels of vascular endothelial growth factor A (VEGF), a molecule that greatly increases the permeability of blood vessels.³ Blockage of VEGF signalling has been shown to restore macular anatomy and considerably improve vision in several large randomised clinical trials. Ranibizumab (Genentech, South San Francisco, California, USA, and Novartis Schweiz, Basel, Switzerland), a monoclonal antibody fragment that binds to all isoforms of VEGF-A, has been shown to increase best-corrected visual acuity (BCVA) significantly by 11–12.5 letters at month 24 and decrease central retinal thickness (CRT) when injected monthly as in the RISE and RIDE trials.⁴ Because VEGF is also an important constitutional trophic factor that is involved in endothelial proliferation and neovascularisation,⁵ as well as retinal collateral formation,⁶ and has been shown to increase blood flow in cerebral ischaemia,⁷ concerns have been articulated that the elimination of VEGF could compromise retinal capillaries and worsen ischaemia. However, despite some case reports showing increased capillary loss after intravitreal anti-VEGF treatment for DMO,⁸ a recent analysis of data from the RIDE and RISE trials suggested that monthly injections of ranibizumab might actually slow down the natural progression of retinal non-perfusion.⁹ Given the pivotal role of VEGF in the formation and exacerbation of DMO, it was our aim to investigate whether capillary loss alters the benefit from pro re nata treatment, and whether previous panretinal laser photocoagulation (PRP) might enhance the effect of anti-VEGF treatment.

Materials and methods

This was a single-centre retrospective observational case series. Investigators adhered to the tenets of the Declaration of Helsinki and Institutional Review Board/Ethics Committee approval was obtained for data collection and analysis (KEK-Nr. 093/13). The need for written consent from patients was waived because of the retrospective nature of the study. Study data were collected and managed using REDCap (Research Electronic Data Capture) hosted at our institution.¹⁰ REDCap is a secure, web-based application designed to support data management for research studies.

Participants

Adult patients with type 1 or 2 diabetes mellitus with centre-involving DMO, diagnosed with spectral domain optical coherence tomography (SD-OCT) (Heidelberg Spectralis, Heidelberg Engineering, Heidelberg, Germany) and fluorescein angiography, were assessed in this study (table 1).

Table 1.

Demographics of patients at baseline

Mean age, years (SD)	63.5 (12.3)
Male, n (%)	33 (69)
Mean HbA1c, % (SD)	7.7 (1.5)
Mean systolic blood pressure, mm Hg (SD)	136 (15)
Mean diastolic blood pressure, mm Hg (SD)	76 (9)
Mean arterial blood pressure, mm Hg (SD)	96 (10)
Mean perifoveal capillary drop-out grading (SD)	1.5 (1.1)

Only treatment-naive eyes with at least 1 year of follow-up were included from the Retina Service of the Department of Ophthalmology at the University Hospital Bern, Switzerland. Exclusion criteria were any of the following: uncontrolled glaucoma, previous pars plana vitrectomy, evidence of focal macular laser or a history of intravitreal steroids, intraocular surgery or capsulotomy during the observational period. The loading protocol was identical for all patients and consisted of three monthly intravitreal injections of ranibizumab 0.5 mg/0.05 mL, followed by monthly assessments including SD-OCT and further intravitreal ranibizumab as needed. Macular rescue laser was not used. The retreatment decision was based on the BCVA as per RESTORE study criteria.¹¹

Image acquisition

SD-OCT scans were acquired using an established protocol consisting of both a crosshair and a volume scan. The volume scan, covering 20°×20°, comprised 49 parallel B-scans separated by 120 μm, whereby each B-scan was the average of nine frames (automated real-time repetition rate=9), each consisting of 512 A-scans. CRT was determined automatically by the software (Heidelberg Eye Explorer, version 1.7.1.0, Heidelberg Engineering, Heidelberg, Germany) as the distance from the internal limiting membrane of the retina to the outer border of the retinal pigment epithelium.

For fluorescein angiography, 5 mL of 10% sodium fluorescein (Fluoresceine 10% Faure 0.5 g/5 mL, Novartis Pharma Schweiz, Rotkreuz, Switzerland) was injected intravenously and images were obtained with a confocal scanning laser ophthalmoscope (Spectralis HRA, Heidelberg Engineering, Heidelberg, Germany).

Quantification of central capillary loss and peripheral diabetic retinopathy severity

The foveal avascular zone diameter, the perifoveal capillaries and the severity of diabetic retinopathy were independently assessed on fluorescein angiography by two fellowship-trained retina specialists (AE, MSZ) on two occasions during the observational period. Capillary loss in the central and the four inner subfields of the standard ETDRS grid (1, 3, 6 mm) was graded on early-phase fluorescein angiogram images as per the method described in the ETDRS Report Number 11.¹² In brief, a grading was assigned to each of the five subfields based on the standard photographs 1A and 2 included in the aforementioned original publication. The grading steps for capillary loss were 0 (absent), 1 (questionable), 2 (definitely present), 3 (moderate) and 4 (severe). The maximum grade of capillary loss in any of the five subfields was then assigned as the final grade to the eye evaluated. Inter-rater agreement as quantified by Cohen’s kappa was 0.91 (95% CI 0.82 to 1.00). If the grading differed between assessors, the case was reviewed and discussed to reach a common conclusion on the final grade to be assigned. Capillary drop-out was deemed present in eyes with a capillary loss grading >1.

Similarly, in eyes without previous PRP, diabetic retinopathy severity was classified into eight levels (table 2) according to the ETDRS Report Number 12 protocol with slight modifications, ranging from absent retinopathy (Level 10) to moderate proliferative diabetic retinopathy (Level 65).¹³

Table 2.

Diabetic Retinopathy Severity Score (DRSS) of patients without previous PRP at baseline

Diabetic retinopathy severity	DRSS level	n (%)
Absent	10	1 (3.1)
Microaneurysms only	20	2 (6.3)
Mild NPDR	35	14 (43.8)
Moderate NPDR	43	5 (15.6)
Moderately severe NPDR	47	2 (6.3)
Severe NPDR	53	4 (12.5)
Mild PDR	61	2 (6.3)
Moderate PDR	65	2 (6.3)

NPDR, non-proliferative diabetic retinopathy; PDR, proliferative diabetic retinopathy; PRP, panretinal laser photocoagulation.

For quantification of the size of the foveal avascular zone, the diameter of the outline of the foveal avascular zone was determined using the circle measurement tool available in the Heidelberg Eye Explorer software (see online supplementary figure for schematic illustration).

Statistical analysis

The last observation carried forward approach was used to substitute missing BCVA data at the final visit. Statistical analysis was performed using a standard software package (Prism 6, GraphPad Software, La Jolla, California, USA) and R for Mac OS X (R 3.1.2 GUI 1.65 Mavericks build). Unless indicated otherwise, results are given as mean±SEM in the text. Depending on the distribution of the statistical sample, data were analysed using the Pearson’s χ² test and the paired or unpaired Student’s t test with correction for multiple comparisons as needed. To rule out interference between the main outcomes, diabetic retinopathy severity and capillary drop-out, two-way ANOVA testing was conducted to assess the effects of Diabetic Retinopathy Severity Score (DRSS) score and capillary drop-out grading on final BCVA and the average number of intravitreal ranibizumab treatments per year. We did not find any interaction between the capillary drop-out grading and the DRSS score, and the null hypothesis (independence) was not rejected in the Fisher’s exact test (p=0.408).

A p value of less than 0.05 was considered statistically significant.

Results

Forty eight patients that had started intravitreal ranibizumab treatment for DMO between October 2010 and April 2013 at the Retina Service of the Department of Ophthalmology at the University Hospital Bern had data for 12 months. Two patients with a foveal avascular zone diameter of more than 1500 μm were excluded from the analysis to avoid distortion of the results by macular ischaemia, which is usually associated with poor visual prognosis. The mean age of the patients at the time of diagnosis was 63.7 years (range 32–89 years). The baseline characteristics of the study population are summarised in table 1.

The mean BCVA at baseline was 61.4±2.2 ETDRS letters and increased to 68.3±2.1 letters at month 12 (p=0.0002). CRT was 398±15 μm at baseline and 349±19 μm at month 12 (p=0.0001). On average, patients received 5.8±0.3 intravitreal injections of ranibizumab (range 3–10) in the first year of treatment. The changes in BCVA and CRT in our patient cohort during the first 12 months were similar to other published data and are summarised in figure 1.

Figure 1.

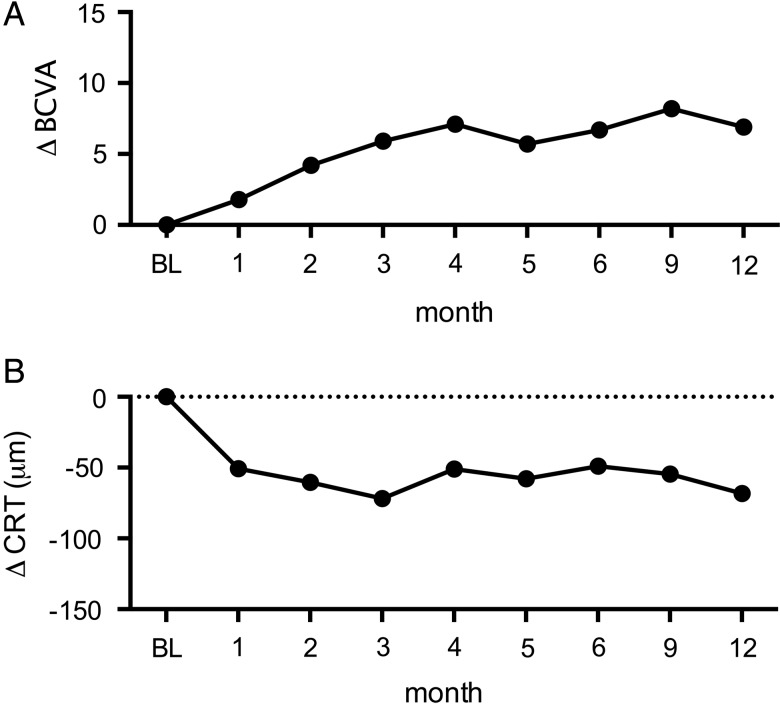

Best-corrected visual acuity (BCVA) and retinal thickness over 12 months. (A) Mean change in BCVA ETDRS letter score from baseline (BL) to month 12. (B) Mean change in central retinal thickness (CRT) from BL to month 12.

While all 46 eyes had intraretinal fluid (IRF) at baseline, only four eyes (8.7%) had concomitant subretinal fluid (SRF) at that time. While after the three initial monthly injections SRF had disappeared in all of these eyes, IRF persisted in 38 eyes (83%) after the initiation phase. In 31 eyes (67%) IRF was present at every monthly visit throughout the observational period.

Perifoveal capillary drop-out, CRT and BCVA

The findings from the comparison between eyes with capillary drop-out and eyes with normal macular capillaries are summarised in table 3.

Table 3.

Comparison between eyes with and without capillary drop-out

	Subjects with PRP	IVTs per year (mean±SD)	Baseline BCVA (mean±SD)	CRT baseline (mean±SD)	Retinal fluid at final visit
No capillary drop-out (n=27)	12	5.9±2.1	62.6±16.3	433±108 μm	88%
Capillary drop-out (n=13)	8	5.0±2.0	60.1±14.0	349±91 μm	90%
p Value	0.258*	0.203†	0.641†	0.020†	1.0*

*Pearson’s χ² test with Yates’ continuity correction.†Two-sided unpaired Student’s t test.

BCVA, best-corrected visual acuity; CRT, central retinal thickness; IVT, intravitreal treatment; PRP, panretinal laser photocoagulation.

The diameter of the foveal avascular zone at baseline was significantly larger in eyes with perifoveal capillary drop-out (p=0.0005; unpaired t test; figure 2A). The initial CRT in the capillary drop-out group was lower than in the eyes with unaffected perifoveal capillary structure, and this difference persisted throughout the observational period (figure 2B). The gain in visual acuity was of similar magnitude for eyes with and without perifoveal capillary drop-out (7.6±3.3 and 6.3±1.3 ETDRS letters, respectively; figure 2C). CRT reduction was comparable in both groups (figure 2D). On fluorescein angiography, there was no evidence of deterioration or improvement of the vascular structures in the central subfield and the inner ring of the ETDRS grid during the average 13 months period between examinations (figure 3). Eyes with perifoveal capillary drop-out needed by trend fewer intravitreal treatments than eyes with unremarkable perifoveal capillaries (table 3).

Figure 2.

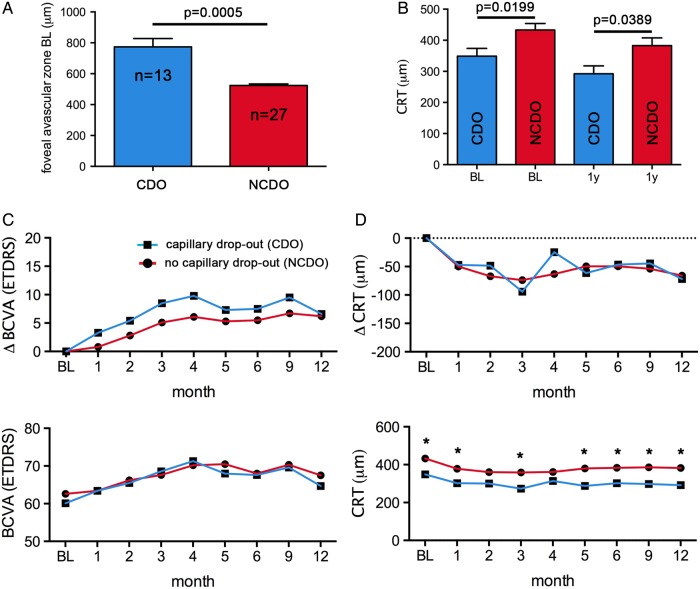

Outcomes for eyes with and without perifoveal capillary drop-out (CDO) of the macula. (A) Diameter of foveal avascular zone at baseline (BL) in eyes with perifoveal CDO (capillary loss grading >1) and eyes with normal appearance of the perifoveal capillaries (NCDO; capillary loss grading ≤1). (B) Central retinal thickness (CRT) at BL and 1 year after initiation of intravitreal treatment with ranibizumab. CRT was consistently lower in eyes with CDO. (C) Mean improvement in best-corrected visual acuity (BCVA) and mean absolute ETDRS letters scores from BL to month 12 for both groups. (D) Mean decrease and mean absolute CRT for both groups from BL to month 12 (*p<0.05; Multiple t tests using the Holm–Sidak method to correct for multiple testing; error bars in A and B represent SEM).

Figure 3.

Progression analysis of perifoveal capillary drop-out (CDO). Representative photographs of a macula at baseline (BL) (A) and after 17 months of treatment (B) with a constant CDO grading. The patient received in total five intravitreal ranibizumab injections. His diabetic retinopathy was graded as ‘severe non-proliferative’ (level 53) and the CDO grading assigned was ‘questionable’ (grade 1). (C) Diameter of foveal avascular zone at BL and follow-up (F/U) visit on fluorescein angiography for eyes with CDO and normal perifoveal capillaries (NCDO). The mean interval between BL and follow-up fluorescein angiography was 13 months. The change of the foveal avascular zone diameter was not significant (paired Student’s t test; error bars represent SEM).

PRP, CRT and BCVA

Twenty four eyes in the study population had advanced disease requiring peripheral photoablation. While 15 eyes had received PRP prior to anti-VEGF therapy for DMO (last treatment 31.0±10.1 months (range 6 weeks–12 years) before commencement of intravitreal ranibizumab injections), 9 eyes received concomitant panretinal laser treatment during the observational period. These nine eyes were excluded for the analyses investigating the effects of previous PRP. Analysing the influence of previous PRP on BCVA, CRT and the number of injections needed, eyes with previous PRP (n=15) received by trend more injections than eyes without previous peripheral laser treatment (6.3±0.6 vs 5.2±0.4). However, the difference was not significant (p=0.187; unpaired t test with Welch’s correction). The benefit in ETDRS letter gain (figure 4B) was similar and the reduction in CRT was comparable in both groups (figure 4C).

Figure 4.

Outcome analysis according to panretinal laser photocoagulation (PRP) status. (A) Colour fundus photographs at baseline (BL) and month 12 as well as corresponding optical coherence tomography scans at BL, months 1, 5 and 12. (B) Best-corrected visual acuity (BCVA) letter score from BL to month 12 for eyes without (no PRP) and with previous PRP. (C) Corresponding graph for central retinal thickness (CRT). Differences were not statistically significant at any time point (multiple t tests using the Holm–Sidak method to correct for multiple comparisons).

Discussion

The mean gain in BCVA (6.9±1.4 letters) from baseline to month 12 in this series was similar to results reported in the RESTORE study (6.8±0.8 letters), which used the same retreatment criteria and studied a sample (n=116 in the ranibizumab group) with comparable baseline mean BCVA (64.8±0.9). The mean number of intravitreal ranibizumab injections needed to achieve this result in our cohort (5.8 injections; median (range) :6 (3-10)) was lower than in the RESTORE study (7.0 injections; median (range) :7 (1-12); p=0.016). This dissimilarity in the treatment intensity might be explained by the probably somewhat greater macular thickness of subjects included in the RESTORE study, which used time-domain OCT (Stratus, Carl Zeiss, Meditec, Dublin, California, USA). In the current study SD-OCT (Spectralis HRA+OCT, Heidelberg Engineering, Heidelberg, Germany) was used, which has been reported to measure macular thickness systematically 77 μm thicker than the Stratus OCT.¹⁴ Hence, the mean CRT reported in the RESTORE study of 427±118 (SD) μm should be corrected to 504 μm for comparison, which is significantly different from the CRT of 398±105 (SD) μm in the sample of the present study (p<0.0001).

In contrast to exudative age-related macular degeneration, the persistence of IRF or SRF is generally not considered imminently disconcerting in DMO. Nevertheless, the anatomical location of fluid collections seems to have an effect on function. Photoreceptor outer segment disturbance has been linked to impaired BCVA in DMO,¹⁵ and reduced retinal sensitivity was found in the presence of SRF using microperimetry.¹⁶ There is debate about the significance of persistent fluid on function and prognostic implications for visual acuity. Excessive suppression of VEGF, which at moderate levels is physiologically present in the healthy retina,^{17 18} might harm the choroid and accelerate progression of atrophy.¹⁹ In the pivotal RESTORE study, retinal thickness and OCT-based assessment of the retina were not included in the retreatment criteria that guided the administration of intravitreal ranibizumab.¹¹ The current study applied the RESTORE criteria. The visual acuity gain for eyes without recurrent or persistent retinal fluid was slightly higher in the subgroup analysis. IRF was very common and in two-thirds of eyes was present at every monthly visit, which, however, does not exclude the possibility that temporary resolution might have occurred at early time points after treatment. In contrast, SRF was found in less than 10% of eyes at baseline, and had resolved completely in all eyes after the three initial monthly ranibizumab injections. SRF was always seen in conjunction with IRF and neither previous PRP nor the presence of capillary drop-out had an influence on the occurrence of neurosensory detachments.

Concerns have also been raised as to whether chronic use of anti-VEGF might further compromise retinal perfusion in eyes with vascular disease.²⁰ In the present study perifoveal capillary loss did not negatively affect the benefit from ranibizumab treatment despite the fact that such retinas were consistently thinner, and we did not find any evidence for worsening of capillary drop-out.

At first glance counterintuitive is the observation that eyes with previous PRP received by trend more intravitreal injections than eyes without previous peripheral laser. VEGF, a major driving force of macular oedema is known to be elevated in eyes with diabetic retinopathy³ and there is debate about the role of peripheral laser ablation in preventing or reducing DMO.²¹ Eyes that have had previous laser presumably have more advanced peripheral microvascular disease, which in turn increases the risk of diffuse macular oedema.²²

In conclusion, perifoveal capillary drop-out did not limit gain of visual acuity from intravitreal ranibizumab treatment. The reduction of CRT was similar as in eyes with unremarkable perifoveal capillaries. Interestingly, CRT in eyes with perifoveal capillary drop-out was generally reduced. Ranibizumab did not increase the amount of perifoveal capillary loss and the presence of peripheral laser scars from previous PRP did not reduce the treatment intensity needed to achieve treatment goals. The role of peripheral laser photoablation in the context of anti-VEGF treatment for DMO in patients with non-proliferative disease needs to be elucidated in larger prospective trials.
