. 1982 Jun;47(6):596–605. doi: 10.1136/hrt.47.6.596

Non-invasive diagnosis and assessment of tricuspid regurgitation and stenosis using one and two dimensional echo-pulsed Doppler.

C Veyrat, D Kalmanson, M Farjon, J P Manin, G Abitbol
PMCID: PMC481187  PMID: 7082507

Abstract

Twenty normal subjects and 82 patients with valvular heart disease, whose lesions were independently assessed either by cardiac catheterisation and/or at operation, were studied using the pulsed Doppler technique combined with either one or two dimensional echocardiography. Of these, 41 patients had tricuspid lesions, including 40 with regurgitation and nine with stenosis. The tricuspid analogue flow velocity trace and the Doppler frequency spectrum (time interval histogram) were recorded. Characteristic differences were found between the records from subjects with and without tricuspid lesions. In subjects with tricuspid regurgitation there was a systolic negative wave on the analogue velocity display and broadening of the time interval histogram. In subjects with tricuspid stenosis there was an abnormal pattern, and significantly increased duration of the diastolic wave on the analogue velocity trace, again with broadening of the time interval histogram. Sensitivity and specificity ranged between 85 and 95%. The calculated ratio between the measured amplitudes of the systolic and diastolic waves correlated well with independently performed grading of the regurgitation on a three point scale in 85% of cases. Grading of the severity of tricuspid stenosis on a three point scale based on studies of the diastolic Doppler velocity anomalies was the same in 85% of cases as the grading based on established invasive techniques. The addition of two dimensional echocardiography to the pulsed Doppler technique increased the sensitivity for mild lesions.

Full text

PDF

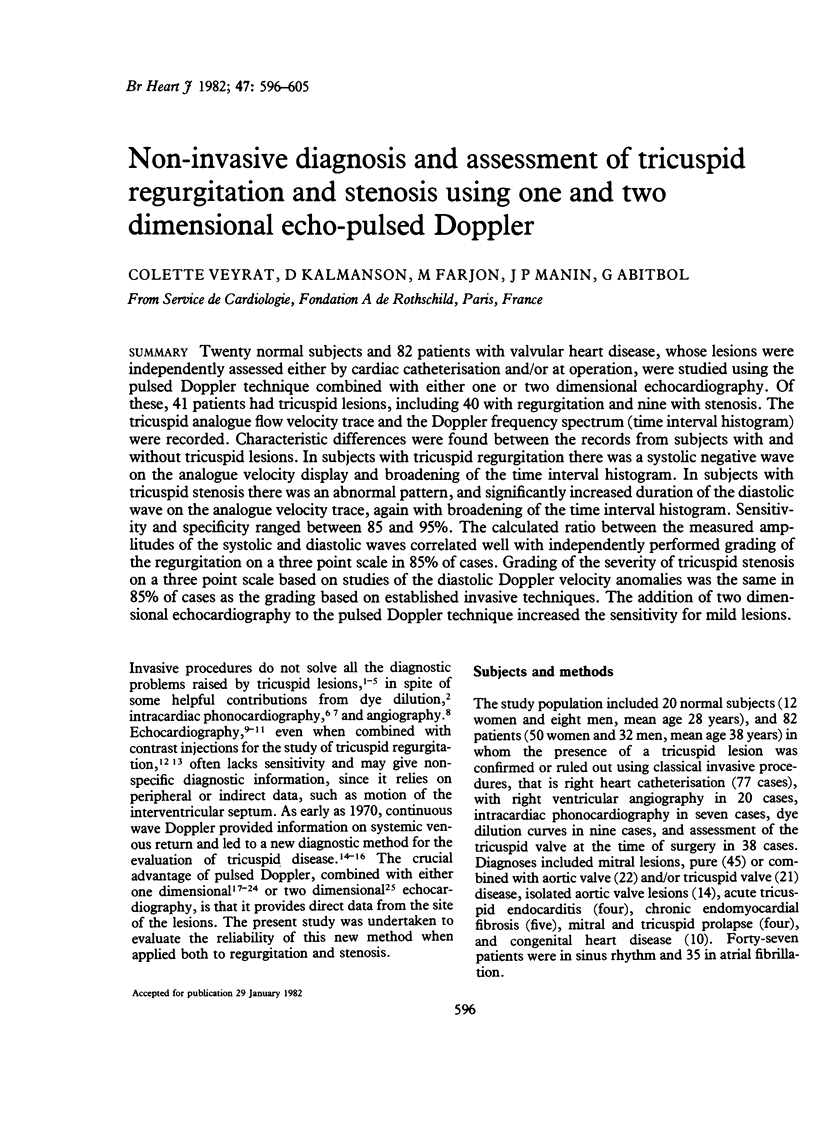

596

Images in this article

599Image
on p.599

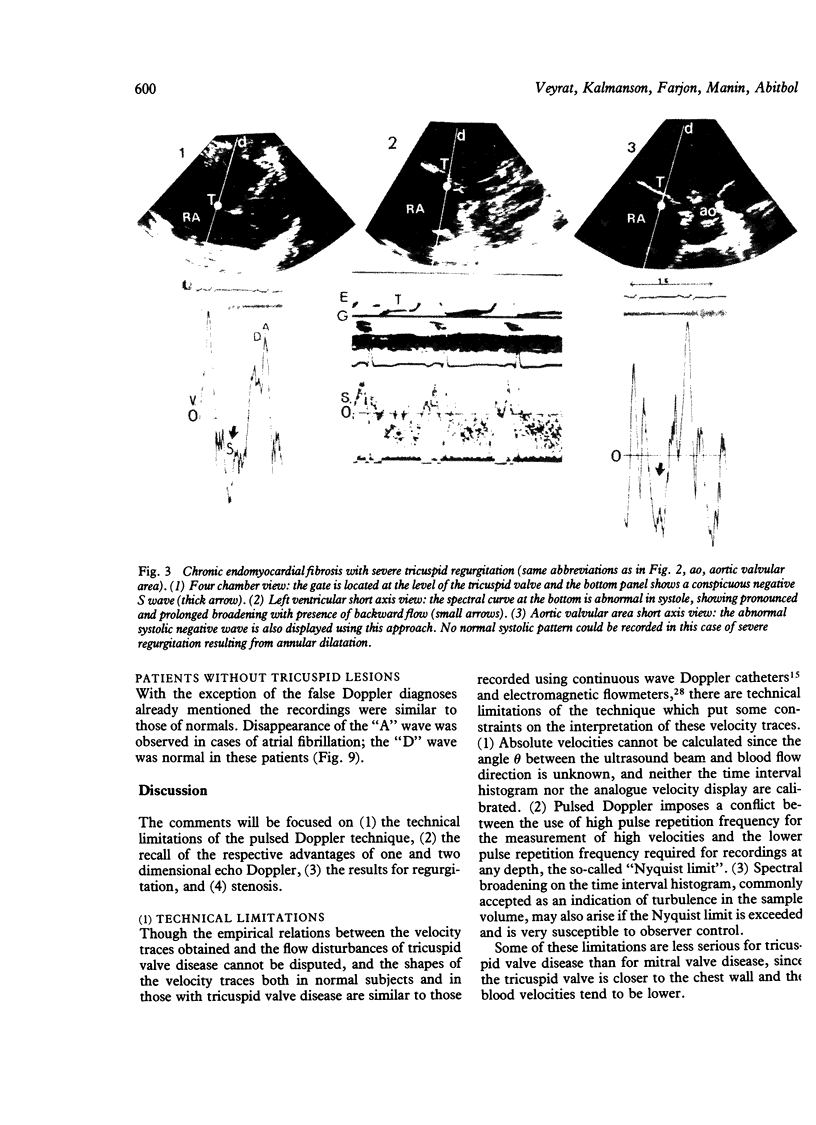

600Image
on p.600
601Image
on p.601
601Image
on p.601
604Image
on p.604

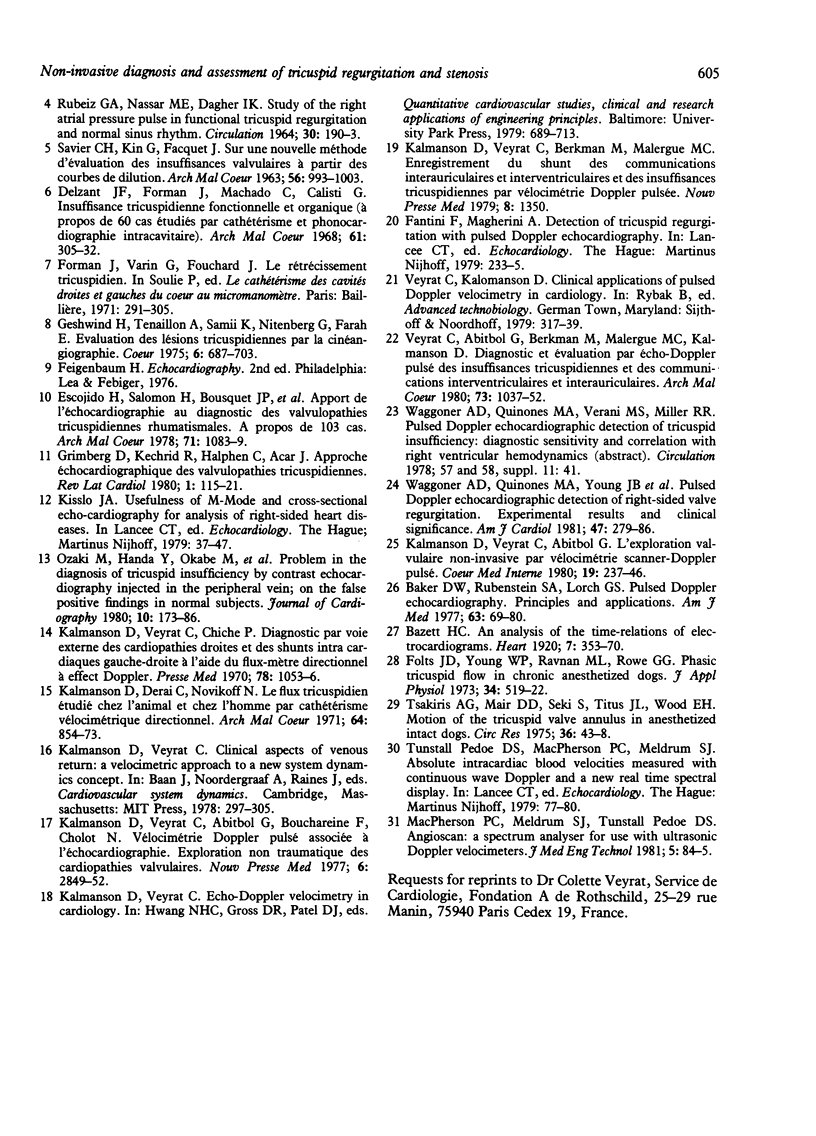

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Baker D. W., Rubenstein S. A., Lorch G. S. Pulsed Doppler echocardiography: principles and applications. Am J Med. 1977 Jul;63(1):69–80. doi: 10.1016/0002-9343(77)90119-x. [DOI] [PubMed] [Google Scholar]
  2. Delzant J. F., Forman J., Machado G., Calisti G. Insuffisance tricuspidienne fonctionnelle et organique. (A propos de 60 cas étudiés par cathétérisme et phonocardiographie intracavitaire) Arch Mal Coeur Vaiss. 1968 Mar;61(3):305–332. [PubMed] [Google Scholar]
  3. Escojido H., Salomon M., Bousquet J. P., Rapuzzi A., Roux J. J., Jouven J. C., Torresani J., Houel J., Jouve A. Apport de l'échocardiographie au diagnostic des valvulopathies tricuspidiennes. A propos de 103 cas. Arch Mal Coeur Vaiss. 1978 Oct;71(10):1083–1089. [PubMed] [Google Scholar]
  4. Folts J. D., Young W. P., Ravnan M. L., Rowe G. G. Phasic tricuspid flow in chronic unanesthetized dogs. J Appl Physiol. 1973 Apr;34(4):519–522. doi: 10.1152/jappl.1973.34.4.519. [DOI] [PubMed] [Google Scholar]
  5. Hansing C. E., Rowe G. G. Tricuspid insufficiency. A study of hemodynamics and pathogenesis. Circulation. 1972 Apr;45(4):793–799. doi: 10.1161/01.cir.45.4.793. [DOI] [PubMed] [Google Scholar]
  6. Kalmanson D., Derai C., Novikoff N. Le flux tricuspidien étudié chez l'animal et chez l'homme par cathétérisme vélocimétrique directionnel. Aspect normal, variations physiologiques et applications diagnostiques. Arch Mal Coeur Vaiss. 1971 Jun;64(6):854–873. [PubMed] [Google Scholar]
  7. Kalmanson D., Veyrat C., Abitbol G., Bouchareine F., Cholot N. Vélocimétrie Doppler pulsé associée à l'échographie: exploration non traumatique des cardiopathies vasculaires. Nouv Presse Med. 1977 Oct 1;6(32):2849–2853. [PubMed] [Google Scholar]
  8. Kalmanson D., Veyrat C., Abitbol G. L'exploration valvulaire non invasive par vélocimétrie scanner-Doppler pulsé. Coeur Med Interne. 1980 Apr-Jun;19(2):237–246. [PubMed] [Google Scholar]
  9. Kalmanson D., Veyrat C., Berkman M., Malergue M. C. Enregistrement du shunt des communications interauriculaires et interventriculaires, et des insuffisances tricuspidiennes par vélocimétrie Doppler pulsée. Nouv Presse Med. 1979 Apr 7;8(16):1350–1350. [PubMed] [Google Scholar]
  10. Kalmanson D., Veyrat C., Chiche P. Diagnostic par voie externe des cardiopathies droites et des shunts intra-cardiaques cauche-droite à l'aide du fluxmètre directionnel à effet doppler. Presse Med. 1970 May 9;78(23):1053–1056. [PubMed] [Google Scholar]
  11. Kawashima Y., Nakano S., Manabe H. Tricuspid insufficiency. A study of hemodynamics. Jpn Circ J. 1974 Oct;38(10):853–859. doi: 10.1253/jcj.38.853. [DOI] [PubMed] [Google Scholar]
  12. Macpherson P. C., Meldrum S. J., Tunstall-Pedoe D. S. Angioscan: a spectrum analyser for use with ultrasonic Doppler velocimeters. J Med Eng Technol. 1981 Mar;5(2):84–85. doi: 10.3109/03091908109042444. [DOI] [PubMed] [Google Scholar]
  13. RUBEIZ G. A., NASSAR M. E., DAGHER I. K. STUDY OF THE RIGHT ATRIAL PRESSURE PULSE IN FUNCTIONAL TRICUSPID REGURGITATION AND NORMAL SINUS RHYTHM. Circulation. 1964 Aug;30:190–193. doi: 10.1161/01.cir.30.2.190. [DOI] [PubMed] [Google Scholar]
  14. SAVIER C. H., KIN G., FACQUET J. SUR UNE NOUVELLE M'ETHODE D''EVALUATION DES INSUFFISANCES VALVULAIRES 'A PARTIR DES COURBES DE DILUTION. Arch Mal Coeur Vaiss. 1963 Sep;56:992–1003. [PubMed] [Google Scholar]
  15. Tsakiris A. G., Mair D. D., Seki S., Titus J. L., Wood E. H. Motion of the tricuspid valve annulus in anesthetized intact dogs. Circ Res. 1975 Jan;36(1):43–48. doi: 10.1161/01.res.36.1.43. [DOI] [PubMed] [Google Scholar]
  16. Veyrat C., Abitbol G., Berkman M., Malergue M. C., Kalmanson D. Diagnostic et évaluation par écho-Doppler pulsé des insuffisances tricuspidiennes et des communications interventriculaires et interauriculaires. Etude vélocimétrique des shunts. Arch Mal Coeur Vaiss. 1980 Sep;73(9):1037–1051. [PubMed] [Google Scholar]
  17. Waggoner A. D., Quinones M. A., Young J. B., Brandon T. A., Shah A. A., Verani M. S., Miller R. R. Pulsed Doppler echocardiographic detection of right-sided valve regurgitation. Experimental results and clinical significance. Am J Cardiol. 1981 Feb;47(2):279–286. doi: 10.1016/0002-9149(81)90398-2. [DOI] [PubMed] [Google Scholar]
