Scaling Laws for Thin Films near the Superconducting-to-Insulating Transition

Abstract

We propose a Lagrangian function, which combines Landau-Ginzburg term and Chern-Simons term, for describing the competition between disorder and superconductivity. To describe the normal-to-superconducting transition in the thin superconducting films, we apply Wilson’s renormalization group methods into this Lagrangian function. Finally, we obtain a scaling law between critical temperature (T_c), film thickness (d), sheet resistance of the film at the normal state (R_s), and number density of the electrons at the normal state (N). Such a scaling law is in agreement with recent experimental investigations [Ivry, Y. et al., Physical Review B 90, 214515 (2014)]. Our finding may have potential benefits for improving transition temperature T_c.

Exploring the mechanism of triggering high-T_c superconductivity is an important task. It has attracted many attentions over the past 30 years, and causes a lot of works. Even so, the mechanism of triggering high-T_c superconductivity still remains largely a mystery¹. However, thin superconducting films are believed to facilitate the comprehension of high-T_c superconductivity, since they allow an inherent competition between disorder and superconductivity which in turn enables the intriguing superconducting-to-insulating transition. Recently, by analyzing the data published over the past 46 years for different materials, Ivry et al. discovered a universal relationship² between critical temperature (T_c), film thickness (d), and sheet resistance of the film at the normal state (R_s):

where, A and B are fitting parameters, and .

Although the scaling formula (1) may provide a theoretical basis for improving the transition temperature T_c, Ivry et al.² also stressed that this formula cannot be derived by using existing theories³,⁴,⁵,⁶. The main purpose of this paper is to investigate the possible origin of the formula (1) by using Wilson’s renormalization group methods.

Competition between disorder and superconductivity

As is well known, renormalization group is a powerful tool of dealing with critical phenomena. The scaling formula (1) associates the transition temperature T_c with the sheet resistance of the film at the normal state R_s. To apply the renormalization group methods, it is natural to seek a Lagrangian function, in which R_s and T_c will emerge as the possible coefficients, for describing the competition between disorder and superconductivity. To this end, let us consider superconducting state and normal state, respectively.

(1) Superconducting state. As is well known, the superconducting state can be described by the Landau-Ginzburg Lagrangian function in 3-dimensional space:

where, A_μ denotes the electromagnetic potential, ϕ denotes the order parameter, and F_μν = ∂_μA_ν − ∂_νA_μ.

(2) Normal state. To describe the normal state we propose to consider the following Lagrangian function in 3-dimensional space:

where, ε^μνλ denotes the totally antisymmetric symbol in 3-dimensional space, and J^μ denotes the current density.

Applying Euler-Lagrange variational procedure into the Lagrangian function (3) yields:

In 2 + 1 dimensional space-time the coefficient σ of Chern-Simons term plays the role with order parameter⁷ and has the physical meaning of Hall conductivity⁷,⁸,⁹. In fact, for 2 + 1 dimensional space-time the eq. (4) reproduces Ohm-Hall law¹⁰ in which the coefficient σ stands for Hall conductivity. It is well known that Ohm’s law describes the normal state well. We hope that the eq. (4) for 3-dimensional space can be also used to describe the normal state. Remarkably, Hill¹¹ has pointed out that the coefficient σ in 3-dimensional space must approach the coefficient of Chern-Simons term in 2 + 1 dimensional space-time; otherwise, there will be inconsistencies (see page 5 in ref. 11). Therefore, the coefficient σ in 3-dimensional space can still be thought of as the Hall conductivity.

On the other hand, because this paper considers 3-dimensional space rather than 2 + 1 dimensional space-time, we do not worry that the Chern-Simons term will break time reversal symmetry. Regarding the existence of 3-dimensional Chern-Simons term, we adopt Hill’s argument¹¹: “D-odd Chern-Simons term in a U(1) theory exists at all and what it is physically measuring, i.e., the world-line intersection of Dirac branes”.

If we consider the limit ωτ ≫ 1, the resistivity ρ can be written as (see page 1 in ref. 12):

where ω denotes the angular frequency of the cyclotron motion and τ denotes the scattering relaxation time.

To describe the competition between disorder and superconductivity, we expect that the Lagrangian functions (2) and (3) can hold simultaneously in the neighborhood of the superconducting-to-insulating transition point T_c. Without loss of generality, we assume that the collective behaviors of electrons around the critical point T_c can be described by the following Lagrangian function:

The Lagrangian function (6) will be the starting point of this paper. It is carefully noted that by our assumption the Lagrangian function (6) only holds in the infinitesimal neighborhood of T_c, since the Lagrangian functions (2) and (3) may be invalid in insulating state and superconducting state, respectively. Therefore, the Lagrangian function (6) indeed implies the competition between disorder (non-zero ρ) and superconductivity (non-zero ϕ). However, we need to clarify: we do not investigate what drives the superconducting-to-insulating transition. In fact, we are only interested in what critical behavior will occur around the transition point. From this meaning, our research is merely a phenomenological work.

Renormalization-group equations

Renormalization group approach is a powerful tool of dealing with critical behaviors. We hope that this approach can reproduce the scaling formula (1). To this end, let us apply renormalization group approach into the Lagrangian function (6).

Adopting the standard procedure of renormalization group we first write down the path integral (see page 396 in ref. 13):

where D denotes the number of space dimensions.

Let us define

and

where “s” stands for “smooth” part and “w” stands for “wriggly” part.

Substituting eqs (8) and (9) into eq. (7) yields:

If we do the integral over ϕ_w and , then eq. (10) can be rewritten in the form:

where,

Here Δλ_2, Δλ_4, ΔE, Δq, Δσ and ΔF stand for perturbative terms. Regarding the origin of perturbative terms Δλ_2, Δλ₄ and ΔE, we adopt Peskin’s derivation, refer to equation (12.20) in ref. 13.

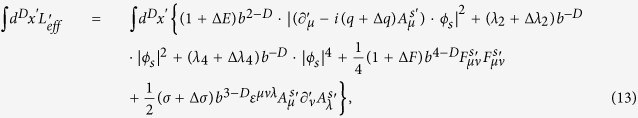

In terms of the rescaled variable x′ = bx, eq. (12) becomes

where we have used and .

If we rescale the fields ϕ_s and according to:

and

then eq. (13) can be rewritten in the form:

which shares the same form with Lagrangian function (6).

The new parameters of the Lagrangian function (14) are:

The attention of this paper will be concentrated on the eqs (17) and (18). All of the corrections, Δλ₄, ΔE, Δσ, ΔF and so on, should be small compared to the leading terms if perturbation theory is justified. This paper only considers the simplest case where the corrections will be ignored. Therefore, eqs (17) and (18) can be rewritten as:

Substituting b = 1 + (δl)/(l) into eqs (19) and (20) we easily get the first-order renormalization group equations:

where l is a length somewhat larger than atomic dimensions¹⁴.

Results

Let us solve the scaling equations from the renormalization-group eqs (21) and (22):

where λ₀ and σ₀ are undetermined parameters.

Substituting eqs (5) and (23) into eq. (24) we get:

By Bardeen-Cooper-Schrieffer (BCS) Hamiltonian of superconductivity Gorkov¹⁵ has shown that the Landau-Ginzburg equations in 3-dimensional space can be written in the form:

which by rescaling ψ(r) according to ϕ(r) = (1)/((2m^*)^1/2)ψ(r) yields the following Lagrangian function:

where (ζ(x) is Riemann’s zeta function and ε_F denotes Fermi energy) and N is number density of the electrons at the normal state¹⁵.

Comparing Lagrangian functions (6) and (27) we obtain:

Comparison of Lagrangian functions (6) and (27) is a key point of obtaining the main result of this paper. Then, a question may arise: “Lagrangian functions (6) and (27) cannot be considered equivalent because Lagrangian function (27) is derived by BCS Hamiltonian, which does not include the Chern-Simons term”. However, we must clarify that Lagrangian functions (6) and (27) are not considered equivalent in our derivation. In fact, we only assume that Lagrangian functions (6) and (27) share the same coefficients λ₂ and λ₄. Such an assumption has been confirmed by Gorkov’s derivation. In his famous article¹⁵, Gorkov has taken into account BCS Hamiltonian including electromagnetic field. Specifically, Gorkov introduced the electromagnetic field A_μ into BCS Hamiltonian by using “Principle of Local Gauge Invariance”; while, in such a treatment, neither Maxwell term F_μνF_μν nor Chern-Simons term ε^μνλA_μ∂_νA_λ produce a change in his differential equation for the thermodynamic Green functions. Therefore, the coefficients λ₂ and λ₄ will not receive any substantial contributions from Maxwell term or Chern-Simons term. The readers can realize this point by checking the eq. (1) in ref. 15.

Substituting eq. (29) into eq. (25) yields:

The thin superconducting film can be thought of as a two-dimensional plane, so we can take D = 2. Substituting D = 2 into eq. (30) we finally get the scaling law:

where and .

Here is a parameter which will be determined by experimental measurements. It must be noticed that D = 2 does not contradict the existence of 3-dimensional Chern-Simons term. In fact, here D = 2 denotes film material’s dimension rather than space’s dimension, and it only occurs in the process of renormalization-group analysis. By taking the different values of D we can see how material’s dimension affects the critical behavior.

For simplicity, we might as well think of the thin superconducting film as a thin sheet of superconducting material of length and width l and thickness d << l. As a result, by Zee’s method we can get (see page 348 in ref. 8):

which by using eq. (5) yields:

Substituting eq. (33) into eq. (31) we get:

The scaling formula (34) is the main result of this paper. It successfully reproduces the scaling law (1). Remarkably, we obtain the theoretical value of critical exponent B, which equals 1. We list the experimental value in Table 1.

Table 1. Experimental mean-value² and theoretical value of critical exponent.

Critical exponent	Experimental mean-value	Theoretical value
B	0.95	1

Discussion and Conclusion

Although there are a few differences (about 0.05) between theoretical value and experimental mean-value, we stress that the renormalization-group eqs (21) and (22) only involve the first-order perturbation. If we consider high order perturbations, the differences may be explained. We hope to explore this point in a more detailed work.

However, we must point out that our formula (34) is somewhat different from the formula (1). This is because the formula (1) indicates that A and B are unknown parameters, but our formula (34) implies that A will depend on the number density of the electrons at the normal state, N. This means that we can improve the critical temperature T_c not only by adjusting d and Rs, but also by N. For example, by our scaling formula (34) the enhancement of T_c will depend on the increase in N and decrease in d · R_s. Therefore, we propose to seek some film materials, which are thin enough and meanwhile own high concentration of the electrons and low sheet resistance at the normal state, for manufacturing high-T_c superconducting materials. In addition, we need to clarify that the conductivity σ in eq. (4) denotes off-diagonal conductivity rather than diagonal conductivity. Thus, our theoretical result (34) can be only regarded as a possible explanation for the experimental result (1), since we do not know whether Ivry, Y. et al. have distinguished off-diagonal conductivity and diagonal conductivity in their work².

In conclusion, by Wilson’s renormalization-group method we have successfully derived the scaling formula (34) near superconducting-to-insulating transition, which has been confirmed by experimental investigations. Our theoretically computed value for critical exponent is in agreement with experiment as well. More importantly, our scaling formula (34) indicates that the superconducting transition temperature T_c will depend mainly on three parameters, which are film thickness (d), sheet resistance of the film at the normal state (R_s), and number density of the electrons at the normal state (N). This finding may provide a possible outlet for facilitating the enhancement of T_c.
