. 1992 Jan 1;89(1):52–55. doi: 10.1073/pnas.89.1.52

Immunoblots with rhodopsin antisera suggest that a purified mu opioid binding protein has structural characteristics of a G-protein-coupled receptor.

T L Gioannini 1, E R Weiss 1, G L Johnson 1, J M Hiller 1, E J Simon 1
PMCID: PMC48173  PMID: 1309617

Abstract

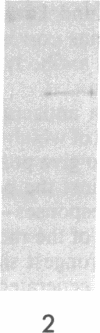

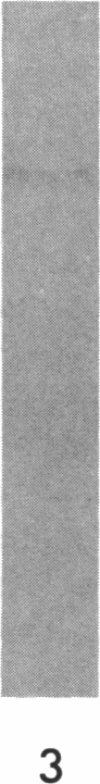

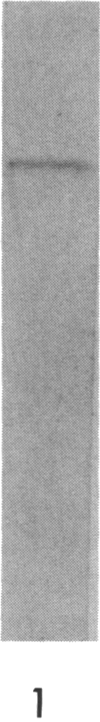

A mu opioid binding protein (OBP), previously purified to homogeneity from bovine striatal membranes, was examined by immunoblotting with six antisera against bovine rhodopsin. An antibody against the carboxyl-terminal tail of rhodopsin and one against membrane-associated rhodopsin gave strong signals at the appropriate molecular mass (65 kDa). An antibody directed against the first cytoplasmic loop of rhodopsin was weakly reactive. Three other antibodies did not recognize OBP. This pattern of crossreactivity was identical to that previously seen with beta-adrenergic receptors. The existence of domains in the OBP, which are antigenically similar to those in two other guanine nucleotide regulatory protein-coupled receptors, supports the hypothesis that mu opioid receptors have the structure characteristic of this receptor family.

Full text

PDF
52

Images in this article

53Image
on p.53
53Image
on p.53
53Image
on p.53
53Image
on p.53
54Image
on p.54
54Image
on p.54
54Image
on p.54
54Image
on p.54

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Attali B., Saya D., Vogel Z. Kappa-opiate agonists inhibit adenylate cyclase and produce heterologous desensitization in rat spinal cord. J Neurochem. 1989 Feb;52(2):360–369. doi: 10.1111/j.1471-4159.1989.tb09130.x. [DOI] [PubMed] [Google Scholar]
  2. Chneiweiss H., Glowinski J., Premont J. Mu and delta opiate receptors coupled negatively to adenylate cyclase on embryonic neurons from the mouse striatum in primary cultures. J Neurosci. 1988 Sep;8(9):3376–3382. doi: 10.1523/JNEUROSCI.08-09-03376.1988. [DOI] [PMC free article] [PubMed] [Google Scholar]
  3. Costa T., Aktories K., Schultz G., Wüster M. Pertussis toxin decreases opiate receptor binding and adenylate inhibition in a neuroblastoma x glioma hybrid cell line. Life Sci. 1983;33 (Suppl 1):219–222. doi: 10.1016/0024-3205(83)90482-4. [DOI] [PubMed] [Google Scholar]
  4. Dixon R. A., Kobilka B. K., Strader D. J., Benovic J. L., Dohlman H. G., Frielle T., Bolanowski M. A., Bennett C. D., Rands E., Diehl R. E. Cloning of the gene and cDNA for mammalian beta-adrenergic receptor and homology with rhodopsin. Nature. 1986 May 1;321(6065):75–79. doi: 10.1038/321075a0. [DOI] [PubMed] [Google Scholar]
  5. Dohlman H. G., Caron M. G., Lefkowitz R. J. A family of receptors coupled to guanine nucleotide regulatory proteins. Biochemistry. 1987 May 19;26(10):2657–2664. doi: 10.1021/bi00384a001. [DOI] [PubMed] [Google Scholar]
  6. Dohlman H. G., Caron M. G., Strader C. D., Amlaiky N., Lefkowitz R. J. Identification and sequence of a binding site peptide of the beta 2-adrenergic receptor. Biochemistry. 1988 Mar 22;27(6):1813–1817. doi: 10.1021/bi00406a002. [DOI] [PubMed] [Google Scholar]
  7. Gioannini T. L., Howard A. D., Hiller J. M., Simon E. J. Purification of an active opioid-binding protein from bovine striatum. J Biol Chem. 1985 Dec 5;260(28):15117–15121. [PubMed] [Google Scholar]
  8. Henderson R., Unwin P. N. Three-dimensional model of purple membrane obtained by electron microscopy. Nature. 1975 Sep 4;257(5521):28–32. doi: 10.1038/257028a0. [DOI] [PubMed] [Google Scholar]
  9. Hescheler J., Rosenthal W., Trautwein W., Schultz G. The GTP-binding protein, Go, regulates neuronal calcium channels. 1987 Jan 29-Feb 4Nature. 325(6103):445–447. doi: 10.1038/325445a0. [DOI] [PubMed] [Google Scholar]
  10. Howard A. D., Sarne Y., Gioannini T. L., Hiller J. M., Simon E. J. Identification of distinct binding site subunits of mu and delta opioid receptors. Biochemistry. 1986 Jan 28;25(2):357–360. doi: 10.1021/bi00350a012. [DOI] [PubMed] [Google Scholar]
  11. Howard A. D., de La Baume S., Gioannini T. L., Hiller J. M., Simon E. J. Covalent labeling of opioid receptors with radioiodinated human beta-endorphin. Identification of binding site subunit. J Biol Chem. 1985 Sep 5;260(19):10833–10839. [PubMed] [Google Scholar]
  12. Kobilka B. K., Kobilka T. S., Daniel K., Regan J. W., Caron M. G., Lefkowitz R. J. Chimeric alpha 2-,beta 2-adrenergic receptors: delineation of domains involved in effector coupling and ligand binding specificity. Science. 1988 Jun 3;240(4857):1310–1316. doi: 10.1126/science.2836950. [DOI] [PubMed] [Google Scholar]
  13. Kobilka B. K., Matsui H., Kobilka T. S., Yang-Feng T. L., Francke U., Caron M. G., Lefkowitz R. J., Regan J. W. Cloning, sequencing, and expression of the gene coding for the human platelet alpha 2-adrenergic receptor. Science. 1987 Oct 30;238(4827):650–656. doi: 10.1126/science.2823383. [DOI] [PubMed] [Google Scholar]
  14. Kubo T., Bujo H., Akiba I., Nakai J., Mishina M., Numa S. Location of a region of the muscarinic acetylcholine receptor involved in selective effector coupling. FEBS Lett. 1988 Dec 5;241(1-2):119–125. doi: 10.1016/0014-5793(88)81043-3. [DOI] [PubMed] [Google Scholar]
  15. Kubo T., Fukuda K., Mikami A., Maeda A., Takahashi H., Mishina M., Haga T., Haga K., Ichiyama A., Kangawa K. Cloning, sequencing and expression of complementary DNA encoding the muscarinic acetylcholine receptor. Nature. 1986 Oct 2;323(6087):411–416. doi: 10.1038/323411a0. [DOI] [PubMed] [Google Scholar]
  16. Kurose H., Katada T., Amano T., Ui M. Specific uncoupling by islet-activating protein, pertussis toxin, of negative signal transduction via alpha-adrenergic, cholinergic, and opiate receptors in neuroblastoma x glioma hybrid cells. J Biol Chem. 1983 Apr 25;258(8):4870–4875. [PubMed] [Google Scholar]
  17. Kühn H., Hargrave P. A. Light-induced binding of guanosinetriphosphatase to bovine photoreceptor membranes: effect of limited proteolysis of the membranes. Biochemistry. 1981 Apr 28;20(9):2410–2417. doi: 10.1021/bi00512a007. [DOI] [PubMed] [Google Scholar]
  18. Nathans J., Hogness D. S. Isolation, sequence analysis, and intron-exon arrangement of the gene encoding bovine rhodopsin. Cell. 1983 Oct;34(3):807–814. doi: 10.1016/0092-8674(83)90537-8. [DOI] [PubMed] [Google Scholar]
  19. O'Dowd B. F., Hnatowich M., Regan J. W., Leader W. M., Caron M. G., Lefkowitz R. J. Site-directed mutagenesis of the cytoplasmic domains of the human beta 2-adrenergic receptor. Localization of regions involved in G protein-receptor coupling. J Biol Chem. 1988 Nov 5;263(31):15985–15992. [PubMed] [Google Scholar]
  20. O'Dowd B. F., Lefkowitz R. J., Caron M. G. Structure of the adrenergic and related receptors. Annu Rev Neurosci. 1989;12:67–83. doi: 10.1146/annurev.ne.12.030189.000435. [DOI] [PubMed] [Google Scholar]
  21. Ramwani J., Mishra R. K. Purification of bovine striatal dopamine D-2 receptor by affinity chromatography. J Biol Chem. 1986 Jul 5;261(19):8894–8898. [PubMed] [Google Scholar]
  22. Sharma S. K., Nirenberg M., Klee W. A. Morphine receptors as regulators of adenylate cyclase activity. Proc Natl Acad Sci U S A. 1975 Feb;72(2):590–594. doi: 10.1073/pnas.72.2.590. [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Strader C. D., Dixon R. A., Cheung A. H., Candelore M. R., Blake A. D., Sigal I. S. Mutations that uncouple the beta-adrenergic receptor from Gs and increase agonist affinity. J Biol Chem. 1987 Dec 5;262(34):16439–16443. [PubMed] [Google Scholar]
  24. Strader C. D., Sigal I. S., Blake A. D., Cheung A. H., Register R. B., Rands E., Zemcik B. A., Candelore M. R., Dixon R. A. The carboxyl terminus of the hamster beta-adrenergic receptor expressed in mouse L cells is not required for receptor sequestration. Cell. 1987 Jun 19;49(6):855–863. doi: 10.1016/0092-8674(87)90623-4. [DOI] [PubMed] [Google Scholar]
  25. Weiss E. R., Hadcock J. R., Johnson G. L., Malbon C. C. Antipeptide antibodies directed against cytoplasmic rhodopsin sequences recognize the beta-adrenergic receptor. J Biol Chem. 1987 Mar 25;262(9):4319–4323. [PubMed] [Google Scholar]
  26. Weiss E. R., Kelleher D. J., Johnson G. L. Mapping sites of interaction between rhodopsin and transducin using rhodopsin antipeptide antibodies. J Biol Chem. 1988 May 5;263(13):6150–6154. [PubMed] [Google Scholar]
