. 1980 Jan;43(1):47–55. doi: 10.1136/hrt.43.1.47

Functional significance of coronary collateral circulation during dynamic exercise evaluated by thallium-201 myocardial scintigraphy.

R J Wainwright, M N Maisey, A C Edwards, E Sowton
PMCID: PMC482241  PMID: 7356862

Abstract

Sixty-five patients with angiographically documented coronary artery disease were investigated by thallium-201 (201Tl) scintigraphy to determine the role of the collateral circulation during dynamic exercise. Fifty-three patients had complete proximal occlusion of at least one major coronary artery. One patient had total occlusion of all three major coronary arteries. Sixty-four collateral channels were identified, graded, and compared with corresponding regions of the myocardial scintigram. Tracer uptake was also graded and classified as various degrees of protection from ischaemia. A significant correlation between good collaterals with complete protection and poor or absent collaterals with no protection was noted. Seventeen patients (20 occluded vessels) had total coronary occlusion without myocardial infarction. Collaterals conferred protection in 9/15 occlusions whereas no protection was seen in five occlusions without collaterals. There was no difference in the protective role of homocoronary and heterocoronary collateral vessels. Hypertrophy of the first septal left anterior descending perforator conferred significant protection from ischaemia in contrast to bridging collaterals and ghosting. During exercise the right coronary bed is preferentially protected from ischaemia, in contrast to the left anterior descending territory. This probably reflects the direction of a transmural flow gradient between left and right ventricles during exercise.

Full text

PDF

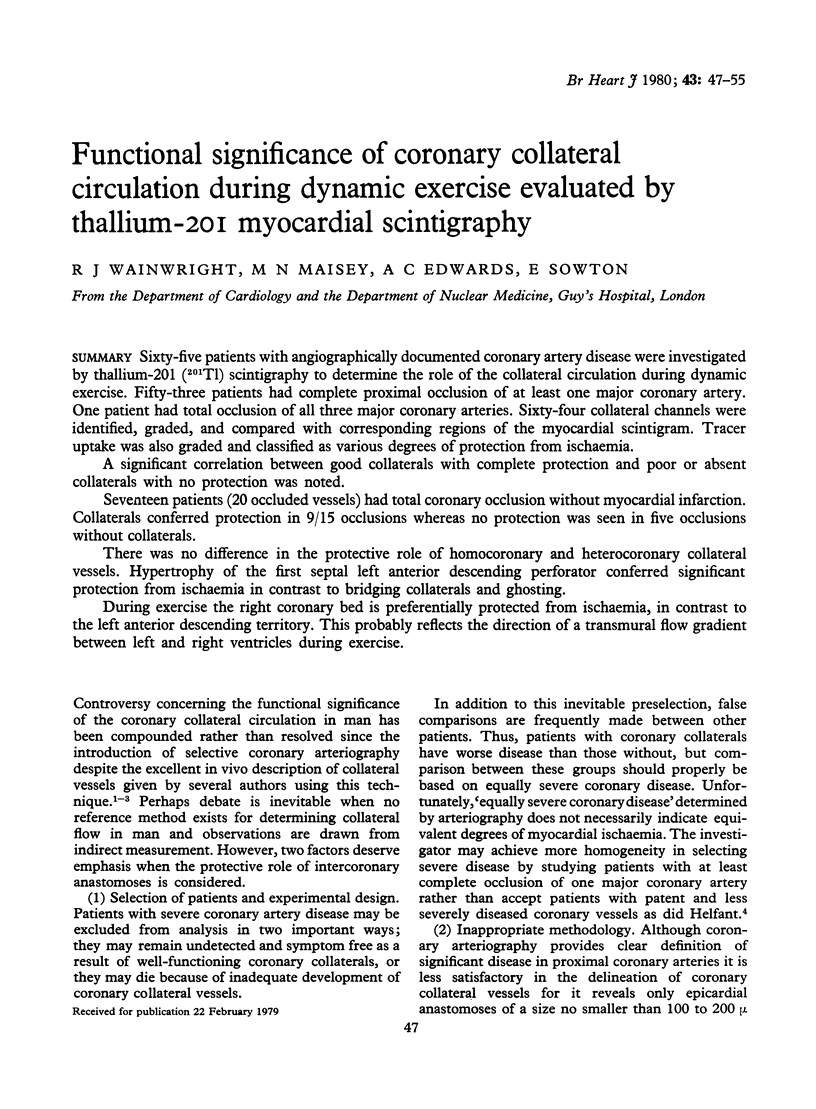

47

Images in this article

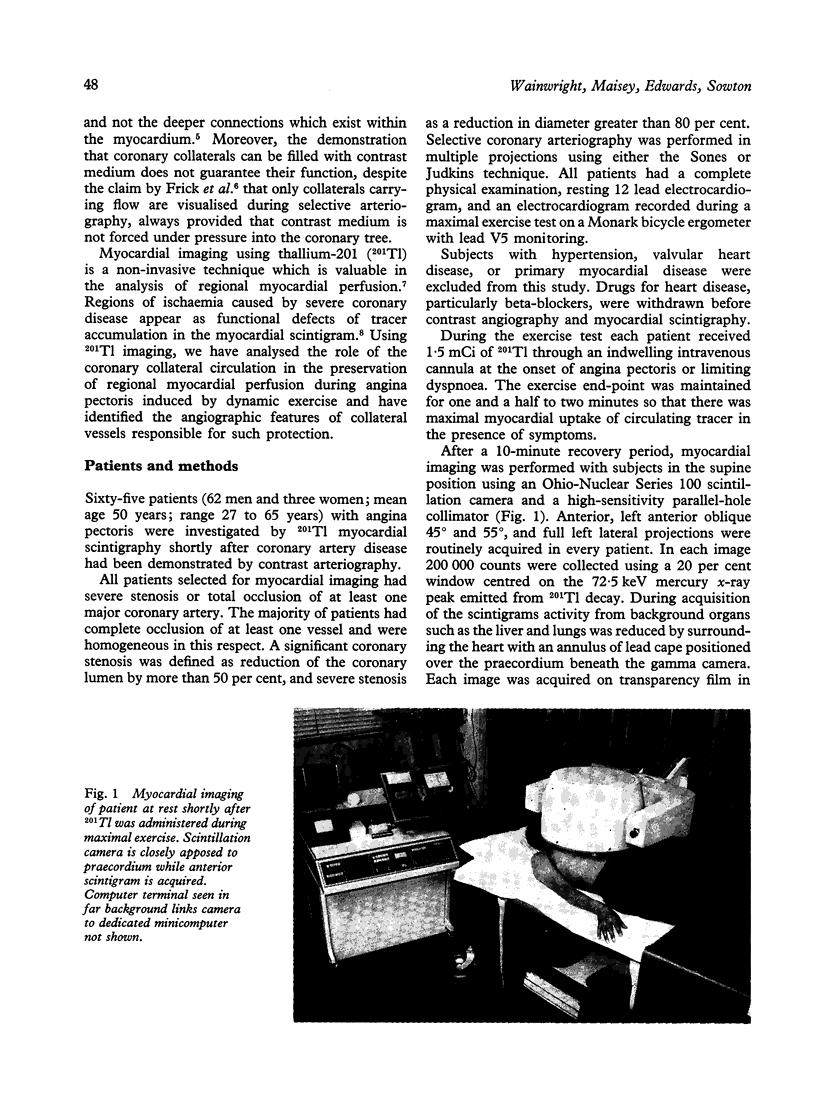

48Image
on p.48
49Image
on p.49

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. BAROLDI G., MANTERO O., SCOMAZZONI G. The collaterals of the coronary arteries in normal and pathologic hearts. Circ Res. 1956 Mar;4(2):223–229. doi: 10.1161/01.res.4.2.223. [DOI] [PubMed] [Google Scholar]
  2. Frick M. H., Valle M., Korhola O., Riihimäki E., Wiljasalo M. Analysis of coronary collaterals in ischaemic heart disease by angiography during pacing induced ischaemia. Br Heart J. 1976 Feb;38(2):186–196. doi: 10.1136/hrt.38.2.186. [DOI] [PMC free article] [PubMed] [Google Scholar]
  3. Gensini G. G., Bruto da Costa B. C. The coronary collateral circulation in living man. Am J Cardiol. 1969 Sep;24(3):393–400. doi: 10.1016/0002-9149(69)90434-2. [DOI] [PubMed] [Google Scholar]
  4. Gregg D. E. The natural history of coronary collateral development. Circ Res. 1974 Sep;35(3):335–344. doi: 10.1161/01.res.35.3.335. [DOI] [PubMed] [Google Scholar]
  5. Harris C. N., Kaplan M. A., Parker D. P., Aronow W. S., Ellestad M. H. Anatomic and functional correlates of intercoronary collateral vessels. Am J Cardiol. 1972 Nov 8;30(6):611–614. doi: 10.1016/0002-9149(72)90597-8. [DOI] [PubMed] [Google Scholar]
  6. Helfant R. H., Vokonas P. S., Gorlin R. Functional importance of the human coronary collateral circulation. N Engl J Med. 1971 Jun 10;284(23):1277–1281. doi: 10.1056/NEJM197106102842301. [DOI] [PubMed] [Google Scholar]
  7. James T. N. The delivery and distribution of coronary collateral circulation. Chest. 1970 Sep;58(3):183–203. doi: 10.1378/chest.58.3.183. [DOI] [PubMed] [Google Scholar]
  8. Knoebel S. B., McHenry P. L., Phillips J. F., Pauletto F. J. Coronary collateral circulation and myocardial blood flow reserve. Circulation. 1972 Jul;46(1):84–94. doi: 10.1161/01.cir.46.1.84. [DOI] [PubMed] [Google Scholar]
  9. Ramo B. W., Peter R. H., Ratliff N., Kong Y., McIntosh H. D., Morris J. J., Jr The natural history of right coronary arterial occlusion in the pig. Comparison with left anterior descending arterial occlusion. Am J Cardiol. 1970 Aug;26(2):156–161. doi: 10.1016/0002-9149(70)90774-5. [DOI] [PubMed] [Google Scholar]
  10. SPAIN D. M., BRADESS V. A., IRAL P., CRUZ A. Interecoronary anastomotic channels and sudden unexpected death from advanced coronary atherosclerosis. Circulation. 1963 Jan;27:12–17. doi: 10.1161/01.cir.27.1.12. [DOI] [PubMed] [Google Scholar]
  11. Strauss H. W., Harrison K., Langan J. K., Lebowitz E., Pitt B. Thallium-201 for myocardial imaging. Relation of thallium-201 to regional myocardial perfusion. Circulation. 1975 Apr;51(4):641–645. doi: 10.1161/01.cir.51.4.641. [DOI] [PubMed] [Google Scholar]
  12. Vineberg A., Zamora B. Revascularization of the right ventricular myocardium via right coronary arterial system by right internal mammary artery implantation. Am J Cardiol. 1968 Aug;22(2):218–226. doi: 10.1016/0002-9149(68)90227-0. [DOI] [PubMed] [Google Scholar]
