. 1975 Sep;37(9):917–923. doi: 10.1136/hrt.37.9.917

Hypertrophic obstructive cardiomyopathy. Assessment by echocardiographic and Doppler ultrasound techniques.

D R Boughner, R L Schuld, J A Persaud
PMCID: PMC482898  PMID: 1103912

Abstract

Hypertrophic obstructive cardiomyopathy is a disease of the myocardium that can be assessed echocardiographic and transcutaneous Doppler ultrasound techniques. Four patients are presented with various patterns of the disease, and the frequently familial incidence is illustrated. The importance of ultrasonic evidence for asymmetric septal hypertrophy in all stages is emphasized and evidence of reduced septal contractility demonstrated. Abnormalities of mitral valve motion, slow diastolic closure rate and systolic anterior movement of the anterior leaflet, are shown in the obstructive form of the disease. Also partial mid-systolic aortic valve closure and aortic cusp flutter are shown with outflow obstruction. The outflow tract gradient can be calculated from mitral valve to septum systolic distances. Transcutaneous Doppler ultrasound shows a normal aortic velocity pattern in nonobstructive disease while consistent abnormalities are present with severe resting obstruction. Isoprenaline can be used to alter the normal velocity pattern associated with a minimal resting gradient to an abnormal pattern indicating the development of significant obstruction.

Full text

PDF
917

Images in this article

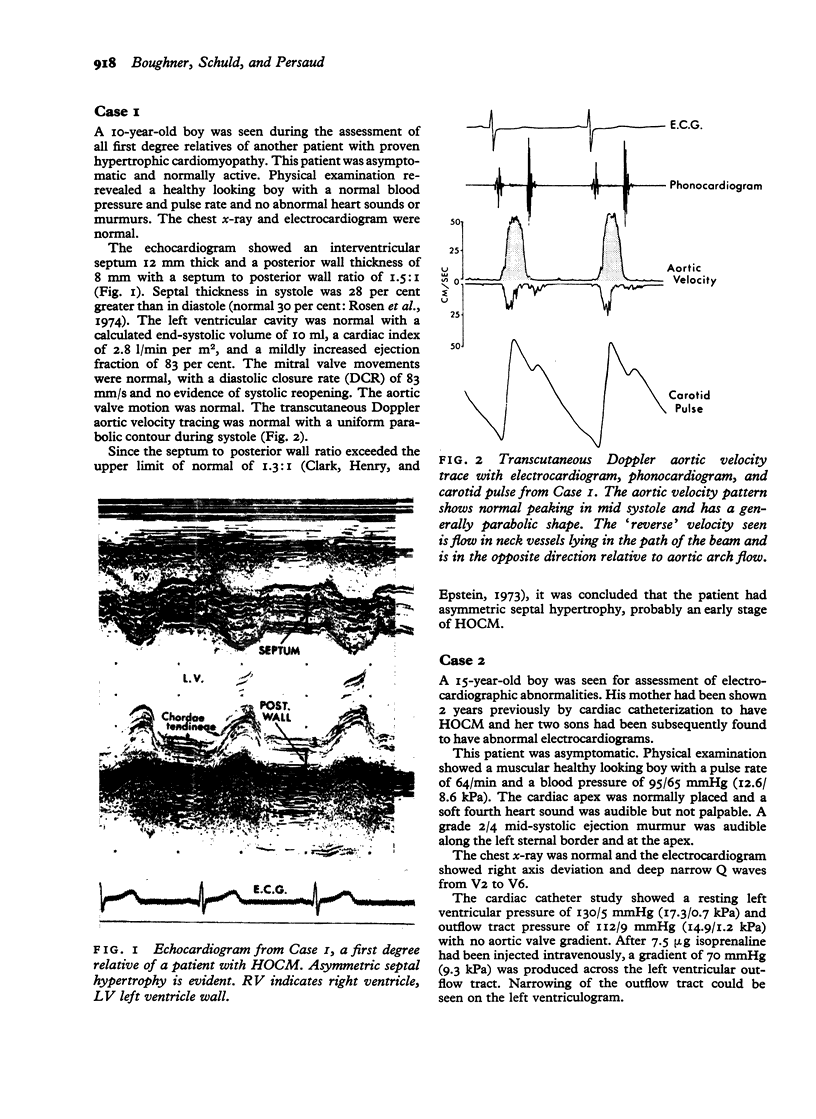

918Image
on p.918
919Image
on p.919
920Image
on p.920
920Image
on p.920
921Image
on p.921
922Image
on p.922

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Clark C. E., Henry W. L., Epstein S. E. Familial prevalence and genetic transmission of idiopathic hypertrophic subaortic stenosis. N Engl J Med. 1973 Oct 4;289(14):709–714. doi: 10.1056/NEJM197310042891402. [DOI] [PubMed] [Google Scholar]
  2. Feigenbaum H. Clinical applications of echocardiography. Prog Cardiovasc Dis. 1972 May;14(6):531–558. doi: 10.1016/0033-0620(72)90007-2. [DOI] [PubMed] [Google Scholar]
  3. HERNANDEZ R. R., GREENFIELD J. C., Jr, MCCALL B. W. PRESSURE-FLOW STUDIES IN HYPERTROPHIC SUBAORTIC STENOSIS. J Clin Invest. 1964 Mar;43:401–407. doi: 10.1172/JCI104924. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Henry W. L., Clark C. E., Epstein S. E. Asymmetric septal hypertrophy. Echocardiographic identification of the pathognomonic anatomic abnormality of IHSS. Circulation. 1973 Feb;47(2):225–233. doi: 10.1161/01.cir.47.2.225. [DOI] [PubMed] [Google Scholar]
  5. Henry W. L., Clark C. E., Glancy D. L., Epstein S. E. Echocardiographic measurement of the left ventricular outflow gradient in idiopathic hypertrophic subaortic stenosis. N Engl J Med. 1973 May 10;288(19):989–993. doi: 10.1056/NEJM197305102881903. [DOI] [PubMed] [Google Scholar]
  6. Henry W. L., Clark C. E., Roberts W. C., Morrow A. G., Epstein S. E. Differences in distribution of myocardial abnormalities in patients with obstructive and nonobstructive asymmetric septal hypertrophy (ASH). Echocardiographic and gross anatomic findings. Circulation. 1974 Sep;50(3):447–455. doi: 10.1161/01.cir.50.3.447. [DOI] [PubMed] [Google Scholar]
  7. Joyner C. R., Harrison F. S., Jr, Gruber J. W. Diagnosis of hypertrophic subaortic stenosis with a Doppler velocity flow detector. Ann Intern Med. 1971 May;74(5):692–696. doi: 10.7326/0003-4819-74-5-692. [DOI] [PubMed] [Google Scholar]
  8. King J. F., DeMaria A. N., Reis R. L., Bolton M. R., Dunn M. I., Mason D. T. Echocardiographic assessment of idiopathic hypertrophic subaortic stenosis. Chest. 1973 Dec;64(6):723–731. doi: 10.1378/chest.64.6.723. [DOI] [PubMed] [Google Scholar]
  9. Light L. H. Non-injurious ultrasonic technique for observing flow in the human aorta. Nature. 1969 Dec 13;224(5224):1119–1121. doi: 10.1038/2241119a0. [DOI] [PubMed] [Google Scholar]
  10. Popp R. L., Silverman J. F., French J. W., Stinson E. B., Harrison D. C. Echocardiographic findings in discrete subvalvular aortic stenosis. Circulation. 1974 Feb;49(2):226–231. doi: 10.1161/01.cir.49.2.226. [DOI] [PubMed] [Google Scholar]
  11. Shah P. M., Gramiak R., Adelman A. G., Wigle E. D. Role of echocardiography in diagnostic and hemodynamic assessment of hypertrophic subaortic stenosis. Circulation. 1971 Nov;44(5):891–898. doi: 10.1161/01.cir.44.5.891. [DOI] [PubMed] [Google Scholar]
  12. WIGLE E. D., HEIMBECKER R. O., GUNTON R. W. Idiopathic ventricular septal hypertrophy causing muscular subaortic stenosis. Circulation. 1962 Sep;26:325–340. doi: 10.1161/01.cir.26.3.325. [DOI] [PubMed] [Google Scholar]
