Implications of human TRPM8 channel gating from menthol binding studies of the sensing domain

Abstract

The transient receptor potential melastatin 8 (TRPM8) ion channel is the primary cold sensor in humans. TRPM8 is gated by physiologically relevant cold temperatures and chemical ligands that induce cold sensations, such as the analgesic compound menthol. Characterization of TRPM8 ligand-gated channel activation will lead to a better understanding of the fundamental mechanisms that underlie TRPM8 function. Here, the direct binding of menthol to the isolated hTRPM8 sensing domain (transmembrane helices S1–S4) is investigated. These data are compared with two mutant sensing domain proteins, Y745H (S2 helix) and R842H (S4 helix), which have been previously identified in full length TRPM8 to be menthol insensitive. The data presented herein show that menthol specifically binds to the wild type, Y745H, and R842H TRPM8 sensing domain proteins. These results are the first to show that menthol directly binds to the TRPM8 sensing domain and indicates that Y745 and R842 residues, previously identified in functional studies as crucial to menthol sensitivity, do not affect menthol binding but instead alter coupling between the sensing domain and the pore domain.

Graphical abstract

The human transient receptor potential melastatin 8 (hTRPM8) ion channel is one of the 27 human TRP channels which have diverse roles in physiology.^1–3 Specifically, hTRPM8 is activated at low temperatures (<25 °C) and functions as the primary cold sensor in humans.^{4, 5} This non-selective cation channel is also involved in pain sensation, regulation of thermogenesis, and is upregulated in various types of tumors such as prostate, breast, colon, lung, and skin cancers.^6–10 As a result, hTRPM8 has been advocated as a target for therapeutic intervention as illustrated by ongoing preclinical trials of hTRPM8 modulators.^11–13 Human TRPM8 is polymodally modulated by various stimuli including temperature, voltage, chemical ligands, lipids, and accessory proteins.^14–22 Out of the chemical agonists, menthol is most well-known to significantly activate hTRPM8 (Figure 1). Currently the molecular mechanism of hTRPM8 activation by distinct stimuli including menthol is not fully understood.

Figure 1.

Representative whole cell patch clamp recording of a HEK-293 cell heterologously expressing hTRPM8 ion channel. Compared to the initial response in absence of menthol (empty squares), a significant increase in current is observed upon addition of 0.5 mM menthol to the bath solution (green circles). When menthol is depleted, the current level decreases to that of the initial response (red triangles). Menthol interacts with the sensing domain (SD, helices S1–S4), whereby the binding event is coupled to the pore domain (PD, S5–S6) which gates the channel.

TRP channels are composed of a six transmembrane (TM) α-helical architecture similar to voltage-gated potassium (Kv) channels, such that the first four TM helices (S1–S4) constitute the sensing domain (SD) and the fifth and sixth helices make up the pore domain (PD, S5–S6). Similar to the Kv Channels, TRP channels are tetramers with a centrally located pore and four flanking sensing domains.^23–25 Previously reported electrophysiology and calcium imaging studies show that mutations in the SD affect ligand-dependent channel activation of TRPM8 and other TRP channels.^{18, 26–28} For example, high-throughput random mutagenesis studies of mouse TRPM8 showed that Y745 in S2 is crucial for menthol-dependent channel opening.^{26, 29} Similarly, various TRPM8 residues (R842, H845, R851, K856 and R862) in S4 and the S4–S5 linker affect both the voltage and temperature activation of the channel. A specific mutant among these residues, R842H, has been reported to significantly decrease menthol affinity resulting in attenuated TRPM8 menthol-dependent currents.³⁰

To understand the role of the SD in menthol dependent TRPM8 gating, the hTRPM8-SD was heterologously produced from E. coli. After screening various expression, purification, and solubilization conditions, milligram quantities of hTRPM8-SD can be produced. Various biophysical techniques, including solution nuclear magnetic resonance spectroscopy (NMR), far-UV circular dichroism (CD), and microscale thermophoresis (MST), were used to directly detect hTRPM8-SD–menthol interactions. Furthermore, previously reported menthol insensitive mutations, Y745H and R842H, were subjected to binding studies, which provide additional insight into TRPM8 ligand-dependent gating.^{26, 30}

EXPERIMENTAL PROCEDURES

Identification of the hTRPM8-SD

PSIPRED³¹, JPRED³², and JUFO 3D³³ secondary structure algorithms were used in conjunction with TMHMM³⁴, MEMSAT3³⁵, MEMSAT-SVM³⁶, TMpred³⁷, HMMTOP³⁸, SOSIU³⁹, TopPred⁴⁰, and TMMOD⁴¹ transmembrane prediction algorithms to identify consensus transmembrane helices. These bioinformatics results were then compared with JUFO9D³³. Separately, structural-based sequence alignments of the following S1–S4 protein domains from TRPV1²³, Kv1.2⁴², Kv1.2/2.1 chimera²⁴, KvAP⁴³, Ci-VSP⁴⁴, Hv1⁴⁵, MlotiK⁴⁶, and NavAb⁴⁷ were generated with MUSTANG⁴⁸ to produce a multiple sequence alignment. TRPM8 was then aligned to the structural-based sequence alignment with Clustal Omega⁴⁹ which was analyzed and adjusted manually in ALINE⁵⁰ to enhance agreement with the independent transmembrane and secondary structure predictions. The consensus from these studies indicates that the S0 helix (an amphipathic helix at the N-terminus of the S1 transmembrane helix) begins near Val674 and the S4 helix terminates near Pro855. Given that proline residues often indicate a break in secondary structure, the TRPM8-SD construct used in these studies includes residues Pro672 through Pro855 (Figure 2A). The identity of the TRPM8 sensing domain arrived at by these bioinformatics tools is consistent with other published studies that identify specific regions of the TRPM8-SD.^{30, 51}

Figure 2.

Transmembrane topology and NMR and CD spectra of the hTRPM8-SD. (A) The hTRPM8-sensing domain (TRPM8-SD) transmembrane topology depicting helices S1 to S4 composed of residues 672 to 855 from the full length human TRPM8 ion channel (Uniprot code : Q7Z2W7). Previously identified menthol sensitive sites, Y742 and R842, are highlighted in blue. The residues and topology that constitute the hTRPM8-SD were identified by bioinformatics as described in the experimental procedures section. (B) Optimized ¹H-¹⁵N-TROSY HSQC NMR spectrum and, (C) CD spectrum of purified hTRPM8-SD in LPPG micelle at pH 6.0 and 45 °C are consistent with a folded helical protein.

Construction of pET16b-10×His-hTRPM8-SD

The pJ vector encoding the SD of hTRPM8 carrying an N-terminal 6×His tag purchased from DNA 2.0 and was modified to include a 10×His tag and thrombin cleavage site (TCS). The following primers which included NcoI / BamHI restriction sites (bold) were used to amplify the hTRPM8-SD gene: forward primer (5’- AGATATACCATGGGTCATCATCACCATCATCACCACCATCATCACGGCTTAG-3’) and reverse primer (5’-CAGCCGGATCCTCGAGTTACGGACCCAGGTTAC-3’). The NcoI and BamHI restriction sites were used to subclone the 10×His-TCS-hTRPM8-SD into the pET16b vector resulting in hTRPM8-SD with a thrombin cleavable N-terminal 10×His tag. Y745H- and R842H-hTRPM8-SD were prepared using site-directed mutagenesis. All genes were sequence verified.

Expression and Purification

To optimize the overexpression of hTRPM8-SD, the pET16b-10×His-TCS-hTRPM8-SD construct was transformed into the following E. coli expression cell lines: BL21 (DE3), BL21 (DE3) Star, BL21-Codon-Plus (DE3) RP, Rosetta 2 (DE3), C41 (DE3), C43 (DE3)-Rosetta 2 and BL21 (DE3) pLysS. Human TRPM8-SD expression was tested at three temperatures (18 °C, 25 °C and 37 °C) and three isopropyl β-D-1-thiogalactopyranoside (IPTG) concentrations (0.25, 0.5 and 1.0 mM) in M9 minimal media. The composition of M9 media per liter was as follows: 6 g/L Na₂HPO₄·7H₂O (Fisher Scientific), 3 g/L KH₂PO₄ (Fisher Scientific), 0.5 g/L NaCl (Fisher Scientific), 1 g/L NH₄Cl (Sigma Aldrich), 4 g/L Glucose (Sigma), 2 mM Mg(SO₄)₂, 0.1 mM CaCl₂, 0.01 mM metals mix (FeCl₃, CuSO₄, MnSO₄, and ZnSO₄). A slot-blot apparatus (Bio-Rad) was used to detect hTRPM8-SD overexpression levels by applying an optical density (OD_600nm) normalized quantity of whole cell lysate to a nitrocellulose membrane by vacuum, followed by detection with anti(His)₅ antibody (Abgent). BL21 (DE3) produced the highest quantity of hTRPM8-SD and were used in subsequent studies. For liter scale expression, 10 mL of primary culture grown at 37 °C overnight was used to inoculate 1 L of M9 media, and the cultures were then grown at 18 °C. Induction was initiated at an OD_{600 nm} of 0.6 to 0.7 with 0.25 mM IPTG for 32 h at 18 °C.

Cells expressing hTRPM8-SD were harvested by centrifugation at 5000 × g for 15 min at 4 °C and washed with buffer A (50 mM Tris-Cl, pH 7.8, 300 mM NaCl). The washed cell pellet was resuspended and homogenized in a volume of 15 mL per gram of cell pellet in buffer A. This was followed by addition of 0.2 mg/mL Lysozyme, 0.02 mg/mL DNase and 0.02 mg/mL RNase, 5 µL of 0.1 M PMSF and 10 µL of 0.5 M magnesium acetate per mL of buffer A. The resolubilized cell pellet solution was tumbled at room temperature for 30 min. Cell lysis was completed by ultrasonication (Misonix, S-4000 Ultrasonic Processor from Qsonica, LLC) for 7 min with a 50% duty cycle of 5 sec on / 5 sec off. Empigen (N,N-Dimethyl-N-dodecylglycine betaine, Sigma Aldrich) was then added to the cell lysate to a final concentration of 3% (v/v) and tumbled at room temperature for 1 h to extract the protein. This was followed by centrifugation at 18,000 × g for 30 min. The pH of the supernatant after centrifugation was adjusted to 7.8 with 1 M NH₄OH. The supernatant was incubated with pre-equilibrated Ni²⁺-loaded NTA resin (Qiagen, 0.75 mL resin per 50 mL lysate) in buffer A containing 1% Empigen. The resin bound protein was washed with 15 column volumes of 40 mM imidazole in buffer A containing 1% (v/v) Empigen until the A_280nm returned to baseline. Empigen was exchanged to a more suitable membrane mimic with at least 15 column volumes of buffer B (25 mM sodium phosphate, pH 7.8) containing an appropriate detergent (0.25% w/v for DPC and DHPC, or 0.2% w/v for TDPC, SDS, LMPC, LMPG, LPPC and LPPG, or 0.46% LDAO). Finally hTRPM8-SD was eluted with 500 mM imidazole in 8 mL of buffer B containing the desired detergent. Purification results were verified using 14% SDS-PAGE followed by Coomassie blue staining.

The eluted protein from Ni²⁺-NTA column purification was buffer exchanged by ultrafiltration using 10 kD cut-off Amicon Ultra-15 centrifugal filter (Millipore) with five iterations of 3 mL dilution to exchange the buffer to thrombin cleavage buffer (Buffer B containing 150 mM NaCl and 1 mM CaCl₂). Restriction grade thrombin (Novagen) at 2 U/mg of hTRPM8-SD was used to cleave the N-terminal 10×His tag from hTRPM8-SD. The cleavage reaction was carried out at room temperature with continuous tumbling for 24 h and >90% cleavage efficiency was observed by SDS-PAGE analysis. The thrombin cleaved protein was incubated with 0.5 mL of Ni²⁺-NTA resin for 2 h and flowed over the column to eliminate the uncleaved 10×His-hTRPM8-SD. Cleaved hTRPM8-SD was obtained in the flow-through. This thrombin cleaved hTRPM8-SD was approximately 80% pure and was further purified by gel filtration using a 33 cm XK 16 Superdex S200 column (GE Healthcare) pre-equilibrated with 25 mM sodium phosphate, pH 6.0 containing 0.5 mM EDTA and 0.1% LPPG. The purity and homogeneity of the hTRPM8-SD was verified with 14% Tris-glycine SDS-PAGE followed by Coomassie blue staining. The purified protein was further analyzed by trypsin digestion and LC-MS/MS mass spectrometry (MS Bioworks), which produced 11 hTRPM8-SD exclusive unique peptides with sequence coverage of 40%. Peptides from both the N- and C-termini of the SD were detected, indicating that full SD was expressed and purified. The final sequence of the expressed protein includes residues Pro672 through Pro855 from human TRPM8 and an N-terminal Gly-Ser dipeptide that remains after thrombin cleavage. The resulting purified hTRPM8-SD was used for NMR, CD and MST studies.

Optimization of NMR Conditions

For preparation of ¹⁵N-labeled hTRPM8-SD, overexpression was carried out by supplementing the M9 media with ¹⁵NH₄Cl (Cambridge Isotope Laboratories, Inc). A number of detergents were used to identify a suitable membrane mimic that produced high quality NMR spectra and specifically bound the TRPM8 agonist menthol. The impact of the membrane mimic on hTRPM8-SD was evaluated by ¹H-¹⁵N TROSY-HSQC data as judged by the proton dimension dispersion, number of total resonances, and quantifying the glycine backbone and tryptophan side chain resonances. Various pH values from 5.0–7.8 and temperatures from 15–55 °C were also screened. In addition, a few less common membrane mimics were evaluated including, mixed micelles (equimolar ratio of LPPG/DHPC and LPPG/DPC) and Amphipol A 8–35. Unless otherwise mentioned all NMR spectra were recorded on a Bruker 850 MHz ¹H Avance III HD spectrometer with a 5mm TCI cryoprobe. The data were processed in NMRPipe⁵² and analyzed in CcpNmr.⁵³

NMR-detected Menthol Binding Studies

Menthol titrations of the hTRPM8-SD were followed by ¹⁵N TROSY-HSQC NMR experiments carried out in a 3 mm tube (180 µL volume), in 25 mM sodium phosphate buffer, pH 6.0. The protein concentration was 270 µM with LPPG concentrations of approximately 80 mM. Menthol and the TRPM8 SD are both hydrophobic, and are found to interact in vivo within the hydrophobic context of the membrane lipid bilayer. Therefore, the most accurate and appropriate units to represent the affinity of TRPM8 for menthol is as a mole percent of the constituents of the membrane mimic in which it is reconstituted, where mole percent is equal to:

$$\mathit{\text{Mol}}\%=\left[\frac{\mathit{\text{Menthol (moles)}}}{[\mathit{\text{Menthol (moles)}}+\mathit{\text{LPPG (moles)}}+{\mathit{\text{hTRPM}}8}_{\mathit{\text{SD}}}\mathit{\text{(moles)}}]}\right]·100\%$$

Molarity in this case poorly describes the concentration of menthol because it depends on the volume of the solution. However, menthol is sparingly soluble in aqueous solutions (~0.49 mg/mL) as it is predominantly partitioned to the micelle mimic. A simulated menthol partition constant between octanol and water (log P_ow = 3.2, Advanced Chemistry Development/ Labs Percepta Predictors, I., Ed.) is consistent with published values of log P_ow = 3.3.⁵⁴ These partition constants indicate that for every menthol molecule in the aqueous environment there are approximately 2000 in the membrane mimic. Given this, using units of molarity are not reflective of the molecular environment because the solubility of menthol primarily depends on the concentration of membrane mimic and not the volume of solution. As a result, we prefer the more accurate and commonly used units for membrane proteins of mole percent when expressing binding affinities for lipophilic ligands. We note that this has been done in other hydrophobic ligand/membrane protein interaction studies.^{55, 56} Hence, to observe the interaction between menthol and Y745H-, R842H- and hTRPM8-SD, menthol titration experiments were carried out by acquiring ¹H-¹⁵N TROSY NMR spectra at 45 °C with various menthol concentrations ranging from zero to ten mole percent.

The observed resonance chemical shift perturbation (Δδ) upon titration with menthol was monitored according to the following equation:

$$\mathrm{\Delta }\mathrm{\delta }={[{(\mathrm{\Delta }{\mathrm{\delta }}_{\mathrm{H}})}^2+(0.2{(\mathrm{\Delta }{\mathrm{\delta }}_{\mathrm{N}})}^2)]}^{1/2}$$

where Δδ_H and Δδ_N are the proton and nitrogen chemical shift position differences between the initial titration point (0 mol% menthol) and a given menthol concentration for a given resonance. For a number of resonances, when Δδ values were plotted as a function of menthol concentration, saturable binding isotherms were detected, indicating that the hTRPM8-SD specificly binds menthol. The dissociation constant, K_d was calculated by fitting (SigmaPlot) the curve with the following single site binding equation:

$$f(x)={(\mathrm{\Delta }\mathrm{\delta })}_{\mathit{\text{max}}}(x)/(K_d+x)$$

Where, (Δδ)_max is maximum chemical shift perturbation, x is the mol% of menthol, and f(x) is correlated to the absolute value of the change in chemical shift.

Far-UV Circular Dichroism (CD) Spectroscopy

CD spectra were recorded using a temperature controlled JASCO J710 spectropolarimeter. 10 µM hTRPM8-SD in 25 mM sodium phosphate, 0.5 mM EDTA and 0.1% LPPG at pH 6.0 were used for the CD measurements. CD spectra were acquired at 45 °C in the far-UV (190 −250 nm) region with standard 100 mDeg sensitivity with a data pitch of 0.5 nm and scanning speed of 50 nm per minute. Additional CD spectra were also recorded at pH 7.36 to verify that the protonation state of the histidine imidazole side chains in the Y745H and R842H SD mutations did not affect menthol binding. All spectra were signal averaged over 5 scans and represented as mean residue ellipticity (MRE) in deg·cm²·dmol⁻¹.

To study the effect of menthol on the qualitative change in secondary structure of Y745H-, R842H- and hTRPM8-SD, CD spectra were recorded in the absence and presence of 10 mole % menthol (stock menthol was prepared in 50% ethanol). Blank measurements were carried out by either buffer alone or buffer containing 10 mole % menthol, which does not produce significant absorbance in the far-UV region.

Microscale Thermophoresis (MST) Menthol Binding Assay

MST was carried out on a monolith NT.115 series instrument (NanoTemper Technologies GmbH). NT-647 based maleimide dye was prepared as a stock solution in 25% DMSO (v/v) and standard treated capillaries were purchased from NanoTemper Technologies GmbH. For protein labeling, hTRPM8-SD carrying the 10×His tag was reacted with the fluorescent label in 1:1 mole ratio and incubated overnight at room temperature. To eliminate the free non-reacted NT-647 label, the protein-dye reaction mixture was incubated with 200 µL of Ni²⁺-NTA resin for 2 h at room temperature and was further washed with 20 mL (100 column volumes) of 25 mM sodium phosphate, pH 7.8 and 50 mM NaCl. The fluorescently labeled hTRPM8-SD was eluted with 500 mM imidazole and the 10×His tag was then cleaved with thrombin as described above. To validate the interaction between menthol and hTRPM8-SD, various concentrations of menthol or WS-12 (a potent TRPM8 agonist menthol derivative) with hTRPM8-SD were prepared by serial dilution. The protein-agonist mixtures were transferred to the capillaries and thermophoresis was measured at 45 °C with the LED and MST power both set to 75%, 30 s MST on, with 5 s fluorescence recording before and after applying MST and with a delay of 25 s between each measurement. MST experiments were performed in triplicate and the average data were plotted with the error calculated as the standard error of mean (SEM).

Cell Culture and Electrophysiology Measurements

Human embryonic kidney (HEK) 293 cells (ATCC CRL-1573) were cultured in Dulbecco’s modified Eagle’s medium (DMEM) supplemented with 10% fetal bovine serum, 100 U/mL penicillin-streptomycin, and 2 mM L-glutamine (Gibco). Cells were cultured in 35 mm polystyrene dishes (Falcon) at 37 °C in the presence of 5% CO₂. Cells were transiently co-transfected with hTRPM8 in a pIRES2-EGFP vector. This construct expresses bicistronic mRNA with an internal ribosome entry site positioned between hTRPM8 and the EGFP (Enhanced Green Fluorescent Protein) reporter gene such that the reporter is not covalently fused to the protein of interest. Transfection was achieved using Fugene 6 transfection reagent (Promega) and 0.5 µg of plasmid at a ratio of 1 µL transfection reagent per µg DNA. Cells were plated on glass coverslips for 36–48 h after transfection, and whole-cell voltage-clamp electrophysiology recordings were performed 2–5 h later.

Transfected cells were released from culture dishes by brief exposure to 0.25% trypsin/EDTA and resuspension in supplemented DMEM; cells were then plated on glass coverslips and allowed to recover for 1–2 h at 37 °C in 5% CO₂. Cells that exhibited green fluorescence indicating successful transfection were selected for electrophysiology measurements. Whole-cell voltage-clamp current measurements were performed using an Axopatch 200B amplifier (Axon Instruments) and pClamp 10.3 software (Axon Instruments). Data was acquired at 2 kHz and filtered at 1 kHz. Patch pipettes were pulled using a P-2000 laser puller (Sutter Instruments) from borosilicate glass capillaries (World Precision Instruments) and heat-polished using a MF-830 microforge (Narishige). Pipettes had resistances of 2–5 MΩ in the extracellular solution. A reference electrode was placed in a 2% agar bridge made with a composition similar to the extracellular solution. Experiments were performed at 22 ± 1 °C. Cells were placed in a chamber with extracellular solution containing 132 mM NaCl, 4.8 mM KCl, 1.2 mM MgCl₂, 2 mM CaCl₂, 10 mM HEPES, and 5 mM glucose, with pH adjusted to 7.4 using NaOH and osmolality adjusted to 310 mOsm using sucrose. Pipettes were filled with a solution containing 135 mM K⁺ gluconate, 5 mM KCl, 1 mM MgCl₂, 5 mM EGTA, and 10 mM HEPES, with pH adjusted to 7.2 with KOH, and osmolality adjusted to 300 mOsm using sucrose. Osmolality was measured using a Vapro 5600 vapor pressure osmometer (Wescor). For menthol perfusion, a stock solution was prepared by dissolving menthol in ethanol at a concentration of 100 mg/mL and diluted to specified concentrations with extracellular solution. Solutions were perfused across cells at a flow rate of ~0.5 mL/min.

RESULTS

Optimization of hTRPM8-SD Expression, Purification, and NMR Conditions

hTRPM8-SD expression was optimized from different E. coli strains with the highest expression level observed from the BL21 (DE3) cell line. hTRPM8-SD was primarily localized to inclusion bodies and after subsequent whole cell lysate extraction using 3% Empigen, purification using Ni-NTA affinity chromatography, thrombin cleavage, and size exclusion chromatography in various detergent micelles resulted in an average yield of 0.75 mg of purified protein per liter of M9 culture (Figure S1). After screening various NMR suitable detergents, poor quality ¹H-¹⁵N TROSY-HSQC spectra were obtained in DPC, TDPC, LPPC, LMPG, LMPC and LDAO as assessed by the fact that <50% of the expected backbone resonances were detected (Figure S2). However, a comparatively better ¹H-¹⁵N TROSY-HSQC spectrum was obtained in LPPG micelles, which contained the expected number of back bone resonances, the expected six tryptophan indole side chain resonances, and good resolution and dispersion.

The use of mixed micelles has been shown in some cases to enhance the quality of NMR spectra of membrane proteins.^57–59 Applied to hTRPM8-SD using LPPG/DPC or LPPG/DHPC mixed micelles, the data suggest that the mixed micelles potentially stabilize some parts of hTRPM8-SD as evidenced by higher resolution and better resonance dispersion in the central part of the ¹H-¹⁵N TROSY-HSQC spectrum; however, four out of six tryptophan side chain indole amine resonances disappeared, indicative of increased flexibility in other parts of the protein (Figure S2). In addition to optimization of the membrane mimic, the effect of pH and temperature on the quality of ¹H-¹⁵N TROSY-HSQC spectrum was probed. On the basis of the expected number of well dispersed resonances, the quality of the NMR spectrum was best at pH 6.0 and at 45 °C and subsequently used for further NMR studies (Figure 2B). The narrow dispersion of hTRPM8-SD resonances over ¹H chemical shift of 7 to 9 ppm is consistent with folded helical membrane protein. The far-UV CD spectrum under the same conditions had negative minima at 221 and 208 nm and a positive maximum at 195 nm consistent with a helical protein (Figure 2C).

Menthol Binding Studies of hTRPM8-SD

Functional whole-cell patch-clamp electrophysiology measurements show that hTRPM8 mediated currents are dramatically increased when cells are exposed to menthol (Figure 1). Binding studies of the purified hTRPM8-SD were carried out as a function of added menthol using NMR, CD, and MST. First, ¹H-¹⁵N TROSY-NMR experiments were recorded at different menthol concentrations and menthol-dependent chemical shift perturbation was measured. Mole percent K_d values were extracted as described above from resonances that displayed specific binding with an average value of 1.1 ± 0.2 mole% (Figure 3). The specific binding of menthol indicates that the purified hTRPM8-SD in LPPG micelles is properly folded. Second, far-UV CD experiments were carried out in the absence and presence of 10 mole% menthol. The CD data are consistent with a reduction in helical content at increased menthol concentrations as indicated by reduced MRE values at 208 and 222 nm (Figure 4A). The CD data for hTRPM8-SD in LPPG micelles are consistent with the NMR binding data that hTRPM8-SD binds to menthol, and suggests that menthol induces a change in secondary structural content. Finally, menthol binding to the hTRPM8-SD was also shown by using MST, which has been used to detect ligand binding in other membrane proteins including GPCRs and transporters.^60–63 The MST-detected K_d for menthol binding to hTRPM8-SD is 1.3 ± 0.2 mol% (Figure 5A). As a positive control, the menthol derived TRPM8 agonist, WS-12, was also subjected to binding studies by MST (Figure S3). WS-12 is reported to have an EC₅₀ value that is ~10× higher and an efficacy that is double that of menthol.⁶⁴ As such one would expect an increase in binding affinity for WS-12 relative to menthol. Figure S3 shows the expected leftward shift in the binding curve and fitting the data indicates that the WS-12 affinity is double that of menthol under identical conditions. In summary, menthol binding studies with three biophysical techniques clearly demonstrate that the heterologously expressed and purified hTRPM8-SD in LPPG micelles is properly folded and is suitable for a variety of additional studies.

Figure 3.

NMR detection of specific menthol binding to the hTRPM8-SD. ¹H-¹⁵N-TROSY NMR spectra of the hTRPM8-SD in LPPG micelles at pH 6.0 and 45 °C as a function of menthol concentration show chemical shift perturbation. A number of resonance positions shift with increased menthol concentrations (upper right), four representative resonances are highlighted in the overlaid spectra (left panel) which show saturable and menthol binding (bottom right). Fitting the chemical shift perturbations (Δδ) to a single site binding equation identify the K_d of menthol binding to the hTRPM8 SD as 1.1 ± 0.2 mole percent.

Figure 4.

CD and NMR detected menthol dependent hTRPM8-SD structural changes. CD spectra (left panels) and NMR spectra (right panels) of hTRPM8-SD (WT-SD), Y745H hTRPM8-SD, and R842H hTRPM8-SD in LPPG micelles at pH 6.0 and 45 °C with zero and 10 mole % menthol concentrations are consistent with menthol induced structural perturbation. CD spectra of the WT-SD suggest secondary structure changes of the protein upon binding to menthol. This loss of helicity is detected as a decrease in magnitude of mean residue ellipticity at 208 and 221 nm. NMR data (right panels) highlight changes in chemical shift position upon addition of menthol.

Figure 5.

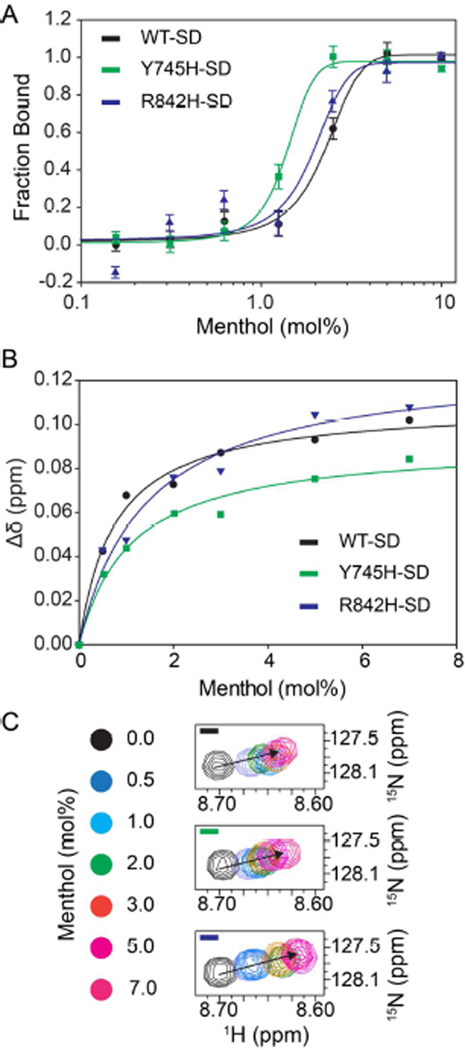

The menthol insensitive hTRPM8-SD mutants, Y745H and R842H, bind menthol specifically. (A) Microscale thermophoresis binding curves of hTRPM8-SD (WT-SD), Y745H-hTRPM8-SD and R842H-hTRPM8-SD illustrate that the menthol binds to the SD and SD mutants with similar affinity as indicated by K_d values of 1.3 ± 0.2, 1.4 ± 0.1 and 1.7 ± 0.3 mole percent respectively. (B) NMR-detected binding isotherms of hTRPM8-SD (WT-SD), Y745H-hTRPM8-SD and R842H-hTRPM8-SD validate the MST affinity measurements with K_d values of 1.1 ± 0.1, 1.1 ± 0.2 and 1.0 ± 0.1 mole percentage respectively. The NMR determined K_d values between the WT and mutant SD proteins are derived from a representative resonance (C). This resonance undergoes similar chemical shift perturbation between the three SD proteins. Taken together the Y745H and R842H mutations do not significantly alter the menthol binding affinity.

Effect of Menthol Binding on Y745H- and R842H-hTRPM8-SD Mutants

Previous TRPM8–menthol studies have identified a handful of residues critical for menthol-dependent activation of TRPM8. These studies have identified mutants by random mutagenesis and detected the functional outcomes by electrophysiology and/or calcium imaging experiments (i.e. structure-function studies). Two prominently identified menthol binding residues are Tyr745 and Arg842 from the mouse and human orthologous proteins respectively. Mutations of these residues have been reported to decrease menthol affinity and simultaneously play a significant role in TRPM8 voltage dependence and temperature sensitivity. Mutations in the hTRPM8-SD were generated in an effort to probe the direct menthol binding of these functionally identified residues. As shown in Figure 5, in the context of an isolated hTRPM8-SD, these mutations do not significantly affect menthol binding as detected by MST and NMR. Indeed, the observed binding curves are similar to the wild-type (WT) protein domain with only minor changes in K_d values. An overlay of the WT and mutant protein spectra (Figure S4) show only minor resonance changes, suggesting that these mutations at Y745 and R842 to histidine do not likely alter the overall structure of the protein domain. This interpretation is congruent with the far-CD data, in which the Y745H and R842H spectra are comparable to the wild-type (WT) domain spectrum (Figure 4). The CD spectral changes resulting from menthol binding to the TRPM8-SD are consistent at pH 6.0 and physiological pH (7.36) (Figures 4 and S5). This indicates that protonation state of the Y745H and R842H histidine imidazole side chain is not important in binding. We note that these results are congruent with previous full length TRPM8 studies which showed that menthol induced TRPM8 currents are relatively stable as a function of pH between pH values of 6.1 and 7.4.^{14, 65} Taken together, these data show that mutating the TRPM8 residues, Y745 and R842 to histidine does not significantly affect menthol binding. Moreover, the NMR, CD, and MST data show direct and specific binding to the TRPM8-SD which has implications for the menthol dependent-gating mechanism.

DISCUSSION

Dissecting the mechanism(s) of polymodal TRPM8 channel gating via diverse stimuli such as temperature, voltage, ligands, lipids and accessory proteins, is challenging. One current limitation is the ability to obtain sufficient quantities of properly folded TRPM8 for structural biology and biophysical pursuits. After screening more than 100 expression conditions including cell lines, plasmids, growth and induction temperatures, we isolated conditions that allow for production of milligram quantities of pure and stable hTRPM8-SD. The menthol binding data indicate that the E. coli produced hTRPM8-SD is in a biologically relevant state.

In the present study, we used NMR as a tool to screen a number of micelles and mixed-micelle compositions and observed the highest quality spectrum in LPPG lysolipid micelles. In LPPG micelles, hTRPM8-SD binds specifically to menthol as demonstrated using NMR, CD, and MST (Figures 3 and 5). The reconstituted protein not only binds to menthol, but it also interacts with WS-12, a potent TRPM8 agonist derived from menthol (Figure S3). It is interesting to note that lysolipid based PG detergents have also been successfully used in previous voltage-sensing domain studies of human KCNQ1 and hERG ion channels.^{66, 67} TRPM8, KCNQ1, and hERG, have all been shown to reside in lipid micro-domains, suggesting that lysolipids could be a generally suitable detergent environment for other micro-domain trafficked human ion channels.^68–70

The general topology of TRPM8 is homologous to other TRP and voltage-gated ion channels (VGICs), but unlike VGICs, the functional role of the sensing domain in TRP channels is currently not well understood. For example, in VGICs it is clear that the VSD senses and transduces a change in electrical potential into mechanical force, which gates the channel.⁷¹ Other voltage-sensing proteins, including phosphatases, share the sensing, conformational changes, and information coupling mechanisms of VSDs from VGICs. Recently, X-ray structures of the VSD from Ci-VSP highlight this mechanistic conservation with significant conformational rearrangements of the VSD, particularly with regards to the translocation of the S4 helix upon activation.⁴⁴ In contrast, cryo-EM structures of a truncated rat TRPV1 construct in the presence and absence of agonists suggest that the TRPV1-SD does not undergo appreciable conformational change, even though the primary functional determinant of capsaicin agonism has been pinpointed to residue Y511 in the S3 helix of the TRPV1 SD.^72–74

The CD and NMR data of the hTRPM8-SD are consistent with menthol induced conformational change (Figures 3 and 4) and suggest a mechanism in which hTRPM8 menthol-dependent gating is initiated in the SD. This conformational change is then coupled to the pore domain leading to menthol induced activation (Figure 6). This indicates that the mechanism of menthol activation of TRPM8 may be distinct from capsaicin activation of TRPV1. Further biophysical and structural studies will be required to distinguish the differences and similarities of ligand-based TRPM8 and TRPV1 gating.

Figure 6.

Mechanistic model of menthol activated hTRPM8 channel gating. TRPM8 ligand activation is at least a two-step mechanism, where menthol dependent gating is initiated in the sensing domain (blue, middle panel) where via conformational changes, the binding information is subsequently coupled to the pore domain resulting in channel opening (bottom panel). The Y745H and R842H SD mutations are menthol binding competent, but affect the ability of TRPM8 to couple menthol binding to the resulting conformational change in the pore domain (green) that in turn activates the channel.

Previous studies have suggested that menthol binding of the channel is dependent on the residues Y745 and R842.^{26, 30} In this study, we have shown that individually mutating these residues in the sensing domain does not appreciably alter the TRPM8-SD affinity for menthol (Figures 4 and 5). Previous TRPM8 menthol binding studies have been indirect, where ion conductance is monitored as a function of menthol concentration. To our knowledge, the data presented here are the first to show directly measured TRPM8 affinities, whereas previous studies measure an apparent menthol affinity (EC₅₀). EC₅₀ is an indirect measure of agonist affinity that depends on multiple mechanistic steps. For ligand activated processes, like menthol induced TRPM8 currents, EC₅₀ values measure information that depends on at least two equilibrium constants. One equilibrium constant that reports on ligand binding and a second that depends on a conformational change (gating) that leads to channel activation (coupling).⁷⁵ For a simple two-step mechanism we expect the following:

$$A+R\rightleftharpoons \mathit{\text{AR}}\rightleftharpoons {\mathit{\text{AR}}}^{*}$$

Where menthol (A) and TRPM8 (R) bind to form the inactive complex (AR); this binding event is coupled from the TRPM8-SD to the PD which undergoes a conformational change resulting in the active state (AR*). In structure-function studies, the current is measured relative to the agonist concentration and determines the apparent menthol affinity (EC₅₀). The mechanistic steps can be written in terms of equilibrium constants, K_d, the dissociation constant, which describes menthol binding and E, which is a measure of the coupling to conformational change. These equilibrium constants are defined as: $K_d=\frac{\left[A\right]\left[R\right]}{\left[\mathit{\text{AR}}\right]}\text{and}E=\frac{\left[{\mathit{\text{AR}}}^{*}\right]}{\left[\mathit{\text{AR}}\right]}$ from the equation above. For a simple two-step menthol activation mechanism, the apparent affinity from structure-function measurements is:

$${\mathit{\text{EC}}}_{50}=\frac{K_d}{1+E}$$

In the current work, the K_d is directly measured with various biophysical techniques, and as is noted in the preceding equation, affinity and apparent affinity are proportional but not equal to each other. This makes direct comparisons between the current and previous menthol binding studies challenging.⁷⁵ It is noted that in reality the menthol agonism of TRPM8 is likely more complex mechanistically than the simple mechanism shown above, making the relationship between affinity and apparent affinity more opaque. Additional issues that complicate comparisons between the direct and apparent menthol affinities include the tetrameric nature and presumed cooperativity in TRPM8 menthol activation and the fact that the hTRPM8-SD lacks the TRPM8 S4–S5 linker and pore domain which may impact the absolute menthol affinity. Nonetheless, the simple two-step mechanism is useful in illustrating the relationship between the data presented here and existing data in the literature.

Heterologously produced hTRPM8-SD specifically binds menthol. These data show that ligand binding and channel gating are likely coupled mechanistically via conformational change in the hTRPM8-SD, and that R842 and Y745 are not integral to the affinity for menthol, but instead must play a role in coupling. The resulting mechanistic picture that emerges is that TRPM8-SD binds to menthol and the structural coupling that results in gating are independent processes. Elucidation of this mechanism will be benefited with high-resolution structural data in the absence and presence of menthol, which should be an achievable goal.
