A putative Leishmania DNA polymerase theta protects the parasite against oxidative damage

Abstract

Leishmania infantum is a protozoan parasite that is phagocytized by human macrophages. The host macrophages kill the parasite by generating oxidative compounds that induce DNA damage. We have identified, purified and biochemically characterized a DNA polymerase θ from L. infantum (LiPolθ), demonstrating that it is a DNA-dependent DNA polymerase involved in translesion synthesis of 8oxoG, abasic sites and thymine glycol lesions. Stably transfected L. infantum parasites expressing LiPolθ were significantly more resistant to oxidative and interstrand cross-linking agents, e.g. hydrogen peroxide, cisplatin and mitomycin C. Moreover, LiPolθ-overexpressing parasites showed an increased infectivity toward its natural macrophage host. Therefore, we propose that LiPolθ is a translesion synthesis polymerase involved in parasite DNA damage tolerance, to confer resistance against macrophage aggression.

INTRODUCTION

Leishmaniasis is a vector borne disease that displays a variety of clinical forms and is caused by various species of the genus Leishmania that belong to the trypanosomatidae family (1). It affects nearly 1.5 million low-income populations each year, with a prevalence of 12 million people and an at-risk population of 350 million in 88 countries, most of which are developing countries. In 2013, the W.H.O. declared leishmaniasis to be an emerging disease (2,3). Leishmaniasis clinical form and symptom severity depends on the Leishmania species and the host immune status (4). The primary clinical forms of leishmaniasis are cutaneous, mucocutaneous and visceral. Cutaneous leishmaniasis caused by L. major and L. tropica in the Old World, and L. infantum in the Mediterranean basin primarily manifests as self-healing ulcers at the inoculation site. American cutaneous leishmaniasis displays a wider spectrum of clinical manifestations; a hallmark of L. braziliensis infection is the mucocutaneous form, which affects the oral and nasal mucosa, causing facial disfiguration and respiratory disturbances in many cases. Visceral leishmaniasis is a severe systemic form of the disease caused by L. donovani and L. infantum that affects the internal organs, especially the spleen, lymph nodes, liver and guts; untreated, this form is usually mortal (5). In the Mediterranean basin, visceral disease is produced by L. infantum (its primary reservoir is the dog) and presents with both cutaneous and visceral symptoms (4). The parasite has a digenetic cycle, taking two forms. The extracellular mobile form, the promastigote, lives in the gut of the sand fly and enters the host through an insect bite. Within the mammalian host, the parasite enters mononuclear phagocyte cells, where it is exposed to an acidic environment, increased temperature, reactive oxygen species (ROS) and other damaging agents. If it survives, the parasite develops into its immobile intracellular form, the amastigote, and proliferates within the cell. Later, the phagocyte explodes and the released parasites infect other mononuclear phagocyte cells. These differentiation processes can be mimicked in vitro (6–8).

The recent description of distinct Leishmania genome sequences has allowed us to assign known functions to 35% of the protein coding genes (9). One of the inferred genes, Linj24.0910, is overexpressed in the infective parasite (10) and encodes a putative A-family DNA polymerase. Here, we show that this enzyme is nuclear and could represent a L. infantum orthologue of DNA polymerase theta (LiPolθ).

Several functions have been attributed to Polθ, e.g. repair of interstrand crosslinks, translesion synthesis, base excision repair and double strand breaks repair (11–14). Recently, Polθ was suggested to be involved in the timing of DNA replication (15) as well as in the suppression of genomic instability and genome rearrangements (16). Here, we show that LiPolθ is a template-dependent DNA polymerase that tolerates oxidative damage, e.g., 8oxoG, thymine glycol and abasic sites. Accordingly, we have observed that Leishmania parasites overexpressing LiPolθ are more resistant to the oxidative agent hydrogen peroxide and other DNA damaging agents. Moreover, we demonstrate that the rate of infection for L. infantum overexpressing LiPolθ is 3-fold higher than that of the wild-type strain. As proposed here, LiPolθ likely counteracts macrophage antiparasitic activity, resulting in an increased infective capacity and survival.

MATERIALS AND METHODS

Bioinformatics

Family A polymerase amino acid sequences were from the non-redundant protein sequence database at the NCBI. Database search were performed using the Basic Local Alignment Search Tool with default parameters (BLASTP algorithm) (17). Multiple alignments of protein sequences were constructed by COBALT with an E-value threshold of 0.003 (18). Multiple-protein-sequence alignments for phylogenetic tree analysis were constructed by CLUSTAL OMEGA using the Neighbor-Joining method (19).

Oligonucleotides

DNA oligonucleotides were synthesized by Sigma Aldrich (St Louis, Mo, USA) and Invitrogen (La Jolla, CA, USA). Oligonucleotides containing 8oxoG were purchased from Eurogentec (Seraig, Belgium). The synthetic AP nucleotide was obtained from LinkTech and used to customize oligonucleotide synthesis. Unlabeled ultrapure dNTPs were supplied by GE (Fairfield, CT, USA). T4 polynucleotide kinase (New England Biolabs, Ipswich, MA, USA) was used for 5′-oligonucleotide labeling with [γ-³²P] ATP from Perkin Elmer (Waltham, MA, USA).

LiPolθ expression and purification

The LiPolθ coding sequence was PCR-amplified using the following primers: 5′-GTAGAATTCCCACCCAAATCCGCG-3′ and 5′-GATAAGCTTTCAGCCCCCTGTGGGG-3′. The resulting fragment was inserted into a pRSET expression vector containing an N-terminal His-tagged LiPolθ fusion protein. Escherichia coli BL21(DE3) pLysS cells were transformed with pRSET-LiPolθ and grown at 37°C in LB media supplemented with ampicillin (100 μg/ml) and chloramphenicol (35 μg/ml) to an optical density (OD₅₉₅) of 0.6 before induction with 0.5 mM IPTG for 3 h at 30°C. Cells were then harvested and washed by centrifugation at 4°C with 0.9% NaCl solution. Each gram of pellet was resuspended in 10 ml of lysis buffer (1 M KCl, 60 mM imidazole, 1% Brij 58, 10% glycerol, and 1 mM benzamidine) and stored at −80°C. Suspensions were thawed and centrifuged at 20 000 g for 1 h at 4°C. His-LiPolθ remained in the sediment and was resuspended in 3 ml of denaturing buffer containing 3 M GuHCl. The suspension was centrifuged again, and the supernatant was incubated with agarose-IDA-Ni²⁺ for 1 h in batch. The resin was washed with increasing concentrations of imidazole, and His-LiPolθ was eluted with 400 mM imidazole and 3 M GuHCl (a summary of the procedure is depicted in Supplementary Figure S1A). The purified protein was analyzed by SDS-PAGE, which indicated that truncated forms were likely obtained in addition to the purified protein (Supplementary Figure S1A). The band corresponding to His-LiPolθ was electro-eluted and used for rabbit antibody production using two inoculations with 100 μg each. The specificity of the resulting polyclonal antibody was evaluated by Western blot. The polyclonal antibody did not present any cross-reactivity with E. coli proteins and recognized a single band at the expected molecular weight of 125 kDa from total L. infantum extracts (Supplementary Figure S1C). Specificity of the antibody for immunofluorescence microscopy (Supplementary Figure S7E and F) was addressed by using an antigen-blocked control serum, obtained by loading 4 ml anti-LiPolθ serum into a 4 ml BrCN-activated Sepharose® 4B (Healthcare Europe, Germany) coupled with 2 mg of purified LiPolθ (see below) according to the manufacturer instructions.

Cell-free expression of His-LiPolθ was achieved using the TNT T7 quick coupled transcription/translation system (Promega, Madison, WI, USA) according to the manufacturer's instructions. LiPolθ expression was detected by Western blotting using the polyclonal antibody described above.

To obtain soluble LiPolθ protein, the gene was fused to the maltose-binding protein (MBP) C-terminus by PCR amplification using the following primers: 5′-GTAACTAGTATGCCACCCAAATCCGC-3′ and 5′-GATAAGCTTTCAGCCCCCTGTGGGG-3′. Escherichia coli BL21 (DE3) pLysS cells were transformed with the pMALC2-LiPolθ construct and grown at 37°C in LB media supplemented with ampicillin (100 μg/mL), chloramphenicol (35 μg/ml) and 0.2% glucose until the OD₅₉₅ reached 0.5. To induce overexpression from pMALC2-LiPolθ, IPTG was added to a final concentration of 0.3 mM and cells were incubated at 16°C for 2 h. The cells were then harvested and each gram of pellet was resuspended in 10 ml of column buffer (20 mM Tris–HCl (pH 7.4), 200 mM NaCl, and 1 mM EDTA) and stored at −80°C. Cells were thawed and lysed, and cell debris was separated from the soluble lysate by centrifugation. MBP-LiPolθ purification was performed using an amylose resin according to standard procedures. Fractions containing MBP-LiPolθ were analyzed by Coomassie Blue staining of an 8% SDS-PAGE gel, quantified and stored at −80°C. Purified MBP-LiPolθ was detected as a single band of the expected molecular weight, 167 kDa (Supplementary Figure S1B).

DNA polymerase assay using DNA template/primer molecules

DNA polymerase assays were performed using a synthetic DNA template/primer structure. A 5′ [γ-³²P]-labeled 15-mer DNA oligonucleotide primer (5′-GATCACAGTGAGTAC-3′) was annealed to a 28-mer DNA oligonucleotide template (5′-AGAAGTGTATCT(X)GTACTCACTGTGATC-3′, where X stands for each dNTP). To produce 1 nt-gapped DNA repair substrates, the template/primer duplex was then annealed to a downstream 12-mer oligonucleotide (5′-AGATACACTTCT-3′). To produce 5 nt-gapped substrates, the labeled primer was annealed to a 33-mer template (5′-ACTGGCCGTCGTTCTATTGTACTCACTGTGATC-3′) and a downstream 13-mer oligonucleotide (5′-AACGACGGCCAGT-3′). Assays were performed in a final volume of 20 μl in the presence of 50 mM Tris–HCl (pH 7.5), 1 mM DTT, 50 ng BSA, 2.5 nM labeled DNA, either 1 mM MgCl₂ or 100 μM MnCl₂, and 200 nM LiPolθ. The dNTP concentrations are indicated for each experiment. The reactions were initiated by the addition of labeled DNA and the mixture was incubated at 37°C for 30 min. The negative control lacked protein and dNTPs. The reactions were stopped by the addition of 8 μl of loading buffer (95% formamide, 20 mM EDTA, 0.1% xylene-cyanol, and 0.1% bromophenol blue) and loaded onto 20% polyacrylamide sequencing gels containing 8 M urea. Following denaturing electrophoresis, autoradiography was used to detect primer extension.

Translesion DNA synthesis assays

Substrate containing 8oxoG

Template/primer molecules used for translesion DNA synthesis assays were generated by annealing the 5′ [γ-³²P]-labeled 15-mer oligonucleotide to either the control (undamaged) 28-mer oligonucleotide template (5′-AGAAGTGTATCTGGTACTCACTGTGATC-3′) or the damaged template in which the G at position 13 (bold) was substituted with 8oxoG. The dNTP concentrations are indicated in the experiment. The reactions were performed and analyzed as described for DNA polymerase assays.

Substrate containing thymine glycol

Primers (5′-GTACCCGGGGATCCGTAC-3′) were 5′ labeled with [γ-³²P] ATP and annealed to the undamaged template (5′-CTGCAGCTGATGCGCTGTACGGATCCCCGGGTAC-3′) or the damaged template containing a thymine glycol (X) lesion (5′-CTGCAGCTGATGCGCTXGTACGGATCCCCGGGTAC-3′). The reactions were performed as described above, and the dNTPs concentrations are indicated in the experiment. To evaluate extension of thymine glycol-containing base pairs, the primers (5′-GTACCCGGGGATCCGTACA-3′) and (5′-GTACCCGGGGATCCGTACG-3′) were 5′ [γ-³²P]-labeled and annealed to the templates under the same conditions. The reactions were performed and analyzed as described for DNA polymerase assays.

Substrates containing one or more abasic site(s)

The DNA substrate was chosen and synthesized according to Seki et al. (13). The primer (5′-CACTGACTGTATG-3′) was 5′ [γ-³²P]-labeled and annealed to either a control template (5′-CTCGTCAGCATCTTCATCATACAGTCAGTG-3,), a template containing a single abasic site (5′-CTCGTCAGCATCTXCATCATACAGTCAGTG-3′; X indicates the position of the tetrahydrofuran molecule) or two abasic sites (5′-CTCGTCAGCATCTXXCATCATACAGTCAGTG-3′). The reactions were performed and analyzed as described for DNA polymerase assays.

Parasite strains and culture

L. infantum isolate M/CAN/ES/98/10445 (zymodeme MON-1) was kindly provided by Dr. Alfredo Toraño (Instituto de Salud Carlos III Majadahonda, Spain) and cultured at 27°C in RPMI 1640 supplemented with l-glutamine (Gibco, Waltham, MA, USA), 10% heat inactivated fetal calf serum (Gibco, Waltham, MA, USA), as well as 100 μg/ml streptomycin and 100 IU/ml penicillin (Cambrex, East Rutherford, NJ, USA). L. major promastigotes (LV39 line Rho/SU/59/P clone 5) were grown at 27°C in M199 media (Sigma–Aldrich, St Louis, MO, USA) supplemented with 20% heat-inactivated fetal calf serum. Transfected parasites were grown in the presence of 100 μg/ml G418 (Gibco, Waltham, MA, USA).

LiPolθ immunolocalization

L. infantum promastigotes were harvested during logarithmic growth by centrifugation at 2000 g for 5 min washed with PBS and resuspended at a concentration of 2 × 10⁴ cells/ml in PBS. This suspension (10 μl) was applied to a poly-lysine pre-treated slide and fixed with 4% p-formaldehyde for 5 min at room temperature (RT). The slides were washed three times for 5 min with PBS, incubated with 0.5% Triton X-100 in PBS for 5 min for parasite permeabilization, washed three times again, and blocked with 0.1% Tween 20 + 5% non-fat dry milk in PBS in a wet chamber at 37°C for 30 min. Slides were incubated with rabbit primary polyclonal antibody against LiPolθ (diluted 1:50 in blocking solution), with the pre-immune rabbit serum or with the anti-LiPolθ serum sequestered with purified LiPolθ protein (see above) at RT for 2 h. The slides were then washed three times and incubated in the dark with goat anti-rabbit secondary antibody conjugated to Alexa Fluor 488 diluted 1:200 (Invitrogen) at RT for 1 h. During the last 10 min of incubation, DAPI (diluted 1:2000) was added to the samples. Finally, the slides were washed four times and the samples were mounted in Mowiol. The images were acquired using a (CLSM) Leica TCS SP5 confocal microscope.

Leishmania transfection

The L. infantum Polθ coding sequence was PCR-amplified using the following primers: 5′-GTAACTAGTATGCCACCCAAATCCGC-3′ and 5′-GATAAGCTTTCAGCCCCCTGTGGGG-3′. The resulting fragment was cloned into the pTEX vector (20) between the SpeI and HindIII restriction sites. Parasites were transfected by electroporation according to the high-voltage protocol described by Robinson and Beverley (21). Transfected parasites that stably incorporated the pTEX and pTEX-LiPolθ expression vectors were selected by 4 weeks of culturing in the presence of progressively increased G418 concentrations (starting at 5–10 μg/ml and ending at 100 μg/ml).

In vitro macrophage infection

RAW 264.7 macrophages were maintained in RPMI 1640 supplemented with 2 mM l-glutamine, 5 mM NaHCO₃ and 10% FCS at 37°C. Cells (0.5 ml for 0.2 × 10⁶ cells per well) were seeded in 24-well plates holding sterilized coverslips, and allowed to adhere for 4 h. Next, non-adherent macrophages were removed and RPMI 1640 media (0.5 ml) with or without metacyclic wild-type, pTEX or pTEX-LiPolθ transfected promastigotes (4:1 promastigote:macrophage ratio) was added in triplicate for each experimental point. Metacyclic promastigotes were isolated from the promastigote populations by peanut lectin agglutination (PNA). Briefly, wild-type, pTEX- and pTEX-LiPolθ-transfected promastigotes were grown in M199 media supplemented with 20% FCS. After 5 days, stationary promastigotes (2 × 10⁸ cells/ml) were incubated with 50 μg/ml peanut agglutinin (PNA) at RT for 30 min. The supernatants (containing metacyclic promastigotes) were carefully removed by pipetting and centrifuged at 200 g for 10 min. The supernatants were then centrifuged again at 2000 g for 10 min and the metacyclic promastigotes were recovered and resuspended at 1.6 × 10⁶ cells/ml in RPMI 1640 supplemented with 2 mM l-glutamine, 5 mM NaHCO₃ and 5% FCS. The plate was incubated at 32°C for 4 h to allow macrophage infection. The media was then retired, any free promastigotes were removed by washing with pre-warmed PBS, 0.5 ml of fresh media was added and the cells were incubated for 72 h. Finally, the media was retired and samples were stained with May-Grünwald-Giemsa. The percentages of infected macrophages were calculated by observing 200 macrophages/well.

Effect of genotoxic agents in vivo

Wild-type, pTEX and pTEX-LiPolθ-transfected promastigotes were grown in M199 media containing 20% FCS. The parasites were harvested during late exponential growth, washed twice with Hanks buffer (137 mM NaCl, 0.3 mM Na₂HPO₄, 0.4 mM KH₂PO₄, 5.4 mM KCl, and 4.2 mM NaHCO₃ (pH 7.2)), resuspended in 0.5 ml of phenol red-free RPMI 1640 media containing 10% FCS and diluted with media to 8 × 10⁶ promastigotes/ml. Dilutions of various genotoxic agents (below) were prepared in phenol red-free RPMI 1640 media supplemented with 10% FCS, and 50 μl were added to 96-well culture plates in triplicate. Wild-type and LiPolθ-overexpressing promastigotes were plated at a density of 4 × 10⁶ cells/ml (50 μl/well) and incubated at 27°C for 72 h. Promastigote viability was evaluated using the quantitative colorimetric MTT assay and OD₅₉₅ measurements were obtained using an enzyme-linked immunoabsorbent assay plate reader. In this study, EC₅₀ was defined as the concentration that reduced Leishmania parasite survival by 50%. The results are expressed as the mean and standard error of three independent experiments. The genotoxic agents and final concentrations evaluated were: 0, 50, 100, 150, 200, 250 and 300 μM hydrogen peroxide (Sigma, St, Mo, USA); 0, 2.5, 5, 10, 25, 50 and 100 μM cisplatin (Sigma-Aldrich); and 0, 0.5, 2.5, 5, 10, 20 and 50 μM mitomycin C (Santa Cruz Biotechnology, Dallas, TX, USA).

RESULTS

A putative L. infantum Polθ

The A family of DNA polymerases includes the bacterial PolI, which is involved in DNA repair and Okazaki fragment maturation (22), the mitochondrial replicative polymerase Polγ (23) and the translesion synthesis polymerases Polν and Polθ (13,24). They all share a similar DNA polymerization core (Figure 1A) but differ in their N-terminal domains: Polγ and PolI-like enzymes can possess proofreading 3′-5′ exonuclease domains, whereas Polθ contains an N-terminal helicase domain and a large central domain that is involved in resistance to DNA interstrand crosslinking agents (12).

Figure 1.

(A) Schematic comparison of A-family DNA polymerase sequences from various species. The N-terminal helicase and 3′–5′ exonuclease domains are depicted in orange and green, respectively. The C-terminal DNA polymerase domain is depicted in blue. The grey bars indicate the six conserved regions in family A polymerases, including the A, B and C catalytic motifs. The brown box notes a specific insertion (I) present in Leishmania infantum and human Polθ. Dm, Drosophila melanogaster; Hs, Homo sapiens; Ce, Caenorhabditis elegans; Li, Leishmania infantum. (B) Putative mitochondrial Leishmania infantum PolI-like DNA polymerases (A, B, C and D).

In silico analysis indicated that the L. infantum gene LinJ.24.0910 encodes a putative 1171 amino acid A-family DNA polymerase (125 kDa) that is annotated in several databases as a putative Polθ orthologue. The predicted LiPolθ is smaller than the Drosophila and Caenorhabditis Polθ enzymes, and less than half the size of the human Polθ orthologue (Figure 1A). Accordingly, the predicted LiPolθ N-terminal domain lacks any similarity with other eukaryotic Polθ enzymes, and therefore lacks the N-terminal helicase domain that is characteristic of bona fide Polθ enzymes. In contrast, LiPolθ shares homology with the C-terminal polymerase domain of Polθ, Polν and Polγ that contains the six conserved regions of family A enzymes, including the more universally conserved motifs A, B and C (see Figure 1A). LiPolθ is larger than Polν and is similar in size to Polγ, although it lacks the conserved 3′–5′ exonuclease active site (25) that is characteristic of replicative DNA polymerases such as Polγ.

In addition to LiPolθ, L. infantum possesses four other family A DNA polymerases, which are annotated as mitochondrial PolI-like DNA polymerases as in other trypanosomatids, whose mitochondrial localization have been demonstrated (26). As shown in Figure 1B, these four LiPolI (A to D) contain the conserved family A DNA polymerase core, while only LiPolIB and LiPolID contain the conserved 3′-5′ exonuclease active site as in other trypanosomatids (26–28).

We first performed in silico analysis to determine whether L. infantum Linj24.0910 encodes a Polθ orthologue. LiPolθ exhibited the highest level of amino acid sequence identity with putative orthologues from other members of the subgenus Leishmania, e.g. L. donovani, L. major, L. mexicana (1) with greater than 90% identity; however, these percentages decreased to 30% when compared with Trypanosoma orthologues. Comparisons of the LiPolθ C-terminal polymerase domain with metazoan Polθ orthologues and other eukaryotic family A enzymes revealed 25–30% amino acid identity (Supplementary Figure S2). Amino acid sequence alignment revealed that the LiPolθ polymerase domain contains the 6 conserved family A DNA polymerization motifs. Moreover, LiPolθ presents an insert between the first and second conserved catalytic motifs. Interestingly, this insert (I; brown box in Figure 1A and Supplementary Figure S2) is also conserved in Homo sapiens Polθ and is known to be involved in lesion bypass (29).

To establish the evolutionary relationships of LinJ.24.0910 with other polymerases from family A we obtained a phylogenetic tree, strictly using the information of conserved motifs 2/A, 3/B, 5/C, whose extension is defined in Supplementary Figure S2. The resulting tree (Supplementary Figure S3) is divided in two main sub-trees where Polθ and Polν (from metazoan) and putative Polθ (from protozoa) form branches of the same sub-tree (left side in Supplementary Figure S3), whose single root can correlate with a translesion synthesis function; the other sub-tree includes Polγ, Polγ-like and PolI branches that radiate from a single root, that could correlate with their DNA replications tasks (Supplementary Figure S3).

In summary, in silico analysis cannot unequivocally clarify if L. infantum has a bona fide Polθ orthologue but suggests its closer relationship to the Polθ family. Therefore, we decided to characterize the biochemical properties of this putative LiPolθ, its cellular localization, and its potential role in DNA damage tolerance, both in vitro and in vivo.

LiPolθ DNA polymerase activity

We tested whether MBP-tagged LiPolθ possesses the intrinsic DNA-directed DNA polymerase activity predicted by sequence similarity. Figure 2A shows that LiPolθ incorporates deoxynucleotides in the presence of either Mg²⁺ or Mn²⁺ as activating metal ions. Under both conditions, LiPolθ could extend the primer strand until the end of the template; however, nearly 100-fold lower dNTP concentrations were required in the presence of Mn²⁺. These results are consistent with the properties of other L. infantum DNA polymerases (30), which exhibited increased activity in the presence of Mn²⁺ ions.

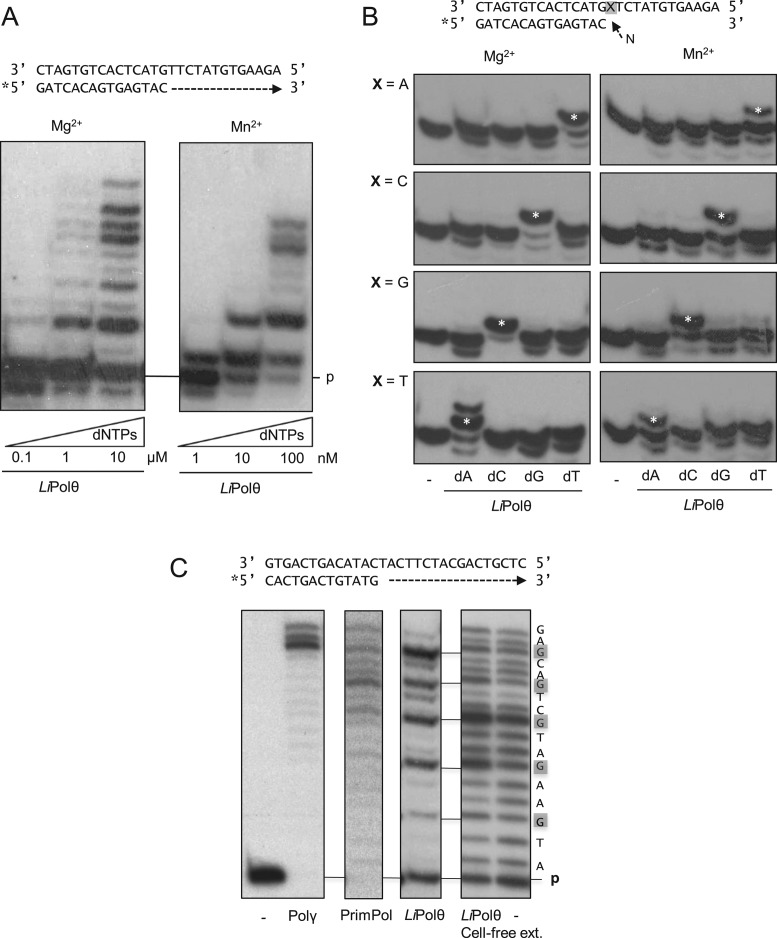

Figure 2.

LiPolθ possesses intrinsic DNA-directed DNA polymerase activity. (A) DNA polymerase activities of LiPolθ (200 nM) toward the indicated template/primer structures were evaluated using increasing dNTP concentrations in the presence of either 1 mM MgCl₂ (left) or 0.1 mM MnCl₂ (right) metal cofactors. Some nucleolytic degradation of the original primer, mainly occurring at low dNTP concentrations, indicates the existence of some contaminant nuclease. (B) Four template/primer structures (2.5 nM), differing in the first template base (X), were used for analysis of LiPolθ (200 nM) complementary nucleotide. Nucleotide concentrations were 100 nM in the presence of Mg²⁺, and 1 nM in the presence of Mn²⁺. Asterisk indicates the main extension of the primers in each panel. (C) LiPolθ DNA polymerase ‘signature’. From left to right: negative control (no enzyme); human Polγ (20 nM); human PrimPol (200 nM); purified LiPolθ (200 nM); cell-free extract expressing LiPolθ (5 μl); and cell free control extract (5 μl).

LiPolθ fidelity was roughly estimated by providing each nucleotide individually to the four possible templating bases, in the presence of the two alternative activating metals (Mg²⁺ or Mn²⁺). For a better comparison, we used different dNTP concentrations to allow a similar catalytic efficiency with each alternative metal (see legend to Figure 2B). In both cases LiPolθ behaved as a DNA-instructed DNA polymerase, as it preferentially inserted the complementary nucleotide dictated by the first available templating base (Figure 2B). We observed minor +1 bands corresponding to the insertion of non-complementary nucleotides in the case of Mn²⁺-driven reactions, suggesting that the large improvement in efficiency provided by Mn²⁺ comes at the necessary cost of a reduced nucleotide insertion fidelity. Therefore, we choose Mn²⁺ as a valid metal cofactor for LiPolθ.

Figure 2C depicts the polymerization patterns exhibited by purified human Polγ and human PrimPol, for which no template sequence-specific pauses during synthesis were observed. In contrast, purified LiPolθ displayed a specific pattern, exhibiting the accumulation of prominent bands following dGMP insertion opposite template C (13), which were also observed when using cell free extracts from LiPolθ-overexpressing cells. This signature pattern strongly supports the idea that the polymerase activity observed in the purified fraction is specific and corresponds to a Polθ-like enzyme.

The DNA polymerase activity of LiPolθ requires a DNA template. Its inactivity in the absence of template DNA indicates that LiPolθ lacks deoxynucleotidyl terminal transferase activity (Supplementary Figure S4, compare panels A and B). LiPolθ could partially discriminate incoming nucleotides with or without a 3′-OH, incorporating dGTP 150-fold better than ddGTP (Supplementary Figure S4C). As L. infantum is a digenetic parasite having an extracellular form in the vector and an intracellular form in mammalian cells, we assayed LiPolθ sensitivity to variations in physiological pH and temperature. As shown in Supplementary Figure S4D, LiPolθ DNA polymerase was active between pH 6 and 8, with a maximum activity at pH 7.5. Comparable DNA polymerase activities were observed at temperatures corresponding to the insect vector phase (27°C) and the intracellular phase (37°C).

LiPolθ can perform gap-filling coupled to strand-displacement

Processivity is a common feature of DNA polymerases that are involved in extensive DNA synthesis (i.e. replicative polymerases), and relies on tight DNA binding and efficient nucleotide insertion. Conversely, DNA repair polymerases frequently display weaker DNA interactions and distributively incorporate only a few DNA nucleotides on template-primer molecules. DNA repair PolX enzymes such as Leishmania Polβ become processive when filling short DNA gaps by specifically recognizing a 5′-phosphate group at the end of the gap (31,32). In contrast with human Polλ, a well-known X family repair polymerase capable of filling 1 nt and 5 nt gaps, LiPolθ promoted nucleotide incorporation beyond this gap size limit, and synthesized products that reached the end of the template strand (Figure 3A and B). Moreover, we demonstrated that this gap-filling reaction-associated LiPolθ-specific capacity for strand-displacement was not affected by the presence of either a 5′ hydroxyl or a phosphate group in the downstream oligonucleotide flanking the gap (Figure 3C and D). Unlike L. infantum Polβ (32) and other DNA repair enzymes, e.g. human Polβ and Polλ, LiPolθ is devoid of intrinsic dRP lyase activity (Supplementary Figure S5A and B), demonstrating its inability to participate in short patch base excision repair (BER) (32). In contrast, the efficient strand-displacement of LiPolθ (a helicase-like activity) would be invaluable for potential roles in long-patch base excision repair (BER) (33) and alternative non-homologous end-joining processes such as those described for human Polθ (34,35).

Figure 3.

LiPolθ can fill gaps and perform strand-displacement. (A) Gap1/P: 1-nucleotide gap and (B) Gap 5/P: 5-nucleotides gap flanked by a 5′-phosphate. Human Polλ and LiPolθ (200 nM) were incubated with the indicated DNA substrates (2.5 nM) and either 1 mM or 0.1 mM MnCl₂ (Polλ and LiPolθ, respectively), and increasing dNTP concentrations (0.01–1 μM). (C) Gap1/OH and (D) Gap1/P, 1-nucleotide gaps with either flanking 5′ hydroxyls or phosphates, were incubated with 200 nM LiPolθ in the presence of 1 mM MgCl₂ or 0.1 mM MnCl₂, respectively. Asterisk indicates an extra nucleotide addition in the presence of Mn²⁺ and high dNTP concentration.

LiPolθ tolerates oxidative DNA lesions

LiPolθ displays DNA polymerization activity and lacks both proofreading exonuclease and dRP-lyase activities, suggesting that LiPolθ may act in translesion synthesis (TLS) to facilitate elongation across a damaged template. Human Polθ was previously shown to perform translesion DNA synthesis (TLS) beyond AP sites and thymine glycol adducts (13). We tested whether LiPolθ could tolerate the most common oxidative lesion found in DNA: 8 oxo-7, 8 dihydro-2′-deoxyguanine (8oxodG) (36). This damage can result from direct oxidation of deoxyguanine and from primary oxidation of free dGTP that is then incorporated to the DNA double helix (37). 8oxodG is highly premutagenic, and gives rise to dG:dC to dT:dA transversions (38). As shown in Figure 4A, LiPolθ efficiently performed TLS in the presence of Mn²⁺ and the 4 dNTPs by inserting a nucleotide opposite the 8oxodG lesion and catalyzing its further extension to a full size product (14-mer). As 8oxodG can base pair with either cytosine or adenine (the latter generating G to T transversions) we also quantified LiPolθ accuracy when copying 8oxodG by measuring the dC:dA ratio. LiPolθ preferentially incorporated dCTP opposite an undamaged G by a factor of approximately 10⁵ (Mg²⁺) and 10² (Mn²⁺) (Figure 4B). In contrast, the fidelity ratio (dCTP:dATP) was significantly reduced when copying 8oxodG, to approximately 10³ and 30 in the presence of Mg²⁺ and Mn²⁺, respectively (Figure 4B), in both cases still favoring an error-free bypass. These measurements were made at low nucleotide concentrations within the nanomolar range measured in macrophages (Supplementary Figure S6). Undamaged pairs were 10-fold better extended compared with the damaged pairs (8oxodG:dC and 8oxodG:dA). LiPolθ more efficiently and accurately extended 8oxodG:dC pairs compared with 8oxodG:dA pairs (Figure 4C); in the latter case, we observed misincorporation of an extra dA (Figure 4C and Supplementary Figure S6C).

Figure 4.

LiPolθ bypasses 8oxodG. (A) LiPolθ DNA polymerization on undamaged template (left) and template containing a 8oxodG lesion (right) in the presence of 200 nM LiPolθ, 0.1 mM Mn²⁺, and the indicated dNTP concentrations. (B) Quantification of the insertion ratio (dC versus dA) opposite a control G or an 8oxoG lesion in the presence of either 1 mM MgCl₂ or 0.1 mM MnCl₂ (derived from the experiment shown in Supplementary Figure S6) (C) LiPolθ extension of matched (dG:dC or 8oxodG:dC) and mismatched (8oxodG:dA) pairs in the presence of increasing concentrations of the next complementary nucleotide (dGTP).

Another common DNA lesion is oxidation of thymine to form thymine glycol (Tg), which blocks the replication fork. There are two alternative pathways for Tg bypass: (i) DNA polymerases κ and ζ can act together to mediate error-free TLS (39); and (ii) Polθ can function in an error-prone manner as recently proposed in human cells (40). To evaluate the competence of LiPolθ to bypass Tg lesions, we used template/primer structures in which the first template base was either T or Tg, and Mn²⁺ as the preferred metal activator. As shown in Figure 5A, LiPolθ is apparently capable of ‘reading’ the Tg lesion; however, only a fraction of the resulting +1 product was elongated and reached a size that was 1-nt shorter than that obtained with the undamaged template control, suggesting that efficient Tg bypass requires lesion skipping. Analysis of the first insertion event opposite Tg (Figure 5B) showed that in addition to dATP (likely directed by the Tg lesion), LiPolθ can insert dGTP (likely directed by the adjacent 5′ dC in the template). To assess the possibility that the observed +15 extension may result from an initial Tg skipping event (inserting dG opposite the neighbor dC template) additional experiments were performed using DNA substrates containing either the preformed base pairs Tg:dA and Tg:dG, or the corresponding non-damaged dT:dA and dT:dG controls. When dGTP (complementary to the first template base) was provided, LiPolθ extended the control pairs dT:dA and dT:dG (Figure 5C, left panel); however, Tg:dA and Tg:dG pairs were inefficiently extended (Figure 5C, right panel). In contrast, when all four dNTPs were provided (Figure 5D), the Tg:dA pairs were very poorly extended, while both dT:dG and Tg:dG mispairs were extended through the +15 position. This product was 1 nt shorter than that observed for the control dT:dA, suggesting that the Tg lesion is looped-out and the 3′-terminal G is paired with the next template base C (see the scheme in Figure 5E). In conclusion, LiPolθ can insert dA opposite Tg; however, additional elongation cannot occur through direct extension, but rather requires a Tg-skipping event based on primer-realignment beyond the lesion. It is possible that after LiPolθ has introduced dA opposite the damage, a DNA polymerase switch occurs to allow error-free bypass.

Figure 5.

LiPolθ tolerates thymine glycol lesions. (A) LiPolθ DNA polymerase activity on undamaged (left, X = T) and thymine glycol lesion-containing (right, X = Tg) templates, assayed with increasing dNTP concentrations (0.1, 1, 10 and 100 μM). Full extension of the primer has been indicated (+16 in the control template or +15 in the damaged template; the position of a putatrive +16 product is also indicated (in light gray) for the damaged template. (B) Assay of nucleotide selectivity of LiPolθ reading a control base (T), or a thymine glycol-containing template in the presence of the indicated concentrations of individual nucleotides. (C) LiPolθ extension of matched (dT:dA and Tg:dA) and mismatched (dT:dG and Tg:dG) in the presence of the indicated concentrations of the next complementary nucleotide (dGTP). (D) LiPolθ extension of matched (dT:dA and Tg:dA) and mismatched (dT:dG and Tg:dG) in the presence of all four nucleotides (100 μM). The experiments were performed as described in the materials and methods using 2.5 nM labeled DNA, 200 nM LiPolθ and 0.1 mM MnCl₂. (E) Schematic of the primer extension (+15) observed in part D with template containing the Tg:dG mismatched pair.

Under physiological conditions, abasic sites are the most common DNA chain lesions that result from DNA glycosidase activity and oxidative stress-induced spontaneous hydrolysis of the N-glycosidic link between the sugar and the DNA base (41). Abasic sites block replicative DNA polymerases and the lack of coding information induces mutagenesis (42). Similar to other polymerases, human Polθ preferentially inserts adenine at these abasic sites (13). We tested the capacity of LiPolθ to bypass this lesion in the presence of either one or two abasic sites in the template DNA using Mn²⁺ as the preferred metal activator. Figure 6A demonstrates that LiPolθ partially pauses immediately before the abasic site (+3); however, approximately 50% of the primers were extended in the presence of moderate concentrations of dNTPs (10 μM). Regardless, the resulting product was one nucleotide shorter than the control when copying the two damaged templates (Figure 6A). When the elongation patterns were compared, it became obvious that either one or two consecutive abasic sites were skipped (Figure 6B; see legend for further details). Insertion of the individual nucleotides was tested using four different DNA sequence contexts in which the nucleotide immediately 5′ of the abasic site was altered (Figure 6C). We evaluated whether LiPolθ dislocated the template by nucleotide selection. We did not observe insertion of a pyrimidine (either dC or dT) in any context, even when the template base following the abasic site was a purine (Figure 6C, first and third panels). This observation implies that LiPolθ cannot always loop-out the abasic site to copy the next available base; however, both purines were inserted in each context. Insertion of dA likely occurs opposite the abasic site, as it can be extended using a second dA when the next template base is dT (Figure 6C, fourth panel). LiPolθ could also insert dG opposite the abasic site, and opposite the second template base in the most favorable contexts, forming either a dC:dG pair or a dT:dG ‘pseudopair’ (Figure 6C, second and fourth panels). Therefore, LiPolθ preferentially incorporates either a dA or a dG opposite to abasic sites but cannot extend it, as we ultimately observed a +1 product. It is possible that another polymerase takes over elongation following LiPolθ insertion of a purine in front of the abasic site.

Figure 6.

LiPolθ skips template abasic sites. (A) LiPolθ ‘running start’ polymerase assays on either control (left panel, X = T) or damaged templates containing one (central panel, X = AP) or two (right panel, X = AP-AP) abasic sites, assayed with the indicated dNTP concentration (0.1, 1, 10, 100 μM). Note that the oligonucleotide containing the two abasic sites is 1 nt longer (31 mer) than the other two oligonucleotides (30 mer; control and 1 abasic site). (B) Lanes e, j and n from part A, now indicating the template sequence (in gray) and primer extended products (in black) aligned with each corresponding band. A discontinuity in the autoradiograms of lanes j and n has been artificially made to visualize the recovery of the same band pattern beyond the +4 control product. That implies the skip of one or two abasic sites in lanes j and n, respectively. (C) LiPolθ insertion of each individual nucleotide (10 μM) opposite an abasic site (X), followed by the various nucleotides (Y). The experiments were performed as described in the materials and methods using 2.5 nM labeled DNA, 200 nM LiPolθ and 100 μM MnCl₂.

LiPolθ is localized in the nucleus and its overexpression does not affect cell growth

LiPolθ was initially isolated from an L. infantum library clone (10), PCR-amplified, cloned into a pRSET plasmid and purified with an agarose-Ni²⁺ column as described in the materials and methods. The purified protein was used to generate a specific polyclonal antibody that produced a single band by Western blot analysis of whole L. infantum extracts in contrast with the control serum and was not significantly cross-reactive with E. coli proteins (Supplementary Figure S1C). This antibody was used to immunolocalize LiPolθ within the parasite. As shown in Figure 7, LiPolθ was colocalized with DAPI staining, indicating a primarily nuclear localization, with a minor presence in the second DNA-containing compartment, the kinetoplast, which contains the mitochondrial DNA and the RNA editing minicircles. This distribution and the specific features described above support the idea that LiPolθ is primarily involved in translesion synthesis during nuclear DNA replication.

Figure 7.

Immunofluoresence indicates that LiPolθ is primarily localized in the nucleus.Leishmania specimens incubated with anti LiPolθ-specific antibody: (A) phase contrast; (B) DAPI staining; (C) LiPolθ fluorescence staining with anti LiPolθ antiserum; (D) merged image of fluorescence and DAPI staining of Leishmania specimens. N: nucleus. K: kinetoplast. See Supplementary Figure S7 for controls.

As in the subgenus Leishmania Leishmania RNA interference technology is not affordable, the effect of reduction/loss of LiPolθ can not be easily measured. Thus, we studied the effect of over-expression of the enzyme on the parasite behavior. Due to their high genetic similarity, L. major and L. infantum promastigotes were transfected with a LiPolθ (pTEX-LiPolθ) and empty expression vectors (pTEX). Transfectants were selected with geneticin as described in the materials and methods, and LiPolθ overexpression was verified by Western blotting of promastigote protein extracts (Figure 8A). The transfected L. major parasites displayed increased geneticin resistance compared with L. infantum parasites (data not shown) and expressed greater amounts of the enzyme. Interestingly, the growth curves of LiPolθ-overexpressing L. major parasites were similar to those of the L. major wild-type (Figure 8B). Consequently, we evaluated the resistance of LiPolθ-overexpressing L. major parasites to several genotoxic agents in vivo.

Figure 8.

LiPolθ overexpressing Leishmania LiPolθ are more infective. (A) Coomassie blue stained SDS-PAGE gel of total extract from control L. major expressing endogenous Polθ, molecular marker, and varying amounts of total extract from pTEX-LiPolθ-transfected L. major overexpressing LiPolθ. Bottom, Western blot for LiPolθ using the LiPolθ antibody. (B) Growth curves of control (grey) and LiPolθ-overexpressing L. major (black). (C) Percentage of RAW cells infected with wild type control (grey bar), LiPolθ-overexpressing (black bar) and empty pTEX-transfected L. major (dashed bar) promastigotes.

LiPolθ overexpression reduces the effects of genotoxicants and improves infectivity

Once into the mammalian host, Leishmania parasites enter the phagocyte cells where they must then resist macrophage activity, which is primarily exerted through an oxidative burst. Using in vitro studies, we have demonstrated that purified LiPolθ can tolerate various oxidative lesions in DNA; consequently, we measured LiPolθ-overexpressing parasite resistance to an oxidative reagent, H₂O₂. This analysis indicated that transfected parasites had ∼40% greater resistance (measured as EC₅₀, Table 1) compared with the wild-type strain and pTEX control. We also evaluated the possible role of LiPolθ in tolerance to other toxic agents that would affect parasite viability. The inhibitory effects of mitomycin C and cisplatin (DNA interstrand crosslinks) were clearly reduced in the LiPolθ-overexpressing parasites compared with the wild-type and control: the cisplatin EC₅₀ was increased two-fold and the mitomycin C EC₅₀ was increased 6-fold (Table 1).

Table 1. Genotoxic damage of control and LiPolθ-overexpressing L. major strains.

Agent, damage type	L. major WT (EC50)	L. major pTEX (EC50)	L. major pTEX-LiPolθ (EC50)
H2O2, oxidative	95 ± 4 μM	92 ± 5 μM	155 ± 3 μM
Cisplatin, ICL	50 ± 3 μM	57 ± 4 μM	99 ± 5 μM
Mitomycin C, ICL	4 ± 1 μM	6 ± 1 μM	26 ± 2 μM

ICL: Interstrand crosslinks.

Wondering whether the levels of LiPolθ overexpression affected parasite behavior during infection, the infectivity of transfected and wild-type parasites was measured. As shown in Figure 8C, LiPolθ-overexpressing parasites infected RAW macrophages 3-fold more efficiently compared with the wild-type strain and parasites transfected with empty plasmid. This increase in infectivity can be explained by a role of LiPolθ in parasite tolerance to oxidative damage due to macrophage attack.

Together, these in vivo data are fully compatible with the in vitro results described in this paper, suggesting that LiPolθ functions directly in parasite viability by contributing to tolerance of macrophage-inflicted oxidative damage.

DISCUSSION

Polθ, an A family TLS polymerase, is found in protists, plants and animals; however, the structural differences found between these enzymes has led to several authors to be hesitant to suggest whether the species described thus far possess true Polθ orthologues (13). As annotated in several public databases, the L. infantum gene LinJ.24.0910 encodes a putative Polθ orthologue (LiPolθ), although it differs from other bona fide Polθ in that the N-terminal helicase domain is absent. As demonstrated here, detailed evaluation of the amino acid sequence identities of the six more highly conserved segments/motifs in the C-terminal polymerase domain shared by all family A DNA polymerases (including the eukaryotic Polθ, Polν, Polγ and PolI-like enzymes) did not clarify whether LiPolθ is indeed a Polθ orthologue. In contrast, homology is suggested by phylogenetic tree analysis using these conserved DNA polymerase motifs, in which LiPolθ similarly roots with two other family A subgroup members, the TLS polymerases Polθ and Polν.

Recombinant LiPolθ was fused to MBP and expressed in E. coli, favoring protein solubility, purification and stability. Biochemical characterization of LiPolθ indicated that it is a DNA-dependent DNA polymerase displaying basic features that correspond to diverse family A members (11). LiPolθ activity is highest at pH 7.5, although it remains active in moderately acidic environments (pH 6), matching the environment within the macrophage. LiPolθ is active within a temperature range of 27–37°C, which are found in the vector and host, respectively. As anticipated from the lack of bona fide Exo motifs (25), LiPolθ is devoid of 3′-5′ proofreading exonuclease activity, in contrast with eukaryotic Polγ and two family A DNA polymerases present in Leishmania (LiPolIB and LiPolID), that have been shown to be proofreading-competent in their Trypanosome orthologues (26–28). LiPolθ also lacks terminal transferase activity, and 5′ phosphate recognition in gaps, suggesting that unlike DNA polymerases from family X, LiPolθ does not function in classical NHEJ (43).

C. elegans Polθ was shown to perform single-patch BER in the absence of Polβ (44). In contrast, Polθ and Polβ were shown to synergistically contribute to BER in chicken DT40 cells (45). LiPolθ lacks dRP lyase activity, and therefore is not a good candidate for single-patch BER. It is worth noting that LiPolθ does not possess a helicase domain; however, a strong capacity for strand-displacement coupled to gap filling synthesis suggests potential roles in long-patch BER and alternative forms of NHEJ.

As described here, LiPolθ maintains Watson-Crick complementary nucleotide selection and is preferentially activated by Mn²⁺ ions. While replicative DNA polymerases use Mg²⁺ to maximize nucleotide insertion fidelity, other DNA polymerases take advantage of Mn²⁺ ions to maximize catalytic efficiency, with some reduction in fidelity (46–49). LiPolθ takes advantage of Mn²⁺ ion activation to tolerate various DNA lesions such as those induced by oxidative stress, e.g. 8oxodG, thymine glycol and abasic sites. LiPolθ ‘reads’ the 8oxodG by preferentially inserting dCTP (error-free) opposite the lesion. Moreover, LiPolθ extended 8oxodG:dCMP more efficiently than 8oxodG:dAMP, again favoring an error-free outcome during 8oxodG TLS. LiPolθ addresses abasic site and thymine glycol lesions by direct extension preferentially using dATP; however, these repairs would require another DNA polymerase for continued synthesis. Moreover, LiPolθ can accept distortions and looped-out bases, skipping unreadable lesions such as thymine glycol and abasic sites; this activity leads to the deletion of 1 nt. Similarly, human Polθ is also competent in TLS of thymine glycol or abasic sites (13).

Previous in vivo studies demonstrated that DT40 cells lacking Polθ were hypersensitive to H₂O₂ (45); this result is compatible with a role in either oxidative damage repair or tolerance and is in agreement with the data presented here that indicate that LiPolθ-overexpressing Leishmania are hyper-resistant to H₂O₂ (Table 1). Other in vivo studies in D. melanogaster (11,12) and C. elegans (50) have suggested a role for Polθ in interstrand crosslink repair. Again, LiPolθ-overexpression in Leishmania resulted in increased resistance to cisplatin- and mitomycin C-induced interstrand crosslinks (Table 1).

LiPolθ is primarily localized in the protozoa nucleus, and has a limited presence in the kinetoplast (Figure 7). This subcellular localization contrasts with the exclusive mitochondrial localization of Polγ, and with the preferential kinetoplast localization of the four trypanosomatid PolI-like family A DNA polymerases (26).

In conclusion, the in silico, in vitro and in vivo data, together with nuclear LiPolθ localization argue that LiPolθ is a true Polθ orthologue. LiPolθ is a proficient translesion synthesis DNA polymerase that can deal with several types of DNA damage. In vivo analysis demonstrated LiPolθ-dependent parasite resistance to genotoxicants and macrophage infectivity, strongly suggesting that LiPolθ has an important role in infection, most likely acting to protect the parasite from the intracellular oxidative damage that is characteristic of the macrophage host cell.

FUNDING

Spanish Ministry of Science and Innovation [AGL2010-21806-C02-01 to V.L., BFU2012-37969 to L.B.]; Comunidad de Madrid [S2010/BMD-2361 to L.B.]; Ramón Areces Foundation [050204100014 to V.L.]; Spanish Ministry of Science and Innovation fellowship (to A.F.O.). Funding for open access charge: Spanish Research Council, Spanish Ministry of Science and Innovation.

Conflict of interest statement. None declared.
