Sandwich-Cultured Hepatocytes as a Tool to Study Drug Disposition and Drug-Induced Liver Injury

Abstract

Sandwich-cultured hepatocytes (SCH) are metabolically competent and have proper localization of basolateral and canalicular transporters with functional bile networks. Therefore, this cellular model is a unique tool that can be used to estimate biliary excretion of compounds. SCH have been used widely to assess hepatobiliary disposition of endogenous and exogenous compounds and metabolites. Mechanistic modeling based on SCH data enables estimation of metabolic and transporter-mediated clearances, which can be employed to construct physiologically-based pharmacokinetic models for prediction of drug disposition and drug-drug interactions in humans. In addition to pharmacokinetic studies, SCH also have been employed to study cytotoxicity and perturbation of biological processes by drugs and hepatically-generated metabolites. Human SCH can provide mechanistic insights underlying clinical drug-induced liver injury (DILI). In addition, data generated in SCH can be integrated into systems pharmacology models to predict potential DILI in humans. In this review, applications of SCH in studying hepatobiliary drug disposition and bile acid-mediated DILI are discussed. An example is presented to show how data generated in the SCH model was used to establish a quantitative relationship between intracellular bile acids and cytotoxicity, and how this information was incorporated into a systems pharmacology model for DILI prediction.

INTRODUCTION

The liver is one of the major organs responsible for the metabolism and excretion of endogenous and exogenous molecules. Among many in vitro and in vivo model systems, primary hepatocytes remain the gold standard to assess hepatic drug metabolism and transport. Hepatocytes can be isolated from the species of interest, including humans, to address species differences in hepatic disposition of drugs. Primary hepatocytes express multiple metabolic enzymes and transporters, enabling assessment of overall hepatobiliary drug disposition. However, hepatocytes in suspension or under conventional culture conditions quickly lose cell polarity and viability, which limits their utility.^1,2 Culturing hepatocytes between two layers of gelled collagen (sandwich configuration) improves morphology and viability of hepatocytes, and maintains function for longer periods of time in culture.^3,4 In addition, sandwich-cultured hepatocytes (SCH) regain polarity, allowing proper localization of basolateral and canalicular transporters as well as formation of functional bile networks (Figure 1).^5,6

Figure 1. Scheme illustrating the polarized expression of transporters in human sandwich-cultured hepatocytes.

Three adjacent hepatocytes with interconnecting canalicular spaces sealed by tight junctions are shown. Important ATP-binding cassette (ABC) transport proteins are depicted by blue solid arrows denoting the direction of transport. Solute carrier (SLC) transporters are depicted with black double arrows. Uptake transporters in the basolateral (sinusoidal) membrane include the sodium taurocholate co-transporting polypeptide (NTCP); organic anion transporter 2 (OAT2) and OAT7; organic cation transporter 1 (OCT1); and organic anion transporting polypeptide 1B1 (OATP1B1), OATP1B3 and OATP2B1. The heteromeric organic solute transporter (OSTα/β) is also depicted on the basolateral membrane. Efflux transporters expressed in the hepatocyte basolateral membrane include multidrug resistance-associated protein 3 (MRP3), MRP4 and MRP6. Canalicular (apical) efflux pumps include MRP2; breast cancer resistance protein (BCRP); bile-salt export pump (BSEP); MDR1 P-glycoprotein (Pgp); and multidrug and toxin extrusion protein 1 (MATE1).

When properly cultured, the expression and function of basolateral uptake transporters including sodium taurocholate co-transporting polypeptide (NTCP) and organic anion transporting polypeptides (OATPs) are maintained over time in human SCH,^7–9 whereas down-regulation of Ntcp and Oatp has been reported for rat SCH.^6,7 Upon isolation, hepatocytes lose biliary excretory function due to internalization of canalicular efflux transporters.¹⁰ However, canalicular transport proteins [e.g, bile salt export pump (BSEP/Bsep), P-glycoprotein (P-gp), breast cancer resistance protein (BCRP/Bcrp), and multidrug resistance-associated protein (MRP/Mrp) 2] properly localize over time and regain excretory function in human and rat SCH.⁵⁰ A schematic representation of hepatic transporters in SCH is shown in Figure 1. Phase I [i.e., cytochrome P450 (CYP)] and phase II [e.g., UDP-glucuronosyltransferase (UGT), sulfotransferase (SULT)] metabolizing enzymes also are expressed in SCH, although some enzymes exhibit decreased expression and/or function over time in SCH compared to freshly isolated hepatocytes, depending on the culture conditions and medium composition.^12–14 The influence of culture conditions and culture time on the expression and/or function of enzymes and transporters in the SCH system have been reviewed in detail elsewhere and are not the main focus of this manuscript.^1,15,16

SCH provide a unique tool to estimate biliary excretion of compounds. Substances excreted into bile and accumulated in the canalicular network can be quantified by modulating tight junctions using buffer with and without calcium.^17,18 Therefore, SCH have been used widely to assess hepatobiliary disposition of drugs and metabolites, and potential drug-drug interactions (DDIs). Transcriptional and post-translational regulatory machinery are well-maintained in SCH, which makes it a suitable model for studying induction and feedback regulation of enzymes and transporters in response to compounds or other interventions.^4,19 SCH that express functional metabolic enzymes also have been employed to study the pharmacology and toxicology of drugs and hepatically-generated metabolites. Because of the essential role of the liver in drug elimination, it is often a target organ of drug-induced toxicity. SCH have been used in the assessment of direct cytotoxicity and in mechanistic studies to determine perturbations of biological processes and to better understand underlying mechanisms of drug-induced liver injury (DILI).

In this manuscript, applications of SCH in studying hepatobiliary drug disposition and DILI are reviewed. First, use of the SCH system to characterize hepatic drug metabolism and transport is discussed. Predictions of in vivo drug disposition and clinical DDIs using SCH data combined with mechanistic and/or physiologically-based pharmacokinetic (PBPK) modeling also are reviewed. The use of SCH to study mechanisms underlying DILI is discussed with a focus on bile acid-drug interactions with hepatic transporters. An example of how SCH data can be used to develop a systems pharmacology model of DILI to predict clinical hepatotoxicity is introduced.

USE OF SANDWICH–CULTURED HEPATOCYTES IN STUDYING DRUG DISPOSITION

During drug discovery and development, assessment of metabolism and transport of new chemical entities is important to predict clinical exposure and potential DDIs. In this section, the use of SCH to study drug disposition is reviewed with a focus on metabolism and hepatobiliary transport of compounds and DDIs, and enzyme-transporter interplay. This section also highlights the estimation of enzyme- and transporter-mediated intrinsic clearance values using mechanistic pharmacokinetic modeling in addition to empirical methods. In vitro-in vivo extrapolation of intrinsic clearance and incorporation into PBPK modeling is discussed.

Metabolism

SCH have been used to study drug disposition, including hepatic uptake, metabolism and biliary excretion. Although human liver microsomes (HLMs), S9 subcellular fractions, and primary hepatocytes cultured in monolayers (without extracellular matrix overlay) are commonly used in metabolism studies of drugs and endogenous substrates, SCH are often used when extended incubation times (>24 hr) are needed, after which the viability and function of primary hepatocytes cultured in monolayers begin to deteriorate¹. To demonstrate the applicability of SCH in predicting drug metabolism after extended exposure, the metabolic clearance values of low clearance drugs tolbutamide and warfarin, as well as a high clearance compound 7-ethoxycoumarin, were estimated using mathematical modeling after co-incubation with human SCH for 48 hr.^20,21 The calculated intrinsic clearance was in accordance with literature reports. Another advantage of using SCH in drug metabolism studies is the presence of non-microsomal reductive enzymes, as demonstrated in a study of DB829. DB829, the active metabolite of an antitrypanosomal prodrug, was detected only in trace amounts in HLMs at the end of the 180-min incubation, but was detected readily in human SCH throughout the 24-hr incubation.²²

Metabolism-Mediated DDIs

Both inhibition- and induction-mediated DDIs have been studied using SCH. The CYP substrates used in these studies generally penetrate the hepatocytes via passive diffusion to eliminate the confounding effect of transporters. Although CYP inhibition has been studied primarily using HLMs, a few studies using SCH have been reported. The inhibitory effect of tritolide on CYP3A was evaluated by Shen et al.²³ Both the expression and activity (measured by midazolam hydroxylation) of CYP3A in rat SCH were reduced after exposure to tritolide for up to 24 hr. Bi et al. 24 reported that the intracellular accumulation of buprenorphine and midazolam in human SCH was increased by rifamycin SV due to inhibition of CYP3A4 and UGT1A1, which mediate the metabolism of these two victim substrates. SCH allow for longer exposure time, making them suitable for CYP induction studies. For example, the activity of CYP3A was assessed in human SCH after incubation with pregnancy-related hormones for 72 hr.²⁵

Hepatobiliary Transport

Mechanisms of Hepatobiliary Disposition

Under appropriate culture conditions, SCH express key transport proteins that are properly localized, and therefore, they are uniquely advantageous to study the mechanisms of hepatobiliary transport of a compound as well as the effects of a compound on hepatobiliary transporters. SCH isolated from naturally occurring genetically deficient rodents [e.g., Mrp2-deficient Wistar rats (TR⁻ rats), Eisai-hyperbilirubinemic Sprague-Dawley rats (EHBR rats)] or genetically modified animals with loss-of-function of a specific transporter can be used to elucidate the role of that transporter in the disposition of a compound.^26,27 Knockdown of Bcrp using RNA interference in SCH isolated from wild-type rats elucidated the role of Bcrp in drug hepatobiliary disposition.^28,29 With human SCH, the role of individual transporters can be determined by using “specific” transporter inhibitors or by modifying the experimental conditions. For example, the role of NTCP could be assessed by measuring uptake in the absence and presence of sodium. However, highly specific transport inhibitors and substrates are lacking, and genetically modified animals are only limited to a few transporters. Therefore, a multi-experimental approach integrating SCH data, transfected systems and membrane vesicles can be used to characterize the involvement of multiple transporters.^26,27 Understanding the transport mechanism(s) could facilitate identification of potential DDIs involving uptake and efflux transporters. Previous reviews have shown the utility of SCH for these applications,^1,15 and recent reports are discussed below. A focused discussion about drug effects on bile acid disposition is in the following section “Mechanistic Investigations of Bile Acid-Mediated DILI”.

Yanni et al. identified the hepatic transporters involved in micafungin disposition by co-incubation of micafungin with an NTCP inhibitor [taurocholic acid (TCA)], an OATP inhibitor (rifampin), BSEP inhibitors (TCA and nefazodone), a mixed P-gp/BCRP inhibitor (GF120918), as well as a P-gp and MRP2 inhibitor (cyclosporine A).³¹ Mohamed et al. reported that the disposition of tacrine, which was approved for treatment of Alzheimer’s disease, was mediated by Octs, Mrp2 and P-gp by using rat SCH and chemical inhibitors.³² A similar approach to elucidate the responsible hepatobiliary transporters for 17α-hydroxyprogesterone caproate and its effect on bile acid transporters has been reported.³³ One caveat with this type of approach is that these “specific” inhibitors may have other effects on metabolism and/or transport. To overcome this issue, transporter assays using transfected cells can be used to confirm findings from the SCH studies. For example, disposition of a natural product timosaponin b2 (TB2) was characterized using rat SCH and involvement of specific transporters was confirmed using human OATP1B1- and OATP1B3-expressing HEK-293 cells and membrane vesicles isolated from cells expressing human MRP2 and BCRP.³⁴

In addition to drugs, the disposition of endogenous compounds has been studied using SCH. For example, amyloid-β (Aβ) hepatic disposition was studied in human SCH since Aβ accumulation contributes to Alzheimer’s disease.³⁵ Aβ was found to be taken up primarily by low-density lipoprotein receptor-related protein-1 (LRP1), and effluxed by P-gp. This finding indicates that enhancement of Aβ hepatic clearance via LRP1 and P-gp induction could be a novel therapeutic approach for the prevention and treatment of Alzheimer’s disease. Toxic compounds such as arsenic also have been studied in human SCH. The results suggest that arsenic basolateral efflux prevails over biliary excretion, and is mediated at least in part by MRPs, most likely MRP4.³⁶

Estimation of Transport Clearance

In the estimation of uptake clearance, hepatocytes in suspension generally are preferred due to the ease of use ^37,38 and concerns regarding down-regulation of uptake transporters in rat SCH.⁷ However, uptake transporter function in human SCH remains similar to freshly isolated hepatocytes under appropriate culture conditions.^6,7 Recent evidence suggests that cryopreserved hepatocytes cultured in sandwich configuration are a more feasible research tool to evaluate in vitro transport parameters without the negative impact derived from membrane leakage during cryopreservation.⁹ To distinguish active uptake from passive diffusion, hepatocytes can be co-incubated with an OATP inhibitor if the active uptake is mediated mainly by OATP. For example, rifampicin SV (100 μM) was reported to block OATP function in OATP-transfected cell lines and human SCH without affecting the passive diffusion.^24,39 Alternatively, active uptake in SCH can be determined by the difference in uptake in the absence and presence of sodium if the active uptake is governed primarily by NTCP. Active uptake also may be differentiated from passive diffusion by comparing the difference in uptake determined at 37°C and 4°C. However, reduced uptake at 4°C might be an artificial effect of a more rigid cell membrane, and thus, active uptake using this approach may be over-estimated.⁴⁰

In SCH, the biliary efflux clearance and biliary excretion index (BEI) can be calculated using B-CLEAR^® technology and Equations 1–3.⁴¹ A detailed description of B-CLEAR^® technology, including an overview of the advantages and limitations has been published by Swift et al.¹ Essentially, the accumulation of compound in cells + bile canaliculi and the accumulation of compound in cells can be differentiated by modulating the tight junctions using Ca²⁺-containing and Ca²⁺-free Hank’s balanced salt solution (HBSS). The utility of SCH data for extrapolation from in vitro biliary clearance to in vivo biliary clearance was reviewed previously by De Bruyn et al.¹⁵

$${CL}_{b,\mathit{app},in\mathit{vitro}}=\frac{{\mathit{Amount}}_{\mathit{cell}+\mathit{bile}}-{\mathit{Amount}}_{\mathit{cell}}}{\mathit{Time}\times {\mathit{Concentration}}_{\mathit{medium}}}$$ Eq. 1

$${CL}_{b,\mathit{int},in\mathit{vitro}}=\frac{{\mathit{Amount}}_{\mathit{cell}+\mathit{bile}}-{\mathit{Amount}}_{\mathit{cell}}}{\mathit{Time}\times {\mathit{Concentration}}_{\mathit{cell}}}$$ Eq. 2

$$\mathit{BEI}=\frac{{\mathit{Amount}}_{\mathit{cell}+\mathit{bile}}-{\mathit{Amount}}_{\mathit{cell}}}{{\mathit{Amount}}_{\mathit{cell}+\mathit{bile}}}\times 100\%$$ Eq. 3

CL_{b, app, in vitro} and CL_{b, int, in vitro} represent in vitro apparent biliary clearance and in vitro intrinsic biliary clearance, respectively. BEI represents biliary excretion index, which is the fraction of compound accumulated in the bile compartment relative to the total accumulation in cells plus bile.

Use of the SCH assay to categorize compounds as low, intermediate or high biliary clearance was first reported by Liu et al⁴¹, and has been confirmed by numerous investigators and reviewed by De Bruyn et al. ¹⁵ and Swift et al.¹ Pan et al.⁴² evaluated the biliary clearance of 110 compounds from Novartis exhibiting different permeability properties using the rat SCH model. The predicted biliary clearance from rat SCH correlated well with in vivo rat data, except for underestimation of biliary clearance for compounds with extremely low passive permeability and metabolism. The rank order of biliary clearance from human SCH data corresponded with clinical data for compounds with low to high biliary clearance,⁴³ despite slight underestimation of the absolute values (by 50–80%). The underestimation might be due to the decreased activity of uptake transporters depending on the culture conditions, and use of compound concentrations in the medium (Eq.1) instead of the intracellular concentrations (Eq.2) to predict biliary clearance. More accurate estimates of biliary clearance parameters for in vitro-in vivo scaling are discussed in greater detail in the “Mechanistic and PBPK Modeling” section.

To improve the accuracy of biliary clearance predictions using both rat and human SCH, the following approaches have been reported. The correlation between in vitro and in vivo biliary clearance is improved by using unbound plasma concentrations in the estimation of in vivo biliary clearance.⁴⁴ Moreover, the difference between in vivo intrinsic biliary clearance and predicted intrinsic biliary clearance from the SCH data using Eq. 2 is smaller than the difference between in vivo apparent biliary clearance and predicted apparent biliary clearance from SCH data based on Eq. 1.⁴⁵ Therefore, in vitro intrinsic biliary clearance (calculated based on intracellular concentrations instead of medium concentrations) is more reflective of in vivo biliary clearance.⁴⁵ In addition, quantitative proteomic approaches have been applied to improve biliary clearance predictions, as discussed in detail in the “Mechanistic and PBPK Modeling” section.

Basolateral efflux clearance can be estimated by preloading SCH with a substrate, and measuring the medium concentration at the end of the efflux phase. Ferslew et al. estimated basolateral efflux clearance of enalaprilat (generated in hepatocytes after incubation of rat SCH with enalapril) based on the cumulative amount of enalaprilat effluxed into the medium and intracellular enalaprilat concentrations over the efflux period.⁴⁶ The functional importance of MRP4 in the basolateral efflux of enalaprilat was demonstrated by using MK-571, an inhibitor of multiple MRPs, in rat SCH, and confirmed in membrane vesicles prepared from HEK-293 cells overexpressing human MRP4. Of note, direct estimation of basolateral efflux using this approach was possible because biliary excretion of enalaprilat is negligible. For compounds that undergo extensive biliary excretion, mechanistic modeling is necessary to deconvolute basolateral efflux, biliary excretion, and flux from the bile compartment to the medium, as discussed in the “Mechanistic and PBPK Modeling” section.

Transporter-Mediated DDIs

Transporter-based drug-drug and drug-bile acid interactions may have significant toxicological implications, such as statin-induced myopathy and rhabdomyolysis due to inhibition of OATPs,⁴⁷ and troglitazone (TGZ)- and bosentan-induced hepatotoxicity due to inhibition of BSEP.^48,49 Membrane vesicles prepared from transfected cells overexpressing relevant transport proteins are useful to characterize substrate specificity and inhibitory potency of a given transport protein in isolation. However, a more physiologically representative, organ-specific, whole-cell system is needed to elucidate the relative contribution of individual transporters to overall clearance, and to estimate the net effect of inhibition/induction at multiple sites. Both acute (direct and indirect) and long-term effects on transporters have been studied in SCH.

A DDI between ritonavir (perpetrator) and ^99mTc–mebrofenin (victim substrate) due to direct inhibition was demonstrated by Pfeifer et al. using human SCH coupled with modeling and simulation of clinical data.^6,50 Ritonavir decreased ^99mTc–mebrofenin uptake without changing the BEI of ^99mTc–mebrofenin, despite the fact that ritonavir had been reported to inhibit MRP2, which mediates the biliary excretion of ^99mTc–mebrofenin. These in vitro findings were consistent with the clinical observation that single or multiple doses of ritonavir increased ^99mTc–mebrofenin systemic exposure without significantly changing biliary recovery of ^99mTc–mebrofenin. SCH data revealed that intracellular ritonavir concentrations after clinical doses were not high enough to inhibit MRP2 based on data generated for ^99mTc–mebrofenin transport by MRP2.

Unlike direct inhibition, indirect inhibition of transporters is under-appreciated and the relevant studies using SCH are still limited. Powell et al ⁵¹ reported post-translational regulation of OATP1B3 by the protein kinase C (PKC) activator, phorbol-12-myristate-13-acetate (PMA). This mechanism was revealed by the fact that pre-treatment of SCH with PMA inhibited OATP1B3 function while co-incubation with PMA did not. Kruglov et al. reported that the type II inositol 1,4,5-trisphosphate receptor modulates Bsep activity in rat SCH through post-translational regulation.⁵² The important role of N-glycosylation of ATP-binding cassette transporters on transport activity was established using rat SCH.^53,54

The induction of transporters after long-term incubation (>24 hr) also was studied in SCH. Up-regulation of transporter mRNA expression in response to prototypical activators of the pregnane X receptor, aryl hydrocarbon receptor and constitutive androstane receptor were reported in mouse SCH.⁵⁵ In addition to changes in mRNA expression of P-gp, an increase in the BEI of digoxin, a P-gp substrate, was observed in human SCH following treatment with rifampicin for 3 days.⁵⁶

Enzyme-Transporter Interplay

The complexity of DDI predictions may be increased further by the interplay between enzymes and transporters. Many compounds interact with enzymes and transporters simultaneously. For example, cyclosporine inhibits CYP3A4, and multiple transporters including P-gp and OATP1B1. Gemfibrozil and gemfibrozil glucuronide inhibit CYP2C8 and OATP1B1.⁴⁷ Moreover, the parent compound and derived metabolites may have similar or opposite effects on transporters and enzymes. For drugs that are metabolized extensively, the presence of metabolic capacity in SCH enables the simultaneous evaluation of parent and metabolite effects without prior knowledge regarding the metabolites. This capability is very beneficial, especially in the early stages of drug discovery when metabolite identification has not been conducted and purified metabolites are not available. A few examples are discussed below.

For drugs that are rapidly metabolized and the metabolites are not transporter inhibitors, the intracellular concentration of the parent compound might not be high enough to inhibit efflux transporters. For example, cilexetil (CIL) exhibited potent BSEP inhibition based on membrane vesicle assays. However, BSEP inhibition by CIL was not observed in human SCH after 120-min exposure, which might be due to the metabolic elimination of CIL in SCH.⁵⁷ In this case, the membrane vesicle data led to a false positive prediction of BSEP inhibition. Sometimes metabolites are more potent inhibitors of transporters, such as TGZ sulfate vs. TGZ. In this case, data from a metabolism-deficient system could lead to false-negative results.⁴⁹ The interplay between formation and excretion of TGZ metabolites was studied in rat SCH lacking Bcrp and Mrp2 by Yang et al. using RNA interference techniques to knock down Bcrp in SCH prepared from TR⁻ rats.⁵⁸ In some cases, only the metabolites are transporter inhibitors. For example, although estradiol and bilirubin do not inhibit MRP2, pre-exposure of rat SCH to estradiol and bilirubin decreased the biliary excretion of 5-(and 6)-carboxy-2′,7′-dichlorofluorescein, a MRP2 substrate, which could be attributed to the inhibition by the generated metabolites of estradiol and bilirubin. ⁵⁹

Mechanistic and PBPK Modeling

Physiologically based pharmacokinetic (PBPK) modeling is a useful tool to predict the pharmacokinetics of novel compounds in the systemic circulation and target organs. Successful PBPK models depend on reliable estimates of compound-specific information (e.g., clearance, tissue partition coefficients, and the rate and extent of absorption). SCH have been used to estimate clearance values that are incorporated into PBPK models. The methods to estimate in vitro clearance using SCH and extrapolate from in vitro to in vivo clearance values are discussed below.

In vitro intrinsic uptake and efflux clearance values have been estimated using empirical methods, as described in the previous sections. The apparent clearance value determined from SCH data may be comprised of more than one clearance pathway. Despite this limitation, clearance values estimated by empirical/static approaches can represent useful prior information to guide the experimental design for mechanistic modeling and simulation, and generally requires a relatively small number of data points.

Mechanistic pharmacokinetic models have been developed to deconvolute apparent uptake and efflux clearance values and obtain more accurate estimates. Linear kinetics are assumed and the clearance terms (rather than V_max and K_m) are used because a single, low concentration of substrate typically is studied. To estimate the kinetic parameters, multiple time points during both the uptake and efflux phase are required. Depending on the permeability of the substrate, passive diffusion clearance could be estimated solely from 37°C data. The kinetic parameters estimated could be used to perform sensitivity analyses and Monte Carlo simulations, which can help identify key model input parameters. Depending on the model structure and complexity, the published mechanistic pharmacokinetic models are classified into three categories. The model structures and exemplar experimental protocols are shown in Figure 2; the model output parameters, assumptions and applications of each model are summarized in Table 1.

Figure 2. Schematic diagram depicting the mechanistic pharmacokinetic models (left) and experimental protocols (right) in SCH.

(A) Model I, uptake studies were conducted in the presence of standard HBSS, Ca²⁺-free HBSS, or standard HBSS containing rifamycin SV. (B) Model II, uptake studies were conducted in the presence of standard HBSS or Ca²⁺-free HBSS. (C) Model III, uptake and efflux studies were conducted in the presence of standard HBSS or Ca²⁺-free HBSS.

In the model schemes (left), dashed boxes represent the sampling compartments. X, V, and C denote the mass of substrate, compartmental volume, and substrate concentration, respectively. Subscripts on mass, bile and concentration terms denote the corresponding compartment in the model scheme, superscripts represent the presence and absence of Ca²⁺ in the pre-incubation and efflux buffer. X in parenthesis represents experimental measurements. Output parameters include: intrinsic uptake clearance (CL_{int, uptake}), intrinsic passive diffusion clearance (CL_{int, pass}), intrinsic biliary clearance (CL_{int, bile}), intrinsic metabolic clearance (CL_{int, met}), intrinsic basolateral efflux clearance (CL_{int, BL}), first-order rate constant for flux from bile networks into buffer (K_flux), intrinsic uptake clearance of parent (CL_{int, uptake, parent}), intrinsic uptake clearance of metabolite (CL_{int, uptake, metabolite}), intrinsic biliary clearance of metabolite (CL_{int, bile, metabolite}), intrinsic basolateral efflux clearance of metabolite (CL_{int, BL, metabolite}), first-order rate constant for flux from bile networks into buffer of metabolite (K_{flux, metabolite}). In the experimental protocols diagram, the white boxes represent incubation with Ca²⁺-free or standard HBSS. Grey shaded boxes represent inclusion of the substrate in standard HBSS during the uptake phase. Black boxes represent a 1-min wash with Ca²⁺-free or standard HBSS. The sampling times and incubation length are shown in this diagram as an example, but need to be adjusted depending on the pharmacokinetic characteristics of the substrate.

Table 1.

Output parameters, assumptions, and applications of mechanistic pharmacokinetic modeling to assess clearance in SCH.

Type of Model	Output Parameters	Comments	Ref.
Model I	CLint, uptake CLint, pass CLint, bile	Assumptions: no basolateral efflux no Kflux CLint, met same as estimated from HLMs Applications: substrates without basolateral efflux CLint, met from other systems fixed in the model	60–62
Model II	CLint, uptake, parent CLint, uptake, metabolite CLint, BL, metabolite CLint, bile, metabolite CLint, met Kflux, metabolite	Assumption: no passive diffusion only metabolites effluxed into bile and medium Applications: simultaneous estimation of transport clearance of parent and metabolite, as well as metabolic clearance	66 178 172
Model III	CLint, uptake CLint, BL CLint, bile Kflux	Assumptions: no passive diffusion no metabolism Applications: accurate estimation of CLint, BL and Kflux by using a novel uptake and efflux protocol useful for substrates minimally metabolized	69,67,68

CL_{int, uptake}, intrinsic uptake clearance; CL_{int, pass}, intrinsic passive diffusion clearance; CL_{int, bile}, intrinsic biliary clearance; CL_{int, met}, intrinsic metabolic clearance; CL_{int, BL}, intrinsic basolateral efflux clearance; K_flux, first-order rate constant for flux from bile networks into buffer; CL_{int, uptake, parent}, intrinsic uptake clearance of parent; CL_{int, uptake, metabolite}, intrinsic uptake clearance of metabolite; CL_{int, bile, metabolite}, intrinsic biliary clearance of metabolite; CL_{int, BL, metabolite}, intrinsic basolateral efflux clearance of metabolite; K_{flux, metabolite}, first-order rate constant for flux from bile networks into buffer of metabolite; HLMs, human liver microsomes

Model I

This model is the simplest for the SCH system (Figure 2A). Three compartments represent the medium, cell, and bile, with passive diffusion, active uptake, biliary efflux, and metabolism processes included. Key kinetic parameters include intrinsic passive diffusion clearance (CL_{int, pass}); intrinsic uptake clearance (CL_{int, uptake}), and intrinsic biliary clearance (CL_{int, bile}). Basolateral efflux is assumed to be negligible. When significant metabolism is observed, intrinsic metabolic clearance (CL_{int, met}) is set to the unbound intrinsic clearance value determined in HLMs. To generate the experimental data, SCH are first pre-incubated with standard HBSS, Ca²⁺-free HBSS, or standard HBSS containing rifamycin SV, followed by incubation with the substrate. Substrate uptake is terminated at different time points, and the intracellular and medium concentrations of the substrate are measured. This model has been applied to estimate the in vitro intrinsic clearance for OATP substrates by several research groups.^60–62

Model II

Unlike Model I where CL_{int, met} is fixed to a pre-determined value, CL_{int, met} is fitted to metabolite(s) concentration- time data in Model II. In addition, intrinsic basolateral efflux clearance of metabolite (CL_{int, BL, metabolite}) is included rather than assuming passive diffusion. K_{flux, metabolite}, which accounts for the “flux” of metabolite from the canalicular compartment into the buffer, also is incorporated. ^68–70 In this model, it is assumed that only metabolites undergo efflux into bile or medium. (Figure 2B). The experimental protocol is similar to that of Model I except that the pre-incubation phase only consists of two conditions (HBSS and Ca²⁺-free HBSS) and both parent and metabolite(s) concentrations are measured. Lee et al. fitted this model to concentration-time data for TGZ and metabolites [TGZ sulfate, TGZ glucuronide, and TGZ quinone] in rat and human SCH.⁶³ This model has been used to characterize the contribution of individual clearance pathways to the disposition of mycophenolic acid (MPA) and MPA glucuronide (MPAG), ⁶⁴ and the inhibitory potency of cyclosporine on each pathway in human SCH. ⁶⁷ The modeling results suggest that cyclosporine A inhibits both basolateral uptake and biliary efflux clearance of MPAG without changing the conversion of MPA to MPAG. This mechanism explains the cyclosporine A-mediated decrease in enterohepatic circulation of MPAG and lower systemic exposure of MPA and MPAG in humans.

Model III

Model III is more suitable for compounds with minimal passive diffusion that are not extensively metabolized (Figure 2C), such as rosuvastatin (RSV) and TCA. To obtain an accurate estimate of basolateral efflux, a novel uptake and efflux protocol is used, which includes an uptake phase followed by an efflux phase where serial samples are obtained. Uptake, biliary, and basolateral efflux clearance values for RSV, ³H-TCA, and d₈-TCA were estimated from rat and human SCH data. ^65–67 The impact of impaired clearance of RSV and ³H-TCA were simulated, and predicted perpetrator effects on d_8-TCA disposition were compared with experimental observations.

In this experimental design, a few practical factors need to be considered for determining the maximum incubation time. Most of the time, the uptake phase is extended beyond the linear range to attain steady-state intracellular conditions, which reduces the error in certain parameter estimates observed with shorter incubation times. ⁷¹ However, exposure to Ca²⁺-free HBSS for more than 30 min increases cytotoxicity.¹ Therefore, after pre-incubation with Ca²⁺-containing or Ca²⁺-free HBSS for 10 min, SCH are incubated with Ca²⁺-containing HBSS during the uptake phase. The uptake phase should be limited to 20 min in Ca²⁺-containing HBSS to avoid resealing of tight junctions in SCH pre-incubated with Ca²⁺-free HBSS.⁶⁵

Scaling Methods

In vivo intrinsic clearance is a key parameter for PBPK models that can be extrapolated from in vitro clearance using the following scaling methods. The simplest and most straightforward approach of scaling up is based on hepatocellularity and liver weight as described previously⁷² and reviewed by Poulin.⁷³ Scaling with physiological parameters works well for metabolic clearance. However, this approach leads to an underprediction of CL_{int, uptake} and an overprediction of CL_{int, bile}.⁶⁰ Underprediction of uptake may be due to disregarding CL_{int, BL} in the model, or to down-regulation of uptake transporters in vitro compared to in vivo¹⁴. Overprediction of CL_{int, bile} may be due the absence of enterohepatic recirculation, and/or ignoring _Kflux in the mechanistic model.⁶⁰ Clearly, over-simplification of the model structure can lead to over- or under-prediction of parameters. To address this issue, Jones et al. determined compound-specific empirical scaling factors (SFs) by comparing in vivo clearance estimated from intravenous pharmacokinetic data to in vitro clearance data;⁶⁰ geometric mean SFs for intrinsic unbound uptake clearance (CL_{int, u, uptake}), intrinsic unbound biliary clearance (CL_{int, u, bile}) and intrinsic unbound passive diffusion clearance (CL_{int, u, pass}) of seven OATP substrates were reported as 58, 0.061, and 1.⁶⁰ These SFs have been used in the in vitro-in vivo extrapolation of other OATP substrates such as telmisartan.^60,61 A similar approach has been applied to estimate SFs for CL_{int, uptake} of pravastatin, repaglinide, and glyburide.^74–76 Li et al. developed a single set of empirical SFs by simultaneously modeling data for the same seven OATP substrates; they reported SFs of 55 for CL_{int, u, uptake}, 0.019 for CL_{int, u, bile}, and 0.092 for CL_{int, u, pass}.⁷⁷ The difference in the estimated SF for CL_{int, u, pass} between the two studies (1 vs. 0.092) could be due to different approaches for model fitting [the SF for intrinsic unbound metabolic clearance (CL_{int, u, met}) was not estimated by Jones et al.⁶⁰ because CL_{int, u, met} was not identifiable, but this SF was fitted in the work of Li et al.⁷⁷]

The approach described above relies on intravenous pharmacokinetic data to estimate empirical SFs. If intravenous data are not available, the in vitro-in vivo extrapolation could be facilitated by information regarding transporter abundance. Absolute quantification of transporter expression by mass spectrometry was first reported by Terasaki and colleagues, based on the assumption that all expressed protein is localized on the membrane and, therefore, functional.^78–82 This technique has been advanced by the work of Lai and coworkers,^{10, 13,24,83} Unadkat and colleagues ^78,79 and more recently by Artursson and coworkers ⁸⁴ and Galetin and colleagues.⁸⁵

Intrinsic clearance values estimated using the approaches detailed above can be used directly in PBPK models ⁸⁶ or they can be combined with liver blood flow and protein binding data to estimate hepatic clearance based on the well-stirred or parallel-tube models of hepatic disposition.⁸⁷ Pharmacokinetic profiles have been predicted successfully for numerous compounds including statins, sartans, mebrofenin, pafuramidine, glyburide, and repaglinide using PBPK models that incorporated clearance values estimated from SCH.^{24,50,60–62,74–76,88–91}

USE OF SANDWICH–CULTURED HEPATOCYTES TO STUDY DRUG–INDUCED LIVER INJURY

Drug-induced liver injury (DILI) is the most common cause of acute fulminant hepatic failure,⁹⁴ and is the primary reason for withdrawal of approved drugs from the market.⁹⁵ DILI is one of the major challenges during drug development because standard preclinical testing has not been able to precisely predict clinical DILI and mechanisms underlying interspecies differences have not been fully elucidated. DILI manifests as a broad spectrum of liver injuries, and multiple mechanisms may cause DILI including oxidative stress, mitochondrial toxicity, and bile acid transporter inhibition.^96,97 Therefore, many different approaches and experimental systems have been used to predict the hepatotoxic potential of compounds. SCH are a useful tool to assess cytotoxicity and perturbation of biological processes by drugs and hepatically-generated metabolites, providing mechanistic insights into hepatotoxicity.^98–100 This system also allows direct sampling of hepatocytes for measurement of intracellular drug exposure or cytotoxicity endpoints such as ATP.

In this section, use of SCH to study DILI is reviewed with a focus on bile acid-mediated hepatotoxicity. Mechanistic investigations of altered bile acid disposition by drugs using SCH and mechanistic modeling are reviewed first. Next, use of systems pharmacology modeling to predict clinical DILI is discussed. An example of how the SCH model was used to establish a quantitative relationship between intracellular bile acids and toxicity in a systems pharmacology model is presented using novel unpublished data generated in our laboratory.

Mechanistic Investigations of Bile Acid-Mediated DILI

One proposed mechanism of DILI is inhibition of bile acid efflux in hepatocytes by drugs, which may result in intracellular accumulation of potentially toxic bile acids.^101,102 Evidence continues to accumulate that inhibition of bile acid transporters such as BSEP and MRPs by drugs is a risk factor for DILI.^103–106 Bile acids play important roles in the body as key signaling molecules as well as lipid solubilizers, but bile acids can be cytotoxic when present at supraphysiologic concentrations in hepatocytes.¹⁰⁷ Bile acid toxicity is highly correlated with hydrophobicity; lithocholic acid (LCA), chenodeoxycholic acid (CDCA), and deoxycholic acid (DCA) are more cytotoxic than less hydrophobic bile acids, cholic acid (CA) and ursodeoxycholic acid (UDCA).^101,108,109 Mechanisms of bile acid-induced hepatotoxicity include disruption of cell membranes due to their detergent-like properties, disruption of mitochondrial ATP synthesis, necrosis, and apoptosis.¹⁰¹

Hepatic enzymes and transport proteins play important roles in metabolism and excretion of bile acids.^110–113 SCH express bile acid metabolizing enzymes and transporters, and are capable of synthesizing, metabolizing, and transporting bile acids.¹¹⁴ SCH also can be isolated from different species, enabling investigation of species differences in hepatobiliary bile acid disposition and drug-bile acid interactions, as reviewed in the following section.

Characterization of Hepatobiliary Bile Acid Disposition in SCH

Vectorial transport of bile acids is mediated primarily by the hepatic uptake transporter NTCP and the canalicular efflux transporter BSEP.^111,112 In addition to BSEP-mediated biliary excretion, bile acids also can be transported into sinusoidal blood by MRP3, MRP4, and organic solute transporter (OST)α/β.^115–118 Due to extensive biliary excretion, the contribution of basolateral efflux to hepatocellular bile acid excretion was presumed to be minimal. However, mechanistic modeling based on TCA disposition data in rat SCH demonstrated that CL_{int, bile} and CL_{int, BL} of TCA are similar (0.34 and 0.26 mL/min/gram liver, respectively).¹¹⁹ These data suggest that biliary excretion and basolateral efflux contribute almost equally to hepatocellular excretion of TCA in rat SCH. Bile acids transported into sinusoidal blood can subsequently be taken up by downstream hepatocytes. After undergoing blood-liver cycling as they move from the periportal to the centrilobular zone, the majority of bile acids eventually are excreted into bile, similar to the “hepatocyte hopping” of bilirubin glucuronides.¹²⁰ In contrast, biliary excretion of TCA predominated in human SCH (CL_{int, bile}=0.14 mL/min/gram liver and CL_{int, BL}=0.042 mL/min/gram liver), indicating that species differences exist in the hepatocellular excretion of bile acids in rats vs. humans.¹¹⁹

SCH also can be used to investigate bile acid disposition in hepatocytes from special populations such as the fetus. Sharma et al. showed that the BEI of TCA, a BSEP substrate, in fetal hepatocytes was approximately one-half of that in adult hepatocytes (36 and 72%, respectively).¹²¹ RT-PCR analysis demonstrated that mRNA expression of ABCB11 (a gene encoding BSEP) in fetal hepatocytes was 40% of that in adult hepatocytes, consistent with the functional study results.¹²¹

Evaluation of Drug Effects on Hepatobiliary Bile Acid Disposition using SCH

Drug effects on bile acid transport can be evaluated using multiple in vitro systems. Isolated membrane vesicles overexpressing a specific transporter (e.g., BSEP, MRP3, MRP4) have been used widely to assess drug-bile acid interactions that involve efflux transporters.^{103,104,106,122} To assess drug effects on hepatic uptake of bile acids, cell lines overexpressing uptake transporters (e.g., NTCP) are employed. These transporter-overexpressing systems provide a useful tool to study drug-bile acid interactions for a single transporter, and to estimate kinetic parameters of bile acid transport and drug-mediated inhibition [e.g., Michaelis-Menten constant (K_m), inhibition constant (K_i), half-maximal inhibitory concentration (IC₅₀)]. However, it is difficult to assess the “net effect” of drugs on hepatobiliary bile acid disposition using these systems because multiple uptake and efflux transporters are involved in bile acid disposition. SCH, which express functional bile acid transporters on the basolateral and canalicular membranes, are suitable for this purpose. SCH also express functional metabolic enzymes and allow evaluation of drug metabolite effects on bile acid transporters, which is advantageous when the metabolic pathways have not been characterized and/or the specific effects of metabolites are unknown.

SCH have been used widely to determine altered bile acid disposition by drugs that belong to different therapeutic classes. Endothelin receptor antagonists (ERAs) are used to manage pulmonary arterial hypertension. Despite their clinical benefits, some ERAs have been associated with hepatotoxicity, although the incidence rate and severity appears to be compound-specific. Sitaxsentan was withdrawn from the market recently due to cases of fatal hepatotoxicity, and bosentan requires monthly monitoring due to serum aminotransferase elevations in a subset of patients.^123–125 Inhibition of bile acid transporters has been proposed as an underlying mechanism of sitaxsentan- and bosentan-mediated DILI.^103,126,127 On the other hand, recently approved ERAs, ambrisentan and macitentan, are associated with a lower risk of liver injury.^128–130 Studies using human SCH demonstrated that individual ERAs have differential effects on the hepatobiliary disposition of bile acids. In human SCH, bosentan and macitentan significantly decreased the BEI and apparent biliary clearance of TCA, whereas ambrisentan showed minimal inhibitory effects on TCA biliary excretion.³⁰ Bosentan and sitaxsentan also significantly inhibited sodium-dependent TCA uptake in human SCH.³⁰ As a result of inhibitory effects on multiple bile acid transporters, bosentan and macitentan significantly decreased total (cell + bile) and cellular accumulation of TCA in human SCH in a concentration-dependent manner.³⁰ Interestingly, individual ERAs accumulated in human SCH to a different extent; the hepatocyte concentration of macitentan was about 100-fold greater than the medium concentration followed by sitaxsentan (40-fold), bosentan (20-fold), and ambrisentan (2-fold).²⁶ The low incidence of macitentan hepatotoxicity in the clinic may be due to the low dose and relatively lower exposure compared to the other ERAs. Hepatocyte concentrations of these inhibitors at clinically relevant doses need to be investigated to confirm this hypothesis.

Antiretroviral protease inhibitors (PIs) are commonly used to treat human immunodeficiency virus, but in a subset of patients, their clinical use is limited due to DILI.^132–134 Ritonavir is often administered with other PIs to improve oral bioavailability of the coadministered PIs, but ritonavir-containing regimens are associated with an 8.6-fold increase in the risk of hepatotoxicity.¹³³ Several PIs including ritonavir and lopinavir are known to inhibit BSEP,^103,135 suggesting that hepatotoxicity is mediated, in part, by bile acid transport inhibition. Studies in rat SCH demonstrated that ritonavir and lopinavir significantly reduced TCA biliary excretion (BEI and CL_{b, app, in vitro}) and subsequently, increased intracellular accumulation of TCA.¹³⁶ Co-incubation of both lopinavir and ritonavir further decreased biliary excretion, resulting in increased cellular TCA accumulation.¹³⁶ Interestingly, 24-hr exposure to lopinavir and ritonavir decreased hepatic accumulation of endogenous bile acids in rat SCH, potentially due to protective feedback regulation that reduced hepatic bile acid synthesis.¹³⁶

TAK-875 is a selective G-protein-coupled receptor 40 agonist that was developed to treat type 2 diabetes, but the clinical development of TAK-875 was discontinued due to hepatotoxicity concerns. Studies using rat SCH demonstrated that TAK-875 decreased CL_{b, app, in vitro} and BEI of TCA, suggesting that inhibition of bile acid transport may be responsible, in part, for the hepatotoxicity of this compound.¹³⁷

Guo et al. reported that alpha-naphthylisothiocyanate (ANIT), a model cholestatic compound, induced total bile acid accumulation in rat SCH after a 48-hr incubation, which was consistent with elevated total serum bile acids after in vivo exposure in rats. This effect of ANIT was probably due to inhibition of Ntcp, Oatp1a4 and/or Oatp1a1, Mrp2, and Mrp3, as demonstrated by using prototypical transporter substrates, but not because of increased bile acid synthesis, as evidenced by decreased mRNA expression of enzymes governing bile acid synthesis (i.e., Cyp7a1, Cyp27a1, and Cyp8b1).¹³⁸

Investigation of a panel of endpoints in SCH (e.g., BEI, CL_{b, app, in vitro}, total and cellular accumulation of bile acids) provides mechanistic information about potential sites (uptake or excretion) of bile acid transporter modulation by compounds. For example, if a compound inhibits both uptake (indicated by a decrease in total accumulation and CL_{b, app, in vitro}) and biliary excretion (indicated by a decrease in BEI and CL_{b, app, in vitro}) of bile acids, an increase in cellular accumulation of bile acids suggests that the compound predominantly influences biliary excretion. On the other hand, a decrease in the cellular accumulation of bile acids indicates that bile acid uptake is primarily affected. Ansede et al. investigated the effects of TGZ, glyburide, cyclosporine A, and erythromycin estolate on the disposition of the model bile acid TCA in rat SCH. These compounds had been shown to inhibit hepatic bile acid transporters in isolated vesicular systems or suspended hepatocytes.^{103,104,139,140} Based on SCH data using endpoint analysis, as described above, cyclosporine A and glyburide inhibited biliary excretion to a greater extent than hepatic uptake of TCA. On the other hand, erythromycin estolate and TGZ primarily affected TCA uptake.^140,141 These examples demonstrate that unlike other in vitro transporter models, SCH can be used to simultaneously determine the effects of a drug on the basolateral uptake and biliary excretion of bile acids, and therefore, the overall effect of drugs on the hepatobiliary disposition of bile acids can be assessed. In addition, for drugs like TGZ, where the metabolite (e.g. TGZ sulfate) is a more potent inhibitor of transporters compared to the parent,¹⁴² SCH data reflect the combined effects of both the parent and the metabolite, providing more physiologically-relevant information.

Pedersen et al. compared the inhibition of TCA canalicular efflux by drugs associated with severe DILI and less severe/no DILI in human SCH.¹⁰⁶ They reported that drugs associated with severe DILI such as cyclosporine A, ritonavir, rosiglitazone, and TGZ significantly reduced the canalicular efflux of TCA. On the other hand, drugs with less severe or no DILI (i.e., mifepristone, isradipine, budesonide, and glyburide) showed minimal effects on the canalicular efflux of TCA in human SCH, despite the fact that they exhibited similar potency towards BSEP inhibition in membrane vesicle assays. These results suggest that human SCH can decrease false positives that occur with membrane vesicle assays and thus, can be used to differentiate BSEP inhibitors associated with severe DILI from those with less DILI liabilities. A study by Chatterjee et al. also concluded that SCH are a useful model system to predict hepatotoxic potential of drugs mediated by bile acid transport inhibition.¹⁴³ In their study, a urea assay was performed after incubation of human SCH with cholestatic and non-cholestatic compounds to assess functional changes in hepatocytes. The drug-induced cholestatic index (DICI), the relative residual urea formation in SCH co-incubated with drugs and bile acids as compared to urea formation in SCH incubated with drugs alone, was calculated. Cholestatic compounds (e.g., cyclosporine A, TGZ, chlorpromazine, bosentan, ticlopidine, ritonavir, and midecamycin) showed DICI≤0.8, indicating that these compounds had enhanced toxicity (reduced urea formation) in the presence of bile acids. Conversely, non-cholestatic compounds (e.g., diclofenac, valproic acid, amiodarone, and acetaminophen) showed DICI > 0.8 because cytotoxicity of compounds remained unchanged with bile acid co-incubation. Overall, these studies confirm the utility of SCH for early screening of DILI mediated by bile acid transport inhibition.

Use of Human-Relevant Bile Acids to Characterize Drug–Bile Acid Interactions in SCH

TCA, which has been used widely as a model bile acid to investigate drug-bile acid interactions, is a predominant bile acid species in rodents, whereas its contribution to the human bile acid pool is minor.¹⁴⁴ On the other hand, CDCA and its conjugates are prevalent primary bile acids in humans.¹⁴⁴ TCA, a conjugated trihydroxy bile acid, is less hydrophobic, and thus, less toxic, compared to the dihydroxy bile acid CDCA.¹⁰¹ Interestingly, Marion et al. reported that TGZ had differential effects on hepatobiliary disposition of TCA and CDCA.¹³⁹ TGZ decreased cellular accumulation of TCA in rat SCH, consistent with earlier reports as described in the “Evaluation of Drug Effects on Hepatobiliary Bile Acid Disposition using SCH” section, but increased CDCA accumulation in hepatocytes.¹³⁹ Subsequent studies revealed that TGZ significantly inhibited TCA uptake in suspended rat hepatocytes, whereas uptake of CDCA, which was mediated by a nonsaturable sodium-independent mechanism, was less affected by TGZ. Griffin et al. also reported that while lopinavir and ritonavir significantly decreased biliary excretion of both TCA and CDCA, only TCA showed increased cellular accumulation; intracellular CDCA levels remained unchanged.¹³⁶ These data suggest that drugs have differential effects on individual bile acids, and that altered TCA disposition may not be representative of the disposition of other bile acids. Therefore, use of human-relevant, more cytotoxic bile acids (e.g., CDCA) may provide better insights into human DILI.

Use of Fluorescent Bile Acids as Probes to Characterize Drug–Bile Acid Interactions in SCH

Fluorescent bile acids are another useful tool to assess drug effects on hepatobiliary disposition of bile acids. One advantage of fluorescent bile acids is that they can be visualized by microscopic and confocal imaging, allowing non-invasive assessment of hepatic bile acid disposition and high-throughput screening. Aminofluorescein-tagged bile acids, chenodeoxycholylglycylamidofluorescein (CDCGamF) and cholylglycylamidofluorescein (CGamF), have been employed to assess drug effects on bile acid transport in transfected cells and membrane vesicle systems.¹⁴⁵ Interestingly, species differences were observed in the effects of PIs on CGamF disposition in SCH; atazanavir, indivanir, and darunavir potently inhibited CGamF accumulation in human SCH, whereas inhibitory effects in rat, dog, and pig SCH were less significant.¹⁴⁶ Cholyl-L-lysyl-fluorescein (CLF) is another fluorescent bile acid analogue that has been used to study drug-bile acid interactions. Barber et al. quantified inhibition of CLF disposition by twenty-nine drugs in rat SCH.¹⁴⁷ They estimated IC₅₀ values for biliary excretion of CLF, and reported that all of the drugs that showed plasma C_max/IC₅₀ ratios > 0.1 were associated with DILI in humans. Interestingly, for many compounds tested, IC₅₀ values on CLF biliary excretion measured in rat SCH were smaller than IC₅₀ values measured in membrane vesicle systems from cells expressing BSEP or MRP2, suggesting the potential contribution of metabolites formed in SCH. Of note, unlike endogenous bile acids, hepatic uptake of CGamF and CLF is mediated predominantly by OATP, and MRP2 rather than BSEP is primarily responsible for the biliary excretion of CLF.^146,148 A recently developed fluorescent bile acid derivative, N-(24-[7-(4-N,N-dimethylaminosulfonyl-2,1,3-benzoxadiazole)]amino-3α,7 α,12 α-trihydroxy-27-nor-5β-cholestan-26-oyl)-2′-aminoethanesulfonate (tauro-nor-THCA-24-DBD), was shown to be transported by NTCP and BSEP in human and rat SCH, similar to endogenous bile acids; this may prove to be a useful probe for drug-bile acid interaction studies.¹⁴⁹ Overall, fluorescent bile acids in the SCH system are a useful tool to study drug and metabolite effects on bile acid disposition in a physiologically relevant system by live cell analysis of bile acid biliary excretion.

Integration of SCH Data into a Systems Pharmacology Model to Predict DILI

As reviewed in the previous section, SCH data provide useful insights in terms of drug-bile acid interactions. These in vitro data can be integrated with physiological knowledge using a systems pharmacology modeling approach to predict clinical hepatotoxicity. Systems pharmacology modeling is a useful tool to translate mechanistic data measured in vitro to in vivo. DILIsym^® is a quantitative systems pharmacology model of DILI that includes drug disposition and physiological processes involved in DILI. Multiple mechanisms of DILI including oxidative stress, mitochondrial dysfunction, and bile acid transport inhibition are represented within DILIsym^®, enabling prediction of DILI in humans and preclinical animals.^150–152 To predict bile acid-mediated DILI, a bile acid homeostasis sub-model was constructed within DILIsym^®.153 However, to construct the sub-model, the intracellular bile acid concentrations that led to hepatotoxicity needed to be quantified. The relative potency of bile acids with respect to hepatotoxicity was investigated based on medium concentrations or systemic exposure using in vitro and in vivo systems,^154,155 but the relationship between hepatocellular bile acid concentrations and toxicity had not been determined quantitatively. In this section, a case study is presented to demonstrate how SCH data were used to fill this data gap, which is essential to link bile acid kinetics to toxicity in a bile acid transport inhibition sub-model within DILIsym^®.

Bile Acid Toxicity Studies in SCH to Establish a Quantitative Relationship Between Hepatocellular Bile Acids and Toxicity

The current study investigated cellular exposure and toxicity of LCA and CDCA in human and rat SCH. LCA and CDCA were chosen because they are hydrophobic and potentially toxic bile acid species; LCA is a secondary bile acid formed by bacterial metabolism of CDCA in the intestinal lumen.¹⁰¹ Hepatic metabolic pathways and hydrophobicity of CDCA and LCA are summarized in Figure 3.

Figure 3. Hepatic metabolic pathways of lithocholic acid (LCA) and chenodeoxycholic acid (CDCA).

Schematic overview of previously reported metabolic pathways of LCA and CDCA in the liver. The hydrophobicity indices also are presented if the data were available from the literature. Conjugation pathways are only shown for LCA and CDCA, but other bile acids are also subject to glycine-, taurine-, sulfate-, or glucuronide-conjugation. (H) major pathway in humans; (R) major pathway in rats; 3-KCA, 3-ketocholic acid; 6-KLCA, 6-ketolithocholic acid; BAAT, bile acid:amino acid transferase; BACS, bile acid:coA synthase; CA, cholic acid; CDCA, chenodeoxycholic acid; CDCA-Gluc, chenodeoxycholic acid-glucuronide; CDCA-S, chenodeoxycholic acid-sulfate; CYP, cytochrome P450; GCDCA, glycochenodeoxycholic acid; GLCA, glycolithocholic acid; HCA, hyocholic acid; HDCA, hyodeoxycholic acid; ILCA, isolithocholic acid; LCA, lithocholic acid; LCA-Gluc, lithocholic acid-glucuronide; LCA-S, lithocholic acid-sulfate; αMCA, α-muricholic acid; βMCA, β-muricholic acid; γMCA, γ-muricholic acid; MDCA, murideoxycholic acid; SULT, sulfotransferase; TCDCA, taurochenodeoxycholic acid; TLCA, taurolithocholic acid; TLCA-S, taurolithocholic acid-sulfate; UDCA, ursodeoxycholic acid; UGT, UDP glucuronosyltransferase.

On day 3 (rat) or 6 (human) of culture, SCH were incubated with LCA (0.025, 0.05, 0.1, 0.125, 0.15, and 0.2 mM), CDCA (0.05, 0.1, 0.25, 0.375, 0.5, and 1 mM for rat SCH; 0.25, 0.375, 0.5, 0.65, 0.8, and 1 mM for human SCH), 0.1 % DMSO (vehicle control), or 2 % Triton-X (positive control) for 6, 12, and 24 hr. After bile acid incubation, cytotoxicity (cellular ATP concentrations and LDH leakage) and intracellular bile acid concentrations were measured. Cytotoxicity was assessed by LDH release from damaged cells using the LDH-Cytotoxicity Detection Kit according to the manufacturer’s protocol. Data were corrected for baseline levels in vehicle control (0.1% DMSO-treated SCH) and presented as a percentage of positive control (2% Triton X-100-treated SCH) using the following equation;

$$\text{Cytotoxicity}(\%)=\frac{\text{absorbance}\text{of}\text{samples}-\text{absorbance}\text{of}\text{vehicle}\text{control}}{\text{absorbance}\text{of}\text{positive}\text{control}-\text{absorbance}\text{of}\text{vehicle}\text{control}}\times 100$$ Eq. 4

The values measured after complete cell lysis using 2% Triton X-100 were considered as maximum cell death (100% cytotoxicity). Intracellular ATP levels were measured using CellTiter-Glo^® Luminescent Cell Viability Assay Kit according to the manufacturer’s protocol. Intracellular ATP concentrations were calculated by dividing ATP amount (pmol/well) by cellular volume (1.26 μl/well),¹⁵⁶ and values were corrected for cell viability obtained from the LDH assay using the following equations;

$$\text{Cellular}\text{ATP}\text{concentration}\text{of}\text{viable}\text{cells}(\text{mM})=\frac{\text{ATP}\text{amount}}{\text{Cellular}\text{volume}}\times \frac{1}{\text{Fraction}\text{viable}\text{cells}}$$ Eq. 5

$$\text{Fraction}\text{viable}\text{cells}=\frac{100-\%\text{cytotoxicity}}{100}$$ Eq. 6

For quantification of intracellular bile acids, hepatocytes were incubated with Ca²⁺-free HBSS for 5 min to open tight junctions using B-CLEAR^® technology (Qualyst Transporter Solutions, LLC, Durham, NC). Cell lysate samples were prepared and analyzed using liquid chromatography coupled with tandem mass spectrometry (LC-MS/MS) analysis as described previously.¹¹⁴ Intracellular bile acid concentrations were calculated by dividing the amount of bile acids (pmol/well) by the cellular volume (1.26 μl/well),¹⁵⁶ and corrected for cell viability obtained from the LDH assay, as described above for intracellular ATP calculations. The medium or total intracellular bile acid concentrations at the half-maximal toxicity were estimated by performing non-linear regression analysis using a four parameter logistic model (GraphPad Prism version 6, La Jolla, CA).

Toxicity and Intracellular Bile Acid Exposure in LCA-Treated Rat and Human SCH

LCA, which is formed by bacterial 7α-dehydroxylation of CDCA in the gut lumen, has been reported to be the most hydrophobic and toxic bile acid species. Animals administered LCA have been used as a model of intrahepatic cholestasis.^157,158 In the present study, LCA showed differential toxicity in SCH from rats and humans. In rat SCH, treatment with 0 – 0.2 mM LCA exerted a concentration-dependent decrease in cellular ATP and increase in LDH leakage (Figure 4A). In human SCH, LCA caused a delayed decrease in cellular ATP and minimal LDH leakage was observed (Figure 4A).

Figure 4. Toxicity and intracellular bile acid concentrations in lithocholic acid (LCA)-treated rat and human sandwich-cultured hepatocytes (SCH).

(A) Effects of LCA exposure on intracellular ATP and lactate dehydrogenase (LDH) release. Day 3 rat and day 6 human SCH were incubated with LCA (0–0.2mM) for 6hr (●), 12hr (●), and 24hr (◆). Representative data (mean±SD of triplicate determinations) from n=2 independent studies. (B) Intracellular concentrations of LCA and LCA metabolites, glycolithocholic acid (GLCA) and taurolithocholic acid (TLCA). Day 3 rat and day 6 human SCH were incubated with LCA (0–0.2mM) for 6hr (●), 12hr (○), and 24hr (◆). Intracellular LCA and LCA metabolites were measured by LC-MS/MS analysis of lysate after hepatocytes were incubated for 5min with Ca⁺²-free HBSS buffer to open tight junctions using B-CLEAR^®.114 Representative data (mean±SD of triplicate determinations) from n=1 (rat) or n=2 (human) independent studies.

To establish a quantitative relationship between LCA-induced toxicity and hepatocellular exposure to LCA species, cellular concentrations of LCA and LCA conjugates were measured in LCA-treated SCH by LC/MS/MS analysis. In rat SCH, unconjugated LCA accumulated extensively (in low mM ranges) and correlated with the observed toxicity (Figure 4B). Interestingly, TLCA and GLCA cellular concentrations were decreased at LCA medium concentrations greater than 0.1 mM (Figure 4B), potentially due to altered (e.g., saturation, depletion) glycine- or taurine-conjugation, adaptive increases in hepatic efflux of these conjugates, or further metabolism (e.g., sulfation). Intracellular concentrations of LCA and GLCA in human SCH were comparable to those in rat SCH, whereas TLCA concentrations in human SCH were ~100-fold lower than rat SCH (Figure 4B). Unlike rat SCH, intracellular TLCA and GLCA concentrations increased with increasing LCA medium concentrations up to 0.2 mM in human SCH (Figure 4B).

Concentrations at the half-maximal toxicity (LC₅₀) estimated based on medium or total intracellular LCA concentrations after 24 h incubation are presented in Table 2. In rat and human SCH, LC₅₀ values based on total intracellular LCA concentrations were ~4–5-fold greater compared to those based on medium LCA concentrations due to extensive hepatic accumulation of unconjugated LCA (Table 2). These results suggest that estimation of LCA potency based on medium concentrations might overestimate the actual potency of LCA at the site of toxicity, if total intracellular concentrations are relevant to bile acid toxicity. On the other hand, LC₅₀ values based on unbound intracellular LCA concentrations may be lower than those based on total intracellular LCA concentrations because of binding of bile acids to intracellular proteins or sequestration of bile acids within intracellular organelles. Assessment of unbound intracellular concentrations of bile acids by cell fractionation and binding studies will be necessary, if unbound concentrations are relevant to hepatotoxicity. It is also possible that bile acid concentrations within intracellular organelles that are sensitive to bile acids (e.g., mitochondria) are more relevant to bile acid-mediated toxicity. To our knowledge, it still remains to be investigated whether bile acid toxicity is driven by total or unbound intracellular bile acid concentrations, or concentrations within sub-cellular organelles.

Table 2. Medium and intracellular LCA or CDCA concentrations at the half-maximal toxicity after 24 hr incubation.

Mean (95% confidence intervals) of the LCA or CDCA concentrations at the half maximal toxicity were estimated based on (A) medium concentrations and (B) intracellular bile acid concentrations by fitting a four parameter logistic model to the data obtained from in vitro rat and human sandwich-cultured hepatocytes. Parameters were not estimated for CDCA in human SCH because there was no direct relationship between intracellular CDCA and cytotoxicity.

Toxicity Measurement	LCA Rat SCH	LCA Human SCH	CDCA Rat SCH	CDCA Human SCH
(A) LC50 based on medium LCA or CDCA concentrations (mM)
ATP	0.147 (0.132 – 0.164)	0.155 (0.136 – 0.178)	0.351 (0.292 – 0.422)	0.568 (0.532 – 0.607)
LDH	0.146 (0.140 – 0.152)	N.C.	0.243 (0.205 – 0.289)	0.972 (0.968 – 0.977)
(B) LC50 based on intracellular LCA or CDCA concentrations (mM)
ATP	0.782 (0.314 – 1.95)	0.776 (0.485 – 1.24)	0.148 (0.0757 – 0.290)	N.C.
LDH	0.594 (0.250 – 1.41)	N.C	0.0371 (0.0114 – 0.121)	N.C.

N.C: not calculated.

Toxicity and Intracellular Bile Acid Exposure in CDCA-Treated Rat and Human SCH

CDCA and conjugates are dominant bile acids in humans, whereas they contribute to a smaller proportion of the bile acid pool in rats and mice.^{144,159–161} After incubation with 0 – 1 mM CDCA, medium concentration-dependent toxicity was observed in both rat and human SCH (Figure 5A). Human SCH showed delayed toxicity with a higher LC₅₀ based on medium CDCA concentrations, suggesting that CDCA-mediated toxicity is less potent compared to rat SCH (Figure 5A, Table 2).

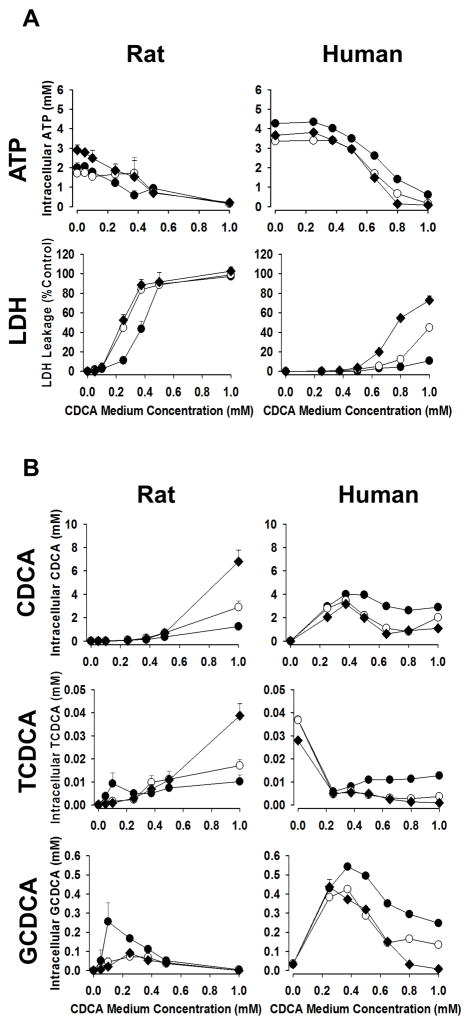

Figure 5. Toxicity and intracellular bile acid concentrations in chenodeoxycholic acid (CDCA)-treated rat and human sandwich-cultured hepatocytes (SCH).

(A) Effects of CDCA exposure on intracellular ATP and lactate dehydrogenase (LDH) release. Day 3 rat and day 6 human SCH were incubated with CDCA (0–1mM) for 6hr (●), 12hr (○), and 24hr (◆). Representative data (mean±SD of triplicate determinations) from n=2 independent studies. (B) Intracellular concentrations of CDCA and CDCA metabolites, glycochenodeoxycholic acid (GCDCA) and taurochenodeoxycholic acid (TLCA). Day 3 rat and day 6 human SCH were incubated with CDCA (0–1mM) for 6hr (●), 12hr (○), and 24hr (◆). Intracellular CDCA and CDCA metabolites were measured by LC-MS/MS analysis of lysate after hepatocytes were incubated for 5min with Ca⁺²-free HBSS buffer to open tight junctions using B-CLEAR^®.114 Representative data (mean±SD of triplicate determinations) from n=1 (rat) or n=2 (human) independent studies.

To establish a quantitative relationship between CDCA-induced toxicity and hepatocellular exposure to CDCA species, cellular concentrations of CDCA and its conjugates were measured in CDCA-treated SCH. In rat SCH, unconjugated CDCA and TCDCA increased with increasing CDCA medium concentrations, consistent with the observed toxicity (Figure 5B). Cellular TCDCA was ~100-fold lower compared to CDCA (Figure 5B); thus, it is plausible that unconjugated CDCA is associated with the observed toxicity in rat SCH. LC₅₀ values estimated based on medium or total intracellular CDCA concentrations are presented in Table 2. Unlike LCA, LC₅₀ values based on total intracellular CDCA concentrations were lower compared to those based on medium CDCA concentrations. This led to a lower intracellular LC₅₀ of CDCA compared to LCA in rat SCH, suggesting that CDCA is a more potent toxicant than LCA. It is possible that other CDCA conjugates (e.g., sulfate, glucuronide) that were not measured in the current study might have contributed to the observed toxicity in SCH exposed to CDCA.

In human SCH, intracellular concentrations of all the measured CDCA species decreased at high CDCA medium concentrations where toxicity was observed (Figure 5B), so it is not clear which bile acid caused toxicity in human SCH. Further investigation of other CDCA metabolites may provide additional insight.

Incorporation of SCH Data into a Systems Pharmacology Model

To our knowledge, this is the first investigation that has established quantitative relationships between intracellular LCA and CDCA exposure and hepatocyte toxicity in multiple species. Species differences in intracellular concentrations and toxic effects of LCA and CDCA after exposure to the same medium concentrations of these bile acids were noted in the present studies. Using these in vitro data, species differences in bile acid toxicity were characterized, and quantitative relationships between intracellular concentrations of individual bile acids and toxicity were established. These relationships were incorporated into DILIsym^® to link bile acid homeostasis and ATP dynamic sub-models.¹⁶² The toxic effects of bile acids were linked to decreases in cellular ATP, which is an important determinant of cellular necrosis in DILIsym^®. Subsequently, this model was successfully employed to predict clinical DILI mediated by drugs that interrupt bile acid transport such as TGZ and bosentan.^162,163 The relative safety of other BSEP inhibitors, pioglitazone and telmisartan, also was accurately predicted.^162,163 In addition, use of a species-specific bile acid homeostasis model¹⁵³ and bile acid toxicity data obtained in the current study recapitulated species differences in hepatotoxicity of TGZ and bosentan.^162,163

In the current study, intracellular LC₅₀ levels were estimated in rat and human SCH based on the unconjugated LCA and CDCA concentrations because intracellular unconjugated LCA and CDCA concentrations were correlated with observed toxicity in rat SCH. However, it is possible that conjugated LCA and CDCA might cause toxicity.^164–169 Additional experiments (e.g., treatment of SCH with conjugates) would be needed to establish the relationship between intracellular concentrations of LCA and CDCA conjugates and toxicity. Also, in the present studies, in vitro toxicity was measured after short-term exposure to high concentrations of bile acids, assuming that toxicity was associated with direct effects on hepatocytes (e.g., mitochondrial proton gradient uncoupling). A different experimental approach would be necessary to examine the acute effects of bile acids on non-parenchymal cells, as well as the effects of long-term exposure to low concentrations of bile acids on both parenchymal and non-parenchymal cells.

Due to species differences in bile acid metabolism, substrate/inhibitor specificity of bile acid transporters, bile acid composition, and toxic effects of bile acids reported here and elsewhere, preclinical species do not reliably predict bile acid-mediated DILI in humans.^{113,158,170,171} Mechanistic modeling incorporating data generated from human-derived in vitro systems such as human SCH would be expected to provide a more accurate approach to predict altered hepatic bile acid disposition and subsequent DILI in humans.

CONCLUSIONS AND FUTURE DIRECTIONS

SCH are a useful tool to study hepatobiliary drug disposition and underlying mechanisms of DILI. Hepatic drug metabolism and transport can be characterized in SCH from humans or from wild-type or transgenic animals, and combined with specific inhibitors, RNAi or other knockdown techniques. Application of new tools [e.g., Clustered Regularly Interspaced Short Palindromic Repeats (CRISPR)/CRISPR-associated 9 (Cas9) and targeted genome editing] to modulate gene expression in the SCH system may further improve characterization and prediction of hepatobiliary drug disposition. Kinetic parameters (e.g., metabolic and transporter-mediated clearances, inhibitory potency of compounds) can be estimated by mechanistic modeling of SCH data.¹⁷² This information can be integrated into PBPK or systems pharmacology models to predict drug disposition, DDIs, or potential DILI in humans. Studies using SCH also can provide insight regarding mechanisms underlying drug-induced hepatotoxicity. Often, preclinical species are not predictive of bile-acid mediated DILI in humans. SCH have been used widely to investigate drug and/or metabolite effects on hepatobiliary disposition of bile acids, as discussed in the current manuscript. In addition, multiple mechanisms of hepatotoxicity can be screened simultaneously in the SCH system, when combined with recent technologies such as high content imaging.¹⁷³

Isolation procedures, cryopreservation techniques, and culture conditions can significantly impact hepatocyte viability and expression/function of enzymes and transporters in SCH, which can influence data quality and variability. Therefore, use of carefully optimized, standardized protocols for preparing and culturing SCH is required to ensure reliable, reproducible data. Use of commercially available, transporter certified hepatocytes or B-CLEAR^® kits can minimize these issues. Appropriate quality controls (e.g., known probe substrates) for each experiment must be employed to ensure enzymes and/or transporters are functional. When isolated and cultured appropriately, variability in SCH data will reflect inherent variability in hepatocytes donors. Human SCH data would be expected to exhibit greater variability compared to SCH from preclinical species because of genetic polymorphisms, underlying diseases, medications, and environmental factors. Thus, depending on the purpose of the study, donor selection criteria need to be carefully pre-defined to minimize confounding effects. On the other hand, SCH isolated from special populations can be leveraged to study altered drug disposition in these populations (e.g., disease states, pediatrics, or geriatrics). Alternatively, culture conditions can be modified to induce disease-like characteristics (e.g., phospholipidosis, type II diabetes) or mimic specific physiological conditions (e.g., pregnancy) in SCH for the investigation of altered hepatobiliary disposition of drugs.^25,174,175

Hepatocytes (parenchymal cells) account for about 60% of liver mass whereas non-parenchymal cells such as stellate cells, sinusoidal endothelial cells, and Kupffer cells constitute ~40% of the liver.¹⁷⁶ Although metabolic enzymes and transporters are expressed predominantly in hepatocytes, non-parenchymal cells also can influence drug disposition indirectly by modulating the function of enzymes and transporters through heterotypic cell-cell contacts and cytokine release. Cross-talk between hepatocytes and non-parenchymal cells can stimulate adaptive responses or aggravate toxic responses upon initiation of drug-induced hepatotoxicity. Therefore, co-culture of hepatocytes and non-parenchymal cells might better represent liver architecture and physiology. A recent study reported that co-culture of hepatocytes and liver sinusoidal endothelial cells in a sandwich configuration maintained their phenotypes and metabolic activity for up to four weeks.¹⁷⁷ Further investigations are needed to establish and characterize co-culture models of hepatocytes and various non-parenchymal cells.

The pioneering work of Dr. Ronald T. Borchardt and colleagues in establishing cell-based models (e.g., Caco-2 cells) to facilitate drug discovery and development inspired pharmaceutical scientists to develop new approaches to investigate drug disposition in vitro. One such system, the SCH model, is now a well-established tool to study hepatobiliary drug disposition, DDIs and DILI. In addition to serving as a useful screen in drug development, this model has improved mechanistic understanding of hepatocyte function. Further development, characterization, and meaningful refinements of the SCH model will advance our ability to effectively use this in vitro system to predict hepatic drug and metabolite disposition and toxicity. Importantly, evaluation of the factors that modulate hepatocyte function (e.g., disease states, medications, dietary constituents, and toxins), will lead to a greater understanding of hepatic transporters in health and disease.
