Crystal structure of a nucleoside model for the interstrand cross-link formed by the reaction of 2′-deoxyguanosine and an abasic site in duplex DNA

Michael J Catalano ^a, Kasi Viswanatharaju Ruddraraju ^a, Charles L Barnes ^a, Kent S Gates ^a,^*

PMCID: PMC4908545 PMID: 27308004

Crystallographic analysis of a nucleoside analog of the 2′-deoxyguanosine/abasic site cross-link is presented. This structure corroborates an earlier two-dimensional NMR analysis, concluding that the 2-deoxyribose unit attached at the exocyclic N ²-amino group of the guanine residue exists in the cyclic aminoglycoside form.

Keywords: crystal structure, purine-6(9H)-one, 2′-deoxyguanosine, deoxy-d-ribofuranose, glycosidic linkage, nucleobase, hydrogen bonding

Abstract

The title compound, 9-[(2R,4S,5R)-4-hydroxy-5-(hydroxymethyl)tetrahydrofuran-2-yl]-2-{[(2R,4S,5R)-4-methoxy-5-(methoxymethyl)tetrahydrofuran-2-yl]amino}-1H-purin-6(9H)-one, C₁₇H₂₅N₅O₇, crystallizes with two independent molecules (A and B) in the asymmetric unit. In the crystal, the guanosine moieties of molecules A and B are linked by N—H⋯N and O—H⋯N hydrogen-bonding interactions, forming ribbons which are stacked to form columns along [100]. These columns are then linked by O—H⋯O hydrogen bonds between the ribose moieties and numerous C—H⋯O interactions to complete the three-dimensional structure.

Chemical context

Recent work has characterized a structurally novel set of interstrand DNA–DNA cross-links involving reaction of the ubiquitous DNA abasic lesion with a nucleobase on the opposing strand of the double helix (Catalano et al., 2015 ▸; Dutta et al., 2007 ▸; Gamboa Varela & Gates, 2015 ▸; Johnson et al., 2013 ▸; Price et al., 2014 ▸, 2015 ▸; Yang et al., 2015 ▸; Zhang et al., 2015 ▸). Evidence indicates that the covalent attachment is forged between the anomeric carbon of the abasic sugar and the exocyclic amino group of either a guanine, adenine, or N ⁴-aminocytosine residue (Catalano et al., 2015 ▸; Dutta et al., 2007 ▸; Gamboa Varela & Gates, 2015 ▸; Johnson et al., 2013 ▸; Price et al., 2014 ▸, 2015 ▸; Yang et al., 2015 ▸). This type of glycosidic linkage involving the exocyclic amino group of a nucleobase is reminiscent of that found in the natural products anicemycin, spicamycin, and septacidin (Acton et al., 1977 ▸; Igarashi et al., 2005 ▸; Suzuki et al., 2002 ▸).

Here we present single crystal X-ray crystallographic analysis of a nucleoside analog, (I), of the 2′-deoxyguanosine/abasic site cross-link. This structure corroborates an earlier two-dimensional NMR analysis (Catalano et al., 2015 ▸) concluding that the 2-deoxyribose unit attached at the exocyclic N ²-amino group of the guanine residue exists in the cyclic aminoglycoside form.

Structural commentary

The two independent molecules (A and B) of (I) are shown in Fig. 1 ▸ as they are oriented in the crystal, while Fig. 2 ▸ shows an overlay to illustrate the differences in orientation and conformation of the furanose rings. Ring puckering analysis, after Cremer & Pople as calculated using PLATON (Spek, 2009 ▸) indicates the furanose rings attached to N4 positions in the two molecules to be half-chairs in both molecules, but with the maximum variance from planarity occurring between C7 and C8 in molecule A and C6 and C7 in molecule B [Q(2) = 0.367 (2), Φ(2) = 88.0 (4)° for molecule A and Q(2) = 0.347 (2), Φ(2) = 60.6 (4)° for molecule B]. The disposition of these furanose rings relative to the purine rings can be described by the torsion angle C2—N4—C6—O2, which is 70.9 (3)° in molecule A and 61.7 (3)° in molecule B. The furanose ring attached to the N5 position in molecule A is again a half-chair, with the maximum deviation from planarity between C11A and C12A [Q(2) = 3.41 (2), Φ(2) = 62.2 (3)°], while this furanose ring in molecule B is an envelope with C11B at the flap [Q(2) = 0.422 (2), Φ(2) = 45.4 (3)°]. The disposition of these furanose rings relative to the purine rings can be described by the angle C1—N5—C11—O5, which is −87.4 (2)° in molecule A and −93.7 (2)° in molecule B.

The molecular structure of (I) showing 50% displacement ellipsoids.

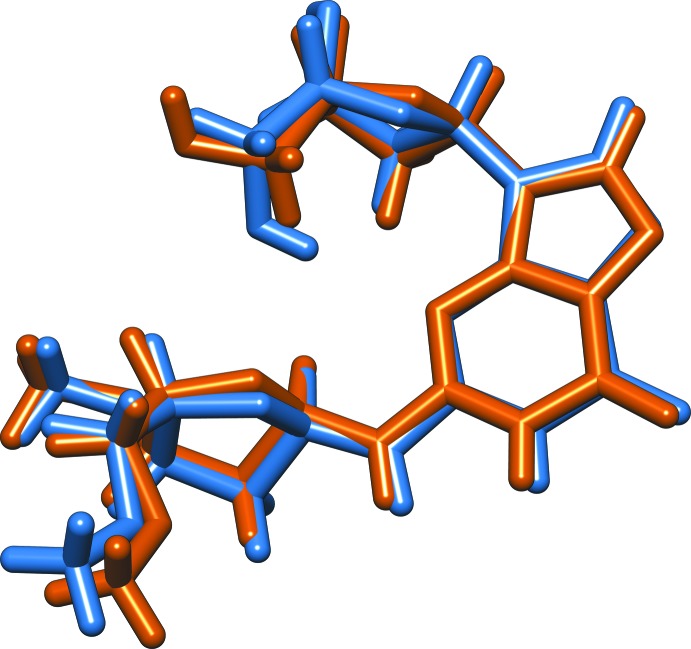

Overlay plot of the two molecules in (I). A molecule in orange and B molecule in blue.

Supramolecular features

In the crystal, the two molecules form infinite ribbons along the a–c diagonal of the unit cell, with the A molecules on one side of the ribbon and the B molecules on the other. The molecules are staggered such that each A molecule forms hydrogen bonds to two B molecules and each B molecule forms hydrogen bonds (Table 1 ▸) to two A molecules, fully involving the N1, N3, N5 and O1 atoms. These ribbons are then stacked to form slabs propagating in the ac plane and one half the b dimension in thickness. The deoxyribose moieties occupy the outsides of these slabs and are linked via hydrogen bonds to twofold screw-related slabs, resulting in a herringbone pattern in the three-dimensional structure as seen in Fig. 3 ▸.

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
N1A—H1A⋯N3B	0.88	1.92	2.789 (2)	170
O3A—H3A⋯O5A ⁱ	0.84	2.07	2.897 (2)	167
O4A—H4A⋯O3B ⁱⁱ	0.84	2.01	2.847 (2)	178
N5A—H5A⋯O1B	0.88	2.23	3.058 (2)	157
C5A—H5A1⋯O1B ⁱⁱⁱ	0.95	2.63	3.284 (3)	126
C7A—H7A1⋯N2A	0.99	2.46	3.172 (3)	128
C8A—H8A⋯O7A ⁱ	1.00	2.39	3.316 (3)	153
C12A—H12A⋯O1A ^iv	0.99	2.61	3.432 (3)	141
C12A—H12B⋯O1B	0.99	2.55	3.426 (3)	147
C16A—H16A⋯O4A ^v	0.98	2.47	3.401 (3)	158
C16A—H16B⋯O6A ^v	0.98	2.54	3.222 (3)	127
C16A—H16C⋯O2A ^vi	0.98	2.50	3.356 (3)	146
C17A—H17A⋯O3A ^vi	0.98	2.65	3.610 (3)	168
C17A—H17B⋯O2A ^iv	0.98	2.60	3.573 (3)	175
N1B—H1B⋯N3A ^vi	0.88	1.94	2.808 (2)	166
O3B—H3B⋯O5B ^vii	0.84	1.99	2.817 (2)	169
O4B—H4B⋯N2B	0.84	2.38	3.180 (3)	158
N5B—H5B⋯O1A ^vi	0.88	2.19	3.027 (2)	159
C5B—H5B1⋯O1A	0.95	2.60	3.269 (3)	127
C8B—H8B⋯O7B ^vii	1.00	2.49	3.363 (3)	146
C11B—H11B⋯O4B	1.00	2.59	3.251 (3)	124
C12B—H12C⋯O1A ^vi	0.99	2.55	3.363 (3)	140
C12B—H12D⋯O1B ^v	0.99	2.45	3.424 (3)	167
C14B—H14B⋯O4B	1.00	2.61	3.272 (3)	123
C17B—H17E⋯O2B ^v	0.98	2.48	3.456 (3)	176

Open in a new tab

Symmetry codes: (i) Inline graphic ; (ii) ; (iii) ; (iv) ; (v) ; (vi) ; (vii) .

The packing in (I) along the c axis showing the formation of hydrogen-bonded chains (A molecules green, B molecules blue).

Database survey

A search of the Cambridge Structural Database (CSD, Version 5.36, update February 2015; Groom & Allen, 2014 ▸) for deoxyguanosine analogues with exocyclic amine substitution revealed three crystal structures (Morr et al., 1991 ▸; Fujino et al., 2010 ▸). In all these crystal structures, the five-membered 2-deoxyribofuranose rings have envelope conformations, as in the title compound.

Synthesis and crystallization

2′-Deoxyguanosine (199 mg, 0.75 mmol) and 3,5-bis-O-methyl-2-deoxy-d-ribofuranose (110 mg, 0.74 mmol) were dissolved in 0.8 ml of a 3:1 mixture of DMSO and 25 mM sodium phosphate buffer (pH 7.0) in a round-bottom flask. The flask was heated to 333 K and the mixture stirred for 22 h. The solvent removed in vacuo and the product purified by column chromatography on silica gel eluted with 0–15% methanol in dichloromethane (R_f = 0.30, 15% methanol/dichloromethane) to yield 36 mg (12% yield) of the title compound as a colorless oil. The precursor 3,5-bis-O-methyl-2-deoxy-d-ribofuranose was synthesized according to previously reported procedures (Deriaz et al., 1949 ▸; Olsson et al., 1998 ▸). The title compound was crystallized by vapour diffusion, a 2 ml vial containing the title compound in methanol being placed in a 20 ml vial containing hexanes at room temperature for several days.

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2 ▸. H atoms were placed geometrically (C—H = 0.95 or 0.98 Å) and refined as riding with U _iso(H) = 1.2U _eq(C).

Table 2. Experimental details.

Crystal data
Chemical formula	C₁₇H₂₅N₅O₇
M _r	411.42
Crystal system, space group	Monoclinic, P2₁
Temperature (K)	100
a, b, c (Å)	8.1817 (1), 26.4033 (5), 8.8800 (2)
β (°)	98.023 (1)
V (Å³)	1899.52 (6)
Z	4
Radiation type	Cu Kα
μ (mm⁻¹)	0.96
Crystal size (mm)	0.15 × 0.08 × 0.08

Data collection
Diffractometer	Bruker APEXII CCD
Absorption correction	Multi-scan (SADABS; Sheldrick, 2008 ▸)
T _min, T _max	0.86, 0.93
No. of measured, independent and observed [I > 2σ(I)] reflections	26696, 6862, 6644
R _int	0.029
(sin θ/λ)_max (Å⁻¹)	0.617

Refinement
R[F ² > 2σ(F ²)], wR(F ²), S	0.027, 0.072, 1.04
No. of reflections	6862
No. of parameters	531
No. of restraints	1
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.23, −0.17
Absolute structure	Flack x determined using 2923 quotients [(I ⁺)−(I ⁻)]/[(I ⁺)+(I ⁻)] (Parsons et al., 2013 ▸)
Absolute structure parameter	0.08 (5)

Open in a new tab

Computer programs: APEX2 (Bruker, 2008 ▸), SAINT (Bruker, 2008 ▸), SHELXS2013 (Sheldrick, 2008 ▸), SHELXL2013 (Sheldrick, 2015 ▸), X-SEED, Barbour, 2001 ▸, CIFTAB (Sheldrick, 2008 ▸).
