. 2016 Jun 7;(4):e7713. doi: 10.3897/BDJ.4.e7713

Two new species of Eretmocerus Haldeman (Hymenoptera: Aphelinidae) parasitizing Aleurolobus rhododendri Takahashi and Dialeuropora decempunctata (Quaintance & Baker) (Hemiptera: Aleyrodidae) from Taiwan

Samantha E Ward , Yuan Tung Shih §, Chiun-Cheng Ko §, Andrew Polaszek ‡,
PMCID: PMC4910504  PMID: 27346951

Abstract Abstract

Background

Species of Eretmocerus Haldeman develop as primary ecto-endoparasites of whiteflies (Rose and Rosen 1992). Currently, the genus Eretmocerus comprises 86 species worldwide, of which 11 species have been previously recorded from Taiwan (Shih et al. 2015). Despite having been recently revised for Taiwan, two new species are here added to the Taiwan fauna.

New information

Two new species, Eretmocerus garrywardi Ward sp. nov. and Eretmocerus liangyihchoui Shih sp. nov. found parasitizing Aleurolobus rhododendri Takahashi and Dialeuropora decempunctata respectively, are described. A key to females of Eretmocerus species occurring in Taiwan is provided.

Keywords: taxonomy, whitefly parasitoid, Bemisia tabaci-complex

Introduction

Species of Eretmocerus Haldeman develop as primary ecto-endoparasites of whiteflies (Rose and Rosen 1992). Currently, the genus Eretmocerus comprises 86 species worldwide Noyes 2015, of which 11 species have been previously recorded from Taiwan (Shih et al. 2015). The current paper brings the total number of Taiwanese Eretmocerus species to 13.

Materials and methods

Survey, collection and identification of parasitoid hosts

A series of surveys were undertaken from 2004 to 2014 for collection of parasitoid host whiteflies, scale insects and aphids in Taiwan (see Shih et al. 2015). Whiteflies were identified by K.C. Chou (Taiwan Agricultural Research Institute) & C.C. Ko from National Taiwan University, Taiwan.

Terminology

Morphological terminology and the format for species descriptions follow Shih et al. 2015. Basic morphological characters for females are: Antenna: length of clava (C), especially relative to its width; length and shape of first funicle segment (F1); length and shape of second funicle segment (F2); length of pedicel (P); length of radicle (R); length of scape (S). Wing: length of fore wing (L), length of marginal vein (M), length of submarginal vein (SM), length of stigmal vein (ST), greatest width of disc (W), especially relative to the longest posterior alar fringe. Mesosoma: length of mid lobe (ML); greatest width of mid lobe (WM); length of scutellum (SC); greatest width of scutellum (WS). Gaster (metasoma minus petiole): length of gaster (G), arrangement of paired setae on tergites 2-6. Leg: length of mid tibia (MT).

Line drawings were made using an Olympus BX51 compound microscope located in the Dept. of Entomology, National Taiwan University (NTU), Taiwan.

Depositories

The holotypes and paratypes of the new species are deposited in the Department of Entomology, National Taiwan University, and Taiwan Agriculural Research Institute, Taiwan. Paratypes of both species are also deposited in the Natural History Museum, London, UK.

Abbreviations

KCC: K.C. Chou (collector)

BMNH: Natural History Museum, London UK

NTU: National Taiwan University

TARI: Taiwan Agricultural Research Institute

YTS: Y.T. Shih (collector)

Taxon treatments

Eretmocerus garrywardi

Ward 2016 sp. n.

urn:lsid:zoobank.org:act:370E8E1E-71A9-4BD4-9CA7-F9DA814D188F

Materials

  1. Type status: Holotype. Occurrence: recordedBy: Yuan Tung Shih; individualID: 5981/298; individualCount: 1; sex: ; lifeStage: adult; previousIdentifications: Dialeuropora decempunctata on Machilus zuihensis 5981/298; Taxon: scientificName: Eretmocerus garrywardi; Location: country: Taiwan; county: Pingtung; locality: Wanluan; Event: eventDate: 29-XI-2005; Record Level: institutionCode: Natural History Museum, London, UK (BMNH)

  2. Type status: Paratype. Occurrence: occurrenceRemarks: ex Bemisia tabaci on Emilia sonchifolia; recordedBy: Yuan Tung Shih; individualCount: 5; sex: 4 ♀ 1 ♂; lifeStage: adult; Taxon: scientificName: Eretmocerus garrywardi; Location: country: Taiwan; county: Taoyuan; locality: Guanyin; Event: eventDate: 12-IX-2010; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

  3. Type status: Paratype. Occurrence: occurrenceRemarks: ex Dialeuropora decempunctata on Machilus zuihensis; recordedBy: Yuan Tung Shih; individualID: 5981/298; individualCount: 1; sex: ; lifeStage: adult; Taxon: scientificName: Eretmocerus garrywardi; Location: country: Taiwan; county: Pingtung; locality: Wanluan; Event: eventDate: 29-XI-2005; Record Level: institutionCode: Natural History Museum, London, UK (BMNH)

  4. Type status: Paratype. Occurrence: occurrenceRemarks: ex Dialeuropora sp. on M. zuihensis; recordedBy: Yuan Tung Shih; individualCount: 1; sex: ; lifeStage: adult; Taxon: scientificName: Eretmocerus garrywardi; Location: country: Taiwan; municipality: Taipei City; locality: Beitou; Event: eventDate: 18-XII-2008; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

  5. Type status: Paratype. Occurrence: occurrenceRemarks: ex D. decempunctata on M. zuihensis; recordedBy: Yuan Tung Shih; individualCount: 3; sex: ; lifeStage: adult; Taxon: scientificName: Eretmocerus garrywardi; Location: country: Taiwan; county: Changhua; locality: Baguashan; Event: eventDate: 17-I-2011; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

  6. Type status: Paratype. Occurrence: occurrenceRemarks: ex D. decempunctata on M. zuihensis; recordedBy: Yuan Tung Shih; individualCount: 1; sex: ; lifeStage: adult; Taxon: scientificName: Eretmocerus garrywardi; Location: country: Taiwan; municipality: Taichung; locality: Dakeng; Event: eventDate: 3-VI-2013; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

  7. Type status: Paratype. Occurrence: occurrenceRemarks: ex D. decempunctata on M. zuihensis; recordedBy: Yuan Tung Shih; individualCount: 2; sex: ; lifeStage: adult; Taxon: scientificName: Eretmocerus garrywardi; Location: country: Taiwan; municipality: New Taipei City; locality: Linkou; Event: eventDate: 10-VI-2013; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

  8. Type status: Paratype. Occurrence: occurrenceRemarks: ex D. decempunctata on Rubus sp.; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: ; lifeStage: adult; Taxon: scientificName: Eretmocerus garrywardi; Location: country: Taiwan; county: Nantou; locality: Puli; Event: eventDate: 8-XII-1995; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

Description

Female holotype.

Body length: 0.90 mm.

Colour. Head and body entirely yellow, wings hyaline. Legs pale yellow except basal margins of mid and hind femora darker.

Morphology.

Antenna (Fig. 1). Radicle 2.5× as long as wide; scape 4.8× as long as wide, 3.8× as long as radicle, 3.2× pedicel length, 0.7× clava length; pedicel 1.8× as long as wide, 1.2× as long as radicle, 0.3× scape length; funicle I and 2 anelliform / transverse; clava pointed, blade-shaped, 4.6× as long as the greatest width 1.5× scape length.

Figure 1.

Figure 1.

Eretmocerus garrywardi female antenna

Head (Figs 2, 3). Vertex with 11–13 pairs of setae; face and occiput with transverse substrigose sculpture, interscrobal area vertically strigose; face with 12–16 pairs of setae; supraclypeal area with 10–18 setae; clypeus with 2+2 setae. Mandible unusually small.

Figure 2.

Figure 2.

Eretmocerus garrywardi head, front view

Figure 3.

Figure 3.

Eretmocerus garrywardi head, posterior view

Mesosoma (Fig. 4). Mid lobe of mesoscutum with 6 setae, anterior part with cellular reticulate sculpture, remainder with faint elongate reticulations; side lobe with 2 setae, anterior margins with faint reticulations; axilla with 1 seta, faintly reticulate; scutellum with 4 setae, anterior pair shorter, 0.8x posterior pair length, 2 placoid sensilla placed laterally equidistant from both paired setae; frenal arms long, exceeding metanotum; metanotum narrower centrally than propodeum; propodeum elongate, with faint transverse reticulations, central lobe broad and smooth.

Figure 4.

Figure 4.

Eretmocerus garrywardi dorsal mesosoma excluding pronotum

Wings (Fig. 6). Fore wing 2.4× as long as maximum width of disc; longest posterior alar fringe 0.3× maximum disc width; marginal vein with 2-3 long setae; wing disc with setae clearly arranged in lines, with linea calva present.

Figure 6.

Figure 6.

Eretmocerus garrywardi fore wing

Legs. Fore coxa with 3 setae on lateral margin; trochanter with 2 short setae and without reticulations. Mid coxa with 4 setae; mid tibial spur 0.5× basitarsus length. Hind coxa with 2 pairs of setae, 1 short pair placed close to the base; trochanter with 3 setae; hind tibial spur 0.5× basitarsus length.

Gaster. Gastral tergite 1 with reticulations on lateral margins; tergites 1–6 with paired setae as follows: 1, 1, 1, 2, 3, 3-4; syntergum (T7) with 4 setae; ovipositor (Fig. 5) weakly exserted, nearly equal to clava length, 1.7× scape length, 1.1× mid tibia length.

Figure 5.

Figure 5.

Eretmocerus garrywardi ovipositor

Male.

Colour. Similar to female, except middle area of mid lobe of mesoscutum and scutellum pale brown. Marginal vein and Submarginal vein pale brown.

Head as female, except interscrobal area circular, fewer setae on vertex, face and occiput. Antenna with 3 segments, clava cylindrical, acutely pointed at apex. Mesosoma as female, except mid lobe of mesoscutum, and scutellum, with strong reticulate sculpture. Genitalia with elongate aedeagus, phallobase present.

Diagnosis

Eretmocerus garrywardi sp.n. can be distinguished from other species in the genus by the following combination of characters: Antennal clava laminate and blade-shaped. F1 ring-like; F2 triangular-trapezoid. Mid lobe of mesoscutum with 6 setae; side lobe of mesoscutum with 2 setae; propodeum elongate. Fore wing with an unusual linear arrangement of setae; marginal vein longer than stigmal vein; marginal fringe more than 0.25x wing width.

Etymology

Named for Garry Ward, father of the first author.

Distribution

TAIWAN: New Taipei City: Beitou; Taoyuan: Guanyin, Linkou; Taichung City: Dakeng, Puli; Changhua County: Baguashan; Pingtung County: Wanluan.

Biology

Hosts: Hemiptera: Aleyrodidae: Dialeuropora decempunctata (Quaintance & Baker), Bemisia tabaci (Gennadius).

Eretmocerus liangyihchoui

Shih, Ward & Polaszek, 2016 sp. n.

urn:lsid:zoobank.org:act:C2BBC5D6-BB85-4880-BC2D-579607A84B8E

Materials

  1. Type status: Holotype. Occurrence: occurrenceRemarks: ex Aleurolobus rhododendri on Bauhinia variegata; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Wufeng District, Taichung City, Taiwan Agricultural Research Institute; Event: eventDate: 27-X-1993; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  2. Type status: Paratype. Occurrence: occurrenceRemarks: ex Aleurolobus rhododendri on Bauhinia variegata; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Nantou; Event: eventDate: 28-X-1993; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  3. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on Averrhoa carambola; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Chiai; Event: eventDate: 5-XI-1993; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  4. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on A. carambola; recordedBy: Ko Chiun-Cheng; individualCount: 3; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Wufeng; Event: eventDate: 16-XI-1993; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  5. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on A. carambola; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Wufeng; Event: eventDate: 16-XI-1993; Record Level: institutionCode: Natural History Museum, London, UK (BMNH)

  6. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on A. carambola; recordedBy: Ko Chiun-Cheng; individualCount: 2; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Fengshan; Event: eventDate: 22-XI-1993; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  7. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on Rhododendron formosanum; recordedBy: Ko Chiun-Cheng; individualCount: 2; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Chushan; Event: eventDate: 29-XI-1993; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  8. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on B. variegata; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Wufeng District, Taichung City, Taiwan Agricultural Research Institute; Event: eventDate: 8-XII-1993; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  9. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on B. variegata; recordedBy: Ko Chiun-Cheng; individualCount: 2; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Nantou; Event: eventDate: 23-XII-1993; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  10. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on B. variegata and A. carambola; recordedBy: Ko Chiun-Cheng; individualCount: 2; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Chunghsinghsintsun; Event: eventDate: 23-XII-1993; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  11. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on B. variegata; recordedBy: Ko Chiun-Cheng; individualCount: 3; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Wufeng District, Taichung City, Taiwan Agricultural Research Institute; Event: eventDate: 31-XII-1993; Record Level: institutionCode: 2♀ Natural History Museum, London, UK (BMNH), 1♀ Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  12. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on A. carambola; recordedBy: Ko Chiun-Cheng; individualCount: 2; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Wufeng; Event: eventDate: 6-I-1994; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  13. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on B. variegata; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Wufeng District, Taichung City, Taiwan Agricultural Research Institute; Event: eventDate: 17-I-1994; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  14. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on R. formosanum; recordedBy: Ko Chiun-Cheng; individualCount: 3; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Yangmingshan; Event: eventDate: 27-I-1994; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  15. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on B. variegata; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Wufeng District, Taichung City, Taiwan Agricultural Research Institute; Event: eventDate: 3-II-1994; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  16. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on Pueraria lobata; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Wufeng; Event: eventDate: 10-III-1994; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  17. Type status: Paratype. Occurrence: occurrenceRemarks: ex Aleurocybotus sp. on Miscanthus floridulus; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Kungkuan; Event: eventDate: 20-III-1994; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  18. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on A. carambola; recordedBy: Ko Chiun-Cheng; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Mucha; Event: eventDate: 7-I-1995; Record Level: institutionCode: Taiwan Agricultural Research Institute, Wufeng, Taiwan (TARI)

  19. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on Rhododendron oldhamii; recordedBy: Yuan Tung Shih; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Huwei; Event: eventDate: 14-IX-2005; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

  20. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on R. oldhamii; recordedBy: Yuan Tung Shih; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Linkou; Event: eventDate: 4-XI-2005; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

  21. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on R. oldhamii; recordedBy: Yuan Tung Shih; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Nantou; Event: eventDate: 18-I-2006; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

  22. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on R. formosanum; recordedBy: Yuan Tung Shih; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Ankeng; Event: eventDate: 28-XII-2008; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

  23. Type status: Paratype. Occurrence: occurrenceRemarks: ex A. rhododendri on R. formosanum; recordedBy: Yuan Tung Shih; individualCount: 1; sex: female; lifeStage: adult; Taxon: scientificName: Eretmocerus liangyihchoui; Location: country: Taiwan; locality: Yangmingshan; Event: eventDate: 16-I-2009; Record Level: institutionCode: National Taiwan University, Taipei, Taiwan (NTU)

Description

Female holotype.

Body length: 1.1 mm.

Colour. Head yellow to pale brown. Mesosoma yellow, some individuals with mid lobe of mesoscutum and metanotum brown; propodeum dark brown, but paler laterally. Gaster yellow. Antenna yellow to pale brown. Wings hyaline, except marginal and submarginal vein brown. Legs pale yellow.

Morphology.

Antenna (Fig. 7). Scape 4.5× as long as wide, 2.8× as long as radicle, 2.3× pedicel length, 0.7× clava length; pedicel 2.1× as long as wide, 1.2× as long as radicle, 0.4× scape length; funicle I trapezoid, dorsal length 0.3× ventral length; funicle II transverse rectangular, 2.4x as wide as long; clava clavate, much narrower at base than apex, 3.8-3.9× as long as greatest width, 1.5× scape length, 3.5× pedicel length; clava with 16-20 longitudinal sensilla.

Figure 7.

Figure 7.

Eretmocerus liangyihchoui female antenna

Head (Fig. 8). Vertex with 17–18 pairs of setae; face and occiput with transverse substrigose sculpture, interscrobal area vertically strigose; face with 10-12 pairs of setae; supraclypeal area with 13-15 setae; clypeus with 2+2 setae; upper posterior head with 14–16 setae, 3 pairs of long and robust setae present in a row across the head; lower posterior head with 12+12 setae.

Figure 8.

Figure 8.

Eretmocerus liangyihchoui head, right half front view, left half posterior view

Mesosoma (Fig. 9​). Mid lobe of mesoscutum with 8 setae, anterior part with cellular reticulate sculpture, remainder with faint elongate reticulations; side lobe with 3 setae, anterior margins with faint reticulations; axilla with 1 long seta, weakly reticulate; scutellum with 4 setae, anterior pair length almost the same as posterior pair; 2 placoid sensilla placed close to the posterior pair of setae; scutellar reticulation weak; frenal arms normal, exceeding metanotum slightly.

Figure 9.

Figure 9.

Eretmocerus liangyihchoui dorsal mesosoma, excluding pronotum

Wings (Fig. 11). Fore wing 2.5-2.6× as long as maximum width of disc; longest posterior marginal fringe seta 0.2× disc width; base of wing with one seta, distal portion of costal cell with 4 setae; marginal vein short, 0.65× Submarginal vein length, with 3-4 larger setae; parastigma with 1-2 long setae; a group of setae forming 3-4 lines between marginal vein and linea calva; linea calva incomplete, closed basally by 10-13 setae; submarginal vein with 3 long setae, 1.53× as long as marginal vein and 2.7× stigmal vein; marginal vein 1.77× stigmal vein.

Figure 11.

Figure 11.

Eretmocerus liangyihchoui fore wing

Legs. Mid tibial spur 0.5× basitarsus length. Hind tibial spur 0.3× basitarsus length.

Gaster. Gastral tergite 1 with reticulations on lateral margins; tergites 1–6 with paired setae as follows: 1, 2, 2, 2, 2, 1; syntergum (T7) with 4 setae; ovipositor (Fig. 10) normal, not exserted, 1.3× clava, longer than mid tibia; 2.0× scape.

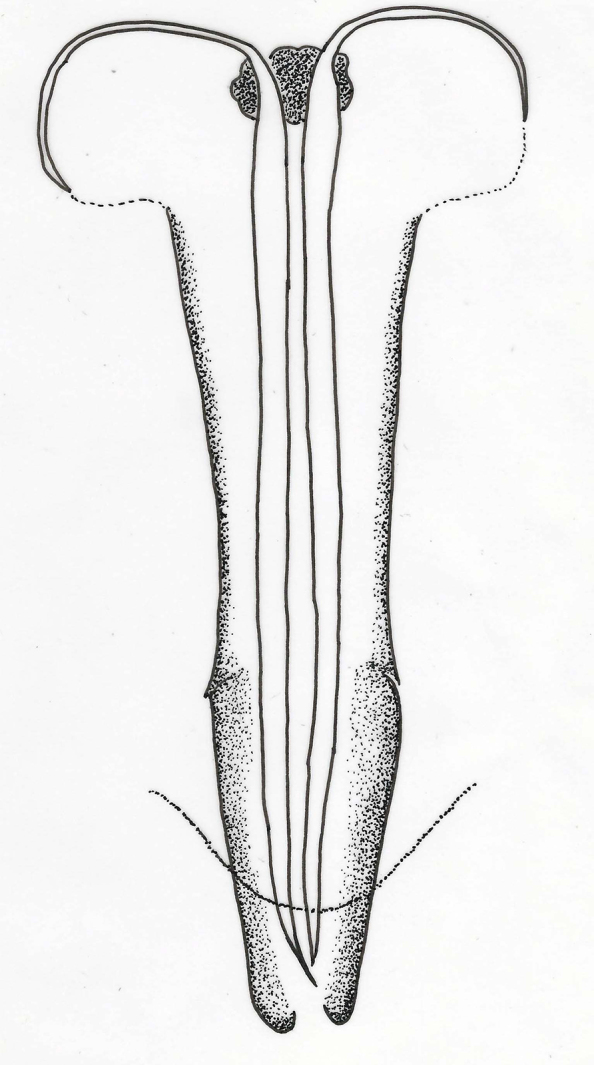

Figure 10.

Figure 10.

Eretmocerus liangyihchoui ovipositor

Male. Unknown.

Diagnosis

Eretmocerus liangyihchoui sp.n. can be distinguished from other species in the genus by the following combination of characters: Mesoscutum with 8 setae; scape more than 0.66x clava length; propodeum dark brown.

Etymology

The species name liangyihchoui commemorates the late Dr Chou Liang-yih’s contribution to Aphelinidae studies in Taiwan.

Distribution

TAIWAN: Taipei City: Kungkuan, Mucha, Yangmingshan; New Taipei City: Ankeng; Taoyuan City: Linkou; Nantou County; Taichung City: Wufeng, TARI; Yunlin County: Huwei; Chiai City; Kaohsiung City: Fengshan.

Biology

Host.

Hemiptera: Aleyrodidae: Aleurolobus rhododendri Takahashi.

Identification Keys

Key to females of Eretmocerus species from Taiwan

1 F1 of antenna anelliform (ring like) 2
F1 of antenna not anelliform; triangular, trapezoid, or longer than wide 3
2 Marginal vein longer than stigmal vein E. garrywardi Ward sp. n.
Marginal vein length equal to stigmal vein length E. orientalis Silvestri
3 Mesoscutum with 6 or more setae 4
Mesoscutum with fewer than 6 setae 10
4 Mesoscutum with 8 setae E. liangyihchoui Shih sp. n
Mesoscutum with 6 setae 5
5 Propodeum brown 6
Propodeum yellow 7
6 Marginal fringe more than 0.25x maximum wing width E. queenslandensis Schmidt & Naumann
Marginal fringe less than 0.25x maximum wing width E. tongxiaoensis Shih & Polaszek
7 T3 with one pair of setae 8
T3 with two pairs of setae 9
8 T4 with one pair of setae E. trialeurodis Hayat
T4 with two pairs of setae E. lannae Shih & Polaszek
9 Clava cylindrical E. rui Zolnerowich & Rose
Clava spatulate E. flavus Krishnan & David
10 Mesoscutum with 2 setae E. bisetae Hayat
Mesoscutum with 4 setae 11
11 F1 triangular E. furuhashii Rose & Zolnerowich
F1 trapezoid or quadrate 12
12 Scutellum pale E. mundus Mercet
Scutellum brown E. melanoscutum Zolnerowich & Rose, 1998

Supplementary Material

XML Treatment for Eretmocerus garrywardi
XML Treatment for Eretmocerus liangyihchoui

Acknowledgements

This study was partly funded by the Taiwan Ministry of Science and Technology (Project No. 102-2628-B-002-019-MY3). We are grateful to John Noyes (Natural History Museum, London) for providing references.

References

  1. Noyes J. Universal Chalcidoidea Database. http://www.nhm.ac.uk/our-science/data/chalcidoids/ [2015-12-15T00:00:00+02:00];
  2. Rose M, Rosen D. Eretmocerus debachi n. sp. (Hymenoptera: Aphelinidae) an effective parasite of Parabemisia myricae (Homoptera: Aleyrodidae) Israel Journal of Entomology. 1992;XXV-XXVI:199–207. [Google Scholar]
  3. Shih Yuan Tung, Polaszek Andrew, Dubey Anil Kumar, Chen Shu-Pei, Yang Ping-Shih, Ko Chiun-Cheng. New species of Eretmocerus Haldeman (Hymenoptera: Aphelinidae) parasitizing Crenidorsum turpiniae (Takahashi) and Aleurothrixus floccosus (Maskell) (Hemiptera: Aleyrodidae) from Taiwan. http://dx.doi.org/10.1080/00222933.2015.1075622. Journal of Natural History. 2015;50:377–391. doi: 10.1080/00222933.2015.1075622. [DOI] [Google Scholar]
