Hemodynamic alterations measured with phase-contrast MRI in a giant cerebral aneurysm treated with a flow-diverting stent

Abstract

Many risk factors have been proposed in the development of the cerebral aneurysms. Hemodynamics including blood velocity, volume flow rate (VFR), and intravascular pressure are thought to be prognostic indicators of aneurysm development. We hypothesize that treatment of cerebral aneurysm using a flow-diverting stent will bring these hemodynamic parameters closer to those observed on the contralateral side. In the current study, a patient with a giant cerebral aneurysm was studied pre- and postoperatively using phase contrast MRI (PC-MRI) to measure the hemodynamic changes resulting from the deployment of a flow-diverting stent. PC-MRI was used to calculate intravascular pressure, which was compared to more invasive endovascular catheter-derived measurements. After stent placement, the measured VFRs in vessels of the treated hemisphere approached those measured on the contralateral side, and flow symmetry changed from a laterality index of -0.153 to 0.116 in the middle cerebral artery. Pressure estimates derived from the PC-MRI velocity data had an average difference of 6.1% as compared to invasive catheter transducer measurements. PC-MRI can measure the hemodynamic parameters with the same accuracy as invasive methods pre- and postoperatively.

Introduction

The prevalence of cerebral aneurysm is about 2.3% in the adult population (1). The etiology is unclear, but origin and development are thought to be affected by intravascular hemodynamic factors (2, 3, 4). Most brain aneurysms develop at regions with the highest hemodynamic stress, such as bifurcations of the cerebral blood vessels. Cerebral aneurysms are usually discovered incidentally with neuroimaging during a neurological examination for other reasons. The annual rate of rupture has been estimated to be about 1% to 2% in most studies. The morbidity and mortality of a ruptured aneurysm is high. Standard treatments include surgical clipping and a variety of endovascular techniques, including coiling with and without balloon or stent assistance (5, 6). Recently, flow-diverting stents (like the Pipeline™ Embolization Device [PED] stent) have improved the treatment of large aneurysms. Comprehensive study of hemodynamic parameters in cerebral aneurysms is nonetheless challenging due to the high variability of aneurysm formation and the resulting geometry. However, wall-shear stress (WSS) (4), blood velocity, volume flow rate (VFR), and intravascular pressure (7, 8, 9) have been proposed as factors affecting aneurysm growth. VFR is known to be altered near to and distal to the aneurysm (10).

Different imaging modes have been used to examine aneurysms, including computed tomography (CT) and CT angiography (CTA), digital subtraction angiography (DSA), and magnetic resonance (MRI) angiography (3, 5, 8, 9, 11, 12). Estimation of hemodynamic parameters has been derived using many of these imaging modalities (3, 4, 13, 14, 15, 16); however, there remains still much to understand with respect to 1) the relationship between hemodynamics and disease progression and 2) planning and evaluation of interventions using advanced hemodynamic parameters. We expected that VFR would become more symmetric across the brain after treatment with a PED stent, and that collateral flow would be reduced. We also hypothesized that VFR and pressure distal to the aneurysm would increase after deployment of a flow-diverting stent. Showing such changes is exceedingly difficult due to the heterogeneity of the aneurysm formation. Here, we report a clinical case that illustrates how PC-MRI can accurately estimate the hemodynamic parameters of interest in the cerebral aneurysm, pre- and post-intervention. As a secondary outcome, we show that upon successful deployment of a flow-diverting stent, the VFR and pressure measurements near and distal to the aneurysm become similar to values observed on the contralateral side.

Case Report

Patient history

A 63-year old female presented with a three-week history of headache without significant triggers, including trauma. She described a throbbing pain, focused behind the left eye and in the temporal region, rating the pain as an eight or nine on a scale of ten. No seizures or other neurological symptoms were reported. The subject was a nonsmoker and nondrinker and was not taking any medication. Other medical history was unremarkable. Her general physical and neurological exams were normal. The intervention (described below) was successful, and the patient described an improvement in her headaches after one week. Informed written consent was obtained before research imaging.

Imaging

The patient underwent CT and CTA examinations, DSA during intervention, and three MRI examinations (one before the intervention and two after stenting). The CT/CTA and first MRI were performed before the procedure. The second and third MRIs were performed two and four days after the intervention, respectively. During the interventional procedure, injection runs were collected before and after stent deployment, visualizing the passage of the iodinated contrast agent and providing 3D spin angiograms. The DSA biplanar images were acquired at a rate of 4Hz. An injection protocol of 10ml injection at 5ml/s was used for each run.

The first and third imaging examinations used a 3 T MR scanner (Discovery 750 MR; General Electric Healthcare). The protocol included 1) localizer and sensitivity calibration scans, 2) noncontrast-enhanced time-of-flight (TOF) angiographic images, 3) several low- and moderate-resolution PC image volumes, and 4) a 4D flow imaging sequence centered on the aneurysm region. Our initial strategy was to globally interrogate the larger vessels (with typical flow velocities on the order of 80cm/s to 100cm/s) and then to interrogate the cerebral aneurysm (with expected flow velocities on the order of 10cm/s to 20cm/s). Retrospective gating was used to reconstruct 30 cardiac phases per cardiac cycle. Imaging volumes were positioned to ensure overlap so that they could easily be combined during subsequent postprocessing steps. The second MRI used a 1.5-T MR scanner (Optima 450W, General Electric Healthcare) and was performed as part of standard clinical care. This imaging protocol included 1) T2-weighted, fluid-attenuated inversion recovery (FLAIR) imaging, 2) diffusion-weighted imaging (DWI), 3) susceptibility-weighted angiography (SWAN; General Electric Healthcare), 4) noncontrast-agent-enhanced TOF imaging, and 5) gadolinium contrast-agent-enhanced TOF imaging.

Endovascular intervention

The patient received antiplatelet therapy for a week before the operation. The intervention was performed with biplanar angiography guidance and under general anesthesia. A right common femoral artery puncture was made to introduce and advance a 6 Fr shuttle catheter (Cook Medical, Bloomington, IN) over a 5 Fr VTK-selective catheter (Cook Medical). Both devices were advanced over a 0.038-inch wire (Terumo, Somerset, NJ) and parked at the distal cervical ICA. Frontal and lateral angiographic images were acquired. Pressure measurements were taken with a catheter transducer around the aneurysm, in the cavernous ICA, and in the supraclinoid ICA and M1 segment of the ipsilateral MCA. Using standard endovascular techniques, a 4mm × 20mm flow-diverting stent (Covidien, Hazelwood, MO) was successfully deployed in the left cavernous ICA segment, across the neck of the aneurysm, with the distal end lying just proximal to the posterior communicating artery (PCom) bifurcation. The stent fully covered the neck of the aneurysm. The stent was expanded with a balloon catheter (Hyperform; Covidien, Hazelwood, MO) for maximal stent-wall apposition. Additional DSA imaging indicated that blood flow was restored to vessels distal to the stent with stagnant blood inside the aneurysm. After the stent was deployed. the catheter transducer was again used to measure the pressure at the cavernous ICA proximal to the deployed stent.

Analysis

VFRs measured before and after the intervention in vessels proximal and distal to the aneurysm (with diameters >1 mm; see Table 1) were compared to the those of contralateral vessels, and the laterality index {(L-R)/(L+R), where L and R are the left and right flows, respectively] was calculated between paired vessels. Pressure estimates obtained with a catheter transducer were compared to measurements derived from the 4D flow measurements. A paired t-test was used to assess the significance of pressure changes between transducer and PC-MRI.

Table 1.

Volume flow rate (VFR) measurements in large anterior circulation vessels before and after stent deployment. Vessels were measured at the cut planes shown in Fig. 2. VFR is also normalized to the total flow entering the brain through the ICA.

	Pre-operative		Postoperative		Relative change
Blood vessel measured	VFR (ml/s)	Laterality index	VFR (ml/s)	Laterality index	Absolute
Right Above Bifurcation ICA	3.05	-0.190	2.46	-0.095	-0.19
Left Above Bifurcation ICA	2.08		2.03		-0.02
Right Cervical ICA	3.37	-0.168	2.44	-0.048	-0.28
Left Cervical ICA	2.40		2.22		-0.07
Right Cavernous ICA	3.37	-0.168	2.44	-0.048	-0.28
Left Cavernous ICA*	1.43		—		—
Right Supraclinoid ICA	1.25	-0.184	0.98	-0.116	-0.21
Left Supraclinoid ICA	0.86		0.78		-0.10
Right MCA M1	0.80	-0.153	0.47	0.116	-0.42
Left MCA M1	0.59		0.59		0.00
ACA	0.09		0.11		0.21
Acom†	-0.13		0.07		-1.52

ICA: Internal carotid artery. MCA: Middle cerebral artery. ACA: Anterior cerebral artery. Acom: Communicating artery.

^*Indicates that measurements were not possible due to artifact from the stent.

^†Negative sign indicates a flow reversal in the Acom, a change in the overall direction of the flow volume through the cut plane surface.

Imaging results

The CT scan revealed a large, unruptured, left cavernous internal carotid artery (ICA)-segment aneurysm (Fig. 1). The size of the aneurysm on noncontrast CT was 14mm × 23mm, with a 6mm-wide neck. The CTA showed filling of only the superior half of the fundus, suggesting that the inferior half of the aneurysm was filled with thrombus. The region that was filled with flowing arterial blood measured 14mm by 23mm. No ICA stenosis was found on imaging. MRI revealed that the aneurysm contained thrombus, filling the inferior portion. The TOF images clearly depicted the entire aneurysm, including the thrombus region (due to a shorter T1 relaxation time).

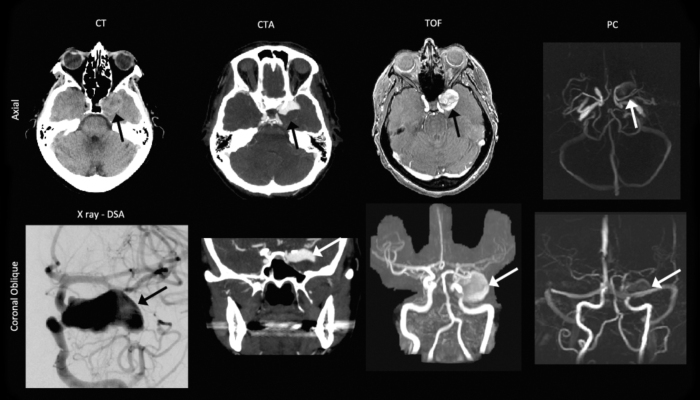

Fig. 1.

Pre-operative computed tomography (CT), CT angiography (CTA), digital subtraction angiography (DSA), noncontrast-enhanced time-of-flight (TOF) imaging, and phase-contrast (PC) imaging. The aneurysm (black and white arrows) was clearly depicted on the combination of axial and coronal orientations. The coronal TOF and the PC images are maximum-intensity projections.

The PC images highlighted only the region of flowing blood. The high-resolution PC MRI-derived velocity measurements confirmed that the velocities toward the periphery of the aneurysm were on the order of 5cm/s, whereas samples in the center of the fundus were around 1.5cm/s (Fig. 2). Figure 2 also shows the force vectors generated by the blood. These vectors are analogous to the pressure, though they show the direction of the fluid force. A higher pressure was observed in the aneurysm where the flow jet reversed or where the velocity was small.

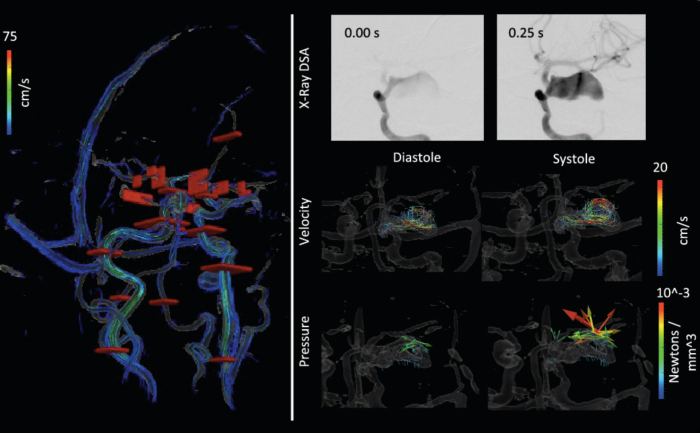

Fig. 2.

Cut planes used for flow volume calculations and temporal series of contrast inflow, and cine velocity and derived fluid force. Top: The cut planes (red surfaces) are shown in red over a rendering of the vascular structure and streamlines. Bottom: The upper row shows the contrast agent filling the fundus at 4 Hz; the middle row shows cine frames of the flow velocity; and the lower row shows the fluid force calculated from the Navier-Stokes equation at each pixel. The flow is observed to be higher toward the outer edgeof the aneurysm, while forces are higher in the middle and toward the end where the flow diverts backward.

After the procedure (Fig. 3), the noncontrast-enhanced TOF angiography suggested no change in the size of the aneurysm. The region in the aneurysm previously filling with blood was hypo-intense due to slower blood flow or partially coagulated blood. The contrast-enhanced TOF scan, like the DSA images, showed a small amount of contrast passing through the PED stent into the aneurysm. PC images showed that velocity in the treated aneurysm was <0.5cm/s. Blood velocity was observed to be higher in the arteries distal to the aneurysm, more closely matching velocity measurements from the contralateral side. As expected, MRI artifact (due to signal loss) was observed toward the outer edge of the vessel (that is, near the struts of the stent); however, the velocity at the center of the lumen and within the stent matched the proximal and distal velocity measurements. The additional clinical MRIs (FLAIR, DWI, and SWAN) did not demonstrate any changes in the brain due to stent deployment.

Figure 3.

Postoperative imaging. The DSA acquisition shows minor filling of the fundus as the contrast agent passes. This was supported by the MRI with noncontrast-enhanced and contrast-enhanced time-of-flight (TOF) and phase-contrast (PC) imaging. The aneurysm still appears large on TOF due to the short T1 of the thrombus. The phase-contrast images show near zero velocity in the aneurysm. Susceptibility-weighted angiography (SWAN), T2-weighted fluid attenuated inversion recovery (FLAIR) imaging, diffusion-weighted imaging (DWI), and a calculated apparent diffusion coefficient (ADC) map transecting the aneurysm are also shown.

Volume flow rate results

The total blood flow entering the brain via the internal carotid and vertebral arteries was 6.8ml/s and 5.1ml/s pre- and postoperatively, respectively. Flow in the left ICA (where the stent was placed) increased as a percentage of total intracranial flow from 35% to 40% of total intracranial supply after the surgery (Table 1). The left MCA-M1 branches showed a VFR increase of 72% after stent deployment. The flow through the ACA arteries increased from 0.09ml/s to 0.11ml/s, due to flow being diverted past the aneurysm because of the stent. Venous flow through the sinuses also showed a large postoperative change in the left-right VFR laterality index, similar to that observed in most intracranial arteries (Table 1).

Pressure measurement results

The pressure in the left cavernous ICA, measured with both the pressure transducer and the PC-MRI calculations, decreased postoperatively (Table 2). Conversely, pressure in the MCA M1 increased after the stent was deployed, concurrent with the increased blood flow observed in that vessel. A similar observation has been seen in pressure and VFR after aortic stenting (17). Catheter transducer pressure measurements could not be obtained postoperatively distal to the deployed stent (that is, supraclinoid ICA or MCA M1 segments) due to a risk of damaging the stent. MRI-derived pressure measurements could not be accurately measured inside the stent (near the supraclinoid ICA) due to image artifact. Overall, the PC-derived pressure measurements agreed with the catheter transducer measurements. The average difference between the six matched pressure measures was 6.1%.

Table 2.

Comparison of intravascular pressures using a catheter transducer versus PC-MRI. The average percent difference in measurements was 6.1%. Data is reported as systolic/diastolic pressure pairs.

		Pressure measured
Pre-operative		With catheter transducer	With PC-MRI	Percent difference
Cavernous ICA	Systolic	99	90.6	-0.6%
	Diastolic	62	71.5	-15.3%
Supraclinoid ICA	Systolic	85	83.1	2.2%
	Diastolic	55	52.2	5.1%
MC-M1	Systolic	76	72.1	5.1%
	Diastolic	52	47.1	9.4%
Postoperative
Cavernous ICA	Systolic	89	84.2	5.4%
	Diastolic	49	52.7	-5.5%
Supraclinoid ICA	Systolic	—		—
	Diastolic	—		—
MC-M1	Systolic	—	82.1	—
	Diastolic	—	54.6	—

Discussion

Our study showed that PC-MRI can visualize and assess hemodynamic alterations after deployment of a flow-diverting PED stent. PC images were used to estimate velocity, VFR, and pressure both before and after the intervention. In this patient, the PED stent achieved its intended therapeutic effect of greatly decreasing flow into the aneurysm. The treatment also increased flow distal to the aneurysm and caused a flow reversal in the ACom arterial segment. Flow in the hemisphere contralateral to the aneurysm was reduced, resulting in the VFR in major arteries across the brain being more symmetric. PC data were also used to derive intravascular pressure, and the result was similar to the catheter transducer measurements.

Higher signal-to-noise TOF and PC images could be achieved by injecting a contrast agent (18, 19) that decreased T1 relaxation times of blood. Noncontrast-agent-enhanced PC imaging was preferred in this study, as the patient was already receiving several contrast-agent-enhanced scans with the clinical CTA, DSA, and MRI. MRI quality without contrast agent was sufficient for the analyses described here. The artifact from the stent, which was limited to a < 2mm region near the device, was consistent with previous studies and did not prevent estimation of flow in the middle of the parent artery (20). Small deviations in the pressure estimates could arise from a host of factors, including 1) the patient's being under general anesthesia, 2) the time of day and activity level, and 3) having catheters in the vessels during measurement. Other reports have focused on observing the pressure gradient along a stenotic vessel in an animal model (9), providing quantitative measurements of flow.

Our objective in this case study was to thoroughly analyze the hemodynamic changes caused by the treatment. The current study demonstrates the ability to obtain pressure estimates with noninvasive PC-MRI in a clinical setting consistent with catheter transducer measurements. This was done through a battery of imaging techniques, each providing somewhat unusual information, while postprocessing on PC-MRI images upheld our hypothesis that the flow would become more symmetric after treatment. Catheter transducer measurements and pressure derived from PC-MRI both showed increased flow distal to the aneurysm.

This study showed how hemodynamic parameters are changed after flow diversion and that PC-MRI can measure the hemodynamic parameters with the same accuracy as invasive methods pre- and postoperatively. These techniques are a promising noninvasive method for assessment of pressure and flow alterations after deployment of a flow-diverting stent, and early detection of persistent hemodynamic stresses in a nonsecured brain aneurysm.
