. 1992 Aug 1;89(15):6871–6875. doi: 10.1073/pnas.89.15.6871

Secretion of a soluble, chimeric gamma delta T-cell receptor-immunoglobulin heterodimer.

D Eilat 1, G E Kikuchi 1, J E Coligan 1, E M Shevach 1
PMCID: PMC49606  PMID: 1495977

Abstract

Soluble derivatives of T-cell antigen receptors (TCRs) should prove invaluable for studying the interaction of these receptors with antigens and major histocompatibility complex molecules, for structural studies, and for the identification of unknown ligands. We have engineered chimeric proteins, containing the extracellular domains of the mouse V gamma 1.1-C gamma 4 and V delta 6.2-C delta (V, variable; C, constant) TCR chains fused to the hinge region, CH2 (H, heavy), and CH3 domains of human IgG1 heavy chain, and expressed them by transient transfection in COS cells. We show here that TCR gamma-IgH and TCR delta-IgH chimeric chains are produced intracellularly in significant amounts, that the two chains can assemble correctly to form disulfide-linked, glycosylated heterodimers, and that a selective mechanism allows secretion of correctly paired receptor chains into the medium. Identity of the chimeric secreted TCR gamma delta-IgH heterodimer was confirmed by immunoblot analysis using V gamma 1-specific anti-peptide antiserum and immunoprecipitation analysis using the monoclonal antibody UC7, which is shown to be specific for the TCR delta chain. In addition, the soluble TCR gamma delta-IgH heterodimer can be immunoprecipitated with the anti-clonotypic monoclonal antibody F10/56, which suggests that the fusion protein likely has a structural conformation similar to that of the native TCR. The COS cell expression system may prove useful for the production of additional TCR-IgH fusion proteins.

Full text

PDF
6871

Images in this article

6873Image
on p.6873
6873Image
on p.6873
6874Image
on p.6874

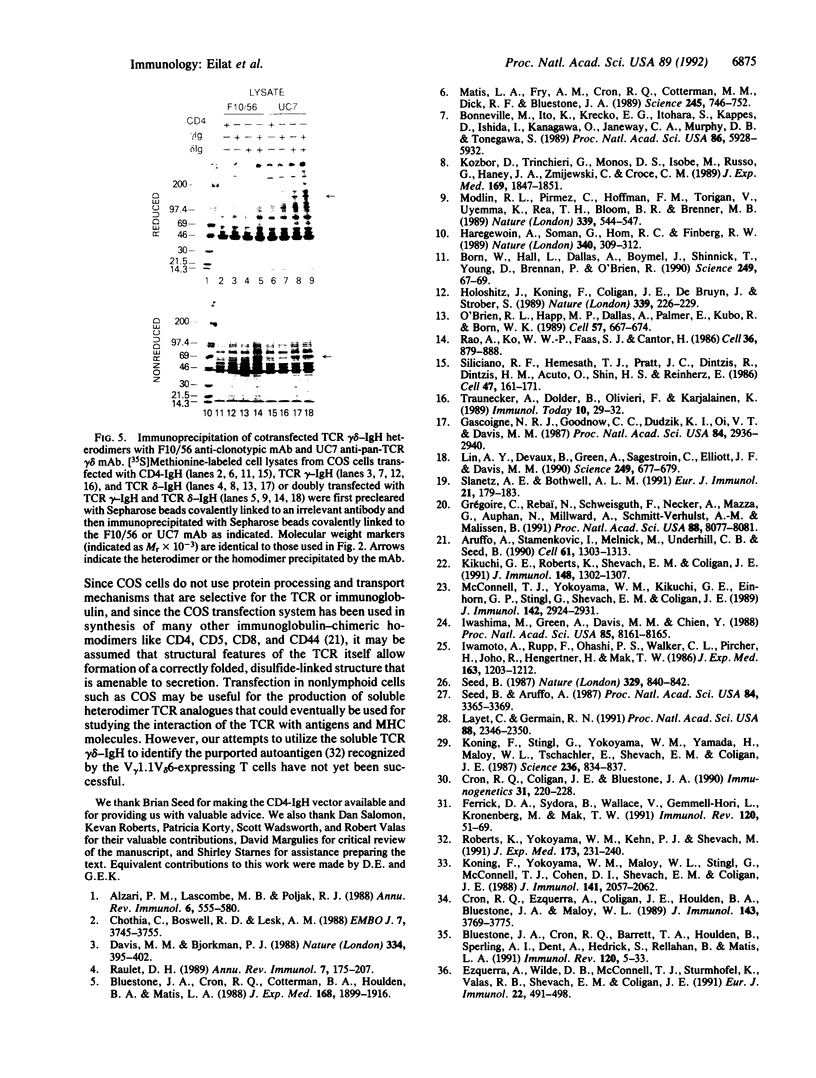

6875Image
on p.6875

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Alzari P. M., Lascombe M. B., Poljak R. J. Three-dimensional structure of antibodies. Annu Rev Immunol. 1988;6:555–580. doi: 10.1146/annurev.iy.06.040188.003011. [DOI] [PubMed] [Google Scholar]
  2. Aruffo A., Stamenkovic I., Melnick M., Underhill C. B., Seed B. CD44 is the principal cell surface receptor for hyaluronate. Cell. 1990 Jun 29;61(7):1303–1313. doi: 10.1016/0092-8674(90)90694-a. [DOI] [PubMed] [Google Scholar]
  3. Bluestone J. A., Cron R. Q., Barrett T. A., Houlden B., Sperling A. I., Dent A., Hedrick S., Rellahan B., Matis L. A. Repertoire development and ligand specificity of murine TCR gamma delta cells. Immunol Rev. 1991 Apr;120:5–33. doi: 10.1111/j.1600-065x.1991.tb00585.x. [DOI] [PubMed] [Google Scholar]
  4. Bluestone J. A., Cron R. Q., Cotterman M., Houlden B. A., Matis L. A. Structure and specificity of T cell receptor gamma/delta on major histocompatibility complex antigen-specific CD3+, CD4-, CD8- T lymphocytes. J Exp Med. 1988 Nov 1;168(5):1899–1916. doi: 10.1084/jem.168.5.1899. [DOI] [PMC free article] [PubMed] [Google Scholar]
  5. Bonneville M., Ito K., Krecko E. G., Itohara S., Kappes D., Ishida I., Kanagawa O., Janeway C. A., Murphy D. B., Tonegawa S. Recognition of a self major histocompatibility complex TL region product by gamma delta T-cell receptors. Proc Natl Acad Sci U S A. 1989 Aug;86(15):5928–5932. doi: 10.1073/pnas.86.15.5928. [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Born W., Hall L., Dallas A., Boymel J., Shinnick T., Young D., Brennan P., O'Brien R. Recognition of a peptide antigen by heat shock--reactive gamma delta T lymphocytes. Science. 1990 Jul 6;249(4964):67–69. doi: 10.1126/science.1695022. [DOI] [PubMed] [Google Scholar]
  7. Chothia C., Boswell D. R., Lesk A. M. The outline structure of the T-cell alpha beta receptor. EMBO J. 1988 Dec 1;7(12):3745–3755. doi: 10.1002/j.1460-2075.1988.tb03258.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  8. Cron R. Q., Coligan J. E., Bluestone J. A. Polymorphisms and diversity of T-cell receptor-gamma proteins expressed in mouse spleen. Immunogenetics. 1990;31(4):220–228. doi: 10.1007/BF00204891. [DOI] [PubMed] [Google Scholar]
  9. Cron R. Q., Ezquerra A., Coligan J. E., Houlden B. A., Bluestone J. A., Maloy W. L. Identification of distinct T cell receptor (TCR)-gamma delta heterodimers using an anti-TCR-gamma variable region serum. J Immunol. 1989 Dec 1;143(11):3769–3775. [PubMed] [Google Scholar]
  10. Davis M. M., Bjorkman P. J. T-cell antigen receptor genes and T-cell recognition. Nature. 1988 Aug 4;334(6181):395–402. doi: 10.1038/334395a0. [DOI] [PubMed] [Google Scholar]
  11. Ezquerra A., Wilde D. B., McConnell T. J., Sturmhöfel K., Valas R. B., Shevach E. M., Coligan J. E. Mouse autoreactive gamma/delta T cells. II. Molecular characterization of the T cell receptor. Eur J Immunol. 1992 Feb;22(2):491–498. doi: 10.1002/eji.1830220230. [DOI] [PubMed] [Google Scholar]
  12. Ferrick D. A., Sydora B., Wallace V., Gemmell-Hori L., Kronenberg M., Mak T. W. Self-reactive gamma delta T lymphocytes: implications for T-cell ontogeny and reactivity. Immunol Rev. 1991 Apr;120:51–69. doi: 10.1111/j.1600-065x.1991.tb00587.x. [DOI] [PubMed] [Google Scholar]
  13. Gascoigne N. R., Goodnow C. C., Dudzik K. I., Oi V. T., Davis M. M. Secretion of a chimeric T-cell receptor-immunoglobulin protein. Proc Natl Acad Sci U S A. 1987 May;84(9):2936–2940. doi: 10.1073/pnas.84.9.2936. [DOI] [PMC free article] [PubMed] [Google Scholar]
  14. Grégoire C., Rebaï N., Schweisguth F., Necker A., Mazza G., Auphan N., Millward A., Schmitt-Verhulst A. M., Malissen B. Engineered secreted T-cell receptor alpha beta heterodimers. Proc Natl Acad Sci U S A. 1991 Sep 15;88(18):8077–8081. doi: 10.1073/pnas.88.18.8077. [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Haregewoin A., Soman G., Hom R. C., Finberg R. W. Human gamma delta+ T cells respond to mycobacterial heat-shock protein. Nature. 1989 Jul 27;340(6231):309–312. doi: 10.1038/340309a0. [DOI] [PubMed] [Google Scholar]
  16. Holoshitz J., Koning F., Coligan J. E., De Bruyn J., Strober S. Isolation of CD4- CD8- mycobacteria-reactive T lymphocyte clones from rheumatoid arthritis synovial fluid. Nature. 1989 May 18;339(6221):226–229. doi: 10.1038/339226a0. [DOI] [PubMed] [Google Scholar]
  17. Iwamoto A., Rupp F., Ohashi P. S., Walker C. L., Pircher H., Joho R., Hengartner H., Mak T. W. T cell-specific gamma genes in C57BL/10 mice. Sequence and expression of new constant and variable region genes. J Exp Med. 1986 May 1;163(5):1203–1212. doi: 10.1084/jem.163.5.1203. [DOI] [PMC free article] [PubMed] [Google Scholar]
  18. Iwashima M., Green A., Davis M. M., Chien Y. H. Variable region (V delta) gene segment most frequently utilized in adult thymocytes is 3' of the constant (C delta) region. Proc Natl Acad Sci U S A. 1988 Nov;85(21):8161–8165. doi: 10.1073/pnas.85.21.8161. [DOI] [PMC free article] [PubMed] [Google Scholar]
  19. Kikuchi G. E., Roberts K., Shevach E. M., Coligan J. E. Gene transfer demonstrates that the V gamma 1.1C gamma 4V delta 6C delta T cell receptor is essential for autoreactivity. J Immunol. 1992 Mar 1;148(5):1302–1307. [PubMed] [Google Scholar]
  20. Koning F., Stingl G., Yokoyama W. M., Yamada H., Maloy W. L., Tschachler E., Shevach E. M., Coligan J. E. Identification of a T3-associated gamma delta T cell receptor on Thy-1+ dendritic epidermal Cell lines. Science. 1987 May 15;236(4803):834–837. doi: 10.1126/science.2883729. [DOI] [PubMed] [Google Scholar]
  21. Koning F., Yokoyama W. M., Maloy W. L., Stingl G., McConnell T. J., Cohen D. I., Shevach E. M., Coligan J. E. Expression of C gamma 4 T cell receptors and lack of isotype exclusion by dendritic epidermal T cell lines. J Immunol. 1988 Sep 15;141(6):2057–2062. [PubMed] [Google Scholar]
  22. Kozbor D., Trinchieri G., Monos D. S., Isobe M., Russo G., Haney J. A., Zmijewski C., Croce C. M. Human TCR-gamma+/delta+, CD8+ T lymphocytes recognize tetanus toxoid in an MHC-restricted fashion. J Exp Med. 1989 May 1;169(5):1847–1851. doi: 10.1084/jem.169.5.1847. [DOI] [PMC free article] [PubMed] [Google Scholar]
  23. Layet C., Germain R. N. Invariant chain promotes egress of poorly expressed, haplotype-mismatched class II major histocompatibility complex A alpha A beta dimers from the endoplasmic reticulum/cis-Golgi compartment. Proc Natl Acad Sci U S A. 1991 Mar 15;88(6):2346–2350. doi: 10.1073/pnas.88.6.2346. [DOI] [PMC free article] [PubMed] [Google Scholar]
  24. Lin A. Y., Devaux B., Green A., Sagerström C., Elliott J. F., Davis M. M. Expression of T cell antigen receptor heterodimers in a lipid-linked form. Science. 1990 Aug 10;249(4969):677–679. doi: 10.1126/science.1696397. [DOI] [PubMed] [Google Scholar]
  25. Matis L. A., Fry A. M., Cron R. Q., Cotterman M. M., Dick R. F., Bluestone J. A. Structure and specificity of a class II MHC alloreactive gamma delta T cell receptor heterodimer. Science. 1989 Aug 18;245(4919):746–749. doi: 10.1126/science.2528206. [DOI] [PubMed] [Google Scholar]
  26. McConnell T. J., Yokoyama W. M., Kikuchi G. E., Einhorn G. P., Stingl G., Shevach E. M., Coligan J. E. Delta-chains of dendritic epidermal T cell receptors are diverse but pair with gamma-chains in a restricted manner. J Immunol. 1989 Apr 15;142(8):2924–2931. [PubMed] [Google Scholar]
  27. Modlin R. L., Pirmez C., Hofman F. M., Torigian V., Uyemura K., Rea T. H., Bloom B. R., Brenner M. B. Lymphocytes bearing antigen-specific gamma delta T-cell receptors accumulate in human infectious disease lesions. Nature. 1989 Jun 15;339(6225):544–548. doi: 10.1038/339544a0. [DOI] [PubMed] [Google Scholar]
  28. O'Brien R. L., Happ M. P., Dallas A., Palmer E., Kubo R., Born W. K. Stimulation of a major subset of lymphocytes expressing T cell receptor gamma delta by an antigen derived from Mycobacterium tuberculosis. Cell. 1989 May 19;57(4):667–674. doi: 10.1016/0092-8674(89)90135-9. [DOI] [PubMed] [Google Scholar]
  29. Rao A., Ko W. W., Faas S. J., Cantor H. Binding of antigen in the absence of histocompatibility proteins by arsonate-reactive T-cell clones. Cell. 1984 Apr;36(4):879–888. doi: 10.1016/0092-8674(84)90037-0. [DOI] [PubMed] [Google Scholar]
  30. Raulet D. H. The structure, function, and molecular genetics of the gamma/delta T cell receptor. Annu Rev Immunol. 1989;7:175–207. doi: 10.1146/annurev.iy.07.040189.001135. [DOI] [PubMed] [Google Scholar]
  31. Roberts K., Yokoyama W. M., Kehn P. J., Shevach E. M. The vitronectin receptor serves as an accessory molecule for the activation of a subset of gamma/delta T cells. J Exp Med. 1991 Jan 1;173(1):231–240. doi: 10.1084/jem.173.1.231. [DOI] [PMC free article] [PubMed] [Google Scholar]
  32. Seed B. An LFA-3 cDNA encodes a phospholipid-linked membrane protein homologous to its receptor CD2. 1987 Oct 29-Nov 4Nature. 329(6142):840–842. doi: 10.1038/329840a0. [DOI] [PubMed] [Google Scholar]
  33. Seed B., Aruffo A. Molecular cloning of the CD2 antigen, the T-cell erythrocyte receptor, by a rapid immunoselection procedure. Proc Natl Acad Sci U S A. 1987 May;84(10):3365–3369. doi: 10.1073/pnas.84.10.3365. [DOI] [PMC free article] [PubMed] [Google Scholar]
  34. Siliciano R. F., Hemesath T. J., Pratt J. C., Dintzis R. Z., Dintzis H. M., Acuto O., Shin H. S., Reinherz E. L. Direct evidence for the existence of nominal antigen binding sites on T cell surface Ti alpha-beta heterodimers of MHC-restricted T cell clones. Cell. 1986 Oct 24;47(2):161–171. doi: 10.1016/0092-8674(86)90439-3. [DOI] [PubMed] [Google Scholar]
  35. Slanetz A. E., Bothwell A. L. Heterodimeric, disulfide-linked alpha/beta T cell receptors in solution. Eur J Immunol. 1991 Jan;21(1):179–183. doi: 10.1002/eji.1830210127. [DOI] [PubMed] [Google Scholar]
  36. Traunecker A., Dolder B., Oliveri F., Karjalainen K. Solubilizing the T-cell receptor--problems in solution. Immunol Today. 1989 Jan;10(1):29–32. doi: 10.1016/0167-5699(89)90062-5. [DOI] [PubMed] [Google Scholar]
