. 2016 Jul 28;7:1090. doi: 10.3389/fpls.2016.01090

Genotypic Variation for Salinity Tolerance in Cenchrus ciliaris L.

Abdullah J Al-Dakheel 1, M Iftikhar Hussain 1,*
PMCID: PMC4963404  PMID: 27516762

Abstract

Scarcity of irrigation water and increasing soil salinization has threatened the sustainability of forage production in arid and semi-arid region around the globe. Introduction of salt-tolerant perennial species is a promising alternative to overcome forage deficit to meet future livestock needs in salt-affected areas. This study presents the results of a salinity tolerance screening trial which was carried out in plastic pots buried in the open field for 160 buffelgrass (Cenchrus ciliaris L.) accessions for three consecutive years (2003–2005). The plastic pots were filled with sand, organic, and peat moss mix and were irrigated with four different quality water (EC 0, 10, 15, and 20 dS m−1). The results indicate that the average annual dry weights (DW) were in the range from 122.5 to 148.9 g/pot in control; 96.4–133.8 g/pot at 10 dS m−1; 65.6–80.4 g/pot at 15 dS m−1, and 55.4–65.6 g/pot at 20 dS m−1. The highest DW (148.9 g/pot) was found with accession 49 and the lowest with accession 23. Principle component analysis shows that PC-1 contributed 81.8% of the total variability, while PC-2 depicted 11.7% of the total variation among C. ciliaris accessions for DW. Hierarchical cluster analysis revealed that a number of accessions collected from diverse regions could be grouped into a single cluster. Accessions 3, 133, 159, 30, 23, 142, 141, 95, 49, 129, 124, and 127 were stable, salt tolerant, and produced good dry biomass yield. These accessions demonstrate sufficient salinity tolerance potential for promotion in marginal lands to enhance farm productivity and reduce rural poverty.

Keywords: buffelgrass, biomass yield, multivariate analysis, salt tolerance, genotypic diversity

Introduction

Salt-affected soils and millions of hectares of marginal lands have limited the scope for crop production (Wang et al., 2012). According to the Food and Agriculture Organization (FAO), 34 million hectares (11% of the total irrigated area of the world) are affected by different levels of salinization (Food Agriculture Organization of the United Nations, 2012). Moreover, the world loses 0.25–0.5 M ha of agricultural land annually because of salt buildup, which mainly results from irrigation, especially in arid and semiarid areas (Peng et al., 2008; Qadir et al., 2014). Soil salinity reduces the productivity of most crops, although to a varying extent depending on species (Roy et al., 2014; Hussain et al., 2016). Besides improving water management practices to reduce salt accumulation in the root zone, there is a need to improve salinity tolerance of strategically important crops. The use of low quality saline water for plant production is an option to conserve limited freshwater resources, particularly for the water-scarce regions of Arabian and African peninsula.

The cultivation of forages, biomass crops, and perennial grasses as feedstock for energy, biomaterials, and livestock rearing have been promoted as an opportunity to improve sustainability of forage supply, energy security, and contributing to the rural development (Ahmad, 2010). Therefore, demand for sustainable biomass production for livestock and energy use has raised the interest in perennial crops like Cenchrus ciliaris L. Buffelgrass (C. ciliaris L.) is a perennial (C4) forage grass (family poaceae), sometimes produces rhizomes and is native to the Arabian Peninsula. The C. ciliaris is dominant in natural grazing zones of Ethiopia (Angassa and Baars, 2000), Australia (Buldgen and Francois, 1998), and North Africa (Mseddi et al., 2004). Buffelgrass has proved useful for pasture and soil retention in a wide range of environments due to its drought tolerance, high biomass, deep roots, rapid response to summer rains, and resistance to overgrazing. With extensive belowground systems, cultivation of perennial grasses present high efficiencies in the use of nutrient and water resources and control of soil erosion, carbon sequestration with the restoration of soil properties (fertility, structure, organic matter). Compared with annual systems, herbaceous perennial crops have the advantages of erodibility, and crop management options, such as pesticides and fertilizers inputs (Zhang et al., 2011; Fernando et al., 2012). The salt tolerance of different C. ciliaris genotypes need to be evaluated to test their suitability for marginal environments to offer a more practical solution for effective utilization of salt affected soils. Among buffelgrass, accession from North America, “Texas 4464” has been reported as drought tolerant (Ayerza, 1981), and “Biloela” as salt-tolerant (Graham and Humphreys, 1970). Therefore, strategies for mitigating salinity problems in crop production include both development of management options (Shannon, 1997) and genetic improvement of current cultivars (Krishnamurthy et al., 2007).

Germplasm of a specific crop collected from the diverse sources offers greater genetic diversity and may furnish useful traits to widen the genetic base of crop species. The collection, screening and description of the existing variability among the forage crops are the first step in the performance evaluation and selection process (Ponsens et al., 2010). Knowledge about germ- plasm diversity and salinity tolerance evaluation will be an excellent tool to screen and select high yielding accessions for further evaluation under field conditions. Screening large numbers of genotypes for salinity tolerance in the field is notoriously difficult because of the variability of salinity within fields (Daniells et al., 2001). Moreover, it would be difficult to determine the critical parameters under field conditions since any environmental change could result in dramatic change in the plant's response to salinity (Shannon, 1997). Although C. ciliaris response to salinity stress has been a topic of many researchers (Arshad et al., 2000; Hacker and Waite, 2001; Jorge et al., 2008; Ksiksi and El-Shaigy, 2012); to best of our knowledge, no study has evaluated and characterized the C. ciliaris genotypes in terms of agro-morphological attributes and dry matter yield responses so far. This study evaluates the morphological and biomass yield responses of C. ciliaris genotypes to water salinity in pot culture trial.

In a study of salt stress on buffelgrass and its effects on productivity decline; Lanza Castelli et al. (2010) has found that C. ciliaris accession, Texas 4464, is susceptible to salt stress at 300 mM NaCl concentrations at the seedling stage, while Americana showed tolerance against salinity. The fresh weight, root length, and plant height of these accessions were least affected by salinity. However, screening and selection of large numbers of buffelgrass genotypes for salinity tolerance is lacking. Therefore, the current research was undertaken with the aim to identify superior genotypes for forage production under hot arid conditions of UAE using naturally available low quality saline water. The results of this research are expected to provide useful information that can be used to group accessions for relative comparison and evaluation of biomass yield in areas where problems of soil and water salinity are increasing.

Materials and methods

Site description

The field trials were conducted for three growing seasons during 2003–2005 on the experimental farm of the International center for Biosaline Agriculture (ICBA), located on the eastern side of Dubai between 25°5′ N and 55°23′ E with an elevation of 30 m above mean sea level. The soil of the experimental field is Carbonatic, Hyperthermic Typic Torripsamment having a negligible level of inherent soil salinity (0.2 dS m−1). The study area is characterized by very hot, dry days in summer (April–October), when temperatures can reach 45°C, while the winter days (December–February) are mainly cooler and dry with low average night-time temperatures (10°C). Because of the aridity, and relatively cloudless skies, there are great extremes of temperature variation, but there are also wide variations between the seasons. Air temperature follows a regular seasonal trend, with a minimum in January and a maximum in July. According to the ICBA weather station data the annual average temperature of the study area was 10°C during the month of January while average maximum temperature during summer, July, was 45°C. The average annual rainfall is < 80 mm and falls in short, torrential bursts during the summer months.

Plant material, experimental design, and management practices

In total, 160 accessions of buffelgrass (C. ciliaris L.) were used in this experiment as shown in Table 1. The seeds of C. ciliaris L. were received from United States Department of Agriculture (USDA); originated from Asia, Africa, Australia, India, USA and some local landraces and commercial cultivars were also included in the study. Seeds of C. ciliaris genotypes (three per pot) were sown in poly vinyl chloride pots (30 × 30 cm) on 2nd March 2003. The pots were buried in the open field (Figure 1), near the net house at experimental research station (ICBA, Dubai, UAE) for three consecutive years (2003–2005). After uniformity of emergence, seedlings were thinned to one plant per pot to maintain good stand establishment. Experimental soil achieved field capacity and permanent wilting point at 0.1 bar and 15 bars, respectively. All pots were irrigated to upper limit of field capacity before planting.

Table 1.

Buffel grass (Cenchrus ciliaris L.) germplasm collection with genebank entry numbers and country of origin.

S. No. Accessions Species Country of origin S. No. Accessions Species Country of origin S. No. Accessions Species Country of origin S. No. Accessions Species Country of origin
1 ICBA 22 C. ciliaris UAE 41 PI 299521 C. ciliaris South Africa 81 PI 409263 C. ciliaris South Africa 121 PI 409528 C. ciliaris South Africa
2 ICBA 38 C. ciliaris UAE 42 PI 307619 C. ciliaris Australia 82 PI 409264 C. ciliaris South Africa 122 PI 409556 C. ciliaris South Africa
3 PI 153671 C. ciliaris Kenya 43 PI 308595 C. ciliaris Australia 83 PI 409265 C. ciliaris South Africa 123 PI 409581 C. ciliaris South Africa
4 PI 156546 C. ciliaris Zimbabwe 44 PI 315681 C. ciliaris United States 84 PI 409266 C. ciliaris South Africa 124 PI 409585 C. ciliaris South Africa
5 PI 161631 C. ciliaris South Africa 45 PI 339892 C. ciliaris Australia 85 PI 409267 C. ciliaris South Africa 125 PI 409653 C. ciliaris South Africa
6 PI 161633 C. ciliaris South Africa 46 PI 365650 C. ciliaris Tanzania 86 PI 409270 C. ciliaris South Africa 126 PI 409669 C. ciliaris South Africa
7 PI 161637 C. ciliaris South Africa 47 PI 365651 C. ciliaris Tanzania 87 PI 409272 C. ciliaris South Africa 127 PI 409689 C. ciliaris South Africa
8 PI 185564 C. ciliaris South Africa 48 PI 365720 C. ciliaris Tanzania 88 PI 409273 C. ciliaris South Africa 128 PI 409692 C. ciliaris South Africa
9 PI 193445 C. ciliaris Australia 49 PI 385321 C. ciliaris Tanzania 89 PI 409274 C. ciliaris South Africa 129 PI 409704 C. ciliaris South Africa
10 PI 203363 C. ciliaris South Africa 50 PI 409174 C. ciliaris South Africa 90 PI 409280 C. ciliaris South Africa 130 PI 409718 C. ciliaris South Africa
11 PI 216374 C. ciliaris United States 51 PI 409185 C. ciliaris South Africa 91 PI 409281 C. ciliaris South Africa 131 PI 409720 C. ciliaris South Africa
12 PI 225012 C. ciliaris Ghana 52 PI 409188 C. ciliaris South Africa 92 PI 409282 C. ciliaris South Africa 132 PI 414447 C. ciliaris South Africa
13 PI 225583 C. ciliaris South Africa 53 PI 409194 C. ciliaris South Africa 93 PI 409292 C. ciliaris South Africa 133 PI 414452 C. ciliaris South Africa
14 PI 226090 C. ciliaris Kenya 54 PI 409198 C. ciliaris South Africa 94 PI 409293 C. ciliaris South Africa 134 PI 414499 C. ciliaris South Africa
15 PI 243198 C. ciliaris Zimbabwe 55 PI 409201 C. ciliaris South Africa 95 PI 409295 C. ciliaris South Africa 135 PI 414508 C. ciliaris South Africa
16 PI 243199 C. ciliaris Zimbabwe 56 PI 409205 C. ciliaris South Africa 96 PI 409298 C. ciliaris South Africa 136 PI 414513 C. ciliaris South Africa
17 PI 245375 C. ciliaris India 57 PI 409212 C. ciliaris South Africa 97 PI 409301 C. ciliaris South Africa 137 PI 414521 C. ciliaris South Africa
18 PI 253261 C. ciliaris South Africa 58 PI 409214 C. ciliaris South Africa 98 PI 409302 C. ciliaris South Africa 138 PI 414529 C. ciliaris South Africa
19 PI 253263 C. ciliaris South Africa 59 PI 409216 C. ciliaris South Africa 99 PI 409309 C. ciliaris South Africa 139 PI 442096 C. ciliaris Japan
20 PI 253269 C. ciliaris South Africa 60 PI 409217 C. ciliaris South Africa 100 PI 409327 C. ciliaris South Africa 140 PI 443507 C. ciliaris Mexico
21 PI 271198 C. ciliaris India 61 PI 409221 C. ciliaris South Africa 101 PI 409348 C. ciliaris South Africa 141 PI 516516 C. ciliaris Morocco
22 PI 271203 C. ciliaris India 62 PI 409222 C. ciliaris South Africa 102 PI 409352 C. ciliaris South Africa 142 Grif 1619 C. ciliaris Australia
23 PI 271206 C. ciliaris India 63 PI 409223 C. ciliaris South Africa 103 PI 409361 C. ciliaris South Africa 143 Grif 1621 C. ciliaris Kenya
24 PI 271208 C. ciliaris India 64 PI 409224 C. ciliaris South Africa 104 PI 409365 C. ciliaris South Africa 144 Grif 1622 C. ciliaris Botswana
25 PI 271209 C. ciliaris India 65 PI 409226 C. ciliaris South Africa 105 PI 409367 C. ciliaris South Africa 145 Grif 1637 C. ciliaris Tanzania
26 PI 271214 C. ciliaris India 66 PI 409228 C. ciliaris South Africa 106 PI 409375 C. ciliaris South Africa 146 Grif 1639 C. ciliaris Pakistan
27 PI 271219 C. ciliaris India 67 PI 409229 C. ciliaris South Africa 107 PI 409379 C. ciliaris South Africa 147 Grif 1640 C. ciliaris Australia
28 PI 271593 C. ciliaris India 68 PI 409230 C. ciliaris South Africa 108 PI 409381 C. ciliaris South Africa 148 MAF 74 C. ciliaris UAE
29 PI 275104 C. ciliaris India 69 PI 409231 C. ciliaris South Africa 109 PI 409385 C. ciliaris South Africa 149 ICBA 49 C. ciliaris UAE
30 PI 279596 C. ciliaris Philippines 70 PI 409232 C. ciliaris South Africa 110 PI 409398 C. ciliaris South Africa 150 C MAK 1 C. ciliaris UAE
31 PI 284831 C. ciliaris South Africa 71 PI 409234 C. ciliaris South Africa 111 PI 409399 C. ciliaris South Africa 151 C MAK 2 C. ciliaris UAE
32 PI 284834 C. ciliaris Morocco 72 PI 409235 C. ciliaris South Africa 112 PI 409400 C. ciliaris South Africa 152 C MAK 3 C. ciliaris UAE
33 PI 284835 C. ciliaris India 73 PI 409236 C. ciliaris South Africa 113 PI 409401 C. ciliaris South Africa 153 C MAK 4 C. ciliaris UAE
34 PI 292637 C. ciliaris Argentina 74 PI 409237 C. ciliaris South Africa 114 PI 409402 C. ciliaris South Africa 154 C MAK 5 C. ciliaris UAE
35 PI 293325 C. ciliaris Argentina 75 PI 409238 C. ciliaris South Africa 115 PI 409408 C. ciliaris South Africa 155 C MAK 6 C. ciliaris UAE
36 PI 294595 C. ciliaris Australia 76 PI 409240 C. ciliaris South Africa 116 PI 409426 C. ciliaris South Africa 156 C MAK 7 C. ciliaris UAE
37 PI 295655 C. ciliaris Zimbabwe 77 PI 409241 C. ciliaris South Africa 117 PI 409429 C. ciliaris South Africa 157 C MAK 8 C. ciliaris UAE
38 PI 295659 C. ciliaris Zimbabwe 78 PI 409250 C. ciliaris South Africa 118 PI 409438 C. ciliaris South Africa 158 Gayndah C. ciliaris AUS
39 PI 298980 C. ciliaris Zimbabwe 79 PI 409254 C. ciliaris South Africa 119 PI 409442 C. ciliaris South Africa 159 Biloela C. ciliaris AUS
40 PI 299505 C. ciliaris South Africa 80 PI 409262 C. ciliaris South Africa 120 PI 409444 C. ciliaris South Africa 160 Commercial C. ciliaris USA
Open in a new tab

Figure 1.

Figure 1

Open in a new tab

Screening Cenchrus ciliaris for salt tolerance in pots buried in open field at Research Station, ICBA, Dubai, UAE. (A) Germination, (B) growth and tillering, (C) heading stage, and (D) harvesting.

The soil was collected from an open area of ICBA that had not been previously irrigated with saline water. Textural analysis showed that the resulting soil had 98% sand, 0.5% silt, and 1% clay, which would be classified as sandy soils. The plastic pots were filled with soil mix (20 kg/pot) containing 50% sand, 25% organic fertilizer, and 25% peat moss. The fertilizer NPK was mixed periodically at the start of the trial and after each harvest. The weeds were eradicated by hand weeding.

Irrigation and saline water treatment application

The C. ciliaris accessions were arranged in the main plot while saline water treatment (0, 10, 15, and 20 dS m−1) was randomized in RCBD split plot design. Initially, the pots were irrigated with fresh water up till 1 month to facilitate the germination and seedling establishment. One pot was assigned to each accession per replication and four replications per treatment were maintained throughout the trial. The saline water treatments were applied 1 month after sowing and each salinity treatment was made by diluting ground water (EC: 25 dS m−1) with fresh water (1.5 dS m−1) in a separate tank to achieve the target salinities and then delivered to the pots via drip irrigation system. Irrigations were applied on daily basis at rates equivalent to ET0 plus 20% for leaching requirements. The four salinity levels were maintained constantly throughout the growth period during all the years.

The field experiment was equipped with a drip system (pressure compensating (PC), micro flapper with 4 L hr−1 flow rate) and 0.5 m distance between rows and 0.25 m between drippers. Each pot has one dripper; the pot area was 0.12 m2 which means that for each 4 liters the depth would be 33 mm hr−1. Irrigation monitoring, scheduling and salinity management were achieved using Decagon®; sensors. During the summer season (9 months from March–November) the pots were irrigated 30 min per day which means an irrigation depth of 16 mm per pot with the leaching fraction, but during mild winter season (3 months from December–February) the irrigation duration was 20 min which means an irrigation depth of 11 mm per day with the leaching fraction. The drippers were tested biweekly to check the distribution uniformity and coefficient using the method of the low quarter average divided by the average of the whole readings, the data (not shown) that the distribution uniformity was not < 85% with a distribution coefficient of 80%.

Harvesting and biomass yield measurements

The plants were harvested at heading stage and weighed with an analytical balance. Table 2 demonstrates the harvesting dates and number of harvests (cuts) obtained during each year. For each harvest, the total fresh weight of the collected biomass samples was weighed in g/pot. The samples were dried in a forced air oven at 60°C for 72 h and dry matter yield (DW) was determined.

Table 2.

Sequence of harvesting schedule, stage, cut date, and number of cuts in perennial crop.

Harvesting schedule Harvesting stage Cut date Year Number of cuts
1st cut Heading stage 06-05-03 graphic file with name fpls-07-01090-i0001.jpg
2nd cut //             // 14-07-03
3rd cut //             // 29-09-03
4th cut //             // 15-12-03
5th cut //             // 01-03-04 graphic file with name fpls-07-01090-i0002.jpg
6th cut //             // 15-06-04
7th cut //             // 06-09-04
8th cut //             // 13-12-04
9th cut //             // 08-03-05 graphic file with name fpls-07-01090-i0003.jpg
11th cut //             // 16-06-05
12th cut //             // 27-08-05
13th cut //             // 12-12-05
Open in a new tab

Cenchrus ciliaris for salinity tolerance comparison trial for year 2003–2005.

Data and statistical analysis

Statistical analyses were performed on fresh biomass (FW) and dry weight (DW) in two steps:

  1. The experimental data for each cut (fresh weight, dry weight) of 160 genotypes were analyzed using a general linear model with salinity treatment and genotypes as fixed factor and year as a random factor using SPSS for Windows version 17.0 (SPSS Inc., Chicago, IL, USA). Difference between treatments means were compared using Tukey's HSD test.

  2. Principal component analysis (PCA) was performed on genotypic trait means (FW, DW), to partition the performance of accessions under salt stress conditions. The variate stands for any response variable and “individual” stands for any entry in this analysis. PCA helps the selection of entries, at 25% intensity of selection, based on entries loadings on the first and the second components at each salinity level. The accessions were selected and ability of each entry was determined using its loadings on two components of PCA.

  3. Hierarchical cluster analysis of 160 buffelgrass accessions using JMP 12.0 software was carried out taking fresh biomass yield and dry weight taking into account means of all years at overall salinity. The between-groups linkage method of clustering was adopted using Euclidean distances.

Results

Impact of salinity on average biomass yield of C. ciliaris

The salinity treatments significantly influenced the growth and biomass yield of various C. ciliaris accessions. The average biomass yield (fresh and dry weight) were calculated by taking the average of 3 years' data for each salinity level (Figures 2, 3). Fresh weight (FW) ranged between 50 and 450 g/pot in control, 50–350 g/pot at low salinity (10 dS m−1), 50–300 g/pot at medium high salinity (15 dS m−1) and 50–200 g/pot at high salinity (20 dS m−1) (Figures 2A–D). The curve was bell shaped in control pots and right skewed distribution when the values clustered more toward lower production groups at high salinity (Figure 2D). Accession 127 proved to be stable and higher yielder that produced the maximum FW (400.8 g/pot) in control and 348.9 g/pot fresh biomass at 10 dS m−1. However, at medium and higher salinity (15, 20 dS m−1), its biomass yield decreased significantly and produced 180.1 and 122.3 g/pot, respectively. Accession 49 proved to be stable genotype that produced the 2nd highest biomass yield (351.1 g/pot) in the control pots while 292.4 g/pot at 10 dS m−1, 219.3 g/pot at 15 dS m−1, and 181.7 g/pot at 20 dS m−1, respectively. At medium and higher salinity (15 and 20 dS m−1), accession 30 produced 233.8 g and 154.2 g/pot FW and demonstrated as medium salt tolerant genotypes.

Figure 2.

Figure 2

Open in a new tab

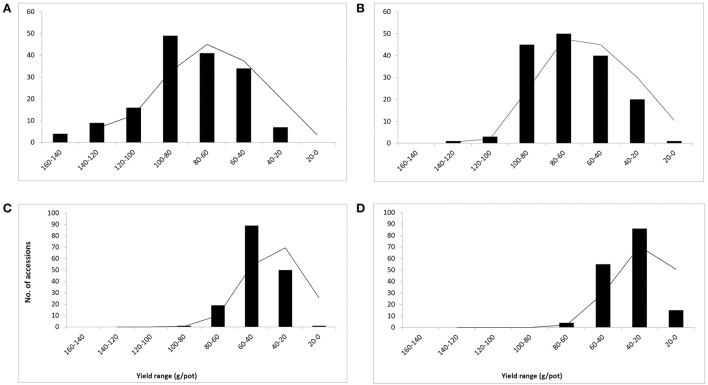

Frequency distribution and yield range (g/pot) of 160 buffelgrass accessions (Means of fresh weight at A–D at heading stage). Whereas, A = 0, B = 10, C = 15, and D = 20 dS m−1 salinity level.

Figure 3.

Figure 3

Open in a new tab

Frequency distribution and yield range (g/pot) of 160 buffelgrass accessions (Mean of dry weight at A–D at heading stage). Whereas, A = 0, B = 10, C = 15, and D = 20 dS m−1 salinity level.

The dry weight range was in the range of 20–160 g/pot in control, 20–140 g/pot at 10 dS m−1, 100–20 g/pot at 15 dS m−1, and 20–80 g/pot at 20 dS m−1 respectively (Figures 3A–D). The curve distribution was bell shaped in control pots and right skewed at high salinity (20 dS m−1) (Figure 3D). The range of variation reduced with an increase in salinity levels and ranged between 20 and 160 g/pot when salinity varies from 0 to 20 dS m−1. The reduction in dry biomass was 87.5, 85.7, 80, and 75% at 10, 15, and 20 dS m−1, respectively (Figures 3A–D). The average mean DW was 148.9 g/pot recorded for accession 49 in control while accession 127 produced the highest dry biomass (141.4 g/pot), in control pots, respectively (data not shown). The accession 124 produced the maximum DW (80.3 g/pot) at 20 dS m−1 salinity and proved to be stable and higher yield genotype. At highest salinity (20 dS m−1), accession 49 produced the maximum dry biomass (65.6 g/pot) (data not shown).

Effect of salinity on total annual yield of C. ciliaris

Fresh biomass (total annual yield) ranged from 301.6 to 400.8 g/pot in control, 256.2–348.9 g/pot at 10 dSm−1, 192.5–233.8 g/pot at 15 dSm−1, and 164.8–185.0 g/pot at 20 dS m−1) among the top 10 accessions of C. ciliaris (Figure 4). The results illustrated that FW in 112, 37, 30, 23, and 46 accessions were more affected by the salinity at 10, 15, and 20 dS m−1, respectively. The accessions 49, 159, 129, 30, 38, were the least affected by increasing the salinity level from 0 to 20 dS m−1. However, accession 129 produced good fresh biomass yield in control, 10 dS m−1, and 15 dS m−1 salinity while it was not a stable genotype at higher salinity (20 dS m−1) that produced less FW as compared to other top 10 genotypes (Figure 4). The salinity tolerance values in DW from all buffelgrass accessions show a high degree of variability under the various salinity levels. Average annual DW yield ranged from 122.5 to 148.9 g/pot in control; 96.4–133.7 g/pot at 10 dS m−1; from 65.6 to 80.3 g/pot at 15 dS m−1 and 55.4–65.6 g/pot at higher salinity (20 dS m−1). The highest DW (148.9 g/pot) was produced by accession 49 in control and the lowest one (55.4 g/pot) was recorded in accession 23 following treatment at the highest salinity level (20 dS m−1) (Figure 5).

Figure 4.

Figure 4

Open in a new tab

Effect of different irrigation water salinity levels on fresh biomass yield (total annual yield) of TOP 10 Cenchrus ciliaris genotypes. Error bars represent standard deviations of the mean of four replicates. Whereas, (A) = 0, (B) = 10, (C) = 15, and (D) = 20 dS m−1 salinity level.

Figure 5.

Figure 5

Open in a new tab

Effect of different irrigation water salinity levels on dry weight (total annual dry biomass) of TOP 10 Cenchrus ciliaris genotypes. Error bars represent standard deviations of the mean of four replicates. Whereas, (A) = 0, (B) = 10, (C) = 15, and (D) = 20 dS m™1 salinity level.

Evaluation of performance of C. ciliaris accessions through multivariate analysis

Principle component analysis

The results of principal components analysis show that out of four components, only 1 had extracted Eigen values over 1. This is based on Chatfield and Collin (1980) assumption which stated that components with an Eigen value of < 1 should be eliminated. The extracted component was subsequently rotated according to Varimax rotation in order to make interpretation easier and fundamental significance of extracted component to the irrigation water salinity. Principle component PC 1 was extracted having Eigen value >1 and contributed 83.5% of the total variability among the C. ciliaris genotypes assessed for fresh biomass (Figure 6). However, the PC 2 depicted 10.7% of the total variation for the same parameter. Furthermore, PC1 contributed 81.8% of the total variability among the 160 genotypes and PC2 only depicted 11.7% of the total variation for dry weight (DW). Salinity applies a gradual selection pressure on the entries that was higher for dry biomass than for fresh biomass. PCA of C. ciliaris genotypes revealed diverse grouping pattern. The separation on the basis of PC1 and PC2 revealed that the genotypes were scattered in all the quarters, which show the high level of genotypic variation among the accessions (Figure 6). The first principal component correlated with five of the original variables (DWS2, FW2, FWS3, DWS1, and FWS4) and more strongly with the DWS2. In fact, we could state that based on this correlation, principal component is primarily a measure of the DWS2 (data not shown). In the first principal components, accessions 49, 22, 16, 42, 8, 149, showed more genotypic variation based on FW and are located close to axis line. In the second principal components, accessions 49, 133, 23, 3, 30, 6, showed more genotypic variation based on dry weight (DW) trait and are also located close to axis line.

Figure 6.

Figure 6

Open in a new tab

Principal component analysis of the variables: Fresh weight (FW) and dry weight (DW) at four water salinity levels (0, 10, 15, 20 dS m−1). Two dimensional scatter plot of genotypic relationship among 160 Cenchrus ciliaris accessions as revealed by first two principal components.

Hierarchical cluster analysis

Germplasm evaluation for quantitative traits may help to work out the relative importance of various traits within each cluster. Hierarchical cluster analysis based on agronomical traits (fresh and dry biomass) divided the 160 accessions into 6 main clusters. Maximum number of accessions (42) were present in group I, followed group II (27), group III (26), group IV (19), group V (17), group VI (17), and group VII (12) (Figure 7). Hierarchical cluster analysis showed that some of accessions originated from various geographical areas were grouped into the same cluster, while many others fell into different clusters. Group VII consisted of highly salt tolerant genotypes (3, 133, 159, 30, 23, 142, 141, 95, 49, 129, 124, and 127) that acquired maximum biomass yield at all target salinities and also among the top 10 accessions. Grouping pattern indicated that the clusters were heterogeneous with regard to the geographical origin and some entries from different geographic regions were pooled in the same cluster (Figure 7).

Figure 7.

Figure 7

Open in a new tab

Dendrogram showing the relationship among 160 accessions of Cenchrus ciliaris based on plant biomass in a Hierarchical Clustering analysis.

Performance of commercial cultivars of C. ciliaris

The observations of present study were largely consistent with the available descriptions of commercial cultivars. The genotype 159 (Biloela) was salt tolerant, productive and produced higher biomass than other genotypes at different water salinities (0, 10, 15, 20 dS m−1). Other commercial genotypes 158 (Gayndah) and 160 did not show the good performance in terms of fresh and dry biomass and were not stable at medium and high salinities (data not shown).

Discussion

Yield assessment conducted in field trials provides the most reliable information on salt tolerance; however, spatial and temporal variability in soil salinity (Richards, 1983) make it difficult to obtain reproducible information. The advantages of using pots buried in open field are that the saline conditions can be controlled and constantly monitored. Salt affects the growth of plants by limiting the absorption of water and essential nutrients through roots. Salt stress has an immediate effect on cell growth and enlargement, and high concentrations of salts can be extremely toxic (Munns and Tester, 2008; Hussain et al., 2016). In the present study, there was wide variation among C. ciliaris genotypes grown under different salinity levels regarding their biomass yield. The fresh and dry weight of all genotypes was decreased with increase in salt stress. However, salt-sensitive genotypes showed more reduction in their biomass as compared to tolerant genotypes. Lanza Castelli et al. (2010) demonstrated a significant reduction (50–70%) in height and shoot fresh weight at 30 dS m−1 in Texas and Biloela accessions. In the present study, the accessions 49, 127, 129, 30, 38, were the least affected by increasing salinity. The accession 129 produced good biomass at low salinity; however, it was not a stable genotype at higher salinity. Therefore, it is quite suitable for low and medium saline areas where water salinity falls in the range 5–15 dS m−1, respectively. Our results demonstrate that accessions from Africa were more stable, salt tolerant and attained high biomass yield as compared to accessions from other regions. Previously, it was reported that, C. ciliaris is a dominant grass along the sandy beaches of Eritrea on soils with salt content of 0.006–0.251% (Hemming, 1961). Skerman and Riveros (1990), demonstrated that it grows well in saline soils; although it is less salt tolerant than Chloris gayana, Cynodon spp., and Panicum antidotale.

The DW from all C. ciliaris accessions shows a high variability under the various salinity levels. The highest DW was produced by accession 49 and the lowest by accession 23. Similar studies were conducted on other grass species such as Bermuda grass (Rodríguez and Miller, 2000), Catharanthus roseus (Jaleel et al., 2008) and C. ciliaris (Lanza Castelli et al., 2010) and showed that the plant growth, tiller, number of leaves and dry weight decreased under salt stress. Ions of sodium (Na+) and chlorine (Cl−) (>40 mmol/L) can be toxic to plants because they can create imbalance in plant nutrition due to decreased nutrient uptake and translocation to new shoots (Munns et al., 2000; Tester and Davenport, 2003; Munns and Tester, 2008). Nawazish et al. (2006) found that shoot dry weight was severely affected in the C. ciliaris ecotype from Faisalabad, where it decreased from 29.83 to 8.02 g/plant. High salinity modifies plant metabolisms, which results in altered plant morphology; cultivar type, duration, and intensity of stress determine the extent of morphological modification. These results indicate that dry biomass yield can be used as a screening and selection criteria for evaluating the salt tolerance behavior among a large collection of plant accessions. Based on their relative performance (DW) there is a chance of selecting the genotypes within each salinity level. Several accessions from the top 10 selection with high biomass yield potential are of particular interest as forage resource in salt-affected agro-ecosystems for livestock and are highly suitable for arid and semi-arid hot dry regions.

From present results, we found that, PCA grouped accessions together with more morphological similarities; the clusters did not necessarily include all the accessions from the same or nearby sites. Diversity of populations within a geographical origin and similarity of populations beyond geographical limits have also been reported in C. ciliaris genotypes (Jorge et al., 2008). Among the good performed accessions, genotypes 127, 129, 49, 23, 27, 16, and 42 attained higher DW. It was also found that variables (genotypes) close to an axis correlate more with that principal component; one may consider that axis is a combination of its neighboring variables. Divergence studies of morphological and agronomical traits using principal component and cluster analysis have also been reported by other researchers (Warwick et al., 2006; Dawood et al., 2009) which were in support of present investigation that both cluster and PCA disclosed complex relationship among the accessions in a more understandable way. The variability among the accessions from diverse origin could be related primarily to their morphological differences and secondly to agronomic use. Accessions evaluated in this work exhibited a reasonable level of diversity for some of the studied traits (FW, DW) of economic significance providing a resource for future crop improvement. For the improvement of C. ciliaris, it would be desirable to use diverse accessions with more variability for use in future breeding programs. For use in natural resource management and for soil stabilization, C. ciliaris accessions which are shorter, more prostrate and more rhizomatous should be selected, because they would provide better ground cover (IBPGR, 1984).

A cluster analysis was used in this study to facilitate the evaluation of salt tolerance among different genotypes. The major advantage of the utilization of a multivariate analysis in the evaluation for salt tolerance is the allowance of a simultaneous analysis on multiple parameters and increase in the accuracy in the rankings of genotypes. Another advantage is the convenience to rank genotypes when plants are evaluated at different salt levels, e.g., moderate and high salt levels. Cluster analysis proved their validity to establish genotypic diversity within accessions. These findings are supported by Iqbal et al. (2010) who concluded that quantitative characters revealed more reliability than biochemical markers that are specific for particular conditions. Germplasm evaluation for quantitative traits may help to work out the relative importance of various traits within each cluster. Accessions from different geographical regions were pooled in the same cluster. Our results coincide with the classification of 68 populations of C. ciliaris where most of the populations were grouped mainly due to their agronomical attributes and not related to their geographic origin (Jorge et al., 2008). Group VII consists of highly salt tolerant genotypes that acquired maximum biomass yield at all target salinities and were also among the top 10 accessions. Grouping was not associated with the geographic distribution; instead accessions were mainly grouped based on their morphological traits (FW, DW). Thus, it cannot be generalized that all the accessions having same origin would always have low diversity among them. For example, in Australia, where C. ciliaris is grown extensively, rainfall can occur during the cooler months and most cultivars of C. ciliaris respond poorly to these rains owing to the cold temperatures. Accessions originating from cool, dry environments could be promising for these areas through improved performance in spring, owing to a better response to rains during the cooler seasons (Hacker and Waite, 2001). Divergence studies of morphological and agronomical attributes using principal component and cluster analysis have been made by different researchers (Dawood et al., 2009).

A good starting point in selecting suitable accessions for dry areas is to test accessions with good agro-morphological attributes originated from areas with very low rainfall. Several accessions of potential interest were collected from arid areas of South Africa, Zimbabwe, Tanzania and hot arid environments of UAE and Kenya. Salinity tolerance is generally an important parameter when choosing accessions to evaluate, especially within a country, because of the strong correlation between genotype and environment (G × E). A total of 100 accessions, originating from South Africa are found in four of the five clusters, showing that there is not a strong link between environment and morphology, confirming the findings in a study on dry matter and phenology of C. ciliaris in Tunisia (Mseddi et al., 2004). Some other studies also classified American and Gayndah in the same group (Pengelly et al., 1992).

The present study was largely consistent with the available descriptions of commercial cultivars. One main reason for discrepancies among experimental findings could be a strong influence of the environment. Within-cultivar high variation in C. ciliaris is a well-established fact (Jorge et al., 2008) that may be one of the reasons why commercial cultivars are not consistent in their performance. They further concluded that accessions belonging to identical agro-morphological groups were found from a wide range of environments in sub-Saharan Africa. Inherent genetic variability present in perennial grasses collected from different habitats of Cholistan desert were evaluated and high amount of genotypic variations were recorded among the accessions (Arshad et al., 2000). A genotypic characterization of the collection could provide further evidence to confirm the classification of this study.

Conclusions

We found significant variation for salt tolerance among a large collection of buffelgrass genotypes representing global diversity, USDA collection, commercial varieties and local landraces. We identified several accessions that were stable and productive at high salinity and other accessions whom were stable but low yielder. Accession 3, 133, 159, 30, 23, 142, 141, 95, 49, 129, 124, and 127 were stable, salt tolerant and produced good dry biomass yield at target salinities during all years. These accessions can be exploited to widen the genetic base of existing C. ciliaris accessions against salt tolerance. These accessions hold an appropriate salinity tolerance potential and can be grown to enhance farm productivity in arid and semi-arid areas of the globe. Furthermore; introduction of salt-tolerant perennial species is a promising alternatives to overcome salinity problems in the arid regions. The conservation of fresh water resources and its use for high value purposes, while using low quality saline water can provide both ecological and economic benefits, essential for sustainable agriculture in dry lands.

Author contributions

MH conducted the experiment, collected data, and drafted the manuscript. AA designed the experiment, followed upon data collection, provided support through the PCA statistical analysis and edited the manuscript.

Conflict of interest statement

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Acknowledgments

The authors gratefully acknowledge the International Fund for Agricultural Development (IFAD), Arab Fund for Economic and Social Development (AFESD), and the Islamic Development Bank (IDB) for their financial support through several regional projects. We are highly grateful to Dr. Susan Robertson (ICBA, Dubai, UAE) for help in English language and grammar correction. We are thankful to Dr. Asad Qureshi (ICBA, Dubai, UAE) for help in critical revision of the article. We are extremely thankful to anonymous reviewers for the critical and valuable comments that have greatly improved the article.

References

  1. Ahmad F. (2010). Leptochloa Fusca cultivation for utilization of salt-affected soil and water resources in Cholistan desert. Rev. Soc. Nat. 22, 141–149. 10.1590/S1982-45132010000100010 [DOI] [Google Scholar]
  2. Angassa A., Baars R. M. T. (2000). Ecological condition of encroached and non-encroached rangelands in Borana, Ethiopia. Afr. J. Ecol. 38, 321–328. 10.1046/j.1365-2028.2000.00250.x [DOI] [Google Scholar]
  3. Arshad M., Rao A., Akbar G., Akhtar M. (2000). Eco-physiological adaptability of Sporobolus iocladus, from Cholistan, Pakistan. Pak. J. Biol. Sci 2, 1604–1607. 10.3923/pjbs.1999.1604.1607 [DOI] [Google Scholar]
  4. Ayerza R. (1981). Buffelgrass: Utilisation and Productivity of a Promising Grass. Buenos Aires: Hemisferio Sur. [Google Scholar]
  5. Buldgen A., Francois J. (1998). Physiological reactions to imposed water deficit by Andropogon gayanus cv. Bisquamulatus and Cenchrus ciliaris cv. Biloela in a mixed fodder crop. J. Agric. Sci. 131, 31–38. 10.1017/S0021859698005462 [DOI] [Google Scholar]
  6. Chatfield C., Collin A. J. (1980). Introduction to Multivariate Analysis. New York, NY: Chapman and Hall in Association with Methuen. [Google Scholar]
  7. Daniells I. G., Holland J. F., Young R. R., Alston C. L., Bernardi A. L. (2001). Relationship between yield of grain sorghum (Sorghum bicolor) and soil salinity under field conditions. Aust. J. Exp. Agric. 41, 211–217. 10.1071/EA00084 [DOI] [Google Scholar]
  8. Dawood A., Kikuchi A., Jatoi S. A., Kiuchi F., Watanabe K. N. (2009). Genetic variation in the chloroplast DNA (cpDNA) of Zingiberaceae taxa from Myanmar envisaged by the PCR-RFLP analysis. Ann. Appl. Biol. 155, 91–101. 10.1111/j.1744-7348.2009.00322.x [DOI] [Google Scholar]
  9. Food Agriculture Organization of the United Nations (2012). FAO Statistical Yearbook 2012: World Food and Agriculture. Available online at: http://reliefweb.int/sites/reliefweb.int/files/resources/i2490e.pdf (Accessed March 12, 2014).
  10. Fernando A. L., Boléo S., Barbosa B., Costa J., Sidella S., Nocentini A., et al. (2012). Perennial grasses: environmental benefits and constraints of its cultivation in Europe, in 20th European Biomass Conference and Exhibition, 18–22 June 2012 (Milano: ), 2092–2094. [Google Scholar]
  11. Graham T. W., Humphreys L. R. (1970). Salinity responses of cultivars of Buffelgrass (Cenchrus ciliaris L.). Aust. J. Exp. Agric. Anim. Husb. 10, 725–728. [Google Scholar]
  12. Hacker J. B., Waite R. B. (2001). Selecting buffelgrass (Cenchrus ciliaris) with improved spring yield in subtropical Australia. Trop. Grassl. 35, 205–210. [Google Scholar]
  13. Hemming D. F. (1961). The ecology of the coastal area of northern Eritrea. J. Ecol. 49, 55–78. 10.2307/2257423 [DOI] [Google Scholar]
  14. Hussain M. I., Lyra D. A., Farooq M., Nikoloudakis N., Khalid N. (2016). Salt and drought stresses in Safflower: a review. Agron. Sustain. Dev. 36, 4. 10.1007/s13593-015-0344-8 [DOI] [Google Scholar]
  15. IBPGR (1984). Forage and Browse Plants for Arid and Semiarid Africa. Kew: IBPGR/Royal Botanic Gardens. [Google Scholar]
  16. Iqbal M. S., Ghafoor A., Qureshi A. S. (2010). Evaluation of Nigella sativa L. for genetic variation and ex-situ conservation. Pak. J. Bot. 42, 2489–2495. [Google Scholar]
  17. Jaleel C. A., Beemarao S., Ramalingam S., Rajaram P. (2008). Soil salinity alters growth, chlorophyll content and secondary metabolite accumulation in Catharanthus roseus. Turk. J. Biol. 32, 79–83. [Google Scholar]
  18. Jorge M. A. B., Van DE Wouw M., Hanson J., Mohammed J. (2008). Characterization of a collection of buffelgrass (Cenchrus ciliaris). Trop. Grassl. 42, 27–39. [Google Scholar]
  19. Krishnamurthy L., Serraj R., Hash C. T., Al-Dakheel A. J., Reddy B. V. S. (2007). Screening sorghum genotypes for salinity tolerant biomass production. Euphytica 156, 15–24. 10.1007/s10681-006-9343-9 [DOI] [Google Scholar]
  20. Ksiksi T. S., El-Shaigy N. O. (2012). Growth responses of nutrient-stressed Cenchrus ciliaris under carbon dioxide enrichment. J. Earth Sci. Clim. Change 3:127 10.4172/2157-7617.1000127 [DOI] [Google Scholar]
  21. Lanza Castelli S., Grunberg K., Munoz N., Griffa S., Colomba E. L., Ribotta A., et al. (2010). Oxidative damage and antioxidants defenses as potential indicators of salt-tolerant Cenchrus ciliaris L. genotypes. Flora 205, 622–626. 10.1016/j.flora.2010.04.004 [DOI] [Google Scholar]
  22. Mseddi K., Mnif L., Chaied M., Neffati M., Roux M. (2004). Aboveground phytomass productivity and morphological variability of Tunisian accessions of Cenchrus ciliaris L. Afr. J. Range Forage Sci. 21, 49–55. 10.2989/10220110409485833 [DOI] [Google Scholar]
  23. Munns R., Guo J., Passioura J. B., Cramer G. R. (2000). Leaf water status controls daytime but not daily rates of leaf expansion in salt-treated barley. Aust. J. Plant Physiol. 27, 949–957. 10.1071/PP99193 [DOI] [Google Scholar]
  24. Munns R., Tester M. (2008). Mechanisms of salinity tolerance. Ann. Rev. Plant Biol. 59, 651–681. 10.1146/annurev.arplant.59.032607.092911 [DOI] [PubMed] [Google Scholar]
  25. Nawazish S., Hameedm M., Naurin S. (2006). Leaf anatomical adaptations of Cenchrus ciliaris L. from the Salt Range, Pakistan against drought stress. Pak. J. Bot. 38, 1723–1730. [Google Scholar]
  26. Peng Y. L., Gao Z. W., Gao Y., Liu G. F., Sheng L. X., Wang D. L. (2008). Ecophysiological characteristics of alfalfa seedlings in response to various mixed salt alkaline stresses. J. Integ. Plant Biol. 50, 29–39. 10.1111/j.1744-7909.2007.00607.x [DOI] [PubMed] [Google Scholar]
  27. Pengelly B. C., Hacker J. B., Eagles D. A. (1992). The classification of a collection of buffelgrasses and related species. Trop. Grassl. 26, 1–6. [Google Scholar]
  28. Ponsens J., Hanson J., Schellberg J., Moeseler B. M. (2010). Characterization of phenotypic diversity, yield and response to drought stress in a collection of Rhodes grass (Chloris gayana Kunth) accessions. Field Crops Res. 118, 57–72. 10.1016/j.fcr.2010.04.008 [DOI] [Google Scholar]
  29. Qadir M., Quillerou E., Nangia V., Murtaza G., Singh M., Thomas R. J., et al. (2014). Economics of salt-induced land degradation and restoration. Nat. Res. Forum 38, 282–295. 10.1111/1477-8947.12054 [DOI] [Google Scholar]
  30. Richards R. (1983). Should selection for yield in saline regions be made on saline or non-saline soils? Euphytica 32, 431–438. 10.1007/BF0002145217543928 [DOI] [Google Scholar]
  31. Rodríguez I. R., Miller G. L. (2000). Using a chlorophyll meter to determine the chlorophyll concentration, nitrogen concentration and visual quality of St. Augustine grass. Hortscience 35, 751–754. [Google Scholar]
  32. Roy S. J., Negrao S., Tester M. (2014). Salt resistant crop plants. Curr. Opin. Biotechol. 26, 115–124. 10.1016/j.copbio.2013.12.004 [DOI] [PubMed] [Google Scholar]
  33. Shannon M. C. (1997). Adaptation of plants to salinity. Adv. Agron. 60, 75–120. 10.1016/S0065-2113(08)60601-X [DOI] [Google Scholar]
  34. Skerman P. J., Riveros F. (1990). Tropical Grasses. FAO Plant Production and Protection Series No. 23. Rome: FAO. [Google Scholar]
  35. Tester M., Davenport R. J. (2003). Na+ transport and Na+ tolerance in higher plants. Ann. Bot. 91, 503–527. 10.1093/aob/mcg058 [DOI] [PMC free article] [PubMed] [Google Scholar]
  36. Wang Q., Wu C., Xie B., Liu Y., Cui J., Chen G., et al. (2012). Model analysing the antioxidant responses of leaves and roots of switchgrass to NaCl-salinity stress. Plant Physiol. Biochem. 58, 288–296. 10.1016/j.plaphy.2012.06.021 [DOI] [PubMed] [Google Scholar]
  37. Warwick S. I., Gugel R. K., McDonald T., Falk K. C. (2006). Genetic variation of Ethiopian mustard (Brassica carinata) germplasm in western Canada. Genet. Res. Crop Evol. 53, 297–312. 10.1007/s10722-004-6108-y [DOI] [Google Scholar]
  38. Zhang Y., Li Y., Jiang L., Tian C., Li J., Xiao Z. (2011). Potential of perennial crop on environmental sustainability of agriculture. Procedia Environ. Sci. 10, 1141–1147. 10.1016/j.proenv.2011.09.182 [DOI] [Google Scholar]
