Optochemical control of genetically engineered neuronal nicotinic acetylcholine receptors

Abstract

Advances in synthetic chemistry, structural biology, molecular modelling and molecular cloning have enabled the systematic functional manipulation of transmembrane proteins. By combining genetically manipulated proteins with light-sensitive ligands, innately ‘blind’ neurobiological receptors can be converted into photoreceptors, which allows them to be photoregulated with high spatiotemporal precision. Here, we present the optochemical control of neuronal nicotinic acetylcholine receptors (nAChRs) with photoswitchable tethered agonists and antagonists. Using structure-based design, we produced heteromeric α3β4 and α4β2 nAChRs that can be activated or inhibited with deep-violet light, but respond normally to acetylcholine in the dark. The generation of these engineered receptors should facilitate investigation of the physiological and pathological functions of neuronal nAChRs and open a general pathway to photosensitizing pentameric ligand-gated ion channels.

Acetylcholine (ACh) and its receptors have always been at the forefront of new developments in physiology. With its isolation as ‘Vagusstoff’ in 1921, Otto Loewi established that a small diffusible molecule could mediate nervous activity and shaped the concept of a neurotransmitter¹. Nicotinic acetylcholine receptors (nAChRs) were among the first ion channels investigated, long before the advent of molecular cloning and heterologous expression². Numerous techniques in biophysics and chemical biology, including patch clamp electrophysiology³, cryoelectron microscopy⁴ and the expansion of the genetic code⁵, were developed using nAChRs, and the powerful methods of molecular cloning were applied to nAChRs early on^6–8. These studies established that nAChRs are pentameric ligand-gated cation channels expressed throughout the mammalian nervous system and at the neuromuscular junction¹. The neuronal nAChR subtypes are composed of α2–α10 and β2–β4 subunits and can assemble both as heteromeric (for example, (α4)₂(β2)₃) and homomeric (for example, (α7)₅) pentamers¹. Whereas the function of muscle nAChRs is well established, the physiological roles of neuronal nAChRs are still being unravelled. For instance, they are implicated strongly in the pathophysiology of several psychiatric disorders, as well as in nicotine addiction and Alzheimer’s disease^1,9. However, progress in this regard has been held back by the lack of subtype-selective nAChR pharmacology and the difficulties associated with selectively targeting nAChRs in different parts of the brain.

These issues can be addressed using an approach called ‘optochemical genetics’^10,11. In essence, this is an effort to photosensitize innately ‘blind’ receptors using synthetic photoswitches. These can be attached covalently as photoswitchable tethered ligands (PTLs), which require a reactive functional group for bioconjugation (typically the sulfhydryl group of a cysteine^12,13). By introducing the cysteine through genetic manipulation, these receptors can be targeted in a subtype-selective manner based on the subunit that contains the mutation¹⁴. Furthermore, the mutant receptors can be expressed in specific cell types in the brain and controlled with the millisecond precision and subcellular spatial resolution that only light can provide. This has been achieved already with voltage-gated ion channels^12,14 and glutamate receptors^13,15. We now demonstrate that our approach towards photosensitizing nature’s molecular machines can be applied to pentameric ligand-gated ion channels as well, and introduce the genetically engineered, light-controlled nAChR (LinAChR).

Results

PTL design

The development of LinAChR first required the design and synthesis of appropriate PTLs. Our PTLs typically consist of a maleimide as the cysteine reactive group, an azobenzene photoswitch and a ligand head group that resembles known receptor agonists or antagonists. Three compounds known to interact with nAChRs guided the choice of the ligand: the photoaffinity label AC-5 (1), the agonist homocholine phenyl ether (HoChPE) (2) and the antagonist MG-624 (3). The presence of an aromatic ring separated by seven atoms from the ACh moiety in AC-5 (Fig. 1a), which acts as a full agonist at muscle nAChRs¹⁶, suggests that the steric bulk of an azobenzene photoswitch may be tolerated in PTLs that act as tethered agonists. Although the much shorter molecule HoChPE is an agonist of nAChRs^17,18, the stilbene derivative MG-624 is a potent antagonist of neuronal receptors¹⁹. Therefore, on the basis of the steric similarity of stilbenes and azobenzenes, we anticipated that corresponding PTLs could function as antagonists. Based on these model compounds, we synthesized trans- and cis-maleimide–azobenzene–acylcholine (MAACh) (4a and 4b, respectively) (Fig. 1a), a putative photoswitchable agonist for nAChR. We also synthesized trans- and cis-maleimide–azobenzene–homocholine (MAHoCh) (5a and 5b, respectively) (Fig. 1b), wherein the choline moiety was replaced with homocholine and the spacer was removed to resemble MG-624. MAACh and MAHoCh were prepared by multistep total synthesis, as detailed in Supplementary Fig. S1. By taking absorbance measurements of the ligands in solution, we determined that both molecules can be converted maximally into their cis-isomer by illumination with 380 nm light and can then be reset to the trans-isomer by 500 nm illumination or thermal relaxation in the dark (Supplementary Fig. S2).

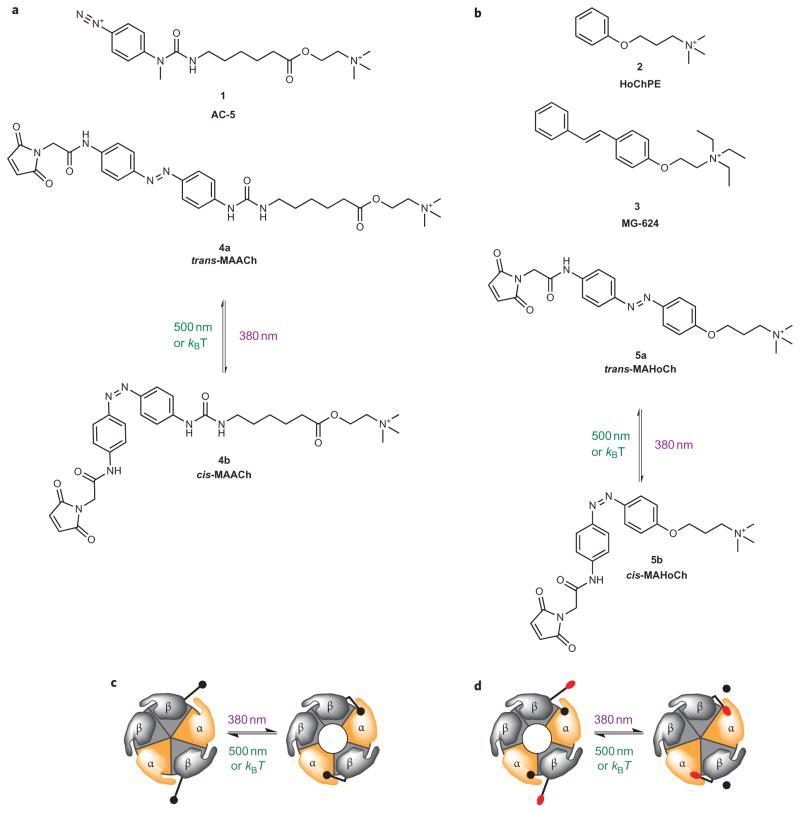

Figure 1. Photoswitchable ligand design for the optical control of neuronal nAChRs.

a,b, Structures of AC-5 and MAACh (a) as well as HoChPE, MG-624 and MAHoCh (b). The PTL molecules photoisomerize from trans to cis on illumination with 380 nm light and revert to trans under 500 nm light or in the dark. c, A tethered agonist is converted from its trans- into its cis-configuration under 380 nm light, and thus activates heteropentameric nAChRs. Illumination with 500 nm light or thermal relaxation deactivates the receptor. d, A tethered antagonist is converted from its trans- into its cis-configuration under 380 nm light, which blocks heteromeric nAChRs from binding to ACh (black circles). Illumination with 500 nm light or thermal relaxation unblocks the receptor, which allows it to be activated by the neurotransmitter. k_B = Boltzmann constant.

Preferably, a photosensitive receptor would be inactive in the dark, where azobenzene photoswitches generally reside in a trans-configuration (Fig. 1c). Illumination with 380 nm light would produce the cis-configuration of the azobenzene and activate the receptor. Deactivation could then be achieved through conversion of the photoswitch back to its inactive trans-configuration by illumination with 500 nm or by thermal relaxation in the dark. Similarly, a tethered antagonist should block the receptor in its cis-configuration (that is, at 380 nm), but should leave the receptor unimpaired in its trans-configuration (at 500 nm or in the dark), allowing it to be activated by free ACh (Fig. 1d).

Attachment-site screening

These functional requirements can be met by the proper choice of cysteine attachment sites, which we decided to place on the β2 or β4 subunits of heteropentameric neuronal nAChRs. Using the X-ray structure of an acetylcholine-binding protein (AChBP) in complex with carbamylcholine (PDB ID:1uv6)²⁰ and the model of AC-5 docked into the Torpedo nAChR, we identified an antiparallel beta sheet in the β-subunit that faces the ligand-binding site as a potential region for PTL attachment¹⁶. Based on the calculated structures of our PTLs and distance measurements in the protein structures, we decided to install cysteines in positions S32, R34, E61, T63, R113, N115 and S117 of the β4 nAChR subunit. Homologous residues with identical numbering were chosen for β2. These residues are shown mapped onto a homology model of the α4β2 receptor²¹ (PDB ID:1ole) (Figs. 2a,b), based on the structure of AChBP (ref. 22). A sequence alignment that relates these positions on various complementary subunits to AChBP is also provided (Supplementary Fig. S3).

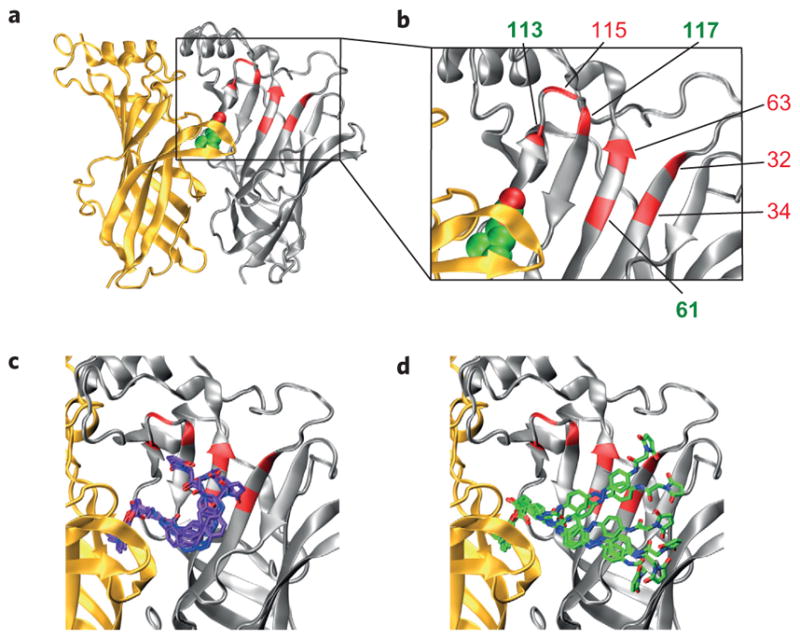

Figure 2. Choice of cysteine attachment sites for photoswitchable ligand conjugation.

a,b, Homology model of the α4β2 nAChR with ACh (green and red spheres, respectively) docked in the binding site and the engineered cysteine mutants shown in red and numbered in the enlarged view of the receptor (b). Only one α/β (α, yellow; β, grey) interface is shown for clarity. c,d, Docking results with unconstrained cis-MAACh (violet) (c) and trans-MAACh (green) (d) in the α4β2 homology model. Six of the most energetically favourable conformations are shown.

Our choice of cysteines was validated further by molecular docking studies, which were carried out using the same homology model (Fig. 2c). Unconstrained cis-MAACh and trans-MAACh were docked into the α4β2 model and the rotatable bonds in the ligand allowed to move freely. We found that the maleimide moiety of MAACh comes very close to several of the engineered cysteine mutants shown in Fig. 2b in the cis-form of the azobenzene photoswitch, in particular to cysteines in positions 61, 63 and 117 (Fig. 2c), but extends past most of them in its trans-form (Fig. 2d). Molecular modelling studies with MAHoCh were not undertaken because of the lack of ligand similarity in the antagonist-bound AChBP structures²³ and the absence of a homology model of an antagonist-bound heteromeric neuronal nAChR.

To test our predictions experimentally, we first introduced the seven independent cysteine mutations into the β4 subunit. Then, we screened α4β4 mutant nAChRs expressed heterologously in Xenopus oocytes, because this particular heteropentamer desensitizes very slowly compared to nAChRs composed of other neuronal subunits²⁴. The oocyte system was chosen for its robust expression of heteromeric nAChRs and the lack of endogenous receptors. By contrast, non-neuronal mammalian cell lines often express nAChRs poorly and many neuronal mammalian cell lines possess endogenous nAChRs that would complicate the screening process.

Using two-electrode voltage-clamp recordings, we screened these α4β4 mutants for cis-agonism by treating oocytes with MAACh in the dark and then looking for the induction of a current on illumination with 380 nm light. We identified three cysteine mutations on the β4 subunit where MAACh could evoke a photoactivatable current in the cis- but not in the trans-configuration: E61C, R113C and S117C. In the structure of carbamylcholine-bound AChBP (ref. 20) the distances from the alpha carbons of each of the three positions and the carbonyl carbon of carbamylcholine were very similar (10.43 Å, 11.28 Å and 12.11 Å for the E61C, R113C and S117C mutants, respectively). The remaining residues were farther away (19.03 Å, 14.28 Å, 16.39 Å and 16.54 Å for S32C, R34C, T63C and N115C, respectively).

Photoactivation of engineered nAChRs

For a comprehensive electrophysiological analysis, these mutant β4 subunits were expressed as α3β4 heteropentamers, which have a more established presence in the nervous system²⁵. After labelling the α3β4E61C receptor with MAACh, illumination with 380 nm light produced an inward current that could be reversed with 500 nm light (Fig. 3a). The amplitude of the photoactivatable current was 6.8±1.3% (mean±standard error of the mean (s.e.m.), n = 10) of the saturating cholinergic current and the receptor still responded normally to perfusion of ACh in the dark. Neither the E61C mutation nor MAACh conjugation greatly changed the half-maximum effective concentration (EC₅₀) of the receptor for ACh (Fig. 3c, Supplementary Table S1). MAACh labelling at the other two residues, β4R113C and β4S117C, also produced photoactivatable currents of similar magnitude (Supplementary Fig. S4).

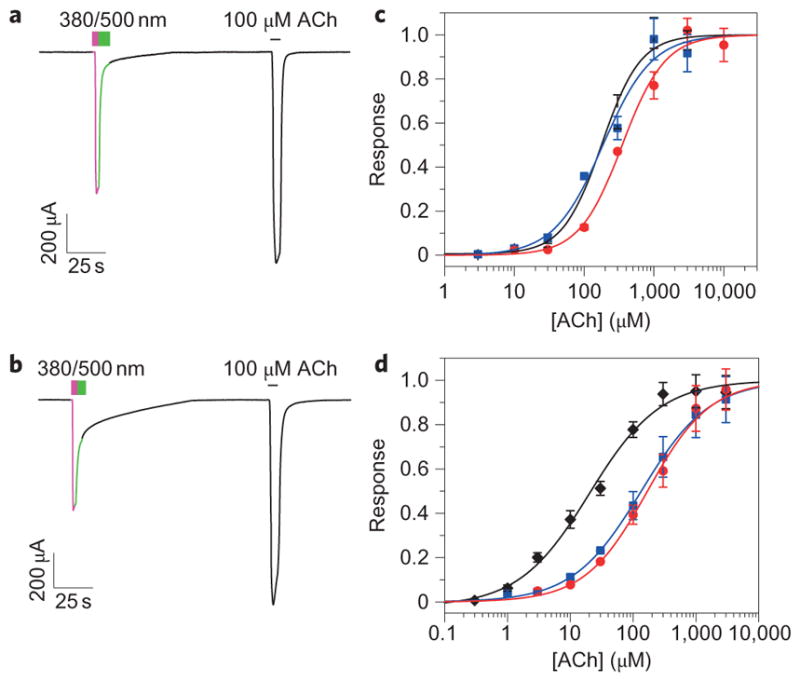

Figure 3. Photoactivation of nAChRs with a tethered agonist.

a,b, Photoactivation of the α3β4E61 (a) and α4β2E61C (b) mutant receptors by tethered MAACh in Xenopus oocytes. Illumination at 380 nm (violet lines) triggers photoactivatable current and at 500 nm (green lines) shuts it off. c,d, ACh dose–response curves for the α3β4 (c) and the α4β2 (d) WT (black lines), E61C mutant (blue lines) and E61C mutant with tethered MAACh in the dark (red lines). Data are mean±s.e.m., n =5.

Next, we transposed the E61C mutant from the β4 to the β2 subunit and tested whether MAACh conjugation at the β2E61C position could photoactivate the neuronal α4β2 receptor. Indeed, the MAACh-labelled α4β2E61C receptor also produced an inward current using 380 nm light, which could be terminated with 500 nm light (Fig. 3b). The amplitude of the photoactivatable current was 16.1±2.1% (mean±s.e.m., n = 15) of the saturating cholinergic current. The E61C mutation increased the EC₅₀ of the α4β2 receptor for ACh. Labelling with MAACh did not change this EC₅₀ further (Fig. 3d, Supplementary Table S1).

The prominence of the E61C mutant motivated us to carry out another molecular docking study, wherein the maleimide moiety of MAACh was ‘virtually tethered’ to be in the proximity of the sulfhydryl group of the E61C residue (Fig. 4a,b). Allowing the remainder of the PTL to move freely resulted in docking of the ligand head group into the ligand-binding site in all conformations. By contrast, none of the tethered trans-MAACh conformations reached the ligand-binding site (Fig. 4a,b, Supplementary Fig. S5). These molecular docking studies corroborate our finding that the agonist is able to reach the ligand-binding site and activate the receptor only in its cis-form, and not in its trans-configuration.

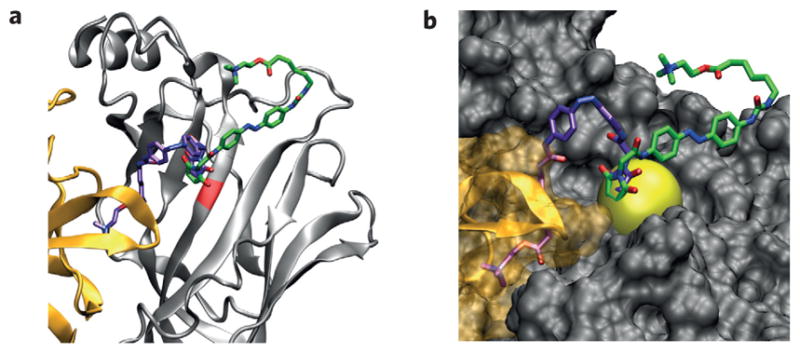

Figure 4. Molecular model of a nAChR with a virtually tethered photoswitchable agonist.

a,b, Docking results with constrained cis-MAACh (violet) and trans-MAACh (green) in the α4β2 homology model. The maleimide is constrained to be near the sulfhydryl group of C61. Ribbon (a) and surface (b) views of the minimum energy conformations are shown. The positional constraint (sphere) is bright yellow.

Photoinhibition of engineered nAChRs

We then proceeded to test the effect of MAHoCh attached to the three cis-agonist active cysteine mutants in α3β4 heteromeric nAChRs. After treating oocytes with the PTL in the dark, we determined that illumination with 380 nm and 500 nm light did not produce photoactivatable currents with any of the three mutants (Supplementary Fig. S6). Instead, illumination with 380 nm light reduced dramatically the response of the α3β4E61C receptor to ACh, and that with 500 nm light restored the initial response to ACh (Fig. 5a). This indicates that tethered MAHoCh acts as a cis-antagonist of the α3β4E61C receptor. ACh-evoked currents were not modulated substantially by illumination at the α3β4R113C and α3β4S117C receptors (data not shown). To characterize the light-dependent block of the α3β4E61C receptor at different concentrations of ACh, we compared the amount of current observed under 380 nm and 500 nm illumination for the same cells. The percentage of current blocked under 380 nm light ranged from 80±5% at 30 μM ACh to 68±4% at a saturating 10 mM ACh (mean±s.e.m., n = 5) (Fig. 5c). Tethering MAHoCh at the α4β2E61C receptor produced a similar photoinhibition of the cholinergic current (Fig. 5b). The percentage of current blocked under 380 nm light at the α4β2 receptor ranged from 75±10% at 100 μM ACh to 81±7% at a saturating 3 mM ACh (mean±s.e.m., n = 5) (Fig. 5d).

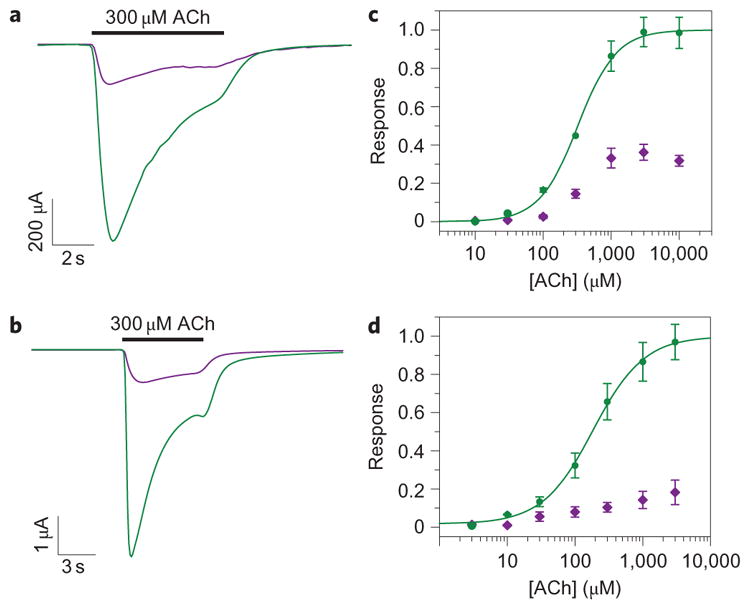

Figure 5. Photoinhibition of nAChRs with a tethered antagonist.

a,b, Photoinhibition of the cholinergic current of the α3β4E61C (a) and α4β2E61C (b) mutant receptors by tethered MAHoCh. The current shown is in response to 300 μM ACh under 380 nm light (violet lines) and 500 nm light (green lines). c,d, ACh dose–response curves for the α3β4E61C (c) mutant and the α4β2E61C (d) mutant with tethered MAHoCh under 500 nm light (green lines) and 380 nm light (violet lines). Data are mean±s.e.m., n =5.

In control experiments, we did not observe any photoactivation after treating oocytes that expressed either α3β4E61C or α4β2E61C nAChRs with AcAACh (6a,b), a non-reactive analogue of MAACh (Supplementary Fig. S7). Furthermore, treatment of wild-type (WT) receptors with either MAACh or MAHoCh did not impart any photosensitivity (Supplementary Fig. S6). These results confirm that covalent modification at the genetically introduced cysteine residue is required for the optical control of the LinAChR function and suggest that off-target actions of these ligands at endogenous neuronal receptors should be minimal.

Thermal relaxation of the photoswitchable ligands

Azobenzene PTLs can be converted from their cis-configuration into their trans-configuration by 500 nm illumination, but they also spontaneously convert into the more stable trans-isomer through thermal relaxation in the dark²⁶. Thus, the MAACh-labelled α4β2E61C receptor can be activated by 380 nm light and the photoactivatable current decays over time in the dark (Fig. 6a). To investigate whether tethering the PTL to a receptor affects the rate of cis-isomer thermal relaxation, we compared the half-life of MAACh in solution, measured by changes in absorption at 380 nm, to the calculated half-life of the decay of the photoactivatable current (Fig. 6b). The half-life of MAACh in solution was 28 seconds, close to the previously reported value of 26 seconds for a urea–azobenzene derivative²⁷. In contrast, the thermal decay of the photoactivatable current could only be fitted to a biexponential decay curve, with a fast half-life of 4.7 seconds and a slow half-life of 94 seconds, which indicates that ligand binding increases the stability of cis-MAACh. The MAHoCh-labelled α4β2E61C receptor can be blocked by 380 nm light and the amount of block also decays slowly in the dark (Fig. 6c). We measured the half-life of cis-MAHoCh in solution to be 74.4 minutes (Fig. 6d). The long half-life of cis-MAHoCh can be attributed to the alkoxy substituent on the azobenzene, which does not destabilize the cis-configuration to the same extent as the urea substituent in MAACh²⁶. The thermal relaxation rate of tethered cis-MAHoCh appears to be of the same order of magnitude as that of cis-MAHoCh in solution.

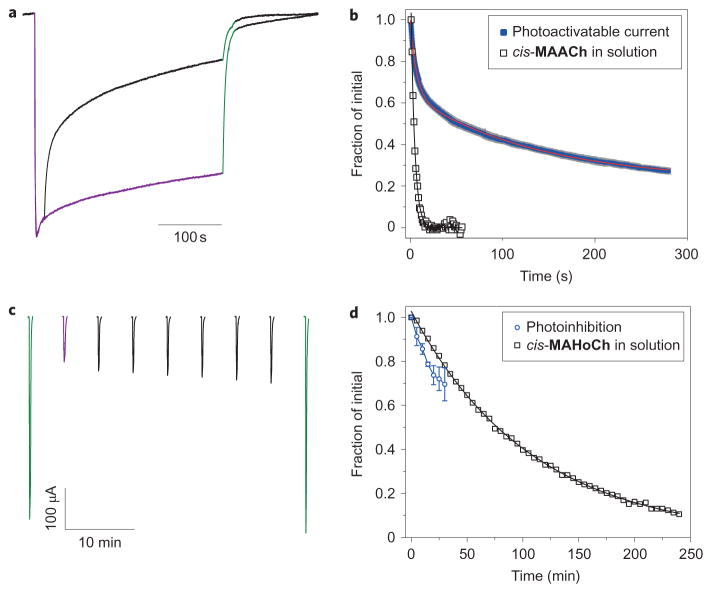

Figure 6. Thermal relaxation of the photoswitchable agonist and antagonist.

a, Normalized photoactivatable current decay of the α4β2E61C receptor in the dark with tethered MAACh. Decay of the photoactivatable current over time under 380 nm illumination (violet line) and in the dark (black line) is shown. b, Thermal relaxation of cis-MAACh in phosphate-buffered saline (open squares) fitted with a monoexponential decay function (black line) (half-life (t_1/2) = 28 seconds). Decay of the photoactivatable current (mean (blue line)±s.e.m. (grey line), n =4) fitted using a biexponential decay function (red line, t_1/2(1) = 4.7 seconds, t_1/2(2) = 94 seconds). Both measurements are normalized. c, Decay of the photoinhibition of cholinergic current of the α4β2E61C receptor in the dark with tethered MAHoCh measured in Xenopus oocytes. ACh (100 μM) was perfused under 500 nm light (green line), 380 nm (violet) light (violet line) and in the dark (black line). d, Thermal relaxation of cis-MAHoCh in phosphate-buffered saline (open squares) fitted with a monoexponential decay function (black line) (t_1/2 = 74.4 minutes). Decay of the photoinhibition of cholinergic current of the α4β2E61C receptor with MAHoCh (blue line) is shown (mean±s.e.m., n =4).

Discussion

In a classic set of studies carried out in the late 1970s and early 1980s, Erlanger and co-workers demonstrated that azobenzene photoswitches could provide photosensitivity to endogenous muscle nAChRs^28,29. These pentameric ligand-gated ion channels naturally possess a disulfide bond at the tip of the so-called C-loops in their α-subunits¹, which is in close proximity to the ligand-binding site. This disulfide could be reduced to provide a reactive thiol for the covalent attachment of a PTL, although such treatment also reduced the affinity of the receptor for agonists by up to 100-fold³⁰. The PTL, called QBr, consisted of a benzylic bromide (the electrophile), an azobenzene photoswitch and a benzylic trimethylammonium moiety. Once attached, QBr activated the channel in its trans-form, that is at 500 nm or in the dark, but could be switched to an inactive cis-form by irradiation with 330 nm light. The resulting light-activated nAChR could be used to stimulate reversibly Electrophorus electroplaques, frog muscles and rat myoballs with light^28,29,31,32. At the time these studies were carried out, however, receptors could not be manipulated genetically and expressed heterologously, so the impact of synthetic photo-switches on neuroscience research remained limited.

As a result of the enormous progress of molecular biology since the 1980s, it is now possible to express heterologously mutant receptors in Xenopus oocytes, mammalian cells, neurons and even transgenic animals^12,13,33. Once expressed in a cell, our engineered LinAChR (E61C) can be conjugated with either an agonist or an antagonist, which provides a powerful bi-directional control of receptor activity. Both variants of LinAChR behave like normal nAChRs in the dark, but on irradiation with 380 nm they can be turned on in the absence of ACh or off in the presence of the neurotransmitter. The red-shifted PTL action spectra (compared to that of QBr) should also minimize potential phototoxic effects. In principle, their spectral sensitivity could be moved further towards lower energies with appropriate substitution of the azobenzene photoswitch^34,35.

Another field that has undergone remarkable progress in recent years is the structural biology of pentameric ligand-gated ion channels (Cys-loop receptors)³⁶. Several X-ray structures of homopentameric ligand-gated ion channels are now available^37,38, as are high-resolution structures of AChBPs bound to a variety of agonists and antagonists^20,22. Without these, it would be difficult to design functional PTLs and choose appropriate sites for their attachment. The X-ray structure of carbamylcholine bound to AChBP and the homology models of the neuronal receptors^20,21 proved to be most relevant for our design and computational evaluation of PTLs, and were particularly helpful for identifying residues suited to the attachment of the photoswitchable agonist MAACh. Our molecular docking studies correctly identified positions 61 and 117 as suitable sites of attachment. However, the predicted site 63 turned out to be unsuitable, which highlights the importance of functional screening as a complement to in silico models.

The antagonist action of tethered MAHoCh is more difficult to explain based on the available X-ray structures, but it is consistent with the known pharmacology of nAChRs (see Fig. 1). It is also consistent with the ‘foot-in-the-door’ mechanism of nAChR antagonism, wherein an antagonist binds, but prevents the complete conformational contraction of the ligand-binding site required for receptor activation³⁹. Apparently, the elongation of HoChPE with a diazene unit bearing an aryl group is sufficient to prevent the C-loop of the receptor α-subunit from closing in sufficiently to activate the receptor. This also makes sense given the structural similarity of the azobenzene MAHoCh with the stilbene MG-624, and timethylammonium derivatives thereof, which also function as antagonists¹⁹. Our data demonstrate that once an attachment site is chosen, it is possible to convert a tethered photoswitchable agonist into a tethered photoswitchable antagonist by altering the structure of the tether and the ligand head group. This matches previous observations by Sullivan and Cohen, who established that elongation of a covalently attached agonist by a single methylene group could turn it into an antagonist⁴⁰. Conversely, it might be possible to use the same tethered ligand and two different sites of attachment to achieve either photoagonism or photoantagonism⁴⁰.

The diversity of neuronal nAChRs and their structural similarities complicates selective targeting of specific nAChR subtypes pharmacologically. This study reports the reversible photoactivation and inhibition of common neuronal α4β2 and α3β4 nAChRs using light following the genetically targeted conjugation of PTLs. The findings should enable the rational design of other light-regulated pentameric ligand-gated ion channels, homopentameric α7 nAChRs and neuromuscular nAChRs. The lessons learned in this study should also facilitate the design of photosensitive GABA_A (γ-aminobutyric acid), GlyRs, 5HT₃ or GluCl receptors. Based on the recent X-ray structure of GluCl and our expertise with photo-switchable tethered glutamate derivatives¹³, for instance, it should be possible to develop a hyperpolarizing light-gated chloride channel⁴¹. It is also conceivable that photoswitchable tethered agonists and antagonists could be extended to muscarinic ACh receptors, which have not yet been characterized in atomic detail, but for which extensive pharmacology exists⁴².

In future physiological investigations, LinAChRs will be expressed in dissociated neurons, intact neuronal tissues and live animals. We expect them to function well in these systems, perhaps even better than in Xenopus oocytes, the opacity of which makes it impossible to photoregulate receptors on the entire surface of the cell. In any case, the amount of photoactivation should be sufficient to replicate the major type of cholinergic transmission in the mammalian brain. Neuronal nAChRs are mostly extrasynaptic and respond to low micromolar concentrations of ACh diluted after synaptic release (that is, volume transmission)⁴³. Expression of the cysteine-containing subunit alone should produce functional LinAChRs in neurons that possess endogenous nicotinic receptors, which would then allow optical manipulation of the receptor function in vitro and in vivo⁴⁴. Alternatively, native nAChR subunits can be replaced by cysteine mutants using a knock-in strategy⁴⁵, which would preserve the endogenous pattern and level of receptor expression. We intend to pursue these strategies to study the physiological and pathological roles of heteromeric nAChRs in the brain and periphery and will report the results of these investigations in due course.

Methods

Synthesis of MAACh and MAHoCh

For this synthesis see the Supplementary Information and Supplementary Fig. S1.

Molecular cloning

Rat nAChR subunit complementary (deoxy)ribonucleic acids (cDNAs) in the pNKS2 vector (provided by A. Nicke, Max Planck Institute for Brain Research, Frankfurt am Main, Germany) were used for all experiments. To minimize non-specific labelling, the C-terminal α4C594 and the β4C75 residues were both mutated to serine (mutations that do not affect the function of the receptor)⁴⁶. These mutants were then used as a background for screening PTL-attachment sites. For nomenclature simplicity, the WT receptors are named in this article as α3β4WT and α4β2WT, whereas the α4C594Sβ2 and the α3β4C75S background receptors are named α4β2 and α3β4, respectively. DNA was linearized with XbaI and ribonucleic acid (RNA) was transcribed using the mMessage mMachine SP6 transcription kit (Ambion). Surgically extracted X. laevis oocytes were injected with 2–20 ng of channel RNA (50 nl). The cells were incubated in oocyte Ringer’s solution (NaCl (96 mM), KCl (2 mM), CaCl₂ (1.8 mM), MgCl₂ (1 mM) and HEPES (5 mM, pH 7.4)) at 18 °C for 24–48 hours before the experiments.

Molecular modelling

Molecular models of α4β2 neuronal nAChR (PDB ID:1ole) and of the T. californica nAChR (ref. 16) were used to identify endogenous cysteine residues accessible from the extracellular medium²¹. The X-ray structure of AChBP in complex with carbamylcholine²⁰ was used to estimate the distance between the ammonium group of the ligand and the beta carbon of the engineered cysteine residues. The numbering of the residues in the homology model is not consistent with the protein sequence (see Supplementary Fig. S3 for the sequence alignment and residue numbering). Cis- and trans-ligands were docked to the homology model of the α4β2 receptor after the addition of hydrogen atoms and the removal of non-protein moieties using Glide 5.7 as implemented in Maestro 9.2 (ref. 47). The docking consisted of a spatial fit of the ligand to the receptor grid, followed by minimization and scoring of hits based on a discretized ChemScore function^48,49. Ligands were docked flexibly to a rigid receptor using standard precision and the top hits were examined. Docking of the constrained ligands contained an additional positional constraint that restricted the alkenyl carbons of the maleimide moiety to a shell with an inner radius of 1 Å and an outer radius of 3.5 Å centred at the sulfhydryl group of the C61 cysteine residue.

Photoswitch conjugation

All photoswitch compounds were dissolved in dimethylsulfoxide (DMSO) to make a stock solution (10 mM) and diluted in oocyte Ringer’s solution (see above) to 25 μM for conjugation. For all recordings, the DMSO concentration was <0.25% (volume/volume). Oocytes were incubated in the photoswitch compound solution for 20 minutes in the dark at room temperature before electrophysiological recordings. Photoswitch conjugation was followed by a five minute wash in oocyte Ringer’s solution.

Electrophysiology

All electrophysiology experiments were conducted at room temperature. Two-electrode voltage-clamp experiments were performed using an OC-725C amplifier (Warner Instruments), DigiData 1200 interface and pClamp 8.0 software. The oocytes were placed in a perfusion chamber for the recordings. All the recordings were performed in oocyte Ringer’s solution (see above). For each experiment, the oocyte membrane potential was held at −80 mV. An eight-line perfusion system with a VC-8 valve controller (Warner Instruments) was used for perfusion of ACh into the chamber. Data were sampled at 1 kHz and filtered at 10 Hz. Cells were illuminated using a Lambda-LS illuminator that contained a 125 W xenon arc lamp (Sutter Instruments) equipped with narrow (±10 nm) band-pass filters. The incident light intensity was 20 mW cm⁻² for both 380 nm and 500 nm light, measured at the aperture using a handheld optical power meter (1918-C, Newport).

Data analysis

Dose–response curves were created using equation (1):

$$y=A_1+\left(A_2-A_1\right)/\left(1+{10}^{(log(x_0-x)\times p)}\right)$$ (1)

where p = the Hill coefficient, 10^logx₀ = EC₅₀, A₁ is the bottom asymptote and A₂ is the top asymptote of the dose-response curve.

Absorption spectra

Ultraviolet–visible spectra of the photoswitch compounds were obtained using the SmartSpec Plus Spectrophotometer (BioRad Laboratories) in PBS at pH 7.4. The change in absorbance of the compounds at 380 nm with time after photoconversion to the cis-configuration was used to determine the kinetics of thermal relaxation. The light source used for photoconversion of the ligands was the same as that used in electrophysiological recordings.
