Multimodality management of soft tissue tumors in the extremity

Abstract

Most extremity soft tissue sarcomas present as a painless mass. Workup should generally involve cross-sectional imaging with MRI, as well as a core biopsy for pathologic diagnosis. Limb-sparing surgery is the standard of care, and may be supplemented with radiation for histologic subtypes at higher risk for local recurrence and chemotherapy for those at higher risk for distant metastases. This article reviews the work-up and surgical approach to extremity soft tissue sarcomas, as well as the role for radiation and chemotherapy, with particular attention given to the distinguishing characteristics of some of the most common subtypes.

Introduction

Soft tissue sarcoma (STS) is a term referring to approximately 100 different subtypes of cancer.¹ These diseases are rare, and as a group are diagnosed in only approximately 12,000 patients in the United States each year.² While STS can be identified in any site within the body, 40% are located in the extremities, and multimodality treatment is used to manage patients with localized disease.³ What combination of surgery, radiation and systemic treatment is best for a particular patient depends on histologic subtype, which is diagnosed using a combination of cross-sectional imaging, microscopy, and molecular diagnostics. The most common histologies in the extremity are liposarcoma, undifferentiated pleomorphic sarcoma (UPS), myxofibrosarcoma, and synovial sarcoma (Figure 1). Each carries a different risk for distant metastases and local recurrence; for example, DFSP carries a higher long-term risk of local recurrence than leiomyosarcoma, but its risk of metastasis is very much lower. Below we present an algorithm for diagnosis and treatment of STS, highlighting modifications that should be made based on the biologic behavior of specific histologic subtypes.

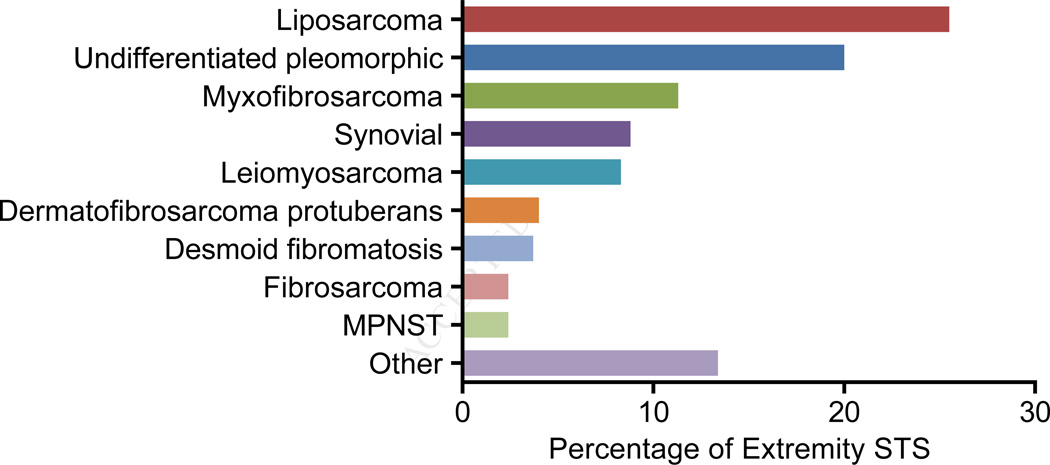

Figure 1.

Histologic distribution of primary extremity soft tissue sarcomas (n=3,103). The data are derived from all surgically resected soft tissue sarcomas followed prospectively at Memorial Sloan-Kettering Cancer Center between 1980 and 2014. Tumors previously designated as malignant fibrous histiocytoma are denoted as undifferentiated pleomorphic sarcoma. Histologic subtypes that represented ≤2% of all cases are grouped as other. MPNST, malignant peripheral nerve sheath tumor.

Clinical Presentation and Diagnosis

Most patients eventually diagnosed with a STS present with a painless mass. Over 90% of painless masses are benign lesions such as lipomas. Therefore, sarcomas are sometimes initially diagnosed as lipomas, resulting in a delay in the correct diagnosis. In general, lipomas tend to:

• be softer,

• be in a subcutaneous location,

• have a history of prolonged stability,

• be uniformly mobile with no overlying skin changes.

In contrast, STS may be firm, deep, enlarging over time, multifocal, and associated with neovascularization of the overlying skin. Radicular pain or swelling in the distal extremity related to underlying neurovascular involvement may reflect locally advanced disease. A history of nearby trauma may be reported by the patient, but it is unclear that trauma can initiate STS development. More likely, trauma brings attention to a preexisting mass.

Imaging the primary tumor

Work-up of an extremity mass begins with cross-sectional imaging for all but the smallest superficial lesions (<2–3 cm), which can be managed with an excisional biopsy. MRI with contrast is the preferred study modality, as it provides detailed anatomic information necessary for surgical planning. MRI allows the vascular structures to be easily delineated, and T1 images allow the clinician to trace branches of major peripheral nerves. Computed tomography (CT) is beneficial only when bony involvement is expected and complex reconstruction may be necessary during surgical resection of the tumor. The MRI appearance can also be predictive of histologic subtype (Figure 2). For example, myxoid lesions are associated with high T2 signal, even in the absence of gadolinium contrast. This is the case for myxofibrosarcoma, which often has enhancing tails extending from the multifocal, nodular components of the lesion, highlighting its infiltrative nature.⁴ Multifocal nodules can also be observed with myxofibrosarcoma. Collagenous regions are low in signal on both T1 and T2 imaging, so a persistent low signal in regions of the tumor may indicate a desmoid-type fibromatosis or a collagenous fibroma. However, in none of these instances is the diagnosis pathognomonic, and pre-treatment biopsy is recommended. There is only one STS type for which imaging is considered diagnostic (and only when reviewed by an experienced radiologist); this type is atypical lipomatous neoplasm/well-differentiated liposarcoma/dedifferentiated liposarcoma. This type has a signal profile almost identical to subcutaneous fat, but with enhancing septae and, if a dedifferentiated component is present, with solid nodules.^5,6

Figure 2.

A) A T2-enhancing tail (arrows) is often seen in myxofibrosarcoma, representing its infiltrative borders. B) A lipomatous mass in the posterior thigh compartment with multiple septations consistent with an atypical lipomatous tumor. C) Desmoids are mixed intensity on T2-weighted imaging, with high-T2 areas representing cellular components (orange arrow) and low-T2 areas representing collagenous components (green arrow).

Biopsy techniques

When imaging is not pathognomonic, biopsy is necessary before treatment is planned. Historically, this was performed by incisional biopsy. However, subsequent studies have shown that core biopsy of STS is accurate not only in demonstrating the presence of malignancy, but also in determining grade (in 88% of cases) and histologic subtype (in 75% of cases).⁷ Core biopsy often provides enough tissue for immunohistochemistry and cytogenetic studies, which can be of significant benefit in diagnosis. Characteristic genomic alterations for common histologic subtypes of extremity sarcoma and their associated diagnostic tests are presented in Table 1. While fine needle aspiration has been examined as a means of biopsying soft tissue lesions at the time of presentation, its utility is limited by the rarity of specialists trained both in cytology and STS histology and the limited amount of tissue obtained from such specimens. Fine needle aspiration may be appropriate for initial diagnosis of malignant tumor or confirmation of a recurrence, but it is often inadequate for histologic subtyping. Regardless of the type of biopsy performed, care should be made to orient the incision or core needle in such a way that the biopsy tract can be completely excised at the time of eventual surgery. For incisional or excisional biopsy, this means orienting the incision longitudinally along the extremity. This greatly facilitates closure of the incision at the time of reexcision. If the incisional biopsy is oriented transversely, removing the incision with requisite margin during the definitive resection will often leave a defect requiring skin graft.

Table 1.

Characteristic genomic alterations and diagnostic testing for different extremity histologic subtypes

Histologic Subtype	Genomic Alteration	Diagnostic Testing
Atypical lipomatous tumor and	12q13–15 amplification	FISH or IHC for CDK4 or
Dedifferentiated liposarcoma		MDM2
Desmoid fibromatosis	CTNNB1 mutation or APC loss	IHC for nuclear β-catenin
Epithelioid sarcoma	SMARCB1 deletion	IHC for SMARCB1
Myxoid and Round cell liposarcomas	FUS-DDIT3 fusion or EWSR1-DDIT3 fusion	FISH or PCR for FUS-DDIT3 or EWSR1-DDIT3
Synovial sarcoma	SYT-SSX1, SYT-SSX2, or SYT-SSX3 fusion	PCR for SYT-SSX1–3
Ewing’s sarcoma	EWSR1-FLI1 fusion	PCR for EWSR1-FLI1
Dermatofibrosarcoma protuberans	COL1A1-PDGRB fusion	PCR for COL1A1-PDGFB
Solitary fibrous tumor	NAB2-STAT6 fusion	IHC for STAT6

Staging and extent of disease work-up

AJCC staging (Table 2) takes into account tumor size and depth (T), nodal metastases (N), distant metastases (M), and histologic grade (G). Unlike carcinomas, STSs rarely metastasize to regional lymph nodes. The histologic subtypes with the highest rates of lymph node metastasis are angiosarcoma, epithelioid sarcoma, and embryonal rhabdomyosarcoma. The more common route of metastasis is direct hematogenous spread. Most STSs metastasize preferentially to the lung, and NCCN staging guidelines generally recommend chest X-ray or CT scan to rule out distant disease. In general, the use of chest imaging can be tailored to the metastatic risk associated with a given lesion. This risk can be estimated based on AJCC staging or, more accurately, based on prognostic nomograms, many of which are subtype-specific.^8–10 For example, atypical lipomatous tumors do not metastasize. In general, low-grade STSs rarely spread; local recurrence is more common and staging can be completed with preoperative chest X-ray. Large, high-grade UPS or leiomyosarcoma have rates of disease-specific death that may approach 50%, and distant metastases are common, so chest CT would be reasonable as a means of determining extent of disease for these high-risk patients. Special consideration is given to myxoid/round cell liposarcoma, which has a unique pattern of spread with a propensity for metastasis to soft tissue fat pads and the spine. CT of the chest, abdomen and pelvis is generally performed in high-risk patients, and MRI of the total spine can be considered.^11,12 PET scan is not clearly warranted for routine extent of disease work-up in STS; many histologic subtypes are not FDG-sensitive, and PET is less sensitive than CT for identifying subcentimeter pulmonary nodules.

Table 2.

AJCC staging for soft tissue sarcoma (7^th ed, 2010)

Primary tumor (T)
TX	Primary tumor cannot be assessed
T0	No evidence of primary tumor
T1	Tumor ≤5cm in greatest dimension
T1a	Superficial tumor (not involving underlying fascia)
T1b	Deep tumor (involving or deep to fascia)
T2	Tumor >5cm in greatest dimension
T2a	Superficial tumor
T2b	Deep tumor
Regional lymph nodes (N)
NX	Regional lymph nodes cannot be assessed
N0	No regional lymph node metastasis
N1	Regional lymph node metastasis
Distant metastases (M)
M0	No distant metastasis
M1	Distant metastasis
Histologic Grade (G)
GX	Grade cannot be assessed
G1	Grade 1
G2	Grade 2
G3	Grade 3

Stage	T	N	M	G
Stage IA	T1a T1b	N0 N0	M0 M0	G1, GX G1, GX
Stage IB	T2a T2b	N0 N0	M0 M0	G1, GX G1, GX
Stage IIA	T1a T1b	N0 N0	M0 M0	G2, G3 G2, G3
Stage IIB	T2a T2b	N0 N0	M0 M0	G2 G2
Stage III	T2a T2b Any T	N0 N0 N1	M0 M0 M0	G3 G3 Any G
Stage IV	Any T	Any N	M1	Any G

Adapted from Edge SB, Byrd, DR, Compton CC, et al (eds): AJCC Cancer Staging Manual, 7^th ed. New York, Springer, 2010; with permission.

Surgical Approach

Benign soft tissue tumors can often be observed, and tumors of a few types, such as nodular fasciitis, may spontaneously regress. However, for intermediate and malignant subtypes of soft tissue tumors, surgery has been considered the ‘gold-standard’ of treatment. Historically, STS of the extremity was treated with amputation. However, in a randomized clinical trial of 43 patients who received adjuvant chemotherapy and underwent limb-sparing surgery followed by radiation or amputation (2:1 randomization), only 15% of patients undergoing limb-sparing experienced local recurrences, and the two treatment groups did not differ in five year disease-specific or overall survival.¹³ For this reason, limb-sparing procedures are now the standard for treatment of extremity STS. Initially, this was performed by resecting the entire involved muscle, but the current standard for most STS histologies is resection of a 1-cm margin. For superficial lesions, the underlying muscular fascia is removed with the specimen. Similarly, for intramuscular tumors, the fascial barrier between muscle bodies or compartments can provide an adequate barrier and should be resected with the specimen. The key principles of surgery for extremity sarcomas are summarized in Table 3.

Table 3.

Principles of surgery in extremity soft tissue sarcoma

Core biopsy should be done in line with the planned surgical incision and then excised at the time of definitive resection Plan for 1-cm margin except for the infiltrative subtypes (myxofibrosarcoma and DFSP), which require a 2-cm margin. Superficial sarcomas should be excised with the underlying fascia. For deep/intramuscular tumors, the fascia between muscle bodies or compartments provides a good barrier to tumor extension and should be resected with the specimen. Skeletonize vessels and motor nerves unless encased by high-grade sarcoma. Low-grade tumors can be bivalved around critical structures to minimize morbidity

In the extremity, extent of resection can sometimes be limited by adjacent neurovascular bundles. Generally, the STS is resected away from a neurovascular bundle with the overlying fascial layer (e.g., femoral sheath) or the perineurium so as to optimize margins. Encasement of a major neurovascular structure by a low-grade STS is generally managed by bivalving the tumor to minimize morbidity. Encasement by a high-grade lesion may necessitate resection of a major neurovascular structure. Arterial reconstruction can be planned when the artery is involved; venous reconstruction is generally unsuccessful and is often deferred. If the patient develops venous congestion, compression and elevation are prescribed to minimize morbidity as alternative routes of venous drainage develop.

Patients should be carefully counseled regarding expected results of a nerve resection. Sciatic or peroneal resection is generally well tolerated, but results in foot drop and requires ankle bracing. Interruption of the tibial branches of the sciatic causes paresthesias on the plantar aspect of the foot, and patients should be instructed to monitor their feet routinely for trauma that may occur secondary to an insensate foot.¹⁴ Femoral nerve injury results in instability of the knee and may necessitate bracing, particularly in older patients, and patients are at increased risk of fracture in the long term.¹⁵ Resection of one of the three major nerves in the upper extremity will generally allow some retention of function, but may necessitate bracing of the limb, result in significant paresthesias, or limit opposition. Advanced maneuvers such as tendon transfers can be considered in collaboration with a hand specialist.

Special consideration should be given to tumors associated with high rates of local recurrence, mainly myxofibrosarcoma, dermatofibrosarcoma protuberans (DFSP), and desmoid-type fibromatosis.^16–18 Both myxofibrosarcoma and DFSP have microscopic components that extend outward from the visible tumor. In the context of myxofibrosarcoma, these may be visible on MRI as enhancing tails (figure 2A), and 2-cm margins should be planned circumferentially around the dominant nodules and these tails. In the context of DFSP, a reasonable margin is 2 cm around visible disease. In a retrospective analysis of 206 DFSPs, approximately 85% of surgeries planned with 1–2 cm margins resulted in complete microscopic resection.¹⁹ Both DFSP with fibrosarcomatous degeneration and myxofibrosarcoma may invade through fascial margins, so these planes should not be considered as adequate alternatives to the full width of the margin as they can be in most tumor histologies.

Desmoid-type fibromatosis was historically treated like a low-grade fibrosarcoma and managed with aggressive surgical extirpation. However, surgery is currently being used less aggressively for all but the smallest extremity desmoids that can be removed with wide margins, for three reasons. First, related metastases have never been identified for desmoids. Second, extremity desmoids have high rates of local recurrence (>50–60% in some series),^20–22 and repeated surgeries or amputation cause significant morbidity. Finally, over time, many desmoids remain stable in size or regress.²³ Observation is a reasonable alternative, or in the context of symptoms, systemic therapy can be considered. Traditional agents (i.e. doxorubicin or vincristine/methotrexate combinations) and targeted therapies (i.e. sorafenib and notch inhibitors) show responses and alleviate symptoms in clinical trials, so they are being used increasingly in management of patients with high-risk desmoids.^24–26 Aggressive surgery is less and less frequently considered for some other histologic subtypes for which, as for desmoids, rates of local or regional recurrence are high even after complete microscopic resection, progression follows an indolent course, and surgery is associated with significant morbidity. These include multifocal epithelioid hemangioendothelioma in a single extremity and tenosynovial giant cell tumors, which can be infiltrative lesions affecting entire muscle compartments and may be responsive to tyrosine kinase inhibitors.

Lymph node metastases occur in less than five percent of soft tissue sarcomas so that routine sentinel lymph node biopsy or nodal dissection is not performed. When clinically positive nodes are present, prognosis is poor, however. In these instances, radical lymphadenectomy for isolated regional nodal recurrence is associated with improved survival. The histologic subtypes most frequently associated with lymph node metastases are angiosarcoma, rhabdomyosarcoma, clear cell, and epithelioid sarcoma where rates of nodal metastases are approximately 25%.^27–29 In these histologies, it has been proposed that sentinel lymph node biopsy may be of prognostic or therapeutic benefit. However, the role of sentinel lymph node biopsy is unclear as prospective studies have only demonstrated a 5–7% rate of occult lymph node metastases in patients with these higher risk subtypes and no survival advantage has been observed in patients undergoing the procedure.^30,31 The small number of patients in these studies makes it difficult to draw any definitive conclusions, but the majority of benefit obtained from sentinel node biopsy is likely related to improved prognostication as opposed to true therapeutic benefit, and we do not routinely recommend the procedure even in high risk histologies.

Clinical Outcomes

Rates of local recurrence and distant recurrence differ by histologic subtype. For extremity STS, distant metastases are the primary cause of sarcoma-specific death. This is in contrast to retroperitoneal sarcomas, where local recurrence can cause significant morbidity and even disease-specific death. The local recurrence–free survival and distant recurrence–free survival of the 6 most common subtypes of extremity STS are shown in Figure 3. Highlighted by these survival curves is the high rate of local recurrence for myxofibrosarcoma, high rate of early distant recurrence of undifferentiated pleomorphic sarcoma, and particularly low rate of distant recurrence for DFSP. Even within the group of liposarcomas there are differences, with pleomorphic liposarcomas and round cell liposarcomas having a notably higher risk of distant recurrence. These differences in local and distant recurrence help inform patient management and follow-up. General risk factors for sarcoma-related death are as follows:

• size >5 cm,

• age >50 years,

• deep location,

• high grade,

• incomplete gross resection.

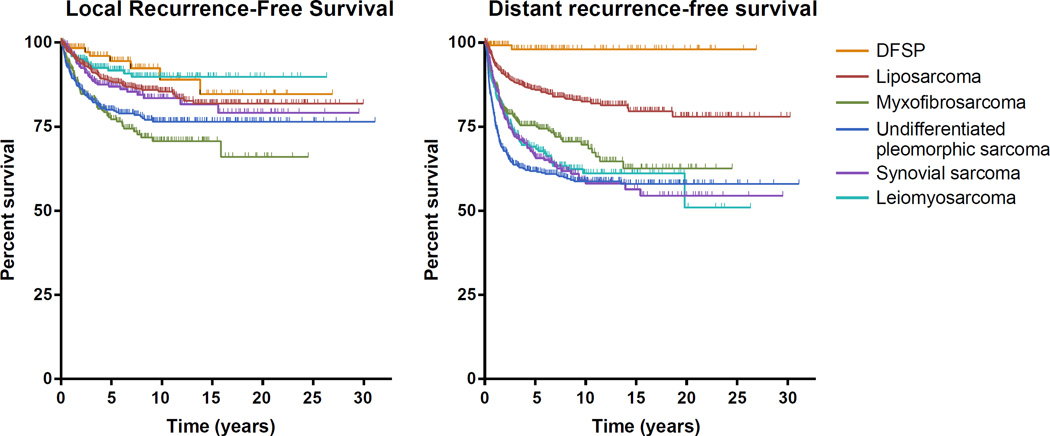

Figure 3.

Local recurrence-free survival and distant recurrence-free survival for the most common subtypes of extremity sarcoma (n=2498). DFSP, dermatofibrosarcoma protuberans.

Multimodality Treatment

Adjuvant radiation and chemotherapy are considered in conjunction with surgery in an attempt to prevent local or distant recurrence. While adjuvant and neoadjuvant radiation have relatively clear indications, the role of adjuvant chemotherapy is controversial, with wide differences in treatment strategies employed even across highly-specialized sarcoma centers.

Adjuvant and neoadjuvant radiation

The role of local radiation to prevent local recurrence has been defined in a range of clinical trials and prospective studies. Adjuvant radiation was used in conjunction with limb-sparing surgery in the NIH-led trial defining amputation as unnecessary in routine management of STS. A second randomized trial, again led by investigators at the NIH, examined whether adjuvant radiation affects patient outcomes. Ninety-one patients were randomized to undergo adjuvant radiation vs. observation after their surgery. Local recurrence rates were lower in patients receiving adjuvant radiation than in those on observation, overall survival did not significantly differ. Similar findings were recorded in subsets of patients with low-grade and high-grade tumors, and these results were durable when reanalyzed with a median follow-up of 18 years.^32,33 Similar findings were observed when patients were randomized to receive brachytherapy vs. no further therapy after limb-sparing surgery; specifically, lower rates of local recurrence were observed in patients receiving radiation than in those treated with surgery alone. In this context, however, the observed benefit was restricted to patients with high-grade lesions. Again, radiation was not associated with better overall or disease-specific survival.³⁴

Because adjuvant radiation has not been shown to improve rates of overall survival, the risks associated with radiation should be considered prior to recommending the treatment for a given patient. Radiation can result in post-operative wound complications, radiation-associated fracture, fibrosis in nearby joints, neuritis, and secondary sarcomas. For this reason, when the baseline risk of local recurrence is small or a local recurrence could be easily salvaged with secondary surgeries, adjuvant radiation is not advised. A prospective study of patients with T1 STS treated with surgery alone showed that forgoing radiation appeared to be safe in most cases. At a median follow-up of 75 months, 5-year local recurrence rates after R0 resection (n=74) were only 8%.³⁵ In low-risk lesions such as these, most clinicians would defer the use of radiation unless local recurrence would be salvageable only with a morbid procedure. Previous studies have identified age greater than 50^36,37, microscopically positive margins^36–41, high grade^39–42, deep location^37,40, and recurrent tumors^36,37 as risk factors for local recurrence. Many of these factors, as well as atypical lipomatous tumor histology (a positive prognostic factor), have been integrated into a nomogram that estimates a patient's risk of local recurrence after surgery alone and can therefore be used to predict whether the patient is likely to benefit from adjuvant treatment.⁴¹

Radiation can be administered in either the adjuvant or the neoadjuvant setting; to determine which is appropriate for the individual patient, the clinician should carefully consider the risks and benefits of each regimen (Table 4). These risks and benefits were defined in randomized trial of 94 patients reported by O’Sullivan et al. Participants received either 50 Gy preoperatively with a 5-Gy postoperative boost to the tumor bed or 66 Gy administered post-operatively. At a median follow-up of 3.3 years, the two groups had equivalent rates of local recurrence. However, significant wound complications (defined as requiring operative intervention, prolonged packing, or invasive procedures to minimize complications) were more frequent in those who received neoadjuvant radiation than in those who received their treatment in the adjuvant setting (35% vs. 17%; p=0.01). This difference was exclusively related to high rates of wound complications in the thigh (affecting 45% of patients with tumors resected from the upper leg).⁴³

Table 4.

Advantages of neoadjuvant vs. adjuvant radiation therapy

Neoadjuvant	Adjuvant
Decreased joint toxicity Decreased field size and radiation dose Decreased surgical field Avoid radiating complex reconstruction	Fewer wound complications

Despite its association with wound complications in the thigh, neoadjuvant radiation can have significant benefit compared to that adjuvant radiation. Standard delivery of radiation involves radiating a field that extends 1.5 cm radially and 4 cm proximally and distally from the site of the tumor or surgical bed.⁴³ Because the tumor is resected with a margin of normal tissue where possible, a larger volume of normal tissue must be included in the radiation field if radiation is given to the surgical bed as opposed to the tumor in situ. In addition, adjuvant radiation is generally given to doses of 66 Gy as opposed to preoperative doses that are maximally 55 Gy. Neoadjuvant radiation is, therefore, theoretically able to minimize risks of radiation-associated side effects such as neuritis. Long-term follow-up of patients in the O’Sullivan et al. study has demonstrated concrete reductions in joint fibrosis, which was noted in 31% of patients who received neoadjuvant radiation and 48% of patients who received adjuvant radiation (p=0.07). In addition, patients receiving neoadjuvant treatment tended to have less edema (15% vs. 23%) and less joint stiffness (18% vs. 23%).⁴⁴ Implementation of newer modes of radiation delivery such as image-guided intensity modulated radiotherapy (IMRT) or proton beam therapy may minimize non-specific injury to normal margins and minimize side effects further. IMRT is similar to conventional radiation therapy for minimizing local recurrence, and in an initial IMRT series post-operative edema was 11% and joint fibrosis was 5.6%, frequencies lower than in historical controls. No joint fractures were reported.⁴⁵

Given the increased availability of modalities such as IMRT and proton beam therapy, most institutions now routinely use neoadjuvant radiation therapy for patients at high risk of local recurrence. In our own case, due to the persistent increase in wound complications related to neoadjuvant treatment and the increased need for complex wound closures that may complicate re-resection in the event of local recurrence, we prescribe neoadjuvant radiation selectively. It is prescribed for tumors near a joint, preferentially in the upper extremity and in instances where locally advanced disease may necessitate extensive resection. For tumors in the upper thigh, where wound complications are highest, we tend to resect first and treat with radiation in the adjuvant setting. Radiation should not be prescribed in the neoadjuvant setting if preoperative biopsy is inconclusive regarding grade and/or histology, as radiation would constitute overtreatment if the tumor is low risk or benign.

Adjuvant and neoadjuvant chemotherapy

Recommendations regarding the prescription of adjuvant chemotherapy in patients with STS of the extremity vary greatly, even among high-volume specialty centers. This variability comes from the range of results in randomized clinical trials and the limitations associated with these trials in general. Early trials examined small cohorts of patients undergoing surgery (with or without radiation), who were randomized to undergo adjuvant systemic treatment vs. observation. In an early study, 88 patients with FNCLCC grade II or III STS were randomized to systemic therapy (epirubicin with or without ifosfamide) vs. no systemic therapy. While the systemic therapy group had significantly better recurrence-free survival (44% vs. 69% at 5 years; p=0.01), no difference in overall survival was identified.⁴⁶ Several subsequent studies, generally randomizing patients to observation versus doxorubicin/ifosfamide-based regimens, had similar outcomes with no consistent evidence that systemic regimens improve overall or disease-specific survival.

The most recent of these randomized trial reports was an EORTC-sponsored trial (EORTC 62931).³⁶ Patients with grade II or III STS (n=351) were randomized to either five cycles of doxorubicin and ifosfamide or to no chemotherapy following treatment for local disease. In this trial, no difference was observed between the two groups in either relapse-free survival or overall survival. As part of the study, however, the investigators performed a meta-analysis of data presented in previously reported clinical trials as well as their own data for a combined 1071 patients receiving adjuvant chemotherapy and 1074 observed following treatment for local disease. While 46.5% of patients who did not receive adjuvant chemotherapy died during follow-up, only 41.4% of patients in adjuvant arms died (hazard ratio 0.86, p=0.02), suggesting an absolute risk reduction of ~5% associated with adjuvant chemotherapy. While the paucity of survival benefit has led many groups to argue against the routine use of adjuvant chemotherapy, the meta-analysis result, combined with the limitations of published trials (specifically the heterogeneity of tumor types eligible for entrance), has led others to argue that at least a subset of patients may have more substantial treatment benefit from treatment than that observed in the cohort as a whole.⁴⁷

The argument in favor of chemotherapy for subsets of sarcoma patients has been further bolstered by subset analysis of the patient cohort enrolled on EORTC 62931. In ad hoc analyses, the patients whose outcomes tended to be most improved in the adjuvant chemotherapy arm were those patients with a tumors that were grade III, located in the limb (versus trunk or central site), and greater than or equal to 10 cm in diameter. These subset analyses did not reach statistical significance, but results leave open the possibility that these clinical characteristics may define cohorts who would receive the most benefit from adjuvant chemotherapy.⁴⁷ Retrospective series have led further credence to this hypothesis, particularly those examining patients with single histologic subtype of STS with known sensitivity to chemotherapy. An example is a review of 255 patients treated for localized synovial sarcoma. Data for patients who did not receive adjuvant chemotherapy was used to contract a nomogram based on tumor size and site, among other variables. Patients treated with adjuvant chemotherapy, however, had significantly better 3-year disease-specific survival than predicted by the nomogram.⁹ Another study suggested that improved outcomes in patients with pleomorphic or round cell liposarcoma are associated with receipt of adjuvant ifosfamide-based chemotherapy.⁴⁸

In general, our own practice has been to consider neoadjuvant chemotherapy for high-risk patients. The neoadjuvant setting allows for observation of the tumor in situ and for early discontinuation of the treatment if there is no evidence of response. An additional criterion for chemotherapy is the relative chemosensitivity of the STS subtype (Table 5). For example, rhabdomyosarcoma and Ewing sarcoma patients have risks of sarcoma-specific death that can be over 50%, and these tumors are sensitive to chemotherapy; therefore, in our practice, all of these patients receive neoadjuvant systemic therapy. Moderately chemosensitive histologies are treated with chemotherapy when a high-risk tumor is over 5 cm in size (e.g., synovial sarcoma), a moderate-risk tumor is over 8 cm (e.g., undifferentiated pleomorphic sarcoma), and a low-risk tumor is over 10 cm (e.g., myxofibrosarcoma). Chemoresistant histologies such as dedifferentiated liposarcoma are not treated with neoadjuvant chemotherapy.

Table 5.

Risk of distant metastases and chemosensitivity for high grade extremity sarcomas

		Chemosensitivity
		Low	Moderate	High
Risk of Distant Metastases	Low	Dedifferentiated liposarcoma	Myxofibrosarcoma
	Moderate		Undifferentiated pleomorphic sarcoma Leiomyosarcoma
	High		Round cell liposarcoma Pleomorphic liposarcoma Angiosarcoma Synovial sarcoma	Ewing sarcoma Rhabdomyosarcoma

Isolated limb perfusion

Limb-sparing surgery is the standard of care for extremity sarcoma; however, resection of some extremity sarcomas requires an amputation due to involvement of major neurovascular bundles or multifocality. Isolated limb perfusion (ILP) has been used in patients that would otherwise require an amputation in an attempt to convert them to a limb-sparing operation. ILP with melphalan alone had limited success,⁴⁹ however combination treatment with tumor necrosis factor-α (TNFα) has been shown to have clinical response and limb salvage rates of 70–80%.^50–55 This finding has not significantly altered therapeutic paradigms in the US, however, as TNFα is not available in North American centers.

Follow-up

After resection and adjuvant therapy for localized STS, the NCCN guidelines generally recommend follow-up every 3–6 months for 2–3 years and every 6–12 months thereafter, depending on stage. Patients with tumors of higher metastatic risk generally undergo chest X-ray or chest CT. In practice, low-grade tumors and small, high-grade tumors may have minimal risk of distant metastases and are initially followed every 6–12 months. More frequent surveillance is undertaken for patients with large, high-grade tumors identified in the deep compartments of the extremity. Care should be taken for certain histologies to ensure that screening exams are tailored to the unique patterns of spread. For example, round cell liposarcoma has a propensity to metastasize to fat pads, so after resection, CT of the abdomen and pelvis may be considered in addition to chest scans. Local recurrence can generally be detected by physical exam, though MRI is considered for deep lesions and those with infiltrative histologies such as myxofibrosarcoma that may not be palpable early.

Summary

Workup of a mass suspicious for a soft tissue sarcoma starts with a detailed history and physical, followed by cross-sectional imaging (MRI preferred) and a well-planned core needle biopsy for pathologic diagnosis. Rates of local recurrence, distant metastasis (typically to lungs), and sarcoma-specific survival vary significantly among different histologic subtypes, and these differences help inform multimodality treatment planning.

The standard of care for extremity sarcoma is limb-sparing surgery with a margin of 1–2 cm (depending on histology), with fascial boundaries providing an acceptable margin to limit morbidity of the resection when major neurovascular or bony structures are in close proximity. Radiation therapy should be considered for tumors with a high risk of local recurrence. The timing of radiation is best determined by weighing the increased risk of wound complications from neoadjuvant radiation against the increased risk of side effects to surrounding tissues and joints from adjuvant radiation. The use of adjuvant chemotherapy is controversial; however, there are relative indications for neoadjuvant chemotherapy for chemosensitive subtypes with moderate or high risk of distant metastases. Currently there are approximately 100 histologic subtypes of soft tissue sarcoma with variable biology, and these nuances in the therapeutic algorithm highlight the importance of patients being evaluated and managed by a multidisciplinary team with experience and expertise in sarcoma.

Key Points.

• Workup for an extremity mass suspicious for a soft tissue sarcoma includes cross-sectional imaging with an MRI and a core biopsy done in line with the planned incision.

• Most soft tissue sarcomas preferentially metastasize to the lungs. Therefore, staging should include a chest x-ray (for low-risk patients) or chest CT scan (for higher-risk patients).

• The standard for treatment of extremity soft tissue sarcomas is limb-sparing surgery with a margin of 1–2 cm. Overlying fascial layers (i.e. muscular fascia, femoral sheath, periosteum) are often barriers to tumor extension and are acceptable margins when major neurovascular or bony structures are in close proximity.

• Rates of local and distant recurrence vary by histologic subtype. These differences inform surgical margins as well as the use of chemotherapy and radiation.

• Radiation therapy is used to decrease rates of local recurrence in high-risk tumors. Neoadjuvant (vs. adjuvant) radiation can minimize side effects to nearby joints and normal tissues, but is associated with increased rates of wound complications and has equivalent rates of local control.

• Use of adjuvant chemotherapy is controversial. Neoadjuvant chemotherapy should be routinely prescribed for high-risk, chemosensitive subtypes (i.e. Ewing sarcoma and rhabdomyosarcoma). It can be selectively prescribed for moderately chemosensitive subtypes based on other risk factors such as size.

Key Abbreviations Box

AJCC

American Joint Committee on Cancer

DFSP

dermatofibrosarcoma protuberans

IMRT

intensity-modulated radiotherapy

NCCN

National Comprehensive Cancer Network

STS

soft tissue sarcoma

UPS

undifferentiated pleomorphic sarcoma
