Molecular programming of tumor-infiltrating CD8⁺ T cells and IL15 resistance

Abstract

Despite clinical potential and recent advances, durable immunotherapeutic ablation of solid tumors is not routinely achieved. IL15 expands NK, NKT, and CD8⁺ T-cell numbers and engages the cytotoxic program, and thus is under evaluation for potentiation of cancer immunotherapy. We found that short-term therapy with IL15 bound to soluble IL15 receptor α–Fc (IL15cx; a form of IL15 with increased half-life and activity) was ineffective in the treatment of autochthonous PyMT murine mammary tumors, despite abundant CD8⁺ T-cell infiltration. Probing of this poor responsiveness revealed that IL15cx only weakly activated intratumoral CD8⁺ T cells, even though cells in the lung and spleen were activated and dramatically expanded. Tumor-infiltrating CD8⁺ T cells exhibited cell-extrinsic and cell-intrinsic resistance to IL15. Our data showed that in the case of persistent viral or tumor antigen, single-agent systemic IL15cx treatment primarily expanded antigen-irrelevant or extratumoral CD8⁺ T cells. We identified exhaustion, tissue-resident memory, and tumor-specific molecules expressed in tumor-infiltrating CD8⁺ T cells, which may allow therapeutic targeting or programming of specific subsets to evade loss of function and cytokine resistance, and in turn, increase the efficacy of IL2/15 adjuvant cytokine therapy.

Introduction

Antigen-specific immunity to intracellular pathogens requires CD8⁺ T cells. Inducing CD8⁺ T cells to mount a response against cancer cells with the same specificity and efficacy as they do against pathogen-infected cells is a long-sought goal of immunotherapy. One method to increase immune responses to cancer is to administer T cell–trophic/activating cytokines, such as IL2 (1). IL15 is closely related to IL2, and expands/activates CD8⁺ T cells, NK and NKT cells (2,3). Relative to IL2, IL15 results in less expansion of regulatory T cells, as it signals independent of IL2Rα, and IL15 has been identified as a strong candidate for clinical translation (4,5). IL15 half-life/activity is greatly enhanced when complexed with a soluble IL15 receptor α chain coupled to an Fc fragment (IL15cx) (6,7). IL15cx has shown promise in some cancer models (6-10) and is in clinical trials for treatment of melanoma and multiple myeloma.

Upon exposure to persistent viral antigen, CD8⁺ T cells become ‘exhausted’, undergoing a progressive and hierarchical loss of function, and up-regulate numerous receptors that inhibit T-cell activation, including PD-1; a process which may serve to limit immunopathology (11,12). Exhaustion plays a role in the molecular programming of tumor-specific CD8⁺ T cells (13-15), and PD-1 blockade increases CD8⁺ T-cell responses to chronic viral or tumor antigen (16,17). In addition to TCR-mediated signals, T-cell activation by common γ-chain cytokines (such as IL2 and IL15) also induces proliferation and activation of the cytotoxic program (2). If exhaustion evolved as a mechanism of peripheral tolerance to limit host immunopathology, it may do so at multiple levels, including TCR- and cytokine-mediated activation. From this perspective, inhibitory receptors like PD-1 may dampen TCR-mediated cytotoxicity, whereas a parallel program of exhaustion-induced cytokine resistance may limit the abundance of antigen-specific T cells and their acquisition of cytotoxic phenotypes via TCR-independent cytokine signaling. The mechanisms underlying exhaustion-induced cytokine resistance are poorly understood.

Despite screening and current treatments, mammary cancer results in ~40,000 deaths annually in the US. The transgenic, autochthonous PyMT model of mammary carcinogenesis reproduces important aspects of human breast cancer, including stage-wise histological progression (18). Upon observing marked CD8⁺ T-cell infiltration of tumors in the PyMT model, we hypothesized that activation and expansion of the abundant CD8⁺ infiltrate with IL15cx would promote regression of PyMT tumors. We found, however, that PyMT mammary tumor growth was not affected in the short-term by daily treatment with IL15cx, due to tumor-mediated extrinsic and T cell-intrinsic resistance to IL15, even when combined with PD-L1 blockade. We use the PyMT model and integration of multiple datasets to determine the molecular programming of IL15-resistant, tumor-infiltrating CD8⁺ T cells.

Materials and Methods

PyMT model and LCMV infections

Mice were bred/housed in specific pathogen-free conditions in accordance with the Institutional Animal Care and Use Committee guidelines of UCSD. Female C57BL/6J, or MMTV-PyMT^+/− mice (18,19) backcrossed to C57BL/6J (hereafter referred to as "PyMT") (20), were used for all studies. After tumors were measurable on PyMT mice at ~16-24 weeks of age, mice were randomly assigned to control or experimental groups. Tumor volumes were similar between groups before treatment. Volumes of measurable tumors (between 10 and 1000 mm³) were calculated with the formula V=1/2(A*A*B), where A is larger of two 90-degree caliper measurements. For PyMT MEC studies, 10⁵ cells of a PyMT mammary epithelial cell line (Py230, provided by Dr. Lesley Ellies, UCSD) mixed 1:1 with Matrigel (BD Biosciences) were injected into the #4 mammary gland, and allowed to establish in female mice for 4-8 weeks. Py230 were pathogen-negative by Impact III PCR (Idexx Bioresearch), were obtained in 2014, and demonstrated uniform 'cobblestone' epithelial cell morphology (observed by A.L.D.). Acute and persistent LCMV infections performed as in refs. (16,21). Tumor single-cell suspensions were generated by chopping, 0.05% collagenase D (Roche Diagnostics) incubation, and 20 μm straining, as in ref.(22). Spleens were disrupted with frosted glass slides and then treated identically as tumor samples.

Cell culture and cytokines

Cells were cultured in RPMI 1640, 10% FBS, 10 U/mL penicillin/streptomycin, 40mM HEPES and 55 μM β-mercaptoethanol (Life Technologies), with hIL2 or hIL15 where indicated (NCI Preclinical Repository). Anti-CD3/anti-CD28 activation was performed as in (21). One dose of IL15cx was generated by incubating 0.5 μg hIL15 with 2.3μg sIL15Rα-Fc (R&D systems) in PBS at 37°C for 15m, and injected ip in 200 μl PBS.

Cell sorting, microarray and microscopy

For microarray, single-cell suspensions were double-sorted (FACS Aria, BD Biosciences), biological triplicates of CD8⁺CD44^high cells from the spleen and tumor, excluding MHC II, CD4, B220 or propidium iodide positive cells. RNA/microarray processing can be found at www.immgen.org. Microarray/GSEA/Multiplot analyses was performed at www.genepattern.org; gene expression calculated by RMA. DAVID (23) and Metascape (24) were used to identify targets rather than as a stringent enrichment test. CD8 (53-6.7; eBioscience) was detected with alkaline phosphatase on 10 μm frozen sections counterstained with nuclear fast red (Vector Labs). For Fig. 5B-C, fold change was calculated as follows: CD103⁺ T_RM: CD103⁺ brain vs. CD103⁻ spleen (OT-I / VSV-OVA day 20, GSE39152). CD103⁻ T_RM: CD103⁺ brain vs. CD103⁻ brain (OT-I / VSV-OVA day 20, GSE39152). T_REG: FOXP3⁺ vs. FOXP3⁻ splenic CD4⁺ T cells (GSE15907); KLRG1^high: KLRG1^high vs. KLRG1^low P14 cells (LCMV-Arm day 8, GSE46025); PD-1^high: TCRβ⁺CD8⁺NK1.1^negPD1^high vs. TCRβ⁺CD8⁺NK1.1^negPD1^low, and TCRβ⁺NK1.1⁺: TCRβ⁺CD8⁺NK1.1^posPD1^low vs. TCRβ⁺CD8⁺NK1.1^negPD1^low (PyMT tumor populations, GSE76362, count data processed with DEseq2 (25)).

Figure 5. Targeting regulators of tumor CD8⁺ T-cell responsiveness.

(A) Left, mean-class gene expression of PyMT splenic CD8⁺CD44^high versus tumor CD8⁺CD44^high T cells. Inset indicates probesets regulated ≥2-fold, P-value < 0.35, expression ≥ 50 in ≥ 3 of the 6 samples. Right, the analysis workflow, and diagram of shared exhaustion-associated transcripts. (B) Gene expression of selected transcripts up-regulated in PyMT tumor CD8⁺CD44^high T cells, error bars indicate S.E.M. Left, expression in pathogen-specific T cells in response to acute infection with VSV-OVA and LM-OVA (GSE15907); plotted on the same y-axis and directly comparable, expression in PyMT tumor vs. spleen CD8⁺CD44^high T cells. Middle, independently normalized, virus-specific CD8⁺ T cell gene expression in response to acute infection (LCMV-Arm) or persistent infection (LCMV-cl13; both GSE41870). Right, fold change of the indicated transcripts in KLRG1^high, T_REG, T_RM (CD103⁺), T_RM (CD103⁻), tumor CD8⁺PD1⁺, or tumor CD8⁺NK1.1⁺, relative to control populations. (C) Transcripts up-regulated ≥2-fold in PyMT CD8⁺CD44^high T cells versus spleen for manually collated cell-surface/membrane-associated proteins, ordered highest-to-lowest fold-change. Heat map color-coding is global, lower fold change probesets omitted in cases of duplicates. Data from same sources as in C; datasets normalized independently. For B and C, n.e. indicates fold change not calculated due to poor expression.

Flow cytometry

Immunostaining was performed with antibodies against CD8α (53-6.7), CD25 (PC61.5), CD43 (eBioR2/60), CD44 (IM7), CD69 (H1.2F3), CD71 (R17217), CD122 (TM-B1), CD127 (A7R34), CD103 (2E7), CD200R (OX110), CD244 (244F4), CXCR3 (CXCR3-173), GITR (DTA-1), EOMES (Dan11mag), KLRG1 (2F1), LAG-3 (C9B7W), Ly6C (HK1.4), IKZF2/HELIOS (22F6), PD-1 (J43), PD-L1 (MIH5), TBET (4B10), TOX (TXRX10), all from eBioscience; GZMB (MHGB05) from Life Technologies, and TCF1 (C63D9) from Cell Signaling Technologies. LCMV-gp33-41 virus-specific CD8⁺ T cells were identified with MHC I tetramers (Beckman Coulter).

Results

Short-term IL15cx treatment fails to affect tumor volume

All ten mammary glands in female PyMT mice develop tumors of mixed size and histological progression by 3-4 months of age on the C57BL/6J background (18). Immunohistochemistry and flow cytometry of single-cell suspensions of the tumors revealed a high CD8:CD4 ratio, CD8⁺CD44^high T-cell infiltrate (Fig. 1A,B). PyMT mice were randomly assigned to two groups and administered vehicle or IL15cx for five days (Fig. 1C). We observed activated CD8⁺ T cells and upregulated expression of cytotoxic molecules in the spleens of the PyMT mice (Supplementary Fig. S1A and B), yet we detected no increased tumor regression or halting of tumor growth due to IL15cx treatment over the five-day experiment (Fig. 1D). Extending treatment over two weeks did not significantly change tumor volumes (data not shown). Intrigued by the extensive infiltration of PyMT tumors with CD8⁺ T cells with no objective IL15-induced effect on tumor volume, we further investigated tumor-infiltrating CD8⁺ T cell responsiveness to IL15.

Figure 1. Despite CD8⁺ T-cell infiltration, PyMT mammary tumors are refractory to immunotherapy with IL15/sIL15Rα cytokine complexes.

(A) Left, CD8 immunohistochemistry (blue) from untreated, representative PyMT tumor (nuclei red); middle, flow cytometry of CD4, CD8; and right, CD44 abundance on CD8⁺ cells from a typical PyMT tumor single-cell suspension. (B) CD8⁺:CD4⁺ ratio in single-cell suspensions of untreated PyMT tumors, n=15, error bar S.D. (C) IL15/sIL15Rα cytokine complexes (IL15cx) dosing and tumor measurement schedule. (D). Tumor measurements before and after treatment in C. Each line represents an individual tumor; >10% decrease in volume tallied below (E) Absolute number of CD8⁺ splenocytes with treatment as in C; vehicle and IL15cx treatments are in PyMT mice. Fold expansion indicated above graph; error bars S.D. (F) As in E, but measured in single-cell suspensions of PyMT tumors. Error bars S.E.M. (G) Relative abundance (% of live gate) of CD8⁺ T cells in mice treated as in C. For tumors, results are from two experiments. Fold increase is shown above. Error bars S.D.

Tumor-infiltrating CD8⁺ T-cell IL15cx resistance

We first determined whether PyMT mice had systemic, global suppression of T-cell responsiveness to IL15cx, or a local, tumor-specific resistance. We analyzed CD8⁺ T cells from spleen, lung, and tumors of PyMT mice (vehicle and IL15-treated, as in Fig. 1C). The treatment regimen expanded CD8⁺ T-cell absolute numbers in the spleen (Fig. 1E), but not in tumors (Fig. 1F; P = 0.64 by Student's unpaired t test); CD8⁺ T cell relative abundance (%) increased 4.5-fold in the spleen and 7-fold in the lung, whereas tumors failed to show an increase (Fig. 1G). The experiments in Fig. 1E-G and Supplementary Fig. S1A and B were all performed in PyMT mice, precluding global suppression of IL15cx signaling in tumor-bearing mice as a mechanism for poor intratumoral IL15cx activity.

We measured expression of GZMB in the tumor and a non-lymphoid tissue, to determine if IL15cx was driving acquisition of a cytotoxic profile in the periphery (Fig. 2A). CD8⁺ T cells from the lungs of vehicle-treated animals were largely negative for GZMB, consistent with a resting/non-effector phenotype. In the IL15cx treatment group, nearly all lung CD8⁺ T cells had up-regulated GZMB (Fig. 2A). However, only half of CD8⁺ T cells isolated from PyMT tumors up-regulated GZMB after IL15cx treatment (Fig. 2A). Thus, resistance to IL15cx is tumor-specific, and blocked increases in CD8⁺ T cell number, percentage, and cytotoxic phenotype. .

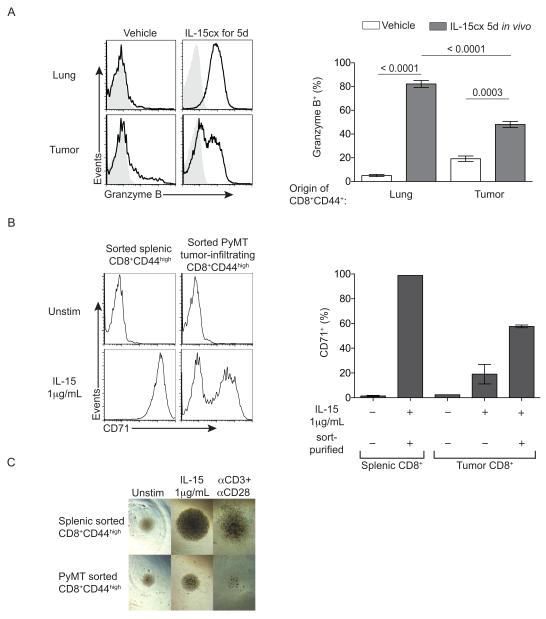

Figure 2. Tumor-infiltrating CD8⁺ T cells are resistant to IL15-mediated induction of cytotoxic/proliferation programs in vivo and in vitro.

PyMT tumor-bearing mice dosed as in Fig. 1C. (A) Left, representative lung and tumor CD8⁺CD44^high T-cell GZMB immunostaining. Shaded grey is control omitting, and black with, GZMB-PE antibody; right, graphical representation; lung n=3, tumor n=12. P-value, unpaired Student's t-tests, error bars, S.E.M.; from two experiments. (B) Left, CD71 abundance on sort-purified splenic or tumor-infiltrating CD8⁺CD44^high T cells, both from PyMT mice; right, graphical representation, n=2. Representative of three experiments. (C) In vitro photomicrographs of indicated conditions.

Extrinsic and intrinsic resistance to IL15 by tumor CD8⁺ T cells

T cells can be suppressed by tumors via multiple mechanisms (for example, refs.(22,26)); we tested whether IL15 resistance was dependent on the tumor environment, and thus cell-extrinsic, or if the resistance was a property of the T cells, and thus cell-intrinsic. Tumor single-cell suspensions were cultured in vitro for three days with or without IL15. The transferrin receptor (CD71) is an established lymphocyte activation marker (27) that correlates with GZMB protein up-regulation after IL15 treatment (data not shown). High concentrations of IL15 (1 μg/mL) for three days did not activate the CD8⁺ T cells within the PyMT tumor single-cell suspension, whereas separately cultured splenic CD8⁺ T cells uniformly up-regulated CD71 in response to IL15 (Supplementary Fig. S2A). Furthermore, PyMT single-cell suspensions suppressed the cytokine responsiveness of WT splenocytes in a dose-dependent fashion (Supplementary Fig. S2B and C).Thus, T cell-extrinsic, tumor-mediated mechanisms of suppression were in part limiting T-cell activation.

To determine if intratumoral CD8⁺ T cells also exhibited cell-intrinsic resistance to IL15, we sort-purified CD8⁺ T cells from tumor suspensions, as well as splenic CD8⁺ T cells as a positive control, and tested their responsiveness to IL15 in vitro. Only ~50% of the tumor-derived, sort-purified CD8⁺ T cells responded to IL15, even after incubation in tumor cell-free media for three days with an excess of IL15 (1 μg/mL; Fig. 2B,C). We also observed a defect in accumulation after anti-CD3/anti-CD28 stimulation, further indicating hypo-responsiveness of PyMT tumor-infiltrating CD8⁺ T cells (Fig. 2C). We then focused on what molecular programs underlie the cell-intrinsic component of CD8⁺ T-cell resistance to IL15.

Exhausted tumor CD8⁺ T cell signature despite ample effector transcripts

We isolated PyMT tumor CD8⁺ cells and control splenic CD8⁺ T cells, and performed microarray analysis alongside samples of the Immunological Genome Project, Immgen (28). First, we tested the hypothesis that poor CD8⁺ T-cell antitumor activity in the PyMT model is a result of failure to initiate or sustain the cytotoxic effector program. Contrary to our hypothesis, we found abundant transcripts associated with CTL effector differentiation and function in PyMT tumor T cells, including granzyme family members differentiation factors essential for effector differentiation including Tbx21(TBET), Id2 and Prdm1 (BLIMP1). The relative expression of GZMB mRNA in PyMT tumor CD8⁺ T cells was nearly as high as that expressed in CD8⁺ effector T cells near the peak of the cellular response to Listeria monocytogenes-OVA infection (Fig. 3B) (29). Thus, the lack of CD8⁺ T-cell antitumor activity is not explained by a lack of transcripts coding for effector programming or cytotoxic mediators. The abundant GZMB mRNA (Fig. 3A and B) was not reflected in protein expression in PyMT tumor CD8⁺ T cells (Fig. 2A).

Figure 3. Tumor-infiltrating CD8⁺ T cells express both abundant effector transcripts and an exhaustion-associated gene-expression signature.

(A-E, G) CD8⁺CD44^high T cells sorted from tumors and spleens of PyMT mice; gene expression determined by microarray. (A) Fold change of selected cytotoxic regulators/effector transcripts. (B) PyMT spleen/tumor CD8⁺ T-cell microarray data co-normalized with Immgen OT-I/LM-OVA (GSE15907); Gzmb transcript abundance in PyMT tumor and splenic CD8⁺CD44^high T cells and virus-specific OT-I CD8⁺ T cells after LM-OVA infection; expression values directly comparable; error bars S.E.M. (C) Gene set-enrichment analysis (GSEA) of immunologic signatures database using PyMT tumor CD8⁺ T cells relative to OT-I T cells responding to VSV-OVA, day 8 post-infection (GSE15907). (D) Fold change of PyMT tumor CD8⁺CD44^high relative to splenic CD8⁺CD44^high T cells, plotted versus mean class P-value. Highlighted transcripts regulated ≥2-fold in persistent viral infection (persistent versus acute viral infection, day 15; GSE41870). Inset indicates transcripts coordinately up or down ≥2-fold in persistent vs. acute infection and tumor vs. spleen cells. (E) Select exhaustion-associated transcripts (persistent vs. acute infection, day 15; GSE41870) and PyMT tumor versus splenic CD8⁺CD44^high; datasets normalized independently. (F) Indicated molecule abundance on CD8⁺ T cells by flow cytometry. “CD44^high” indicates this gate was used instead of tetramer gate. (G) Fold change versus fold change plot of PyMT tumor CD8⁺CD44^high T cells and OT-I T cells responding to VSV-OVA (day 6), both versus splenic CD8⁺CD44^high T cells from PyMT mice. Transcripts regulated ≥2-fold in persistent versus acute infection, or in B16 melanoma relative to splenic CD8⁺CD44^high T cells, are highlighted.

To exclude that the absence of cytokine receptors caused the poor PyMT CD8⁺ T-cell response to IL15cx, we characterized gene expression and protein abundance of IL2 and IL15 receptors on PyMT tumor CD8⁺ T cells: we find PyMT tumor CD8⁺ T cells expressed abundant receptor molecules for IL15cx (Supplementary Fig. S3A-C; further characterization in Supplementary Fig. S3D and E).

We then tested PyMT tumor CD8⁺ T cells vs. those responding to acute infection with vesicular stomatitis virus-OVA (VSV-OVA, day 8) for gene-set enrichment using GSEA (30). The top gene set (S) returned was persistent versus acute infection (GSE30962), with a normalized enrichment score of 3.25 (Fig.3C, Supplementary Fig. S4). This result links the PyMT tumor CD8⁺ T-cell gene signature with that of chronic vs acute viral infection. As a resource, we present PyMT tumor CD8⁺ T-cell gene expression relative to Immgen datasets for CD8⁺ T cells from naïve and post-infection populations (Supplementary Fig. S5 and Supplementary Tab. S1-4).

To further explore the contribution of T-cell exhaustion to tumor T-cell programming, we plotted fold change versus P-value of the gene-expression data from PyMT tumor versus splenic CD8⁺CD44^high T cells, and highlighted genes differentially expressed in persistent versus acute LCMV infection (GSE41870 and ref. (31)). The transcripts differentially regulated by PyMT tumor compared to splenic CD8⁺ T cells shared ~80% identity with genes up or down in persistent versus acute infection (Fig. 3D). Exhaustion-associated cell-surface markers (32) were also highly expressed (Fig. 3E).

To validate the gene-expression data linking exhaustion to the PyMT tumor CD8⁺ T-cell phenotype, and further characterize their activation state, we directly compared the cell-surface protein abundance of exhaustion-associated markers on PyMT tumor CD8⁺ T cells with virus-specific CD8⁺ T cells in acute or persistent infection. We found marked up-regulation of PD-1, PD-L1, LAG3, CD244, CD69, and CD43 expression on both tumor-infiltrating CD8⁺ T cells and those from chronic viral infection, but not on those from acute viral infection or uninfected mice (Fig. 3F). In many cases these markers were more abundant on the PyMT tumor CD8⁺ T cells than those from persistent viral infection. To test how results in the PyMT murine model of breast cancer compared to human disease, we performed flow cytometry on CD8⁺ T cells infiltrating human breast cancers versus control peripheral samples (Supplementary Fig. S6). We found human breast cancer-associated CD8⁺ T cells to highly express CD69, PD-1, and CD244.

To identify how CD8⁺ T cell transcription varied from competent CD8⁺ T cells versus those in PyMT tumors, we plotted gene expression in CD8⁺ T cells in response to VSV-OVA infection and PyMT tumor (Fig. 3G; tabular data in Supplementary Tab. S5). We then highlighted genes regulated ≥2-fold in persistent infection (GSE41870) and in CD8⁺ T cells infiltrating B16 melanomas (GSE15907). This plot demonstrates T-cell activation in tumors or during infection similarly regulates many genes, which appear along the 45-degree axis line. In addition, the highlighting illustrates multiple transcripts regulated in PyMT tumor CD8⁺ T cells are similarly regulated in B16 melanoma tumor CD8⁺ T cells, and to a lesser degree, in response to infection. These include up-regulation of effector molecule Gzmb and the phosphatase PtPrj, and the down-regulation of transcription factor Myb. Despite similarities, tumors and acute infection up- and down-regulate specific subsets of genes, such as the tumor- and persistent virus-specific up-regulation of Cd200r1, or the acute and persistent infection-specific up-regulation of Itgam (Fig.3G). Therefore, although the T-cell exhaustion program is a major contributor to tumor CD8⁺ T-cell gene expression, there remain a small number of tumor- and virus-specific genes. We wondered what factors or differentiation pathways might be responsible for genes regulated in tumor, but not in the acute or persistent infection datasets.

A subset of tumor CD8⁺ T cells up-regulate a resident memory T-cell gene-expression signature

A CD8⁺ T-cell memory subset residing in tissues (33), called tissue-resident memory T cells (T_RM), typically expresses Itgae (CD103) and Cd69, along with a set of other transcripts including Cdh1 (E-cadherin) (34). PyMT tumor CD8⁺ T cells expressed multiple transcripts associated with T_RM cells, including CD103. Using the “core” T_RM signature (34), PyMT tumor CD8⁺ T cells similarly up- or down-regulate ~80 percent of the transcripts versus splenic controls (Fig. 4A). We further compared our PyMT tumor CD8⁺ T-cell data with gene-expression data of brain CD103⁺ T_RM versus conventional splenic memory T cells (35) and persistent versus acute viral infection (31) (Supplementary Fig. S7A). Again, PyMT tumor CD8⁺ T cells express many T_RM transcripts, with few shared with exhausted cells, such as Chn2 and Cd244 (Supplementary Fig. S7A). Thus, both an exhausted and T_RM gene-expression signature are present in the PyMT tumor CD8⁺ T-cell population. We then plotted the transcription factors/regulators differentially expressed ≥2-fold between PyMT tumor versus spleen CD8⁺ T cells, where exhaustion and T_RM programming appear to explain much of the gene expression in PyMT tumor CD8⁺ T cells (Fig. 4B).

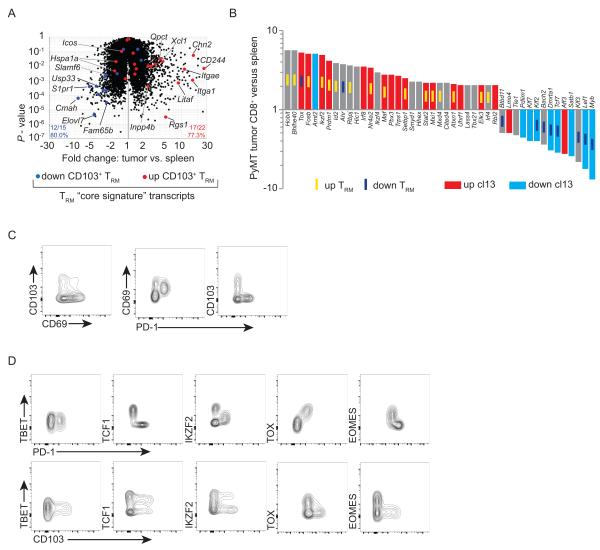

Figure 4. PyMT tumor CD8⁺ T cells are comprised of distinct exhausted and T_RM-like subsets.

(A) Fold change vs. P-value of PyMT tumor-infiltrating CD8⁺CD44^high T cells versus splenic CD8⁺CD44^high T cell gene expression. “Core T_RM signature” transcripts (ref.34) are highlighted; (T_RM up, red; T_RM down, blue) Inset indicates the fraction and percent of "core T_RM signature" genes that are coordinately up or down in T_RM and PyMT tumor CD8⁺ T cells. (B) Transcription factors/regulators up or down ≥2-fold in PyMT CD8⁺CD44^high versus splenic CD8⁺CD44^high T cells. Color-coding of bars indicates whether gene transcript is also up or down in persistent infection, (≥1.3-fold day 15 persistent versus acute infection; GSE41870). Yellow or blue inset bar indicates whether each gene transcript is up/down in tissue-resident memory cells (≥1.3-fold in brain CD103⁺ T_RM versus spleen CD103⁻ memory cells; GSE39152). PyMT CD8⁺ T-cell. Gene expression from microarray, as described in Fig.3. (C) Expression of CD103, CD69 and PD-1 on CD8⁺CD44^high PyMT MEC tumor infiltrate. (D) Transcriptional factor/regulator profiling of PyMT tumor CD8⁺ T cells. Results in C and D representative of three experiments.

To distinguish whether PyMT tumor CD8⁺ T cells have a mixed differentiation comprising exhausted and T_RM-like cells, all within a uniform population, or whether PyMT tumor CD8⁺ T cells consist of a mixture of distinct exhausted and T_RM-like cells, we immunostained CD103, CD69, and PD-1 on PyMT tumor CD8⁺ T cells (Fig. 4C), using a slow-growing PyMT mammary epithelial cancer cell line (PyMT MEC) injected into mammary glands of female mice. We found that CD103 and PD-1 were largely mutually exclusive, while CD69 was expressed at a moderate level on PD-1^high cells. This result suggests that T_RM-like and exhausted cells were two different tumor-infiltrating subsets in PyMT MEC tumors, which can be distinguished with CD103 and PD-1.

Molecular Characterization of IL15-Resistant Population

Transcription factors/regulators play central roles in lymphocyte programming (36). T-box transcription factors TBET and EOMES play non-redundant, essential roles in CD8⁺ effector T-cell differentiation, whereas TCF1 is required for normal thymic T-cell development and memory cells, but is markedly down-regulated in effector CD8⁺ T cells (29,36). Many T_REG highly express IKZF2/HELIOS, which is essential for full suppressive function (37); this factor is absent from splenic CD8⁺ T cells (29). TOX is an HMG-box factor essential for T-cell development (38) with an unknown role in peripheral T cells. To further characterize the exhausted and T_RM-like infiltrate, we assessed protein levels of transcription factors/regulators found to be regulated in the PyMT transcript-expression data: Tox was one of the most differentially regulated, and was associated with exhausted, but not T_RM-like, cells (Fig. 4B). We distinguished the T_RM-like and exhausted subsets with PD-1 and CD103, and immunostained for transcription factors/regulators TBET, TCF1 (product of Tcf7), IKZF2/HELIOS, TOX and EOMES (Fig. 4D). The exhausted subset, using PD-1 as a marker, was always TOX^high, TCF1^low, EOMES^low, and intermediate for IKZF2 (Fig. 4D). We found that CD103⁺ cells, correlated with the T_RM-like subset, were TOX negative, and had mixed IKZF2 expression and intermediate-high TBET (Fig. 4D). As in Fig.4C, these data further suggest there is a distinct CD103⁺ T_RM-like component of the PyMT MEC tumor CD8⁺ T-cell population that does not exhibit high PD-1 or TOX.

We previously observed cell-intrinsic IL15 resistance in a subset of tumor CD8⁺ T cells (Fig. 2). Having established T_RM-like and exhausted subsets in the tumor, we then determined their IL15 responsiveness. First, we determined that IL15 receptors CD122 and CD132 were similarly expressed on PD-1 high and low tumor-infiltrating CD8⁺ T cells (Supplementary Fig. S3C). We then sorted PyMT MEC tumor T cells based on CD103 expression and splenocytes as a control, and cultured with or without IL15 for 60 hours (Supplementary Fig. S7B). The splenic CD8⁺ T cells responded to IL15 culture with near uniform up-regulation of CD71 and were >97% negative for IKZF2, TOX and PD-1 (Supplementary Fig. S7B). In contrast, a subset of sorted tumor CD8⁺ T cells did not up-regulate CD71, as was previously observed in Fig. 2B. We found that the CD71^low cells were almost entirely PD-1^highTOX^high, and exhibited low side scatter, suggesting a failure to proliferate. CD103^high cells were less likely to be PD-1^high after IL15 treatment (Supplementary Fig. S7B), as was observed previously in untreated PyMT tumor CD8⁺ T cells (Fig.4C). We found that the CD103^pos tumor-infiltrating cells were more likely to appear IKZF2^posCD71^high after IL15 culture: 45% of the sorted CD103⁺ appeared IKZF2^highCD71^high versus 14% from the sorted CD103^neg population. Taken together, these data indicate the PD-1^highTOX^high tumor-infiltrating population exhibits a failure to induce blastogenesis in response to IL15. IKZF2 was not predictive of cytokine responsiveness, but was enriched in sorted IL15-treated CD103^pos T cells from the tumor.

Given that the IL15-resistant tumor CD8⁺ T-cell population resembled exhausted CTL responding to persistent viral infection, we wondered whether IL15cx would also fail to expand PD-1^pos cells in persistent viral infection with LCMV-cl13. Although IL15cx did result in a dramatic expansion of CD8⁺ T cells, virus-specific cells were vastly under-represented in the expanded population (Supplementary Fig. S8A and B). This result is unlikely to be explained by cytokine receptors, as IL2rb (CD122) and Il2rg (CD132) are expressed by virus-specific cells in persistent infection (Supplementary Fig. S3D). In vitro, only the PD-1^low subset from LCMV-cl13-infected mice exhibited hallmarks of activation after IL15 treatment (Supplementary Fig. S8C), similar to that observed in PyMT tumor CD8⁺ T cells stimulated with IL15 (Supplementary Fig. S7B). Therefore, these results extend those of previous reports (39) and demonstrate virally-exhausted CD8⁺ T cells are poorly responsive to IL15 in vitro and in vivo.

Blockade of PD-1 enhances adaptive immune responses to persistent antigen such as cancer and LCMV-cl13 infection (16). However, cytokine resistance may not be directly addressed by PD-1 pathway blockade; indeed, when administered to PyMT mice, systemic in vivo anti-PD-L1 increased the % of intratumoral CD8⁺ T cells producing IFNγ, but did not affect cytokine resistance as gauged GZMB protein expression or tumor volume in our short-term assay (Supplementary Fig. S9A-D). Therefore, overcoming exhaustion-associated, cell-intrinsic cytokine resistance may require therapeutic strategies beyond PD-L1 blockade.

Targeting regulators of tumor CD8⁺ T-cell responsiveness and function

To identify novel regulators of tumor-infiltrating CD8⁺ T cells, we returned to the gene-expression data (Fig. 3,4): we found 504 genes with increased and 358 with decreased abundance in PyMT CD8⁺ T cells versus spleen (Fig. 5A; Supplementary Tab. S6 and 7). We collated results from DAVID (23), which determines enrichment among ontology, localization, and other properties (Table 1). We then incorporated additional datasets profiling exhausted CD8⁺ T cells exposed to persistent antigen: chronic viral infection (GSE41870) and PD1^high tumor-infiltrating T cells (GSE76362). Metascape (24) was then used to perform ontological meta-analysis of all three datasets, and the overlap of genes up-regulated 2-fold was diagrammed in Fig. 5A. We focused on three classes of genes: transcription factors and regulators which may program the exhausted state, signaling regulators potentially underlying exhaustion-induced trophic cytokine resistance, and accessible cell-surface/membrane proteins to reverse T-cell dysfunction. For the selected candidates, we present gene expression data from multiple datasets of T-cell differentiation (Fig. 5B).

Table 1.

Tumor-infiltating CD8+ T cell functional annotation clusters.

DAVID cluster	Enrichment Score	Cluster Description	# of genes	Selected genes composing cluster
Up-regulated in tumor CD8+ T cells
1	6.88	Surface/plasma memb.	58	Pdcd1, Cd38, Ctla4, Ly6a, Adora3, Enpp5, Slc16a10, Itgav
7	2.65	Neg.reg.signal/G-prt.reg.	13	Cish, Rgs1, Rgs3, Rgs16, Spry1, Spry2, Socs2, Tgfb3, Atxn1
8	2.52	SH2 domain	22	Sh3bp2, Lyn, Chn2, Cish, Clnk, Grb7, Plcg2, Stat2, Vav3
14	2.61	Ig-like domain cont.	23	Cd7, Cd80, CD86, Cd160, Cd200r, Lag3, Havcr2, Tigit, Lilrb4
19	1.78	Phosphatases	12	Dusp4, Dusp14, Ptpn5, Ptpn7, Ptpn9, Ptpn13, Ptprj, Inpp4a, Inpp4b, Impa2
Down-regulated in tumor CD8+ T cells
1	3.06	Transmembrane/recptr.	106	Cd72, Gpr146, Cd163l1, Cxcr5, Ccr7, Itb3, Tnfrsf10b, Tbxa2r
3	1.78	Cytokine recptr./recptr.	17	Btla, CD22, Emb, Il4ra, Il6ra, Il6st, Il7r, Il18r1, Ifngr2
5	1.55	Ig-like domain cont.	16	Treml2, Slamf6, Emb, Fcgrt, Icam2, Sell, Pecam1, Sema4f
10	1.05	Kinases/phosphorylation	57	Mapk11, Yes1, Dgka, Dusp10, Pik3r5, Ssh2, Stk38, Acp5

We first focused on cell-surface/membrane-localized and immunoglobulin-like domain-containing transcripts (Table 1): these included known exhaustion-associated negative regulators such as Pdcd1 (PD-1) and Tigit (40), as well as Cd200r1 and myeloid-associated Cd80 (Supplementary Fig. S10), and T_RM-associated adenosine receptor Adora3. Expression data for exemplar transcript Pdcd1 as well as Lilrb4 and CD200r1 are presented in Figure 5B. Lilrb4 is an ITIM-containing negative regulator of immunity (41), and we verified elevated CD200R on PD-1^high PyMT tumor T cells beyond that observed in persistent viral infection (Supplementary Fig. S10). CD200r1 is induced in both PD1^high and NK1.1^high PyMT tumor subsets (Fig. 5B); CD200R down-regulates TNF in macrophages (42).

Tumor-infiltrating CD8⁺ T cells exhibit a unique profile of transcription factors and regulators. We selected six transcription factors/regulators to profile: Tox, Bhlhe40, Ikzf2, Atxn1, Trps1 and Setbp1 (Fig. 5B). Co-expressed TOX and PD-1 correlated with IL15 cytokine resistance (Fig. 4D, Supplementary Fig. S7B); further, Tox mirrors Pdcd1 expression in persistent infection (Fig. 5B and ref.(31)), appearing to mark exhausted CD8⁺ T cells in tumor and viral contexts. Bhlhe40 is up-regulated in multiple post-activation T-cell subsets (Fig. 5B), and regulates cytokine production (43). Ikzf2 expression is abundant in exhausted, T_REG, and CD8α⁺NK1.1⁺ tumor-infiltrating cells (Fig.5B and ref.(31)), however it poorly correlated with cytokine resistance (Supplementary Fig. S7B). Lastly, three transcription factors/regulators in exhausted, tumor-infiltrating T cells had unexplored roles in T lymphocytes (Fig.5B): Trps1 is a transcriptional repressor of GATA-regulated genes, Setbp1 has a role in myeloid cell malignancies (44), and Atxn1 is a chromatin-binding protein which can repress Notch signaling (45). In summary, our analysis identifies specific transcription factors/regulators expressed in multiple exhausted and tumor-infiltrating CD8⁺ T cell populations.

We then profiled several clusters with roles in negative regulation of signal transduction or proliferation (Table 1 and Fig. 5B); one such cluster contained Cish, Rgs1, Rgs3, and Rgs16 (Table 1, Fig. 5B). Cish is a SOCS and SH2 domain protein, diminishes JAK/STAT signaling (46), and affects tumor-infiltrating CD8⁺ TCR responsiveness (47). Regulator of G-protein signaling (RGS) molecules control immune cell migration and activation. Rgs1 is highly expressed in T_RM and regulates trafficking (48). Rgs16 is induced by cell activation, persistent infection and in T_RM cells (Fig. 5B), and inhibits immune cell activation (49). Integrins serve adhesion and cell signaling regulatory roles: Itgav (Fig. 5B) binds extracellular matrix proteins, including fibronectin and laminin; integrins have been successfully targeted clinically (50). Samsn1/Hacs1/Sly2 (Fig. 5B) is a SH3-containing, immuno-inhibitory adaptor which can bind ITIM's such as those in Pdcd1 and Lilrb4: ablation of Samsn1 up-regulates cellular tyrosine phosphorylation, while over-expression impedes B/CD4⁺ T-cell activation/proliferation (51-53). Glcci1 (Fig. 5B) is induced by anti-inflammatory glucocorticoids, and in humans, SNPs in Glcci1 markedly affect response to glucocorticoid therapy in asthma patients (54). Prr5l (Fig. 5B) directly binds to mTORC2, and Prr5l degradation by RFFL2 results in mTORC2-dependent protein kinase C activation (55,56). Altogether, we find that specific signaling regulators with potent anti-proliferative and immuno-inhibitory functions are up-regulated in exhausted, tumor-infiltrating CD8⁺ T cells.

Phosphatases can attenuate TCR and cytokine responsiveness; we found Dusp and Ptpn family members (Table 1, Supplementary Tab. S8), as well as phosphatase subunit Ppp2r2c enriched in PyMT CD8⁺ T cells. We further profiled Dusp4, Ptpn13 and Ppp2r2c:. we observe marked enrichment of these phosphatases in PD1^high tumor-infiltrating cells, while IL15-responsive CD8α⁺NK1.1⁺ cells (57) showed minimal enrichment (magenta and orange bars; Fig. 5B).

To facilitate further identification of cell-surface molecules, we used gene ontology and manual identification to select transcripts coding for cell-surface molecules and ordered them by fold change in PyMT tumor CD8⁺ T cells versus splenic controls (Fig. 5C). We then calculated fold change for multiple CD8⁺ T-cell datasets and depicted this via heatmap, allowing visualization of shared or differential relative expression in tumor, acute infection (LCMV-Armstrong), persistent infection (LCMV-clone13), T_RM, PD1⁺NK1.1⁻ and NK1.1⁺PD1⁻ PyMT tumor-infiltrating CD8⁺ T cells.

Our strategy of gene-expression profiling has identified potential regulators of tumor-infiltrating CD8⁺ T cells that may be pursued in future studies as therapeutic targets.

Model of molecular programming of tumor-infiltrating CD8⁺ T cells and IL15 resistance

PyMT CD8⁺ T cells exhibit cell-intrinsic resistance to IL15cx therapy correlated with an exhausted phenotype. These data suggest the predominant effect of systemic IL15cx to either tumor-bearing or persistent virus-infected mice was expansion of irrelevant CD8⁺ T cells (Fig. 6A; flow cytometry-verified molecules summarized in Fig. 6B). We observed that the adoptive transfer of activated tumor-specific CD8⁺ T cells resulted in rapid induction of exhaustion markers PD-1 and CD244, suggesting exhaustion-induced cytokine resistance will also apply to adoptively transferred cells (Supplementary Fig. S11). As molecules at the cell surface are readily targeted and thus candidates for clinical translation, we present a Venn diagram of cell-surface molecule relative expression in CD8⁺ T cells exposed to persistent antigen (Fig. 6C).

Figure 6. Therapeutic consequences and molecular hallmarks of CD8⁺ T-cell exhaustion-associated IL15 resistance.

(A) Intrinsic and extrinsic factors dampen tumor CD8⁺ T-cell IL15 responses, leaving systemic IL15cx to primarily activate/expand extra-tumoral CD8⁺ T cells. (B) Left, partial phenotype of exhausted, IL15-resistant tumor-infiltrating T cell; these proteins validated by flow cytometry in Fig.3,4 and Supplementary Fig. S10. Exhaustion/inhibitory receptors, red; inhibitory ligands, yellow; and other, orange. (C) Cell-surface molecules regulated ≥2-fold or more in PyMT tumor CD8⁺ T cells versus splenic controls (from Fig. 5C), with transcripts up-regulated ≥1.5 fold in CD8⁺PD1⁺ and CD8⁺NK1.1⁺ T cells, versus PD1⁻NK1.1⁻CD8⁺ T-cell controls (GSE76362), or in persistent versus acute infection, day 15 (GSE41870). Underlined transcripts are up-regulated ≥1.5-fold in CD103⁺ brain T_RM relative to conventional splenic memory cells (GSE39152).

Discussion

Common gamma-chain cytokines induce CD8⁺ T-cell activation, proliferation, and cytotoxic programming (2). IL2 is FDA-approved to treat metastatic melanoma (1) and IL15-based therapies are under intense investigation and clinical development. However, we found the PyMT model of mammary carcinogenesis to be refractory to short-term IL15cx-mediated tumor destruction. Tumor-infiltrating CD8⁺ T cells exhibited extrinsic and intrinsic resistance to IL15: the majority failed to engage cytotoxic and proliferative programs, despite expression of IL2/15 receptors, purification by cell sorting, and extended IL15 treatment in vitro. In humans, adjuvant cytokine therapy must be carefully managed to avoid morbidity and mortality (58). Understanding the mechanisms behind cytokine hypo-responsiveness is important to fully and safely exploit common gamma-chain cytokine therapies.

Cancer and persistent viral infection both exhibit high antigen load and the failure of antigen-specific T cells to eliminate the antigen-bearing cells (13). Our analysis confirmed the exhausted phenotype common to both viral and tumor-mediated exhaustion. Previous studies have shown exhausted CD8⁺ T cells are resistant to gamma chain cytokines (39), yet have also reported their capacity to lower viral titers and partially overcome T-cell exhaustion (recently, ref. (59)). Exhaustion of virus-specific T cells depends on antigen load, and in some cases long-term gamma-chain cytokine administration may lower viral titer indirectly. We observed poor expansion of virus-specific cells by IL15cx (Supplementary Fig. S8).

PD-1^high, exhausted phenotype PyMT CD8⁺ T cells exhibited a specific transcriptional regulator signature: TOX^highTCF7^lowIKZF2^medTBET^posEOMES^neg. We find T_RM-like, CD103⁺ cells to mark a distinct, non-exhausted phenotype population (Fig. 4C,D). CD69 is often used as a T_RM marker, yet splenic exhausted cells express CD69 (Fig. 3F and ref.(60)), and PD-1^high PyMT MEC tumor CD8⁺ T cells expressed intermediate CD69 (Fig. 4C), suggesting CD103 may better differentiate T_RM-like and exhausted tumor CD8⁺ T cells. Dadi et al. report a CD8⁺NK1.1⁺PD1⁻ tumor-infiltrating population to be cytokine-responsive and often CD103⁺, calling them "ILTC1" cells (57). Here, we refer to CD8⁺CD103⁺PD1⁻ cells as T_RM-like, based on T_RM-like signature (Fig. 4) and expression of CD103, while Dadi et al. identify the ILTC1 population based in part on NK signature and expression of NK1.1. Both of our reports have found CD103⁺ cells more likely to be PD-1 negative and to respond to IL15 (Supplementary Fig. S7B). Dadi et al. also found significant delay, but not elimination, of PyMT tumors with transgenic IL15. While we observed no control of tumor volume with IL15cx in our assay, our protocol administered IL15cx to mice with established tumors. Altogether, given the poor response of PyMT tumors to IL15cx despite the presence of ILTC1/T_RM-like cells, we conclude targeting of novel regulators of cytokine responsiveness is essential to maximize IL15 anticancer efficacy.

The presence of CD103⁺, T_RM-like CD8⁺ T cells in tumors may present unappreciated therapeutic opportunities. In our model, CD8⁺CD103⁺ cells appeared less likely to be PD-1^high or to express exhaustion-associated transcription factor TOX (Fig. 4D), were more likely to be IL15-responsive (Supplementary Fig. S7B), and expressed unique activation/inhibitory receptors. Further understanding the cytotoxic capacity/activity of CD103⁺ T_RM-like cells in the tumor will inform whether therapeutic strategies should optimally target the cytokine-resistant exhausted cells, T_RM-like cells, or both.
