. 2016 Aug 24;18(3):446–457. doi: 10.22074/cellj.2016.4573

Ameliorating Effect of Ginseng on Epididymo-Orchitis Inducing Alterations in Sperm Quality and Spermatogenic Cells Apoptosis following Infection by Uropathogenic Escherichia coli in Rats

Mehdi Eskandari 1, Soghra Jani 1, Mahsa Kazemi 2, Habib Zeighami 3, Alireza Yazdinezhad 4, Sahar Mazloomi 5, Saeed Shokri 6,*
PMCID: PMC5011333  PMID: 27602327

Abstract

Objective

Epididymo-orchitis (EO) potentially results in reduced fertility in up to 60% of affected patients. The anti-inflammatory effects of Korean red ginseng (KRG) and its ability to act as an immunoenhancer in parallel with the beneficial effects of this ancient herbal medicine on the reproductive systems of animals and humans led us to evaluate its protective effects against acute EO.

Materials and Methods

This animal experimental study was conducted in the Department of Anatomical Sciences, Faculty of Medicine, Zanjan University of Medical Sciences (ZUMS), Zanjan, Iran during 2013-2015. We divided 50 Wistar rats into five following groups (n=10 per group): i. Control-intact animals, ii. Vehicle-phosphate buffered saline (PBS) injection into the vas deferens, iii. KRG-an intraperitoneal (IP) injection of KRG, iv. EO-an injection of uropathogenic Escherichia coli (UPEC) strain M39 into the vas defer- ens, and v. EO/ KRG-injections of both UPEC strain M39 and KRG. The treatment lasted seven days. We then evaluated sperm parameters, number of germ cell layers, Johnson’s criteria, germ cell apoptosis, body weight and relative sex organs weight.

Results

Acute EO increased the relative weight of prostate and seminal vesicles (P≤0.05). It also reduced sperm quality such as total motility, sperm concentration (P≤0.01), and the percentage of normal sperm (P≤0.001). Moreover, acute EO decreased Miller’s (P≤0.05) and Johnsen’s scores and increased apoptotic indexes of spermatogenic cells (P≤0.001). KRG treatment decreased prostate weight gain (P≤0.05) and improved the percentage of sperm with normal morphology, total motility (P≤0.01), and progressive motility (P≤0.05). The apoptotic indexes of spermatogenic cells reduced (P≤0.001), whereas both Johnsen’s (P≤0.01) and Miller’s criteria increased in the KRG-treated EO testis (P≤0.05).

Conclusion

Consequently, KRG ameliorated the devastating effects of EO on the sperm retrieved from either epididymis or testicle in rats.

Keywords: Ginseng, Uropathogenic Escherichia coli, Sperm, Rat, Testis

Introduction

An urogenital tract infection (UTI) in men is caused by uropathogenic Escherichia coli (UPEC) that is also known as one of the most common causes of epididymo-orchitis (EO) (1,2). EO caused by either sexual transited pathogen (3) or UTI (4) negatively affects fertility (2,5). Acute epididymitis can result in azoospermia by bilateral ductal obstruction or destruction of the seminiferous tubules (6). Moreover, it can lead to recurrent oligoasthenoteratozoospermia through defective spermatogenesis of inflamed testis in up to 60% of patients (7,8). Although antibiotic treatments are considered as a standard therapy in acute bacterial EO (9), successful elimination of invading pathogens does not necessarily mean that fertility can be fully reversible (8,10,11). Apart from the possibility that viable bacterium inside the epididymis or prostate tissue may sustain chronic inflammation; there is a second hypothesis of a pathogenic pathway for persistent chronic inflammation of the epididymis as a nonbacterial process after eradication of the causative agent. Furthermore, even after obliteration of the invading pathogen by the host immune system within the testis, impairment of spermatogenesis remains irreversible (12).

Ginseng [Korean red ginseng (KRG)] is used as a medicine in East Asia countries. Ginsenosides (triterpene saponins) are the major active ingredients of ginseng (5,13). Ginseng is a powerful antioxidant with an extensive range of functions (14,17) including induction of spermatogenesis and activation of either glial cell line-derived neurotrophic factor (GDNF) (18) or cyclic adenosine 3´, 5´-monophosphate (cAMP)-responsive element modulator (CREM) (19) in rat testes. Anti-aging effects of ginseng on testes function have also been documented (20). It is well established that ginseng exhibits a therapeutic capacity against toxic effects of environmental contaminants (21,22) and chemotherapeutic drugs by protecting testicular function and improving sperm quality in the animal (23,24). Different studies conducted on animal models have found that ginsenosides, major active ingredients of ginseng, increase luteinizing hormone (LH) secretion (25), enhance sperm motility, as well as promote sperm progression (26), capacitation and acrosome reaction (27). Clinically, KRG enhances sexual functions (28), such as libido and mating performance (29,30). Clinical trials have also confirmed that ginseng extract facilitates erectile dysfunction (ED) (31,32), improves sperm progressive motility, as well as increases the levels of spermatozoa, plasma total, free testosterone, dihydrotestosterone, follicle-stimulating hormone (FSH), and LH (33,34) in fertile and asthenozoospermic men (24,35).

In general, common inflammatory reactions in epididymis and/or testis lead to significant damage to testicular function and loss of spermatogenesis (36). The testicular immune response is, therefore, rendered ineffective against UPEC (37). The anti-inflammatory effects of KRG and its ability to act as an immune-enhancer (15,38,39) in parallel with the mentioned beneficial effects of this ancient herbal medicine on the reproductive systems of animals and humans led us to evaluate its protective effects against acute EO.

Materials and Methods

This animal experimental study was conducted in the Department of Anatomical Sciences, Faculty of Medicine, Zanjan University of Medical Sciences (ZUMS), Zanjan, Iran, during 2013-2015.

Animals

Healthy adult male Wistar rats (250-280 g) were purchased from Pasture Institute, Tehran, Iran. Animals were kept on a 12-hour light-dark cycle at 23 ± 2˚C and fed with standard pellets and water ad libitum. All animal experiments were conducted in accordance with national guidelines and protocols, approved by the Institutional Animal Ethics Committee (IAEC No.03/028/07). All experimental protocols were approved by the Ethics Committee of ZUMS.

Treatments

Following one-week acclimatization, we divided 50 adult rats into following five groups (n=10 per group): i. Control-intact animals receiving no treatment or surgery, ii. Vehicle-animals undergoing surgery and receiving an injection of normal saline, iii. KRGanimals undergoing no surgery and receiving an intraperitoneal (IP) injection of KRG (15 mg/kg/daily) for seven days, iv. EO-animals undergoing surgery and receiving an injection of UPEC strain M39, and v. EO/ KRG-animals undergoing surgery and receiving injections of both UPEC strain M39 and KRG (15 mg/kg/daily) for seven days. The dosage was based on the Office of Monopoly, Republic of Korea (ROK)’s prescription, and the method of Hess et al. (40) sub-acute toxicity study. It has showed that IP injection of Ginseng 15 mg/kg daily has no toxic effects on different organs of rats. Seven-day therapy was selected based on the study of Lu (41).

Proliferation of the bacterial strain

UPEC strain M39 was isolated from the urine of a male child who was less than 5 years old, experienced UTI and was resident of Tehran, Iran.

According to a standard laboratory protocol, the hemolytic (Hly) strains were isolated, cultured and proliferated overnight on Columbia blood agar plates (Merck, Germany). Chloramphenicol (Sigma, USA, 20 μg/ml) was then added as a supplement to the lysogeny broth (LB, Merck, Germany) medium. LB medium was applied to culture the fresh cells in a shaking incubator at 37˚C, for the early exponential phase of growth [optical density (OD) 600=0.5~1.0]. The concentration of viable bacteria was calculated by the standard growth curves. The bacteria (2×109 cfu) were then centri- fuged at 4500 g for 8 minutes at room temperature. TThe pellet was washed with phosphate buffered saline (PBS, Merck, Germany) and resuspended in 10 ml saline. For in vivo experiments, the bacterial suspension was diluted by sterile saline to 5×105cfu in 50 μl (OD600=0.06). A pilot study was performed with different concentrations (OD600=0.2, 0.1, 0.08, 0.06, and 0.04) of bacterial suspensions in order to determine the ideal concentration that could generate a rat model of EO. The ideal concentration under our laboratory conditions was OD600=0.06 (42).

Bacterial-induced experimental epididymo-orchitis

Briefly, male rats were anesthetized by IP injection of ketamine (45 mg ⁄kg) and xylazine (35 mg ⁄kg) mixture (Ciron Drugs & Pharmaceuticals Pvt Ltd, India). The testis, epididymis and vas deferens were exposed by a scrotal incision. A total of 50 μl of UPEC strain M39 suspension (approximately 5×105 bacteria) was injected into the vas deferens of each side by a 30-gauge needle. The vas deferens from each testicle was clamped at the injection site to prevent spread of the infection. Vas deferens dilation with a transparent cauda epididymis that showed no fluid leakage from the injection site was assumed as a successful injection procedure. AAfter surgery, the animals were kept under standard conditions and in individual cages until sacrificed with an overdose of isoflurane (Gurgaon, India) (42,43).

Uropathogenic Escherichia coli detection in the testis

Testicles from either infected or uninfected rats were homogenized in 10 ml sterile PBS with a sterile glass potter. A total of 100 μl of each homogenized testis was streaked on an agar plate and incubated at 37˚C overnight. Bacterial colonies were checked the next morning under translucent light (42).

Ginseng preparation

A batch of KRG was purchased from an herbal drugstore, Tehran, Iran, and ground into a dried powder. The prepared powder (30 g) was mixed with 600 ml ethanol (Merck, Germany, 50%). The herbal mixture was boiled continuously to reach half of the original volume, after which the suspension was centrifuged at 10000 g for 30 minutes. The supernatant was collected and dried in a SpeedVac System (Freeze Dryer alpha 1-2/ LD plus, Martin Christ, Germany). The dried extract was mixed with sterile PBS to make a stock of 100 mg extract/ml. A 0.2-µ filter (Millipore, USA) was used for sterilizing the extract solution (44,45).

Body weight and reproductive organs weight

Animals were anesthetized with an IP injection of a ketamine (45 mg ⁄kg) and xylazine (35 mg ⁄kg) mixture. The final body weights were measured. One side of the testicle was randomly dissected and weighed. After homogenizing the dissected testicle, 100 mg of the homogenized tissue was transferred into 1 ml PBS and stored at -20˚C. This tissue was used to perform an enzyme-linked immunosorbent assay (ELISA, Thermo Fisher Scientific Inc., USA) to determine the tumor necrosis factor-alpha (TNF-α) concentration. The other testicle and remainder of the sex organs (epididymis, seminal vesicles and ventral prostate) were dissected out and weighed. The body weight gain during the experiment was calculated by subtracting the final body weight from the initial weight. The relative weights of the reproductive organs were also measured. Testicular tissues were fixed in 10% buffered formaldehyde solution and embedded in paraffin wax. The sections, 5 µm each, were cut and prepared for staining with a terminal deoxynucleotidyl transferase dUTP nick end labeling (TUNEL) assay kit (Roche, Germany) for detecting germ cells apoptosis.

Sperm characteristics

Epididymal sperm were collected by dissecting the caudal part of the epididymis on both sides. Sperm were separated from epididymal tubules by chopping the caudal part of the epididymis in 5 ml of Hams F10 solution (Sigma-Aldrich, USA). The solution was incubated for 5 minutes at 37˚C. After pipetting, one drop of sperm suspension was placed on a microscope slide and cover slipped. At least ten microscopic fields were observed at ×400 magnification, while in situ motility, progressive motility and immotile sperm were expressed as a percentage of the total sperm count according to Shokri et al. (46). After evaluating the sperm motility, a prepared slide was evaluated for abnormal sperm in at least ten fields at ×400 magnification. Sperm that lacked tails, as well as those with morphologically abnormal heads and tails were counted. The abnormal sperm was expressed as a percentage of total counted sperm. The epididymal sperm counts were obtained using the method described by Shokri et al. (46). Briefly, the suspension was diluted with saline that contained 0.5% formalin, after which it was placed on an erythrocytometer (Neubauer type, Hausser Scientific, USA) and examined under a light microscope (Olympus, Japan) to determine the sperm count (47).

Evaluation of spermatogenesis by Johnsen’s and Miller’s scores

We categorized spermatogenesis by measuring the number of germinal cell layers and Johnsen’s score (as a score of 1-10) in the testes. Briefly, the number of germinal epithelial layers was counted in ten seminiferous tubules as described by Miller et al. (47). The scores were according to the presence or absence of the main cell types arranged in the order of maturity.

Germ cell apoptosis by TUNEL kit

Germ cell apoptosis was evaluated by terminal deoxynucleotidyl transferase (TdT) enzyme mediated by TUNEL assay kit (Roche, Germany) according to the manufacturer’s instruction. Briefly, the 5-μm thick paraffin-embedded sections were microwave-pretreated in 10 mM citrate buffer (pH=6.0, Merck, Germany) for 10 minutes. Sections were incubated with blocking solution (3% H2O2 in methanol, Merck, Germany) for 10 minutes and then washed with PBS. The specimens were incubated with TUNEL reaction mixture (TdT and nucleotide mixtures in reaction buffer) at 37˚C for 60 minutes. Finally, the slides were stained with converter- peroxidase (POD, Roche, Germany, anti-fluorescein antibody, Fab fragment from sheep, conjugated with horse-radish POD) for 30 minutes. At the last stage, the 3, 3-diaminobenzidine (DAB) substrate (Roche, Germany) was applied to develop a brownish stain in fragmented nuclear chromatin of the apoptotic cells. Number of apoptotic cells was counted by a light microscope (Olympus, Japan) at ×400 magnification. From each testis, a minimum of 10 sections were selected for quantification. And, in each section, 10 randomly selected seminiferous tubules were quantified. Therefore, apoptotic cells were counted for at least 100 seminiferous tubules in each tissue. Brownish nuclear staining was considered as a positive apoptotic cells. Two following apoptotic indices were used for evaluation: i. Apoptotic index-1 (AI-1) defined as the number of TUNEL-positive apoptotic cells per 100 tubules and ii. . Apoptotic index-2 (AI-2) defined as the number of tubules containing TUNEL-positive apoptotic cells per 100 tubules (47).

Immunoassay of tumor necrosis factor alpha

A commercial rat TNF-α ELISA kit (CUSABIO, China) was used to quantify TNF-content in the testis tissue. Samples were measured in duplicate. The minimum detectable concentration of rat TNF-α was <1.56 pg/ml. All procedures were performed according to the manufacturer’s instructions.

Statistical analysis

Data were expressed as mean ± SE. The oneway analysis of variance (ANOVA) test was applied to clarify significant differences among groups. When a significant effect was found, the Tukey’s test was performed. All analyses were performed using the Statistical Package for the Social Sciences (SPSS, SPSS Inc., USA) version 16. The statistical significance level was set at P≤0.05.

Results

Invasion and localization of Uropathogenic Escherichia coli inside testis

Initially, all infected animals developed clinical symptoms of acute epididymitis in the scrotum. Inflammation ranged from a mildly edematous scrotum to severe enlargement and erythema of the scrotal wall. Figure 1 shows the presence and localization of UPEC in the testis. Testicular homogenates with sterile PBS injected (Plate A) and UPEC infected rats (Plate B) were streaked on agar plates (without antibiotic) and kept at 37˚C overnight. Colonies were counted under translucent light. In plate B, the upper third of the plate was related to the UPEC strain C69. The lower third of the same plate in the right side was related to the UPEC strain M39 and lower third of the plate in the left side was related to the bacteria UPEC strain C69. In this study, we selected UPEC strain M39 due to the strong intensity.

Fig.1.

Fig.1

Open in a new tab

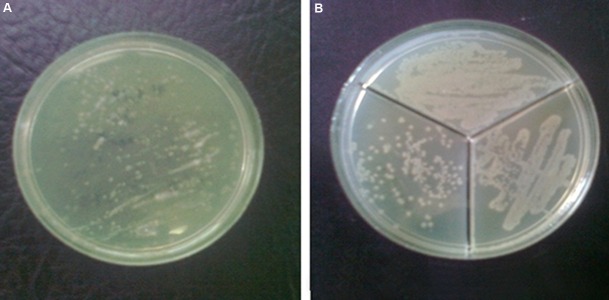

UPEC detection in the testis using an agar plate. A. Testicular homogenates from sterile PBS injected and B. UPEC infected rats were streaked on agar plates without antibiotics and kept at 37˚C overnight. Colonies were counted under translucent light. In plate B, the up- per third of the plate was related to the bacteria UPEC strain C69. The lower third of the same plate in the right side was related to the bacteria UPEC strain M39, and lower third of the plate in the left side is related to the bacteria UPEC strain C69. In this study, we selected UPEC strain M39. UPEC; Uropathogenic Escherichia coli and PBS; Phosphate buffered saline.

Body weight and sex organs weight

The relative weight of sex organs were compared among groups (Table 1). We observed no significant difference regarding to the relative weights of sex organs in the KRG and vehicle groups as compared to the control group. There was a significant increase in the relative weight of the prostate [0.63 ± 0.21 (EO group) vs. 0.17 ± 0.02 (control group), P≤0.05], left seminal vesicle [0.15 ± 0.03 (EO group) vs. 0.06 ± 0.0 (control group), P≤0.01] and right seminal vesicle [0.13 ± 0.0 (EO group) vs. 0.06 ± 0.01 (control group), P≤0.05] of EO animals as compared to the control group. Fluctuations in body weight were not significantly different between the control group with both vehicle and KRG groups. EO induction caused a significant reduction in body weight that was defined as a negative weight loss in EO group (36.66 ± 19.22 g) as compared to a positive weight gain of control group (10 ± 2.88 g, P≤0.01).

Table 1.

Effects of EO and ginseng treatment on body weight and sex organs weight

Weight Relative right testis weight (%) Relative left testis weight (%) Relative right epididymis weight (%) Relative left epididymis weight (%) Relative right seminal vesicle weight (%) Relative left seminal vesicle weight (%) Relative ventral prostate weight (%) Weight gain (g)
Groups
Control 0.47 ± 0.02 0.48 ± 0.01 0.16 ± 0.0 0.20 ± 0.02 0.06 ± 0.01 0.06 ± 0.0 0.17 ± 0.02 10 ± 2.88
Vehicle 0.46 ± 0.00 0.45 ± 0.03 0.11 ± 0.01 0.11 ± 0.01 0.09 ± 0.0 0.09 ± 0.01 0.20 ± 0.01 6.66 ± 1.66
KRG 0.51 ± 0.01 0.51 ± 0.01 0.20 ± 0.01 0.19 ± 0.0 0.08 ± 0.01 0.07 ± 0.0 0.23 ± 0.0 -6.66 ± 1.66
EO 0.50 ± 0.01 0.52 ± 0.04 0.15 ± 0.03 0.13 ± 0.02 0.13 ± 0.01 0.15 ± 0.03 2 0.63 ± 0.21 1 -36.66 ± 19.222
EO/KRG 0.49 ± 0.05 0.50 ± 0.04 0.13 ± 0.01 0.13 ± 0.01 0.14 ± 0.02 0.13 ± 0.03 0.26 ± 0.031 -15 ± 2.88
Open in a new tab

Each value represents mean ± SE. The vehicle and KPG groups were compared to the control group. The EO group was compared to the vehicle group. The EO/KRG group was compared to the EO group. KRG; Korean red ginseng, EO; Epididymo-orchitis, 1; P≤0.05, and2; P≤0.01.

Sperm parameters

The effect of ginseng treatment on the sperm parameters are shown in Table 2. Although the vehicle group showed no significant difference in the percentage of normal sperm, there was a significant reduction (2.00 ± 0.35) in sperm count as compared to the control group (3.29 ± 0.00, P≤0.05). We observed no significant differences in terms of the sperm count and percentage of normal sperm between the KRG and control groups (Table 2). Interestingly, in EO group, EO resulted in a significant reduction in sperm count (0.43 ± 0.11) and the percentage of normal sperm (53.27 ± 5.97) as compared to the relative values (2.00 ± 0.35, P≤0.01 and 90.18 ± 1.42, P≤0.01, respectively) of vehicle group. Although ginseng administration did not prevent reduced sperm count in EO animals, it insignificantly increased the sperm count from 0.43 ± 0.11 in the EO group to 1.78 ± 0.33 in the EO/KRG group (P≤0.01). Ginseng significantly increased the percentage of sperm with normal morphology in the EO/KRG group (79.93 ± 2.90) as compared to the EO group (53.27 ± 5.97, P≤0.001). According to Table 2, there was no significant difference regarding the percentage of sperm progressive motility between the vehicle and control animals. On the other hand, there was a significant reduction in the percentage of total motility in the vehicle (58.26 ± 3.87) group as compared to the control group (77.66 ± 6.40, P≤0.05).

Table 2.

Effect of EO and ginseng treatment on sperm count, percentage of normal sperm and motility parameters

Groups Control Vehicle KRG EO EO/KRG
Parameters
Sperm count (×106/ml) 3.29 ± 0.00 2.00 ± 0.351 3.68 ± 0.21 0.43 ± 0.112 1.78 ± 0.33
Normal sperm (%) 88.76 ± 0.03 90.18 ± 1.42 89.12 ± 1.20 53.27 ± 5.973 79.93 ± 2.903
Progressive motility (%) 22.89 ± 2.23 13.68 ± 2.42 36.84 ± 3.951 7.67 ± 2.23 27.77 ± 1.531
Total motility (%) 77.66 ±6.40 58.24 ± 3.871 73.51 ± 1.82 24.19 ± 9.542 62.77 ± 4.362
Open in a new tab

Each value represents mean ± SE. The vehicle and KPG groups were compared to the control group. The EO group was compared to the vehicle group. The EO/KRG group was compared to the EO group. KRG; Korean red ginseng, EO; Epididymo-orchitis, 1; P≤0.05, 2; P≤0.01 and 3; P≤0.001.

Interestingly, ginseng administration to intact animals significantly increased the percentage of sperm progressive motility (36.98 ± 6.52) as compared to the control group (16.20 ± 1.23, P≤0.05). There was no significant fluctuation in the percentage of total motility in the KRG group. The percentage of total motility parameter was significantly reduced in the EO group (24.19 ± 9.54) as compared to the vehicle group (58.14 ± 3.87, P≤0.01). Ginseng administration to the EO animals caused a significant increase in the percentage of total motility parameter in the EO-KRG group (62.77 ± 4.36) as compared to the EO group (24.19 ± 9.54, P≤0.01). The same pattern of increase was observed in the percentage of sperm progressive motility of EO/KRG group (27.77 ± 1.53) as compared to the EO group (7.67 ± 2.23, P≤0.05).

Bacterial agglutination of sperm

Figure 2 shows that E-coli caused agglutination by attaching to human spermatozoa.

Germ cells apoptosis

Descriptive representation of TUNEL positive cells in the testis of experimental groups is shown in Figures 3 and 4. There were no significant differences in the AI-1 and AI-2 of both vehicle and KRG groups as compared to the control group. Ginseng treatment significantly decreased the number of TUNEL positive cells in the EO/KRG group as compared to the untreated infected animals [89.22 ± 3.71 (AI-1 in EO group) vs. 47.84 ± 0.96 (AI-1 in EO/KRG group), P≤0.001). AI-2, the number of TUNEL positive tubules, reduced significantly in the EO/KRG group (25.34 ± 0.46) as compared to the untreated EO animals (47.36 ± 1.11, P≤0.001).

Johnsen’s and Miller’s scores

According to Table 3, Johnsen’s score significantly decreased in the EO animals (6.95 ± 0.34, P≤0.001) as compared to the vehicle animals (9.3 ± 0.2). Concomitantly, Miller’s score showed that the average thickness of seminiferous layers in the EO group (3.04 ± 0.09) was significantly lower as compared to the vehicle group (P≤0.05). EO/KRG animals caused a significant increase in both Johnsen’s (P≤0.01) and Miller’s (P≤0.05) criteria. There were no significant differences in either the Miller’s or Johnsen’s criteria in the vehicle and KRG groups as compared to the control group.

Table 3.

Effect of EO and ginseng treatment according to Johnsen’s and Miller’ scores

Johnsen’s scores Number of germ cell layers
Control 8.87 ± 0.36 4.28 ± 0.23
vehicle 9.3 ± 0.20 4.13 ± 0.20
KRG 9.3 ± 0.14 4.15 ± 0.32
EO 6.90 ± 0.343 2.84 ± 0.351
EO/KRG 8.44 ± 0.372 4.06 ± 0.151
Open in a new tab

Each value represents mean ± SE. The vehicle and KRG groups were compared to the control group. The EO group was compared to the vehicle group. The EO/KRG group was compared to the EO group. KRG; Korean red ginseng, EO; Epididymo-orchitis, 1; P≤0.05, 2; P≤0.01, and 3; P≤0.001.

Tumor necrosis factor alpha concentration

TNF-α concentration did not significantly fluctuate in the experimental groups (Table 4).

Table 4.

Effect of EO and ginseng treatment on TNF-α concentration

Control Vehicle KRG EO EO/KPG
TNF-α concentration (pg/mL) 3.40 ± 1.05 2.77 ± 0.93 5.52 ± 0.93 4.83 ± 1.24 5.16 ± 0.98
Open in a new tab

Each value represents mean ± SE. TNF-α; Tumor necrosis factor alpha, EO; Epididymo-orchitis, and KRG; Korean red ginseng.

Fig.2.

Fig.2

Open in a new tab

Multiple adhesions of Escherichia coli to spermatozoa (×40 magnification).

Fig.3.

Fig.3

Open in a new tab

Representative analysis of germ cell apoptosis (TUNEL positive cells) in cross-sectioned testis of experimental groups. A. Control, B. Vehicle, C. KRG, D. EO/KRG, and E. EO groups (×40 magnification). Arrows indicate TUNEL positive cells. TUNEL; Terminal deoxynucleotidyl transferase dUTP nick end labeling, KRG; Korean red ginseng, and EO; Epididymo-orchitis.

Fig.4.

Fig.4

Open in a new tab

The effect of EO and ginseng treatment on the rat testicular germ cell apoptosis. Histogram represents the number of apoptotic cells per 100 tubules (AI-1) and the number of tubules that have positive cells per 100 tubules (AI-2). *; P≤0.001, KRG; Korean red ginseng, EO; Epididymo-orchitis, AI-1; Apoptotic index-1, and AI-2; Apoptotic index-2.

Discussion

This study evaluated the ameliorating effect of a seven-day ginseng treatment on the acute EO. Ginseng decreased the weight gain of the prostate and improved the percentage of normal sperm morphology, total sperm motility and sperm progressive motility in the animals induced by EO. The reduction of apoptotic indexes in the testis of ginseng treated EO rats was accompanied with an increase in both Johnsen’s and Miller’s criteria. Ginseng accepted as a modulator for body weight and sex organs weight. Although it has been shown that the saponin fraction of ginseng alleviates body weight loss in animals exposed to dioxin (24). In this study, a significant weight loss in EO animals in a seven-day treatment was not fully compensated by ginseng administration. Contrary to previous report (48), we observed no significant testicular weight loss in neither EO group nor KRG groups. Similarly, Hwang et al. showed that KRG did not affect testicular weight in aged rats (49). In our study, the relative weight of prostate and seminal vesicles increased in the EO group. Ginseng decreased prostate weight gain in EO animals. The putative role of ginseng in reducing prostate weight has also been reported by Fahim et al. (45) in intact animals. Since epididymitis or prostatic tissue inflammation depends on bacterial and nonbacterial processes (11, 50, 51), more research is needed to elucidate the probable antiinflammatory mechanism of ginseng with regard to the weight gain of accessory sex organs in acute EO.

Previous clinical and experimental studies have outlined the deleterious effects of pathogenic E-coli on spermatozoa parameters (48, 52, 53). Furthermore, different studies have shown the deleterious effects of experimental bacterial EO in rats such as morphological alterations, decreased motility and count of retrieved spermatozoa from the caudal part of epididymis (48, 54). E-coli have been shown to affect sperm morphology and motility parameters through different mechanisms. They can adhere to sperm cells and impair cellular integrity (52). Sperm immobilization factor (SIF) isolated from E-coli can also induce receptor-dependent immobilization of sperm (55). The presence of leukocytes in infected males can trigger these bacteria to produce reactive oxygen species (ROS) which can, in turn, serve as an intermediate in subsequent peroxidation of lipids in the sperm membrane (54). Previously, it has been shown that KRG increased the number mature sperm cells, the motility and the morphology of epididymal sperm under different experimental conditions (24). Probably, the protective effect of KRG on the sperm parameters may attribute to its antioxidant effects, ROS scavenging, and enhancement of the anti-oxidative defense system by attenuating free radical-induced damage caused by UPEC (28, 56).

In the present study, UPEC resulted in impairment of spermatogenesis through a reduction in Miller’s and Johnsen’s scores, and an increase in the apoptotic indices. It has been well-defined that inoculation of E-coli into the vas deferens, as a recognizable acute EO model, induces degeneration of germinal epithelial cells, tubular atrophy, moderate inflammation, mild interstitial fibrosis, subsequent testicular damage and DNA breakage of testicular germ cells in the seminiferous epithelium (48, 52-54). Oxidative stress and subsequent apoptosis of spermatozoa by UPEC infection is due to both invasion of germ cells by bacteria and the damage of other somatic cells or whole testicular milieu after bacteria elimination (42, 57). Our result showed that KRG improved Miller’s and Johnsen’s scores and apoptotic indices. The protective and anti- apoptotic effects of panax ginseng on the testicular germ cells have previously been reported in rats (21, 24) and rabbit testes (25) under different experimental conditions.

Apart from pivotal role of ginseng on spermatogenesis through increasing cAMP-responsive element modulator, mRNA and protein expression, its effect as an antioxidant on oxidative DNA and protein damages is attributed to its ability to elevate the levels of enzymatic and non-enzymatic antioxidants (43, 55-57) to reduce CYP1A1-mRNA in rat testes (17, 21) and to inhibit release of cytochrome C from mitochondria (19). Despite pro-inflammatory cytokines (IL-1α, IL-6 and TNF-α) synthesis in the infected epididymis and testis post UPEC incubation, immune response is ineffective against its persistent presence, and the inflammatory cytokines are also unable to release due to presence of virulence factors such as alpha-hemolysin (HlyA) (57). Similarly, our data showed that the lack of fluctuation levels of TNF-α seven days post-E-coli inoculation is most likely attributed to active suppression of the responsible signaling cascade in cytokine production in the testis (37). Since developing subsequent chronic inflammation is regulated by effective activation of other signaling pathways rather than viable bacteria (11), KRG may be postulated as a beneficial treatment due to its anti-inflammatory and immune-enhancer properties (38, 39). Nevertheless, other pro-inflammatory cytokines should be evaluated.

Conclusion

Our results indicated that KRG ameliorated the devastating effects of EO on sperm retrieved from either epididymis or testicle in rats. Consequently, KRG with anti-oxidative, anti-microbial, and antiapoptotic effects could probably be a beneficial adjuvant along with antibiotic treatment. Thus, we have begun a new project on the effects of KRG and antibiotics on EO.

Acknowledgments

This study was supported by a grant from the Zanjan University of Medical Sciences (ZUMS). The authors thank Mr. Hossein Hamzehei for his assistance with the bacterial cultures and Professor Andreas Meinhardt (Department of Anatomy and Cell Biology, Justus Liebig University Giessen, Germany) for his great comments in making EO model. The authors have no conflict of interest.

References

  • 1.Johnson JR, Scheutz F, Ulleryd P, Kuskowski MA, O'Bryan TT, Sandberg T. Host-pathogen relationships among Escherichia coli isolates recovered from men with febrile urinary tract infection. Clin Infect Dis. 2005;40(6):813–822. doi: 10.1086/428048. [DOI] [PubMed] [Google Scholar]
  • 2.Pellati D, Mylonakis I, Bertoloni G, Fiore C, Andrisani A, Ambrosini G, et al. Genital tract infections and infertility. Eur J Obstet Gynecol Reprod Biol. 2008;140(1):3–11. doi: 10.1016/j.ejogrb.2008.03.009. [DOI] [PubMed] [Google Scholar]
  • 3.Soto SM, Smithson A, Martinez JA, Horcajada JP, Mensa J, Vila J. Biofilm formation in uropathogenic Escherichia coli strains: relationship with prostatitis, urovirulence factors and antimicrobial resistance. J Urol. 2007;177(1):365–368. doi: 10.1016/j.juro.2006.08.081. [DOI] [PubMed] [Google Scholar]
  • 4.Wiles TJ, Kulesus RR, Mulvey MA. Origins and virulence mechanisms of uropathogenic Escherichia coli. Exp Mol Pathol. 2008;85(1):11–19. doi: 10.1016/j.yexmp.2008.03.007. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Rusz A, Pilatz A, Wagenlehner F, Linn T, Diemer T, Schuppe HC, et al. Influence of urogenital infections and inflammation on semen quality and male fertility. World J Urol. 2012;30(1):23–30. doi: 10.1007/s00345-011-0726-8. [DOI] [PubMed] [Google Scholar]
  • 6.Osegbe DN. Testicular function after unilateral bacterial epididymo-orchitis. Eur Urol. 1991;19(3):204–208. doi: 10.1159/000473620. [DOI] [PubMed] [Google Scholar]
  • 7.Weidner W, Krause W, Ludwig M. Relevance of male accessory gland infection for subsequent fertility with special focus on prostatitis. Hum Reprod Update. 1999;5(5):421–432. doi: 10.1093/humupd/5.5.421. [DOI] [PubMed] [Google Scholar]
  • 8.Schuppe HC, Meinhardt A, Allam JP, Bergmann M, Weidner W, Haidl G. Chronic orchitis: a neglected cause of male infertility? Andrologia. 2008;40(2):84–91. doi: 10.1111/j.1439-0272.2008.00837.x. [DOI] [PubMed] [Google Scholar]
  • 9.Comhaire FH, Mahmoud AM, Depuydt CE, Zalata AA, Christophe AB. Mechanisms and effects of male genital tract infection on sperm quality and fertilizing potential: the andrologist’s viewpoint. Hum Reprod Update. 1999;5(5):393–398. doi: 10.1093/humupd/5.5.393. [DOI] [PubMed] [Google Scholar]
  • 10.Fijak M, Meinhardt A. The testis in immune privilege. Immunol Rev. 2006;213:66–81. doi: 10.1111/j.1600-065X.2006.00438.x. [DOI] [PubMed] [Google Scholar]
  • 11.Ludwig M, Johannes S, Bergmann M, Failing K, Schiefer HG, Weidner W. Experimental Escherichia coli epididymitis in rats: a model to assess the outcome of antibiotic treatment. BJU Int. 2002;90(9):933–938. doi: 10.1046/j.1464-410x.2002.03029.x. [DOI] [PubMed] [Google Scholar]
  • 12.Nagaosa K, Nakashima C, Kishimoto A, Nakanishi Y. Immune response to bacteria in seminiferous epithelium. Reproduction. 2009;137(5):879–888. doi: 10.1530/REP-08-0460. [DOI] [PubMed] [Google Scholar]
  • 13.Min JK, Kim JH, Cho YL, Maeng YS, Lee SJ, Pyun BJ, et al. 20(S)-Ginsenoside Rg3 prevents endothelial cell apoptosis via inhibition of a mitochondrial caspase pathway. Biochem Biophys Res Commun. 2006;349(3):987–994. doi: 10.1016/j.bbrc.2006.08.129. [DOI] [PubMed] [Google Scholar]
  • 14.Van Kampen J, Robertson H, Hagg T, Drobitch R. Neuroprotective actions of the ginseng extract G115 in two rodent models of Parkinson’s disease. Exp Neurol. 2003;184(1):521–529. doi: 10.1016/j.expneurol.2003.08.002. [DOI] [PubMed] [Google Scholar]
  • 15.Loo WT, Cheung MN, Chow LW. The inhibitory effect of a herbal formula comprising ginseng and carthamus tinctorius on breast cancer. Life Sci. 2004;76(2):191–200. doi: 10.1016/j.lfs.2004.06.021. [DOI] [PubMed] [Google Scholar]
  • 16.Khalil WK, Ahmed KA, Park MH, Kim YT, Park HH, AbdelWahhab MA. The inhibitory effects of garlic and Panax ginseng extract standardized with ginsenoside Rg3 on the genotoxicity, biochemical, and histological changes induced by ethylenediaminetetraacetic acid in male rats. Arch Toxicol. 2008;82(3):183–195. doi: 10.1007/s00204-007-0237-y. [DOI] [PubMed] [Google Scholar]
  • 17.Kang KS, Kim HY, Pyo JS, Yokozawa T. Increase in the free radical scavenging activity of ginseng by heat-processing. Biol Pharm Bull. 2006;29(4):750–754. doi: 10.1248/bpb.29.750. [DOI] [PubMed] [Google Scholar]
  • 18.Yang WM, Park SY, Kim HM, Park EH, Park SK, Chang MS. Effects of Panax ginseng on glial cell-derived neurotrophic factor (GDNF) expression and spermatogenesis in rats. Phytother Res. 2011;25(2):308–311. doi: 10.1002/ptr.3239. [DOI] [PubMed] [Google Scholar]
  • 19.Park WS, Shin DY, Kim do R, Yang WM, Chang MS, Park SK, et al. Korean ginseng induces spermatogenesis in rats through the activation of cAMP-responsive element modulator (CREM) Fertil Steril. 2007;88(4):1000–1002. doi: 10.1016/j.fertnstert.2006.12.014. [DOI] [PubMed] [Google Scholar]
  • 20.Kim IH, Kim SK, Kim EH, Kim SW, Sohn SH, Lee SC, et al. Korean Red Ginseng Up-regulates C21-Steroid Hormone Metabolism via Cyp11a1 Gene in Senescent Rat Testes. J Ginseng Res. 2011;35(3):272–282. doi: 10.5142/jgr.2011.35.3.272. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 21.Lee JH, Sul D, Oh E, Jung WW, Hwang KW, Hwang TS, et al. Panax ginseng effects on DNA damage, CYP1A1 expression and histopathological changes in testes of rats exposed to 2,3,7,8-tetrachlorodibenzo-p-dioxin. Food Chem Toxicol. 2007;45(11):2237–2244. doi: 10.1016/j.fct.2007.05.019. [DOI] [PubMed] [Google Scholar]
  • 22.Park WH, Chang MS, Yang WM, Bae H, Kim NI, Park SK. Cytoprotective effect of Panax ginseng on gallic acidinduced toxicity in TM3 mouse Leydig cells. Fitoterapia. 2007;78(7-8):577–579. doi: 10.1016/j.fitote.2007.03.019. [DOI] [PubMed] [Google Scholar]
  • 23.Hwang SY, Kim WJ, Wee JJ, Choi JS, Kim SK. Panax ginseng improves survival and sperm quality in guinea pigs exposed to 2,3,7,8-tetrachlorodibenzop-dioxin. BJU Int. 2004;94(4):663–668. doi: 10.1111/j.1464-410X.2004.05019.x. [DOI] [PubMed] [Google Scholar]
  • 24.Park JS, Hwang SY, Lee WS, Yu KW, Paek KY, Hwang BY, et al. The therapeutic effect of tissue cultured root of wild Panax ginseng C.A.Mayer on spermatogenetic disorder. Arch Pharm Res. 2006;29(9):800–807. doi: 10.1007/BF02974082. [DOI] [PubMed] [Google Scholar]
  • 25.Tsai SC, Chiao YC, Lu CC, Wang PS. Stimulation of the secretion of luteinizing hormone by ginsenoside-Rb1 in male rats. Chin J Physiol. 2003;46(1):1–7. [PubMed] [Google Scholar]
  • 26.Chen JC, Chen LD, Tsauer W, Tsai CC, Chen BC, Chen YJ. Effects of Ginsenoside Rb2 and Rc on inferior human sperm motility in vitro. Am J Chin Med. 2001;29(1):155–160. doi: 10.1142/S0192415X01000174. [DOI] [PubMed] [Google Scholar]
  • 27.Zhang H, Zhou Q, Li X, Zhao W, Wang Y, Liu H, et al. Ginsenoside Re promotes human sperm capacitation through nitric oxide-dependent pathway. Mol Reprod Dev. 2007;74(4):497–501. doi: 10.1002/mrd.20583. [DOI] [PubMed] [Google Scholar]
  • 28.Jang DJ, Lee MS, Shin BC, Lee YC, Ernst E. Red ginseng for treating erectile dysfunction: a systematic review. Br J Clin Pharmacol. 2008;66(4):444–450. doi: 10.1111/j.1365-2125.2008.03236.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 29.Hong B, Ji YH, Hong JH, Nam KY, Ahn TY. A double-blind crossover study evaluating the efficacy of korean red ginseng in patients with erectile dysfunction: a preliminary report. J Urol. 2002;168(5):2070–2073. doi: 10.1016/S0022-5347(05)64298-X. [DOI] [PubMed] [Google Scholar]
  • 30.Murphy LL, Lee TJ. Ginseng, sex behavior, and nitric oxide. Ann N Y Acad Sci. 2002;962:372–377. doi: 10.1111/j.1749-6632.2002.tb04081.x. [DOI] [PubMed] [Google Scholar]
  • 31.Choi HK, Seong DH, Rha KH. Clinical efficacy of Korean red ginseng for erectile dysfunction. Int J Impot Res. 1995;7(3):181–186. [PubMed] [Google Scholar]
  • 32.Kim SD, Kim YJ, Huh JS, Kim SW, Sohn DW. Improvement of erectile function by Korean red ginseng (Panax ginseng) in a male rat model of metabolic syndrome. Asian J Androl. 2013;15(3):395–399. doi: 10.1038/aja.2012.159. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 33.Salvati G, Genovesi G, Marcellini L, Paolini P, De Nuccio I, Pepe M, et al. Effects of Panax Ginseng C.A.Meyer saponins on male fertility. Panminerva Med. 1996;38(4):249–54. [PubMed] [Google Scholar]
  • 34.Kang J, Lee Y, No K, Jung E, Sung J, Kim Y, et al. Ginseng intestinal metabolite-I (GIM-I) reduces doxorubicin toxicity in the mouse testis. Reprod Toxicol. 2002;16(3):291–298. doi: 10.1016/s0890-6238(02)00021-7. [DOI] [PubMed] [Google Scholar]
  • 35.Zhang H, Zhou QM, Li XD, Xie Y, Duan X, Min FL, et al. Ginsenoside R(e) increases fertile and asthenozoospermic infertile human sperm motility by induction of nitric oxide synthase. Arch Pharm Res. 2006;29(2):145–151. doi: 10.1007/BF02974276. [DOI] [PubMed] [Google Scholar]
  • 36.Schuppe HC, Meinhardt A. Immune privilege and inflammation of the testis. Chem Immunol Allergy. 2005;88:1–14. doi: 10.1159/000087816. [DOI] [PubMed] [Google Scholar]
  • 37.Bhushan S, Tchatalbachev S, Klug J, Fijak M, Pineau C, Chakraborty T, et al. Uropathogenic Escherichia coli block MyD88-dependent and activate MyD88-independent signaling pathways in rat testicular cells. J Immunol. 2008;180(8):5537–5547. doi: 10.4049/jimmunol.180.8.5537. [DOI] [PubMed] [Google Scholar]
  • 38.Du XF, Jiang CZ, Wu CF, Won EK, Choung SY. Synergistic immunostimulating activity of pidotimod and red ginseng acidic polysaccharide against cyclophosphamide-induced immunosuppression. Arch Pharm Res. 2008;31(9):1153–1159. doi: 10.1007/s12272-001-1282-6. [DOI] [PubMed] [Google Scholar]
  • 39.Gao H, Wang F, Lien EJ, Trousdale MD. Immunostimulating polysaccharides from Panax notoginseng. Pharm Res. 1996;13(8):1196–1200. doi: 10.1023/a:1016060119425. [DOI] [PubMed] [Google Scholar]
  • 40.Hess FG Jr, Parent RA, Stevens KR, Cox GE, Becci PJ. Effects of subchronic feeding of ginseng extract G115 in beagle dogs. Food Chem Toxicol. 1983;21(1):95–97. doi: 10.1016/0278-6915(83)90275-2. [DOI] [PubMed] [Google Scholar]
  • 41.Lu Y. Uropathogenic Escherichia coli (UPEC) cause impairment of spermatogenesis by inducing programmed necrosis.Presented for the Ph.D. Giessen: Justus Liebig University; 2011. [Google Scholar]
  • 42.Vieler E, Jantos C, Schmidts HL, Weidner W, Schiefer HG. Comparative efficacies of ofloxacin, cefotaxime, and doxycycline for treatment of experimental epididymitis due to Escherichia coli in rats. Antimicrob Agents Chemother. 1993;37(4):846–850. doi: 10.1128/aac.37.4.846. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 43.Liou CJ, Li ML, T seng J. Intraperitoneal injection of ginseng extract enhances both immunoglobulin and cytokine production in mice. Am J Chinese Med. 2004;32(1):75–88. doi: 10.1142/S0192415X04001771. [DOI] [PubMed] [Google Scholar]
  • 44.Becker LC, Bergfeld WF, Belsito DV, Hill RA, Klaassen CD, Liebler DC, et al. Safety assessment of Panax spp root-derived ingredients as used in cosmetics. Int J Toxicol. 2015;34(3 Suppl):5S–42S. doi: 10.1177/1091581815610508. [DOI] [PubMed] [Google Scholar]
  • 45.Fahim MS, Fahim Z, Harman JM, Clevenger TE, Mullins W, Hafez ES. Effect of Panax ginseng on testosterone level and prostate in male rats. Arch Androl. 1982;8(4):261–263. doi: 10.3109/01485018208990207. [DOI] [PubMed] [Google Scholar]
  • 46.Shokri S, Aitken RJ, Abdolvahhabi M, Abolhasani F, Ghasemi FM, Kashani I, et al. Exercise and supraphysiological dose of nandrolone decanoate increase apoptosis in spermatogenic cells. Basic Clin Pharmacol Toxicol. 2010;106(4):324–330. doi: 10.1111/j.1742-7843.2009.00495.x. [DOI] [PubMed] [Google Scholar]
  • 47.Miller DC, Peron SE, Keck RW, Kropp KA. Effects of hypothermia on testicular ischemia. J Urol. 1990;143(5):1046–1048. doi: 10.1016/s0022-5347(17)40180-7. [DOI] [PubMed] [Google Scholar]
  • 48.Demir A, Turker P, Onol FF, Sirvanci S, Findik A, Tarcan T. Effect of experimentally induced Escherichia coli epididymo-orchitis and ciprofloxacin treatment on rat spermatogenesis. Int J Urol. 2007;14(3):268–272. doi: 10.1111/j.1442-2042.2007.01682.x. [DOI] [PubMed] [Google Scholar]
  • 49.Hwang SY, Sohn SH, Wee JJ, Yang JB, Kyung JS, Kwak YS, et al. Panax ginseng improves senile testicular function in rats. J Ginseng Res. 2010;34(4):327–335. [Google Scholar]
  • 50.Tanaka K, Fujisawa M, Arakawa S, Kamidono S. Local expression of cytokine messenger RNA in rat model of Escherichia coli epididymitis. J Urol. 1995;154(6):2179–2184. [PubMed] [Google Scholar]
  • 51.Diemer T, Huwe P, Michelmann HW, Mayer F, Schiefer HG, Weidner W. Escherichia coli-induced alterations of human spermatozoa.An electron microscopy analysis. Int J Androl. 2000;23(3):178–186. doi: 10.1046/j.1365-2605.2000.00224.x. [DOI] [PubMed] [Google Scholar]
  • 52.Diemer T, Weidner W, Michelmann HW, Schiefer HG, Rovan E, Mayer F. Influence of Escherichia coli on motility parameters of human spermatozoa in vitro. Int J Androl. 1996;19(5):271–277. doi: 10.1111/j.1365-2605.1996.tb00475.x. [DOI] [PubMed] [Google Scholar]
  • 53.Fraczek M, Szumala-Kakol A, Jedrzejczak P, Kamieniczna M, Kurpisz M. Bacteria trigger oxygen radical release and sperm lipid peroxidation in in vitro model of semen inflammation. Fertil Steril. 2007;88(4 Suppl):1076–1085. doi: 10.1016/j.fertnstert.2006.12.025. [DOI] [PubMed] [Google Scholar]
  • 54.Kumar V, Prabha V, Kaur S, Kaur K, Singh SK. Receptor dependent immobilization of spermatozoa by sperm immobilization factor isolated from Escherichia coli: proof of evidence. Int J Urol. 2011;18(8):597–603. doi: 10.1111/j.1442-2042.2011.02784.x. [DOI] [PubMed] [Google Scholar]
  • 55.Han JY, Ahn SY, Oh EH, Nam SY, Hong JT, Oh KW, et al. Red ginseng extract attenuates kainate-induced excitotoxicity by antioxidative effects. Evid Based Complement Alternat Med. 2012;2012:479016–479016. doi: 10.1155/2012/479016. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 56.Bhushan S, Schuppe HC, Tchatalbachev S, Fijak M, Weidner W, Chakraborty T, et al. Testicular innate immune defense against bacteria. Mol Cell Endocrinol. 2009;306(12):37–44. doi: 10.1016/j.mce.2008.10.017. [DOI] [PubMed] [Google Scholar]
  • 57.Zhang QH, Wu CF, Duan L, Yang JY. Protective effects of total saponins from stem and leaf of Panax ginseng against cyclophosphamide-induced genotoxicity and apoptosis in mouse bone marrow cells and peripheral lymphocyte cells. Food Chem Toxicol. 2008;46(1):293–302. doi: 10.1016/j.fct.2007.08.025. [DOI] [PubMed] [Google Scholar]
