Abstract

Cancer-targeting alkylphosphocholine (APC) analogs are being clinically developed for diagnostic imaging, intraoperative visualization, and therapeutic applications. These APC analogs derived from chemically-synthesized phospholipid ethers were identified and optimized for cancer-targeting specificity using extensive structure-activity studies. While they strongly label human brain cancers associated with disrupted blood-brain barriers (BBB), APC permeability across intact BBB remains unknown. Three of our APC analogs, CLR1404 (PET radiotracer), CLR1501 (green fluorescence), and CLR1502 (near infrared fluorescence), were tested for permeability across a BBB model composed of human induced pluripotent stem cell-derived brain microvascular endothelial cells (iPSC-derived BMECs). This in vitro BBB system has reproducibly consistent high barrier integrity marked by high transendothelial electrical resistance (TEER>1500 Ω-cm2) and functional expression of drug efflux transporters. Our radioiodinated and fluorescent APC analogs demonstrated fairly low permeability across the iPSC-BMEC (35±5.7 (CLR1404), 54±3.2 (CLR1501), and 26±4.9 (CLR1502) ×10−5 cm/min) compared with BBB-impermeable sucrose (13±2.5) and BBB-permeable diazepam (170±29). Only our fluorescent APC analogs (CLR1501, CLR1502) underwent BCRP and MRP polarized drug efflux transport in the brain-to-blood direction of the BBB model and this efflux can be specifically blocked with pharmacological inhibition. None of our tested APC analogs appeared to undergo substantial P-gp transport. Limited permeability of our APC analogs across an intact BBB into normal brain likely contributes to the high tumor to background ratios observed in initial human trials. Moreover, addition of fluorescent moieties to APCs resulted in greater BMEC efflux via MRP and BCRP, and may affect fluorescence-guided applications. Overall, the characterization of APC analog permeability across human BBB is significant for advancing future brain tumor-targeted applications of these agents.

Keywords: alkylphosphocholine analogs, blood-brain barrier, brain microvascular endothelial cells, induced pluripotent stem cells

Graphical Abstract

graphic file with name nihms804541u1.jpg

INTRODUCTION

Efficient treatment for central nervous system (CNS) tumors is a large unmet clinical need. Approximately 25,000 new primary malignant brain tumors are annually diagnosed in the United States, accounting for 1.4% of all cancer-related deaths and the second leading cause of death in pediatric cancers1, 2. Glioblastoma (GBM) is the most frequently diagnosed primary adult brain tumor that confers a median survival of less than two years despite maximal surgery, temozolomide chemotherapy, and radiation3. Furthermore, brain metastases from other cancer types such as melanoma, breast, and lung are approximately ten times more prevalent than primary CNS tumors in adults, and often herald advanced cancer stages due to limited effective treatments 4. Chemotherapeutic delivery to brain neoplasms is hampered by the presence of the blood-brain barrier (BBB), formed by specialized brain microvascular endothelial cells (BMECs) and surrounded by other cells of the neurovascular unit including astrocytes, pericytes, and neurons 5, 6. At the BBB, BMECs incorporating specific tight junction proteins form a “tight” barrier defined by high trans-endothelial electrical resistance (TEER)5, 6 and low paracellular permeability to water and hydrophilic solutes. Additionally, the physical barrier function is augmented by the presence of an active functional barrier due to multiple types of drug efflux pumps including breast cancer resistance protein (BCRP), multidrug resistance proteins (MRPs) and p-glycoprotein (P-gp) at the BMEC interface that limit diffusion of small lipophilic molecules into the CNS 5, 7, 8.

Historically, the blood-brain tumor vasculature is described as ‘leaky’ due to immature or disrupted BBB vasculature9–13. However, recent studies demonstrated intra- and inter-tumoral heterogeneity of BBB properties both in primary gliomas13 and metastases11, with different tumor regions exhibiting variable and sometimes highly restricted drug permeability13–16. Additionally, gliomas notoriously infiltrate normal brain parenchyma with intact BBB, making complete surgical resection very difficult and highlighting the need for more effective chemotherapeutic agents or delivery approaches that cross intact BBB13.

Cancer-targeting alkylphosphocholine (APC) analogs were recently described as tumor-specific labels for a broad range of cancer types including gliomas and brain metastases in cultured cell lines, preclinical models, and human cancer patients17, 18. The observation that naturally occurring phospholipid ethers (PLEs) selectively accumulate in human cancer cells compared to normal tissue 19–21 prompted our group to examine structural activity relationships for radioiodinated aryl PLEs and a subset of APC derivatives to determine how their molecular structures affected tumor retention. From these studies, we found that the glycerol backbone was not required for tumor avidity in glycerol-derived PLE analogs, the alkyl chain must contain >11 methylene groups, and the position of iodine on the phenyl ring did not influence tumor uptake or specificity 22–25. Ultimately, the APC molecular backbone named CLR1404 [18-(p-iodophenyl) octadecylphosphocholine] (Figure 1A) was identified as the best cancer-targeting APC analog exhibiting both tumor-specific uptake and long-term retention. CLR1404 can be labeled with iodine radioisotopes for positron emission tomography (PET) imaging (124I isotope) or radiotherapy (131I or 125I isotopes)17. For this APC analog, the iodine can also be replaced with fluorescent moieties (green fluorescent CLR1501 or near infrared CLR1502) to yield similar tumor selectivity and retention, enabling potential intra-operative applications to improve tumor cell visualization and surgical resection18. All APC analogs exhibit particularly high tumor to normal brain ratios in vivo17, 18 that is promising for brain tumor applications. However, BBB permeability properties of APC analogs are currently unknown.

Figure 1.

Figure 1

Open in a new tab

Biochemical properties and permeability of APC analogs across iPSC-BBB transwell system. (A) APC analog chemical structures. (B) APC analog octanol/water distribution coefficients (LogD), both calculated (cLogD) and experimental (LogD pH 7.4). a: from reference 32. (C) Experimental setup to determine APC analog in vitro BBB permeability (Pe) values. (D) APC analog permeability of analogs compared with impermeable sucrose and highly permeable diazepam. (mean±S.E., n≥3 independent BMEC differentiation replicates, *: p<0.05 or n.s.=not significant by ANOVA followed by post-hoc Games-Howell tests).

In the current study, we used our recently described human induced pluripotent stem cell (iPSC) derived BMECs as an in vitro BBB model26, 27 to analyze and characterize the BBB permeability profiles of our APC analogs. The iPSC-derived BMECs exhibit well-developed BBB-BMEC tight junctions and a correspondingly high TEER with functionally polarized drug efflux transporters. Together, these properties have yielded in vitro permeability measurements for a cohort of small molecules that correlate to in vivo observations 26, 27. Permeability measurements with the APC analogs indicated a similar intermediate permeability across the in vitro BBB for all compounds; whereas efflux transporter activity was only observed for fluorescent APC analogs. These results suggest that limited BBB permeability of APC analogs may contribute to low APC uptake and retention in the normal brain parenchyma observed clinically, and that moieties added to the APC backbone can significantly affect BBB permeability.

MATERIALS AND METHODS

Chemicals

The APC analogs CLR1404, CLR1501 and CLR1502 were provided by Cellectar Biosciences, Inc. (Madison, WI, USA). These APC analogs consist of a cancer-targeting alkylphosphocholine scaffold with an attached cancer imaging, visualization or therapeutic moiety (refs 17, 18, 25, 28 and Figure 1): iodine isotopes for CLR1404; 4,4-difluoro-4-bora-3a,4a-diaza-s-indacene (i.e. BODIPY, green fluorescence) for CLR1501; and 2-[2-[2-Chloro-3-[2-(1,3-dihydro-1,3,3-trimethyl-2H-indol-2-ylidene)-ethylidene]-1-cyclohexen-1-yl]-ethenyl]-1,3,3-trimethyl-3H-indolium chloride (i.e. IR-775, near infrared fluorescence) for CLR1502. Pharmacological cellular efflux transporter inhibitors were purchased: PSC833 and Ko143 from Tocris Biosciences, and MK571 from Sigma-Aldrich (St. Louis, MO, USA). [14C]-sucrose and [3H]-diazepam were purchased from American Radiolabeled Chemicals (St Louis, MO, USA).

LogD determination

For APC analogs CLR1404 (MW=637.6 g/mol), CLR1501 (MW=701.7 g/mol), and CLR1502 (MW=994.8 g/mol), the SMILES sequences were determined using ChemDraw Pro 13.0 (Perkin-Elmer, Waltham, MA), and calculated LogD (cLogD) was calculated using the ALOGPs 2.1 algorithm29, 30. Experimental LogD (pH 7.4) values were obtained by adding 124I-CLR1404, CLR1501, and CLR1502 to octanol followed by equilibration overnight. Equal volumes of buffer (pH 7.4) were added and the mixture was rotated at room temperature shielded from light for 48 hrs. The octanol and water phases were separated, and then analyzed using the gamma counter (Wizard2 Automatic Gamma Counter, Perkin Elmer, Waltham, MA) for 124I-CLR1404 or Safire II (Tecan Group Ltd, Männedorf, Switzerland) for CLR1501 and CLR1502 to determine relative concentrations. Finally, the octanol:water partition coefficients were calculated31. LogD values for diazepam and sucrose were obtained from the literature32.

Differentiation of iPSC into BMEC

BMECs were differentiated from iPSCs following protocols previously established by our group26, 27. IMR90-c4 iPSC cell line33 was purchased from WiCell (Madison, WI) and passaged on 6-well tissue culture plates (Corning, Corning, NY) coated with 84 μg/mL of growth-factor reduced Matrigel® (BD Biosciences) and grown in mTeSR1 (Stem Cell Technologies, Vancouver, BC). Cells were fed on a daily basis. After 3–4 days in mTeSR medium, cells were switched to a unconditioned medium (UM): 50:50 Dulbecco’s Modified Eagle Medium: F12 (Gibco, Life Technologies, Carlsbad, CA), 15mM HEPES (Sigma-Aldrich, St Louis, MO), 20% knockout serum replacement (Life Technologies), 1% non-essential amino acids (Life Technologies), 0.5 mM GlutaMax (Life Technologies) and 0.1mM β-mercaptoethanol (Sigma-Aldrich). Cell medium was changed daily for 6 consecutive days. The BMEC population was further enriched by replacing the incubation medium with endothelial cell (EC) medium: human endothelial cell serum-free medium (Gibco), 20 ng/mL basic fibroblast growth factor (bFGF, R&D Systems, Minneapolis, MN), 1% platelet-poor derived bovine serum (PDS, Biotechnologies Inc, Boston, MA) and 10 μM retinoic acid (RA) for 48 hours. Following endothelial cell enrichment, cells were dissociated using Accutase (Stempro, Life Technologies) for 30 minutes and seeded onto Transwell® polycarbonate inserts (1.12cm2 surface area) coated with 0.4 mg/mL human collagen from human placenta (Sigma) and 0.1 mg/mL bovine fibronectin (Sigma). After allowing 24 hr attachment, medium was removed from the insert and replaced with EC medium without bFGF and RA. Experiments were carried out 48 hours after plating transwell monolayers.

Differentiation of iPSCs to BMECs was verified using immunocytochemistry, as previously described26, 27. Briefly, cells were fixed in either 100% ice-cold methanol or 4% paraformaldehyde, rinsed with PBS, and blocked for 30 min with either 10 or 40% goat serum (Sigma) in PBS. Particularly for p-glycoprotein and MRP1 immunolabeling, it is important to note that methanol-fixed cells are permeabilized during fixation. Cells were incubated with primary antibody diluted in 10% or 40% goat serum overnight at 4°C, rinsed, and then incubated with goat anti-mouse or anti-rabbit Alexa Fluor 488 (1:200; Life Technologies) in 10 or 40% goat serum. Cell nuclei were counterstained with 4′,6-Diamidino-2-pheny-lindoldihydrochloride (DAPI; Sigma). Primary antibodies used: PECAM-1 (Thermo Fisher, polyclonal, 1:25), Claudin-5 (Invitrogen, clone 4C3C2, 1:50), Occludin (Invitrogen, clone OC-3F10, 1:200), ZO-1 (Invitrogen, polyclonal, 1:100), VE-Cadherin (Santa Cruz Biotechnology, clone F-8, 1:25), BCRP (Millipore, clone 5D3, 1:50), MRP1 (Millipore, clone QCRL-1, 1:25), and p-glycoprotein (Neomarkers, clone F4, 1:25). Mouse IgG (BD Biosciences, clone HOPC-1) was used as immunolabeling isotype control.

APC analog permeability studies

BMEC transwell monolayer tightness was assessed by measuring transendothelial electrical resistance (TEER) using a chopstick electrode EVOM2 system (World Precision Instruments, Sarasota, FL), and high tightness (>1500 Ω-cm2) verified prior to permeability experiments. EC medium was replaced with PM20 medium (50:50 DMEM:F12+B27 supplement+1% antibiotics+20 ng/ml each of EGF and bFGF) and allowed to equilibrate with the monolayers for 60 minutes, and TEER measured again. APC analogs or control compounds ([14C]-sucrose and [3H]-diazepam) were then added to PM20 medium and allowed to diffuse across the monolayers for 2 hours. At the end of the experiment, barrier integrity was assessed by TEER to verify no significant decrease for experimental duration. Control compounds [14C]-sucrose and [3H]-diazepam were diluted in PM20 medium at a dilution of 0.4 μCi/mL. For absolute permeability analyses, each APC analog was diluted to 1 μM in PM20. For comparative analyses (i.e. temperature, polarity, and inhibitor experiments), the following APC analog concentrations were used that optimized equipment and compound sensitivity and reproducibility: CLR1404 at 5–10 μCi/mL (average 0.3 μM), CLR1501 at 10 μg/mL (14 μM), and CLR1502 at 1 μg/mL (1.0 μM). At 30, 60, 90 and 120 minutes interval, an aliquot of 100 μL from the bottom chamber was collected and replaced by an equal volume of fresh PM20 medium. Fluorescence of CLR1501 and CLR1502 was assessed using a Safire II (Tecan Group Ltd, Männedorf, Switzerland). Radioactivity was measured using a TRICARB-PACKARD β-counter (Perkin-Elmer, Waltham, MA) or gamma-counter (Wizard2 Automatic Gamma Counter, Perkin Elmer, Waltham, MA). Permeability values were calculated as previously described34. Clearance volumes were plotted as a function of time and linear regression used to determine a clearance rate denoted PSt for iPSC-derived BMEC coated filters and PSf for cell-free collagen-fibronectin coated filters. The PS value ascribed to the BMEC monolayer denoted PSe was subsequently calculated using 1/PSe=(1/Psf)−(1/PSt). Finally, the permeability, Pe (cm/min), was calculated by dividing by the surface area, S, of the filter Pe=PSe/S.

Inhibition studies

Pharmacological inhibition experiments were carried out by pre-incubating BMEC monolayers for 60 mins with 1 μM PSC833 (P-gp inhibitor), 1 μM Ko143 (BCRP inhibitor) or 10 μM MK571 (pan-MRP inhibitor) in EC medium. Inhibition was maintained during the permeability experiments by adding these inhibitors at the same concentration in the PM20 medium. Otherwise permeability experiments were performed exactly as described above.

Statistical analysis

All data in this study were expressed as mean ± s.e.m. of at least three independent experiments. For comparison of two groups, a two-tailed unpaired Student’s t-test was used. With multiple experimental groups, a normal data distribution was verified and then analysis of variance (ANOVA) performed to determine statistical differences. Post-hoc comparisons were performed upon ANOVA significance to look for specific differences between groups: Tukey test if equal sample sizes and similar population variance or Games-Howell if unequal sample sizes and high population variance35. Statistical significance was defined as p<0.05. Statistics were determined using SPSS (version 22, IBM, Armonk, New York).

RESULTS

iPSC-derived BMECs

Following our established protocols26, 27, BMECs were differentiated from iPSCs (Figure 2). Differentiated BMECs exhibited high barrier properties that increased to a maximum 48 hours after seeding onto Transwell inserts as measured by TEER (1500±85 Ω-cm2, Figure 2A). As previously described, iPSC-derived BMECs expressed endothelial proteins including PECAM-1 and VE-cadherin. In addition, they expressed BBB tight junction proteins ZO-1, Claudin-5, and Occludin and BBB efflux transporters including BCRP, MRP1 and P-gp (Figure 2B–J). APC analog permeability studies were performed using these iPSC-derived BMECs.

Figure 2.

Figure 2

Open in a new tab

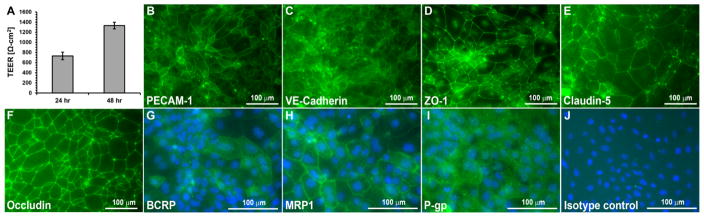

Characteristics of iPSC-derived BMECs. (A) iPSC-derived BMECs exhibit barrier tightening from 24 to 48 hrs as measured by TEER. Shown are data for a single iPSC differentiation to BMECs, n=3 Transwell filters. Average 48 hr TEER values across all experiments are denoted in the text. (B) iPSC-derived BMECs express BMEC proteins such as PECAM-1, (C) VE-Cadherin, (D) ZO-1, (E) Claudin-5, and (F) Occludin. iPSC-derived BMECs also express efflux transporters (G) BCRP, (H) MRP1, and (I) P-gp. (J) Isotype control antibody for efflux transporter immunostaining. In panels G–J, cell nuclei are labeled with DAPI (blue) to indicate the location of cells. Scale bar is 100 μm.

Biophysical characterization and BMEC permeability of APC analogs

The APC analogs CLR1404, CLR1501, and CLR1502 (Figure 1A) were first characterized for octanol:water partition coefficients (logD, pH7.4) and BBB-BMEC diffusion properties. Since it is highly lipophilic and not an efflux transport substrate, diazepam was used as a highly BBB-permeable control. Conversely, sucrose was used as a BBB-impermeable control because of its hydrophilicity and lack of brain-specific uptake mechanism26, 32. All APC analogs exhibited high lipophilicity demonstrated by positive calculated logD (cLogD) and experimentally determined LogD values (Figure 1B). Notably, fluorescently-tagged APC analogs CLR1501 and CLR1502 demonstrated greater than 2-fold increased LogD values compared to parent CLR1404 in experimentally determined samples.

Next, the permeability of APC analogs across the iPSC-derived in vitro BBB was analyzed using a Transwell system 26, 27 (Figure 1C), and compared to diazepam and sucrose permeabilities 26, 32. All APC analogs demonstrated intermediate permeability across BBB-BMECs, with values substantially lower than diazepam but still 2–4 fold higher than impermeable sucrose (CLR1404: 35±5.7; CLR1501: 54±3.2; CLR1502: 26±4.9; Diazepam: 170±29; Sucrose: 13±2.5; all values expressed as ×10−5 cm/min, p<0.05) (Figure 1D). In addition, CLR1404 and CLR1501 are of similar molecular weight and have similar intermediate permeability despite substantial differences in lipophilicity. CLR1501 and CLR1502 have the same high lipophilicity with CLR1502 having a higher molecular weight, and a 2-fold reduced permeability (p<0.05) (Figure 1D). These initial APC analog experiments suggested more complex permeability mechanisms than just simple diffusion, and therefore analysis of active cellular processes mediated by efflux transporters were undertaken.

Regulation of APC analog permeability by active cellular mechanisms

Next, the role of active mechanisms in regulating BBB penetration by APC analogs was examined. First, the impact of temperature was examined to determine the possible effects of active cellular uptake and/or efflux36–38 (Figure 3A). A shift to 4°C to curtail active uptake and efflux mechanisms resulted in a slight, but statistically insignificant, increase in BBB permeability for the parent APC analog CLR1404, suggesting that its BBB permeability is largely driven by diffusive mechanisms. Conversely, CLR1501 and CLR1502 fluorescent APC analogs demonstrated significantly higher in vitro BBB permeability at 4°C compared to cells incubated at 37°C (Figure 3A, p<0.05), suggesting a significant role for active efflux.

Figure 3.

Figure 3

Open in a new tab

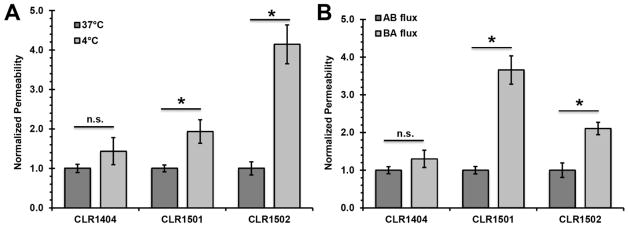

Examination of temperature and directional dependence of APC analog permeability. (A) CLR permeability was determined at 4°C and 37°C. Permeability values were independently normalized to the 37°C condition for each analog (mean±S.E., n≥3 independent BMEC differentiation replicates, *p<0.05 or n.s.=not significant compared to 37°C by Student’s t-test). (B) Basolateral to apical (BA) and apical to basolateral (AB) permeabilities were measured and independently normalized to the AB permeability for each analog (mean±S.E., n≥3 independent BMEC differentiation replicates, *p<0.05 or n.s.=not significant compared to AB flux by Student’s t-test).

If active efflux plays a role, one would also expect a polarized permeability profile. Thus, the basolateral-apical (BA) and apical-basolateral (AB) APC analog fluxes were compared to evaluate contributions of efflux mechanisms (Figures 1C and 3B). CLR1404 showed no significant evidence of polarized efflux demonstrated by influx (AB) compared to efflux (BA). In agreement with the temperature-dependent permeability profiles, CLR1501 and CLR1502 displayed an active efflux mechanism demonstrated by significantly polarized flux in the brain-to-blood (BA) direction (Figure 3B, p<0.05). Taken together, the temperature dependence and polarized flux experiments demonstrated active cellular efflux mechanisms for CLR1501 and CLR1502, whereas CLR1404 is largely governed by diffusive mechanisms.

Efflux transporter substrate profiles of APC analogs

Given the putative efflux profiles for CLR1501 and CLR1502, we evaluated the potential involvement of the BBB drug efflux transporters breast cancer resistance protein (BCRP), multidrug resistance proteins (MRPs), and p-glycoprotein (P-gp) that are expressed in the iPSC-derived BMEC model (Figure 2G–2I). As previously described, efflux transporter activity in the iPSC-derived BMECs can be examined by employing specific pharmacological inhibitors Ko143, MK571, and PSC833 to inhibit BCRP, MRPs, and P-gp, respectively (Figure 4A)26, 27. Consistent with the results in Figure 3 regarding the apparent lack of active cellular mechanisms regulating CLR1404 permeability, the inhibition of drug efflux pumps did not affect observed CLR1404 permeability with statistical significance (Figure 4B). In contrast, CLR1501 permeability was selectively increased following treatment with Ko143 or MK571, suggesting the contribution of BCRP and MRPs in CLR1501 efflux (Figure 4C, p<0.05). A similar pattern was observed for CLR1502, suggesting the contribution of both BCRP and MRP efflux (Figure 4D, p<0.05). Substantial P-gp efflux was not detected since inhibition by PSC833 did not result in a statistically significant permeability change for any of the APC analogs.

Figure 4.

Figure 4

Open in a new tab

APC analog permeability dependence on efflux transporters as demonstrated by BBB transwell system using pharmacologic inhibitors. (A) Schematic of experimental set-up. In presence of inhibitors, one would expect an increase in permeability if targeted efflux transporter is involved: Ko143 inhibits BCRP, MK571 inhibits MRPs, and PSC833 inhibits P-gp. (B) Parent CLR1404, (C) CLR1501, (D) CLR1502, (E) Free BODIPY, (F) Free IR-775. All permeability values were normalized to the respective no inhibitor, vehicle controls (mean±S.E., n≥3 independent BMEC differentiation replicates, *p<0.05 or n.s.=not significant compared to no inhibitor by ANOVA followed by post-hoc Games-Howell).

Since efflux transporter-mediated differences in BBB transport were observed only for the fluorescent APC analogs, the efflux profiles of unconjugated BODIPY and IR775 dyes alone were investigated. No significant change in BODIPY diffusion was measured with efflux transporter inhibition (Figure 4E), while IR-775 dye diffusion was only dependent on BCRP inhibition (Figure 4F, p<0.05). Overall, these data suggest that even though dye conjugation with APC analogs affects BBB permeability properties, cellular efflux is not completely dictated by the fluorescent dye moiety alone.

DISCUSSION

Through extensive structure-activity relationship studies of chemically synthesized PLE and APC derivatives, our group has identified cancer-targeting APC analogs that demonstrate tumor-selective uptake and prolonged retention in many cancer cell lines, preclinical models and in human cancer patients17, 25, 39, 40. Of particular interest, there is a large unmet clinical need for efficacious treatments against malignant brain tumors, which exhibit high mortality and morbidity with poor overall survival3, 41. Our versatile APC analogs could potentially be applied to improve brain tumor patient outcomes in multi-modality clinical management such as diagnostic imaging, surgical staging and planning using positron emission tomography (PET)17, intra-operative tumor cell visualization using fluorescence18, and cytotoxic tumor therapy using cancer cell-targeted radiation17, 39. Our APC analogs have demonstrated a high tumor-to-normal brain ratio in initial clinical trials17; however, their blood-brain barrier permeability has not been characterized. Such knowledge can help guide development of APC analogs for clinical applications. For instance, gliomas often invade from the “leaky” tumor center into normal brain with an intact BBB13, and therefore it may be possible that the high tumor-to-brain ratio is a result of BBB leakage into the tumor center, but infiltrating tumor cells may be inaccessible to standard intravenously delivered APC analogs. In this study with a human induced-pluripotent stem cell (iPSCs) BBB model26, 27, we found that BBB permeability of APC analogs CLR1404, CLR1501 (green fluorescent), and CLR1502 (near infrared), were modestly higher than permeability of sucrose, but despite their high lipophilicity, had relatively low permeability compared with diazepam. Thus, we hypothesize that the high tumor-to-brain ratio observed clinically may partially result from BBB restriction of APC permeability in normal brain, compared to high APC permeability across disrupted tumor vasculature.

The APC backbone of CLR1404 can be highly modified with multiple moieties while retaining its tumor-targeting properties. To address how these modifications may affect BBB permeability, the biophysical properties of the different APC analogs were analyzed. Increased lipophilicity is a key determinant for enhanced BBB permeability42–45, and there is an inverse relationship between molecular weight and BBB permeability 42, 45. All CLR compounds are greater than 600 Da, and thus above the typical molecular weight cutoff range (400–600 Da45) where BBB permeability and lipophilicity/molecular weight are most well correlated. Nonetheless, CLR1404 behaves generally as expected with a substantially lower permeability than diazepam as a function of its lowered lipophilicity and its modest increase in size. However, CLR1501 had a similar permeability to CLR1404 despite its similar molecular weight and much greater lipophilicity. In addition, CLR1502 had a very high lipophilicity and it is unlikely that its increase in molecular weight alone compared with CLR1404 can account for its relatively low permeability45. The permeability data therefore suggested that BMEC efflux transporters could significantly affect the transport of CLR1501 and CLR1502. Indeed, while the parent CLR1404 seemed comparatively unaffected by active efflux, both fluorescent analogs were significantly effluxed by BCRP and MRP efflux transporter systems. Therefore, while CLR1404 BBB permeability appears to be largely governed by passive diffusion, CLR1501 and CLR1502 are additionally regulated by efflux, and the net result is relatively similar in vitro BBB permeability amongst the analogs. Finally, even upon efflux transporter blockade, CLR1501 and CLR1502 had permeabilities that did not exceed diazepam despite their significantly higher lipophilicity. It is likely that compared with diazepam, the higher molecular weights of CLR1501 and CLR1502 or their differential interactions with the lipid bilayer are contributing to their attenuated permeability properties. Previous work with the iPSC-derived BMEC model showed a good correlation between in vivo and in vitro permeability including for lipophilic efflux transporter substrates such as prazosin, colchicine and vincristine26. However, the relative expression levels of the efflux transporters in any in vitro BBB model can vary compared with in vivo expression levels46, 47; and hence, the absolute permeability values reported here will likely differ in vivo. Finally, P-gp did not play a significant role in efflux of our APC analogs in these analyses. However, the BCRP, MRP, and P-gp efflux transporters have overlapping substrate specificity and can potentially compensate for each other5, 7, 8, and future studies would be helpful in determining if P-gp contributes to APC analog efflux upon reduced BCRP and/or MRP activity in transporter knockout animals48, 49.

Parameters governing BBB permeability of small molecules can be complex42, particularly when combining multiple agents for multi-modal cancer approaches (e.g. targeting and visualization) 6, 50. As an independent entity, the chemical linkage itself may also affect BBB permeability50. Linker effects on CLR1501 and CLR1502 are unlikely, as moieties are directly linked to the phenyl ring (Figure 1) with no intermediate chemical groups. However, addition of the fluorescent moieties to the phenyl ring in CLR1501 (BODIPY) and CLR1502 (IR-775) clearly introduced efflux transporter recognition by BCRP and MRP. Neither free dye was determined to be as strong a substrate for efflux as the conjugated CLR1501 and CLR1502 molecules, even though IR-775 was effluxed to some extent by BCRP. It is possible that steric effects are introduced that explain efflux differences between free dyes and their respective APC analogs. Molecular size5 and topological polar surface area42, 51 have been described as critical parameters to predict compounds as a substrate for P-gp, and therefore addition of the fluorescent moieties may change the substrate preferences of efflux transporters compared to the properties of parent CLR1404 or free dyes. Finally, drug solubility of the highly lipophilic APC analogs or differential molecular interactions with the BBB could lead to differences in analog permeability. These and other considerations may aid in design and development of future generations of APC analogs for specific application in CNS disease. Ultimately, screening with a robust biological assay will likely be beneficial since properties governing BBB penetrance of small molecules have not been completely resolved 42. The human iPSC-derived BMEC system employed here could be a powerful tool in this respect, as demonstrated for this first set of APC analogs.

In conclusion, we have characterized the blood-brain barrier permeability characteristics of novel cancer-targeting APC analogs using a human iPSC-derived BMEC model. Limited diffusion across the intact BBB helps explain initial clinical results in brain tumors that demonstrated very high tumor-to-normal-brain ratios17, although additional pre-clinical and clinical analyses are needed to augment the findings of this study with respect to patient-specific APC analog permeability and efflux. For clinical applications where greater brain penetration is advantageous, results of this study could aid in designing future APC analogs or help devise novel combination strategies such as administration of APC analogs with BCRP or MRP inhibitors. This study may also aid in the successful clinical translation of other fluorescent agents under development for CNS disorders and brain tumors52–54.
