. 1991 Jan 15;88(2):502–506. doi: 10.1073/pnas.88.2.502

Crystal structure of interleukin 8: symbiosis of NMR and crystallography.

E T Baldwin 1, I T Weber 1, R St Charles 1, J C Xuan 1, E Appella 1, M Yamada 1, K Matsushima 1, B F Edwards 1, G M Clore 1, A M Gronenborn 1, et al.
PMCID: PMC50839  PMID: 1988949

Abstract

The crystal structure of a host defense system chemotactic factor, interleukin 8, has been solved by molecular replacement using as a model the solution structure derived from nuclear magnetic resonance experiments. The structure was refined with 2 A x-ray data to an R factor of 0.187 (0.217 at 1.6 A). A comparison indicates some potential differences between the structure in solution and in the crystalline state. Our analysis also predicts that residues 4 through 9 on the amino terminus and the beta-bend, which includes His-33, may be important for receptor binding.

Full text

PDF
502

Images in this article

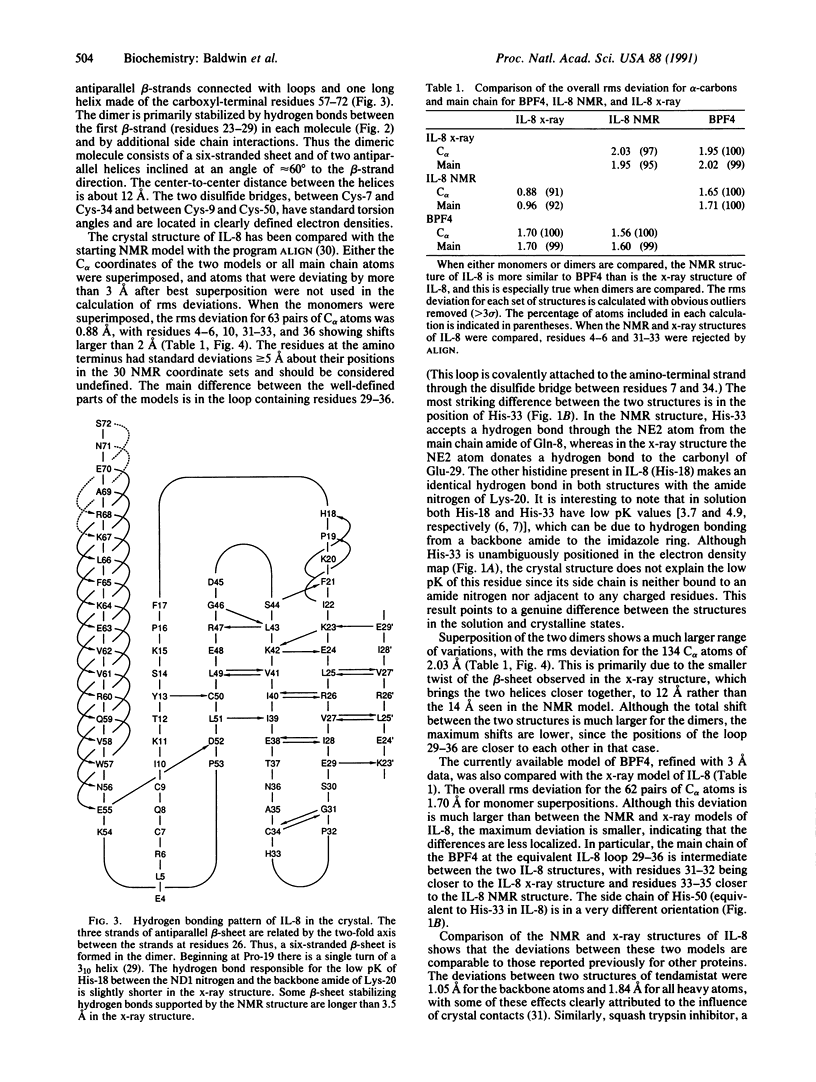

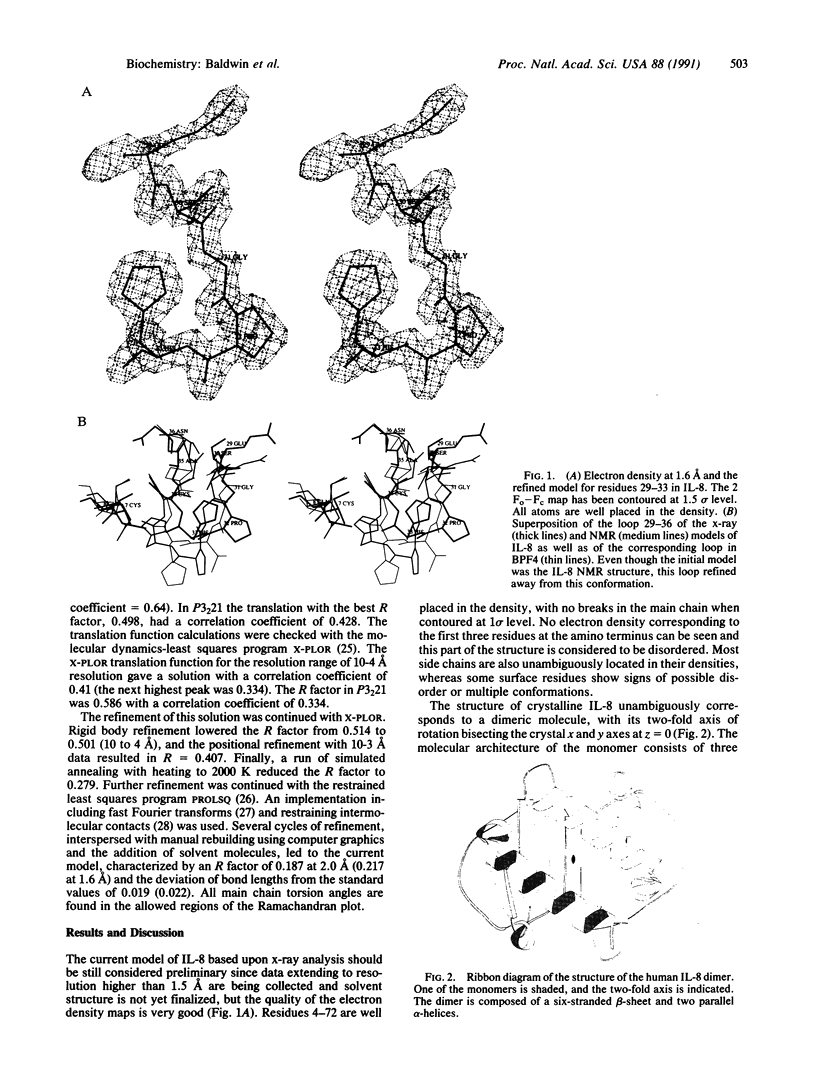

503Image
on p.503

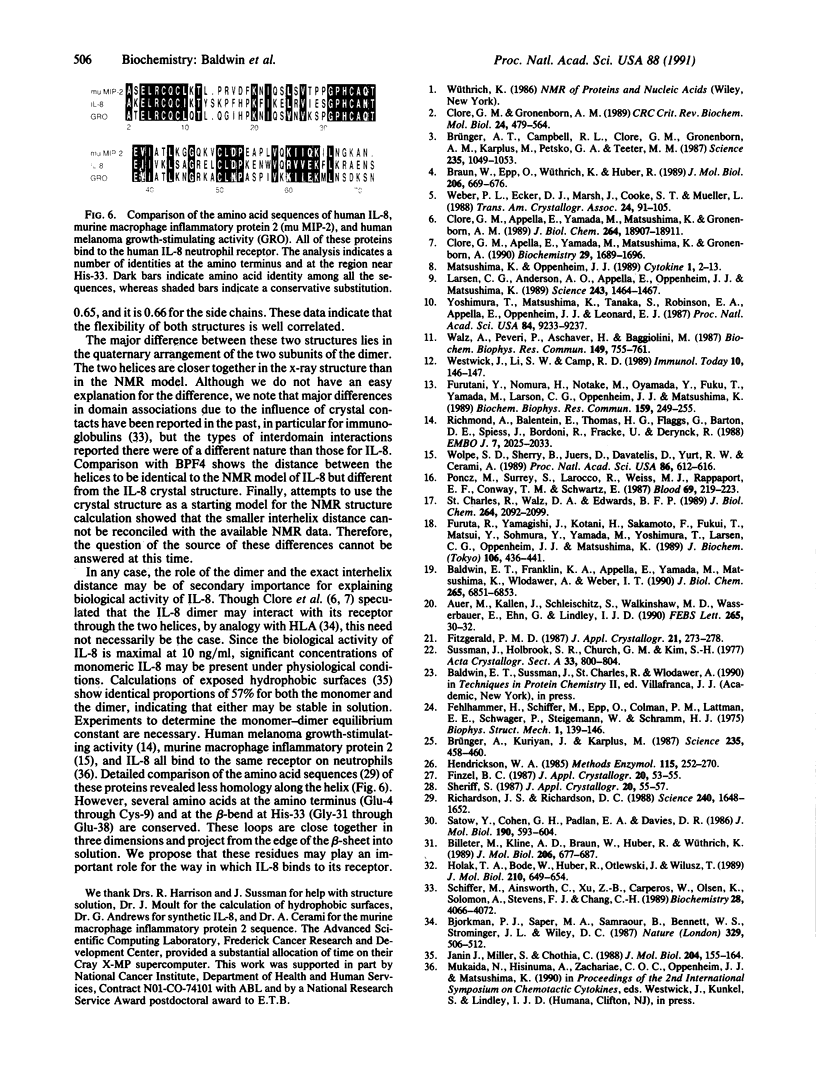

506Image
on p.506

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Auer M., Kallen J., Schleischitz S., Walkinshaw M. D., Wasserbauer E., Ehn G., Lindley I. J. Crystallization and preliminary X-ray crystallographic study of interleukin-8. FEBS Lett. 1990 Jun 4;265(1-2):30–32. doi: 10.1016/0014-5793(90)80876-k. [DOI] [PubMed] [Google Scholar]
  2. Baldwin E. T., Franklin K. A., Appella E., Yamada M., Matsushima K., Wlodawer A., Weber I. T. Crystallization of human interleukin-8. A protein chemotactic for neutrophils and T-lymphocytes. J Biol Chem. 1990 Apr 25;265(12):6851–6853. [PubMed] [Google Scholar]
  3. Billeter M., Kline A. D., Braun W., Huber R., Wüthrich K. Comparison of the high-resolution structures of the alpha-amylase inhibitor tendamistat determined by nuclear magnetic resonance in solution and by X-ray diffraction in single crystals. J Mol Biol. 1989 Apr 20;206(4):677–687. doi: 10.1016/0022-2836(89)90575-5. [DOI] [PubMed] [Google Scholar]
  4. Bjorkman P. J., Saper M. A., Samraoui B., Bennett W. S., Strominger J. L., Wiley D. C. Structure of the human class I histocompatibility antigen, HLA-A2. Nature. 1987 Oct 8;329(6139):506–512. doi: 10.1038/329506a0. [DOI] [PubMed] [Google Scholar]
  5. Braun W., Epp O., Wüthrich K., Huber R. Solution of the phase problem in the X-ray diffraction method for proteins with the nuclear magnetic resonance solution structure as initial model. Patterson search and refinement for the alpha-amylase inhibitor tendamistat. J Mol Biol. 1989 Apr 20;206(4):669–676. doi: 10.1016/0022-2836(89)90574-3. [DOI] [PubMed] [Google Scholar]
  6. Brünger A. T., Campbell R. L., Clore G. M., Gronenborn A. M., Karplus M., Petsko G. A., Teeter M. M. Solution of a protein crystal structure with a model obtained from NMR interproton distance restraints. Science. 1987 Feb 27;235(4792):1049–1053. doi: 10.1126/science.235.4792.1049. [DOI] [PubMed] [Google Scholar]
  7. Brünger A. T., Kuriyan J., Karplus M. Crystallographic R factor refinement by molecular dynamics. Science. 1987 Jan 23;235(4787):458–460. doi: 10.1126/science.235.4787.458. [DOI] [PubMed] [Google Scholar]
  8. Clore G. M., Appella E., Yamada M., Matsushima K., Gronenborn A. M. Determination of the secondary structure of interleukin-8 by nuclear magnetic resonance spectroscopy. J Biol Chem. 1989 Nov 15;264(32):18907–18911. [PubMed] [Google Scholar]
  9. Clore G. M., Appella E., Yamada M., Matsushima K., Gronenborn A. M. Three-dimensional structure of interleukin 8 in solution. Biochemistry. 1990 Feb 20;29(7):1689–1696. doi: 10.1021/bi00459a004. [DOI] [PubMed] [Google Scholar]
  10. Clore G. M., Gronenborn A. M. Determination of three-dimensional structures of proteins and nucleic acids in solution by nuclear magnetic resonance spectroscopy. Crit Rev Biochem Mol Biol. 1989;24(5):479–564. doi: 10.3109/10409238909086962. [DOI] [PubMed] [Google Scholar]
  11. Fehlhammer H., Schiffer M., Epp O., Colman P. M., Lattman E. E., Schwager P., Steigemann W., Schramm H. J. The structure determination of the variable portion of the Bence-Jones protein Au. Biophys Struct Mech. 1975 Feb 19;1(2):139–146. doi: 10.1007/BF00539775. [DOI] [PubMed] [Google Scholar]
  12. Furuta R., Yamagishi J., Kotani H., Sakamoto F., Fukui T., Matsui Y., Sohmura Y., Yamada M., Yoshimura T., Larsen C. G. Production and characterization of recombinant human neutrophil chemotactic factor. J Biochem. 1989 Sep;106(3):436–441. doi: 10.1093/oxfordjournals.jbchem.a122870. [DOI] [PubMed] [Google Scholar]
  13. Furutani Y., Nomura H., Notake M., Oyamada Y., Fukui T., Yamada M., Larsen C. G., Oppenheim J. J., Matsushima K. Cloning and sequencing of the cDNA for human monocyte chemotactic and activating factor (MCAF). Biochem Biophys Res Commun. 1989 Feb 28;159(1):249–255. doi: 10.1016/0006-291x(89)92430-3. [DOI] [PubMed] [Google Scholar]
  14. Hendrickson W. A. Stereochemically restrained refinement of macromolecular structures. Methods Enzymol. 1985;115:252–270. doi: 10.1016/0076-6879(85)15021-4. [DOI] [PubMed] [Google Scholar]
  15. Holak T. A., Bode W., Huber R., Otlewski J., Wilusz T. Nuclear magnetic resonance solution and X-ray structures of squash trypsin inhibitor exhibit the same conformation of the proteinase binding loop. J Mol Biol. 1989 Dec 5;210(3):649–654. doi: 10.1016/0022-2836(89)90138-1. [DOI] [PubMed] [Google Scholar]
  16. Janin J., Miller S., Chothia C. Surface, subunit interfaces and interior of oligomeric proteins. J Mol Biol. 1988 Nov 5;204(1):155–164. doi: 10.1016/0022-2836(88)90606-7. [DOI] [PubMed] [Google Scholar]
  17. Larsen C. G., Anderson A. O., Appella E., Oppenheim J. J., Matsushima K. The neutrophil-activating protein (NAP-1) is also chemotactic for T lymphocytes. Science. 1989 Mar 17;243(4897):1464–1466. doi: 10.1126/science.2648569. [DOI] [PubMed] [Google Scholar]
  18. Matsushima K., Oppenheim J. J. Interleukin 8 and MCAF: novel inflammatory cytokines inducible by IL 1 and TNF. Cytokine. 1989 Nov;1(1):2–13. doi: 10.1016/1043-4666(89)91043-0. [DOI] [PubMed] [Google Scholar]
  19. Poncz M., Surrey S., LaRocco P., Weiss M. J., Rappaport E. F., Conway T. M., Schwartz E. Cloning and characterization of platelet factor 4 cDNA derived from a human erythroleukemic cell line. Blood. 1987 Jan;69(1):219–223. [PubMed] [Google Scholar]
  20. Richardson J. S., Richardson D. C. Amino acid preferences for specific locations at the ends of alpha helices. Science. 1988 Jun 17;240(4859):1648–1652. doi: 10.1126/science.3381086. [DOI] [PubMed] [Google Scholar]
  21. Richmond A., Balentien E., Thomas H. G., Flaggs G., Barton D. E., Spiess J., Bordoni R., Francke U., Derynck R. Molecular characterization and chromosomal mapping of melanoma growth stimulatory activity, a growth factor structurally related to beta-thromboglobulin. EMBO J. 1988 Jul;7(7):2025–2033. doi: 10.1002/j.1460-2075.1988.tb03042.x. [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. Satow Y., Cohen G. H., Padlan E. A., Davies D. R. Phosphocholine binding immunoglobulin Fab McPC603. An X-ray diffraction study at 2.7 A. J Mol Biol. 1986 Aug 20;190(4):593–604. doi: 10.1016/0022-2836(86)90245-7. [DOI] [PubMed] [Google Scholar]
  23. Schiffer M., Ainsworth C., Xu Z. B., Carperos W., Olsen K., Solomon A., Stevens F. J., Chang C. H. Structure of a second crystal form of Bence-Jones protein Loc: strikingly different domain associations in two crystal forms of a single protein. Biochemistry. 1989 May 2;28(9):4066–4072. doi: 10.1021/bi00435a065. [DOI] [PubMed] [Google Scholar]
  24. St Charles R., Walz D. A., Edwards B. F. The three-dimensional structure of bovine platelet factor 4 at 3.0-A resolution. J Biol Chem. 1989 Feb 5;264(4):2092–2099. [PubMed] [Google Scholar]
  25. Walz A., Peveri P., Aschauer H., Baggiolini M. Purification and amino acid sequencing of NAF, a novel neutrophil-activating factor produced by monocytes. Biochem Biophys Res Commun. 1987 Dec 16;149(2):755–761. doi: 10.1016/0006-291x(87)90432-3. [DOI] [PubMed] [Google Scholar]
  26. Westwick J., Li S. W., Camp R. D. Novel neutrophil-stimulating peptides. Immunol Today. 1989 May;10(5):146–147. doi: 10.1016/0167-5699(89)90164-3. [DOI] [PubMed] [Google Scholar]
  27. Wolpe S. D., Sherry B., Juers D., Davatelis G., Yurt R. W., Cerami A. Identification and characterization of macrophage inflammatory protein 2. Proc Natl Acad Sci U S A. 1989 Jan;86(2):612–616. doi: 10.1073/pnas.86.2.612. [DOI] [PMC free article] [PubMed] [Google Scholar]
  28. Yoshimura T., Matsushima K., Tanaka S., Robinson E. A., Appella E., Oppenheim J. J., Leonard E. J. Purification of a human monocyte-derived neutrophil chemotactic factor that has peptide sequence similarity to other host defense cytokines. Proc Natl Acad Sci U S A. 1987 Dec;84(24):9233–9237. doi: 10.1073/pnas.84.24.9233. [DOI] [PMC free article] [PubMed] [Google Scholar]
