Water management impacts rice methylmercury and the soil microbiome

Abstract

Rice farmers are pressured to grow rice using less water. The impacts of water-saving rice cultivation methods on rice methylmercury concentrations are uncertain. Rice (Oryza sativa L. cv. Nipponbare) was cultivated in fields using four water management treatments, including flooded (no dry-downs), alternating wetting and drying (AWD) (with one or three dry-downs), and furrow-irrigated fields (nine dry-downs) (n = 16 fields). Anoxic bulk soil was collected from rice roots during the rice maturation phase, and rice grain was harvested after fields were dried. Total mercury and methylmercury concentrations were determined in soil and polished rice samples, and the soil microbiome was analyzed using 16S (v4) rRNA gene profiling. Soil total mercury did not differ between fields. However, compared to continuously flooded fields, soil and rice methylmercury concentrations averaged 51% and 38% lower in the AWD fields, respectively, and 95% and 96% lower in the furrow-irrigated fields, respectively. Compared to flooded fields, grain yield was reduced on average by <1% in the AWD fields and 34% in the furrow-irrigated fields. Additionally, using 16S (v4) rRNA gene profiling, the relative abundance of genera (i.e., highest resolution via this method) known to contain mercury methylators averaged 2.9-fold higher in flooded and AWD fields compared to furrow-irrigated fields. These results reinforce the benefits of AWD in reducing rice methylmercury concentrations with minimal changes in rice production yields. In the furrow-irrigated fields, a lower relative abundance of genera known to contain mercury methylators suggests an association between lower concentrations of soil and rice methylmercury and specific soil microbiomes.

Graphical abstract

1. Introduction

Rice ingestion is an important dietary source for methylmercury (MeHg), a potent neurotoxin (Hong et al., in press; Rothenberg et al., 2014). This is mainly attributed to cultivation of rice under standing water, which turns rice paddies into productive zones for mercury (Hg) methylation (Rothenberg et al., 2014; Windham-Myers et al., 2014a). In submerged rice fields, anaerobic microorganisms convert less toxic inorganic Hg to MeHg (Alpers et al., 2014; Marvin-DiPasquale et al., 2014; Rothenberg and Feng, 2012; Windham-Myers et al., 2014b), which is efficiently accumulated in rice grain (Rothenberg et al., 2011, 2012, 2015; Windham-Myers et al., 2014c; Yin et al., 2013). Microbial Hg methylation is typically concentrated in the oxic/anoxic interface (0–4 cm depth) (Marvin-DiPasquale et al., 2003); however, in rice paddies, pore water MeHg concentrations were highest up to 20 cm depth (Rothenberg and Feng, 2012). This is due in part to rice root exudates, including oxygen (Colmer, 2003) and labile carbon (Marvin-DiPasquale et al., 2014; Windham-Myers et al., 2014b). Root exudates increase the abundance and activity of anaerobic microbes at depth (Kim and Liesack, 2015), and promote dissolution of inorganic Hg(II), i.e. substrate for Hg methylating microorganisms (Rothenberg and Feng, 2012).

In Asia and the U.S., rice farmers are pressured to reduce freshwater use for rice cultivation (Bouman et al., 2007; California Air Resources Board, 2015; Farooq et al., 2009). Water reductions are needed 1) to help resolve water scarcity and increase water availability to other sectors (Bouman and Tuong, 2001; Bouman et al., 2007; Farooq et al., 2009), 2) to meet nutritional demands that accompany global population growth (Morison et al., 2008), 3) to mitigate methane emissions (i.e., greenhouse gases) from flooded paddies (California Air Resources Board, 2015; Linquist et al., 2015), and 4) to reduce groundwater depletion (Massey et al., 2014). Water-saving rice cultivation also reduces rice arsenic concentrations, an added benefit (Linquist et al., 2015). One of the most widely implemented methods is alternating wetting and drying (AWD), which involves multiple, carefully timed periods of nonsubmergence (Bouman et al., 2007). AWD is recommended over more aerobic rice cultivation methods (e.g., furrow-irrigation) because rice yields are not compromised, while rice yields are reduced on average 16–34% using furrow-irrigation (Bouman et al., 2007).

More aerobic rice cultivation alters the activity and community structure of microorganisms in paddy soil (Kim and Liesack, 2015; Xiang et al., 2008); however the impact on soil and rice MeHg (increasing or decreasing) is uncertain. In rice fields in California, USA and Guizhou province, China, a single flooding/drying/reflooding cycle was associated with a 3-fold and 4-fold spike in soil MeHg concentrations, respectively (USA: Marvin-DiPasquale et al., 2014; China: Rothenberg and Feng, 2012). In the latter study, pore water sulfate also increased 5.3-fold, suggesting soil MeHg spiked in flooded paddies due to the revival of sulfate-reducing bacteria (Rothenberg and Feng, 2012), one of the most abundant microbial Hg methylators (Gilmour et al., 2013). Based on these limited results, spikes in soil MeHg following reflooding were hypothesized to correlate with elevated rice MeHg concentrations (Rothenberg et al., 2014). However, growing rice aerobically (under both greenhouse and field conditions) was associated with lower rice MeHg and total Hg (THg) concentrations compared to rice cultivated under flooded conditions (Peng et al., 2012; Wang et al., 2014). Differences may reflect the length of time paddy soil is aerobic and the number of reflooding cycles.

The primary objective of this study was to determine the effects of water management on soil and rice THg and MeHg concentrations using a range of water-saving cultivation methods, including continuously flooded fields, AWD fields (with one or three dry-downs), and furrow-irrigated fields. In addition, the impacts of differential water management on soil microbial community structure were examined using 16S rRNA gene profiling, including the relative abundances of bacterial and archaeal genera known to include microorganisms that methylate Hg. We hypothesize that water-saving rice cultivation methods will reduce rice MeHg concentrations, and reduce the abundance of microorganisms that methylate Hg. Results from this study will help inform water managers and rice farmers about water-saving rice cultivation methods that mitigate rice MeHg concentrations.

2. Materials and Methods

2.1. Treatments and experimental design

In 2013, rice germplasm (Oryza sativa L. cv. Nipponbare) was obtained from the United State Department of Agriculture Genetic Stocks Oryza Collection (accession # GSOR 100), and grown at the University of Arkansas Rice Research and Extension Center (Stuttgart, Arkansas) using four water treatments × four replicates (n = 16 fields). Fields were cultivated using a rice-soybean rotation. Each field was 260 m²; Nipponbare was planted in 3.3 m² blocks at the end of each field and other rice varieties were cultivated in the remaining area. Grain yield (Mg ha⁻¹) was determined for other rice varieties because they were more abundant. All 16 fields were laid out in a randomized complete block design, and separated by packed levees to prevent water movement between plots.

There were four water management treatments ranging from anaerobic to aerobic: 1) Flood, 2) AWD40-Flood, 3) AWD60, and 4) Row40 (= Furrow-irrigated) (Fig. 1). Methods #1–3 were previously described by Linquist et al. (2015). In flooded fields, water was maintained at 10 cm throughout the rice cultivation season. AWD fields were flooded to 10 cm depth and water subsided via evapotranspiration and percolation until soil moisture reached 40% or 60% of saturated volumetric water (measured at 5 cm depth). AWD40-Flood included one dry-down before rice plants reached the reproductive growth stage (green ring stage); after which a 10 cm flood was maintained. AWD60 included three dry-downs throughout the cultivation season. Furrow-irrigated fields were dried until the soil reached 40% of saturation and then re-irrigated by flowing water down the rows; i.e., no standing water. There were a total of nine dry-downs in the furrow-irrigated fields.

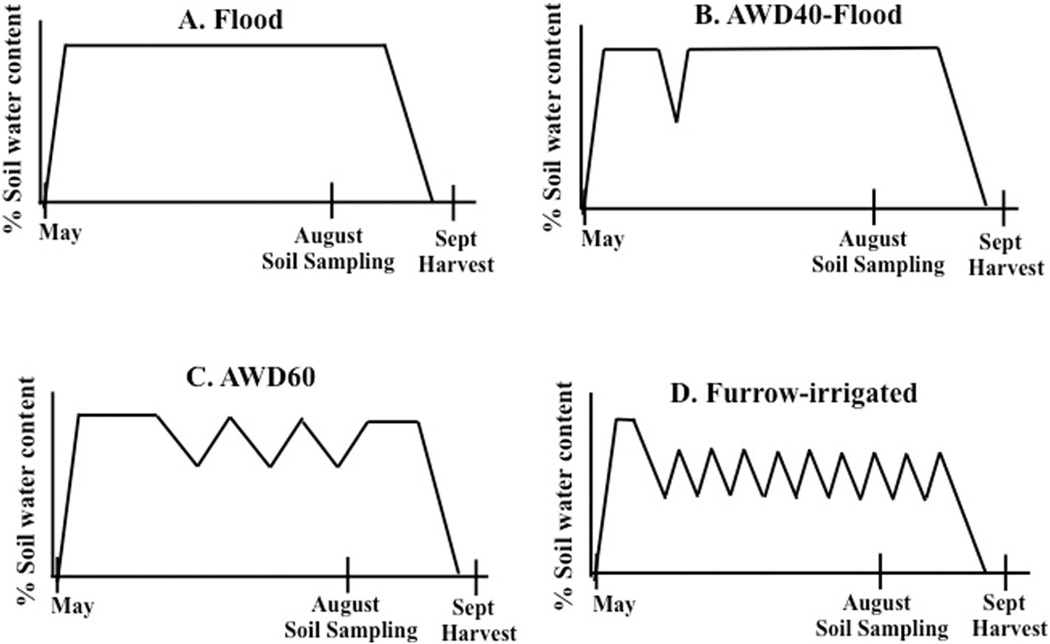

Fig. 1.

Water management treatments and timeline for a) continuously flooded fields, b) alternating wetting and drying (AWD) fields that were dried to 40% of saturation then re-flooded (1 dry-down), c) AWD60 fields dried to 60% of saturation then re-flooded (3 dry-downs), and d) furrow-irrigated fields, dried to 40% of saturation then row-irrigated (9 dry-downs).

2.2. Rice planting and sampling

The soil on all fields was a Dewitt silt loam (fine, smectitic, thermic, Typic Albaqualfs) with a total carbon content of 0.67%, total nitrogen content of 0.075%, and a pH of 5.6 (1:2 dry soil/water). Fertilizers (144, 29, 84 kg urea-nitrogen, phosphorous and potassium ha⁻¹, respectively) were applied prior to the initial flood.

On 23 April 2013, Nipponbare rice was planted in each plot by drill-seeding. On May 23 at the 4–5 leaf stage (i.e., tillering), all fields were flooded to 10 cm for 7–10 days, then treatments were imposed as described above. In the AWD40-Flood fields, flooding resumed on July 5 (73 days after planting). On August 23 (122 days after planting), anoxic bulk soil was collected from rice roots into a plastic bag, and immediately frozen (−20 °C) in the field in a Credo™ Cube (Pelican Biothermal, Plymouth, MN, USA). Frozen soil samples were transported to the University of South Carolina in a Credo™ Cube then stored at −80 °C until analysis. All fields were dried down beginning August 25, and rice was harvested on September 26 (156 days after planting). Mature rice grain was composited from 10 randomly selected rice plants within each plot and stored in a paper bag, and dried at room temperature.

Frozen soil samples were collected for both Hg and microbiome analyses, and rice samples were collected for Hg analyses. Hg analyses were completed at the University of South Carolina, and the soil microbiome was analyzed using 16S rRNA gene profiling at Baylor College of Medicine, Alkek Center for Metagenomics and Microbiome Research.

2.3. Rice and soil Hg concentrations

Rice grain was dehulled (JLGJ4.5, China) and polished (Pearlest Grain Polisher, Kett Electric Lab, Tokyo, Japan), then ground to a powder (Capresso Grinder, USA). Instruments for polishing and grinding were cleaned with ethanol after each sample to prevent carry-over of Hg.

Rice and soil THg concentrations were analyzed with a portable Hg vapor analyzer (Lumex, Model RA-915+/PYRO-915+, St. Petersburg, Russia) using thermal decomposition, amalgamation and atomic absorption spectrophotometry, and no pre-digestion steps were required [Environmental Protection Agency (EPA) 7473] (U.S. EPA, 2007).

Rice MeHg concentrations were determined following solvent extraction and back extraction into water (Liang et al., 1996). Approximately 0.6 g of ground rice were weighed into 50 mL polypropylene tubes, and 2 mL of 25% (w/v) potassium hydroxide-methanol were added and heated for 3 h (75 °C). Then 6 mL of dichloromethane (DCM) were added, followed by addition of 1.5 mL of concentrated hydrochloric acid, then samples were shaken for 1 h, centrifuged (4000 RPM = 3220 g, 30 min), and phases separated. Then 30–35 mL of double-distilled water were added, and samples were heated in a water bath (65 °C) for 1.5 h to volatilize DCM. Rice MeHg concentrations were quantified following EPA Method 1630 (U.S. EPA, 2001), including ethylation with sodium tetraethylborate, purge and trap onto Tenex traps (part #06020, Brooks Rand), and separation of Hg species using gas chromatography and detection by cold vapor atomic fluorescence spectrometry (Brooks Rand, Model III, Seattle, WA, USA). Soil MeHg concentrations were determined after samples (approximately 2 g) were leached in 1 mL of 1 M copper sulfate, 4 mL of 25% nitric acid and 5 mL of DCM (Liang et al., 2004). Samples were shaken, centrifuged, phases separated, and DCM evaporated before MeHg extracts were quantified following EPA Method 1630, as described above (U.S. EPA, 2001). Soil aliquots were dried at 105 °C overnight, and results reported in dry weight.

Quality assurance/quality control results are reported in Table 1. Average recovery for standard reference materials and/or matrix spikes ranged from 87%–102% for THg and 69–95% for MeHg, and the relative percent difference between sample replicates averaged 9.3% for THg and 18% for MeHg. Detection levels were 1.2 ng/g for THg and 0.81 pg/g for MeHg. Half the detection level was imputed for one value for rice THg cultivated in furrow-irrigated fields.

Table 1.

Quality assurance/quality control for analyses of rice and soil mercury concentrations.

	Standard reference materials
	NIST 1515 % (n)	Tort-2 % (n)	IAEA-086 % (n)	BCR 580 % (n)	RPD % (n)	Matrix spike % (n)
THg	89 (4)	102 (2)	87 (2)	NA	9.3 (29)	NA
MeHg	NA	95 (2)	NA	69 (2)	18 (6)	94 (3)

Total mercury (THg), methylmercury (MeHg), percent recovery (%), number of measurements (n), relative percent difference (RPD) between replicate analyses.

2.4. Soil microbiome and 16S rRNA gene profiling

Frozen soil samples (−80 °C) were shipped overnight on dry ice to the Alkek Center for Metagenomics and Microbiome Research at Baylor College of Medicine in Houston, Texas. Microbial genomic DNA was extracted using the PowerSoil DNA Isolation Kit according to the manufacturer's instructions (MoBio Laboratories, CA, USA), and the concentration and purity of the extracted DNA were evaluated through gel electrophoresis and PicoGreen assays (Invitrogen, NY, USA).

The 16S rDNA V4 region was amplified by PCR using primers 515F and 806R (see Table A.1, and http://www.earthmicrobiome.org/emp-standard-protocols/16s/, last accessed 25 June 2016) (Caporaso et al., 2012). Sequencing was performed on the MiSeq platform (Illumina, CA, USA) using the 2 × 250 bp paired-end protocol, which yielded pair-end reads. The primers contained adapters for MiSeq sequencing and dual-index barcodes so that the PCR products were pooled and sequenced directly (Caporaso et al., 2012), targeting at least 15,000 reads per sample. The read pairs were demultiplexed based on the unique molecular barcodes, and reads were merged using USEARCH v7.0.1090 (Edgar, 2010), allowing zero mismatches and a minimum overlap of 50 bases. Merged reads were trimmed at first base with Q5. In addition, a quality filter was applied to the resulting merged reads and reads containing above 0.05 expected errors were discarded. 16S rRNA gene sequences were clustered into Operational Taxonomic Units (OTUs) at a similarity cutoff value of 97% using the UPARSE algorithm. OTUs were mapped to an optimized version of the SILVA Database (Quast et al., 2013), which contained only the 16S V4 region to determine taxonomies. Taxonomic abundances were recovered by mapping the demultiplexed reads to the UPARSE OTUs. Using a custom script, a rarefied OTU table was constructed for analyses of diversity (alpha- and beta-diversity) and phylogenetic trends.

2.5. Relative abundance of genera known to contain Hg methylators

Two proteins are essential for microbial Hg methylation, including a putative corrinoid protein that transfers a methyl group to Hg (HgcA) and a ferredoxin protein that performs corrinoid reduction (HgcB) (Parks et al., 2013; Smith et al., 2015). There are 142 known species of bacteria and archaea (from 63 genera) that possess orthologs of the genes hgcAB (http://www.esd.ornl.gov/programs/rsfa/data.shtml, last accessed 25 June 2016). When tested, all strains with hgcAB homologs were proven Hg methylators (Gilmour et al., 2013). In addition, there are three genera containing verified Hg methylators for which the genome sequence is unavailable or incomplete (Gilmour et al., 2013), resulting in a total of 66 genera known to contain Hg methylators.

We searched the 16S (v4) rDNA genus-level abundances (i.e., highest resolution using this technology) for these 66 genera, and results were compared between four water management treatments. We combined genus-level relative abundances for Methanocella spp. and Rice-Cluster 1 spp. because Methanocella spp. includes some members belonging to the Rice-Cluster 1 lineage (Sakai et al., 2008).

2.6. Statistics

The effects of water management (Flood, AWD40-Flood, AWD60, and furrow-irrigation) on paddy soil microbiota were examined using alpha- and beta-diversity. Alpha-diversity (within sample diversity) was measured with the Chao1 index (richness) (Chao, 1984), the Shannon diversity index, and the observed number of sequences per sample. Beta-diversity analysis (between sample diversity) was calculated using the UniFrac distance metric (Lozupone and Knight, 2005). The unweighted UniFrac distance does not take taxa abundance into consideration and is thus more sensitive to rarer taxa, while the weighted UniFrac measure takes abundance into account. Differences between taxonomic groups (including alpha- and beta-diversity patterns) were assessed using one-way analysis of variance (ANOVA) and Tukey-Kramer multiple-comparison test. Rice and soil THg and MeHg concentrations were compared between the four water management treatments using Kruskal-Wallis test.

For all analyses, an alpha level of 0.05 was chosen as a guide for significance. Statistical analyses were completed using the R-platform or Stata (Version 9.2, College Station, TX, USA).

2.7. Nucleotide Sequence accession numbers

Illumina data are found in the National Center for Biotechnology Information (NCBI) Sequence Read Archive under the study accession number SRP064901. Accession numbers of sequences are SAMN04169009 to SAMN04169024 (see http://www.ncbi.nlm.nih.gov/sra/SRP064901).

3. Results

3.1. Rice yield

For other rice varieties cultivated in the same fields, the average grain yield was 11.22 Mg ha⁻¹, 11.53 Mg ha⁻¹, 10.70 Mg ha⁻¹ and 7.38 Mg ha⁻¹ in the continuously flooded fields, AWD40-Flood fields, AWD60 fields, and furrow-irrigated fields, respectively (Table 2). Compared to flooded fields, rice yield averaged 34% lower in furrow-irrigated fields, which was consistent with reductions reported by Bouman et al. (2007) for furrow-irrigated fields, i.e., 16–34%.

Table 2.

Average (±SD) concentrations of mercury in soil and rice, and grain yield (n = 16 fields, 4 fields per treatment). The fold-change reflects the ratio between the results in treatments 1–3 and treatment 4.

	Treatment 1 Flood	Treatment 2 AWD40-Flood	Treatment 3 AWD60	Treatment 4 Furrow-irrigated	All treatments	Fold-change
Soil THg (ng/g)	22 ± 2.3	20 ± 0.66	22 ± 2.4	22 ± 5.8	21 ± 3.2	0.95
Soil MeHg (ng/g)	0.29 ± 0.27	0.20 ± 0.16	0.078 ± 0.046	0.013 ± 0.0035	0.15 ± 0.18	15
Rice THg (ng/g)	13 ± 11	6.4 ± 5.6	9.3 ± 4.8	0.68 ± 0.039	7.4 ± 7.6	14
Rice MeHg (ng/g)	11 ± 10	5.9 ± 5.6	8.0 ± 4.6	0.17 ± 0.086	6.3 ± 7.0	50
BAF THg (unitless)	0.60 ± 0.50	0.32 ± 0.29	0.44 ± 0.23	0.032 ± 0.0093	0.35 ± 0.35	14
BAF MeHg (unitless)	180 ± 300	94 ± 150	120 ± 39	13 ± 7.2	100 ± 170	9.7
BAF MeHg/THg (unitless)	260 ± 370	180 ± 180	420 ± 450	430 ± 240	320 ± 310	0.67
Grain yielda (Mg ha−1)	11.22	11.53	10.70	7.38	10.21	1.5

AWD (alternating wetting and drying), BAF (Bioaccumulation factor), MeHg (methylmercury), THg (total mercury).

^aSD not available

3.2. Soil and rice Hg

Concentrations of soil THg did not differ between all fields (Kruskal-Wallis, p = 0.34); however soil MeHg concentrations and soil %MeHg (of THg) differed (Kruskal-Wallis, p = 0.03 for both) (Fig. 2a–c, Table 2). Compared to continuously flooded fields, soil MeHg concentrations were reduced on average by 29%, 73% and 95% in AWD40-Flood, AWD60, and furrow-irrigated fields, respectively. Likewise, compared to continuously flooded fields, average soil %MeHg (of THg) was reduced by 27%, 73%, and 96% in AWD40-Flood, AWD60, and furrow-irrigated fields.

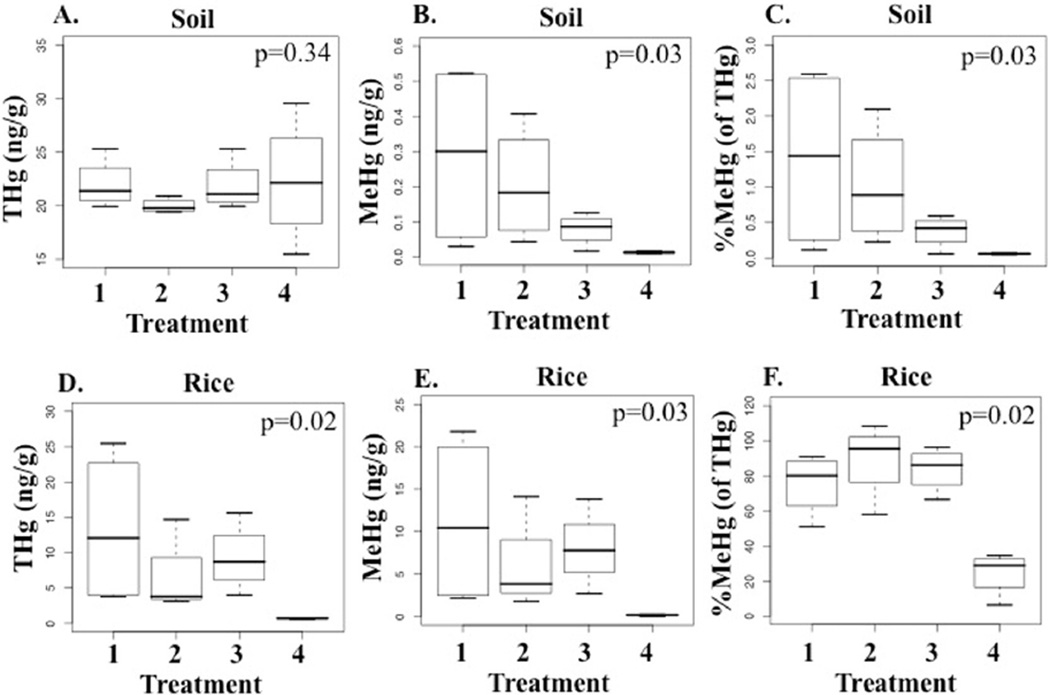

Fig. 2.

Box plots for soil (a–c) and polished rice (d–f) concentrations of total mercury (THg), methylmercury (MeHg), and %MeHg (of THg), for rice cultivated in fields using four water management treatments: 1) Flood, 2) AWD40-Flood, 3) AWD60, and 4) Furrow-irrigated (n = 16 fields). p-values are for Kruskal-Wallis tests.

Compared to continuously flooded fields, rice THg concentrations were 47%, 28% and 99% lower in AWD40-Flood, AWD60, and furrow-irrigated fields, respectively (Kruskal-Wallis, p = 0.02) (Fig. 2d). Similarly, rice MeHg concentrations were 52%, 31% and 95% lower in AWD40-Flood, AWD60, and furrow-irrigated fields, respectively, compared to flooded fields (Kruskal-Wallis, p = 0.03) (Fig. 2e). Rice %MeHg (of THg) was also significantly different between fields, with lowest values in the furrow-irrigated fields compared to the other water management treatments (Kruskal-Wallis, p = 0.02) (Fig. 2f). Lower soil and rice MeHg concentrations suggested reduced soil Hg methylation, while lower rice THg suggested reduced bioavailability of inorganic Hg(II) from paddy soil. Thus water management potentially mitigated rice Hg concentrations through at least two mechanisms.

The bioaccumulation factor (BAF) (unitless) is defined as the ratio between polished rice Hg and soil Hg. BAF averaged 320 times higher for MeHg compared to THg [BAF MeHg/BAF THg, range = 20–1100 (unitless), median = 190 (unitless)], suggesting greater translocation of MeHg from soil to the rice endosperm (Table 2). Alternatively, BAF may be higher for MeHg compared to THg because inorganic Hg may be lost through rice foliage (Yin et al., 2013). Higher BAF for MeHg compared to THg was previously reported for other sites (mostly in Guizhou, China) [BAF MeHg/BAF THg, range = 18–6300 (unitless), median = 550 (unitless), n = 6 studies] (Rothenberg et al., 2014), although the median value for the present study was lower (190).

3.3. Soil microbiome

The number of mapped 16S (v4) rDNA reads for 16 soil samples averaged 27,617; analyses were performed on an equal number of mapped reads per sample (15,060 reads) (Fig. A.1). 16S (v4) rDNA reads mapped to 2756 OTUs, which were assigned to 23 phyla, including 686 genera. Across all 16 fields, 13 phyla represented 95% of OTUs. Proteobacteria and Acidobacteria were the most abundant phyla (averaging 25%–40% relative abundance), followed by Verrucomicrobia, Bacteroides and Actinobacteria (averaging 5.2%–5.9% relative abundance), and eight additional phyla averaging <1%–2.8% relative abundance (Fig. 3). The most abundant genera for all treatments (ranked from highest to lowest abundant) were: Anaeromyxobacter, Sphingomonas, Denitratisoma, Geobacter, Haliangium, and Bryobacter (averaging 1.7%–2.9% relative abundance), and eight additional unclassified genera (averaging 1.5%–13% relative abundance) (Fig. 4). Across flooded or AWD fields, 14 genera comprised 50% of OTUs; however, the same genera comprised only 34% of OTUs in furrow-irrigated fields.

Fig. 3.

Percent relative abundance (phylum-level) for microorganisms in anoxic bulk soil from rice fields using four water management treatments: 1) Flood, 2) AWD40-Flood, 3) AWD60, and 4) Furrow-irrigated (n = 16 fields), including (a) 13 phyla and “other phyla,” while (b) represents six (of 13) phyla. The fold-change reflects the ratio between treatments 1–3 (flooded and AWD) and treatment 4 (furrow-irrigated).

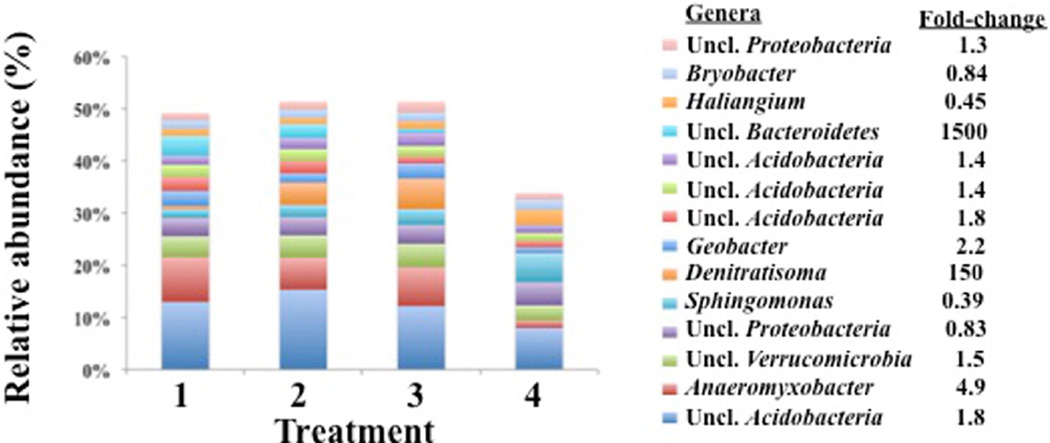

Fig. 4.

Percent relative abundance (genus-level) for microorganisms in anoxic bulk soil from rice fields using four water management treatments: 1) Flood, 2) AWD40-Flood, 3) AWD60, and 4) Furrow-irrigated (n = 16 fields). The fold-change reflects the ratio between treatments 1–3 (flooded and AWD) and treatment 4 (furrow-irrigated).

Indices for microbial richness (i.e., alpha-diversity) did not differ significantly between treatments (p = 0.71–0.96, Fig. A.2). However, unweighted and weighted beta-diversity patterns differed between treatments; specifically, observations for furrow-irrigated fields were disconnected from other fields (i.e., Flood, AWD40-Flood, and AWD60 fields) (for both: p < 0.05 and r-squared = 0.36) (Fig. 5). Differences between soil microbiotas were explained in part by the relative abundance of anaerobes and aerobes. For example, the phylum Euryarchaeota (including methanogens) averaged 7.4-fold higher in flooded and AWD fields compared to furrow-irrigated fields, while Cyanobacteria (found in oxic environments, from Kim and Liesack, 2015) averaged 13-fold higher in furrow-irrigated fields compared to other water management treatments (Fig. 3). At the genus-level, the relative abundance of the Geobacter spp., Anaeromyxobacter spp., and Denitratisoma spp. (all anaerobes) were 2.2-, 4.9-, and 150-fold higher, respectively, in flooded or AWD fields compared to furrow-irrigated fields, while Sphingomonas spp. and Haliangium spp. (all aerobes) were 2.2- and 2.6-fold higher, respectively, in furrow-irrigated fields compared to flooded or AWD fields (Fig. 4).

Fig. 5.

Unweighted (a) and weighted (b) UniFrac analysis of soil microbiota analyzed from rice fields using four water management treatments: 1) Flood, 2) AWD40-Flood, 3) AWD60, and 4) Furrow-irrigated (n = 16 fields, 4 per treatment).

3.4. Microbial Hg methylators in the soil microbiome

The list of genera identified using 16S (v4) rDNA profiling was searched for 66 genera known to include microbes that methylate Hg (Fig. 6, Table 3). A total of six phyla were present, including 16 genera [Proteobacteria (eight genera), Euryarchaeota (three genera), Chloroflexi (two genera), Firmicutes (one genus), Spirochaetae (one genus), and Bacteroidetes (one genus)]. In other studies, PCR primers were developed for the Hg methylation gene, hgcA, and the diversity of hgcA was investigated in wetland soil (Bae et al., 2014; Liu et al., 2014; Schaefer et al., 2014). Analysis of hgcA gene sequences indicated four of the same phyla were also present in rice paddy soil from Wanshan, Guizhou province, China (Proteobacteria, Euryarchaeota, Chloroflexi, and Firmicutes) (Liu et al., 2014), and in wetland soil from the Florida Everglades (Bae et al., 2014), while three of the same phyla (Proteobacteria, Euryarchaeota, Chloroflexi) were present in wetland soil from the Florida Everglades and from Sweden (Schaefer et al., 2014).

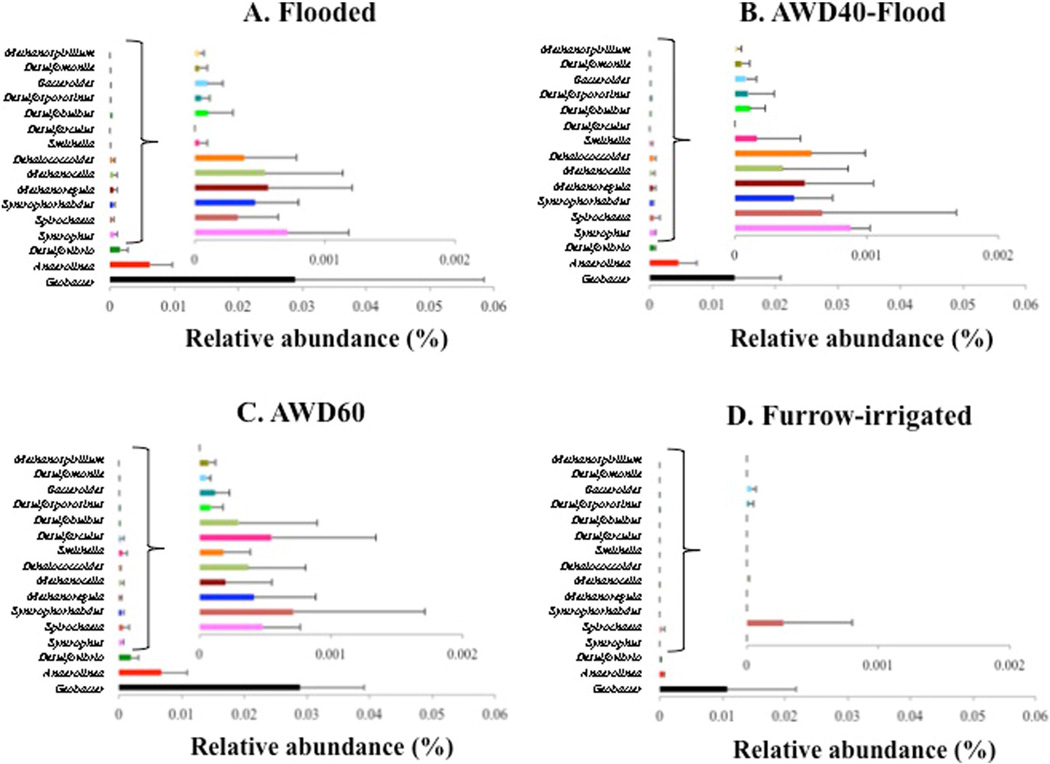

Fig. 6.

Average (±SD) percent relative abundance of 16 genera known to include microorganisms that methylate mercury, present in rice paddy soil: a) Flooded, b) AWD40-Flood, c) AWD60, and d) Furrow-irrigated (n = 16 fields). Each figure includes 16 genera ranging from 0%–0.06% relative abundance, and a smaller figure including 13 (of 16) genera ranging from 0%–0.002% relative abundance.

Table 3.

Average (±SD) percent relative abundance of microorganisms belonging to genera known to contain mercury methylators; genera are listed from most abundant to least abundant for all treatments (n = 16 fields, 4 fields per treatment). The fold-change reflects the ratio between the average percent relative abundance of genera present in treatments 1–3 and treatment 4.

Phylum	Class	Order	Family	Genus	Treatment 1 Flood	Treatment 2 AWD40-Flood	Treatment 3 AWD60	Treatment 4 Furrow-irrigated	All treatments	Fold-change
Proteobacteria	Deltaproteobacteria	Desulfuromonadales	Geobacteraceae	Geobacter	0.029 (0.030)	0.014 (0.0074)	0.029 (0.010)	0.011 (0.011)	0.021 (0.097)	2.2
Chloroflexi	Anaerolinea	Anaerolineales	Anaerolineaceae	Anaerolinea	0.0062 (0.0036)	0.0046 (0.0029)	0.0068 (0.0041)	0.00060 (0.00018)	0.0045 (0.0028)	9.8
Proteobacteria	Deltaproteobacteria	Desulfovibrionales	Desulfo-vibrionaceae	Desulfovibrio	0.0016 (0.0012)	0.00073 (0.00025)	0.0019 (0.0012)	0.000083 (0.00017)	0.0011 (0.00084)	17
Proteobacteria	Deltaproteobacteria	Syntrophobacterales	Syntrophaceae	Syntrophus	0.00071 (0.00047)	0.00088 (0.00015)	0.00048 (0.00029)	0	0.00052 (0.00038)	NA
Spirochaetae	Spirochaetes	Spirochaetales	Spirochaetaceae	Spirochaeta	0.00033 (0.00031)	0.00066 (0.0010)	0.00071 (0.0010)	0.00028 (0.00052)	0.00050 (0.00022)	2.0
Proteobacteria	Deltaproteobacteria	Syntrophobacterales	Syntro-phorhabdaceae	Syntro-phorhabdus	0.00046 (0.00033)	0.00045 (0.00029)	0.00042 (0.00047)	0	0.00033 (0.00022)	NA
Euryarchaeota	Methano-microbia	Methanomicrobiales	Methano-regulaceae	Methanoregula	0.00056 (0.00065)	0.00053 (0.00052)	0.00020 (0.00036)	0	0.00032 (0.00027)	NA
Euryarchaeota	Methano-microbia	Methanocellales	Methano-cellaceae	Methanocella	0.00054 (0.00060)	0.000037 (0.00049)	0.00037 (0.00043)	0.0000083 (0.000012)	0.00032 (0.00022)	51
Chloroflexi	Dehalo-coccoidetes	Dehalococcoidales	Dehalo-coccoidaceae	Dehalo-coccoides	0.00038 (0.00040)	0.00058 (0.00041)	0.00018 (0.00021)	0	0.00029 (0.00025)	NA
Proteobacteria	Deltaproteobacteria	Syntrophobacterales	Syntrophaceae	Smithella	0.000033 (0.000066)	0.00017 (0.00033)	0.00055 (0.00079)	0	0.00019 (0.00025)	NA
Proteobacteria	Deltaproteobacteria	Desulfarculales	Desul-farculaceae	Desulfarculus	0	0	0.00030 (0.00060)	0	0.000075 (0.00015)	NA
Proteobacteria	Deltaproteobacteria	Desulfobacterales	Dessulfo-bulbaceae	Desulfobulbus	0.00010 (0.00020)	0.00012 (0.00011)	0.000083 (0.00010)	0	0.000075 (0.000052)	NA
Firmicutes	Clostridia	Clostridiales	Peptococcaceae	Desulfo-sporosinus	0.000050 (0.000064)	0.00010 (0.00020)	0.00012 (0.00011)	0.000017 (0.000033)	0.000071 (0.000046)	5.3
Bacteroidetes	Bacteroidia	Bacteroidales	Bacteroidaceae	Bacteroides	0.00010 (0.00012)	0.000083 (0.000084)	0.000050 (0.000033)	0.000033 (0.000038)	0.000066 (0.000030)	2.3
Proteobacteria	Deltaproteobacteria	Syntrophobacterales	Syntrophaceae	Desulfomonile	0.000033 (0.000066)	0.000050 (0.000064)	0.000066 (0.000054)	0	0.000037 (0.000028)	NA
Euryarchaeota	Methano-microbia	Methanomicrobiales	Methano-spirillaceae	Methano-spirillum	0.000033 (0.000038)	0.000017 (0.000033)	0	0	0.000012 (0.000016)	NA
				All genera	0.040 (0.025)	0.023 (0.006)	0.041 (0.010)	0.012 (0.011)	0.029 (0.018)	2.9

In total, the 16 genera known to contain microbes that methylate Hg comprised on average 4.0%, 2.3%, 4.1%, and 1.2% relative abundance in flooded, AWD40-F, AWD60 and furrow-irrigated fields, respectively, and averaged 2.9-fold higher in flooded and AWD fields, compared to furrow-irrigated fields (Table 3). Geobacter spp. were the most abundant in all treatments (range: 1.1%–2.9% relative abundance), and averaged 2.2-fold higher in the flooded and AWD fields compared to furrow-irrigated fields. Not all genera were present in all fields; one-two genera were absent in the flooded and AWD fields, while 10 genera were absent in the furrow-irrigated fields. Among the remaining six genera, Methanocella spp., and Desulfovibrio spp. averaged 51-fold and 17-fold higher, respectively, in the flooded and AWD fields compared to furrow-irrigated fields. This genus includes Methanocella paludicola SANAE (Sakai et al., 2008) and Methanocella arvoryzae MRE50 (RC-1) (Sakai et al., 2010), which are isolates from rice paddies, while Desulfovibrio spp. include sulfate-reducing bacteria, an important Hg methylator (Gilmour et al., 2013). Dehalobacter spp. FTH1 were also isolated from rice paddy soil (Yoshida et al., 2009) and contain hgcAB orthologs (Gilmour et al., 2013), however, this genus was absent from all fields.

4. Discussion

Impacts of water management on soil and rice MeHg concentrations were investigated in flooded fields, AWD fields (one or three dry-downs), and furrow-irrigated fields (nine dry-downs). Compared to continuously flooded fields, soil MeHg, rice THg, and rice MeHg concentrations averaged 27–73% lower in the AWD fields, and 95–96% lower in furrow-irrigated plots. Differences between furrow-irrigated and flooded fields in our study were consistent with previous studies reporting lower rice MeHg cultivated under more aerobic conditions (Peng et al., 2012; Wang et al., 2014).

The decrease in soil and rice MeHg concentrations between flooded, AWD, and furrow-irrigated fields suggested the length of time fields were aerobic, and intensity of aerobic conditions (AWD versus furrow-irrigation) were important factors in understanding the impacts of water management on soil and rice MeHg. These factors may also help explain differences between studies investigating AWD and more aerobic rice cultivation methods.

It is well known that microbial communities in paddy soil change over time after flooding (Kim and Liesack, 2015; Edwards et al., 2015). At circumneutral pH, after oxygen is depleted, denitrification commences, followed by manganese and iron reduction, sulfate reduction, methanogenesis, and fermentation. Microbes that contain the gene cluster required to methylate Hg (hgcAB) are primarily anaerobic, including sulfate-reducers, iron-reducers and methanogens (Gilmour et al., 2013). As conditions become more anoxic, Hg methylation increases (Kelly et al., 1997).

For these 16 fields, beta-diversity patterns (weighted and unweighted UniFrac analysis) indicated furrow-irrigated fields differed from AWD and flooded fields (Fig. 5). Differences were mainly attributed to greater relative abundance of aerobes in the furrow-irrigated fields (e.g., Cyanobacteria phylum), while anaerobes were more depleted (e.g., Euryarchaeota phylum) (Fig. 4). As anaerobes decreased, the likelihood for Hg methylation was also reduced. For example, Methanocella spp. and Desulfovibrio spp. were 51-fold and 17-fold more abundant in flooded and AWD fields compared to furrow-irrigated fields, respectively (Table 3, Fig. 6). Wang et al. (2014) also reported depletion of sulfate-reducing bacteria in aerobic rice fields. Results from our analyses suggested longer oxidation periods in the furrow-irrigated fields were sufficient to reduce anaerobic respiration, including genera known to contain microbes that methylate Hg. AWD fields were dried-down and re-flooded (one or three times); however oxic periods did not persist long enough in AWD fields to substantially change microbial communities (as observed in Fig. 5).

Although reductions in soil and rice MeHg concentrations in AWD fields were more modest compared to furrow-irrigated fields, they are worth noting. Beta-diversity patterns for soil microbiotas did not discriminate between flooded and AWD fields (Fig. 5), and the relative abundance of genera known to contain Hg methylators was similar between flooded and AWD fields (Fig. 6, Table 3). However rice farmers prefer AWD over furrow-irrigation because rice yields are not severely compromised (Bouman et al., 2007). For other rice varieties cultivated in the same fields at the same time, grain yield was reduced by 0%, 4.6%, and 34% in the AWD40-Flood, AWD60 and furrow-irrigated fields, compared to continuously flooded fields (Table 2). Although soil and rice MeHg concentrations were lowest in furrow-irrigated fields compared to AWD fields, rice yields in AWD plots were not severely compromised. Rice is a staple food; therefore it is important to consider both nutritional quality and rice yield when implementing water-saving rice cultivation methods.

One limitation of this study concerns the resolution of 16S (v4) rDNA profiling, i.e., genus level. It is important to note that not all members of the same genus perform the same functions, including the ability to methylate Hg (Gilmour et al., 2011). Therefore, genus-level results likely reflected an overestimate of genera containing Hg methylators. That said, results from the soil microbiome analysis were consistent with soil and rice MeHg profiles in furrow-irrigated fields compared to flooded/AWD fields (Tables 2 and 3), suggesting an association between reduced soil and rice methylmercury concentrations and specific soil microbiomes. Additionally, our study focused on AWD and furrow-irrigation as alternatives to continuous flooding, and did not consider other water-saving methods such as the System of Rice Intensification (Bouman et al., 2007). Thus more research is needed to weigh the tradeoffs and benefits of water-saving rice cultivation.

5. Conclusions

Water-saving rice cultivation methods are being implemented globally to address multiple issues, including climate change, water scarcity, groundwater depletion, and arsenic exposure (Bouman and Tuong, 2001; Bouman et al., 2007; California Air Resources Board, 2015; Farooq et al., 2009; Linquist et al., 2015; Massey et al., 2014). Results from this study add to the list of benefits, including reduced rice MeHg concentrations in AWD fields, with low or minimal changes in rice yields.

HIGHLIGHTS.

• Rice was cultivated using four water-saving methods.

• Methods were flooded, alternating wetting and drying (AWD), or furrow-irrigated (FI).

• Rice methylmercury was low in AWD fields and lowest in FI fields.

• Soil microbiotas differed between flood/AWD fields and FI fields.

• Microbial genera known to contain mercury methylators were lowest in FI fields.
