. Author manuscript; available in PMC: 2017 Nov 20.
Published in final edited form as: J Mol Biol. 2016 Oct 11;428(23):4669–4685. doi: 10.1016/j.jmb.2016.10.007

Role of the σ54 Activator Interacting Domain in Bacterial Transcription Initiation

Alexander R Siegel a, David E Wemmer a,b
PMCID: PMC5116005  NIHMSID: NIHMS824550  PMID: 27732872

Abstract

Bacterial sigma factors are subunits of RNA polymerase that direct the holoenzyme to specific sets of promoters in the genome, and are a central element of regulating transcription. Most polymerase holoenzymes open the promoter and initiate transcription rapidly after binding. However, polymerase containing members of the σ54 family must be acted on by a transcriptional activator before DNA opening and initiation occur. A key domain in these transcriptional activators forms a hexameric AAA+ ATPase that acts through conformational changes brought on by ATP hydrolysis. Contacts between the transcriptional activator and σ54 are primarily through an N-terminal σ54 activator interacting domain (AID). To better understand this mechanism of bacterial transcription initiation, we characterized the σ54 AID by NMR spectroscopy and other biophysical methods, and show that it is an intrinsically disordered domain in σ54 alone. We identified a minimal construct of the A. aeolicus σ54 AID that consists of two predicted helices and retains native-like binding affinity for the transcriptional activator NtrC1. Using the NtrC1 ATPase domain, bound with the non-hydrolyzable ATP analog ADP-beryllium fluoride, we studied the NtrC1-σ54 AID complex using NMR spectroscopy. We show that the σ54 AID becomes structured after associating with the core loops of the transcriptional activators in their ATP state and that the primary site of the interaction is the first predicted helix. Understanding this complex, formed as the first step toward initiation, will help unravel the mechanism of σ54 bacterial transcription initiation.

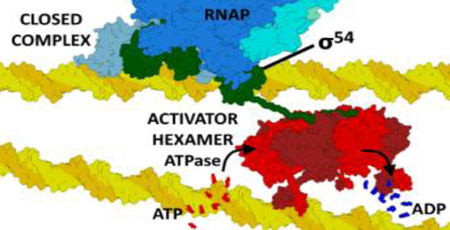

Graphical Abstract

graphic file with name nihms824550f11.jpg

Introduction

The five subunits of the bacterial “core” RNA polymerase, α, α, β, β’ and ω, are sufficient for transcribing mRNA once the promoter has been opened. However, in order to recognize promoter sequences, ‘melt’ the promoter DNA and initiate transcription, the core RNA polymerase requires an additional, modular subunit, the sigma factor [1]. The sigma factors bind to the core RNA polymerase, forming the RNA polymerase holoenzyme, and bind sequence specifically to DNA in the promoter region, with different sigma factors targeting different subsets of genes to accomplish differential transcriptional regulation [2]. For many sigma factors the regulation occurs by controlling the formation of the promoter-holoenzyme complex, either through anti-sigma proteins that compete with polymerase for a particular sigma factor [3], or through repressors that block the promoter [4]. Once the RNA polymerase holoenzyme-promoter complex forms, the sigma factors help open DNA and initiate transcription. After initiation the sigma factor can disassociate from the complex and the core RNA polymerase can continue to transcribe mRNA using the single stranded DNA template [5][6] (Figure 1).

Figure 1. Diagram of transcription initiation mediated by the two classes of bacterial sigma factors.

Figure 1

(1) Assembly: sigma factor with RNA polymerase bind upstream of the start site. (2) Initiation: σ70 is immediately able to initiate DNA opening, while σ54 requires an activation event from one of the transcriptional activators. (3) DNA opening: the RNA polymerase holoenzyme melts DNA. (4) Elongation: the sigma factor can dissociate and core RNA polymerase continues to transcribe RNA using the single stranded DNA template.

Sigma factors fall into two broad families that share no sequence homology: the more common σ70 family and the rarer σ54 family [7][8]. All sigma factors serve the same purpose in directing RNA polymerase to specific promoters, but they differ in their mechanism of action and regulation. All sigma factors bind to core RNA polymerase to form a holoenzyme and all bind promoter regions slightly upstream from the transcription start site. σ70 RNA polymerase holoenzyme is capable of opening promoter DNA and initiating transcription immediately after binding the promoter [9]. However, σ54 polymerase requires an additional activation step, a conformational change that is driven by a transcriptional activator, before it can open the promoter [7]. The σ54-RNAP holoenzyme recognizes conserved sequences −24 and −12 basepairs upstream of the transcription start site [10] where it binds and awaits activation by a transcriptional activator that assembles further upstream [11]. The transcriptional activators themselves must be triggered, often in response to an environmental stimulus [12], after which they act on the σ54-RNAP holoenzyme, which then transcribes the DNA for the encoded protein initiating gene expression [13]. The additional activation requirement affords genes under control of σ54 an extra layer of control that both reduces background levels of transcription and gives a rapid cellular response when conditions are right. Consistent with this behavior, genes regulated by σ54 include those necessary for response to starvation and heat shock among others [14]. The detailed mechanism by which these transcriptional activators reconfigure σ54 and the RNAP holoenzyme into a form capable of opening DNA is not known.

The σ54 transcriptional activators typically have three functional domains: (1) an N-terminal regulatory domain that receives a signal and promotes assembly of the active, hexameric form of the activator; (2) a central AAA+ ATPase domain that binds σ54 and hydrolyzes ATP; and (3) a C-terminal DNA binding domain that binds to enhancer sequences well upstream of the site of DNA melting [15]. Regulatory domains are quite diverse [16][17][18], responding to different kinds of signals including phosphorylation of a receiver domain [19], or ligand binding by a GAF domain [20]. Regulation can be positive, for example phosphorylation of the receiver domain promoting formation of the active hexamer ATPase, or negative where the domain inhibits formation of the hexamer until the signal is received. The central domain of negatively regulated activators may oligomerize into an active conformation when expressed without its regulatory and DNA binding domains, as is the case with the NtrC1 central domain construct (NtrC1C) used in the experiments reported here [21].

Activated transcriptional activators assemble into hexameric rings with six ATP binding sites, each at the cleft between subunits [19]. A highly conserved loop at the top of the central pore, with the sequence GAFTGA, has been shown to be involved in the interaction between the activator and σ54 [22][23]. Crystal structures show that the GAFTGA loop extends upward on subunits bound to ATP (or a non-hydrolyzable ATP analog), but retracts inward for subunits bound to ADP [19][24][25].

σ54 has several functional domains, two of which had structures determined as individual domains [26][27] (Figure 2). The focus of the present work is the N-terminal ≈50 amino acids of σ54, which are responsible for interacting with the assembled ATPase of the activator that we term the activator interacting domain (AID) and has also been called Region I [28]. This is followed by a variable length, low conservation linker, and then the core binding domain, which consists of two subdomains, a four-helix and three-helix bundle, that dock together [27]. The core binding domain is a primary region of interaction with core RNA polymerase subunits, making important contacts to core polymerase to form the holoenzyme. The next domain, which we term the −12 DNA binding domain, interacts with DNA in the −12 region of the promoter where DNA opening occurs [29]. While a consensus −12 DNA sequence has been identified, there is variability in this region of the promoter. DNA opening is initiated in the −12 region, and the part of σ54 in contact with it is likely responsible for helping to stabilize the opened ‘bubble’ that forms during transcription initiation [30][31][32]. The final, C-terminal segment of σ54 is a helix-turn-helix sequence-specific DNA binding domain [21]. This region binds to the strongly conserved −24 element of DNA called the RpoN box in σ54 driven promoters, making numerous sequence specific contacts [26]. This interaction also fixes σ54 in the correct position along the DNA such that the −12 binding domain can interact with the correct region of the promoter.

Figure 2. Sequence alignment of E. coli σ54 and A. aeolicus σ54.

Figure 2

(a) The predicted secondary structure (black, coil; blue, strand; red, helix) calculated by PSIPRED prediction is shown. Rough domain boundaries for the five functional domains are marked with colored highlights (red, activator interacting domain; orange, linker region; yellow, core binding domain; green, −12 DNA binding domain; blue, −24 DNA binding domain). (b) Domain diagram of all E.c. and A.a. σ54 constructs discussed in this paper.

The mechanism by which the N-terminal activator interacting domain (AID) functions in the σ54 activation remains unclear. It has been shown that deletion of the first 50 residues of the N-terminal AID [33], or any mutation in the conserved GAFTGA loop of the transcriptional activators [8], prevent binding of σ54 to the activator in vitro and activation is completely lost in vivo. However, most single amino acid substitutions and even deletions of small regions within the AID have little effect on activator binding and activity [34][35]. σ54 only binds the transcriptional activators with significant affinity when the activator subunits are primarily in the ATP state [22], which should be the default state in the cell. Activator binding is not detected when only ADP is present. Thus a primary role of the AID seems to be in forming the initial complex with the assembled activator ATPase domains.

Contact between σ54 and the activator alone is not enough to initiate transcription, ATP hydrolysis by the activator is required for the σ54-RNAP holoenzyme bound to DNA to melt the DNA and transition from a closed to an open complex [8][36]. The extent of ATP hydrolysis required for opening has not been determined. Structural information about the initial encounter complex may shed light on how ATP hydrolysis by the activator ATPase domains bound to the AID is coupled to open complex formation through structural rearrangements of other domains of the σ54-RNAP holoenzyme.

Attempts to study the structure and interactions of σ54 have been hindered by the poor solubility of σ54 constructs that include the AID. Crystallization of σ54 alone only occurred with the AID removed (S. Darst, personal communication). Recently full length σ54 was crystallized in the presence of RNA polymerase [37]. The structure is of modest resolution, and does not address how it interacts with the transcriptional activators. In the holoenzyme crystal structure, the AID appears to fold against RNAP as two helices near the −12 site of the DNA where the RNAP holoenzyme initiates DNA melting (Figure 3). It is unclear whether this is compatible with DNA bound polymerase, and how interaction with the activator would occur. Here we present evidence that the σ54 AID is an unstructured, intrinsically disordered domain in σ54 alone, with most of it becoming ordered when in complex with core polymerase. Studies in the presence of an activator ATPase domain show that a segment of the AID becomes immobilized in the initial activator complex, probably contacting the activator’s GAFTGA loops.

Figure 3. Crystal structure of σ54 RNAP holoenzyme.

Figure 3

RNAP subunits α, α, β, β’, and ω are shown with a surface (transparent light blue). The domains of σ54 are shown as ribbons bound to the RNAP, from N- to C-terminus the AID (red), linker region (orange), CBD (yellow), −12 DBD (green), and −24 DBD (blue). On the right is the same structure showing only σ54 with the core RNAP surface model removed. Residues could not be assigned before the AID (M1 to A14), within the linker region (D71 to D80), and between the −12 and −24 DBDs (Q387 to A415). PDB ID: 5BYH [36].

Results

Disorder in the σ54 N-terminal Activator Interacting Domain

Our previous structural work was done using domains from the thermophile Aquifex aeolicus σ54 [27][38]. Several activators from this organism have also been characterized [19][20][39], which encouraged us to continue studies of it. However, a majority of genetic and biochemical work has used Escherichia coli (or closely related organisms), and so we have also made and studied similar constructs of the E.c. σ54. We chose to express protein constructs that correspond to just the N-terminal activator interacting domain of σ54, a central fragment of it, or including the full AID through neighboring domains. The longer constructs terminate with the four helix bundle of the core binding domain, or the full core binding domain, or correspond to full length σ54. Amino acid sequence alignments (Figure 2) were used to design constructs covering the equivalent domains from the A.a. and E.c. versions of σ54. Each protein was expressed in 15N labeled growth medium, purified, and 1H-15N HSQC spectra were collected using an 800 MHz NMR spectrometer.

A.a. σ54(1-135) includes the AID and the four-helix bundle of the core binding domain. HSQC spectra from this construct were compared with those from the previously studied A.a. σ54(60-135), for which a structure was determined [27]. Nearly all of the amide peaks in the previously assigned σ54(60-135) spectrum perfectly match the peaks in the σ54(1-135) spectrum (Figure 4). Almost all of the additional peaks in the σ54(1-135) spectrum have low dispersion of chemical shifts in the 1H dimension. These peaks correspond to the first 60 residues of σ54 and the low shift dispersion is characteristic of an unfolded protein segment. The same comparison was done with the E.c. core binding domain construct σ54(106-269) and the longer version containing the AID, linker, and CBD, E.c. σ54(1-269). The results are the same, the σ54(106-269) peaks are well-dispersed and nearly all of them overlay with a peak in the σ54(1-269) spectrum. The extra peaks in the σ54(1-269) construct, which must correspond to the first 105 residues of E.c. σ54, are poorly dispersed and in the region of the spectrum that corresponds to unfolded residues. For both the A.a. and E.c. versions there are only very minor changes in the chemical shifts of CBD peaks in the presence of the AID and linker domain, which indicates that there is no significant contact between the CBD and the AID.

Figure 4. HSQCs of the core binding domain and activator interacting domain.

Figure 4

Comparison of 1H-15N HSQCs from the core binding domain (left, blue) and the activator interacting domain plus the core binding domain (red, middle) of A aeolicus (top) and E. coli (bottom) σ54. In both species, overlaying the HSQC of the core binding domain alone with a construct containing both the activator interacting domain and core binding domain (right) reveals unaccounted for peaks corresponding to the unstructured activator interacting domain and linker domain.

Other constructs of E.c. σ54 were also studied, including the full length protein (residues 1-477), the AID-linker-4 helix bundle σ54(1-186), the AID alone σ54(1-62), and a segment of the AID alone σ54(11-48). In all of these the pattern of poorly dispersed peaks associated with the AID, with 1H shifts between 8 and 9 ppm, occurs (Figure S1). The consistently low dispersion of AID peaks and the lack of change in the chemical shifts of well-folded residues in other σ54 domains in the presence of the AID show that the AID in free σ54 is unstructured, and does not interact significantly with other domains.

The Activator Interacting Domain interacts with core RNA Polymerase but only when part of full length σ54

To determine whether the activator interacting domain makes contacts in the context of the full RNA polymerase (RNAP), we collected 1H-15N HSQC spectra of E.c. σ54(1-269), which includes the full AID and core binding domain, in the presence of increasing concentrations of E.c. RNA polymerase. In the absence of RNAP, the chemical shifts of peaks from the folded CBD align well with those of the CBD alone, with the peaks showing low shift dispersion contributed by the AID (Figure 4). With increasing RNAP concentrations, the peaks from the folded CBD decrease, and vanish at a 1:1 ratio of RNAP:σ54 (Figure S2). This is expected because the 400 kDa polymerase tumbles slowly, giving rise to severe line broadening of immobilized residues. However, the low dispersion peaks associated with the AID remain relatively sharp even with excess RNAP present. These peaks remain poorly dispersed making the number of residues with remaining resonances difficult to determine, but the number roughly matches with the number from the AID alone σ54(1-62).

To explore interactions between the AID and RNAP that require the presence of the remaining σ54 domains, as suggested by the crystal structure [37], we performed similar experiments with full length 15N-labeled E.c. σ54 and RNA polymerase. With excess core RNAP present most of the peaks corresponding to the AID and linker are broadened (Figure 5). The ≈10 remaining peaks, many of which are broadened by the presence of the activator NtrC1C and ADP-BeF3, likely correspond to the N-terminal residues before the start of, and possibly including, the N-terminal helix of the AID. The presence of the CBD alone is not sufficient to promote AID binding to RNAP, consistent with the AID contacts with the −12 DNA binding domain in the structure of the holoenzyme (Figure 3) [37].

Figure 5. HSQCs showing binding of the activator interacting domain to NtrCC and RNAP.

Figure 5

1H-15N HSQCs at high contour levels showing the E.c. σ54(1-477) construct with most well-dispersed peaks corresponding to folded domains below the cutoff (A). These peaks correspond to the AID and linker and are almost all gone in the E.c. σ54ΔAID(106-477) spectrum (not shown). Some of the σ54 AID peaks broaden in the presence of NtrC1C and ADP-BeF3 (B) and RNA polymerase (C) indicating that the AID binds to NtrC1C in the ATP state and the core RNA polymerase as part of the E.c. σ54-RNA polymerase complex. An overlay (D) of the spectra of free σ54 (green), σ 54 bound to NtrC1C and ADP-BeF3 (red), and σ54 bound to RNAP (blue) suggests that the activator and RNAP may interact with different regions of the AID, presumably the N-terminal and C-terminal helices respectively.

To test whether the AID-RNAP interaction could occur in trans, NMR spectra of a partial AID construct, E.c. σ54(11-48), were collected in the presence of polymerase and a σ54 N-terminal deletion that removed the AID. Alone, peaks from 15N σ54(11-48) show the expected low dispersion in the hydrogen dimension of the 1H-15N HSQC spectrum (Figure S3). The peaks neither shift nor broaden in the presence of excess σ54(106-477), showing there is no interaction between the AID and the folded domains of σ54 in the absence of core RNA polymerase. When excess RNA polymerase is added, there are only very minor perturbations to the chemical shifts and slight line-broadening. The slight broadening in this spectrum affects all peaks, and can be attributed to the increased viscosity of the samples containing high concentrations of RNA polymerase rather than any interaction between AID and the high molecular weight RNA polymerase holoenzyme. The ordering of the AID relative to the holoenzyme is greatly diminished when it is present as a separate molecule, indicating a weak interaction that depends on the AID being tethered near the holoenzyme by the linker region for interaction. This is also consistent with the relatively poor packing interface between the AID and −12 binding domain in the crystal structure of the holoenzyme [36].

A Segment of the Activator Interacting Domain Drives Complex Formation with the activator ATPase domain NtrC1C in its ATP state

To study the interaction between the activator interacting domain and the transcriptional activators, we analyzed 1H-15N HSQC spectra of 15N-labeled A.a. σ54 constructs containing the AID in the presence of unlabeled central ATPase domain from the transcriptional activator NtrC1. The activator was maintained in its ATP state by the addition of the non-hydrolyzable ATP analog ADP-BeF3, which causes NtrC1C to assemble into heptamers with uniform ATP-like sites [22] that mimic the binding behavior of full length hexamers. Alternately, we used E239A NtrC1C, which forms an analogous, uniform ATP state heptamer. This variant binds to, but does not hydrolyze, ATP and its biochemical properties and structure resemble WT NtrC1C with ADP-BeF3 [24]. Titrating either heptameric NtrC1C into a solution of the 15N labeled AID caused changes in the chemical shifts and linewidths of some AID peaks. Broadening arises from slowed tumbling of the small AID when bound to the higher molecular weight (≈210 kDa) NtrC1C heptamer. With A.a. AID(1-62), many peaks in the σ54 construct remain sharp and unshifted even at a ratio of 1 AID per heptamer ring. This indicates that many residues in the AID do not contact NtrC1C, and hence remain flexible (giving sharp resonances) even in the complex. To identify the key residues required to form the σ54-activator encounter complex, we made constructs reducing the number of residues from the AID, while verifying that these AID constructs still bound to the activator ATPase oligomers.

Minimal AID construct

We considered available data to try to identify what region of the σ54 activator interacting domain might be responsible for specific binding to activators. Although mutagenesis failed to identify individual residues critical for binding, changes that have a moderate effect occur mostly in the range of residues 20–40. Furthermore, this region contains two predicted helices [40][41]. We therefore prepared a construct of A.a. σ54 that begins with the first predicted α helix and ends after the second one, comprising residues 16-41, σ54(16-41). As shown below, this construct still binds well to the activator. The 1H-15N HSQC peaks for this construct cluster in the same region of the spectrum as the longer versions, consistent with a lack of folded structure as in the full AID (Figure S4).

For the peptide alone the 1H-15N HSQC peaks from all 25 of the residues are sharp. We assigned amide peaks in σ54(16-41) (Figure 6) by using sequential connectivities in 3D 15N-resolved [1H-1H]-NOESY spectra together with residue type identifications from intra-residue peaks. Neither patterns of NOEs or chemical shifts indicate any regions of substantial secondary structure for the peptide alone in spite of the two predicted helices.

Figure 6. Chemical shift assignments of the minimal activator interacting domain AID(16-41).

Figure 6

Amide assignments of the AID(16-41) construct obtained from 3D 15N-resolved [1H-1H]-NOESY data. A tall spectrum (left) shows the assignments of the outlying peaks for T26, T29 and the C-terminal residue L41. A zoomed in spectrum (right) shows the assignments of the remaining peaks.

Characterization of the σ54-NtrC1C Binding

We cloned a version of the reduced AID segment 16-41, adding an N-terminal tryptophan followed by a cysteine before the start of the σ54 sequence at residue 16. The cysteine was derivatized with the fluorescent marker Alexa Fluor 488 by forming a linkage between the cysteine and a maleimide on the dye. Binding was assayed by adding increasing concentrations of NtrC1C (with ADP or ATP analog ADP-BeF3 at 500 µM) to 0.16 µM Alexa488-σ54(16-41). Each sample was run on a native gel, and visualized using a Typhoon at 488nm. In the gel, when ADP-BeF3 is present, the NtrC1C oligomer band fluoresces at 488 nm showing that the Alexa488 labeled σ54(16-41) bound to NtrC1C as the complex traveled through the gel (Figure S5). Thus a complex between NtrC1C and σ54 forms, even with only 25 residues from the predicted helices in the activator interacting domain. However, when only ADP is present, the NtrC1C oligomer has little emission at 488nm, indicating binding in the ADP state is substantially reduced relative to the ATP state, as expected from previous work [22][24].

To assess the binding affinity of our reduced AID construct, we measured the changes in the fluorescence anisotropy of Alexa488 labeled σ54(16-41) upon adding NtrC1C in different nucleotide states. Binding of the small, fluorescently labeled σ54(16-41) peptide to the high molecular weight NtrC1C greatly lengthens the rotational time of the peptide, resulting in a change in anisotropy in the dye fluorescence. Titrations were done by adding increasing concentrations of ADP-BeF3-NtrC1C, ADP-NtrC1C or just NtrC1C to a fixed concentration of peptide, and following the anisotropy change. In the presence of ADP-BeF3, σ54 AID(16-41) binds with a Kd of 1 µM (Figure 7A). In the absence of any nucleotide, or in the presence of ADP, we observed no change in the fluorescence anisotropy, and therefore no binding, even with a significant excess of NtrC1C (Figure 7B). This confirms that the minimal AID construct σ54(16-41) is sufficient to form the activator complex.

Figure 7. Binding constant of the AID to NtrC1C determined by fluorescence anisotropy.

Figure 7

(a) Fluorescence anisotropy data for 0.16 µM Alexa488-labeled AID(16-41) with 500 µM ADP-BeF3 and increasing concentrations of NtrC1C heptamer. The fraction bound is determined by the measured fluorescence anisotropy relative to its maximum value with high excess NtrC1C (fully bound AID(16-41)) and its minimum value with no NtrC1C (fully unbound AID(16-41)). The Kd of the binding is the concentration where half of the peptide is bound, which occurs at 1 µM in the presence of ADP-BeF3. (b) Fluorescence anisotropy data when 500 µM ADP is used instead of ADP-BeF3. No binding is detected in the presence of ADP only.

Fluorescence anisotropy experiments were also performed with full length σ54 carrying a K2C mutation and with an Alexa Fluor 488 dye attached at residue 2. The anisotropy changes during titrations with ADP-BeF3-NtrC1C indicate a similar Kd of 2 µM (Figure S6). The equivalence of the binding constants for σ54(16-41) and full length σ54 to the ‘ATP’ form of NtrC1C shows that residues between 16 and 41 are responsible for binding to the activator.

NMR characterization of the AID-NtrC1C complex

Given the moderate binding affinity of the peptide for NtrC1C and the high molecular weight of the complex, we thought it might be possible to use exchange transferred NOEs within the peptide to characterize the bound state. However, titrating in sub-stoichiometric NtrC1C with ADP-BeF3 produced no new NOE peaks even at long mixing times, indicating slow exchange between the free AID and the AID-NtrC1C encounter complex. We also examined HSQC spectra collected with varying ratios of peptide and activator. Addition of NtrC1C alone had no effect on the peptide spectrum (consistent with fluorescence data), but the addition of ADP-BeF3 together with NtrC1C (not shown) or ATP with NtrC1C(E239A) (Figure 8), reduced the intensity of many peaks. Most peaks from the 15N-labeled σ54(16-41) are so broad that they cannot be observed when excess ATP and NtrC1C(E239A) are present, but amides for residues E38, E39, V40, and L41, remain sharp even in the complex and amides for K34, L35, I36 and H37 appear but are very weak. The peaks with the least broadening are from the C-terminal part of the σ54(16-41) AID construct, indicating that the N-terminus and the first predicted helix are likely the main contributors to binding affinity.

Figure 8. Peak broadening in the HSQC of the AID upon activator binding.

Figure 8

1H-15N HSQC of A.a. 15N-σ54AID(16-41) and 14N-NtrC1C(E239A) heptamer without nucleotide (left) with 1:1 ATP:NtrC1C(E239A) heptamer (middle) and with 7:1 ATP:NtrC1C(E239A) heptamer (right) showing the disappearance of most AID peaks when bound to NtrC1C(E239A) trapped in the ATP state. The remaining AID peaks at high ATP concentrations are localized to the second predicted helix and correspond to E38, E39, V40, and L41, with broad peaks present for K34, L35 and I36. One remaining glutamine side chain peak likely corresponds to Q30. Peak intensities of each residue 15N-σ54AID(16-41) with 14N-NtrC1C(E239A) in the presence (gray) and absence (white) of ATP are shown below.

To try to directly characterize the high molecular weight activator-σ54 AID complex we made 2H/15N σ54(16-41) with specific 1H-13C methyl labels by expressing it in 2H2O/15NH4Cl in the presence of labeled metabolic precursor α-ketoisovalerate to label the protein only at the δ-methyls of leucine and γ-methyls of valine [42]. The labeling approach produces a deuterated σ54(16-41) peptide with nine leucines and one valine each labeled with 1H and 13C at the δ1 or δ2 methyls of leucine and γ1 or γ2 methyls of valine. We then ran 1H-13C methyl-TROSY HMQC experiments [43] to detect signals from the labeled residues in the complex.

For the peptide alone the leucine δ methyl peaks were poorly dispersed and all located close to the values predicted for random coil chemical shifts (Figure 9), as might be expected given the 1H-15N HSQC spectrum. The single valine is easily identified from its γ1 and γ2 peaks that appear with equal intensities and with nearly equal 1H chemical shift but different 13C chemical shifts. The nine sets of leucine peaks overlap significantly and cannot clearly be distinguished, though the nine δ1 peaks are distinct from the nine δ2 peaks, and are consistent with chemical shifts expected for a leucine in a random coil. Though individual leucine δ1 and δ2 peaks cannot be identified, integration of the region of overlapping peaks suggests that they do correspond to 9 times as many methyls as a single valine peak, which is expected from the ratio of nine leucines and one valine in the σ54(16-41) sequence.

Figure 9. Methyl-TROSY HMQC spectra of AID(16-41) bound to NtrC1C.

Figure 9

2D 1H-13C methyl-TROSY HMQC spectra of AID(16-41) with 1H-13C labeling of δ1 or δ2 methyls of leucine and γ1 or γ2 methyls of valine and 2H and 12C labeling of all other carbons and hydrogens. Integration of all leucine and valine side chain methyls matches the expected number of nine leucines per one valine in the AID(16-41) alone (left). The spectrum is unaffected by addition of excess 2H-NtrC1C (middle) but integration indicates six leucines are broadened by the addition of 2H-NtrC1C and ADP-BeF3 (right) leaving three leucines and one valine. The sum projection (below) also reflects the broadening of some leucine peaks when ADP-BeF3 is present. The sequence of the AID peptide with its two predicted α-helices highlighted in gray is shown below. The nine leucines and one valine are in bold. The three underlined residues “SNA” in front of the first helix are the result of TEV cleavage and are not part of the true A.a. σ54 sequence.

Addition of NtrC1C alone had no effect on the chemical shifts of the leucines and valines in the labeled σ54(16-41) minimal AID peptide, again indicating no or very weak interaction between the two in the absence of ATP (Figure 9). In the presence of the ATP analog ADP-BeF3 and 2H-NtrC1C, the 2D 1H-13C methyl-TROSY HMQC spectrum changes, reflected also in the 1D projections. Many peaks in the leucine δ1 and δ2 regions are broadened, but three remain relatively sharp along with the γ1 and γ2 peaks from the single valine. The integration of the leucine δ1 and δ2 regions is consistent with the broadening (loss of signal) of six leucines. The three relatively non-overlapping leucine peaks show only small chemical shift changes. These observations are consistent with the 1H-15N HSQC data indicating that NtrC1C binding is localized to the N-terminus of the AID peptide, which has 6 leucines, and that the C-terminal tail of the AID, which has 3 leucines and 1 valine, remains free in the high molecular weight complex. Surprisingly, the six N-terminal leucines bound to the ≈210 kDa NtrC1C complex could not be detected even using TROSY experiments designed to minimize the broadening of high molecular weight species. This suggests that in spite of the relatively tight binding there may be conformational exchange in the complex such that contact residues are broadened.

Discussion

Previous structural, biochemical, and genetic studies of σ54 have identified functional regions in the protein that play different roles in transcription: interaction with activators; binding to core polymerase; DNA interactions in the −12 region of the promoter where opening occurs; and sequence specific recognition of the −24 region of the promoter. The latter three functions are carried out by folded domains of σ54; structures of the core binding domain [27] and −24 recognition domain [26] have been solved as independent domains. DNA opening is primarily controlled by the −12 DNA binding domain of σ54 in the RNAP holoenzyme [29]. The activation event that brings about these conformational changes is initiated through the first 50 N-terminal residues of σ54, the activator interacting domain (AID), and a transcriptional activator. The AID has relatively low sequence conservation, and the linker region between the AID and core binding domain is quite variable in length. Neither genetic studies nor a recent crystal structure of the polymerase-σ54 complex [37] has provided insight into how the AID functions. Here we further characterize the nature of the AID and its interaction with core polymerase and the activator ATPase domain. These studies of the σ54 AID are a step toward understanding the changes in the σ54-polymerase holoenzyme that lead to transcription initiation.

The Activator Interacting Domain is Intrinsically Disordered in σ54 Alone

The 1H-15N HSQC spectra from all A.a. and E.c. σ54 constructs that include the N-terminal domain, ranging in size from full length down to a minimal construct of the AID, display many relatively sharp resonances with low chemical shift dispersion, particularly in the proton dimension. The low shift dispersion is a hallmark of an unfolded domain, the lack of secondary structure leading to a similar environment for the backbone amides [44]. Rapid local motion of the backbone of unfolded domains also reduces the linewidths from those expected for a folded domain of the same molecular weight [45]. Comparing spectra of σ54 constructs containing the AID with those lacking it shows that the residues in the AID and linker domain of σ54 account for the vast majority of the poorly dispersed, unstructured residues. The peaks from the AID have the same chemical shifts when part of constructs with the σ54 CBD or the full length σ54 present. Upon addition of RNA polymerase to 15N labeled σ54 the interaction with polymerase subunits leads to slower tumbling broadening almost all of the resonances beyond detection. This includes most resonances from the AID, indicating its interaction with core polymerase and/or other σ54 domains, consistent with the crystal structure reported. However, the AID does not bind the ΔN-σ54 holoenzyme when present in trans and therefore may only have a low affinity for its binding site. The crystal structure of holo-σ54 polymerase places the AID in a region close to the –12 region binding domain, which would appear to conflict with DNA interaction. If the first helix of the AID is displaced by DNA binding then a substantial part of the AID maybe again become disordered, and free to interact with an activator. It has been proposed that binding of the AID in the cleft of polymerase could lead to the AID blocking the DNA from accessing the active site of the RNA polymerase inhibiting transcription initiation [37]. However, deletion of this domain does not lead to constitutive activation, so it appears that more than displacement is needed for activation.

1H-15N HSQC spectra of 15N-labeled A.a. σ54 constructs were also studied in the presence of the ATPase domain from A.a. activator NtrC1C. In this case, the AID peaks are strongly broadened due to immobilization in the presence of NtrC1C in its ATP state (mimicked by ADP-BeF3), but they are unaffected by apo NtrC1C or NtrC1C in the ADP state where the activator-σ54 interaction is weak. The observed broadening indicates that the AID becomes immobilized in the complex with the oligomeric, high molecular weight transcriptional activator oligomer, but only when the activators are in their ATP state with the GAFTGA loops raised above the ring around the central pore [19][22].

An intrinsically unfolded domain becoming immobilized and partly structured upon encountering a specific binding partner is common behavior for such domains [46]. One common role for intrinsically unfolded domains is to facilitate assembly of functional complexes [47], for example to initiate transcription in eukaryotes. In that case, transcription factor activation domains serve to form tethers with other proteins required to assemble a polymerase complex competent for initiation [48][49]. For bacterial σ54-polymerase, it is expected that the polymerase holoenzyme is normally bound at the promoter waiting for the action of the activator, which may already be bound to the enhancer region in its unactivated dimeric state. Upon receiving its signal, the activators assemble to the active hexamer [50], which should have primarily ATP bound since ATP is much more abundant than ADP in the cell. At this point, flexibility of the AID of σ54 would facilitate making the initial ‘encounter complex’ with the ATPase domain of the assembled activator, completing assembly of all the components needed for initiation of transcription upon subsequent ATP hydrolysis. At present it is not clear whether there are contacts between the activator ATPase domain and other parts of the polymerase holoenzyme, how much ATP hydrolysis is required for promoter opening, or the extent to which the complex changes structure when ATP hydrolysis occurs. Studies of the activator ATPase domains have shown that the GAFTGA loops that contact the AID in the initial complex are raised above the ring in their ATP bound state [22] but are down when ADP is bound [19]. A recent structure of the NtrC1C ATPase crystallized in the presence of ADP-BeF3 gave a mixed nucleotide state for the hexameric ring, with a ‘lock-washer’ spiral structure [25] reminiscent of the Rho-ATPase [51]. For Rho a functional model has been developed in which sequential hydrolysis drives loops down pushing RNA through the central pore of the ring through multiple rounds of ATP hydrolysis. Although the organization of the ATPase domains is different, there is some structural similarity between these systems.

A minimal Activator Interacting Domain is sufficient for formation of the encounter complex

Mutational studies of the N-terminal activator interacting domain of σ54 show that no single residue is critical for activator binding and function, rather changes in numerous residues over a segment of about 25 amino acids result in modest decreases in activity [52][53][35][54]. Secondary structure predictions using PSIPRED indicate that there may be two conserved helices in σ54, predicted consistently across multiple species [40]. Our experiments with σ54 AID constructs show that just having residues from these two predicted helices is sufficient for activator binding in the presence of an ATP analog, but the NMR data do not suggest significant helix formation in the peptide alone. Just as with full length σ54, the formation of the encounter complex between the minimal σ54 AID construct and the transcriptional activators requires activator subunits in the ATP state in which GAFTGA loops are extended above the ATPase ring. The dependence of peptide binding on ATP, as well as the similar binding affinities of the peptide and the full length σ54 to the transcriptional activators, confirms that we are observing native-like interactions of this segment of the AID rather than a non-specific binding event.

Examining the sequences of the E.c. and A.a. AIDs shows that if they fold into the predicted α-helices these would be amphipathic. Regular repeats of hydrophobic residues (primarily leucine) and hydrophilic residues (primarily glutamine) cluster on opposite sides of the predicted α-helices (Figure 10), which would be connected by a short linker. This suggests that formation of the encounter complex between σ54 and the GAFTGA loops of the transcriptional activators could be driven by hydrophobic interactions between the leucine-rich side of the AID and the hydrophobic GAFTGA loops that form a surface around the pore in the ATPase ring.

Figure 10. Helical wheel diagrams of predicted secondary structure in the AID.

Figure 10

Helical wheel diagrams of the two PSIPRED predicted helices of the activator interacting domain in A. aeolicus (left) and E. coli (right). Residues are colored by their Kyte-Doolittle hydrophobicity score (more red, more hydrophobic; more blue, more hydrophilic) with hydrophobic residues shown as squares and hydrophilic residues shown as circles [55]. Amphipathic nature of the predicted helices is indicated by the arrows pointing towards their hydrophobic side.

σ54 AID to activator binding affinity and slow exchange

Full length σ54 and σ54(16-41) bind NtrC1C in the ATP state with approximately the same dissociation constant of ≈2 µM, while neither binds to the activator with measurable affinity in the ADP or apo state. This indicates that residues between 16 and 41 are not only sufficient for binding, but that they account for essentially the full binding affinity of σ54. Thus it is likely that this segment of σ54 contains the large majority, if not the entirety, of the NtrC1C binding surface during the formation of the initial encounter complex.

When the 15N-labeled σ54 AID is present in excess of the ATP-state NtrC1C rings, there are no discernible chemical shift changes in the unbound AID peaks. In these samples, σ54 AID is present in two states: the bound encounter complex and the unbound free form. The lack of chemical shift changes or broadening during the titrations shows that the AID is in slow exchange on the chemical shift timescale. This is somewhat surprising given the moderate binding affinity of the peptide, if binding were even near the diffusion limit then the predicted dissociation rate would be sufficient to give intermediate to fast exchange behavior. To be consistent with the observed dissociation constant and the slow exchange behavior both the rate of binding and the rate of dissociation must be quite low. In the presence of excess NtrC1C-ADP-BeF3 (above one ATPase ring per peptide) all but a few C-terminal peaks of the AID broaden and disappear, indicating complete binding of the AID.

Characterization of the σ54-NtrC1C Encounter Complex

The minimal AID construct σ54(16-41) yielded NMR spectra with little overlap of amide residues and uniformly sharp peaks, which enabled doing peak assignments using conventional sequential methods [56]. In the NOESY spectra we observed no crosspeaks between i and i+3 residues as would be expected in an α-helical structure, in which the α-proton of a residue is in proximity of the amide of the residue 3 amino acids later in the sequence. This indicates that the free AID peptide is not significantly populating folded α-helices by itself in solution, but this does not rule out the formation of well-folded α-helix in the encounter complex with the ATPase.

In the presence of NtrC1C in the ATP state, most of the σ54(16-41) peaks were broadened upon binding to the high molecular weight NtrC1C oligomers. However, a few peaks remained sharp enough for detection and underwent slight chemical shift changes. The relatively sharp resonances indicate that these residues remain quite flexible even when the AID is in the encounter complex. Our assignments (Figure 6) show that these residues arise from E38, E39, V40, and L41 at the end of the second predicted helix. Further very weak (broadened) resonances are consistent with chemical shifts of K34, L35, I36 and H37. To try to directly observe the bound state, methyl-TROSY experiments were done on uniformly deuterated σ54(16-41) labeled with a 13C-1H3 methyl at the δ carbon on the leucine and at the γ carbon of the valine side chains. In the free peptide these peaks exhibited low chemical shift dispersion as expected, consistent with other evidence that the AID is unstructured. Integration of the peaks shows that all nine leucines and one valine were labeled as expected. When AID binds to the transcriptional activators there are six leucine peaks that broaden and disappear from the methyl-TROSY spectra, while three leucine peaks and one valine remain sharp. There are six leucines in the first predicted helix and three leucines and one valine in the second predicted helix. One of the remaining leucines has a slightly different shift (unaffected by complex formation) and is very likely the C-terminal residue. The other two leucines that are observed, together with the only valine, which neighbors the C-terminal leucine, remain almost as sharp as in the free peptide. The combination of 15N and 13C observations show a gradient in mobility of the bound peptide residues, with flexibility starting around residue 33. The backbone appears to be affected more than the methyl-containing sidechains, but this might reflect sidechain dynamics.

In methyl-TROSY experiments, the methyl 1H-13C correlations are not broadened as much by the slow tumbling times of the high molecular weight activator-σ54 AID complex as those from other 1H-13C or amide 1H-15N pairs. Nevertheless, we still failed to detect even the methyl peaks corresponding to leucines in the N-terminal half of the AID in the ATPase encounter complex. This obviously prevents further analysis of the induced structure in the AID. It must also mean that the AID in the encounter complex is not bound to the transcriptional activator in a single, well-defined configuration, but instead is bound in multiple different conformations experiencing different chemical environments. The lack of a single, well-defined induced structure in the AID encounter complex is consistent with an activation mechanism that involves changes in the AID-ATPase complex rather than serving a role simply as a defined docking site. Given that many AAA+ ATPases thread substrates through a central pore to act on them [57], a dynamic activation mechanism in which the AID is threaded through the central pore of the transcriptional activator by successive rounds of ATP hydrolysis and motion of the GAFTGA loops seems consistent with the properties of this initial encounter complex.

Future Directions

Studies of the interaction of the intrinsically disordered activator interacting domain bound with NtrC1C provide some hints to the way transcriptional activators drive σ54 transcription initiation. Further structural studies may be possible, if conditions for forming a better-defined complex can be identified, either using NMR techniques or crystallography. A high resolution structure of the complex could provide a more complete picture of the specific interactions between σ54 and the activators and may give some further evidence about the activation mechanism. However, even a more complete understanding of the structure of the static encounter complex may not be enough to identify the precise mechanism of activation. Experiments that probe the dynamics of the AAA+ ATPase transcriptional activators and σ54 as they go through multiple ATP hydrolysis cycles, as well as in vivo experiments to test various changes to σ54 that disrupt activation, could be valuable techniques to study the dynamics of the mechanism of σ54 transcription initiation.

Materials and Methods

Protein expression and purification

Aquifex aeolicus and Escherichia coli σ54 constructs were cloned from full length σ54 plasmids and placed into pET28a expression vectors. E.c. σ54(1-477), E.c. σ54(1-269), E.c. σ54(1-186), E.c. σ54(1-62), and A.a. σ54(1-135) all contained a C-terminal His6 tag. E. coli Rosetta cells with the plasmid were grown at 37°C in 1L of isotope-labeled M9 minimal media to an optical density at 600 nm of 0.6 and induced with 0.5 mM isopropyl thiogalactopyranoside then harvested after 8–12 hours. Extracts for A.a. constructs were heated at 75°C for 20 minutes, and both E.c. and A.a. constructs were purified on a NiNTA column. Some constructs went to inclusion bodies and were purified on a NiNTA column under denaturing conditions in 8M urea, then refolded on the column by changing to buffer without urea.

E.c. σ54(11-48), A.a. σ54(10-47), A.a. σ54(16-41), and A.a. σ54(WC-16-41) were placed into a pET His6 MBP TEV LIC cloning vector (1M) obtained from the UC Berkeley MacroLab. His-MBP-AID was expressed by growing E. coli Rosetta cells at 37°C in 1L of isotope-labeled M9 minimal media to an optical density of 0.6 and induced with 0.5 mM isopropyl thiogalactopyranoside then harvested after 8–12 hours. Leucine, valine labeled peptide was obtained by growth on 1L 2H2O M9 media with deuterated glucose and the addition of 100 mg of the Leu-Val precursor α-ketoisovalerate added 1 hour before induction. This produces u-[2H,12C], δ1,δ2-[1H,13C] resulting in NMR active nuclei on the δ carbon of the leucine side chains and on the γ carbon of the valine side chains. The expressed protein was found in inclusion bodies after sonicating and pelleting the lysates. Proteins in the pelleted inclusion bodies were unfolded in Denaturing Wash Buffer (8 M urea, 20 mM sodium phosphate, 500 mM NaCl, 20 mM imidazole, pH 7.4), residual insoluble protein was pelleted and then soluble supernatant was passed through a 0.2 µm filter before loading onto a NiNTA column. Samples were washed and refolded on the column by passing through 5 column volumes of Ni Wash Buffer (20 mM sodium phosphate, 500 mM NaCl, 20 mM imidazole, pH 7.4), then eluted with Ni Elution buffer (20 mM sodium phosphate, 500 mM NaCl, 500 mM imidazole, pH 7.4). His-MBP-AID was dialyzed into 20 mM Tris, 1 mM DTT, 0.1 mM EDTA, pH 7.4 buffer overnight, transferred to a falcon tube with the addition of 20% glycerol. This protein was cut with TEV protease and passed through 30k and 10k MWCO Amicon Ultra centrifugal filters, after which the majority of cleaved AID peptide (3.5–4.5 kDa) remained in the flow through. Peptide was reconcentrated into NMR buffer (20 mM Tris, 200 mM KCl, pH 7.0) in a 3 kDa MWCO Amicon Ultra centrifugal filter.

NtrC1C(121–387) was cloned into pET28a vectors with an N-terminal, TEV protease cleavable His tag. NtrC1C(E239A) was prepared using QuikChange site directed mutagenesis on the NtrC1C plasmid. Protein was expressed in either Luria-Bertani media or 2H2O M9 minimal media, grown to an optical density at 600 nm of 0.6, induced with 0.5 mM isopropyl thiogalactopyranoside. Pelleted cells were sonicated and heated at 75°C for 20 minutes, which precipitated most of the proteins other than the thermophilic A.a. NtrC1C. Protein was purified on an Ni-NTA column and dialyzed overnight back into Ni Wash Buffer with TEV protease. Cut NtrC1C was passed through an NiNTA column to separate it from TEV and the flow through was collected and dialyzed into NMR Buffer (20 mM Tris, 200 mM KCl, 5% glycerol pH 7.0).

The RNAP(ααββ’ω) expression plasmid was a gift from the Buck Lab [58]. RNAP protein complex was expressed in cells grown on Luria-Bertani media at 37°C to an optical density of 0.6 at 600 nm. Cells were cold shocked on ice for 30 minutes before induction with 0.5 mM isopropyl thiogalactopyranoside and then grown for 6–8 hours at 25°C. The RNAP β subunit contains a C-terminal His tag, and all subunits of the complex were eluted together on an NiNTA column, then dialyzed into low salt buffer and further purified using a heparin column eluted with an NaCl gradient.

Preparation of the ATP analog ADP-BeF3

ADP-BeF3 analog was prepared with a 1:1:8:1 ratio of ADP:BeCl2:NaF:MgCl2 by thawing 0.1 M ADP to room temperature and mixing it with NMR buffer to a final concentration of 20 mM. BeCl2 was added to a final concentration of 20 mM causing a precipitate to be observed. The precipitate disappeared when NaF was added to a final concentration of 160 mM. Finally, slight excess of MgCl2 was added to achieve a final concentration of 25 mM and precipitate was observed again. The solution was passed through a 0.2 µm filter to remove remaining precipitates.

NMR spectroscopy of σ54 and RNA Polymerase

Samples were obtained by mixing excess RNAP with 15N-labeled σ54 constructs at low concentration and concentrated to 25 µM as a complex with a 10k MWCO Amicon Ultra centrifugal filter. NMR data were collected at 298 K on Bruker Avance 800 MHz or 600 MHz spectrometers. Chemical shifts were referenced to that of water in order to properly align them across different experiments and chemical shift changes were observed with a 1H-15N HSQC. Data were processed with NMRPipe [59] and chemical shift analysis was undertaken with CARA [60] or MestReNova [61].

NMR spectroscopy of σ54(AID) and NtrC1C

Samples were prepared by mixing 15N-labeled, and later deuterated with 1H-13C labeled Leu δ and Val γ, σ54 AID constructs with either unlabeled or 2H NtrC1C and premixed ADP-BeF3, ADP alone, or with the ATP-hydrolysis deficient mutant NtrC1C(E239A) and ATP. ADP-BeF3 was used over NtrC1C(E239A) and ATP for long NMR experiments to avoid spectral changes due to low background levels of ATP hydrolysis during the acquisition. NMR data were collected at 298 K on Bruker Avance 800 MHz or 600MHz spectrometers. Chemical shifts were referenced to that of water in order to properly align them across different experiments. Chemical shift changes of all σ54 AID amides were observed using 1H-15N HSQC experiments and chemical shift changes of Leu and Val side chains using 1H-13C methyl-TROSY experiments [43]. Amide assignments were carried out using 3D 15N-NOESY-HSQC experiments to both identify the amino acid type of amides by their side chain shifts and connect amides to their neighbor Hα resonances with the sequential assignment approach [56]. Data were processed with NMRPipe [59] and assignment analysis used the programs CARA [60] or MestReNova [61].

Fluorescence Anisotropy and Native Gels of σ54 and NtrC1C

A tryptophan and a cysteine residue were introduced in front of the start site of the σ54(16-41) construct by QuikChange site directed mutagenesis. Expression and purification techniques were the same as σ54(16-41). Purified peptide was incubated with excess Alexa Fluor 488 maleimide which attached the dye to the single cysteine residue. Reactions were kept in the dark and excess dye was removed by reconcentrating the peptide in a 3k MWCO Amicon Ultra centrifugal column. 0.16 µM concentration of Alexa488-σ54( 16-41) (or 5 µM of Alexa488-full length σ54 (K2C)) was mixed with varying concentrations of NtrC1C and either ADP or the ATP analog ADP-BeF3. Fluorescence anisotropy was measured on a DTX880 (Beckman Coulter) plate reader. Samples were also run on a native PAGE (4–15%) gel in running buffer that included ADP-BeF3 or ADP and visualized with a Typhoon (GE Life Sciences) to look for dye fluorescence.

Supplementary Material

1
2
3
4
5
6
7

Highlights.

  • In free σ54, the AID (residues 1–50) is intrinsically disordered.

  • The AID becomes ordered upon core polymerase binding.

  • The AID alone binds transcriptional activators in their ATP state.

  • The AID binds the activator with native-like affinity.

  • σ54 residues 16–25 are the major contact region to the ATPase.

Acknowledgments

This research was supported by NIH grant GM 62163 (to DEW), and instrumentation grants NSF BBS 87-20134 for the 600 MHz NMR spectrometer, and NSF (BBS 01-19304) and NIH (RR15756) for the 800 MHz NMR spectrometer and the Central California 900 MHz Facility (supported by NIH-GM68933). We also thank Seh-hyeon Jin and Zhijuan Gao for help with the E. coli σ54 core binding domain; Cristhian Canari for help with the studies of the σ54-RNAP binding; Kwang Seo Kim for help with the fluorescence anisotropy measurements of full length σ54; and Jeff Pelton for his help collecting NMR spectra.
