. 1991 Apr 15;88(8):3233–3237. doi: 10.1073/pnas.88.8.3233

Construction, arraying, and high-density screening of large insert libraries of human chromosomes X and 21: their potential use as reference libraries.

D Nizetić 1, G Zehetner 1, A P Monaco 1, L Gellen 1, B D Young 1, H Lehrach 1
PMCID: PMC51420  PMID: 2014245

Abstract

We have constructed cosmid libraries from flow-sorted human chromosomes X and 21, each of which contains greater than 30 genome equivalents, and have developed systems allowing permanent storage of primary clones, easy screening of libraries in high-density filter formats, and the simultaneous generation of fingerprinting and mapping data on the same set of cosmid clones. Clones are picked into microtiter plate wells and stored at -70 degrees C. A semiautomatic robot system allows the generation of filter replicas containing up to 10,000 clones per membrane. Sets of membranes containing 15-20 chromosome equivalents of both chromosomes will be used for the construction of ordered clone libraries by hybridization fingerprinting protocols. In addition, multiple sets of two membranes containing 4 chromosome equivalents of the human X chromosome, and one membrane containing 3 chromosome equivalents of chromosome 21, have been distributed to other interested laboratories as part of a system of reference libraries. This system allows other groups easy access to the clones and offers an efficient protocol to combine results generated in different laboratories using these libraries. Here we describe the construction of the libraries and demonstrate the use of high-density screening filters in oligonucleotide probe hybridizations and the isolation of cosmids by hybridization with probes from the X chromosome.

Full text

PDF

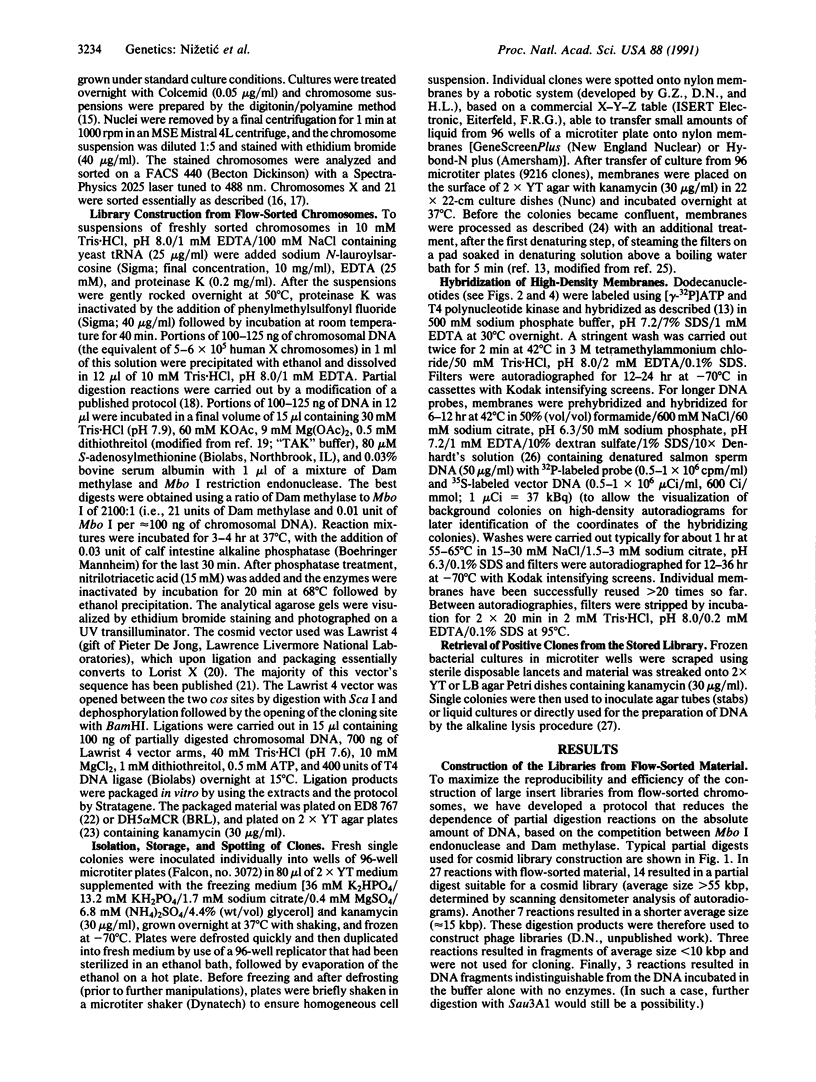

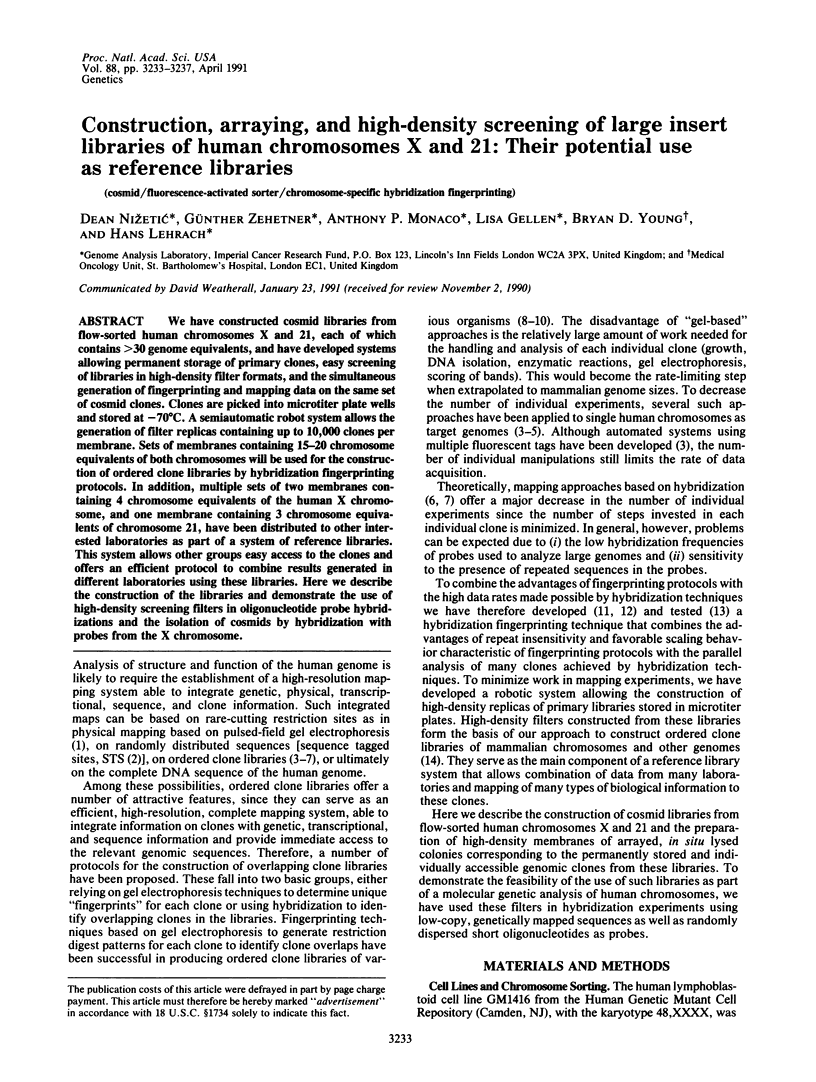

3233

Images in this article

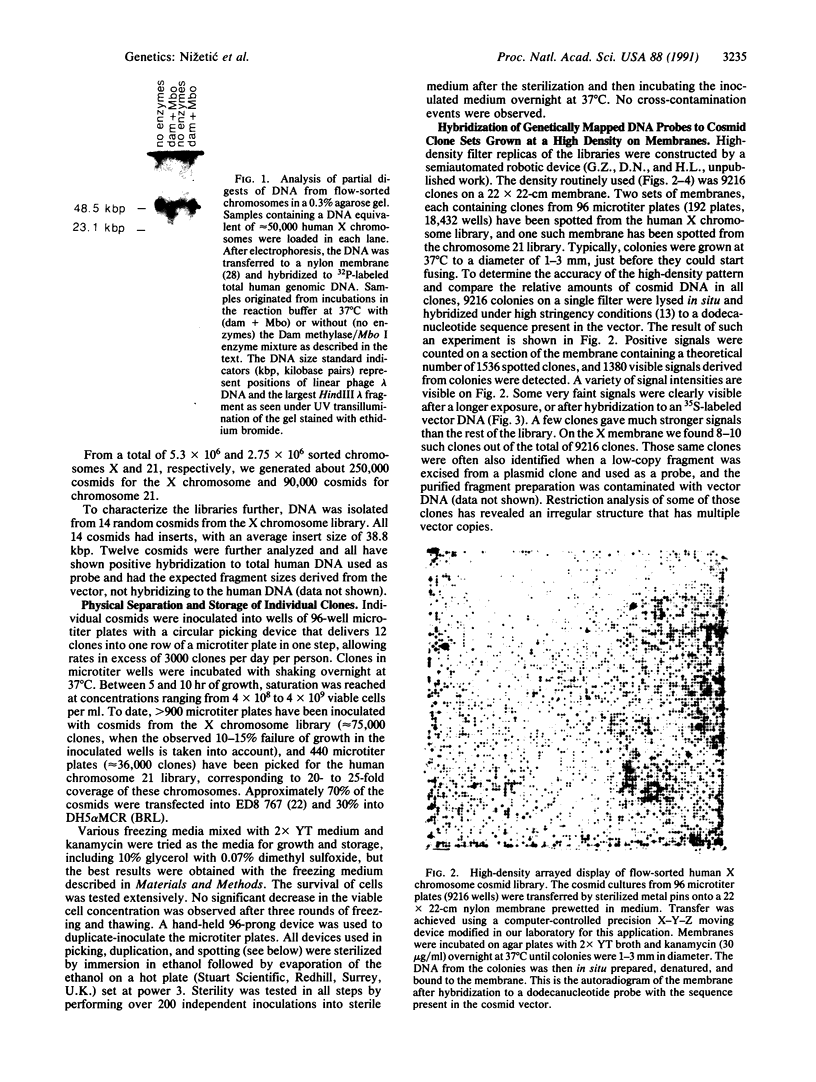

3235Image
on p.3235
3235Image
on p.3235

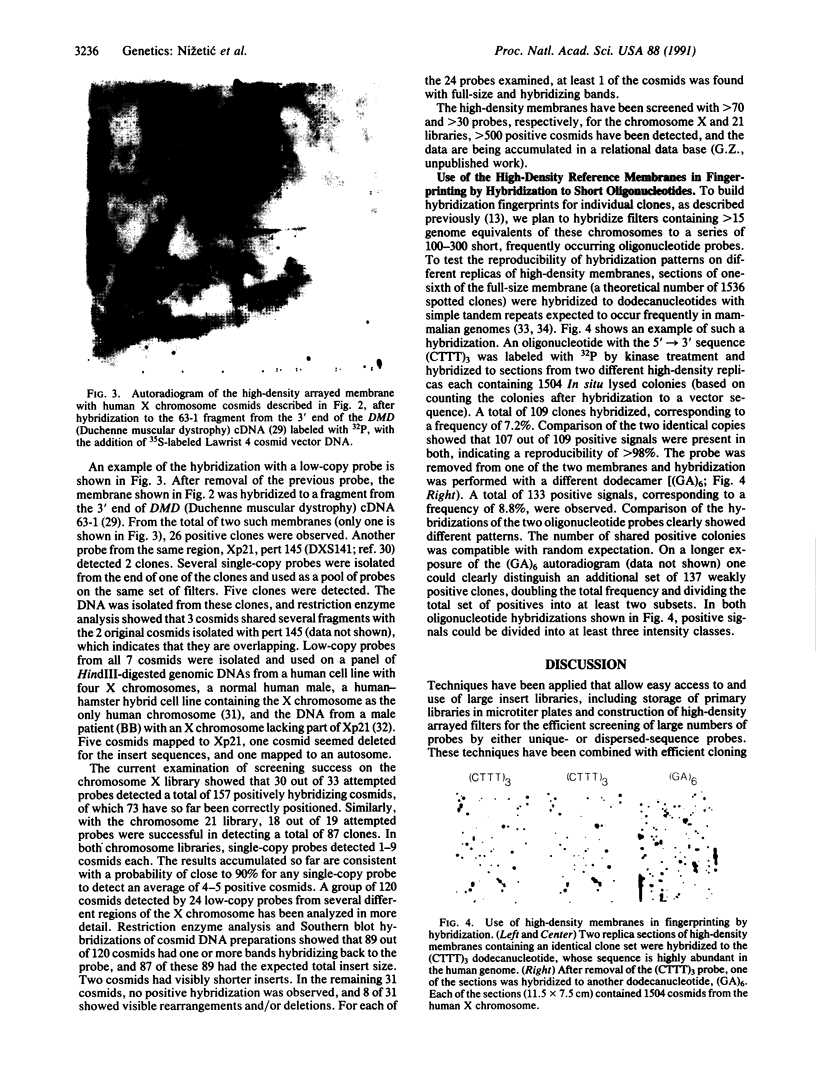

3236Image
on p.3236

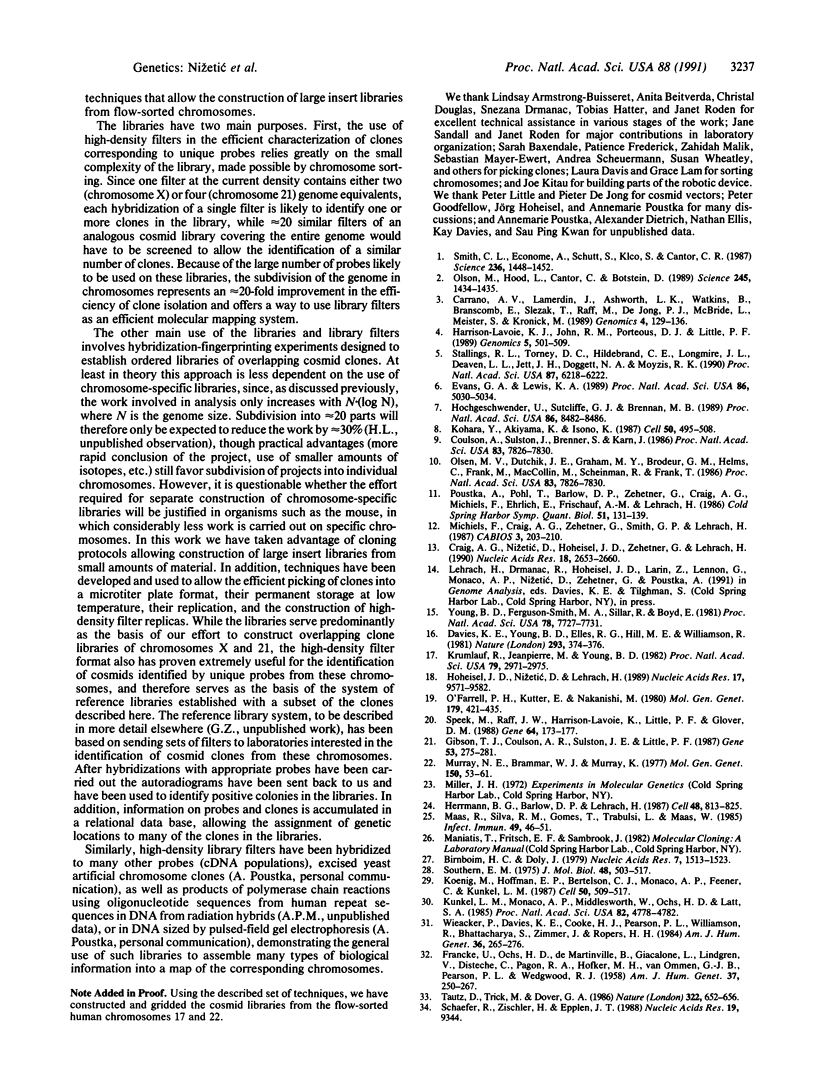

3236Image
on p.3236

Selected References

These references are in PubMed. This may not be the complete list of references from this article.

  1. Birnboim H. C., Doly J. A rapid alkaline extraction procedure for screening recombinant plasmid DNA. Nucleic Acids Res. 1979 Nov 24;7(6):1513–1523. doi: 10.1093/nar/7.6.1513. [DOI] [PMC free article] [PubMed] [Google Scholar]
  2. Carrano A. V., Lamerdin J., Ashworth L. K., Watkins B., Branscomb E., Slezak T., Raff M., de Jong P. J., Keith D., McBride L. A high-resolution, fluorescence-based, semiautomated method for DNA fingerprinting. Genomics. 1989 Feb;4(2):129–136. doi: 10.1016/0888-7543(89)90291-7. [DOI] [PubMed] [Google Scholar]
  3. Craig A. G., Nizetic D., Hoheisel J. D., Zehetner G., Lehrach H. Ordering of cosmid clones covering the herpes simplex virus type I (HSV-I) genome: a test case for fingerprinting by hybridisation. Nucleic Acids Res. 1990 May 11;18(9):2653–2660. doi: 10.1093/nar/18.9.2653. [DOI] [PMC free article] [PubMed] [Google Scholar]
  4. Davies K. E., Young B. D., Elles R. G., Hill M. E., Williamson R. Cloning of a representative genomic library of the human X chromosome after sorting by flow cytometry. Nature. 1981 Oct 1;293(5831):374–376. doi: 10.1038/293374a0. [DOI] [PubMed] [Google Scholar]
  5. Evans G. A., Lewis K. A. Physical mapping of complex genomes by cosmid multiplex analysis. Proc Natl Acad Sci U S A. 1989 Jul;86(13):5030–5034. doi: 10.1073/pnas.86.13.5030. [DOI] [PMC free article] [PubMed] [Google Scholar]
  6. Francke U., Ochs H. D., de Martinville B., Giacalone J., Lindgren V., Distèche C., Pagon R. A., Hofker M. H., van Ommen G. J., Pearson P. L. Minor Xp21 chromosome deletion in a male associated with expression of Duchenne muscular dystrophy, chronic granulomatous disease, retinitis pigmentosa, and McLeod syndrome. Am J Hum Genet. 1985 Mar;37(2):250–267. [PMC free article] [PubMed] [Google Scholar]
  7. Gibson T. J., Coulson A. R., Sulston J. E., Little P. F. Lorist2, a cosmid with transcriptional terminators insulating vector genes from interference by promoters within the insert: effect on DNA yield and cloned insert frequency. Gene. 1987;53(2-3):275–281. doi: 10.1016/0378-1119(87)90016-3. [DOI] [PubMed] [Google Scholar]
  8. Harrison-Lavoie K. J., John R. M., Porteous D. J., Little P. F. A cosmid clone map derived from a small region of human chromosome 11. Genomics. 1989 Oct;5(3):501–509. doi: 10.1016/0888-7543(89)90016-5. [DOI] [PubMed] [Google Scholar]
  9. Herrmann B. G., Barlow D. P., Lehrach H. A large inverted duplication allows homologous recombination between chromosomes heterozygous for the proximal t complex inversion. Cell. 1987 Mar 13;48(5):813–825. doi: 10.1016/0092-8674(87)90078-x. [DOI] [PubMed] [Google Scholar]
  10. Hochgeschwender U., Sutcliffe J. G., Brennan M. B. Construction and screening of a genomic library specific for mouse chromosome 16. Proc Natl Acad Sci U S A. 1989 Nov;86(21):8482–8486. doi: 10.1073/pnas.86.21.8482. [DOI] [PMC free article] [PubMed] [Google Scholar]
  11. Hoheisel J. D., Nizetic D., Lehrach H. Control of partial digestion combining the enzymes dam methylase and MboI. Nucleic Acids Res. 1989 Dec 11;17(23):9571–9582. doi: 10.1093/nar/17.23.9571. [DOI] [PMC free article] [PubMed] [Google Scholar]
  12. Koenig M., Hoffman E. P., Bertelson C. J., Monaco A. P., Feener C., Kunkel L. M. Complete cloning of the Duchenne muscular dystrophy (DMD) cDNA and preliminary genomic organization of the DMD gene in normal and affected individuals. Cell. 1987 Jul 31;50(3):509–517. doi: 10.1016/0092-8674(87)90504-6. [DOI] [PubMed] [Google Scholar]
  13. Kohara Y., Akiyama K., Isono K. The physical map of the whole E. coli chromosome: application of a new strategy for rapid analysis and sorting of a large genomic library. Cell. 1987 Jul 31;50(3):495–508. doi: 10.1016/0092-8674(87)90503-4. [DOI] [PubMed] [Google Scholar]
  14. Krumlauf R., Jeanpierre M., Young B. D. Construction and characterization of genomic libraries from specific human chromosomes. Proc Natl Acad Sci U S A. 1982 May;79(9):2971–2975. doi: 10.1073/pnas.79.9.2971. [DOI] [PMC free article] [PubMed] [Google Scholar]
  15. Kunkel L. M., Monaco A. P., Middlesworth W., Ochs H. D., Latt S. A. Specific cloning of DNA fragments absent from the DNA of a male patient with an X chromosome deletion. Proc Natl Acad Sci U S A. 1985 Jul;82(14):4778–4782. doi: 10.1073/pnas.82.14.4778. [DOI] [PMC free article] [PubMed] [Google Scholar]
  16. Maas R., Silva R. M., Gomes T. A., Trabulsi L. R., Maas W. K. Detection of genes for heat-stable enterotoxin I in Escherichia coli strains isolated in Brazil. Infect Immun. 1985 Jul;49(1):46–51. doi: 10.1128/iai.49.1.46-51.1985. [DOI] [PMC free article] [PubMed] [Google Scholar]
  17. Michiels F., Craig A. G., Zehetner G., Smith G. P., Lehrach H. Molecular approaches to genome analysis: a strategy for the construction of ordered overlapping clone libraries. Comput Appl Biosci. 1987 Sep;3(3):203–210. doi: 10.1093/bioinformatics/3.3.203. [DOI] [PubMed] [Google Scholar]
  18. Murray N. E., Brammar W. J., Murray K. Lambdoid phages that simplify the recovery of in vitro recombinants. Mol Gen Genet. 1977 Jan 7;150(1):53–61. doi: 10.1007/BF02425325. [DOI] [PubMed] [Google Scholar]
  19. O'Farrell P. H., Kutter E., Nakanishi M. A restriction map of the bacteriophage T4 genome. Mol Gen Genet. 1980;179(2):421–435. doi: 10.1007/BF00425473. [DOI] [PMC free article] [PubMed] [Google Scholar]
  20. Olson M. V., Dutchik J. E., Graham M. Y., Brodeur G. M., Helms C., Frank M., MacCollin M., Scheinman R., Frank T. Random-clone strategy for genomic restriction mapping in yeast. Proc Natl Acad Sci U S A. 1986 Oct;83(20):7826–7830. doi: 10.1073/pnas.83.20.7826. [DOI] [PMC free article] [PubMed] [Google Scholar]
  21. Olson M. V., Dutchik J. E., Graham M. Y., Brodeur G. M., Helms C., Frank M., MacCollin M., Scheinman R., Frank T. Random-clone strategy for genomic restriction mapping in yeast. Proc Natl Acad Sci U S A. 1986 Oct;83(20):7826–7830. doi: 10.1073/pnas.83.20.7826. [DOI] [PMC free article] [PubMed] [Google Scholar]
  22. Olson M., Hood L., Cantor C., Botstein D. A common language for physical mapping of the human genome. Science. 1989 Sep 29;245(4925):1434–1435. doi: 10.1126/science.2781285. [DOI] [PubMed] [Google Scholar]
  23. Poustka A., Pohl T., Barlow D. P., Zehetner G., Craig A., Michiels F., Ehrich E., Frischauf A. M., Lehrach H. Molecular approaches to mammalian genetics. Cold Spring Harb Symp Quant Biol. 1986;51(Pt 1):131–139. doi: 10.1101/sqb.1986.051.01.016. [DOI] [PubMed] [Google Scholar]
  24. Schäfer R., Zischler H., Epplen J. T. DNA fingerprinting using non-radioactive oligonucleotide probes specific for simple repeats. Nucleic Acids Res. 1988 Oct 11;16(19):9344–9344. doi: 10.1093/nar/16.19.9344. [DOI] [PMC free article] [PubMed] [Google Scholar]
  25. Smith C. L., Econome J. G., Schutt A., Klco S., Cantor C. R. A physical map of the Escherichia coli K12 genome. Science. 1987 Jun 12;236(4807):1448–1453. doi: 10.1126/science.3296194. [DOI] [PubMed] [Google Scholar]
  26. Southern E. M. Detection of specific sequences among DNA fragments separated by gel electrophoresis. J Mol Biol. 1975 Nov 5;98(3):503–517. doi: 10.1016/s0022-2836(75)80083-0. [DOI] [PubMed] [Google Scholar]
  27. Speek M., Raff J. W., Harrison-Lavoie K., Little P. F., Glover D. M. Smart2, a cosmid vector with a phage lambda origin for both systematic chromosome walking and P-element-mediated gene transfer in Drosophila. Gene. 1988 Apr 15;64(1):173–177. doi: 10.1016/0378-1119(88)90491-x. [DOI] [PubMed] [Google Scholar]
  28. Stallings R. L., Torney D. C., Hildebrand C. E., Longmire J. L., Deaven L. L., Jett J. H., Doggett N. A., Moyzis R. K. Physical mapping of human chromosomes by repetitive sequence fingerprinting. Proc Natl Acad Sci U S A. 1990 Aug;87(16):6218–6222. doi: 10.1073/pnas.87.16.6218. [DOI] [PMC free article] [PubMed] [Google Scholar]
  29. Tautz D., Trick M., Dover G. A. Cryptic simplicity in DNA is a major source of genetic variation. Nature. 1986 Aug 14;322(6080):652–656. doi: 10.1038/322652a0. [DOI] [PubMed] [Google Scholar]
  30. Wieacker P., Davies K. E., Cooke H. J., Pearson P. L., Williamson R., Bhattacharya S., Zimmer J., Ropers H. H. Toward a complete linkage map of the human X chromosome: regional assignment of 16 cloned single-copy DNA sequences employing a panel of somatic cell hybrids. Am J Hum Genet. 1984 Mar;36(2):265–276. [PMC free article] [PubMed] [Google Scholar]
  31. Young B. D., Ferguson-Smith M. A., Sillar R., Boyd E. High-resolution analysis of human peripheral lymphocyte chromosomes by flow cytometry. Proc Natl Acad Sci U S A. 1981 Dec;78(12):7727–7731. doi: 10.1073/pnas.78.12.7727. [DOI] [PMC free article] [PubMed] [Google Scholar]
