Characterization of the Dynamic Equilibrium between Closed and Open Forms of the Benzoxaborole Pharmacophore

Abstract

Benzoxaboroles are a class of five-membered hemiboronic acids that recently attracted significant attention as a new pharmacophore on account of their unique structural and physicochemical properties and their ability to interact selectively with biomolecules. Their structural behavior in water and its effect on their physiological properties remain unclear, especially the question of dynamic hydrolytic equilibrium of the oxaborole ring. Herein, we used NMR spectroscopy, in mixed aqueous-organic solvent, to confirm the strong preference for the closed form of benzoxaborole and its six- and seven-membered homologues over the open boronic acid form. Only with the eight-membered homologue does the cyclic form become unfavorable. Using dynamic VT-NMR studies with designed probe compound 20, we demonstrate that the oxaborole ring undergoes rapid hydrolytic ring closing–opening at ambient temperature at a rate of >100 Hz via a mechanism featuring rate-limiting proton-transfer steps. This knowledge can help provide a better understanding of the behavior of benzoxaboroles in biological systems.

The benzoxaborole ring system has emerged as a promising pharmacophore on the strength of the recent approval of the antifungal drug tavaborole (2, AN2690)¹ and the potency demonstrated by numerous derivatives against an impressive diversity of target classes (Figure 1).²⁻⁸ The parent compound, benzoxaborole (1), was first prepared by Torssell in 1957.⁹ It was described as a highly water-soluble and unusually robust boronic acid derivative with great resistance to both acidic and basic aqueous deboronation. At the time, its structure was proposed to be the cyclic monodehydrated form on the grounds of elemental analysis⁹ and ebullioscopic molecular weight determination.¹⁰ Although the asserted preference for a cyclic hemiboronic structure 1_C over the open form 1_O (Figure 1, eq 1) is reasonable based on the lability of B–O bonds and the stability of five-membered rings, until this day there appears to exist no published experimental evidence for it aside from mass spectrometry (in the gas phase) and X-ray crystallography (in thesolid form).¹¹ Surprisingly, the structural behavior of 1 in aqueous solutions has never been studied systematically.

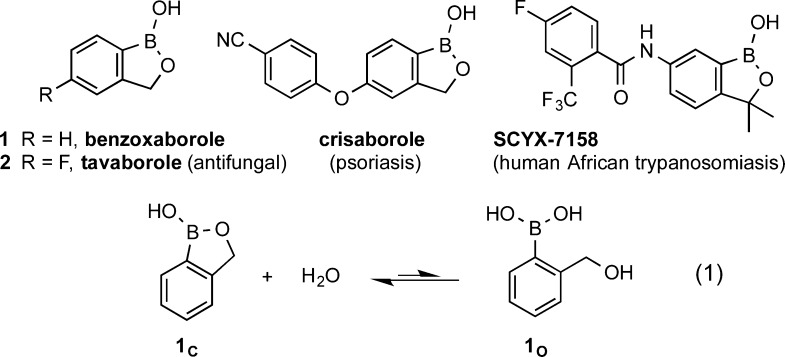

Figure 1.

Benzoxaborole (1), derivatives of pharmaceutical interest and its two possible forms in water (eq 1).

While studying the chemistry of benzoxaborole (1), Snyder remarked that it “is remarkably resistant to hydrolysis of the link between the alkoxyl group and the boron atom”.¹⁰ Indeed, we are aware of only two instances where a benzoxaborole derivative was observed in its open form: a specific case involving a stable trifluoroborate derivative that is less prone to cyclize due to the strength of B–F bonds,¹² and the peculiar 7-hydroxymethylated derivative of 1 whose cyclization would lead to a disfavored [5.5] system.¹³ Owing to Le Châtelier’s Principle, boronic ester formation is intrinsically unfavored in water. Because the balance of bond enthalpy is neutral (O–H and B–O bonds are broken to form similar ones), thermodynamically the process of eq 1 is driven solely by the enthalpy of ring formation. This factor, along with the entropic benefit from the release of a water molecule, are the reasons for the asserted preference for the cyclic, closed form of benzoxaborole (1_C, Figure 1).

Despite the growing role of benzoxaborole derivatives in pharmaceutical and materials chemistry applications,⁴⁻⁸ the important questions of their structure in aqueous solutions (closed or open?) and the possible existence of a dynamic equilibrium between these forms have not been examined in detail.¹⁴ This knowledge is important in order to gain a better understanding of the physicochemical properties of benzoxaboroles and their behavior in biological systems such as their transport and pharmacokinetics. Herein, using NMR spectroscopy, we attempt to study the effect of ring size of boronic acid hemiesters 1 and 3–5 on the structure and stability of these compounds in aqueous organic solutions (see Figure 2). Our initial assumption was that if a closing–opening equilibrium exists, it can be monitored on the time scale of NMR spectroscopy due to sufficient difference between both forms for the chemical shifts of the methylene groups adjacent to the oxygen atom. Thus, when the free alcohol closes into a hemiester with the nearby boronic acid, the electron-withdrawing effect of B–O conjugation is expected to move the CH₂O shift downfield. To substantiate this notion, the analogous methyl ethers with a similar chemical structure, but lacking the ability to cyclize into a hemiboronic ester, were employed as NMR standards.

Figure 2.

Equilibrium between closed and open form of benzoxaborole homologues up to eight-atom ring size.

While some of the targeted compounds were commercially available, others were prepared according to standard synthetic protocols for the synthesis of organoboronic acids. To this end, commercial 2′-bromobenzyl bromide (6) was chosen as a universal substrate in a divergent route to all oxaborole homologues and NMR standards. From 6, the desired alkene intermediates 7 or 8 were produced by the corresponding vinylation¹⁵ or allylation,¹⁶ followed by a hydroboration/oxidation step. Either a methylation of the resulting alcohol or installation of a tetrahydropyranyl ether led to all four bromoarenes 11–14. The final step consisted in a standard lithiation/borylation, which after hydrolysis yielded boronic acids 4, 5, 15, and 16 (see Scheme 1).

Scheme 1. Preparation of NMR Probe Compounds.

Proton NMR analysis of the parent benzoxaborole 1 and all the higher homologues 3–5 was achieved in acetone-d₆:D₂O (9:1) mixture, necessary for compound solubility, at room temperature (293 K = 20 °C). It was deemed important to perform this analysis in the presence of excess water in order to approach the conditions of physiological systems. On the basis of the large chemical shift differences of 0.4–0.5 ppm for the −CH₂O– resonance between these compounds and the corresponding control methyl ethers, it can be deduced that only the closed forms of 1, 3, and 4 are present at room temperature (Table 1).

Table 1. ¹H NMR Shift of Methyleneoxy for Benzoxaborole, its Homologues, and Control Compounds.

^aNMR studies were performed in acetone-d₆/D₂O 9:1 mixture at 300 K.

In contrast, the spectrum of 5 showed the presence of only the open form 5_O, with the upfield shift characteristic of the methylene group of control compounds 16 and 19c. This analysis is consistent with basic principles of thermodynamic stability for small and medium rings, where a very large preference for the cyclic forms exists in the case of benzoxaborole (1) and its six-membered homologue (3). The eight-membered medium-ring homologue 5 exists exclusively in its open form, 5_O, which dominates because of the less favorable thermodynamics of eight-membered rings and the entropic benefits provided by the additional degrees of freedom of several rotatable bonds on the flexible butanol chain.

To assess the proportions of closed and open forms and thermodynamics of this process, VT experiments were performed. It was found that compounds 1, 3, and 5 remained unchanged in the entire range of temperatures from 203 to 303 K. In contrast, the seven-membered ring compound 4 was found to exist in a mixture of both forms in proportions that varied depending on the temperature. Quite unexpectedly, the amount of the open form, boronic acid 4_O, which is almost inexistent at 303 K, increased upon lowering the temperature (see Figure 3). At 203 K (−70 °C), the open form accounts for about one-third of the mixture (see Supporting Information, Table S2). This outcome is consistent with the notion that two different entropic factors are competing in this equilibrium: (1) the release of a water molecule accompanying the cyclization to the closed form, thus increasing the overall entropy of the system vs (2) the entropic benefits from the degrees of freedom of many rotatable bonds in the flexible alkanol side chain of open forms, especially in the higher homologues 4_O and 5_O (see Figure 4). We believe that at the lower temperatures, the release of water in the cyclization does not significantly increase the entropy of the system owing to the more structured character of water and its stronger coordination to the boronic hemiester. The water molecule may remain closely associated with the cyclic compound (e.g., 4_C·H₂O) at these low temperatures. The 4_O:4_C ratio obtained at different temperatures allowed a determination of the free energy of this process ΔG_O/C = −2.6 kJ/mol (see Supporting Information).

Figure 3.

VT studies of compound 4 in acetone/D₂O solution showing the temperature dependence of ratio 4_O/4_C.

Figure 4.

Proposed behavior of seven-membered compound 4 at different temperatures.

The above measurements characterize the steady state of an equilibrium occurring between two different forms; the dynamic parameters of the equilibrium cannot be assessed by means of these probes. Consequently, our next objective was to design a DNMR probe molecule to gain direct evidence of a dynamic, reversible hydrolytic equilibrium between the closed and open forms of 1 via the breaking and reclosing of the endocyclic B–O bond in aqueous solution. Although several possible probes were considered, we elected to target the unsymmetrical diboronic acid 20 containing a single secondary benzylic alcohol flanked by two distinct arylboronic acid units (see Figure 5). It was anticipated that probe 20 would display a dynamic behavior similar to that of benzoxaborole 1, and therefore it may establish an equilibrium between two isomeric benzoxaboroles 20a and 20b that could be monitored by means of ¹⁹F NMR.

Figure 5.

Possible equilibrium between two isomeric forms of diboronic acid 20 in aqueous solution.

The synthesis of compound 20 began with a selective metalation¹⁷ of 2-bromoiodobenzene (21), followed by electrophilic quenching with 2-bromo-5-fluorobenzaldehyde (22) (Scheme 2). The resulting alcohol 23 was doubly metalated and added to tris(isopropyl)borate. The desired product 20 was isolated by column chromatography and submitted to VT-NMR studies. Variable temperature experiments were performed in both 90% acetone/10% H₂O and 90% acetone/10% D₂O solutions in order to calculate the equilibrium constants at different temperatures and attempt to estimate the equilibrium isotopic effect. Our initial experiments showed that equilibrium is established rapidly in both systems at different temperatures ranging from ambient to −70 °C. The VT profile was performed under several increments (213–303 K) at 400 MHz frequency under dilute conditions (0.06 M) to help prevent unwanted aggregation of boronic acid 20. At low, precoalescence temperature, the ¹⁹F NMR spectra show two separate forms of the probe compound in uneven proportions (Figure 6). Upon heating, peak broadening occurs with eventual coalescence into a single resonance. Expectedly, a significant temperature-dependent drift of the ¹⁹F chemical shift occurred,¹⁸ which complicated the accurate determination of the coalescence temperature (T_C). DNMR analysis for the interconversion of unequally populated equilibrating species is much less common compared to degenerate processes. However, rate constants of direct and reverse reactions, k_a (for 20a to 20b) and k_b (for 20b to 20a) and equilibrium constants can be estimated before coalescence by utilizing the modified Gutowsky–Holm equation from half-height peak widths, h, for both forms 20a and 20b.^19,20 The resulting data indicates that the exchange between the two isomeric forms occurs in the D₂O solvent mixture at a rate up to six times slower compared to that observed in H₂O at comparable temperatures (see Supporting Information, Tables S2 and S3). This behavior can also be deduced by the respective coalescence temperatures of ∼290 K and ∼255 K, thus confirming that the D₂O system requires a higher temperature to reach a fast equilibrium. Overall, these results suggest that a proton-transfer step with at least one molecule of water is involved in the exchange between 20a and 20b (see Figure 7). Analysis of the data using the modified Gutowsky–Holm equations allows an estimation of the interconversion rate (see Supporting Information). At low temperatures (e.g., 223 K) where isomers are distinguishable, equilibrium in acetone–D₂O is slow. In the acetone–H₂O mixture, however, a relatively faster exchange occurs with a frequency around 30 Hz. Close to coalescence temperature, exchange constants reach 111 and 93 Hz, respectively. At room temperature, equilibrium in acetone–H₂O occurs as fast as 135 Hz.

Scheme 2. Preparation of Dynamic NMR Probe 20.

Figure 6.

VT equilibrium of 20 in acetone–H₂O (9:1).

Figure 7.

Suggested hydrolytic mechanism and structures of transition states between the two isomeric forms of 20.

Altogether, these results provide a semiquantitative characterization of the dynamic equilibrium between the open and closed forms of benzoxaboroles, leading to the proposed mechanistic scheme depicted in Figure 7. Recent evidence suggests that boronic esters hydrolyze faster at neutral pH in their trigonal, neutral form compared to the corresponding hydroxy-boronate anionic form.²¹ Thus, water coordination in neutral 20b_C is followed by the proton transfer step depicted in TS_A, leading to ring opening and formation of diboronic acid 24 (i.e., 20b_O/20a_O). Because ring opening is anticipated to be much slower than ring closure (k_C > k_O; k′_C > k′_O), open intermediate 24 is anticipated to exist in minute concentration and is not observable by NMR. Fast ring closure of 24 may occur by reversion to 20b_C or alternatively toward the other isomer 20a_C via TS_B. Because ring opening by water is the rate-determining step of the overall equilibrium interconversion, a strong isotopic retardation effect can be observed in D₂O cosolvent. It is important to note that although noncooperativity between both boronyl units was assumed, it cannot be ruled out. Though it may be geometrically difficult, intramolecular six-atom hydrolytic pathways may occur via transition states TS_C and TS_D. Relative to benzoxaborole (1), it is also possible that the secondary alcohol of 24 benefits from a favorable Thorpe–Ingold effect to give a somewhat inflated closure rate constant. Finally, as demonstrated by the uneven peak integrations at precoalescence temperatures, one of the two isomers exists in slightly higher proportions, which is explained presumably by the differential Lewis acidity of the two boronyl units (the presence of a meta-fluoride lowers the pK_a of phenylboronic acid by approximately one unit²²). Regardless of its distinct characteristics, we believe that probe compound 20 provides a reasonable representation of the closing–opening hydrolytic equilibrium of benzoxaborole (1).

In summary, this study confirms the strong preference for the closed form of benzoxaborole (1) and its six- and seven-membered homologues over the open boronic acid form in aqueous–organic solvent at ambient temperature. Only with the eight-membered homologue does the cyclic form become unfavorable. Surprisingly, the seven-membered homologue showed an increasingly high proportion of the open form at lower temperatures, a trend that can be ascribed to the more organized structure of water and its tighter coordination to the boron atom, leading to a diminished entropic preference toward the cyclization. It was also demonstrated that the closing–opening equilibrium can be monitored by NMR spectroscopy at low temperatures and previously unattainable parameters can be extracted. A probe molecule, diboronic acid 20, was designed for studying the dynamics of the hydrolytic equilibrium between the closed and open forms. It was shown that the exchange between the two isomeric closed forms of diboronic acid 20 occurs with a significant frequency even at low temperatures. Furthermore, a strong isotopic retardation effect was observed with deuterated water, thus confirming the participation of water and proton transfer steps in the transition state of interconversion. Overall, this study into the structural behavior of benzoxaboroles and its homologues in aqueous–organic solution provides a deeper understanding of this new and important pharmacophore. Insofar as probe 20 accurately reflects the behavior of benzoxaborole (1), reversible hydrolysis of the oxaborole ring occurs rapidly (>100 Hz) under physiological conditions.
