Recent Applications of Phthalocyanines and Naphthalocyanines for Imaging and Therapy

Abstract

With high extinction coefficients and long absorption wavelengths in the near infrared region, phthalocyanines (Pcs) and naphthalocyanines (Ncs) are well-suited for optical imaging and phototherapies in biological tissues. Pcs and Ncs have been used in a range of theranostic applications. Peripheral and axial substituents can be introduced to Pcs and Ncs for chemical modification. Seamless metal chelation of Pcs or Ncs can expand their possibilities as medical therapeutic and imaging agents. Nanoparticulate approaches enable unique ways to deliver Pcs and Ncs to target tissues and improve their solubility, biocompatibility, biodistribution and stability. Herein, we highlight some recent Pc or Nc nanoscale systems for theranostic applications.

Graphical Abstract

Phthalocyanines and Naphthalocyanines (with red outer benzene rings) have been used for a variety of theranostic applications and are often formulated in unique nanoparticulate form.

1 Introduction

Compared to the related tetrapyrrolic porphyrins and chlorins, phthalocyanines (Pcs) and naphthalocyanines (Ncs) generally exhibit longer absorption wavelength and higher extinction coefficients (typically on the order of 10⁵ M⁻¹ cm⁻¹) in the near infrared (NIR) region.¹ Pcs have an additional benzene ring fused to each of the four pyrrolic subunits (Fig 1A and Fig 1B) which causes more electron delocalization and increases absorption at longer wavelengths. The four pyrroles comprise a macrocycle well suited to form coordination complexes with a variety of metals chelated in the center. Pcs have been widely used in the areas of laser printer, recordable compact discs, non-linear optical materials, industrial catalysts and photosensitizers in phototherapy.^2–5 Ncs have two additional cyclohexadiene rings on each pyrrole group (Fig 1C). Ncs generally absorb even longer wavelengths than Pcs, making them, in theory, well-suited for optical applications in deep tissue biological tissues. However, with proper quantum design Pcs also can have long wavelength absorption peaks beyond 1000 nm.⁶ Like Pcs, it is also feasible to chelate metals in the center of Ncs. Nc-based dyes have been used as photosensitizers in energy harvesting studies.⁷ Upon illumination, photosensitizers are excited by the photon transition between the ground state and a singlet excited state, and can ultimately culminate with conversion of oxygen to reactive oxygen species (ROS) as shown in Fig 1D. In the ground state (S₀), electrons are in the lowest energy orbitals. Upon absorption of light with appropriate energy, electrons in photosensitizers are shifted to an excited singlet state and that is sectioned in different vibrational levels with increasing energy. Electrons fall from higher vibrational level to the lowest energy level of that excited state via vibrational relaxation. From the excited state, the molecule tends to return back to S₀ after a short period. Excited molecules can return to the ground state via photon emission or quenching that comes with the generation of heat. Heat dissipation in this way is the basis for photothermal therapies. If the molecule does not rapidly return to the ground state, it may move from the singlet state to triplet state via intersystem crossing, enabling phosphorescence or reactive oxygen sensitization.⁸

Fig. 1. Chemical structure of A) porphyrins B) phthalocyanines and C) naphthalocyanines. D) Simplified Jablonski diagram showing some possible activated singlet oxygen deactivation pathways.

PS and ROS represent photosensitizers and reactive oxygen species, respectively. Green and red indicate ground and excited state photosensitizers, respectively.

Organic dyes play a central role in biomedical imaging due to their versatile photophysical properties and availability for large-scale synthesis. Organic dyes are feasible to conjugate with various specific biomolecules for a wide variety of assays. Compared to inorganic photonic nanoparticles, small molecule dyes can be more reproducibly generated and characterized, which has advantages from a regulatory perspective. Pcs and Ncs are promising due to their long wavelength absorption of light, which enables deeper tissue penetration. However, their application has probably been limited by their poor water solubility and tendency to aggregate. Consequently, once irradiated with NIR light, the aggregated molecules dissipate heat and applications such as fluorescence imaging or ROS production can be diminished. On the other hand, aggregated and fluorescently quenched properties are not problematic for generating thermal expansion waves for photoacoustic imaging or photothermal therapy.^9,10 Regardless of photophysical properties, injectable Pc and Ncs require solubilization to avoid very large aggregates, which would cause adverse injection reactions.¹¹ To overcome the poor water solubility, many solubilization strategies have been developed including using nanocarriers and chemical modifications.

Several Pc formulations have reached clinical testing.¹² Water soluble sulfonated AlPc (trade name: Photosens) can be directly dissolved in water and has been explored in multiple types of cancer treatments including skin, breast, lung oropharyngeal, larynx, neck, larynx and cervical cancers. For the treatment of carcinoma of upper aerodigestive tract, ZnPc was encapsulated in liposomes made of POPC (palmitoyl-oleoyl-phosphatidylcholine) and DOPS (dioleoyl phosphatidylserine). A di-sulfonic-di-phthalimidomethyl ZnPc based Cremophor EL formulation was also tested in phase I clinical trials for the treatment of skin or esophageal cancer. Silicon based Pc formulations dissolved in propylene glycol (for topical administration) or in Cremophor EL (for intravenous administration) together with ethanol and reached clinical testing for various skin diseases and cancers. Copper Pcs can be used as blue pigment for tattoo inks, however, it has been shown that laser removal might induce toxicity due to the formation of decomposition products upon laser irradiation.¹³ Moving forward, more testing will be useful to better understand the toxicity profile of Pcs and Ncs. In this review, we summarize emerging applications of Pcs and Ncs for theranostic use with a particular emphasis on nanosystems.

2 Bioimaging using Pcs and Ncs

Biomedical imaging techniques can provide important information and insight for early detection and diagnosis of diseases. Ncs and Pcs have been used as contrast agents in imaging modalities including magnetic resonance imaging (MRI), fluorescence imaging, positron emission tomography (PET), photoacoustic imaging and others. Combinations of these imaging techniques have resulted in numerous studies on higher-order, multimodalities using contrast agents with multifunctional capabilities in one single nanoparticle.¹⁴ Photoacoustic tomography is an emerging optical imaging technique with high resolution based on photoacoustic effect and is useful for imaging chemicals and drugs.^15,16 Pcs and Ncs generally have higher extinction coefficients than those of porphyrins, hence they are expected to provide better contrast for photoacoustic imaging. Pc and Nc based contrast agents are also used for fluorescence imaging. Optical fluorescence imaging offers the advantages of high sensitivity, low cost and high speed but can be limited by fluorescence quenching within Pcs and Ncs. Strategies have been developed to restore the fluorescence such as hydrophilic modifications. It was shown that modified graphene nanosheets could be used to prevent the aggregation of Pc and thereby enable fluorescence imaging guidance for phototherapy.¹⁷ PET has been used as a clinical imaging tool for decades. MRI and functional MRI (fMRI) based on the nuclear spin and resonance radiofrequency absorption in an external magnetic field, can provide tissue-specific differences and even metabolic activities due to the different transverse and longitudinal relaxation rates for different tissues. It has been shown that tetrapyrrole structures are able to chelate a diverse range of metals including Mn, Fe, Cu, Ga, Gd, and others in the center of the macrocycle ¹⁸ and metal chelated tetrapyrrole photosensitizers have been used contrast agents for PET and MRI imaging of tumors with a long history, dating back to 1952 ¹⁹ and 1987 ²⁰, respectively.

2.1 Polymeric nanoparticles and micelles for bioimaging

Polymeric nanoparticles are advantageous with respect to their chemically tunable size and modifiable surface groups, resulting in applications in controlled release and targeting. Recently, Nc-based biodegradable polymeric nanoparticles have been made for in vivo fluorescence imaging and photothermal therapy.²¹ The theranostic nanoparticles consist of silicon naphthalocyanine (SiNc) as a contrast and therapeutic agent and the copolymer poly (ethylene glycol)-block-poly caprolactone (PEG-PCL) (Fig 2A) as the dye carrier. Indocyanine green (ICG), an clinically-used NIR dye, has also been considered as promising theranostic nanoplatform ^22,23 but on the other hand, exhibits poor photostability and fluorescence signal might disappear during imaging-guided process due to photodegradation of the dye ²⁴. It was shown that the Nc polymeric nanoparticles have superior stability under extensive light irradiation.²¹ SiNc polymeric nanoparticles also have improved long term colloidal stability in addition to photostability.²⁵ Silicon 2,3-naphthalocyanine bis (trihexylsilyloxide) (NIR 775) was co-encapsulated with 2,3-bis (4-(phenyl (4-(1,2,2-triphenylvinyl)phenylamino)phenyl) fumaronitrile (TPETPAFN) into the matrix of 1,2 distearoyl-sn-glycero-3-phosphoethanolamine-N-[methoxy(polyethyleneglycol)-2000] (DSPE-PEG2000, Fig 2B). Owing to spectral overlap of the emission of TPETPAFN and absorption of NIR 775, the fluorescent nanoparticles exhibited a 47-fold enhancement of emission intensity of NIR 775 upon excitation of TPETPAFN at 510 nm compared to direct excitation of NIR 775. This system based on Forster resonance energy transfer (FRET) showed good photostability and low cytotoxicity. Further research showed similar properties in other studies.²⁶ Silicon 2,3-naphthalocyanine bis (trihexysilyloxide) (SiNc) dye doped in a matrix polymer poly [2-methoxy-5-(2-ethylhexyloxy)-1,4-phenylenevinylene] (MEH-PPV, Fig 2C) was encapsulated in amphiphilic polymer, polystyrene-graft-ethylene oxide functionalized with carboxyl groups (PS-PEG-COOH, Fig 2D). To avoid self-quenching effects and to optimize FRET efficiency, the ratio of SiNc to MEH-PPV matrix was adjusted around 1%. This FRET system also enables the excitons to migrate along the polymer chain over long distances, and such amplified FRET process was also facilitated by the large extinction coefficient of Nc dye. Furthermore, the stability during 9 months was demonstrated, providing superior fluorescence contrast with whole body animal tumor imaging. This is also in agreement with previous result showing that the fluorescence of Ncs can become quenched inside nanoparticles.²⁷ Compared to liposomes or other carriers, the long-term safety and biocompatibility are possible concerns for polymeric carriers even though they hold great potential for chemical modifications.

Fig. 2. Chemical structures of some polymers used as Pc and Nc carriers.

A) Poly (ethylene glycol)-block-poly caprolactone (PEG-PCL). B) 1,2 distearoyl-sn-glycero-3-phosphoethanolamine-N-[methoxy(polyethylene glycol)-2000]. (DSPE-PEG₂₀₀₀). C) Poly [2-methoxy-5-(2-ethylhexyloxy)-1,4-phenylenevinylene] (MEH-PPV). D) Carboxyl polystyrene-graft-ethylene oxide, PS-PEG-COOH. E) Pluronic block copolymer, m=100, n=65 for Pluronic F127.

Recently, a family of Pc and Nc Pluronic micelles, termed nanonaps were developed based on the hydrophobic interactions between extremely hydrophobic Ncs and Pcs and the hydrophobic poly (propylene oxide) block of Pluronic F127 (Fig 2E).²⁷ At low temperatures, the free and loose surfactant could be stripped and frozen micelles were concentrated in solution with tremendously high calculated NIR absorbance values (>1000) without spectral shifting. Nanonaps were employed for intestinal contrast imaging, as they safely passed through the gastrointestinal tract without systematic absorption following oral administration. Noninvasive real time photoacoustic images of intestine were obtained to visualize nanonap distribution and intestine function in mice with good resolution and low background. In addition, ⁶⁴Cu was post-labeled in the center of Nc dye. Whole body PET imaging with high resolution can be achieved by this sensitive and clinically established imaging approach without any limitation of penetration depth (Fig 3). These nanoparticles were also used to demonstrate spectrally resolved imaging of lymphatic systems using two-color, dual channel photoacoustic imaging.²⁸

Fig. 3. Noninvasive and multimodal imaging using surfactant-stripped nanoformulated naphthalocyanines (nanonaps).

A) Schematic illustration of nanonaps. PEO, PPO, Nc dyes are in blue, black and red, respectively. B) Normalized absorbance of nanonaps formed from BPc (blue), ZnBNc (dark green), BNc (light green), or ONc (bronze). C) Photographs of nanonaps in water, from left to right: BPc, ZnBNc, BNc, ONc. D) Depth encoded PA MIP (maximum intensity of projection) of the intestine visualizing ZnBNc nanonaps. E) Nanonaps labeling using ⁶⁴Cu, Pluronic F127 PEO blocks, PPO blocks and Nc dye are in blue, black, and red, respectively and ⁶⁴Cu is shown as the radioactive yellow circle. F) Representative PET imaging of nanonaps delineating stomach and intestine. Abbreviations: BPc: 2,9,16,23-tetra-tert-butyl-29H, 31H-phthalocyanine; ZnBNc: Zinc-2,11,20,29-tetra-tert buyl-2,3, naphthalocyanine; BNc: 2,11,20,29-tetra-tert buyl-2,3, naphthalocyanine and ONc: 5,9,14,18,23,27,32,36-octabutoxy-2,3,-naphthalocyanine. Reproduced with publisher permission ²⁷.

2.2 Liposomal formulations for bioimaging

Most Pcs or Ncs, characterized by flat aromatic macrocycle, are not soluble in water and liposomes are another commonly used carrier system that has been used to improve their solubility. Liposome cargo can exchange with serum lipoproteins following systemic administration. Because of receptor-mediated transport mechanisms that enable low density lipoproteins to bind to tumor cells ²⁹, liposomes could facilitate targeting of photosensitizers efficiently in vivo even at a low dose ³⁰. Zinc phthalocyanine (ZnPc) was loaded in unilamellar liposomes by a solvent exchange method.³¹ After intravenous injection, the fluorescence of the tumor and blood vessel increased and fluorescence of blood in circulation reached a plateau after 120 minutes. The increase was ascribed to the release of the dye in circulation whereas the fluorescence in tumor sites increased more slowly, which was explained by the fact that ZnPc was taken up by lipoprotein prior to accumulation by the tumor cells via an active process. However, one potential problem of Pc based photosensitizer for fluorescence imaging during PDT monitoring is photobleaching of photosensitizers upon irradiation. Hydrophilic tetrasulphonated aluminium phthalocyanine (AlPcS₄) and hydrophobic Zinc phthalocyanine (ZnPc) in liposomal form were compared in a rat tumor model.³² Photobleaching of ZnPc was observed both in vivo and in vitro. Presumably, the hydrophobic sensitizers bound to cellular membrane structures such as lysosomes and mitochondria. By contrast, the hydrophilic dyes accumulated inside extranuclear granules and the dyes could be localized during PDT, revealing a granular fluorescence distribution. Similar observations were also obtained from other studies on meso-tetra (4-sulphonatophenyl) porphyrin (TPPS₄) ³³, Nile blue ³⁴, AlPcS₄ and AlPcS₂ ³⁵.

2.3 Surfactant-dispersed Pcs and Ncs for bioimaging

Surfactants have also been used as Nc or Pc carriers for bioimaging. Silicon 2,3-naphthalocyanine bi (trihexylsiyloxide) (SiNc) was investigated in vitro and in vivo for photoacoustic imaging.³⁶ SiNc was solubilized in 10% Cremophor EL, along with 1% 1,2-propanediol and 1% dimethylformamide in saline by sonication and ICG was used as a control. The Cremophor formulation was shown to have better photostability than ICG. The SiNc Cremophor emulsion was intravenously injected to mice bearing HT 29 tumors. After injection of SiNc, a gradual accumulation of contrast agent in the tumor could be observed with increasing photoacoustic signal (Fig. 4).

Fig. 4. Photoacoustic images of a mouse bearing a HT29 tumor before and after intravascular injection of SiNc. Greyscale background is overlaid with the signal from SiNc (hot scale).

A) Pre-injection image, indicating tumor (dashed white circle) and surrounding blood vessels (BV, dotted red circles), overlaid with deoxygenated (blue scale) and oxygenated (red scale) hemoglobin signal. (B–F) Images acquired after 5 (B), 15 (C), 30 (D), 45 (E), 60 (F) minutes after intravenous injection of SiNc in a tumor-bearing animal. Reproduced with publisher permission.³⁶

Recently, a phosphorus Pc dye with its main absorption band beyond 1000 nm was examined for photoacoustic imaging.³⁷ The dye was dispersed in TWEEN surfactant and could be imaged beyond 10 cm in chicken breast phantoms and through a 5 cm arm of a human volunteer. These results underscore the potential of Pcs and Ncs for deep tissue imaging.

2.4 Hydrophilic modifications of Pcs and Ncs for bioimaging

Nanoparticle based contrast agents have many merits including accumulation in tumors either by active targeting or by the enhanced permeability and retention effect.³⁸ However, many water soluble Pcs or Ncs have been designed and used as contrast agents for imaging as they are more convenient to handle without concerns or limitations of preparation techniques and uniformity control. Water soluble Pc or Ncs have been synthesized for imaging applications. One study compared different hydrophilic Pcs: phthalocyanine tetrasulfonic acid (PcS4), Zn (II) phthalocyanine tetrasulfonic acid (ZnPcS4) and Al (III) phthalocyanine chloride tetrasulfonic acid (AlPcS4) as contrast agents for photoacoustic images ³⁹, showing that optical contrast in tumors was greatly enhanced by PcS4 and ZnPcS4 (Fig 5).

Fig. 5. In vivo photoacoustic images showing transverse slices of tumor-bearing mice.

a) oxygenated hemoglobin (HbO2) and deoxygenated hemoglobin (Hb) signals were acquired before injection of PcS4, showing the endogenous contrast between the different organs, the red signal represents HbO2 while the blue signals represent Hb in the color bar which is normalized within individual deoxygenated and oxygenated hemoglobin signals to give 0–100 % scale. Phthalocyanine PA signals at various time points after tail-vein administration of (b) PcS4 (c) ZnPcS4 and (d) AlPcS4. Background PA signal from the tissues were acquired at 900 nm laser wavelength with the dashed red lines delineating tumor tissue. Reproduced with publisher permission.³⁹

Other hydrophilic Pc or Nc conjugates were also designed including saccharide based conjugates. Hepatic asialoglycoprotein receptors are expressed on hepatocyte membranes, making lactose and or galactose a putative targeting molecules for liver cancer.⁴⁰ Lactose substituted zinc phthalocyanine, [2,9 (10), 16 (17), 23 (24)-tetrakis ((1- β-D-lactose-2-yl)-1H-1,2,3-triazol-4-yl) methoxyl)phthalocyaninato]zinc(II) was synthesized via click chemistry.⁴¹ After conjugation of lactose, the water solubility and cell specificity was enhanced. Real time NIR fluorescence imaging was performed with tumor-bearing athymic nude mice after 12 hours post tail vein injection. As shown in Fig. 6 A, a significant fluorescence increase was detected at the tumor site due to the targeting of lactose-substituted Pc. Ex vivo experiments also consistently showed fluorescence was mainly distributed in the liver, tumor and kidney (Fig. 6 B).

Fig. 6. Optical imaging A) in vivo and B) fluorescence dissected of dissected organs with lactose substituted Zinc Pc.

Liver cancer bearing mice injected with 200 μL of 2 × 10⁻⁴ mol/L: excitation 625 nm, emission 700 nm. Reproduced with publisher permission.⁴¹

Many MRI contrast agents are gadolinium based complexes, and large doses are usually required to provide sufficient contrast enhancement.⁴² Hydrophilic MRI contrast agents based on Gd or Mn derivatives of tetrapyrroles have been developed.⁴³ Sulfonated phthalocyanines proved to show good tumor localization although the mechanism of selectivity was not definite, but could be due to the sulfate functional groups ⁴⁴, Saini et al. synthesized tetrasodium salt of manganese tetra sulfo phthalocyanine (MnPcS₄) and used this as a MRI contrast agent in a mouse model of cancer ⁴³. Molar relaxivity of MnPcS₄ could reach to 10.1 (mMS) ⁻¹, two times greater than that of Gd-DTPA. Following intravenous administration of the dye, tumor-to-muscle MnPcS₄ ratio was calculated to be 9.2 :1, demonstrating preferential accumulation of MnPcS₄ in the tumor and MRI contrast enhancement was clearly observed. Also, ⁶⁴Cu has been chelated to sulfonated phthalocyanines for PET studies in a tumor bearing rat model; although one study showed that PET signals was mostly detected from kidneys (20%ID/g) and liver (12%ID/g) and further work was required to better demark the tumor (0.2% ID/g).⁴⁵

3 Phototherapy using Pcs and Ncs

Pcs and Ncs have been used as photosensitizers for PDT applications. Three fundamental elements of PDT include oxygen, photosensitizers and light delivery of an appropriate wavelength.⁴⁶ Upon irradiation, generated ROS can induce direct toxicity on cells leading to necrosis or apoptosis, result in thrombosis and hemorrhages by vascular damage, further induce acute inflammation with anti-tumor immunity. Generally, the ROS can also cause damage to the plasma membrane, mitochondria, Golgi apparatus, lysosomes and others.⁴⁷ Photochemical internalization (PCI) is an alternative PDT approach for the specific cytosolic release of molecules such as DNA or toxins, viruses, peptide nucleic acids from endocytic vesicles via the breakdown of the endosomal/lysosomal membranes.^48,49 Besides these, the photothermal effect of Pcs/Ncs has been utilized for cancer hyperthermia, or photothermal therapy (PTT). At elevated temperatures the light-treated location will be damaged by heat, leading to the denaturation of proteins, disruption of the membrane and ablation of tumor. Selective PTT can be achieved by local laser treatment and targeting of Pcs or Ncs to diseased sites.⁵⁰ Some composite nanoparticles were also designed for a combination of PDT and PTT.⁵¹ For example, to achieve combined PTT and PDT, nanoparticles are required to have strong absorbance in NIR region and exhibit both photothermal and singlet oxygen conversion efficiency. Hollow silica nanoparticles (HSNs) were designed made by tetraethoxysilane (TEOS) as a silica source and Pluronic as a template, followed by calcination and removal of template.⁵² Then Pc was loaded in HSNs, resulting in composite nanoparticles (Pc@HSNs) that could induce the dual effects of PDT and PTT. As shown in Fig 7, when treated with both Pc@HSNs and laser, the tumors of mice that had S180 murine sarcomas shrank significantly and were eradicated eventually after 5 days with a survival of at least 45 days whereas mice in control group treated with saline, with Pc@HSNs alone or laser alone did not show much anti-tumor effect.

Fig. 7. Phototherapy of Pc encapsulated hollow silica nanoparticles.

A) Representative photos showing tumor treatment outcome of different groups, treated with saline, laser, Pc@HSNs alone and Pc@HSNs + laser, respectively. Scale bar: 2 cm. B) Relative tumor volumes of four different groups. C) Survival curves of four different groups treated as indicated. Reproduced with publisher permission.⁵²

Many Pc and Nc based nanoformulations have been developed to solve the hydrophobicity problem including liposomes, polymer conjugates, polymeric micelles, surfactants and others, which will be discussed briefly below.

3.1 Liposomal Pcs and Ncs for therapy

Liposomes are promising carriers of various cargos including photosensitizers. A liposome formulation for Pc and gold conjugates has been reported.⁵³ This hybrid conjugate was achieved by thiol tether, then the liposome was prepared with egg yolk lecithin. The liposome allowed greater uptake and selective accumulation of the photosensitizer in tumor cells, resulting in successful PDT treatment. In addition, liposome formulations are tunable by changing the composition or adding additives such as cholesterol, cardiolipin, glucuronic acid and PEG.⁵⁴ The presence of cholesterol has been found to drastically help stabilize the size of unilamellar liposome from 1000 nm to about 100 nm ⁵⁵, enhancing the stability of the delivery system, and facilitating the photodynamic activation of photosensitizers.⁴⁷ Liposomal formulations were incubated with different cell lines at different concentrations. Control cells were incubated with liposomes with neither ZnPc nor light and in a second group cells were incubated with liposomal ZnPc but without cholesterol. In most of these cell lines, no significant toxicity was observed. In contrast, photodynamic activity was observed when different human tumor cell lines were incubated with liposomal ZnPc or free ZnPc that included cholesterol. Liposomal photosensitizers have been reported to have advantages over photosensitizer conjugates.⁵⁶ In this study, to improve the selectivity of PDT, monoclonal antibodies and aluminum Pc (AlSPc) were used for the PDT targeted treatment of human bladder tumor. Two methods were used for targeting; One of them was direct conjugation of antibodies to Pc, and the other was Pc-encapsulated in liposomes conjugated to antibodies. At the same dose of antibody, the liposomal form showed higher phototoxicity by up to 13-fold.

3.2 Pc and Nc based polymeric nanoparticles and micelles for therapy

Biodegradable and biocompatible polymer based nanotechnology has been used to solubilize hydrophobic Ncs and Pcs. The colloidal carriers including micro/nanospheres, polymer-drug conjugates, and polymeric micelles, are used for delivery of cargos to protect them against degradation, excretion or side effects. In 1984, Ringsdorf first proposed using polymeric micelles as drug carrier ⁵⁷ and then polymeric micelles have been emerging as a frequently used carrier systems.^58–61 Leroux et al. studied randomly and terminally alkylated N-isopropylacryl-amide (NIPAM) copolymers loaded with aluminum chloride Pcs (AlClPc). The photosensitizer was loaded by a solvent exchange method, that is, photosensitizer and copolymer were first solubilized in N, N-dimethylformamide (DMF) and then dialyzed against water for 24 h. PDT treatment was performed and cures were achieved many of the mice that received a 0.05 μmol/kg dose.^62,63 Poly (lactic-co-glycolic acid) (PLGA), which has been approved by FDA and used as a suture material for many years has emerged as a common polymer for pharmaceutical use. It was used to encapsulate hydrophobic Zinc Pc by solvent emulsion evaporation method with a yield and encapsulation efficiency of 80% and 70%, respectively.⁶⁴ The ZnPc loaded PLGA nanoparticles were evaluated by incubation with P388-D1 cells for 6 h followed by treatment with red light with a wavelength of 675 nm. After 24 h, 61% cellular death was induced; showing the PDT potential of PLGA based nanoparticles.

3.3 Pc and Nc surfactant formulations for therapeutic use

Surfactants are a common delivery vehicle to address the poor solubility of hydrophobic Pcs and Ncs. Among numerous surfactants, Cremophor EL is one of the most common biocompatible surfactants used for the solubilization process. For example, it has been used to solubilize Zn (II)-Pc-disulphide (C11Pc). C11Pc was first conjugated to gold nanoparticles via a thiol tether. A stated advantage of the conjugate was that singlet oxygen does not have to diffuse out of the particles given its structure of encapsulated photosensitizer at the surface.⁶⁵ Axially substituted octabutoxy Pc compounds were dissolved in Cremophor by sonication prior to assessment of biodistribution and phototherapeutic efficacy with 740 nm laser excitation.⁶⁶ However, ongoing research involves the replacement of organic solvent as well as the Cremophor or Tween with other less toxic solubilizers, considering they might induce negative side effects such as hypersensitivity and neurotoxicity.^67,68

3.4 Hydrophilic modifications of Pcs and Ncs for therapy

Another strategy to improve the solubility of Pc or Nc dyes is to introduce hydrophilic substituents on the periphery of the macrocycle or at the central metal to enable easier solvation.⁶⁹ Hydrophilic Pcs can be directly injected into the bloodstream and a number of water soluble tetra and octa substituted Pc have been reported. Hydrophilic moieties incorporated on the peripheral macrocycle rings include sulfonates ⁷⁰, carboxylates ⁷¹, phosphonates ⁷², and quaternarized amino groups ⁷³. Also, hydrophilic group as axial ligands could be coordinated to the central metal ion of phthalocyanines to improve the solubility.^74,75 Peripheral and axial substitution of Pc with solketal groups have been compared.⁷⁶ The solketal groups substituted Pc dyes in this work were synthesized from basic chemicals i.e. catechol and phthalonitrile. Soketal groups were introduced flexibly before or after the formation of Pc from the basic reactants. It was shown that axially substituted Silicon (Solketal)₈ Pc exhibited less tendency to aggregation and more photocytotoxicity than those of peripherally substituted Zinc (Solketal)₈ Pc, likely due to the prevention of Pc stacking. 2,4, dinitrobenzenesulfonate has been conjugated to zinc Pc.⁷⁷ The obtained activatable photosensitizer was demonstrated as a promising fluorescence probe and effective PDT treatment agent. Monoclonal antibodies were conjugated to amino reactive Pc, targeting epidermal growth factor receptors.⁷⁸ Conventional photodynamic therapy is based on accumulation of photosensitizers in tumors, but still can lead to damage to normal tissues due to the poor selectivity of photosensitizer. By contrast, photoimmunotherapy is effective when conjugates bind to target cell membranes, improving the specificity. Moreover, the fluorescence of the conjugate can be used to image, monitor and guide the tumor therapy process. For better solubility and additional functionalities such as improved targeting or enhanced internalization, peptide ⁷⁹ or amino groups ⁸⁰ have been also exploited to conjugate Pcs for theranostic application. Arginine-glycine-aspartic acid (RGD) is a recognition motif of many ligands such as collagen, prothrombin, fibronectin and vitronectin; Bombesin (BBN) has affinity for gastrin releasing peptide acceptors and a number of tumors overexpress receptors to BBN.⁸¹ These two peptides were recently investigated for targeting Zinc Pc (ZnPc).⁷⁹ Particularly, ZnPc-BBN conjugates showed dual roles as both a fluorescence imaging agent and targeting PDT agent.

3.5 Other formulations for therapy

Dendrimer phthalocyanine (DPc) has been used as a photosensitizer. With ionic poly (benzyl ether), with a photosensitizer unit in the core, polymer dendrimers could be conjugated in the peripheral forming branching structures. Generally, compared to linear polymers, dendrimers can be modified with rich surface functionalities; the charged surface of dendrimer has interaction with oppositely charged block copolymer via electrostatic interactions, resulting in the formation of supramolecular polyion complex micelle.⁸² Dendrimer Ncs have also been developed.⁸³ Conventional photosensitizers have drawbacks such as aggregation driven by π-π stacking or hydrophobic interactions, inhibiting the ROS formation and encapsulation of photosensitizer into nanocarriers. But dendrimer photosensitizers exhibit effective ROS production, high photocytotoxicity against cancer cells, showing its great potential for PDT.

Kataoka et al. developed a novel class of dendrimer Pc (DPc)-loaded poly ethylene glycol-poly L-lysine block copolymer (PEG-PLL) polymeric micelles (DPc/m) with photofrin (polyhematoporphyrin ester, PHE) as a control ⁸⁴. DPc/m exhibited 78 folds higher photocytotoxicity than free DPc in vitro. Upon light radiation, only DPc/m accumulated in the mitochondria and generated ROS whereas DPc did not show ROS generation in the mitochondria. DPc/m also showed improved antitumor activity in vivo compared to PHE even if the dose of DPc/m was 7.3 fold lower than that of PHE. In addition, in the group of PHE treated mice, skin and liver were severely damaged after irradiation of white light, but in the DPc/m treated group, no such side effects were observed (Fig 8). Also, dendrimer encapsulated SiNc single agent nanoparticles were developed for both NIR fluorescence imaging and anticancer phototherapy.⁸³

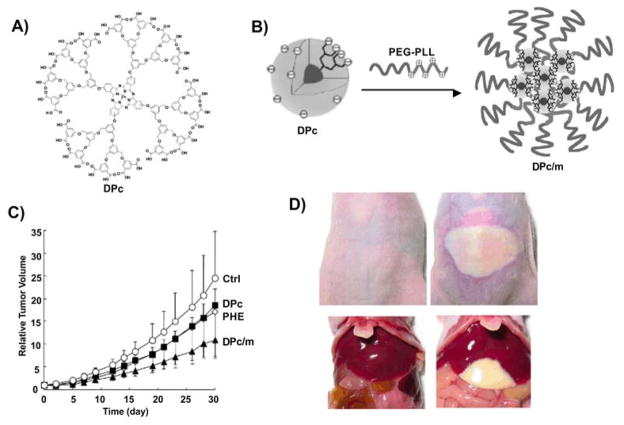

Fig. 8. Tumor treatment using dendrimer Pc encapsulated micelles.

A) Chemical structure of anionic dendrimer phthalocyanine (DPc). B) DPc encapsulated polyion complex micelle (DPC/m) was formed by mixing DPc and PEG-PLL. C) Growth curves of subcutaneous A549 tumors in control mice and mice administered with 0.37 μmol/kg DPc, 0.37 μmol/kg DPc/m and 2.7 μmol/kg PHE (n=6). D) DPc/m is safe to skin (top left) and liver (bottom left) whereas PHE induced phototoxicity to skin (top right) and liver (bottom right). 24 hours after administration of photosensitizing agents, the tumors were photoirradiated using a diode laser (fluence: 100 J/cm²). Adapted with publisher permission ⁸⁴

Cyclodextrins (CDs), also named cycloamyloses, are a family of cyclic oligosaccharides made up of sugar molecules bound together in a ring. Common natural cyclodextrins include α-CDs, β-CDs, γ-CDs. These non-toxic molecules can greatly improve the amphiphilicity, biocompatibility and bioavailability of photosensitizers.⁸⁵ Pc-CD conjugates via post modification of PcF₁₆ by nucleophilic substitution of two fluorine atoms of PcF₁₆ were made and the photo activities of such conjugates made them great PDT drugs against UM-UC-3 human bladder cancer cells.⁸⁶ Another conjugation form is, instead of conjugation on the peripheral of rings of photosensitizer, the conjugation of the dextrin on the axial position. β-CDs were used as axial substituents on silicon (IV) Pcs and it was shown that the conjugates were highly photocytotoxic with IC₅₀ value of 21 nM, which was about 7 fold lower than similar analogues and tumor treatment efficacy was demonstrated (Fig 9).⁸⁷ In order to improve drug loading efficiency, multiple Pc dyes were also encapsulated non-covalently into one dendrimer. Recently, dendrimer based theranostic agents were designed to encapsulate Pcs dyes and in order to improve the biocompatibility and tumor targeting, with poly (ethylene glycol) (PEG) and luteinizing hormone-releasing hormone (LHRH) conjugated to the nanocarrier.⁸⁸ The methyl 4-chloro-4-oxobytyrate (mob) substituted Silica chelated Pc, PcSi-OH(mob) associated with the nonpolar core of the dendrimer, exhibited NIR absorption at 700 nm and fluorescence emission, which enabled the dual roles of nanoplatform, PDT and florescence imaging. The LHRH targeted nanoparticles also showed low cytotoxicity with IC₅₀ value of 28 μg/ml. As galactose molecules can be recognized by receptors overexpressed in cancer cells, another form of galactodendritic Pc was also developed as targeting therapeutic agent for PDT treatment of bladder cancer.⁸⁹

Fig. 9. A) Schematic illustration of axial conjugation of CD to SiPc B) Tumor growth delay after PDT treatment with conjugates.

Illumination with laser light (30 J cm ⁻²) was applied for the PDT. Reproduced with publisher permission.⁸⁷

Other carriers have also been used to with Pcs and Ncs. Carbon nanotubes have provided some interesting results.⁹⁰ Yet, more studies must be done to solve several potential challenges such as biocompatibility of this kind of carbon nanomaterial. In addition, low density lipoprotein (LDL) and high density lipoprotein (HDL) have been explored as Pc and Nc carriers.^9,91–93

4 Conclusions

In summary, Pcs and Ncs have unique properties enabling them to be used for biological imaging and therapy. This review highlighted some selected recent developments of Pcs and Ncs based nanoscale formulations that exhibited utility in imaging biological tissues or in phototherapies. Different types of nanoparticles have been designed to deliver these molecules by targeting approaches or by passive effect. A wide range of chemical substituents can be readily conjugated to the skeleton of Pcs or Ncs peripherally or via central metal chelation.

Although Pcs and Ncs have been used for multiple imaging modalities, their true strength perhaps lies in their stability and high extinction coefficients in the NIR. Therefore, as optical imaging techniques such as PAT or PTT gain momentum, there is a real opportunity for Pcs and Ncs to be used as ideal agents for these techniques. Future challenges include finding unmet clinical needs that can be addressed with NIR optical imaging and phototherapy, and also establishing toxicity profiles. Pcs and Ncs are being increasingly used as new tools in the rapid developing field of theranostics.
