Visualization of HIV T Cell Virological Synapses and Virus-Containing Compartments by Three-Dimensional Correlative Light and Electron Microscopy

ABSTRACT

Virological synapses (VS) are adhesive structures that form between infected and uninfected cells to enhance the spread of HIV-1. During T cell VS formation, viral proteins are actively recruited to the site of cell-cell contact where the viral material is efficiently translocated to target cells into heterogeneous, protease-resistant, antibody-inaccessible compartments. Using correlative light and electron microscopy (CLEM), we define the membrane topography of the virus-containing compartments (VCC) where HIV is found following VS-mediated transfer. Focused ion beam scanning electron microscopy (FIB-SEM) and serial sectioning transmission electron microscopy (SS-TEM) were used to better resolve the fluorescent Gag-containing structures within the VCC. We found that small punctate fluorescent signals correlated with single viral particles in enclosed vesicular compartments or surface-localized virus particles and that large fluorescent signals correlated with membranous Gag-containing structures with unknown pathological function. CLEM imaging revealed distinct pools of newly deposited viral proteins within endocytic and nonendocytic compartments in VS target T cells.

IMPORTANCE This study directly correlates individual virus-associated objects observed in light microscopy with ultrastructural features seen by electron microscopy in the HIV-1 virological synapse. This approach elucidates which infection-associated ultrastructural features represent bona fide HIV protein complexes. We define the morphology of some HIV cell-to-cell transfer intermediates as true endocytic compartments and resolve unique synapse-associated viral structures created by transfer across virological synapses.

INTRODUCTION

Human immunodeficiency virus type 1 (HIV-1) infects CD4⁺ T helper cells and causes a progressive depletion of these cells critical for organizing the immune response. Recent studies indicate that cell-to-cell infection plays an important role in HIV-1 pathogenesis (1–5). Accumulating evidence supports the idea that HIV-1 cell-to-cell spread contributes to both productive infection (6–9) and CD4⁺ T cell depletion (10). In vitro studies indicate that HIV infection is enhanced by the formation of adhesive contacts between immune cells called virological synapses (VS) (11, 12). During VS formation HIV-1 Env protein is displayed on the surface of the infected cell and can initiate cell-cell adhesions by binding to CD4 on the surface of the uninfected T cell (8). After stable adhesion is established, the viral structural protein Gag is subsequently recruited to the site of cell contact in an actin-dependent manner (7, 8, 13). Live imaging studies of VS formation have revealed that the recruitment of Gag occurs after the formation of the Env-dependent, stable cell-cell adhesions (8). Internalization of viruses into the target cell through VS has been described as an endocytic process (6, 14–17) although some studies indicate that the process of viral entry occurs at the cell-cell junction (18). The extent to which endocytic pathways contribute to infection by cell-free HIV-1 has also been a subject of much debate (19–21). Live imaging of HIV-1 that expresses a fluorescently tagged structural protein, Gag, shows that during cell-to-cell transmission, target cells acquire large quantities of viral antigen into heterogeneous, punctate intracellular compartments (8). Treatment of cells with a CXCR4 coreceptor binding antagonist, AMD-3100, does not block synapse formation or transfer of HIV across the synapse but does increase the levels of Gag observed in target cells (14). This increase in Gag in target cells may be driven by the enhanced stability of transferred virus, increased endocytosis of virus, or both. The virus in this target cell compartment resists trypsin digestion and requires cell permeabilization to be stained with anti-Env antibodies, indicating that the virus resides in a protected compartment (22). During VS-mediated infection, the maturation of virus particles has been proposed to play a role in activating viral membrane fusion in the target cell (14). This model suggests that the fusion process occurs only after the transferred virus particles have matured to become infectious.

Using fluorescence microscopy of cells infected with fluorescent HIV, we have visualized the formation of VS in live- or fixed-cell preparations to document the trafficking of viral proteins during VS formation (8). However, membrane topology and details of the viral structures and cellular compartments that contain the virus are limited by the resolution of conventional light microscopy, which is about 300 to 400 nm. Electron microscopy can improve the resolution to 0.2 to 10 nm and enables one to visualize electron-dense assemblies of the core structural protein, Gag, as well as the membranous compartments that may support the internalization and entry of the virus. Focused ion beam scanning electron microscopy (FIB-SEM) is a three-dimensional (3D) electron microscopy method that in recent years has been applied to the study of virological synapses (23–27). FIB-SEM provides nanometer-resolution images that can define viral structures and the cellular membranes that may enclose them within compartments. Electron microscopy studies of HIV-infected macrophages have revealed that these cells can sequester virus particles in membranous conduits that are contiguous with the plasma membrane (24). These compartments, when observed in two dimensions (2D), initially were interpreted as enclosed cytoplasmic vesicles, but with 3D imaging these were later found to be connected to the cell surface. FIB-SEM studies examining cell-cell contacts between HIV-carrying dendritic cells and uninfected T cells revealed that dendritic cells can encase the T cells in membranous sheets that create extensive areas of membrane contact between the two cells (28). Clusters of HIV-infected and uninfected T cells have been examined with FIB-SEM but without a clear demarcation of where viral assemblies are localized (25). A major challenge to interpreting electron micrographs is correlating molecular structures with electron density. Additionally, when HIV virological synapses are imaged by electron microscopy, it is difficult to distinguish cell contacts between infected and uninfected cells in pelleted cells from bona fide virological synapses that have recruited viral proteins concentrated at the cell-cell junction. To address these challenges, we have taken an approach using 3D correlative light and electron microscopy (CLEM) to image relevant, virus-related structures with greater accuracy. 3D CLEM allowed us to visualize Gag-associated structures that were formed during HIV-1 cell-to-cell transfer between infected and uninfected T cells. 3D FIB-SEM reconstructions of cells engaged in virological synapse enabled mapping of the boundaries of all membrane compartments visualized. In addition, some compartments and viral structures were also resolved at higher resolution using serial section transmission electron microscopy (SS-TEM).

In this study, we provide electron microscopy evidence that, in contrast to internalized virus in macrophages, individual virus particles internalized through T cell-to-T cell synapses are transferred into enclosed endocytic compartments. Membranous structures larger than single virus particles also contribute to cell-to-cell transfer of large amounts of viral antigen. These data provide an ultrastructural picture of the major structures that are associated with HIV Gag during virological synapse-mediated infection.

RESULTS

Two types of virus-containing compartments (VCC) are observed during HIV-1 T cell-to-T cell spread.

The transfer of HIV between infected and uninfected T cells through virological synapses can be quantified and characterized morphologically using molecular clones that express fluorescent Gag, HIV Gag-interdomain green fluorescent protein (iGFP). However, the exact process by which the viral material is transferred between cells remains unclear. To examine the Gag-associated structures associated with VS-mediated transmission, we imaged primary CD4⁺ target cells that harbor transferred viral material from Jurkat donor T cells expressing HIV Gag-iGFP by laser scanning confocal microscopy (LSCM). Consistent with the findings of previous studies (11), abundant fluorescent Gag-iGFP puncta from infected donor cells were transferred to target cells after a 3-h coculture. We observed that heterogeneous puncta were transferred to target cells. Treatment of cells with a CXCR4 coreceptor binding antagonist (AMD-3100) resulted in the greater accumulation of fluorescent puncta in VS target cells (Fig. 1A and C). This increase was observed with both small and large puncta (Fig. 1D). The transferred viral materials showed minimal colocalization with the lysosomal marker LAMP-1, indicating that the viruses were not predominantly being targeted for lysosomal degradation (Fig. 1B and E). In single-particle imaging studies we have previously found that Gag puncta within VS target cells could undergo proteolytic maturation and engage in viral membrane fusion (14). From the above data, we infer that viral puncta that are heterogeneous in size are found in target cells and can be enhanced in number when viral fusion is blocked.

FIG 1.

Virus-containing compartments following HIV-1 cell-to-cell spread. Following a 3-h coculture of HIV Gag-iGFP-expressing Jurkat cells and primary CD4 cells, primary CD4 target cells positive for transferred Gag-iGFP were sorted by flow cytometry and imaged with confocal microscopy. (A) Confocal z projection of target cells obtained from untreated cocultures or from AMD-3100 treated samples. Bar, 5 μm. (B) Confocal z projection of target cells with or without AMD-3100 treatment stained with anti-LAMP-1, a marker for lysosomes. Bar, 5 μm. (C) The number of transferred puncta on target cells with or without AMD-3100 treatment. (D) The number of small or large puncta on target cells with or without AMD-3100 treatment. (E) Segmented Gag puncta within target cells were analyzed for staining of the lysosomal marker LAMP-1.

CLEM reveals structures associated with T cell virological synapses.

To examine the structural organization of T cell-T cell interactions at virological synapses and the nature of the virus-containing compartment, we imaged HIV-1 virological synapses formed between Jurkat T cells expressing HIV-1 constructs carrying a fluorescently tagged Gag (HIV-1 Gag-iGFP) and primary CD4 target T cells. A glass coverslip with a grid-etched bottom facilitated unambiguous identification of cells engaged in VS and of target cells carrying transferred viral material (Fig. 2A). A bright-field image localized the cells on the alphanumeric grid (Fig. 2B), which provided a reference to identify an infected cell engaged with three synapsed target cells (Fig. 2C). Transferred viral material was detected as fluorescent Gag-iGFP puncta associated with the target cells. The donor cell was larger in size and located in the center and showed prominent localization of Gag at the plasma membrane (Fig. 2C). When cells were imaged by FIB-SEM, budding figures on the donor cell correlated with the intense plasma membrane fluorescence on this cell and were also observed at the cell-cell contact zones, the virological synapse, where donor cell and target cell membranes were closely apposed. We also observed transferred material in the target cell that was contained within membrane compartments. A full-volume FIB-SEM image consisted of more than 1,200 continuous slices through the donor and conjugated target cells (Fig. 2D; see also Video S1 in the supplemental material). Images parallel with the plane of the ion abrasion (Fig. 2D, panels a, b, and c) were revisualized in the plane of the fluorescence image (Fig. 2D, panel d).

FIG 2.

Experimental workflow used for CLEM of virological synapses. A coculture of fluorescent HIV Gag-iGFP-expressing Jurkat T cells and uninfected primary CD4 T cells was prepared for correlative imaging. A VS conjugate between an HIV-infected donor cell with several target cells was imaged by fluorescence microscopy and FIB-SEM. (A) A petri dish with an etched alphanumeric grid was used to localize cells for correlative studies. (B) Conjugates of infected and uninfected cells were identified by fluorescence and localized to the grid by bright-field imaging. (C) A laser scanning confocal image of an HIV Gag-iGFP-infected cell and target cells that contain Gag-iGFP-positive puncta is shown with its position on the grid indicated by the red box in panel B. (D) 3D volume representation of the FIB-SEM stacks of the cells imaged in panel C. The image dimensions were 18.0 μm by 18.3 μm by 25.6 μm. Representative transverse sections (subpanels a, b, and c) show three representative scanning surfaces from the sample. The z axis represents the scanning direction. Panel d shows an FIB-SEM plane that is parallel to the fluorescent scanning planes. (E) The fluorescence image of the area boxed in red in panel C with high contrast applied. The red, blue, and yellow arrows are fluorescent signals that correlate with electron-dense particles. The arrows demarcating fluorescent signals in the confocal image are identified on separate FIB-SEM planes using arrows of the same color to show correlated electron-dense structures in each plane. (F, G, and H) Individual scanning EM sections with single virus particles in the z direction of the fluorescent photo shown in panel E. Bar, 2 μm. D, donor cell; T, target cell.

In addition to large fluorescent puncta in the target cell (shown boxed in red in Fig. 2C), we observed many, diffraction-limited dots, consistent with the size of single virus particles, and examined FIB-SEM sections for correlating structures. A selected series of FIB-SEM slices was identified, and the volumes were scanned for small electron-dense spots (Fig. 2E to H). Directionally stepping through the FIB-SEM volume, electron-dense structures the size of single virus particles overlapped with corresponding fluorescent puncta (shown in Fig. 2F, G, and H). A video of these continuous slices is presented in Video S2. Meanwhile, large puncta (described further below) were predominantly associated with membranous structures outside the cell.

Small fluorescent puncta are associated with electron-dense structures indicative of single HIV-1 particles.

In previous live-imaging studies of virological synapses, fast-moving Gag-containing clusters within the target cell have been documented (8, 14). These puncta moved at nearly 2 μm/s away from the synaptic button (8). Given that in other studies some viruses have been described as surfing on the surface of susceptible target cells (29), it is important to determine whether puncta associated with the target cell are enclosed within an intracellular endosome or located on the outside of the cell or both. We examined the FIB-SEM images to define the boundaries of the membrane compartments that were close to the plasma membrane.

Registration of the light and electron microscopy images in two data sets allowed us to correlate the presence of viral antigens in LSCM images with electron-dense structures seen in FIB-SEM images. The two data sets from LSCM and FIB-SEM were segmented separately to define 3D objects (Fig. 3A). Coregistered models of the 3D objects of LSCM data and FIB-SEM data allowed us to correlate fluorescent signals with nearby electron-dense structures. Larger, bright green patches were segmented into large puncta and pseudocolored in green. Small, dim GFP puncta were pseudocolored in yellow (Fig. 3B). Of the 33 small puncta associated with this target cell, 18 correlated with particles in vesicles inside the cell, 11 correlated with particles attached to the outer surface of the cell, and 4 were not obviously correlated with intracellular electron-dense structures (Fig. 3C and Table 1). The serial images surrounding each correlated structure are highlighted in supplemental Video S3. Overall, the majority of small puncta were found to localize with electron-dense structures with sizes similar to the size of a single HIV-1 particle. Thirty-three percent of these virus particles were attached to the outer surface of the plasma membrane, while 54.5% were fully enclosed within endocytic compartments inside the target cell.

FIG 3.

Correlation of FIB-SEM subcellular structures with LSCM fluorescent puncta in AMD-3100-treated cells. (A) Image registration was guided by alignment of bright GFP signals with prominent electron-dense structures. Landmark sets are placed correspondingly on segmented GFP signals of fluorescent data sets and segmented electron-dense structures of FIB-SEM data sets (not shown here); the center cell with strong GFP signals (marked by a white star) was chosen as the focus of alignment. Fluorescent nuclear surface, transparent red; FIB-SEM nuclear surface, solid purple. (B) The segmented fluorescent signals were classified as bright, high-volume signals and rendered in green and as small-volume, low-intensity puncta and rendered in yellow. (C) Small fluorescent puncta overlaid on FIB-SEM images reveal some correlated FIB-SEM structures. For a summary of results, see Table 1. Black-numbered photos show a correlated virus-like structure with a segmented fluorescent signal (yellow). In images labeled with a red number, no clear FIB-SEM structure was correlated with the fluorescent puncta. Virus-like structures inside the cell are marked with white arrowheads; virus-like structures outside the cell are marked with black arrowheads. The upper and lower panels of each photo show the intersection of fluorescent signal with the FIB-SEM slice with or without segmented yellow puncta. Bar, 250 nm. D, donor cell; T, target cell.

TABLE 1.

Summary of fluorescent signals in correlated samples

Sample type	No. of small puncta
	Correlated with particles in vesicles inside cell	Correlated with particles outside the cell	Internal but not obviously correlated with structures	Total
Untreated	6	4	8	18
AMD-3100 treated	18	11	4	33

To examine how the inhibition of viral membrane fusion by the CXCR4 binding antagonist AMD-3100 influences the distribution of viral material in the target cell, we also imaged samples prepared in the absence of AMD-3100. Registration of the SEM data and the fluorescent data (Fig. 4A and B) revealed electron-dense structures for many of the small puncta identified in the target cell (Fig. 4C). Of the 18 small puncta associated with this target cell, 6 correlated with particles in vesicles inside the cell, 4 correlated with particles attached to the outer surface of the cell, and 8 were not obviously correlated with intracellular electron-dense structures (Table 1). We observed a lower frequency of correlation with electron-dense structures in the AMD-3100-untreated sample than in the AMD-3100-treated sample. A fraction of the small puncta (33%) were correlated with virus particles inside endosomes. These data support the idea that endocytosis of single virus particles can be observed in both the presence and absence of AMD-3100.

FIG 4.

Correlation of FIB-SEM subcellular structures with LSCM fluorescent puncta in a sample acquired in the absence of AMD-3100. (A) Registration of segmented Gag-iGFP signals from fluorescent data sets and FIB-SEM data sets. (B) The fluorescent image of an AMD-3100-untreated sample. The area boxed in red shows the same cells as those shown in panel A. (C) Small fluorescent puncta overlaid on an FIB-SEM image reveal some correlated FIB-SEM structures. For a summary of results, see Table 1. Black-numbered images show a putative correlated virus-like structure with a segmented fluorescent signal; images labeled with a red number show no clear FIB-SEM structure correlated with the fluorescent puncta. Virus-like structures inside the cell are marked with white arrowheads; virus-like structures outside the cell are marked with black arrowheads. The upper and lower panels of each photo show the intersection of fluorescent signal with the FIB-SEM slice with or without segmented puncta. Bar, 250 nm. D, donor cell; T, target cell.

Using the segmentation and registration method described above, fluorescent puncta that were correlated with virus-like particles could be identified by examining the intersections of SEM slices with segmented yellow objects (Fig. 5A). Figure 2F and 3C, frame 4, show two views of the same FIB-SEM slice and reveal two virus-like particles in separate vesicles in the cytoplasm. We next used the FIB-SEM image to mark the boundaries of the cell membranes with respect to the virus-like particles in these internal compartments. Fluorescent puncta (Fig. 5B) correlated with virus particle-like structures (Fig. 5C) were further examined for their relationship with surrounding cellular membranes. A 3D representation of these objects confirmed the internal membrane-enclosed state of the virus-like particles within vesicles and indicated that these do not communicate with the outside of the cell (Fig. 5E and Video S4). An example of two endocytosed viruses from the AMD-3100-untreated sample (Fig. 5D) and a 3D model of this sample are shown (Fig. 5F and Video S5). Of the two viruses shown here, one is touching the membrane of an endosome and putatively appears to be initiating fusion.

FIG 5.

Correlation of small fluorescent HIV Gag-containing puncta with electron-dense virus-like particles within enclosed membrane compartments. (A) FIB-SEM photo showing one donor cell, labeled D, and three target cells, labeled T. Reconstructed nuclei are shown in transparent red, and small GFP puncta are shown in segmented yellow. The target cell in the middle with segmented yellow signals is the same cell shown in Fig. 3. (B) 3D side view of an FIB-SEM section and segmented small GFP puncta. A red arrow indicates the plane of intersection of this FIB-SEM section with the 3D representation of the segmented puncta. (C) Front view of the section illustrated in panel B with location of the registered small GFP puncta. A red square marks the enlarged area magnified in the inset. Bar, 1 μm. (D) A section from the AMD-3100-untreated sample in shown in Fig. 4A. A red square marks the area magnified in the inset. Bar, 1 μm. (E) A volume around the intersection area as shown in panel C is segmented to highlight 3D membrane structures that contain virus-like particles. (F) A volume around the intersection area as shown in panel D is segmented to highlight 3D membrane structures that contain virus-like particles. For panels E and F, plasma membrane is shown in white, nuclear membrane is in red, intracellular vesicles are shown in magenta), and virus particles are shown in yellow (panel E) and green (panel F).

Serial section TEM improves resolution of transferred virus particles in target cells.

CLEM imaging using FIB-SEM generates a continuous whole-cell correlative model using light and electron microscopy data. However, because of the lower resolution of SEM, the correlated electron-dense viral structures do not exhibit well-defined classical virus morphology. We employed thin-section TEM imaging to obtain higher resolution of these structures. Primary CD4⁺ target T cells carrying internalized virus particles were flow sorted after acquisition of fluorescent virus from HIV Gag-iGFP-expressing cells. Target cells were flow sorted and mounted onto a gridded cover glass. Confocal imaging was used to identify a target cell and its cell-associated Gag-iGFP puncta (Fig. 6A). Nine continuous 50-nm serial sections were segmented to model the plasma membrane, nucleus, and transferred virus particles. The segmentation analysis revealed that some transferred virus particles were clearly within an internal membrane compartment close to the plasma membrane (Fig. 6B and Video S6). Sections through the virus particles revealed viral membranes and putative cores (Fig. 6C). The SS-TEM study yielded images showing a prototypical virus morphology that correlated with fluorescent HIV-1 Gag-containing puncta.

FIG 6.

TEM serial sections reveal that small puncta transferred to target cells represent individual HIV-1 particles. (A) Fluorescence image of the selected target cell with transferred GFP signals. Blue, nucleus. (B) 3D model of the same target cell with small puncta, as determined from TEM serial sections. Green, virus particles; red, plasma membrane; blue, nucleus. (C) Three serial TEM sections of the target cell corresponding to the fluorescence image plane illustrated in panel A. Red squares indicate the area enlarged in the upper panel showing intracellular vesicles with virus particles.

Large fluorescent Gag puncta are associated with large, membranous electron-dense structures.

In the target cell analyzed for small puncta, shown in Fig. 3, we also observed large puncta associated with the target cell (Fig. 7A). Compartments associated with larger fluorescent puncta on the target cells correlated with electron-dense membranous structures (Fig. 7B). These correlated electron-dense structures were heterogeneous in size and generally much larger than single HIV-1 particles. HIV-1 cone-like dense cores were notably absent. These larger fluorescent structures sometimes appeared as supersized immature HIV-1 particles with an electron-dense Gag lattice underneath the limiting membrane. These large prominent features could be directly seen by TEM and were used to facilitate image registration (Fig. 7C and D). All of the large puncta were found outside the boundaries of the target cell plasma membrane. Similar large puncta were also observed in TEM studies with viruses expressing wild-type Gag, indicating that these structures were not induced by the GFP insertion into Gag in the HIV Gag-iGFP virus (Fig. 7I to K). Additionally, higher-resolution TEM serial sections revealed that large puncta were closely associated with the target cell membrane (Fig. 7E to H). Large membranous puncta were tightly attached to the surface of the target cell, forming a membrane-enclosed patch or tube with an amorphous shape, as shown in Fig. 7H. An electron-dense Gag lattice was visible beneath the membrane contour of these large puncta.

FIG 7.

Large puncta transferred to target cells correlate with electron-dense membranous structures that are larger than viral particles. (A) FIB-SEM photo showing one donor cell (large cell marked with D) and three conjugated target cells (smaller cells marked with T). (B) Fluorescent image of the same cells as shown in panel A. Colored arrows highlight large fluorescent puncta (panel B) and corresponding membranous structures (panel A). (C) Scanning EM section overlaid with a 3D view of segmented large fluorescent GFP puncta. The cells are the same as in those in panels A and B but shown at a tilted angle. White triangles show the intersection of reconstituted large puncta and the scanning EM section. (D) The same FIB-SEM view as that of panel C but without the 3D view of the Gag puncta. Membranous structures at the intersection are highlighted with white arrowheads. (E) Fluorescent image showing one sorted target cell with transferred large GFP puncta (green) and the nucleus, indicated with DAPI stain (blue). (F) 3D model of a target cell with large puncta based on TEM serial sections. Green, virus particles; red, plasma membrane; blue, nucleus. (G) A TEM slice corresponding to images in panels E and F. (H) Enlargement of the area boxed in red in panel G. (I to K) TEM photos from a wild-type NL4-3 sample with large membranous structures between a donor cell (marked with D) and a target cell (marked with T). Bar, 1 μm.

HIV cell-to-cell transfer between primary CD4⁺ T cells.

To assess whether the structures observed using the Jurkat T cell line as HIV donor cells resemble those observed when primary cells are used as both donors and target cells, we performed correlative imaging on synapses formed between infected and uninfected primary CD4⁺ T cells. When infected primary T cells are allowed to form VS, live fluorescent imaging can capture both small and large puncta transferring from cell to cell (Video S7). We acquired FIB-SEM images from two independent primary cell VS generated from two independent donor T cell sources. CLEM images of a VS between primary T cells showed a close apposition of membranes and nascent viral buds at the cell-cell interface. The VS donor cell plasma membrane exhibited a high concentration of budding crescent forms (Fig. 8A to D). Free virus particles and large membranous Gag-containing structures were also observed in the interface between the donor and target cells (Fig. 8C and F). Examination of the cell-cell interface at the center of the VS revealed a concentration of virus-like particles surrounded by tightly apposed donor and target cell membranes (Fig. 8E and F). In another primary-to-primary T cell VS example, one donor cell formed synapses with three target cells, and virus particles were found within target cell endosomes (Fig. 8G to J).

FIG 8.

CLEM shows the structure of a primary T cell-to-primary T cell virological synapse. Confocal fluorescence image (A) and FIB-SEM slice (B) show a VS formed between an activated primary CD4⁺ T cell (marked with D) and target primary CD4⁺ T cell (marked with T). Areas boxed in red highlight the VS interface. The plasma membranes associated with VS were segmented and are displayed in pink (donor side) and bronze (target side). The electron-dense structures associated with Gag lattice were segmented and are displayed in green. (C) Enlarged SEM view of the red-boxed area in panel B shows budding viral crescents (white arrowheads) and virus particles (black arrowheads). (D) A 3D model of the primary T cell-to-primary T cell VS from the segmented FIB SEM images. The arrow indicates the orientation of the model. (E) A view of the VS area from the target cell side is depicted. The arrow shows the orientation of the viewing angle. Green indicates the segmented, Gag-related structures at the VS just above this specific FIB-SEM slice. (F) The enlarged view of the area boxed in red in panel E, which includes most of the segmented green structure. Black arrowheads indicate virus particles, and white arrowheads indicate large puncta with budding, crescent-shaped forms. A confocal fluorescence image (G) and FIB-SEM slice (H) show endocytosed viruses transferred from an activated primary CD4⁺ T cell (donor) and a target primary CD4⁺ T cell (target). (I and J) Enlarged view of the areas boxed in yellow and red in panels G and H, respectively. Black arrowheads indicate virus particles. Bar, 1 μm.

DISCUSSION

HIV-1 virological synapses between T cells can direct the translocation of large amounts of viral antigen from donor to target cell in a process that facilitates infection (11). In live-imaging studies, fluorescent particles, from diffraction-limited spots to large micrometer-sized aggregates, have been observed to move from cell to cell (8). Here, we characterized the states of Gag transferred into virological synapse-engaged primary T cells. Previous 3D electron microscopy studies of virological synapses have examined infected cells and their cell-cell contacts (18, 25, 30). Here, we employed CLEM methods to explore HIV-1 cell-to-cell spread through virological synapses correlating fluorescent viral antigens with electron-dense structures. Localization of fluorescent protein-tagged HIV Gag identified bona fide donor cell-target cell conjugates and characterized the various structural forms of Gag that are transferred from cell to cell.

From our previous live-imaging studies, a model was proposed for VS-mediated infection in which the virion maturation process occurred within target cell-associated compartments (14). Trypsin-resistant compartments in T cells were previously reported to contain Gag, Env, and Vpr and can be stained with anti-Env antibodies only when cells are first permeabilized (11, 22). In our current study, similarly small, dimly fluorescent puncta within the target cell were found in several different states. Some viruses were found within internal, enclosed membrane structures, which we presume were endosomes. These observations indicate that some viruses are contained within endosomes; however, it remains uncertain which viral intermediates contribute most to productive infection. These correlated electron-dense SEM structures were found to have a diameter close to the diameters of HIV particles, which are distinct in morphology from multivesicular bodies (MVB). In previous noncorrelated TEM photos of virological synapses, MVB with virus particle-like inclusions were observed (8); however, in this study fluorescent Gag puncta were not found to localize to MVB structures.

In these correlative studies, we also observed large fluorescent puncta that associated with membranous electron-dense structures. In previous live-imaging studies, large patches of fluorescent Gag have been observed to transfer from donor to target cell across the VS (8). These electron-dense structures represent an extensive lattice of Gag bound to membrane and are much larger than individual virus particles. While these structures could be associated with the high levels of HIV expression when Jurkat cells are used as donor cells, we do not believe that they are dependent upon the GFP-tagged Gag as similar structures were observed using wild-type HIV that did not carry the GFP fusion protein (Fig. 7I to K). These membranes are intimately attached to the target cell and associated tightly enough to survive trypsinization and cell sorting (Fig. 7E to H). These large membranous structures were also observed in primary T cell-to-primary T cell cocultures (Fig. 8; see also Video S7 in the supplemental material). Trogocytosis or cell-to-cell membrane transfer has been observed in immunological synapses where T cells can capture membrane fragments from antigen-presenting cells (31, 32). Considering the similarity between virological synapses and immunological synapses, it is possible that the large membranous puncta in VS target cells are related to trogocytosis. Whether these structures are present during natural HIV-1 cell-to-cell transfer or what role they may play in HIV-1 cell-to-cell transmission will require further exploration. It is possible that the membranous Gag-containing structures contain all the viral materials required to form infectious viral particles. It is unknown whether viruses could be formed from these structures and participate in infection. Furthermore, additional studies are needed to understand how these structures may affect T cell survival.

In our FIB-SEM studies we examined all the small puncta transferred to target cells, recording their localization and noting correlated structures (Table 2). In addition to obvious electron-dense structures described above, a minority of small fluorescent puncta did not correlate with any highly electron dense structures. These small puncta may represent Gag-containing structures in different states of viral entry that are not well resolved from their surroundings. They could also represent endocytosed virus particles that are destined for degradation (33). However, in our coculture system, transferred puncta were not colocalized with the late endosome/lysosomal marker LAMP-1, which indicates that most of the transferred viral material is not targeted to lysosomes. This lack of localization with lysosomes is consistent with findings of previous studies (6, 16).

TABLE 2.

Classification of correlated structures

Fluorescence microscopy structures	Correlated electron microscopy observation
Small puncta	Viruses within internal vesicles
	Viruses on target cell surfaces
	Absence of obvious correlation with electron-dense structures
Large puncta	Membranous Gag-containing objects larger than virus particles

Whether endocytic pathways contribute to HIV productive infection has been actively debated (19–21). During infection with cell-free HIV-1, entry has been reported to occur without the requirement of endocytosis (19). However, during HIV-1 cell-to-cell transmission, virus assembly and egress are highly concentrated at the VS, and live-imaging studies show large and small puncta transferring into cellular compartments within the target cell (8). When this observation is considered in conjunction with our previous virus particle imaging studies where we have imaged fusion of individual virus particles in VS target cells (14), we suggest that a fraction of these small puncta may represent virus entering through internal endosomal compartments. It remains to be rigorously determined whether the particles that fuse in the target cells are those that are contained within the endosomes.

In addition to endocytosed viruses, some of the particles visualized by LSCM and FIB-SEM were also present at the target cell surface. We also note as a possible limitation of our fluorescence imaging that dimly fluorescent virus particles that fuse close to the site of cell-cell contact may be obscured by the intense fluorescence of the donor cell. Based on the observations above, it is still challenging to define exactly which puncta progress to productive infection. However, our studies do provide the first CLEM images that verify that transferred viruses are internalized into enclosed internal compartments during the VS.

A 3D model of an FIB/SEM data set highlights two types of transferred HIV antigens revealed in this study (Fig. 9). Large membranous and small virus-particle-sized puncta are displayed. The use of CLEM unambiguously defines a number of virus-associated structures formed in VS donor and target cells. Knowledge of these structures will help us to develop and test models of viral transfer and infection during HIV-1 dissemination.

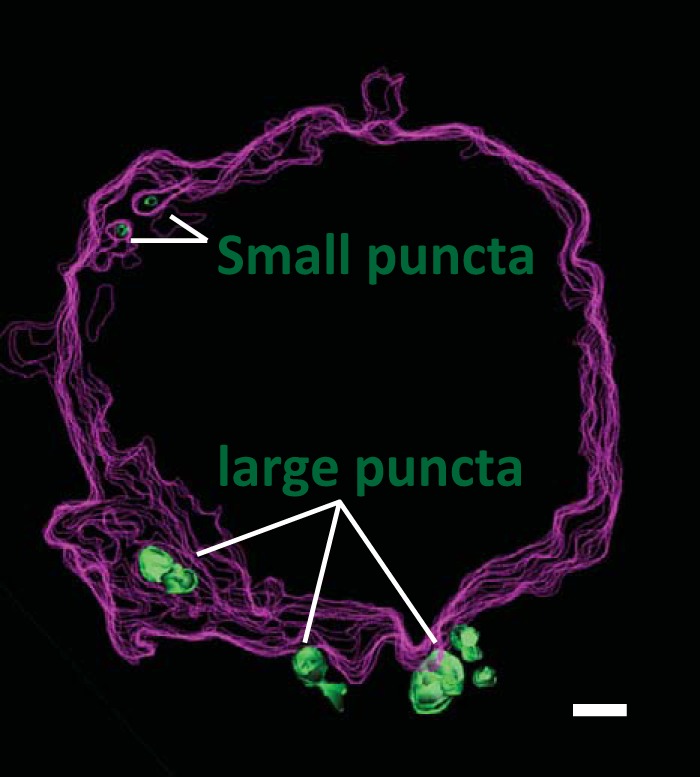

FIG 9.

Model of a VS target cell containing both large and small puncta. Outlines of the plasma membrane (magenta) and internal membrane (green) compartments illustrate internal and external Gag-associated structures. A stack of 50 continuous FIB-SEM slices was used to create a 3D model using 3dmod software. Bar, 0.5 μm.

MATERIALS AND METHODS

Viral constructs, cells, and tissue culture.

HIV-1 Gag-iGFP is a molecular clone based on pNL4-3 (34) that carries green fluorescent protein (GFP) inserted between the Gag MA and CA domains (22). The CD4 T-cell line Jurkat E6.1 (ATCC) was maintained in RPMI 1640 medium with 100 U/ml penicillin and 100 mg/ml streptomycin plus 10% fetal bovine serum (FBS). Cells were maintained at concentrations of less than 1 × 10⁶ cells/ml. Primary CD4 T cells were obtained from human peripheral blood buffy coats from deidentified blood donors through the New York Blood Center. CD4 T cells were isolated by negative selection with a Miltenyi CD4 T Cell Isolation Kit II (Miltenyi Biotec). Unactivated CD4 T cells were maintained in complete RPMI medium containing 50 U/ml interleukin-2 (IL-2) (AIDS Reagent Program [ARP]).

Coculture of HIV-1-infected T cells with uninfected T cells.

HIV-1 proviral constructs were transduced into Jurkat cells using Amaxa nucleofection (Amaxa Biosystems) as previously described to generate HIV-expressing donor cells (11). Briefly, 5 μg of endotoxin-free HIV-1 proviral plasmids was nucleofected into 6 × 10⁶ Jurkat cells using a Cell Line Nucleofector Kit V, program S-18. Twenty-four hours after nucleofection, viable Jurkat cells were purified by centrifugation on a Ficoll-Paque density gradient. Then the cells were washed with complete medium and placed at 37°C for coculture. For primary CD4⁺ donor cells, freshly separated primary CD4⁺ T cells were activated with phytohemagglutinin (PHA) and IL-2 in the presence of feeder peripheral blood mononuclear cells (PBMC). Activated primary CD4⁺ T cells were spinoculated with cell-free HIV-1 particles produced by 293T cells. Three days after infection, live primary CD4⁺ T cells were isolated by centrifugation through a Ficoll gradient and washed before use as donor cells. Target cells were unactivated primary CD4 T cells thawed from a frozen state and resuspended in complete RPMI 1640 medium containing 50 U/ml IL-2. Donor and target cells were mixed at a 1:1 ratio and cocultured at 37°C for 3 h before transfer to coverslips for confocal imaging and FIB-SEM sample preparation. To examine the internal VCC in target cells, cells were treated with trypsin, fixed, and sorted with an Aria fluorescence-activated cell sorter (FACS). For Jurkat-to-primary CD4⁺ cell HIV transfer studies, both untreated samples or samples treated with AMD-3100 (CXCR4 coreceptor binding antagonist) were prepared. Where inhibitors were used, donor and target cells were preincubated separately with equal volumes of inhibitors for 30 min at 37°C before mixing.

Fluorescence microscopy sample preparation.

Transfected Jurkat cells (donor cells) were mixed with primary CD4 cells (target cells) in round-bottom 96-well-plates for 3 to 4 h as previously described (11). Cocultured donor and target cells were transferred onto polylysine-treated, gridded, glass-bottom dishes (P35G-2-14-C-GRID or P35G-2-14-CGRD; MatTek Corp., Ashland, MA). These dishes have a number 2 coverslip etched with an alphanumeric grid to enable cell relocation by light and electron microscopy (Fig. 2). Cells were allowed to adhere to the coverslip for 30 min at 37°C and were fixed with 4% paraformaldehyde (PFA) for at least 10 min at room temperature. For fluorescence imaging, cells were mounted with antifade mounting medium with 4′,6′-diamidino-2-phenylindole (DAPI) (catalog number H-1200; Vector Laboratories). To immunostain sorted target cells, cells were fixed in 2% PFA and resuspended in primary antibody solution (phosphate-buffered saline [PBS] with 5% fetal bovine serum [FBS], 0.02% NaN₃, and 0.5% saponin [Sigma] with primary antibody [LAMP1 rabbit MAb9091; Cell Signaling Technology] at 1:200). The cells were incubated at room temperature for 1 h and washed. The cells were resuspended in corresponding secondary antibody (Alexa Fluor 546; Invitrogen) for 30 min and washed. Prolong Gold antifade reagent (Invitrogen) was used to seal the slides.

LSCM imaging.

When cells were prepared for correlative imaging, they were maintained in nonhardening mounting medium H-1200. An inverted Leica SP5 DMI laser scanning confocal microscope (LSCM) was used to find cells of interest using a 40× objective. Bright-field and GFP single-plane images were acquired using a 10× objective to localize cells upon the alphanumeric grid (Fig. 2B). After the locations of the cells of interest relative to the grid were documented, both DAPI and GFP LSCM z-stack images were taken using a 63× objective (1.4 numerical aperture [NA]; oil). These 63× DAPI and GFP images were taken in 1,024- by 1,024-pixel mode and were scanned at a speed of 200 Hz with 4 times line averaging with 30 to 50 z-steps. For normal slides, the images were taken directly using a 63× objective with the same settings.

Electron microscopy sample preparation.

After LSCM imaging, the approximate locations of the cells of interest relative to the grid were marked on the gridded-bottom glass using a marking pen. H-1200 mounting medium was washed with PBS, and the cells were fixed again with 3% glutaraldehyde in 0.1 M cacodylate buffer for 30 min. The buffer was changed to 1% tannic acid in 0.1 M cacodylate buffer for 1 h at room temperature and then to 1% osmium for 1 h and sealed, and the sample was placed at 4°C. The cells were dehydrated in increasing concentrations of ethanol (30%, 50%, and 70%), kept in 3% uranyl acetate and 70% ethanol for 12 h at 4°C, washed in 70% ethanol, and further dehydrated with increasing concentrations of ethanol (90%, 95%, and 100% twice). After dehydration, cells were infiltrated with sequential 3:1, 1:1, and 1:3 solutions of resin (Embed 812 kit; Electron Microscopy Sciences, Hatfield, PA) and 100% ethanol for 1 h separately at room temperature with the dishes sealed. A final infiltration of pure resin was carried out three times, with the dishes sealed at room temperature, and incubated for 1 h. Prior to solidification, a 1-cm-diameter open-ended embedding capsule (Electron Microscopy Sciences, Hatfield, PA) was filled with pure resin and used to encapsulate the cells. The resin was then polymerized in a vacuum oven at 65°C for 8 to 12 h to generate a block with grid marks imprinted on the capsule face. To detach the coverslip from the cell block, the polymerized sample was immersed in liquid nitrogen for 1 min, and the glass was removed from the block.

To examine the VCC by transmission electron microscopy, we enriched for target cells by flow sorting target cells that had become stably associated HIV Gag-iGFP. Sorted target cells were pelleted and embedded in epon, and the block was coarsely trimmed with a double-edged razor blade and further trimmed on an ultramicrotome (Leica Ultracut UCT) with a diamond trimming knife (DiATOME Ultra 45) to finely trim the block around the cell of interest. Serial ultrathin sections (50 nm) were cut from the block surface using an ultramicrotome. The serial sections coming off the block face were collected and transferred to a 2- by 0.5-mm carbon-reinforced single slot grid (G205-Cu; Electron Microscopy Sciences, Hatfield, PA). The sample was dried on the grid and transferred to staining mats for heavy metal staining. Grids were stained with 3% uranyl acetate for 40 min, washed, stained with lead citrate for 3 min, and washed and allowed to dry.

In preparation for FIB-SEM, specimens were mounted on stubs with double-sided, electrically conductive carbon tape. Silver paint (colloidal silver liquid; Electron Microscopy Sciences, Hatfield, PA) was applied to ensure electrical continuity of the specimen with the stub. The samples with the stub were put in a 60°C dryer to remove the solvent. The samples were coated with gold-palladium by a sputter coater (Denton Vacuum Desk V) in preparation for scanning electron microscopy (Helios NanoLab 650 DualBeam; FEI).

Transmission electron microscopy.

Cells were viewed at low magnification and low beam to identify the cell of interest based on the comparison of the cell morphology under the EM with the confocal GFP image. Serial sections of cells and organelles of interest were then imaged at magnifications of ×10 to ×30,000.

Focused ion beam scanning electron microscopy (FIB-SEM).

The sample was imaged using the back-scattered electron (BSE) mode in an FEI Helios NanoLab 650 DualBeam SEM. Images were recorded after each round of ion beam milling using the SEM beam at 2 keV and 200 pA with a working distance of 4 mm. Automated data acquisition was guided by the Auto Slice and View G3 software, with an average x-y pixel size of 2 to 3 nm and z-step size of 20 nm.

Processing of fluorescence and electron microscopy image stacks.

For correlative analysis, raw FIB-SEM images were cropped and aligned using the image-processing programs in IMOD (UC Boulder). In particular, the stack of FIB-SEM images was aligned using IMOD's xfalign and Midas programs. Images were denoised using a median filter and binned to produce isotropic voxels in the x and y directions with Amira software (Visage Imaging, Andover, MA). Further image analysis utilized ImageJ (NIH) to rescale 2D image stacks to a smaller size. For fluorescent stacks, features of interest were automatically selected with Amira using a thresholding tool. Corresponding features of interest on 2D electron microscopy stacks were selected by semiautomatic segmentation and refined manually using Amira to produce 3D visualizations and volume rendering. For 3D object registration, we transformed two 3D objects into one another by first setting landmarks on their surfaces and then defining a mapping between the landmark sets (35). Registration was realized by Amira's landmark surface warp program. We placed landmarks on prominent, high-intensity Gag-iGFP fluorescent signals and structures with an electron-dense layer indicative of Gag-iGFP and executed a rigid landmark surface warp. Nuclei were aligned using the same warping method.

For normal slides, fluorescent image stacks were loaded to the image analysis software Imaris. Automated image segmentation based on GFP intensity was performed. Cell counting and numbering were processed by Fiji. The threshold to discriminate between large and small puncta was set at 0.4 μm³. The number of puncta associated with each cell was counted manually based on segmentation results. The intensity data of segmented Gag puncta in the red channel were exported and plotted for colocalization analysis.
