From the Cover: Manganese Stimulates Mitochondrial H₂O₂ Production in SH-SY5Y Human Neuroblastoma Cells Over Physiologic as well as Toxicologic Range

Abstract

Manganese (Mn) is an abundant redox-active metal with well-characterized mitochondrial accumulation and neurotoxicity due to excessive exposures. Mn is also an essential co-factor for the mitochondrial antioxidant protein, superoxide dismutase-2 (SOD2), and the range for adequate intake established by the Institute of Medicine Food and Nutrition Board is 20% of the interim guidance value for toxicity by the Agency for Toxic Substances and Disease Registry, leaving little margin for safety. To study toxic mechanisms over this critical dose range, we treated human neuroblastoma SH-SY5Y cells with a series of MnCl₂ concentrations (from 0 to 100 μM) and measured cellular content to compare to human brain Mn content. Concentrations ≤10 μM gave cellular concentrations comparable to literature values for normal human brain, whereas concentrations ≥50 μM resulted in values comparable to brains from individuals with toxic Mn exposures. Cellular oxygen consumption rate increased as a function of Mn up to 10 μM and decreased with Mn dose ≥50 μM. Over this range, Mn had no effect on superoxide production as measured by aconitase activity or MitoSOX but increased H₂O₂ production as measured by MitoPY1. Consistent with increased production of H₂O₂, SOD2 activity, and steady-state oxidation of total thiol increased with increasing Mn. These findings have important implications for Mn toxicity by re-directing attention from superoxide anion radical to H₂O₂-dependent mechanisms and to investigation over the entire physiologic range to toxicologic range. Additionally, the results show that controlled Mn exposure provides a useful cell manipulation for toxicological studies of mitochondrial H₂O₂ signaling.

Mn is the 12th most abundant mineral element on the earth and is both nutritionally essential and toxic in excess. Mn is required for a number of biological processes including biosynthesis and metabolism of lipids, carbohydrates, and amino acids, and is a cofactor for a diverse set of enzymes (Burton and Guilarte, 2009; Takeda, 2003). Mn concentrations in human brain spans from a normal range at 20.0–52.8 μM Mn (5.3–14.0 ng/mg protein) to toxic range at 60.1–158.4 μM Mn (16–42.1 ng/mg protein) based on extrapolation of studies done in astrocytes and human brain samples (Bowman and Aschner, 2014). Exposure to elevated Mn levels induces cognitive and behavioral deficits resulting in a neurological syndrome similar to Parkinson’s disease (Aboud et al., 2012; Bouchard et al., 2011; Kwakye et al., 2015; Menezes-Filho et al., 2011; Myers et al., 2009).

Mn toxicity from occupational exposures is well documented and appropriate hygiene policies are established to avoid health risks (ATSDR, 2012). Emerging evidence suggests, however, that environmental exposures could also pose a threat. Mn exposure can occur through recycling waste, agricultural agents, fuel combustion, natural or anthropogenic contaminations of soil, and water, as well as contaminated foods, infant formulas, food, and nutritional products (ATSDR, 2012; Golub et al., 2005; Loranger et al., 1994; O'Neal and Zheng, 2015; Roede et al., 2011). Multiple epidemiological studies show neurological effects of exposure to Mn in the workplace using multiple neurobehavioral tests of cognition, mood and neuro-motor activities (Beuter et al., 1999; Bouchard et al., 2005; Lucchini et al., 1995; Standridge et al., 2008; Wasserman et al., 2006). The effects of Mn can be biphasic as seen in a longitudinal study of early life Mn exposure that examined neurodevelopment endpoints at 12 and 36 months of age. The study observed an inverted U-shaped dose-response curve for the effects of Mn exposure on neurodevelopment score suggesting that both high and low Mn exposure can negatively influence child neurodevelopment (Claus Henn et al., 2010).

The nutritional requirement for Mn has been examined in detail by the Food and Nutrition Board (FNB) of the Institute of Medicine (National Academy of Sciences, 2001). Adequate intake (AI) levels were established as 2.3 and 1.8 mg Mn/day, respectively, for men and women. Literature for toxic levels of Mn was examined in detail by the Agency for Toxic Substances and Disease Registry (ATSDR) and no Minimal Risk Levels were established for acute, intermediate or chronic oral exposure to inorganic Mn (ATSDR, 2012). Commonly used methods for extrapolation from animal studies were inconsistent with the FNB values and the ATSDR recommended an interim guidance value for Mn of 0.16 mg/kg/day (ATSDR, 2012). For a 70 kg individual, the resulting interim guidance intake of 11.2 mg/day is less than 5-fold the adequate intake level for men. This narrow range between adequate intake and possible toxic levels emphasizes a critical need to improve understanding of the modes of action and metabolic consequences of Mn over this relevant exposure range.

Whereas the exact mechanism of Mn toxicity is still not known, one proposed mechanism for high dose Mn induced neurotoxicity is oxidative damage, mitochondrial dysfunction, and the resultant apoptotic cell death (Anantharam et al., 2002; Galvani et al., 1995; Gavin et al., 1992; Maddirala et al., 2015; Milatovic et al., 2009; Oubrahim et al., 2001; Yoon et al., 2011; Zhang et al., 2004). Among the Mn induced redox regulated mitochondrial dysfunction, a majority of the studies have been performed in isolated mitochondria from cells treated with Mn or isolated mitochondria stimulated directly by exogenously added Mn to determine the effect of Mn on mitochondrial respiration (Galvani et al., 1992, 1995; Liu et al., 2013). As such, subtle changes in mitochondrial redox may be lost with low physiological Mn dose, because extracellular changes influence mitochondrial redox state.

A study in HeLa cells demonstrated production of cellular reactive oxygen species and apoptosis after treatment with 0.5–2 mM MnCl₂ for 24 h (Oubrahim et al., 2001). Another study reported increased cellular oxidant production and decreased ATP production on treatment with 0.8 mM MnCl₂ for 24 h in SH-SY5Y cells (Maddirala et al., 2015). Other studies showed Mn-dependent inhibition of mitochondrial Complex I in PC12 cell cultures (Galvani et al., 1995) and inhibition of ATP synthesis in isolated mitochondria in vitro (Gavin et al., 1992). Most of these studies have determined outcomes following relatively high level acute or chronic exposure to Mn (Aschner et al., 2005), and less is known about the effects or thresholds of Mn at levels activating cellular and mitochondrial redox signaling. Moreover, what aspect of mitochondrial redox signaling and generation of which oxidant species is altered under physiological and toxicological concentration of Mn still remains unclear. An understanding of redox responses to Mn doses approximating real-life exposures and defining oxidant species and source could help recognize possible risks due to interactions with other toxicological stressors and in physiologic adaptation.

Briefly our study showed lower concentrations of Mn in the culture medium resulted in low cellular Mn (physiological; ≤15.7 ± 1.1 ng/mg protein) and stimulated mitochondrial respiration whereas higher cellular Mn (toxicological; >36.77 ± 1.83 ng/mg protein) inhibited mitochondrial respiration and caused cellular thiol oxidation. Results showed that superoxide dismutase 2 (SOD2) activity, was increased by Mn, that no increase in superoxide anion production was detected and that increased H₂O₂ production occurred as a function of Mn over the entire physiologic and toxicological range.

MATERIALS AND METHODS

Cell culture and Mn treatment

The human neuroblastoma cell line SH-SY5Y was obtained from the American Type Culture Collection (ATCC-Manassas, Virginia), and maintained in medium consisting of Dulbecco’s Modified Eagle Medium/Ham’s F12 medium (1:1 mixture), 10% FBS, and 1% penicillin, and streptomycin. This cell line was selected as an experimental model that exhibits characteristics similar to neuronal cells and possesses dopaminergic neuronal markers (Gordon et al., 2013; Kovalevich and Langford, 2013; Xie et al., 2010). SH-SY5Y cells have been extensively characterized as an in vitro human cell model for neurodegenerative diseases including Parkinson’s Disease and Alzheimer’s Disease, and for mitochondrial dysfunction and neuronal cell death induced by oxidative stress (Gao et al., 2001; Wu et al., 2014; Zhu et al., 2007). All assays were conducted within 10 cell passages. The cells were treated with MnCl₂ (Sigma, indicated as Mn in following sections) at varying concentrations (0, 1, 5, 10, 50, and 100 μM) for 5 h. For all experimental conditions, serum was reduced to 0.5% FBS. These conditions were selected because there was no cell death at 5 h but after return of cells to culture medium for 24 or 48 h, cells exposed to ≤ 10 μM Mn for 5 h survived whereas cells exposed to ≥ 50 μM had substantial cell death.

Cellular Mn concentration measurement

Intracellular Mn²⁺ concentrations were measured by graphite furnace atomic absorption spectroscopy (GFAA) (Thermo Scientific iCE3000 Series). Briefly, following treatment with Mn, SH-SY5Y cells were washed 3 times with phosphate buffered saline (PBS) and re-suspended in ultrapure cell culture grade water. The cells were then lysed by repeated freeze thawing cycles followed by sonication and frozen at −80°C for further analysis.

Total cellular thiol

Following Mn treatment, cells were washed 3 times with PBS, harvested with ice cold PBS with 0.5% Triton X-100 and centrifuged at 10 000 × g for 10 min. Ellman's reagent (5,5′-dithio-bis-[2-nitrobenzoic acid]) (1 mM) in 100 mM potassium phosphate buffer with 1 mM EDTA at pH 7.5 was added to the cell lysates and incubated for 5 min in the dark (Chandler et al., 2013). Total thiol content was measured at an absorbance of 412 nm and lysate-free buffer as a blank. Final values were expressed relative to the protein content measured for each sample.

GSH and GSSG

At the end of the treatment period, the cells were washed 3 times with PBS. Five hundred microliters of ice cold 5% perchloric acid, 0.2 M boric acid, and 10 μM γ-glutamylglutamate was added to each plate, and the cells were scraped and collected in tubes placed on ice. Samples were then derivatized with iodoacetic acid followed by derivatization with dansyl chloride, and analyzed by high performance liquid chromatography (HPLC) with fluorescence detection to determine the GSH and GSSG concentrations (Jones, 2002; Jones et al., 1998).

Mitochondrial function analysis

Following 5 h treatment, the media was replaced with fresh media containing the WST-1 reagent (Roche) to determine mitochondrial function. The assay is based on the cleavage of the tetrazolium salt WST-1 to formazan by cellular mitochondrial dehydrogenases. The plate was then incubated for 1 h at 37 °C and absorbance was read at 450 nm on a microplate reader (Spectramax M2).

Intracellular mitochondrial oxidant level analysis

To evaluate mitochondrial oxidant generation, multiple assays were employed. For detection of global mitochondrial oxidation, Mn treated cells were incubated with Mitotracker Red CM-H2XRos, and mitotracker fluorescence as a measure of mitochondrial oxidant generation was visualized by fluorescence microscopy as previously described (Go et al., 2010). For a more specific mitochondrial oxidant marker, superoxide anion measurement was performed using MitoSOX (5 μM, Invitrogen) as described previously (Go et al., 2009). For mitochondrial H₂O₂ measurement, live cell imaging was performed using Mitochondrial peroxy yellow 1 (MitoPY1) (10 μM, Tocris Biosciences) based on the protocol previously described (Lippert et al., 2015).

Cellular respiration

Oxygen consumption rate (OCR) and extracellular acidification rate (ECAR) were measured using a Seahorse Bioscience XF96 extracellular flux analyzer (North Billerica, Massachusetts). Plates were seeded at 40 000 cells/well. After 24 h, cells were treated with graded concentrations of Mn (0, 1, 5, 10, 50, and 100 μM) in DMEM medium containing 0.5% fetal bovine serum for 5 h. Cells were then washed 3 times with pre-warmed serum-free DMEM media. Cells were incubated with XF assay media (pH 7.4, Seahorse Biosciences) supplemented with 10 mM glucose, 1 mM sodium pyruvate, and 2 mM l-glutamine using the XF Prep Station (Seahorse Bioscience). Cells were incubated for 1 h at 37 °C without CO₂. The inhibitors of mitochondrial respiration, including oligomycin at 1 μM, rotenone at 1 μM, and FCCP at 1 μM were auto-injected into the experimental wells (based on optimization experiments). Each experimental point is an average of a minimum of 10 replicate wells and each experiment was performed 3 times with different plates. Data were reported as OCR or ECAR values normalized to initial number of plated cells or as percentage of the time point for no manganese treated control group.

SOD activity

Cells were washed 3 times with PBS and total SOD activity measurements were performed spectrophotometrically with a xanthine oxidase-based assay according to the manufacturer’s instructions (Cayman Chemical). Rates were calibrated relative to the SOD standard provided with the kit. Measurements of SOD2 activity were obtained with an in-gel nitroblue tetrazolium assay using native gels as described previously (Van Remmen et al., 1999). Results are expressed relative to control cells.

Statistical analysis

Statistics were performed using the software package GraphPad Prism version 6 (GraphPad Software, LaJolla, California). Data were analyzed using 1-way analysis of variance (ANOVA). Data in graphs were represented as the mean ± SE. Statistically significant differences are defined as P values <.05 between control and each treatment and denoted with an asterisk (*) throughout.

RESULTS

Mn Accumulates in Human SH-SY5Y Cells in a Dose-Dependent Manner and Represents Physiological to Pathological Ranges Found in Human Brain Tissue

To establish a cellular model that represents Mn concentrations over a physiological to a minimally toxicological range, SH-SY5Y cells treated with different Mn doses for 5 h were examined for Mn content and compared with the previously reported Mn levels in human brain tissues (Figure 1). Results showed that cellular Mn increased in a dose-dependent manner [0 μM, 6.4 ± 1.0 ng Mn/mg protein; 1 μM, 12.0 ± 0.7 ng Mn/mg protein; 5 μM, 12.7 ± 1.8 ng Mn/mg protein; 10 μM, 15.7 ± 1.1 ng Mn/mg protein; 50 μM, 36.8 ± 1.8 ng Mn/mg protein; 100 μM, 49.2 ± 0.5 ng Mn/mg protein]. The data show that cellular Mn in response to ≤10 μM Mn treatment was within the range found in human brain tissues at physiological conditions (Bowman and Aschner, 2014; Csaszma et al., 2003), whereas cellular Mn in response to ≥50 μM Mn treatment were comparable to Mn tissue concentrations found in pathophysiological conditions (Bowman and Aschner, 2014; Erikson et al., 2007; Molina et al., 2011). The intracellular content of Mn in control SH-SY5Y cells (No Mn treatment group) was less than 8% of the lowest exogenously added Mn treatment group (1 μM MnCl₂) and likely was derived from FBS in growth media and treatment media (Cho et al., 2007).

FIG. 1.

Dose-dependent increase in cellular Mn in human neuroblastoma cells. SH-SY5Y cells treated with varying concentrations of MnCl₂ (0, 1, 5, 10, 50, and 100 μM) for 5 h were measured for their cellular Mn content using Graphite Furnace Atomic Adsorption Spectrometer (GFAA). Results are shown as mean ± SE (n = 3). *P < .05 compared with control (No Mn treatment).

Mn-Stimulated Oxidation of Cellular Redox State Occurs without Triggering Cytotoxic Signaling

To examine cellular responses to Mn concentrations, from nontoxic to toxic range, we examined the cellular redox state and mitochondrial function of SH-SY5Y cells. The effect of Mn on total thiol, glutathione and glutathione disulfide levels were quantified after 5 h treatment with Mn, using Ellman’s reagent and HPLC analyses, respectively. The results showed that Mn treatment significantly decreased total cellular thiol in a dose dependent manner, thereby presenting evidence for oxidative stress [1 μM, 91.9 ± 4.4%; 5 μM, 88.7 ± 3.0%; 10 μM, 86.8 ± 3.4%; 50 μM, 83.1 ± 5.6%; 100 μM, 81.4 ± 0.8% compared with control at 100%] (Figure 2A). In addition, the analysis of the major cellular thiol/disulfide redox couple (GSH and GSSG) demonstrated a significant increase in glutathione disulfide (GSSG) with 100 μM MnCl₂ treatment [0 μM, 0.12 ± 0.02 mM; 1 μM, 0.14 ± 0.00 mM; 5 μM, 0.09 ± 0.01 mM; 10 μM, 0.12 ± 0.01 mM; 50 μM, 0.16 ± 0.04 mM; 100 μM, 0.28 ± 0.04 mM GSSG] (Figure 2B, top), whereas no detectable effect on glutathione (GSH) was observed (Figure 2B, bottom). Consistent with evidence for oxidative stress, the calculated redox potential was more oxidized at ≥ 50 μM Mn treatment (Supplementary Figure 1). Subsets of cells treated with Mn were analyzed for cytotoxicity and the results of trypan blue and cytochrome c release showed that even the highest dosage of Mn (100 μM Mn treatment for 5 h) had no effect on cell viability or apoptotic events at this time point (Supplementary Figs. 2 and 3), suggesting that oxidative cellular signaling responses occur prior to any observable cytotoxic events by Mn exposure.

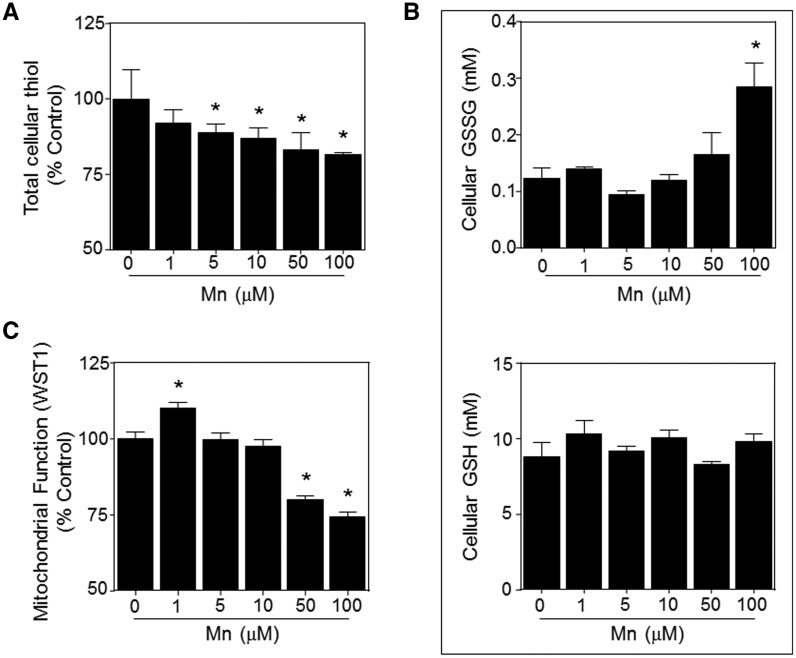

FIG. 2.

Effect of Mn on the cellular redox status and mitochondrial function of SH-SY5Y cells. (A) Cells were treated for 5 h with MnCl₂ concentrations as indicated, and total cellular thiol content was quantified spectrophotometrically with Ellman’s reagent. (B) Cellular glutathione disulfide (GSSG) and glutathione (GSH) were determined by fluorescence following derivatization with dansyl chloride and HPLC separation. Corresponding redox potential values are provided in Supplementary Figure 1. (C) Mitochondrial dehydrogenase activity was measured using WST-1 dependent colorimetric assay. Under these conditions, there was no loss in cell viability as measured by Trypan Blue staining, shown in Supplementary Figure 2, or increase in apoptosis signaling, shown in Supplementary Figure 3. Results are shown as mean ± SE (n ≥ 3). *P < .05 compared with control (No Mn treatment).

Mitochondria are an important source of oxidants (Apostolova and Victor, 2015; Lin and Beal, 2006; Nemoto et al., 2000), and prior research shows that Mn mainly accumulates in the mitochondria (Gavin et al., 1999; Maynard and Cotzias, 1955). To determine effects of Mn dose on viable cell activity, we used WST-1 a tetrazolium dye that is reduced by NAD(P)H-linked dehydrogenases in living cells. Results showed an increased activity at 1 μM (110.0 ± 1.9% of control) and significantly decreased values at 50 and 100 μM [50 μM, 79.9 ± 1.4%; 100 μM, 74.2 ± 1.7% compared with control] (Figure 2C).

Dose-Dependent Biphasic Effects of Mn on Mitochondrial Respiration

To determine the effect of Mn concentrations on mitochondrial respiratory function, we measured oxygen consumption rate (OCR) in SH-SY5Y cells following 5 h Mn treatment using Seahorse XF96 Extracellular Flux Analyzer. Results showed that ≤50 μM Mn increased OCR relative to control (1 μM, 121 ± 7%; 5 μM, 124 ± 6%; 10 μM, 126 ± 9%; 50 μM, 129 ± 9%; Figure 3A) whereas 100 μM Mn was not different from control (96 ± 6% OCR compared with control; Figure 3A). Mitochondrial OCR declined further (50–70% of control values) with concentrations above 100 μM Mn (data not shown).

FIG. 3.

Low dose Mn effects on mitochondrial and glycolytic activities of SH-SY5Y cells using Seahorse XF96 extracellular flux analyzer. Cells were treated for 5 h with Mn at concentrations indicated. (A) Basal mitochondrial oxygen consumption rate (OCR) as a percentage of control without added Mn. (B) OCR related to ATP-synthesis measured after addition of oligomycin. (C) OCR linked to proton leak measured after the addition of FCCP. (D) Relative effects of different concentrations of Mn on mitochondrial and glycolytic activities were visualized by plotting OCR as a function of ECAR, where each is expressed as a function of OCR without inhibitor. Labels for Mn concentrations are given adjacent to each data point. Data are presented as mean ± SE for 3 separate experiments, where each experiment had ≥10 replicate wells per treatment. *P < .05 versus control group.

In the Seahorse analyses, Mn treated cells were treated sequentially with oligomycin to determine ATP-linked OCR and rotenone to determine proton-leak dependent OCR. ATP-linked oxygen consumption did not change with increasing Mn concentration up to 100 μM Mn treatment (Figure 3B). Proton-leak dependent OCR was increased relative to basal OCR at Mn concentrations up to 50 μM (1 μM, 140 ± 14%; 5 μM, 149 ± 11%; 10 μM, 169 ± 20%; 50 μM, 149 ± 14%) but was not different from control at 100 μM (105 ± 10%) (Figure 3C). A 4 quadrant metabolic profile graph of the relative mitochondrial (OCR) and glycolytic metabolism (ECAR) at the different Mn treatment dosage (Figure 3D) shows that the lower concentrations of Mn stimulate both glycolysis and mitochondrial respiration: mitochondrial respiration (OCR) declines at Mn concentrations above 10 μM Mn treatment whereas glycolysis (ECAR) does not decline except at 100 μM Mn.

Mn Treatment Increases H₂O₂ Production in the Mitochondria

Whereas alterations in the mitochondrial respiration are a major source of oxidant production, generation of mitochondrial oxidants also disrupts mitochondrial and cellular function (Adam-Vizi, 2005; Bao et al., 2009; Kowaltowski et al., 2009). To determine mitochondrial oxidant production in Mn-treated cells, we used multiple mitochondria-specific fluorescent probes. MitoTracker red CM-H₂XRos (MitoTracker) is a commonly used probe that provides information on oxidant production and redox status but is relatively nonspecific (Dikalov and Harrison, 2014; Karlsson et al., 2010; Winterbourn, 2014). In contrast, MitoSOX is relatively specific for superoxide anion radical and MitoPY1 is a boronate-based probe (Kaludercic et al., 2014) that is relatively specific for H₂O₂. MitoTracker florescence increased with Mn dose (Figure 4A), with statistically significant increases observed at 10 μM and higher (1 μM, 113 ± 6%; 5 μM, 127 ± 7%; 10 μM, 134 ± 6%; 50 μM, 147 ± 7%; 100 μM, 154 ± 7% compared with control at 100%; Figure 4B). MitoSOX did not show any observable oxidation, even though positive controls with antimycin A showed increase; thus, the results show no observable effects on mitochondrial superoxide production at all the concentrations tested (data not shown). In contrast, MitoPY1 fluorescence increased as a function of Mn (Figure 5A), with significant increase at 10 μM and higher (1 μM, 133 ± 20%; 5 μM, 140 ± 32%; 10 μM, 157 ± 18%; 50 μM, 196 ± 33%; 100 μM, 197 ± 17% compared with control at 100%; Figure 5B). This increase in mitochondrial H₂O₂ measured by MitoPY1 is consistent with the results obtained from Mitotracker. Thus, the results show that mitochondrial H₂O₂ production in SH-SY5Y is increased by Mn over the entire physiologic to toxicologic range studied.

FIG. 4.

Mn-dependent increase in mitochondrial oxidant levels measured by Mitotracker Red CM-H₂XRos. (A) Right panels show mitochondrial oxidant (red) levels visualized by fluorescence microscopy using mitotracker red CM-H₂XRos, with Hoechst (blue) staining for nuclei and Phallacidin (green) staining for F-actin. The left panels show the relative intensities for the mitotracker fluorescence alone. (B) Mean fluorescence intensity of each group was determined and plotted as relative % increase compared with control group (0 μM Mn treatment). The data are shown as mean ± SE (n ≥ 5). *P < .05 versus control group.

FIG. 5.

Mn-dependent increase in mitochondrial H₂O₂ production measured by MitoPY1. (A) Live cell mitochondrial H₂O₂ production was visualized by fluorescence microscopy using MitoPY1 (green) and bright field. (B) Mean fluorescence intensity for each group was determined and plotted as relative % increase compared with control group (0 μM Mn treatment). The data are shown as mean ± SE (n ≥ 5). *P < .05 versus control group.

Mn Increases Mitochondrial Superoxide Dismutase Activity

Superoxide dismutase (SOD2), found in the mitochondrial matrix, converts superoxide to oxygen and hydrogen peroxide. Mn is a cofactor for SOD2 and is critical for SOD2 activity. Total SOD activity was elevated approximately 25% compared with the controls at all Mn concentrations (0 μM, 4.4 ± 0.2; 1 μM, 5.5 ± 0.7; 5 μM, 5.7 ± 0.5; 10 μM, 5.3 ± 0.3; 50 μM, 6.4 ± 0.9; 100 μM, 6.2 ± 0.7 U/mg protein; Figure 6A). Consistent with the data for total SOD, Mn dose-dependent increase in SOD2 activity was also observed [1 μM, 111 ± 1; 5 μM, 118 ± 15%; 10 μM, 124 ± 9%; 50 μM, 133 ± 17%; 100 μM, 147 ± 13% compared with control at 100%; Figure 6B).

FIG. 6.

Superoxide dismutase enzyme activity following Mn treatment. (A) SOD activity in SH-SY5Y cells was measured by a colorimetric assay in whole cell lysate following treatment with respective MnCl₂ concentration for 5 h. (B) SOD2 enzyme activity in native gels was analyzed by nitroblue tetrazolium-based assay (top panel) and relative intensities of bands were obtained by densitometry analysis and plotted as a function of the control group. The entire gel is shown in Supplementary Figure 4. The data are shown as mean ± SE (n ≥ 3). *P < .05 versus control group (0 μM Mn treatment).

DISCUSSION

Aberrant brain Mn levels have been associated with Manganism, Parkinsonism and other neurological problems (Kwakye et al., 2015; Menezes-Filho et al., 2011; O'Neal and Zheng, 2015). However, in most studies, the lack of measure of the intracellular Mn levels that lead to molecular derangements have hindered our understanding of the effects of Mn within a physiological and pathological setting. Mn is a redox active metal, and little is known about the mitochondrial-cellular redox signaling resulting in differential cellular response to low dose acute Mn exposure. Multiple studies determining subcellular Mn distribution in organs and intracellular organelles in vivo have demonstrated dosage dependent increases in intra-mitochondrial Mn (Ayotte and Plaa, 1985; Lai et al., 1999; Liccione and Maines, 1988; Maynard and Cotzias, 1955; Miller et al., 1975), suggesting a direct association of mitochondrial responses with Mn levels. The present study builds upon this earlier research by measuring cellular Mn concentrations and associated effects on cellular redox states and mitochondrial oxidant production and respiration, specifically under conditions that differ in effects on cell survival. Important differences were detected for H₂O₂ production, mitochondrial respiration and thiol oxidation.

The inability to detect an increase in superoxide anion radical production in response to Mn may be particularly important in understanding Mn-dependent toxicity. Prior discussions have addressed differences between radical and nonradical mechanisms of oxidative stress (Jones, 2008), but considerable evidence supports a role for superoxide anion radical in mitochondrial oxidative toxicity. Importantly, Mn is a required component of SOD2, which functions to convert superoxide anion radical, a product of the mitochondrial respiratory chain, to H₂O₂ and O₂. The results with increasing Mn showed no detectable increase in superoxide anion radical as measured by inactivation of aconitase (data not shown) or oxidation of MitoSox. At the same time, increased activity of SOD2 and increased H₂O₂ were observed. Mn commonly occurs in +2 and +4 oxidation states, but +3, +5, and +7 also occur, so one cannot infer predominant electron transfer reactions from the data, ie, superoxide anion radical could be formed and dismutated without a detectable increase, or reactions could occur with 2-e⁻ transfer to produce H₂O₂ without detectable superoxide anion radical. In either case, an important conclusion is that Mn results in a dose-dependent increase in mitochondrial H₂O₂ production over the entire dose range. These results suggest that variation in Mn in culture media may be an unanticipated variable in cell culture studies. Additionally, the results suggest that controlled variation in Mn could be used to test the involvement of mitochondrial H₂O₂ in toxicity of other agents.

Whereas H₂O₂ is known to cause oxidative stress and toxicity, in the recent years H₂O₂ has also gained interest as a signaling molecule and as a part of normal aerobic metabolism (Bao et al., 2009; Sies, 2014). Whereas determining the H₂O₂ threshold from signaling to excessive toxic levels has been challenging (Sies, 2014), evaluation of a system using redox-active chemicals that are endogenously present at sub-toxic concentrations within a cell, such as Mn, sheds light on this threshold concept. Our study shows that Mn increases mitochondrial H₂O₂ over the entire physiological to pathological range studied (Figure 5) whereas GSH oxidation, protein oxidation, WST1 reduction, and mitochondrial respiration were only significantly affected at the higher concentrations. This indicates that the transition from normal to toxic conditions may be better described in terms of the concept of redox optimization (Cortassa et al., 2014) where oxidant generation and elimination are maintained within appropriate ranges.

Our results are consistent with the recommended dosage of treatment and accumulation of Mn within the cells based on relevant in vivo levels from human brain studies (Bowman and Aschner, 2014; Csaszma et al., 2003). Total cellular Mn concentration was similar to the physiological and pathophysiological levels of Mn in the human brain. Mn homeostasis in the brain is largely dependent on the circulating pool of Mn wherein the levels in the blood influence the accumulation of Mn in the brain (Bornhorst et al., 2012; Burton and Guilarte, 2009). With the assumption that protein content per cellular volume of neuroblastoma cells is 0.2 mg/μl (Bowman and Aschner, 2014; Matthews, 1974), our data show that 1 μM Mn in the culture medium was associated with cellular value of 12 ± 1 ng/mg protein, which represents the physiological level, whereas 50 μM Mn was associated with 37 ± 2 ng/mg protein, a toxic range 3 times higher than physiological level (Figure 1).

Neurotoxic effects of Mn have been proposed through mitochondrial dysfunction and oxidative stress induced apoptotic cell death (Kitazawa et al., 2002; Milatovic, et al., 2009). Based on our study we determined that cellular Mn 13 ± 2 ng/mg protein (5 μM Mn treatment in Figure 1) causes a 40% increase in mitochondrial H₂O₂ production with no detectable cytotoxicity (5 μM Mn treatment in Supplementary Figure S2). However, higher Mn in cells (37 ± 2 ng/mg protein; 50, 100 μM Mn treatment in Figure 1) led to a 96% increase in oxidant production (Figure 4B) a 20% decline in mitochondrial function (Figure 2C) and subsequent cell death (data not shown). These changes could associate with cytotoxic mechanisms such as cytochrome c release from mitochondria and activation of apoptosis (Yang et al., 1997).

Finally, the relationship of the oxidative mechanisms of inorganic Mn to toxicities of Mn complexes, as summarized in Figure 7, will require further investigation. Previous studies show interaction of Mn with other molecules in toxicological mechanisms (Cui and Okayasu, 2008; Fazakerley and Reid, 1979; Gruden and Munic, 1987; Murthy et al., 1981; Padua et al., 2010; Roney and Colman, 2004). For instance, Mn interactions with toxic heavy metals (As, Cd, Pb), dietary metals (Zn, Mg, Fe, Cu)] (Cui and Okayasu, 2008; Gruden and Munic, 1987; Murthy et al., 1981; Roney and Colman, 2004), proteins (glutamine synthetase, glutamate dehydrogenase, apotransferrin) (Dimovasili et al., 2015; Hunt and Ginsburg, 1981; Yao et al., 2013), and metabolites (glutamate, ADP) (Fazakerley and Reid, 1979; Weiner et al., 1975) have been shown to impact cell physiology. The mechanisms of these effects on neuronal metabolism, signaling and toxicity are largely unknown and may involve interactions of Mn complexes as well as direct Mn effects on respiration and H₂O₂ production (Figure 7). Evidence that Parkinson’s disease susceptibility genes are involved in Mn homeostasis further suggests that complex cell-specific mechanisms may be important in Mn toxicity. Parkinson’s disease associated genes ATP13A2, parkin, DJ-1, and α-synuclein have been shown to be involved in Mn transport and Mn toxicity (Bornhorst et al., 2014; Gitler et al., 2009). Therefore combined studies of gene expression and metabolism associated with Mn effects will be needed to understand complex mitochondria-cellular signaling responses that could protect or exacerbate the Mn-related neurological disorders.

FIG. 7.

Central role of mitochondrial H₂O₂ in Mn physiology and toxicity. The present results show that Mn dose-response involves a low-dose activation of respiration and SOD2 activity without associated toxicity whereas further increase in Mn inhibits respiration, oxidizes cell GSH and protein thiols, and causes cell death. Over this entire range, H₂O₂ increases as a function of Mn, suggesting that H₂O₂ has a signaling role at lower Mn concentrations and a toxic role at higher Mn concentration. Elucidation of the interactions of Mn-containing complexes (Mn-metal, Mn-protein, Mn-metabolite, dotted circles) with these central Mn-dependent mitochondrial reactions could considerably enhance understanding of related neuronal disease mechanisms. Abbreviations: Pr-SH, protein thiol; GSSG, glutathione disulfide; DMT, divalent metal transporter; GLNA, glutamine synthetase; GLUD, glutamiate dehydrogenase; ApoTF, apotransferrin; PD, Parkinson’s Disease; HD, Huntington’s Disease.

In summary, the present results show that the redox-active essential nutrient, Mn, impacts redox processes in neuroblastoma cell mitochondria over the entire range corresponding to physiological and toxicological concentrations in human brain. Among possible reactive oxygen species, evidence with selective mitochondrial fluorescent probes shows that H₂O₂ is increased in response to increased Mn. This indicates that H₂O₂ may have a signaling role in cellular homeostasis in addition to a role in toxicity at higher Mn concentrations. Finally, the biphasic nature of Mn effects on mitochondrial respiration, when coupled to increased H₂O₂ generation and altered thiol antioxidant systems, may require an integrated systems approach to fulfill dietary requirements whereas avoiding adverse effects from excess Mn exposure.
