Abstract
Background
Asian ginseng and American ginseng are functional foods that share a close genetic relationship and are well-known worldwide. This article aims to investigate the correlation between morphological characteristics and the inherent quality of Asian and American ginsengs.
Methods
In this study, an ultra-HPLC–quadrupole/time-of-flight MS (UHPLC-Q/TOF-MS) method was established for the quantitative analysis of 45 ginseng samples. The method developed for determination was precise and accurate.
Results
The results showed that Asian ginseng samples with the same growing time (with the same or similar number of stem scars) that had a thinner main root, a longer rhizome and more branch roots contained greater amounts of ginsenosides. For American ginseng, two tendencies were observed in the relationship between the diameter of the main root and contents of ginsenosides. One tendency was that samples with thinner main roots tended to contain higher levels of ginsenosides, which was observed in the samples sold under the commercial name pao-shen. Another tendency was that samples with thicker main roots contained higher contents of ginsenosides, which was observed in the samples sold under the commercial name pao-mian, as well as in samples of American ginseng cultivated in Jilin, China.
Conclusion
An approach using ultra-HPLC–quadrupole/time-of-flight MS was successfully established to link morphology and active components for evaluating the quality of Asian and American ginsengs. Clear correlation between visible morphological features and quality of Asian and American ginsengs was found. People can see the difference; this means consumers and vendors can evaluate ginseng by themselves.
Keywords: determination of ginsenosides, morphological characteristics, Panax ginseng, Panax quinquefolius, ultra-HPLC–quadrupole/time-of-flight MS
1. Introduction
Asian ginseng is the dried root and rhizome of Panax ginseng Meyer, while American ginseng is the dried root of Panax quinquefolius L. [1]. Both Asian and American ginsengs are famous worldwide as medicinal materials, and they share a close botanical relationship. Among the various constituents they contain, ginsenosides are thought to be the major bioactive components responsible for the restorative functions of Asian and American ginsengs, such as strengthening the immune response, protecting the cardiovascular system, alleviating fatigue, and resisting oxidation [2], [3], [4], [5], [6], [7], [8]. Importantly, Asian and American ginsengs contain similar ginsenosides. To estimate and control the quality of the two crude materials, a number of quantitative studies have been carried out by various techniques [9], [10], [11], [12], [13]. However, few studies have focused on the relationship between morphological characteristics and the inherent quality of ginseng. Recently, our previous research on the localization of ginsenosides in the root and rhizome of P. ginseng showed that the cork contained more types and higher contents of ginsenosides than did the cortex, phloem, xylem, and resin canals; meanwhile, the phloem, xylem and resin canals from the branch roots contained a greater number and quantity of ginsenosides than the main root [14]. As the cross-section is a key point for morphological features of ginseng that reveals tissue structures and arrangement, the outside bark of the thinner main root has been found to occupy more areas in the cross-section of the root. Thus, ginseng with thinner main root and more branch roots is deduced to be of better quality for medicinal use. However, the correlation of the morphological features and the quality of Asian ginseng has never been proven by directly comparing the contents of ginsenosides in Asian ginsengs of various grades with different morphological characteristics. Moreover, the correlation of the morphological features and the quality of American ginseng has not been investigated although American ginseng also contains ginsenosides.
Various grades of Asian and American ginsengs are sold on the market. Higher grades have higher prices—but does this also correspond to higher functional quality? It is hard for consumers to determine the quality of various commercial specifications of Asian and American ginsengs. The various grades of ginseng are mainly based on morphological features. For Asian ginseng, common specifications include trimmed main roots, rootlets, fibrous roots, forest-grown ginseng, field-grown sun-dried ginseng, and white ginseng. Meanwhile, the common specifications of American ginseng include pao-shen, pao-mian, and fen-guang-shen. Also, the growing region of American ginseng is emphasized in the market, such as Canada, USA, Wisconsin, or the north-east area of China. Vendors sell various specifications or grades of ginseng and price them according to their growing conditions and geographic origins, as well as various morphological features. Similarly, consumers primarily evaluate the quality of ginseng on the basis of morphological features. In our previous study, we investigated the characteristic chemical markers for differentiating commercial Asian and American ginsengs [15]. The results indicated that the chemical profiles varied between Asian and American ginsengs, forest-grown and field-grown sun-dried Asian ginsengs, as well as wild and cultivated American ginsengs. However, the contents of ginsenosides in these samples have not been compared to correlate the morphological features and active components.
In the present study, in order to evaluate the quality of various grades of Asian and American ginsengs and to correlate the relationship between morphological characteristics and contents of ginsenosides, an ultra-high performance liquid chromatography-quadrupole/ time-of-flight-mass spectrometry (UHPLC-Q/TOF-MS) method was developed for the quantitative analysis of ginsenoside Rg1 (G-Rg1), 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd in 45 ginseng samples. Correlating contents of ginsenosides with morphological features provides a scientific basis for evaluating the quality of Asian and American ginsengs based on morphological features.
2. Materials and methods
2.1. Materials
Twenty-three Asian ginseng samples and 22 American ginseng samples of various commercial classifications were purchased from different herbal markets. Sample information and descriptions about their morphological features are listed in Table 1. All samples were authenticated by Dr Zhitao Liang according to the morphological and histological methods in the Chinese Pharmacopoeia [1]. The voucher specimens were deposited in the Bank of China (Hong Kong), Chinese Medicines Centre of Hong Kong Baptist University.
Table 1.
Sample information in this study
| Sample No. | Commercial Name | Growth years | Specification | Morphological features | Source | Collection date |
|---|---|---|---|---|---|---|
| PG1 | Forest-grown ginseng | 3–4 | Dried, Grade III, RMB1,000/kg | Whole. Texture soft and easily broken. Main root 2.80 cm (length) × 0.70–0.80 cm (diameter1); 3–5 stem scars; 2–3 branch roots with diameters of 0.20–0.40 cm. | Jian Yang Tang, Qingping herbal market of Guangzhou, Guangdong province, China | July 22, 2013 |
| PG2 | Forest-grown ginseng | 3–4 | Dried, Grade V, RMB950/kg |
Whole with few branches. Texture soft and easily broken. Main root 6.80 cm (length) × 0.90 cm (diameter); 3–5 stem scars. | Jin Hui Ginseng Co., Qingping herbal market of Guangzhou, Guangdong province, China | July 22, 2013 |
| PG3 | Forest-grown ginseng | 5 | Dried, Grade II, RMB3,200/kg | Whole. Texture hard and not easily broken. Main root 2.20 cm (length) × 1.40 cm (diameter); 4–5 stem scars; 2 branch roots with diameters of 0.90 cm. | Jin Hui Ginseng Co., Qingping herbal market of Guangzhou, Guangdong province, China | July 22, 2013 |
| PG4 | Forest-grown ginseng | 5 | Dried, Grade IV, RMB1,200/kg | Whole. Texture soft and easily broken. Main root 4.50 cm (length) × 1.30 cm (diameter); 5–6 stem scars; 2 branch roots with diameters of 0.10–0.30 cm. | Jin Hui Ginseng Co., Qingping herbal market of Guangzhou, Guangdong province, China | July 22, 2013 |
| PG5 | Forest-grown ginseng | 6 | Dried | Whole. Texture soft and easily broken. Main root 2.50 cm (length) × 1.10 cm (diameter); 4–6 stem scars; 2 branch roots with diameters of 0.40–0.50 cm. | Xinbin county, Liaoning province, China | September 10, 2011 |
| PG6 | Forest-grown ginseng | 6–7 | Dried, RMB700/kg | Whole. Texture hard and not easily broken. Main root 5.00–7.20 cm (length) × 1.70–2.00 cm (diameter); 5–6 stem scars; 2 branch roots with diameters of 0.80–1.20 cm. | Jian Yang Tang, Qingping herbal market of Guangzhou, Guangdong province, China | July 22, 2013 |
| PG7 | Forest-grown ginseng | 7 | Dried, Grade I, RMB4,000/kg | Whole. Texture soft and easily broken. Main root 5.00–5.10 cm (length) × 0.90–1.10 cm (diameter); 6–8 stem scars; 3 branch roots with diameters of 0.90–1.10 cm. | Jin Hui Ginseng Co., Qingping herbal market of Guangzhou, Guangdong province, China | July 22, 2013 |
| PG8 | Forest-grown ginseng | 7 | Dried, Grade III, RMB2,300/kg | Whole with few branches. Texture hard and not easily broken. Main root 1.60 cm (length) × 2.10 cm (diameter); 6–7 stem scars; 2 branch roots with diameters of 1.00–1.80 cm. | Jin Hui Ginseng Co., Qingping herbal market of Guangzhou, Guangdong province, China | July 22, 2013 |
| PG9 | Forest-grown ginseng | 8–9 | Dried, Grade II , RMB2,500/kg | Whole. Texture soft and easily broken. Main root 3.20–5.00 cm (length) × 1.00 cm (diameter); 5–8 stem scars; 2–3 branch roots with diameters of 0.20–0.30 cm. | Jian Yang Tang, Qingping herbal market of Guangzhou, Guangdong province, China | July 22, 2013 |
| PG10 | Forest-grown ginseng | 10–15 | Dried, Grade I , RMB3,000/kg | Whole. Texture soft and easily broken. Main root 6.20–8.50 cm (length) × 0.90–1.10 cm (diameter); 8–9 stem scars; 2–3 branch roots with diameters of 0.20–0.50 cm. | Jian Yang Tang, Qingping herbal market of Guangzhou, Guangdong province, China | July 22, 2013 |
| PG11 | Sun-dried ginseng | — | Dried, RMB1,500/kg | Whole. Texture hard and not easily broken. Main root 5.60–6.20 cm (length) × 2.0–2.3 cm (diameter); 3 stem scars; 5–7 branch roots with diameters of 0.17–0.75 cm. | Shenzhen Hua An Tang Drug Store (Baishizhou pharmacy) | July 17, 2013 |
| PG12 | Sun-dried ginseng | — | Dried, RMB1,500/kg |
Whole. Texture hard and not easily broken. Main root 3.80–5.10 cm (length) × 1.70–1.80 cm (diameter); 2–3 stem scars; 6–8 branch roots with diameters of 0.20–0.65 cm. | Shenzhen Youhe Pharmaceutical Co., Ltd. (Baishizhou pharmacy) | July 17, 2013 |
| PG13 | Sun-dried ginseng | — | Dried, Grade I | Whole. Texture hard and not easily broken. Main root 5.00–5.70 cm (length) × 1.90 cm (diameter); 3 stem scars; 5–7 branch roots with diameters of 0.40–1.20 cm. | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PG14 | Sun-dried ginseng | — | Dried, Grade II | Whole. Texture hard and not easily broken. Main root 4.00–6.10 cm (length) × 1.40–1.60 cm (diameter); 3 stem scars; 4–6 branch roots with diameters of 0.20–0.90 cm. | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PG15 | Sun-dried ginseng | — | Dried, Grade IV | Whole without rhizome. Texture hard and easily broken. Main root 7.50–10.0 cm (length) × 0.60–0.80 cm (diameter); 2–3 branch roots with diameters of 1.60 cm. | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PG16 | Sun-dried ginseng | — | Dried, RMB1,500/kg |
Main root neither with few branch roots nor with rhizome. Texture hard and not easily broken; 6.20–8.00 cm (length) ×1.60 cm (diameter). | Shenzhen Youhe Pharmaceutical Co., Ltd. (Baishizhou pharmacy) | July 17, 2013 |
| PG17 | Sun-dried ginseng | — | Dried, Grade III | Main root neither with few branch roots nor with rhizome. Texture hard and not easily broken; 6.50–7.20 cm (length) × 1.40 cm (diameter). | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PG18 | Sun-dried ginseng | — | Dried | Main root neither with few branch roots nor with rhizome. Texture hard and not easily broken; 4.40–5.20 cm (length) × 0.90–1.00 cm (diameter). | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PG19 | White ginseng | — | Dried, Grade IV | Whole. Texture hard and not easily broken. Main root 4.90–10.80 cm (length) × 1.20–1.40 cm (diameter); 2 stem scars; 2 branch roots with diameters of 0.20–0.90 cm. | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PG20 | White ginseng | — | Dried, Grade V | Whole. Texture hard and not easily broken. Main root 2.70–3.20 cm (length) × 1.20 cm (diameter); 2 stem scars; 3 branch roots with diameters of 0.40–0.60 cm. | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PG21 | White ginseng | — | Dried, Grade I | Whole. Texture hard and not easily broken. Main root 8.90–9.20 cm (length) × 2.40–2.70 cm (diameter); 3 stem scars; 10–15 branch roots with diameters of 0.20–1.00 cm. | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PG22 | White ginseng | — | Dried, Grade II | Whole. Texture hard and not easily broken. Main root 7.10–8.00 cm (length) × 2.10–2.20 cm (diameter); 3 stem scars; 4–8 branch roots with diameters of 0.20–1.20 cm. | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PG23 | White ginseng | — | Dried, Grade III | Whole. Texture hard and not easily broken. Main root 8.50 cm (length) × 2.10 cm (diameter); 3 stem scars; 4–6 branch roots with diameters of 0.20–0.60 cm. | Provide by Institute of Medicinal Plant Development, Beijing, China | July 29, 2013 |
| PQ1 | Wild mountain-grown pao-shen No.1 | — | Dried, wildlife in America, HK$66,137.57/kg | Main root with residues of rhizome and branch roots. Texture hard and not easily broken. Weighty. Main root 5.50 cm (length) × 0.87–1.25 cm (diameter), with a length–width ratio of 5.00; 1 branch root with a diameter of 0.78 cm. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ2 | Wild mountain-grown small pao-shen No.3.5 | — | Dried, wildlife in America, HK$34,391.53/kg | Main root with residues of rhizome. Texture hard and not easily broken. Weighty. Main root 3.30–3.50 cm (length) × 1.00 cm (diameter), with a length–width ratio of 3.40. Some with 1–2 branch root residues, some without. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ3 | Wild mountain-grown small and rouond pao-shen | — | Dried, wildlife in America, HK$25,873.02/kg | Main root with rhizome residues and without branch roots. Texture very hard and not easily broken. Very weighty. Main root 2.10–2.60 cm (length) × 0.32–0.80 cm (diameter), with a length–width ratio of 3.25. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ4 | Cultivated big-branch pao-shen | — | Dried, cultivated in Canada, HK$1,534.39/kg | Main root without branch roots. Texture hard and not easily broken. Weighty. Main root 4.00–5.50 cm (length) × 1.00–1.90 cm (diameter), with a length–width ratio of 3.42. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ5 | Cultivated middle-branch pao-shen | — | Dried, cultivated in Canada, HK$1,428.57/kg | Main root with rhizome residues and without branch roots. Texture hard and not easily broken. Weighty. Main root 4.10–5.00 cm (length) × 0.93–1.40 cm (diameter), with a length–width ratio of 3.50. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ6 | Cultivated pao-shen No.4 | — | Dried, cultivated in Canada, HK$1,111.11/kg | Main root with few rhizome residues or branch roots. Texture hard and not easily broken. Less weighty than most American ginsengs. Main root 3.40–4.50 cm (length) × 0.50–0.90 cm (diameter), with a length–width ratio of 5.30. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ7 | Small-branch round-bottom pao-shen | — | HK$2,250/kg | Main root with rhizome residues and branch roots. Texture hard and not easily broken. Weighty. Main root 3.20–5.07 cm (length) × 0.90–1.80 cm (diameter), with a length–width ratio of 3.51. 3–5 branch roots or branch root residues with diameters of 0.30–1.15 cm. | Runfeng ginseng and pilose antler shop, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ8 | Tail pao-shen | — | HK$1,500/kg | Main root with rhizome residues and branch roots. Texture hard and not easily broken. Weighty. Main root with diameters of 0.70–1.50 cm; 3 branch roots or branch root residues 3.80–6.50 cm (length) × 0.40–1.00 cm (diameter). | Runfeng ginseng and pilose antler shop, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ9 | Small-branch cuspidal-bottom pao-shen | — | HK$1,000/kg | Main root with rhizome residues and few branch root residues. Texture hard and not easily broken. Less weighty than most American ginsengs. Main root 6.40–6.80 cm (length) × 0.70–1.20 cm (diameter), with a length–width ratio of 7.78. | Runfeng ginseng and pilose antler shop, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ10 | cuspidal-bottom pao-shen No.4 | — | HK$875/kg | Main root with rhizome residues and few branch root residues. Texture was less hard and more easily broken than most American ginsengs. Less weighty than most American ginsengs. Main root 3.80–5.97 cm (length) × 0.50–0.90 cm (diameter), with a length–width ratio of 9.45. | Runfeng ginseng and pilose antler shop, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ11 | Wild-mountain fen-guang-shen No.4 | — | Dried, wildlife in America, HK$18,253.97/kg | Main root with rhizome residues and without branch roots. Texture hard and not easily broken. Weighty. Main root 3.10–4.25 cm (length) × 0.66–0.70 cm (diameter), with a length–width ratio of 6.11. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ12 | Fiber root of wild-mountain American ginseng | — | Dried, wildlife in America, HK$9,523.81/kg | Branch roots. 0.40–3.20 cm (length) × 0.20–2.50 mm (diameter), with a length–width ratio of 11.33. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ13 | Wild-mountain pao-mian No.3.5 | — | Dried, wildlife in America, HK$76,190.48/kg | Main root with residues of rhizome and branch roots. Texture hard and not easily broken. Weighty. Main root 2.70–3.35 cm (length) × 0.95–1.30 cm (diameter), with a length–width ratio of 1.83; 2 branch roots or branch root residues with diameters of 0.20–0.50 cm. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ14 | Wild-mountain pao-mian No.4 | — | Dried, wildlife in America, HK$52,645.5/kg | Main root with long twisty rhizome and branch roots. Texture hard and not easily broken. Weighty. Main root 1.93–2.60 cm (length) × 0.80–1.13 cm (diameter), with a length–width ratio of 1.80; 1–2 branch root residues with diameters of 0.15–0.30 cm. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ15 | Wild-mountain small and round pao-mian | — | Dried, wildlife in America, HK$44,973.54/kg | Main root with residues of rhizome and branch roots. Texture hard and not easily broken. Weighty. Main root 1.40–2.80 cm (length) × 0.70–0.90 cm (diameter), with a length–width ratio of 3.21; 1–2 branch root residues with diameters of 0.12–0.35 cm. | Hengchangtai ginseng and pilose antler medicinal material shop, Hong Kong | July 12, 2013 |
| PQ16 | American ginseng | — | Dried, American ginseng cultivated in Jilin Province, China, HK$1,137.57/kg | Main root without rhizome or branch roots. Texture hard and not easily broken. Weighty. Main root 3.50–4.20 cm (length) × 1.60–1.70 cm (diameter), with a length–width ratio of 7.56. | Guangchang Commercial Company, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ17 | American ginseng | — | Dried, American ginseng cultivated in Jilin Province, China, HK$952.38/kg | Main root without rhizome or branch roots. Texture hard and not easily broken. Less weighty than most American ginsengs. Main root 1.50–3.20 cm (length) × 0.80–1.30 cm (diameter), with a length–width ratio of 8.38. | Guangchang Commercial Company, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ18 | American ginseng | — | Dried, cultivated in America, HK$2,116.40/kg | Main root with rhizome residues. Texture hard and not easily broken. Weighty. Main root 3.73–4.80 cm (length) × 1.25–1.60 cm (diameter), with a length–width ratio of 3.05; 2–5 branch roots or branch root residues with diameters of 0.24–0.60 cm. | Guangchang Commercial Company, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ19 | American ginseng | — | Dried, cultivated in America, HK$1,322.75/kg | Main root with a length–width ratio of 6.15, with rhizome residues and without branch roots. Texture hard and not easily broken. Weighty. Main root 2.20–4.95 cm (length) × 0.58–0.80 cm (diameter). | Guangchang Commercial Company, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ20 | American ginseng | — | Dried, cultivated in the State of Wisconsin, America, HK$1,402.12/kg | Main root with rhizome residues and branch roots. Texture hard and not easily broken. Weighty. Main root 4.60–6.34 cm (length) × 0.90–1.10 cm (diameter), with a length–width ratio of 3.25; 2–5 branch roots or branch root residues with diameters of 0.40–0.82 cm. | Guangchang Commercial Company, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ21 | American ginseng | — | Dried, cultivated in the State of Wisconsin, America, HK$952.38/kg | Main root with rhizome residues and branch roots. Texture hard and not easily broken. Weighty. Main root 2.40–4.50 cm (length) × 0.90–1.00 cm (diameter), with a length–width ratio of 3.04; 1–3 branch roots or branch root residues with diameters of 0.20–0.95 cm. | Guangchang Commercial Company, Gaosheng Street, Hong Kong | July 12, 2013 |
| PQ22 | American ginseng | — | Dried, cultivated in the State of Wisconsin, America, HK$793.65/kg | Main root with rhizome residues and branch roots. Texture hard and not easily broken. Weighty. Main root 1.78–3.90 cm (length) × 0.40–0.80 cm (diameter), with a length–width ratio of 1.96; 1–3 branch roots or branch root residues with diameters of 0.20–0.80 cm. | Guangchang Commercial Company, Gaosheng Street, Hong Kong | July 12, 2013 |
—, not known; PG, Asian ginseng samples; PQ, American ginseng samples.
Diameter of main root (1 cm from the rhizome of Asian ginseng, and the top 1/3 main root part of American ginseng).
G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd were purchased from Shanghai Tauto Biotech Company (Shanghai, China). HPLC-MS grade acetonitrile and methanol was purchased from E. Merck (Darmstadt, Germany) and MS grade formic acid was purchased from Tedia (Fairfield, USA). Water was purified by a Milli-Q system (Millipore, Bedford, MA, USA).
2.2. Preparation of standard and sample solutions
G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd were accurately weighed and dissolved in methanol to yield seven stock solutions. By diluting with methanol, a series of reference mixtures with G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd in the concentration ranges of 0.0098–7.84 μg/mL, 0.0121–9.68 μg/mL, 0.0098–7.84 μg/mL, 0.0096–7.68 μg/mL, 0.0206–16.48 μg/mL, 0.0212–16.96 μg/mL and 0.0126–10.08 μg/mL were obtained respectively.
A 0.1-g piece of each dried pulverized sample was extracted twice with 20 mL of 70% methanol in an ultrasonic bath for 60 min at 40°C (CREST 1875HTAG ultrasonicator, USA). The tube was centrifuged at 3400 g for 10 min. Then the supernatant was combined and adjusted to 50 mL with the same solvent. The solution was transferred to 1.5 mL microcentrifuge tubes (Leica, Germany) and centrifuged at 12,000 rpm for 10 min at 4°C. Finally, 1 mL of the supernatant was transferred to a 1.5 mL brown HPLC vial (Grace, Columbia, Maryland, USA) and stored at 4°C before determination.
2.3. Chromatographic conditions
The analysis was performed on an Agilent 6540 ultrahigh definition accurate mass quadrupole time-of-flight spectrometer with UHPLC (UHPLC-Q/TOF-MS; Agilent Technologies, Santa Clara, CA, USA). A UHPLC C18 column (2.1 mm × 100 mm, inner diameter 1.7 μm, Acquity UPLC BEH; Waters, Milford, MA, USA) with a C18 pre-column (2.1 mm × 5 mm, inner diameter 1.7μm, VanGuard BEH; Waters) was used for separation at 20°C. The mobile phase consisted of 0.1% formic acid-water (A) and 0.1% formic acid-acetonitrile (B). The elution condition was optimized as follows: 0–3 min, 10–20 % B; 3–25 min, 20–38 % B; 25–30 min, 38–85 % B; 30–30.1 min, 85–100 % B. The flow rate was at 0.35 mL/min, and the injection volume was 1 μL.
Mass spectrometry was performed in negative mode with the mass to charge ratio (m/z) ranging from 100 to 1700. Dry gas (N2) was set to 8 L/min at 300°C. Nebulizer pressure was 310264 Pa, and Vcap was 3000 V. Nozzle voltage and fragmentor voltage were set at 500 V and 180 V respectively.
2.4. Method validation
The reliability of the quantitative method for analysis of G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd was validated by checking its linearity, repeatability, stability and recovery, limits of detection (LODs), and limits of quantification (LOQs).
To get the linear regression equations of G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd, 11 levels of mixed standard solutions were made by diluting their stock standard solutions. The chromatographic peak area values of G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd were used as Y axis and their compound concentrations as X axis to construct the calibration curves. LODs and LOQs were obtained when the signal-to-noise (S/N) ratios were 3 and 10, respectively.
Repeatability was evaluated by three replicated analyses of sample PG13. Sample PG17 was analyzed at 0 h, 2 h, 4 h, 8 h, 12 h, and 24 h after sample preparation to detect the stability of the solution. Six sets of sample PG18 (0.05 g) were spiked with a certain amount of reference compounds to analyze for recovery assessment.
3. Results and discussion
3.1. Method validation
Seven ginsenoside compounds, namely G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd, were unambiguously identified by comparison with authentic reference compounds (Fig. 1). The efficiency of extracting ginsenosides was investigated by repeated extraction. Each herbal sample was extracted four times with 20 mL of 70% methanol using an ultrasonicator for 60 min at room temperature each time; with this protocol, the cumulative extraction rate of ginsenosides reached 96% after the first two extractions. Based on these results, the procedure of extracting for 60 min twice with 70% methanol was deemed to be optimal for efficient extraction of ginsenosides from the raw materials.
Fig. 1.
The representative total ions current chromatograms of (A) Asian ginseng and (B) American ginseng. (C) Extraction ion chromatogram of 20(S)-ginsenoside Rh1. G, ginsenoside.
Method validation parameters included linearity, repeatability, stability, recovery, LODs, and LOQs (Table 2). Linearity was examined within a selected concentration range with different levels. The calibration curves were constructed by plotting the peak areas of the ginsenosides versus the concentration (ng/mL). Satisfactory linearity for the analysis of each component was obtained with correlation coefficients of determination (R2) all > 0.9967. Repeatability was investigated by analyzing three individual samples on the same day; the relative standard deviation (RSD) of the results was within 3.29%. Stability testing was performed on a sample solution at time intervals of 0 h, 2 h, 4 h, 8 h, 12 h, and 24 h. The results showed that the RSD ranges were 6.99–8.80%. Recovery study was conducted on a sample spiked with about 100% of known amounts of the G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd in the sample of commercial medicinal material with six replicated analyses. The spiked samples were extracted and the amounts of these analytes were quantified. The average recovery was 90.47% for Rg1, 90.20% for Re, 94.55% for 20(S)-Rh1, 93.24% for 20(S)-Rg2, 85.29% for Rb1, 92.71% for Rb2, and 90.54% for Rd, with RSDs of 4.40%, 4.54%, 7.03%, 3.58%, 6.83%, 3.75%, and 4.26% for each ginsenoside, respectively. The LODs of these analytes, calculated by an S/N of 3, were 16.17 ng/mL, 18.30 ng/mL, 6.08 ng/mL, 21.22 ng/mL, 82.74 ng/mL, 108.72 ng/mL, and 19.19 ng/mL for Rg1, 20(S)-Rg2, Re, 20(S)-Rh1, Rb1, Rb2 and Rd, respectively; while the LOQs of these ginsenosides, calculated by the S/N of 10, were 24.46 ng/mL, 42.63 ng/mL, 16.48 ng/mL, 28.12 ng/mL, 287.72 ng/mL, 293.43 ng/mL, and 41.97 ng/mL, respectively. These data indicated that this protocol fulfilled the requirements for a validated UHPLC-Q/TOF-MS method.
Table 2.
Method validation data of the detected ginsenosides
| Compounds | Calibration curve | R2 | Linear range (μg/mL) | Repeatability (n = 3, RSD, %) |
Stability (24 h, RSD, %) |
Recovery (n = 6, %) |
LOD (ng/mL) |
LOQ (ng/mL) |
|
|---|---|---|---|---|---|---|---|---|---|
| Mean | RSD | ||||||||
| G∗-Rg1 | y = 392.004654x – 2454.104831 | 0.9984 | 0.0098–7.84 | 0.36 | 6.99 | 90.47 | 4.40 | 16.17 | 24.46 |
| G-Re | y = 299.734277x – 1791.661821 | 0.9985 | 0.0098–7.84 | 0.94 | 7.08 | 90.20 | 4.54 | 18.30 | 42.63 |
| 20(S)-G-Rh1 | y = 620.207468x – 3461.353416 | 0.9971 | 0.0096–7.68 | 0.44 | 8.80 | 94.55 | 7.03 | 6.08 | 16.48 |
| 20(S)-G-Rg2 | y = 446.870617x – 3996.127372 | 0.9971 | 0.0121–9.68 | 2.76 | 8.41 | 93.24 | 3.58 | 21.22 | 28.12 |
| G-Rb1 | y = 38.734528x + 276.504261 | 0.9967 | 0.0206–16.48 | 1.45 | 8.23 | 85.29 | 6.83 | 38.66 | 178.59 |
| G-Rb2 | y = 110.324768x – 940.621364 | 0.9972 | 0.0212–16.96 | 1.83 | 7.26 | 92.71 | 3.75 | 35.46 | 156.12 |
| G-Rd | y = 330.118348x – 1789.047109 | 0.9983 | 0.0126–10.08 | 3.29 | 7.78 | 90.54 | 4.26 | 19.19 | 41.97 |
LOD = limit of detection; LOQ = limit of quantitation; RSD = relative standard deviation.
Additionally, a known concentration of mixed reference standards was added to a sample solution to test their respective concentration. Results found little variation to their respective original concentration, which demonstrated that the matrix effects can be neglected.
3.2. Quantitative analysis of Asian ginseng samples relevant to their morphological characteristics
By using the UHPLC-Q/TOF-MS method described above, 23 Asian ginseng samples and 22 American ginseng samples listed in Table 1 were analyzed. The morphological features of all the ginseng samples are described in Table 1. Among the morphological features, the stem scar and diameter of main root were the main features for analysis. One stem scar represents 1 year of growth, so from the quantity of stem scars, the growing time of a ginseng root can be assessed [16], [17]. The diameter of the main root is an easy and objective marker for measurement. The contents of G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd in 23 Asian ginseng samples and 22 American ginseng samples were determined according to the method described above. The quantitative results are given in Table 3.
Table 3.
Ginsenoside contents in Asian ginseng and American ginseng samples
| Sample No. | G-Rg1 | G-Re | G-Rh1 | G-Rg2 | G-Rb1 | G-Rb2 | G-Rd | Sum |
|---|---|---|---|---|---|---|---|---|
| PG1 | 4471.90 ± 43.66 | 6783.20 ± 115.92 | 18.07 ± 0.23 | 430.36 ± 4.22 | 7805.94 ± 272.71 | 1906.59 ± 34.91 | 570.72 ± 32.94 | 21986.78 |
| PG2 | 2024.98 ± 1.73 | 1787.62 ± 18.42 | 12.35 ± 0.98 | 202.70 ± 1.16 | 2316.19 ± 78.21 | 823.39 ± 35.64 | 166.41 ± 0.85 | 7333.65 |
| PG3 | 1364.23 ± 0.74 | 1097.97 ± 26.25 | 13.79 ± 0.09 | 117.17 ± 1.85 | 1527.71 ± 24.30 | 698.98 ± 8.03 | 296.87 ± 3.86 | 5116.72 |
| PG4 | 3855.37 ± 10.37 | 1700.74 ± 54.19 | 19.42 ± 1.19 | 173.28 ± 5.94 | 2350.82 ± 41.57 | 537.90 ± 17.02 | 352.34 ± 14.11 | 8989.88 |
| PG5 | 3448.99 ± 71.63 | 2754.49 ± 136.39 | 6.31 ± 0.83 | 302.96 ± 14.71 | 7528.45 ± 164.69 | 2874.61 ± 118.96 | 734.69 ± 7.91 | 17650.51 |
| PG6 | 1331.09 ± 11.33 | 1005.11 ± 68.26 | 7.36 ± 0.08 | 76.97 ± 2.89 | 1327.27 ± 0.12 | 859.31 ± 8.92 | 304.31 ± 3.28 | 4911.42 |
| PG7 | 4157.28 ± 33.93 | 1887.37 ± 33.84 | 16.04 ± 1.38 | 183.01 ± 13.87 | 3679.871 ± 33.51 | 644.10 ± 7.55 | 470.81 ± 10.03 | 11038.48 |
| PG8 | 1530.72 ± 64.25 | 1172.51 ± 86.63 | 8.86 ± 0.48 | 98.65 ± 7.94 | 1639.93 ± 108.81 | 696.88 ± 36.94 | 276.82 ± 13.24 | 5424.38 |
| PG9 | 5057.38 ± 159.56 | 3447.46 ± 202.47 | 13.32 ± 0.26 | 132.03 ± 6.38 | 3334.44 ± 105.68 | 718.94 ± 41.01 | 538.88 ± 16.57 | 13242.42 |
| PG10 (Rhizome) | 4368.01 ± 273.91 | 6483.42 ± 312.25 | 5.77 ± 0.27 | 391.33 ± 1.49 | 3573.58 ± 311.38 | 956.99 ± 75.84 | 324.44 ± 19.53 | 16103.53 |
| PG10 (Main root) | 872.78 ± 7.42 | 644.87 ± 8.20 | 2.58 ± 0.28 | 63.69 ± 1.96 | 567.89 ± 7.38 | 166.65 ± 15.26 | 26.60 ± 0.60 | 2345.06 |
| PG10 (Branch root) | 1313.36 ± 18.89 | 5858.48 ± 93.06 | 5.24 ± 0.83 | 467.04 ± 7.75 | 3071.47 ± 84.76 | 1390.23 ± 13.22 | 423.67 ± 6.84 | 12529.50 |
| PG11 (Rhizome) | 1426.71 ± 38.86 | 1859.75 ± 32.39 | 18.87 ± 2.12 | 268.00 ± 6.36 | 3269.06 ± 13.72 | 1490.70 ± 7.59 | 1005.68 ± 8.05 | 9338.76 |
| PG11 (Main root) | 577.25 ± 11.82 | 421.10 ± 7.25 | 12.33 ± 0.25 | 56.31 ± 2.40 | 768.78 ± 12.30 | 207.47 ± 6.52 | 97.25 ± 3.08 | 2140.49 |
| PG11 (Branch root) | 526.36 ± 46.21 | 1779.32 ± 75.86 | 18.08 ± 2.14 | 332.15 ± 26.90 | 2021.71 ± 142.62 | 974.32 ± 65.04 | 1246.43 ± 75.16 | 6898.36 |
| PG12 | 1297.45 ± 37.11 | 889.00 ± 26.61 | 10.10 ± 0.02 | 85.99 ± 0.42 | 1360.22 ± 79.25 | 813.90 ± 65.15 | 322.88 ± 46.23 | 4779.55 |
| PG13 | 2372.62 ± 8.56 | 1817.39 ± 17.10 | 13.74 ± 0.06 | 152.91 ± 4.22 | 2541.90 ± 36.90 | 1080.17 ± 19.77 | 429.07 ± 14.10 | 8407.79 |
| PG14 | 1268.41 ± 7.69 | 1139.65 ± 6.89 | 14.52 ± 0.29 | 103.52 ± 1.30 | 1832.18 ± 60.82 | 1187.35 ± 12.30 | 477.87 ± 15.29 | 6023.50 |
| PG15 | 3525.80 ± 102.10 | 5383.59 ± 156.31 | 23.64 ± 0.09 | 352.21 ± 2.07 | 2837.66 ± 55.50 | 2053.32 ± 13.90 | 1193.96 ± 42.87 | 15370.18 |
| PG16 | 1898.24 ± 60.53 | 698.66 ± 12.30 | 21.28 ± 0.89 | 44.42 ± 1.77 | 1905.41 ± 71.65 | 442.91 ± 17.78 | 314.53 ± 8.28 | 5325.47 |
| PG17 | 1198.13 ± 44.10 | 957.22 ± 50.21 | 11.73 ± 0.60 | 95.47 ± 3.52 | 1021.90 ± 42.70 | 610.77 ± 56.33 | 196.48 ± 5.17 | 4091.70 |
| PG18 | 1075.93 ± 46.15 | 1654.02 ± 106.01 | 9.31 ± 0.98 | 177.65 ± 11.05 | 733.85 ± 2.37 | 752.42 ± 19.69 | 156.08 ± 6.43 | 4559.27 |
| PG19 | 10.43 ± 0.38 | 26.42 ± 0.37 | 13.95 ± 0.74 | 39.62 ± 0.83 | 440.77 ± 3.42 | 370.82 ± 0.24 | 392.71 ± 4.49 | 1294.73 |
| PG20 | 319.54 ± 5.52 | 282.57 ± 5.66 | 12.97 ± 0.12 | 55.45 ± 0.12 | 1303.90 ± 5.76 | 856.92 ± 1.43 | 765.43 ± 43.60 | 3596.77 |
| PG21 | 96.57 ± 2.74 | 117.03 ± 8.69 | 8.16 ± 0.08 | 23.14 ± 0.52 | 715.94 ± 27.29 | 431.97 ± 9.60 | 196.38 ± 4.04 | 1589.20 |
| PG22 | 97.23 ± 7.20 | 224.74 ± 8.87 | 11.17 ± 1.01 | 71.77 ± 1.59 | 882.87 ± 40.78 | 588.29 ± 26.04 | 314.11 ± 1.41 | 2190.18 |
| PG23 | 58.48 ± 2.96 | 106.90 ± 10.69 | 8.39 ± 0.12 | 40.00 ± 3.19 | 407.59 ± 20.13 | 260.20 ± 22.78 | 217.10 ± 21.09 | 1098.67 |
| PQ1 | 1923.12 ± 150.22 | 1275.68 ± 1.08 | 1.57 ± 0.07 | 4.44 ± 0.37 | 2359.07 ± 108.63 | 51.10 ± 2.45 | 171.59 ± 2.17 | 5786.58 |
| PQ2 | 2382.09 ± 35.36 | 722.83 ± 10.78 | 3.32 ± 0.22 | 4.60 ± 0.53 | 2458.52 ± 38.00 | 109.39 ± 9.78 | 192.31 ± 0.12 | 5873.06 |
| PQ3 | 2006.62 ± 222.74 | 1585.29 ± 7.16 | 1.62 ± 0.46 | 16.29 ± 2.44 | 2074.15 ± 30.53 | 85.10 ± 15.69 | 255.11 ± 6.38 | 6024.17 |
| PQ4 | 169.53 ± 8.12 | 1920.62 ± 97.34 | 1.67 ± 0.07 | 24.70 ± 1.47 | 2440.63 ± 108.36 | 51.69 ± 3.99 | 668.82 ± 50.56 | 5277.65 |
| PQ5 | 282.66 ± 3.94 | 2489.49 ± 7.07 | 2.34 ± 0.09 | 22.45 ± 0.33 | 2244.28 ± 20.24 | 49.96 ± 0.39 | 499.76 ± 11.07 | 5590.94 |
| PQ6 | 511.23 ± 2.53 | 2841.62 ± 64.08 | 2.97 ± 0.20 | 24.40 ± 0.03 | 2107.60 ± 51.42 | 82.42 ± 3.91 | 398.60 ± 21.65 | 5968.84 |
| PQ7 | 269.30 ± 8.75 | 1971.24 ± 67.76 | 4.22 ± 0.69 | 47.92 ± 1.27 | 1930.11 ± 122.54 | 137.23 ± 3.35 | 439.43 ± 50.67 | 4799.44 |
| PQ8 | 176.44 ± 7.89 | 1581.89 ± 28.96 | 1.55 ± 0.22 | 17.30 ± 0.80 | 1538.67 ± 6.65 | 45.90 ± 0.26 | 228.48 ± 6.04 | 3590.22 |
| PQ9 | 629.41 ± 73.34 | 2928.08 ± 63.03 | 2.27 ± 0.08 | 44.14 ± 2.64 | 4650.76 ± 531.41 | 139.31 ± 9.73 | 559.41 ± 50.21 | 8953.38 |
| PQ10 | 1154.77 ± 28.77 | 2205.86 ± 32.91 | 3.96 ± 0.21 | 35.13 ± 3.43 | 3463.41 ± 52.80 | 129.35 ± 8.12 | 624.11 ± 6.61 | 7616.59 |
| PQ11 | 956.38 ± 59.21 | 2362.84 ± 42.35 | 7.73 ± 0.30 | 30.24 ± 2.43 | 2284.07 ± 74.58 | 104.77 ± 12.05 | 403.67 ± 19.43 | 6149.70 |
| PQ12 | 1938.92 ± 94.71 | 1821.20 ± 28.73 | 8.45 ± 0.03 | 28.12 ± 0.62 | 2533.70 ± 59.56 | 217.79 ± 7.15 | 825.78 ± 5.70 | 7373.95 |
| PQ13 | 1141.03 ± 107.95 | 2869.09 ± 54.97 | 4.53 ± 0.26 | 39.81 ± 3.66 | 2852.35 ± 214.90 | 112.50 ± 9.07 | 371.56 ± 43.10 | 7390.86 |
| PQ14 | 1408.94 ± 26.38 | 1959.90 ± 33.21 | 1.86 ± 0.23 | 20.72 ± 0.18 | 2371.54 ± 19.59 | 129.69 ± 0.84 | 209.57 ± 5.08 | 6102.21 |
| PQ15 | 1355.60 ± 7.53 | 1297.51 ± 11.76 | 2.35 ± 0.09 | 8.92 ± 1.72 | 1881.05 ± 4.85 | 97.64 ± 1.75 | 232.45 ± 4.47 | 4875.52 |
| PQ16 | 293.31 ± 4.70 | 1698.16 ± 43.13 | 3.70 ± 0.52 | 24.20 ± 0.92 | 1876.26 ± 55.04 | 57.60 ± 5.64 | 360.47 ± 14.52 | 4313.70 |
| PQ17 | 485.77 ± 12.28 | 557.15 ± 2.13 | 3.78 ± 0.14 | 55.47 ± 1.33 | 631.33 ± 19.88 | 272.67 ± 1.53 | 110.90 ± 3.90 | 2117.06 |
| PQ18 | 489.49 ± 11.72 | 2180.04 ± 15.34 | 8.41 ± 1.25 | 70.21 ± 8.04 | 6660.03 ± 93.26 | 251.76 ± 9.95 | 1063.82 ± 19.84 | 10723.77 |
| PQ19 | 529.05 ± 3.75 | 2954.43 ± 74.38 | 2.34 ± 0.31 | 29.14 ± 1.46 | 2441.34 ± 41.36 | 104.06 ± 2.52 | 545.74 ± 16.39 | 6606.09 |
| PQ20 | 400.01 ± 2.20 | 2060.50 ± 18.86 | 4.74 ± 0.16 | 24.82 ± 1.10 | 2129.98 ± 1.99 | 68.86 ± 3.32 | 940.75 ± 1.82 | 5629.66 |
| PQ21 | 280.39 ± 2.33 | 2263.97 ± 18.33 | 3.38 ± 0.15 | 31.36 ± 1.14 | 2659.02 ± 11.58 | 80.79 ± 6.65 | 810.97 ± 44.13 | 6129.89 |
| PQ22 | 296.92 ± 4.32 | 1876.93 ± 19.31 | 2.34 ± 0.31 | 19.78 ± 1.80 | 2233.18 ± 16.73 | 76.31 ± 1.42 | 878.49 ± 3.90 | 5383.95 |
Values are μg of ginsenoside/g, mean ± standard deviation, and expressed to two decimal places.
Samples of PG1-9 belonged to the commercial specification of forest-grown Asian ginseng. PG1 and PG2, which had grown for 3–4 years, contained 21,986.78 and 7,333.65 μg/g of total ginsenosides respectively. As shown in Fig. 2, PG1 possessed a thinner main root, more branch roots and longer rhizome than PG2, which resulted in the higher levels of ginsenosides in PG1. In Fig. S1, total ginsenosides of 5,116.72 and 8,989.88 μg/g were detected in PG3 and PG4. Both samples had two branch roots and five stem scars; however, the diameter of PG3 was bigger than PG4, which may account for the lower levels of ginsenosides in PG3. The ginseng samples PG5 and PG6 had grown for 6–7 years. Nevertheless, the main root of PG5 was much thinner than PG6 and the branch roots and rhizome parts of PG5 occupied a higher ratio of the whole material (Fig. 3). This might explain why the ginsenosides in PG5 (17,650.51 μg/g) were much higher than those in PG6 (4,911.42 μg/g). As for PG7 and PG8 (Fig. S2), the main roots of PG7 (0.90–1.10 cm) were thinner than PG8 (2.10 cm), and PG7 had three branch roots while PG8 had two branch roots. The results showed that PG7 contained higher levels of ginsenosides (11,038.48 μg/g) than PG8 (5,424.38 μg/g). PG9 had a long rhizome, a thin main root, three branch roots, and five to eight stem scars (Fig. S3). These characteristics might account for its high contents of ginsenosides (13,242.42 μg/g).

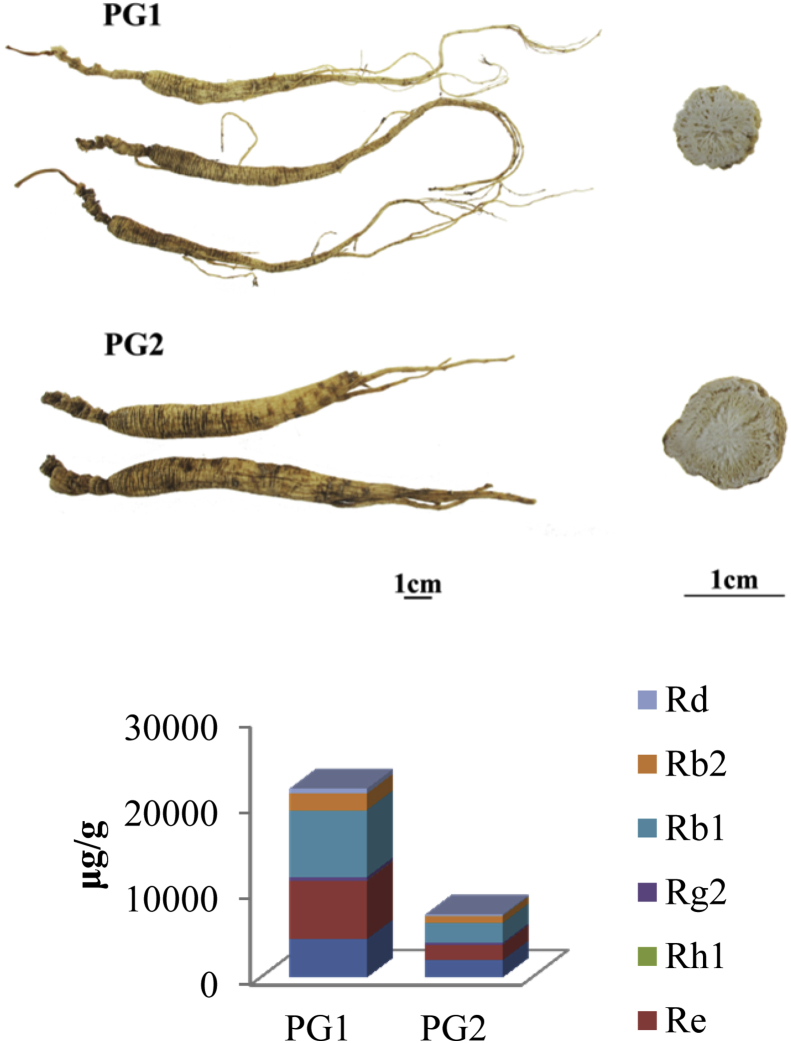

Fig. 2.
Morphological characteristics and contents of ginsenosides in samples PG1 and PG2.
Fig. 3.
Morphological characteristics and contents of ginsenosides in samples PG5 and PG6.
The rhizomes, main roots, and branch roots from samples PG10 and PG11, respectively named as forest-grown ginseng and field-grown sun-dried ginseng, were analyzed separately (Fig. 4). The results showed that, in terms of the contents of G-Rg1, 20(S)-G-Rg2, G-Re, 20(S)-G-Rh1, G-Rb1, G-Rb2, and G-Rd, they ranked as follows: rhizome > branch root > main root, with the rhizomes typically having the most ginsenosides. The present results were consistent with previous reports [14], [18]. Furthermore, different amounts of each ginsenoside were found in different plant parts. The contents of G-Rg1, G-Re, 20(S)-G-Rh1, and G-Rb1 in the rhizome were higher than those in the branch roots while the contents of 20(S)-G-Rg2 and G-Rd in the branch roots were higher than in the rhizome.

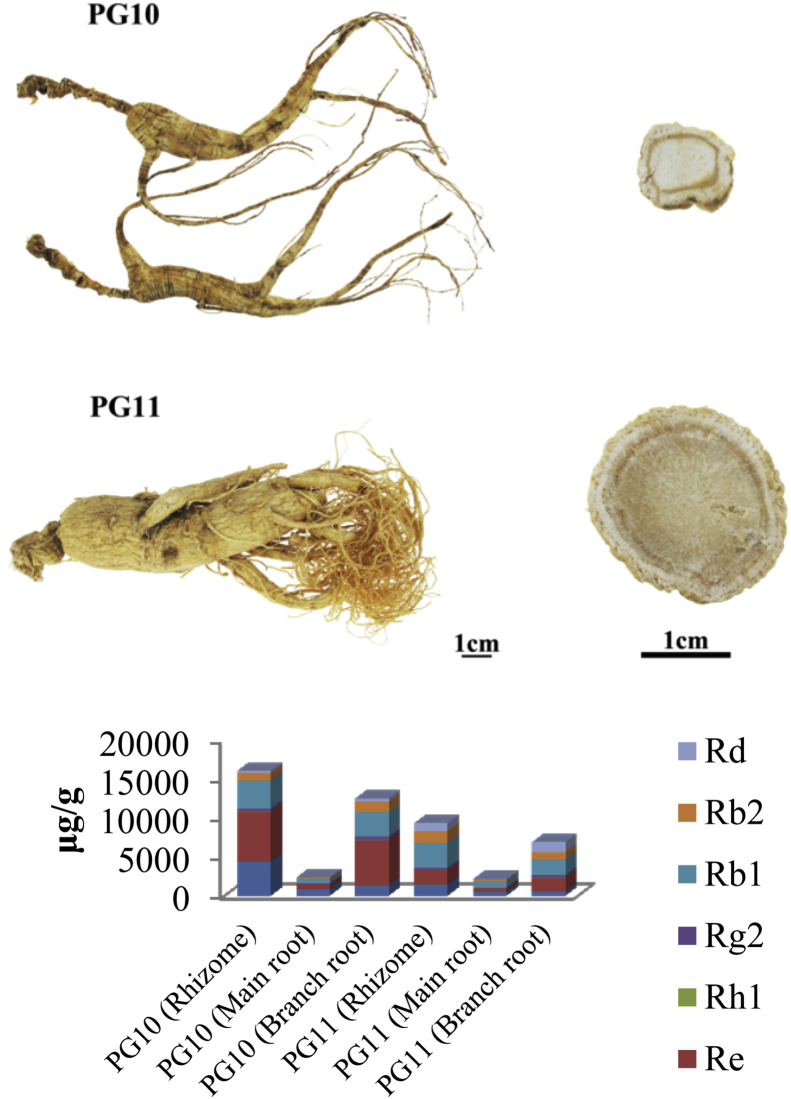

Fig. 4.
Morphological characteristics and contents of ginsenosides in samples PG10 and PG11.
PG12–18 belonged to the commercial specification of field-grown sun-dried Asian ginseng. PG12–14 were classified as a group with the same number of stem scars (Fig. 5). Meanwhile, PG15–18, with unknown stem scar numbers due to their short or absent rhizomes, were grouped together (Fig. S4). The diameters of main roots of PG12–14 were 1.70–1.80 cm, 1.90 cm, and 1.40–1.60 cm respectively, ranking as PG13 > PG12 > PG14. The branch root number also ranked as PG13 > PG12 > PG14. Although PG13 had the thickest main root, the most branch roots were found in PG13, which might account for its highest contents of ginsenosides (8,407.79 μg/g). PG12 had thicker main roots and less branch roots than PG14, which might account for its lower contents of ginsenosides (4,779.55 μg/g) than PG14 (6,023.50 μg/g). A similar tendency could be found in samples PG15–18 (Fig. S4).

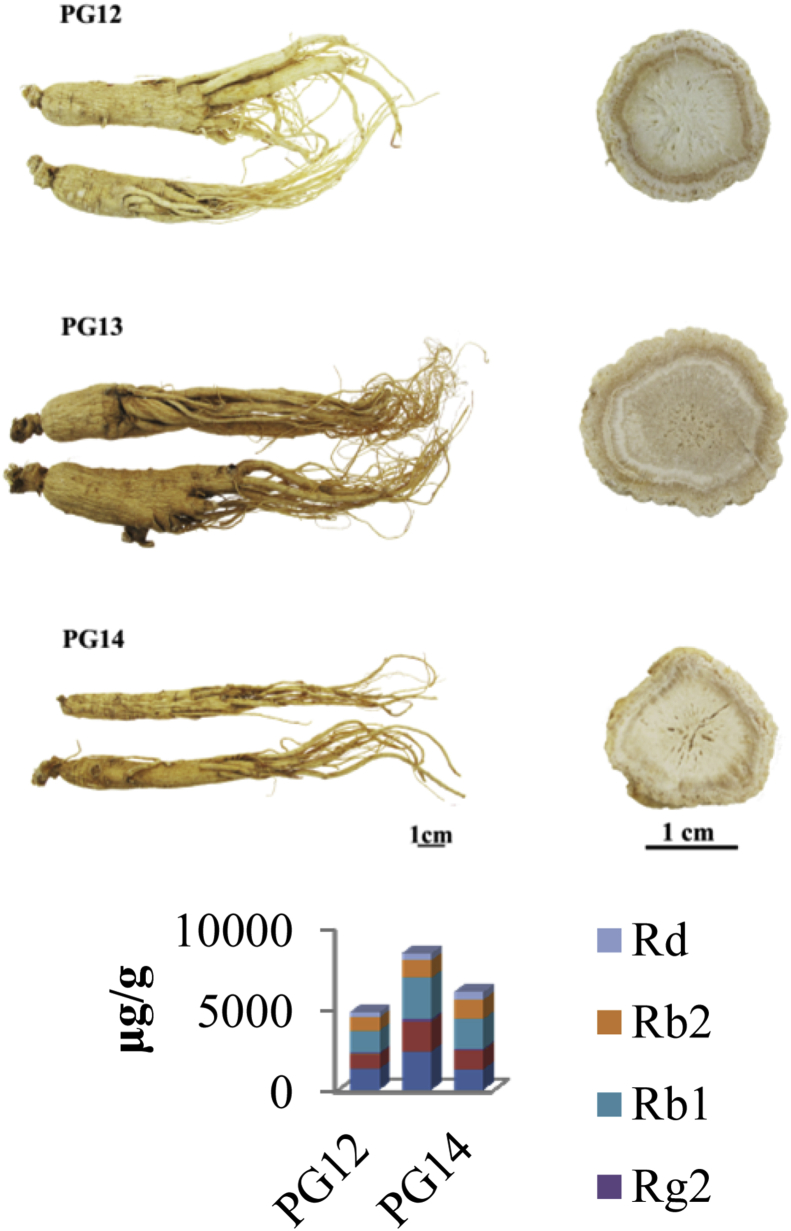

Fig. 5.
Morphological characteristics and contents of ginsenosides in samples PG12, PG13, and PG14.
PG19–23 pertained to white Asian ginseng. White ginseng is the dried Asian ginseng without cork. PG19–23 were divided into two groups (PG19, 20 and PG21–23) according to differences in their number of stem scars. Compared with PG20, PG19 had a thicker main root and fewer branch roots, and had lower total contents of ginsenosides (1,294.73 μg/g) than PG20 (3,596.77 μg/g; Fig. 6). A similar tendency was found in samples PG21–23 (Fig. S5).
Fig. 6.
Morphological characteristics and contents of ginsenosides in samples PG19 and PG20.
In conclusion, the results of quantitative analysis of samples PG1–23 indicated that the total contents of ginsenosides in Asian ginseng were closely related with morphological characteristics. The samples of the same growing time (with the same or similar number of stem scars) with a thinner main root, a longer rhizome and more branch roots were shown to contain greater amounts of ginsenosides. The number of stem scars and branch roots, the diameter of the main root, and the length of the rhizome are key morphological characteristics that can be visually assessed, and can be used by consumers and retailers to roughly estimate the quality of Asian ginseng.
3.3. Quantitative analysis of American ginseng samples relevant to their morphological characteristics
So far, studies on the relationship between the appearance and the quality of American ginseng have not been reported. Although Asian ginseng has been found to possess a close relationship between morphological characteristics and contents of ginsenosides, it is not known whether similar trends exist in American ginseng. Hence, seven analytes were also determined in samples PQ1–22 to probe the correlation of morphological characteristics and ginsenosides in American ginseng. Since no rhizomes or few remnants of rhizome were found in the commercial samples of American ginseng, the stem scars could not be used as a marker to classify the various commercial specifications of American ginseng. Thus, the samples were grouped by different commercial specifications. Pao-shen and pao-mian are two commonly marked commercial specifications of American ginseng in the market. Investigated under microscopy, cells in pao-shen samples were loosely organized, while cells of pao-mian samples were compactly arranged.
PQ1–10 belonged to the commercial specifications of pao-shen. Among them, PQ1–3 were claimed to be wild mountain-grown pao-shen (Fig. 7). The diameters of their main roots ranked as PQ1 > PQ2 > PQ3, while the ginsenoside contents were 5786.58 μg/g, 5873.06 μg/g, and 6024.17 μg/g respectively. PQ4–6 were cultivated mountain-grown pao-shen (Fig. 8). PQ4 had the thickest main root, and PQ5 had a thicker main root than PQ6; their contents of ginsenosides were 5277.65 μg/g, 5590.94 μg/g, and 5968.84 μg/g, respectively. PQ7–10 were collected from another herbal shop and were also sold under the commercial name pao-shen (Fig. S6). PQ7 and PQ8 possessed thicker main roots than PQ9 and PQ10, and contained a comparatively lower amount of ginsenosides. Thus, most of the pao-shen samples with thinner main roots tended to contain higher levels of ginsenosides. Moreover, although PQ11 and PQ12 were not described as pao-shen, they also followed the trend of higher contents of ginsenosides in samples with a thinner diameter (Fig. S7).
Fig. 7.
Morphological characteristics and contents of ginsenosides in samples PQ1, PQ2 and PQ3.
Fig. 8.
Morphological characteristics and contents of ginsenosides in samples PQ4, PQ5, and PQ6.
PQ13–15 belonged to the commercial specification of pao-mian (Fig. 9). The diameters of their main roots were 0.95–1.30 cm, 0.80–1.13 cm, and 0.70–0.90 cm respectively, while their contents of ginsenosides ranked as PQ13 (7390.86 μg/g) > PQ14 (6102.21 μg/g) > PQ15 (4875.52 μg/g). PQ16–19 were sold under the commercial name American Ginseng; nevertheless, they followed the similar rules of pao-mian type. PQ16 and PQ17 were cultivated in China's Jilin province with North American seeds while PQ18 and PQ19 were cultivated in USA (Fig. S8 and Fig. S9). Among them, the samples with thicker main roots contained higher contents of ginsenosides.
Fig. 9.
Morphological characteristics and contents of ginsenosides in samples PQ13, PQ14, and PQ15.
PQ20–22 were also only named as American ginseng grown specifically in Wisconsin, USA (Fig. S10). No obvious relationship between contents of ginsenosides and main root diameter was shown in these samples. This might be due to differences in their commercial specifications, growing time, or growing environment. The relatively high consistency in their contents might be related to the consistency of growing environment, as most Wisconsin ginseng is grown in a single county.
It was interesting to find that the relationship between contents of ginsenosides and main root diameter was inconsistent in the American ginseng samples, whereas a clear trend was found in Asian ginseng samples. Distinctly, there were two tendencies in the relationship between the diameter of the main root and contents of ginsenosides in American ginseng. One tendency was that samples with thinner main roots tended to contain higher levels of ginsenosides, which was observed in the pao-shen samples. The other tendency was that samples with thicker main roots were inclined to contain more ginsenosides, which was observed in the pao-mian samples. For consumers and retailers to estimate the quality of American ginsengs, it should be better to make clear the sample specification at first. To investigate further the relationship of morphological characteristics and the inherent quality of American ginseng, tissue-specific chemical profiling should be carried out to reveal the distribution patterns of ginsenosides in various tissues of American ginseng.
4. Conclusion
In this study, an UHPLC-Q/TOF-MS method was established for the quantitative analysis to investigate the correlation between morphological characteristics and the inherent quality of Asian and American ginsengs. As a result, Asian ginseng samples of the same growing time (with the same or similar number of stem scars) that have a thinner main root, a longer rhizome and more branch roots could contain greater amounts of ginsenosides. But this consistent phenomenon was not found in American ginseng. This study provides scientific data for evaluating the quality of Asian and American ginsengs by morphological features, which could be useful for consumers and retailers to roughly evaluate their quality in the market.
Conflicts of interest
The authors declare that they have no competing interests.
Acknowledgments
We thank Alan Ho from the School of Chinese Medicine, Hong Kong Baptist University for his technical assistance involved with UHPLC-Q/TOF-MS. We thank Dr Chen Fenglian from Guangzhou University of Chinese Medicine and Dr Wang Qiuling from Institute of Medicinal Plant Development, Chinese Academy of Medical Sciences for the sample collection. This work was financially supported by the Faculty Research Grant of Hong Kong Baptist University (FRG2/12-13/030) and Innovation and Technology Fund (ITS/185/13FX).
Footnotes
Supplementary data related to this article can be found at http://dx.doi.org/10.1016/j.jgr.2015.12.004.
Contributor Information
Minjian Qin, Email: minjianqin@163.com.
Zhitao Liang, Email: lzt23@hkbu.edu.hk.
Appendix A. Supplementary data
The following is the supplementary data related to this article:
Fig. S1. Morphological characteristics and contents of ginsenosides in samples PG3 and PG4.
Fig. S2. Morphological characteristics and contents of ginsenosides in samples PG7 and PG8.
Fig. S3. Morphological characteristics and contents of ginsenosides in samples PG9.
Fig. S4. Morphological characteristics and contents of ginsenosides in samples PG15, PG16, PG17, and PG18. Total ginsenosides at levels of 15,370.18 μg/g, 5,325.47 μg/g, 4,091.70 μg/g, and 4,559.27 μg/g were detected in PG15–18, respectively. PG15 possessed the thinnest main root and the most branch roots, and it contained the highest level of total ginsenosides. The main root diameter of PG18 was less than the root diameter of PG16 and PG17. Nevertheless, the absence of rhizome or branch roots might contribute to the moderate ginsenoside content of PG18. The diameters of PG16 and PG17 were similar. However, the rhizome occupied a greater proportion of PG16 (with short main root) than PG17 (with long main root), which might account for the higher ginsenoside levels in PG16 than PG17.
Fig. S5. Morphological characteristics and contents of ginsenosides in samples PG21, PG22, and PG20. The total ginsenoside contents of PG21–23 were 1,589.20 μg/g, 2,190.18 μg/g, and 1,098.67 μg/g, respectively. PG22 and PG23 had similar diameters of main roots, namely 2.10–2.20 cm and 2.10 cm, less than that of PG21 (2.40–2.70 cm). However, branch roots occupied a greater proportion of PG22 than PG23, which might account for the higher level of ginsenosides in PG22. Although PG21 had a thick main root, it had far more branch roots (10–15) than other samples. Correspondingly, the total ginsenoside content in the three samples ranked as PG22 > PG21 > PG23.
Fig. S6. Morphological characteristics and contents of ginsenosides in samples PQ7, PQ8, PQ9, and PQ10.
Fig. S7. Morphological characteristics and contents of ginsenosides in samples PQ11 and PQ12.
Fig. S8. Morphological characteristics and contents of ginsenosides in samples PQ16 and PQ17. PQ16 had a thicker main root than PQ17, and also had higher ginsenoside levels than PQ17 (4,313.70 μg/g > 2,117.06 μg/g).
Fig. S9. Morphological characteristics and contents of ginsenosides in samples PQ18 and PQ19. The main root of PQ18 was much thicker than that of PQ19, and the ginsenoside contents of PQ18 and PQ19 were 10,723.77 μg/g and 6,606.09 μg/g, respectively.
Fig. S10. Morphological characteristics and contents of ginsenosides in samples PQ20, PQ21, and PQ22. The diameters of their main roots ranked as PQ20 > PQ21 > PQ22, while their ginsenoside levels ranked as PQ21 (6,129.89 μg/g) > PQ20 (5,629.66 μg/g) > PQ22 (5,383.95 μg/g).
References
- 1.State Pharmacopoeia Committee . China Medical Science and Technology Press; Beijing: 2010. Pharmacopoeia of the People's Republic of China. [Google Scholar]
- 2.Qi L.W., Wang C.Z., Yuan C.S. Isolation and analysis of ginseng: advances and challenges. Nat Prod Rep. 2011;28:467–495. doi: 10.1039/c0np00057d. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 3.Qi L.W., Wang C.Z., Yuan C.S. Ginsenosides from American ginseng: chemical and pharmacological diversity. Phytochemistry. 2011;72:689–699. doi: 10.1016/j.phytochem.2011.02.012. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 4.Angelova N., Kong H.W., Van Der Heijden R., Yang S.Y., Choi Y.H., Kim H., Wang M., Hankemeier T., Van Der Greef J., Xu G. Recent methodology in the phytochemical analysis of ginseng. Phytochem Anal. 2008;19:2–16. doi: 10.1002/pca.1049. [DOI] [PubMed] [Google Scholar]
- 5.Attele A.S., Wu J.A., Yuan C.S. Ginseng pharmacology: multiple constituents and multiple actions. Biochem Pharmacol. 1999;58:1685–1693. doi: 10.1016/s0006-2952(99)00212-9. [DOI] [PubMed] [Google Scholar]
- 6.Attele A.S., Zhou Y.P., Xie J.T., Wu J.A., Zhang L., Dey L., Pugh W., Rue P.A., Polonsky K.S., Yuan C.S. Antidiabetic effects of Panax ginseng berry extract and the identification of an effective component. Diabetes. 2002;51:1851–1858. doi: 10.2337/diabetes.51.6.1851. [DOI] [PubMed] [Google Scholar]
- 7.Jia L., Zhao Y. Current evaluation of the millennium phytomedicine—ginseng (I): etymology, pharmacogonosy, phytochemistry, market and regulations. Curr Med Chem. 2009;16:2475–2484. doi: 10.2174/092986709788682146. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 8.Jia L., Zhao Y., Liang X.J. Current evaluation of the millennium phytomedicine—ginseng (II): collected chemical entities, modern pharmacology, and clinical applications emanated from traditional Chinese medicine. Curr Med Chem. 2009;16:2924–2942. doi: 10.2174/092986709788803204. [DOI] [PMC free article] [PubMed] [Google Scholar]
- 9.Sun B.S., Gu L.J., Fang Z.M., Wang C.Y., Wang Z., Lee M.R., Li Z., Li J.J., Sung C.K. Simultaneous quantification of 19 ginsenosides in black ginseng developed from Panax ginseng by HPLC-ELSD. J Pharm Biomed Anal. 2009;50:15–22. doi: 10.1016/j.jpba.2009.03.025. [DOI] [PubMed] [Google Scholar]
- 10.Li S.L., Shen H., Zhu L.Y., Xu J., Jia X.B., Zhang H.M., Lin G., Cai H., Cai B.C., Chen S.L. Ultra-high-performance liquid chromatography-quadrupole/time of flight mass spectrometry based chemical profiling approach to rapidly reveal chemical transformation of sulfur-fumigated medicinal herbs, a case study on white ginseng. J Chromatogr A. 2012;1231:31–34. doi: 10.1016/j.chroma.2012.01.083. [DOI] [PubMed] [Google Scholar]
- 11.Kwon S.W., Han S.B., Park I.H., Kim J.M., Park M.K., Park J.H. Liquid chromatographic determination of less polar ginsenosides in processed ginseng. J Chromatogr A. 2001;921:335–339. doi: 10.1016/s0021-9673(01)00869-x. [DOI] [PubMed] [Google Scholar]
- 12.Pan G.Q., Ping H., Feng J., Ren G.X. Determination of individual ginsenoside and malonyl- ginsenoside in different commercial ginseng products. Food Sci Tech. 2009;34:248–252. [Google Scholar]
- 13.Li W., Fitzloff J.F. Determination of 24(R)-pseudoginsenoside F(11) in North American ginseng using high performance liquid chromatography with evaporative light scattering detection. J Pharm Biomed Anal. 2001;25:257–265. doi: 10.1016/s0731-7085(00)00494-5. [DOI] [PubMed] [Google Scholar]
- 14.Liang Z.T., Chen Y.J., Xu L., Qin M.J., Yi T., Chen H.B., Zhao Z.Z. Localization of ginsenosides in the rhizome and root of Panax ginseng by laser microdissection and liquid chromatography–quadrupole/time of flight-mass spectrometry. J Pharm Biomed Anal. 2015;105:121–133. doi: 10.1016/j.jpba.2014.12.005. [DOI] [PubMed] [Google Scholar]
- 15.Chen Y.J., Zhao Z.Z., Chen H.B., Yi T., Qin M.J., Liang Z.T. Chemical differentiation and quality evaluation of commercial Asian and American ginsengs based on a UHPLC-QTOF/MS/MS metabolomics approach. Phytochem Anal. 2014;26:145–160. doi: 10.1002/pca.2546. [DOI] [PubMed] [Google Scholar]
- 16.Zhang C.X., Bao J.C., Li X.G., Zheng Y.L. HPLC determination of the amount of ginsenosides in different part of Panax ginseng C. A. Mey. And P. quinquefolius L. and P. notoginseng (Burk) F. H. Chen. Chin J Pharmaceut Anal. 2005;25:1190–1194. [In Chinese] [Google Scholar]
- 17.Fang T.F. Studies on morphological characteristics and quality of wild ginseng. Ginseng Research. 2005;17:4–9. [In Chinese] [Google Scholar]
- 18.Guan Y.L., Tian C.G. Preliminary exploration on growing years of wild ginseng. Special Econ Anim Plant. 2013;1:44. [In Chinese] [Google Scholar]
Associated Data
This section collects any data citations, data availability statements, or supplementary materials included in this article.
