Quantum Measurement Theory in Gravitational-Wave Detectors

Abstract

The fast progress in improving the sensitivity of the gravitational-wave detectors, we all have witnessed in the recent years, has propelled the scientific community to the point at which quantum behavior of such immense measurement devices as kilometer-long interferometers starts to matter. The time when their sensitivity will be mainly limited by the quantum noise of light is around the corner, and finding ways to reduce it will become a necessity. Therefore, the primary goal we pursued in this review was to familiarize a broad spectrum of readers with the theory of quantum measurements in the very form it finds application in the area of gravitational-wave detection. We focus on how quantum noise arises in gravitational-wave interferometers and what limitations it imposes on the achievable sensitivity. We start from the very basic concepts and gradually advance to the general linear quantum measurement theory and its application to the calculation of quantum noise in the contemporary and planned interferometric detectors of gravitational radiation of the first and second generation. Special attention is paid to the concept of the Standard Quantum Limit and the methods of its surmounting.

Introduction

The more-than-ten-years-long history of the large-scale laser gravitation-wave (GW) detectors (the first one, TAMA [142] started to operate in 1999, and the most powerful pair, the two detectors of the LIGO project [98], in 2001, not to forget about the two European members of the international interferometric GW detectors network, also having a pretty long history, namely, the German-British interferometer GEO 600 [66] located near Hannover, Germany, and the joint European large-scale detector Virgo [156], operating near Pisa, Italy) can be considered both as a great success and a complete failure, depending on the point of view. On the one hand, virtually all technical requirements for these detectors have been met, and the planned sensitivity levels have been achieved. On the other hand, no GWs have been detected thus far.

The possibility of this result had been envisaged by the community, and during the same last ten years, plans for the second-generation detectors were developed [143, 64, 4, 169, 6, 96]. Currently (2012), both LIGO detectors are shut down, and their upgrade to the Advanced LIGO, which should take about three years, is underway. The goal of this upgrade is to increase the detectors’ sensitivity by about one order of magnitude [137], and therefore the rate of the detectable events by three orders of magnitude, from some ‘half per year’ (by the optimistic astrophysical predictions) of the second generation detectors to, probably, hundreds per year.

This goal will be achieved, mostly, by means of quantitative improvements (higher optical power, heavier mirrors, better seismic isolation, lower loss, both optical and mechanical) and evolutionary changes of the interferometer configurations, most notably, by introduction of the signal recycling mirror. As a result, the second-generation detectors will be quantum noise limited. At higher GW frequencies, the main sensitivity limitation will be due to phase fluctuations of light inside the interferometer (shot noise). At lower frequencies, the random force created by the amplitude fluctuations (radiation-pressure noise) will be the main or among the major contributors to the sum noise.

It is important that these noise sources both have the same quantum origin, stemming from the fundamental quantum uncertainties of the electromagnetic field, and thus that they obey the Heisenberg uncertainty principle and can not be reduced simultaneously [38]. In particular, the shot noise can (and will, in the second generation detectors) be reduced by means of the optical power increase. However, as a result, the radiation-pressure noise will increase. In the ‘naively’ designed measurement schemes, built on the basis of a Michelson interferometer, kin to the first and the second generation GW detectors, but with sensitivity chiefly limited by quantum noise, the best strategy for reaching a maximal sensitivity at a given spectral frequency would be to make these noise source contributions (at this frequency) in the total noise budget equal. The corresponding sensitivity point is known as the Standard Quantum Limit (SQL) [16, 22].

This limitation is by no means an absolute one, and can be evaded using more sophisticated measurement schemes. Starting from the first pioneering works oriented on solid-state GW detectors [28, 29, 144], many methods of overcoming the SQL were proposed, including the ones suitable for practical implementation in laser-interferometer GW detectors. The primary goal of this review is to give a comprehensive introduction of these methods, as well as into the underlying theory of linear quantum measurements, such that it remains comprehensible to a broad audience.

The paper is organized as follows. In Section 2, we give a classical (that is, non-quantum) treatment of the problem, with the goal to familiarize the reader with the main components of laser GW detectors. In Section 3 we provide the necessary basics of quantum optics. In Section 4 we demonstrate the main principles of linear quantum measurement theory, using simplified toy examples of the quantum optical position meters. In Section 5, we provide the full-scale quantum treatment of the standard Fabry-Pérot-Michelson topology of the modern optical GW detectors. At last, in Section 6, we consider three methods of overcoming the SQL, which are viewed now as the most probable candidates for implementation in future laser GW detectors. Concluding remarks are presented in Section 7. Throughout the review we use the notations and conventions presented in Table 1 below.

Table 1.

Notations and conventions, used in this review, given in alphabetical order for both, greek (first) and latin (after greek) symbols.

Notation and value	Comments
|α〉	coherent state of light with dimensionless complex amplitude α
β = arctan γ/δ	normalized detuning
γ	interferometer half-bandwidth
	effective bandwidth
δ = ωp − ω0	optical pump detuning from the cavity resonance frequency ω0
	excess quantum noise due to optical losses in the detector readout system with quantum efficiency ηd
ζ = t − x/c	space-time-dependent argument of the field strength of a light wave, propagating in the positive direction of the x-axis
η d	quantum efficiency of the readout system (e.g., of a photodetector)
θ	squeeze angle
ϑ, ε	some short time interval
λ	optical wave length
μ	reduced mass
v = ω − ω0	mechanical detuning from the resonance frequency
	SQL beating factor
ρ	signal-to-noise ratio
τ = L/c	miscellaneous time intervals; in particular, L/c
ϕ LO	homodyne angle
φ = ϕLO − β
	general linear time-domain susceptibility
χ xx	probe body mechanical succeptibility
ω	optical band frequencies
ω 0	interferometer resonance frequency
ω p	optical pumping frequency
ω	mechanical band frequencies; typically, ω = ω − ωp
ω0	mechanical resonance frequency
	quantum noise “corner frequency”
A	power absorption factor in Fabry-Pérot cavity per bounce
â(ω), â†(ω)	annihilation and creation operators of photons with frequency ω
	two-photon amplitude quadrature operator
	two-photon phase quadrature operator
	Symmetrised (cross) correlation of the field quadrature operators (i, j = c, s)
	light beam cross section area
c	speed of light
	light quantization normalization constant
	Resonance denominator of the optical cavity transfer function, defining its characteristic conjugate frequencies (“cavity poles”)
E	electric field strength
ℰ	classical complex amplitude of the light
	classical quadrature amplitudes of the light
	vector of classical quadrature amplitudes
	back-action force of the meter
G	signal force
h	dimensionless GW signal (a.k.a. metrics variation)
	homodyne vector
	Hamiltonian of a quantum system
ℏ	Planck’s constant
	identity matrix
	optical power
	circulating optical power in a cavity
	circulating optical power per interferometer arm cavity
	normalized circulating power
kp = ωp/c	optical pumping wave number
K	rigidity, including optical rigidity
	Kimble’s optomechanical coupling factor
	optomechanical coupling factor of the Sagnac speed meter
L	cavity length
M	probe-body mass
O	general linear meter readout observable
	matrix of counterclockwise rotation (pivoting) by angle α
r	amplitude squeezing factor (er)
rdB = 20r log10e	power squeezing factor in decibels
R	power reflectivity of a mirror
ℝ(ω)	reflection matrix of the Fabry-Pérot cavity
S(ω)	noise power spectral density (double-sided)
	measurement noise power spectral density (double-sided)
	back-action noise power spectral density (double-sided)
	cross-correlation power spectral density (double-sided)
	vacuum quantum state power spectral density matrix
	squeezed quantum state power spectral density matrix
	squeezing matrix
T	power transmissivity of a mirror
	transmissivity matrix of the Fabry-Pérot cavity
υ	test-mass velocity
	optical energy
W|ψ〉(X, Y)	Wigner function of the quantum state |ψ〉
X	test-mass position
	dimensionless oscillator (mode) displacement operator
	dimensionless oscillator (mode) momentum operator

Interferometry for GW Detectors: Classical Theory

Interferometer as a weak force probe

In order to have a firm basis for understanding how quantum noise influences the sensitivity of a GW detector it would be illuminating to give a brief description of the interferometers as weak force/tiny displacement meters. It is by no means our intention to give a comprehensive survey of this ample field that is certainly worthy of a good book, which there are in abundance, but rather to provide the reader with the wherewithal for grasping the very principles of the GW interferometers operation as well as of other similar ultrasensitive optomechanical gauges. The reader interested in a more detailed description of the interferometric techniques being used in the field of GW detectors might enjoy reading this book [12] or the comprehensive Living Reviews on the subject by Freise and Strain [59] and by Pitkin et al. [123].

Light phase as indicator of a weak force

Let us, for the time being, imagine that we are capable of measuring an electromagnetic (e.g., light) wave-phase shift δϕ with respect to some coherent reference of the same frequency. Having such a hypothetical tool, what would be the right way to use it, if one had a task to measure some tiny classical force? The simplest device one immediately conjures up is the one drawn in Figure 1. It consists of a movable totally-reflective mirror with mass M and a coherent paraxial light beam, that impinges on the mirror and then gets reflected towards our hypothetical phase-sensitive device. The mirror acts as a probe for an external force G that one seeks to measure. The response of the mirror on the external force G depends upon the details of its dynamics. For definiteness, let the mirror be a harmonic oscillator with mechanical eigenfrequency Ω_m = 2πf_m. Then the mechanical equation of motion gives a connection between the mirror displacement x and the external force G in the very familiar form of the harmonic oscillator equation of motion:

1

where x₀(t) = x(0) cosΩ_mt + p(0)/(MΩ_m)sinΩ_mt is the free motion of the mirror defined by its initial displacement x(0) and momentum p(0) at t = 0 and

2

is the oscillator Green’s function. It is easy to see that the reflected light beam carries in its phase the information about the displacement δx(t) = x(t) − x(0) induced by the external force G. Indeed, there is a phase shift between the incident and reflected beams, that matches the additional distance the light must propagate to the new position of the mirror and back, i.e.,

3

with ω₀ = 2πc/λ₀ the incident light frequency, c the speed of light and λ₀ the light wavelength. Here we implicitly assume mirror displacement to be much smaller than the light wavelength.

Figure 1.

Scheme of a simple weak force measurement: an external signal force G pulls the mirror from its equilibrium position x = 0, causing displacement δx. The signal displacement is measured by monitoring the phase shift of the light beam, reflected from the mirror.

Apparently, the information about the signal force G(t) can be obtained from the measured phase shift by post-processing of the measurement data record by substituting it into Eq. (1) instead of x. Thus, the estimate of the signal force G reads:

4

This kind of post-processing pursues an evident goal of getting rid of any information about the eigenmotion of the test object while keeping only the signal-induced part of the total motion. The above time-domain expression can be further simplified by transforming it into a Fourier domain, since it does not depend anymore on the initial values of the mirror displacement x(0) and momentum p(0):

5

where

6

denotes a Fourier transform of an arbitrary time-domain function A(t). If the expected signal spectrum occupies a frequency range that is much higher than the mirror-oscillation frequency ω_m as is the case for ground based interferometric GW detectors, the oscillator behaves as a free mass and the term proportional to in the equation of motion can be omitted yielding:

7

Michelson interferometer

Above, we assumed a direct light phase measurement with a hypothetical device in order to detect a weak external force, possibly created by a GW. However, in reality, direct phase measurement are not so easy to realize at optical frequencies. At the same time, physicists know well how to measure light intensity (amplitude) with very high precision using different kinds of photodetectors ranging from ancient-yet-die-hard reliable photographic plates to superconductive photodetectors capable of registering individual photons [67]. How can one transform the signal, residing in the outgoing light phase, into amplitude or intensity variation? This question is rhetorical for physicists, for interference of light as well as the multitude of interferometers of various design and purpose have become common knowledge since a couple of centuries ago. Indeed, the amplitude of the superposition of two coherent waves depends on the relative phase of these two waves, thus transforming phase variation into the variation of the light amplitude.

For the detection of GWs, the most popular design is the Michelson interferometer [15, 12, 59], which schematic view is presented in Figure 2. Let us briefly discuss how it works. Here, the light wave from a laser source gets split by a semi-transparent mirror, called a beamsplitter, into two waves with equal amplitudes, travelling towards two highly-reflective mirrors M_n,e1 to get reflected off them, and then recombine at the beamsplitter. The readout is performed by a photodetector, placed in the signal port. The interferometer is usually tuned in such a way as to operate at a dark fringe, which means that by default the lengths of the arms are taken so that the optical paths for light, propagating back and forth in both arms, are equal to each other, and when they recombine at the signal port, they interfere destructively, leaving the photodetector unilluminated. On the opposite, the two waves coming back towards the laser, interfere constructively. The situation changes if the end mirrors get displaced by some external force in a differential manner, i.e., such that the difference of the arms lengths is non-zero: δL = L_e − L_n ≠ 0. Let a laser send to the interferometer a monochromatic wave that, at the beamsplitter, can be written as

Hence, the waves reflected off the interferometer arms at the beamsplitter (before interacting with it for the second time) are2:

and after the beamsplitter:

And the intensity of the outgoing light in both ports can be found using a relation with overline meaning time-average over many oscillation periods:

8

Apparently, for small differential displacements δL ≪ λ₀, the Michelson interferometer tuned to operate at the dark fringe has a sensitivity to ∼ (δL/λ₀)² that yields extremely weak light power on the photodetector and therefore very high levels of dark current noise. In practice, the interferometer, in the majority of cases, is slightly detuned from the dark fringe condition that can be viewed as an introduction of some constant small bias δL₀ between the arms lengths. By this simple trick experimentalists get linear response to the signal nonstationary displacement δx(t):

9

Comparison of this formula with Eq. (3) should immediately conjure up the striking similarity between the response of the Michelson interferometer and the single moving mirror. The nonstationary phase difference of light beams in two interferometer arms δϕ(t) = 4πδx(t)/λ₀ is absolutely the same as in the case of a single moving mirror (cf. Eq. (3)). It is no coincidence, though, but a manifestation of the internal symmetry that all Michelson-type interferometers possess with respect to coupling between mechanical displacements of their arm mirrors and the optical modes of the outgoing fields. In the next Section 2.1.3, we show how this symmetry displays itself in GW interferometers.

Figure 2.

Scheme of a Michelson interferometer. When the end mirrors of the interferometer arms M_n,e are at rest the length of the arms L is such that the light from the laser gets reflected back entirely (bright port), while at the dark port the reflected waves suffer destructive interference keeping it really dark. If, due to some reason, e.g., because of GWs, the lengths of the arms changed in such a way that their difference was δL, the photodetector at the dark port should measure light intensity .

Gravitational waves’ interaction with interferometer

Let us see how a Michelson interferometer interacts with the GW. For this purpose we need to understand, on a very basic level, what a GW is. Following the poetic, yet precise, definition by Kip Thorne, ‘gravitational waves are ripples in the curvature of spacetime that are emitted by violent astrophysical events, and that propagate out from their source with the speed of light’ [13, 110]. A weak GW far away from its birthplace can be most easily understood from analyzing its action on the probe bodies motion in some region of spacetime. Usually, the deformation of a circular ring of free test particles is considered (see Chapter 26: Section 26.3.2 of [13] for more rigorous treatment) when a GW impinges it along the z-direction, perpendicular to the plane where the test particles are located. Each particle, having plane coordinates (x, y) with respect to the center of the ring, undergoes displacement δr ≡ (δx, δy) from its position at rest, induced by GWs:

10

11

Here, h₊ ≡ h+(t − z/c) and h_× ≡ h_× (t − z/c) stand for two independent polarizations of a GW that creates an acceleration field resulting in the above deformations. The above expressions comprise a solution to the equation of motion for free particles in the tidal acceleration field created by a GW:

with e_x = {1, 0}^⊤ and e_y = {0, 1}^⊤ the unit vectors pointing in the x and y direction, respectively.

For our Michelson interferometer, one can consider the end mirrors to be those test particles that lie on a circular ring with beamsplitter located in its center. One can choose arms directions to coincide with the frame x and y axes, then the mirrors will have coordinates (0, L_n) and (L_e, 0), correspondingly. For this case, the action of the GW field on the mirrors is featured in Figure 3. It is evident from this picture and from the above formulas that an h_×-polarized component of the GW does not change the relative lengths of the Michelson interferometer arms and thus does not contribute to its output signal; at the same time, h₊-polarized GWs act on the end masses of the interferometer as a pair of tidal forces of the same value but opposite in direction:

Figure 3.

Action of the GW on a Michelson interferometer: (a) h₊-polarized GW periodically stretch and squeeze the interferometer arms in the x- and y-directions, (b) h_×-polarized GW though have no impact on the interferometer, yet produce stretching and squeezing of the imaginary test particle ring, but along the directions, rotated by 45° with respect to the x and y directions of the frame. The lower pictures feature field lines of the corresponding tidal acceleration fields .

Assuming G_e = −G_n = G, M_n = M_e = M, and L_e = L_n = L, one can write down the equations of motion for the interferometer end mirrors that are now considered free (Ω_m ≪ Ω_GW) as:

and for the differential displacement of the mirrors δL = L_e − L_n = x − y, which, we have shown above, the Michelson interferometer is sensitive to, one gets the following equation of motion:

12

that is absolutely analogous to Eq. (1) for a single free mirror with mass M. Therefore, we have proven that a Michelson interferometer has the same dynamical behavior with respect to the tidal force created by GWs, as the single movable mirror with mass M to some external generic force G(t).

The foregoing conclusion can be understood in the following way: for GWs are inherently quadruple and, when the detector’s plane is orthogonal to the wave propagation direction, can only excite a differential mechanical motion of its mirrors, one can reduce a complicated dynamics of the interferometer probe masses to the dynamics of a single effective particle that is the differential motion of the mirrors in the arms. This useful observation appears to be invaluably helpful for calculation of the real complicated interferometer responses to GWs and also for estimation of its optical quantum noise, that comprises the rest of this review.

From incident wave to outgoing light: light transformation in the GW interferometers

To proceed with the analysis of quantum noise in GW interferometers we first need to familiarize ourselves with how a light field is transformed by an interferometer and how the ability of its mirrors to move modifies the outgoing field. In the following paragraphs, we endeavor to give a step-by-step introduction to the mathematical description of light in the interferometer and the interaction with its movable mirrors.

Light propagation

We first consider how the light wave is described and how its characteristics transform, when it propagates from one point of free space to another. Yet the real light beams in the large scale interferometers have a rather complicated inhomogeneous transverse spatial structure, the approximation of a plane monochromatic wave should suffice for our purposes, since it comprises all the necessary physics and leads to right results. Inquisitive readers could find abundant material on the field structure of light in real optical resonators in particular, in the introductory book [171] and in the Living Review by Vinet [154].

So, consider a plane monochromatic linearly polarized light wave propagating in vacuo in the positive direction of the x-axis. This field can be fully characterized by the strength of its electric component E(t − x/c) that should be a sinusoidal function of its argument ζ = t − x/c and can be written in three equivalent ways:

13

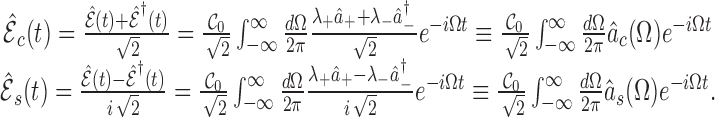

where ℰ₀ and ℰ₀ are called amplitude and phase, ℰ_c and ℰ_s take names of cosine and sine quadrature amplitudes, and complex number ℰ = |ℰ|e^{i argfℰ} is known as the complex amplitude of the electromagnetic wave. Here, we see that our wave needs two real or one complex parameter to be fully characterized in the given location x at a given time t. The ‘amplitude-phase’ description is traditional for oscillations but is not very convenient since all the transformations are nonlinear in phase. Therefore, in optics, either quadrature amplitudes or complex amplitude description is applied to the analysis of wave propagation. All three descriptions are related by means of straightforward transformations:

14

The aforesaid means that for complete understanding of how the light field transforms in the optical device, knowing the rules of transformation for only two characteristic real numbers — real and imaginary parts of the complex amplitude suffice. Note also that the electric field of a plane wave is, in essence, a function of a single argument ζ = t − x/c (for a forward propagating wave) and thus can be, without loss of generality, substituted by a time dependence of electric field in some fixed point, say with x = 0, thus yielding E(ζ) ≡ E(t). We will keep to this convention throughout our review.

Now let us elaborate the way to establish a link between the wave electric field strength values taken in two spatially separated points, x₁ = 0 and x₂ = L. Obviously, if nothing obscures light propagation between these two points, the value of the electric field in the second point at time t is just the same as the one in the first point, but at earlier time, i.e., at t′ = t − L/c: E^(L) (t) = E⁽⁰⁾ (t − L/c). This allows us to introduce a transformation that propagates EM-wave from one spatial point to another. For complex amplitude ℰ, the transformation is very simple:

15

Basically, this transformation is just a counterclockwise rotation of a wave complex amplitude vector on a complex plane by an angle . This fact becomes even more evident if we look at the transformation for a 2-dimensional vector of quadrature amplitudes ℰ = {ℰ_c, ℰ_s}^⊤, that are:

16

where

17

stands for a standard counterclockwise rotation (pivoting) matrix on a 2D plane. In the special case when the propagation distance is much smaller than the light wavelength L ≪ λ, the above two expressions can be expanded into Taylor’s series in ϕL = 2πL/λ ≪ 1 up to the first order:

18

and

19

where stands for an identity matrix and δℙ[ϕ_L] is an infinitesimal increment matrix that generate the difference between the field quadrature amplitudes vector ℰ after and before the propagation, respectively.

It is worthwhile to note that the quadrature amplitudes representation is used more frequently in literature devoted to quantum noise calculation in GW interferometers than the complex amplitudes formalism and there is a historical reason for this. Notwithstanding the fact that these two descriptions are absolutely equivalent, the quadrature amplitudes representation was chosen by Caves and Schumaker as a basis for their two-photon formalism for the description of quantum fluctuations of light [39, 40] that became from then on the workhorse of quantum noise calculation. More details about this extremely useful technique are given in Sections 3.1 and 3.2 of this review. Unless otherwise specified, we predominantly keep ourselves to this formalism and give all results in terms of it.

Modulation of light

Above, we have seen that a GW signal displays itself in the modulation of the phase of light, passing through the interferometer. Therefore, it is illuminating to see how the modulation of the light phase and/or amplitude manifests itself in a transformation of the field complex amplitude and quadrature amplitudes. Throughout this section we assume our carrier field is a monochromatic light wave with frequency ω₀, amplitude ℰ₀ and initial phase ϕ₀ = 0:

Amplitude modulation. The modulation of light amplitude is straightforward to analyze. Let us do it for pedagogical sake: imagine one managed to modulate the carrier field amplitude slow enough compared to the carrier oscillation period, i.e., Ω ≪ ω₀, then:

where ϵ_m ≪ 1 and ϕ_m are some constants called modulation depth and relative phase, respectively. The complex amplitude of the modulated wave equals to

and the carrier quadrature amplitudes are, apparently, transformed as follows:

The fact that the amplitude modulation shows up only in the quadrature that is in phase with the carrier field sets forth why this quadrature is usually named amplitude quadrature in the literature. In our review, we shall also keep to this terminology and refer to cosine quadrature as amplitude one.

Illuminating also is the calculation of the modulated light spectrum, that in our simple case of single frequency modulation is straightforward:

Apparently, the spectrum is discrete and comprises three components, i.e., the harmonic at carrier frequency ω₀ with amplitude and two satellites at frequencies ω₀ ± Ω, also referred to as modulation sidebands, with (complex) amplitudes . The graphical interpretation of the above considerations is given in the left panel of Figure 4. Here, carrier fields as well as sidebands are represented by rotating vectors on a complex plane. The carrier field vector has length ℰ₀ and rotates clockwise with the rate ω₀, while sideband components participate in two rotations at a time. The sum of these three vectors yields a complex vector, whose length oscillates with time, and its projection on the real axis represents the amplitude-modulated light field.

Figure 4.

Phasor diagrams for amplitude (Left panel) and phase (Right panel) modulated light. Carrier field is given by a brown vector rotating clockwise with the rate w₀ around the origin of the complex plane frame. Sideband fields are depicted as blue vectors. The lower (w₀ − Ω) sideband vector origin rotates with the tip of the carrier vector, while its own tip also rotates with respect to its origin counterclockwise with the rate Ω. The upper (w₀ + Ω) sideband vector origin rotates with the tip of the upper sideband vector, while its own tip also rotates with respect to its origin counterclockwise with the rate Ω. Modulated oscillation is a sum of these three vectors an is given by the red vector. In the case of amplitude modulation (AM), the modulated oscillation vector is always in phase with the carrier field while its length oscillates with the modulation frequency Ω. The time dependence of its projection onto the real axis that gives the AM-light electric field strength is drawn to the right of the corresponding phasor diagram. In the case of phase modulation (PM), sideband fields have a π/2 constant phase shift with respect to the carrier field (note factor i in front of the corresponding terms in Eq. (22); therefore its sum is always orthogonal to the carrier field vector, and the resulting modulated oscillation vector (red arrow) has approximately the same length as the carrier field vector but outruns or lags behind the latter periodically with the modulation frequency Ω. The resulting oscillation of the PM light electric field strength is drawn to the right of the PM phasor diagram and is the projection of the PM oscillation vector on the real axis of the complex plane.

The above can be generalized to an arbitrary periodic modulation function , with . Then the spectrum of the modulated light consists again of a carrier harmonic at ω₀ and an infinite discrete set of sideband harmonics at frequencies :

20

Further generalization to an arbitrary (real) non-periodic modulation function is apparent:

21

From the above expression, one readily sees the general structure of the modulated light spectrum, i.e., the central carrier peaks at frequencies ±ω₀ and the modulation sidebands around it, whose shape retraces the modulation function spectrum A(ω) shifted by the carrier frequency ±ω₀.

Phase modulation. The general feature of the modulated signal that we pursued to demonstrate by this simple example is the creation of the modulation sidebands in the spectrum of the modulated light. Let us now see how it goes with a phase modulation that is more related to the topic of the current review. The simplest single-frequency phase modulation is given by the expression:

where Ω ≪ ω₀, and the phase deviation δ_m is assumed to be much smaller than 1. Using Eqs. (14), one can write the complex amplitude of the phase-modulated light as:

and quadrature amplitudes as:

Note that in the weak modulation limit (δ_m ≪ 1), the above equations can be approximated as:

This testifies that for a weak modulation only the sine quadrature, which is π/2 out-of-phase with respect to the carrier field, contains the modulation signal. That is why this sine quadrature is usually referred to as phase quadrature. It is also what we will call this quadrature throughout the rest of this review.

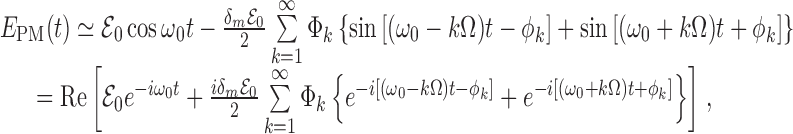

In order to get the spectrum of the phase-modulated light it is necessary to refer to the theory of Bessel functions that provides us with the following useful relation (known as the Jacobi-Anger expansion):

where J_k(δ_m) stands for the k-th Bessel function of the first kind. This looks a bit intimidating, yet for δ_m ≪ 1 these expressions simplify dramatically, since near zero Bessel functions can be approximated as:

Thus, for sufficiently small δ_m, we can limit ourselves only to the terms of order and , which yields:

22

and we again face the situation in which modulation creates a pair of sidebands around the carrier frequency. The difference from the amplitude modulation case is in the way these sidebands behave on the complex plane. The corresponding phasor diagram for phase modulated light is drawn in Figure 4. In the case of PM, sideband fields have π/2 constant phase shift with respect to the carrier field (note factor i in front of the corresponding terms in Eq. (22)); therefore its sum is always orthogonal to the carrier field vector, and the resulting modulated oscillation vector has approximately the same length as the carrier field vector but outruns or lags behind the latter periodically with the modulation frequency Ω. The resulting oscillation of the PM light electric field strength is drawn to the right of the PM phasor diagram and is the projection of the PM oscillation vector on the real axis of the complex plane.

Let us now generalize the obtained results to an arbitrary modulation function Φ(t):

In the most general case of arbitrary modulation index δ_m, the corresponding formulas are very cumbersome and do not give much insight. Therefore, we again consider a simplified situation of sufficiently small δ_m ≪ 1. Then one can approximate the phase-modulated oscillation as follows:

When Φ(t) is a periodic function: , and in weak modulation limit δ_m ≪ 1, the spectrum of the PM light is apparent from the following expression:

23

while for the real non-periodic modulation function the spectrum can be obtained from the following relation:

24

And again we get the same general structure of the spectrum with carrier peaks at ±ω₀ and shifted modulation spectra iΦ(ω ±ω₀) as sidebands around the carrier peaks. The difference with the amplitude modulation is an additional ±π/2 phase shifts added to the sidebands.

Laser noise

Thus far we have assumed the carrier field to be perfectly monochromatic having a single spectral component at carrier frequency ω₀ fully characterized by a pair of classical quadrature amplitudes represented by a 2-vector ℰ. In reality, this picture is no good at all; indeed, a real laser emits not a monochromatic light but rather some spectral line of finite width with its central frequency and intensity fluctuating. These fluctuations are usually divided into two categories: (i) quantum noise that is associated with the spontaneous emission of photons in the gain medium, and (ii) technical noise arising, e.g., from excess noise of the pump source, from vibrations of the laser resonator, or from temperature fluctuations and so on. It is beyond the goals of this review to discuss the details of the laser noise origin and methods of its suppression, since there is an abundance of literature on the subject that a curious reader might find interesting, e.g., the following works [119, 120, 121, 167, 68, 76].

For our purposes, the very existence of the laser noise is important as it makes us to reconsider the way we represent the carrier field. Apparently, the proper account for laser noise prescribes us to add a random time-dependent modulation of the amplitude (for intensity fluctuations) and phase (for phase and frequency fluctuations) of the carrier field (13):

where we placed hats above the noise terms on purpose, to emphasize that quantum noise is a part of laser noise and its quantum nature has to be taken into account, and that the major part of this review will be devoted to the consequences these hats lead to. However, for now, let us consider hats as some nice decoration.

Apparently, the corrections to the amplitude and phase of the carrier light due to the laser noise are small enough to enable us to use the weak modulation approximation as prescribed above. In this case one can introduce a more handy amplitude and phase quadrature description for the laser noise contribution in the following manner:

25

where ê_c,s are related to ê_n and in the same manner as prescribed by Eqs. (14). It is convenient to represent a noisy laser field in the Fourier domain:

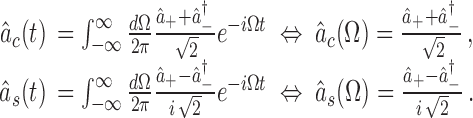

Worth noting is the fact that ê_c,s(Ω) is a spectral representation of a real quantity and thus satisfies an evident equality (by † we denote the Hermitian conjugate that for classical functions corresponds to taking the complex conjugate of this function). What happens if we want to know the light field of our laser with noise at some distance L from our initial reference point x = 0? For the carrier field component at ω₀, nothing changes and the corresponding transform is given by Eq. (16), yet for the noise component

there is a slight modification. Since the field continuity relation holds for the noise field to the same extent as for the carrier field:

the following modification applies:

26

Therefore, for sideband field components the propagation rule shall be modified by adding a frequency-dependent phase factor e^iΩL/c that describes an extra phase shift acquired by a sideband field relative to the carrier field because of the frequency difference Ω = ω − ω₀.

Light reflection from optical elements

So, we are one step closer to understanding how to calculate the quantum noise of the light coming out of the GW interferometer. It is necessary to understand what happens with light when it is reflected from such optical elements as mirrors and beamsplitters. Let us first consider these elements of the interferometer fixed at their positions. The impact of mirror motion will be considered in the next Section 2.2.5. One can also refer to Section 2 of the Living Review by Freise and Strain [59] for a more detailed treatment of this topic.

Mirrors of the modern interferometers are rather complicated optical systems usually consisting of a dielectric slab with both surfaces covered with multilayer dielectric coatings. These coatings are thoroughly constructed in such a way as to make one surface of the mirror highly reflective, while the other one is anti-reflective. We will not touch on the aspects of coating technology in this review and would like to refer the interested reader to an abundant literature on this topic, e.g., to the following book [71] and reviews and articles [154, 72, 100, 73, 122, 49, 97, 117, 57]. For our purposes, assuming the reflective surface of the mirror is flat and lossless should suffice. Thus, we represent a mirror by a reflective plane with (generally speaking, complex) coefficients of reflection r and r′ and transmission t and t′ as drawn in Figure 5. Let us now see how the ingoing and outgoing light beams couple on the mirrors in the interferometer.

Figure 5.

Scheme of light reflection off the coated mirror.

Mirrors: From the general point of view, the mirror is a linear system with 2 input and 2 output ports. The way how it transforms input signals into output ones is featured by a 2 × 2 matrix that is known as the transfer matrix of the mirror :

27

Since we assume no absorption in the mirror, reflection and transmission coefficients should satisfy Stokes’ relations [139, 15] (see also Section 12.12 of [99]):

28

that is simply a consequence of the conservation of energy. This conservation of energy yields that the optical transfer matrix must be unitary: . Stokes’ relations leave some freedom in defining complex reflectivity and transmissivity coefficients. Two of the most popular variants are given by the following matrices:

29

where we rewrote transfer matrices in terms of real power reflectivity and transmissivity coefficients R = |r|² and T = |t|² that will find extensive use throughout the rest of this review.

The transformation rule, or putting it another way, coupling relations for the quadrature amplitudes can easily be obtained from Eq. (27). Now, we have two input and two output fields. Therefore, one has to deal with 4-dimensional vectors comprising of quadrature amplitudes of both input and output fields, and the transformation matrix become 4 × 4-dimensional, which can be expressed in terms of the outer product of a 2 × 2 matrix by a 2 × 2 identity matrix :

30

The same rules apply to the sidebands of each carrier field:

31

In future, for the sake of brevity, we reduce the notation for matrices like to simply .

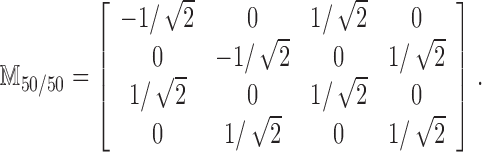

Beam splitters: Another optical element ubiquitous in the interferometers is a beamsplitter (see Figure 6). In fact, it is the very same mirror considered above, but the angle of input light beams incidence is different from 0 (if measured from the normal to the mirror surface). The corresponding scheme is given in Figure 6. In most cases, symmetric 50%/50% beamsplitter are used, which imply R = T = 1/2 and the coupling matrix then reads:

32

Figure 6.

Scheme of a beamsplitter.

Losses in optical elements: Above, we have made one assumption that is a bit idealistic. Namely, we assumed our mirrors and beamsplitters to be lossless, but it could never come true in real experiments; therefore, we need some way to describe losses within the framework of our formalism. Optical loss is a term that comprises a very wide spectrum of physical processes, including scattering on defects of the coating, absorption of light photons in the mirror bulk and coating that yields heating and so on. A full description of loss processes is rather complicated. However, the most important features that influence the light fields, coming off the lossy optical element, can be summarized in the following two simple statements:

1. Optical loss of an optical element can be characterized by a single number (possibly, frequency dependent) ϵ (usually, |ϵ| ≪ 1) that is called the absorption coefficient. ϵ is the fraction of light power being lost in the optical element:



2. Due to the fundamental law of nature summarized by the Fluctuation Dissipation Theorem (FDT) [37, 95], optical loss is always accompanied by additional noise injected into the system. It means that additional noise field uncorrelated with the original light is mixed into the outgoing light field in the proportion of governed by the absorption coefficient.

These two rules conjure up a picture of an effective system comprising of a lossless mirror and two imaginary non-symmetric beamsplitters with reflectivity and transmissivity that models optical loss for both input fields, as drawn in Figure 7.

Figure 7.

Model of lossy mirror.

Using the above model, it is possible to show that for a lossy mirror the transformation of carrier fields given by Eq. (30) should be modified by simply multiplying the output fields vector by a factor 1 − ϵ:

33

where we used the fact that for low loss optics in use in GW interferometers, the absorption coefficient might be as small as ϵ ∼ 10⁻⁵−10⁻⁴. Therefore, the impact of optical loss on classical carrier amplitudes is negligible. Where the noise sidebands are concerned, the transformation rule given by Eq. (31) changes a bit more:

Here, we again used the smallness of ϵ ≪ 1 and also the fact that matrix is unitary, i.e., we redefined the noise that enters outgoing fields due to loss as , which keeps the new noise sources and uncorrelated: .

Light modulation by mirror motion

For full characterization of the light transformation in the GW interferometers, one significant aspect remains untouched, i.e., the field transformation upon reflection off the movable mirror. Above (see Section 2.1.1), we have seen that motion of the mirror yields phase modulation of the reflected wave. Let us now consider this process in more detail.

Consider the mirror described by the matrix , introduced above. Let us set the convention that the relations of input and output fields is written for the initial position of the movable mirror reflective surface, namely for the position where its displacement is x = 0 as drawn in Figure 8. We assume the sway of the mirror motion to be much smaller than the optical wavelength: x/λ₀ ≪ 1. The effect of the mirror displacement x(t) on the outgoing field can be straightforwardly obtained from the propagation formalism. Indeed, considering the light field at a fixed spatial point, the reflected light field at any instance of time t is just the result of propagation of the incident light by twice the mirror displacement taken at time of reflection and multiplied by reflectivity 3

34

Remember now our assumption that x ≪ λ₀; according to Eq. (19) the mirror motion modifies the quadrature amplitudes in a way that allows one to separate this effect from the reflection. It means that the result of the light reflection from the moving mirror can be represented as a sum of two independently calculable effects, i.e., the reflection off the fixed mirror, as described above in Section 2.2.4, and the response to the mirror displacement (see Section 2.2.1), i.e., the signal presentable as a sideband vector {s₁(Ω), s₂(Ω)}^⊤. The latter is convenient to describe in terms of the response vector {R₁, R₂}^⊤ that is defined as:

35

Figure 8.

Reflection of light from the movable mirror.

Note that we did not include sideband fields in the definition of the response vector. In principle, sideband fields also feel the motion induced phase shift; however, as far as it depends on the product of one very small value of 2ω₀x(t)/c = 4πx(t)/λ₀ ≪ 1 by a small sideband amplitude , the resulting contribution to the final response will be dwarfed by that of the classical fields. Moreover, the mirror motion induced contribution (35) is itself a quantity of the same order of magnitude as the noise sidebands, and therefore we can claim that the classical amplitudes of the carrier fields are not affected by the mirror motion and that the relations (30) hold for a moving mirror too. However, the relations for sideband amplitudes must be modified. In the case of a lossless mirror, relations (31) turn:

36

where x(Ω) is the Fourier transform of the mirror displacement x(t)

It is important to understand that signal sidebands characterized by a vector {s₁(Ω), s₂(Ω)}^⊤, on the one hand, and the noise sidebands {ê₁(Ω), ê₂(Ω)}^⊤, on the other hand, have the same order of magnitude in the real GW interferometers, and the main role of the advanced quantum measurement techniques we are talking about here is to either increase the former, or decrease the latter as much as possible in order to make the ratio of them, known as the signal-to-noise ratio (SNR), as high as possible in as wide as possible a frequency range.

Simple example: the reflection of light from a perfect moving mirror

All the formulas we have derived here, though being very simple in essence, look cumbersome and not very transparent in general. In most situations, these expressions can be simplified significantly in real schemes. Let us consider a simple example for demonstration purposes, i.e., consider the reflection of a single light beam from a perfectly reflecting (R = 1) moving mirror as drawn in Figure 9. The initial phase ϕ₀ of the incident wave does not matter and can be taken as zero. Then and . Putting these values into Eq. (30) and accounting for , quite reasonably results in the amplitude of the carrier wave not changing upon reflection off the mirror, while the phase changes by π:

Since we do not have control over the laser noise, the input light has laser fluctuations in both quadratures that are transformed in full accordance with Eq. (31)):

Again, nothing surprising. Let us see what happens with a mechanical motion induced component of the reflected wave: according to Eq. (36), the reflected light will contain a motion-induced signal in the s-quadrature:

Figure 9.

Schematic view of light modulation by perfectly reflecting mirror motion. An initially monochromatic laser field Eⁱⁿ(t) with frequency ω₀ = 2πc/λ₀ gets reflected from the mirror that commits slow (compared to optical oscillations) motion x(t) (blue line) under the action of external force G. Reflected the light wave phase is modulated by the mechanical motion so that the spectrum of the outgoing field E^out(ω) contains two sidebands carrying all the information about the mirror motion. The left panel shows the spectral representation of the initial monochromatic incident light wave (upper plot), the mirror mechanical motion amplitude spectrum (middle plot) and the spectrum of the phase-modulated by the mirror motion, reflected light wave (lower plot).

This fact, i.e., that the mirror displacement that just causes phase modulation of the reflected field, enters only the s-quadrature, once again justifies why this quadrature is usually referred to as phase quadrature (cf. Section 2.2.2).

It is instructive to see the spectrum of the outgoing light in the above considered situation. It is, expectedly, the spectrum of a phase modulated monochromatic wave that has a central peak at the carrier wave frequency and the two sideband peaks on either sides of the central one, whose shape follows the spectrum of the modulation signal, in our case, the spectrum of the mechanical displacement of the mirror x(t). The left part of Figure 9 illustrates the aforesaid. As for laser noise, it enters the outgoing light in an additive manner and the typical (though simplified) amplitude spectrum of a noisy light reflected from a moving mirror is given in Figure 10.

Figure 10.

The typical spectrum (amplitude spectral density) of the light leaving the interferometer with movable mirrors. The central peak corresponds to the carrier light with frequency ω₀, two smaller peaks on either side of the carrier represent the signal sidebands with the shape defined by the mechanical motion spectrum x(Ω); the noisy background represents laser noise.

Basics of Detection: Heterodyne and homodyne readout techniques

Let us now address the question of how one can detect a GW signal imprinted onto the parameters of the light wave passing through the interferometer. The simple case of a Michelson interferometer considered in Section 2.1.2 where the GW signal was encoded in the phase quadrature of the light leaking out of the signal(dark) port, does not exhaust all the possibilities. In more sophisticated interferometer setups that are covered in Sections 5 and ??, a signal component might be present in both quadratures of the outgoing light and, actually, to different extent at different frequencies; therefore, a detection method that allows measurement of an arbitrary combination of amplitude and phase quadrature is required. The two main methods are in use in contemporary GW detectors: these are homodyne and heterodyne detection [36, 138, 164, 79]. Both are common in radio-frequency technology as methods of detection of phase- and frequency-modulated signals. The basic idea is to mix a faint signal wave with a strong local oscillator wave, e.g., by means of a beamsplitter, and then send it to a detector with a quadratic non-linearity that shifts the spectrum of the signal to lower frequencies together with amplification by an amplitude of the local oscillator. This topic is also discussed in Section 4 of the Living Review by Freise and Strain [59] with more details relevant to experimental implementation.

Homodyne and DC readout

Homodyne readout. Homodyne detection uses local oscillator light with the same carrier frequency as the signal. Write down the signal wave as:

37

and the local oscillator wave as:

38

Signal light quadrature amplitudes S_c,s(t) might contain GW signal G_c,s(t) as well as quantum noise n_c,s(t) in both quadratures:

while the local oscillator is a laser light with classical amplitudes:

where we introduced a homodyne angle ϕ_LO, and laser noise l_c,s(t):

Note that the local oscillator classical amplitude L₀ is much larger than all other signals:

Let mix these two lights at the beamsplitter as drawn in the left panel of Figure 11 and detect the two resulting outgoing waves with two photodetectors. The two photocurrents i_1,2 will be proportional to the intensities I_1,2 of these two lights:

where stands for time averaging of A(t) over many optical oscillation periods, which reflects the inability of photodetectors to respond at optical frequencies and thus providing natural low-pass filtering for our signal. The last terms in both expressions gather all the terms quadratic in GW signal and both noise sources that are of the second order of smallness compared to the local oscillator amplitude L₀ and thus are omitted in further consideration.

Figure 11.

Schematic view of homodyne readout (left panel) and DC readout (right panel) principle implemented by a simple Michelson interferometer.

In a classic homodyne balanced scheme, the difference current is read out that contains only a GW signal and quantum noise of the dark port:

39

Whatever quadrature the GW signal is in, by proper choice of the homodyne angle ϕ_LO one can recover it with minimum additional noise. That is how homodyne detection works in theory.

However, in real interferometers, the implementation of a homodyne readout appears to be fraught with serious technical difficulties. In particular, the local oscillator frequency has to be kept extremely stable, which means its optical path length and alignment need to be actively stabilized by a low-noise control system [79]. This inflicts a significant increase in the cost of the detector, not to mention the difficulties in taming the noise of stabilising control loops, as the experience of the implementation of such stabilization in a Garching prototype interferometer has shown [60, 75, 74].

DC readout. These factors provide a strong motivation to look for another way to implement homodyning. Fortunately, the search was not too long, since the suitable technique has already been used by Michelson and Morley in their seminal experiment [109]. The technique is known as DC-readout and implies an introduction of a constant arms length difference, thus pulling the interferometer out of the dark fringe condition as was mentioned in Section 2.1.2. The advantage of this method is that the local oscillator is furnished by a part of the pumping carrier light that leaks into the signal port due to arms imbalance and thus shares the optical path with the signal sidebands. It automatically solves the problem of phase-locking the local oscillator and signal lights, yet is not completely free of drawbacks. The first suggestion to use DC readout in GW interferometers belongs to Fritschel [63] and then got comprehensive study by the GW community [138, 164, 79].

Let us discuss how it works in a bit more detail. The schematic view of a Michelson interferometer with DC readout is drawn in the right panel of Figure 11. As already mentioned, the local oscillator light is produced by a deliberately-introduced constant difference δL of the lengths of the interferometer arms. It is also worth noting that the component of this local oscillator created by the asymmetry in the reflectivity of the arms that is always the case in a real interferometer and attributable mostly to the difference in the absorption of the ‘northern’ and ‘eastern’ end mirrors as well as asymmetry of the beamsplitter. All these factors can be taken into account if one writes the carrier fields at the beamsplitter after reflection off the arms in the following symmetric form:

where ϵ_n,e and L_n,e stand for optical loss and arm lengths of the corresponding interferometer arms, is the optical loss relative asymmetry with is the mean pumping carrier amplitude at the beamsplitter, and . Then the classical part of the local oscillator light in the signal (dark) port will be given by the following expression:

40

where one can define the local oscillator phase and amplitude through the apparent relations:

41

where we have taken into account that ω₀ΔL/c ≪ 1 and the rather small absolute value of the optical loss coefficient max [ϵ_n, ϵ_e] ∼ 10⁻⁴ ≪ 1 available in contemporary interferometers. One sees that were there no asymmetry in the arms optical loss, there would be no opportunity to change the local oscillator phase. At the same time, the GW signal in the considered scheme is confined to the phase quadrature since it comprises the time-dependent part of ΔL and thus the resulting photocurrent will be proportional to:

42

where denote the part of the input laser noise that leaked into the output port:

43

44

and n_c,s stand for the quantum noise associated with the signal sidebands and entering the interferometer from the signal port.

In the case of a small offset of the interferometer from the dark fringe condition, i.e., for ω₀ΔL/c = 2πΔL/λ₀ ≪ 1, the readout signal scales as local oscillator classical amplitude, which is directly proportional to the offset itself: . The laser noise associated with the pumping carrier also leaks to the signal port in the same proportion, which might be considered as the main disadvantage of the DC readout as it sets rather tough requirements on the stability of the laser source, which is not necessary for the homodyne readout. However, this problem, is partly solved in more sophisticated detectors by implementing power recycling and/or Fabry-Pérot cavities in the arms. These additional elements turn the Michelson interferometer into a resonant narrow-band cavity for a pumping carrier with effective bandwidth determined by transmissivities of the power recycling mirror (PRM) and/or input test masses (ITMs) of the arm cavities divided by the corresponding cavity length, which yields the values of bandwidths as low as ∼ 10 Hz. Since the target GW signal occupies higher frequencies, the laser noise of the local oscillator around signal frequencies turns out to be passively filtered out by the interferometer itself.

DC readout has already been successfully tested at the LIGO 40-meter interferometer in Caltech [164] and implemented in GEO 600 [77, 79, 55] and in Enhanced LIGO [61, 5]. It has proven a rather promising substitution for the previously ubiquitous heterodyne readout (to be considered below) and has become a baseline readout technique for future GW detectors [79].

Heterodyne readout

Up until recently, the only readout method used in terrestrial GW detectors has been the heterodyne readout. Yet with more and more stable lasers being available for the GW community, this technique gradually gives ground to a more promising DC readout method considered above. However, it is instructive to consider briefly how heterodyne readout works and learn some of the reasons, that it has finally given way to its homodyne adversary.

The idea behind the heterodyne readout principle is the generalization of the homodyne readout, i.e., again, the use of strong local oscillator light to be mixed up with the faint signal light leaking out the dark port of the GW interferometer save the fact that local oscillator light frequency is shifted from the signal light carrier frequency by Ω_RF ∼ several megahertz. In GW interferometers with heterodyne readout, local oscillator light of different than ω₀ frequency is produced via phase-modulation of the pumping carrier light by means of electro-optical modulator (EOM) before it enters the interferometer as drawn in Figure 12. The interferometer is tuned so that the readout port is dark for the pumping carrier. At the same time, by introducing a macroscopic (several centimeters) offset ΔL of the two arms, which is known as Schnupp asymmetry [134], the modulation sidebands at radio frequency Ω_RF appear to be optimally transferred from the pumping port to the readout one. Therefore, the local oscillator at the readout port comprises two modulation sidebands, L_het(t) = L₊(t) + L₋(t), at frequencies ω₀ + Ω_RF and ω₀ − Ω_RF, respectively. These two are detected together with the signal sidebands at the photodetector, and then the resulting photocurrent is demodulated with the RF-frequency reference signal yielding an output current proportional to GW-signal.

Figure 12.

Schematic view of heterodyne readout principle implemented by a simple Michelson interferometer. Green lines represent modulation sidebands at radio frequency Ω_RF and blue dotted lines feature signal sidebands

This method was proposed and studied in great detail in the following works [65, 134, 60, 75, 74, 104, 116] where the heterodyne technique for GW interferometers tuned in resonance with pumping carrier field was considered and, therefore, the focus was made on the detection of only phase quadrature of the outgoing GW signal light. This analysis was further generalized to detuned interferometer configurations in [36, 138] where the full analysis of quantum noise in GW dualrecycled interferometers with heterodyne readout was done.

Let us see in a bit more detail how the heterodyne readout works as exemplified by a simple Michelson interferometer drawn in Figure 12. The equation of motion at the input port of the interferometer creates two phase-modulation sideband fields (L+(t) and L₋(t)) at frequencies ω₀ ± ω_rf:

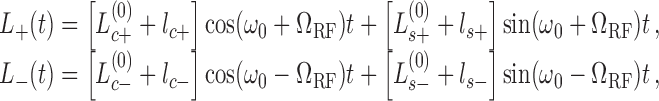

where stand for classical quadrature amplitudes of the modulation (upper and lower) sidebands4 and l_(c,s)±(t) represent laser noise around the corresponding modulation frequency.

Unlike the homodyne readout schemes, in the heterodyne ones, not only the quantum noise components falling into the GW frequency band around the carrier frequency ω₀ has to be accounted for but also those rallying around twice the RF modulation frequencies ω₀ ± 2Ω_RF:

45

46

The analysis of the expression for the heterodyne photocurrent

47

gives a clue to why these additional noise components emerge in the outgoing signal. It is easier to perform this kind of analysis if we represent the above trigonometric expressions in terms of scalar products of the vectors of the corresponding quadrature amplitudes and a special unit-length vector H[ϕ] = {cosϕ, sinϕ}^⊤, e.g.:

where G = {G_c, G_s}^⊤ and . Another useful observation, provided that ω₀ ≫ max[Ω₁, Ω₂], gives us the following relation:

Using this relation it is straightforward to see that the first three terms in Eq. (47) give DC components of the photocurrent, while the fifth term oscillates at double modulation frequency 2Ω_RF. It is only the term that is linear in GW signal and thus contains useful information:

where

and σ_y is the 2nd Pauli matrix:

In order to extract the desired signal quadrature the photodetector readout current i_het is mixed with (multiplied by) a demodulation function D(t) = D₀ cos(Ω_RTF + ϕ_D) with the resulting signal filtered by a low-pass filter with upper cut-off frequency Λ ≪ Ω_RF so that only components oscillating at GW frequencies Ω_GW ≪ Ω_RF appear in the output signal (see Figure 12).

It is instructive to see what the above procedure yields in the simple case of the Michelson interferometer tuned in resonance with RF-sidebands produced by pure phase modulation: and . The foregoing expressions simplify significantly to the following:

Apparently, in this simple case of equal sideband amplitudes (balanced heterodyne detection), only single phase quadrature of the GW signal can be extracted from the output photocurrent, which is fine, because the Michelson interferometer, being equivalent to a simple movable mirror with respect to a GW tidal force as shown in Section 2.1.1 and 2.1.2, is sensitive to a GW signal only in phase quadrature. Another important feature of heterodyne detection conspicuous in the above equations is the presence of additional noise from the frequency bands that are twice the RF-modulation frequency away from the carrier. As shown in [36] this noise contributes to the total quantum shot noise of the interferometer and makes the high frequency sensitivity of the GW detectors with heterodyne readout 1.5 times worse compared to the ones with homodyne or DC readout.

For more realistic and thus more sophisticated optical configurations, including Fabry-Pérot cavities in the arms and additional recycling mirrors in the pumping and readout ports, the analysis of the interferometer sensitivity becomes rather complicated. Nevertheless, it is worthwhile to note that with proper optimization of the modulation sidebands and demodulation function shapes the same sensitivity as for frequency-independent homodyne readout schemes can be obtained [36]. However, inherent additional frequency-independent quantum shot noise brought by the heterodyning process into the detection band hampers the simultaneous use of advanced quantum non-demolition (QND) techniques and heterodyne readout schemes significantly.

Quantum Nature of Light and Quantum Noise

Now is the time to remind ourselves of the word ‘quantum’ in the title of our review. Thus far, the quantum nature of laser light being used in the GW interferometers has not been accounted for in any way. Nevertheless, quantum mechanics predicts striking differences for the variances of laser light amplitude and phase fluctuations, depending on which quantum state it is in. Squeezed vacuum [163, 99, 136, 38, 90] injection that has been recently implemented in the GEO 600 detector and has pushed the high-frequency part of the total noise down by 3.5 dB [151, 1] serves as a perfect example of this. In this section, we provide a brief introduction into the quantization of light and the typical quantum states thereof that are common for the GW interferometers.

Quantization of light: Two-photon formalism

From the point of view of quantum field theory, a freely propagating electromagnetic wave can be characterized in each spatial point with location vector r = (x, y, z) at time t by a Heisenberg operator of an electric field strength Ê(r, t).5 The electric field Heisenberg operator of a light wave traveling along the positive direction of the z-axis can be written as a sum of a positive- and negative-frequency parts:

48

where u(x, y, z) is the spatial mode shape, slowly changing on a wavelength λ scale, and

49

Here, is the effective cross-section area of the light beam, and is the single photon annihilation (creation) operator in the mode of the field with frequency ω. The meaning of Eq. (49) is that the travelling light wave can be represented by an expansion over the continuum of harmonic oscillators — modes of the electromagnetic field, — that are, essentially, independent degrees of freedom. The latter implies the commutation relations for the operators â_ω and :

50

In GW detectors, one deals normally with a close to monochromatic laser light with carrier frequency ω₀, and a pair of modulation sidebands created by a GW signal around its frequency in the course of parametric modulation of the interferometer arm lengths. The light field coming out of the interferometer cannot be considered as the continuum of independent modes anymore. The very fact that sidebands appear in pairs implies the two-photon nature of the processes taking place in the GW interferometers, which means the modes of light at frequencies ω_1,2 = ω₀ ± Ω have correlated complex amplitudes and thus the new two-photon operators and related formalism is necessary to describe quantum light field transformations in GW interferometers. This was realized in the early 1980s by Caves and Schumaker who developed the two-photon formalism [39, 40], which is widely used in GW detectors as well as in quantum optics and optomechanics.

One starts by defining modulation sideband amplitudes as

and factoring out the oscillation at carrier frequency ω₀ in Eqs. (48), which yields:

51

where we denote and define functions λ±(Ω) following [39] as

and use the fact that ω₀ ≫ Ω_GW enables us to expand the limits of integrals to ω₀ → ∞. The operator expressions in front of in the foregoing Eqs. (51) are quantum analogues to the complex amplitude ℰ and its complex conjugate ℰ* defined in Eqs. (14):

Again using Eqs. (14), we can define two-photon quadrature amplitudes as:

52

Note that so-introduced operators of two-photon quadrature amplitudes â_c,s(t) are Hermitian and thus their frequency domain counterparts satisfy the relations for the spectra of Hermitian operator:

Now we are able to write down commutation relations for the quadrature operators, which can be derived from Eq. (50):

53

54

The commutation relations represented by Eqs. (53) indicate that quadrature amplitudes do not commute at different times, i.e., [â_c(t), â_c(t′)] = [â_s(t), â_s(t′)] ≠ 0, which imply they could not be considered for proper output observables of the detector, for a nonzero commutator, as we would see later, means an additional quantum noise inevitably contributes to the final measurement result. The detailed explanation of why it is so can be found in many works devoted to continuous linear quantum measurement theory, in particular, in Chapter 6 of [22], Appendix 2.7 of [43] or in [19]. Where GW detection is concerned, all the authors are agreed on the point that the values of GW frequencies Ω (1 Hz ≼/2π ≼ 10³ Hz), being much smaller than optical frequencies ω₀/2π ∼ 10¹⁵ Hz, allow one to neglect such weak commutators as those of Eqs. (53) in all calculations related to GW detectors output quantum noise. This statement has gotten an additional ground in the calculation conducted in Appendix 2.7 of [43] where the value of the additional quantum noise arising due to the nonzero value of commutators (53) has been derived and its extreme minuteness compared to other quantum noise sources has been proven. Braginsky et al. argued in [19] that the two-photon quadrature amplitudes defined by Eqs. (52) are not the real measured observables at the output of the interferometer, since the photodetectors actually measure not the energy flux

55

but rather the photon number flux:

56

The former does not commute with itself: , while the latter apparently does and therefore is the right observable for a self-consistent quantum description of the GW interferometer output signal.

In the course of our review, we shall adhere to the approximate quadrature amplitude operators that can be obtained from the exact ones given by Eqs. (52) by setting λ±(Ω) → 1, i.e.,

57

The new approximate two-photon quadrature operators satisfy the following commutation relations in the frequency domain:

58

and in the time domain:

59

Then the electric field strength operator (48) can be rewritten in terms of the two-photon quadrature operators as:

60

Hereafter, we will omit the spatial mode factor u(x, y, z) since it does not influence the final result for quantum noise spectral densities. Moreover, in order to comply with the already introduced division of the optical field into classical carrier field and to the 1st order corrections to it comprising of laser noise and signal induced sidebands, we adopt the same division for the quantum fields, i.e., we detach the mean values of the corresponding quadrature operators via the following redefinition with . Here, by we denote an ensemble average over the quantum state |ψ〉 of the light wave: (Â) ≡ 〈ψ|Â|ψ〉. Thus, the electric field strength operator for a plain electromagnetic wave will have the following form:

61

Further, we combine the two-photon quadratures into vectors in the same manner as we used to do for classical fields:

Now, when we have defined a quantum Heisenberg operator of the electric field of a light wave, and introduced quantum operators of two-photon quadratures, the last obstacle on our way towards the description of quantum noise in GW interferometers is that we do not know the quantum state the light field finds itself in. Since it is the quantum state that defines the magnitude and mutual correlations of the amplitude and phase fluctuations of the outgoing light, and through it the total level of quantum noise setting the limit on the future GW detectors’ sensitivity. In what follows, we shall consider vacuum and coherent states of the light, and also squeezed states, for they comprise the vast majority of possible states one could encounter in GW interferometers.

Quantum states of light

Vacuum state

The quantum state of the travelling wave is a subtle structure, for the system it describes comprises a continuum of modes. However, each of these modes can be viewed at as a quantum oscillator with its own generalized coordinate and momentum . The ground state of this system, known as a vacuum state |vac〉, is straightforward and is simply the direct product of the ground states |0〉_ω of all modes over all frequencies ω:

62

By definition, the ground state of a mode with frequency ω is the state with minimum energy E_vac = ℏω/2 and no excitation:

63

Consider now statistical properties of the vacuum state. The mean values of annihilation and creation operators as well as any linear combination thereof that includes quadrature amplitudes, are zero:

Apparently, this also holds for time domain operators:

That the ground state of the oscillator is Gaussian is evident from its q-representation [136], namely

It means that knowing the second moments of quadrature amplitudes suffices for full characterization of the state |vac〉. For this purpose, let us introduce a quadrature amplitudes matrix of spectral densities6 according to the rule:

64

where S_ij(Ω) (i,j = c, s) denote (cross) power spectral densities of the corresponding quadrature amplitudes 〈â_i(Ω) ◦ â_j(Ω′)〉 standing for the symmetrized product of the corresponding quadrature operators, i.e.:

For a vacuum state, this matrix of spectral densities can easily be obtained from the commutation relations (58) and equals to:

65

which implies that the (double-sided) power spectral densities of the quadrature amplitudes as well as their cross-spectral density are equal to:

In time domain, the corresponding matrix of second moments, known as a covariance matrix with elements defined as , is absolutely the same as :

66

It is instructive to discuss the meaning of these matrices, and , and of the values they comprise. To do so, let us think of the light wave as a sequence of very short square-wave light pulses with infmitesimally small duration ε → 0. The delta function of time in Eq. (66) tells us that the noise levels at different times, i.e., the amplitudes of the different square waves, are statistically independent. To put it another way, this noise is Markovian. It is also evident from Eq. (65) that quadrature amplitudes’ fluctuations are stationary, and it is this stationarity, as noted in [39] that makes quadrature amplitudes such a convenient language for describing the quantum noise of light in parametric systems exemplified by GW interferometers.

It is instructive to pay some attention to a pictorial representation of the quantum noise described by the covariance and spectral density matrices and . With this end in view let us introduce quadrature operators for each short light pulse as follows:

67

These operators and are nothing else than dimensionless displacement and momentum of the corresponding mode (called quadratures in quantum optics), normalized by zero point fluctuation amplitudes X₀ and and . This fact is also justified by the value of their commutator:

There is no difficulty in showing that diagonal elements of the covariance matrix are equal to the variances of the corresponding mode displacement and momentum :

while non-diagonal terms represent correlations between these operators (zero in our case): . At the same time, we see that there is no correlation between the pulses, justifying the Markovianity of the quantum noise of light in vacuum state:

An attempt to measure the light field amplitude as a function of time will give the result depicted in Figure 13.

Figure 13.

Light field in a vacuum quantum state |vac〉. Left panel (a) features a typical result one could get measuring the (normalized) electric field strength of the light wave in a vacuum state as a function of time. Right panel (b) represents a phase space picture of the results of measurement. A red dashed circle displays the error ellipse for the state |vac〉 that encircles the area of single standard deviation for a two-dimensional random vector â of measured light quadrature amplitudes. The principal radii of the error ellipse (equal in vacuum state case) are equal to square roots of the covariance matrix eigenvalues, i.e., to .

The measurement outcome at each instance of time will be a random variable with zero mean and variance defined by a covariance matrix of Eq. (66):

In quantum mechanics, it is convenient to describe a quantum state in terms of a Wigner function, a quantum version of joint (quasi) probability distribution for particle displacement and momentum (X_ε and Y_ε in our case):

68

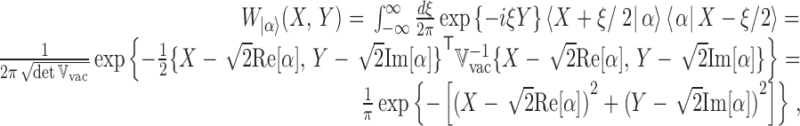

where ξ is simply the variable of integration. The above Wigner function describes a Gaussian state, which is simply the ground state of a harmonic oscillator represented by a mode with displacement X_ε and momentum Y_ε. The corresponding plot is given in the left panel of Figure 14. Gaussian states are traditionally pictured by error ellipses on a phase plane, as drawn in the right panel of Figure 14 (cf. right panel of Figure 13). Here as well as in Figure 13, a red line in both plots circumscribes all the values of X_ε and Y_ε that fall inside the standard deviation region of the Wigner function, i.e., the region where all pertinent points are within 1 standard deviation from the center of the distribution. For a vacuum state, such a region is a circle with radius . The area of this circle, equal to 1/2 in dimensionless units and to ℏ/2 in case of dimensional displacement and momentum, is the smallest area a physical quantum state can occupy in a phase space. This fact yields from a very general physical principle, the Heisenberg uncertainty relation, that limits the minimal uncertainty product for canonically conjugate observables (displacement X_ε and momentum Y_ε, in our case) to be less than 1/2 in ℏ-units:

The fact that for a ground state this area is exactly equal to 1/2 is due to the fact that it is a pure quantum state, i.e., the state of the particle that can be described by a wave function |ψ〉, rather than by a density operator . For more sophisticated Gaussian states with a non-diagonal covariance matrix , the Heisenberg uncertainty relation reads:

69

and noise ellipse major semi-axes are given by the square root of the matrix eigenvalues.

Figure 14.

Wigner function W|_vac〉 (X_ε, Y_ε) of a ground state of harmonic oscillator (left panel) and its representation in terms of the noise ellipse (right panel).

Note the difference between Figures 13 and 14; the former features the result of measurement of an ensemble of oscillators (subsequent light pulses with infmitesimally short duration ε), while the latter gives the probability density function for a single oscillator displacement and momentum.

Coherent state

Another important state of light is a coherent state (see, e.g., [163, 136, 99, 132]). It is straightforward to introduce a coherent state |α〉 of a single mode or a harmonic oscillator as a result of its ground state |0〉 shift on a complex plane by the distance and in the direction governed by a complex number α = |α|e^{i arg(α)}. This can be caused, e.g., by the action of a classical effective force on the oscillator. Such a shift can be described by a unitary operator called a displacement operator, since its action on a ground state |0〉 inflicts its shift in a phase plane yielding a state that is called a coherent state:

or, more vividly, in q-representation of a corresponding mode of the field [132]

The shift described by is even more apparent if one writes down its action on an annihilation (creation) operator:

Moreover, a coherent state is an eigenstate of the annihilation operator:

Using the definitions of the mode quadrature operators and (dimensionless oscillator displacement and momentum normalized by zero-point oscillations amplitude) given above, one immediately obtains for their mean values in a coherent state:

Further calculation shows that quadratures variances:

have the same values as those for a ground state. These two facts unequivocally testify in favour of the statement that a coherent state is just the ground state shifted from the origin of the phase plane to the point with coordinates . It is instructive to calculate a Wigner function for the coherent state using a definition of Eq. (68):

which once again demonstrates the correctness of the former statement.

Generalization to the case of continuum of modes comprising a light wave is straightforward [14] and goes along the same lines as the definition of the field vacuum state, namely (see Eq. (62)):

70

where |α〉_ω is the coherent state that the mode of the field with frequency ω is in, and α(ω) is the distribution of complex amplitudes α over frequencies ω. Basically, α(ω) is the spectrum of normalized complex amplitudes of the field, i.e., α(ω) ∝ ℰ (ω). For example, the state of a free light wave emitted by a perfectly monochromatic laser with emission frequency ω_p and mean optical power will be defined by , which implies that only the mode at frequency ω_p will be in a coherent state, while all other modes of the field will be in their ground states.

Operator is unitary, i.e., with Î the identity operator, while the physical meaning is in the translation and rotation of the Hilbert space that keeps all the physical processes unchanged. Therefore, one can simply use vacuum states instead of coherent states and subtract the mean values from the corresponding operators in the same way we have done previously for the light wave classical amplitudes, just below Eq. (60). The covariance matrix and the matrix of power spectral densities for the quantum noise of light in a coherent state is thus the same as that of a vacuum state case.

The typical result one can get measuring the electric field strength of light emitted by the aforementioned ideal laser is drawn in the left panel of Figure 15.

Figure 15.

Light field in a coherent quantum state |α(ω)〉. Left panel a) features a typical result one could get measuring the (normalized) electric field strength of the light wave in a coherent state as a function of time. Right panel b) represents a phase space picture of the results of measurement. The red dashed line in the left panel marks the mean value 〈Ê(t)〉. The red arrow in the right panel features the vector of the mean values of quadrature amplitudes, i.e., A, while the red dashed circle displays the error ellipse for the state |α(ω)〉 that encircles the area of single standard deviation for a two-dimensional random vector â of quadrature amplitudes. The principle radii of the error ellipse (equal in the coherent state case) are equal to square roots of the covariance matrix , i.e., to .

Squeezed state

One more quantum state of light that is worth consideration is a squeezed state. To put it in simple words, it is a state where one of the oscillator quadratures variance appears decreased by some factor compared to that in a vacuum or coherent state, while the conjugate quadrature variance finds itself swollen by the same factor, so that their product still remains Heisenberg-limited. Squeezed states of light are usually obtained as a result of a parametric down conversion (PDC) process [92, 172] in optically nonlinear crystals. This is the most robust and experimentally elaborated way of generating squeezed states of light for various applications, e.g., for GW detectors [149, 152, 141], or for quantum communications and computation purposes [31]. However, there is another way to generate squeezed light by means of a ponderomotive nonlinearity inherent in such optomechanical devices as GW detectors. This method, first proposed by Corbitt et al. [47], utilizes the parametric coupling between the resonance frequencies of the optical modes in the Fabry-Pérot cavity and the mechanical motion of its mirrors arising from the quantum radiation pressure fluctuations inflicting random mechanical motion on the cavity mirrors. Further, we will see that the light leaving the signal port of a GW interferometer finds itself in a ponderomotively squeezed state (see, e.g., [90] for details). A dedicated reader might find it illuminating to read the following review articles on this topic [133, 101].

Worth noting is the fact that generation of squeezed states of light is the process that inherently invokes two modes of the field and thus naturally calls for usage of the two-photon formalism contrived by Caves and Schumaker [39, 40]. To demonstrate this let us consider the physics of a squeezed state generation in a nonlinear crystal. Here photons of a pump light with frequency ω_p = 2ω₀ give birth to pairs of correlated photons with frequencies ω₁ and ω₂ (traditionally called signal and idler) by means of the nonlinear dependence of polarization in a birefringent crystal on electric field. Such a process can be described by the following Hamiltonian, provided that the pump field is in a coherent state |a〉_ωp with strong classical amplitude |α_p| ≫ 1 (see, e.g., Section 5.2 of [163] for details):

71

where â_1,2 describe annihilation operators for the photons of the signal and idler modes and χ = ρe^2iϕ is the complex coupling constant that is proportional to the second-order susceptibility of the crystal and to the pump complex amplitude. Worth noting is the meaning of t in this Hamiltonian: it is a parameter that describes the duration of a pump light interaction with the nonlinear crystal, which, in the simplest situation, is either the length of the crystal divided by the speed of light c, or, if the crystal is placed between the mirrors of the optical cavity, the same as the above but multiplied by an average number of bounces of the photon inside this cavity, which is, in turn, proportional to the cavity finesse . It is straightforward to obtain the evolution of the two modes in the interaction picture (leaving apart the obvious free evolution time dependence ) solving the Heisenberg equations:

72

Let us then assume the signal and idler mode frequencies symmetric with respect to the half of pump frequency ω₀ = ω_p/2: ω₁ → ω₊ = ω₀ + Ω and ω₂ → ω₋ = ω₀ − Ω (â₁ → â₊ and â₂ → â₋). Then the electric field of a two-mode state going out of the nonlinear crystal will be written as (we did not include the pump field here assuming it can be ruled out by an appropriate filter):

where two-mode quadrature amplitudes and are defined along the lines of Eqs. (57), keeping in mind that only idler and signal components at the frequencies ω_± − ω₀ = ±Ω should be kept in the integral, which yields:

where and are the spectral quadrature amplitudes of the two-mode field at sideband frequency Ω (cf. Eqs. (52)) after it leaves the nonlinear crystal. Substituting Eqs. (72) into the above expressions yields transformation rules for quadrature amplitudes:

73

where and stand for initial values of spectral quadrature amplitudes of the two-mode light wave created in the PDC process. A close look at these transformations written in the matrix form reveals that it can be represented as the following sequence:

74

where

75

are squeezing matrices in general and in special ϕ = 0) case, while ℙ[ϕ] stands for a counterclockwise 2D-rotation matrix by angle ϕ defined by (17). Therefore, the evolution of a two-mode light quadrature amplitude vector â in a PDC process described by the Hamiltonian (71) consists of a clockwise rotation by an angle ϕ followed by a deformation along the main axes (stretching along the a_c-axis and proportional squeezing along the a_s-axis) and rotation back by the same angle. It is straightforward to show that vector transforms similarly .

This geometric representation is rather useful, particularly for the characterization of a squeezed state. If the initial state of the two-mode field is a vacuum state then the outgoing field will be in a squeezed vacuum state. One can define it as a result of action of a special squeezing operator Ŝ[ρ, t, ϕ] on the vacuum state

76

This operator is no more and no less than the evolution operator for the PDC process in the interaction picture, i.e.,

77

Action of this operator on the two-photon quadrature amplitudes is fully described by Eqs. (76):

while annihilation operators of the corresponding modes â± are transformed in accordance with Eqs. (72).

The linearity of the squeezing transformations implies that the squeezed vacuum state is Gaussian since it is obtained from the Gaussian vacuum state and therefore can be fully characterized by the expectation values of operators and and their covariance matrix . Let us calculate these values:

and for a covariance matrix one can get the following expression:

78

where we introduced squeezing parameter r ≡ ρt and used a short notation for the symmetrized outer product of vector with itself:

The squeezing parameter r is the quantity reflecting the strength of the squeezing. This way of characterizing the squeezing strength, though convenient enough for calculations, is not very ostensive. Conventionally, squeezing strength is measured in decibels (dB) that are related to the squeezing parameter r through the following simple formula:

79

For example, 10 dB squeezing corresponds to r≃ 1.15.

The covariance matrix (78) refers to a unique error ellipse on a phase plane with semi-major axis and semi-minor axis rotated by angle ϕ clockwise as featured in Figure 16.

Figure 16.

Schematic plot of a vacuum state transformation under the action of the squeezing operator Ŝ[r, ϕ]. Eqs. (74) demonstrate the equivalence of the general squeezing operator Ŝ[r, ϕ] to a sequence of phase plane counterclockwise rotation by an angle ϕ (transition from a) to b)), phase plane squeezing and stretching by a factor e^r (transition from b) to c)) and rotation back by the same angle ϕ (transition from c) to d)). Point P′ tracks how transformations change the initial state marked with point P.

It would be a wise guess to make, that a squeezed vacuum Wigner function can be obtained from that of a vacuum state, using these simple geometric considerations. Indeed, for a squeezed vacuum state it reads:

80

where the error ellipse refers to the level where the Wigner function value falls to of the maximum. The corresponding plot and phase plane picture of the squeezed vacuum Wigner function are featured in Figure 17.

Figure 17.

Left panel: Wigner function of a squeezed vacuum state with squeeze parameter r = 0.5 (5 dB) and rotation angle ϕ = −π/4. Right panel: Error ellipse corresponding to that Wigner function.

Another important state that arises in GW detectors is the displaced squeezed state |sqz_α(r, ϕ)⟩ that is obtained from the squeezed vacuum state in the same manner as the coherent state yields from the vacuum state, i.e., by the application of the displacement operator (equivalent to the action of a classical force):

81

The light leaving a GW interferometer from the signal port finds itself in such a state, if a classical GW-like force changes the difference of the arm lengths, thus displacing a ponderomotively squeezed vacuum state in phase quadrature Y by an amount proportional to the magnitude of the signal force. Such a displacement has no other consequence than simply to shift the mean values of and by some constant values dependent on shift complex amplitude α:

Let us now generalize the results of a two-mode consideration to a continuous spectrum case. Apparently, quadrature operators and are similar to â_c(t) and â_s(t) for the traveling wave case. Utilizing this similarity, let us define a squeezing operator for the continuum of modes as:

82

where r(Ω) and ϕ(Ω) are frequency-dependent squeezing factor and angle, respectively. Acting with this operator on a vacuum state of the travelling wave yields a squeezed vacuum state of a continuum of modes in the very same manner as in Eq. (76). The result one could get in the measurement of the electric field amplitude of light in a squeezed state as a function of time is presented in Figure 18. Quadrature amplitudes for each frequency Ω transform in accordance with Eqs. (73). Thus, we are free to use these formulas for calculation of the power spectral density matrix for a traveling wave squeezed vacuum state. Indeed, substituting in Eq. (64) and using Eq. (74) one immediately gets:

83

Note that entries of might be frequency dependent if squeezing parameter r(Ω) and squeezing angle (Ω) are frequency dependent as is the case in all physical situations. This indicates that quantum noise in a squeezed state of light is not Markovian and this can easily be shown by calculating the the covariance matrix, which is simply a Fourier transform of according to the Wiener-Khinchin theorem:

84

Of course, the exact shape of could be obtained only if we specify r(Ω) and ϕ(Ω). Note that the noise described by is stationary since all the entries of the covariance matrix (correlation functions) depend on the difference of times t − t′.

Figure 18.

Light field in a squeezed state |sqz_α(r, ϕ)〉. Upper row features time dependence of the electric field strength E(t) in three different squeezed states (10 dB squeezing assumed for all): a) squeezed vacuum state with squeezing angle ϕ = π/4; b) displaced squeezed state with classical amplitude A_c = 5 (mean field strength oscillations 〈Ê(t)〉_sqz are given by red dashed line) and amplitude squeezing (ϕ = π/2); c) displaced squeezed state with classical amplitude A_c = 5 and phase squeezing (ϕ = 0). Lower row features error ellipses (red dashed lines) for the corresponding plots in the upper row.

The spectral density matrix allows for pictorial representation of a multimode squeezed state where an error ellipse is assigned to each sideband frequency Ω. This effectively adds one more dimension to a phase plane picture already used by us for the characterization of a two-mode squeezed states. Figure 19 exemplifies the state of a ponderomotively squeezed light that would leave the speed-meter type of the interferometer (see Section 6.2).

Figure 19.

Example of a squeezed state of the continuum of modes: output state of a speed-meter interferometer. Left panel shows the plots of squeezing parameter r_dB(Ω) and squeezing angle ϕ(Ω) versus normalized sideband frequency Ω/γ (here γ is the interferometer half-bandwidth). Right panel features a family of error ellipses for different sideband frequencies Ω that illustrates the squeezed state defined by r_dB(Ω) and ϕ(Ω) drawn in the left panel.

How to calculate spectral densities of quantum noise in linear optical measurement?

In this section, we give a brief introduction to calculation of the power spectral densities of quantum noise one usually encounters in linear optical measurement. In optomechanical sensors, as we have discussed earlier, the outgoing light carries the information about the measured quantity (e.g., the displacement due to GW tidal forces) in its phase and (sometimes) amplitude quadratures. The general transformation from the input light characterized by a vector of quadrature amplitudes â(Ω) = {â_c(Ω), â_s(Ω)}^⊤ Tto the readout quantity of a meter is linear and can be written in spectral form as:

85

where G(Ω) is the spectrum of the measured quantity, are some complex-valued functions of Ω that characterize how the light is transformed by the device. Quantum noise is represented by the terms of the above expression not dependent on the measured quantity G, i.e.,

86

The measure of quantum noise is the power spectral density S_Y (Ω) that is defined by the following expression:

87

Here |ψ〉 is the quantum state of the light wave.

In our review, we will encounter two types of quantum states that we have described above, i.e., vacuum |vac〉 and squeezed vacuum |sqz₀(r, ϕ)〉 states. Let us show how to calculate the power (double-sided) spectral density of a generic quantity in a vacuum state. To do so, one should substitute Eq. (86) into Eq. (87) and obtain that:

88

where we used the definition of the power spectral density matrix of light in a vacuum state (65)7. Similarly, one can calculate the spectral density of quantum noise if the light is in a squeezed state |sqz₀(r, ϕ)}, utilizing the definition of the squeezed state density matrix given in Eq. (83):

89

It might also be necessary to calculate also cross-correlation spectral density S_YZ(Ω) of with some other quantity with quantum noise defined as:

Using the definition of cross-spectral density S_YZ(Ω) similar to (87):

90

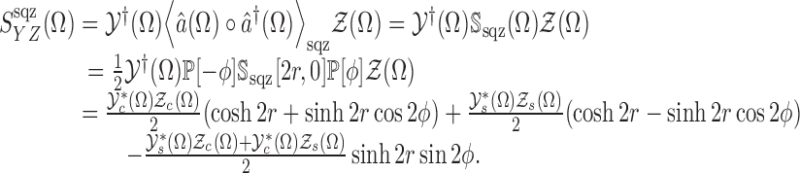

one can get the following expressions for spectral densities in both cases of the vacuum state:

91

and the squeezed state:

92

Note that since the observables and that one calculates spectral densities for are Hermitian, it is compulsory, as is well known, for any operator to represent a physical quantity, then the following relation holds for their spectral coefficients and :

93

This leads to an interesting observation that the coefficients and should be real-valued functions of variable s = iΩ.

Now we can make further generalizations and consider multiple light and vacuum fields comprising the quantity of interest:

94

where â_i(Ω) stand for quadrature amplitude vectors of N independent electromagnetic fields, and are the corresponding complex-valued coefficient functions indicating how these fields are transmitted to the output. In reality, the readout observable of a GW detector is always a combination of the input light field and vacuum fields that mix into the output optical train as a result of optical loss of various origin. This statement can be exemplified by a single lossy mirror I/O-relations given by Eq. (34) of Section 2.2.4.

Thus, to calculate the spectral density for such an observable, one needs to know the initial state of all light fields under consideration. Since we assume â_i(Ω) independent from each other, the initial state will simply be a direct product of the initial states for each of the fields:

and the formula for the corresponding power (double-sided) spectral density reads:

95

with standing for the i-th input field spectral density matrix. Hence, the total spectral density is just a sum of spectral densities of each of the fields. The cross-spectral density for two observables and can be built by analogy and we leave this task to the reader.

Linear Quantum Measurement

In Section 3, we discussed the quantum nature of light and fluctuations of the light field observables like phase and amplitude that stem thereof and yield what is usually called the quantum noise of optical measurement. In GW detection applications, where a sensitivity of the phase measurement is essential, as discussed in Section 2.1.3, the natural question arises: is there a limit to the measurement precision imposed by quantum mechanics? A seemingly simple answer would be that such a limit is set by the quantum fluctuations of the outgoing light phase quadrature, which are, in turn, governed by the quantum state the outgoing light finds itself in. The difficult part is that on its way through the interferometer, the light wave inflicts an additional back-action noise that adds up to the phase fluctuations of the incident wave and contaminates the output of the interferometer. The origin of this back action is in amplitude fluctuations of the incident light, giving rise to a random radiation pressure force that acts on the interferometer mirrors along with the signal GW force, thus effectively mimicking it. And it is the fundamental principle of quantum mechanics, the Heisenberg uncertainty principle, that sets a limit on the product of the phase and amplitude uncertainties (since these are complementary observables), thus leading up to the lower bound of the achievable precision of phase measurement. This limit appears to be a general feature for a very broad class of measurement known as linear measurement and is referred to as the SQL [16, 22].

In this section, we try to give a brief introduction to quantum measurement theory, starting from rather basic examples with discrete measurement and then passing to a general theory of continuous linear measurement. We introduce the concept of the SQL and derive it for special cases of probe bodies. We also discuss briefly possible ways to overcome this limit by contriving smarter ways of weak force measurement then direct coordinate monitoring.

Quantum measurement of a classical force

Discrete position measurement

Let us consider a very simple measurement scheme, which, nevertheless, embodies all key features of a general position measurement. In the scheme shown in Figure 20, a sequence of very short light pulses are used to monitor the displacement of a probe body M. The position x of M is probed periodically with time interval ϑ. In order to make our model more realistic, we suppose that each pulse reflects from the test mass F > 1 times, thus increasing the optomechanical coupling and thereby the information of the measured quantity contained in each reflected pulse. We also assume mass M large enough to neglect the displacement inflicted by the pulses radiation pressure in the course of the measurement process.

Figure 20.

Toy example of a linear optical position measurement.

Then each j-th pulse, when reflected, carries a phase shift proportional to the value of the test-mass position x(t_j) at the moment of reflection:

96

where k_p = ω_p/c, ω_p is the light frequency, j = …, −1, 0, 1,… is the pulse number and is the initial (random) phase of the j-th pulse. We assume that the mean value of all these phases is equal to zero, , and their root mean square (RMS) uncertainty is equal to Δϕ.

The reflected pulses are detected by a phase-sensitive device (the phase detector). The implementation of an optical phase detector is considered in detail in Section 2.3.1. Here we suppose only that the phase measurement error introduced by the detector is much smaller than the initial uncertainty of the phases Δϕ. In this case, the initial uncertainty will be the only source of the position measurement error:

97

for convenience, we renormalize Eq. (96) as the equivalent test-mass displacement:

98

where

99

are the independent random values with the RMS uncertainties given by Eq. (97).

Upon reflection, each light pulse kicks the test mass, transferring to it a back-action momentum equal to

100

where and are the test-mass momentum values just before and just after the light pulse reflection, and is the energy of the j-th pulse. The major part of this perturbation is contributed by classical radiation pressure:

101

with the mean energy of the pulses. Therefore, one could neglect its effect, for it could be either subtracted from the measurement result or compensated by an actuator. The random part, which cannot be compensated, is proportional to the deviation of the pulse energy:

102

and its RMS uncertainly is equal to

103

with the RMS uncertainty of the pulse energy.

The energy and the phase of each pulse are canonically conjugate observables and thus obey the following uncertainty relation:

104

Therefore, it follows from Eqs. (97 and 103) that the position measurement error Δx_meas and the momentum perturbation Δp_b.a. due to back action also satisfy the uncertainty relation:

105

This example represents a simple particular case of a linear measurement. This class of measurement schemes can be fully described by two linear equations of the form (98) and (100), provided that both the measurement uncertainty and the object back-action perturbation and in this case) are statistically independent of the test object initial quantum state and satisfy the same uncertainty relation as the measured observable and its canonically conjugate counterpart (the object position and momentum in this case).

From discrete to continuous measurement

Suppose the test mass to be heavy enough for a single pulse to either perturb its momentum noticeably, or measure its position with the required precision (which is a perfectly realistic assumption for the kilogram-scale test masses of GW interferometers). In this case, many pulses should be used to accumulate the measurement precisions; at the same time, the test-mass momentum perturbation will be accumulated as well. Choose now such a time interval T, which, on the one hand, is long enough to comprise a large number of individual pulses:

106

and, on the other hand, is sufficiently short for the test-mass position x not to change considerably during this time due to the test-mass self-evolution. Then one can use all the N measurement results to refine the precision of the test-mass position x estimate, thus getting times smaller uncertainty

107

At the same time, the accumulated random kicks the object received from each of the pulses random kicks, see Eq. (102), result in random change of the object’s momentum similar to that of Brownian motion, and thus increasing in the same diffusive manner:

108

If we now assume the interval between the measurements to be infinitesimally small (ϑ → 0), keeping at the same time each single measurement strength infinitesimally weak:

then we get a continuous measurement of the test-mass position as a result. We need more adequate parameters to characterize its ‘strength’ than Δx_meas and Δp_b.a.. For continuous measurement we introduce the following parameters instead:

109

with

110

This allows us to rewrite Eqs. (107) and (108) in a form that does not contain the time interval ϑ:

111

To clarify the physical meaning of the quantities S_x and S_ϕ let us rewrite Eq. (98) in the continuous limit:

112

where

113

stands for measurement noise, proportional to the phase of the light beam (in the continuous limit the sequence of individual pulses transforms into a continuous beam). Then there is no difficulty in seeing that S_x is a power (double-sided) spectral density of this noise, and S_ϕ is a power double-sided spectral density of .

If we turn to Eq. (100), which describes the meter back action, and rewrite it in a continuous limit we will get the following differential equation for the object momentum:

114

where is a continuous Markovian random force, defined as a limiting case of the following discrete Markov process:

115

with the optical power, its mean value, and ‘…’ here meaning all forces (if any), acting on the object but having nothing to do with the meter (light, in our case). Double-sided power spectral density of is equal to S_F, and double-sided power spectral density of is .

We have just built a simple model of a continuous linear measurement, which nevertheless comprises the main features of a more general theory, i.e., it contains equations for the calculation of measurement noise (112) and also for back action (114). The precision of this measurement and the object back action in this case are described by the spectral densities S_x and S_F of the two meter noise sources, which are assumed to not be correlated in our simple model, and thus satisfy the following relation (cf. Eqs. (109)):

116

This relation (as well as its more general version to be discussed later) for continuous linear measurements plays the same role as the uncertainty relation (105) for discrete measurements, establishing a universal connection between the accuracy of the monitoring and the perturbation of the monitored object.

Simple case: light in a coherent state. Recall now that scheme of representing the quantized light wave as a sequence of short statistically-independent pulses with duration ε ≡ ϑ we referred to in Section 3.2. It is the very concept we used here, and thus we can use it to calculate the spectral densities of the measurement and back-action noise sources for our simple device featured in Figure 20 assuming the light to be in a coherent state with classical amplitude (we chose A_s =0 thus making the mean phase of light ). To do so we need to express phase and energy in the pulse in terms of the quadrature amplitudes â_c,s(t). This can be done if we refer to Eq. (61) and make use of the following definition of the mean electromagnetic energy of the light wave contained in the volume (here, is the effective cross-sectional area of the light beam):

117

where is the mean pulse energy, and

118

is a fluctuating part of the pulse energy8. We used here the definition of the mean pulse quadrature amplitude operators introduced in Eqs. (67). In the same manner, one can define a phase for each pulse using Eqs. (14) and with the assumption of small phase fluctuations (Δϕ ≪ 1) one can get:

119

Thus, since in a coherent state the phase and energy uncertainties are equal to

120

and hence

121

Substituting these expressions into Eqs. (110, 109), we get the following expressions for the power (double-sided) spectral densities of the measurement and back-action noise sources:

122

and

123

We should emphasize that this simple measurement model and the corresponding uncertainty relation (116) are by no means general. We have made several rather strong assumptions in the course of derivation, i.e., we assumed:

1. energy and phase fluctuations in each of the light pulses uncorrelated: ;

2. all pulses to have the same energy and phase uncertainties and Δ_ϕ, respectively;

3. the pulses statistically independent from each other, particularly taking with t_i ≠ t_j.

These assumptions can be mapped to the following features of the fluctuations and in the continuous case:

1. these noise sources are mutually not correlated;

2. they are stationary (invariant to the time shift) and, therefore, can be described by spectral densities S_x and S_F;

3. they are Markovian (white) with constant (frequency-independent) spectral densities.

The features 1 and 2, in turn, lead to characteristic fundamentally-looking sensitivity limitations, the SQL. We will call linear quantum meters, which obey these limitations (that is, with mutually non-correlated and stationary noises and ), Simple Quantum Meters (SQM).

General linear measurement

In this section, we generalize the concept of linear quantum measurement discussed above and give a comprehensive overview of the formalism introduced in [22] and further elaborated in [33, 43]. This formalism can be applied to any system that performs a transformation from some unknown classical observable (e.g., GW tidal force in GW interferometers) into another classical observable of a measurement device that can be measured with (ideally) arbitrarily high precision (e.g., in GW detectors, the readout photocurrent serves such an observable) and its value depends on the value of unknown observable linearly. For definiteness, let us keep closer to GW detectors and assume the continuous measurement of a classical force.

The abstract scheme of such a device is drawn in Figure 21. It consists of a probe that is exposed to the action of a classical force G(t), and the meter. The action of this force on the probe causes its displacement that is monitored by the meter (e.g., light, circulating in the interferometer). The output observable of the meter Ô is monitored by some arbitrary classical device that makes a measurement record o(t). The quantum nature of the probe-meter interaction is reflected by the back-action force that randomly kicks the probe on the part of the meter (e.g., radiation pressure fluctuations). At the same time, the meter itself is the source of additional quantum noise Ô_fl(t) in the readout signal. Quantum mechanically, this system can be described by the following Hamiltonian:

124

where and are the Hamiltonians describing the free evolution of the probe and the meter, respectively, i.e., when there is no coupling between these systems, and is the interaction Hamiltonian. The evolution of this system can be found, in general, by solving Heisenberg equations for all of the system observables. However, it is convenient to rewrite it first in the interaction picture factoring out the free evolution of the probe and the meter (see Appendix 3.7 of [43] for detailed derivation):

125

where , and and are the Heisenberg operators of the probe’s displacement and the meter back-action force, respectively, in the case of no coupling between these systems, i.e., the solution to the following system of independent Heisenberg equations:

and t₀ is the arbitrary initial moment of time that can be set to −∞ without loss of generality.

Figure 21.

General scheme of the continuous linear measurement with G standing for measured classical force, the measurement noise, the back-action noise, Ô the meter readout observable, the actual probe’s displacement.

The following statement can be proven (see [94], Section VI of [22], and Theorems 3 and 4 in Appendix 3.7 of [43] for proof): For a linear system with Hamiltonian (124), for any linear observable  of the probe and for any linear observable of the meter, their full Heisenberg evolutions are given by:

126

where Â⁽⁰⁾(t) and stand for the free Heisenberg evolutions in the case of no coupling, and the functions χ_Ax(t,t′) and χ_BF(t, t′) are called (time-domain) susceptibilities and defined as:

127

The second clauses in these equations maintain the causality principle.

For time independent Hamiltonian and operator (in the Schrödinger picture), the susceptibilities are invariant to time shifts, i.e., χ(t, t′) = χ(t + τ,t′ + τ), therefore they depend only on the difference of times: χ(t, t′) → χ(t − t′). In this case, one can rewrite Eqs. (126) in frequency domain as:

128

where the Fourier transforms of all of the observables are defined in accordance with Eq. (6).

Let us now use these theorems to find the full set of equations of motion for the system of linear observables , and Ô that fully characterize our linear measurement process in the scheme featured in Figure 21:

129

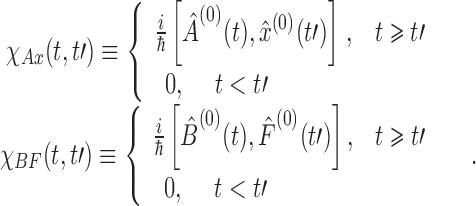

where time-domain susceptibilities are defined as

130

The meaning of the above equations is worth discussing. The first of Eqs. (129) describes how the readout observable Ô(t) of the meter, say the particular quadrature of the outgoing light field measured by the homodyne detector (cf. Eq. (39)), depends on the actual displacement of the probe, and the corresponding susceptibility χ_OF(t − t′) is the transfer function for the meter from to Ô. The term Ô⁽⁰⁾(t) stands for the free evolution of the readout observable, provided that there was no coupling between the probe and the meter. In the case of the GW detector, this is just a pure quantum noise of the outgoing light that would have come out were all of the interferometer test masses fixed. It was shown explicitly in [90] and we will demonstrate below that this noise is fully equivalent to that of the input light except for the insignificant phase shift acquired by the light in the course of propagation through the interferometer.

The following important remark should be made concerning the meter’s output observable Ô(t). As we have mentioned already, the output observable in the linear measurement process should be precisely measurable at any instance of time. This implies a simultaneous measurability condition [30, 41, 147, 22, 43, 33] on the observable Ô(t) requiring that it should commute with itself at any moment of time:

131

Initially, this condition was introduced as the definition of the quantum non-demolition (QND) observables by Braginsky et al. [27, 28]. In our case it means that the measurement of Ô(t₁) at some moment of time t₁ shall not disturb the measurement result at any other moments of time and therefore the sample data {Ô(t₁), Ô(t₁),…, Ô(t_n)} can be stored directly as bits of classical data in a classical storage medium, and any noise from subsequent processing of the signal can be made arbitrarily small. It means that all noise sources of quantum origin are already included in the quantum fluctuations of Ô(t) [43, 33]. And the fact that due to (131) this susceptibility turns out to be zero reflects the fact that Ô(t) should be a classical observable.

The second equation in (129) describes how the back-action force exerted by the meter on the probe system evolves in time and how it depends on the probe’s displacement. The first term, , meaning is rather obvious. In GW interferometer, it is the radiation pressure force that the light exerts on the mirrors while reflecting off them. It depends only on the mean value and quantum fluctuations of the amplitude of the incident light and does not depend on the mirror motion. The second term here stands for a dynamical back-action of the meter and since, by construction, it is the part of the back-action force that depends, in a linear way, from the probe’s displacement, the meaning of the susceptibility χ_FF(t − t′) becomes apparent: it is the generalized rigidity that the meter introduces, effectively modifying the dynamics of the probe. We will see later how this effective rigidity can be used to improve the sensitivity of the GW interferometers without introducing additional noise and thus enhancing the SNR of the GW detection process.

The third equation of (129) concerns the evolution of the probe’s displacement in time. Three distinct parts comprise this evolution. Let us start with the second and the third ones:

132

Here x_s(t) is the probe’s response on the signal force G(t) and is, actually, the part we are mostly interested in. This expression also unravels the role of susceptibility χ_xx(t − t′): it is just the Green’s function of the equation of motion governing the probe’s bare dynamics (also known as impulse response function) that can be shown to be a solution of the following initial value problem:

where is the linear differential operator that is governed by the dynamics of the probe, e.g., it is equal to for a free mass M and to for a harmonic oscillator with eigenfrequency Ω_m. Apparently, operator D is an inverse of the integral operator χ_xx whose kernel is χ_xx(t − t′):

The second value, , is the displacement of the probe due to the back-action force exerted by the meter on the probe. Since it enters the probe’s response in the very same way the signal does, it is the most problematic part of the quantum noise that, as we demonstrate later, imposes the SQL [16, 22].

And finally, simply features a free evolution of the probe in accordance with its equations of motion and thus depends on the initial values of the probe’s displacement , momentum , and, possibly, on higher order time derivatives of taken at t₀, as per the structure of the operator D governing the probe’s dynamics. It is this part of the actual displacement that bears quantum uncertainties imposed by the initial quantum state of the probe. One could argue that these uncertainties might become a source of additional quantum noise obstructing the detection of GWs, augmenting the noise of the meter. This is not the case as was shown explicitly in [19], since our primary interest is in the detection of a classical force rather than the probe’s displacement. Therefore, performing over the measured data record o(t) the linear transformation corresponding to first applying the operator on the readout quantity that results in expressing o(t) in terms of the probe’s displacement:

with standing for the meter’s own quantum noise (measurement uncertainty), and then applying a probe dynamics operator D that yields a force signal equivalent to the readout quantity o(t):

The term D_x⁽⁰⁾(t) vanishes since x⁽⁰⁾(t) is the solution of a free-evolution equation of motion. Thus, we see that the result of measurement contains two noise sources, and , which comprise the sum noise masking the signal force G(t).

Since we can remove initial quantum uncertainties associated with the state of the probe, it would be beneficial to turn to the Fourier domain and rewrite Eqs. (129) in the spectral form:

133

where spectral susceptibilities are defined as:

134

with (A, B) ⇒ (O, F, x), and we omit the term in the last equation for the reasons discussed above. The solution of these equations is straightforward to get and reads:

135

136

137

It is common to normalize the output quantity of the meter Ô(Ω) to unit signal. In GW interferometers, two such normalizations are popular. The first one tends to consider the tidal force G as a signal and thus set to 1 the coefficient in front of G(Ω) in Eq. (135). The other one takes GW spectral amplitude h(Ω) as a signal and sets the corresponding coefficient in Ô(Ω) to unity. Basically, these normalizations are equivalent by virtue of Eq. (12) as:

138

In both cases, the renormalized output quantities can be considered as a sum of the noise and signal constituents:

139

And it is the noise term in both cases that we are seeking to calculate to determine the sensitivity of the GW detector. Let us rewrite Ô(Ω) in force normalization:

140

where we introduce two new linear observables and of the meter defined as:

141

that have the following meaning:

• is the effective output fluctuation of the meter not dependent on the probe. Henceforth, we will refer to it as the effective measurement noise (shot noise, in the GW interferometer common terminology);

• is the effective response of the output at time t to the meter’s back-action force at earlier times t < t′. In the following we will refer to as the effective back-action noise (radiation-pressure noise, in the GW interferometer common terminology).

These two new observables that embody the two types of noise inherent in any linear measurement satisfy the following commutation relations:

142

143

that can be interpreted in the way that and can be seen at each instance of time as the canonical momentum and the coordinate of different effective linear measuring devices (meter+probe), thus defining an infinite set of subsequent measurements similar to the successive independent monitors of von Neumann’s model [157]. In this case, however, the monitors described by and are not, generally speaking, independent. In GW detectors, these monitors appear correlated due to the internal dynamics of the detector, i.e., the noise processes they describe are non-Markovian.

In particular, this can be seen when one calculates the power (double-sided) spectral density of the sum noise :

144

where spectral densities:

145

146

147

are not necessarily constant and, thus, describe non-Markovian random processes. It can also be shown that since and satisfy commutation relations (142), their spectral densities shall satisfy the Schrödinger-Robertson uncertainty relation:

148

that is the generalization of a Heisenberg uncertainty relation in the case of correlated observables.

The general structure of quantum noise in the linear measurement process, comprising two types of noise sources whose spectral densities are bound by the uncertainty relation (148), gives a clue to several rather important corollaries. One of the most important is the emergence of the SQL, which we consider in detail below.

Standard Quantum Limit

Recall the SQM in Section 4.1.2.

The SQM has non-correlated effective measurement and back-action noises that results in . Apparently, under these conditions and turn into and of Eqs. (112) and (114), respectively. Hence, we will use S_x(Ω) instead of S_χχ (Ω) and S_F(Ω) instead of Then the uncertainty relation (148) transforms into:

149

The SQL is the name for an ultimate lower bound of a sum noise spectral density the SQM can, in principle, have at any given frequency Ω. To derive this limit we assume noise sources x_fl and F_b.a. to have minimal values allowed by quantum mechanics, i.e.

150

Then, using this condition, one can minimize SQM’s sum noise:

to yield:

151

that is achieved when contributions of measurement noise and back-action noise to the sum noise are equal to each other, i.e., when

152

It is instructive to cite the forms of the SQL in other normalizations, i.e., for h-normalization and for x-normalization. The former is obtained from (151) via multiplication by 4/(M²L²Ω⁴):

153

The latter is obtained from Eq. (151) using the obvious connection between force and displacement x(Ω) = χ_xx(Ω)F(Ω):

154

These limits look fundamental. There are no parameters of the meter (only ħ as a reminder of the uncertainty relation (116)), and only the probe’s dynamics is in there. Nevertheless, this is not the case and, actually, this limit can be beaten by more sophisticated, but still linear, position meters. At the same time, the SQL represents an important landmark beyond which the ordinary brute-force methods of sensitivity improving cease working, and methods that allow one to blot out the back-action noise from the meter output signal have to be used instead. Due to this reason, the SQL, and especially the SQL for the simplest test object — free mass — is usually considered as a borderline between the classical and the quantum domains.

Free mass SQL

In the rest of this section, we consider in more detail the SQLs for a free mass and for a harmonic oscillator. We also assume the minimal quantum noise requirement (150) to hold.

The free mass is not only the simplest model for the probe’s dynamics, but also the most important class of test objects for GW detection. Test masses of GW detectors must be isolated as much as possible from the noisy environment. To this end, the design of GW interferometers implies suspension of the test masses on thin fibers. The real suspensions are rather sophisticated and comprise several stages slung one over another, with mechanical eigenfrequencies f_m in ≲ 1Hz range. The sufficient degree of isolation is provided at frequencies much higher than f_m, where the dynamics of test masses can be approximated with good precision by that of a free mass.

Let us introduce the following convenient measure of measurement strength (precision) in the first place:

155

Using the uncertainty relation (150), the noise spectral densities S_x and S_F can be expressed through Ω_q as follows:

156

Therefore, the larger Ω_q is, the smaller S_x is (the higher is the measurement precision), and the larger S_F is (the stronger the meter back action is).

In the case of interferometers, is proportional to the circulating optical power. For example, for the toy optical meter considered above,

157

see Eqs. (123). Using this notation, and taking into account that for a free mass M,

158

the sum quantum noise power (double-sided) spectral density can be written as follows:

159

The SQL optimization (152) takes the following simple form in this case:

160

giving:

161

This consideration is illustrated by Figure 22 (left), where power (double-sided) spectral density (159) is plotted for three different values of Ω_q. It is easy to see that these plots never dive under the SQL line (161), which embodies a common envelope for them. Due to this reason, the sensitivities area above this line is typically considered as the ‘classical domain’, and below it — as the ‘quantum domain’.

Figure 22.

Sum quantum noise power (double-sided) spectral densities of the Simple Quantum Meter for different values of measurement strength Ω_q(red) < Ω_q(green) < Ω_q(blue). Thin black line: SQL. Left: free mass. Right: harmonic oscillator

Harmonic oscillator SQL

The simplest way to overcome the limit (161), which does not require any quantum tricks with the meter, is to use a harmonic oscillator as a test object, instead of the free mass. It is easy to see from Eq.(151) that the more responsive the test object is at some given frequency Ω (that is, the bigger χ_xx(Ω)) is, the smaller its force SQL at this frequency is. In the harmonic oscillator case,

162

with Ω₀ standing for the oscillator mechanical eigenfrequency, and the sum quantum noise power (double-sided) spectral density equal to

163

Due to a strong response of the harmonic oscillator near resonance, the first (measurement noise) term in Eq. (159) goes to zero in the vicinity of Ω₀. Therefore, reducing the value of Ω_q, that is, using weaker measurement, it is possible to increase the sensitivity in a narrow band around Ω₀. At the same time, the smaller Ω_q is, the more narrow the bandwidth is where this sensitivity is achieved, as can be seen from the plots drawn in Figure 22 (right).

Consider, in particular, the following minimax optimization of the narrow-band sensitivity. Let ν = Ω − Ω₀ be the detuning from the resonance frequency. Suppose also

164

In this case, the sum noise power (double-sided) spectral density (163) can be approximated as follows:

165

then require the maximum of in a given frequency range ΔΩ be as small as possible.

It is evident that this frequency range has to be centered around the resonance frequency Ω₀, with the maximums at its edges, ν = ±ΔΩ/2. The sum noise power (double-sided) spectral density at these points is equal to

166

The minimum of this expression is provided by

167

Substitution of this value back into Eq. (165) gives the following optimized power (double-sided) spectral density:

168

with

169

Therefore, the harmonic oscillator can provide a narrow-band sensitivity gain, compared to the free mass SQL (161), which reads

170

and can be further written accounting for the above optimization as:

171

Of course, the oscillator SQL, equal to

172

cannot be beaten is this way, and the question of whether the sensitivity (171) is the ‘true’ beating of the SQL or not, is the question to answer (and the subject of many discussions).

Sensitivity in different normalizations. Free mass and harmonic oscillator

Above, we have discussed, in brief, different normalizations of the sum noise spectral density and derived the general expressions for the SQL in these normalizations (cf. Eqs. (153) and (154)). Let us consider how these expressions look for the free mass and harmonic oscillator and how the sensitivity curves transform when changing to different normalizations.

h-normalization: The noise spectral density in h-normalization can be obtained using Eq. (12). Where the SQM is concerned, the sum noise in h-normalization reads

In the case of a free mass with χ_xx(Ω) = −1/(MΩ²) the above expression transforms as:

and that results in the following power (double-sided) spectral density formula:

173

and results in the following formula for free mass SQL in h-normalization:

174

The plots of these spectral densities at different values of Ω_q are given in the left panel of Figure 23.

Figure 23.

Sum quantum noise power (double-sided) spectral densities of the Simple Quantum Meter in the h-normalization for different values of measurement strength: Ω_q (red) < Ω_q (green) lt; Ω_q(blue). Thin black line: SQL. Left: free mass. Right: harmonic oscillator.

As for the harmonic oscillator, similar formulas can be obtained taking into account that . Thus, one has:

that results in the following power (double-sided) spectral density formula:

175

and results in the following formula for free mass SQL in h-normalization:

176

The corresponding plots are drawn in the right panel of Figure 23. Despite a quite different look, in essence, these spectral densities are the same force spectral densities as those drawn in Figure 22, yet tilted rightwards by virtue of factor 1/Ω⁴. In particular, they are characterized by the same minimum at the resonance frequency, created by the strong response of the harmonic oscillator on a near-resonance force, as the corresponding force-normalized spectral densities (163, 172).

x-normalization: Another normalization that is worth considering is the actual probe displacement, or x-normalization. In this normalization, the sum noise spectrum is obtained by multiplying noise term in Eq. (139) by the probe’s susceptibility

177

It looks rather natural at a first glance; however, as we have shown below, it is less heuristic than the force normalization and could even be misleading. Nevertheless, for completeness, we consider this normalization here.

Spectral density of and the corresponding SQL are equal to

178

179

In the free mass case, the formulas are the same as in h-normalization except for the multiplication by 4/L²:

180

with SQL equal to:

181

In the harmonic oscillator case, these equations have the following form:

182

183

The corresponding plot of the harmonic oscillator power (double-sided) spectral density in x-normalization is given in Figure 24.

Figure 24.

Sum quantum noise power (double-sided) spectral densities of Simple Quantum Meter and harmonic oscillator in displacement normalization for different values of measurement strength: Ω_q(red) < Ωq(green) < Ω_q(blue). Thin black line: SQL.

Note that the curves display a sharp upsurge of noise around the resonance frequencies. However, the resonance growth of the displacement due to signal force have a long start over this seeming noise outburst, as we have shown already, leads to the substantial sensitivity gain for a near-resonance force. This sensitivity increase is clearly visible in the force and equivalent displacement normalization, see Figures 22 and 23, but completely masked in Figure 24.

Beating the SQL by means of noise cancellation

The SQL is not a fundamental limitation as we have mentioned already, and the clue to how to overcome it can be devised from the expression for the general linear measurement sum noise spectral density (144). One can see that a properly constructed cross-correlation between the measurement noise and back-action noise , i.e., the right choice of χ_FF(Ω) that should be at any frequency equal to:

184

can compensate the back-action term and leave only the measurement noise-related contribution to the final sum quantum noise:

This spectral density could be arbitrarily small, providing the unbound measurement strength. However, there is a significant obstacle on the way towards back-action free measurement: the optimal correlation should be frequency dependent in the right and rather peculiar way. Another drawback of such back-action evasion via noise cancellation resides in the dissipation that is always present in real measurement setups and, according to Fluctuation-Dissipation Theorem [37, 95] is a source of additional noise that undermines any quantum correlations that might be built in the ideal system.

The simplest way is to make the relation (4.4) hold at some fixed frequency, which can always be done either (i) by preparing the meter in some special initial quantum state that has measurement and back-action fluctuations correlated (Unruh [148, 147] proposed to prepare input light in a squeezed state to achieve such correlations), or (ii) by monitoring a linear combination of the probe’s displacement and momentum [162, 159, 158, 160, 161, 51, 53] that can be accomplished, e.g., via homodyne detection, as we demonstrate below.

We consider the basic principles of the schemes, utilizing the noise cancellation via building cross-correlations between the measurement and back-action noise. We start from the very toy example discussed in Section 4.1.1.

The advanced version of that example is shown in Figure 25. The only difference between this scheme and the initial one (see Figure 20) is that here the detector measures not the phase of light pulses, but linear combination of the phase and energy, parametrized by the homodyne angle ϕ_LO (cf. Eq. (39)):

185

(we subtracted the regular term proportional to the mean energy from the output signal Ö(t_j)).

Figure 25.

Toy example of a linear optical position measurement.

Similar to Eq. (98), renormalize this output signal as the equivalent test object displacement:

186

where the noise term has in this case the following form:

187

RMS uncertainty of this value (the measurement error) is equal to

188

At first glance, it seems like we just obtained the increased measurement error, for the same value of the test object perturbation, which is still described by Eq. (103). However, the additional term in Eq. (185) can be viewed not only as the additional noise, but as the source of information about the test object perturbation. It can be used to subtract, at least in part, the terms induced by this perturbation from the subsequent measurement results. Quantitatively, this information is characterized by the cross-correlation of the measurement error and the back action:

189

It is easy to see that the uncertainties (103, 188, 189) satisfy the following Schrödinger-Robertson uncertainty relation:

190

Now we can perform the transition to the continuous measurement limit as we did in Section 4.1.2:

191

which transform inequality (190) to the Schoödinger-Robertson uncertainty relation for continuous measurements:

192

In the particular case of the light pulses in a coherent quantum state (120), the measurement error (188), the momentum perturbation (103), and the cross-correlation term (189) are equal to:

193

(the momentum perturbation Δp_b.a. evidently remains the same as in the uncorrelated case, and we provided its value here only for convenience), which gives the exact equality in the Schrödinger-Robertson uncertainty relation:

194

Correspondingly, substituting the coherent quantum state power (double-sided) spectral densities (122) into Eqs. (191), we obtain:

195

with

196

[compare with Eqs. (123)].

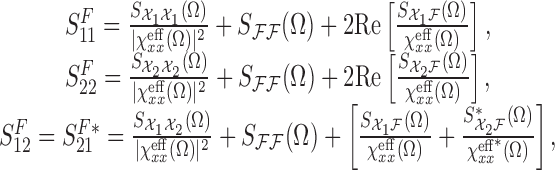

The cross-correlation between the measurement and back-action fluctuations is equivalent to the virtual rigidity as one can conclude looking at Eqs. (141). Indeed,

The sum noise does not change under the above transformation and can be written as:

where the new effective dynamics that correspond to the new noise are governed by the following differential operator

197

The above explains why we refer to K_virt as ‘virtual rigidity’.

To see how virtual rigidity created by cross-correlation of noise sources can help beat the SQL consider a free mass as a probe body in the above considered toy example. The modified dynamics:

198

correspond to a harmonic oscillator with eigenfrequency , and as we have demonstrated in Eq. (171) provide a narrow-band sensitivity gain versus a free mass SQL near the resonance frequency Ω₀.

However, there is a drawback of virtual rigidity compared to the real one: it requires higher measurement strength, and therefore higher power, to reach the same gain in sensitivity as provided by a harmonic oscillator. This becomes evident if one weighs the back-action spectral density S_F, which is a good measure of measurement strength according to Eqs. (156), for the virtual rigidity against the real one. For the latter, to overcome the free mass SQL by a factor

199

(see Eq. (171)) at a given frequency Ω₀, the back-action noise spectral density has to be reduced by this factor:

200

see Eqs. (156, 160, 167). Here, is the back-action noise spectral density, which allows one to reach the free mass SQL (161) at frequency Ω₀. Such a sensitivity gain is achieved at the expense of proportionally reduced bandwidth:

201

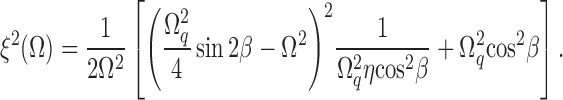

for the virtual rigidity, the optimal value of S_F results from Eq. (167):

202

Hence, the better the sensitivity (the smaller ξ²), the larger S_F must be and, therefore, measurement strength.

Another evident flaw of the virtual rigidity, which it shares with the real one, is the narrow-band character of the sensitivity gain it provides around Ω₀ and that this band shrinks as the sensitivity gain rises (cf. Eq. (199)). In order to provide a broadband enhancement in sensitivity, either the real rigidity , or the virtual one K_virt = S_xF/S_F should depend on frequency in such a way as to be proportional (if only approximately) to Ω² in the frequency band of interest. Of all the proposed solutions providing frequency dependent virtual rigidity, the most well known are the quantum speed meter [21] and the filter cavities [90] schemes. Section 4.5, we consider the basic principles of the former scheme. Then, in Section 6 we provide a detailed treatment of both of them.

Quantum speed meter

The idea of the quantum speed meter

The toy scheme that demonstrates a bare idea of the quantum speed meter is shown in Figure 26. The main difference of this scheme from the position meters considered above (see Figures 20, 25) is that each light pulse reflects from the test mass twice: first from the front and then from the rear face after passing the delay line with delay time τ. An outgoing pulse acquires a phase shift proportional to the difference of the test-object positions at time moments separated by τ, which is proportional to the test-mass average velocity in this time interval (t_j indicates the time moment after the second reflection):

203

where

204

Figure 26.

Toy example of the quantum speed-meter scheme.

We omit here mathematical details of the transition to the continuous measurement limit as they are essentially the same as in the position measurement case, see Section 4.1.2, and start directly with the continuous time equations. The output signal of the homodyne detector in the speed-meter case is described by the following equations:

205

206

In spectral representation these equations yield:

207

where

208

is the equivalent displacement measurement noise.

The back-action force with account for the two subsequent light reflections off the faces of the probe, can be written as:

209

and in spectral form as:

210

Then one can make a reasonable assumption that the time between the two reflections τ is much smaller than the signal force variation characteristic time (∼ Ω⁻¹) that spills over into the following condition:

211

and allows one to expand the exponents in Eqs. (208, 209) into a Taylor series:

212

where

213

214

Spectral densities of theses noises are equal to

215

where

216

Note also that

217

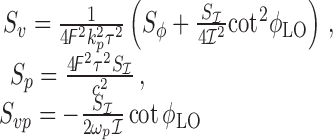

The apparent difference of the spectral densities presented in Eq. (215) from the ones describing the ‘ordinary’ position meter (see Eqs. (191)) is that they now have rather special frequency dependence. It is this frequency dependence that together with the cross-correlation of the measurement and back-action fluctuations, S_xF ≠ 0, allows the reduction of the sum noise spectral density to arbitrarily small values. One can easily see it after the substitution of Eq. (215) into Eq. (144) with a free mass χ_xx(Ω) = −1/(MΩ²) in mind:

218

If there was no correlation between the back-action and measurement fluctuations, i.e., S_vp = 0, then by virtue of the uncertainty relation, the sum sensitivity appeared limited by the SQL (161):

219

One might wonder, what is the reason to implement such a complicated measurement strategy to find ourselves at the same point as in the case of a simple coordinate measurement? However, recall that in the position measurement case, a constant cross-correlation S_xF ∝ cot ϕ_LO allows one to get only a narrow-band sub-SQL sensitivity akin to that of a harmonic oscillator. This effect we called virtual rigidity, and showed that for position measurement this rigidity K_virt = S_xF/S_x is constant. In the speed-meter case, the situation is totally different; it is clearly seen if one calculates virtual rigidity for a speed meter:

220

It turns out to be frequency dependent exactly in the way that is necessary to compensate the free mass dynamical response to the back-action fluctuations. Indeed, in order to minimize the sum noise spectral density (218) conditioned on uncertainty relation (217), one needs to set

221

which allows one to overcome the SQL simply by choosing the right fixed homodyne angle:

222

then the sum noise is equal to

223

and, in principle, can be made arbitrarily small, if a sufficient value of S_p is provided; that is, if the optomechanical coupling is sufficiently strong.

Simple case: light in a coherent state. Let us consider how the spectral density of a speed meter will appear if the light field is in a coherent state. The spectral densities of phase and power fluctuations are given in Eqs. (122), hence the sum noise power (double-sided) spectral density for the speed meter takes the following form:

224

where Ω_q for our scheme is defined in Eq. (157). This formula indicates the ability of a speed meter to have a sub-SQL sensitivity in all frequencies provided high enough optical power and no optical loss.

QND measurement of a free mass velocity

The initial motivation to consider speed measurement rested on the assumption that a velocity of a free mass is directly proportional to its momentum . And the momentum in turn is, as an integral of motion, a QND-observable, i.e., it satisfies the simultaneous measurability condition (131):

But this connection between Ω and Ω holds only if one considers an isolated free mass not coupled to a meter. As the measurement starts, the velocity value gets perturbed by the meter and it is not proportional to the momentum anymore. Let us illustrate this statement by our simple velocity measurement scheme. The distinctive feature of this example is that the meter probes the test position twice, with opposite signs of the coupling factor. Therefore, the Lagrangian of this scheme can be written as:

225

where

226

is the test-mass velocity, stands for the meter’s observable, which provides coupling to the test mass, is the self-Lagrangian of the meter, and β(t) is the coupling factor, which has the form of two short pulses with the opposite signs, separated by the time τ, see Figure 27. We suppose for simplicity that the evolution of the meter observable can be neglected during the measurement (this is a reasonable assumption, for in real schemes of the speed meter and in the gedanken experiment considered above, this observable is proportional to the number of optical quanta, which does not change during the measurement). This assumption allows one to omit the term from consideration.

Figure 27.

Real (β(t)) and effective (α(t)) coupling constants in the speed-meter scheme.

This Lagrangian does not satisfy the most well-known sufficient (but not necessary!) condition of the QND measurement, namely the commutator of the interaction Hamiltonian with the operator of measured observable does not vanish [28]. However, it can be shown that a more general condition is satisfied:

where Û(0, τ) is the evolution operator of probe-meter dynamics from the initial moment t_start = 0 when the measurement starts till the final moment t_end = τ when it ends. Basically, the latter condition guarantees that the value of before the measurement will be equal to that after the measurement, but does not say what it should be in between (see Section 4.4 of [22] for details).

Moreover, using the following nice trick9, the Lagrangian (225) can be converted to the form, satisfying the simple condition of [28]:

227

where

228

see Figure 27. It is known that two Lagrangians are equivalent if they differ only by a full time derivative of and arbitrary function of the generalized coordinates. Lagrangian equations of motion for the coordinates of the system are invariant to such a transformation.

The new Lagrangian has the required form with the interaction term proportional to the test-mass velocity:

229

Note that the antisymmetric shape of the function β(t) guarantees that the coupling factor α(t) becomes equal to zero when the measurement ends. The canonical momentum of the mass M is equal to

230

and the Hamiltonian of the system reads

231

The complete set of observables describing our system includes in addition apart to , , and , the observable canonically conjugated to :

232

(if is proportional to the number of quanta in the light pulse then is proportional to its phase), which represents the output signal Ô of the meter. The Heisenberg equations of motion for these observables are the following:

233

These equations show clearly that (i) a canonical momentum is preserved by this measurement scheme while (ii) the test-mass velocity as well as its kinematic momentum , are perturbed during the measurement (that is, while α ≠ 0), yet restore their initial values after the measurement, and (iii) the output signal of the meter carries the information about this perturbed value of the velocity.

Specify α(t) to be of a simple rectangular shape:

This assumption does not affect our main results, but simplifies the calculation. In this case, the solution of Eqs. (233) reads:

234a

234b

with

235

the test-mass velocity during the measurement [compare with Eqs. (203, 204)].

Therefore, by detecting the variable Φ(τ), the perturbed value of velocity is measured with an imprecision

236

where ΔΦ is the initial uncertainty of Φ. The test-mass position perturbation after this measurement is proportional to the initial uncertainty of :

237

It follows from the last two equations that

238

The sum error of the initial velocity estimate v_init = p/m yielding from this measurement is thus equal to:

239

As we see, it is limited by a value of the velocity measurement SQL:

240

To overcome this SQL one has to use cross-correlation between the measurement error and back-action. Then it becomes possible to measure v_init with arbitrarily high precision. Such a cross-correlation can be achieved by measuring the following combination of the meter observables

241

instead of , which gives a sum measurement uncertainty for the initial velocity , proportional to the initial uncertainty of only:

242

and hence not limited by the SQL.

Quantum Noise in Conventional GW Interferometers

In Section 4, we have talked about the quantum measurement, the general structure of quantum noise implied by the quantum mechanics and the restrictions on the achievable sensitivity it imposes. In this section, we turn to the application of these general and lofty principles to real life, i.e., we are going to calculate quantum noise for several types of the schemes of GW interferometers and consider the advantages and drawbacks they possess.

To grasp the main features of quantum noise in an advanced GW interferometer it would be elucidating to consider first two elementary examples: (i) a single movable mirror coupled to a free optical field, reflecting from it, and (ii) a Fabry-Pérot cavity comprising two movable mirrors and pumped from both sides. These two systems embody all the main features and phenomena that also mold the advanced and more complicated interferometers’ quantum noise. Should one encounter these phenomena in real-life GW detectors, knowledge of how they manifest themselves in these simple situations would be of much help in successfully discerning them.

Movable mirror

The scheme of the mirror is drawn in Figure 28. It is illuminated from both sides by the two independent laser sources with frequency ω_p, and mean power values and . In terms of the general linear measurement theory of Section 4.2 we have two meters represented by these two incident light waves. The two arbitrary quadratures of the reflected waves are deemed as measured quantities Ô₁ and Ô₂. Measurement can be performed, e.g., by means of two independent homodyne detectors. Let us analyze quantum noise in such a model keeping to the scheme given by Eqs. (133).

Figure 28.

Scheme of light reflection off the single movable mirror of mass M pulled by an external force G.

Optical transfer matrix of the movable mirror

The first one of Eqs. (133) in our simple scheme is represented by the input-output coupling equations (30, 36) of light on a movable mirror derived in Section 2.2.4. We choose the transfer matrix of the mirror to be real:

243

according to Eq. (29). Then we can write down the coupling equations, substituting electric field strength amplitudes and ê_1,2(Ω) by their dimensionless counterparts as introduced by Eq. (61) of Section 3.1:

244

where

245

Without any loss of generality one can choose the phase of the light incident from the left to be such that A_1s = 0 and . Then factoring in the constant phase difference between the left and the right beams equal to Φ₀, one would obtain for the left light .

The two output measured quantities will then be given by the two homodyne photocurrents:

246

247

where vector H[ϕ] was first introduced in Section 2.3.2 after Eq. (47) as:

248

Then, after substitution of (243) into (244), and then into (246), one gets

249

250

and

251

252

Probe’s dynamics: radiation pressure force and ponderomotive rigidity

Now we can write down the equation of motion for the mirror assuming it is pulled by a GW tidal force G:

253

that gives us the probe’s dynamics equation (the third one) in (133):

254

where the free mirror mechanical susceptibility χ_xx(Ω) = −1/(MΩ²). The term stands for the radiation pressure force imposed by the light that can be calculated as

255

where k_p ≡ ω_p/c

256

is the regular part of the radiation pressure force10. It is constant and thus can be compensated by applying a fixed restoring force of the same magnitude but with opposite direction, which can be done either by employing an actuator, or by turning the mirror into a low-frequency pendulum with ω_m ≪ Ω_GW by suspending it on thin fibers, as is the case for the GW interferometers, that provides a necessary gravity restoring force in a natural way. However, it does not change the quantum noise and thus can be omitted from further consideration. The latter term represents a quantum correction to the former one

257

where is the random part of the radiation pressure that depends on the input light quantum fluctuations described by quantum quadrature amplitudes vectors â₁(Ω) and â₂(Ω) with coefficients given by vectors:

and the term represents the dynamical back action with

258

being a ponderomotive rigidity that arises in the potential created by the two counter propagating light waves. Eq. (257) gives us the second of Eqs. (133). Here χ_FF(Ω) = −K.

Spectral densities

We can reduce both our readout quantities to the units of the signal force G according to Eq. (140):

259

and define the two effective measurement noise sources as

260

and an effective force noise as

261

absorbing optical rigidity K into the effective mechanical susceptibility:

262

One can then easily calculate their power (double-sided) spectral densities according to Eq. (144):

263

where, if both lights are in coherent states that implies

, one can get:

264

Comparison of these expressions with the Eqs. (195) shows that we have obtained results similar to that of the toy example in Section 4.4. If we switched one of the pumping carriers off, say the right one, the resulting spectral densities for would be exactly the same as in the simple case of Eqs. (195), except for the substitution of and ϕ₁ → ϕ_LO.

Full transfer matrix approach to the calculation of quantum noise spectral densities

It was easy to calculate the above spectral densities by parts, distinguishing the effective measurement and back-action noise sources and making separate calculations for them. Had we considered a bit more complicated situation with the incident fields in the squeezed states with arbitrary squeezing angles, the calculation of all six of the above individual spectral densities (264) and subsequent substitution to the sum spectral densities expressions (263) would be more difficult. Thus, it would be beneficial to have a tool to do all these operations at once numerically.

It is achievable if we build a full transfer matrix of our system. To do so, let us first consider the readout observables separately. We start with Ô₁ and rewrite it as follows:

265

where we omitted the frequency dependence of the constituents for the sake of brevity and introduced a 2 × 4 full transfer matrix for the first readout observable defined as

266

with outer product of two arbitrary vectors α = {α₁, α₂}^T and β = {β₁, β₂}^T written in short notation as:

267

In a similar manner, the full transfer matrix for the second readout can be defined as:

268

Having accomplished this, one is prepared to calculate all the spectral densities (263) at once using the following matrix formulas:

269

where and is the 4 × 4-matrix of spectral densities for the two input fields:

270

with defined by Eq. (83).

Thus, we obtain the formula that can be (and, actually, is) used for the calculation of quantum noise spectral densities of any, however complicated, interferometer given the full transfer matrix of this interferometer.

Losses in a readout train

Thus far we have assumed that there is no dissipation in the transition from the outgoing light to the readout photocurrent of the homodyne detector. This is, unfortunately, not the case since any real photodetector has the finite quantum efficiency η_d < 1 that indicates how many photons absorbed by the detector give birth to photoelectrons, i.e., it is the measure of the probability for the photon to be transformed into the photoelectron. As with any other dissipation, this loss of photons gives rise to an additional noise according to the FDT that we should factor in. We have shown in Section 2.2.4 that this kind of loss can be taken into account by means of a virtual asymmetric beamsplitter with transmission coefficients and for the signal light and for the additional noise, respectively. This beamsplitter is set into the readout optical train as shown in Figure 8 and the i-th readout quantity needs to be modified in the following way:

271

where

is the additional noise that is assumed to be in a vacuum state. Since the overall factor in front of the readout quantity does not matter for the final noise spectral density, one can redefine in the following way:

272

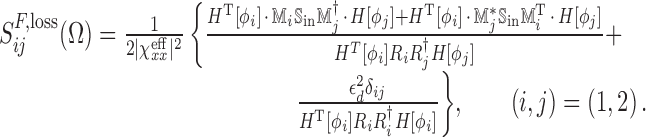

The influence of this loss on the final sum spectral densities (269) is straightforward to calculate if one assumes the additional noise sources in different readout trains to be uncorrelated. If it is so, then Eq. (269) modifies as follows:

273

Now, when we have considered all the stages of the quantum noise spectral densities calculation on a simple example of a single movable mirror, we are ready to consider more complicated systems. Our next target is a Fabry-Pérot cavity.

Fabry-Pérot cavity

The schematic view of a Fabry-Pérot cavity with two movable mirrors is drawn in Figure 29. This simple scheme is important for at least two reasons: (i) it is the most common element for more sophisticated interferometer configurations, which are considered below; and (ii) the analysis of real-life high-sensitivity interferometers devoted, in particular, to detection of GWs, can be reduced to a single Fabry-Pérot cavity by virtue of the ‘scaling law’ theorem [34], see Section 5.3.

Figure 29.

Fabry-Pérot cavity

A Fabry-Pérot cavity consists of two movable mirrors that are separated by a distance L + x₁ + x₂, where L = cτ is the distance at rest with standing for a single pass light travel time, and x₁ and x₂ are the small deviations of the mirrors’ position from the equilibrium. Each of the mirrors is described by the transfer matrix with real coefficients of reflection and transmission according to Eq. (243). As indicated on the scheme, the outer faces of the mirrors are assumed to have negative reflectivities. While the intermediate equations depend on this choice, the final results are invariant to it. The cavity is pumped from both sides by two laser sources with the same optical frequency ω_p.

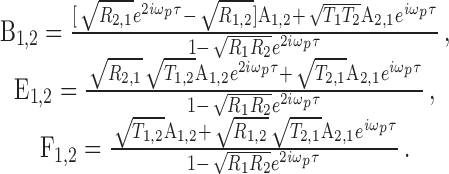

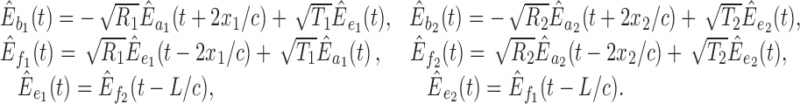

The coupling equations for the ingoing and outgoing fields at each of the mirrors are absolutely the same as in Section 2.2.5. The only new thing is the free propagation of light between the mirrors that adds two more field continuity equations to the full set, describing the transformation of light in the Fabry-Pérot cavity. It is illuminating to write down input-output relations first in the time domain:

274

Further we use notation τ = L/c for the light travel time between the mirrors.

The frequency domain version of the above equations and their solutions are derived in Appendix A.1. We write these I/O-relations given in Eqs. (545) in terms of complex amplitudes instead of 2 photon amplitudes, for the expressions look much more compact in that representation. However, one can simplify them even more using the single-mode approximation.

Single-mode approximation. We note that:

• (i)
  in GW detection, rather high-finesse cavities are used, which implies low transmittance coefficients for the mirrors

  275
• (ii)
  the cavities are relatively short, so their Free Spectral Range (FSR) f_FSR = (2τ)⁻¹ is much larger than the characteristic frequencies of the mirrors’ motion:

  276

  and (iii) the detuning of the pump frequency from one of the cavity eigenfrequencies:

  277

  is also small in comparison with the FSR:

  278

In this case, only this mode of the cavity can be taken into account, and the cavity can be treated as a single-mode lumped resonator. Note also that, while our intermediate equations below depend on whether n is even or odd, the final results do not. Therefore, we assume for simplicity that n is even.

Expanding the numerators and denominators of Eqs. (540, 545) into Taylor series in τ and keeping only the first non-vanishing terms, we obtain that

279

and

280

281

where

282

283

is the cavity half-bandwidth,

284

285

are the cavity left and right reflectivities and its transmittance,

286

and

287

is the sum variation of the cavity length.

Optical transfer matrix for a Fabry-Pérot cavity

The above optical I/O-relations are obtained in terms of the complex amplitudes. In order to transform them to two-photon quadrature notations, one needs to employ the following linear transformations:

1. change frequency ω → ω_p ± Ω and rewrite the relations between the input and output operators in the form:

   288

   where f(Ω) is an arbitrary complex-valued function of sideband frequency Ω;
2. use the definition (57) to get the following relations for two-photon quadrature operators:

   289

Applying transformations (289) to Eqs. (280), we rewrite the I/O-relations for a Fabry-Pérot cavity in the two-photon quadratures notations:

290

291

where

292

293

294

295

296

Therefore, the I/O-relations in standard form read:

297

with optical transfer matrix defined as:

298

and the response to the cavity elongation defined as:

299

Note that due to the fact that the reflectivity and the transmission matrices ℝ_1,2 and satisfy the following unitarity relations:

300

Mirror dynamics, radiation pressure forces and ponderomotive rigidity

The mechanical equations of motion of the Fabry-Pérot cavity mirrors, in spectral representation, are the following:

301

where χ_xx,i are the mechanical susceptibilities of the mirrors, G_i stand for any external classical forces that could act on the mirrors (for example, a signal force to be detected),

302

are the radiation pressure forces acting on the mirrors, and are the powers of the waves e_i, f_i, etc. The signs for all forces are chosen in such a way that the positive forces are oriented outwards from the cavity, increasing the corresponding mirror displacement x_1,2.

In the spectral representation, using the quadrature amplitudes notation, the radiation pressure forces read:

303

The first group, as we have already seen, describes the regular constant force; therefore, we omit it henceforth.

In the single-mode approximation, the radiation pressure forces acting on both mirrors are equal to each other:

304

and the optical field in the cavity is sensitive only to the elongation mechanical mode described by the coordinate x. Therefore, combining Eqs. (301), we obtain for this mode:

305

where

306

is the reduced mechanical susceptibility and

307

is the effective external force.

In the simplest and at the same time the most important particular case of free mirrors:

308

the reduced mechanical susceptibility and the effective external force are equal to

309

and

310

where

311

is the effective mass of the elongation mechanical mode.

It follows from Eqs. (291) and (304) that the radiation pressure force can be written as a sum of the random and dynamical back-action terms, similarly to the single mirror case:

312

with the random component equal to

313

and the ponderomotive rigidity that reads

314

We introduced here the normalized optical power

315

with

316

standing for the mean optical power circulating inside the cavity, and M is some (in general, arbitrary) mass. Typically, it is convenient to make it equal to the reduced mass μ.

Substitution of the force (312) into Eq. (305) gives the following final equation of motion:

317

Thus, the effective mechanical susceptibility for a Fabry-Pérot cavity reads:

318

Fabry-Pérot-Michelson interferometer

In real-life high-precision experiments with mechanical test objects, interferometer schemes that are much more sophisticated than the simple Fabry-Pérot cavity are used. In particular, the best sensitivity in mechanical displacement measurements is achieved by the laser GW detectors. The typical scheme of such a detector is shown in Figure 30. It is this scheme which is planned to be used for the next generation Advanced LIGO [143, 64, 137], Advanced VIRGO [4], and LCGT [96] GW detectors, and its simplified versions are (or were) in use in the contemporary first generation detectors: Initial LIGO [3, 98], VIRGO [156], GEO 600 [168, 66], and TAMA [8, 142].

Figure 30.

Power- and signal-recycled Fabry-Pérot-Michelson interferometer.

This scheme works similar to the ordinary Michelson interferometer considered briefly in Section 2.1.2. The beamsplitter BS distributes the pump power from the laser evenly between the arms. The beams, reflected off the Fabry-Pérot cavities are recombined on the beamsplitter in such a way that, in the ideal case of perfect symmetry of the arms, all the light goes back to the laser, i.e., keeping the signal (‘south’) port dark. Any imbalance of the interferometer arms, caused by signal forces acting on the end test masses (ETMs) makes part of the pumping light leak into the dark port where it is monitored by a photodetector.

The Fabry-Pérot cavities in the arms, formed by the input test masses (ITMs) and the end test masses, provide the increase of the optomechanical coupling, thus making photons bounce many times in the cavity and therefore carry away a proportionally-amplified mirror displacement signal in their phase (cf. with the F factor in the toy systems considered in Section 4). The two auxiliary recycling mirrors: the PRM and the signal recycling (SRM) allow one to increase the power, circulating inside the Fabry-Pérot cavities, for a given laser power, and provide the means for fine-tuning of the quantum noise spectral density [103, 155], respectively.

It was shown in [34] that quantum noise of this dual (power and signal) recycled interferometer is equivalent to that of a single Fabry-Pérot cavity with some effective parameters (the analysis in that paper was based on earlier works [112, 128], where the classical regime had been considered). Here we reproduce this scaling law theorem, extending it in two aspects: (i) we factor in optical losses in the arm cavities by virtue of modeling it by the finite transmissivity of the ETMs, and (ii) we do not assume the arm cavities tuned in resonance (the detuned arm cavities could be used, in particular, to create optical rigidity in non-signal-recycled configurations).

Optical I/O-relations

We start with Eqs. ((279)) and ((280)) for the arm cavities. The notation for the field amplitudes is shown in Figure 30. The fields referring to the interferometer arms are marked with the subscripts (‘northern’) and (‘eastern’) following the convention of labeling the GW interferometer parts in accordance with the cardinal directions they are located at with respect to the drawing (up-direction coincides with north). In order to avoid subscripts, we rename some of the field amplitudes as follows:

319

see also Figure 30. Note that the fields g_N,E now describe the noise sources due to optical losses in the arm cavities.

Rewrite those Eqs. (279), (280), (281) that are relevant to our consideration, in these notations:

320

321

322

T_arm is the input mirrors power transmittance, A_arm is the arm cavities power losses per bounce,

323

is the arm cavities half-bandwidth,

324

δ_arm is the arm cavities detuning,

325

and

326

Assume then that the beamsplitter is described by the matrix (32), with R = T = 1/2. Let l_W = cτ_W be the power recycling cavity length (the optical distance between the power recycling mirror and the input test masses) and l_S = cτ_S — power recycling cavity length (the optical distance between the signal recycling mirror and the input test masses). In this case, the light propagation between the recycling mirrors and the input test masses is described by the following equations for the classical field amplitudes:

327

where

328

are the phase shifts gained by the carrier light with frequency ω_p passing through the power and signal recycling cavities, and the similar equations:

329

appling to the quantum fields’ amplitudes.

The last group of equations that completes our equations set is for the coupling of the light fields at the recycling mirrors:

330

where R_W, T_W and R_S, T_S are the reflectivities and transmissivities of the power and signal recycling mirrors, respectively. These equations, being linear and frequency independent, are valid both for the zeroth-order classical amplitudes and for the first-order quantum ones.

Common and differential optical modes

The striking symmetry of the above equations suggests that the convenient way to describe this system is to decompose all the optical fields in the interferometer arms into the superposition of the symmetric (common) and antisymmetric (differential) modes, which we shall denote by the subscripts + and −, respectively:

331

It follows from Eqs. (329) that the symmetric mode is coupled solely to the ‘western’ (bright) port, while the antisymmetric one couples exclusively to the ‘southern’ (dark) port of the interferometer.

It is easy to see that the classical field amplitudes of the antisymmetric mode are equal to zero. For the common mode, combining Eqs. (320), (327), (330), (331), it is easy to obtain the following set of equation:

332

Its solution is equal to (only those amplitudes are provided that we shall need below):

333a

333b

In the differential mode, the first non-vanishing terms are the first-order quantum-field amplitudes. In this case, using Eqs. (321), (329), (330), (331), and taking into account that

334

we obtain:

335

336

where

337

338

The solution of this equation set is the following:

339

Eqs. (332) and (333), on the one hand, and (335) and (339), on the other, describe two almost independent optical configurations each consisting of the two coupled Fabry-Pérot cavities as featured in Figure 31. ‘Almost independent’ means that they do not couple in an ordinary linear way (and, thus, indeed represent two optical modes). However, any variation of the differential mechanical coordinate x₋ makes part of the pumping carrier energy stored in the common mode pour into the differential mode, which means a non-linear parametric coupling between these modes.

Figure 31.

Effective model of the dual-recycled Fabry-Pérot-Michelson interferometer, consisting of the common (a) and the differential (b) modes, coupled only through the mirrors displacements.

Interferometer dynamics: mechanical equations of motion, radiation pressure forces and ponderomotive rigidity

The mechanical elongation modes of the two Fabry-Pérot cavities are described by the following equations of motion [see Eq. (305)]:

340

where μ = M/2 is the effective mass of these modes and G_N,E are the external classical forces acting on the cavities end mirrors. The differential mechanical mode equation of motion (338) taking into account Eq. (334) reads:

341

where

342

is the differential radiation-pressure force and

343

is the differential external force.

Equations (339) and (341) together form a complete set of equations describing the differential optomechanical mode of the interferometer featured in Figure 31(b). Eq. (341) implies that the effective mass of the differential mechanical degree of freedom coincides with the single mirror mass:

344

which prescribes the mirrors of the effective cavity to be twice as heavy as the real mirrors, i.e., 2M. For the same reason Eq. (334) implies for the effective optical power a value twice as high as the power of light, circulating in the arm cavities:

345

Scaling law theorem

Return to Eqs. (333) for the common mode. Introduce the following notations:

346

347

348

349

In these notation, Eqs. (333) have the following form:

350

where

351

352

It is easy to see that these equations have the same form as Eqs. (279) for the single Fabry-Pérot cavity, with the evident replacement of γ₁ and δ with the effective parameters γ_1W and δ_W. The only difference is an additional phase shift α_W. Thus, we have shown that the power recycling cavity formed by the PRM and the ITMs can be treated as a single mirror with some effective parameters defined implicitly by Eqs. (350), complemented by light propagation over length α_W/k_p. Note also that the phase shift α_W can be absorbed into the field amplitudes simply by renaming

353

which yields:

354

The corresponding equivalent model of the common mode is shown in Figure 32(a).

Figure 32.

Common (top) and differential (bottom) modes of the dual-recycled Fabry-Pérot-Michelson interferometer, reduced to the single cavities using the scaling law model.

Taking into account that the main goal of power recycling is the increase of the power circulating in the arm cavities, for a given laser power , the optimal tuning of the power recycling cavity corresponds to the critical coupling of the common mode with the laser:

355

In this case,

356

Note that this regime can be achieved even with the detuned arm cavities, δ ≠ 0.

Consider now the differential mode quantum field amplitudes as given in Eqs. (339). Note a factor e^iωτS that describes a frequency-dependent phase shift the sideband fields acquire on their pass through the signal recycling cavity. It is due to this frequency-dependent phase shift that the differential mode cannot be reduced, strictly speaking, to a single effective cavity mode, and a more complicated two-cavity model of Figure 31 should be used instead. The reduction to a single mode is nevertheless possible in the special case of a short signal-recycling cavity, i.e., such that:

357

The above condition is satisfied in a vast majority of the proposed schemes of advanced GW interferometers and in all current interferometers that make use of the recycling techniques [156, 66]. In this case, the phase shift ϕ_S can be approximated by the frequency-independent value:

358

It allows one to introduce the following effective parameters:

359

and to rewrite Eqs. (339) as follows:

360

361

where the reflectivity and transmittance of the equivalent Fabry-Pérot cavity are still defined by the Eqs. (285), but with new effective parameters (359), and

362

is the phase shift introduced by the signal recycled cavity. Along similar lines as in the common mode case, we make the following change of variables

363

Eqs. (360) and (361) have exactly the same form as the corresponding equations for the Fabry-Pérot cavity (280). Thus, we have successfully built a single cavity model for the differential mode, see Figure 32(b).

The mechanical equations of motion for the effective cavity are absolutely the same as for an ordinary Fabry-Pérot cavity considered in Section 5.2 except for the new values of the effective mirrors’ mass 2M and effective circulating power . Bearing this in mind, we can procede to the quantum noise spectral density calculation for this interferometer.

Spectral densities for the Fabry-Pérot-Michelson interferometer

The scaling law we have derived above enables us to calculate spectral densities of quantum noise for a dual-recycled Fabry-Pérot-Michelson featured in Figure 30 as if it were a bare Fabry-Pérot cavity with movable mirrors pumped from one side, similar to that shown in Figure 32.

We remove some of the subscripts in our notations, for the sake of notational brevity:

364

(compare Figures 32 and 33). We also choose the phase of the classical field E amplitude inside the arm cavities to be zero:

365

that obviously does not limit the generality of our consideration, yet sets the reference point for all the classical and quantum fields’ phases.

Figure 33.

The differential mode of the dual-recycled Fabry-Pérot-Michelson interferometer in simplified notation (364).

With this in mind, we rewrite I/O-relations (360) and (361) in the two-photon quadratures notation:

366

367

where the matrices , ℝ₁, are defined by Eqs. (294) and (296),

368

and

369

is the normalized optical power, circulating in the interferometer arms.

Suppose that the output beam is registered by the homodyne detector; see Section 2.3.1. Combining Eqs. (366) and (272), we obtain for the homodyne detector a readout expressed in units of signal force:

370

where

371

stands for the measurement noise, which is typically referred to as shot noise in optomechanical measurement with the interferometer opto-mechanical response function defined as

372

and the back-action noise caused by the radiation pressure fluctuations equal to

373

The dynamics of the interferometer is described by the effective susceptibility that is the same as the one given by Eq. (318) where

374

is the frequency-dependent optical rigidity that has absolutely the same form as that of a single Fabry-Pérot cavity given by Eq. (314).

Suppose then that the input field of the interferometer is in the squeezed quantum state that is equivalent to the following transformation of the input fields:

375

where the squeezing matrix is defined by Eq. (74), and the quadrature vector â^vac corresponds to the vacuum state.

Using the rules of spectral densities computation given in Eqs. (89) and (92), taking into account unitarity conditions (300), one can get the following expressions for the power (double-sided) spectral densities of the dual-recycled Fabry-Pérot-Michelson interferometer measurement and back-action noise sources as well as their cross-correlation spectral density:

376

377

378

These spectral densities satisfy the Schrödinger-Robertson uncertainty relation:

379

of the same form as in the general linear measurement case considered in Section 4.2, see Eq. (148), with the exact equality in the ideal lossless case:

380

see Appendix A.2

Full transfer matrix approach to calculation of the Fabry-Pérot-Michelson interferometer quantum noise

In order to compute the sum quantum noise spectral density one has to first calculate S_χχ(Ω), and using Eqs. (376), (377), and (378) and then insert them into the general formula (144).

However, there is another option that is more convenient from the computational point of view. One can compute the full quantum noise transfer matrix of the Fabry-Pérot-Michelson interferometer in the same manner as for a single mirror in Section 5.1.4. The procedure is rather straightforward. Write down the readout observable of the homodyne detector in units of signal force:

381

where matrices ℂ_1,2(Ω) can be computed using the fact that

which yields:

382

383

In the GW community, it is more common to normalize the signal of the interferometer in units of GW amplitude spectrum h(Ω). This can easily be done using the simple rule given in Eq. (138) and taking into account that in our case G(Ω) → G(Ω)/2:

384

where h_GW(Ω) is the spectrum of the GW signal and the second term ĥ_n(Ω) stands for the sum quantum noise expressed in terms of metrics variation spectrum units, i.e., in Hz^−1/2.

The power (double-sided) spectral density of the sum quantum noise then reads:

385

In conclusion, we should say that the quantum noise of the Fabry-Péichelson interferometer has been calculated in many papers, starting from the seminal work by Kimble et al. [90] where a resonance-tuned case with δ = 0 was analyzed, and then by Buonanno and Chen in [32, 34], who considered a more general detuned case. Thus, treading their steps, we have shown that the quantum noise of the Fabry-Pérot-Michelson interferometer (as well as the single cavity Fabry-Pérot one) has the following distinctive features:

• It comprises two effective noise sources as in any quantum linear measurement device. These are measurement noise , more frequently called quantum shot noise in the GW community, and the back-action noise , often referred to as quantum radiation-pressure noise.

• These noise sources are correlated and this correlation depends not only on the homodyne angle Õ_LO or the correlations in the input light (e.g., squeezing angle θ in case of squeezed input), but also on the interferometer effective detuning δ, which, according to the scaling law theorem, can be changed by varying signal-recycling cavity parameters.

• The scaling law theorem also shows that changing the arm cavities’ detuning is equivalent to the modification of the signal recycling cavity parameters in terms of effective detuning and bandwidth of the interferometer.

• Another important corollary of the scaling law is that the effective bandwidths and detunings for the common and differential optical modes can be chosen independently, thus making it possible to tune the former in resonance with the pumping laser to keep as high a value of the circulating optical power in the arms as possible, and to detune the latter one to modify the test masses dynamical response by virtue of the introduction of optical rigidity that arises in the detuned cavity as we have shown.

All of these features can be used to decrease the quantum noise of the interferometer and reach a sensitivity below the SQL in a decent range of frequencies as we show in Section 6.

Schemes of GW Interferometers with Sub-SQL Sensitivity

Noise cancellation by means of cross-correlation

Introduction

In this section, we consider the interferometer configurations that use the idea of the cross-correlation of the shot and the radiation pressure noise sources discussed in Section 4.4. This cross-correlation allows the measurement and the back-action noise to partially cancel each other out and thus effectively reduce the sum quantum noise to below the SQL.

As we noted above, Eq. (378) tells us that this cross-correlation can be created by tuning either the homodyne angle ϕ_LO, the squeezing angle θ, or the detuning δ. In Section 4.4, the simplest particular case of the frequency-independent correlation created by means of measurement of linear combination of the phase and amplitude quadratures, that is, by using the homodyne angle Õ_LO ≠ π/2, has been considered. We were able to obtain a narrow-band sensitivity gain at some given frequency that was similar to the one achievable by introducing a constant rigidity to the system, therefore such correlation was called effective rigidity.

However, the broadband gain requires a frequency-dependent correlation, as it was first demonstrated for optical interferometric position meters [148], and then for general position measurement case [82]. Later, this idea was developed in different contexts by several authors [81, 118, 159, 90, 70, 69, 149, 9]. In particular, in [90], a practical method of creation of the frequency-dependent correlation was proposed, based on the use of additional filter cavities, which were proposed to be placed either between the squeeze light source and the main interferometer, creating the frequency-dependent squeezing angle (called pre-filtering), or between the main interferometer and the homodyne detector, creating the effective frequency-dependent squeezing angle (post-filtering). As we show below, in principle, both pre- and post-filtering can be used together, providing some additional sensitivity gain.

It is necessary to note also an interesting method of noise cancellation proposed by Tsang and Caves recently [146]. The idea was to use matched squeezing; that is, to place an additional cavity inside the main interferometer and couple the light inside this additional cavity with the differential mode of the interferometer by means of an optical parametric amplifier (OPA). The squeezed light created by the OPA should compensate for the ponderomotive squeezing created by back-action at all frequencies and thus decrease the quantum noise below the SQL at a very broad frequency band. However, the thorough analysis of the optical losses influence, that as we show later, are ruinous for the subtle quantum correlations this scheme is based on, was not performed.

Coming back to the filter-cavities-based interferometer topologies, we limit ourselves here by the case of the resonance-tuned interferometer, δ = 0. This assumption simplifies all the equations considerably, and allows one to clearly separate the sensitivity gain provided by the quantum noise cancellation due to cross-correlation from the one provided by the optical rigidity, which will be considered in Section 6.3.

We also neglect optical losses inside the interferometer, assuming that γ₂ = 0. In broadband interferometer configurations considered here, with typical values of γ ≳ 10³ s⁻¹, the influence of these losses is negligible compared to those of the photodetector inefficiency and the losses in the filter cavities. Indeed, taking into account the fact that with modern high-reflectivity mirrors, the losses per bounce do not exceed A_arm ≲ 10⁻⁴, and the arms lengths of the large-scale GW detectors are equal to several kilometers, the values of γ₂ ≲ 1 s⁻¹, and, correspondingly, γ₂/γ ≲ 10⁻³, are feasible. At the same time, the value of photodetector quantum inefficiency (factoring in the losses in the interferometer output optical elements as well) is considered quite optimistic. Note, however, that in narrow-band regimes considered in Section 6.3, the bandwidth γ can be much smaller and influence of γ₂ could be significant; therefore, we take these losses into account in Section 6.3.

Using these assumptions, the quantum noises power (double-sided) spectral densities (376), (377) and (378) can be rewritten in the following explicit form:

386

387

388

where

389

is the convenient optomechanical coupling factor introduced in [90].

Eq. (381) and (385) for the sum quantum noise and its power (double-sided) spectral density in this case can also be simplified significantly:

390

391

where

392

In Section 6.1.2 we consider the optimization of the spectral density (391), assuming that the arbitrary frequency dependence of the homodyne and/or squeezing angles can be implemented. As we see below, this case corresponds to the ideal lossless filter cavities. In Section 6.1.3, we consider two realistic schemes, taking into account the losses in the filter cavities.

Frequency-dependent homodyne and/or squeezing angles

Classical optimization. As a reference point, consider first the simplest case of frequency independent homodyne and squeezing angles. We choose the specific values of these parameters following the classical optimization, which minimizes the shot noise (386) without taking into account the back action. Because, the shot noise dominates at high frequencies, therefore, this optimization gives a smooth broadband shape of the sum noise spectral density.

It is evident that this minimum is provided by

393

In this case, the sum quantum noise power (double-sided) spectral density is equal to

394

It is easy to note the similarity of this spectral density with the ones of the toy position meter considered above, see Eq. (173). The only significant differences introduced here are the optical losses and the decrease of the optomechanical coupling at high frequencies due to the finite bandwidth γ of the interferometer. Ifϵ_d = 0 and γ ≫ Ω, then Eqs. (173) and (394) become identical, with the evident correspondence

395

In particular, the spectral density (394) can never be smaller than the free mass SQL (see (174)). Indeed, it can be minimized at any given frequency Ω by setting

396

and in this case,

397

The spectral density (394) was first calculated in the pioneering work of [38], where the existence of two kinds of quantum noise in optical interferometric devices, namely the measurement (shot) noise and the back action (radiation pressure) noise, were identified for the first time, and it was shown that the injection of squeezed light with θ = 0 into the interferometer dark port is equivalent to the increase of the optical pumping power. However, it should be noted that in the presence of optical losses this equivalence holds unless squeezing is not too strong, e^−r > ϵ_d.

The noise spectral density curves for the resonance-tuned interferometer are drawn in Figure 34. The default parameters for this and all subsequent similar plots are chosen to be close to those planned for the Advanced LIGO interferometer: the value of J = J_aLIGO ≠ (2π × 100)³ s⁻³ corresponds to the circulating power of , and M = 40 kg; the interferometer bandwidth γ = 2π × 500 s⁻¹ is close to the one providing the best sensitivity for Advanced LIGO in the presence of technical noise [93]; 10 dB squeezing (e^2r = 10), which corresponds to the best squeezing available at the moment (2011) in the low-frequency band [102, 150, 151]); η_d = 0.95 can be considered a reasonably optimistic estimate for the real interferometer quantum efficiency.

Figure 34.

Examples of the sum quantum noise spectral densities of the classically-optimized (Õ_LO = π/2, θ = 0) resonance-tuned interferometer. ‘Ordinary’: J = J_aLIGO, no squeezing. ‘Increased power’: J = 10J_aLIGO, no squeezing. ‘Squeezed’: J = J_aLIGO, 10 dB squeezing. For all plots, γ = 2π × 500 s⁻¹ and η_d = 0.95.

Noteworthy is the proximity of the plots for the interferometer with 10 dB input squeezing and the one with 10-fold increased optical power. The noticeable gap at higher frequencies is due to optical loss.

Frequency dependent squeezing angle. Now suppose that the homodyne angle can be frequency dependent, and calculate the corresponding minimum of the sum noise spectral density (391). The first term in square brackets in this equation can be rewritten as:

398

where

399

It is evident that the minimum of (398) is provided by

400

and is equal to V^⊤Ve^−2r. Therefore,

401

Thus, we obtaine a well-known result [90] that, using an optimal squeezing angle, the quantum noise spectral density can be reduced by the squeezing factor e^−2r in comparison with the vacuum input case. Note, however, that the noise contribution due to optical losses remains unchanged. Concerning the homodyne angle ϕ_lo, we use again the classical optimization, setting

402

In this case, the sum noise power (double-sided) spectral density and the optimal squeezing angle are equal to

403

and

404

The sum quantum noise power (double-sided) spectral density (403) is plotted in Figure 35 for the ideal lossless case and for η_d = 0.95 (dotted line). In both cases, the optical power and the squeezing factor are equal to J = J_aLIGO and e^2r = 10, respectively.

Figure 35.

Examples of the sum quantum noise power (double-sided) spectral densities of the resonance-tuned interferometers with frequency-dependent squeezing and/or homodyne angles. Left: no optical losses, right: with optical losses, η_d = 0.95. ‘Ordinary’: no squeezing, ϕ_LO = ΰ/2. ‘Squeezed’: 10 dB squeezing, θ = 0, ϕ_LO = π/2 (these two plots are provided for comparison). Dots [pre-filtering, Eq. (403)]: 10 dB squeezing, ϕ_LO = π/2, frequency-dependent squeezing angle. Dashes [post-filtering, Eq. (408)]: 10 dB squeezing, θ = 0, frequency-dependent homodyne angle. Dash-dots [pre- and post-filtering, Eq. (410)]: 10 dB squeezing, frequency-dependent squeeze and homodyne angles. For all plots, J = J_aLIGO and γ = 2π × 500 s⁻¹.

Frequency dependent homodyne angle. Suppose now that the squeezing angle corresponds to the classical optimization:

405

and minimize the resulting sum noise spectral density:

406

with respect to ϕ_LO. The minimum is provided by the following dependence

407

and is equal to

408

The sum quantum noise spectral density (408) is plotted in Figure 35 for the ideal lossless case and for η_d = 0.95 (dashed lines).

Compare this spectral density with the one for the frequency-dependent squeezing angle (pre-filtering) case, see Eq. (403). The shot noise components in both cases are exactly equal to each other. Concerning the residual back-action noise, in the pre-filtering case it is limited by the available squeezing, while in the post-filtering case — by the optical losses. In the latter case, were there no optical losses, the back-action noise could be removed completely, as shown in Figure 35 (left). For the parameters of the noise curves presented in Figure 35 (right), the post-filtering still has some advantage of about 40% in the back-action noise amplitude .

Note that the required frequency dependences (404) and (407) in both cases are similar to each other (and become exactly equal to each other in the lossless case ϵ_d = 0). Therefore, similar setups can be used in both cases in order to create the necessary frequency dependences with about the same implementation cost. From this simple consideration, it is possible to conclude that pre-filtering is preferable if good squeezing is available, and the optical losses are relatively large, and vice versa. In particular, post-filtering can be used even without squeezing, r = 0.

Frequency dependent homodyne and squeezing angles. And, finally, consider the most sophisticated configuration: double-filtering with both the homodyne angle ϕ_LO and the squeezing angle θ being frequency dependent.

Concerning the squeezing angle, we can reuse Eqs. (400) and (401). The minimum of the spectral density (401) in θ_LO corresponds to

409

and is equal to

410

It also follows from Eqs.(400) and (409) that the optimal squeezing angle in this case is given by

411

It is easy to see that in the ideal lossless case the double-filtering configuration reduces to a post-filtering one. Really, if ϵ_d = 0, the spectral density (410) becomes exactly equal to that for the post-filtering case (408), and the frequency dependent squeezing angle (411) degenerates into a constant value (405). However, if ϵ_d > 0, then the additional pre-filtering allows one to decrease more the residual back-action term. For example, if e^2r = 10 and η_d = 0.95 then the gain in the back-action noise amplitude is equal to about 25%.

We have plotted the sum quantum noise spectral density (410) in Figure 34, right (dash-dots). This plot demonstrates the best sensitivity gain of about 3 in signal amplitude, which can be provided employing squeezing and filter cavities at the contemporary technological level.

Due to the presence of the residual back-action term in the spectral density (410), there exists an optimal value of the coupling factor (that is, the optical power) which provides the minimum to the sum quantum noise spectral density at any given frequency

412

The minimum is equal to

413

This limitation is severe. The reasonably optimistic value of quantum efficiency ϵ_d = 0.95 that we use for our estimates corresponds to ϵ_d ≈ 0.23. It means that without squeezing (r = 0) one is only able to beat the SQL in amplitude by

414

The gain can be improved using squeezing and, if r → ∞ then, in principle, arbitrarily high sensitivity can be reached. But ξ depends on r only as e^−r/2, and for the 10 dB squeezing, only a modest value of

415

can be obtained.

In our particular case, the fact that the additional noise associated with the photodetector quantum inefficiency ϵ_d > 0 does not correlate with the quantum fluctuations of the light in the interferometer gives rise to this limit. This effect is universal for any kind of optical loss in the system, impairing the cross-correlation of the measurement and back-action noises and thus limiting the performance of the quantum measurement schemes, which rely on this cross-correlation.

Noteworthy is that Eq. (410) does not take into account optical losses in the filter cavities. As we shall see below, the sensitivity degradation thereby depends on the ratio of the light absorption per bounce to the filter cavities length, A_f/L_f. Therefore, this method calls for long filter cavities. In particular, in the original paper [90], filter cavities with the same length as the main interferometer arm cavities (4 km), placed side by side with them in the same vacuum tubes, were proposed. For such long and expensive filter cavities, the influence of their losses indeed can be small. However, as we show below, in Section 6.1.3, for the more practical short (up to tens of meters) filter cavities, optical losses thereof could be the main limiting factor in terms of sensitivity.

Virtual rigidity for prototype interferometers. The optimization performed above can be viewed also in a different way, namely, as the minimization of the sum quantum noise spectral density of an ordinary interferometer with frequency-independent homodyne and squeezing angles, yet at some given frequency Ω₀. In Section 4.4, this kind of optimization was considered for a simple lossless system. It was shown capable of the narrow-band gain in sensitivity, similar to the one provided by the harmonic oscillator (thus the term ‘virtual rigidity’).

This narrow-band gain could be more interesting not for the full-scale GW detectors (where broadband optimization of the sensitivity is required in most cases) but for smaller devices like the 10-m Hannover prototype interferometer [7], designed for the development of the measurement methods with sub-SQL sensitivity. Due to shorter arm length, the bandwidth γ in those devices is typically much larger than the mechanical frequencies Ω. If one takes, e.g., the power transmissivity value of T ≳ 10⁻² for the ITMs and length of arms equal to L ∼ 10 m, then , which is above the typical working frequencies band of such devices. In the literature, this particular case is usually referred to as a bad cavity approximation.

In this case, the coupling factor can be approximated as:

416

where

417

Note that in this approximation, the noise spectral densities (386), (387) and (388) turn out to be frequency independent.

In Figure 36, the SQL beating factor

418

is plotted for the sum quantum noise spectral density S^h(Ω)with the following values of homodyne and squeezing angles

419

and factoring in the “bad cavity” condition (416). The four panes correspond to the following four combinations: (upper left) no losses (ηd = 1) and no squeezing (r = 0); (lower left) no losses (η_d = 1) and 10 dB squeezing (e^2r = 10); (upper right) with losses (η_d = 0.95) and no squeezing (r = 0); (lower right) with losses (η_d = 0.95) and 10 dB squeezing(e^2r = 10). In each pane, the family of plots is shown that corresponds to different values of the ratio Ω₀/Ω_q, ranging from 0.1 to .

Figure 36.

Plots of the locally-optimized SQL beating factor ξ(Ω) (418) of the interferometer with cross-correlated noises for the “bad cavity” case Ω₀ ≪ γ, for several different values of the optimization frequency Ω₀ within the range . Thick solid lines: the common envelopes of these plots; see Eq. (420). Left column: η_d = 1; right column: η_d = 0.95. Top row: no squeezing, r = 0; bottom row: 10 dB squeezing, e^2r = 10.

The minima of these plots form the common envelope, given by Eqs. (410) and (416):

420

which is also plotted in Figure 36. It is easy to see that in the ideal case of ϵ_d = 0, there is no limitation on the SQL beating factor, provided a sufficiently small ratio of Ω₀/Ω_q:

421

However, if ϵ_d > 0, then function (420) has a minimum in Ω_q at

422

[compare with Eq. (412)], equal to (413).

Filter cavities in GW interferometers

Input/output relations for the filter cavity. In essence, a filter cavity is an ordinary Fabry-Pérot cavity with one partly transparent input/output mirror. The technical problem of how to spatially separate the input and output beam can be solved in different ways. In the original paper [90] the triangular cavities were considered. However, in this case, an additional mirror in each cavity is required, which adds to the optical loss per bounce. Another option is an ordinary linear cavity with additional optical circulator, which can be implemented, for example, by means of the polarization beamsplitter and Faraday rotator (note that while the typical polarization optics elements have much higher losses than the modern high-quality mirrors, the mirrors losses appear in the final expressions inflated by the filter cavity finesse).

In both cases, the filter cavity can be described by the input/output relation, which can be easily obtained from Eqs. (290) and (291) by setting E_c,s = 0 (there is no classical pumping in the filter cavity and, therefore, there is no displacement sensitivity) and by some changes in the notations:

423

where and are the two-photon quadrature amplitude vectors of the input and output beams, stands for noise fields entering the cavity due to optical losses (which are assumed to be in a vacuum state),

424

425

426

427

428

where T_f is the power transmittance of the input/output mirror, A_f is the factor of power loss per bounce, L_f is the filter cavity length,

429

is its half-bandwidth, and δ_f is its detuning.

In order to demonstrate how the filter cavity works, consider the particular case of the lossless cavity. In this case,

430

and the reflection matrix describes field amplitude rotations with the frequency-dependent rotation angle:

431

where

432

433

The phase factor is irrelevant, for it does not appear in the final equations for the spectral densities.

Let us now analyze the influence of the filter cavities on the interferometer sensitivity in postand pre-filtering variational schemes. Start with the latter one. Suppose that the light, entering the interferometer from the signal port is in the squeezed state with fixed squeezing angle θ and squeezing factor r and thus can be described by the following two-photon quadrature vector

434

where the quadratures vector describes the vacuum state. After reflecting off the filter cavity, this light will be described with the following expression

435

[see Eq. (75)], where also describes the light field in a vacuum state. Thus, the pre-filtering indeed rotates the squeezing angle by a frequency-dependent angle θ_f(Ω).

In a similar manner, we can consider the post-filtering schemes. Consider a homodyne detection scheme with losses, described by Eq. (272). Suppose that prior to detection, the light described by the quadrature vector , reflects from the filter cavity. In this case, the photocurrent (in Fourier representation) is proportional to

436

where again describes some new vacuum field. This formula demonstrates that post-filtering is equivalent to the introduction of a frequency-dependent shift of the homodyne angle by −θ_f (Ω).

It is easy to see that the necessary frequency dependencies of the homodyne and squeezing angles (404) or (407) (with the second-order polynomials in Ω² in the r.h.s. denominators) cannot be implemented by the rotation angle (432) (with its first order in Ω² polynomial in the r.h.s. denominator). As was shown in the paper [90], two filter cavities are required in both these cases. In the double pre- and post-filtering case, the total number of the filter cavities increases to four. Later it was also shown that, in principle, arbitrary frequency dependence of the homodyne and/or squeezing angle can be implemented, providing a sufficient number of filter cavities [35].

However, in most cases, a more simple setup consisting of a single filter cavity might suffice. Really, the goal of the filter cavities is to compensate the back-action noise, which contributes significantly in the sum quantum noise only at low frequencies . However, when

437

which is actually the case for the planned second and third generation GW detectors, the factor can be well approximated by Eq. (416) in the low-frequency region. In such a case the single filter cavity can provide the necessary frequency dependence. Moreover, the second filter cavity could actually degrade sensitivity due to the additional optical losses it superinduces to the system.

Following this reasoning, we consider below two schemes, each based on a single filter cavity that realize pre-filtering and post-filtering, respectively.

Single-filter cavity-based schemes. The schemes under consideration are shown in Figure 37. In the pre-filtering scheme drawn in the left panel of Figure 37, a squeezed light source emits frequency-independent squeezed vacuum towards the filter cavity, where it gets reflected, gaining a frequency-dependent phase shift θ_f (Ω), and then enters the dark port of the main interferometer. The light going out of the dark port is detected by the homodyne detector with fixed homodyne angle ϕ_LO in the usual way.

Figure 37.

Schemes of interferometer with the single filter cavity. Left: In the pre-filtering scheme, squeezed vacuum from the squeezor is injected into the signal port of the interferometer after the reflection from the filter cavity; right: in the post-filtering scheme, a squeezed vacuum first passes through the interferometer and, coming out, gets reflected from the filter cavity. In both cases the readout is performed by an ordinary homodyne detector with frequency independent homodyne angle ϕ_LO.

Following the prescriptions of Section 6.1.2, we suppose the homodyne angle defined by Eq. (402). The optimal squeezing angle should then be equal to zero at higher frequencies, see (404). Taking into account that the phase shift introduced by the filter cavity goes to zero at high frequencies, we obtain that the squeezing angle θ of the input squeezed vacuum must be zero. Combining Eqs. (390) and (423) taking these assumptions into account, we obtain the following equation for the sum quantum noise of the pre-filtering scheme:

438

which yields the following expression for a power (double-sided) spectral density

439

In the ideal lossless filter cavity case, taking into account Eq. (431), this spectral density can be simplified as follows:

440

[compare with Eq. (391)]. In this case, the necessary frequency dependence of the squeezing angle (404) can be implemented by the following filter cavity parameters:

441

where

442

Along similar lines, the post-filtering scheme drawn in the right panel of Figure 37 can be considered. Here, the squeezed-vacuum produced by the squeezor first passes through the interferometer and then, coming out, gets reflected from the filter cavity, gaining a frequency-dependent phase shift, which is equivalent to introducing a frequency dependence into the homodyne angle, and then goes to the fixed angle homodyne detector. Taking into account that this equivalent homodyne angle at high frequencies has to be π/2, and that the phase shift introduced by the filter cavity goes to zero at high frequencies, we obtain that the real homodyne angle must also be π/2. Assuming that the squeezing angle is defined by Eq. (405) and again using Eqs. (390) and (423), we obtain that the sum quantum noise and its power (double-sided) spectral density are equal to

443

and

444

In the ideal lossless filter cavity case, factoring in Eq. (431), this spectral density takes a form similar to (391), but with the frequency-dependent homodyne angle:

445

where

446

The necessary frequency dependence (407) of this effective homodyne angle can be implemented by the following parameters of the filter cavity:

447

Note that for reasonable values of loss and squeezing factors, these parameters differ only by a few percents from the ones for the pre-filtering.

It is easy to show that substitution of the conditions (441) and (447) into Eqs. (440) and (445), respectively, taking Condition (437) into account, results in spectral densities for the ideal frequency dependent squeezing and homodyne angle, see Eqs. (403) and (408).

In the general case of lossy filter cavities, the conditions (404) and (407) cannot be satisfied exactly by a single filter cavity at all frequencies. Therefore, the optimal filter cavity parameters should be determined using some integral sensitivity criterion, which will be considered at the end of this section.

However, it would be a reasonable assumption that the above consideration holds with good precision, if losses in the filter cavity are low compared to other optical losses in the system:

448

This inequality can be rewritten as the following condition for the filter cavity specific losses:

449

In particular, for our standard parameters used for numerical estimates (J = J_aLIGO, γ = 2π × 500 s⁻¹, η_d= 0.95), we obtain η_f0 ≈ 280 s⁻¹, and there should be

450

(the r.h.s. corresponds, in particular, to a 50 m filter cavity with the losses per bounce A_f = 10⁻⁵).

Another more crude limitation can be obtained from the condition that γ_f2 should be small compared to the filter cavity bandwidth γ_f:

451

Apparently, were it not the case, the filter cavity would just cease to work properly. For the same numerical values of J and γ as above, we obtain:

452

(for example, a very short 2.5 m filter cavity with A_f = 10⁻⁵ or 25 m cavity with A_f = 10⁻⁴).

Numerical optimization of filter cavities. In the experiments devoted to detection of small forces, and, in particular, in the GW detection experiments, the main integral sensitivity measure is the probability to detect some calibrated signal. This probability, in turn, depends on the matched filtered SNR defined as

453

with h_s (Ω) the spectrum of this calibrated signal.

In the low and medium frequency range, where back-action noise dominates, and wherein our interest is focused, the most probable source of signal is the gravitational radiation of the inspiraling binary systems of compact objects such as neutron stars and/or black holes [131, 124]. In this case, the SNR is equal to (see [58])

454

where k₀ is a factor that does not depend on the interferometer parameters, and f_max is the cut-off frequency that depends on the binary system components’ masses. In particular, for neutron stars with masses equal to 1.4 solar mass, f_max ≈ 1.5 kHz.

Since our goal here is not the maximal value of the SNR itself, but rather the relative sensitivity gain offered by the filter cavity, and the corresponding optimal parameters γ_f1 and δ_f, providing this gain, we choose to normalize the SNR by the value corresponding to the ordinary interferometer (without the filter cavities):

455

with power (double-sided) spectral density

456

[see Eq. (394)].

We optimized numerically the ratio , with filter cavity half-bandwidth γ_f1 and detuning δ_f as the optimization parameters, for the values of the specific loss factor A_f/L_f ranging from 10⁻⁹ (e.g., very long 10 km filter cavity with A_f = 10⁻⁵) to 10⁻⁵ (e.g., 10 m filter cavity with A_f = 10⁻⁴). Concerning the main interferometer parameters, we used the same values as in all our previous examples, namely, J = J_aLIGO, γ = 2π × 500 s⁻¹, and η_d = 0.95.

The results of the optimization are shown in Figure 38. In the left pane, the optimal values of the filter cavity parameters γ_f1 and δ_f are plotted, and in the right one the corresponding optimized values of the SNR are. It follows from these plots that the optimal values of γ_f1 and δ_f are virtually the same as γ_f0, while the specific loss factor A_f/L_f satisfies the condition (448), and starts to deviate sensibly from γ_f0 only when A_f/L_f approaches the limit (451). Actually, for such high values of specific losses, the filter cavities only degrade the sensitivity, and the optimization algorithm effectively turns them off, switching to the ordinary frequency-independent squeezing regime (see the right-most part of the right pane).

Figure 38.

Left: Numerically-optimized filter-cavity parameters for a single cavity based pre- and post-filtering schemes: half-bandwidth γ_f1 (solid lines) and detuning δ_f (dashed lines), normalized by γ_f0 [see Eq. (442)], as functions of the filter cavity specific losses A_f/L_f. Right: the corresponding optimal SNRs, normalized by the SNR for the ordinary interferometer [see Eq. (455)]. Dashed lines: the normalized SNRs for the ideal frequency-dependent squeeze and homodyne angle cases, see Eqs. (403) and (408). ‘Ordinary squeezing’: frequency-independent 10 dB squeezing with θ = 0. In all cases, J = J_aLIGO, γ = 2π × 500 s⁻¹, and η_d = 0.95.

It also follows from these plots that post-filtering provides slightly better sensitivity, if the optical losses in the filter cavity are low, while the pre-filtering has some advantage in the high-losses scenario. This difference can be explained in the following way [87]. The post-filtration effectively rotates the homodyne angle from ϕ_lo = γ/2 (phase quadrature) at high frequencies to ϕ_lo → 0 (amplitude quadrature) at low frequencies, in order to measure the back-action noise, which dominates the low frequencies. As a result, the optomechanical transfer function reduces at low frequencies, emphasizing all noises introduced after the interferometer [see the factor sin² ϕ_lo(Ω) in the denominator of Eq. (445)]. In the pre-filtering case there is no such effect, for the value of ϕ_LO = π/2, corresponding to the maximum of the optomechanical transfer function, holds for all frequencies (the squeezing angle got rotated instead).

The optimized sum quantum noise power (double-sided) spectral densities are plotted in Figure 39 for several typical values of the specific loss factor, and for the same values of the rest of the parameters, as in Figure 38. For comparison, the spectral densities for the ideal frequency-dependent squeezing angle Eqs. (403) and homodyne angle (408) are also shown. These plots clearly demonstrate that providing sufficiently-low optical losses (say, A_f/L_f ≲ 10⁻⁸), the single filter cavity based schemes can provide virtually the same result as the abstract ones with the ideal frequency dependence for squeezing or homodyne angles.

Figure 39.

Examples of the sum quantum noise power (double-sided) spectral densities of the resonance-tuned interferometers with the single filter cavity based pre- and post-filtering. Left: pre-filtering, see Figure 37 (left); dashes — 10 dB squeezing, ϕ_LO = π/2, ideal frequency-dependent squeezing angle (404); thin solid — 10 dB squeezing, ϕ_LO = π/2, numerically-optimized lossy pre-filtering cavity with A_f/L_f = 10⁻⁹, 10⁻⁷ 10^−6.5 and 10⁻⁶. Right: post-filtering, see Figure 37 (right); dashes: 10 dB squeezing, θ = 0, ideal frequency-dependent homodyne angle (407); thin solid — 10 dB squeezing, θ = 0, numerically optimized lossy post-filtering cavity with A_f/L_f = 10⁻⁹, 10⁻⁸ and 10⁻⁷. In both panes (for the comparison): ‘Ordinary’ — no squeezing, ϕ_LO = π/2; ‘Squeezed’: 10 dB squeezing, θ = 0, ϕ_LO = π/2

Quantum speed meter

Quantum speed-meter topologies

A quantum speed meter epitomizes the approach to the broadband SQL beating, in some sense, opposite to the one based on the quantum noises cross-correlation tailoring with filter cavities, considered above. Here, instead of fitting the quantum noise spectral dependence to the Fabry-Pérot-Michelson interferometer optomechanical coupling factor (389), the interferometer topology is modified in such a way as to mold the new optomechanical coupling factor so that it turns out frequency-independent in the low- and medium-frequency range, thus making the frequency-dependent cross-correlation not necessary.

The general approach to speed measurement is to use pairs of position measurements separated by a time delay τ ≲ 1/Ω, where Ω is the characteristic signal frequency (cf. the simplified consideration in Section 4.5). Ideally, the successive measurements should be coherent, i.e., they should be performed by the same photons. In effect, the velocity υ of the test mass is measured in this way, which gives the necessary frequency dependence of the .

In Section 4.5, we have considered the simplest toy scheme that implements this principle and which was first proposed by Braginsky and Khalili in [21]. Also in this paper, a modified version of this scheme, called the sloshing-cavity speed meter, was proposed. This version uses two coupled resonators (e.g., microwave ones), as shown in Figure 40 (left), one of which (2), the sloshing cavity, is pumped on resonance through the input waveguide, so that another one (1) becomes excited at its eigenfrequency ω_e. The eigenfrequency of resonator 1 is modulated by the position x of the test mass and puts a voltage signal proportional to position x into resonator 2, and a voltage signal proportional to velocity dx/dt into resonator 1. The velocity signal flows from resonator 1 into an output waveguide, from which it is monitored. One can understand the production of this velocity signal as follows. The coupling between the resonators causes voltage signals to slosh periodically from one resonator to the other at frequency Ω. After each cycle of sloshing, the sign of the signal is reversed, so the net signal in resonator 1 is proportional to the difference of the position at times t and t + 2π/Ω, thus implementing the same principle of the double position measurement.

Figure 40.

Left: schematic diagram of the microwave speed meter on coupled cavities as given in [21]. Right: optical version of coupled-cavities speed meter proposed in [127].

Later, the optical version of the sloshing-cavity speed-meter scheme suitable for large-scale laser GW detectors was developed [20, 126, 127]. The most elaborated variant proposed in [127] is shown in Figure 40 (right). Here, the differential mode of a Michelson interferometer serves as the resonator 1 of the initial scheme of [21], and an additional kilometer-scale Fabry-Pérot cavity — as the resonator 2, thus making a practical interferometer configuration.

In parallel, it was realized by Chen and Khalili [42, 85] that the zero area Sagnac interferometer [140, 11, 145] actually implements the initial double-measurement variant of the quantum speed meter, shown in Figure 26. Further analysis with account for optical losses was performed in [50] and with detuned signal-recycling in [113]. Suggested configurations are pictured in Figure 41. The core idea is that light from the laser gets split by the beamsplitter (BS) and directed to Fabry-Pérot cavities in the arms, exactly as in conventional Fabry-Pérot-Michelson interferometers. However, after it leaves the cavity, it does not go back to the beamsplitter, but rather enters the cavity in the other arm, and only afterwards returns to the beamsplitter, and finally to the photo detector at the dark port. The scheme of [42] uses ring Fabry-Pérot cavities in the arms to spatially separate ingoing and outgoing light beams to redirect the light leaving the first arm to the second one evading the output beamsplitter. The variant analyzed in [85, 50] uses polarized optics for the same purposes: light beams after ordinary beamsplitter, having linear (e.g., vertical) polarization, pass through the polarized beamsplitter (PBS), then meet the λ/4 plates that transform their linear polarization into a circular one, and then enter the Fabry-Pérot cavity. After reflection from the Fabry-Pérot cavity, light passes through a λ/4-plate again, changing its polarization again to linear, but orthogonal to the initial one. As a result, the PBS reflects it and redirects to another arm of the interferometer where it passes through the same stages, restoring finally the initial polarization and comes out of the interferometer. With the exception of the implementation method for this round-robin pass of the light through the interferometer, both schemes have the same performance, and the same appellation Sagnac speed meter will be used for them below.

Figure 41.

Two possible optical realizations of zero area Sagnac speed meter. Left panel: The ring cavities can be used to spatially separate the ingoing fields from the outgoing ones, in order to redirect output light from one arm to another [42]. Right panel: The same goal can be achieved using an optical circulator consisting of the polarization beamsplitter (PBS) and two λ/4-plates [85, 50].

Visiting both arms, counter propagating light beams acquire phase shifts proportional to a sum of end mirrors displacements of both cavities taken with time delay equal to average single cavity storage time τ_arm:

457

After recombining at the beamsplitter and photo detection the output signal will be proportional to the phase difference of clockwise (R) and counter clockwise (L) propagating light beams:

458

that, for frequencies , are proportional to the relative velocity of the interferometer end test masses.

Both versions of the optical speed meter, the sloshing cavity and the Sagnac ones, promise about the same sensitivity, and the choice between them depends mostly on the relative implementation cost of these schemes. Below we consider in more detail the Sagnac speed meter, which does not require the additional long sloshing cavity.

We will not present here the full analysis of the Sagnac topology similar to the one we have provided for the Fabry-Pérot-Michelson one. The reader can find it in [42, 50]. We limit ourselves by the particular case of the resonance tuned interferometer (that is, no signal recycling and resonance tuned arm cavities). It seems that the detuned Sagnac interferometer can provide a quite interesting regime, in particular, the negative inertia one [113]. However, for now (2011) the exhaustive analysis of these regimes is yet to be done. We assume that the squeezed light can be injected into the interferometer dark port, but consider only the particular case of the classical optimization, θ = 0, which gives the best broadband sensitivity for a given optical power.

Speed-meter sensitivity, no optical losses

In order to reveal the main properties of the quantum speed meter, start with the simplified case of the lossless interferometer and the ideal photodetector. In this case, the sum quantum noise power (double-sided) spectral density of the speed meter can be written in a form similar to the one for the Fabry-Pérot-Michelson interferometer [see, e.g., Eqs. (386), (387) and (388)]:

459

but with a different form of the optomechanical coupling factor, see [42]:

460

The factor J here is still defined by Eq. (369), but the circulating power is now twice as high as that of the position meter, for the given input power, because after leaving the beamsplitter, here each of the “north” and “east” beams visit both arms sequentially.

The key advantage of speed meters over position meters is that at low frequencies, Ω < γ, is approximately constant and reaches the maximum there:

461

As a consequence, a frequency-independent readout quadrature optimized for low frequencies can be used:

462

which gives the following power (double-sided) spectral density

463

Here, the radiation-pressure noise (the second term in brackets) is significantly suppressed in low frequencies (Ω ≲ γ), and can beat the SQL in a broad frequency band.

This spectral density is plotted in Figure 42 (left). For comparison, spectral densities for the lossless ordinary Fabry-Pérot-Michelson interferometer without and with squeezing, as well as for the ideal post-filtering configuration [see Eq. (408)] are also given. One might conclude from these plots that the Fabry-Pérot-Michelson interferometer with the additional filter cavities is clearly better than the speed meter. However, below we demonstrate that optical losses change this picture significantly.

Figure 42.

Examples of the sum quantum noise power (double-sided) spectral densities of the Sagnac speed-meter interferometer (thick solid line) in comparison with the Fabry-Pérot-Michelson based topologies considerd above (dashed lines). Left: no optical losses, right: with optical losses, η_d = 0.95, the losses part of the bandwidth γ₂ = 1.875 s⁻¹ (which corresponds to the losses A_arm = 10⁻⁴ per bounce in the 4 km length arms). “Ordinary”: no squeezing, ϕ_LO = π/2. “Squeezed”: 10 dB squeezing, θ = 0, ϕ_LO = π/2. “Post-filtering”: 10 dB squeezing, θ = 0, ideal frequency-dependent homodyne angle [see Eq. (408)]. For the Fabry-Pérot-Michelson-based topologies, J = J_aLIGO and γ = 2π × 500 s⁻¹. In the speed-meter case, J = 2J_aLIGO and the bandwidth is set to provide the same high-frequency noise as in the other plots (γ = 2π × 385 s⁻¹ in the lossless case and γ = 2π × 360 s⁻¹ in the lossy one).

Optical losses in speed meters

In speed meters, optical losses in the arm cavities could noticeably affect the sum noise at low frequencies, even if

464

because the radiation pressure noise component created by the arm cavity losses has a frequency dependence similar to the one for position meters (remember that if Ω → 0; see Eqs. (389), (460)). In this paper, we will use the following expression for the lossy speed-meter sum noise, which takes these losses into account (more detailed treatment of the lossy speed meter can be found in papers [127, 50]):

465

The low-frequency optimized detection angle, in presence of loss, is

466

which gives

467

[compare with Eq. (463) and note the additional residual back-action term similar to one in Eq. (408)].

This spectral density is plotted in Figure 42 (right), together with the lossy variants of the same configurations as in Figure 42 (left), for the same moderately optimistic value of η_d = 0.95, the losses part of the bandwidth and for γ₂ = 1.875 s⁻¹ [which corresponds to the losses A_arm = 10⁻⁴ per bounce in the 4 km length arms, see Eq. (322)]. These plots demonstrate that the speed meter in more robust with respect to optical losses than the filter cavities based configuration and is able to provide better sensitivity at very low frequencies.

It should also be noted that we have not taken into account here optical losses in the filter cavity. Comparison of Figure 42 with Figure 39, where the noise spectral density for the more realistic lossy-filter-cavity cases are plotted, shows that the speed meter has advantage over, at least, the short and medium length (tens or hundred of meters) filter cavities. In the choice between very long (and hence expensive) kilometer scale filter cavities and the speed meter, the decision depends, probably, on the implementation costs of both configurations.

Optical rigidity

Introduction

We have seen in Section 4.3 that the harmonic oscillator, due to its strong response on near-resonance force, is characterized by the reduced values of the effective quantum noise and, therefore, by the SQL around the resonance frequency, see Eqs. (165, 172) and Figure 22. However, practical implementation of this gain is limited by the following two shortcomings: (i) the stronger the sensitivity gain, the more narrow the frequency band in which it is achieved; see Eq. (171); (ii) in many cases, and, in particular, in a GW detection scenario with its low signal frequencies and heavy test masses separated by the kilometers-scale distances, ordinary solid-state springs cannot be used due to unacceptably high levels of mechanical loss and the associated thermal noise.

At the same time, in detuned Fabry-Pérot cavities, as well as in the detuned configurations of the Fabry-Pérot-Michelson interferometer, the radiation pressure force depends on the mirror displacement (see Eqs. (312)), which is equivalent to the additional rigidity, called the optical spring, inserted between the cavity mirrors. It does not introduce any additional thermal noise, except for the radiation pressure noise , and, therefore, is free from the latter of the above mentioned shortcomings. Moreover, as we shall show below, spectral dependence of the optical rigidity K(Ω) alleviates, to some extent, the former shortcoming of the ‘ordinary’ rigidity and provides some limited sensitivity gain in a relatively broad band.

The electromagnetic rigidity was first discovered experimentally in radio-frequency systems [26]. Then its existence was predicted for the optical Fabry-Pérot cavities [25]. Much later it was shown that the excellent noise properties of the optical rigidity allows its use in quantum experiments with macroscopic mechanical objects [17, 23, 24]. The frequency dependence of the optical rigidity was explored in papers [32, 83, 33]. It was shown that depending on the interferometer tuning, either two resonances can exist in the system, mechanical and optical ones, or a single broader second-order resonance will exist.

In the last decade, the optical rigidity has been observed experimentally both in the table-top setup [48] and in the larger prototype interferometer [111].

The optical noise redefinition

In detuned interferometer configurations, where the optical rigidity arises, the phase shifts between the input and output fields, as well as between the input fields and the field, circulating inside the interferometer, depend in sophisticated way on the frequency Ω. Therefore, in order to draw full advantage from the squeezing, the squeezing angle of the input field should follow this frequency dependence, which is problematic from the implementation point of view. Due to this reason, considering the optical-rigidity-based regimes, we limit ourselves to the vacuum-input case only, setting in Eq. (375).

In this case, it is convenient to redefine the input noise operators as follows:

468

where

469

is the unified quantum efficiency, which accounts for optical losses both in the interferometer and in the homodyne detector.

Note that if the operators , and describe mutually-uncorrelated vacuum noises, then the same is valid for the new , and . Expressing Eqs. (371 and 373) in terms of new noises (468) and renaming them, for brevity,

470

we obtain:

471

472

where ℝ(Ω) is the lossless cavity reflection factor; see Eq. (550).

Thus, we have effectively reduced our lossy interferometer to the equivalent lossless one, but with less effective homodyne detector, described by the unified quantum efficiency η < η_d. Now we can write down explicit expressions for the interferometer quantum noises (376), (377) and (378), which can be calculated using Eqs. (552):

473

where

474

Bad cavities approximation

We start our treatment of the optical rigidity with the “bad cavity” approximation, discussed in Section 6.1.2 for the resonance-tuned interferometer case. This approximation, in addition to its importance for the smaller-scale prototype interferometers, provides a bridge between our idealized harmonic oscillator consideration of Section 4.3.2 and the frequency-dependent rigidity case specific to the large-scale GW detectors, which will be considered below, in Section 6.3.4.

In the “bad cavity” approximation Γ ≫ Ω, the Eqs. (473) for the interferometer quantum noises, as well as the expression (374) for the optical rigidity can be significantly simplified:

475

and

476

Substituting these equations into the equation for the sum quantum noise (cf. Eq. (144)):

477

where

478

stand for the effective back-action noise and effective optical rigidity, respectively, and dividing by defined by Eq. (161), we obtain the SQL beating factor (418):

479

where

480

is the effective resonance frequency (which takes into account both real and virtual parts of the effective rigidity K_eff). Following the reasoning of Section 4.3.2, it is easy to see that this spectral density allows for narrow-band sensitivity gain equal to

481

within the bandwidth

482

In the ideal lossless case (η = 1),

483

in accord with Eq.(171). However, if η < 1, then the bandwidth, for a given ξ lessens gradually as the homodyne angle φ goes down. Therefore, the optimal case of the broadest bandwidth, for a given ξ, corresponds to φ = π/2, and, therefore, to S_xF = 0 [see Eqs. (475)], that is, to the pure ‘real’ rigidity case with non-correlated radiation-pressure and shot noises. This result naturally follows from the above conclusion concerning the amenability of the quantum noise sources cross-correlation to the influence of optical loss.

Therefore, setting φ = π/2 in Eq. (479) and taking into account that

484

where is the normalized optical power defined in Eq. (417), we obtain that

485

Consider now the local minimization of this function at some given frequency Ω₀, similar to one discussed in Section 6.1.2. Now, the optimization parameter is β, that is, the detuning δ of the interferometer. It is easy to show that the optimal β is given by the following equation:

486

This fifth-order equation for tan β cannot be solved in radicals. However, in the most interesting case of Ω₀ ≪ Ω_q, the following asymptotic solution can easily be obtained:

487

thus yielding

488

The function (485), with optimal values of β defined by the condition (486), is plotted in Figure 43 for several values of the normalized detuning. We assumed in these plots that the unified quantum efficiency is equal to η = 0.95. In the ideal lossless case η =1, the corresponding curves do not differ noticeably from the plotted ones. It means that in the real rigidity case, contrary to the virtual one, the sensitivity is not affected significantly by optical loss. This conclusion can also be derived directly from Eqs. (485) and (488). It stems from the fact that quantum noise sources cross-correlation, amenable to the optical loss, has not been used here. Instead, the sensitivity gain is obtained by means of signal amplification using the resonance character of the effective harmonic oscillator response, provided by the optical rigidity.

Figure 43.

Plots of the SQL beating factor (485) of the detuned interferometer, for different values of the normalized detuning: 0 ≤ β = arctan(δ/γ) < π/2, and for unified quantum efficiency η = 0.95. Thick solid line: the common envelope of these plots. Dashed lines: the common envelopes (420) of the SQL beating factors for the virtual rigidity case, without squeezing, r = 0, and with 10 dB squeezing, e^2r = 10 (for comparison).

The common envelope of these plots (that is, the optimal SQL-beating factor), defined implicitly by Eqs. (485) and (486), is also shown in Figure 43. Note that at low frequencies, Ω ≪ Ω_q, it can be approximated as follows:

489

(actually, this approximation works well starting from Ω ≲ 0.3Ω_q). It follows from this equation that in order to obtain a sensitivity significantly better than the SQL level, the interferometer should be detuned far from the resonance, δ≫γ.

For comparison, we reproduce here the common envelopes of the plots of ξ²(Q) for the virtual rigidity case with η = 0.95; see Figure 36 (the dashed lines). It follows from Eqs. (489) and (420) that in absence of the optical loss, the sensitivity of the real rigidity case is inferior to that of the virtual rigidity one. However, even a very modest optical loss value changes the situation drastically. The noise cancellation (virtual rigidity) method proves to be advantageous only for rather moderate values of the SQL beating factor of ξ ≳ 0.5 in the absence of squeezing and ξ ≳ 0.3 with 10 dB squeezing. The conclusion is forced upon you that in order to dive really deep under the SQL, the use of real rather than virtual rigidity is inevitable.

Noteworthy, however, is the fact that optical rigidity has an inherent feature that can complicate its experimental implementation. It is dynamically unstable. Really, the expansion of the optical rigidity (374) into a Taylor series in Ω gives

490

The second term, proportional to iΩ, describes an optical friction, and the positive sign of this term (if δ > 0) means that this friction is negative.

The corresponding characteristic instability time is equal to

491

In principle, this instability can be damped by some feedback control system as analyzed in [32, 43]. However, it can be done without significantly affecting the system dynamics, only if the instability is slow in the timescale of the mechanical oscillations frequency:

492

Taking into account that in real-life experiments the normalized optical power J is limited for technological reasons, the only way to get a more stable configuration is to decrease ξ, that is, to improve the sensitivity by means of increasing the detuning. Another way to vanquish the instability is to create a stable optical spring by employing the second pumping carrier light with opposite detuning as proposed in [48, 129]. The parameters of the second carrier should be chosen so that the total optical rigidity must have both positive real and imaginary parts in Eq. (490):

493

that can always be achieved by a proper choice of the parameters J_1,2, γ_1,2 and δ_1,2 (δ₁δ₂ < 0).

General case

Frequency-dependent rigidity. In the large-scale laser GW detectors with kilometer-scale arm cavities, the interferometer bandwidth can easily be made comparable or smaller than the GW signal frequency Ω. In this case, frequency dependences of the quantum noise spectral densities (376), (377) and (378) and of the optical rigidity (374) influence the shape of the sum quantum noise and, therefore, the detector sensitivity.

Most quantum noise spectral density is affected by the effective mechanical dynamics of the probe bodies, established by the frequency-dependent optical rigidity (374). Consider the characteristic equation for this system:

494

In the asymptotic case of γ = 0, the roots of this equation are equal to

495

(hereafter we omit the roots with negative-valued real parts). The corresponding maxima of the effective mechanical susceptibility:

496

are, respectively, called the mechanical resonance (Ω_m) and the optical resonance (Ω₀) of the interferometer [32]. In order to clarify their origin, consider an asymptotic case of the weak optomechanical coupling, J ≪ δ³. In this case,

497

It is easy to see that Ω_m originates from the ordinary resonance of the mechanical oscillator consisting of the test mass M and the optical spring K [compare with Eq. (476)]. At the same time, Ω_o, in this approximation, does not depend on the optomechanical coupling and, therefore, has a pure optical origin — namely, sloshing of the optical energy between the carrier power and the differential optical mode of the interferometer, detuned from the carrier frequency by δ.

In the realistic general case of γ ≠ 0, the characteristic equation roots are complex. For small values of γ, keeping only linear in γ terms, they can be approximated as follows:

498

Note that the signs of the imaginary parts correspond to a positive dumping for the optical resonance, and to a negative one (that is, to instability) for the mechanical resonance (compare with Eq. (490)).

In Figure 44, the numerically-calculated roots of Eq. (494) are plotted as a function of the normalized optical power J/δ³, together with the analytical approximate solution (498), for the particular case of γ/δ = 0.03. These plots demonstrate the peculiar feature of the parametric optomechanical interaction, namely, the decrease of the separation between the eigenfrequencies of the system as the optomechanical coupling strength goes up. This behavior is opposite to that of the ordinary coupled linear oscillators, where the separation between the eigenfrequencies increases as the coupling strength grows (the well-known avoided crossing feature).

Figure 44.

Roots of the characteristic equation (494) as functions of the optical power, for γ/δ = 0.03. Solid lines: numerical solution. Dashed lines: approximate solution, see Eqs. (498)

As a result, if the optomechanical coupling reaches the critical value:

499

then, in the asymptotic case of γ = 0, the eigenfrequencies become equal to each other:

500

If γ > 0, then some separation retains, but it gets smaller than 2γ, which means that the corresponding resonance curves effectively merge, forming a single, broader resonance. This second-order pole regime, described for the first time in [83], promises some significant advantages for high-precision mechanical measurements, and we shall consider it in more detail below.

If J < J_crit, then two resonances yield two more or less separated minima of the sum quantum noise spectral density, whose location on the frequency axis mostly depends on the detuning δ, and their depth (inversely proportional to their width) hinges on the bandwidth γ. The choice of the preferable configuration depends on the criterion of the optimization, and also on the level of the technical (non-quantum) noise in the interferometer.

Two opposite examples are drawn in Figure 45. The first one features the sensitivity of a broadband configuration, which provides the best SNR for the GW radiation from the inspiraling neutron-star-neutron-star binary and, at the same time, for broadband radiation from the GW burst sources, for the parameters planned for the Advanced LIGO interferometer (in particular, the circulating optical power , L = 4 km, and M = 40 kg, which translates to J = J_aLIGO = (2π × 100)³ s⁻³, and the planned technical noise). The optimization performed in [93] gave the quantum noise spectral density, labeled as ‘Broadband’ in Figure 45. It is easy to notice two (yet not discernible) minima on this plot, which correspond to the mechanical and the optical resonances.

Figure 45.

Examples of the sum noise power (double-sided) spectral densities of the detuned interferometer. ‘Broadband’: double optimization of the Advanced LIGO interferometer for NS-NS inspiraling and burst sources in presence of the classical noises [93] (J = J_aLIGO = (2π × 100)³ s⁻³, Γ = 3100 s⁻¹, β = 0.80, ϕ_LO = π/2 − 0.44). ‘High-frequency’: low-power configuration suitable for detection of the GW signals from the millisecond pulsars, similar to one planned for GEO HF [169] [J = 0.1J_aLIGO, Γ = 2π × 1000 s⁻¹, β = π/2 − 0.01, ϕ_LO = 0]. ‘Second-order pole’: the regime close to the second-order pole one, which provides a maximum of the SNR for the GW burst sources given that technical noise is smaller than the SQL [S_tech = 0.1S_sql, J = J_aLIGO, Γ = 1050 s⁻¹, β = π/2 − 0.040, ϕ_LO = 0.91]. In all cases, η_d = 0.95 and the losses part of the bandwidth γ₂ = 1.875 s⁻¹ (which corresponds to the losses A_arm = 10⁻⁴ per bounce in the 4 km long arms).

Another example is the configuration suitable for detection of the narrow-band GW radiation from millisecond pulsars. Apparently, one of two resonances should coincide with the signal frequency in this case. It is well to bear in mind that in order to create an optical spring with mechanical resonance in a kHz region in contemporary and planned GW detectors, an enormous amount of optical power might be required. This is why the optical resonance, whose frequency depends mostly on the detuning δ, should be used for this purpose. This is, actually, the idea behind the GEO HF project [169]. The example of this regime is represented by the curve labeled as ‘High-frequency’ in Figure 45. Here, despite one order of magnitude less optical power used (J = 0.1J_aLIGO), several times better sensitivity at frequency 1 kHz, than in the ‘Broadband’ regime, can be obtained. Note that the mechanical resonance in this case corresponds to 10 Hz only and therefore is virtually useless.

The second-order pole regime. In order to clarify the main properties of the second-order pole regime, start with the asymptotic case of γ → 0. In this case, the optical rigidity and the mechanical susceptibility (496) read

501

502

if condition (499) is satisfied, then in the close vicinity of the frequency Ω₀ (see Eq. (500)):

503

the susceptibility can be approximated as follows:

504

Note that this susceptibility is proportional to the square of the susceptibility of the ordinary oscillator,

505

and has the second-order pole at the frequency Ω₀ (thus the name of this regime).

This ‘double-resonance’ feature creates a stronger response to the external forces with spectra concentrated near the frequency Ω₀, than in the ordinary harmonic oscillator case. Consider, for example, the resonance force F₀ sin Ω₀t. The response of the ordinary harmonic oscillator with eigenfrequency Ω₀ on this force increases linearly with time:

506

while that of the second-order pole object grows quadratically:

507

It follows from Eq. (151) that due to this strong response, the second-order pole test object has a reduced value of the SQL around Ω₀ by contrast to the harmonic oscillator.

Consider the quantum noise of the system, consisting of this test object and the SQM (that is, the Heisenberg’s-uncertainty-relation-limited quantum meter with frequency-independent and non-correlated measurement and back-action noises; see Section 4.1.1), which monitors its position. Below we show that the real-life long-arm interferometer, under some assumptions, can be approximated by this model.

The sum quantum noise power (double-sided) spectral density of this system is equal to

508

if the frequency Ωis close to Ω₀:

509

then

510

and

511

(compare with Eq. (165)), where the frequency Ω_q is defined by Eq. (155).

The same minimax optimization as performed in Section 4.3.2 for the harmonic oscillator case gives that the optimal value of Ω_q is equal to

512

and in this case,

513

Comparison of Eqs. (513) and (171) shows that for a given SQL-beating bandwidth ΔΩ, the second-order pole system can provide a much stronger sensitivity gain (i.e., much smaller value of ξ²), than the harmonic oscillator, or, alternatively, much broader bandwidth ΔΩ for a given value of ξ². It is noteworthy that the factor (513) can be made smaller than the normalized oscillator SQL 2|ν|Ω₀ (see Eq. (171)), which means beating not only the free mass SQL, but also the harmonic oscillator one.

This consideration is illustrated by the left panel of Figure 46, where the factors ξ² for the harmonic oscillator (170) and of the second-order pole system (511) are plotted for the same value of the normalized back-action noise spectral density (Ωq/Ω₀)² = 0.01, as well as the normalized oscillator SQL (171).

Figure 46.

Left panel: the SQL beating factors Ω² for Ω_q/Ω₀ = 0.1. Thick solid: the second-order pole system (511); dots: the two-pole system with optimal separation between the poles (528), (529); dashes: the harmonic oscillator (170); thin solid — SQL of the harmonic oscillator (171). Right: the normalized SNR (526). Solid line: analytical optimization, Eq. (530); pluses: numerical optimization of the spectral density (514) in the lossless case (η = 1); diamonds: the same for the interferometer with J = (2π × 100)³ s⁻³, η_d = 0.95 and the losses part of the bandwidth γ₂ = 1.875 s⁻¹ (which corresponds to the losses A_arm = 10⁻⁴ per bounce in the 4 km long arms).

Now return to the quantum noise of a real interferometer. With account of the noises redefinition (468), Eq. (385) for the sum quantum noise power (double-sided) spectral density takes the following form:

514

Suppose that the interferometer parameters satisfy approximately the second-order pole conditions. Namely, introduce a new parameter Λ defined by the following equation:

515

where the frequency Ω₀ is defined by Eq. (500), and assume that

516

Keeping only the first non-vanishing terms in ν², Λ², and γ in Eq. (514), we obtain that

517

where

518

It follows from Eq. (517) that the parameter Λ is equal to the separation between the two poles of the susceptibility .

It is evident that the spectral density (517) represents a direct generalization of Eq. (510) in two aspects. First, it factors in optical losses in the interferometer. Second, it includes the case of Λ ≠ 0. We show below that a small yet non-zero value of A allows one to further increase the sensitivity.

Optimization of the signal-to-noise ratio. The peculiar feature of the second-order pole regime is that, while being, in essence, narrow-band, it can provide an arbitrarily-high SNR for the broadband signals, limited only by the level of the additional noise of non-quantum (technical) origin. At the same time, in the ordinary harmonic oscillator case, the SNR is fundamentally limited.

In both the harmonic oscillator and the second-order pole test object cases, the quantum noise spectral density has a deep and narrow minimum, which makes the major part of the SNR integral. If the bandwidth of the signal force exceeds the width of this minimum (which is typically the case in GW experiments, save to the narrow-band signals from pulsars), then the SNR integral (453) can be approximated as follows:

519

It is convenient to normalize both the signal force and the noise spectral density by the corresponding SQL values, which gives:

520

where

521

is the dimensionless integral sensitivity measure, which we shall use here, and

522

For a harmonic oscillator, using Eq. (170), we obtain

523

This result is natural, since the depth of the sum quantum-noise spectral-density minimum (which makes the dominating part of the integral (521)) in the harmonic oscillator case is inversely proportional to its width ΛΩ, see Eq. (171). As a result, the integral does not depend on how small the minimal value of ξ² is.

The situation is different for the second-order pole-test object. Here, the minimal value of ξ² is proportional to (ΛΩ)⁻² (see Eq. (513)) and, therefore, it is possible to expect that the SNR will be proportional to

524

Indeed, after substitution of Eq. (511) into (521), we obtain:

525

Therefore, decreasing the width of the dip in the sum quantum noise spectral density and increasing its depth, it is possible, in principle, to obtain an arbitrarily high value of the SNR.

Of course, it is possible only if there are no other noise sources in the interferometer except for the quantum noise. Consider, though, a more realistic situation. Let there be an additional (technical) noise in the system with the spectral density S_tech(Ω). Suppose also that this spectral density does not vary much within our frequency band of interest ΛΩ. Then the factor σ² can be approximated as follows:

526

where

527

Concerning quantum noise, we consider the regime close (but not necessarily exactly equal) to that yielding the second-order pole, that is, we suppose 0 ≤ Λ Λ Ω₀. In order to simplify our calculations, we neglect the contribution from optical loss into the sum spectral density (we show below that it does not affect the final sensitivity much). Thus, as follows from Eq. (517), one gets

528

In the Appendix A.3, we calculate integral Eq. (526) and optimize it over Λ and Ω_q. The optimization gives the best sensitivity, for a given value of , is provided by

529

In this case,

530

The pure second-order pole regime (Λ = 0), with the same optimal value of Ω_q, provides slightly worse sensitivity:

531

The optimized function (528) is shown in Figure 46 (left) for the particular case of Λ = Ω_q = 0.1Ω₀. In Figure 46 (right), the optimal SNR (530) is plotted as a function of the normalized technical noise .

In order to verify our narrow-band model, we optimized numerically the general normalized SNR for the broadband burst-type signals:

532

where S^h is the sum quantum noise of the interferometer defined by Eq. (514). The only assumption we have made here is that the technical noise power (double-sided) spectral density

533

does not depend on frequency, which is reasonable, since only the narrow frequency region around Ω0 contributes noticeably to the integral (532). The result is shown in Figure 46 (right) for two particular cases: the ideal (no loss) case with η = 1, and the realistic case of the interferometer with J = (2π × 100)³ s⁻³, η_d = 0.95 and γ₂ = 1.875 s⁻¹ (which corresponds to the loss factor of A_arm = 10⁻⁴ per bounce in the 4 km long arms; see Eq. (322)). The typical optimized quantum noise spectral density (for the particular case of ) is plotted in Figure 45.

It is easy to see that the approximations (528) work very well, even if ξ_tech ∼ 1 and, therefore, the assumptions (516) cease to be valid. One can conclude, looking at these plots, that optical losses do not significantly affect the sensitivity of the interferometer, working in the second-order pole regime. The reason behind it is apparent. In the optical rigidity based systems, the origin of the sensitivity gain is simply the resonance increase of the probe object dynamical response to the signal force, which is, evidently, immune to the optical loss.

The only noticeable discrepancy between the analytical model and the numerical calculations for the lossless case, on the one hand, and the numerical calculations for the lossy case, on the other hand, appears only for very small values of . It follows from Eqs. (518) and (529) that this case corresponds to the proportionally reduced bandwidth of the interferometer,

534

(for a typical value of Ω₀ ∼ 10³ s⁻¹). Therefore, the loss-induced part of the total bandwidth γ₂, which has no noticeable effect on the unified quantum efficiency η [see Eq. (469)] for the ‘normal’ broadband values of γ ∼ 10³ s⁻¹, degrades it in this narrow-band case. However, it has to be emphasized that the degradation of σ², for the reasonable values of , is only about a few percent, and even for the quite unrealistic case of , does not exceed ∼ 25%.

Conclusion and Future Directions

In this review, our primary goal was to tell in a clear and understandable way what is meant by quantum measurement in GW detectors. It was conceived as a comprehensive introduction to the quantum noise calculation techniques that are employed currently for the development of advanced interferometric detectors. The target audience are the young researchers, students and postdocs, who have just started their way in this field and need a guide that provides a step-by-step tutorial into the techniques and covers all the current achievements in the field. At the same time, we tried to make this manuscript interesting to all our colleagues from the GW community and, perhaps, from other branches of physics, who might be interested in getting themselves familiar with this area, not necessarily close to their own research field.

However, the reality is crude and such a lofty ambition is always a pot of gold at the end of the rainbow. Thus, we could not claim this review to be a complete and comprehensive description of the field of quantum measurement. We present here a pretty detailed analysis of the quantum noise features in the first and second generation of GW interferometers, contemplating the techniques considered robust and established. However, many hot topics, related to the planned third generation of GW interferometers [44, 125, 80] remained uncovered. Here are only some of them: (i) xylophone configurations [78], (ii) multiple-carrier detectors [130, 129], (iii) negative optical inertia [89], (iv) intracavity detection schemes [18, 17, 84, 86, 52], etc. It is our determined intention to enjoy the great advantages of the format of living reviews and include those topics in future revisions of this review.

We would like to conclude our review by pointing out how the new swiftly-developing areas of modern science and technology, not directly related to GW astronomy and detector science, turn out to be deeply rooted in the quantum measurement theory developed by the GW community. It is amazing how sinuous the ways of scientific progress are. The history of how GW detection and quantum-measurement theory developed and interwove might serve as an example thereof. Indeed, from the very first steps towards the experimental observation of GWs made by Weber in the early 1960s [165, 166], it was realized that the extreme weakness of interaction between the ripples of space-time and matter appeals for unprecedentedly precise measurement. And almost at the same time, Braginsky realized that the expected amplitude of the GW-induced oscillations of the bar detector signal mode would be on the order of the zero point oscillations of this mode, as predicted by quantum mechanics; that is, in order to observe GWs, one has to treat a detector quantummechanically and as a consequence there will be a quantum back action, setting a limitation on the achievable sensitivity, the SQL [16].

This serendipity had a powerful impact on the quantum measurement theory development, for it set an objective to contrive some ways to overcome this limitation. For decades up to this point, it was a purely theoretical discipline having little in common with experimental science, and, fancy that, become a vital necessity for GW astronomy. And again, for several decades, GW detection has been perhaps the only field where the results of quantum measurement theory were applied, mainly in the struggle with quantum noise, considered as a hindrance towards the noble goal of the detection of GWs. And only recently, the same optomechanical interaction, begetting quantum noise and the SQL in the interferometric GW detectors, has aroused a keen interest among wide circles of researchers studying the quantum behavior of macroscopic objects and testing the very foundations of quantum mechanics in the macroscopic world [91, 10].

All the techniques and concepts developed in the GW community turn out to be highly sought by this new field [45]. Such methods, initially developed for future GW detectors, as back-action evasion via properly constructed cross correlation between the measurement and back-action noise sources [162, 159, 158, 160, 161, 51, 53], find a use in the optomechanical experiments with micro-and nanoscale mechanical oscillators [46, 114, 108, 105, 106, 170, 62]. It turns out that GW detectors themselves fit extremely well for testing the fundamental principles of quantum mechanics just for the record low values of the noise, having non-quantum origin, that owes to the ingenuity, patience and dedication by an entire generation of experimental physicists [131]. The very fact that the mechanical differential mode of the km-scale LIGO detector has been cooled down to T_eff = 1.4 µK without any special arrangement, just by modifying the standard feedback kernel of the actuators to provide a virtual rigidity, shifting the 10-kg suspended mirrors oscillation frequency from Ω_m/2π = 0.74 Hz to 150 Hz, where the GW detector is most sensitive [2], tells its own tale. Noteworthy also is the experiment on cooling a several-ton AURIGA bar detector mechanical oscillation mode to T_eff = 0.17 mK [153]. In principle, some dedicated efforts might yield even cooling to ground state of these definitely macroscopic oscillators [54, 107].

One might foresee even more striking, really quantum phenomena, to be demonstrated experimentally by future GW detectors, whose sensitivity will be governed by quantum noise and not limited by the SQL. It is possible, e.g., to prepare the mechanical degree of freedom of the interferometer in a close-to-pure squeezed quantum state [114], entangle the differential and common motion of the kg-scale mirrors in the EPR-like fashion [56, 115], or even prepare it in a highly non-classical Schrödinger-cat state [135, 88].

Appendices

Input/Output relations derivation for a Fabry-Pérot cavity

Here we consider the derivation of the I/O-relations for a Fabry-Pérot cavity given by Eqs. (274) in Section 5.2. We start by writing down the input fields in terms of reduced complex amplitudes A_1,2 for the classical part of the field and annihilation operators for quantum corrections, respectively, as prescribed by Eqs. (48) and (51):

535

536

with c.c. standing for “complex conjugate” and h.c. for “Hermitian conjugate”. It would be convenient for us to make the preliminary calculations in terms of complex amplitudes before going for two-photon quadrature amplitudes.

Start with the equations that connect the classical field amplitudes of the fields shown in Figure 29. At each mirror, the corresponding fields are related according to Eqs. (27) with mirror transfer matrix :

537

538

and two equations for the running waves inside the cavity:

539

describes the free propagation of light between the mirrors. The solution to these equations is the following:

540

The equations set for the quantum fields has the same structure, but with more sophisticated boundary conditions, which include mirrors’ motion as described in Section 2.2.5:

541

542

where

543

and

544

The solution to these equations reads:

545

546

Proof of Eq. (376), (377) and (378)

In the lossless case [see Eq. (380)], the noises (double-sided) power spectral densities (376), (377) and (378) are equal to

547

were

548

549

and

550

Therefore,

551

Note that the squeezing factor r has gone.

Taking into account that

552

we obtain that

553

and

554

It is easy to show by direct calculation that

555

which proves Eq. (379).

SNR in second-order pole regime

Substituting Eqs. (528) and (527) into Eq. (526), we obtain that

556

where

557

if λ = 0 (the sub-optimal case), then

558

The maximum of (556) in λ corresponds to

559

and is equal to

560

In both cases (558) and (560), we should minimize the expression

561

in Ω_q. It is easy to see that the optimal Ω_q is equal to

562

which gives the SNR (530) for the optimal case (529) and (531) — for the sub-optimal one Λ = 0.
