Development of Portable Aerosol Mobility Spectrometer for Personal and Mobile Aerosol Measurement

Abstract

We describe development of a Portable Aerosol Mobility Spectrometer (PAMS) for size distribution measurement of submicrometer aerosol. The spectrometer is designed for use in personal or mobile aerosol characterization studies and measures approximately 22.5 × 22.5 × 15 cm and weighs about 4.5 kg including the battery. PAMS uses electrical mobility technique to measure number-weighted particle size distribution of aerosol in the 10–855 nm range. Aerosol particles are electrically charged using a dual-corona bipolar corona charger, followed by classification in a cylindrical miniature differential mobility analyzer. A condensation particle counter is used to detect and count particles. The mobility classifier was operated at an aerosol flow rate of 0.05 L/min, and at two different user-selectable sheath flows of 0.2 L/min (for wider size range 15–855 nm) and 0.4 L/min (for higher size resolution over the size range of 10.6–436 nm). The instrument was operated in voltage stepping mode to retrieve the size distribution, which took approximately 1–2 minutes, depending on the configuration. Sizing accuracy and resolution were probed and found to be within the 25% limit of NIOSH criterion for direct-reading instruments (NIOSH 2012). Comparison of size distribution measurements from PAMS and other commercial mobility spectrometers showed good agreement. The instrument offers unique measurement capability for on-person or mobile size distribution measurements of ultrafine and nanoparticle aerosol.

1. Introduction

Recent growth in broad applications of nanotechnology has led to increase in industrial production of engineered nanomaterials. This has raised concerns over the potential risks to the human health from exposure to nanomaterials (NIOSH 2013). Recent field studies show that workers may be exposed to airborne engineered nanomaterials during the manufacturing, handling, and cleanup of CNT materials (Birch et al. 2011; Dahm et al. 2012; Dahm et al. 2015).

Depending on the nature of exposure, near real-time aerosol instruments can be useful in identifying sources, processes, or tasks that contribute to the release of nanomaterials in industrial environments (Methner et al. 2010). Several direct-reading instruments are available for workplace aerosol monitoring, that include hand-held condensation particle counters (CPCs), photometers, and surface area monitors, scanning mobility particle sizers, and electrical impactors (Methner et al. 2010; NIOSH 2013; Ramachandran et al. 2011). The compact, hand-held instruments are suitable for routine use; however can only provide measurement of single metric such as number, surface area, or mass concentration. On the other hand, larger mobility spectrometers provide number-weighted particle size distribution, which can be used to obtain an estimation of all three exposure metrics in a single measurement. However, these instruments are not suitable for routine field use due to high cost, large weight or high complexity of use. In addition, these spectrometers use a radioactive source to achieve bipolar charge conditioning of the aerosol sample, which can restrict their transportation and field use. Other field-portable instruments, such as the Nano-ID (Particle Measuring Systems), NanoScan (TSI Inc.) and a hand-held particle size spectrometer (Qi and Kulkarni 2012) have been developed to measure the mobility size distribution. These instruments use a unipolar charger for charge-conditioning, which can introduce large measurement uncertainties for aerosols with preexisting charges (Qi et al., 2009) and limit the measurement size range (Qi and Kulkarni 2012).

In this paper, we describe development of a compact, hand-portable, battery-operated mobility spectrometer that is suitable for aerosol size distribution measurement for personal, mobile, or distributed sampling applications. We present the design, development, laboratory characterization of accuracy and precision, and some field measurements of the prototype instrument.

2. Portable Aerosol Mobility Spectrometer (PAMS)

The layout of the prototype instrument along with its flow scheme is shown in Figure 1(a). The key components include a miniature dual-corona bipolar charger, a differential mobility electrical classifier, and a condensation particle counter. The aerosol particles are first electrically charged by the bipolar charger, then classified according to their electrical mobility in the classifier, and subsequently counted downstream using the condensation particle counter (CPC). A cyclone separator, with an aerodynamic diameter cut of 1000 nm (at 50% efficiency; see Figure S1 in SI for transmission efficiency curve) at a flow rate of 0.7 litter per minute (L/min), is used upstream of the bipolar charger to remove larger particles from the aerosol entering the instrument. Key design features of each component are briefly described below.

Figure 1.

(a) Flow scheme and layout of different components of PAMS; (b) assembly of charger, DMA, and CPC units; (c) prototype PAMS instrument

2.1 Dual Corona Bipolar Charger

A corona-based bipolar charger, described in an earlier publication (Qi and Kulkarni 2013), was used to charge-condition the aerosol entering the mobility classifier. This dual-corona bipolar charger (DCBC) employs an aerosol flow cavity exposed to two corona ionizers producing ions of opposite polarity. Each corona ionizer houses two electrodes in parallel needle-mesh configuration and is operated at the same magnitude of corona current (see Figure S2 in the Supplementary Information (SI)). The overall external dimensions of the DCBC were approximately 1.6×1.9×1.9 cm. Experimental measurement of detailed charge distribution of near-monodisperse particles of different diameter in the submicrometer size range showed that the charger is capable of producing well-defined, consistent bipolar charge distributions for flow rates up to 1.5 L/min and aerosol concentration up to 10⁷ cm⁻³ (Qi and Kulkarni 2013). For particles with preexisting charge of +1, 0, and −1, the measured charge distributions agreed well with the theoretical distributions within the range of experimental and theoretical uncertainties. The transmission efficiency of the charger was measured to be 80% for 10 nm particles (at 0.3 L/min and 5 μA corona current) and increased with increasing diameter beyond this size. Measurement of uncharged fractions at various combinations of positive and negative corona currents showed the charger performance to be insensitive to fluctuations in corona current. The nt product value (product of number concentration of ions n, and residence time t) under positive corona operation was independently estimated to be 8.5×10⁵ s cm⁻³. The ion concentration estimates (Qi and Kulkarni 2013) indicate the charger to be capable of charge-conditioning typical atmospheric and industrial aerosols in most measurement applications. The miniature size, simple and robust operation makes the charger suitable for portable mobility spectrometers.

2.2 Miniature Differential Mobility Classifier

A miniature differential mobility Analyzer (mDMA) was designed for mobility classification. The details of the design and performance of this mDMA will be presented elsewhere (Qi and Kulkarni 2016). Briefly, the mDMA was designed to allow classification of particle diameters up to 940 nm at an aerosol flow rate of ~ 0.05 L/min. The diameter of the inner cylindrical electrode was 1.778 cm. The inner diameter of the outer electrode was 2.54 cm (the distance between the electrodes was 3.81 mm). The length of electrodes from aerosol inlet and outlet in the classification region was 2.54 cm. The overall external dimensions of the mDMA were approximately 5.7×5.7×7.78 cm. The mDMA design was based on the theoretical breakdown strength of the electrical field of 43.5 kV/cm, which is marginally higher than that of the TSI 3081 and 3085 DMAs (43.1 kV/cm, TSI Inc.). However, occasional breakdown was observed when exceeding voltage beyond 6.5 kV, which corresponds to a classified mobility diameter of 940 nm at a sheath flow rate of 0.2 L/min, and a breakdown strength of the electrical field of 20.5 kV/cm. Therefore the upper limit of classifiable size was limited to 855 nm, with a maximum applied voltage of 5.8 kV. Some minor improvements to the design of the mDMA are expected to allow extension of the classification range to 1000 nm. The aerosol inlet was carefully designed to reduce diffusional loss of particles at low flow rates, and yet achieve uniform distribution in the azimuthal direction of the aerosol flow in the classification zone. Computational flow simulations were conducted to probe flow characteristics and velocity distribution in the classification region. Uniform circumferential flow distribution could be obtained at the design aerosol and sheath flow rates. This was also qualitatively confirmed with flow visualization using smoke, which revealed uniformly distributed (azimuthally) laminar flow (see Figure S3 in SI). The transfer function of the DMA was characterized using tandem DMA (TDMA) experiments and found to agree well with the theoretical Stolzenburg transfer function (Stolzenburg 1988). The diffusional losses, represented by the reduction in the area under the transfer function curve, were found to be 84.45% at 10 nm, and reduced to 42.28% at 20 nm and 6.82% at 100 nm. These losses were lower than the losses in other DMAs operated at the same aerosol flow rate of 0.05 L/min, e.g. about 21.74% at 100 nm in Knutsen-Whitby long DMA (Stolzenburg 1988), and 10.37% at 100 nm in the Nano-DMA (Chen and Pui 1997). The voltage correction parameter, a fit parameter in the transfer function model (Qi and Kulkarni 2016), was determined experimentally and found to be close to 1.0 (average values were 1.015 and 0.953 at sheath flow rates of 0.2 and 0.4 L/min, respectively), and the dispersion of transfer function could be adequately captured by particle’s diffusivity at the 0.2 L/min sheath flow, requiring no further corrections. At a sheath flow rate of 0.4 L/min, a dispersion correction factor of 1.3 was obtained from a least squares fitting process of all the experimental data at corresponding operating conditions. Experimentally measured and theoretical TDMA curves for 20 nm particles are shown in Figure S4 in SI. The mobility uncertainty, based on the full width at half-max of the transfer function deconvoluted from the experimental TDMA curve, was approximately 34.2% at low resolution and 21.4% at high resolution for a 20 nm diameter particle. The finite mobility resolution of the DMA is likely the largest source of sizing uncertainty, since the other key sources of uncertainty, mainly from the variability in sheath flow, and voltage were estimated to be less than 0.5%. Uncertainty in charging characteristics could also affect sizing uncertainty; however these uncertainties are difficult to probe and were not investigated in this study. In addition to the sizing uncertainty, counting uncertainty also affects the overall uncertainty of size distribution measurement, which will be discussed later.

2.3 Condensation Particle Counter (CPC)

The CPC design was based on a conventional, laminar flow conductive cooling system employing isopropyl alcohol. The aerosol flow (0.050 L/min) was saturated using a porous tube at elevated temperature (40–50 °C), which was subsequently cooled (to 10–20 °C) to create a supersaturation. Temperature of both units was not actively controlled using a feedback loop (e.g. proportional–integral–derivative control) for simplicity; therefore, the temperatures could drift from desired values under extreme variations in ambient temperatures. However, these temperature excursions are not expected to be significant under typical temperature variations encountered in most workplaces. Under normal operating conditions, the alcohol remains absorbed in the wick; however may seep out into the aerosol flow path by gravity if the azimuthal orientation of the prototype is excessively tilted. The residence time in the saturator and the condenser region was estimated to be 1.4 s each. The size of the grown droplet was estimated to be around 3 – 5 μm using Laser Doppler Velocimetry. At a given supersaturation ratio, the activation efficiency depends on the particle diameter, with efficiency decreasing with decreasing diameter. The activation efficiency of the CPC was experimentally determined using a reference Faraday-cage aerosol electrometer. At 25 °C ambient temperature, the temperature of the saturator and condenser were approximately 18 and 29 °C. These temperature varied slightly with the ambient temperature; however the temperature differential between and hot and cold sections ( $\mathrm{\Delta }t$) was constant at 11 °C. Figure S5 in SI shows the experimental setup used for measuring detection efficiency curve. Figure S6 in SI shows detection efficiency of the CPC ( ${\eta }_{\det }$) as a function of particle diameter. The diameter of the particle activated with 50% efficiency (d₅₀) was estimated to be 7.5 nm. Since the temperatures of the saturator and condenser of our PAMS prototype were not actively controlled using a feedback loop, mainly due to ease of implementation, the temperature differential ( $\mathrm{\Delta }t$) drifted slightly with continuous operation of the instrument. After continuous operation over 1 hour, the $\mathrm{\Delta }t$ decreased by 11%, which may lead to slight increase in d₅₀. This may lead to somewhat increased uncertainty of measurement below <20 nm. These uncertainties can be minimized by implementing efficient temperature control of the CPC. Proper operation of the condensation particle counter also requires maintaining near-upright orientation.

2.4 Instrument operation

The instrument was operated at an inlet sample flow rate of 0.7 L/min. The flow through the inlet cyclone and DCBC was 0.7 L/min. The flow was split downstream of the charger to allow 0.05 L/min through the DMA and the CPC. The flow through the CPC was controlled by a critical orifice upstream of a pump and a solenoid valve on the excess/bypass flow line. The sheath flow in the DMA was provided by a miniature rotary vane pump operating in a closed loop. The sheath flow rate was controlled using a feedback from a digital flow meter. The temperature of the sheath flow was not actively controlled. The instrument was operated at two sheath flow rates, 0.2 and 0.4 L/min. The smaller sheath flow (0.2 L/min) allowed measurements over wider size range from 15 – 855 nm, though at lower mobility resolution; whereas, the higher sheath flow rate was useful to obtain relatively higher resolution spectra in the size range 10 – 436 nm. The lower particle size limit was based on the limitation imposed by: i) resolution of the DMA, ii) increased uncertainties from the miniature high voltage power supply, and iii) the bit resolution of the microprocessor used for analog to digital conversion. The key operating characteristics of the prototype are listed in Table 1.

Table 1.

Key operating parameters of the prototype PAMS

Sample inlet flow rate	0.7 L/min
Aerosol flow rate through charger	0.7 L/min
Aerosol flow rate through DMA and CPC	0.05 L/min (50 cm3 min−1)
Sheath flow rate	0.2 L/min, or 0.4 L/min
Size range	10.6 – 435.7 nm (at 0.4 L/min) 15.1 – 855 nm (0.2 L/min)

All three components (i.e. charger, mDMA, and CPC), including the optical module of the CPC could be integrated into a volume less than 15 × 10 × 8 cm³ (see Figure 1(b)). All pumps and electronics were battery operated using an on-board Li Ion battery. Data acquisition, control, logging was accomplished using an on-board microprocessor. A straightforward zeroth inversion could be achieved using an on-board microprocessor. An off-line inversion routine was used to obtain size distributions, accounting for multiple charge states of particles. The overall dimensions of the entire prototype were approximately 22.5 × 22.5 × 15 cm and it weighed about 4.5 kg including the battery (Figure 1(c)). The prototype was capable of continuous measurements over 4 hours on a full battery charge.

2.5 Particle Size Distribution Retrieval

The instrument was operated in sequential voltage stepping mode to obtain number-weighted mobility distribution. Predetermined mDMA voltages ( $V_i$) were sequentially applied for a predetermined amount of time ( $t_{\mathit{step}}$) to measure corresponding number concentration ( $N_i$) by the particle counter at each voltage step. Based on the mobility resolution, the number of steps (and therefore channels in PSD) were determined to be 14 for low resolution, and 26 for high resolution operation. The central diameter of each channel in two resolution modes is provided in Table S1 in SI.

The array of voltage ( $V_i$) and number concentration ( $N_i$) were used to obtain the mobility size distribution using an inversion procedure explained below.

The concentration response $N_i$ of the instrument to an applied mDMA voltage $V_i$ for a given size distribution $n(\log d_p)$ entering the inlet of the instrument is given by,

$$N(V_j)={\displaystyle {\sum }_{i=1}^M{\displaystyle \underset{0}{\overset{\infty }{\int }}{\eta }_{\mathit{tot}}\left(d_p\right)\mathrm{\Omega }\left(V_j,i,d_p\right)f_{\mathit{chg}}\left(i,d_p\right)n\left(\log d_p\right)}.\mathrm{d}\log d_p}$$ (1)

where ${\eta }_{\mathit{tot}}\left(d_p\right)$ is the total size-dependent particle detection efficiency, which is a product of the transmission efficiency of the mDMA ( ${\eta }_{\mathit{DMA}}$), activation efficiency of the CPC ( ${\eta }_{\det }$), diffusional wall losses in the transport lines ( ${\eta }_{\mathit{diff}}$), transmission efficiency of the inlet cyclone ( ${\eta }_{\mathit{cycl}}$), and the transmission efficiency of the bipolar charger ( ${\eta }_{\mathit{chg}}$). $\mathrm{\Omega }\left(V_j,i,d_p\right)$ is the transfer function of the mDMA, which accounts for the probability of passing particle of size ( $d_p$) with elementary electric charge i at a given voltage ( $V_j$), and $f_{\mathit{chg}}\left(i,d_p\right)$ is the probability that particle of diameter $d_p$ will carry charge i it enters the classification zone in the classifier. Wiedensohler’s approximation (Wiedensohler 1988) was used to describe the steady-state charge distribution $f_{\mathit{chg}}\left(i,d_p\right)$

based on published data on this charger (Qi and Kulkarni 2013). Stolzenburg’s model (Stolzenburg, 1988) was used, which accounted for broadening due to Brownian diffusion. The prototype could display, in real-time, particle size distribution retrieved via zeroth order inversion (assuming single charge on the particle). A more accurate particle size distribution was retrieved off-line using multiple charge correction algorithm of Hoppel et al. (Hoppel 1978), following the methodical implementation outlined by He and Dhaniyala (He and Dhaniyala 2013).

3. Performance Characterization of the Prototype

3.1 Monodisperse Aerosols

The performance of the prototype was evaluated using a laboratory electrical mobility spectrometer (EMS) consisting of a ⁸⁵Kr bipolar charger, followed by a Knutson-Whitby DMA (Model 3081, TSI Inc.) and a CPC (Model 3025, TSI Inc.). The detailed schematic of the experimental setup used for this work is shown in the SI (Figure S7). Both silver nanoparticles (smaller than 50 nm from a tube furnace) and ammonium sulfate particles (50 nm and larger from a pneumatic atomizer) were used in the experiment. The EMS was operated at an aerosol flow rate of 0.3 L/min and the same aerosol-to-sheath flow ratio (β) as that of the PAMS. The centroid diameters of the bins used at low and high resolution are shown Table S1 in the SI. To retrieve the size distribution, the EMS was operated in sequential voltage stepping mode with similar channel diameters and number of channels to those used in PAMS, and an identical inversion routine was used for both instruments. Geometric mean diameter and standard deviations of measured distributions were compared from both EMS and PAMS for several DMA-classified near-monodisperse aerosols. Performance was tested for both neutral aerosol, as well as those with preexisting charge of +1 entering the instrument inlets by turning the Soft X-Ray neutralizer (Model 3087, TSI Inc.) on and off upstream of the PAMS and EMS. Table 2 (a)–(b) shows this comparison. The distributions measured with PAMS of near-monodisperse aerosols show good agreement in geometric mean diameter $d_{pg}$ and the geometric standard deviation ( ${\sigma }_g$), regardless of the preexisting charge, confirming that the DCBC is able to adequately condition the charge on the aerosol to a pseudo-steady state distribution. Comparison of $d_{pg}$ from PAMS and EMS with the diameter of the DMA-classified test aerosol entering each instrument (i.e. input diameter) is used to quantify the accuracy or bias of particle size measurement. Table 2 shows that the agreement in input diameter ( $d_{\mathit{DMA}}$; the first column) and the $d_{pg}$ measured with both instruments is within 20%. Figure S8 (a) and (b) in SI show the distribution of relative bias b (defined as $b=\frac{d_{pg}-d_{\mathit{DMA}}}{d_{pg}}$) is less than 10% at high resolution and 20% at low resolution. Figure 2 shows comparison of $d_{pg}$ measured by PAMS and EMS. This comparison includes polydisperse aerosols with total number concentration (N_tot) below and above 10³ cm⁻³, as well as monodisperse test aerosol (classified from DMA). The test using polydisperse aerosol of various concentrations was carried out by replacing the first DMA and the Soft X-ray neutralizer in the setup shown in Figure S7 with an adjustable aerosol dilutor. Most diameters agree within 15% (dotted line around 1:1 line in Figure 2), except for the very dilute polydisperse aerosol with N_tot of ~ 500 cm⁻³. For this dilute aerosol the difference in measured $d_{pg}$ was as large as 40%. As shown by two inset histograms, the $d_{pg}$ for 73% of the monodisperse aerosol samples tested agreed within 5% of each other, whereas 40% of the samples agreed within 5% for the polydisperse aerosol. The difference is attributed to finite binning, and the resulting lower bin counts, which deteriorate counting statistics in both spectrometers, leading to higher uncertainty. The measured relative bias for particle size measurement of PAMS is within the 25% accuracy limit recommended by NIOSH for the direct-reading instruments (NIOSH 2012). It should be noted that this size measurement (or sizing) accuracy (given by bias, b) is not the same as the accuracy of measurement of the number-weighted particle size distribution, which also depends on the accuracy of particle number concentration measurement.

Table 2.

(a)–(b):Comparison of geometric mean diameter and geometric standard deviation of lognormal fits to measured distributions of near-monodisperse aerosols from PAMS and EMS at (a) high resolution, and (b) low resolution.

(a)
Input Mono-disperse Size, dDMA (nm)	High resolution, β=0.125, Preexisting Charge = 0				High resolution, β=0. 125, Preexisting Charge = +1
	PAMS		EMS		PAMS		EMS
	$d_{\mathit{pg}}$	${\sigma }_g$	$d_{\mathit{pg}}$	${\sigma }_g$	$d_{\mathit{pg}}$	${\sigma }_g$	$d_{\mathit{pg}}$	${\sigma }_g$
19	18.9	1.07	18.8	1.06	19.0	1.06	18.7	1.06
32	30.9	1.06	31.5	1.05	30.7	1.07	31.2	1.06
55	50.0	1.07	53.5	1.06	49.8	1.07	53.0	1.06
97	88.0	1.07	93.3	1.06	88.7	1.08	94.8	1.05
150	138.0	1.07	146.8	1.07	142.0	1.08	148.1	1.08
250	230.3	1.08	250.2	1.08	231.0	1.08	244.0	1.08
360	330.9	1.13	364.3	1.10	341.3	1.13	368.2	1.09

(b)
Input Mono-disperse Size, dDMA (nm)	Low resolution, β=0.25,Preexisting Charge = 0				Low resolution, β=0. 25, Preexisting Charge = +1
	PAMS		EMS		PAMS		EMS
	$d_{\mathit{pg}}$	${\sigma }_g$	$d_{\mathit{pg}}$	${\sigma }_g$	$d_{\mathit{pg}}$	${\sigma }_g$	$d_{\mathit{pg}}$	${\sigma }_g$
19	20.3	1.08	N/A	N/A	20.4	1.09	N/A	N/A
32	32.6	1.09	33.0	1.09	32.1	1.10	32.8	1.09
55	61.2	1.36	60.6	1.12	59.1	1.35	60.4	1.13
97	107.0	1.18	109.0	1.10	108.2	1.12	109.3	1.10
150	131.0	1.17	119.1	1.13	141.3	1.13	126.6	1.15
256	299.0	1.11	301.3	1.11	298.1	1.10	303.1	1.12
372	433.73	1.09	441.5	1.09	436.1	1.09	441.4	1.09

Figure 2.

Comparison of sizing accuracy of PAMS and EMS at identical mobility resolution for near-monodisperse and polydisperse aerosols. The inset histograms show percent of samples tested (on y-axis), for each monodisperse and polydisperse aerosol, as a function of percent difference in measured $d_{\mathit{pg}}$ from the two instruments (i.e. $\left(d_{\mathit{pg}}^{\mathit{EMS}}-d_{\mathit{pg}}^{\mathit{PAMS}}\right)/d_{\mathit{pg}}^{\mathit{EMS}}$).

The measurement time at each voltage step ( $t_{\mathit{step}}$) can influence the accuracy of measured distribution. If $t_{\mathit{step}}$ is smaller than the time required to reach a steady concentration of the aerosol downstream of the DMA, it will lead to smearing of the measured distribution. On the other hand, larger $t_{\mathit{step}}$ will lead to longer measurement times. To ensure steady-state measurements downstream of the DMA, a wait time ( $t_{\mathit{wait}}$) was introduced at each voltage step. The counts measured during this wait period (i.e., t=0 to $t_{\mathit{wait}}$) were ignored. Only the counts measured between time $\mathrm{t}=t_{\mathit{wait}}$ to $t_{\mathit{step}}$ were used for size distribution measurement. Figure S9 in SI shows the effect of wait time ( $t_{\mathit{wait}}$) on the measured distribution of polydisperse aerosols. Variation of the mode or peak diameter ( $d_{\mathit{peak}}$) and the geometric mean diameter ( $d_{\mathit{pg}}$) of the test aerosols is shown. The values of $t_{\mathit{step}}$ below 3 s lead to noticeable bias in the measured peak diameters. Based on these considerations, $t_{\mathit{step}}=6\mathrm{s}$ and $t_{\mathit{wait}}=3\mathrm{s}$ were used in this study.

3.2 Polydisperse Aerosols

Table 3 compares size distributions measured from both EMS and PAMS (at $\beta =0.125$) for polydisperse aerosols with N_tot ranging from very low (~ 500 cm⁻³) to very high (~ 5×10⁶ cm⁻³) in low and high resolution modes. The difference in the distributions from two spectrometers was quantified using a mean error (ε_wm), defined as

$${\epsilon }_{\mathit{wm}}=\frac{{\displaystyle {\sum }_{i=1}^M\mathit{abs}\left(n_{\mathit{EMS}}(d_{p_i})-n_{\mathit{PAMS}}(d_{p_i})\right)}}{{\displaystyle {\sum }_{i=1}^M{n}_{\mathit{EMS}}(d_{p_i})}}$$ (2)

where $d_{pi}$ is the nominal diameter of the i^th bin, and $n_{\mathit{EMS}}(d_p)$ and $n_{\mathit{PAMS}}(d_p)$ are size distribution functions for EMS and PAMS, respectively. Table 3 also shows geometric mean and peak diameter, and geometric standard deviation for various aerosol samples measured by the two spectrometers, along with the ${\epsilon }_{\mathit{wm}}$. The calculated mean error ( ${\epsilon }_{\mathit{wm}}$) for high concentration aerosol is about 29.1% (26.3% at high resolution), and increases to 65.7% at low concentrations (N_tot ~500 cm⁻³). As will be shown later, this difference in distributions is comparable to that of the other spectrometers.

Table 3.

Comparison of size distribution parameters measured by both EMS and PAMS (at β 0.125 and 0.25) for aerosols with low (N_tot ~ 500 cm⁻³) to high (~ 5×10⁶ cm⁻³) total number concentration.

Ntot (cm−3)	Low resolution, β=0.25,							Ntot (cm−3)	High resolution, β=0.125,
	PAMS			EMS			$\%{\epsilon }_{\mathit{wm}}$		PAMS			EMS			$\%{\epsilon }_{\mathit{wm}}$
	$d_{\mathit{peak}}$	$d_{\mathit{pg}}$	${\sigma }_g$	$d_{\mathit{peak}}$	$d_{\mathit{pg}}$	${\sigma }_g$			$d_{\mathit{peak}}$	$d_{\mathit{pg}}$	${\sigma }_g$	$d_{\mathit{peak}}$	$d_{\mathit{pg}}$	${\sigma }_g$
5.6×106	59.7	90.1	1.9	73.3	103.7	1.8	29.1	5.6×106	68.0	101.1	1.8	74.1	102.0	1.8	26.3
1.6×106	74.7	105.5	1.8	78.1	112.3	1.8	13.7	9.3×105	68.9	104.3	1.8	85.0	123.4	1.8	27.2
1.25×105	94.5	135.9	1.8	111.9	158.7	1.8	22.4	1.5×105	102.8	147.2	1.8	118.1	166.4	1.8	19.8
3.6×104	89.8	127.1	1.8	112.0	132.2	1.5	42	4.3×104	99.8	144.6	1.8	118.0	162.3	1.8	26.3
3.5×103	89.8	119.8	1.8	108.9	132.2	1.5	40.1	3.5×103	87.7	124.9	1.5	105.8	125.6	1.5	41.4
5.1×102	101.7	123.2	1.6	144.3	203.6	1.8	65.7	1.1×103	116.3	146.1	1.8	172.2	238.9	1.8	64.8

Figure 3 shows comparison of number-weighted size distributions measured by PAMS to those measured using various commercially available mobility spectrometers including, SMPS (Model 3936 and 3034, TSI, Inc.), WPS (Model 100XP, MSP, Inc.), and NanoScan (Model 3910, TSI Inc.). Specific charger configuration, calibration dates, and operating aerosol and sheath flow ratios for the commercial spectrometers are listed in Table S2 in the SI. The test aerosol used for this comparison study was polydisperse ammonium sulfate aerosol generated by pneumatic atomization. The Soft X-Ray neutralizer was not used in these experiments so the test aerosol entering the mobility spectrometers retained its native charge. The inverted size distributions for each spectrometer were obtained using its commercial inversion software. The comparison in Figure 3 shows that there is general qualitative agreement in the features of the size distributions. The figure also shows mean weighted error ${\epsilon }_{\mathit{wm}}$, which was computed using Equation (2). For these calculations, $n_{\mathit{EMS}}(d_p)$ and $n_{\mathit{PAMS}}(d_p)$ in Equation (2) represented the number size distribution of the commercial spectrometer, and that of the PAMS, respectively. Since each spectrometer had a different number of size bins, the distribution was re-binned (using a linear interpolation between the bins) to match the binning of PAMS. The mean weighted error ${\epsilon }_{\mathit{wm}}$ quantifies the difference between distributions and ranged from 3% to 163%, with no clear trend. Peak and geometric mean diameters generally agree. However, $\frac{\mathit{dN}}{\mathit{dLog}{D}_p}$ varied substantially across instruments. This difference in $\frac{\mathit{dN}}{\mathit{dLog}{D}_p}$ could be attributed to several factors including drift in the calibration of the CPCs used in these spectrometers, different calibration techniques used, differences in charging techniques and charger performance, and difference in the inversion algorithms. The $\frac{\mathit{dN}}{\mathit{dLog}{D}_p}$ measured by the WPS were low, perhaps due to inadequate neutralization in a Po-210 charger. The agreement between the distribution measured by NanoScan and that from other instruments was poor for 250 nm particles (Figure 3(b)). We surmise that this was likely due to the combination of unipolar charging and low resolution of the classifier. The drastically different distribution measured by NanoScan in Figure 3(d) was perhaps due to the high preexisting charge on the sampled aerosol. Since NanoScan uses a unipolar charger, high preexisting charge on the particles can lead to higher degree of bias in the measured distributions. This is consistent with previous studies, which have shown that unipolar chargers can to lead to large uncertainties when used for mobility size distribution measurements (Levin et al. 2015; Qi and Kulkarni 2012). The instrument comparison in Figure 3 serves to demonstrate the range of deviation (from each other) of measured size distributions across different commercial spectrometers. The overall differences could be attributed to the intrinsic differences in charging, classification, counting, and proprietary inversion algorithms used by various spectrometers.

Figure 3.

Comparison of particle size distributions of monodisperse and polydisperse aerosol obtained from PAMS with that from various commercial spectrometers. ${\epsilon }_{\mathit{wm}}$ was computed using Equation (2).

3.3 Counting Statistics

In addition to mobility resolution, another key source of uncertainty of size distribution measurement is the Poisson uncertainty. Relative uncertainty of particle counting events is governed by the Poisson distribution, and is given by $\raisebox{1ex}{$\sqrt{C}$}\!\left/ \!\raisebox{-1ex}{$C$}\right.$ (where C is the total count). Figure 4(a)–(b) show estimated percent relative Poisson uncertainty as a function of particle diameter measured by PAMS (a) and EMS (b) using design operating conditions in these instruments. The Poisson uncertainty was theoretically estimated by calculating the detector response (i.e. counts by the CPC) for a given inlet aerosol size distribution, after accounting for charging efficiency, diffusion and plumbing losses during transport, the DMA transfer function, and the counting efficiency of the CPC. Also shown are two particle size distributions, one measured at a workplace that manufactures carbon nanofibers (CNF; N_tot~10⁶ cm⁻³) (Evans et al. 2010) and an indoor air measured in our laboratory (N_tot ~10³ cm⁻³). The estimated Poisson uncertainties of PAMS for measurement of CNF are less than 5% using PAMS; whereas that for the indoor laboratory air are around 50% at 15 nm and increase up to 200% for larger diameters around 855 nm. This is due to relatively low counts of larger particles in the size distribution. Figure 4(b) shows similar data for EMS (consisting of TSI 3081 DMA and the ultrafine condensation particle counter, TSI 3776 or 3025). This combination of DMA and the CPC has been widely used for size distribution measurements. The EMS was operated at typical flow rates (aerosol flow=0.3 L/min, sheath flow= 3 L/min), and in stepping mode with identical time steps as in PAMS. The corresponding Poisson uncertainties for EMS were estimated to be about 30% at 15 nm and 180 % at 872 nm. This comparison shows that though the counting statistics of PAMS can be poor for very dilute aerosols, the magnitude of this uncertainty is comparable to those of the commonly used mobility spectrometer configurations for aerosol measurement.

Figure 4.

Contour map showing theoretically estimated Poisson uncertainty for (a) PAMS and (b) EMS using CPC 3776 (or 3025) at different number concentration levels (on y-axis) and particle sizes (on x-axis) of the sampled aerosol. The contour lines showing relative percent uncertainty are color coded (red: high, blue: low; the contour labels show the numerical value of relative percent uncertainty). Also shown are two particle size distributions of aerosol, one measured at a carbon nanofiber manufacturing facility (red, dotted line), and the other in a clean indoor laboratory (blue, solid line). The plots allow assessing counting uncertainty of measurement at a given dN/dLogd_p and d_p of the sampled aerosol. The counting uncertainties of PAMS at very low number concentrations can be high; however, they are comparable to those of widely used mobility spectrometer configurations employing the CPC 3776.

3.4 Field Measurements

Figure 5 shows time series comparison of particle distribution measurements obtained from (a) PAMS and (b) SMPS (TSI Inc., model 3936) for combustion aerosol. Time is plotted on the x-axis, the particle diameter on the y-axis, and the color coding indicates the magnitude of $\frac{\mathit{dN}}{\mathit{dLog}{D}_p}$. The PAMS was operated in stepping mode, whereas the SMPS was operated in scanning mode using the manufacturer’s inversion routine. The overall measurement time for one distribution was set at 150 s for each instrument. The two instruments sampled combustion aerosol from a propane flame using a common inlet. The flame was arbitrarily brought in and out of the sampling zone of the common inlet to mimic the transients typical in mobile sampling. Figure 5 shows that the key qualitative features of particle size distribution from both instruments compare well. There are differences in $\frac{\mathit{dN}}{\mathit{dLog}{D}_p}$ in some channels, with PAMS typically reporting lower concentrations, especially at the tail end of the distribution. In addition to different source (and magnitude) of uncertainty in each instrument, some of these difference could be attributed to the different rate at which each instrument steps or scans through the entire distribution (leading to sampling different diameters at different times).

Figure 5.

Time series comparison of particle size distribution of (a) PAMS and (b) SMPS™. Combustion aerosol from a propane flame was used as the test aerosol, and was moved in and out of the sampling zone of the two instruments to mimic transient samples.

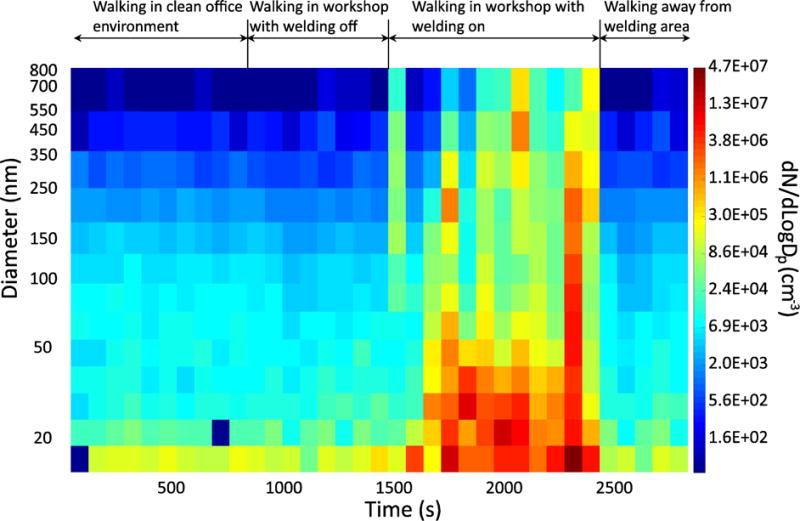

Figure 6 shows time series plot of particle size distribution measured in the breathing zone of a moving person exposed to aerosols emitted by an arc welding processes. The instrument prototype was worn by the person, with the inlet of the sampling tube exposed to the breathing zone. The particle size distributions are continuously measured and recorded by instrument prototype. Figure 6 shows that the transient exposures in the breathing zone are adequately captured by the instrument. These size distributions can be further used to obtain approximate estimation of mass, surface area, and number concentration of the aerosol. Another example of mobile sampling capability of PAMS is shown in Figure 7, which shows the aerosol concentration of 20 nm diameter particles inside and outside of a N95 respirator worn by a moving person exposed to arc welding aerosol. These data were obtained by using two instruments worn by the person, one to monitor the inside concentration, and the other to monitor the outside concentration. The measurement capability of the instrument can be used for such on-person or mobile measurements that were previously not possible.

Figure 6.

Particle size distribution measured in the breathing zone of a moving person exposed to aerosols emitted by an arc welding processes. The instrument prototype was worn by the person, with the inlet of the sampling tube exposed to the breathing zone.

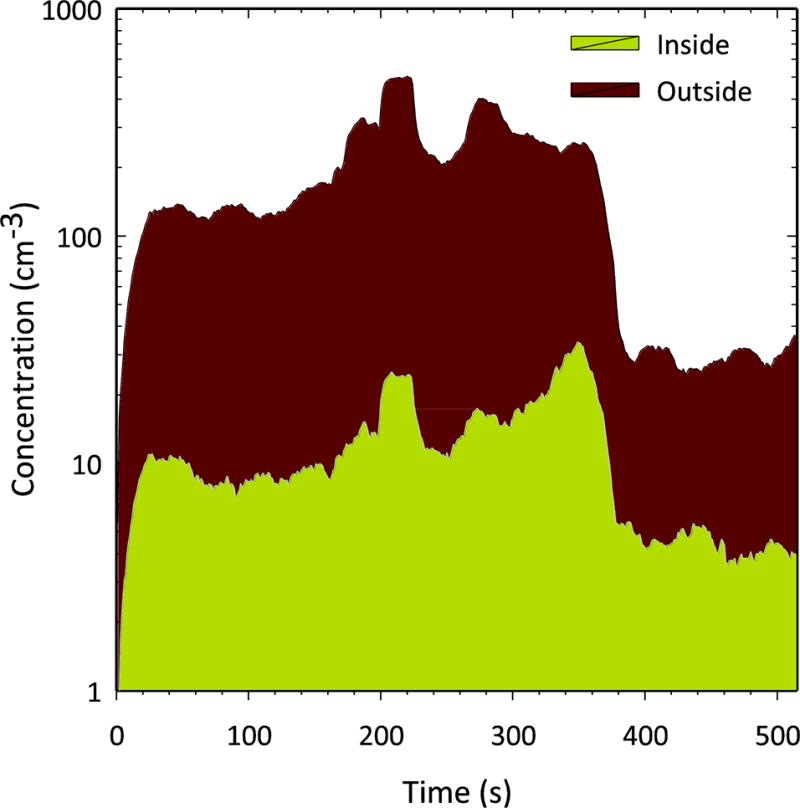

Figure 7.

Concentration of 20 nm diameter particles measured simultaneously inside and outside of the respirator worn by a person moving near a welding operation. Two prototype instruments were used on-person to obtain continuous measurement of nanoparticles simultaneously inside and outside the respirator.

4. Conclusions

A portable mobility spectrometer for size distribution measurement of nanoparticles and submicrometer aerosol has been developed. Use of a corona-based bipolar charger allows unrestricted transportation of the instrument and access to sampling sites. The use of bipolar charger in PAMS also permits making measurements over extended size range. However, when using a corona-based charger, frequent cleaning of charger is necessary to ensure reliable measurements. The overall sizing accuracy of PAMS was well within the NIOSH accuracy criteria of 25% for the direct-reading air quality instruments (NIOSH 2012). Comparison with several commercial mobility spectrometers showed that the measured size distributions agree well within the combined uncertainties from charging, sizing, counting, and numerical inversion in these instruments. Proper operation of the condensation particle counter also requires maintaining near-upright orientation, limiting its use to applications where such orientation can be maintained. PAMS offers several unique advantages with respect to existing commercial hand-portable mobility spectrometers: i) much smaller size and weight, ii) better measurement precision due to the use of bipolar charger, and iii) ability to measure wider size range. These attributes make PAMS well-suited for nanoparticle exposure measurements and other mobile aerosol sampling applications.
