Genome-Wide Associations of CD46 and IFI44L Genetic Variants with Neutralizing Antibody Response to Measles Vaccine

Abstract

Background

Population-based studies have revealed 2 to 10% measles vaccine failure rate even after two vaccine doses. While the mechanisms behind this remain unknown, we hypothesized that host genetic factors are likely to be involved.

Methods

We performed a genome-wide association study of measles specific neutralizing antibody and IFNγ ELISPOT response in a combined sample of 2,872 subjects.

Results

We identified two distinct chromosome 1 regions (previously associated with MMR-related febrile seizures), associated with vaccine-induced measles neutralizing antibody titers. The 1q32 region contained 20 significant SNPs in/around the measles virus receptor-encoding CD46 gene, including the intronic rs2724384 (p-value = 2.64x10⁻⁰⁹) and rs2724374 (p-value = 3.16x10⁻⁰⁹) SNPs. The 1q31.1 region contained nine significant SNPs in/around IFI44L, including the intronic rs1333973 (p-value = 1.41x10⁻¹⁰) and the missense rs273259 (His73Arg, p-value = 2.87x10⁻¹⁰) SNPs. Analysis of differential exon usage with mRNA-Seq data and RT-PCR suggests the involvement of rs2724374 minor G allele in the CD46 STP region exon B skipping, resulting in shorter CD46 isoforms.

Conclusions

Our study reveals common CD46 and IFI44L SNPs associated with measles-specific humoral immunity, and highlights the importance of alternative splicing/virus cellular receptor isoform usage as a mechanism explaining inter-individual variation in immune response after live measles vaccine.

Measles still remains a disease of public health concern in the developing world and well-developed countries with multiple outbreaks even among populations with high vaccine coverage. From 2010 to date, the European region registered 135,600 measles cases, and the US experienced 1,381 measles cases in 27 states. (Haralambieva et al. 2015; Haralambieva et al. 2013; Poland and Jacobson 2012; Prevention 2015; Whitaker and Poland 2014) Several population-based studies have estimated that 2 to 10% of vaccine recipients do not develop or sustain measles-specific protective immunity after two doses of MMR vaccine. (Bednarczyk et al. 2016; Haralambieva et al. 2011b; Haralambieva et al. 2013; Poland and Jacobson 2012; Whitaker and Poland 2014) The mechanisms behind vaccine failure are unknown. This knowledge gap is an impediment to controlling future outbreaks or designing improved vaccine candidates.

Measles vaccine-induced humoral immunity is reported to have an extremely high heritability of 88.5%. (Tan et al. 2001) We have performed a series of candidate genetic association studies delineating the effect of HLA alleles and single nucleotide polymorphisms on measles humoral and cellular immune responses, but thus far only approximately 30% of the inter-individual variation in immune response to this vaccine can be explained.(Dhiman et al. 2007; Haralambieva et al. 2015; Haralambieva et al. 2011a; Haralambieva et al. 2013; Haralambieva et al. 2011c; Kennedy et al. 2012a; Ovsyannikova et al. 2011a; Ovsyannikova et al. 2011b; Ovsyannikova et al. 2012)

We report the first GWAS study (on a sample of 2,872 subjects) of measles vaccine-induced humoral and cellular immune response outcomes in children and younger adults, that identify significant SNP associations (in the CD46 and IFI44L genes) underlying the observed inter-individual variability in neutralizing antibody titers after vaccination.

Methods

Additional methods details are available in the Supplementary data.

Study Subjects

We analyzed a large sample of 3,191 healthy children, older adolescents, and healthy adults (age 11 to 40 years) consisting of three independent cohorts: a Rochester cohort (n=1,062); a San Diego cohort (n=1,071); and a US cohort (n=1,058). The demographic and clinical characteristics of these cohorts have been previously published (Haralambieva et al. 2011a; Haralambieva et al. 2011c; Kennedy et al. 2012a; Kennedy et al. 2012b; Kennedy et al. 2012c; Lambert et al. 2015; Ovsyannikova et al. 2011a; Ovsyannikova et al. 2011b; Ovsyannikova et al. 2012).

The Institutional Review Boards of the Mayo Clinic (Rochester, MN) and the NHRC (San Diego, CA) approved the study, and written informed consent was obtained from each subject, i.e., from age-appropriate participants and the parents of all children who participated in the study.

Genotyping and Immune Outcomes

The genome-wide SNP typing was performed using the Infinium Omni 1M-Quad SNP array (Illumina; San Diego, CA) for the Rochester cohort, Illumina Human Omni2.5–8 BeadChip array for the US cohort, and Illumina Infinium HumanHap550v3_A or HumanHap650Yv3 BeadChip arrays for the San Diego cohort. Measles-specific neutralizing antibody and cytokine responses were quantified using a fluorescence-based plaque reduction microneutralization assay (PRMN) and ELISPOT/ELISA assays, as previously described (Haralambieva et al. 2011b). Our humoral immune response phenotype, the 50% end-point titer (Neutralizing Doze, ND₅₀), was calculated using Karber’s formula and transformed into mIU/mL (using the 3^rd WHO international measles antibody standard), as described previously (Haralambieva et al. 2011b). The variability of the PRMN assay, calculated as a coefficient of variation (CV) based on the log-transformed ND₅₀ values of the third WHO standard, was 5.7%, as previously published (Haralambieva et al. 2011b).

Next Generation Sequencing (mRNA-Seq) and RT-PCR

Libraries were generated from total RNA (extracted from PBMCs of 30 subjects) using Illumina’s mRNA TruSeq (v1) kit and sequenced (paired end sequencing) on an Illumina HiSeq 2000 (Illumina; San Diego, CA) with Illumina’s TruSeq Cluster kit (v3-cBot-HS) and 51 Cycle Illumina TruSeq SBS Sequencing Kit (v3), as previously published (Haralambieva et al. 2016). One-Step RT-PCR system with Platinum Taq^® DNA polymerase (Invitrogen, Carlsbad, CA) and primers allowing CD46 isoform/isoforms discrimination were used, as previously described (Wang et al. 2000).

Statistical methods

GWAS Analysis

To achieve greatest power to detect SNPs associated with measles-specific immune response phenotypes, we pooled our data across genotyping platforms and the three cohorts. To perform the pooled analyses, we first accounted for the effects of potentially confounding factors that vary across ancestry/platform/cohort strata. After thoroughly evaluating the quality of the genotype data, we used the genetic data to define major ancestry groups. We then estimated eigenvectors within each ancestry group to account for the effects of population stratification within ancestry groups. Because the largest ancestry groups were Caucasian and African-American, we restricted our pooled analysis to these groups. After accounting for population stratification, we evaluated the covariates that were available within each of the ancestry-platform-cohort strata to determine if the covariates were associated with the phenotype, in order to regress out the effects of potential confounding factors. This produced residuals (adjusted traits) that were then used for the GWAS analyses. The immune response trait measles-specific IFNγ ELISPOT, as well as measles-specific secreted cytokines, were transformed by normal quantiles of the difference of the mean stimulated and mean unstimulated values. The immune response trait neutralizing antibody titer was transformed as the natural log of the PRMN mIU/mL value (for more details, refer to Supplemental Methods).

Analysis of mRNA-Seq Data for Differential Exon Usage

We tested for evidence of differential exon usage in the CD46 and IFI44L genes using the method of Anders et al., implemented in the DEXSeq package (version 1.16.10) in the R programing language (version 3.2.3).(Anders et al. 2012; Team 2009)

Molecular Modeling

In order to evaluate the effect of differential splicing on the dynamics of the CD46 molecular structure, we generated homology models (Roy et al. 2010) of the extracellular domains (SCR1-4 and STP domains) for each isoform and analyzed each using Anisotropic Network Models (ANMs) (Atilgan et al. 2001; Chennubhotla and Bahar 2007; Yang et al. 2009) using multiple templates (see Supplemental Data for details). Interactions between CD46 and MV-H were modeled using the crystal structure PDB 3INB (Santiago et al. 2010) as a template wherein dimeric MV-H is bound symmetrically by the SCR1 and SCR2 domains of two CD46 molecules (see Supplemental Data for details).

Results

Genome-wide analysis results with humoral immunity

Genetic regions associated with variations in measles-specific antibody response after vaccination

The demographic and immune characteristics of our study sample (n=2,872) are summarized in Table 1. We identified two independent gene regions on chromosome 1 associated with antibody response following measles vaccination (Fig. 1, Supplemental Fig. 1). As depicted on the locus zoom plot (Fig. 1A), the right region on chromosome 1 contained multiple SNPs (n=20) in/around the MV receptor-encoding CD46 gene and region (1q32, bp 207917499-208025926, NCBI Build 37/hg19). Analyzing associations between antibody response and SNPs in the two other MV receptors on chromosome 1, SLAM (SLAMF1) and nectin-4 (NECTIN4/PVRL4), did not result in significant findings. The left region (Fig. 1C) on chromosome 1 (1p31.1, bp 79082772-79110518) contained nine significant SNPs in/around the interferon-induced, protein 44-like gene IFI44L.

Table 1.

Demographic and immune characterization of the study population

	African Americane (n=317)	Caucasiane (n=2555)	Total (n=2872)	P- value
Neutralizing Ab titera				<0.001f
N missing (failed assay QC)	5	49	54
Mean (SDc)	2065 (2821)	1271 (1652)	1359 (1835)
Median (IQRd)	1180 (550, 2632)	803 (383, 1607)	845 (394, 1683)
IFNγ ELISPOT responseb				0.427f
N missing (failed assay QC)	26	228	254
Mean (SDc)	24.4 (26)	25.2 (32)	25.1 (31.4)
Median (IQRd)	15 (7, 34.5)	15 (6, 32.5)	15 (6, 32.7)
Gender/sex				0.082g
Female	73 (23%)	707 (27.7%)	780 (27.2%)
Male	244 (77%)	1848 (72.3%)	2092 (72.8%)
Race (self-declared)				NAh
White	0 (0%)	2206 (86.3%)	2206 (76.8%)
Black or African American	302 (95.3%)	38 (1.49%)	340 (11.8%)
American Indian/Alaska Native	0 (0%)	29 (1.14%)	29 (1.01%)
Asian/Hawaiian/Pacific Islander	1 (0.315%)	19 (0.744%)	20 (0.696%)
Multiple	9 (2.84%)	100 (3.91%)	109 (3.8%)
Other	4 (1.26%)	119 (4.66%)	123 (4.28%)
Unknown	1 (0.315%)	44 (1.72%)	45 (1.57%)
Ethnicity (self-declared)				<0.001g
Hispanic/Latino	13 (4.1%)	387 (15.1%)	400 (13.9%)
Not Hispanic/Latino	285 (89.9%)	2137 (83.6%)	2422 (84.3%)
Unknown	19 (5.99%)	31 (1.21%)	50 (1.74%)
Age at enrollment (years)				<0.001f
Number missing	49	196	245
Mean (SDc)	24.5 (5.97)	21.1 (6.06)	21.4 (6.14)
Median (IQRd)	24 (21, 28)	22 (16, 25)	22 (16, 25)
Age at last vaccination (years)				<0.001f
Number missing	107	577	684
Mean (SDc)	19.8 (7.97)	16.1 (8.38)	16.4 (8.41)
Median (IQRd)	20 (18, 24)	18 (10, 22)	18 (11, 23)
Time from last vaccination to enrollment (years)				0.031f
Number missing	107	577	684
Mean (SDc)	3.7 (3.85)	4.0 (3.43)	4.0 (3.47)
Median (IQRd)	2.6 (0.04, 5.5)	3.5 (0.03, 6.4)	3.4 (0.03, 6.4)
Cohort				<0.001g
Rochester	40 (12.6%)	942 (36.9%)	982 (34.2%)
San Diego	164 (51.7%)	718 (28.1%)	882 (30.7%)
US	113 (35.6%)	895 (35%)	1008 (35.1%)

^aNeutralizing antibody titer in mIU/mL, measured by the plaque reduction microneutralization assay (PRMN)

^bIFNγ-positive spot-forming units (SFUs) per 2 x 10⁵ cells (mean of measles virus-specific stimulated response, measured in triplicate, minus the mean unstimulated response, also measured in triplicate).

^cStandard Deviation.

^dIQR, inter-quartile range with 25% and 75% quartiles

^eGenetically classified into African American or Caucasian ancestry group based on STRUCTURE (see Methods)

^fKruskal-Wallis Rank Test

^gFisher’s Exact Test

^hNot applicable

Fig. 1. Locus zoom plots of the chromosome 1 regions and effects of SNPs associated with measles-specific neutralizing antibody titers in the combined cohort^a.

A and C. Locus zoom plots of the 1q32(CD46, A) and 1q31.1 (IFI44L, C) regions associated with neutralizing antibody titer after measles vaccination (combined cohort^a). On the x-axis SNPs are plotted by chromosomal location. The left y-axis reflects the association (−log₁₀P-value) with vaccine-induced measles-specific antibody titer, while the right y-axis reflects recombination rates and LD (r² color) of each plotted SNP with the most significant SNP (designated by a black diamond).

B and D. Effect of top two CD46 SNPs (B) and IFI44L SNPs (D) on measles-specific antibody response (effect in the combined cohort is presented as Turkey box-and-whisker plots). On the x-axis 0 designates subjects with homozygous major allele genotype, 1 designates heterozygous subjects and 2 designates subjects with homozygous minor allele genotype. On the y-axis neutralizing antibody titer is presented as the natural log of the PRMN mIU/mL value. The top (bottom) of the box indicates the 75th (25th) percentiles, respectively, while the bold line within the box indicates the median, and the whiskers indicate 1.5 times the IQR

^an=2872, reduced to 2818 after excluding subjects with immune outcome data that failed QC

CD46 region SNPs associated with variations in measles-specific antibody response after vaccination

The genetic association signal from the 1q32 region was linked to two blocks (97 kb and 8 kb) of 20 genetic variants in and around the CD46 gene (seven intronic CD46 SNPs, four SNPs in the uncharacterized LOC101929385 [currently Gene ID 100128537, C1orf132 chromosome 1 open reading frame 132], and nine intergenic SNPs, including the previously reported rs1318653 (Feenstra et al. 2014), located between CD46 and CD34), which were in high linkage disequilibrium (LD) (Supplemental Fig. 2). The most significant CD46 SNPs, rs2724384 and rs2724374 (in high LD, r²=97), lie in intron 1, and near the boundary of intron 8 (of the reference sequence ENST00000358170, RefSeq NM_002389), respectively. The minor alleles (G) of rs2724384 and rs2724374 were significantly associated (Table 2) with an allele dose-related decrease in measles-specific neutralizing antibody titers after vaccination (46 – 47% decrease in antibody titer in homozygous minor allele genotype subjects compared to homozygous major allele genotype subjects, Table 2, Fig 1B). Due to the high LD (Supplemental Fig. 2), all significant CD46 SNPs displayed similar effects. Most of the1q32 associations remained genome-wide significant (p < 5.0x10⁻⁰⁸) in the subjects of Caucasian ancestry, where the most significant SNP was rs2724374 (p-value = 4.88x10⁻⁰⁹, Table 3).

Table 2.

Genome-wide significant associations of SNPs with measles-specific neutralizing antibody titers after MMR vaccination (combined analysis, n=2872^a)

SNP IDb	Gene/Locationc	Major allele	Minor allele	MAFd	P-valuee	Obs.0f	Obs.1f	Obs.2f	Median (IQR) 0g	Median (IQR) 1g	Median (IQR) 2g
rs1333973	IFI44L, intron	T	A	0.32	1.41E-10	1289	1230	299	1010 (440, 1919)	772 (363, 1491)	625 (314, 1304)
rs273259	IFI44L, missense	A	G	0.33	2.87E-10	1253	1250	315	1003 (438, 1879)	777 (364, 1520)	631 (326, 1304)
rs2724384	CD46, intron	A	G	0.23	2.64E-09	1680	999	139	978 (429, 1882)	710 (363, 1468)	516 (272, 884)
rs2761437	.	G	A	0.23	3.14E-09	1671	1003	144	981 (431, 1881)	710 (359, 1475)	517 (283, 884)
rs2724374	CD46, intron	T	G	0.23	3.16E-09	1666	1006	146	978 (430, 1881)	717 (361, 1470)	526 (277, 884)
rs2796265	.	T	C	0.23	3.70E-09	1671	1002	145	981 (431, 1881)	710 (358, 1470)	518 (286, 884)
rs4650590	IFI44L, 3′UTR	A	G	0.33	3.72E-09	1266	1226	326	1022 (450, 1932)	755 (361, 1470)	650 (329, 1327)
rs11118612	LOC101929385	T	A	0.23	4.06E-09	1685	991	142	978 (432, 1882)	703 (347, 1435)	545 (300, 972)
rs2761434	.	G	A	0.23	4.97E-09	1671	1002	145	981 (431, 1881)	710 (358, 1463)	518 (286, 884)
rs4844392	LOC101929385	C	G	0.23	5.26E-09	1688	987	143	978 (432, 1882)	707 (345, 1443)	545 (301, 952)
rs4844619	CD46, intron	C	T	0.23	5.40E-09	1685	993	140	973 (430, 1879)	712 (354, 1462)	539 (291, 891)
rs2466572	CD46, intron	C	A	0.23	6.33E-09	1668	1005	145	978 (430, 1880)	715 (361, 1473)	533 (286, 884)
rs2724360	CD46, intron	T	C	0.23	6.51E-09	1664	1009	145	980 (430, 1880)	715 (360, 1473)	533 (286, 884)
rs6657476	CD46, intron	G	T	0.23	6.51E-09	1687	991	140	972 (430, 1878)	710 (354, 1462)	539 (291, 891)
rs56075814	.	T	C	0.23	9.15E-09	1682	993	143	976 (431, 1879)	708 (347, 1450)	545 (301, 952)
rs6669384	.	T	C	0.22	1.06E-08	1711	980	127	970 (431, 1884)	709 (349, 1420)	545 (296, 992)
rs55935450	.	T	A	0.22	1.21E-08	1702	981	135	978 (430, 1885)	703 (348, 1417)	552 (301, 1013)
rs6693207	IFI44, downstream	G	A	0.33	1.23E-08	1273	1223	322	1023 (455, 1932)	753 (354, 1479)	650 (340, 1316)
rs273255	IFI44, intron	A	T	0.32	1.24E-08	1311	1222	285	1005 (439, 1873)	771 (362, 1504)	637 (330, 1299)
rs11118668	.	C	T	0.22	1.30E-08	1702	981	135	978 (430, 1885)	703 (348, 1417)	552 (301, 1013)
rs66532523	LOC101929385	A	C	0.23	1.45E-08	1683	992	143	974 (432, 1875)	709 (347, 1455)	545 (301, 952)
rs273261	IFI44L, intron	G	A	0.34	2.03E-08	1223	1251	344	997 (438, 1857)	774 (363, 1522)	662 (335, 1366)
rs4844620	LOC101929385	G	A	0.21	2.18E-08	1762	937	119	971 (430, 1876)	701 (347, 1417)	495 (280, 884)
rs1318653	.	T	C	0.22	2.94E-08	1708	976	134	972 (430, 1882)	705 (347, 1417)	565 (303, 1023)
rs273256	IFI44, intron	A	C	0.36	3.15E-08	1166	1277	375	1002 (445, 1898)	774 (362, 1520)	691 (349, 1398)
rs273244	IFI44L, intron	A	T	0.36	3.30E-08	1162	1280	376	1004 (445, 1898)	772 (362, 1520)	694 (349, 1417)
rs61821293	.	T	G	0.22	4.14E-08	1697	984	137	970 (430, 1879)	710 (347, 1426)	561 (302, 992)
rs273238	.	G	A	0.35	4.37E-08	1220	1249	349	996 (438, 1845)	779 (363, 1528)	658 (338, 1359)
rs4844390	CD46, intron	A	G	0.21	4.63E-08	1753	940	125	974 (427, 1883)	702 (357, 1419)	495 (274, 880)

^aReduced to 2818 after excluding subjects with immune outcome data that failed QC

^bSNP identification number

^cGene/genetic region and SNP location relative to the gene

^dMinor allele frequency

^eP-values, as described in the Online Methods, Statistical Methods

^fNumber of subjects with homozygous major allele genotype (0), heterozygous (1) and homozygous minor allele genotype (2)

^gMedian neutralizing antibody titer (in miU/mL, with 25% and 75% inter-quartile range/IQR) for subjects with homozygous major allele genotype (0), heterozygous (1) and homozygous minor allele genotype (2)

Table 3.

Top significant associations of SNPs with measles-specific neutralizing antibody titers after MMR vaccination (Caucasians, n=2555^a)

SNP IDb	Gene/Locationc	Major allele	Minor allele	MAFd	P-valuee	Obs.0f	Obs.1f	Obs.2f	Antibody titer Median (IQR) 0g	Antibody titer Median (IQR) 1g	Antibody titer Median (IQR) 2g
rs2724374	CD46, intron	T	G	0.23	4.88E-09	1462	915	129	924 (414, 1799)	703 (352, 1418)	516 (274, 843)
rs2761437		G	A	0.23	6.98E-09	1467	912	127	924 (414, 1797)	702 (349, 1422)	515 (280, 825)
rs2796265		T	C	0.23	8.25E-09	1467	911	128	924 (414, 1797)	702 (349, 1420)	515 (283, 847)
rs2466572	CD46, intron	C	A	0.23	9.49E-09	1464	914	128	924 (414, 1798)	703 (350, 1418)	517 (283, 847)
rs4844619	CD46, intron	C	T	0.23	1.05E-08	1468	914	124	916 (414, 1794)	705 (348, 1420)	526 (283, 864)
rs6657476	CD46, intron	G	T	0.23	1.06E-08	1468	914	124	916 (414, 1794)	705 (348, 1420)	526 (283, 864)
rs2724360	CD46, intron	T	C	0.23	1.18E-08	1461	917	128	924 (414, 1798)	703 (349, 1418)	517 (283, 847)
rs2761434		G	A	0.23	1.19E-08	1467	910	129	924 (414, 1797)	702 (349, 1418)	516 (286, 858)
rs2724384	CD46, intron	A	G	0.23	1.27E-08	1466	914	126	924 (414, 1798)	702 (354, 1418)	506 (277, 854)
rs4844620	LOC101929385	G	A	0.23	1.64E-08	1490	899	117	913 (416, 1772)	701 (345, 1405)	495 (286, 884)
rs4844392	LOC101929385	C	G	0.23	1.69E-08	1461	917	128	919 (416, 1793)	702 (344, 1418)	539 (291, 883)
rs11118612	LOC101929385	T	A	0.23	1.98E-08	1461	918	127	918 (416, 1793)	702 (346, 1417)	533 (290, 884)
rs1333973	IFI44L, intron	T	A	0.33	2.10E-08	1122	1106	278	942 (422, 1768)	759 (361, 1448)	616 (306, 1283)
rs66532523	LOC101929385	A	C	0.23	2.27E-08	1461	917	128	918 (416, 1793)	702 (345, 1417)	539 (291, 883)
rs56075814		T	C	0.23	2.34E-08	1460	918	128	917 (416, 1794)	703 (346, 1417)	539 (291, 883)
rs273259	IFI44L, missense	A	G	0.33	2.62E-08	1118	1104	284	942 (424, 1765)	757 (356, 1455)	628 (319, 1284)
rs273261	IFI44L, intron	G	A	0.34	3.41E-08	1110	1106	290	950 (428, 1768)	754 (355, 1441)	631 (323, 1287)
rs4844390	CD46, intron	A	G	0.23	3.48E-08	1478	907	121	919 (414, 1795)	702 (352, 1417)	495 (274, 858)
rs6669384		T	C	0.23	3.75E-08	1484	909	113	916 (414, 1797)	703 (349, 1410)	545 (293, 884)
rs273256	IFI44L, intron	A	C	0.35	5.10E-08	1052	1134	320	958 (435, 1806)	743 (347, 1448)	646 (329, 1301)
rs273244	IFI44L, intron	A	T	0.35	6.35E-08	1050	1136	320	964 (434, 1807)	740 (348, 1438)	646(329, 1311)
rs4650590	IFI44L, 3′UTR	A	G	0.35	6.58E-08	1065	1131	310	945 (432, 1808)	739 (352, 1440)	646 (329, 1316)
rs273238		G	A	0.34	6.91E-08	1108	1105	293	950 (427, 1766)	758 (355, 1436)	630 (327, 1299)
rs55935450		T	A	0.23	6.93E-08	1477	910	119	916 (414, 1793)	700 (347, 1407)	545 (296, 898)
rs11118668		C	T	0.23	7.38E-08	1477	910	119	916 (414, 1793)	700 (347, 1407)	545 (296, 898)
rs61821293		T	G	0.23	8.51E-08	1475	910	121	911 (414, 1790)	702 (345, 1415)	561 (299, 884)
rs6693207	IFI44L, downstream	G	A	0.35	9.28E-08	1069	1131	306	956 (434, 1807)	740 (346, 1447)	643 (337, 1306)
rs273255	IFI44L, intron	A	T	0.32	1.01E-07	1149	1095	262	945 (426, 1769)	735 (348, 1417)	634 (328, 1287)
rs1318653		T	C	0.23	1.04E-07	1480	907	119	909 (414, 1776)	702 (345, 1414)	561 (301, 898)

^aReduced to 2506 after excluding subjects with immune outcome data that failed QC

^bSNP identification number

^cGene/genetic region and SNP location relative to the gene

^dMinor allele frequency

^eP-values, as described in the Online Methods, Statistical Methods

^fNumber of subjects with homozygous major allele genotype (0), heterozygous (1) and homozygous minor allele genotype (2)

^gMedian neutralizing antibody titer (in miU/mL, with 25% and 75% inter-quartile range/IQR) for subjects with homozygous major allele genotype (0), heterozygous (1) and homozygous minor allele genotype (2)

IFI44L region SNPs associated with variations in measles-specific antibody response after vaccination

The 1p31.1 region signal was linked to a 21-kb block of 8 IFI44L SNPs and one intergenic SNP, in high LD (Supplemental Fig. 2). The two most significant IFI44L SNPs, rs1333973 and rs273259 (Table 2) were located in IFI44L intron 2 (boundary) and IFI44L exon 2, respectively. The missense SNP rs273259 (His73Arg, Ensembl transcript ENST00000370751), as well as the other significant SNPs, demonstrated an allele dose-related decrease in measles-specific neutralizing antibody titers (Table 2, Fig 1D). Three of the nine SNPs remained genome-wide significant (p < 5.0x10⁻⁰⁸) in the subjects of Caucasian ancestry (Table 3).

To determine if there were multiple SNPs in each of the CD46 and IFI44L regions associated with the neutralizing antibody, with the effects of the SNPs adjusted for each other, we used elastic net to select SNPs. An advantage of elastic net is that it can select highly correlated SNPs, although it cannot give p- values for selected SNPs. Hence, after selection, we evaluated the selected SNPs in linear regression models. This resulted in the selection of two SNPs in the CD46 region and three SNPs in the IFI44L region, based on the Caucasian subjects. For the CD46 region, we found rs2724374 to be the most significant and the primary driving SNP (p=4.3x10⁻⁸), with rs11806810 having much less association (p=0.02) when the effects of the SNPs were adjusted for each other. For the IFI44L region, the SNPs rs12026737, rs1333973, and rs273259 were selected. However, rs273259 and rs1333973 were highly correlated (r² = .99), making it difficult to disentangle their effects and fit both in a regression model. When choosing rs1333973 (top significant SNP) over rs273259, we found rs1333973 (p=2x10⁻⁸) and rs12026737 (p=6.0x10⁻⁴) to have strong statistical associations, with effects adjusted for each other. Furthermore, the CD46 and IFI44L regions have associations that are independent of each other (since when the aforementioned SNPs were modeled together, the results were not significantly different from what was obtained when the regions were modeled separately).

Genome-wide analysis results with measles vaccine cellular immunity

The GWAS analyses did not reveal significant SNP associations with cellular immunity after vaccination, as measured by MV-specific IFNγ ELISPOT (Supplemental Table 1, Supplemental Fig. 3). Analyses of all chromosome 1 SNPs with MV-specific secreted cytokines in 625 Caucasian subjects (for whom we had available cytokine data) demonstrate suggestive associations between CD46 SNPs (including rs2724374 and rs2724384) and the secretion of IFNα; however, an allele-dose-dependency of IFNα secretion was not noted. (Supplemental Table 2).

Analysis of differential usage of exons using mRNA-Seq data

In the CD46 analyses, we observed a highly significant per-exon estimate (q=2.96E⁻⁰⁷) with lower exon B (in the CD46 STP region) expression (exon skipping) in subjects with rs2724374 minor G allele (Fig. 2A). These results were further confirmed by RT-PCR analysis of common CD46 isoforms in PBMCs. In this analysis, the predominant “lower band” CD46 isoform phenotype (C2, associated with exon B skipping) was clearly more pronounced in the homozygous minor G allele genotype subjects (Fig. 2B). We also observed differential exon usage based on IFI44L rs1333973/rs273259 genotypes (Fig. 2C)

Fig. 2. Differential exon/isoform CD46 and IFI44L usage.

A. Estimated exon usage in the CD46 gene comparing individuals with at least one minor allele (G for rs2724374, i.e., all the heterozygous subjects plus the one homozygous minor allele subject combined, total n=9) (blue) to individuals that are homozygous major (T for rs2724374) allele, n=19 (red). Even with a relatively small number of subjects possessing the minor allele genotype, differential exon usage with a highly significant p-value was observed for the STP exon B (genomic ID 207941124-207941168) (p=2.96E⁻⁰⁷).

B. RT-PCR analysis of common CD46 isoforms was performed in PBMCs of rs2724374 homozygous major allele genotype individuals (n=10) compared to homozygous minor allele genotype individuals (n=10) and heterozygous individuals (n=10). The presented figure is representative of the patterns observed in all 30 subjects (10 subjects per genotype group) with the experiment replicated twice.

C. Estimated exon usage in IFI44L rs1333973/rs273259 homozygous minor allele genotype subjects (A for rs1333973, n=5 [blue]) vs. homozygous major allele subjects (T for rs1333973, n=11 [red]). The results demonstrate significant per-exon estimates for several IFI44L exons, the most significant being exon 2 (genomic ID 79093591-79094078) (q=2.37E⁻¹⁵⁰).

Simulation of the structural differences between CD46 isoforms (with or without the STP exon B)

We have generated structural models of the predominant CD46 isoforms (extracellular portion): isoforms with the STP exons B and C (i.e., BC1 and BC2) and those skipping exon B (i.e., C1 and C2) (see Fig. 3, Fig. 4, Supplemental Fig. 4). The longest isoform, ABC1, generates a high-quality homology model (Supplemental Fig. 4). Interestingly, the protein sequences encoded by exons A (exon 7) and B (exon 8) have their N- and C-terminal ends close to each other. The amino acids encoded by exon A (exon 7) make a short beta strand within the STP domain. Deletion of these residues by exon skipping removes this strand from the beta-sheet, but the architecture of the domain is not significantly altered. Exon B (8) encodes amino acids making up two additional strands. In the isoforms C1 and C2, only two strands encoded by exons 9 and 10 remain. Computing the dynamics of each isoform’s atomic model, smaller STP domain isoforms exhibited greater flexibility and less collective motion (i.e., in the C1/C2 isoforms when compared to BC1/BC2 of the common isoforms). Monitoring the domain-domain angles about the SCR4-STP hinge as each structure is deformed about its low-frequency normal modes, the shorter isoform/isoforms exhibit a greater range of flexibility (Supplemental Fig. 4). As illustrated in Fig. 4, based on data from our molecular models, we propose that the differential isoform flexibility may influence the rate of formation of the CD46-MV-hemagglutinin (H) encounter complex, and/or influence the propensity for MV-H to undergo the conformational change necessary to trigger MV fusion protein.

Fig. 3. Structure of CD46.

The extracellular portion of CD46 consists of four N-glycosylated conserved short consensus repeats SCR1-4 (SCR1 and SCR2 containing binding sites for MV); a STP region that is O-glycosylated (encoded by exons 7, 8 and 9, designated as A, B and C); and a region of unknown function (U), followed by a hydrophobic transmembrane segment (H), basic amino acid anchor (A), and a cytoplasmic tail (CYT1 of 16 amino acids if exon 13 is present, or CYT2 of 23 amino acids if exon 13 is alternatively spliced).). Of the 14 known CD46 isoforms resulting from alternative splicing, four are commonly found in most human tissues and are designated based on the present STP exon/exons and the cytoplasmic tail: BC1 and BC2 (with B and C exons/domains in the STP and with either CYT1 or CYT2), and C1 and C2 (with C exon/domain in the STP and with either CYT1 or CYT2). The effect of CD46 rs2724374 on CD46 isoform prevalence (exon B presence or skipping), interaction between CD46 and MV, and immune response following measles vaccination is also summarized.

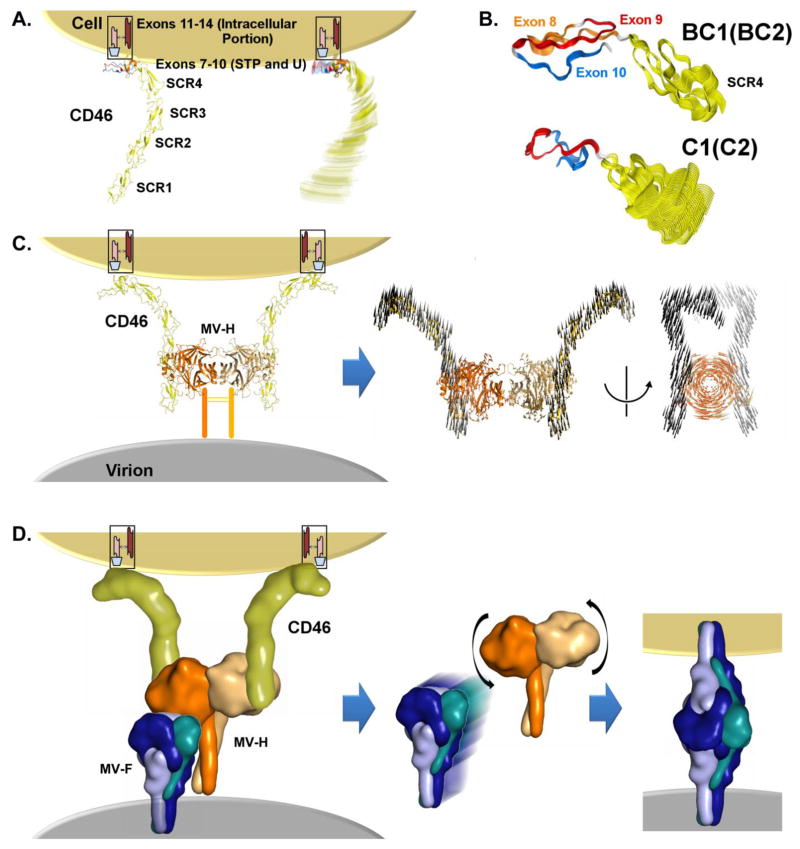

Fig. 4. Flexibility of CD46 isoforms and impact on MV-CD46 interactions and MV fusion.

A. CD46 is a cell surface receptor affected by isoform differences. Due in part to its elongated structure, the extracellular domains will naturally exhibit flexibility within the physiologic environment (represented as rotational blurring of the reference isoform ABC1/ABC2). SCR domain residues are colored in yellow. The modeled segment of CD46 includes the extracellular domains and is shown in cartoon representation.

B. Molecular modeling of the extracellular portion of BC1 (BC2) and C1 (C2) isoforms (the four most common isoforms) through SCR4, followed by generation of mechanics-based models (ANM; see Methods), indicates a difference in the intrinsic flexibility between the isoforms (see Supplemental Fig. 4 for details). The amino acids encoded by exons 8–10 are indicated by different colors. We show representative motion from our ANM models for the BC1 and C1 isoforms by showing multiple conformational states superimposed.

C. CD46 on the cell surface interacts with MV-H on the virion surface. Two CD46 molecules interacting with a MV-H dimer are depicted, as described previously. (Santiago et al. 2010) Using ANM, we quantified the intrinsic flexibility of the MV-H dimer. The dominant motion is an anti-correlated twisting or ratcheting of the monomers with respect to one another. Projection the effect of this motion onto the bound CD46 molecules is represented by black arrows on each residue. As the C-terminus of CD46 is anchored in the cell membrane, activation of this motion would require flexibility of the CD46 molecule - flexibility that may differ by isoform (panel B). Presented is a second view of the motion rotated 90°, omitting the cartoon representation for clarity – only the motion-vectors are shown to emphasize the twisting of the MV-H dimer and its effect on CD46.

D. Proposed molecular mechanism: MV-H and the fusion protein MV-F are normally associated with one another on the virus surface. Proteins are represented by smoothed molecular surfaces; see Supplemental Methods. The encounter complex between CD46 and MV-H leads to MV-F disassociation. The disassociation is influenced by the MV-H conformational change and motion in the context of the CD46-H dimer complex.(Navaratnarajah et al. 2011) The free MV-F undergoes a substantial conformational change, the molecular details of which are not fully resolved, leading to bridging between the virus and target cell. We believe that the degree of flexibility exhibited by CD46 may influence 1) the ease with which the complex may undergo conformational changes (motion in the context of MV-H-CD46 complex) leading to MV-F triggering and fusion, and 2) the rate of encounter complex formation with MV-H.

Discussion

This work is the first GWAS to reveal significant associations of two distinct chromosome 1 regions (CD46 and IFI44L) with variations in neutralizing antibody response after measles vaccination.

The important implications of our findings are supported by the genome-wide identification of genetic variants in the same two loci (in an independent state-of-the-art GWAS study) as risk variants for the development of adverse events/febrile seizures following MMR vaccination, but not for MMR-unrelated febrile seizures (suggesting the influence of these loci on measles vaccine virus entry/propagation). (Feenstra et al. 2014)

Most of the significant SNP-association signals with measles-specific antibody response were from a region in and around the CD46 gene on 1q32. The encoded glycoprotein CD46 (structure is summarized in Fig. 3) is ubiquitously expressed and serves as a regulator of complement activation (protecting the cells from complement and antibody-mediated lysis). CD46 also serves as a cellular receptor for measles virus attenuated (vaccine) strains, as well as for other pathogens (group B and D adenoviruses, human herpesvirus 6, bovine viral diarrhea virus, pathogenic Neisseria and Streptococcus pyogenes). (Cattaneo 2004) Four CD46 isoforms, resulting from alternative splicing, are commonly found in most human tissues and are designated based on the present STP exon/exons and the cytoplasmic tail: BC1 and BC2 (with B and C exons/domains in the STP and with either CYT1 or CYT2), and C1 and C2 (with C exon/domain in the STP and with either CYT1 or CYT2). (Liszewski et al. 1994; Post et al. 1991; Russell et al. 1992)(Fig. 3)

Our significant GWAS findings in the CD46 region consisted only of non-coding SNPs in high LD; the most significant were rs2724384 in CD46 intron 1, and rs2724374 in CD46 intron 8. The previously observed (Feenstra et al. 2014) genetic association of intergenic rs1318653 with MMR-related febrile seizures is in the same region and was also significant in our genome-wide association study with measles-specific neutralizing antibody titers (p-value = 2.94x10⁻⁰⁸, Table 2), although this association exhibited a slightly weaker signal in the subset analysis of subjects of Caucasian ancestry (p-value = 1.04x10⁻⁰⁷, Table 3). Feenstra et al. also reported the major CD46 rs2724384 allele A as a risk allele for MMR-related febrile seizures (Feenstra et al. 2014), which relates to higher measles vaccine-induced antibody titers in our GWAS and in three other candidate gene studies. (Clifford et al. 2012; Dhiman et al. 2007; Haralambieva et al. 2015; Ovsyannikova et al. 2011a) Furthermore, CD46 rs2724384 has been associated with overall CD46 gene expression and isoform abundance in lymphoblastoid cell lines (Lappalainen et al. 2013), and with variations in measles-specific IL-6, TNFα and IFNα secretion after in vitro viral stimulation of human PBMCs.(Ovsyannikova et al. 2011a) In this study, both of our top CD46 GWAS hits (rs2724384 and rs2724374) exhibited suggestive associations with IFNα (see Supplemental Table 2).

The second CD46 genetic variant with plausible functional consequences is rs2724374 (located in intron 8, near the intron-exon boundary with exon 8/STP B), which is the most significant SNP in our analysis of subjects of Caucasian ancestry and is identified by elastic net modeling as being predictive of neutralizing antibody response. CD46 rs2724374 has been reported as a genetic variant, which is highly correlated with the splicing/skipping of exon B (i.e., a sQTL/splicing quantitative trait locus) in a study assessing the splicing patterns of 250 exons and their associations with DNA polymorphisms.(Hull et al. 2007) Similarly, a study assessing sQTLs from RNA-Seq data reported CD46 rs2724374 as one of the most significant sQTLs (p=3.55x10⁻¹¹) associated with alternative splicing (i.e., the skipping of CD46 exon B) (Zhao et al. 2013), a finding validated by our differential exon usage analysis of mRNA-Seq data and RT-PCR analysis of CD46 isoforms in PBMCs. Thus, the minor allele G of CD46 rs2724374 is significantly associated (in a dose-response dependent manner) with lower measles-specific neutralizing antibody titer after vaccination (approximately 45% reduction in antibody titer), and with the skipping of exon B to preferentially yielding CD46 isoforms with a shorter (and less O-glycosylated) STP region (i.e., preferentially yielding C1/C2 vs. BC1/BC2 isoforms). Although some tissues preferentially express specific CD46 isoforms (sperm, brain, salivary gland, kidney, placenta), the abundance ratio of CD46 isoforms in most human tissues (e.g., PBMCs) is considered to be constant for each individual. (Liszewski et al. 1994; Post et al. 1991; Russell et al. 1992) These CD46 genetic and phenotypic inter-individual variations and their implications for host-pathogen interactions and vaccine/pathogen-induced immunity still remain unknown.

Since innate and adaptive immune responses rely on recognition, virus entry and propagation into susceptible cells, it is tempting to speculate about the mechanisms by which CD46 isoform usage can affect MV binding/fusion and propagation at the site of injection and the associated lymphoid tissue during measles vaccination and immune response priming. It is generally accepted that all CD46 isoforms can serve as MV receptors (primarily for attenuated MV strains) and confer susceptibility to infection (Manchester et al. 1994); however, several studies report differences in MV binding and fusion in CD46 BC1/BC2 vs. C1/C2 isoforms, where longer BC isoforms support superior virus binding and shorter C isoforms support superior fusion competence. (Buchholz et al. 1996a; Buchholz et al. 1996b; Iwata et al. 1994) It is likely that the complex dynamics of interactions between MV H dimers/tetramers, F trimers and cross-linked CD46 molecules at the virus-cell surface interface (Navaratnarajah et al. 2011; Persson et al. 2010) are dependent in part on the varying flexibility conferred by different CD46 isoforms. Our molecular modeling (Fig. 4 and Supplemental Fig. 4) provides evidence for differences in the flexibilities of common CD46 isoforms, including the STP exon B (BC1/BC2 exhibiting decreased flexibility) and those excluding exon B (C1/C2 exhibiting increased flexibility). We hypothesize that the increased flexibility for the C1/C2 isoforms relative to BC1/BC2 isoforms allows increased motion between the components of the CD46-H dimer complex (needed for F triggering, as proposed in the model by Navaratnarajah et al., (Navaratnarajah et al. 2011; Persson et al. 2010)) and increased fusogenicity. It is also possible that the increased flexibility of the C1/C2 isoforms (relative to BC1/BC2) may increase the encounter rate between CD46 and H protein. Thus, our proposed mechanistic hypothesis (informed by molecular modeling) is in concert with--and adds to--the prior literature, and suggests potential molecular mechanisms linking the top GWAS CD46 hits to differences in splicing/CD46 isoform flexibility with potential effects on MV response.

The CYT1 and CYT2-containing CD46 isoforms (generated by alternative splicing of exon 13) are reported to differentially co-stimulate T helper 1 effector cells, affect T helper 1 switching to IL-10 producing T regulatory cells, and modulate cellular immunity, inflammation, B cell responses and signal transduction. (Fuchs et al. 2009; Marie et al. 2002; Wang et al. 2000) Although the differential usage of CYT1 vs. CYT2-containing isoforms cannot be inferred from our data, the involvement of such mechanisms in regulating vaccine-induced immunity cannot be excluded. Interestingly, we did not observe significant associations between polymorphisms in the other known MV receptor genes (SLAM and nectin-4) and vaccine-induced humoral immunity. This finding suggests the preferential usage of CD46 (over other receptors) by MV vaccine strains and/or insufficient expression of SLAM and Nectin-4 receptors at the site of injection and immune response priming during vaccination.

Even more interesting is the association of the 1p31.1 IFI44L genetic locus with measles-specific antibody titers, since the function of the encoded protein is largely unknown. Among the top significant SNPs in this region (grouped in a 21-kb LD block) are the intronic rs1333973 and the coding missense rs273259 (Table 2 and Table 3); the latter has been reported to be a genetic variant significantly associated with febrile seizures after MMR vaccination. (Feenstra et al. 2014) The rs273259 risk allele (A) for MMR-related febrile seizures was associated with increased measles-specific antibody titer in our study (while the minor allele G was associated with decreased antibody titer). In addition, rs273259 allele A was previously found to correlate with both the reduced expression of IFI44L exon 2 and differences in IFI44L isoform/isoforms abundance (Lappalainen et al. 2013), a finding also confirmed by our mRNA-Seq differential exon usage analysis (Fig. 2C). In their study, Feenstra et al. did not observe direct and/or differential antiviral activity of IFI44L rs273259 allelic variant proteins against MV in human fibroblasts lacking STAT1.(Feenstra et al. 2014) It is likely that IFI44L requires a specific microenvironment (e.g., partners, signaling events, cell/tissue-specific milieu, etc.) to exert its antiviral action or its function is associated with specific isoforms, as suggested by our data and other studies (i.e., SNP rs1333973 has been reported as a significant sQTL for IFI44L (Coulombe-Huntington et al. 2009; Fraser and Xie 2009; Zhao et al. 2013)).

The proteins encoded by IFI44L and its partner IFI44 are both stimulated by interferon type I and thus are likely to be involved in innate immunity. A screen of more than 380 interferon stimulated genes/ISGs for in vitro antiviral activity against different viruses identified IFI44L as an important antiviral effector of type I interferon response against hepatitis C virus. (Schoggins et al. 2011) Importantly, a study assessing susceptibility to viral myocarditis in mice (by Coxsackievirus B3) noted that genetic variants in the H28 (IFI44L) locus are likely involved in infection susceptibility.(Wiltshire et al. 2011) These data from the literature suggest that IFI44L is an important effector of innate antiviral immunity with a plausible role in immune response priming and protection against disease.

The strengths of our study include the use of a relatively large combined sample of three well-characterized cohorts (from different geographic areas) and the detailed and reliable demographic, clinical, immune phenotyping and genomic data to classify study participants into genetically defined ancestry categories. Despite the popularity of the discovery/replication study design, we analyzed available cohorts together (as this is the currently accepted approach (McCarthy et al. 2008; Skol et al. 2006), and taking advantage of the full set of genotyping data), which resulted in greater power and provided more accurate estimates of the magnitude of SNP associations and genomic localization. Although our significant findings (i.e., the involvement of CD46 and IFI44L in the host response to measles vaccine) are supported by a different state-of-the-art GWAS study (Feenstra et al. GWAS study of febrile seizures (Feenstra et al. 2014)), functional mechanistic studies are warranted to elucidate the underlying molecular mechanisms and the link between CD46 and IFI44L genetic variants and humoral immunity to MV.

In conclusion, our study identified common genetic variants associated with inter-individual variations in measles-specific antibody response following MMR vaccination. Ultimately, our study significantly advances the science of measles vaccine immunology/immunogenetics and provides knowledge of the most critical genomic features influencing measles vaccine immune response and their potential molecular mechanisms – a foundational information for the development of better measles vaccine candidates and vaccination approaches. Our study also provides more general insights and a proof of concept for the critical role of genomic variability in virus/pathogen cellular receptors and receptor isoform usage for the development of humoral immunity following vaccination.

Detailed Methods

The methods described herein are similar or identical to those published for our previous studies. [1–12]

Study Subjects

Subjects from previously described cohorts were used for this study [1–5, 9–11, 13]

The study set was a large sample of 3,191 healthy children, older adolescents, and healthy adults (age 11 to 40 years) consisting of three independent cohorts: a Rochester cohort (n=1,062); a San Diego cohort (n=1,071); and a US cohort (n=1,058). The recruitment efforts, demographic and clinical characteristics of these cohorts have been previously published [1–5, 9–11, 13].

The Rochester cohort comprised 1,062 individuals enrolled into three age-stratified cohorts of healthy, school-age children and young adults from all socioeconomic strata in Rochester, MN, recruited between 2001–2009, as described previously.[4, 5, 7, 13, 14] Parental consent was obtained for all participants and each subject had written records of having received two doses of MMR vaccine. Of the 1,062 individuals for this study, 982 (93%) were successfully genotyped and assayed for immune outcomes.

The San Diego cohort consisted of 1,071 healthy older adolescents and healthy adults (age 18 to 40 years) from armed forces personnel in San Diego, CA, enrolled by the US Naval Health Research Center (NHRC) between 2005–2006, as previously published.[6] The US cohort consisted of an additional 1,058 healthy older adolescents and healthy adults recruited from the US armed forces, enrolled between 2010–2011.[8]. Of the 1,071 and 1,058 subjects recruited into this study as the San Diego or US cohort (respectively), 882 (82%) subjects for the San Diego cohort and 1,008 (95%) subjects for the US cohort had provided consent for use of their samples/data in other studies, and were successfully genotyped and assayed for measles-specific immune outcomes for this study. The Institutional Review Boards of the Mayo Clinic (Rochester, MN) and the NHRC (San Diego, CA) approved the study, and written informed consent was obtained from each subject, from the parents of all children who participated in the study, as well as written assent from age-appropriate participants.

Genome-wide SNP typing and QC

The methodology used for this study is identical to that used in our previously published papers. [1–5, 9–11, 13]

Briefly, DNA was extracted from each subject’s blood specimen using the Gentra Puregene Blood kit (Gentra Systems Inc.; Minneapolis, MN) and quantified by Picogreen (Molecular Probes; Carlsbad, CA). The genome-wide SNP typing was performed using the Infinium Omni 1M-Quad SNP array (Illumina; San Diego, CA) for the Rochester cohort, Illumina Human Omni2.5–8 BeadChip array for the US cohort, and Illumina Infinium HumanHap550v3_A or HumanHap650Yv3 BeadChip arrays for the San Diego cohort. DNA samples underwent amplification, fragmentation, and hybridization onto each BeadChip, which were imaged on an Illumina BeadArray reader. Genotype calls based on clustering of the raw intensity data were made using BeadStudio 2 software.

For the 758 subjects in the San Diego cohort with the Illumina 550 array genotyping data, 54 subjects were removed due to high SNP missing rates (more than 5% of their SNPs missing). There were 561,303 unique measured SNPs, of which 508,199 SNPs passed QC. For the 313 subjects in the San Diego cohort with the Illumina 650 array genotyping data, 13 subjects were removed due to high SNP missing rates. There were 660,755 unique measured SNPs, of which 630,240 passed QC. In addition, subjects were further excluded from the San Diego cohort if not of Caucasian or African-American ancestry (determined by STRUCTURE), or if they were missing values for covariates used in the analysis. This resulted in a total of 882 subjects from this cohort used in the study (718 Caucasians and 164 African-Americans, see Table 1). For the 1,058 subjects in the US cohort with the Illumina Omni 2.5 array genotyping data, there were 2,376,105 measured SNPs, of which 2,116,447 passed QC. Subjects were excluded from the US cohort if not of Caucasian or African-American ancestry as determined by STRUCTURE, or had high SNP missing rates, or if values for covariates were missing; this resulted in a total of 1,008 subjects (895 Caucasians and 113 African Americans, Table 1). For the 1,062 subjects in the Rochester cohort with valid data, 10 subjects were removed due to high SNP missing rates. Subjects were further excluded from the cohort if not of Caucasian or African-American ancestry determined by STRUCTURE, or if values for covariates were missing; this resulted in a total of 982 subjects (942 Caucasians and 40 African Americans, Table 1). On the Omni 1 genotyping array, there were 1,134,514 unique measured SNPs, of which 887,889 passed QC.

Next Generation Sequencing (mRNA-Seq)

The sequencing methods are similar or identical to those previously published. [15, 16] In summary, cryopreserved PBMCs from 30 Rochester cohort subjects (selected for an mRNA-Seq transcriptome profiling, based on their neutralizing antibody titers [15 highest and 15 lowest antibody responders] after two doses of MMR vaccine) were thawed and stimulated with live Edmonston measles virus (MV) at a multiplicity of infection (MOI) of 0.5 for 24 hours (for each subject, an aliquot of the cells was left unstimulated). The samples were randomly allocated to flow cells and lanes, balancing over the immune response and stimulation status.

Cells were stabilized with RNAprotect cell reagent (Qiagen) and total RNA was extracted using RNeasy Plus mini kit (Qiagen). Quality and quantity of RNA was determined by Nanodrop spectrophotometry (Thermo Fisher Scientific). Libraries were generated using Illumina’s mRNA TruSeq (v1) kit and sequenced (paired end sequencing) on an Illumina HiSeq 2000 (Illumina; San Diego, CA) with Illumina’s TruSeq Cluster kit (v3-cBot-HS) and 51 Cycle Illumina TruSeq SBS Sequencing Kit (v3). The sequencing reads were aligned to the human genome build 37.1 using TopHat (1.3.3) and Bowtie (0.12.7). Gene counts were performed using HTSeq (0.5.3p3), while BEDTools software (2.7.1) was used to map normalized read count to individual exons. [17–20]

RT-PCR

Total RNA was extracted from PBMCs of 30 subjects (10 CD46 rs2724374 homozygous major allele genotype subjects, 10 rs2724374 homozygous minor allele genotype subjects and 10 heterozygous subjects) using RNAprotect cell reagent and the RNAeasy Plus Mini kit (Qiagen, Valencia, CA). RT-PCR analysis of CD46 isoforms was performed with the SuperScript^® One-Step RT-PCR system with Platinum Taq^® DNA polymerase (Invitrogen, Carlsbad, CA), as previously described [21] using the 5′ CD46 SCR4 primer GTGGTCAAATGTCGATTTCCAGTAGTCG and the 3′ untranslated region primer CAAGCCACATTGCAATATTAGCTAAGCCACA, allowing CD46 isoform/isoforms discrimination/separation on a 3% agarose gel.

Immune Outcome Phenotyping

The immune outcome assays described herein are similar or identical to those published for our previous studies. [1–8]

Neutralizing Antibody Assay

Measles-specific neutralizing antibody titers were quantified using a high-throughput, fluorescence-based plaque reduction microneutralization assay (PRMN), using a recombinant GFP-expressing measles virus, as previously described.[3–8] The plates were scanned and counted on an automated Olympus IX71 Fluorescent microscope using the Image-Pro Plus Software Version 6.3 (MediaCybernetics). The 50% end-point titer (Neutralizing Doze, ND₅₀) was calculated automatically using Karber’s formula, and transformed into mIU/mL (using the 3^rd WHO international anti-measles antibody standard), as described previously.[3–8] The variability of the PRMN assay, calculated as a coefficient of variation (CV) based on the log-transformed ND₅₀ values of the third WHO standard, was 5.7%.[7]

IFNγ ELISPOT Assay

Measles-specific cellular immunity was quantified using commercial Human IFNγ ELISPOT kits (R&D Systems; Minneapolis, MN) to measure the number of MV-specific IFNγ-producing cells, according to the manufacturer’s instructions and as previously described [22]. We stimulated subjects’ peripheral blood mononuclear cells/PBMCs (or, alternatively, left them unstimulated) in triplicate with the Edmonston strain of MV (MOI=0.5), and developed the reaction after 42 hours incubation at 37°C, in 5 % CO₂. PHA (5 μg/mL) was used as a positive control. All plates were scanned and analyzed using the same counting parameters on an ImmunoSpot^® S4 Pro Analyzer (Cellular Technology Ltd.; Cleveland, OH) using ImmunoSpot^® version 4.0 software (Cellular Technology Ltd.). The ELISPOT response is presented in spot-forming units (SFUs) per 2 x 10⁵ cells. The intraclass correlation coefficients, comparing multiple observations per sample (stimulated and unstimulated condition), was 0.94 for the stimulated values and 0.85 for the unstimulated values, indicating low assay variability. [22]

Measles-specific secreted cytokines

Secreted cytokines (IL-2, IL-6; IL-10; TNFα, IFNγ, IFNα and IFNλ1) were quantified in PBMC cultures after in vitro stimulation with live MV, as previously described. [3–5]

Statistical methods

Analysis Strategy

To achieve greatest power to detect SNPs associated with measles-specific immune response phenotypes, we pooled our data across genotyping platforms and the three cohorts. To perform the pooled analyses, we first accounted for the effects of potentially confounding factors that vary across ancestry/platform/cohort strata. After thoroughly evaluating the quality of the genotype data, we used the genetic data to define major ancestry groups. We then estimated eigenvectors within each ancestry group to account for the effects of population stratification within ancestry groups. Because the largest ancestry groups were Caucasian and African-American, we restricted our pooled analysis to these two groups. After accounting for population stratification, we evaluated the covariates that were available within each of the ancestry-platform-cohort strata to determine if the covariates were associated with the phenotype, in order to regress out the effects of potential confounding factors. This produced residuals (adjusted traits) that were then used for the GWAS analyses.

Genotype Quality Control and Imputation

Genotype quality control prior to imputation was conducted separately for four strata: subjects in the San Diego cohort with the Illumina 550 array genotyping data; subjects in the San Diego cohort with the Illumina 650 array genotyping data; subjects in the US cohort with the Omni 2.5 array genotyping data; and subjects in the Rochester cohort with the Omni 1M-Quad array genotyping data. SNPs on the Y chromosome and mitochondria were removed, and SNPs were eliminated if they were monomorphic or had a missing rate of 1% (5 % for the HumanHap550/650 arrays) or more. Subjects were eliminated if they had more than 5% of their SNPs missing (for the HumanHap550/650 arrays) or more than 1% missing (for the Omni 2.5 and Omni 1M-Quad arrays). The 1000 Genomes cosmopolitan samples (African, AFR; AMR; Asian, ASN; European, EUR) were used as a reference for imputation and were based on Build 37. SNPs that could not be converted to Build 37, or mapped to more than one position, or could not have their alleles verified for the forward strand, were eliminated. The reference genome was then filtered to include only those SNPs with a minor allele frequency (MAF) greater than 0.005. The data were then phased using SHAPEIT [23] and imputed via IMPUTE2. [24] SNPs with an imputation dosage allele r² of at least 0.3, and a MAF of at least 0.01, were used in the pooled analyses.

Genetic Ancestry and Population Stratification

Genetic data was used to assign ancestry groups (African, Caucasian, or Asian) for individuals using the STRUCTURE software [25], and using the 1000 Genomes data as a reference. These estimates were done within cohort and platform (San Diego/550, San Diego/650, US/Omni 2.5, Rochester/Omni 1). Others [26] have shown that it is necessary to perform pruning of the SNPs to be used for eigenvectors in order to avoid having sample eigenvectors that are determined by small clusters of SNPs at specific locations, such as the lactose intolerance gene, or polymorphic inversion regions. Therefore, the SNPs used for STRUCTURE and for eigenvectors were selected by LD pruning from an initial pool consisting of all autosomal SNPs with the following filters: SNPs with a minor allele frequency (MAF) < 5% were excluded; influential SNPs were removed (according to the following chromosome regions: chromosome 8 [bp 1-12700000]; chromosome 2 [bp 129900001-136800000, 5700000-33500000]; chromosome 4 [bp 0900001-44900000]); correlation (r²) pruning was used to subset to uncorrelated SNPs. SNPs passing these selection criteria were input to STRUCTURE [25] to make ancestry “triangle” plots that depict the admixture proportions of ancestry groups for each subject. Subjects were classified into major ancestry groups based on the largest estimated STRUCTURE ancestry proportion.

Eigenvectors were estimated within ancestry groups and platform strata for refined control of population stratification. For this step, SNPs with a MAF < 0.01 were excluded, SNPs with a HWE p-value < 0.001 were excluded, INDELS were removed, and pruning according to variance inflation factors was used. These data were then used with smartPCA to produce a set of eigenvectors using the normalization formulas of Price et al. [27] following the procedures of EIGENSTRAT. Tracy-Widom statistics were computed to include eigenvectors as potential for adjusting covariates if they had a p-value < 0.05.

Selection of Covariates to Adjust for Potential Confounders

To remove the effects of potential confounders so that the cohorts could be combined, we first screened for potential confounders relevant to each ancestry group and cohort. The immune response trait measles-specific IFNγ ELISPOT, as well as the measles-specific secreted cytokines, were transformed by normal quantiles of the difference of the mean stimulated and mean unstimulated values. Neutralizing antibody titer was transformed as the natural log of the PRMN mIU/mL value. Possible confounders were screened for their association with the trait using the following steps. Any categorical variable with a very large number of categories was binned using hierarchical clustering. This was achieved by using hierarchical clustering on the estimated regression coefficients for the different categories, binning categories with similar regression coefficients. All categorical variables were coded as dummy variables such that the most common category was used as baseline. Variables that were marginally associated with the trait with p-value < 0.1 were then included in backwards selection with a p-value threshold of 0.1. This somewhat liberal threshold achieves the goal of controlling for potential confounding covariates. Residuals from the final “covariate models” were then used as the primary adjusted traits for GWAS analyses.

GWAS Pooled Analysis

The adjusted traits for IFNγ ELISPOT and neutralizing antibody were pooled over the three cohorts and genotype platforms to perform the pooled GWAS analysis. To pool the genotypes, we used the genotypes that were imputed separately within each platform. To analyze Caucasian and African-American ancestry together, we used a linear regression model that included a cohort indicator, ancestry indicator, dose of minor allele, and interaction of ancestry with dose of minor allele. This full model was compared with a reduced model that included a cohort indicator and ancestry indicator. The full and reduced models were used to create a likelihood ratio test for the effect of a SNP, allowing for the possible interaction of the SNP with ancestry, resulting in a test with 2 degrees of freedom (df). To test for the effect of a SNP within an ancestry group, we only used cohort indicator as an adjusting factor, resulting in a test with 1 df for the SNP effect. The measles-specific secreted cytokines were only measured in the Rochester cohort, so the resulting test for SNP effects was based on a 1 df statistic. All reported p-values are two-sided. To control for multiple testing, we used the standard p-value < 5.0x10⁻⁰⁸ [28, 29] to determine genome-wide statistical significance. Statistical analyses were performed with the R 3.2.0 statistical software and PLINK. [30]

Computer code availability

Computer code (linux shell scripts, R code) is available upon request from corresponding author.

Analysis of mRNA-Seq Data for Differential Exon Usage

We tested for evidence of differential exon usage in the CD46 and IFI44L genes using the method of Anders et al., implemented in the DEXSeq package (version 1.16.10) in the R programing language (version 3.2.3). [31, 32] This method utilizes generalized linear models (GLM) fitting per-gene negative binomial models.[33] For the full model, we included main effects for the sample, exon, and an interaction between the exon and allele state/genotype (subjects’ homozygous minor allele compared to heterozygous and homozygous major allele). The likelihood estimate from the full model is compared to the likelihood from the model with the main effects to test the hypothesis for differential exon usage between the different genotypes/allele states. A significant test for a given exon provides evidence of differential exon usage (i.e., an alternative splicing event to produce different transcripts/isoforms). The per-exon estimates of the dispersion for the negative binomial GLMs were calculated using the Cox-Reid method [31, 34, 35] applied to all of the observed exons from our experiment based on the full model. To limit the risk of false discovery, our analyses of differential exon usage were limited to the CD46 (n=14 exons) and IFI44L (n =9 exons) genes. The method of Benjamini and Hochberg was used to control the false discovery rate and the adjusted p-values are reported as q-values.[36] We used mRNA-Seq paired-end sequencing data on 28 subjects (selected based on the extremes of the distribution of the antibody response, 14 high and 14 low antibody responders) to test the hypothesis of differential exon usage (exon expression) between different genotypes of interest (for CD46 rs2724374 and for IFI44L rs1333973/rs273259).

Molecular Modeling

No full-length structure of CD46 exists, but partial structures of the extracellular domains have been solved. These cover the sequences encoded by the first six exons of the gene. Available experimental structures include the co-crystal structure between CD46 SCR1-4 and the adenovirus type 11 knob (3o8e [37]), and a co-crystal structure of CD46 SCR1-2 bound to the MV-H globular head domain dimer (3inb [38]). Computationally determined models have also been deposited in MODBASE [39]. We generated homology models of the extracellular domains (SCR1-4 and STP domains) of ABC1, BC1, and C1 isoforms of CD46 (identical to ABC2, BC2, and C2, respectively) using I-TASSER [40] and compared them to the MODBASE models and available crystal structures, in order to evaluate model quality and consistency.

In order to evaluate the effect of differential splicing on the dynamics of the CD46 structure, we generated Anisotropic Network Models (ANMs)[41, 42] using a distance-dependent interaction strength [43]. Models were evaluated using computed Mean Squared Fluctuations as a per-residue measure of mobility, commute time [44] as a measure of efficiency with which information passes through the structure, and angle monitors to evaluate overall domain-domain orientations. The motions computed by ANM are theoretically local (small-scale), but often correlate strongly with large-scale functional motions. Thus, the functional magnitudes of ANM motions are not intrinsically defined. Therefore, we deformed each structure to 2Å RMSD in each direction of a given mode as a consistent and realistic extent of motion.

The crystal structure of the MV-H head domain dimer and its interactions with CD46 were taken from PDB 3INB [38] and we modeled its dynamics using ANM. Motions of bound CD46 molecules induced by these intrinsic motions of MV-H were inferred by rigidly tethering SCR1 and SCR2 to their interacting residues in the crystal structure.

Diagram mModels of MV-F were produced by Gaussian smoothing of the molecular surface of 1G5G [45] – the fusion protein of Newcastle disease virus/NDV which, like MV, is a member of the Paramyxoviridae family.

Supplementary Material

439_2017_1768_MOESM1_ESM. Supplemental Table 1.

Top 20 genome-wide associations of SNPs with measles-specific IFNγ ELISPOT response after MMR vaccination (Combined analysis, n=2872^a)

439_2017_1768_MOESM2_ESM. Supplemental Table 2.

Associations between chromosome 1 SNPs and measles virus-specific secreted IFNα (Caucasians, n=625 subjects with available measles virus-specific cytokine data)

439_2017_1768_MOESM3_ESM. Supplemental Fig. 1.

Manhattan and Q-Q plots summary of GWAS associations between SNPs and measles-specific neutralizing antibody titers.

A. Manhattan (left panel) and Q-Q (right panel) plots for the combined cohort analysis (n=2872, reduced to 2818 after excluding subjects with neutralizing antibody data, that failed QC).

B. Manhattan (left panel) and Q-Q (right panel) plots for the subset analysis of subjects of Caucasian ancestry (n=2555, reduced to 2506 after excluding subjects with neutralizing antibody data, that failed QC).

439_2017_1768_MOESM4_ESM. Supplemental Fig. 2.

Haplotype block structure of the significant IFI44L and CD46 SNPs associated with measles-specific antibody response (combined sample).

The schematic representation and LD block structure of IFI44L (left) and CD46 (right) genetic regions are depicted (significantly associated SNPs only). The LD block structure was analyzed using Haploview software, version 4.2. The r² color scheme is: white (r²=0), shades of grey (0< r²<1), black (r²=1). The numbers report the r² value multiplied by 100.

439_2017_1768_MOESM5_ESM. Supplemental Fig. 3.

Manhattan plot summary of GWAS associations between SNPs and measles-specific IFNγ ELISPOT response in the combined cohort (n=2872^a)

^aReduced to 2618 after excluding subjects with immune outcome data that failed QC

439_2017_1768_MOESM6_ESM. Supplemental Fig. 4.

CD46 isoforms exhibit different flexibilities, specifically about the hinge between the SCR4 and STP domains.

A. Molecular structure of the full length CD46, zoomed in to emphasize the differentially spliced exons.

B. Using the first 3 modes of an ANM model (see Methods), we compute the mobility of each residue. There is increased mobility for the C1 isoform. (inset) The normal mode frequencies are plotted on a log-log scale and indicate a dramatically lower collectivity for the C1 isoform.

C. Commute times are computed for each structure and show a decrease in C1 relative to BC1. (inset) Example matrix of commute times from the BC1 isoform with the N-terminus at the top left and C-terminus bottom right.

D. and E. We choose representative C^α atoms to define the hinge angle between the exon 6 subdomain and the subdomain comprised of the isoform-specific sequences. D. for BC1, relatively low mobility about this hinge region is observed (ANM mode 2), while greater flexibility is observed in C1 (ANM mode 2) in E. We show representative structures from the ANM modes, deformed to 2Å RMSD in both directions and superimposed about the sequences encoded by the variable exons.

F. Across the first 5 low-frequency ANM modes, we indicate the change in this angle observed when deforming each structure to 2Å RMSD in each direction.
