Crystal structure of 2-azido-1,3-bis­(2,6-diiso­propyl­phen­yl)-1,3,2-di­aza­phospho­lidine

The synthesis, spectroscopic and crystal structure of 2-azido-1,3-bis­(2,6-diiso­propyl­phen­yl)-1,3,2-di­aza­phospho­lidine is reported.

Abstract

The title compound, C₂₆H₃₈N₅P, was synthesized by reacting 2-chloro-1,3-bis­(2,6-diiso­propyl­phen­yl)-1,3,2-di­aza­phospho­lidine with sodium azide and a catalytic amount of lithium chloride in tetra­hydro­furan. The title compound is the first structurally characterized 2-azido-1,3,2-di­aza­phospho­lidine and exhibits a P atom in a trigonal pyramidal geometry. The azide P—N bond length of 1.8547 (16) Å is significantly longer than the P—N separations for the chelating di­amine [P—N = 1.6680 (15) and 1.6684 (14) Å]. The sterically hindered 2,6-diiso­propyl­phenyl groups twist away from the central heterocycle, with dihedral angles between the central heteocyclic ring and benzene rings of 76.17 (10) and 79.74 (9)°. In the crystal, a weak C—H⋯N link to the terminal N atom of the azide group leads to [100] chains.

Chemical context

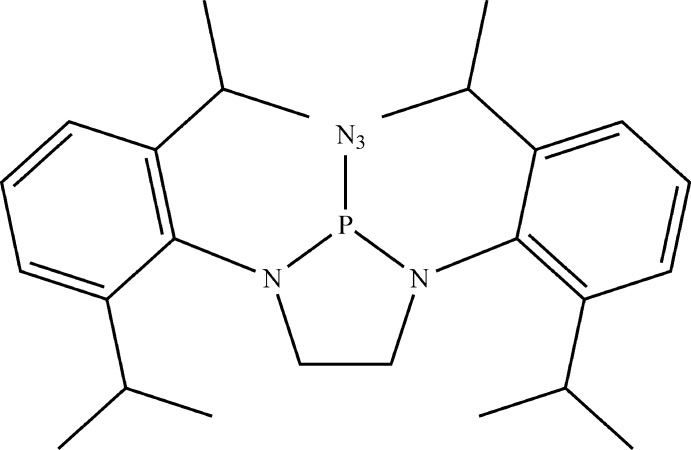

Phosphine azides possess at least one azide group attached to phospho­rus and display a broad range of reactivity that is directly dependent on the other substituents attached to the P atom. One of the most inter­esting properties of these mol­ecules is that both free and coordinated alkyl and aryl derivatives are much more reactive than their corresponding amino derivatives, as demonstrated by their lower thermal and photochemical stability. For example, the phosphinoazide complex Ph₂P(N₃)–Cr(CO)₅ readily undergoes photolysis under UV light to produce the phosphino–iso­cyanate complex Ph₂P(NCO)–Cr(CO)₅ (Ocando et al., 1985 ▸), while the related bis­(diiso­propyl­amino) complex (iPr₂N)₂P(N₃)–Cr(CO)₅ does not (Cowley et al., 1995 ▸). The crystal structure of the title compound is the first reported example of a structurally characterized 2-azido-1,3,2-di­aza­phospho­lidine; however, a few closely related compounds are known, such as those derived from 1,3,2-di­aza­phospho­lenes.

Structural commentary

The mol­ecular structure of the title compound is shown in Fig. 1 ▸. It crystallizes in the monoclinic space group P2₁/n with one mol­ecule in the asymmetric unit. The bond lengths between the P atom and its flanking N atoms are similar [P1—N4 = 1.6680 (15) Å, P1—N5 = 1.6684 (14) Å and N4—P1—N5 = 91.14 (7)°], while the phospho­rus centre adopts a trigonal pyramidal geometry, with the sum of the angles at phospho­rus equal to 294.14 (7)°. The azide group is quasilinear [N3—N2—N1 = 176.6 (2)°], with similar N—N bond lengths [N1—N2 = 1.168 (2) Å and N2—N3 = 1.155 (2) Å]. The phospho­rus–azide bond length (P1—N1) is significantly longer [1.8547 (16) Å] than found for atoms N4 and N5. The average sum of the bond angles at the N4 and N5 positions is 359.87 (12)°, very close to an ideal trigonal planar geometry. This is a strong indication that the nominal lone pairs of atoms N4 and N5 participate in N—P⋯π inter­actions and, when coupled with the significantly longer P1—N1 bond length, suggests a partial ionic character similar to earlier reports in acyclic structures (Cowley et al., 1995 ▸). The overall conformation of the C1/C2/N4/N5/P1 ring is well described as an envelope, with atom N5 deviating from the other atoms (r.m.s. deviation = 0.030 Å) by −0.274 (2) Å. The steric demands of the bulky 2,6-diiso­propyl­phenyl groups cause the aromatic rings to twist away from the central five-membered ring, with torsion angles of 103.69 (18) and 101.83 (17)° for P1—N1—C3—C4 and P1—N2—C15—C20, respectively. The isopropyl groups are oriented away from the central five-membered ring, but the ‘congested’ nature of the mol­ecule results in intra­molecular short contacts between all four of the methine H atoms (H9, H12, H21 and H24) and atoms N4 and N5 (Table 1 ▸).

Figure 1.

The mol­ecular structure of the title compound, showing 50% displacement ellipsoids. H atoms have been omitted for clarity.

Table 1. Hydrogen-bond geometry (Å, °).

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C9—H9⋯N4	1.00	2.43	2.926 (2)	110
C12—H12⋯N4	1.00	2.44	2.913 (2)	109
C21—H21⋯N5	1.00	2.49	2.932 (2)	106
C24—H24⋯N1	1.00	2.66	3.443 (3)	136
C24—H24⋯N5	1.00	2.46	2.955 (2)	110
C22—H22C⋯N3i	0.98	2.69	3.669 (3)	174

Symmetry code: (i) .

Supra­molecular features

The only significant directional inter­action in the crystal of the title compound is a long [2.69 (3) Å] C—H⋯N hydrogen bond to the terminal N atom of the azide group, which results in [100] chains in the crystal (Fig. 2 ▸).

Figure 2.

The packing of the title compound, showing inter­molecular C—H⋯N inter­actions as dashed lines, which result in [100] chains.

Database survey

A search of the Cambridge Structural Database (Groom et al., 2016 ▸) indicated that no other 2-azido-1,3,2-(di­aryl­amino)­phospho­lidine derivatives have been structurally characterized. Some structurally similar compounds were identified, however, namely 2-azido-1,3-bis­(2,6-diiso­propyl­lphen­yl)-1,3,2-di­aza­phospho­lene (CSD refcode CILBAC; Gediga et al., 2014 ▸) and its corresponding 2,6-di­methyl­phenyl derivative (GOFHAL; Burck et al., 2008 ▸). Acyclic derivatives featuring bis­(diiso­propyl­amino) (PIJZAJ; Englert et al., 1993 ▸) and bis­(dicylo­hexyl­amino) (ZABCEK; Cowley et al., 1995 ▸) ligands are known, and also 1-azido-N,N′-bis(2,4,6-tri-tert-butyl­phenyl)phosphinedi­amine (YABVUV; Nieger et al., 2016 ▸).

Synthesis and crystallization

The synthesis of the title compound was achieved using a similar method as reported in the literature for 2-azido-1,3-bis­(2,6-diiso­propyl­lphen­yl)-1,3,2-di­aza­phospho­lene (Gediga et al., 2014 ▸). In a 20 ml scintillation vial, 0.102 g (0.229 mmol, 1 eq.) of colourless 2-chloro-1,3-bis­(2,6-diiso­propyl­phen­yl)-1,3,2-di­aza­phospho­lidine were dissolved in 1 ml of THF producing a colourless solution. To this solution, 0.016 g (0.246 mmol, 1.1 eq.) of colourless sodium azide and a spatula tip (<1 mg) of lithium chloride were added to solution immediately producing a colourless mixture. The reaction mixture was left to stir for 1 d and monitored using ³¹P{¹H} NMR spectroscopy, and once the starting material was completely consumed the reaction mixture was dried in vacuo. Extraction of the colourless residue with cold pentane, followed by filtration through Celite produced a colourless solution, which afforded 0.060 g (60%) of the title compound as a colourless powder after removal of the solvent. Crystals of the product were obtained by concentrating the filtrate and storing in a 238 K freezer overnight. ¹H NMR (CDCl₃): δ 7.31 (t, ³ J _HH = 7.6 Hz, 2H, p-Dipp), 7.24–7.17 (m, 4H, m-Dipp), 3.88–3.82 (pseudo-q, 2H, NHC-CH₂), 3.74 (sept, ³ J _HH = 6.8 Hz, 2H, iPr-CH), 3.48–3.39 (m, 4H, iPr-CH, NHC-CH₂), 1.33–1.25 (m, ³ J _HH = 6.8 Hz, 24H, iPr-CH₃). ¹³C{¹H} NMR (CDCl₃): δ 150.3, 148.4, 136.2, 128.1, 124.7, 124.2, 54.4, 29.0, 25.3, 24.9, 24.5. ³¹P{¹H} NMR (CDCl₃): δ 129.8. IR (KBr pellet): ν 3062 (w), 2963 (s), 2926 (m), 2867 (m), 2500 (w), 2125 (m), 2085 (s, N=N=N), 1678 (w), 1584 (w), 1462 (s), 1445 (s), 1383 (m), 1363 (m), 1324 (m), 1323 (m), 1257 (s), 1211 (w), 1185 (w), 1106 (m), 1075 (s), 1056 (w), 1043 (w), 980 (w), 946 (w), 935 (w), 852 (w), 806 (s), 761 (s), 730 (w), 688 (w), 651 (w), 602 (w), 583 (w), 550 (w), 542 (w), 470 (s), 437 cm⁻¹ (w). M.p. (K): 415.4–417.6 (decomposes, gas was released).

Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2 ▸. H atoms were included in geometrically idealized positions and refined using a riding model. Dihedral angles for the methyl H atoms were allowed to refine freely. The atomic displacement parameters of atoms N1 and N2 were constrained to be approximately equal using an EADP command.

Table 2. Experimental details.

Crystal data
Chemical formula	C26H38N5P
M r	451.58
Crystal system, space group	Monoclinic, P21/n
Temperature (K)	150
a, b, c (Å)	10.0148 (12), 17.343 (2), 15.6270 (19)
β (°)	105.948 (2)
V (Å3)	2609.7 (5)
Z	4
Radiation type	Mo Kα
μ (mm−1)	0.13
Crystal size (mm)	0.39 × 0.35 × 0.27
Data collection
Diffractometer	Siemens/Bruker APEXII
Absorption correction	Multi-scan (SADABS; Bruker, 2008 ▸)
T min, T max	0.718, 0.746
No. of measured, independent and observed [I > 2σ(I)] reflections	29851, 5708, 4350
R int	0.047
(sin θ/λ)max (Å−1)	0.639
Refinement
R[F 2 > 2σ(F 2)], wR(F 2), S	0.046, 0.123, 1.02
No. of reflections	5708
No. of parameters	291
H-atom treatment	H-atom parameters constrained
Δρmax, Δρmin (e Å−3)	0.36, −0.39

Computer programs: APEX2 and SAINT (Bruker, 2008 ▸), SHELXT2014 (Sheldrick, 2015a ▸), SHELXL2016 (Sheldrick, 2015b ▸), ORTEP-3 for Windows (Farrugia, 2012 ▸), PLATON (Spek, 2009 ▸) and publCIF (Westrip, 2010 ▸).

Supplementary Material

CCDC reference: 1551849

Additional supporting information: crystallographic information; 3D view; checkCIF report

supplementary crystallographic information

Crystal data
