Turn-on Luminescent Probe for Hydrogen Peroxide Sensing and Imaging in Living Cells based on an Iridium(III) Complex–Silver Nanoparticle Platform

Abstract

A sensitive turn-on luminescent sensor for H₂O₂ based on the silver nanoparticle (AgNP)-mediated quenching of an luminescent Ir(III) complex (Ir-1) has been designed. In the absence of H₂O₂, the luminescence intensity of Ir-1 can be quenched by AgNPs via non-radiative energy transfer. However, H₂O₂ can oxidize AgNPs to soluble Ag⁺ cations, which restores the luminescence of Ir-1. The sensing platform displayed a sensitive response to H₂O₂ in the range of 0−17 μM, with a detection limit of 0.3 μM. Importantly, the probe was successfully applied to monitor intracellular H₂O₂ in living cells, and it also showed high selectivity for H₂O₂ over other interfering substances.

Introduction

H₂O₂ is widely used in industry and households for rinsing, bleaching and disinfection. For example, in the food industry, H₂O₂ is used to replace chlorine-containing bleaching and sterilizing agents¹. It also plays an important role in many biological processes and enzymatic reactions, particularly those related to intracellular oxidative stress². In fact, escalated levels of H₂O₂ can cause irreversible cellular damage through the oxidation of biomolecules, leading to cell death³. Moreover, oxidative damage to cellular proteins, nucleic acids, and lipid molecules are associated with aging and age-related disorder ranging from neurodegeneration to diabetes^{3, 4}. Therefore, a rapid and reliable detection of H₂O₂ is important in pharmaceutical, clinical, and food industries.

Multiple methods such as spectrophotometry^{5, 6}, chemiluminescence⁷ and electrocatalysis⁸ have been developed for the detection of H₂O₂. Specifically, biosensors have been developed on the basis of electrocatalysis of immobilized enzymes arising from H₂O₂ reduction⁹. However, the enzyme-based biosensors are limited by sensitivity to environmental conditions, high cost, short shelf-life and complicated immobilization procedures^10–12. Meanwhile, fluorescent strategies have lots of advantages, particularly rapid response, high sensitivity, and simple manipulation^{13, 14}. Various fluorescence probes such as organic molecules¹⁵, carbon dots^{16, 17}, metal nanoclusters¹⁸, and nanoparticles^19–21, have good performance on the determination of H₂O₂. However, there are still some drawbacks for these reported probes, including poor sensitivity and selectivity, low stability in biological environment, or complicated operation^{17, 18, 22}. Fluorescence turn-on sensors are generally more desirable than fluorescence quenching sensors as the former is less susceptible to false positive signals^{23, 24}.

Luminescent Ir(III) complexes have been employed to detect a variety of analytes^25–27. Compared with organic molecules, Ir(III) complexes generally exhibit large Stokes shifts, ease in synthesis and long-lived luminescence which could be distinguished from fluorescence noise in biological matrices^{26, 27}. Meanwhile, silver nanoparticles (AgNPs) form a promising nanomaterial that has been developed in many applications because of their remarkable properties, such as high extinction coefficient and surface plasmon resonance absorption^28–30. It has been reported that AgNPs can be oxidized by traces of H₂O₂, to form Ag^{+ 31} _. In addition, AgNPs can function as excellent quenchers for fluorescent materials, such as organic dyes and quantum dots (QDs)^32–35. However, as far as we know, the application of the Ir(III) complexes combined with AgNPs has not yet been reported in the literature for H₂O₂ sensing. Consequently, taking advantages of the Ir(III) complex (Ir-1, [Ir(tfppy)₂(pyphen)]⁺, where tfppy = 2-[4-(trifluoromethyl)phenyl]pyridine, pyphen = pyrazino[2,3-f][1,10]phenanthroline) and AgNPs, we designed a novel turn-on luminescent probe for rapid and sensitive detection of intracellular H₂O₂.

The sensing mechanism of the Ir-1–AgNP probe for H₂O₂ is illustrated in Fig. 1. In the initial system, the luminescence of Ir-1 was significantly quenched by AgNPs. However, this AgNPs-induced quenching effect can be reversed by H₂O₂ due to oxidation of AgNPs to Ag⁺. To our knowledge, the Ir-1–AgNP is the first application of the combination of Ir(III) complexes and AgNPs for H₂O₂ sensing in both aqueous solutions and living cells.

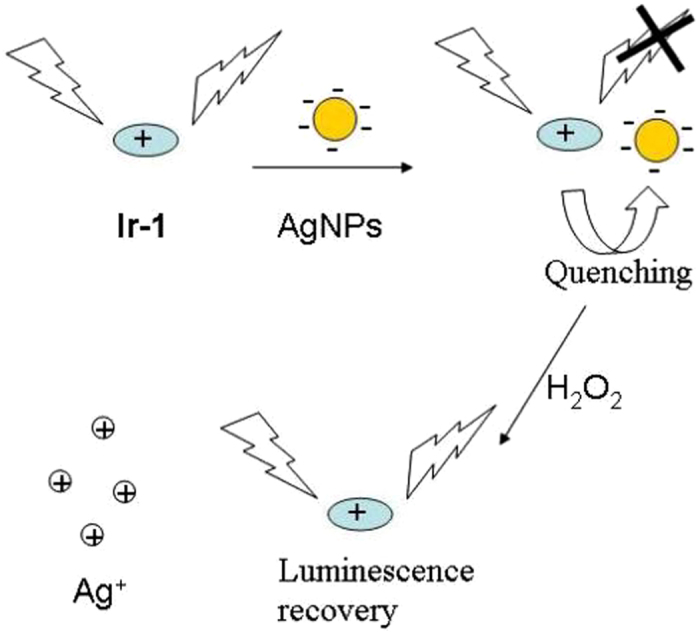

Figure 1.

Illustration of the design rationale for the detection of H₂O₂ using a luminescence sensor based on Ir-1–AgNPs system.

Results and Discussion

Sensing Mechanism

Ir-1, carrying tfppy as its C^N ligand and pyphen as its N^N ligand (Fig. 2a), was characterized by¹H-NMR,¹³C-NMR and HRMS (Figs S1–S3 and Table S1). Ir-1 emits strong luminescence at 545 nm under the excitation of 295 nm in aqueous buffer solution. As expected, the luminescence of Ir-1 decreased gradually with increasing amounts of AgNPs in solution (Fig. 2b). This is because the positively charged Ir-1 could be adsorbed on the surface of the citrate-stabilized AgNPs through electrostatic interactions, which efficiently quenched the luminescence of Ir-1. However, the luminescence could be recovered in the presence of H₂O₂ attributed to oxidation of AgNPs into soluble Ag⁺ by H₂O₂. In order to study the kinetic behavior between the Ir-1–AgNP system and H₂O₂, the luminescence change was monitored as a function of time. As shown in Fig. S4, the luminescence intensity of the Ir-1–AgNP system increased with time and reached the plateau after 10 min, indicating that the reaction between AgNPs and H₂O₂ at ambient temperature is rapid. In the absence of AgNPs, H₂O₂ showed no apparent effect on the luminescence of Ir-1 (Fig. S5). Therefore, the increase in the luminescence of the system should arise primarily from the decomposition of AgNPs by H₂O₂, which restores the emission of Ir-1.

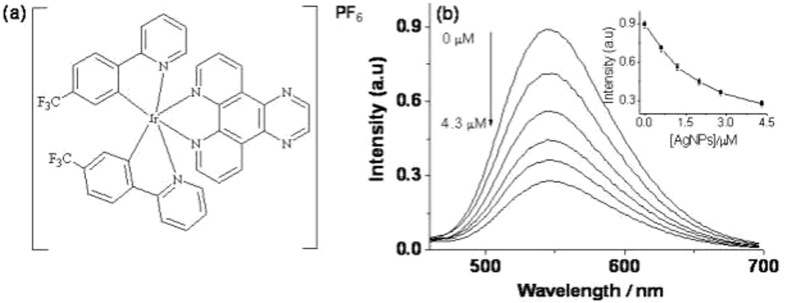

Figure 2.

(a) Chemical structure of Ir-1. (b) Luminescence emission spectra 0.3 μM Ir-1 in Tris-HNO₃ buffer solution (pH 7.0) containing different concentrations of AgNPs. The inset is the luminescence intensity at 545 nm plotted against the AgNPs concentration.

The mechanism involved in the luminescence quenching and recovery process was also demonstrated by transmission electron microscopy (TEM) imaging. In the absence of the Ir-1, the AgNPs were well-dispersed (Fig. 3a). However, after the addition of Ir-1, slight aggregation of AgNPs was observed, suggesting that Ir-1 and AgNPs interacted on the surface of AgNPs (Fig. S6b). The identity of the Ir-1–AgNP complex was further confirmed by energy dispersive X-ray spectroscopy (EDX), which showed strong elemental signals for both Ir and Ag (Fig. S6c). Strikingly, after treatment of AgNPs with H₂O₂, no AgNPs could be observed in the TEM images (Fig. 3b). This suggests that the AgNPs were decomposed and transformed to Ag⁺, which is consistent with previously reported^36–38. The UV–vis absorbance spectra of AgNPs in the absence and presence of H₂O₂ are shown in Fig. S7. AgNPs alone showed a strong characteristic surface plasmon resonance peak at around 390 nm³⁹. However, the absorption band of AgNPs gradually decreased upon increasing concentration of H₂O₂. These phenomena were ascribed to the oxidation of AgNPs to Ag⁺ by H₂O₂, leading the decomposition of the AgNPs.

Figure 3.

Transmission electron microscopy images of (a) AgNPs and (b) AgNPs in the presence of H₂O₂.

Sensitivity

To explore the applicability of the proposed luminescence sensor for H₂O₂ detection, we studied the luminescence response of the Ir-1–AgNP system toward varying concentrations of H₂O₂. The luminescence intensity of the system was gradually restored with increasing concentration of H₂O₂ (Fig. 4a). Meanwhile, a good linear relationship over the range from 0 to 17 μmol L⁻¹ with a correlation coefficient of 0.998 was obtained (Fig. S8). The limit of detection (LOD) was calculated to 0.3 μM according to the signal-to-noise method (S/N = 3). The sensitivity of this method is comparable to other reported methods for H₂O₂ detection as summarized in Table S2 ^{4, 10–16, 20, 36, 40–44}.

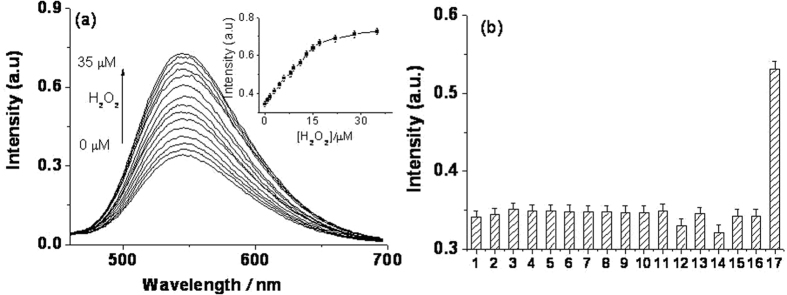

Figure 4.

(a) Luminescence emission spectra of 1 μM Ir-1 in Tris-HNO₃ buffer solution (pH 7.0) containing 2.8 μM AgNPs and different concentrations of H₂O₂ (0 μM to 35 μM). The inset is the luminescence intensity plotted against the H₂O₂ concentration. (b) Luminescence intensity of the Ir-1-AgNP system (0.3 μM Ir-1 and 2.8 μM AgNPs in Tris-HNO₃ at pH 7.0) in the presence of interfering species (HSA and BSA 50 μg/L, other interfering species 50 μM) or H₂O₂ (9 μM) (from 1 to 17: blank, threonine, serine, glycine, ascorbic acid, HSA, BSA, Zn²⁺, Co²⁺, Ni²⁺, Cd²⁺, Fe³⁺, Mg²⁺, Cu²⁺, K⁺, Na⁺, and H₂O₂).

Selectivity

To assess the selectivity of Ir-1–AgNPs system for H₂O₂, the influences of metal ions and amino acids were studied. As shown in Fig. 4b, nearly no luminescence changes could be observed with the other substances (Fig. 4b), which demonstrates that the Ir-1–AgNP system is highly selective for H₂O₂ over other non-target substances.

Cell imaging

Given the promising capability of Ir-1 for sensing H₂O₂ in aqueous solution, we then investigated the ability of Ir-1 for monitoring H₂O₂ in living human cells. Ir-1 showed cytotoxicity against HeLa (human cervical cancer) cells with an IC₅₀ value of 5.12 μM (Fig. S9).

In the cell imaging study, the luminescence intensity of HeLa cells was enhanced with increasing concentration of Ir-1 (Fig. 5a), showing that Ir-1 could effectively penetrate into cells. A concentration of 0.3 μM of Ir-1 was chosen for subsequent cell experiments as this concentration was over 10-fold lower than the IC₅₀ value for cytotoxicity, while it still gave a good luminescence signal.

Figure 5.

Confocal luminescence microscopy imaging of HeLa cells. (a) HeLa cells were incubated with the indicated concentration of Ir-1 for 1 h. (b) HeLa cells were pretreated with Ir-1 (0.3 μM) and AgNPs (2.8 μM) for 1 h before incubation with different concentration of H₂O₂. The upper row is luminescence imaging, and the lower row is bright field imaging. Excitation wavelength = 405 nm.

Next, HeLa cells were pretreated with Ir-1 (0.3 μM) for 1 h before incubation with different concentration of AgNPs. The luminescence intensity of HeLa cells was remarkably reduced with increasing concentration of AgNPs (Fig. S10), which was attributed to AgNPs-mediated quenching of an luminescent Ir-1 as described previously. However, when H₂O₂ was added into the growth medium for another 1 h, the luminescence of HeLa cells was recovered in a dose-dependent manner (Fig. 5b). Collectively, these results suggest that Ir-1–AgNP can be developed for the monitoring of H₂O₂ levels in living cells.

Conclusion

Consequently, we have proposed a turn-on luminescence assay for H₂O₂ detection employing the Ir-1–AgNP system. In this nano-composite system, Ir-1 functioned as a luminescence reporter, while AgNPs were employed both as a luminescence quencher and as a recognition unit for H₂O₂. Based on the luminescence recovery of the Ir-1–AgNP system triggered by H₂O₂, this nanoprobe was successfully applied to detect H₂O₂ at the intracellular level in living cells. In addition, the Ir-1–AgNP probe possesses some superior properties, including label-free, good sensitivity and selectivity, low cost, easy manipulation, low cytotoxicity, and turn-on luminescent response. To our knowledge, the probe is the first combination of Ir(III) and AgNPs applied for the detection of H₂O₂ in living cells reported in the literature.

Materials and Methods

Chemicals and materials

Iridium chloride hydrate (IrCl₃·xH₂O) was purchased from Precious Metals Online (Australia). Other reagents were purchased from Sigma Aldrich (St. Louis, MO) and used as received. All of the reagents were of analytical grade and were used as received without further purification. All solutions were prepared in Milli-Q water under ambient conditions. HeLa cell lines were obtained from ATCC (Manassas, VA, USA). Dulbecco’s Modified Eagle’s medium, fetal bovine serum, penicillin and streptomycin were obtained from Sigma-Aldrich Co. LLC (St. Louis, MO, USA).

Synthesis of AgNPs

AgNPs were fabricated according to reported methods with slight modifications^{28, 45}. In a typical procedure, 0.08 mL AgNO₃ (0.1 M) and 0.1 mL trisodium citrate (0.1 M) were mixed into 100 mL pure water and stirred under the condition of ice bath. Then, freshly prepared NaBH₄ solution was added dropwise into the mixture until it turned yellow. The resulting yellow solution was stirred for another 30 min to form AgNPs quantitatively, which was stored at 4 °C for subsequent use. The diameter of AgNPs prepared was measured to be 8–9 nm by transmission electron microscopy (TEM).

Synthesis of Ir-1

Ir-1 was synthesized based on a reported literature method^46–49. [Ir₂(tfppy)₄Cl₂] (0.2 mmol) and pyppy (0.42 mmol) in a mixed solvent of DCM:methanol (1:1.2 (v/v), 36 mL) was refluxed overnight. The reaction mixture was allowed to cool to ambient temperature, and unreacted cyclometallated dimer was removed by filtration. Excess ammonium hexafluorophosphate was then added into the filtrate, and the resulting mixture was stirred for another 30 min. Afterwards, the solution was evaporated under reduced pressure until precipitation was initiated. The precipitate was filtered, and washed by several portions of water and diethyl ether. The crude product was then recrystallized by the acetonitrile/diethyl ether vapor diffusion to obtain the desired compound, which was characterized by¹H-NMR,¹³C-NMR, high resolution mass spectrometry (HRMS) and elemental analysis.

Luminescence response of Ir-1 towards AgNPs

Ir-1 (0.3 μM) was added to varying concentrations of AgNPs in Tris-HNO₃ buffer (5 mM Tris-HNO₃, pH 7.0), then their emission intensity were measured.

Detection of H₂O₂

A series of sample solutions of same composition was prepared by mixing Ir-1 (0.3 μM) with AgNPs (2.8 μM) in Tris-HNO₃ buffer (5 mM Tris-HNO₃, pH 7.0). Upon individual addition of varying concentrations of stock H₂O₂ solution, the sample solutions were incubated for 10 min at room temperature. Emission spectra were collected in the range of 450–700 nm at the excitation wavelength of 295 nm.

Cell imaging

HeLa cells were pretreated with Ir-1 (0.3 μM) for 1 h at 37 °C, then AgNPs of different concentrations (0 μM, 0.1 μM, 0.3 μM, 1 μM, 3 μM and 5 μM) was added before further incubation for 1 h. After washing with PBS three times, the luminescence intensity of HeLa cells was imaged by a Leica SP8 laser scanning confocal microscope upon excitation at 405 nm.

For H₂O₂ detection, the experiment was performed as above except that after incubation in the presence of AgNPs (2.8 μM), cells were further treated with H₂O₂ ranging from 0 to 20 μM for 1 h. After washing with PBS three times, the luminescence intensity of HeLa cells was then imaged as above.

Statistics analysis

One-way analysis of variance (ANOVA) followed by the Dunnett’s method for multiple comparisons by using GraphPad Prism 6.0 was used to analyse the data.

Author Contributions

Jinshui Liu contributed to the sensing experiments and muniscript draft; Zhen-Zhen Dong prepared the iridium complex, SEM and TEM experiments; Chao Yang and Guodong Li completed the cell imaging and MTT experiments; Chun Wu helped to draw and arrange the Figures 1–5 in the manuscript; Fu-Wa Lee mainly commented and reviesed the manuscript; Chung-Hang Leung and Dik-Lung Ma proposed and instructed the project.
