G-Protein-Coupled Receptor Signaling in Cilia

Abstract

G-protein-coupled receptors (GPCRs) are the largest and most versatile family of signaling receptors in humans. They respond to diverse external signals, such as photons, proteins, peptides, chemicals, hormones, lipids, and sugars, and mediate a myriad of functions in the human body. Signaling through GPCRs can be optimized by enriching receptors and downstream effectors in discrete cellular domains. Many GPCRs have been found to be selectively targeted to cilia on numerous mammalian cell types. Moreover, investigations into the pathophysiology of human ciliopathies have implicated GPCR ciliary signaling in a number of developmental and cellular pathways. Thus, cilia are now appreciated as an increasingly important nexus for GPCR signaling. Yet, we are just beginning to understand the precise signaling pathways mediated by most ciliary GPCRs and how they impact cellular function and mammalian physiology.

Some G-protein-coupled receptors are enriched on cilia of certain mammalian cell types (e.g., odorant receptors in olfactory sensory neuron cilia). The significance of this location specificity is beginning to be understood.

It is estimated that the human genome encodes approximately 950 G-protein-coupled receptors (GPCRs), of which 500 correspond to odorant or taste receptors (Takeda et al. 2002). Approximately 150 of the remaining 450 GPCRs have no known natural ligand and so are referred to as orphan GPCRs (Tang et al. 2012). GPCRs represent the largest group of therapeutic drug targets, with more than a third of all drugs acting on GPCRs (Rask-Andersen et al. 2011). Because of the functional diversity of GPCRs, there is little conservation of amino acid sequence across the GPCR superfamily. Yet, all GPCRs share a common structure: an extracellular amino terminus, seven transmembrane domains, and an intracellular carboxyl terminus.

In canonical GPCR signaling at the plasma membrane, agonist binding to a receptor causes a change in receptor conformation and results in activation of heterotrimeric GTP-binding proteins (G proteins) (Fig. 1A) (Shenoy and Lefkowitz 2011). G proteins consist of three associated protein subunits: α, β, and γ. G proteins are classified based on the nature of their α-subunits and there are 16 known α-subunits that are functionally categorized into four subfamilies: Gα_s, Gα_i, Gα_q, and Gα₁₂. When inactive, the α-subunit is bound to GDP and a βγ-complex to form a trimeric protein complex (Fig. 1A). On agonist binding, the receptor facilitates GDP release, GTP binding to the α-subunit, and dissociation of the α-subunit from the βγ-complex (Fig. 1A). Both the α-subunit and βγ-complex can then regulate various intracellular effectors (e.g., adenylyl cyclases by the α-subunit and potassium channels by the βγ-complex).

Figure 1.

Overview of G-protein-coupled receptor (GPCR) signaling at the plasma membrane. (A) Ligand binding to a GPCR facilitates GDP release from the G-protein α-subunit and stimulates GTP binding to the α-subunit, which leads to dissociation of the α-subunit from the βγ-complex. Both the α-subunit and βγ-complex can then regulate various intracellular effectors. (B) Activated GPCRs are phosphorylated at specific sites on their intracellular domains predominantly by G-protein-coupled receptor kinases (GRKs). Phosphorylated receptors are targets for the recruitment of β-arrestins, which prevent further G-protein activation and mediate internalization of receptors by promoting clathrin-mediated endocytosis. β-Arrestins bind to numerous intracellular signaling proteins and can act as signal transducers independently of G-protein coupling. In some cases, GPCR signaling can be sustained or enhanced on endocytosis.

Activated GPCRs are then phosphorylated at specific sites on their intracellular domains predominantly by G-protein-coupled receptor kinases (GRKs) (Fig. 1B) (Marchese et al. 2008), but also other kinases such as protein kinase A (PKA) or protein kinase C (PKC) (Kelly et al. 2008). Once phosphorylated, the receptors become targets for the recruitment and binding of scaffolding proteins, termed β-arrestins, which prevent further G-protein activation and mediate internalization of receptors by promoting clathrin-mediated endocytosis (Fig. 1B) (Shenoy and Lefkowitz 2011). This process is known as homologous desensitization. Although internalization of GPCRs is generally associated with a decrease in signaling, in some cases receptor signaling can be sustained or enhanced on endocytosis (Sorkin and von Zastrow 2009; McMahon and Boucrot 2011). In addition, β-arrestins bind to numerous intracellular signaling proteins, including Src, ERK1/2, p38, and PI3K, and can act as signal transducers independent of G-protein coupling (DeFea 2011; Shukla et al. 2011). There are two β-arrestin isoforms (1 and 2) that are expressed ubiquitously and regulate most GPCRs.

There is an ever-expanding list of GPCRs that are enriched in cilia on a variety of cell types (Table 1; Fig. 2). Numerous GPCR effector molecules have also been localized to cilia (Fig. 2) (Hilgendorf et al. 2016), suggesting that cilia mediate signaling of a diverse set of GPCRs. Importantly, ciliopathies are associated with alterations in GPCR signaling. In this review, we will focus on mammalian cilia-mediated GPCR signaling transduction pathways. We will begin with a brief account of the well-described signaling pathways mediated by the prototypical ciliary GPCRs, odorant receptors, and opsins. Then we will discuss more recently described examples of GPCR ciliary signaling with a focus on the potential functional impacts of cilia on GPCR signaling.

Table 1.

Nonodorant/nonvisual G-protein-coupled receptors (GPCRs) with confirmed ciliary localization

GPCR	Cell type	References
β2-adrenergic receptor (β2AR)	Neurons	Yao et al. 2015
Bile acid receptor (TGR5)	Cholangiocytes	Keitel et al. 2010; Masyuk et al. 2013
Bitter taste receptors (T2R)	Airway epithelial cells	Shah et al. 2009
Dopamine receptor 1 (D1)	Neurons	Domire et al. 2011
Dopamine receptor 5 (D5)	Vascular endothelial cells, renal epithelial cells	Abdul-Majeed and Nauli 2011; Jin et al. 2014b
Galanin receptor 3 (GALR3)	Neurons	Loktev and Jackson 2013
GPR83	Neurons	Loktev and Jackson 2013
GPR161	Neurons, mouse embryonic fibroblasts	Mukhopadhyay et al. 2013
GPR175	Mouse embryonic fibroblasts	Singh et al. 2015
Kisspeptin receptor 1 (KISS1R)	Neurons	Koemeter-Cox et al. 2014
Melanin-concentrating hormone receptor 1 (MCHR1)	Neurons	Berbari et al. 2008
Muscarinic acetylcholine receptor 3 (M3R)	Olfactory sensory neurons	Jiang et al. 2015
Neuropeptide Y receptor 2 (NPY2R)	Neurons	Loktev and Jackson 2013
Neuropeptide Y receptor 5 (NPY5R)	Neurons	Loktev and Jackson 2013
Prolactin-releasing hormone receptor (PRLHR)	Glial cells	Omori et al. 2015
Prostaglandin E receptor 4 (EP4)	Human retinal pigment epithelial cells	Jin et al. 2014a
Pyroglutamylated RFamide peptide receptor (QRFPR)	Neurons	Loktev and Jackson 2013
Serotonin receptor 6 (HTR6)	Neurons	Brailov et al. 2000
Smoothened (SMO)	Fibroblasts, nodal cells
Somatostatin receptor 3 (SSTR3)	Neurons	Handel et al. 1999
Trace amine-associated receptor 1 (TAAR1)	Thyroid epithelial cells	Szumska et al. 2015
Vasopressin receptor 2 (V2R)	Renal epithelial cells	Raychowdhury et al. 2009

Figure 2.

Examples of G-protein-coupled receptors (GPCRs) and effectors that are enriched in primary cilia. (A) Image of a day 7 mouse hippocampal neuron immunolabeled with an antibody to somatostatin receptor subtype 3 (SSTR3) showing an SSTR3-positive cilium projecting from the cell body. (B) Adult mouse brain section corresponding to the medial hypothalamus immunolabeled with an antibody to kisspeptin receptor 1 (KISS1R). Note the presence of multiple KISS1R-positive cilia. (C) Image of a day 7 mouse hippocampal neuron treated with somatostatin and immunolabeled with an antibody to β-arrestin. Arrow indicates β-arrestin ciliary localization. (D) Image of a day 7 mouse hippocampal neuron immunolabeled with an antibody to type 3 adenylyl cyclase (AC3) showing an AC3-positive cilium projecting from the cell body. Scale bars, 5 µm.

OLFACTORY RECEPTOR SIGNALING

Ciliopathies can be associated with deficits in olfaction (Kulaga et al. 2004; Iannaccone et al. 2005; McEwen et al. 2007). Mammalian olfaction is mediated by olfactory sensory neurons (OSNs) that project from the olfactory bulb in the brain to the olfactory epithelium located in the nasal cavity (Fig. 3A). OSNs are bipolar neurons with a single axon that projects distally to the olfactory bulb and a single dendrite that projects apically to the olfactory epithelium. At the apical end of the OSN, the dendritic tip is enlarged to form a dendritic knob from which 10 to 30 nonmotile 9+2 cilia project (Menco 1980, 1997). These olfactory cilia range from 50 to 60 µm in length and extend into the olfactory mucus where they are directly exposed to odorants (Jenkins et al. 2009). There are two important consequences of the ciliary structure. First, the presence of numerous cilia increases the surface area that is exposed to the external environment by about 40 times and enhances our ability to detect odorants (Menco 1992). Second, the small diameter of the distal ends of these cilia (∼0.1 µm) leads to a large ratio of membrane surface area to cytoplasmic volume (Menco 1980), allowing a small signal to generate a large effect.

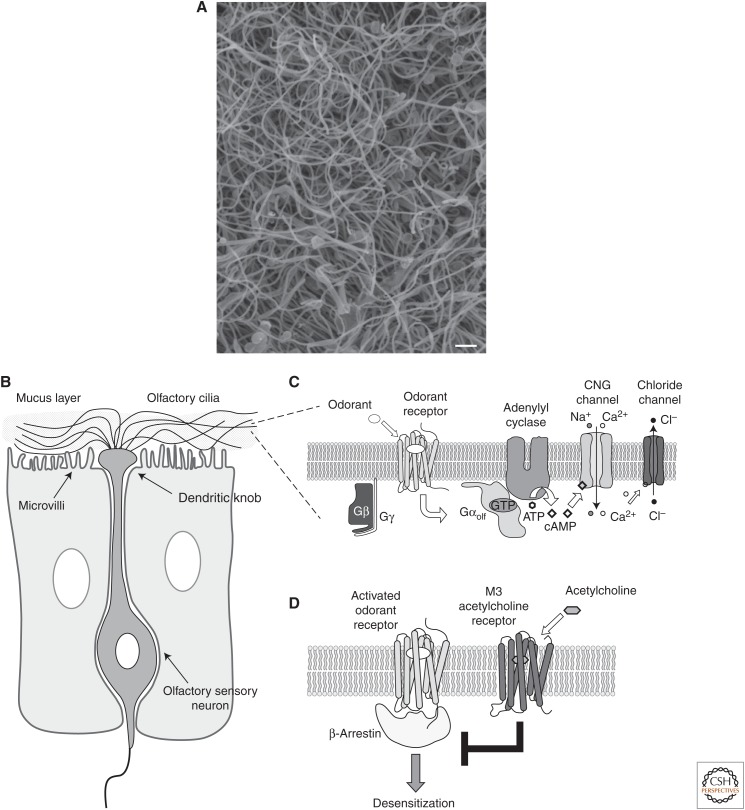

Figure 3.

Overview of odorant receptor signaling in olfactory sensory neurons. (A) Scanning electron microscopy image of the surface of the mouse olfactory epithelium. Scale bar, 1 µm (courtesy of Jeff Martens). (B) Schematic of a single olfactory sensory neuron with cilia projecting into the olfactory epithelium. (C) Odorant activation of olfactory G-protein-coupled receptors (GPCRs) triggers the activation of the stimulatory G protein Gα_olf, which then activates type 3 adenylyl cyclase (AC3) and increases cAMP levels within the cilium. The cAMP binds to and activates cyclic-nucleotide-gated (CNG) channels on the ciliary membrane, leading to an increase in Ca²⁺ levels, subsequent activation of Ca²⁺-gated chloride channels, and depolarization of the neuron. (D) β-Arrestin binding to activated odorant receptors mediates desensitization. The type 3 muscarinic (M3) acetylcholine receptor can inhibit the recruitment of β-arrestin to odorant receptors, thereby potentiating odor-induced signaling.

The molecular elements required for olfactory transduction are concentrated within the ciliary compartment (Fig. 3B). Olfaction begins with binding of an odorant to an olfactory receptor (OR) on the ciliary membrane. In rodents, each OSN predominantly expresses one of approximately 1000 ORs (Ressler et al. 1993; Vassar et al. 1993), which triggers the activation of the heterotrimeric stimulatory G protein comprising Gα_olf, β₁, and γ₁₃ (Jones and Reed 1989; Kerr et al. 2008; Li et al. 2013). Gα_olf then activates type 3 adenylyl cyclase (AC3), which increases cAMP levels within the cilium (Bakalyar and Reed 1990). The cAMP then binds to and activates cyclic-nucleotide-gated (CNG) channels on the ciliary membrane, allowing the entry of calcium ions and depolarizing the membrane potential. Increased ciliary Ca²⁺ levels leads to activation and opening of Ca²⁺-gated chloride channels, causing an efflux of Cl⁻ ions that augments depolarization of the neuron (Kleene 1993; Lowe and Gold 1993; Stephan et al. 2009), which eventually initiates an action potential that propagates along the axon to the olfactory bulb.

β-Arrestin 2 is recruited to activated ORs to mediate desensitization and receptor internalization at the dendritic knob (Dawson et al. 1993; Mashukova et al. 2006). Interestingly, a nonodorant GPCR has been found to localize to olfactory cilia and modulate OR signaling in mice. Specifically, activation of type 3 muscarinic acetylcholine receptor (M3-R) on the ciliary membrane inhibits the recruitment of β-arrestin 2 to ORs, thereby potentiating odor-induced signaling (Fig. 3C) (Jiang et al. 2015). The olfactory epithelium is innervated by nerve endings that release acetylcholine (Baraniuk and Merck 2009). Thus, acetylcholine release may enhance the sensitivity of OR signaling via M3-Rs.

In summary, olfactory cilia possess several critical attributes that optimize OR signaling: (1) They extend into the olfactory epithelium where ORs are exposed to odorants; (2) they allow for enrichment and concentration of the molecular components of the olfactory transduction cascade, thereby optimizing signaling; and (3) they are present in large numbers and have a large surface-to-volume ratio, which increases sensitivity to odorants.

OPSIN SIGNALING

Vision is initiated when photons are absorbed by the rod and cone photoreceptors in the retina (Arshavsky and Burns 2012). Photoreceptors are highly polarized neurons with a distal end that is comprised of the light-sensing outer segment and a proximal end that synapses on downstream neurons. The outer segment is a highly modified primary cilium packed with membrane disks containing light-sensitive GPCRs and downstream signaling effectors. Upon light activation in rods, rhodopsin activates the G protein transducin, which then stimulates its effector, cGMP phosphodiesterase. This leads to a reduction in intracellular cGMP levels and causes cGMP-gated channels to close, thereby hyperpolarizing the cell and generating a transient photoresponse within milliseconds. Rhodopsin kinase then phosphorylates rhodopsin, which leads to visual arrestin binding and a block in transducin activation, thereby terminating the signal. In response to sustained bright light, there is a massive redistribution of phototransduction proteins that involves transducin exiting the rod outer segment and visual arrestin accumulating in the outer segment. This adaptive mechanism plays a role in setting photoreceptor sensitivity and may protect rods from the adverse effects of persistent light exposure (Arshavsky and Burns 2012). Thus, the ciliary outer segment facilitates signaling in response to light and provides a protective mechanism by allowing the physical separation of components of the phototransduction cascade.

GPCR MODULATION OF HEDGEHOG SIGNALING

Hedgehog (Hh) signaling, which plays an essential role in mammalian development, requires the presence of primary cilia (Huangfu et al. 2003). Briefly, in the absence of Hh ligand, the 12-transmembrane Hh receptor patched (Ptch1) is enriched on the ciliary membrane and the GPCR Smoothened (Smo) is excluded from the cilium (Rohatgi et al. 2007). In this “OFF” state, cAMP-dependent PKA functions at the base of the cilium to phosphorylate members of the Gli family of transcription factors, which promotes the formation of truncated Gli repressors and inhibits transcription of Hh target genes (Sasaki et al. 1999; Pan et al. 2006; Tempe et al. 2006; Tuson et al. 2011). Repression of Hh signaling is further enforced by the ciliary GPCR Gpr161. Gpr161 has constitutive activity and couples to Gα_s to increase cellular cAMP levels, thereby increasing activation of PKA (Mukhopadhyay et al. 2013). It is hypothesized that Gpr161 establishes a basal cAMP gradient within the cilium that is important for proper regulation of Hh signaling. Indeed, disruption of Gpr161 in mouse is embryonic lethal and causes increased Hh signaling in the neural tube (Mukhopadhyay et al. 2013).

In the presence of Hh ligand, Ptch1 and Gpr161 leave the cilium, allowing Smo to enter the cilium, activate Gli transcription factors, and initiate signaling (Corbit et al. 2005; Rohatgi et al. 2007; Mukhopadhyay et al. 2013). Recently, another orphan GPCR, Gpr175, has been shown to localize to cilia in response to Hh treatment and enhances Hh signaling in several mammalian cell lines (Singh et al. 2015). Specifically, Gpr175 interacts with ciliary Gα_i, which leads to a lowering of cAMP levels and an inhibition of PKA activity and Gli repressor formation (Singh et al. 2015). Depletion of Gpr175 in cell lines has a relatively modest effect on signaling (∼50%), suggesting that it plays a regulatory role rather than an essential role in Hh signaling. Indeed, as opposed to Gpr161 knockout mice, Gpr175 knockout mice are viable and do not have any developmental defects (Singh et al. 2015). The effect of Gpr175 on Hh signaling is dependent on Smo activity, suggesting it acts on Gαi downstream from Smo to modulate PKA activity. Although it does not play an essential role in Hh signaling, it may enhance signaling in certain contexts (Singh et al. 2015).

CILIARY GPCR SIGNALING IN THE RENAL SYSTEM

A link between renal cilia dysfunction and cystic disease is well established (Cramer and Guay-Woodford 2015). Primary cilia on renal epithelial cells are generally regarded as mechanosensors that illicit Ca²⁺ signals in response to fluid flow (Fig. 4A). However, there is increasing evidence that renal cilia also mediate GPCR signaling. For example, the type 2 vasopressin receptor (V2R), which regulates Na⁺ and water reabsorption in the mammalian nephron, localizes to cilia on renal epithelial cells (Raychowdhury et al. 2009). In response to vasopressin, ciliary V2R functionally couples with adenylyl cyclase to increase local cAMP concentrations and activate a cation-selective channel (Fig. 4B) (Raychowdhury et al. 2009). These data suggest the presence of a GPCR-mediated cAMP-dependent second-messenger signaling mechanism in renal cilia that regulates intraciliary Ca²⁺ signals. This signaling, in turn, may modulate different cellular processes, including cell proliferation, ciliary microtubule stability, and/or the ciliary membrane resting potential. Interestingly, renal cAMP levels are increased in numerous animal models of polycystic kidney disease (PKD) (Torres and Harris 2014) and treatment with V2R antagonists inhibits cyst formation (Gattone et al. 2003; Torres et al. 2004). Yet, it is unclear how much V2R signaling within the cilium contributes to these effects.

Figure 4.

Overview of ciliary signaling in renal cilia. (A) Cross section of a renal tubule showing primary cilia projecting into the lumen of the tubule (top). Schematic of flow-induced Ca²⁺ signaling (bottom). (B) Vasopressin binding to vasopressin receptor 2 (V2R) on the ciliary membrane activates adenylyl cyclase. The increase in local cAMP concentrations activates a cation-selective channel, possibly through protein kinase A, thereby regulating intraciliary Ca²⁺ signals. (C) Agonist binding to dopamine receptor 5 on the ciliary membrane results in Ca_V1.2 channel activation, possibly through the action of dissociated Gβγ, which increases intraciliary Ca²⁺ levels.

Dopaminergic signaling in the kidney plays an important role in controlling renal sodium excretion and blood pressure (Carey 2013). Recently, dopamine receptor type 5 (D5) has been localized to cilia on renal epithelial cells (Jin et al. 2014b; Upadhyay et al. 2014). Evidence for D5-mediated signaling on cilia comes from studies looking at calcium signaling in the ciliary compartment. Specifically, Jin et al. (2014b) used a ciliary-targeted calcium sensor to show that treatment of renal epithelial cells with the D5 agonist fenoldopam causes an increase in calcium levels in the cilium that precedes an increase in calcium levels in the cytosol of the cell. This calcium signal is dependent on the Ca_V1.2 L-type calcium channel, which is localized in the cilium (Jin et al. 2014b). With regard to a functional consequence, fenoldopam treatment also causes an actin-mediated increase in cilia length and increased calcium signaling in response to fluid flow (Upadhyay et al. 2014). Taken together, these results suggest that agonist binding to D5 on the ciliary membrane results in Ca_V1.2 channel activation, possibly through the action of dissociated Gβγ, which increases intraciliary Ca²⁺ levels (Fig. 4C) (Atkinson et al. 2015). This increased Ca²⁺ concentration subsequently leads to cilia elongation and confers greater sensitivity to fluid-shear stress. Interestingly, the most frequent target found in a chemical screen of pathways involved in flagellar length control in the unicellular green alga Chlamydomonas was the family of dopamine binding GPCRs (Avasthi et al. 2012). Thus, ciliary dopaminergic signaling may be an evolutionarily conserved mechanism for regulating ciliary length, which may then impact sensitivity to signals.

GPCR SIGNALING IN CHOLANGIOCYTE CILIA

Cholangiocytes are ciliated epithelial cells that line bile ducts and are responsible for bile acid transport and bicarbonate secretion (Tabibian et al. 2013). Cholangiocyte primary cilia have been determined to be mechano-, chemo-, and osmosensory organelles that regulate cholangiocyte proliferation (Masyuk et al. 2006, 2008a,b; Gradilone et al. 2007). The importance of these cilia is highlighted by the fact that polycystic liver disease, which is characterized by the development of fluid-filled hepatic cysts arising from cholangiocytes, is associated with ciliopathies (Masyuk et al. 2015). In cholangiocytes, bile acid signaling is transmitted through TGR5, a GPCR that is localized to the apical plasma membrane, subapical compartment, and cilium (Keitel et al. 2009, 2010; Keitel and Haussinger 2011; Keitel and Haussinger 2012; Masyuk et al. 2013). TGR5 is coupled to Gα_s and activation of TGR5 by bile acids causes an increase in intracellular cAMP levels (Maruyama et al. 2002; Kawamata et al. 2003). Downstream effectors of GPCR signaling, including adenylyl cyclase, PKA, and the exchange protein directly activated by cAMP 2 (EPAC-2), have also been localized to cholangiocyte cilia (Masyuk et al. 2006, 2008b). In addition, Gα_i localizes to the base of cilia on ciliated cholangiocytes. Taken together, these data suggest that cholangiocyte cilia mediate bile acid signaling through TGR5.

Intriguingly, the presence or absence of cilia on cultured cholangiocytes determines the impact of TGR5 agonists (Masyuk et al. 2013). Specifically, agonist treatment of nonciliated cholangiocytes increases colocalization of TGR5 with Gα_s and results in increased cAMP signaling, inhibition of ERK signaling, and increased cellular proliferation. Agonist treatment of ciliated cells, on the other hand, results in increased colocalization of TGR5 with Gα_i and decreased cAMP signaling, activation of ERK signaling, and decreased cellular proliferation. Together, these results suggest that TGR5 is functionally coupled to Gα_s on the plasma membrane and stimulates cellular proliferation in response to bile acid signaling, but is functionally coupled to Gα_i in the cilium to prevent cellular proliferation in response to bile acid signaling. Thus, cholangiocyte cilia provide a compartment for TGR5 to functionally couple with different effectors and provide an alternative signal to TGR5 signaling on the plasma membrane.

CILIARY GPCR SIGNALING ON CENTRAL NEURONS

Most, if not all, adult neurons in the mammalian brain possess a primary cilium (Handel et al. 1999; Fuchs and Schwark 2004; Bishop et al. 2007). Numerous GPCRs are selectively enriched in neuronal cilia (Table 1). Seminal studies using mouse knockout models have provided compelling evidence for cilia-dependent GPCR signaling in the brain. For example, mice lacking cilia on specific neuronal subpopulations in the brain manifest prominent phenotypes, such as obesity and learning and memory deficits (Davenport et al. 2007; Berbari et al. 2013, 2014). Moreover, mice lacking ciliary GPCRs or ciliary-enriched downstream effectors of GPCR signaling display similar phenotypes (Wang et al. 2009, 2011; Einstein et al. 2010). Together, these results suggest that neuronal cilia provide a unique platform for GPCRs to signal in response to factors in the extracellular milieu. Recent studies have begun to elucidate these signaling pathways and how they impact neuronal function.

Neuropeptide Y (NPY) is one of the most abundant neuropeptides in the mammalian brain and plays an important role in regulating food intake and energy expenditure (Herzog 2003). Recently, two of the NPY receptor subtypes, NPY2R and NPY5R, were found to be enriched in neuronal cilia in mice (Loktev and Jackson 2013). Interestingly, genetically modified mice that are unable to transport NPY2R into neuronal cilia are obese and do not respond to administration of the anorexigenic ligand PYY3-36 (Loktev and Jackson 2013), suggesting that NPY2R ciliary localization is important for ligand-dependent signaling in vivo. In support of this model, quantification of cAMP signaling on RPE cells expressing NPY2R revealed that ligand treatment produced a more pronounced inhibition of cAMP signaling in cells with a cilium (Fig. 5A) (Loktev and Jackson 2013). Thus, cilia localization seemingly enhances NPY2R signaling and may provide a more robust signal to control food intake.

Figure 5.

Overview of G-protein-coupled receptor (GPCR) signaling on neuronal cilia. (A) Ligand binding to neuropeptide Y receptor 2 (NPY2R) on the ciliary membrane may activate Gα_i and inhibit adenylyl cyclase, thereby leading to a reduction in cAMP levels. Ligand treatment also leads to a reduction in NPY2R ciliary localization, suggesting that activated receptor exits the cilium. (B) Somatostatin treatment stimulates endogenous β-arrestin recruitment into somatostatin receptor subtype 3 (SSTR3)-positive cilia. Somatostatin treatment also causes a β-arrestin-dependent decrease in SSTR3 ciliary localization, suggesting that β-arrestin mediates SSTR3 ciliary export.

Somatostatin is a widely distributed neurotransmitter and modulator of neural activity that can affect many physiological processes, including motor activity and cognitive function (Patel 1999; Barnett 2003; Olias et al. 2004; Viollet et al. 2008). Somatostatin receptor subtype 3 (SSTR3) colocalizes with AC3 in cilia throughout the mouse brain (Handel et al. 1999). Interestingly, mice lacking SSTR3, AC3, or cilia in the hippocampus show similar deficits in learning and memory (Wang et al. 2009; Einstein et al. 2010; Berbari et al. 2014). Together, these results suggest that SSTR3 signals on cilia and this signaling is required for proper learning and memory. In support of this model, it was recently shown that somatostatin treatment stimulates endogenous β-arrestin recruitment into SSTR3-positive cilia on hippocampal neurons (Green et al. 2016). This recruitment is reminiscent of β-arrestin translocation to activated GPCRs on the plasma membrane. Furthermore, expressing SSTR3-containing mutations that prevent agonist binding or phosphorylation blocks β-arrestin recruitment into cilia. These results suggest that agonist binds to SSTR3 on the ciliary membrane and leads to phosphorylation of the receptor, which facilitates β-arrestin ciliary localization (Fig. 5B).

Another finding from this study was that somatostatin treatment causes a rapid β-arrestin-dependent decrease in the ciliary localization of endogenous SSTR3 (Green et al. 2016). These findings suggest a model whereby activation of SSTR3 on the ciliary membrane stimulates β-arrestin recruitment, which binds to the receptor and mediates export of SSTR3 from the cilium (Fig. 5B). There are several potential functional consequences of β-arrestin ciliary recruitment, including (1) SSTR3 desensitization, (2) potentiation of SSTR3 signaling through internalization, and/or (3) β-arrestin-mediated ciliary signaling. Yet, additional studies are required to determine the functional consequences of β-arrestin recruitment into cilia and whether this is a ubiquitous mechanism for modulating ciliary GPCR signaling on neurons.

The kisspeptin receptor (KISS1R), which regulates the onset of puberty and adult reproductive function, has recently been found to be enriched in cilia on mouse gonadotropin-releasing hormone (GnRH) neurons (Koemeter-Cox et al. 2014). Intriguingly, GnRH neurons in adult animals possess multiple KISS1R cilia and the percentage of multiciliated GnRH neurons increases during postnatal development and correlates with sexual maturation. Disruption of GnRH cilia leads to a significant reduction in kisspeptin-mediated GnRH neuronal activity (Koemeter-Cox et al. 2014), suggesting that cilia enhance KISS1R signaling. More recently, the β2-adrenergic receptor (β2AR) has been shown to be localized to neuronal cilia in the mouse hippocampus (Yao et al. 2015). β2AR is activated by noradrenalin and plays a role in hippocampal synaptic plasticity (Hagena et al. 2016). Interestingly, β2AR colocalizes in neuronal cilia with the nonselective cation channel polycystic kidney disease 2-like 1 (Pkd2l1). However, β2AR ciliary localization is disrupted in mice lacking Pkd2l1, suggesting that Pkd2l1 is required for β2AR ciliary localization (Yao et al. 2015). Pkd2l1 mice have decreased cAMP levels in the brain and increased susceptibility to pentylenetetrazol-induced seizures (Yao et al. 2015). As β2AR is coupled to Gα_s, a potential model is that ciliary localization of β2AR and Pkd2l1 form a ciliary complex that enhances cAMP production, which inhibits neuronal excitability. Further studies are required to directly test whether KISS1R and β2AR signal within cilia.

GPCR SIGNALING IN MOTILE CILIA

The primary function of motile cilia on human airway epithelia is to move mucus out of the lung and their disruption results in airway disease (Fliegauf et al. 2007). Interestingly, several members of the bitter taste receptor (T2R) family have been localized to cilia on human airway epithelia (Shah et al. 2009; Lee et al. 2012). Downstream effectors of the T2R signal transduction pathway include the G-protein α-gustducin and the enzyme phospholipase C-β2 (PLC-β2) (Devillier et al. 2015). In ciliated airway epithelial cells, α-gustducin localizes to cilia and PLC-β2 localizes to the apical portion of the cell below the cilia (Shah et al. 2009). Application of bitter compounds causes an increase in intracellular calcium concentrations only in ciliated cells, which further results in a ∼25% increase in ciliary beat frequency (Shah et al. 2009). Thus, T2R ciliary localization may facilitate sensing of noxious compounds and generation of a signal that leads to an increase in ciliary activity to eliminate the substance.

POTENTIAL FUNCTIONAL CONSEQUENCES OF CILIA ON GPCR SIGNALING

A key question is how ciliary localization impacts GPCR signaling. The examples of ciliary GPCR signaling discussed above highlight several general functional consequences cilia can confer on GPCR signaling. First, ciliary localization can enhance GPCR signaling. This may be due to several reasons. Cilia may extend toward the origin of a signal, thereby increasing sensitivity. The cilium may enhance signaling by allowing more efficient coupling of the receptor and its effectors. Note that these two functions are not mutually exclusive. Another possibility is GPCRs generate a unique signal when they are activated on the ciliary membrane versus the plasma membrane. This may be the result of coupling to distinct effectors in the cilium, as in cholangiocyte cilia. As β-arrestins can function as signal transducers, the finding that endogenous β-arrestin is recruited into cilia on somatostatin treatment is particularly provocative. This could be analogous to biased agonism, whereby a ligand preferentially triggers G-protein- or β-arrestin-mediated signaling pathways (Rajagopal et al. 2010). Perhaps activation of a receptor on the ciliary membrane activates β-arrestin-mediated signaling but not G-protein signaling, or vice versa. Another potential mechanism for generating a unique signal is by facilitating heteromerization of different GPCRs, which can alter ligand binding, G-protein coupling, and/or desensitization and internalization. There is evidence that SSTR3 and melanin-concentrating hormone receptor 1 heteromerize in cilia in multiple mouse brain regions (Green et al. 2012). Alternatively, ciliary localization may act as an insulator to prevent GPCR cross regulation (Marley et al. 2013). It is possible that some or all of these mechanisms are used in ciliary GPCR signaling and the precise effects vary between cell types or even between different cells in the same tissue.

CONCLUDING REMARKS

Given the prevalence of GPCRs as drug targets, understanding ciliary GPCR signaling will likely have important ramifications for therapeutic development. The remaining overarching challenges in the ciliary GPCR field are to identify the complete complement of ciliary GPCRs, define the signaling pathways mediated by ciliary GPCRs and determine how these signaling pathways impact cellular function. Meeting these challenges will require the development of new tools to visualize and/or modulate ciliary GPCR signaling as well as assays to determine how these signals impact cellular function. A better understanding of GPCR signaling will likely yield new therapeutic strategies to target-specific aspects of GPCR function and lend important insight into the consequences of cilia loss and disruption for human health.
