Follicular Helper T Cells are Essential for the Elimination of Plasmodium Infection

Abstract

CD4⁺ follicular helper T (Tfh) cells have been shown to be critical for the activation of germinal center (GC) B-cell responses. Similar to other infections, Plasmodium infection activates both GC as well as non-GC B cell responses. Here, we sought to explore whether Tfh cells and GC B cells are required to eliminate a Plasmodium infection. A CD4 T cell-targeted deletion of the gene that encodes Bcl6, the master transcription factor for the Tfh program, resulted in complete disruption of the Tfh response to Plasmodium chabaudi in C57BL/6 mice and consequent disruption of GC responses and IgG responses and the inability to eliminate the otherwise self-resolving chronic P. chabaudi infection. On the other hand, and contrary to previous observations in immunization and viral infection models, Signaling Lymphocyte Activation Molecule (SLAM)-Associated Protein (SAP)-deficient mice were able to activate Tfh cells, GC B cells, and IgG responses to the parasite. This study demonstrates the critical role for Tfh cells in controlling this systemic infection, and highlights differences in the signals required to activate GC B cell responses to this complex parasite compared with those of protein immunizations and viral infections. Therefore, these data are highly pertinent for designing malaria vaccines able to activate broadly protective B-cell responses.

Highlights

• •Chronic Plasmodium infection cannot be eliminated in the absence of Tfh cell responses.
• •SAP-deficient mice are able to activate GC Tfh and GC B-cell responses to Plasmodium infection.
• •There is a hierarchical requirement for the control of chronic Plasmodium infection following IL-21R > Tfh cells > SAP.

Successful vaccines work through activation of protective B-cell responses. Malaria, caused by Plasmodium infection transmitted by mosquito bites, remains a global threat. Despite substantial efforts, a vaccine able to bring about high levels of protection from Plasmodium infection remains elusive. Here, using an experimental malaria model including natural mosquito transmission, we demonstrate that proper activation of follicular helper CD4⁺ T cells is essential for the control and eradication of chronic Plasmodium infection through protective B-cell responses. Thus, it is strongly advisable for novel vaccine efforts to monitor the robust activation of this important immune compartment.

1. Introduction

Follicular helper T cells (Tfh cells) are a particular subpopulation of CD4⁺ T cells that is critically required for the activation of follicular B cells. Since their identification as a discrete CXCR5⁺ subset specialized in collaborating with B cells (Schaerli et al., 2000; Breitfeld et al., 2000; Kim et al., 2001), and the identification of the repressor Bcl6 as the master regulator transcription factor of this subset (Johnston et al., 2009; Nurieva et al., 2009; X. Liu et al., 2009), a large body of research has helped to understand their activation requirements and the differential signals underlying their communication with B cells (Crotty, 2014; Vinuesa et al., 2016). Both soluble factors (i.e. cytokines) and cell surface molecules have been shown to act in parallel to orchestrate this communication. Moreover, several of these signals have been proposed as candidate targets for immunotherapeutic interventions to treat diseases in which B-cell responses are relevant (Hu et al., 2013; Spolski and Leonard, 2014). However, the relative impact of these different types of signals on the outcome of infection or disease remains poorly explored.

The Signaling Lymphocytic Activation Molecule (SLAM)-Associated Protein (SAP) is a small intracellular adaptor protein, which interacts with the cytoplasmic tails of the SLAM family of cell surface receptors and mediates signaling downstream of these receptors (Cannons et al., 2011). Mutations in SAP were originally associated with most cases of X-linked lymphoproliferative syndrome (Cannons et al., 2011). One outstanding function of SAP is to mediate signaling leading to the stable long-duration contact of T and B cells (Qi et al., 2008). This physical interaction between T and B cells, tightly regulated by SAP, has been shown to be critical for the activation of germinal center (GC) B-cells (Qi, 2012), and the activation of Tfh cells in some models (Cannons et al., 2010; Deenick et al., 2010; Linterman et al., 2011).

The B-cell response to the blood stages of Plasmodium, the protozoan parasite that causes malaria, is thought to be important for protective immunity in human infections (Cohen et al., 1961; Conway et al., 2000; Fowkes et al., 2010; Osier et al., 2008; Sabchareon et al., 1991). B cells and antibodies are also necessary for the elimination of this stage of infection in experimental mouse models (Burns et al., 1997; von der Weid et al., 1996); thus, these models allow an examination of the relative importance of different Tfh-derived signals in the control of infection. Dysfunctional Tfh responses have been described in children exposed to P. falciparum, which are thought to be responsible for impaired development of protective B cell-responses (Obeng-Adjei et al., 2015). P. berghei infection in mice inhibits Tfh differentiation (Ryg-Cornejo et al., 2015), whereas boosting of Tfh responses in mice by therapeutic interventions has been shown to accelerate the control of chronic P. chabaudi infection (Butler et al., 2012). The critical signals required for Tfh activation to Plasmodium infection have also begun to emerge. OX40, PD-1 and ICOS cell surface molecules were shown to regulate Tfh activation during non-lethal P. yoelii and P. chabaudi infections (Zander et al., 2015; Wikenheiser et al., 2016). We have recently shown that IL-21-producing CD4⁺ T cells, of which a substantial proportion has a Tfh cell phenotype, are required to activate IgG responses to P. chabaudi and to control the chronic phase of this infection (Pérez-Mazliah et al., 2015). Interestingly, acute gamma herpes virus co-infection leads to loss of control of an otherwise non-lethal P. yoelii infection, and this is associated with a disruption of the Tfh cell response (Matar et al., 2015).

Despite these important advances in our knowledge of Tfh cell responses, a direct link between Tfh cell responses and the control of Plasmodium infection remains to be demonstrated, and the relative impact of the different Tfh-derived signals (i.e. cell surface molecular interactions vs soluble factors) on the control of the infection has not been explored in detail. Moreover, despite the substantial differences in infections initiated by artificial versus natural mosquito transmission (Spence et al., 2013), our knowledge of T- and B-cell responses during experimental erythrocytic malaria models has been exclusively generated using artificial injection of infected blood to initiate the infection, thus obviating the full life cycle in the mouse. Here, using both blood transmission as well as a model of natural mosquito transmission, we compared the relative requirements of Tfh responses overall, together with the individual requirements of SAP and IL-21R on the control of Plasmodium chabaudi AS infection, a rodent model which presents both an acute and chronic phase (Achtman et al., 2007).

We demonstrate a critical role for Tfh cells in the elimination of the chronic phase of Plasmodium infection initiated by both, blood transmission, and natural mosquito transmission. In addition, and contrary to previous observations in immunization studies, and virus and helminth infections (Crotty et al., 2003; Cannons et al., 2006; Kamperschroer et al., 2006; Crotty et al., 2006; McCausland et al., 2007; Moyron-Quiroz et al., 2009; Yusuf et al., 2010; Morra et al., 2005), we show that SAP-deficient mice are able to activate Tfh and GC B cells, and an IgG response to the parasite. Finally, we demonstrate a hierarchy of immune responses needed to control the magnitude of the chronic infection, with IL-21 signaling being the most significant requirement followed by Tfh cells and SAP. Our data demonstrate the need for a fully functioning Tfh response for elimination of blood-stage Plasmodium infection, and highlights substantial differences in the signals required to activate Tfh and GC B cell responses to this complex parasite compared to immunizations and other infection models.

2. Materials and Methods

2.1. Ethical Statements

All scientific experiments involving procedures on mice were approved by the Ethical Review Panel of the MRC National Institute for Medical Research (NIMR). They were performed accordingly to the UK National guidelines of the Animals (Scientific Procedures) Act 1986 under the license reference number PPL 70/8326 authorized and granted by the British Home Office.

2.2. Mice

C57BL/6, Sh2d1a^−/− [Sh2d1a^tm1Cpt (Wu et al., 2001), RRID:MGI:3576735], CD4-Cre^+/− [Tg(Cd4-cre)1Cwi (P. P. Lee et al., 2001), RRID:MGI:3691126], Bcl6^fl/fl [Bcl6^tm1.1Mtto (Kaji et al., 2012)], CD4-Cre^+/− Bcl6^fl/fl (RRID:MGI:5461330) and Rag2^−/− [Rag2^tm1Fwa (Shinkai et al., 1992), RRID:MGI:3617415] mouse strains were bred in the specific pathogen-free facilities of the Mill Hill Laboratory of the Francis Crick Institute, and were backcrossed for at least 10 generations onto NIMR C57BL/6 mice. For experimental use, 6–12 weeks old female mice were housed in conventional facilities with sterile bedding, food and water under reversed light conditions (dark: 7.00 h to 19.00 h).

2.3. Infections

Plasmodium chabaudi chabaudi (AS) was originally obtained from David Walliker, University of Edinburgh. Infections were initiated by intraperitoneal injection of 10⁵ infected red blood cells, or by the bites of infected A. stephensi mosquitoes as previously described (Spence et al., 2012). Blood-stage parasitemias were monitored by Giemsa-stained thin blood smears (Langhorne et al., 1989).

2.4. Flow Cytometry

Spleens were dissected and mashed through 70 μm filter mesh in Hank's Balanced Salt Solution (HBSS, Gibco, Invitrogen) to generate single cell suspensions. Spleens were treated in RBC lysis buffer (Sigma) and remaining cells resuspended in complete Iscove's Modified Dulbecco's Medium (IMDM supplemented with 10% fetal bovine serum (FBS) Serum Gold (PAA Laboratories, GE Healthcare), 2 mM l-glutamine, 0.5 mM sodium pyruvate, 100 U penicillin, 100 mg streptomycin, 6 mM Hepes buffer, and 50 mM 2-ME (all from Gibco, Invitrogen). Viable cells were counted based on trypan blue (Sigma) exclusion in a hemocytometer. 2 × 10⁶ viable cells were distributed to each well of a 96-well plate (Nunc) and incubated in the presence of a monoclonal anti-mouse CD16/32 antibody (Unkeless and Unkeless, 1979, BioLegend Cat# 101318 RRID:AB_2104156) to block Fc-mediated binding of antibodies for 20 min at 37 °C, 20 min at 4 °C.

To identify Tfh cells, cells were first incubated with biotin anti-CXCR5 (BD Biosciences Cat# 551960 RRID:AB_394301) in complete IMDM (BD Pharmingen), washed twice with a staining buffer (1 × PBS (pH = 7.2–7.4), 2% FBS, 0.01% Sodium azide), resuspended in 1 × PBS and incubated with appropriate dilutions of PE streptavidin, APC-Cy7 anti-CD4 (BioLegend Cat# 100414 RRID:AB_312699), PE-Cy7 anti-PD-1 (BioLegend Cat# 109110 RRID:AB_572017), Pacific Blue anti-CD3, PerCP-Cy5.5 or FITC anti-CD44 (BioLegend) for 30–40 min at 4 °C. A commercial kit (eBioscience) was used for intra-nuclear detection of Bcl6, following manufacturer's instructions, and using the anti-human and mouse Bcl-6 antibody conjugated to Alexa Fluor 647 (BD Biosciences Cat# 561525 RRID:AB_10898007).

To identify germinal center Tfh and B cells, spleen cells were incubated with appropriate dilutions of PerCP-Cy5.5 anti-CD3 (BioLegend Cat# 100328 RRID:AB_893318), PE anti-CD4 (BioLegend Cat# 100408 RRID:AB_312693), PE-Cy7 anti-CD45R/B220 (BioLegend Cat# 103222 RRID:AB_313005), APC-Cy7 anti-CD19 (BioLegend Cat# 115530 RRID:AB_830707), APC anti-CD38 (BioLegend Cat# 102712 RRID:AB_312933) FITC anti-GL-7 (BioLegend Cat# 144604 RRID:AB_2561697) and BV421 anti-IgD (BioLegend Cat# 405725 RRID:AB_2562743) for 30–40 min at 4 °C. Germinal center B cells were identified by combined expression of CD19 and B220, low expression of IgD and CD38, and high expression of GL-7. Tfh cells were identified by the combined expression of CD3, CD4 and GL-7. T-B cell conjugates were studied ex vivo by flow cytometry as previously described (Reinhardt et al., 2009). Conjugates were identified by the combined expression of CD3, CD4, CD19 and B220, and identified as doublets based on FSC-A vs FSC-W.

IL-21 detection by flow cytometry was done by intracellular staining as previously described (Pérez-Mazliah et al., 2015).

All cells were fixed with 2% paraformaldehyde for 15 min at 4 °C, washed and stored in the staining buffer at 4 °C until acquisition. Cells were acquired on BD FACSVerse, BD LSRII or BD LSRFortessa X-20 (BD Biosciences) flow cytometers. Dead cells were excluded by staining with LIVE/DEAD Aqua (Invitrogen) prior fixation. Fluorescence-minus-one (FMO) controls were used to set the thresholds for positive/negative events. Analysis was performed with FlowJo software version 9.6 or higher (Tree Star). Doublets based on side scatter light and forward scatter light Area vs Width were routinely excluded from the analysis, with the exemption of the assay to study T-B cell conjugates, in which doublets were deliberated included in the analysis.

2.5. Histology

Spleens were dissected and fixed for 24 h in 10% neutral buffered formalin (Sigma), embedded in wax, sectioned (4 μm), and stained by incubating with rat Anti-mouse CD45R/B220 (BD Biosciences Cat# 550286 RRID:AB_393581), rabbit anti CD3G (Abcam Cat# ab108996 RRID:AB_10862885), biotinylated peanut agglutinin (PNA, Vector Laboratories Cat# B-1075 RRID:AB_2313597), followed by incubation with goat anti-rat IgG alexa fluor 647 (Molecular Probes Cat# A-21247 also A21247 RRID:AB_141778), goat anti-rabbit IgG alexa fluor 488 (Molecular Probes Cat# A-11008 also A11008 RRID:AB_143165), streptavidin alexa fluor 555 (ThermoFisher), and DAPI (ThermoFisher). Stained sections were scanned on a ZEISS Axio Scan.Z1 with ZEN 2 software (Zeiss). Area, perimeter and number of PNA⁺ GC were determined with Fiji (Schindelin et al., 2012).

2.6. P. chabaudi-specific ELISAs

Serum samples were obtained periodically after P. chabaudi infection by bleeding the mice from the tail vein. Whole parasite lysate was generated and used in ELISAs to measure specific IgM, IgG and IgG subclasses, as previously described (Quin and Langhorne, 2001), with the SBA Clonotyping System-C57BL/6-HRP (SouthernBiotech Cat# 5300-05B). A pool of plasma from NIMR C57BL/6 mice challenged at least six times with P. chabaudi was used as a standard for each isotype, and defined as 1000 arbitrary units (AU). The amounts of each isotype were calculated in AU derived from this standard, which was run in parallel with every experimental sample assayed.

2.7. Statistical Analysis

Statistical analyses were performed using Mann Whitney U test, Kruskal-Wallis test with Dunn's multiple comparisons test, two-way ANOVA with Tukey's multiple comparisons test, or Chi-square test on Prism v7 (GraphPad). P < 0.05 was accepted as a statistically significant difference.

3. Results

3.1. Bcl6^fl/fl and SAP-deficient Mice; Two Different Models to Explore the Role of Tfh Responses During P. chabaudi Infection

The repressor Bcl6 has been identified as the master transcription factor regulating the Tfh cell program (Johnston et al., 2009; Nurieva et al., 2009; X. Liu et al., 2009). In addition, SAP (encoded by the Sh2d1a gene) has been shown to signal directly in CD4⁺ T cells and to regulate Tfh cell activation in some immunization models (Cannons et al., 2010; Deenick et al., 2010; Linterman et al., 2011). We therefore explored the effects of inactivation of the Bcl6 gene in T cells [Bcl6^fl/flCD4-cre^+/− (Kaji et al., 2012)] or the Sh2d1a gene [Sh2d1a^−/− (Wu et al., 2001), encoding SAP] on the ability to control a chronic P. chabaudi blood-stage infection.

Bcl6^fl/flCD4-cre^+/− mice, deficient in Tfh cell responses to immunizations (Kaji et al., 2012), showed no alteration in the control of the acute phase of infection up to day 25, compared with infections in Bcl6^wt/wtCD4-cre^+/− and Bcl6^fl/fl wild-type (wt) control mice (Fig. 1a). Acute stage parasitemias were reduced to 0.05% or lower in the Bcl6^fl/flCD4-cre^+/− as well as in their respective wt control mice. However, Bcl6^fl/flCD4-cre^+/− mice failed to control or eradicate the chronic phase of infection, and showed parasitemias variably around 1% iRBC for the duration of the experiment (parasitemias of individual mice are shown in right hand graph of Fig. 1a). During this time, wt mice had reduced parasitemias to < 0.001% (i.e. below detection limit, Fig. 1a). Importantly, similar patterns of acute and chronic infection were also observed in Bcl6^fl/flCD4-cre^+/− mice infected via mosquito bites rather than by direct injection of iRBC (Fig. 1b).

Fig. 1.

Bcl6 expression on T cells is required for the control of chronic P. chabaudi infection. Bcl6^fl/flCD4-cre^+/− and their respective wt control mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC (a), or bites from P. chabaudi-infected mosquitoes (b), and parasitemias were periodically monitored by giemsa-stained thin blood smears. The course of acute (left column) and chronic (right column) infection is displayed. The acute phase is displayed as median + range, while curves corresponding to individual mice are displayed for the chronic phase. Data are representative of at least two independent experiments and were obtained in groups of 5–16 mice per time point. Statistical significance was obtained using Mann Whitney U test or Kruskal-Wallis test.

The lack of SAP had a more moderate, yet detectable, effect on the P. chabaudi infection. The acute infection in both Sh2d1a^−/− and wt C57BL/6 mice was similarly reduced to < 0.1% by day 18 (Fig. 2a). Although chronic parasitemias were initially higher in all Sh2d1a^−/− mice than in wt mice, parasitemias were very variable between individual mice. Eventually by 110 days p.i. all wt C57BL/6 mice had undetectable parasitemias (i.e. < 0.001%), and only 2/8 of the Sh2d1a^−/− mice showed detectable parasitemias (Fig. 2a), suggesting clearance of infection in all wt controls and the majority of Sh2d1a^−/− mice. However, a technique more sensitive to detect parasitemia, i.e. transfer of 100 μl of blood from Sh2d1a^−/− and wt mice at this time into Rag2^−/− mice, demonstrated that 50% of these Sh2d1a^−/− mice were still sub-patently infected, whereas confirming that all wt C57BL/6 mice had cleared their infection (Table 1). Thus, these data demonstrate that although there is significant control of the chronic infection, SAP signaling is required for the complete elimination of the P. chabaudi infection. Importantly, a similar pattern of chronic infection was observed in mice infected via mosquito bites rather than by direct injection of iRBC (Fig. 2b).

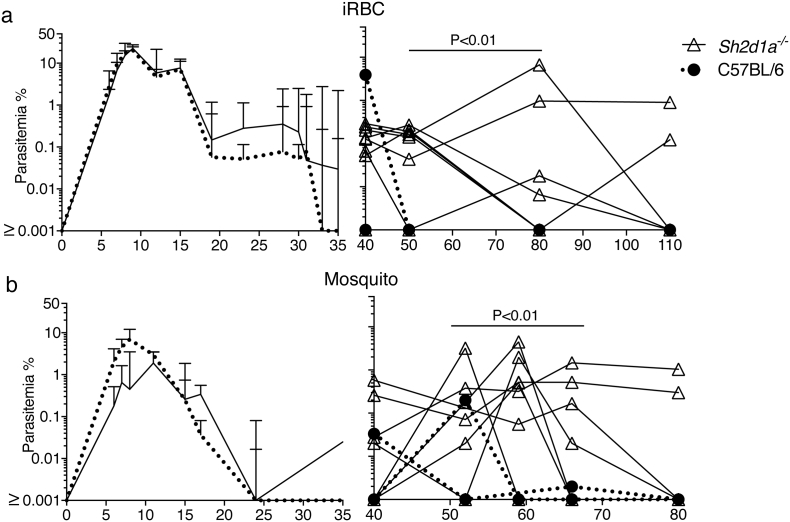

Fig. 2.

Control of chronic P. chabaudi is altered by the absence of SAP signaling. Sh2d1a^−/− and C57BL/6 wt control mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC (a), or bites from P. chabaudi-infected mosquitoes (b), and parasitemias were periodically monitored by giemsa-stained thin blood smears. The course of acute (left column) and chronic (right column) infection is displayed. The acute phase is displayed as median + range, while curves corresponding to individual mice are displayed for the chronic phase. Data are representative of at least two independent experiments and were obtained in groups of 7–8 mice per time point. Statistical significance was obtained using Mann Whitney U test.

Table 1.

Number of parasitemic C57BL/6 and Sh2da1^−/− blood donors (> 100 p.i.), and parasitemic Rag2^−/− blood recipients.

	Parasitemic donor (before blood transference)a	Parasitemic Rag2−/− recipient (after blood transference)b
C57BL/6	0/8 (0%)	0/8 (0%)
Sh2da1−/−	2/8 (25%)	4/8 (50%)

^aχ², P > 0.05 (ns).

^bχ², P < 0.05.

Altogether, these data demonstrate that the inactivation of the Bcl6 gene in T cells, encoding the Tfh program, has a dramatic effect in the control of chronic Plasmodium infection, and unexpectedly more pronounced compared to the lack of SAP signaling.

3.2. Bcl6, but not SAP, is Required for the Initial Tfh Cell Response to P. chabaudi Infection

As both Bcl6 and SAP have been shown to be required for fully functional Tfh responses, we then studied the activation of Tfh cell responses to P. chabaudi in Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice. We have previously shown that the Tfh cell response to P. chabaudi peaks around days 7–9 post-infection in the spleen of wt C57BL/6 mice (Pérez-Mazliah et al., 2015). Therefore, Tfh cells were enumerated in the spleen at 0, 8 and 14 days post-infection in Bcl6^fl/flCD4-cre^+/−, Sh2d1a^−/− and wt control mice (Fig. 3).

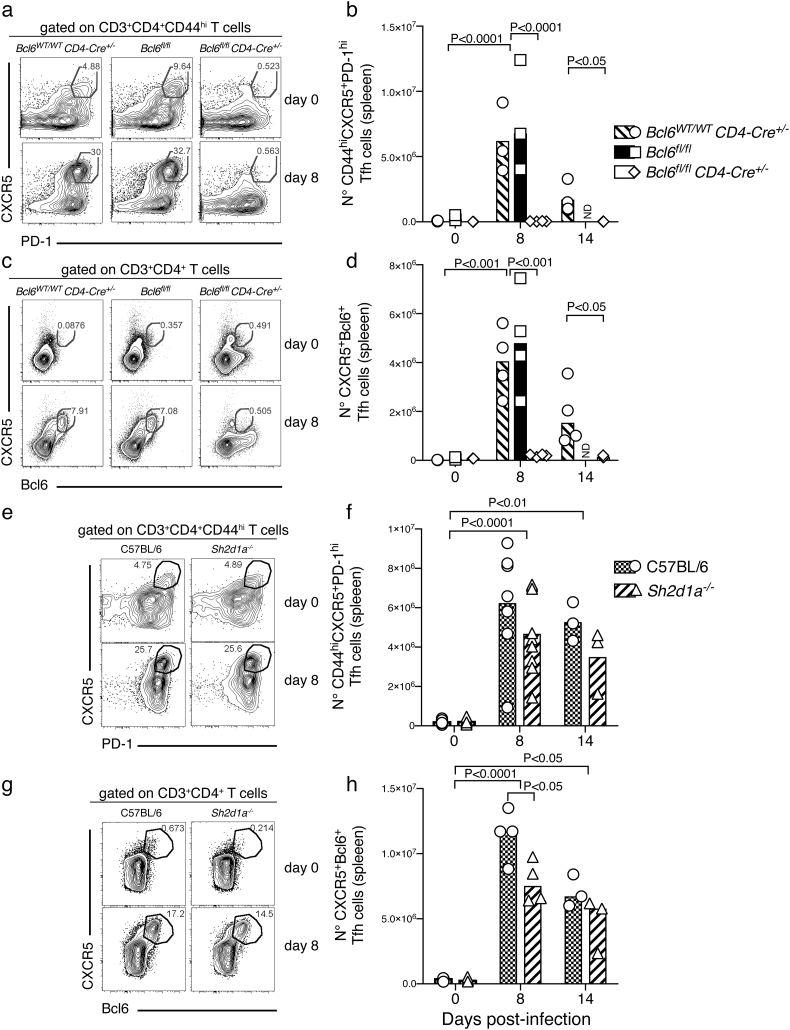

Fig. 3.

Tfh cell responses in P. chabaudi infection are abrogated in Bcl6^fl/flCD4-cre^+/− but not in SAP-deficient mice. Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC, and the occurrence of Tfh cells in the spleen was determined by flow cytometry at days 0, 8 and 14 post-infection. (a) Representative plots of naïve (top row) and infected (8 days post-infection, bottom row) Bcl6^fl/flCD4-cre^+/− and wt control mice. Gates show frequency of CD3⁺ CD4⁺ CD44^hi cells expressing CXCR5 and PD-1. (b) Total numbers of Tfh cells, defined as CD3⁺ CD4⁺ CD44^hiCXCR5^hiPD-1^hi, in Bcl6^fl/flCD4-cre^+/− and wt control mice. (c) Representative plots of naïve (top row) and infected (8 days post-infection, bottom row) Bcl6^fl/flCD4-cre^+/− and wt control mice. Gates show frequency of CD3⁺ CD4⁺ cells expressing CXCR5 and Bcl6. (d) Total numbers of Tfh cells, defined as CD3⁺ CD4⁺ CXCR5⁺ Bcl6⁺, in Bcl6^fl/flCD4-cre^+/− and wt control mice. (e) Representative plots of naïve and infected Sh2d1a^−/− and wt C57BL/6 control mice. (f) Total numbers of Tfh cells, defined as CD3⁺ CD4⁺ CD44^hiCXCR5^hiPD-1^hi, in Sh2d1a^−/− and wt C57BL/6 control mice. (g) Representative plots of naïve and infected Sh2d1a^−/− and wt C57BL/6 control mice. (h) Total numbers of Tfh cells, defined as CD3⁺ CD4⁺ CXCR5⁺ Bcl6⁺, in Sh2d1a^−/− and wt C57BL/6 control mice. Bars represent median values. Data are representative or pooled from at least two independent experiments and were obtained in groups of 3–8 mice per time point. Statistical significance was obtained using Two-Way ANOVA with Tukey's multiple comparisons test. ND: Not done.

As expected, targeted deletion of the Bcl6 gene in T cells completely abrogated Tfh cell activation in response to P. chabaudi; no CD44^highCXCR5⁺ PD-1^high Tfh cells were detected above background levels in the spleen of Bcl6^fl/flCD4-cre^+/− mice during P. chabaudi infection (Fig. 3a–b). Tfh cells can be alternatively identified by the combined expression of CXCR5 and Bcl6 (Choi et al., 2011). Using this alternative phenotypic definition of Tfh, we confirmed no expansion of CXCR5⁺ Bcl6⁺ Tfh cells in Bcl6^fl/flCD4-cre^+/− mice during P. chabaudi infection (Fig. 3 c–d). In contrast to Bcl6^fl/flCD4-cre^+/− mice, Sh2d1a^−/− mice showed no major alterations in the activation of Tfh cell responses to P. chabaudi infection. These mice showed an expansion of CD44^highCXCR5⁺ PD-1^high Tfh cells (Fig. 3 e–f) and CXCR5⁺ Bcl6⁺ Tfh cells (Fig. 3 g–h) in response to P. chabaudi infection, comparable to the levels detected in wt C57BL/6 control mice [we only detected a small, yet significant, reduction of the counts of CXCR5⁺ Bcl6⁺ cells in Sh2d1a^−/− mice at day 8 post infection (Fig. 3H)]. This was independent of the route of infection, as Sh2d1a^−/− mice infected via mosquito bites also activated a CD44^highCXCR5⁺ PD-1^high Tfh cell response comparable to the levels detected in similarly infected wt C57BL/6 control mice (Fig. S1).

In agreement with previous publications (Wu et al., 2001; Czar et al., 2001; Kaji et al., 2012), neither Bcl6^fl/flCD4-cre^+/−, nor Sh2d1a^−/− mouse strains showed alterations in the counts of CD4⁺ and CD8⁺ T cells, B cells and NK cells in the spleen prior to infection (Fig. S2). In addition, neither Bcl6^fl/flCD4-cre^+/−, nor Sh2d1a^−/− mouse strains showed significant alterations in the activation of T-bet⁺ CD4⁺ Th1 responses during this strong Th1-biased P. chabaudi infection (Fig. S3).

These data demonstrate that the initial Tfh cell response to P. chabaudi can be activated even in the absence of SAP signaling, in contrast to infected Bcl6^fl/flCD4-cre⁺ mice, in which Tfh cells were lacking.

3.3. The Lack of Tfh Cells and Deficiency of SAP Differentially Impact the Activation of GC B-cells in Response to P. chabaudi Infection

We have previously shown that robust GC B-cell responses to P. chabaudi infection in the spleen of C57BL/6 mice are readily detected at days 14–40 p.i. (Pérez-Mazliah et al., 2015; Achtman et al., 2003). In the absence of Tfh-cell responses, Bcl6^fl/flCD4-cre^+/− mice were unable to activate a GC B-cell response to P. chabaudi infection, while robust GC B-cell responses were detected in both Bcl6^wt/wtCD4-cre^+/− and Bcl6^fl/fl control mice by day 35 p.i, as determined by flow cytometry (Fig. 4 a–b). It has previously been shown that SAP-deficient mice are unable to activate GC-B cell responses to protein antigens and Influenza virus, LCMV and helminth infections (Crotty et al., 2003; Cannons et al., 2006; Kamperschroer et al., 2006; Crotty et al., 2006; McCausland et al., 2007; Moyron-Quiroz et al., 2009; Yusuf et al., 2010; Morra et al., 2005). Surprisingly, although the number of GC B-cells activated in the spleen of infected SAP-deficient mice was reduced compared with wt C57BL/6 controls, these mice were still able to activate a distinctive GC B-cell response to P. chabaudi infection, readily detectable by flow cytometry by day 35 p.i. (Fig. 4 c–d). In accordance, GC structures were readily detected in spleen sections of SAP-deficient mice by day 35 p.i. (Fig. 4 E), although at reduced numbers and size compared with wt C57BL/6 controls (Fig. 4 F).

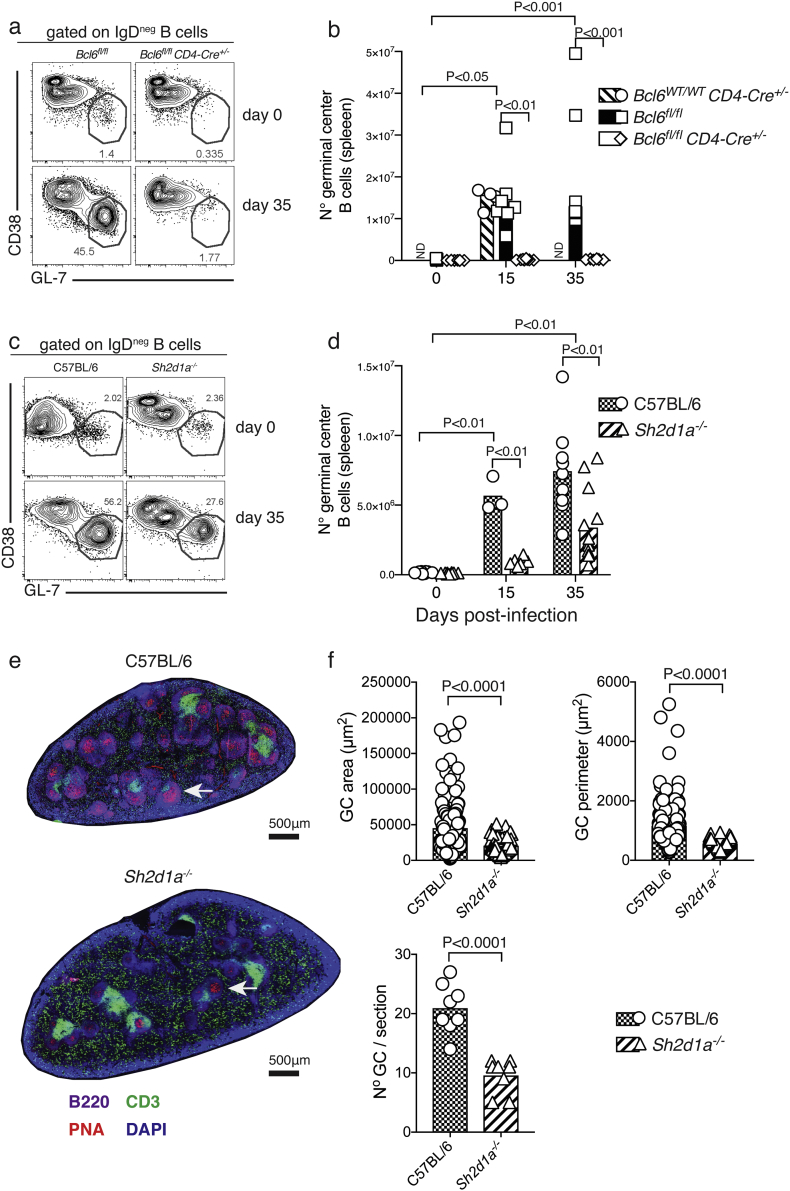

Fig. 4.

Germinal Center B-cell responses to P. chabaudi infection are abrogated in Bcl6^fl/flCD4-cre^+/− mice, and reduced in SAP-deficient mice. Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC, and the occurrence of GC B cells in the spleen was determined by flow cytometry at days 0, 15 and 35 post-infection, and by histology at days 0 and 35 post-infection. (a) Representative plots of naïve (top row) and infected (35 days post-infection, bottom row) Bcl6^fl/flCD4-cre^+/− and wt control mice. Gates show frequency of B220⁺ CD19⁺ IgD^neg B cells expressing low levels of CD38 and high levels of GL-7. (b) Total numbers of GC B cells in Bcl6^fl/flCD4-cre^+/− and wt control mice. (c) Representative plots of naïve and infected Sh2d1a^−/− and wt C57BL/6 control mice. (d) Total numbers of GC B cells in Sh2d1a^−/− and wt C57BL/6 control mice. Bars represent median values. (e) Representative spleen sections of infected (d35) Sh2d1a^−/− and wt C57BL/6 control mice; the white arrows point at individual examples of PNA⁺ GC structures. (f) Cumulative data displaying area, perimeter and number of GC structures determined by histology in spleen sections of infected (d35) Sh2d1a^−/− and wt C57BL/6 control mice. Data are representative or pooled from at least two independent experiments and were obtained in groups of 3–8 mice per time point. Statistical significance was obtained using Student's t-test or Two-Way ANOVA with Tukey's multiple comparisons test. ND: Not done.

These data show that GC B-cell responses take place in the absence of SAP, and highlight substantial differences in the signaling network leading to GC activation in response to Plasmodium compared with GC responses after immunizations or in other infection models.

3.4. The GC Tfh Cell Responses to P. chabaudi are Affected, but not Entirely Abrogated, in the Absence of SAP Signaling

The activation of a particular subset of CD4⁺ Tfh cells which homes into germinal centers (GC Tfh), has been shown to follow the initial activation of Tfh-cell responses, to express the germinal center marker GL-7, to be critical for GC B-cell activation, and to require SAP signaling for its activation (Yusuf et al., 2010). We therefore examined the activation of GC Tfh cells in the spleen during P. chabaudi infection.

As anticipated by the absence of early Tfh responses to P. chabaudi infection in Bcl6^fl/flCD4-cre^+/− mice, no GC Tfh cells were detected above background level at any time point post P. chabaudi infection in these mice (Fig. 5 a–b). On the other hand, although reduced compared to wt C57BL/6 controls, a GC Tfh cell response to P. chabaudi was readily detected by flow cytometry by day 35 p.i. in Sh2d1a^−/− mice (Fig. 5 c–d). The occurrence of GC Tfh cells in the absence of SAP was further confirmed by the detection of T cells inside the GC structures in the spleen, as determined by histology (Fig. 5 e–f).

Fig. 5.

Germinal center Tfh-cell responses to P. chabaudi infection are abrogated in Bcl6^fl/flCD4-cre^+/− mice, and reduced in SAP-deficient mice. Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC, and the occurrence of GC Tfh cells in the spleen defined as CD3⁺ CD4⁺ GL-7⁺ was determined by flow cytometry at days 15 and 35 post-infection. (a) Representative plots of naïve (top row) and infected (35 days post-infection, bottom row) Bcl6^fl/flCD4-cre^+/− and wt control mice. Gates show frequency of CD3⁺ CD4⁺ T cells expressing GL-7. (b) Total numbers of GC B cells in Bcl6^fl/flCD4-cre^+/− and wt control mice. (c) Representative plots of naïve and infected Sh2d1a^−/− and wt C57BL/6 control mice. (d) Total numbers of Tfh cells in Sh2d1a^−/− and wt C57BL/6 control mice. Bars represent median values. (e) Representative spleen sections of infected (d35) Sh2d1a^−/− and wt C57BL/6 control mice; the white arrows point at individual examples of CD3⁺ T cells within PNA⁺ GC structures. Data are representative or pooled from at least two independent experiments and were obtained in groups of 3–8 mice per time point. Statistical significance was obtained using Two-Way ANOVA with Tukey's multiple comparisons test. ND: Not done.

These data demonstrate that, although the initial activation of Tfh-cell responses to P. chabaudi showed no major alterations in SAP-deficient mice, this signal is indeed required later in the infection for full activation of a GC Tfh-cell response, and further support a requirement for fully functional Tfh-dependent B-cell activation to eradicate Plasmodium infection.

3.5. The B-T Cell Interactions in the Spleen are Affected, but not Entirely Abrogated, in the Absence of SAP Signaling During P. chabaudi Infection

SAP signaling is required for stable B-Tfh cell interactions, which are thought to be necessary for activation of GC B-cell responses (Qi, 2012). Given the unexpected presence of GC Tfh and GC B cells in the absence of SAP signaling in the P. chabaudi infection, we asked whether stable B-T cell conjugates could form in the spleen during P. chabaudi infection.

To study this, we used a method previously described (Reinhardt et al., 2009) to detect ex vivo stable B-T cell conjugates by flow cytometry using CD3, CD4, CD19 and B220 markers. CD3⁺ CD4⁺ CD19⁺ B220⁺ conjugates were approximately twice the size of single CD3⁺ CD4⁺ or CD19⁺ B220⁺ cells based on FSC detected by flow cytometry during P. chabaudi infection (Fig. 6a). The numbers of B cell-CD4⁺ T cell conjugates were not significantly altered in Sh2d1a^−/− mice compared with wt C57BL/6 controls either at day 15 or 35 p.i. (Fig. 6 b–c). However, the number of conjugates containing GC B cells (CD3⁺ CD4⁺ CD19⁺ B220⁺ CD38⁺ GL-7⁺), at day 35 p.i., were significantly lower in Sh2d1a^−/− mice compared with wt C57BL/6 controls at this time (Fig. 6 d–e). Albeit reduced, these interactions were still able to occur in SAP-deficient mice, as the number of GC B-CD4⁺ T cell conjugates in these mice was significantly higher at day 35 p.i. compared with background level (Fig. 6 d–e).

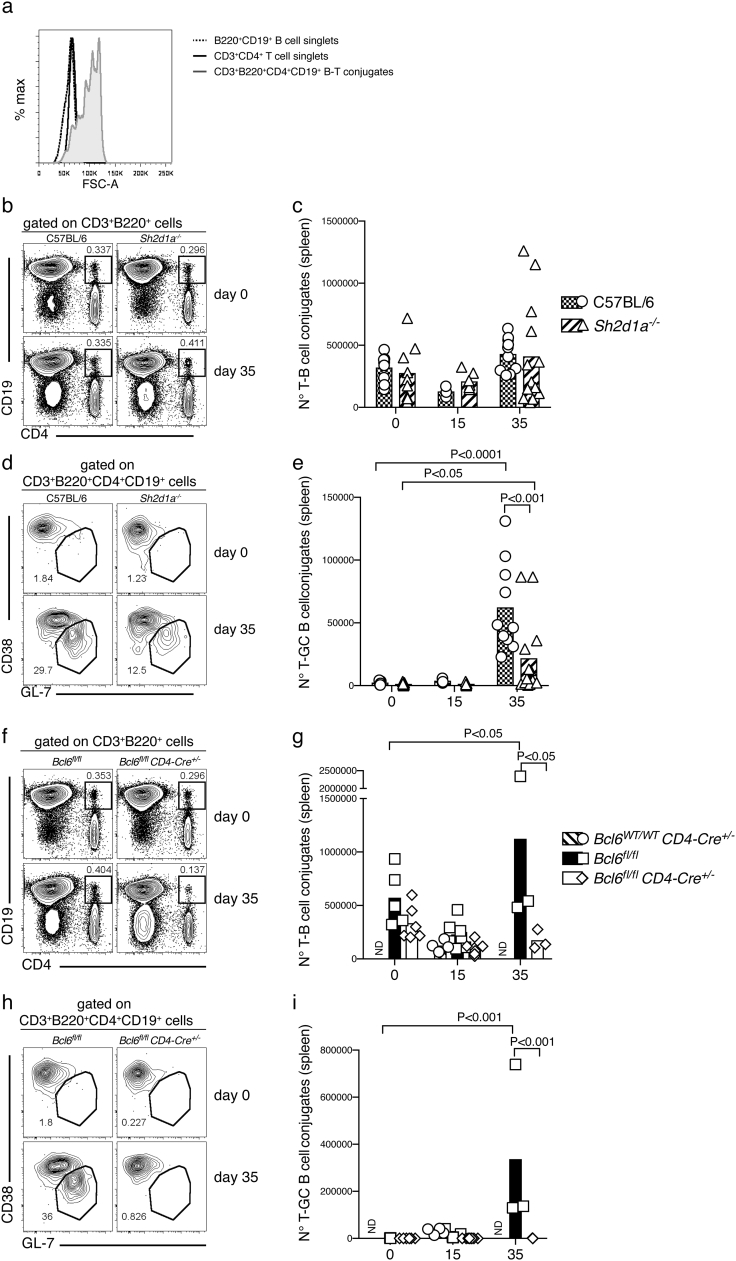

Fig. 6.

Ex vivo flow cytometry analysis of T-B cell conjugates in Bcl6^fl/flCD4-cre^+/− and SAP-deficient mice during P. chabaudi infection. Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC, and the occurrence of T-B cell conjugate in the spleen was analyzed ex vivo by flow cytometry at days 0, 15 and 35 post-infection. (a) Representative overlay histograms showing FSC-A for CD3⁺ CD4⁺ T cell singlets, B220⁺ CD19⁺ B cell singlets, and CD3⁺ CD4⁺ B220⁺ CD19⁺ T-B cell conjugates, obtained from the spleen of a wt C57BL/6 control mouse. (b) Representative plots of naïve (top row) and infected (35 days post-infection, bottom row) of Sh2d1a^−/− and wt C57BL/6 control mice. Gates show frequency of CD3⁺ B220⁺ cells positive for CD19 and CD4. (c) Total numbers of CD3⁺ CD4⁺ B220⁺ CD19⁺ T-B cell conjugates in Sh2d1a^−/− and wt C57BL/6 control mice. (d) Representative plots of naïve (top row) and infected (35 days post-infection, bottom row) of Sh2d1a^−/− and wt C57BL/6 control mice. Gates show frequency of CD3⁺ CD4⁺ B220⁺ CD19⁺ T-B cell conjugates expressing low CD38 and high GL-7. (e) Total numbers of CD3⁺ CD4⁺ B220⁺ CD19⁺ CD38^loGL-7⁺ T-B cell conjugates in Sh2d1a^−/− and wt C57BL/6 control mice. (f) Representative plots of naïve (top row) and infected (35 days post-infection, bottom row) of Bcl6^fl/flCD4-cre^+/− and wt control mice. Gates show frequency of CD3⁺ B220⁺ cells positive for CD19 and CD4. (g) Total numbers of CD3⁺ CD4⁺ B220⁺ CD19⁺ T-B cell conjugates in Bcl6^fl/flCD4-cre^+/− and wt control mice. (h) Representative plots of naïve (top row) and infected (35 days post-infection, bottom row) of Bcl6^fl/flCD4-cre^+/− and wt control mice. Gates show frequency of CD3⁺ CD4⁺ B220⁺ CD19⁺ T-B cell conjugates expressing low CD38 and high GL-7. (i) Total numbers of CD3⁺ CD4⁺ B220⁺ CD19⁺ CD38^loGL-7⁺ T-B cell conjugates in Sh2d1a^−/− and wt C57BL/6 control mice. Bars represent median values. Data are representative or pooled from at least two independent experiments and were obtained in groups of 3–8 mice per time point. Statistical significance was obtained using Two-Way ANOVA with Tukey's multiple comparisons test. ND: Not done.

As expected, Bcl6^fl/flCD4-cre^+/− mice showed a significantly reduced number of B-T cell conjugates compared with Bcl6^fl/fl control mice at day 35 p.i. (Fig. 6 f–g), and no GC B-CD4⁺ T cell conjugates above background level at any time point studied (Fig. 6 h–i).

Thus, the lack of Tfh-cell responses render mice unable to sustain stable GC B-CD4⁺ T cell interactions, while the lack of SAP signaling impairs, but does not entirely abrogate, these important interactions.

3.6. The Lack of Tfh Cells and Deficiency of SAP Differentially Impact the Activation of P. chabaudi-specific IgG Responses

The GC response is a major source of antibody class switching. Therefore, we hypothesized that the differential impact in GC responses to P. chabaudi due to absence of SAP signaling or Tfh responses altogether might be translated in a differential impact on the IgG response to the parasite. This, in turn, could explain the differential capacity of Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice to control the infection. In previous works, we have extensively characterized the kinetics and isotypes of P. chabaudi-specific antibody responses in C57BL/6 mice (Pérez-Mazliah et al., 2015; Achtman et al., 2007; Quin and Langhorne, 2001; Ndungu et al., 2009). The P. chabaudi-specific IgM response is not detected in circulation in C57BL/6 mice above background level before the first two weeks post-infection, whereas the P. chabaudi-specific IgG response in circulation, as well as MSP1-specific IgG antibody secreting cells in the spleen, are not detected above background level before the first three weeks post-infection. Therefore, we studied the P. chabaudi-specific IgM and IgG responses in Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice from day 35 p.i. onwards.

In the absence of Tfh cells and GC B-cells, Bcl6^fl/flCD4-cre^+/− mice were unable to produce all subtypes of P. chabaudi-specific IgG antibodies (Fig. 7 a, c, e and g), whereas P. chabaudi-specific IgM responses were not altered up to day 35 p.i., and still detectable at day 126 p.i., in these mice (Fig. 7i). P. chabaudi-specific IgG responses were more variable in Sh2d1a^−/− mice; IgG2c antibodies were the most affected, while P. chabaudi-specific IgG1 and IgG3, as well as IgM, showed delayed kinetics in Sh2d1a^−/− mice compared with the antibody response of wt C57BL/6 control mice (Fig. 7 b, d, f, h and j). Therefore, both IgG and IgM responses were affected, but not completely abrogated by the lack of SAP signaling.

Fig. 7.

Plasmodium chabaudi-specific IgG responses are abrogated in Bcl6^fl/flCD4-cre^+/− mice, and partially altered in SAP-deficient mice. Bcl6^fl/flCD4-cre^+/− (left column) and Sh2d1a^−/− (right column) and respective wt control mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC, and the levels of P. chabaudi-specific IgG1 (a–b), IgG2b (c–d), IgG2c (e–f), IgG3 (g–h) and IgM (i–j) were determined in serum samples by ELISA. Bars represent median values. Data are pooled from two independent experiments and were obtained in groups of 3–5 mice per time point. Statistical significance was obtained using Two-Way ANOVA with Tukey's multiple comparisons test.

These data demonstrate that P. chabaudi-specific IgM responses can still be activated in the absence of Tfh responses, and that even partial alterations in P. chabaudi-specific IgG responses, as seen in SAP-deficient mice, are associated with reduced capacity to control this infection.

3.7. What Contributes to the Control of P. chabaudi Infection in the Absence of Tfh Cells?

Although the Bcl6^fl/flCD4-cre^+/− mice, completely deficient in Tfh cell and GC B-cell responses, failed to eradicate chronic P. chabaudi infection, these mice did not succumb to the infection, similar to mice with a complete deficiency of B cells do not succumb to P. chabaudi infection (von der Weid et al., 1996). These data strongly suggest that there is an additional immune component that, although not being able to eradicate the infection, is capable of controlling P. chabaudi to some extent.

We have previously shown that μMT mice, deficient in B cells, undergo a dramatic expansion of the number of γδT cells in the spleen in response to P. chabaudi infection (von der Weid et al., 1996). Similarly, Bcl6^fl/flCD4-cre^+/− mice showed increased number of γδT cells in the spleen during the chronic phase of infection (Fig. 8 a–b). However, this was not the case for Sh2d1a^−/− mice (Fig. 8 c–d), probably due to the better control these mice have of the infection compared to Bcl6^fl/flCD4-cre^+/− mice.

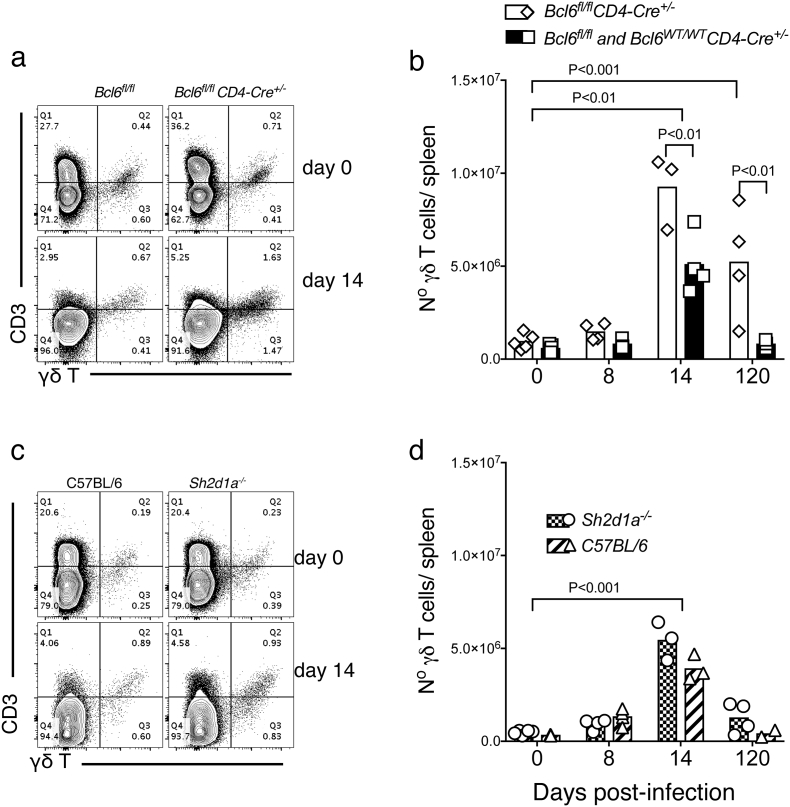

Fig. 8.

Bcl6^fl/flCD4-cre^+/− mice have increased numbers of γδT cells in the spleen during chronic P. chabaudi infection. Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC, and the number of γδT cells in the spleen was determined by flow cytometry at days 0, 8, 14 and 120 post-infection. (a) Representative plots of naïve (top row) and infected (14 days post-infection, bottom row) Bcl6^fl/flCD4-cre^+/− and wt control mice. Upper right quadrants show frequency of CD3⁺ γδ⁺ T cells. (b) Total numbers of γδT cells in Bcl6^fl/flCD4-cre^+/− and wt control mice. (c) Representative plots of naïve and infected Sh2d1a^−/− and wt C57BL/6 control mice. (d) Total numbers of γδT cells in Sh2d1a^−/− and wt C57BL/6 control mice. Bars represent median values. Data are representative or pooled from at least two independent experiments and were obtained in groups of 3–5 mice per time point. Statistical significance was obtained using Two-Way ANOVA with Tukey's multiple comparisons test.

We have recently shown that IL-21 is critical to activate protective B-cell responses to Plasmodium infection (Pérez-Mazliah et al., 2015). Similar to Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice, Il21r^−/− mice had an initial course of acute P. chabaudi infection with peak parasitemias at days 8–9 (Fig. 9 a–b). Also, similar to Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice and unlike wt C57BL/6 controls, Il21r^−/− mice failed to reduce parasitemia during the chronic phase, and the infection remained at levels between 10 and 50% from day 15 p.i. up to the 110 days of the experiment, without mortality [Fig. 9 a–b and (Pérez-Mazliah et al., 2015)]. These chronic parasitemias were notably higher than the chronic parasitemias observed in either Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice (Fig. 9 c–d). Thus, intriguingly, it appears that IL-21 has a role in controlling P. chabaudi infection beyond Tfh-dependent B-cell activation. In accordance with this hypothesis, we have previously shown that the CD4⁺ T cell compartment producing IL-21 in response to P. chabaudi was approximately equally composed of Tfh and non-Tfh CD4⁺ T cells, and exclusively detected during acute infection (Pérez-Mazliah et al., 2015). In agreement, despite complete absence of Tfh cell activation, IL-21-producing CD4⁺ T cells were still activated in P. chabaudi-infected Bcl6^fl/flCD4-cre^+/− mice (Fig. 10). Moreover, as predicted, the number of IL-21-producing CD4⁺ T cells detected at the peak of infection in Bcl6^fl/flCD4-cre^+/− mice was reduced to approximately half the amount of these cells in wt controls, thus showing that the Tfh response represents an important, but not the only, source of IL-21 during P. chabaudi infection (Fig. 10).

Fig. 9.

IL-21, Bcl6 and SAP are differentially required for the control of chronic P. chabaudi infection. Il21r^−/−, Bcl6^fl/flCD4-cre^+/−, Sh2d1a^−/− mice, and their respective wt control mice, were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC or bites from P. chabaudi-infected mosquitoes and parasitemias were periodically monitored by giemsa-stained thin blood smears. The course of acute (left column) and chronic (right column) infection for Il21r^−/− mice following iRBC infection (a) and mosquito infection (b). The acute phase is displayed as median ± range, while curves corresponding to individual mice are displayed for the chronic phase. Cumulative data showing side-by-side the parasitemias during chronic P. chabaudi infection in Il21r^−/−, Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice, following iRBC infection (c) and mosquito infection (d). Data are representative of at least two independent experiments and were obtained in groups of 5–10 mice per time point. Statistical significance was obtained using Mann Whitney U test or Two-Way ANOVA with Tukey's multiple comparisons test.

Fig. 10.

IL-21⁺ CD4⁺ T cells are activated in response to P. chabaudi infection even in complete absence of Tfh cells. Bcl6^fl/flCD4-cre^+/− mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC, and the number of IL-21-producing CD4⁺ T cells in the spleen was determined by intracellular flow cytometry staining at days 0, 8, 14 and 120 post-infection. (a) Representative plots of naïve (top row) and infected (8 days post-infection, bottom row) Bcl6^fl/flCD4-cre^+/− and wt control mice. Gates show frequency of CD3⁺ CD4⁺ T cells expressing IL-21. (b) Total numbers of IL-21-producing CD4⁺ T cells in Bcl6^fl/flCD4-cre^+/− and wt control mice. Data are representative of two independent experiments and were obtained in groups of 3–5 mice per time point. Statistical significance was obtained using Two-Way ANOVA with Tukey's multiple comparisons test. ND: Not done.

In summary, we show that different signals previously implicated in B-T cell communication differentially impact the control of chronic P. chabaudi infection, following a gradient: IL-21 deficiency > Tfh deficiency > SAP deficiency.

4. Discussion

Our study formally demonstrates an essential requirement of Tfh cells to eradicate a chronic systemic Plasmodium infection initiated by natural vector transmission. In addition, we highlight substantial differences in the signaling network leading to GC activation in response to Plasmodium compared to immunizations or other infection models.

The effects of natural transmission by the mosquito in experimental models have generally been overlooked in studies of immune mechanisms elicited to blood-stage Plasmodium infection. However, immune responses, in particular B-cell responses, elicited to the less physiological injection of Plasmodium-infected red blood cells can differ from those elicited by natural transmission (Spence et al., 2013). Therefore, the natural vector route is an important component of the experimental system for host responses to Plasmodium parasites. Here, we validated all the responses observed using models of natural mosquito transmission.

Previous studies both in human and mouse models have shown the importance of B cell-responses to control Plasmodium infection (Cohen et al., 1961; Conway et al., 2000; Fowkes et al., 2010; Osier et al., 2008; Sabchareon et al., 1991; Burns et al., 1997; von der Weid et al., 1996). The signals required to activate protective B-cell responses to this infection have recently started to emerge. Tfh cells have been identified as the critical CD4⁺ T helper subset required for activation of follicular B-cell responses (Schaerli et al., 2000; Breitfeld et al., 2000; Kim et al., 2001). Recent evidence has suggested that Plasmodium infection has the capacity to bias the CD4⁺ T cell response toward a predominantly IFN-γ-producing Th1 response and consequently impair Tfh cell differentiation resulting in poor B-cell responses to the parasite (Hansen et al., 2017). Nonetheless, both Tfh cell and GC B-cell responses are strongly activated in a number of Plasmodium models (Zander et al., 2015; Matar et al., 2015; Achtman et al., 2003; Pérez-Mazliah et al., 2015; Wikenheiser et al., 2016), and in P. chabaudi infections these are not impaired by the activation of a strong Th1 response (Pérez-Mazliah et al., 2015; Wikenheiser et al., 2016). Herein, we investigated the requirement of Tfh cells to control Plasmodium infection in the P. chabaudi model. We focused on the transcription repressor Bcl6, the master regulator of the Tfh program (Johnston et al., 2009; Nurieva et al., 2009; X. Liu et al., 2009), and on the SAP molecule, previously shown to be required for B-Tfh cell interactions (Qi et al., 2008), and the activation of GC B-cells (Crotty et al., 2003; Cannons et al., 2006; Kamperschroer et al., 2006; Crotty et al., 2006; McCausland et al., 2007; Moyron-Quiroz et al., 2009; Yusuf et al., 2010; Morra et al., 2005) and Tfh cells in some models (Cannons et al., 2010; Deenick et al., 2010; Linterman et al., 2011). A targeted deletion of the Bcl6 gene restricted to the T-cell lineage [Bcl6^fl/flCD4-cre^+/− (Kaji et al., 2012)] rendered mice unable to make Tfh cell responses to P. chabaudi infection and consequently unable to activate protective B-cell responses and eliminate the otherwise self-resolving blood stage of P. chabaudi infection. Of note, the Tfh cell response observed during the acute phase of P. chabaudi infection was critical to control the chronic, but not the acute, phase of P. chabaudi infection, as Bcl6^fl/flCD4-cre^+/− mice with a complete absence of Tfh cell responses were able to control the acute phase of infection without showing significant differences from the wt controls.

It is intriguing that there is a complete absence of all P. chabaudi-specific IgG subtypes in Bcl6^fl/flCD4-cre^+/− mice, including those associated with extra-follicular B cell responses. It is generally accepted that Bcl6 expression in T cells is required for extrafollicular IgG production (S. K. Lee et al., 2011). However, it is still a matter of debate as to how this happens, as Tfh cells by definition and functional capacity, preferentially home to the B-cell follicles (Qi, 2016). Nonetheless, a P. chabaudi-specific IgM response was readily detected even in complete absence of Tfh cell responses in Bcl6^fl/flCD4-cre^+/− mice. This demonstrates the activation of extra-follicular B cell responses to P. chabaudi in the absence of Tfh cells, and shows that an extra-follicular P. chabaudi-specific IgM response is not sufficient to eradicate P. chabaudi infection.

Sh2d1a1^−/− mice (lacking the gene that encodes SAP) were able to control the acute phase of P. chabaudi infection, but showed variable capacity to control the chronic phase of infection, and to completely eradicate the infection. Parasitemias determined by analysis of thin blood films at late time points post-infection (i.e. over 100 days post-infection) suggested clearance of parasites. However, more sensitive techniques to detect positive parasitemias [adoptive transfer of blood into Rag2^−/− mice (Achtman et al., 2007)] demonstrated the presence of sub-patent parasitemias in half of the Sh2d1a1^−/− mice studied.

Interestingly, the lack of SAP signaling did not alter the initial activation of Tfh cell responses to P. chabaudi, as demonstrated by the occurrence of normal levels of CD44^hiCXCR5⁺ PD1⁺ as well as CXCR5⁺ Bcl6⁺ CD4⁺ T cells in the spleen of P. chabaudi-infected Sh2d1a1^−/− mice compared with C57BL/6 controls. The fact that the lack of SAP signaling did not disrupt the initial Tfh cell response to P. chabaudi seems to contradict some observations (Cannons et al., 2010; Deenick et al., 2010; Linterman et al., 2011). However, other works reported activation of Tfh cells in the absence of SAP, using both immunizations (Qi et al., 2008) and LCMV infection (Yusuf et al., 2010). Moreover, Deenick et al. demonstrated that the defect on Tfh activation in the absence of SAP occurs when the availability of antigen is limited, and can be rescued by boosting with antigen (Deenick et al., 2010). Therefore, the requirement of SAP for Tfh activation seems to be context-dependent, and the consensus in the field is now that SAP is not required for the initial activation of the Tfh program, but rather for the maintenance of this program and the relocalization of the Tfh cells into the germinal center (Crotty, 2014; Qi, 2012). This agrees with our observation of reduced, yet detectable, CD4⁺ GL7⁺ GC Tfh cells in the spleen of P. chabaudi-infected Sh2d1a1^−/− mice. Our observations of unaltered CD4⁺ T-B cell conjugates yet altered CD4⁺ T-GC B cell conjugates in Sh2d1a1^−/− mice compared with wt C57BL/6 controls, is in line with the long-lasting T-B cell interactions in the T-cell zone and follicle border and progressively shorter contact durations (and, therefore, more sensitive to mechanical disruption) inside the follicles and germinal centers observed in immunizations (T. Okada et al., 2005; Qi et al., 2008; Allen et al., 2007; Kerfoot et al., 2011; Shulman et al., 2014; D. Liu et al., 2015). On the other hand, SAP-deficient mice fail to activate GC B-cell responses to immunizations with T-dependent antigens, viral infections, and helminth infections (Crotty et al., 2003; Cannons et al., 2006; Kamperschroer et al., 2006; Crotty et al., 2006; McCausland et al., 2007; Moyron-Quiroz et al., 2009; Yusuf et al., 2010; Morra et al., 2005). Therefore, it is indeed surprising that SAP-deficient mice can activate, albeit significantly reduced, a distinctive GC response to P. chabaudi. This is demonstrated by the occurrence of a) CD38^lowGL7⁺ GC B cells, b) GC structures as determined by histology c) GL7⁺ CG Tfh cells, d) T cells within the GC as determined by histology, e) stable T-GC B cell conjugates and f) P. chabaudi-specific IgG responses in Sh2d1a1^−/− mice. The deficient T-B cell interaction driven by the absence of SAP can be partially compensated by other signals, i.e. strong cognate interactions in the context of high antigen availability on B cells (Qi, 2012; Qi et al., 2008). Thus, these mechanisms might be in place during P. chabaudi infection and able to partially compensate for the lack of SAP signaling. P. chabaudi infection is the only infection model identified to date in which GC B cells can be activated in the absence of SAP. A recent report by Wikenheiser et al. shows that ICOS is dispensable during early Tfh cell differentiation in response to P. chabaudi infection, but it is required for sustaining the Tfh cell response over time (Wikenheiser et al., 2016). Interestingly, both P. chabaudi-specific B-cell responses and the course of P. chabaudi infection in ICOS-deficient mice resemble our observations in SAP-deficient mice more closely than in Bcl6^fl/flCD4-cre^+/− mice (i.e. partial, but not complete, abrogation of the GC B cell response and P. chabaudi-specific IgG responses, and highly variable control of the parasitemia late during chronic infection) (Wikenheiser et al., 2016). ICOS engagement promotes persistent T-cell migration at the border between the T-cell zone and the B-cell follicle, and controls follicular recruitment of activated T-helper cells independently from the ICOSL-mediated co-stimulation provided by cognate B cells, thus acting as a molecular linkage between T–B cells (Xu et al., 2013; D. Liu et al., 2015; Qi, 2016). Therefore, it is possible that SAP and ICOS act via a similar mechanism during P. chabaudi infection, i.e. via regulating T helper cell positioning in the follicle and favoring T-B cell interactions, and can partially compensate for each other. Notably, the deficiency of ICOS signaling reduced GC B-T cell interactions during P. chabaudi infection, similarly to SAP deficiency (Wikenheiser et al., 2016). This inefficient, yet distinctive, GC activation in Sh2d1a1^−/− mice can explain the better control of the infection by these mice compared with the complete absence of Tfh cell responses in Bcl6^fl/flCD4-cre^+/− mice, and strongly supports a model in which the quality of the T-dependent B cell response reflects the capacity to control the blood stages of P. chabaudi infection.

In conclusion, here we provide evidence of the major role of Tfh cell responses in controlling and clearing the chronic phase of Plasmodium infection. In addition, we delineate a hierarchical requirement of signals previously associated with T-B cell interactions in the control of this infection, following the order IL-21 > Tfh cells > SAP. This proved to be true for both, blood and natural mosquito transmission of P. chabaudi infection. Intriguingly, these data suggest a role for IL-21 beyond B cell activation driven by Tfh cells. In agreement with this, c-Maf, but not Bcl6, is known to control IL-21 expression (Bauquet et al., 2009; Hiramatsu et al., 2010; Kroenke et al., 2012), and non-Tfh IL-21-producing CD4⁺ T cells are detected during P. chabaudi infection (Pérez-Mazliah et al., 2015; Carpio et al., 2015) and P. berghei ANKA infection (Ryg-Cornejo et al., 2015). Therefore, further research is needed to determine the full role of this pleiotropic cytokine in the control of this infection. Monitoring of both IL-21 and Tfh responses have generally not been included in studies aimed at generating protective vaccines to Plasmodium infection. In the light of data presented herein, monitoring of both of these critical immune signals should be considered when evaluating the efficacy of novel immune therapies designed to prevent or eliminate Plasmodium infection.

Our data complete the study of a battery of fundamental signals implicated in T-B cell interactions in the context of blood-stage Plasmodium infection, i.e. PD-1 (Butler et al., 2012; Zander et al., 2015), IL-21 (Pérez-Mazliah et al., 2015), OX40 (Zander et al., 2015) and ICOS (Wikenheiser et al., 2016). Altogether, these data provide a framework to weigh the relevance of different signals regulating T-B cell interactions for the control of this complex parasite, which is critical to reach the goal of generating protective immunotherapies to control the spread of malaria.

The following are the supplementary data related to this article.

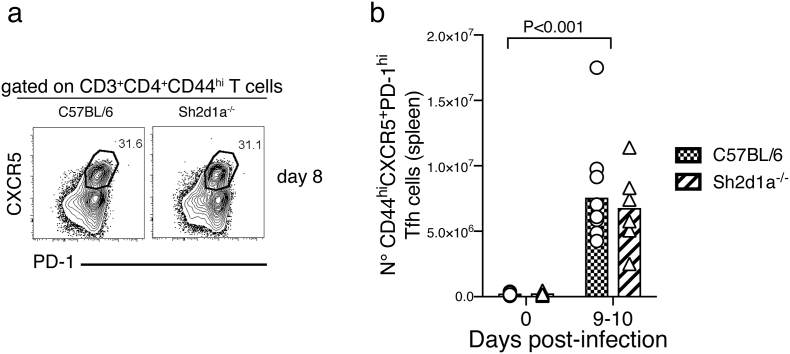

Supplementary Fig. S1.

Related to Fig. 3. Normal Tfh cell activation to P. chabaudi in SAP-deficient mice infected with P. chabaudi via natural mosquito transmission. Sh2d1a^−/− and C57BL/6 wt control mice were infected with P. chabaudi via mosquito bites, and the activation of Tfh cells in the spleen was determined by flow cytometry. (a) Representative plots of C57BL/6 wt control (left) and Sh2d1a^−/− (right) mice, 8 days post-infection. Gates show frequency of CD3⁺ CD4⁺ CD44^hi cells expressing CXCR5 and PD-1. (b) Total numbers of Tfh cells, defined as CD3⁺ CD4⁺ CD44^hiCXCR5^hiPD-1^hi, in Sh2d1a^−/− and C57BL/6 wt control mice. Bars represent median values. Data are representative of two independent experiments and were obtained in groups of 5–8 mice per time point. Statistical significance was obtained using Two-Way ANOVA with Tukey's multiple comparisons test.

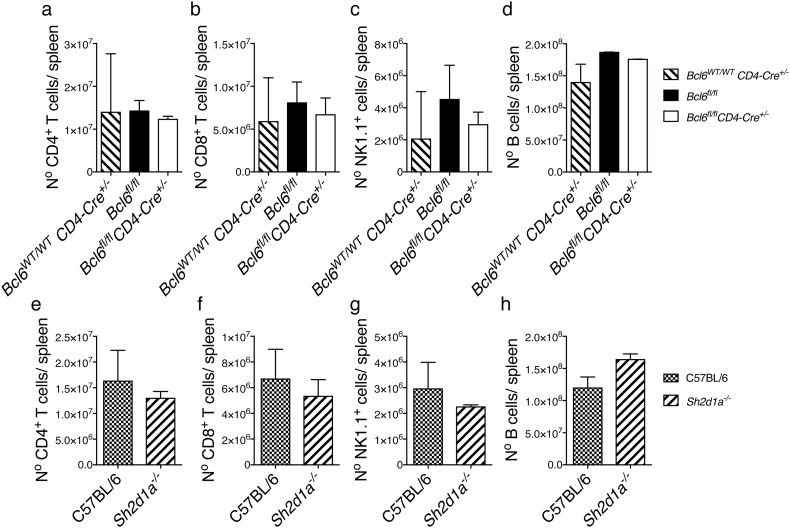

Supplementary Fig. S2.

Related to Fig. 3. Normal T, B and NK cell development in the spleen of Bcl6^fl/flCD4-cre^+/− and SAP-deficient mice. Total numbers of CD4 T (a–e), CD8 T (b–f), NK (c–g) and B (d–h) cells in the spleen of Bcl6^fl/flCD4-cre^+/− and wt control mice (top), and Sh2d1a^−/− and C57BL/6 wt control mice (bottom). Bars show median ± range. Data are pooled from two independent experiments and were obtained in groups of 3–5 mice. Statistical significance was evaluated using Mann Whitney U test or Kruskal-Wallis test.

Supplementary Fig. S3.

Related to Fig. 3. Normal activation of Th1 cell responses in the spleen of Bcl6^fl/flCD4-cre^+/− and SAP-deficient mice. Bcl6^fl/flCD4-cre^+/− and Sh2d1a^−/− mice were infected with P. chabaudi via intra peritoneal injection of 10⁵ iRBC, and the occurrence of T-bet⁺ CD4⁺ Th1 cells in the spleen was determined by intracellular flow cytometry staining at days 0, 8 and 14 post-infection. (a) Representative plots of naïve (top row) and infected (8 days post-infection, bottom row) Bcl6^fl/flCD4-cre^+/− and wt control mice. Gates show frequency of CD3⁺ CD4⁺ T-bet⁺ cells. (b) Total numbers of CD3⁺ CD4⁺ T-bet⁺ Th1 cells in Bcl6^fl/flCD4-cre^+/− and wt control mice. (c) Representative plots of naïve and infected Sh2d1a^−/− and wt C57BL/6 control mice. (d) Total numbers of CD3⁺ CD4⁺ T-bet⁺ Th1 cells in Sh2d1a^−/− and wt C57BL/6 control mice. Bars represent median values. Data are representative of two independent experiments and were obtained in groups of 3–4 mice per time point. Statistical significance was obtained using Two-Way ANOVA with Tukey's multiple comparisons test.
