Abstract
Marine animals typically harbor a community of viruses, a number of which are known to cause diseases. In shrimp aquaculture, viral pathogens are the principal causes of major economic losses. However, the composition of the viral load of shrimps in wild population is poorly known. In this study, we explored the viral diversity in the microbiome of wild Penaeus monodon collected from six sites in the Philippines, with a view to detecting pathogenic forms. We employed a metagenomic approach via particle-associated nucleic acid isolation, sequence-independent single primer amplification, and pyrosequencing. Virome analysis of shrimp samples from different sites revealed distinct virome profiles, and hence significant differences in diversity, among the various sites based on number of OTUs, Shannon–Weaver Index, and Inverse Simpson Index. Sequences of key shrimp pathogens were detected such as the white spot syndrome virus (WSSV), and Penaeus stylirostris densovirus (PstDV). However, the patterns of distribution of the pathogenic viruses varied; whereas WSSV was found only in three out of six sites and PstDV were found in all but one site. The results also revealed shrimp-associated viruses that have not yet been observed in P. monodon such as avian virus-like, insect virus-like, plankton virus-like and bacteriophage-like sequences. Despite the diverse array of viruses detected in the study, a large proportion remains unidentified (i.e., similarity to sequences in the database was lower than the threshold required for definitive identification), and therefore could represent unexplored virus sequences and viral genomes in the environment.
Keywords: Metagenomics, Shrimp pathogens, DNAse-SISPA, Penaeus monodon, Virome
Introduction
A number of marine viruses are known to be pathogenic to Penaeus monodon. To date, white spot syndrome virus (WSSV) remains as the most widespread and devastating pathogen in the shrimp aquaculture industry. It has spread to almost all countries where shrimps are cultivated and remains a major threat because of its wide host range, genetic variation and changes in virulence [29]. Moreover, the Penaeus stylirostris densovirus (PstDV has been reported to cause severe mortalities up to 90%; it has been a significant problem in the culture of several penaeid species in the Americas, Oceania and Asia [29]. Although a number of management practices have been developed, these viruses remained a significant problem in the aquaculture industry.
Our knowledge of viral diversity and viral communities (viromes) in different environmental samples has been limited by available methodology [23]. The key limitation in viral diversity studies is the lack of universal genetic markers for viruses, in contrast to bacterial diversity studies in which the 16s rRNA gene has proven to be a useful marker [18]. Recently, high throughput sequencing has been leveraged to enable a metagenomics approach to studies of uncultured viral assemblages in a process termed as “viral metagenomics” or “viromics”. This method provides a holistic look at viral diversity within a given sample, completely bypassing the need for culturing [31]. Moreover, this approach has dramatically expanded our knowledge in understanding the diversity of viromes in a wide range of environments such as soil, sea, potable water, ballast water, activated sludge, coral, and hot springs [23, 26].
However, a key challenge in obtaining DNA for viral metagenomics studies is the fact that whole metagenomes are dominated by host DNA resulting in minimal coverage of viral DNA [3]. Thus, we employed a virus discovery strategy based on random amplification of purified viral nucleic acids in combination with next generation sequencing called DNase-SISPA [1]. This approach consists of a virus purification step by selective filtration and ultracentrifugation followed by nuclease treatment to remove nucleic acids that are not encapsidated in virions. This is followed by viral DNA extraction and random amplification step. The random amplicons are subsequently sequenced using an NGS technology [25].
Gudenkauf and Hewson [13] reported that distinct viral assemblages inhabit different phyla of marine invertebrates. In the present study, we hypothesized that variation in viral assemblages can also be observed in a single species of marine invertebrate from different geographic locations. This study is important in the light of the fact that wild populations still serve as the source of stocks used in aquaculture. Thus, we aim to characterize the viromes and detect putative viral pathogens by multiplexed metagenome sequencing of DNase SISPA random amplicons from the hepatopancreas of wild adult P. monodon from the Philippines.
Materials and methods
Sample collection and purification of virus particles
Adult wild P. monodon samples (n = 4) were purchased from local fishermen at each of 6 locations in the northern, central and southern Philippines: Camarines Norte, Quezon, Leyte, Pangasinan, Cagayan and Zamboanga del Sur. The 6 sites were traditional sources of shrimp broodstocks used for hatchery operations. Live samples were collected and frozen before transporting to the laboratory in a sealed ice box. The samples were stored in a -80 °C biomedical freezer until processed.
Hepatopancreas from each sample were aseptically dissected and resuspended in 500 μl 1X phosphate buffer saline (PBS) and vigorously vortexed. Five hundred microliters of supernatant were then centrifuged at 10,000×g using a benchtop microcentrifuge for 2 min, and supernatants were transferred to a fresh tube. This step was repeated twice. The samples were stored at −80 °C until further use. The pooled supernatants were then filtered through a 0.45-µm-pore-size syringe filter (Fisher Scientific, Pittsburgh, PA). The filtered supernatants were then brought up to 500 µl using 1X PBS to fill Beckman Optima™ TLX Ultracentrifuge tubes (Beckman Coulter, Inc., Brea, CA) to capacity. The pooled supernatants were then centrifuged at 50,000×g for 3 h at 10 °C. The pellet was resuspended in 100 µl of 1X PBS and frozen at −80 °C until further processing could be performed [33].
Isolation of particle-associated nucleic acids (PAN), viral DNA extraction and whole genome amplification (WGA)
To reduce the amount of contaminating RNA and DNA present, particle-associated nucleic acids (PAN) were isolated wherein each sample (116 µl) was treated with 14 U of DNase I (Qiagen, Valencia, CA) and 20 U of RNase A (Qiagen, Valencia, CA). Samples were then brought up to a final volume of 140 µl in 10X DNase buffer (Qiagen, Valencia, CA) and incubated at 37 °C for 2 h [27]. Samples were then immediately processed with GeneAll Exgene™ Viral DNA Kit (GeneAll Biotechnology Co., Ltd., Seoul, South Korea) using the manufacturer’s protocol. Since only small amounts of viral DNA were obtained due to limited samples, the samples were pooled per site and WGA was employed. GenomePlex Complete Whole Genome Amplification (WGA) Kit (Sigma-Aldrich, St Louis, MO, USA) was used following the manufacturer’s recommendations. WGA-amplified genomic material was purified using QIAquick PCR purification kit (Qiagen, Valencia, USA) and quantified using BioSpec-Nano (Shimadzu®, Kyoto, Japan).
Sequence-independent single primer amplification (SISPA) and 454 pyrosequencing
A set of highly degenerate PCR primers with barcodes as described in Table 1 was used to PCR-amplify the resulting DNA. After visualization of the random amplified DNA fragments on a 1% agarose gel, the amplicons were excised, purified and quantified using a BioSpec-Nano (Shimadzu®, Kyoto, Japan). Five-micrograms of the amplicon library was further purified with Agencourt AMPure XP beads (Beckman Coulter Inc, Canada) and quantified by fluorometry using the Quant-iT™ PicoGreen® dsDNA Assay Kit (Invitrogen, Burlington, ON). The DNA fragmentation step by nebulization was skipped. Pooled amplicons were diluted as recommended, and amplified by emulsion PCR. Pyrosequencing was performed for 200 cycles on a Roche 454 GS-Junior sequencing instrument. All reads were filtered using the standard read rejecting filters of the built-in GS Junior sequencer software, namely key pass filters, dot and mixed filters, signal intensity filters, and primer filters . All steps were performed according to manufacturer’s protocols.
Table 1.
Primers used in the study, adapted from Rosseel et al. [25]
| Primer name | Sequence (5′–3′) |
|---|---|
| FR20RV-1 | TTGGTTGGGCCGGAGCTCTGCAGATATC |
| FR20RV-2 | TTGGTTCCGCCGGAGCTCTGCAGATATC |
| FR20RV-3 | TTGGTAGCGCCGGAGCTCTGCAGATATC |
| FR20RV-4 | TTGGTACGGCCGGAGCTCTGCAGATATC |
| FR20RV-5 | TTGGCGTAGCCGGAGCTCTGCAGATATC |
| FR20RV-6 | TTGGCGATGCCGGAGCTCTGCAGATATC |
Underlined nucleotides are barcodes used in multiplexed sequencing
Virome analysis
A Python script developed in the laboratory was used to (1) sort the sequences based on primer barcodes, (2) trim barcode and primer sequences, (3) remove homopolymers greater than 8 bp, and sequences shorter than 40 bp, allowing for 1 mismatch to the barcode and 2 mismatches to the primer, and (4) cluster sequences with a maximum e-value of 30 and a minimum percent identity of 97 as described [18].
Reads were assembled to contiguous sequences (contigs) using default parameters of Newbler de novo Assembler 2.7. Sequences in the NCBI Protein (ftp://ftp.ncbi.nlm.nih.gov/blast/db/FASTA/nr) and Viral Reference Sequence (RefSeq) database (ftp://ftp.ncbi.nih.gov/refseq/release/viral) similar to the assembled contigs were then searched using BLAST-X with an E-value cut-off of 10−5 [2]. The BLAST-X output was parsed using the MEtaGenome Analyzer (MEGAN) version 5.6.6 [17] (Min Score = 50.0, Max Expected = 1.0E−5, Top Percent = 10.0, Min Support Percent = 0.1, Min Support = 1, and LCA Percent = 100.0). MEGAN was used for (1) generation of rarefaction curve, (2) determination of number of OTUs, (3) taxonomic analysis and (4) computation of Shannon-Weaver and Inverse Simpson index [18].
To comprehensively identify pathogenic virus-like sequences in our dataset, a list of viral pathogens listed by the World Organization for Animal Health (OIE) was retrieved [34]. Genetic and taxonomic information of viral pathogens of fish and shrimp were obtained from ViralZone database (http://viralzone.expasy.org) [16].
Phylogenetic analysis
Representative avian virus, insect virus and bacteriophage observed in P. monodon viromes were chosen for phylogenetic analysis. The taxonomic identity of the selected viral sequence was inferred by comparison with the closest BLAST-X match against the RefSeq Database at NCBI. Metagenomic sequence and their closest matches in GenBank were aligned using CLUSTALW and bootstrapped phylogenetic trees (1000 iterations) were generated using the maximum likelihood algorithm in MEGA6 [28].
Results and discussion
Overview of virome composition of wild P. monodon
Viral metagenomics was performed to characterize the virome profile and identify putative pathogenic viruses in wild P. monodon in the Philippines. A total of 12,405 sequence reads were obtained from all samples after quality filtering. This dataset is comparable in size to those reported by other groups using the DNase-SISPA method [11, 19]. The number of sequence reads obtained from five sites varied from 271 to 978; a dramatically larger number of reads was obtained from one site (Table 2). These differences may reflect differences in viral load although the effects of other factors (such as amount or number of cells per unit weight of tissue) cannot be fully ruled out. All sequences obtained in this study are available in the NCBI Sequence Read Archive (www.ncbi.nlm.nih.gov/sra) under accession number SRR5239623.
Table 2.
Summary of results using Roche 454 GS Junior Pyrosequencing of virome, OTUs and diversity indices calculated from the sequencing reads
| Collection site | No. of reads | No. of OTUs | Shannon–Weaver | Inverse simpson |
|---|---|---|---|---|
| Camarines Norte | 9098 | 314 | 0.994 | 1.400 |
| Quezon | 978 | 945 | 1.000 | 2.000 |
| Leyte | 793 | 778 | 1.946 | 2.350 |
| Pangasinan | 281 | 271 | 1.663 | 1.943 |
| Cagayan | 419 | 419 | 3.006 | 7.258 |
| Zamboanga del Sur | 836 | 822 | 3.379 | 9.800 |
The sequences were further clustered into 3549 OTUs using a 97% similarity cut off [29]. Of these, between 15 and 37% matched viral genomes while the remaining sequences correspond to mostly bacterial sequences. This finding is similar to previous reports of viral metagenomics of marine invertebrates [13, 14]. The rarefaction curve generated from the OTUs is presented in Fig. 1a. Most sites were under-sampled indicating unseen diversity of viruses. However, other sites are relatively more effectively sampled as indicated by the rarefaction curve reaching plateau. Based on Shannon–Weaver and Inverse Simpson indices, the pooled sample from a site in southern Philippines (Zamboanga del Sur) had the highest virome richness while a site in northeastern Philippines (Camarines Norte) has the lowest (Table 3).

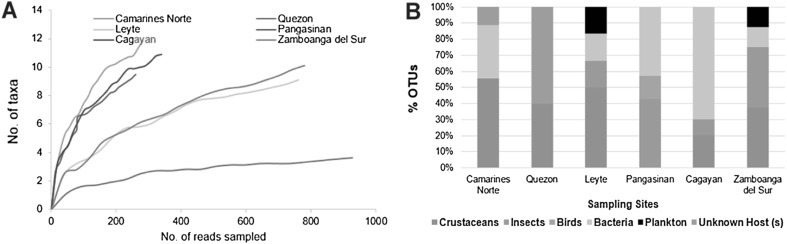

Fig. 1.
a Rarefaction curve analysis of putative viral taxa in the assembled sequencing reads generated using sequence-independent single primer amplified particle-associated nucleic acids from wild P. monodon collected from 6 sites in the Philippines. b Relative diversity of various types of viruses (classified according to their putative hosts) in the virome of wild P. monodon from 6 sites in the Philippines
Table 3.
Number of unique contigs with significant similarity (e-value < 10−5) to viral pathogen sequences, obtained using BLAST-X search against NCBI Viral RefSeq database
| Virus name (highest scoring hit) | Type of host | Taxonomic classification | Percent amino acid identity (%) | Length (aa) | e-value | Camarines Norte | Quezon | Leyte | Pangasinan | Cagayan | Zamboanga del Sur |
|---|---|---|---|---|---|---|---|---|---|---|---|
| White spot syndrome virus | Crustaceans | Nimaviridae, Whispovirus | 52–100 | 26–157 | 1.187297 × 10−66–7.972527 × 10−7 | 3 | 0 | 1 | 0 | 0 | 1 |
| Monodon baculovirus | Penaeids | Baculoviridae, Nudivirus | 27–28 | 31–134 | 3.954512 × 10−6–8.809733 × 10−6 | 1 | 1 | 1 | 0 | 1 | 1 |
| Infectious hypodermal and hematopoietic necrosis virus | Penaeids | Parvoviridae, Brevidensovirus | 96–100 | 51–107 | 3.628056 × 10−52–1.996391 × 10−21 | 1 | 1 | 1 | 0 | 1 | 1 |
| Psittacine beak and feather disease virus | Old and New World parrots | Circoviridae, Circovirus | 44–59 | 59–93 | 1.947310 × 10−13–7.399771 × 10−13 | 0 | 0 | 0 | 1 | 0 | 0 |
Pathogenic shrimp virus-like sequences
WSSV
WSSV, the causative agent of white spot disease (WSD) was found in samples from three of the six sites (Camarines Norte, Leyte and Zamboanga del Sur; Table 3, Fig. 2). WSSV is a very large, enveloped, double-stranded DNA (dsDNA) virus and considered as the most significant pathogen in the penaeid shrimp aquaculture in the world [29]. It was assigned by the International Committee on Taxonomy of Viruses (ICTV) to its own new genus, Whispovirus, and family, Nimaviridae [10].
Fig. 2.
Virome profile of wild P. monodon samples from 6 sites in the Philippines
Penaeus stylirostris densovirus (PstDV)
PstDV was also found in all six sites except one (Pangasinan) (Table 3; Fig. 2). PstDV is the smallest known penaeid virus which is 22 nm diameter, non-enveloped icosahedron with a linear single-stranded 3.9 kbp DNA. It is designated as a member of family Parvoviridae and a member of genus Brevidensovirus [10].
Other viral sequences in the P. monodon metagenome
Based on the most significant BLAST-X similarities, the P. monodon viromes contained sequences related to a wide range of avian, insect, plankton and bacterial viruses (Tables 3, 4, Figs. 1b, 2), all of which have not been previously reported to be associated with P. monodon, although a few have been known to infect other shrimp species. The similarity of these sequences to known viral sequences (in GenBank) ranged from 27 to 100% amino acid identity. This finding is consistent with those of other viral metagenomics studies [21, 22], and suggests that wild P. monodon populations may harbor diverse and hitherto undiscovered, hence uncharacterized and unclassified, viral taxa. In light of this observation, continued research on virus discovery and viral genome sequencing have the potential to uncover the true diversity of viruses in wild P. monodon.
Table 4.
Number of unique contigs with significant similarity (e-value < 10−5) to viral sequences, obtained using BLAST-X search against Viral RefSeq database
| Virus name (highest scoring hit) | Taxonomic classification | Percent amino acid identity (%) | Length (aa) | E-value | Camarines Norte | Quezon | Leyte | Pangasinan | Cagayan | Zamboanga del Sur |
|---|---|---|---|---|---|---|---|---|---|---|
| Insect viruses | ||||||||||
| Dragonfly-associated circular virus 4 | Unclassified ssDNA viruses | 66 | 42 | 5.533332 × 10−8 | 0 | 0 | 0 | 1 | 0 | 0 |
| Odonata-associated circular virus-9 | Unclassified ssDNA viruses | 36 | 94 | 2.506649 × 10−8 | 0 | 0 | 1 | 0 | 0 | 0 |
| Dragonfly orbiculatus virus | No data available | 30–72 | 36–92 | 6.737313 × 10−6–6.517536 × 10−17 | 0 | 0 | 0 | 3 | 0 | 0 |
| Dragonfly larvae associated circular virus 3 | Unclassified ssDNA viruses | 60 | 46 | 1.888731 × 10−13–2.015387 × 10−12 | 0 | 0 | 0 | 0 | 1 | 1 |
| Odonata-associated circularvirus 10 | Unclassified ssDNA viruses | 46–45 | 108–81 | 5.020742 × 10−17–7.217395 × 10−8 | 0 | 0 | 0 | 0 | 0 | 2 |
| Plankton viruses | ||||||||||
| Diporeia sp. – associated circular virus | Unclassified viruses | 43 | 69 | 1.449990 × 10−8 | 0 | 0 | 1 | 0 | 0 | 0 |
| Labidocera aestiva circovirus | Circoviridae, unclassified Circovirus | 35 | 84 | 1.464443 × 10−8 | 0 | 0 | 0 | 0 | 0 | 1 |
| Bacteriophages | ||||||||||
| Brochothrix phage A9 | Myoviridae; unclassified Spounavirinae | 92–97 | 48–69 | 7.774100 × 10−18–9.868536 × 10−35 | 3 | 0 | 0 | 0 | 0 | 0 |
| Shewanella sp. phage 3/49 | Myoviridae, unclassified Myoviridae | 40–56 | 71–50 | 5.162678 × 10−6–3.539256 × 10−7 | 0 | 0 | 0 | 0 | 2 | 0 |
| Vibrio phage JA-1 | Podoviridae, N4-like virus | 81 | 74 | 2.694496 × 10−26 | 0 | 0 | 0 | 0 | 1 | 0 |
| Vibrio phage Vc1 | Podoviridae, unclassified Podoviridae | 58–90 | 50–95 | 4.464848 × 10−18–1.452595 × 10−24 | 0 | 0 | 0 | 0 | 3 | 0 |
| Vibrio phage pYD38-B | Siphoviridae, unclassified Siphoviridae | 93 | 59 | 5.484499 × 10−26 | 0 | 0 | 0 | 0 | 1 | 0 |
| Synechococcus phage S-CAM8 | Myoviridae, unclassified Myoviridae | 81–83 | 31–32 | 1.395666 × 10−6–1.046662 × 10−6 | 0 | 0 | 0 | 2 | 0 | 0 |
| Puniceispirillum phage HMO-2011 | Podoviridae, unclassified Podoviridae | 84 | 76 | 1.079125 × 10−27 | 0 | 0 | 0 | 1 | 0 | 0 |
| Sp6-like virus | Podoviridae, SP6likevirus | 82–85 | 34 | 2.356261 × 10−6–3.956274 × 10−6 | 0 | 0 | 2 | 0 | 0 | 0 |
| Marine gokushovirus | Microviridae, unclassified Gokushovirinae | 74 | 81 | 5.363045 × 10−11 | 0 | 0 | 0 | 0 | 0 | 1 |
| Unknown Host(s) | ||||||||||
| Circoviridae 21 LDMD 2013 | Circoviridae, unclassified Circovirus | 46 | 58 | 3.221802 × 10−8 | 0 | 0 | 0 | 0 | 0 | 1 |
| Circoviridae 2013a | Circoviridae, unclassified Circovirus | 39 | 76 | 3.015703 × 10−6 | 0 | 0 | 0 | 0 | 0 | 1 |
Variability of virome profiles in P. monodon
Analysis using BLAST-X of metagenomic samples from all six sites revealed the virome profile variability across the sites (Fig. 2). Samples from all sites except for one (Pangasinan) yielded sequences for the two major shrimp viruses WSSV and PstDV, but no sequences were found for the other important (DNA) shrimp virus such as hepatopancreatic parvovirus (HPV). (Since the procedure targets DNA, RNA viruses were not expected to be detected by the methodology). Although WSSV and PstDV sequences were not observed in the Pangasinan samples, a pathogenic avian virus sequence was found. Insect viral sequences were also found in samples from sites in central (Leyte), northern (Pangasinan. Cagayan) and southern Philippines (Zamboanga del Sur). Plankton-associated viral sequences were found in samples from Leyte and Zamboanga del Sur. Bacteriophage sequences were found in all sites except for a site in northeastern Philippines (Quezon) but almost 60% of its OTUs matched sequences for viruses with unspecified hosts (Fig. 1b).
Furthermore, only viruses that target shrimps as hosts (WSSV and PstDV) were commonly found in the dataset from 5 sampling sites, and sequences representing a large number of viruses with unknown hosts and those similar to other viral genomes tended to be site-specific (Table 4). This finding suggests that wild P. monodon metagenomes share a common but small set of core virome, particularly shrimp viruses, while the rest of the virome may be accounted for by a highly variable component consisting of other viruses such as avian, insect, plankton and bacterial viruses (Fig. 1b). Similar findings were also previously reported in mosquito viromes with shared core set of insect viruses while the remaining components tend to be more variable [21, 22].
Monodon baculovirus (MBV)-like sequences identified in P. monodon
Previous studies have established the presence of MBV in populations of P. monodon in the Philippines [20, 32]. Perhaps owing to the limited sample size, no MBV sequences were found in the metagenomes in the samples used in the study. However, MBV-like sequences were found, exhibiting 27–28% similarity to known MBV sequences. These sequences were found in all six sites except one (Pangasinan) (Table 3; Fig. 2).
Avian virus-like sequence identified in P. monodon
Psittacine beak and feather disease virus (PBFDV)-like sequences were found only in Pangasinan samples (Table 3; Figs. 2, 3a). PBFDV belongs to the genus Circovirus of the family Circoviridae. PBFDV is one of the smallest known animal viruses, with a simple and compact 2 kb ambisense single-stranded circular DNA genome that encodes two major genes. PBFDV was first described in Australian psittacine species in the 1970s [5]. This study is the first report of the presence of this sequence in an arthropod, in particular, shrimp, metagenome.
Fig. 3.
Maximum likelihood tree showing the phylogenetic relationship of the a putative replication-associated protein of beak and feather disease virus (BFDV) sequence inferred from the virome of Pangasinan samples, b putative replication-associated protein of dragonfly larvae-associated circular virus-3 sequence inferred from the virome of Cagayan samples and c hypothetical protein of Vibrio phage JA-1 sequence inferred from the virome of Cagayan samples. The tree includes highly similar sequences from GenBank based on a BLAST-X search against the non-redundant database at the NCBI. Bootstrap values of 1000 tree iterations that are > 50% are indicated in the branch nodes. BFDV Beak and feather disease virus
Insect virus-like sequences identified in P. monodon
Sequences that are similar to insect-associated viruses were identified in the samples from 4 of the 6 sites. These viruses are known to infect dragonflies (Insecta: Odonata) (Table 4; Figs. 1b, 2) and are unclassified ssDNA viruses. Three distinct but related sequences that were similar to dragonfly orbiculatus virus (DOV) sequences were found but only in the Pangasinan samples. DOV was reported to be an endogenous viral element (EVE) in the genome of the isopod crustacean Armadillidium vulgare [30]. Although DOV is known to be capable of integrating into the host DNA, the sequences observed in the study were likely derived from isolated viral particles rather than EVEs given the methodology used in this study.
Phylogenetic analysis of a representative insect virus-like sequence, dragonfly larvae associated circular virus 3 (Fig. 3b), revealed that this virus appeared to be very similar with a virus isolated from a yellow spotted dragonfly [6]. Other related sequences found in this study apparently represent viruses that were previously reported to be associated with damselflies [7, 8], feces from bats [12], badger, mongoose, otter [4] and Hawaiian red shrimp [13] but this is the first report of insect virus-like sequences associated with a penaeid shrimp.
Plankton virus-like sequences identified in P. monodon
Sequences bearing similarity to those of plankton viruses, namely Diporeia sp. - associated circular virus and Labidocera aestiva—circovirus, were identified from the virome of P. monodon samples from 2 sites (Leyte and Zamboanga del Sur, respectively; Table 4, Fig. 2). Diporeia sp. - associated circular virus was identified from a freshwater pond in McMurdo Ice Shelf, Antarctica [35], Procordulia grayi and Xanthocnemis zealandica larvae [6] by sequencing the Rep protein which shares 45.62 and ~50.0% pairwise amino acid identity respectively with Diporeia sp.—associated circular virus. This novel circo-like virus was also isolated from P. monodon in Vietnam which shared 25% identity with the Cap protein of a Diporeia sp.—associated circular virus [24]. On the other hand, Labidocera aestiva—circovirus was identified from Tampa Bay, Florida, USA using viral metagenomics approach with BLASTp similarity (~255 aa) to a circo-like virus with an unknown host identified from free virioplankton in the Chesapeake Bay [9].
Bacteriophage-like sequences identified in P. monodon
Bacteriophages (viruses that infect bacteria) are the most abundant biological entities on Earth. Putative bacteriophage sequences were found in the P. monodon virome from all sites except for one site (Quezon). This is highly expected as bacteria exist within epithelial and hepatopancreatic tissues of decapods [15]. In fact, bacteriophages infecting Brochothrix (Camarines Norte), Shewanella, Vibrio (Cagayan; Fig. 3c), Synechococcus, Puniceispirillum (Pangasinan) and Sp6-like virus (Leyte) were identified in this study (Table 4; Fig. 2).
DNase SISPA as an effective method for exploring viral diversity
By using DNase-SISPA, this study generated a baseline information of the diversity of the (DNA) virus community present in wild P. monodon in the Philippines. The data reflected significant viral diversity as indicated by the presence of crustacean, avian, insect, plankton and bacterial virus-like sequences, and by the fact that there are still numerous unclassified sequences which cannot be definitively identified due to limitations in the current set of viral sequences in the Viral RefSeq. Modification of the methodology to include RNA viruses would likely reveal a significantly greater diversity of the P. monodon virome.
The common occurrence of sequences representing shrimp pathogenic viruses confirmed their wide distributions in the wild populations of P. monodon, although the shrimps were apparently asymptomatic. The discovery of a high diversity of viruses in the P. monodon virome highlights the need to study the interactions between the pathogenic and non-pathogenic viruses.
Our study highlighted the advantages of the DNase-SISPA method in characterizing the diversity of the P. monodon virome and identifying pathogenic and other associated viruses which are likely to be missed by conventional methods. In particular, DNase-SISPA can give a snapshot of the diversity of the viruses present in a sample unlike conventional methods which are generally designed to target specific viruses. Shrimp samples from different regions displayed variability of virome profiles. Since the identity of other potential viruses have been revealed by this study, these sequences can now serve as marker that will be useful in investigating their potential involvement in occurrences or outbreaks of diseases. Moreover, improvement of the methodology to target RNA viruses with higher sample size and using deep sequencing technologies will be necessary to gain a more comprehensive view of the P. monodon virome diversity.
