Lactobacillus acidophilus Metabolizes Dietary Plant Glucosides and Externalizes Their Bioactive Phytochemicals

ABSTRACT

Therapeutically active glycosylated phytochemicals are ubiquitous in the human diet. The human gut microbiota (HGM) modulates the bioactivities of these compounds, which consequently affect host physiology and microbiota composition. Despite a significant impact on human health, the key players and the underpinning mechanisms of this interplay remain uncharacterized. Here, we demonstrate the growth of Lactobacillus acidophilus on mono- and diglucosyl dietary plant glycosides (PGs) possessing small aromatic aglycones. Transcriptional analysis revealed the upregulation of host interaction genes and identified two loci that encode phosphotransferase system (PTS) transporters and phospho-β-glucosidases, which mediate the uptake and deglucosylation of these compounds, respectively. Inactivating these transport and hydrolysis genes abolished or severely reduced growth on PG, establishing the specificity of the loci to distinct groups of PGs. Following intracellular deglucosylation, the aglycones of PGs are externalized, rendering them available for absorption by the host or for further modification by other microbiota taxa. The PG utilization loci are conserved in L. acidophilus and closely related lactobacilli, in correlation with versatile growth on these compounds. Growth on the tested PG appeared more common among human gut lactobacilli than among counterparts from other ecologic niches. The PGs that supported the growth of L. acidophilus were utilized poorly or not at all by other common HGM strains, underscoring the metabolic specialization of L. acidophilus. These findings highlight the role of human gut L. acidophilus and select lactobacilli in the bioconversion of glycoconjugated phytochemicals, which is likely to have an important impact on the HGM and human host.

IMPORTANCE

Thousands of therapeutically active plant-derived compounds are widely present in berries, fruits, nuts, and beverages like tea and wine. The bioactivity and bioavailability of these compounds, which are typically glycosylated, are altered by microbial bioconversions in the human gut. Remarkably, little is known about the bioconversion of PGs by the gut microbial community, despite the significance of this metabolic facet to human health. Our work provides the first molecular insights into the metabolic routes of diet relevant and therapeutically active PGs by Lactobacillus acidophilus and related human gut lactobacilli. This taxonomic group is adept at metabolizing the glucoside moieties of select PG and externalizes their aglycones. The study highlights an important role of lactobacilli in the bioconversion of dietary PG and presents a framework from which to derive molecular insights into their metabolism by members of the human gut microbiota.

INTRODUCTION

The human gut microbiota (HGM) exerts a profound impact on human health and developmental biology (1–3), in part through interplay with diet as well as metabolism of xenobiotics (4) and nondigestible carbohydrates (5). These impressive metabolic capabilities are encoded by a vast metagenome that outnumbers the genes of the human genome by more than 150-fold. Preferential carbohydrate metabolism is a key factor that shapes the HGM (6–8), whereby specific taxa adapt to different biogeographic and metabolic niches in the gut (9–11). The impact of the HGM composition on health has been well established through metagenomics and association studies (2, 12), but the functional understanding of the interplay between HGM and various dietary components remains limited.

A plethora of phytochemicals occur in fruits, berries, nuts, and vegetables and also in beverages, such as wine and tea (13). These compounds are frequently glycoconjugated in planta to enable storage and solubility or to modulate biological activity (14). Several phytochemicals, e.g., some phenolic and polyphenolic compounds, exhibit beneficial health effects via anti-inflammatory, antiestrogenic, cardioprotective, anticarcinogenic, chemopreventative, neuroprotective, antimicrobial, or antioxidant properties (15, 16). The biological activity varies depending on the glycoconjugation of the phytochemical (17). Stimulation or lack of inhibition of growth of lactobacilli on a few available glycosylated phytochemicals, here referred to as plant glycosides (PGs), has been reported (18, 19), but the role of lactobacilli in the bioconversion of PG has not been clear to date.

Lactobacillus acidophilus NCFM, a widely used probiotic, is a well-characterized model for human gut-adapted lactobacilli (20, 21), owing to its tolerance to bile (22), adhesion to epithelial cells and mucus (23, 24), and ability to colonize the host. Additionally, the abilities of this strain to take up and catabolize a variety of nondigestible complex carbohydrates have been documented and implicated in gut persistence (25–27). Lactobacilli rely on phosphotransferase systems (PTS) in the uptake of most carbohydrates (28). The genomes of human gut lactobacilli are expanded with PTS genes, compared to genomes of counterparts from more carbohydrate-poor ecologic niches (e.g., dairy or food), but functional assignment is lacking for most of these transporters. To a lesser extent, lactobacilli also possess ATP-binding cassette (ABC) importers for uptake of nutrients and ABC exporters, for which the specificities of most are unknown.

Here, we demonstrate the growth of L. acidophilus NCFM on chemically diverse and nutritionally relevant PG. We also elucidate a new metabolic strategy, involving the uptake of PG via two different PTS and intracellular hydrolysis by specialized phospho-β-glucosidases (P-Bgls), followed by the externalization of the aglycone moieties into culture supernatants. The PG utilization loci are conserved in the L. acidophilus species and closely related lactobacilli and correlate with versatile growth on these compounds. Growth on the tested PG appeared more common in human gut lactobacilli than for counterparts from other ecologic niches. The PG that supported the growth of L. acidophilus were utilized poorly or not at all by other common HGM strains, underscoring the metabolic specialization of L. acidophilus. These findings highlight the role of human gut L. acidophilus and select lactobacilli in modulating the availability and bioactivity of glycoconjugated phytochemicals, and these modulations are likely to have an important impact on the HGM and their host.

RESULTS

L. acidophilus NCFM grows on nutritionally relevant plant glycosides.

The growth of L. acidophilus NCFM was evaluated on 11 chemically diverse, nutritionally relevant, and/or therapeutically active PG after 24 h of growth (Fig. 1; see Table S1 in the supplemental material). The cyanogenic diglucoside amygdalin, coumarin glucosides esculin and fraxin, alcoholic glucoside salicin, and aldehyde glucoside vanillin 4-O-β-glucoside all supported growth to a maximum optical density at 600 nm (OD₆₀₀) of 0.3 to 1.3 in 200-µl cultures in 96-well plates. The poor solubility of the stilbenoid polydatin precluded use of the OD₆₀₀ as a growth metric, but growth on this bioactive compound was verified by the production of lactate and metabolite analysis (described below). Additional Lactobacillus strains from different ecologic niches were tested for growth on the PGs amygdalin, arbutin, esculin, and salicin, as well as the control disaccharides, cellobiose, and glucose. L. acidophilus displayed versatile growth on PG, together with Lactobacillus plantarum subsp. plantarum and a Lactobacillus rhamnosus strain (Table S2). Generally, the ability to grow on PG was more common in strains isolated from the human gut niche than in counterparts from other ecological environments.

FIG 1 .

Growth of Lactobacillus acidophilus NCFM on plant glycosides. (A) Structures and common sources of plant glycoside substrates in this study. The compounds that support growth of L. acidophilus are shown in green. R1, β-d-Glcp; R2, gentiobioside [β-d-Glcp-(1,6)-d-Glcp]; R3, rutinoside [α-l-Rhaf-(1,6)-d-Glcp]. (B) Graph showing results of PG utilization mass spectrometry analysis (black bars) and growth (gray bars, maximum OD₆₀₀) after 24 h of at least biological triplicates. Standard deviations were <13% of the maximum OD₆₀₀ for PGs that sustained growth. Due to the low solubility of polydatin, the OD₆₀₀ could not be used as a growth metric and utilization of this compound was confirmed by the production of lactate as well as a high utilization level based on the metabolite analysis.

TABLE S1

Plant glycosides studied in this work and their ability to support growth (OD₆₀₀) of L. acidophilus NCFM. Download TABLE S1, DOCX file, 0.03 MB ^{(19.9KB, docx)} .

Copyright © 2017 Theilmann et al.

This content is distributed under the terms of the Creative Commons Attribution 4.0 International license.

TABLE S2

Growth of Lactobacillus species on selected plant glucosides, cellobiose, or glucose. Values for growth reflect corrections to the growth level in medium without carbohydrate. +++, OD₆₀₀ max > 0.6; ++, 0.6 > OD₆₀₀ max > 0.3; +, 0.3 > OD₆₀₀ max > 0.1; −, OD₆₀₀ max < 0.1. Download TABLE S2, DOCX file, 0.02 MB ^{(28.3KB, docx)} .

Copyright © 2017 Theilmann et al.

This content is distributed under the terms of the Creative Commons Attribution 4.0 International license.

Growth on plant glycosides upregulates carbohydrate metabolism and host interaction genes in L. acidophilus NCFM.

Global transcription was analyzed by transcriptome sequencing (RNA-Seq) in early- to mid-exponential-phase L. acidophilus NCFM cultures growing on lactose or glucose, as well as the growth-supporting PGs amygdalin, esculin, and salicin, which were selected based on their availability and chemical diversity.

The growth on lactose and the PGs differentially upregulated less than 10% of the 1,832 predicted protein-coding genes, compared to glucose (Table S3). Only 2% of the genes were highly upregulated on PG (Table 1). Of the upregulated genes, 55 were shared by two or more of the PG, whereas 58, 35, and 0 were uniquely induced by amygdalin, esculin, and salicin, respectively, indicating more extensive and unique cellular responses to amygdalin and to a lesser extent esculin than to salicin. Amygdalin, which supported the lowest level of growth, interestingly upregulated the highest number of genes (116 genes), followed by esculin (87 genes) and salicin (33 genes).

TABLE 1 .

Highly upregulated genes in the transcriptome of L. acidophilus NCFM grown on amygdalin, esculin, or salicin

Locus tag	Annotationa	COGb	Log2 ratioc
			Amy/Glc	Esc/Glc	Sal/Glc
LBA0227	PTS EIIC	G	9.9	0.8	0.9
LBA0725	PTS EIIABC	G	9.7	9.8	8.9
LBA0726	Phospho-β-glucosidase (GH1)	G	7.2	6.9	6.2
LBA1436	Glycerol uptake facilitator protein	G	7.2	4.9	3.8
LBA0631	Hypothetical protein		7.2	2.9	2.9
LBA1435	Hypothetical protein	S	7.1	5	3.6
LBA1434	Dihydroxyacetone kinase	G	6.7	4.5	3.3
LBA1869	β-Phosphoglucomutase	R	6.7	4.2	2.4
LBA1684	PTS EIIA	G	6.6	2.9	2.6
LBA0225	Phospho-β-glucosidase (GH1)	G	6.5	−0.2	−0.1
LBA0724	Transcriptional regulator (antiterminator)	K	6.4	5.5	5.3
LBA0228	Transcriptional regulator	G	6.3	0.9	0.1
LBA1433	Dihydroxyacetone kinase	G	6	3.7	2.7
LBA0728	Hypothetical protein	R	6	4.8	4.1
LBA0555	Myosine-cross-reactive antigen/fatty acid hydratase	S	6	2	1.4
LBA1974	Pyruvate oxidase	E	5.5	3.6	1.8
LBA1689	Isomaltose-6′-phosphate glucosidase (GH4)	G	5.3	1.8	3.7
LBA1812	α-Glucosidase II (GH31)	G	5.3	2.8	2.2
LBA1701	Melibiose operon regulatory protein	K	5.3	4.9	1
LBA0466	Phosphoenolpyruvate carboxykinase (ATP)	C	5.2	2	1.3
LBA0492	Hypothetical protein		5	3.7	2
LBA0606	PTS EIIBC	G	4.9	2.8	2.5
LBA0491	PTS EIIC	G	4.7	3.4	1.5
LBA1797	Hypothetical protein		4.7	2.6	1.3
LBA0877	PTS EIIA	G	4.6	3	1.3
LBA1873	Acetate kinase	C	4.6	0.8	1.2
LBA1709	Mucus binding protein precursor		4.5	3.6	0.5
LBA1632	NAD-dependent aldehyde dehydrogenase	C	4.4	3.3	2
LBA1401	Peroxidase (Npx)	R	4.4	3.1	2.7
LBA0876	PTS EIIC	G	4.4	2.9	2.4
LBA1871	Maltogenic α-amylase (GH13)	G	4.3	2.1	0.9
LBA1411	Fumarate reductase flavoprotein subunit	C	4	1.7	1.4

^aAnnotations are based on homology or functional characterization when possible.

^bCOG, cluster of orthologous group classification; C, energy production and conversion; E, amino acid metabolism and transport; G, carbohydrate metabolism and transport; K, transcription; R, general functional prediction only; S, function unknown.

^cDifferential transcription log₂ ratio of normalized transcripts per million relative to glucose. Amy, amygdalin; Esc, esculin; Sal, salicin; Glc, glucose. The included genes displayed log₂ differential expression ratios (of the normalized transcripts per million) of ≥4 for the plant glycosides.

TABLE S3

Differentially upregulated genes of L. acidophilus NCFM grown on different carbon sources. Carbon sources included amygdalin (AM), esculin (ES), salicin (SA), lactose (Lac), or glucose (Glu), or no carbon source was added to the culture medium. Data were obtained by using RNA-Seq analysis. Annotations are colored according to the cluster of orthologous group classification. The differential normalized transcripts per million (TPM) ratios (DE) are colored according to level: red, DE ≥4; light red, DE ≥2; white, 1.9 ≥ DE ≥ −1.9; light blue, −2 ≥ DE; blue, −4 ≥ DE. Download TABLE S3, XLSX file, 0.1 MB ^{(60.5KB, xlsx)} .

Copyright © 2017 Theilmann et al.

This content is distributed under the terms of the Creative Commons Attribution 4.0 International license.

Carbohydrate metabolism and transport genes comprised about one-third of the differential transcriptome. Notably, three genes encoding α-glucan utilization enzymes were highly upregulated, including a GH31 putative α-glucosidase, a GH4 putative isomaltose-6′-phosphate α-glucosidase (LBA1689), which likely confers the breakdown of isomaltose (26), and a putative maltogenic α-amylase (LBA1871), which resides in the maltodextrin utilization cluster (29) (Table 1). The physiological significance of such upregulation is unclear, but α-glucans from starch breakdown by humans and bacteria are common metabolic resources in the small intestine, which is inhabited by lactobacilli (30), and this may explain the observed response. The transcriptional response also revealed the upregulation of genes encoding proteins predicted to be associated with mucus, fibrinogen, and epithelial cell adhesion, e.g., LBA0649, LBA1392, LBA1633, and LBA1709 (Table 1; Table S3) (24, 31, 32). Interestingly, genes encoding cellular defense redox enzymes, e.g., a peroxidase (LBA1401) and an oxidoreductase (LBA1025), were also upregulated, indicating a possible xenobiotic stress response (Table 1; Table S3). Multidrug efflux ABC export systems were also upregulated, e.g., LBA0574 and LBA0575, together with 41 hypothetical proteins (Table S3). Growth on PG appeared to promote increased host interaction and adhesion, which was also observed for L. rhamnosus after pretreatment with the PG rutin and phloridzin (33).

Specific phosphotransferase uptake systems and specialized phospho-β-glucosidases are essential for growth on plant β-glucosides.

Growth on PGs highly upregulated two gene loci compared to growth on glucose (Table 1; Table S3), and these findings were also corroborated by quantitative reverse transcriptase PCR (qRT-PCR) analysis (data not shown). The first locus encompassed four genes which were highly upregulated (log₂ ratios of 4.1 to 8.9, corresponding to 17- to 478-fold upregulation) for all 3 PG. The genes encode a LicT transcriptional antiterminator (LBA0724), an EIIABC component of a phosphotransferase system (PTS; LBA0725), a phospho-β-glucosidase (P-Bgl; LBA0726) of glycoside hydrolase family 1 (GH1) according to the CAZy database (34), and a hypothetical protein (LBA0728) (Fig. 2A). These genes, except for the less frequently transcribed LBA0728, which belongs to the Lactobacillus core genome (35), are among the top 10% most upregulated genes in the PG transcriptomes (Table S3). The second locus, which was only transcriptionally responsive to amygdalin, encodes another P-Bgl of GH1 (LBA0225), a divergently transcribed PTS enzyme II component (EIIC; LBA0227), and a transcriptional regulator (LBA0228) (Fig. 2B). Both these gene loci are strictly conserved in the L. acidophilus species and to some extent in related lactobacilli from the Lactobacillus delbrueckii group (Fig. 2; Table S4).

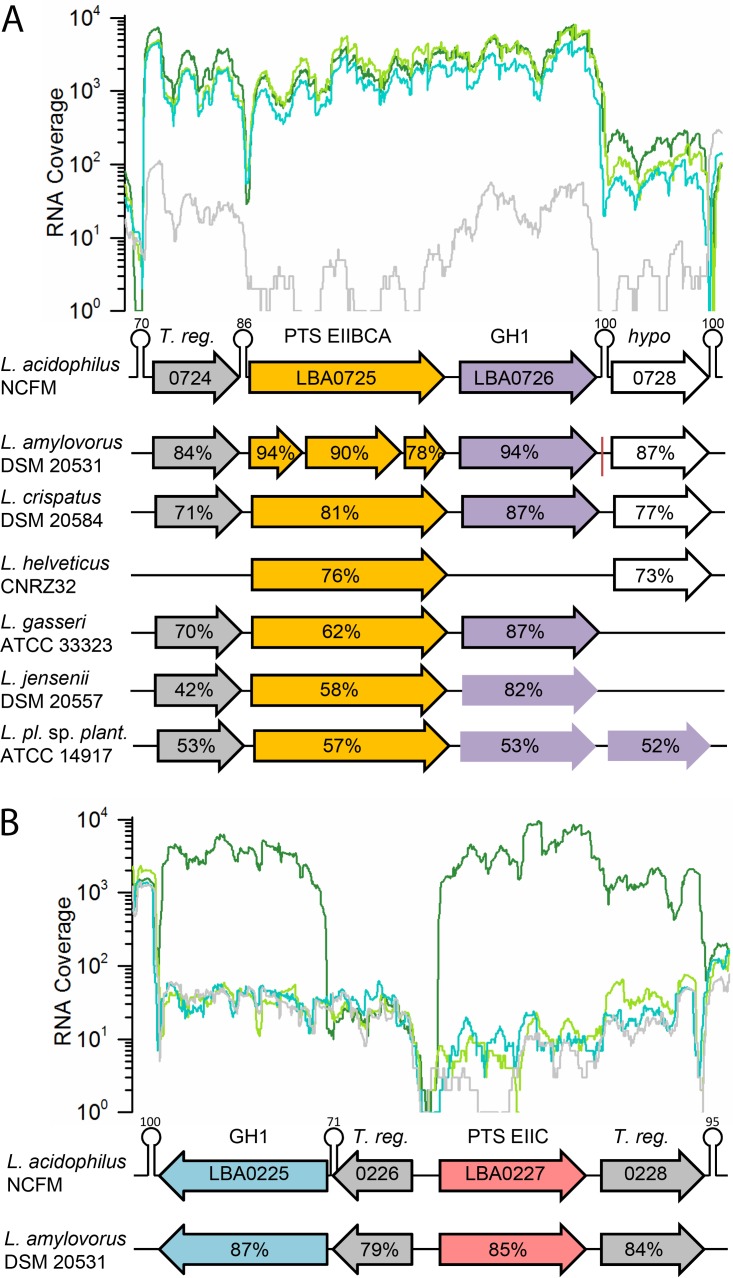

FIG 2 .

Transcriptional profiles and conservation of plant glycoside utilization loci. The RNA read coverages for amygdalin (dark green), esculin (light green), salicin (turquoise), and glucose (light gray) are shown. (A) The top upregulated locus in L. acidophilus NCFM on the three plant glycosides encodes a transcriptional regulator (LBA0724), a PTS EIIBCA transporter (LBA0725), a phospho-β-glucosidase of glycoside hydrolase family 1 (LBA0726), and a hypothetical protein (LBA0728). (B) A locus upregulated exclusively during growth on amygdalin also encodes a P-Bgl (LBA0225), a PTS EIIC transporter (LBA0227), and two transcriptional regulators (gray). Conservation of the loci in selected lactobacilli from the L. delbrueckii group and the amino acid sequence identities relative to L. acidophilus NCFM are shown. The red vertical line signifies the scaffold border. Predicted rho-independent transcriptional terminators are shown as hairpin loops, with overall confidence scores (ranging from 0 to 100) (67).

TABLE S4

Conservation of plant glycoside utilization gene loci identified in this work (annotated by their locus tags and accession numbers) in Lactobacillus acidophilus strains in the NCBI organism database. The table shows the amino acid identities and also the sequence coverage if it was less than 100% of the protein in L. acidophilus NCFM. Download TABLE S4, DOCX file, 0.02 MB ^{(20.6KB, docx)} .

Copyright © 2017 Theilmann et al.

This content is distributed under the terms of the Creative Commons Attribution 4.0 International license.

To establish the functional significance of these two loci, constructs with single deletions of each PTS EII and P-Bgl gene or a double deletion of both P-Bgl genes were created by using the upp-based counterselectable gene replacement system (36) (Table S5), and the growth phenotypes of the mutant strains were analyzed (Fig. 3). This analysis is very powerful, particularly as the physiological 6′-phosphorylated substrates of the GH1 enzymes are not available to perform enzymatic analyses in vitro. The growth of the ΔLBA0725 mutant (with an inactive PTS EIIABC) was abolished on esculin or salicin, severely reduced on amygdalin, and moderately reduced on cellobiose or gentiobiose. The abolished growth on esculin and salicin identified this EIIABC as the sole transporter for these PG, but the reduced growth on the other compounds suggested additional roles for this transport system. The growth profile of the ΔLBA0726 mutant, which lacks a functional P-Bgl, was similar on PGs, but growth on either cellobiose or gentiobiose was unaffected. This phenotype also supports the specificity of P-Bgl (LBA0726) toward the PGs esculin and salicin (Fig. 3). Accordingly, we can assign the specificity of this locus to the uptake and hydrolysis of PGs, with a preference for distinct monoglucosylated small aromatic aglycones.

FIG 3 .

Phenotypic growth analyses of deletion mutants of EII PTS transporters (left) and phospho-β-glucosidases (right) on the β-glucosides esculin, salicin, and amygdalin, and the disaccharides gentiobiose and cellobiose. The background Δupp strain is shown in gray, and the growth of the mutant strains is shown for PTS EIIC (LBA0227; pink triangle), the phospho-β-glucosidase (LBA0225; light blue triangles), the PTS EIIABC (LBA0725; yellow squares), the second phospho-β-glucosidase (LBA0726; lilac squares), and the double phospho-β-glucosidase mutant (LBA0225/LBA0726; black stars). The color scheme is consistent with that used for the gene loci in Fig. 2. The growth experiments were performed in biological triplicates, and the average errors were <6%.

TABLE S5

Strains used and constructed for gene deletion mutants in L. acidophilus NCFM. Download TABLE S5, DOCX file, 0.02 MB ^{(22.8KB, docx)} .

Copyright © 2017 Theilmann et al.

This content is distributed under the terms of the Creative Commons Attribution 4.0 International license.

The growth of the ΔLBA0227 mutant (inactive EIIC) in the second locus, which was exclusively upregulated by amygdalin, was abolished on both amygdalin and gentiobiose (Fig. 3E and G), both of which share a β-(1,6)-diglucoside moiety (Fig. 1). The phenotypes for salicin and esculin were invariant compared to the wild-type strain (Fig. 3A and C). These data provided compelling evidence for the specificity of this PTS EIIC transporter for amygdalin and gentiobiose, consistent with previously reported upregulation in response to gentiobiose (26). This specificity is also supported by the phenotype of the P-Bgl mutant ΔLBA0225. The severe reduction in growth for the ΔLBA0726 mutant lacking the P-Bgl from the first locus on amygdalin (Fig. 3F), but not on gentiobiose (Fig. 3H), suggests a role for this enzyme in the catabolism of amygdalin. Indeed, growth on amygdalin was only abolished with the double P-Bgl mutant (Fig. 3F). The identification of low levels of prunasin, the singly deglucosylated form of amygdalin (Table S6), suggests that the deglycosylation of amygdalin occurs in two steps, with sequential cleavage of the nonreducing β-(1,6)-linked glucosyl by the P-Bgl that recognizes the β-(1,6)-gentiobiose moiety (LBA0225) and by a second P-Bgl that cleaves monoglucosylated compounds (LBA0726) to release the aglycone moiety. Based on these data, we can assign the specificity of the locus encoding the PTS EIIC transporter (LBA0227) and the phospho-β-glucosidase (LBA0225) to compounds with a β-(1,6)-diglucoside motif, like gentiobiose and amygdalin. The full deglycosylation of PGs possessing a gentiobiose moiety like amygdalin, however, required the additional activity of the second P-Bgl (LBA0726).

TABLE S6

Plant glycosides and their metabolites in L. acidophilus NCFM culture supernatants. Supernatants were analyzed by UHPLC-qTOF-MS. The starting plant glycoside substrates, which were identified in the cultures before inoculation, are shown in bold and underlined. The aglycones are shown in bold. The metabolite analyses were carried out from the 24-h culture supernatant samples. Download TABLE S6, DOCX file, 0.02 MB ^{(22.6KB, docx)} .

Copyright © 2017 Theilmann et al.

This content is distributed under the terms of the Creative Commons Attribution 4.0 International license.

L. acidophilus cells externalize the bioactive aglycones of PGs and preferentially utilize glucosides that support the highest growth levels.

We monitored the growth of L. acidophilus NCFM and analyzed the metabolites in the culture supernatants at 0 and 24 h. The PG were identified in the preculture medium (Table S6). Depletion of the PGs that supported growth (Fig. 1) was proportional to growth (the final OD₆₀₀), and the respective aglycones lacking the glucosyl moiety (loss of 162 Da) (Table S6) were identified in the culture supernatants. The growth on polydatin was verified from the extent of depletion (Fig. 1), the identification of the aglycone resveratrol (Table S6), and the production of lactate. The only deviation from this trend was the absence of the aglycone of amygdalin (mandelonitrile). Instead, the main metabolite of amygdalin utilization was benzaldehyde, which was only detectable by UV, due to its volatility. The PGs that did not support growth persisted, and no metabolites of these PGs were detected at 24 h.

We also monitored the temporal changes in concentrations of the three most available PGs, salicin, esculin, and amygdalin, and of their metabolites in culture supernatants. The concentration of salicin decreased throughout the growth period (Fig. 4A; Fig. S1), while an inverse trend was observed for the aglycone salicyl alcohol during exponential-phase growth. Notably, the aglycone moiety of salicin per se was unable to support growth of L. acidophilus (data not shown). The same pattern was observed for esculin, which was depleted concomitantly with the increase in the concentration of the aglycone metabolite esculetin during the first 12 h of growth (Fig. S1).

FIG 4 .

Time-resolved metabolite analysis of L. acidophilus NCFM grown on plant glucosides. (A) Time course depletion of salicin and appearance of its aglycone salicyl alcohol in the culture supernatants, visualized as the area under the A₂₇₀ peaks in the UHPLC–qTOF-MS chromatograms. (B) Preference of L. acidophilus NCFM for plant glycosides during growth on an equimolar mixture of salicin, esculin, and amygdalin. Salicin was preferred, followed by esculin, while amygdalin was hardly consumed after 24 h. The aglycones of the plant glycosides and the concentration of lactate increased concomitantly with growth.

FIG S1

Results of the time-resolved metabolite analysis of salicin (left), esculin (middle), and amygdalin (right) in L. acidophilus NCFM culture supernatants, analyzed by UHPLC-qTOF-MS. The growth (measured as the OD₆₀₀ and shown as light gray background) together with the concentrations of plant glycosides (full circles) and their main metabolites (hollow circles) are shown. Download FIG S1, PDF file, 0.3 MB ^{(282.9KB, pdf)} .

Copyright © 2017 Theilmann et al.

This content is distributed under the terms of the Creative Commons Attribution 4.0 International license.

The concentration of amygdalin in the culture supernatant also decreased steadily, concomitant with an increase in benzaldehyde (Fig. S1). In contrast to the other 2 PGs, however, only about one-third of the initial amygdalin was utilized during 24 h of growth, and the summed concentration of amygdalin and benzaldehyde was invariant over time. Low levels of the monodeglucosylated metabolite of amygdalin, prunasin (37), were identified (Table S6). Although the corresponding aglycone, mandelonitrile, was identified in the first 6 h ([M + CH₃COO]⁻ adduct; m/z 192.0664), the main amygdalin metabolite was benzaldehyde, which is produced via a hydrogen cyanide elimination reaction of mandelonitrile. This reaction is catalyzed by nitrile lyase but has also been reported to occur spontaneously (38). This is the likely scenario for our experiment, as no nitrile lyase is encoded by L. acidophilus. Detection of traces of scopoletin, the methylated form of the esculin aglycone (Table S6), was the only evidence for enzymatic modification of the aglycones of PG, but the paucity of this species casts doubt on the specificity of this modification. Taken together, our metabolite analyses are supportive of L. acidophilus largely exporting noncarbohydrate moieties without enzymatic modification. The mechanism of externalization is not clear, but the export systems, e.g., an ATP-binding cassette exporter in the case of esculin (LBA0573 to LBA0575), are upregulated in the transcriptome (Table S3).

To evaluate whether amygdalin, esculin, and salicin are taken up randomly or according to a certain preference, we analyzed the supernatants of L. acidophilus NCFM grown on equimolar concentrations of these PG. Strikingly, salicin was the first compound to be fully depleted, followed by esculin, whereas significant amounts of amygdalin persisted after 24 h of growth (Fig. 4B), thus establishing the clear preference of L. acidophilus in the utilization of PG that support its best growth.

DISCUSSION

A considerable proportion of the thousands of diet-derived known phytochemicals mediates positive health effects in humans (39). The daily intake of phytochemicals is relatively high due to the enrichment of common nutritional sources, such as fruits, berries, nuts, vegetables, herbs, and beverages such as wine and tea (13). Frequently, phytochemicals occur as glycoconjugates that exhibit lower bioactivity and bioavailability than their aglycone derivatives, which are smaller in size and typically less polar (40, 41). Therefore, deglycosylation of PGs is likely an important factor in modulating their biological activity (42). The health impact of HGM-mediated biotransformation of drug xenobiotics and diet-derived phytochemicals has gained considerable interest (4, 43). Our insight into this latter metabolic aspect of the HGM is conspicuously limited. The small intestine is the primary site for absorption of nutrients and xenobiotics, which lends extra gravity to the metabolic activities of HGM prevalent in this part of the gastrointestinal tract, where lactobacilli constitute an important part of the microbial population (11). Based on our findings, we report here the versatility of the probiotic bacterium L. acidophilus NCFM in utilization of dietary therapeutically active PG, revealing that only the carbohydrate moieties are catabolized while the aglycones are externalized, making them bio-accessible to absorption by the host or available for further interactions with other organisms of the HGM.

Carbohydrates are mainly taken up by PTS transporters in lactobacilli (28, 44). Translocation is coupled to phosphorylation of the glycoside mostly at the 6′-position via an enzymatic cascade that relays the phosphoryl group to a substrate-specific EIIC complex (45). The EIIC forms the translocation channel that defines the specificity of the EII complex. Phosphorylation is relayed via EIIA and EIIB enzymes, of which the latter is known to interact specifically with EIIC. The EII modules are either encoded by a single gene, e.g., the gene for the EIIABC salicin and esculin uptake system (LBA0725), or by 2 to 3 separate genes, to assemble the phosphorylation cascade. The amygdalin EIIC component (LBA0227) requires coupling from EIIA and EIIB modules that are not encoded by the same locus. This EIIC is only upregulated upon growth on its substrate, amygdalin, whereas the LBA0725 EIIABC is highly upregulated during growth on the substrates salicin and esculin, as well as on amygdalin (Table 1; Fig. 3 and 5). Accordingly, inactivation of the EIIC elicits an impaired growth phenotype only on the substrate amygdalin, whereas the inactivation of the EIIABC causes an approximate 50% reduction of growth on amygdalin, as well as on the two disaccharides cellobiose and gentiobiose, both of which are not hydrolyzed by the P-Bgl encoded by this locus (Fig. 3). The lack of growth on amygdalin or gentiobiose, when the EIIC system is inactivated, precludes uptake of these compounds solely via the EIIABC system. A possible rationale for the coregulation of the two transporters and the phenotypic impact of the EIIABC on nonsubstrates is that the EIIA and/or EIIB components of LBA0725 contribute in coupling phosphorylation to the amygdalin EIIC system and possibly to other EIIC modules. The less drastic phenotype of EIIABC on nonsubstrates, however, suggests that the contribution of this transporter can be complemented by other PTS systems. To our knowledge, this functional overlap between PTS systems that are assigned to different families (46) has not been reported before and merits further investigation. Such an overlap may orchestrate interplay between different transporters to confer the uptake of diverse sugars by bacteria.

FIG 5 .

Plant glucoside utilization model for L. acidophilus and closely related human gut lactobacilli. Plant glucosides consisting of mono- or bicyclic aromatic rings conjugated with a glycosyl moiety and present in the diet are taken up by dedicated PTS transporters and hydrolyzed by specific phospho-β-glucosidases into the glycolytic precursors glucose-6-phosphate and glucose. The aglycones are exported likely by an upregulated ATP-binding cassette exporter or by other unknown transporters, rendering them accessible for absorption by the human host and eliciting various biological activities, most of which are beneficial. Antimicrobial effects and subsequent changes in the microbiota composition are common effects of the aglycones, but further modifications and modulations of biological activity have been reported (4, 43, 49). The solid arrows show the steps established in our study, whereas the dashed lines indicate physiological effects that have been reported in the literature.

There is a large and growing body of evidence on functionalities of phytochemicals and their beneficial health effects (i.e., nutraceuticals) (39, 47, 48). Several intervention studies have shown changes in HGM composition, especially an increase in lactobacilli and bifidobacteria, due to phytochemicals, which are also suggested to have antimicrobial effects (7, 49, 50). The routes of conversion of these compounds, however, have not been addressed at the molecular level. Our data suggest an important role of human gut L. acidophilus in the activation of dietary-relevant PG (Fig. 5). For example, salicin, the best growth substrate for L. acidophilus NCFM in this study, is a pharmacologically inactive precursor of the analgesic and antirheumatic drug salicylic acid. Indeed, salicylic acid has been reported to be the main metabolite (86%) in serum after oral administration of salicin-rich willow bark extract in humans (51). Our study revealed that L. acidophilus performs a step in this bioactivation, via deglycosylation and externalization of salicyl alcohol, which becomes accessible for oxidation to salicylic acid performed by other microbiota. Fraxin, which also sustains the growth of L. acidophilus, is one of the active ingredients in some Chinese and Japanese herbal medicines and has several potential positive health effects, including protection against oxidative stress (52). L. acidophilus also converts polydatin, which is enriched in wines and tea, to resveratrol, which is one of the most-studied therapeutic phytochemicals due to its implication in protection against, e.g., inflammation, cancer, and obesity (53–55). Other lactobacilli have also been implicated in the metabolism of other PGs, e.g., the in vitro conversion of the isoflavonic daidzin, present in soy products, by the pig intestinal commensal Lactobacillus mucosae EPI2, to the estrogen-mimicking aglycone equol, which has been proposed to be protective against breast cancer (56, 57).

In silico analysis of genomic sequences of L. acidophilus strains revealed the conservation of the PG utilization loci identified in the present study, indicating the potential ability of this species to metabolize PGs (Table S4). Our growth survey using four different PG revealed large species variations in growth (Table S2). Generally, L. acidophilus strains were among the top strains in terms of growth on PG, and lactobacilli strains from the gut appeared to better at PG utilization than counterparts from other ecologic niches, suggesting a competitive advantage in the adaptation to the human gut environment. Gene landscape analyses showed a correlation between growth on salicin or esculin and the presence of the intact LBA0724-LBA0726 locus in the tested strains that belong to the taxonomically closely related L. delbrueckii clade, i.e., L. acidophilus, Lactobacillus crispatus, Lactobacillus jensenii, and Lactobacillus gasseri (58) (Fig. 2A). Strains missing one or more genes within this cluster or which have a fragmented version of the LBA0725 transporter gene were conversely unable to grow on esculin or salicin (Table S2). Growth on amygdalin is less common within the L. delbrueckii group, in line with the limited occurrence of the amygdalin gene cluster (LBA0225 to LBA0228). The L. amylovorus strain has a fragmented and likely dysfunctional version of EIIABC LBA0725 (Fig. 2A, total sequence coverage of 72%). This strain is unable to grow on amygdalin, consistent with the involvement of modules from this PTS in the uptake of β-(1,6)-glucosides, as discussed above. The good growth of more distant species, e.g., Lactobacillus plantarum subsp. plantarum and Lactobacillus rhamnosus GG, which lack the gene locus, discloses the presence of alternative routes for the utilization of amygdalin in other Lactobacillus clades. The functional data in the present study, combined with the genetic analysis, provide an extended predictive power for PG utilization within closely related lactobacilli, although the metabolic pathways and transporters are likely to be diverse across a larger taxonomic group. Although our limited screening was not sufficient to establish PG utilization in other microbiota taxa, our results do hint at the specialization of L. acidophilus growth on PGs that are not utilized by other common taxa (Fig. S2).

FIG S2

Growth on plant glycosides of common human gut microbiota commensals from the Bifidobacterium (Bi), Bacteroides (Ba), and Roseburia (R) genera on plant glycosides. The strains were grown in modified MRS medium, except for Roseburia intestinalis, which was grown in YCFA medium (1). The media were supplemented with 0.5% (wt/vol) of the respective substrate, and a control without any supplementation was included (no carb). Growth (measured based on the OD₆₀₀) was determined after 24 h of growth. The reported growth data are means (with standard deviations) of biological duplicates. Download FIG S2, PDF file, 0.1 MB ^{(125.2KB, pdf)} .

Copyright © 2017 Theilmann et al.

This content is distributed under the terms of the Creative Commons Attribution 4.0 International license.

Taken together, this study enabled the elucidation of a novel pathway for the bioconversion of PGs and the externalization of their bioactive aglycones by the human gut-adapted L. acidophilus and closely related taxa. The bioconversion of PG is accompanied by a modulation of the activities of the phytochemicals in the small intestine, which renders these compounds bioavailable for further functional interplay with the host and other HGM taxa (Fig. 5). In conclusion, this study casts light on underexplored facets of the metabolism of plant-derived glycosides and their bioconversion by the microbiota that exert a significant impact on human health. Further work is required to bring insight on the fate of PG in the human gut ecologic niche and to evaluate the clinical and possible therapeutic implications of PG bioconversion by the HGM.

MATERIALS AND METHODS

Chemicals and carbohydrates.

The plant glycosides utilized in this work are described in Table S1. All other chemicals used were of high purity.

Bacterial strains and growth.

Bacterial strains and plasmids used in this study are presented in Table S5. Lactobacillus strains were propagated statically in de man-Rogosa-Sharpe (MRS) broth (Difco Laboratories, Detroit, MI) under aerobic conditions or on MRS agar plates (1.5% [wt/vol]; Difco) under anaerobic conditions at 37°C, or at 42°C for pTRK669 elimination (59). Recombinant L. acidophilus strains were selected in the presence of 2 μg ml⁻¹ erythromycin (Sigma-Aldrich, St. Louis, MO, USA) and/or 2 to 5 μg ml⁻¹ chloramphenicol (Sigma). Selection of plasmid-free double recombinants was done on a semidefined agar medium containing 2% (wt/vol) glucose (GSDM) (60) with 100 μg ml⁻¹ 5-fluorouracil (5-FU; Sigma), as described by Goh et al. (36).

For initial growth and gene expression studies, L. acidophilus NCFM was propagated three times in semidefined medium supplemented with either 1% or 0.5% (wt/vol) of the plant glycoside or carbohydrate (Table S1). The plant glycoside screening was carried out in at least biological triplicates. For the RNA-Seq analysis, cells were harvested by centrifugation (3,220 × g, 10 min, 25°C) in the mid-exponential phase (OD₆₀₀, 0.6 to 0.8) and stored at −80°C for subsequent RNA isolation. For the mass spectrometry metabolite analyses, 200-μl samples were taken at 0, 3, 6, 9, 12, and 24 h of growth, cells were removed by centrifugation, and supernatants were stored at −80°C for further analysis.

Phenotypic growth assays were performed using 1% (vol/vol) overnight cultures of L. acidophilus strains (Table S5) and other Lactobacillus species (Table S2) grown on SDM supplemented with 1% (wt/vol) glucose to inoculate 200 μl of SDM supplemented with 1% (wt/vol) of the examined carbohydrate (0.5% in the case of esculin) in 96-well microplate wells (Corning Costar, Corning, NY). Phenotypic growth assays of L. acidophilus NCFM and its knockout variants were performed in biological triplicates, whereas the growth screening of other L. acidophilus strains or other Lactobacillus species was performed in biological duplicates. The microplates were sealed with clear adhesive film and incubated at 37°C in a Fluostar Optima microplate reader (BMG Labtech, Cary, NC), and the culture OD₆₀₀ was monitored for 30 h.

Escherichia coli EC101, used for generating the L. acidophilus gene knockouts, was grown in brain heart infusion (BHI) broth (Difco) at 37°C with aeration in the presence of kanamycin (40 μg ml⁻¹). Recombinant E. coli EC101 cells containing pTRK935-based plasmids were selected with erythromycin (150 μg ml⁻¹). Growth of Bifidobacterium longum subsp. longum DSM 20219, Bifidobacterium longum subsp. infantis DSM 20088, and Bacteroides ovatus DSM 1896 was carried out in MRS medium or modified MRS medium supplemented with a 1% (wt/vol) carbon source. Roseburia intestinalis L1-82 was cultured in yeast extract-casein hydrolysate-fatty acids (YCFA) medium supplement with a carbon source (61).

RNA extraction, sequencing, and transcriptional analysis.

Pellets from 10-ml cell cultures were resuspended in 1 ml of TRI reagent (Thermo Fisher Scientific, Waltham, MA) and thereafter transferred into 1.5-ml bead beating conical tubes with 0.1-mm glass beads (BioSpec Products, Inc., Bartlesville, OK), and cells were disrupted by six 1-min cycles (with 1 min on ice intermittently) with a Mini-Beadbeater 16 apparatus (BioSpec Products). RNA purification was performed using the Direct-zol RNA MiniPrep kit (Zymo Research, Irvine, CA) with on-column DNase I treatment followed by an additional Turbo DNAse (Thermo Fisher) treatment of the eluted RNA, and further purification was carried out using the RNA Clean and Concentrator 5 kit (Zymo Research). The quality of RNA was analyzed using an Agilent 2100 Bioanalyzer (Agilent Technologies, Santa Clara, CA), and the absence of genomic DNA was confirmed by PCR using L. acidophilus NCFM gene-specific primers. Library preparation and RNA sequencing were performed by the High-Throughput Sequencing and Genotyping Unit of the Roy J. Carver Biotechnology Centre, University of Illinois (Urbana-Champaign, IL). After rRNA removal (using a Ribo-Zero rRNA removal kit for bacteria; Illumina, San Diego, CA), library preparation was carried out using the TruSeq stranded total RNA library prep kit (Illumina). Single-read RNA sequencing was performed using a HiSeq 2500 ultrahigh-throughput sequencing system (Illumina) and the Illumina HiSeq SBS v4 kit (Illumina) with a read length of 160 nucleotides (nt). The raw reads were demultiplexed with the bcl2fastq conversion software (v 2.17.1.14; Illumina), trimmed for the adapter sequences, quality trimmed to remove sequence reads with an error probability threshold of 0.001 (Phred score, 30), and filtered to remove reads of <20 nt by using Geneious version 9.0.4 (62). The quality of the reads was assessed by using FastQC v0.11.5 (http://www.bioinformatics.babraham.ac.uk/projects/fastqc/). The resulting reads were then mapped to the L. acidophilus NCFM reference genome by using the Geneious Mapper with default settings (62). The sequencing coverage depths were calculated to be 610× to 692×, and transcriptional analyses were based on the number of normalized transcripts per million (nTPM), calculated within Geneious. Differentially expressed genes were defined as having a log₂ ratio of ≥2 unless otherwise stated.

RT-qPCR assay.

To confirm the results of the RNA-Seq transcriptional study, RT-qPCR analysis of selected genes was performed (63). Briefly, the iTaq universal SYBR green one-step kit (Bio-Rad Laboratories, Hercules, CA) was used according to the manufacturer’s instructions, except for scaling down to 25-μl reaction mixtures with 50 ng of RNA template and 300 nM of each primer (Table S7). An iCycler MyiQ single-color detection system (Bio-Rad) was used, and the data were analyzed using iCycler MyiQ software v1.0 (Bio-Rad). The correlation coefficients for the standard curves and PCR efficiencies were between 0.930 and 0.999 and 88.7% to 102.5%, respectively.

TABLE S7

Primers used in this study. Download TABLE S7, DOCX file, 0.02 MB ^{(19.8KB, docx)} .

Copyright © 2017 Theilmann et al.

This content is distributed under the terms of the Creative Commons Attribution 4.0 International license.

DNA manipulation and transformation.

Genomic DNA from L. acidophilus NCFM and mutants thereof was isolated using the ZR fungal/bacterial DNA MiniPrep kit (Zymo Research). Plasmid DNA was isolated using the QIAprep Spin MiniPrep kit (Qiagen, Hilden, Germany). Restriction enzymes were from Roche (Basel, Switzerland), and T4 DNA ligase was from NEB (New England Biolabs, Ipswich, MA). PfuUltra II fusion HS DNA polymerase (Agilent Technologies, Santa Clara, CA) was used for cloning, and Choice-Taq Blue DNA polymerase (Denville Scientific, South Plainfield, NJ) was used for PCR screening of recombinants. PCR amplicons were analyzed on 0.8% (wt/vol) agarose gels and extracted using the QIAquick gel extraction kit (Qiagen). DNA sequencing was performed by Eton Biosciences (Durham, NC).

Construction of gene deletion mutants.

The L. acidophilus NCFM genes LBA0225 and LBA0726, both of which encode P-Bgl of glycoside hydrolase family 1 (GH1) enzymes (34), in addition to the LBA0227 and LBA0725 genes which encode EIIC and EIIABC components of two PTS, respectively (64), were deleted using the upp-based counterselectable gene replacement system (36). Briefly, in-frame deletions were constructed by amplifying 650 to 750 bp of the up- and downstream flanking regions of the deletion targets with two primer pairs, e.g., LBA0225A/LBA0225B and LBA0225C/LBA0225D (Table S7). The resulting purified products were joined by splicing using overlap extension PCR (SOE-PCR) (65) and amplified to establish the deletion alleles. The SOE-PCR products, which included flanking restriction enzyme sites, were cloned within the BamHI and SacI/EcoRI sites of the pTRK935 integration vector and transformed into E. coli EC101. The resulting recombinant plasmids (pTRK1113 to -6) were confirmed by DNA sequencing and electroporated into L. acidophilus NCK1910 (Table S5), which contains the pTRK669 helper plasmid, and recovery of single- and double-crossover recombinants was performed as previously described (63). Recombinants carrying the new gene deletion alleles were isolated by colony PCR using primer pairs denoted up-down (e.g., LBA0225up/LBA0225down), which anneal to the flanking regions of the amplicons. Sequence integrity and in-frame deletions were verified by DNA sequencing employing the aforementioned primer pairs and a primer denoted mid (e.g., LBA0225mid). The mutations were in-frame deletions of 90 to 96% of the coding regions.

Analysis of plant glycoside uptake from L. acidophilus NCFM culture supernatants using mass spectrometry.

The supernatants of L. acidophilus NCFM cultures grown on amygdalin, arbutin, esculin, or salicin as carbon sources were analyzed during 24 h by using ultrahigh-performance liquid chromatography–diode array detection–quadruple time of flight mass spectrometry (UHPLC–DAD–Q-TOF-MS). Samples were diluted 1:20 (vol/vol) with methanol, and an injection volume of 1.5 μl was used. Separation was carried out on an Agilent Poroshell 120 phenyl-hexyl column (2.1 by 150 mm, 2.7 μm) using the Infinity 1290 UHPLC system (Agilent Technologies, Santa Clara, CA) equipped with a UV-visible spectrum diode array detector. Separation was performed at 0.35 ml min⁻¹, 60°C, with a linear gradient consisting of water (A) and acetonitrile (B), both buffered with 20 mM formic acid, starting at 10% B and increased to 100% in 15 min, at which conditions were held for 2 min, returned to 10% in 0.1 min, and kept for 3 min. MS detection was performed on an Agilent 6550 iFunnel QTOF MS equipped with the Agilent Dual jet stream electrospray ion source with a drying gas temperature of 160°C and gas flow of 13 liters min⁻¹, whereas the sheath gas temperature was 300°C and flow was 16 liters min⁻¹. Ionization was conducted in ESI− mode with a capillary voltage set to 4,000 V and nozzle voltage set to 500 V. Mass spectra were recorded as centroid data for m/z 85 to 1700 in MS mode with an acquisition rate of 10 spectra s⁻¹. To avoid carryover, the needle seat was back-flushed for 15 s at 4 ml min⁻¹ with each of the following: (i) isopropanol–0.2% ammonium hydroxide (wt/vol) in water (1:1 [vol/vol]); (ii) acetonitrile with 2% formic acid (wt/vol); (iii) water with 2% formic acid. Data were processed with the Agilent MassHunter qualitative analysis B.07.00 software package (Agilent Technologies), and molar concentrations were obtained from standard curves of the plant glycosides and their main metabolites. Targeted compound searches were performed using lists of previously identified compounds plus standard chemical modifications (37, 51, 66).
