Abstract
Esophageal cancer (EC) is the eighth most common highly aggressive cancer worldwide. The purpose of this study was to investigate the effect of the DNA methyltransferase inhibitor RG108 on the radiosensitivity of EC cells. MTT and clonogenic assays were performed to assess the effect of RG108 on the proliferation and radiosensitivity of Eca-109 and TE-1 human EC cells. The cell cycle progression and alterations in apoptosis were analyzed by flow cytometry. For the in vivo analysis, the Eca-109 cells were inoculated into nude mice to establish tumors. Tissues from xenografts were obtained to detect changes to microvessels and tumor growth by immunohistochemistry (IHC). RNA-seq was used to identify differentially expressed genes. We found that RG108 increased the radiosensitivity of EC cells. Apoptosis and G2/M-phase arrest were induced by X-ray irradiation and were significantly enhanced by RG108. In addition, growth of tumor xenografts from the Eca-109 cells was significantly inhibited by irradiation in combination with RG108. The RNA-seq analysis revealed that, compared with radiation alone, X-ray irradiation in combination with RG108 altered the expression of 121 genes in multiple pathways, including the TGF-β signaling pathway and the Epstein-Barr virus infection pathway. In conclusion, RG108 induced radiosensitivity in EC cells both in vitro and in vivo.
Keywords: RG108, methylation, esophageal cancer, radiosensitivity, apoptosis
Introduction
Esophageal cancer (EC) is the eighth most common highly aggressive gastrointestinal cancer and is the sixth leading cause of cancer-related deaths globally (1). In 1990 EC caused 345,000 deaths and this number rose to 400,000 in 2012 (2). The methods for diagnosing EC have since been improved and ionizing radiation (IR) now plays an important role in the treatment of human EC. Combining radiotherapy with chemotherapy improves the effects of treatment for advanced EC, however, the 5-year survival rate is still poor. Intrinsic radioresistance accounts for the high recurrence and poor 5-year survival rate of patients with EC (3). Thus, there is an urgent need to extend our understanding of the molecular mechanisms underlying the progression of EC and provide new strategies to overcome EC radioresistance by manipulating key targets.
Multiple genetic and epigenetic alterations are involved in the growth of ECs, including tumor suppressor gene (TSG) mutations, loss of heterozygosity and promoter methylation, as well as overexpression of oncogenes (4,5). However, the underlying molecular mechanisms that cause carcinogenesis are poorly understood. Epigenetic events, such as aberrant de novo methylation of gene promoters, have recently been defined as markers of human cancers and therapeutic strategies targeting these mechanisms are currently being tested in several clinical trials (6,7). Among the compounds being tested, the DNA methyltransferase inhibitors (DNMTIs), such as decitabine (5-aza-2′-deoxycytidine), have been demonstrated to reverse the silencing of tumor-suppressor genes, such as PRKD1, TP53 and ESR1, thus upregulating their expression (8–10).
However, the effectiveness of these compounds depends on their incorporation into DNA, which may lead to dose-dependent cytotoxicity (11). Due to the potential toxicity of nucleoside analogs, there has been a focus on discovering new compounds that may directly target DNMTs. RG108, a non-nucleoside analog designed to target human DNMT1, binds to the active site of DNMT and has been demonstrated to be effective in reactivating several tumor-suppressor genes in human colon cancer cells without affecting the methylation status of centromeric repeats (12). In addition, RG108 lacks the high levels of cytotoxicity associated with 5-Aza-dCR, which inhibits DNA methyltransferase activity to achieve DNA demethylation (12,13). Thus, the aim of the present study was to assess the impact of RG108 on the viability, radiosensitization, apoptosis and cell cycle progression of EC cells.
Materials and methods
Cell culture and irradiation treatment
The commonly used esophageal squamous cancer cell lines Eca-109 and TE-1 which were obtained from the American Type Culture Collection (ATCC, Manassas, VA, USA) were maintained in Dulbecco's modified Eagle's medium (DMEM; HyClone Laboratories, Logan, UT, USA) containing 10% fetal bovine serum (FBS; HyClone Laboratories), 100 µg/ml streptomycin and 100 U/ml penicillin in a humidified incubator at 37°C with 5% CO2. RG108 was purchased from Selleck Chemicals (Houston, TX, USA), dissolved in dimethyl sulfoxide (DMSO) and stored at −20°C until use. The cells were pretreated with different concentrations of RG108 diluted in DMEM, followed by irradiation with a single dose of X-ray irradiation using a linear accelerator (Rad Source Technologies Inc., Suwanee, GA, USA) at a dose rate of 1.15 Gy/min and 160 kV X-ray energy.
Cell viability assay
The viability of cells was evaluated using the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay. The cells were seeded at a density of 2.5×103/well in 96-well flat bottom plates 24 h before treatment with RG108 and/or irradiation. The cells were then incubated at 37°C in a 5% CO2 environment for 48 h. Twenty microliters of a 5 mg/ml MTT solution were added into each well and the cells were incubated for another 4 h. Then the supernatant was removed and the cells were lysed by adding 100 µl of DMSO. The absorbance at 490 nm was assessed by an enzyme-linked immunosorbent assay reader. All tests were repeated three times independently.
Colony formation assay
The cells were seeded in triplicate into 6-well flat bottom plates at a density of 200–6,000 cells/well depending on the dose of radiation. Subsequently, the cells were treated with or without 25 µM RG108 for 6 h and the supernatant was removed. Then, the cells were irradiated with 0, 2, 4, 6 or 8 Gy X-ray radiation and incubated for 12 days to form cell clones. Subsequently, the cells were fixed with methanol and stained with 0.1% crystal violet. The cells were manually counted under a dissecting microscope and clones were defined as groups of more than 50 cells. The radiation sensitivity enhancement ratios (SER) were calculated according to the multi-target single hit model. Each experiment was repeated three times.
Cell apoptosis and cell cycle analysis
The apoptotic cells were quantified using an Annexin V/7-aminoactinomycin D (7-AAD) double staining kit according to the manufacturer's instructions (BD Biosciences, San Jose, CA, USA). Briefly, the cells were exposed to 25 µM RG108 for 6 h and then harvested 48 h after treatment with either 6 Gy of X-ray irradiation or sham treatment. The percentage of apoptotic cells was assessed with a FACSCalibur system (BD Biosciences). The percentage of both Annexin V+/7AAD− cells, early in the apoptotic process, and Annexin V+/7AAD+ cells, in late apoptosis, was quantified.
For the cell cycle analysis, the cells were collected 24 h after treatment with RG108 or RG108 combined with 6 Gy of X-ray irradiation and fixed with 70% precooled ethanol overnight. After staining with propidium iodide (PI, 10 µg/ml; Sigma-Aldrich, St. Louis, MO, USA) in the dark for 30 min, flow cytometry was performed with a FACSCalibur system using ModFit LT software (Verity Software House Inc., Topsham, ME, USA).
Western blot analysis
The cells were harvested 48 h after treatment with RG108 and/or 6 Gy irradiation. Then they were incubated for 40 min on ice with ice-cold RIPA buffer (50 mM Tris pH 7.2, 150 mM NaCl, 1% NP-40, 1% sodium deoxycholate, 0.05% SDS and 1 mM PMSF). After centrifugation at 4°C for 5 min at 12,000 × g, supernatants were analyzed with an enhanced BCA protein assay kit (Beyotime Institute of Biotechnology, Nantong, China). The proteins were separated by sodium dodecyl sulfate polyacrylamide gel electrophoresis (SDS-PAGE) with 12% gels and transferred onto polyvinylidene fluoride (PVDF) membranes. The gels were run and transferred under the same experimental conditions. The membranes were blocked with 5% skim milk in TBS containing 0.1% Tween-20 (TBST) for 1 h at room temperature, followed by incubation overnight at 4°C with either Bax (1:200; mouse; cat. no. sc-20067) or Bcl-2 primary antibodies (1:1,000; mouse; cat. no. sc-7382; both from Santa Cruz Biotechnology, Santa Cruz, CA, USA). The membranes were washed three times in TBST and incubated with horseradish peroxidase-conjugated anti-mouse or anti-rabbit secondary antibodies (1:1,000; cat. no. A0192) for 2 h at room temperature. β-actin (Beyotime Institute of Biotechnology) was used as a loading control.
Tumor xenografts
We established a tumor transplantation model in BALB/c mice (SLAC Laboratory Animal Center, Shanghai, China) with Eca-109 cells. The mice were kept under specific pathogen-free conditions on a 12-h light-dark cycle. To produce tumors, 1×107 Eca-109 cells were suspended in 150 µl of PBS and subcutaneously injected into each posterior flank region of 5-week-old male BALB/c nude mice (~18 g). When the tumors reached 150–200 mm3, the mice were randomly divided into four groups as follows (5 mice/group): i) control (no radiation, injection of 100 µl of sterile DMSO daily for 6 days); ii) RG108 alone (no radiation, injection of RG108 daily for 6 days, 50 mg/kg total in a volume of 100 µl); iii) IR plus DMSO (injection of 100 µl of 0.01% sterile DMSO daily for 6 days, followed by 8 Gy radiation 1 h after the last DMSO injection); and iv) IR plus RG108 treatment (injection of RG108 daily for 6 days, 50 mg/kg total in a volume of 100 µl, followed by 8 Gy radiation after the last RG108 treatment). Both DMSO and RG108 were intraperitoneally injected. The tumor sizes were assessed with digital calipers at regular intervals and their volumes were calculated according to the following formula: tumor volume = 0.52 × length × width2 (14). Tumor growth curves were produced and data are presented as the mean ± SEM. The animals were sacrificed 30 days after the first inoculation and their tumors were frozen at −80°C or fixed in 10% formalin overnight and subjected to IHC analysis. The animal experiments were approved by the Institutional Animal Care and Use Committee of Soochow University.
RNA-seq analysis of gene expression
Total RNA was extracted from cells with TRIzol reagent (Invitrogen Life Technologies, Carlsbad, CA, USA). RNA purity was checked using a Nano Photometer® spectrophotometer (Implen Inc., Westlake Village, CA, USA) and RNA concentrations were assessed using a Qubit® RNA Assay kit with a Qubit® 2.0 Fluorometer (Invitrogen Life Technologies). The transcriptome library for sequencing was generated using a VAHTSTM mRNA-seq v2 Library Prep Kit for Illumina® (Vazyme Biotech Co., Ltd, Nanjing, China) and the index-coded samples were clustered using VAHTS RNA Adapters set1/set2 for Illumina (Vazyme Biotech) according to the manufacturer's instructions. After clustering, the libraries were sequenced on an Illumina Hiseq X Ten platform using a (2×150 bp) paired-end module. The raw images were transformed into raw reads by base calling using CASAVA 1.8 (http://www.illumina.com/support/documentation.ilmn). In addition, cluster analysis, Gene Ontology (GO) and pathway enrichment analysis (KOBAS 2.0) of differentially expressed genes were implemented.
Statistical analysis
Data are presented as the mean ± SEM from three independent experiments. Differences were analyzed using Student's t-test when only two groups were present, while differences among more than two groups were tested by one-way analysis of variance (ANOVA). The interaction between RG108 and radiation was assessed using two-way ANOVA for both in vitro and in vivo efficacy assays. SPSS 19.0 (SPSS, Inc., Chicago, IL, USA) was used for all statistical analyses. Differences were considered statistically significant when P<0.05.
Results
Growth inhibition effects of RG108 in EC cells
To evaluate the inhibitory effects of RG108 on the growth of the cultured human EC cell lines Eca-109 and TE-1, we first tested whether RG108 alone, at a range of different concentrations, inhibited the proliferation of human EC cells. The results indicated that RG108 inhibited cell proliferation in both Eca-109 and TE-1 cells in a dose- and time-dependent manner (Fig. 1A and B). The 50% inhibitory concentrations (IC50) of RG108 against Eca-109 and TE-1 cells were 70 and 75 µM, respectively. We selected 25 µM RG108, which resulted in ~90% cell viability, as the non-toxic dose for the subsequent experiments.
Figure 1.
Cytotoxicity of RG108 on Eca-109 and TE-1 cells in vitro. MTT assays were used to assess the viability of (A) Eca-109 and (B) TE-1 cells incubated with various concentrations of RG108 for 6, 12 or 24 h. (C) Eca-109 and (D) TE-1 cells were incubated with a non-toxic dose of RG108 for 0, 2, 4 or 6 h before receiving 0 or 6 Gy of X-ray irradiation. Subsequently, the cells were incubated for another 48 h and their viability was assessed. The viability of control cells was normalized to 100%. Data are presented as the mean ± SEM of three independent experiments.
We next assessed whether pretreatment with RG108 enhanced the anti-proliferative effect of irradiation on EC cells. The results revealed that pretreatment with 25 µM of RG108 inhibited proliferation of both cell lines in a time-dependent manner (Fig. 1C and D). Given that 6 h of RG108 pretreatment before IR sensitized the EC cells to IR-induced cell death, this pretreatment time was used for further studies.
RG108 at a non-toxic dose reduces focus formation and enhances the anti-growth effect of radiation in both Eca-109 and TE-1 cells
Clonogenic assays were performed to investigate the effect of a low RG108 dose on the radiosensitivity of EC cell lines. Firstly, we examined the clonogenicity of cells after treatment with 25 µM RG108 or an equivalent volume of DMSO (control) for 6 h with or without IR. As shown in Fig. 2A, the number of colonies after treatment with 25 µM RG108 and 6 Gy of X-ray irradiation was significantly decreased compared with the control (P<0.05) for both Eca-109 and TE-1 cells. Thus, RG108 reduced the radioresistance of both Eca-109 and TE-1 cells (SER = 1.217, Fig. 2B). These results demonstrated that a non-toxic dose of RG108 (25 µM) decreased focus formation and significantly reduced the radioresistance of EC cells.
Figure 2.
Colony formation assay for analyzing the effect of RG108 on the radiosensitivity of Eca-109 and TE-1 cells. (A) Colony formation assays and (B) clonogenic cell survival curves were generated. The data were normalized to those of the unirradiated control cells. D0, Dq and calculated SER values for IR and IR + RG108 are shown.
RG108 modulates apoptosis of human EC cells after IR
To investigate whether RG108 at a non-toxic dose could enhance radiation-induced apoptosis in EC cells, we performed Annexin V/7-AAD double-staining assays to analyze cellular apoptosis. As depicted in Fig. 3A and B, compared with control cells, apoptosis was modestly increased in both cell lines by treatment with RG108 or IR alone. However, apoptosis was significantly increased by treating cells with 25 µM RG108 for 6 h before exposure to IR in both cell lines.
Figure 3.
Induction of apoptosis by RG108 and/or IR in EC cells. (A) Eca-109 and TE-1 cells were treated with 25 µM RG108 or DMSO for 6 h before being exposed to 6 Gy of X-ray irradiation. The percentage of apoptotic cells was evaluated 48 h later by flow cytometry. Data are presented as the mean ± SEM (*P<0.05 compared with control treatment). (C) Western blot analysis of apoptosis-related proteins including Bcl-2 and Bax.
Subsequently, we examined whether RG108 can regulate the expression of genes associated with apoptosis by western blot analysis. The results revealed that pretreatment with 25 µM RG108 for 6 h before 6 Gy irradiation significantly inhibited the expression of Bcl-2, while it upregulated the expression of Bax, in both Eca-109 and TE-1 cells (Fig. 3C). Collectivelly, these results indicated that apoptosis of EC cells was significantly increased by RG108 at a range of non-toxic doses in combination with IR.
RG108 combined with IR enhances G2/M cell cycle arrest in EC cells
Eca-109 and TE-1 cells were mock treated or pretreated with 25 µM RG108 for 6 h. Subsequently, the cells were exposed to IR and the cell cycle was analyzed after 48 h. As demonstrated in Fig. 4, compared with the control group, pretreatment with 25 µM RG108 alone did not change the distribution of the cell cycle phases in either of the two cell lines. While 6 Gy of X-ray irradiation alone induced a slight increase of Eca-109 and TE-1 cells in G2/M phase, pretreatment with 25 µM RG108 for 6 h in combination with IR significantly increased this radiation-induced arrest inthe G2/M phase by 9.77% in Eca-109 cells and 7.97% in TE-1 cells (both P<0.05). These results indicated that combined treatment with RG108 and IR increased the G2/M arrest of the EC cells induced by radiation.

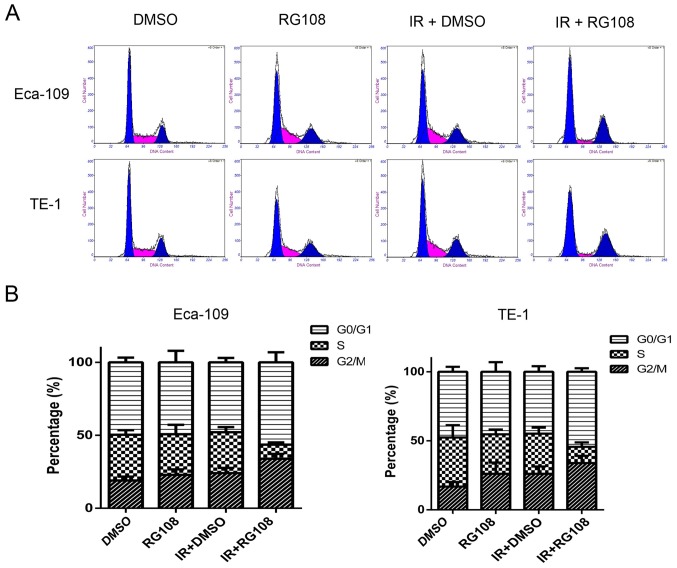

Figure 4.
RG108 disturbs the cell cycle of EC cells after IR. (A) The cell cycle distributions of the Eca-109 and TE-1 cells were assessed using flow cytometry. (B) Quantification of the cell cycle distributions after the indicated treatments.
RG108 inhibits tumor growth and enhances radiosensitivity in a mouse xenograft model
To examine the inhibitory effect of RG108 on EC-cell growth in vivo, the Eca-109 cells were subcutaneously inoculated into the right posterior flank region of 5-week-old male BALB/c nude mice. When tumors reached 150–200 mm3 in volume, the mice were randomly divided into four groups. Either DMSO or RG108 was intraperitoneally injected into mice daily for 6 days. Mice in each group exhibited no differences in body weight and no observable pathological abnormalities (data not shown), indicating no gross toxicity. As demonstrated in Fig. 5A and B, treatment with RG108 or IR alone slightly decreased the xenograft size, whereas the combination of RG108 and IR significantly decreased the volume of tumors compared with the control treatment (57% reduction, P<0.05).

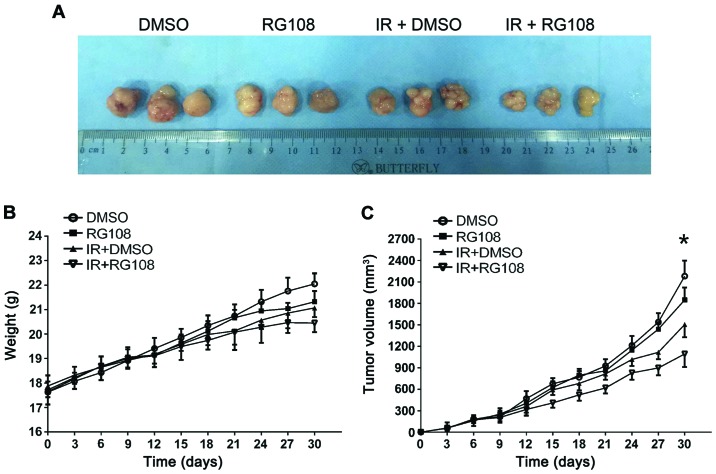

Figure 5.
Effects of RG108 on the tumor growth of xenografts. Eca-109 cells were injected into each posterior flank region of five nude mice per treatment group. (A) Representative subcutaneous xenografts from mice of each group at the final time-point. (B) Mouse body weights and (C) tumor sizes were assessed at 3-day intervals. *P<0.05, compared with IR treatment alone. Data are presented as the mean ± SEM.
RG108 inhibits angiogenesis and cell proliferation in response to X-ray irradiation in vivo
To characterize the molecular changes of the xenografts, the proliferation marker Ki67 and angiogenesis marker CD31 were examined. As depicted in Fig. 6 (top), RG108 or IR alone modestly reduced the expression of Ki67, whereas the number of Ki67-positive cells was significantly decreased in Eca-109 tumors by combined treatment with both RG108 and IR (P<0.05). Similarly, compared to treatment with RG108 or IR alone, the combination therapy significantly reduced tumor angiogenesis (P<0.05). As shown in Fig. 6 (bottom), treatment with RG108 or IR alone modestly reduced the expression of CD31, but combined treatment with both RG108 and IR significantly decreased the expression of CD31.
Figure 6.
Representative IHC images showing Ki67 and CD31-staining in xenografts from Eca-109 cells (magnification, ×400).
RG108 increases the radiosensitivity of Eca-109 cells via a complex mechanism
We profiled the gene expression of Eca-109 cells after either 6 Gy of X-ray irradiation or a combination of 25 µM RG108 and irradiation to further analyze the underlying mechanisms responsible for RG108-mediated radiosensitivity. RNA-seq analysis identified a total of 121 genes (45 upregulated and 76 downregulated) with significantly altered expression levels (|log2 ratio| ≥1 and P-value <0.05) between the two treatments (Tables I and II). RG108 appeared to modulate the radiosensitivity of Eca-109 cells via a complex mechanism. Pathway analysis revealed that RG108 treatment affected multiple pathways, including the TGF-β signaling pathway and Epstein-Barr virus infection pathway (Fig. 7).
Table I.
Microarray analysis of upregulated genes in Eca-109 cells (6 Gy of X-ray irradiation plus RG108 vs. 6 Gy of X-ray irradiation alone).
| ID | Gene name | Locus | log2 (RG108 + IR/ctr + IR) | P-value | Description |
|---|---|---|---|---|---|
| 1 | ABHD14A-ACY1 | chr3 | 1.79769e+308 | 0.0000000328 | ABHD14A-ACY1 read-through |
| 2 | LOC388780 | chr20 | 1.79769e+308 | 0.0007827010 | Uncharacterized LOC388780 |
| 3 | AGAP1-IT1 | chr2 | 1.79769e+308 | 0.0037878500 | AGAP1 intronic transcript 1 |
| 4 | RNF103-CHMP3 | chr2 | 3.0834500000 | 0.0008902720 | RNF103-CHMP3 read-through |
| 5 | CNFN | chr19 | 2.4991900000 | 0.0015629000 | Cornifelin |
| 6 | PIK3CD-AS2 | chr1 | 2.4472000000 | 0.0048119700 | PIK3CD antisense RNA 2 |
| 7 | ID2-AS1 | chr2 | 2.3098600000 | 0.0037836900 | ID2 antisense RNA 1 (head to head) |
| 8 | SLMO2-ATP5E | chr20 | 2.2677500000 | 0.0002843230 | SLMO2-ATP5E read-through |
| 9 | AMTN | chr4 | 2.2395500000 | 0.0057826300 | Amelotin |
| 10 | F2RL2 | chr5 | 2.0639000000 | 0.0003827790 | Coagulation factor II thrombin receptor like 2 |
| 11 | ZNF559-ZNF177 | chr19 | 2.0248700000 | 0.0050070200 | ZNF559-ZNF177 read-through |
| 12 | GCOM1, MYZAP | chr15 | 1.8443900000 | 0.0000197514 | GRINL1A complex locus 1 |
| 13 | C1orf53 | chr1 | 1.7266700000 | 0.0000011706 | Chromosome 1 open reading frame 53 |
| 14 | MMP13 | chr11 | 1.6353900000 | 0.0021975000 | Matrix metallopeptidase 13 |
| 15 | TOPORS-AS1 | chr9 | 1.6260200000 | 0.0043661900 | TOPORS antisense RNA 1 |
| 16 | RPS10-NUDT3 | chr6 | 1.5762500000 | 0.0000082438 | RPS10-NUDT3 read-through |
| 17 | C7orf55-LUC7L2 | chr7 | 1.5491400000 | 0.0000433101 | C7orf55-LUC7L2 read-through |
| 18 | FAM9B | chrX | 1.4650900000 | 0.0002975920 | Family with sequence similarity 9 member B |
| 19 | GGACT | chr13 | 1.4237200000 | 0.0003725270 | γ-glutamylamine cyclotransferase |
| 20 | EVA1A | chr2 | 1.3947700000 | 0.0071589000 | Eva-1 homolog A, regulator of programmed cell death |
Table II.
Microarray analysis of downregulated genes in Eca-109 cells (6 Gy of X-ray irradiation plus RG108 vs. 6 Gy of X-ray irradiation alone).
| ID | Gene name | Locus | log2 (RG108 + IR/ctr + IR) | P-value | Description |
|---|---|---|---|---|---|
| 1 | FOXB1 | chr15 | −3.2752 | 0.0021565800 | Forkhead box B1 |
| 2 | RDH5 | chr12 | −3.0106 | 0.0003470500 | Retinol dehydrogenase 5 |
| 3 | C19orf71 | chr19 | −2.85166 | 0.0001936530 | Chromosome 19 open reading frame 71 |
| 4 | RHAG | chr6 | −2.17175 | 0.0020515500 | Rh-associated glycoprotein |
| 5 | CNTD2 | chr19 | −1.83579 | 0.0006623760 | Cyclin N-terminal domain containing 2 |
| 6 | MAFB | chr20 | −1.76114 | 0.0000580816 | MAF bZIP transcription factor B |
| 7 | GATSL3 | chr22 | −1.62313 | 0.0030739500 | GATS protein-like 3 |
| 8 | INO80B-WBP1 | chr2 | −1.60966 | 0.0000335464 | INO80B-WBP1 read-through (NMD candidate) |
| 9 | YPEL1 | chr22 | −1.57025 | 0.0002142530 | Yippee like 1 |
| 10 | POC1B-GALNT4 | chr12 | −1.46739 | 0.0000269476 | POC1B-GALNT4 read-through |
| 11 | LOC100507472 | chr15 | −1.45729 | 0.0000060501 | Uncharacterized LOC100507472 |
| 12 | LOC389199 | chr4 | −1.45482 | 0.0010464800 | Uncharacterized LOC389199 |
| 13 | AMDHD1 | chr12 | −1.45002 | 0.0000036856 | Amidohydrolase domain containing 1 |
| 14 | SOX7 | chr8 | −1.42999 | 0.0002313520 | SRY-box 7 |
| 15 | CHRD | chr3 | −1.42985 | 0.0015947400 | Chordin |
| 16 | DFNB59 | chr2 | −1.41377 | 0.0070473000 | Deafness, autosomal recessive 59 |
| 17 | ICOSLG | chr21 | −1.40911 | 0.0000000006 | Inducible T-cell costimulator ligand |
| 18 | CRB2 | chr9 | −1.39949 | 0.0000000000 | Crumbs 2, cell polarity complex component |
| 19 | CYP26B1 | chr2 | −1.3987 | 0.0000000793 | Cytochrome P450 family 26 subfamily B member 1 |
| 20 | EIF3CL | chr16 | −1.35891 | 0.0017581100 | Eukaryotic translation initiationfactor 3 subunit C-like |
Figure 7.
Prediction of significant pathways. (A) Heat map of gene expression between Eca-109 cells after 6 Gy of X-ray irradiation and cells treated with a combination of RG108 and irradiation. (B) Significant predicted pathways for the differentially expressed genes.
Discussion
Radiotherapy is an important treatment for cancer and plays a critical role in the management of human EC. However, radioresistance significantly decreases the efficacy of radiotherapy in the treatment of EC (15). Therefore, the efficacy of radiotherapy is limited both by the total dosage of radiation that can be administeredwithout damaging normal tissues and radioresistance of EC. The resistance of malignant tumor cells to anticancer agents remains the major cause of failure in treating patients with EC.
Tumorigenesis and tumor progression are connected with genetic and epigenetic changes and one of these epigenetic factors is DNA methylation (16). Previous studies have revealed that the methylation statuses of specific genes may potentially be molecular markers of thyroid (17), breast (18), prostate (19), gastric (20) and colon carcinomas (21). The reversion of epigenetic mutations by DNMTIs, a promising class of novel drugs, represents an experimental strategy with great promise for epigenetic cancer therapy (22). In fact, two nucleoside analogs, 5-azacytidine and 5-aza-2′-deoxycytidine, have already been approved by the US Food and Drug Administration (USFDA) for the treatment of myelodysplastic syndrome (23).
Epigenetics and DNA methylation have recently become one of the most exciting frontiers for research on the radioresistance of cancer cells. By integrating mRNA and methylation profiles, Luo et al (24) found that decreased expression of the transcription factor Sall2, with a corresponding increase in methylation of the Sall2 gene, was associated with the aggressive phenotypes acquired by EC cells after radiotherapy (24). RG108, the first DNMTi discovered by rational drug design, functions without being integrated into DNA and effectively blocks DNMTs at their active sites. This leads to reactivation of tumor-suppressor genes and demethylation of genomic DNA, while exhibiting little toxicity in human cancer cell lines (12,25). The present study first illustrated the role of RG108 in EC cell proliferation and radiosensitivity.
To date, apoptosis has been the most widely studied mechanism in anticancer therapy (26,27). In the present study, we found that pretreatment with RG108 prior to IR increased apoptosis of EC cells via the overexpression of Bax, accompanied by a reduction of Bcl-2. As demonstrated in a previous study (28), Bcl-2 and Bax are two members of the Bcl-2 family, which is composed of both apoptosis-promoting and anti-apoptotic proteins that exert opposing effects on mitochondria. Increased expression of Bcl-2 (an anti-apoptotic protein) is involved in the development and progression of many tumor types. The present study demonstrated that RG108 increased the radiosensitivity and promoted apoptosis of EC cells both in vitro and in vivo. However, in the in vivo experiments, RG108 was administered at a concentration of 50 mg/kg to achieve effective mouse blood concentrations. Further investigation with other levels of RG108 is needed. The degradation of cyclin B1 has been reported to be a novel phenomenon that is caused by high-dose radiation, leading to G2/M cell-cycle arrest and sensitivity to radiotherapy, although the mechanism of this cell-cycle suspension is still under investigation (29). Zheng et al (30) and Liu et al (31) have reported that treatment with either miRNA-200c or MG132 promoted G2/M arrest in cancer cells, leading to the conclusion that strategies that target G2/M arrest may be effective for promoting radiosensitivity in cancer therapy. These previously mentioned results support the conclusion of the present study that RG108 holds promise as an effective radiosensitizer in EC therapy by increasing G2/M arrest.
Analysis of mRNA expression indicated that RG108 combined with IR treatment increased the expression of EVA1A, which in most cancer tissues has reduced or undetectable expression compared to normal tissues (32,33). The restoration of EVA1A expression induces death in some cancer cell lines through both autophagy and apoptosis, indicating that EVA1A is an effective tumor-suppressing molecule. RG108 combined with radiotherapy increased the expression of EVA1A, which may be one of the reasons why RG108 inhibited tumor growth. The present study also revealed that RG108 modulated the radiosensitivity of Eca-109 cells via a complex mechanism by affecting multiple pathways, including the TGF-β signaling pathway and Epstein-Barr virus infection pathway.
In the present study, we elucidated the effects of RG108 and IR on the growth of EC cells. The results revealed that RG108 inhibited the growth of EC cells by increasing cell apoptosis and G2/M arrest. The results of tumor xenograft experiments revealed that RG108, combined with IR, significantly inhibited the proliferation of Eca-109 cells in vivo. RNA-seq analysis demonstrated that, compared with radiation treatment alone, X-ray irradiation plus RG108 altered the expression of 121 genes that function in multiple pathways, including the TGF-β signaling pathway and Epstein-Barr virus infection pathway. In conclusion, RG108 enhanced radiation-induced apoptosis and increased G2/M arrest in EC, thus showing promise as an effective radiosensitizer in EC therapy. However, the effects of RG108 on tumorigenesis and the value of its application for treating other cancers require further study.
Acknowledgements
This study was supported by the Jiangsu Provincial Special Program of Medical Science (nos. BE2015631and BK20161152), the Medicine and Health and Scientific Development Program of Shandong Province (no. 2015WSB30011), the Scientific Research of Changzhou (nos. QN201503 and CJ20160015), the Scientific Research of Jintan (no. JT2016065) and the Changzhou High Level Medical Talents Training Project (no. 2016CZLJ026).
