A comparison of functional and tractography based networks in cerebral small vessel disease

Andrew J Lawrence a,1,2,3, Daniel J Tozer a,⁎,1, Emmanuel A Stamatakis b, Hugh S Markus a
PMCID: PMC5849860  PMID: 29541576

Abstract

Objective

MRI measures of network integrity may be useful disease markers in cerebral small vessel disease (SVD). We compared the sensitivity and reproducibility of MRI derived structural and functional network measures in healthy controls and SVD subjects.

Methods

Diffusion tractography and resting state fMRI were used to create connectivity matrices from 26 subjects with symptomatic MRI confirmed lacunar stroke and 19 controls. Matrices were constructed at multiple scales based on a multi-resolution cortical atlas and at multiple thresholds for the matrix density. Network parameters were calculated over the multiple resolutions and thresholds. In addition the reproducibility of structural and functional network parameters was determined in a subset of the subjects (15 SVD, 10 controls) who were scanned twice.

Results

Structural networks showed a highly significant loss of network integrity in SVD cases compared to controls, for all network measures. In contrast functional networks showed no difference between SVD and controls. Structural network measures were highly reproducible in both cases and controls, with ICC values consistently over 0.8. In contrast functional network measures showed much poorer reproducibility with ICC values in the range 0.4–0.6 overall, and even lower in SVD cases.

Conclusions

Structural networks identify impaired network integrity, and are highly reproducible, in SVD, supporting their use as markers of SVD disease severity. In contrast, functional networks showed low reproducibility, particularly in SVD cases, and were unable to detect differences between SVD cases and controls with this sample size.

Keywords: Small vessel disease, MRI, Network analysis, Reproducibility diffusion imaging, Functional connectivity

Highlights

  • •

    Diffusion based networks are reproducible in both small vessel disease and controls.

  • •

    Functional connectivity in controls is less reproducible.

  • •

    Functional connectivity in small vessel disease is not reproducible.

  • •

    This limits the ability of whole brain functional networks to distinguish groups.

1. Introduction

Cerebral Small Vessel Disease (SVD) is the most common pathology underlying vascular cognitive decline and dementia (Pantoni, 2010). A number of features can be seen on MRI imaging including lacunar infarcts, T2-white matter hyperintensities, cerebral microbleeds, and more diffuse white matter changes seen on Diffusion Tensor Imaging (DTI) (Schmidt et al., 2010). It has been suggested that damage to white matter tracts leads to disruption of complex networks connecting cortical and sub-cortical regions (Lo et al., 2010; Reijmer et al., 2013). Recently it has become possible to estimate the disruption of such networks using MRI techniques. Structural networks can be constructed via tractography using DTI datasets and these have been shown to be abnormal in patients with SVD, with the extent of disruption correlating with cognitive decline (Lawrence et al., 2014). Mediation analysis has suggested conventional MRI markers of SVD cause cognitive decline via structural network disruption, and recently the degree of network disruption was found to be a significant predicator of future dementia risk (Lawrence et al., 2014). Network integrity can also be assessed using functional connectivity, which utilises resting-state blood oxygen level dependent (BOLD) MRI. Temporal correlations of signal fluctuations in different cortical regions are assessed, and provide an estimate of brain connectivity of these regions (Biswal et al., 1995). Abnormalities of functional connectivity have been reported in SVD, and it has been suggested they may correlate with cognitive impairment (Farràs-Permanyer et al., 2015).

In this study we compared functional and structural connectivity measures in SVD compared with age matched controls, and re-scanned both patients and controls on a further occasion to determine reproducibility of both measures.

2. Methods

2.1. Participants

The study was approved by East of England - Cambridge East research ethics committee (reference: 14/EE/0014). All participants provided written, informed consent. Twenty-six participants with symptomatic SVD were recruited from acute and outpatient stroke services at a single teaching hospital. Inclusion criteria were: 1) history of clinical lacunar stroke syndrome (Bamford et al., 1991) with MRI evidence of an anatomically appropriate lacunar infarct, 2) presence of confluent White Matter Hyperintensities (Fazekas scale ≥ 2) (Fazekas et al., 1987). Exclusion criteria were any cause of stroke other than small vessel disease specifically: 1) evidence of larger subcortical infarctions (>1.5 cm) on MRI as these are often embolic; 2) cortical infarction on MRI; 3) large artery disease - carotid, vertebral or intracranial stenosis >50%; 4) cardioembolic source for embolism (moderate or higher risk according to the Trial of Org 10172 in Acute Stroke Treatment criteria (Adams Jr et al., 1993). In addition patients with any major central nervous system disease other than SVD. In addition 19 stroke-free control subjects were recruited, for these the exclusion criteria were: 1) a medical history of stroke; 2) any major central nervous system disease.

2.2. MRI acquisition

Participants were imaged on a 3 T Verio MRI system (Siemens AG, Erlangen, Germany) employing a 32-channel receive-only head coil. In addition to conventional sequences (1 mm volumetric T1 weighted MPRAGE, 0.9375 × 0.9375 × 2 mm T2 weighted FLAIR, 0.86 × 0.86 × 5 mm T2* weighted gradient echo) for SVD marker identification and brain volume estimation, the following whole brain sequences were acquired:

  • 1.

    Axial single shot T2*-weighted EPI sequence with diffusion-weighted images (b = 1000 s·mm−2) obtained in 63 non-collinear directions on the whole sphere. Eight non-diffusion weighted images (b = 0 s·mm−2) were acquired. TE/TR: 106/11700 ms, GRAPPA: 2, acquisition matrix 128 × 128, FOV: 256 × 256 mm, 63 contiguous 2 mm slices. Acquisition time 14.5 min.

  • 2.

    Gradient recalled echo fieldmap, TR: 688 ms, TE1: 5.19 ms, TE2: 7.65 ms, flip angle: 60°. Geometry, slice order and phase encoding identical to 1.

  • 3.

    Eleven minute axial multi-echo EPI resting state acquisition during which subjects were instructed to attend to a fixation cross. TR: 2430 ms, TE1/2/3: 13/31/48 ms, Flip angle: 90°, GRAPPA: 2, acquisition matrix: 64 × 64, FOV: 240 × 240 mm, 34 slices of 3.8 mm thickness, 10% slice gap. Reconstructed voxel dimensions: 3.75 × 3.75 × 4.18 mm. 269 volumes were acquired.

2.3. Test-retest reproducibility

To investigate the reproducibility of our MRI measures we acquired a second set of MRI data for a subset of participants. Fifteen SVD and 10 control participants were rescanned within 6 months of the original scan.

2.4. MRI processing

2.4.1. Cortical segmentation

Cortical reconstruction and volumetric segmentation of the T1-weighted images was performed using the Freesurfer suite (http://surfer.nmr.mgh.harvard.edu; version 5.3 (Fischl and Dale, 2000; Fischl et al., 2002)). Subcortical structures are segmented and the grey-white matter boundary estimated and refined. The cortical surface is parcellated into 33 regions per hemisphere on the basis of cortical folding patterns (Desikan et al., 2006).

2.4.2. Diffusion and rs-fMRI pre-processing

The diffusion data was pre-processed to produce a diffusion tensor for each voxel using FSL (Jenkinson et al., 2012) and other algorithms implemented in Python, details can be found in Appendix A.

The rs-fMRI data was analysed using the methods proposed by Kundu et al. (2012), this was followed by a pipeline involving steps from SPM (Friston et al., 1995) and CONN (Whitfield-Gabrieli and Nieto-Castanon, 2012) to remove residual effects of noise, movement and the confounding effects of CSF and WM signal, a signal time-course can then be obtained; see Appendix A for more details.

2.5. Network construction

2.5.1. Network nodes definition

Network nodes were defined from the Desikan-Killiany parcellation of cerebral cortex (Desikan et al., 2006). For the structural analysis the nodes are based on the white-grey matter surface, the ROIs were single voxel dilated with 26-connectivity to capture connectivity where streamlines terminated close to grey matter. For functional connectivity the measure of interest is the signal from the cortical region volume itself, so this is the ROI.

To investigate the effects of atlas resolution we employed a hierarchical multiresolution atlas (Daducci et al., 2012). The atlas was created according to Cammoun et al. (2012), the original Desikan-Killiany 68 GM-WM ROIs were partitioned to create a fine resolution atlas of approximately equal area regions (1.5 cm2, n = 998). Then successive merges of neighbouring regions were employed to produce multiple atlas resolutions. Due to the low functional imaging resolution we omit the finest resolution atlas and investigate networks constructed at four atlas resolutions: 68, 114, 219 and 448 nodes.

2.5.2. Network connection definition

For the structural data whole brain deterministic tractography was conducted on the principal directions of the tensors. Streamlines were generated and two cortical regions A, B were connected where one or more streamlines terminating in region A also terminated in region B. The strength of this connection was weighted by the number and length of streamlines between the two regions. Details of the tractography processing and weighting are found in Appendix A.

The corresponding measure for the functional data is simply the correlation coefficient between the signal time-courses over the 269 volumes for any 2 regions.

2.6. Brain network analysis

Network analysis produces a number of measures of network integrity. We focussed on weighted global efficiency (EGlobal), weighted clustering coefficient (Cw) and the total network strength (TNS) as these have previously been shown to be sensitive to structural network differences between SVD cases and controls in (Lawrence et al., 2014). Details on how these parameters are derived is in Appendix A.

2.7. Thresholding of connectivity matrices

There is a correlation coefficient between every pair of nodes in functional analysis and a threshold is required to distinguish connections from statistical noise. In contrast, structural networks are sparse with most pairs of nodes having no connection. Further, for structural data the distribution of connection weights decays exponentially such that the number of streamlines is very low for most connections (Hagmann et al., 2007). Thresholding is also commonly carried out in structural networks to reduce the impact of low-weight false positives resulting from the effects of noise on the tractography algorithm.

In both cases there is no optimal threshold and commonly a range of thresholds are considered. In this study we adopt common thresholding schemes across functional and structural modalities and the different resolutions, for the functional data a fixed edge density is chosen, and the correlation coefficient value varied between subjects to achieve this. For the structural data a fixed edge weight is chosen, and the edge density will differ between subjects. At each resolution for each modality the most restrictive threshold (based on edge density for the rs-fMRI data and edge weight for the diffusion data) was chosen such that 50% of subjects had 95% connectivity of their network. In other words it was possible to access 95% of nodes using the supra-threshold connections. The least restrictive threshold was chosen such that 95% of subjects had 95% connectivity of their network. Twelve thresholds (including these end points) were then equally distributed between the extremes. An additional summary statistic was calculated as the area under the curve (AUC) across all thresholds.

2.8. Statistical analysis

Analyses were conducted in R v3.3.2 (https://www.r-project.org/) using additional functions from the psych package (http://personality-project.org/r/psych, v1.69).

We assess the effects of SVD on the network measures of interest across thresholds and atlas resolutions using ordinary least squares linear regression and Hedge's g, a measure of standardised effect size for the effect of group. These analyses allow the inclusion of confounding variables in addition to the effect of interest (group). The Hedge's g analysis achieves this by attributing the maximum amount of variance to the confounding variables before testing for the effect of group.

Spearman's Rho rank correlation coefficient was calculated to assess whether functional and structural connectivity data was correlated. To reduce dimensionality of the analysis only the AUC data was used in this analysis across each network parameter and atlas.

We assessed test-retest reproducibility for our network measures (EGlobal, Cw, and TNS) using the Intra-class correlation coefficient (ICC), specifically ICC(2,1) according to the definition of Shrout and Fleiss (1979).

For the reproducibility analyses variability in the interval between the scans and variability in the time of day for each scan might act as confounds. These quantities were compared between the SVD and control groups using the Student's unpaired t-test. The Pearson correlation coefficient was used to test the relationship between them and the difference between the network parameters at the two time points.

3. Results

The demographics for the entire group of participants and those who had test/retest scanning are shown in Table 1. The groups were matched for age and gender. The distribution of radiological markers of small vessel disease in the cases and controls is shown in Table 2.

Table 1.

Demographics for the two groups, and for the subgroups who had repeat scanning.

Values given are either mean (SD) or number (%). In the group test column T indicates the t-test was used, X indicates the chi-squared test was used, the number in brackets is the degrees of freedom in the test.

Whole group
 Test-retest subgroup
Controls (n = 19) SVD (n = 26) Group test Controls (n = 10) SVD (n = 15) Group test
Age (years) 67.81 (2.71) 65.86 (11.71) T(28.6) = 0.82, p = 0.4 67.67 (2.92) 65.33 (13.22) T(16) = 0.66, p = 0.5
Male gender 16 (84.21%) 15 (57.69%) X(1) = 2.47, p = 0.12 9 (90.00%) 10 (66.67%) X(1) = 0.74, p = 0.4
Hypercholesterolemia 7 (36.84%) 15 (57.69%) X(1) = 1.17, p = 0.3 5 (50.00%) 8 (53.33%) X(1) = 0.00, p = 1
Diabetes mellitus 1 (5.26%) 3 (11.54%) X(1) = 0.04, p = 0.8 0 (0.00%) 2 (13.33%) X(1) = 0.20, p = 0.7
Hypertension 9 (47.37%) 18 (69.23%) X(1) = 1.37, p = 0.2 3 (30.00%) 11 (73.33%) X(1) = 2.98, p = 0.084
Body mass index (kg/m2) 27.64 (4.19) 27.48 (5.07) T(33.9) = 0.10, p = 0.9 25.30 (2.74) 28.61 (4.14) T(14.4) = −2.07, p = 0.057
Smoking: current 1 (5.26%) 3 (11.54%) X(2) = 2.17, p = 0.3 1 (10.00%) 3 (20.00%) X(2) = 0.60, p = 0.7
Smoking: ex 9 (47.37%) 7 (26.92%) – 3 (30.00%) 5 (33.33%) –
Modified Rankin scale
 0 19 (100.00%) 5 (19.23%) X(3) = 28.77, <0.0001 10 (100.00%) 5 (33.33%) X(3) = 11.11, p = 0.011
 1 0 (0.00%) 9 (34.62%) – 0 (0.00%) 5 (33.33%) –
 2 0 (0.00%) 5 (19.23%) – 0 (0.00%) 1 (6.67%) –
 3 0 (0.00%) 7 (26.92%) – 0 (0.00%) 4 (26.67%) –
Open in a new tab

Table 2.

MRI markers determined from the conventional images, these are Fazekas scale white matter hyperintensity visual rating scale, number of microbleeds, number of lacunes and white matter hyperintensity volume. These indicate the level of damage to the brain of the SVD subjects. The one SVD patient with Fazekas score 0 had multiple lacunar infarcts.

Group Fazekas scale (score, number) No. microbleeds (range, median) No. lacunes (range, median) White matter hyperintensity volume (mean ± SD) ml
SVD 0, 1
1, 0
2, 10
3, 15		 0–84, 0.5 1–17, 6 33 ± 34
Controls 0, 6
1, 7
2, 6
3, 0		 0–1, 0 0–3, 0 3 ± 3
Open in a new tab

For the functional data the range of edge densities associated with the thresholds was 0.142–0.355 for the lowest resolution atlas and 0.04–0.1 for the highest. The equivalent ranges for the structural data were 0.074–0.221 and 0.011–0.036.

3.1. Comparison of structural and network measures between cases and controls

Although it was found that there were no significant differences in any of the demographic variables between groups, gender and hypertension approached difference. It was decided to include these in the linear regression and Hedge's g analysis as potential confounds. For the structural network data there was a significant difference between SVD cases and controls across the vast majority of atlas, threshold and parameter combinations for network parameters EGlobal and TNS, and those non-significant combinations approached significance (maximum p-value 0.083). Cw showed a different pattern where only a few of the atlas/threshold combinations showed a significant difference between the groups. In contrast the functional network analysis showed no difference between groups for any network parameter, threshold or parameter combination as evidenced by the large p-values associated with all thresholds and atlases. Table 3 shows means and p-values for the three network parameters across all atlas resolutions and thresholds. p-Values are uncorrected for multiple comparisons and were selected to provide best and worst case scenarios for each of the parameters and imaging modalities across the range of atlas resolutions and thresholds. The relative ability of the structural and functional networks to differentiate between SVD and controls is illustrated in Fig. 1. This shows the effect size for the difference between SVD cases and controls for the functional and structural data for each of the three network measures.

Table 3.

Network parameters in cases and controls for both structural and functional networks.

The table shows the means (±SD) of the three network parameters used in this study along with the p-value from the regression model network measure ~ gender + hypertension + group. The best (lowest p) and worst (highest p) case scenarios for each parameter are shown. The p-values given are not corrected for multiple comparisons.

Structural networks Atlas Threshold Controls SVD p-Value
E(Global)
Best-case N68 Th8 19.61 (±2.63) 16.87 (±3.03) 0.026
Worst-case N114 Th11 10.29 (±1.24) 8.92 (±1.92) 0.083



Cw
Best-case N68 Th3 15.51 (±1.51) 13.52 (±2.10) 0.021
Worst-case N219 Th11 3.37 (±0.93) 5.71 (±1.41) 0.559



TNS
Best-case N68 Th0 10,743 (±1148) 9261 (±1571) 0.017
Worst-case N114 Th11 10,897 (±1503) 9265 (±1981) 0.064



Functional networks Atlas Threshold Controls SVD p-Value
E(Global)
Best-case N68 Th11 0.342 (±0.030) 0.347 (±0.030) 0.49
Worst-case N114 Th0 0.453 (±0.038) 0.450 (±0.036) 0.988



Cw
Best-case N68 Th9 0.487 (±0.047) 0.470 (±0.045) 0.383
Worst-case N114 Th4 0.502 (±0.052) 0.495 (±0.047) 0.993



TNS
Best-case N114 Th0 10,484 (±849) 10,455 (±763) 0.817
Worst-case N68 Th11 275 (±19) 274 (±18) 0.9
Open in a new tab

Fig. 1.

Fig. 1

Open in a new tab

Differences between SVD and controls for functional and structural network data.

The three columns represent global efficiency (E(Global)), weighted clustering coefficient (Cw) and total network strength (TNS) respectively. Part A shows a row for each of the atlas resolutions and in each graph the x-axis overs the range of thresholds used. B summarises area under the curve data, across all density thresholds for each parameter. Structural data is shown in black and functional data n in grey. The y-axis shows the size of the differences between SVD cases and controls. The functional data has a g close to zero, whereas the value for the structural data is much higher. If sample size were increased the p-values from a group comparison and the confidence intervals shown here may reduce, however the effect size will show little change.

The magnitude of the difference between SVD cases and controls for both global efficiency and TNS showed no resolution or threshold dependence; however for the weighted clustering coefficient there was a slight dependence on threshold for both functional and structural networks as shown in Fig. 1.

3.2. Relationship between functional and structural connectivity parameters

There was no significant correlation between the structural and functional data for the three network parameters across any atlas resolution. Analysis was performed for all subjects and the control and SVD groups separately; the maximum Spearman's Rho across all analyses was 0.31, with an associated minimum p-value (uncorrected) of 0.11, this data is shown in Appendix B, Fig. B1.

3.3. Test/retest data

This was first examined in all subjects. The structural data was highly reproducible with ICC values consistently over 0.8. In contrast the functional data showed much poorer reproducibility with ICC values in the range 0.4–0.6 for most analyses. Fig. 2 shows a comparison of the ICC obtained from the test/retest data for the structural and functional data for the three network parameters (EGlobal, Cw, and TNS) and for the four atlas resolutions. The bottom row in Fig. 2 shows the AUC data and that the ICC was largely independent of the threshold used. Appendix B Table B1a shows the ICC and 95% confidence intervals for the structural data over the range of atlas sizes and network parameters, B1b shows the same for the functional data.

Fig. 2.

Fig. 2

Open in a new tab

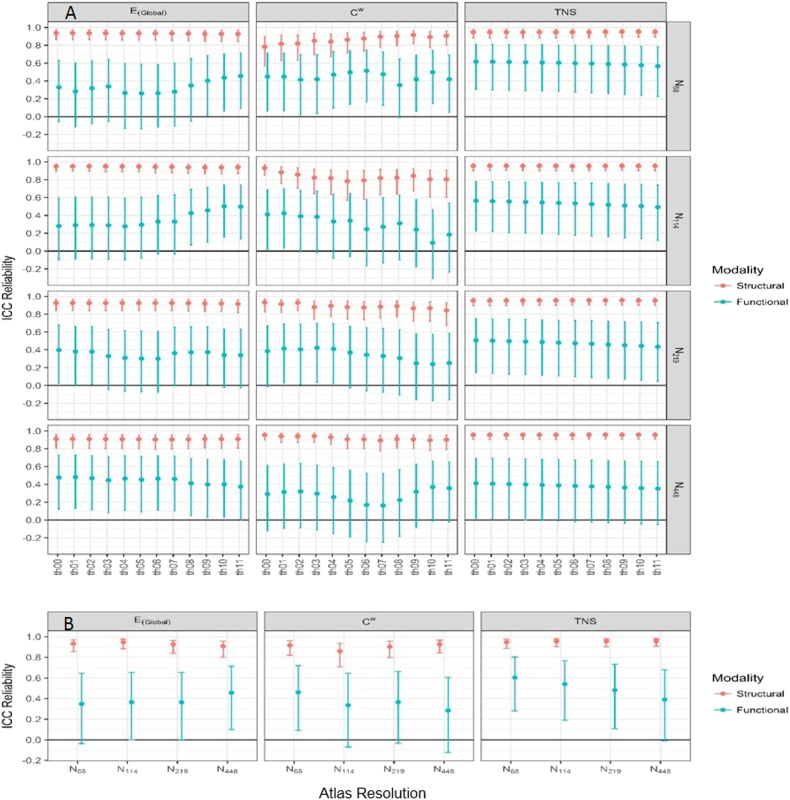

Comparison of reproducibility of structural and functional network measures.

Structural (red) and functional (blue) data at various thresholds and atlas resolutions. The error bars represent the 95% confidence interval. The three columns represent global efficiency (E(Global)), weighted clustering coefficient (Cw) and total network strength (TNS), the four rows in A represent the four atlas scales. B shows the ICC represented across the range of density thresholds as the area under the curve as a function of atlas resolution used. (For interpretation of the references to color in this figure legend, the reader is referred to the web version of this article.)

We then evaluated reproducibility separately in cases and controls (Fig. 3). For the structural network measures reproducibility was similarly high in cases and controls. In contrast for functional networks reproducibility was higher in controls than cases, although even in controls it was much lower than with structural networks. In SVD cases reproducibility of functional networks was very poor, with ICCs tending towards zero. A tabular representation of this data can be found in Appendix B in Tables B2a–d and ICC values for all thresholds and resolutions are shown in Fig. B2.

Fig. 3.

Fig. 3

Open in a new tab

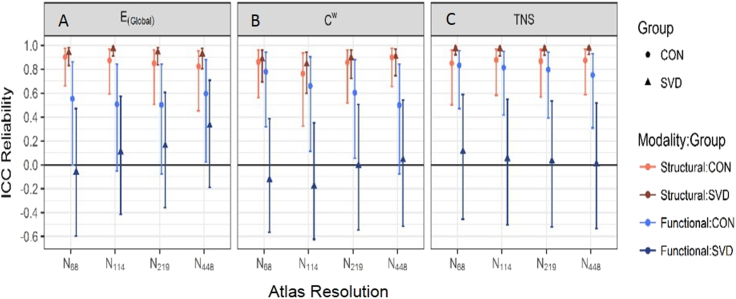

Comparison of reproducibility of structural and functional network measures divided into SVD cases and controls.
